zhongdianwei Technology H10 Bluetooth Speaker User Manual

Shenzhen zhongdianwei Technology Ltd. Bluetooth Speaker

User Manual

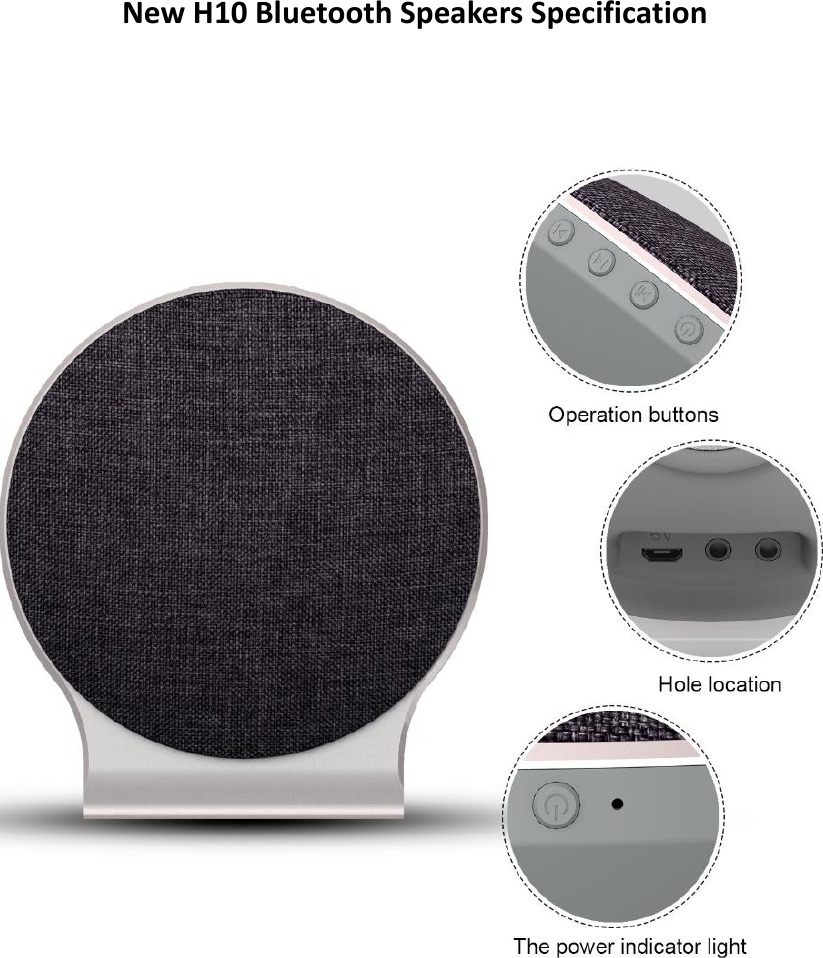

New H10 Bluetooth Speakers Specification

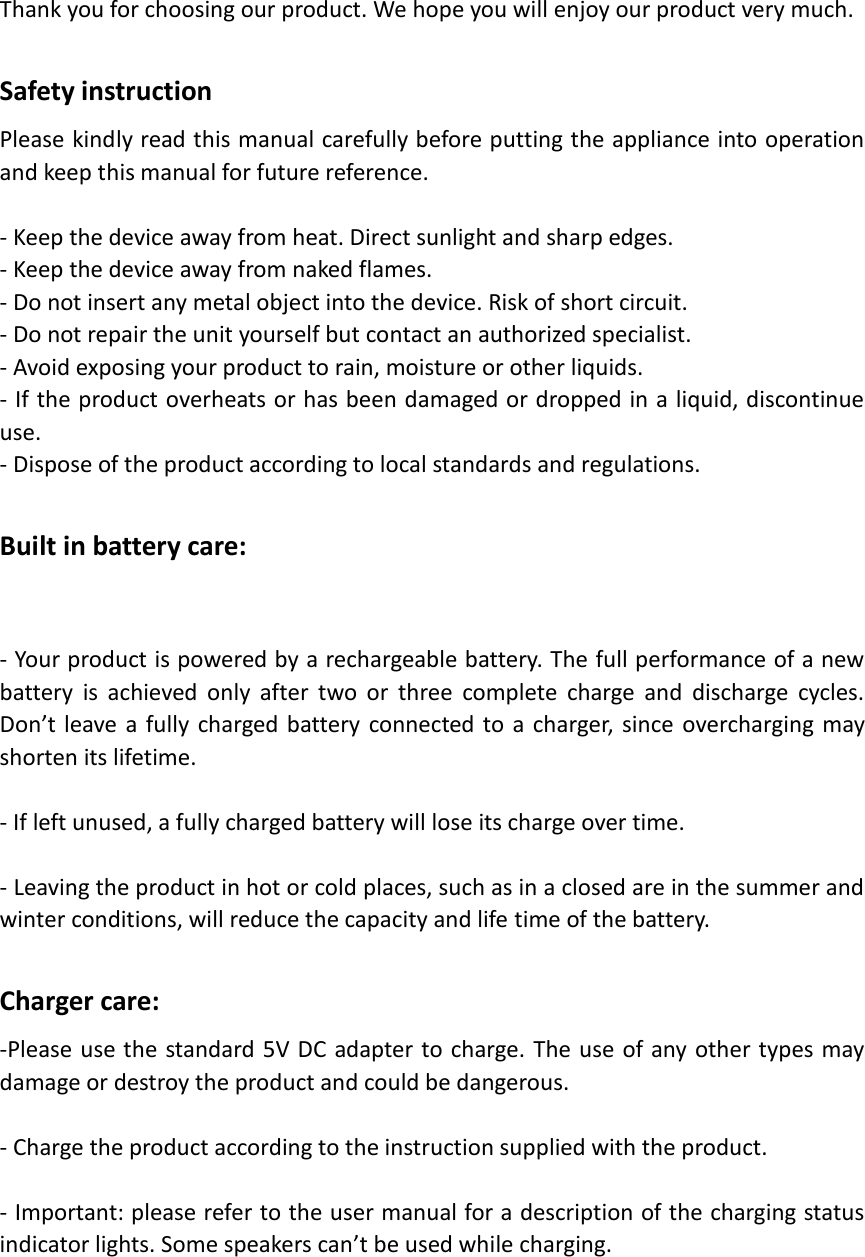

Thank you for choosing our product. We hope you will enjoy our product very much. Safety instruction Please kindly read this manual carefully before putting the appliance into operation and keep this manual for future reference. - Keep the device away from heat. Direct sunlight and sharp edges. - Keep the device away from naked flames. - Do not insert any metal object into the device. Risk of short circuit. - Do not repair the unit yourself but contact an authorized specialist. - Avoid exposing your product to rain, moisture or other liquids. - If the product overheats or has been damaged or dropped in a liquid, discontinue use. - Dispose of the product according to local standards and regulations. Built in battery care: - Your product is powered by a rechargeable battery. The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. Don’t leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. - If left unused, a fully charged battery will lose its charge over time. - Leaving the product in hot or cold places, such as in a closed are in the summer and winter conditions, will reduce the capacity and life time of the battery. Charger care: -Please use the standard 5V DC adapter to charge. The use of any other types may damage or destroy the product and could be dangerous. - Charge the product according to the instruction supplied with the product. - Important: please refer to the user manual for a description of the charging status indicator lights. Some speakers can’t be used while charging.

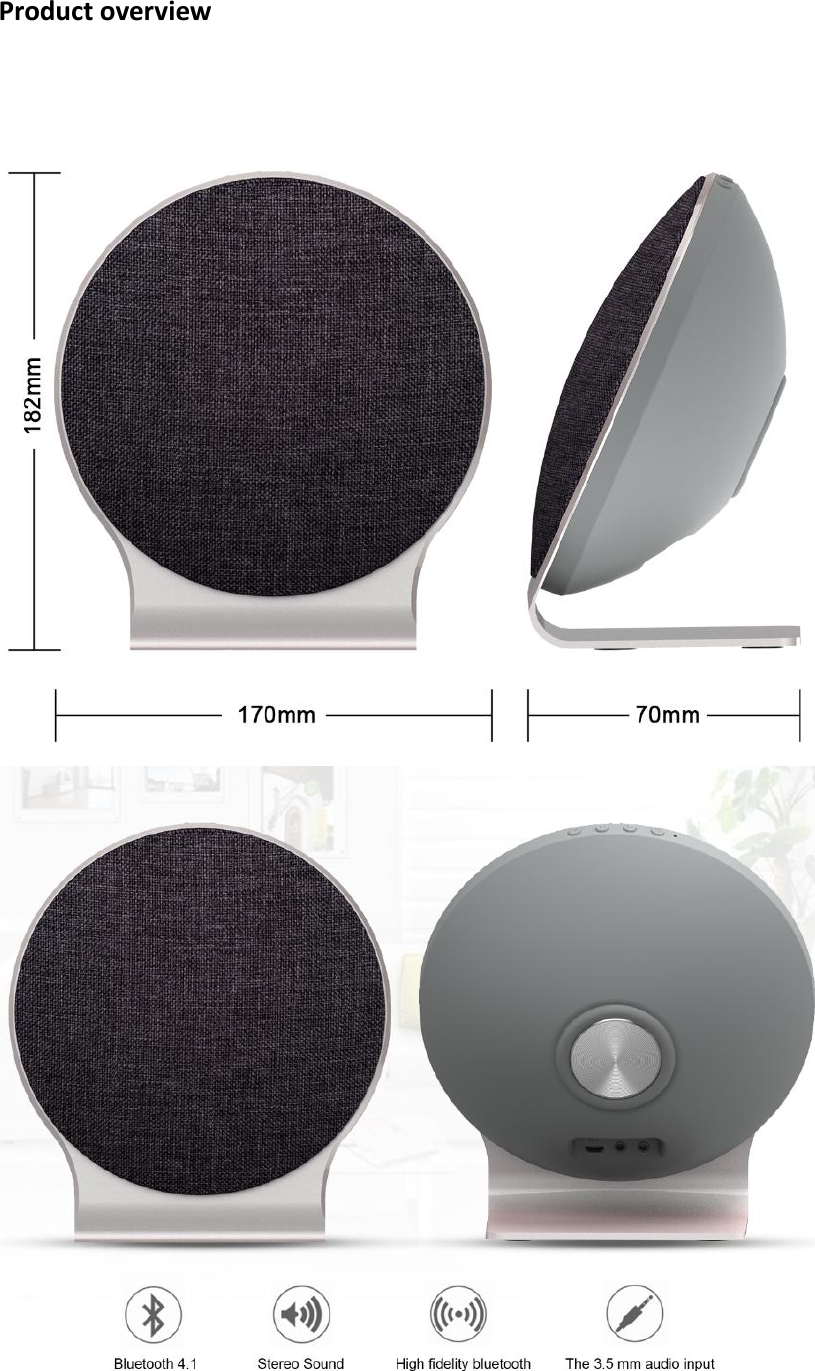

Product overview

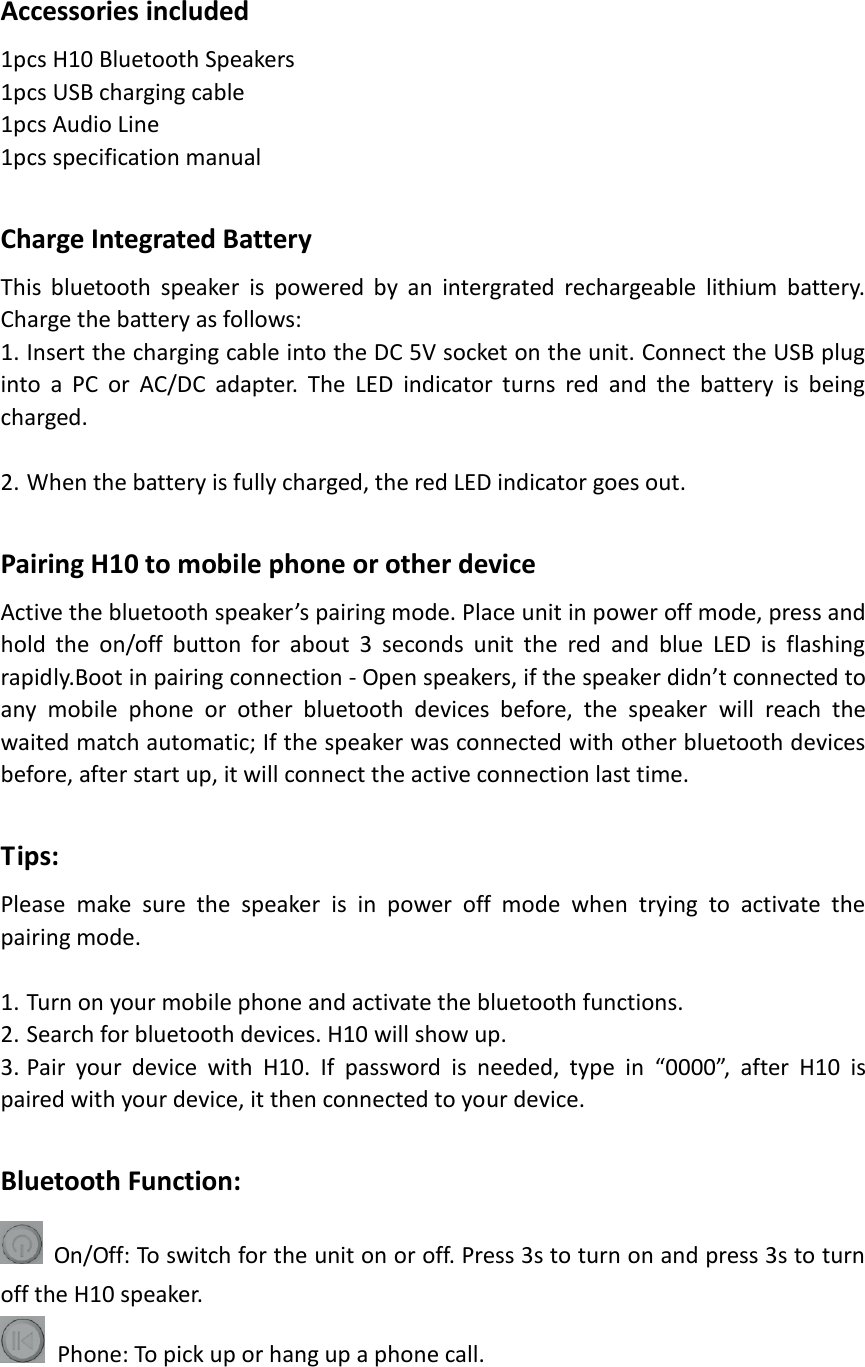

Accessories included 1pcs H10 Bluetooth Speakers 1pcs USB charging cable 1pcs Audio Line 1pcs specification manual Charge Integrated Battery This bluetooth speaker is powered by an intergrated rechargeable lithium battery. Charge the battery as follows: 1. Insert the charging cable into the DC 5V socket on the unit. Connect the USB plug into a PC or AC/DC adapter. The LED indicator turns red and the battery is being charged. 2. When the battery is fully charged, the red LED indicator goes out. Pairing H10 to mobile phone or other device Active the bluetooth speaker’s pairing mode. Place unit in power off mode, press and hold the on/off button for about 3 seconds unit the red and blue LED is flashing rapidly.Boot in pairing connection - Open speakers, if the speaker didn’t connected to any mobile phone or other bluetooth devices before, the speaker will reach the waited match automatic; If the speaker was connected with other bluetooth devices before, after start up, it will connect the active connection last time. Tips: Please make sure the speaker is in power off mode when trying to activate the pairing mode. 1. Turn on your mobile phone and activate the bluetooth functions. 2. Search for bluetooth devices. H10 will show up. 3. Pair your device with H10. If password is needed, type in “0000”, after H10 is paired with your device, it then connected to your device. Bluetooth Function: On/Off: To switch for the unit on or off. Press 3s to turn on and press 3s to turn off the H10 speaker. Phone: To pick up or hang up a phone call.

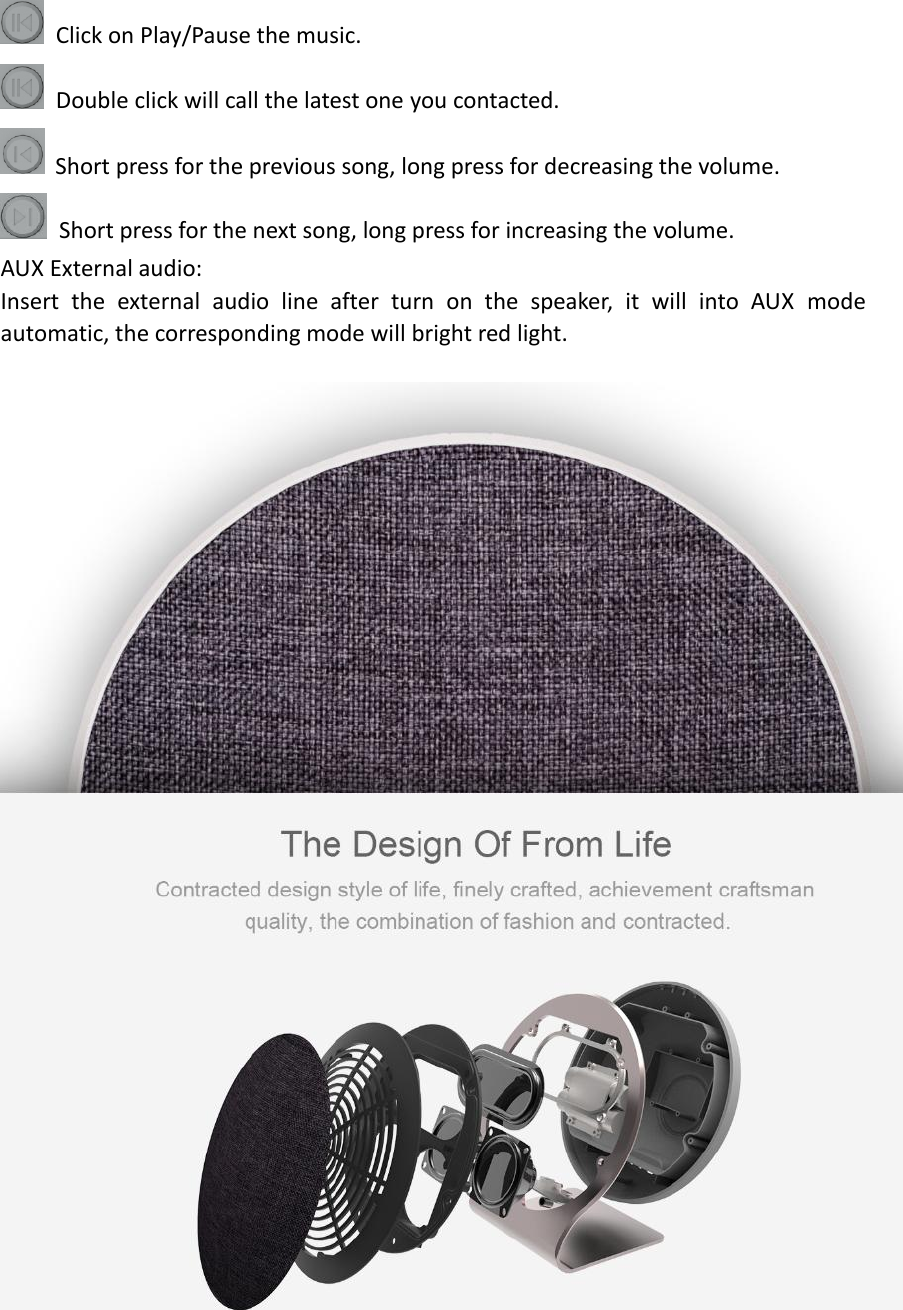

Click on Play/Pause the music. Double click will call the latest one you contacted. Short press for the previous song, long press for decreasing the volume. Short press for the next song, long press for increasing the volume. AUX External audio: Insert the external audio line after turn on the speaker, it will into AUX mode automatic, the corresponding mode will bright red light.

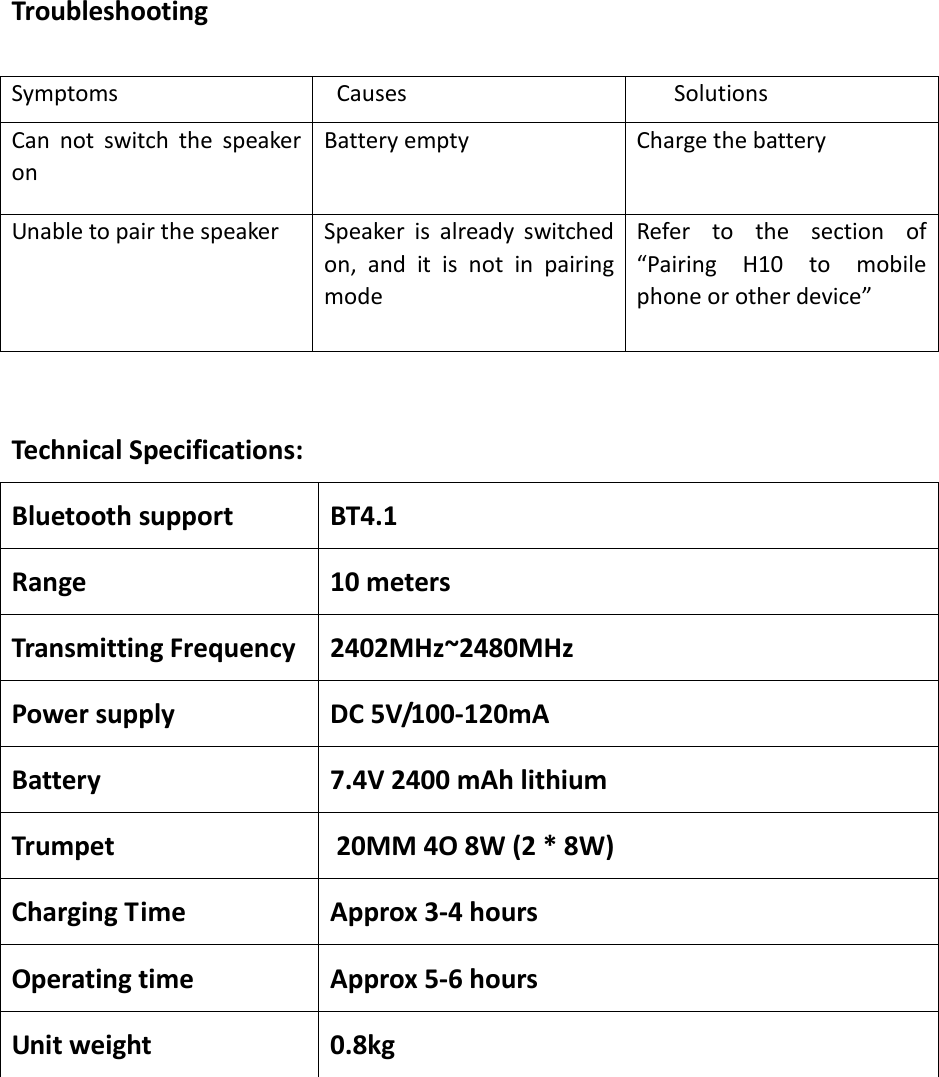

Troubleshooting Symptoms Causes Solutions Can not switch the speaker on Battery empty Charge the battery Unable to pair the speaker Speaker is already switched on, and it is not in pairing mode Refer to the section of “Pairing H10 to mobile phone or other device” Technical Specifications: Bluetooth support BT4.1 Range 10 meters Transmitting Frequency 2402MHz~2480MHz Power supply DC 5V/100-120mA Battery 7.4V 2400 mAh lithium Trumpet 0 20MM 4O 8W (2 * 8W) Charging Time Approx 3-4 hours Operating time Approx 5-6 hours Unit weight 0.8kg
