zhongdianwei Technology H10 Bluetooth Speaker User Manual
Shenzhen zhongdianwei Technology Ltd. Bluetooth Speaker
User Manual
New H10 Bluetooth Speakers Specification
Thank you for choosing our product. We hope you will enjoy our product very much.
Safety instruction
Please kindly read this manual carefully before putting the appliance into operation
and keep this manual for future reference.
- Keep the device away from heat. Direct sunlight and sharp edges.
- Keep the device away from naked flames.
- Do not insert any metal object into the device. Risk of short circuit.
- Do not repair the unit yourself but contact an authorized specialist.
- Avoid exposing your product to rain, moisture or other liquids.
- If the product overheats or has been damaged or dropped in a liquid, discontinue
use.
- Dispose of the product according to local standards and regulations.
Built in battery care:
- Your product is powered by a rechargeable battery. The full performance of a new
battery is achieved only after two or three complete charge and discharge cycles.
Don’t leave a fully charged battery connected to a charger, since overcharging may
shorten its lifetime.
- If left unused, a fully charged battery will lose its charge over time.
- Leaving the product in hot or cold places, such as in a closed are in the summer and
winter conditions, will reduce the capacity and life time of the battery.
Charger care:
-Please use the standard 5V DC adapter to charge. The use of any other types may
damage or destroy the product and could be dangerous.
- Charge the product according to the instruction supplied with the product.
- Important: please refer to the user manual for a description of the charging status
indicator lights. Some speakers can’t be used while charging.

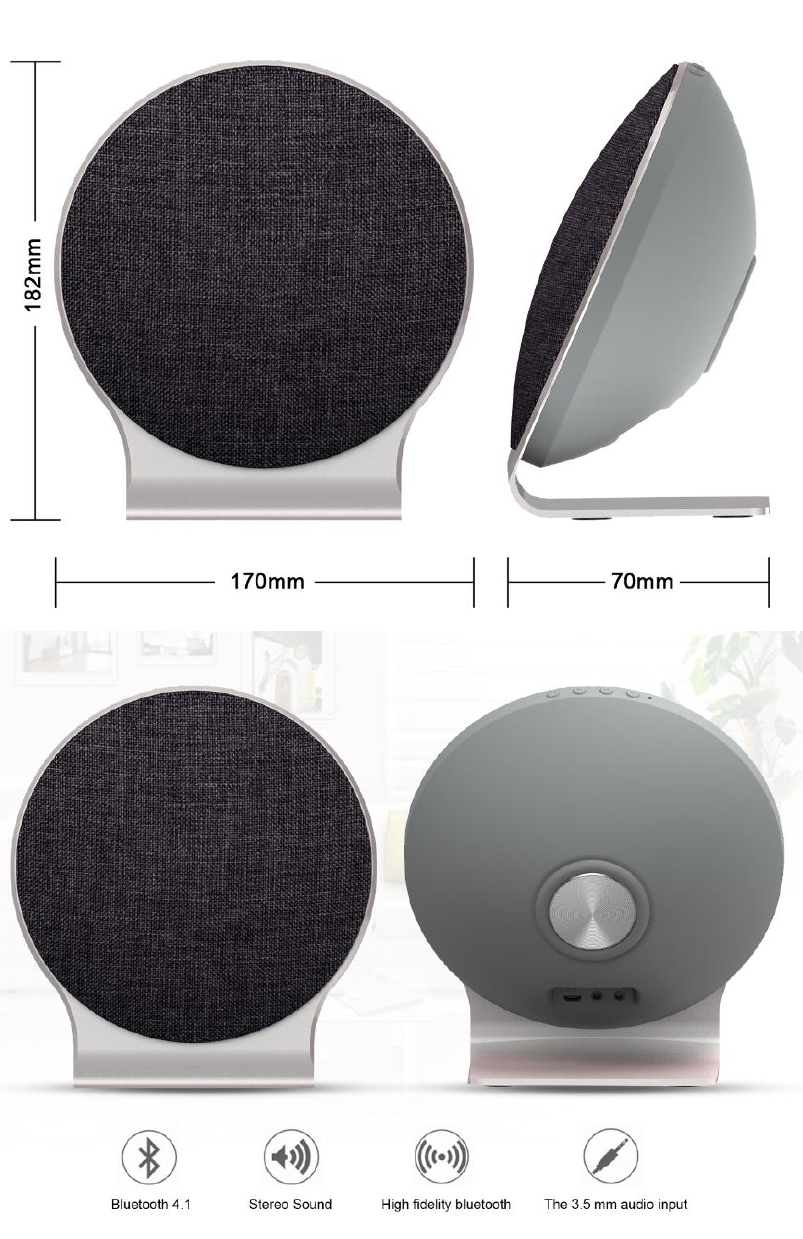

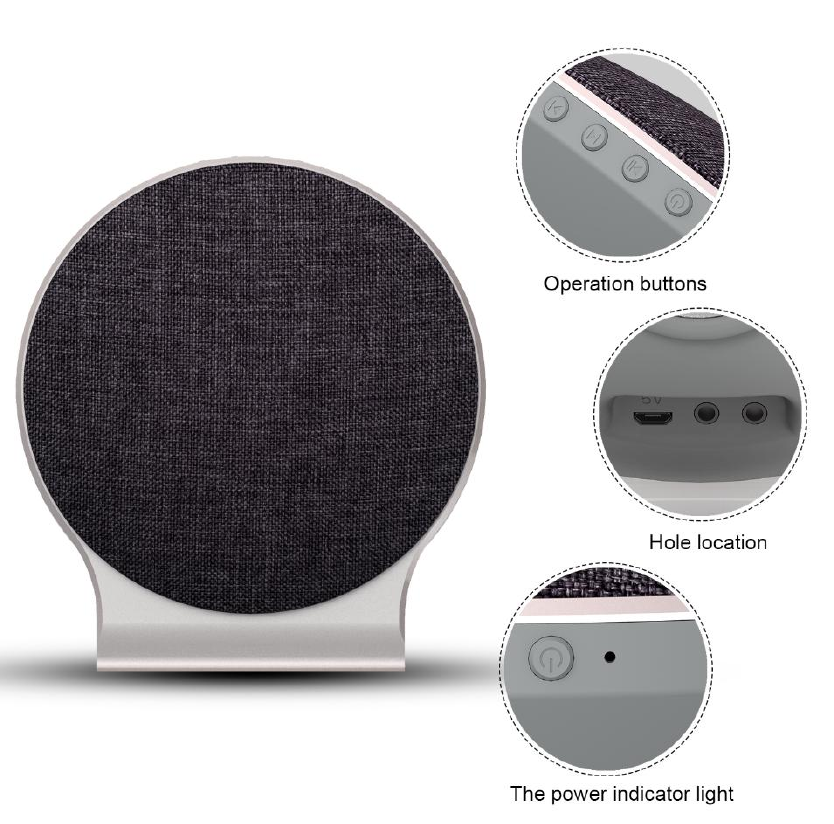

Product overview
Accessories included
1pcs H10 Bluetooth Speakers
1pcs USB charging cable
1pcs Audio Line
1pcs specification manual
Charge Integrated Battery
This bluetooth speaker is powered by an intergrated rechargeable lithium battery.
Charge the battery as follows:
1. Insert the charging cable into the DC 5V socket on the unit. Connect the USB plug
into a PC or AC/DC adapter. The LED indicator turns red and the battery is being
charged.
2. When the battery is fully charged, the red LED indicator goes out.
Pairing H10 to mobile phone or other device
Active the bluetooth speaker’s pairing mode. Place unit in power off mode, press and
hold the on/off button for about 3 seconds unit the red and blue LED is flashing
rapidly.Boot in pairing connection - Open speakers, if the speaker didn’t connected to
any mobile phone or other bluetooth devices before, the speaker will reach the
waited match automatic; If the speaker was connected with other bluetooth devices
before, after start up, it will connect the active connection last time.
Tips:
Please make sure the speaker is in power off mode when trying to activate the
pairing mode.
1. Turn on your mobile phone and activate the bluetooth functions.
2. Search for bluetooth devices. H10 will show up.
3. Pair your device with H10. If password is needed, type in “0000”, after H10 is
paired with your device, it then connected to your device.
Bluetooth Function:
On/Off: To switch for the unit on or off. Press 3s to turn on and press 3s to turn
off the H10 speaker.
Phone: To pick up or hang up a phone call.
Click on Play/Pause the music.
Double click will call the latest one you contacted.
Short press for the previous song, long press for decreasing the volume.
Short press for the next song, long press for increasing the volume.
AUX External audio:
Insert the external audio line after turn on the speaker, it will into AUX mode
automatic, the corresponding mode will bright red light.
Troubleshooting
Symptoms
Causes
Solutions
Can not switch the speaker
on
Battery empty
Charge the battery
Unable to pair the speaker
Speaker is already switched
on, and it is not in pairing
mode
Refer to the section of
“Pairing H10 to mobile
phone or other device”
Technical Specifications:
Bluetooth support
BT4.1
Range
10 meters
Transmitting Frequency
2402MHz~2480MHz
Power supply
DC 5V/100-120mA
Battery
7.4V 2400 mAh lithium
Trumpet
0 20MM 4O 8W (2 * 8W)
Charging Time
Approx 3-4 hours
Operating time
Approx 5-6 hours
Unit weight
0.8kg
