Controlled Entry Distributors REATSHE CARD READER User Manual
Controlled Entry Distributors, Inc. CARD READER Users Manual
Users Manual

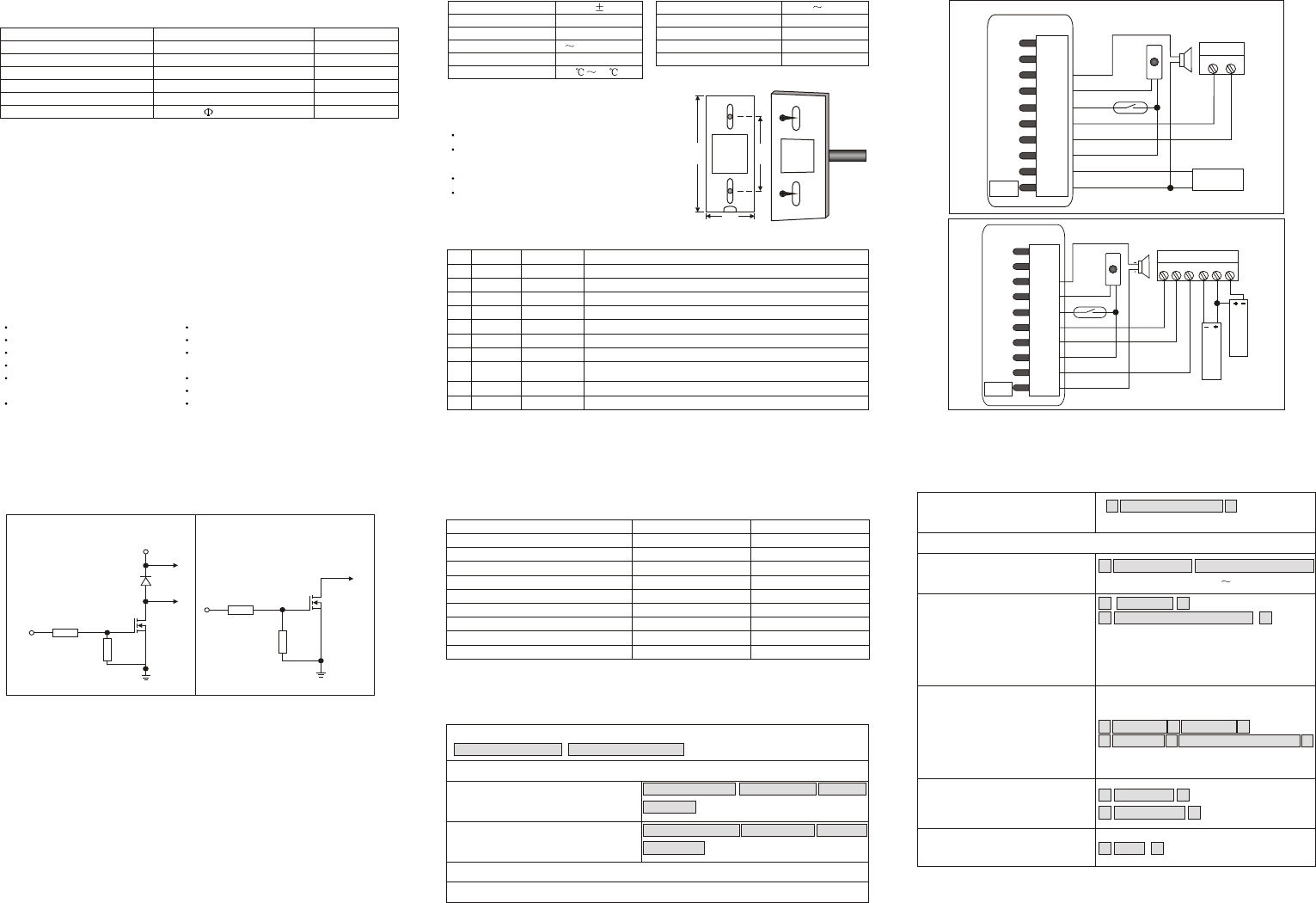

![](/img.php?id=1428674&img=bg1.png)
I/O
ALARM-
R8
R20
Q6
Lock Interface Principle:
By programme setting, I/O
switch between low level and
high level.
4-low level
5-high level
I/O
L-
L+
+12V
R7 R19
Q2
D6
Alarm Interface Principle:
when alarm, the I/O outputs high level.
The W2 is fully waterproof Proximity stand alone access Reader, which uses
advanced microprocessor, equipped with large capacity Flash memory,
supports up to 10 000 cards. It is so easy to add or delete card users by using the
master card, besides, with Infrared remote control programmer, the user can set
the features by themselves, including Alarm, Self-protection, interlock and Anti-
submarine back Function. In additional, with infrared remote control
programmer, you can add or delete cards directly by inputting card number
The W2 not only has the features of low power consumption, automatic selection
of lock ,anti vandal alarm and exit button, but also has the protective functions
against input over voltage and outputs short-circuit. These features make the W2
safe , reliable and easy in operation. It is an idea choice for door access.
2.Description
Standalone Card Reader
Use capacity: 10,000
Card interface: 125KHZ EM card
Remote control for programming
With Manager cards for fast add
and delete users
Wiegand26 input/output
3.Features
4. Specifications
Supply Voltage
Sleeping Current
Card type
Card Reading Distance
Wiegand interface
Temperature
20% 98%
Max20A
Max20A
Two
103*48*23mm
Drill holes on the wall or prepare the cassette.
Wire through the hole, and blanket the unused
cable in case of short circuit.
Fix the back cover firmly on the cassette or the wall.
Attach the reader to the back cover.
5. Installation
6. Wiring
No
1
2
3
4
5
6
7
8
9
10
Color
Yellow
Blue
Brown
Purple
Grey
Red
Black
White
Green
Orange
Function
D0
D1
ALARM+
OPEN
D_IN
12V
GND
VSS
L-
L+/Alarm+
Description
Wiegand output, input signal wire D0
Wiegand output, input signal wire D1
connecting to the negative pole of the alarm equipment
To connect to one part of Exit Button
Door Contact input
(+) 12Vdc Positive Regulated Power Input
(-) Negative Regulated Power Input
the negative pole of the controller, connect to the other
part of Exit button and door contact
Connect to the negative pole of the Lock
Connect to the positive pole of the lock and alarm equipment
Connection Diagram
7. Interface Circuits
Figure 1
Note: The above diagrams show the output interface circuits.
Do not power on until all wiring has been completed
Power off, use the supplied Contact Pin to short out the 2P socket on the
mainboard, then power on, if successful, the beeper will beep twice, the LED
shines in orange, remove the Short Pin, then read any two EM cards, after that
the LED turns in red, means reset to factory default setting successfully. Of the
two EM cards read, the first one is Manager add card, the second one is
Manager delete card.
Remarks: Reset to factory default setting, the users' information enrolled is still
retained. When reset to Factory setting, the two Manager cards must be re-enrolled.
8.To Reset to Factory Default and Manager Card setting
9. Sound and Light indication
Operation status
Reset to factory default setting
Sleeping mode
Operation successful
Enter into programming mode
Enter into setting
Exist from programming mode
Operation failed
Open the door
Alarm
LED
Orange
Red shines slow
Red shines
Orange shines
Red shines slow
Green shines
Red shines fast
Buzzer
Two short ring
Short ring
Short ring
Short ring
Short ring
Three short ring
Short ring
Alarm
10. W2 Detailed Programming Guide
10.1User settings
There are 2 ways to add and delete users:
A - By manager card; B - By remote control
A - By Manager card(The most convenient way)
To Delete User by Manager Card
B- By Remote control
Enter into the programming mode firstly
To Enter the programming mode
Manager add card Read user card Manager
add card Cards can be added continuously.
Manager delete card Read user card Manager
Delete ca rd Cards can be deleted continuously.
* Manager Password #
888888 is the default factory master code
To Add user by Manager Card
Remarks: All the steps below must be done after enter into programming mode
To change the master code 0 New Password # Repeat New Password #
The master code must be 6 8 digit number.
To add a card user (Method 1)
This is the faster way to enter
cards using ID number auto
generation. The card can be
either be presented or input the
8 digit card number from the
card can be manually entered
1 Read Card # or
1 Input Card number (8 digit) #
Card can be added continuously without
exiting programming mode.
The card number is the last 8 digits of the
number printing on the card.
DC12V/3A
+
-
-
+Lock
-
+
Exit button
Alarm
door detecting switch
Common Power Supply
W2
D0
D1
ALARM-
OPEN
D_IN
+12V
GND
VSS
L-
L+
ALARM+
J1
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
D0
ALARM-
OPEN
D_IN
+12V
GND
VSS
L+
ALARM+
J1
DC12V/3A
+-COM
NC NO
PUSH
D1
L-
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
door detecting switch
Exit button
Alarm
Fail-securelock
Fail-safe lock
Special Power Supply
W2 - Waterproof
Standalone Proximity Reader
Shielded
cables
C
D
61mm
95.5mm
40mm
A
B
To add a card user(Method 2)
This is the alternative way to
enter cards using User ID
Allocation. In this method a User
ID is allocated to a card. Only
one user ID can be allocated to a
single card.
1 ID number # Read Card # or
1 ID number # the Card number (8 digits) #
To delete a card user by card Number.
Note users can be deleted continuously
without exiting programming mode
2 Read Card # or
2 Card number #
To delete ALL users.
(Note: This option will delete all users
but Manager Cards. Be careful with use) 2 0000 #
.4. .5. .6.
Can be used as salve reader
2 pcsW2 can be interconnected/ interlocked
Can be used as controller by connection
slave reader
Anti-submarine back Function
Alarm signal output, Door open detection
Full of 10000 users, recognizing speed <15ms.
1. Packing List
Name
Standalone Proximity Reader
Infrared remote control
Manager card
Short Pin
User manual
Self Tapping Screws
Specification
W2
One for add, one for delete
Used for factory default setting
W2
3.5*27mm
Quantity
1
1
2
1
1
4/2
Humidity
Lock output load
Alarm output load
Manager card
Dimensions
DC12V 10%
<15mA
125KHZ EM card
5 10cm
Wiegand 26
-20 60
.1. .2. .3.

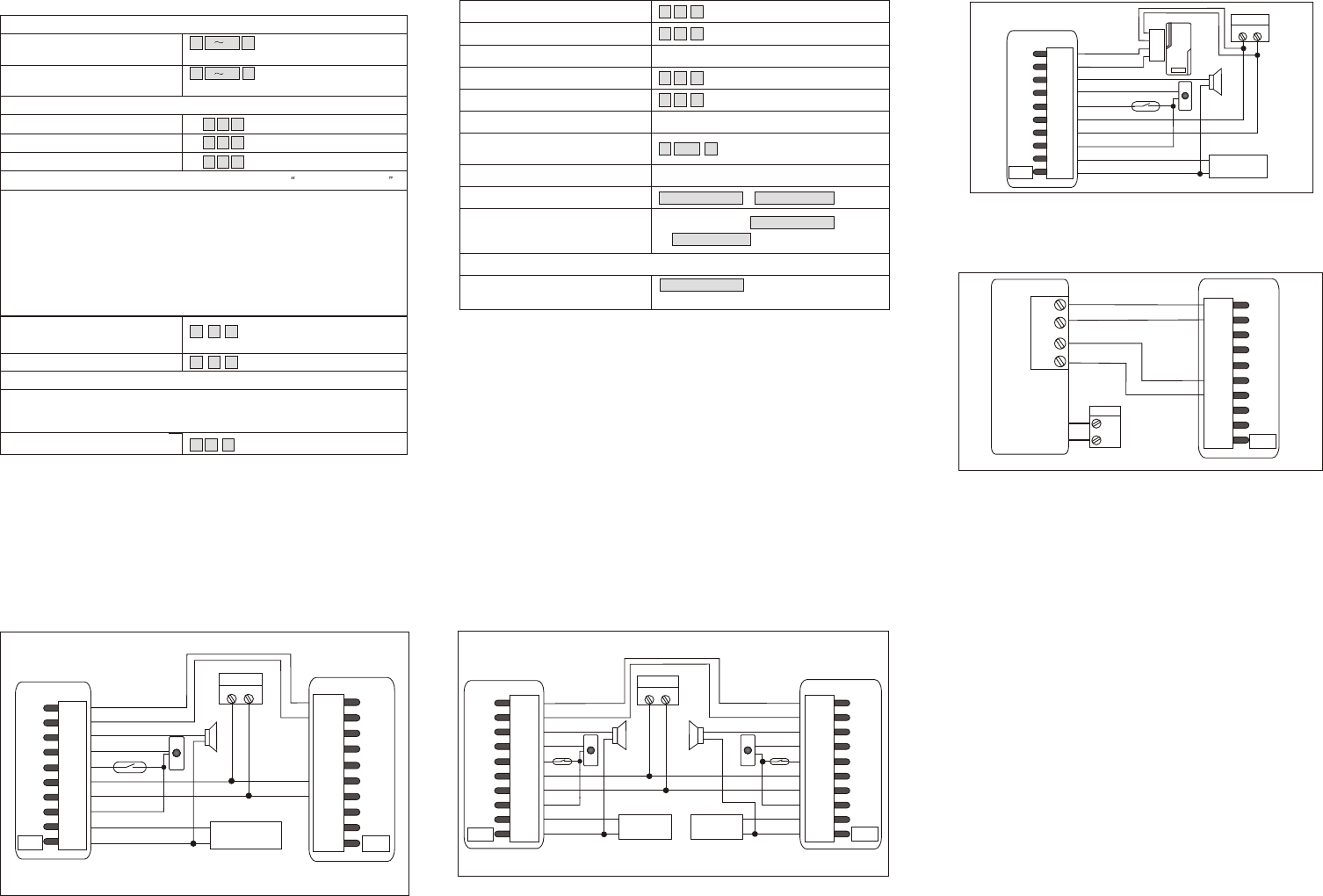

![](/img.php?id=1428674&img=bg2.png)
10.2 Door setting
Fail secure
(Unlocked when power on) 4 0 99 #
0-99 is to set the door relay time 0-99 seconds.
Fail safe (unlocked when power is off)
This is the factory default, 5 seconds:
5 0 99 #
0-99 is to set the door relay time 0-99 seconds.
Door open detection
Door Open Too Long (DOTL) warning. When used with an optional magnetic
contact or built-in magnetic contact of the lock, if the door is opened normally, but
not closed after 1 minute, the inside buzzer will beep automatically to remind
people to close the door and continue for 1 minute before switching off
automatically.
Door Forced Open warning. When used with an optional magnetic contact or
built in magnetic contact of the lock, if the door is forced open, or if the door is
opened after 120 seconds of the electro-mechanical lock not closed properly,
the inside buzzer and alarm output will both operate.
To disable door open detection.
(Factory default) 6 0 #
Security Mode Setting
Read er Lockout & Alarm Output options. If there are 10 invalid cards in a 10
minute period, the Reader will lockout for 10 minutes or the alarm will
operate for 10 minutes, depending on the option selected below.
Normal status (No lockout or alarm) 7 0 # (Factory default setting)
Reader Lockout
To Unlock the door
7 1 #
Alarm Output 7 2 #
Door Interlock.
Door interlock disabled
Door interlock enabled
8 0 #
8 1 #
Alarm output time
To set the alarm output time (0-3
minutes) Factory default is 1 minute 9 0~3 #
To remove the alarm
To remove the door forced open warning Read valid card or Master Code #
To remove the door open too long
warning
Close the door or Read valid card
or Master Code #
Read user card (Note that Manager Card can't
be used to unlock the door.)
Attach: Advanced Application
1. W2 operating as a Controller
In this mode the W2 supports a Wiegand 26 bit input so an external Wiegand device
with a 26 bit output can be connected to the Wiegand input terminals on the W2.
Either an ID card reader (125 KHZ) or an IC card reader (13.56MHZ) can be
connected to the W2. Cards are required to be added at the external reader, except
where an external EM reader is used, in this case cards can be added at either
reader. See figure 1
figure 1
D0
D1
+12V
GND
-
+
Lock
-
+
Em card
HID card
Ic card
DC12V/3A
+-
Power
D0
D1
ALARM-
OPEN
D_IN
+12V
GND
VSS
L-
L+
ALARM+
J1
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
wiegand reader
reader plug
W2 controller
Alarm
Exit button
door detecting switch
2. W2 operating as a Wiegand Output Reader
In this mode the W2 supports a Wiegand 26 bit output so the Wiegand data lines can
be connected to any controller which supports a Wiegand 26 bit input. See figure 2
ALARM+
J1
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
D0
D1
W2
+
-
Powerful supply
Controller with wiegand 26 input
+12V
GND
Controller
Green D0
D1
ALARM-
OPEN
D_IN
+12V
GND
VSS
L-
L+
figure 2
3. Two W2 units interconnected for a single door
In this mode two W2 units are used for a single door, one for entry and the other for exit.
Either device acts as the controller and reader at the same time. Users can be
enrolled oneither of the devices. In this mode the user capacity for one door can
be up to 20000. The setting of the two W2 units must be the same including the
master code. See figure 3
Exit button
-
+Lock
door detecting switch
-
+
Alarm
DC12V/3A
+
-
Power
indoor outdoor
D0
D1
ALARM-
OPEN
D_IN
+12V
GND
VSS
L-
L+
ALARM+
J1
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
D0
D1
ALARM-
OPEN
D_IN
+12V
GND
VSS
L-
L+
ALARM+
J1
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
W2 controller 2W2 controller 1
figure 3
4. Two W2 units interconnected & interlocked for 2 doors
In this mode two W2 units are used for a two doors which are then interconnected
and interlocked. In this mode the doors can be interlocked so that when door 1 is
open, door 2 cannot be opened, and vise versa. The interlocked function is mainly
used in banks, prisons, and other places where a higher level of security is required.
See figure 4
door detecting switch 1
-
-
+
+
Lock 1
-
+
-
+
DC12V/3A
+-
Power
W2 controller 2
Door 2
Alarm 2
Alarm 1
Lock 2
Exit button 1
door detecting switch 2
Exit button 2
Door 1
W2 controller 1
D0
D1
ALARM-
OPEN
D_IN
+12V
GND
VSS
L-
L+
ALARM+
J1
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
D0
D1
ALARM-
OPEN
D_IN
+12V
GND
VSS
L-
L+
ALARM+
J1
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
figure 4
5. Anti-submarine function for single door (3 1 #)
The connection diagram is as figure 1. Install one Wiegand reader (or a W2
without user information as reader) outside the door, connecting to one W2-
Controller inside the door, which acts as the Anti-submarine Master unit. Of the
two devices, they build up an anti-submarine system for single door. The
operation and function is as below:
5.1 Set the needed function and enroll the User Cards on the inside W2 - Anti-
submarine Master unit.
5.2 With the valid user card, the user can only enter the door from the outside
reader, and exit from the inside W2 Controller. On the other hand, without
entering record from the reader, the user can't exit from the controller inside,
also, the user can't enter in and exit twice continuously.
6. Anti-submarine function for 2 doors
The connection diagram is as Figure 4. Door 1 with one W2, and Door 2 with
one W2, set one W2 on Door 1 as the Anti-submarine Auxiliary unit (3 2 #), and
set the other W2 on Door 2 as the Anti-submarine Master unit(3 1 #). They build
up a two doors anti-submarine system, which is normally used for parking
lot......etc
The operation and function is as below:
6.1 Set the needed function and enroll the User Cards from W2 - Anti-submarine
Master unit on Door 2.
6.2 With the valid user card, the user can only enter in from Door 1, and exit from
Door 2. On the other hand, without entering record from the Auxiliary unit, the
user can't exit from the Master unit or Auxiliary unit , also, the user can't enter in
and exit twice continuously.
.9. .10. .11.
.6. .7. .8.
Lock Power Setting
Anti-submarine Settings
Anti-submarine Disabled
Anti-submarine Master Mode:
Antisubmarine Auxiliary Mode
(Note: the detailed wiring diagram and illustrate,please refer to the Advanced application ) .
(Factory default)
3 0 #
3 1 #
3 2 #
To enable door open detection 6 1 #
To Unlock the door
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
