Users Manual
Product Specification
CL-120
IEEE802.11 a/n 3T3R PCIe
Module
Version:
1.0
Date: OCT,15,2014
![](/img.php?id=2461476&img=bg2.png)
Release History
DATE REV Description of
Change
2014/10/15 1.0 Initial
release
![](/img.php?id=2461476&img=bg3.png)
CL-120
IEEE802.11a/n 3T3R PCIe Module
1. Introduction
CL-120 is an integrated the Celeno CLR260 single-chip 5GHz IEEE802.11a/n
3T3R
MAC/Baseband/Radio
with pcie interface. CL-120 fully complies with
IEEE802.11n
and
IEEE802.11a/n feature rich wireless connectivity at high standards, delivers
reliable,
cost-effective,
throughput from an extended
distance.
2. Features
Interoperable with IEEE802.11a/n
W
L
A
N
.
Reverse direction grant data flow and frame
aggregation.
Support 20MHz and 40MHZ Bandwidth PHY Rate max 450Mbps
operations.
Wireless multimedia enhancements quality of service support
(QoS).
Legacy and high throughput
modes.
Multiple BSSID
support.
WEP 64/128, WPA, WPA2, TKIP, and AES software
encryption.
PCIe Interface
compliant.
Low power with advanced power
management.
Operating systems – Windows XP 32/64,Vista 32/64, Linux,
Macintosh.
3. General Specifications
Product Specification
Model Name CL-120
WLAN Standard IEEE 802.11a
/
n, 3T3R
Host interface PCIe compatible Major Chipset Celeno CLR260
Dimensions
Minimum Typical Maximum
Unit
Leng
t
h
51
mm
Width 31
mm
Antenna Connector 3 Path ipex connector
Ope
r
ating
Condition
Minimum T
y
p
ical Maximum
Unit
Voltage DC 3.3 3.3 5
V
Tempe
r
ature -10 70
°C
Sto
r
age tempe
r
ature -20 70
°C
Humidit
y
Non-Ope
r
ating 580
%
![](/img.php?id=2461476&img=bg4.png)
Electrical
Specification
Frequency Range
5180 - 5825
Modulation
BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, and
CCK
Data
Ra
te
802.11b CCK Mode xx
Mbps
802.11a OFDM Mode 54, 48, 36, 24, 18, 12, 9, 6
Mbps
802.11n HT20 Mode GI 800ns 6.5 ~195
Mbps MCS 0 ~ MCS 23
802.11n HT20 Mode GI 400ns 7.2 ~216
Mbps
MCS 0 ~ MCS 23
802.11n HT40 Mode GI 800ns 13.5 ~ 405
Mbps
MCS 0 ~ MCS 23
802.11n HT40 Mode GI 400ns 15 ~ 450
Mbps MCS 0 ~ MCS 23
Output Tx power
5 GHz LOW Band 16.5dbm +/-1.5dbm
5 GHz Hi Band 17dbm +/-1.5dbm
Rx Sensitivity
5 GHz a/n mcs7 < -68dbm
Security
WEP 64/128, WPA, WPA2, TKIP, and AES software encryption
Operating System
Compatibility
Windows XP
32/64
Windows Vista
32/64
Windows 7
32/64
Linux Ubuntu

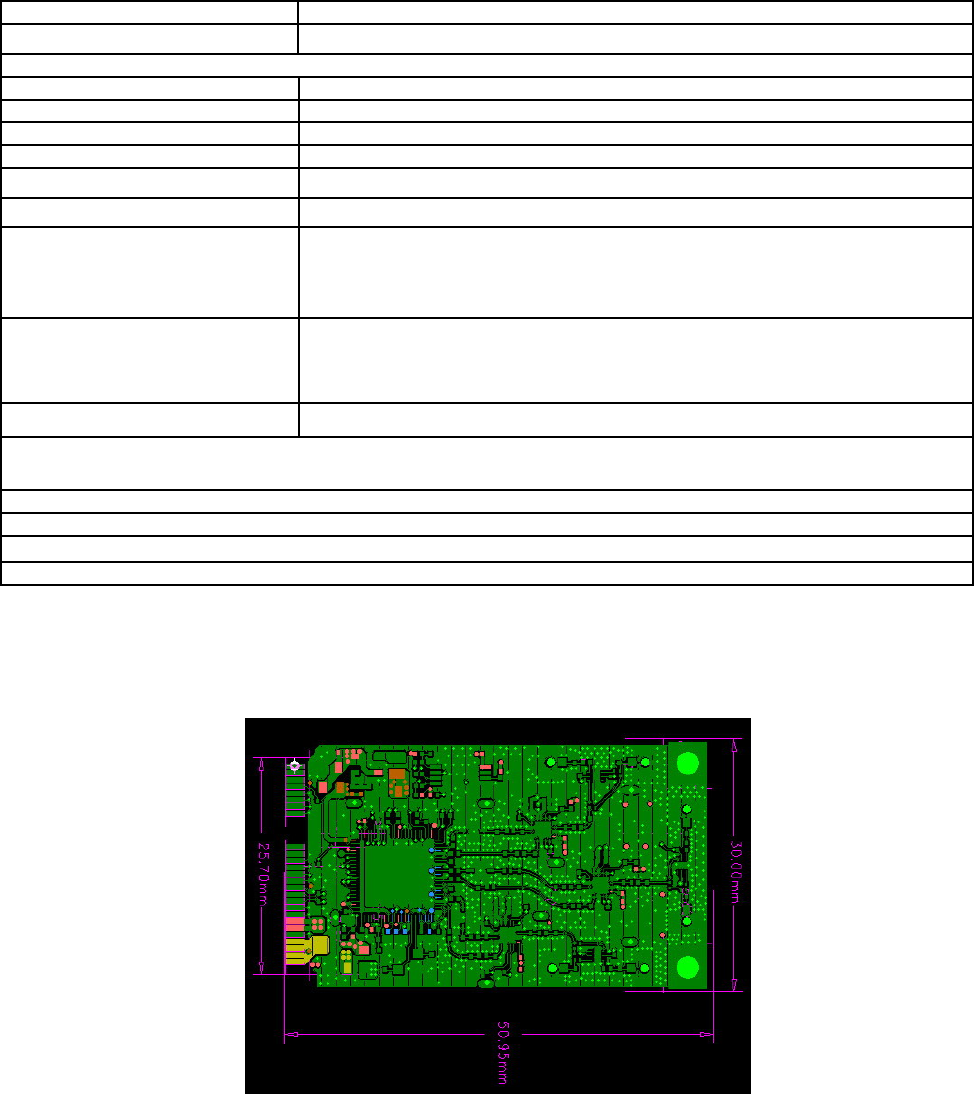

4. Mechanical
Dimensions
5. CL-120 PCIe module installation
(1)Checkmainboardqualityandmakesuretheconnectorifsolderedright.
(2)GettheCL‐120,andplugintotheconnector.
(3)Screwtofixthemodule
(4)Assembletheantenna
(5)ConnecttoaWirelessNetworkviaaWirelessNetworkRouterorAccessPoint
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This module is intended for OEM integrator.
The OEM integrator is still responsible for the FCC compliance requirement of the end product,
which integrates this module.
Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment
authorizations (e.g. Verification , Doc) of the host device to be addressed by the
integrator/manufacturer.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user has to
be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment
can be satisfied. The end user has to also be informed that any changes or modifications not
expressly approved by the manufacturer could void the user's authority to operate this equipment.
The FCC part 15.19 statement below has to also be available in the manual: This device
complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
S4A50-0100-CL-01".
