STVG569BT
![](/img.php?id=2971742&img=bg2.png)
WARNINGS
E1
ENGLISH
E1
WARNING:TO REDUCE THE RISK OF
FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION: TO PREVENT THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
OR BACK. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol is intended to alert you
to the presence of uninsulated
dangerous voltage within the
product's enclosure that might be of
sufficient magnitude to constitute a
risk of electric shock. Do not open
the product's case.
This symbol is intended to inform
you that important operating and
maintenance instructions are
included in the literature
accompanying this product.
DRIPPING WARNING
VENTILATION WARNING
Warning:
SAFETY CERTIFICATION
The product shall not be exposed to dripping or
splashing and that no objects filled with liquids, such
as vases, shall be placed on the product.
The normal ventilation of the product shall not be
impeded for intended use.
Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
This device is made and tested to meet safety
standards of the FCC, requirements and
compliance with safety performance of the U.S.
Department of Health and Human Services, and
also with FDA Radiation Performance Standards
21 CFR Subchapter J.
Main plug is used as disconnect device and it
should remain readily operable during intended
use. In order to disconnect the apparatus from the
mains completely, the main plug should be
disconnected from the main socket outlet
completely.
Warnings:
!
!
!

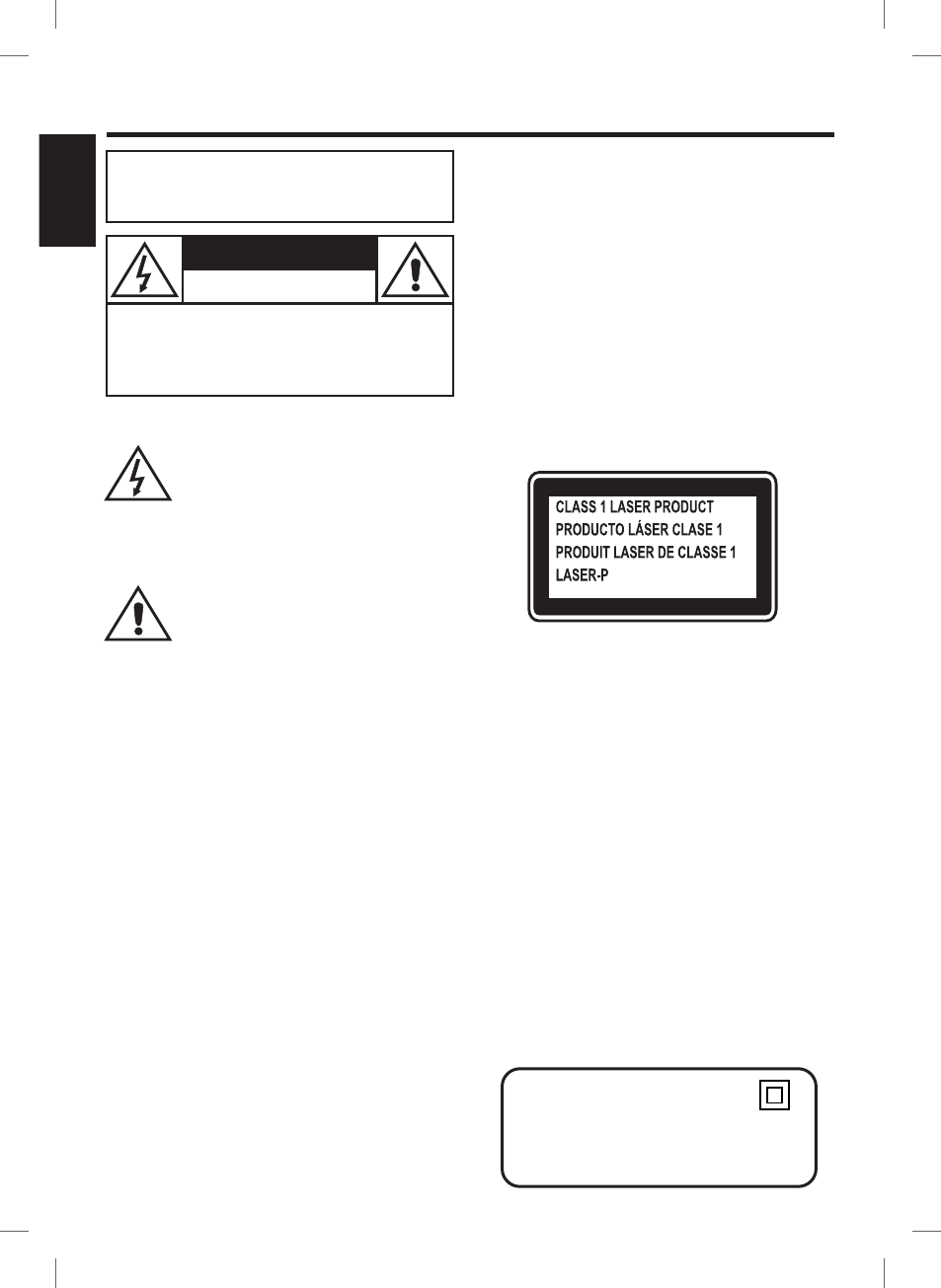

This CD player employs a laser light beam.
Only a qualified service person should
remove the cover or attempt to service this
device, due to possible eye injury.
The use of controls, adjustments, or
procedures other than those specified
herein might result in hazardous radiation
exposure.
This compact disc player is classified as a
CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT label is
located on the rear panel.
The apparatus shall be used in an open
area.
CAUTION
The CAUTION marking is located on the rear panel.
Class II equipment symbol
This symbol indicates that the unit
has a double insulation system.
CAUTION!
Invisible laser radiation when open and inter locks
defeated.Avoid exposure to beam.
FCC IMPORTANT
Since CD circuitry may cause interference to other
radio tuners nearby, switch this unit off when not
in use or move it away from the affected radio
tuner.
This device complies with part 15 of the FCC rules,
operation is subject to the following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference
that may cause undesired operation.
RF Exposure Statement
To maintain compliance with FCC’s RF Exposure
guidelines, This equipment should be installed
and operated with minimum distance between
20cm the radiator your body: Use only the
supplied antenna.
CAN ICES-3(B)/NMB-3(B)
![](/img.php?id=2971742&img=bg3.png)
ENGLISH
E2
WARNINGS
NOTE This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as:
set out in the Radio Interference Regulations of Industry Canada These limits are designed to provide reasonable.
protection against harmful interference in a residential installation This equipment generates uses and can radiate.,
radio frequency energy and if not installed and used in accordance with the instructions may cause harmful,,
interference to radio communications However there is no guarantee that interference will not occur in a particular.,
installation If this equipment does cause harmful interference to radio or television which can be determined by.(
turning the equipment off the user is encouraged to try to correct the interference by one or more of the following),
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio TV technician for help/.
IMPORTANT SAFETY INSTRUCTIONS
!
!
!
!
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
![](/img.php?id=2971742&img=bg4.png)

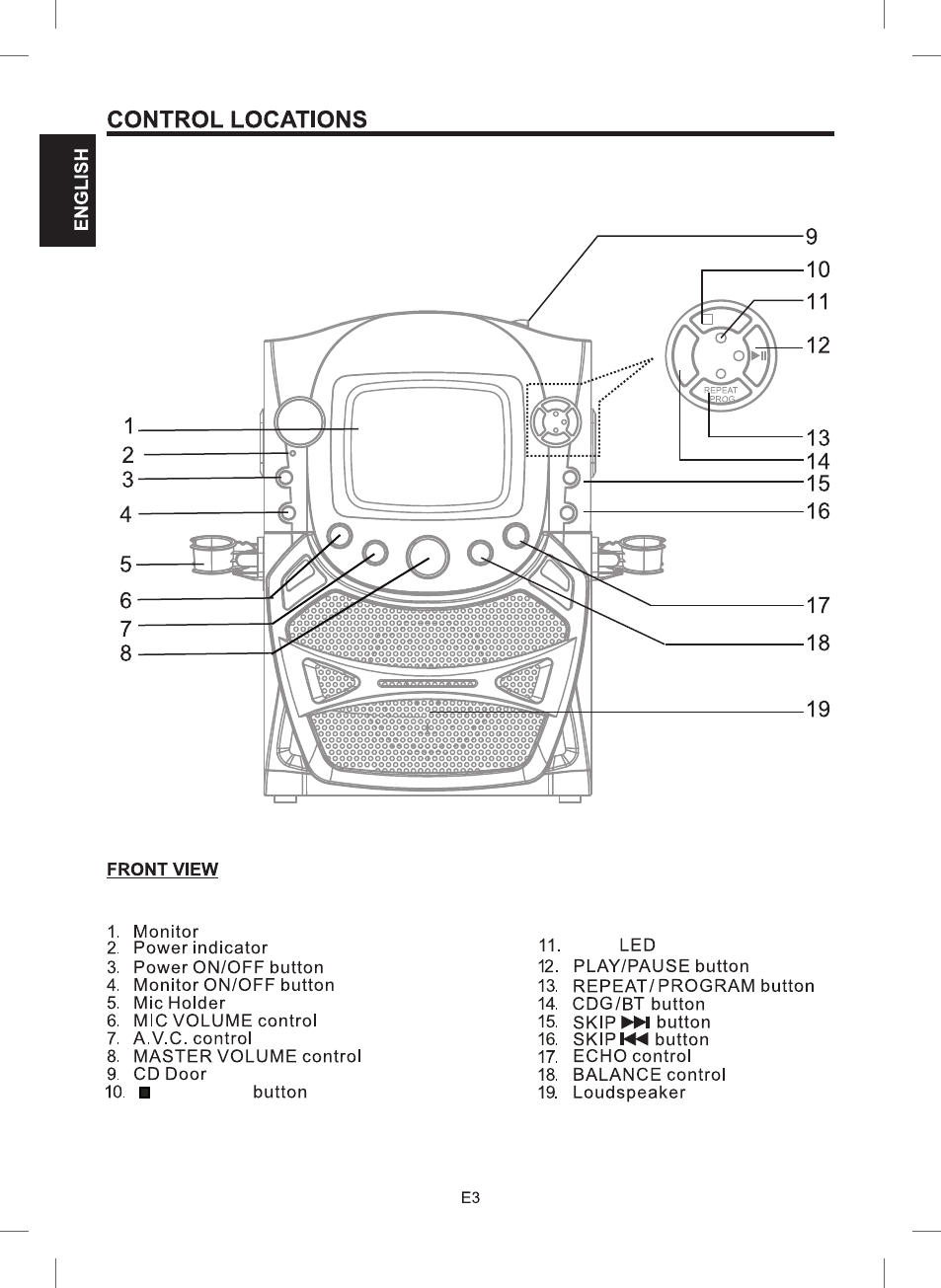

/PAIR
CDG/
BT
(STOP)/PAIR
PAIR
![](/img.php?id=2971742&img=bg5.png)
E4
ENGLISH

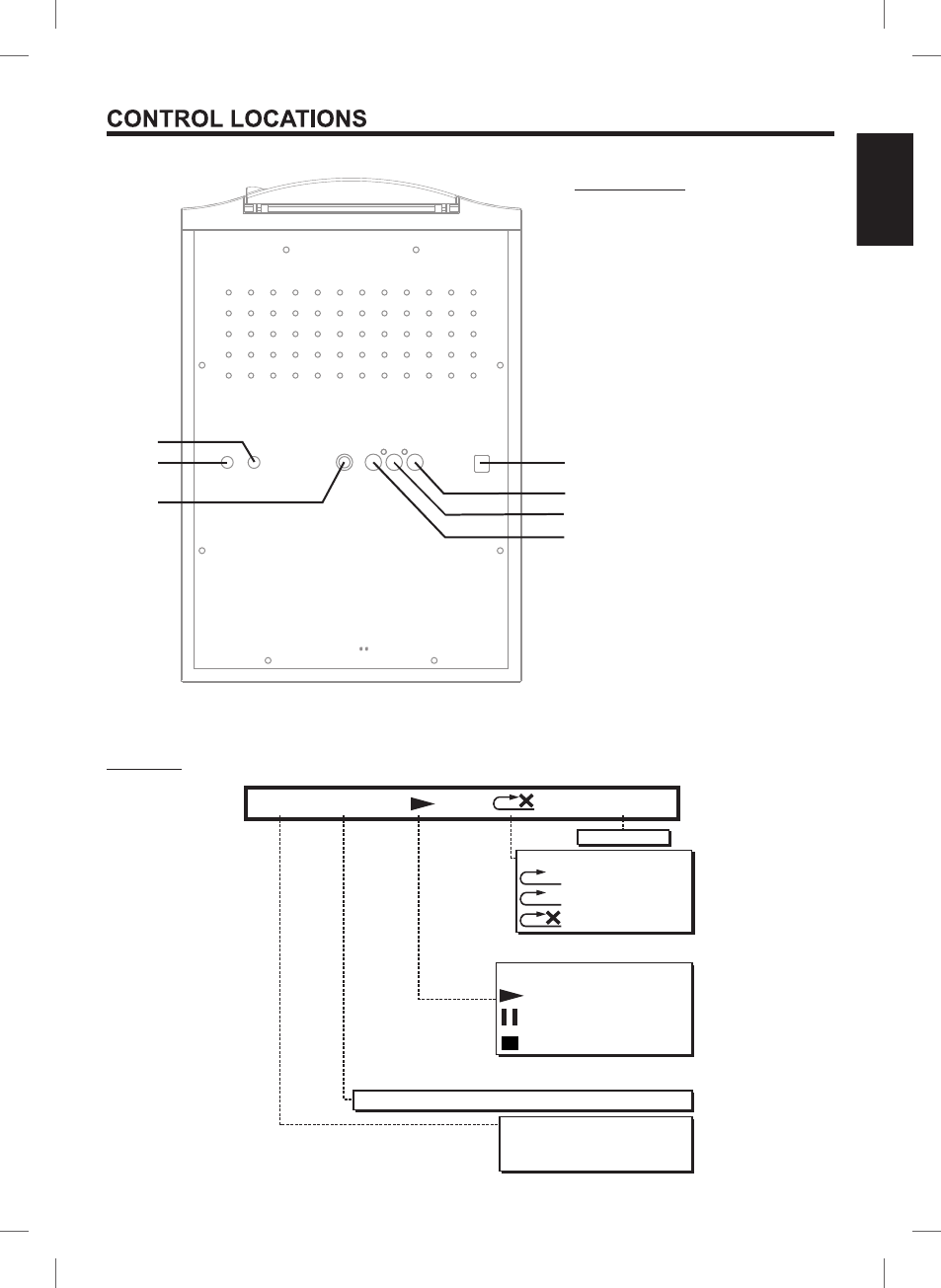

REAR VIEW
21 23
24
22 25
26
20
22. LINE IN Jack
21. MIC 1 Jack
20. MIC 2 Jack
23. DC Jack (DC 5.8V)
CDG TRK 8/8 00:16:04
PLAYING TIME
- REPEAT ONE
1
A- REPEAT ALL
- NO REPEAT FUNCTION
REPEAT MODE
PLAY/PAUSE/STOP INDICATOR
- PLAYING MODE
- PAUSE MODE
- STOP MODE
PLAYING TRACK NUMBERAND TOTAL TRACK NUMBER
- CD PLAYING
PLAYING DISC MODE
- CDG PLAYING
CDG
CD
DISPLAY
24. AUX OUTJack (L)
25. AUX OUTJack (R)
26. VIDEO OUTJack
![](/img.php?id=2971742&img=bg6.png)

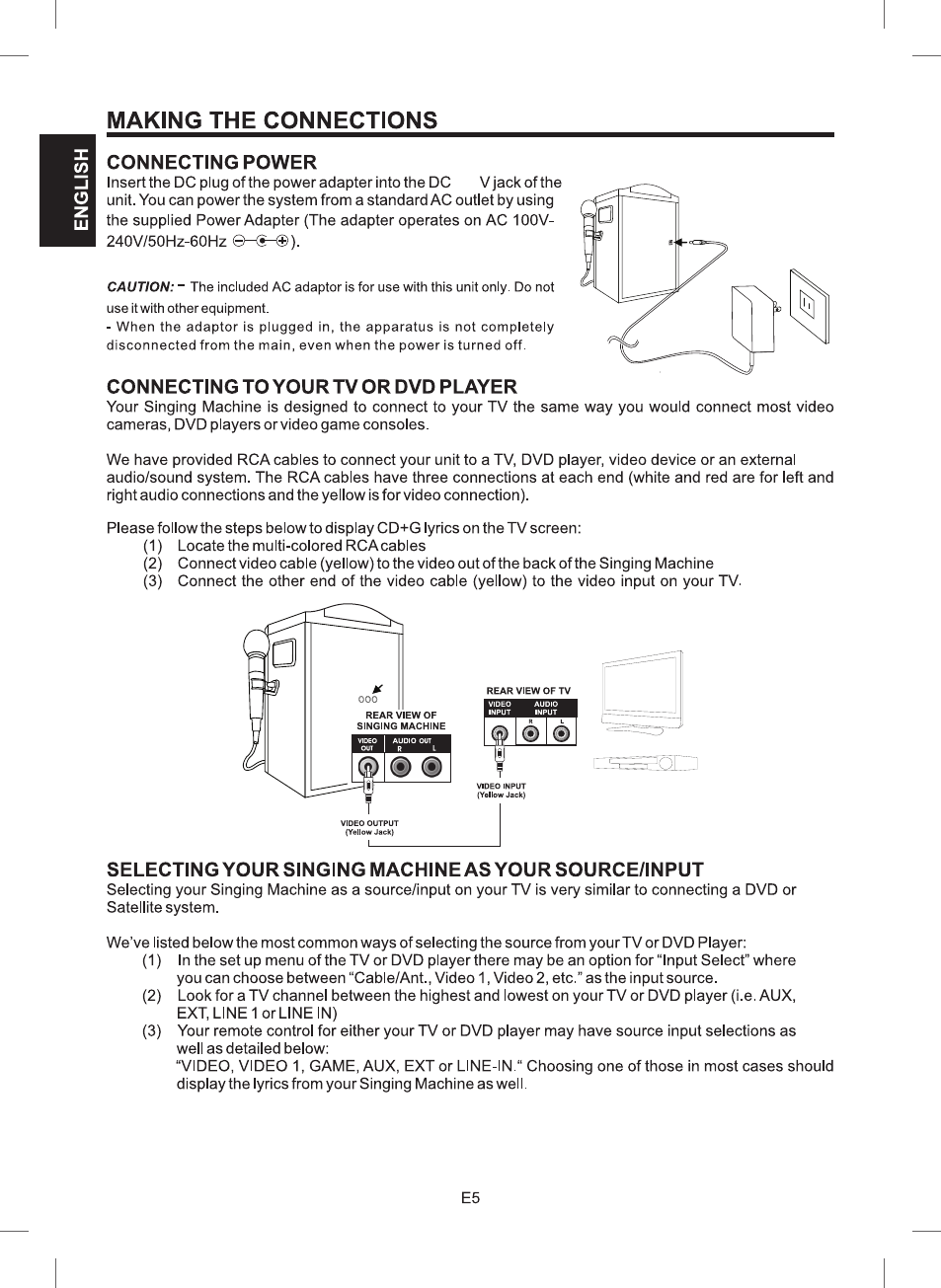

5.8
![](/img.php?id=2971742&img=bg7.png)

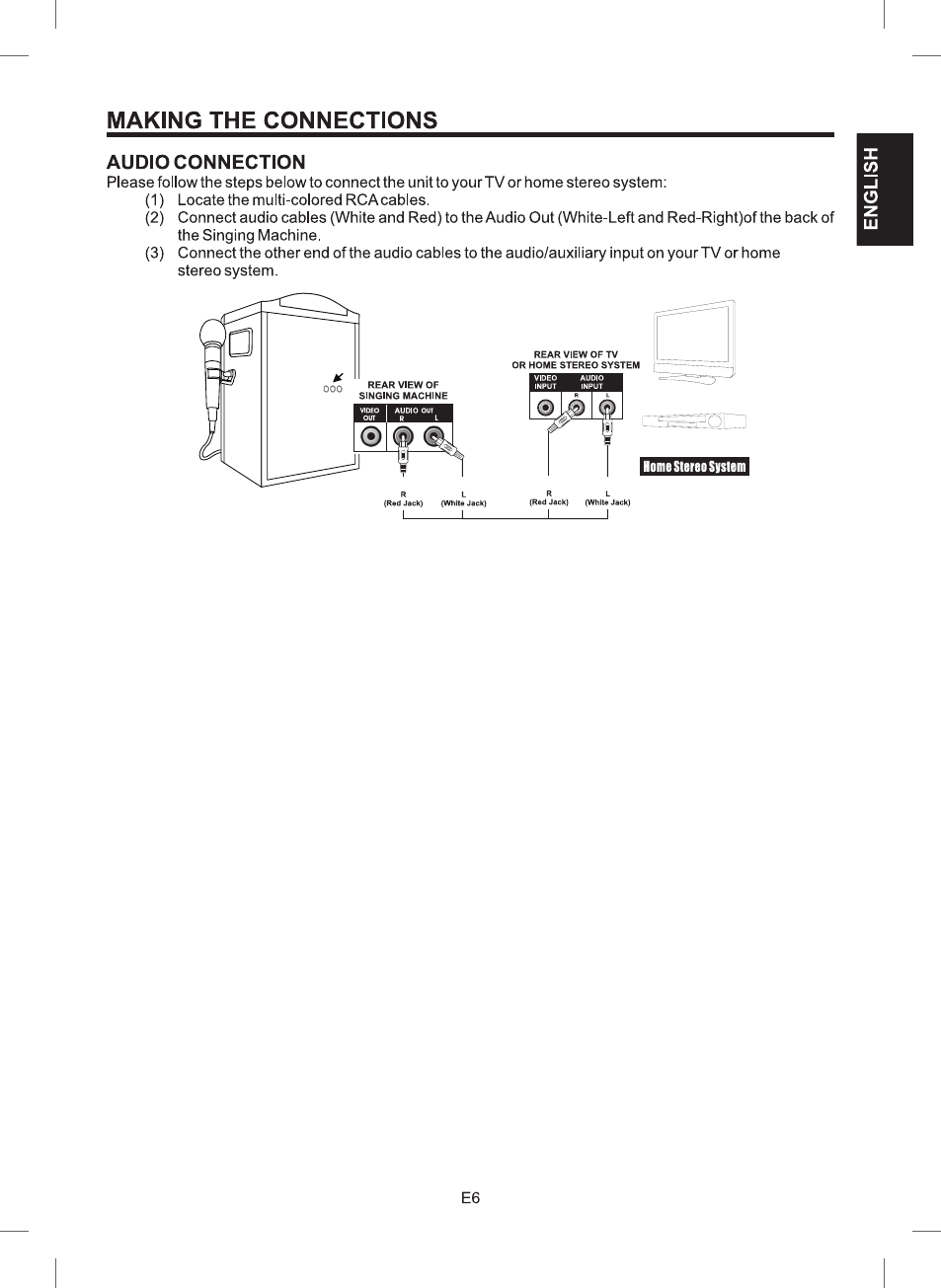

AUDIO OUTPUT AUDIO INPUT
AUDIO OUTPUT AUDIO INPUT
![](/img.php?id=2971742&img=bg8.png)
E7E7
CD OR CD+G OPERATION
ENGLISH
This unit is designed to play CDs and CD+Gs bearing the identification logo . If the disc does not
conform to the standard, it may not play properly.
respectively
To turn on the unit, press the ON/OFF button, the ON/OFF LED Indicator will light up.
To turn it off, press the ON/OFF button again, the ON/OFF LED Indicator will turn off.
Open the CD door, place a CD or CD+G disc in the compartment with the printed side facing upward and
Gently close the CD d
Adjust MASTER VOLUME control on your unit, TV or audio system to a comfortable level.
To start playing, press the PLAY/PAUSE butto
If the STOP button is pressed in the course
Rotate to the MASTER VOLUME control to obtain the desired sound level.
During STOP mode you can skip forward or back to your desired track number by pressing
SKIP buttons - SKIP -
To resume playing the selected song press PLAY PAUSE button
When playing any audio CD, press and hold the SKIP button ( -SKIP- ). The CD will search at high
speed in the forward or backward direction. Normal play will continue when you release the button.
To repeat the track currently playing, press the REPEAT button once.
To repeat all tracks, press the REPEAT butt
begin.
To clear the REPEAT function, press the REPEAT button aga
TURNING POWER ON/OFF
!
!
!
!
!
!
!
!
!
!
!
LOADINGADISC
PLAY/PAUSE
STOP
MASTER VOLUME
SKIP (For both CD and CDG discs)
SEARCH (For audio CD disc only)
REPEAT
Note:
(Refer to the Trouble Shooting Guide if a disc is loaded but the total tracks do not appear.)
Note:
Note: The MIC Volume must be adjusted simultaneously with the master volume level.
- Never place anything except a compact disc in the disc tray. Foreign objects can damage the unit.
- Only place one disc on the disc tray at a time.
- Pressing pause repeatedly when a CD+G is playing may cause distorted lyrics on your TV screen. Any distortion will
remain on the TV screen until it is refreshed either during an instrumental break or the song is stopped and/or the
song is started from the beginning.
,
().
,/ .
the
oor. The monitor will display total number of tracks. (If no disc is loaded, it will
display “NO DISC”.)
n. The first track and total number of tracks will be
displayed on the monitor.
To temporarily stop playing, press the PLAY/PAUSE button. The PAUSE indicator will be displayed.
To resume play, press this button again.
of playing, the disc will cease to play. (The STOP indicator will be
shown on the window.)
The REPEAT ONE ( )
indicator will lght up.
on twice. The REPEAT ALL ( ) indicator will light up.
Press the PLAY/PAUSE button to
in. The NO REPEAT ( ) indicator will
turn on.
!
!
1
A
the shiny side facing down. Press the CDG/BT button to switch to CD mode.
![](/img.php?id=2971742&img=bg9.png)
PROGRAM
!
!
Use this button to program and play back songs in a preselected order.
Step 1: Programming should be done in the stop mode only.
Step 2: Press the SKIP buttons ( - SKIP - ) to select a desired track.
Step 3: Press PROGRAM button to confirm entry. You can repeat the same steps up to a maximum of 24 tracks.
Step 4: Press PLAY button when you have completed programming and you are ready to start singing.
Press the STOPbutton twice to clear all the programmed entries.
MONITOR ON/OFF
KARAOKE FUNCTIONS
!Press MONITOR ON/OFF button to ON if you want to display a CDG lyrics on the Singing Machine’s
monitor.
Sing along with the music by plugging in the provided microphone into either one of the microphone jacks on the unit.
Adjust the MIC VOLUME control to a desired level and obtain the best performance.
Adjust the ECHO control to enhance your voice for a concert hall effect.
Adjust the BALANCE control to separate the prerecorded singer’s voice and music when using a multiplex karaoke disc.
AUTO VOICE CONTROL can be activated by rotating the Auto Voice Control knob to right. The vocals on the multiplex
recording will be muted when using the microphone When the microphone is not in use the pre-recorded vocals will
resume on a multiplex disc.
D
D
Warning - Tapping or dropping the microphone while it is on can permanently damage your microphone. Resist
the urge to swing the microphone around by the cord!
Warning - To avoid Microphone feedback please avoid being too close to the speaker.
MIC VOLUME
ECHO
BALANCE
AUTO VOICE CONTROL
.
(MULTIPLEX DISCS ONLY)
E8
ENGLISH
CD OR CD+G OPERATION
Press the PROGRAM button, PROG SET :00 XX
XX
Here " " stands for the total number of tracks, and it is blinking on the display.
!
!
!
!
BLUETOOTH OPERATION
During playing, press the NEXT or PREVIOUS button to skip to the track desired, press PLAY/PAUSE button to pause,
press again to resume. Press PAIR button to disconnect the current connection, press again to reconnect again.
NOTE: The unit will automatically connect with the device connected before after the Bluetooth function is switched on.
successful connection.
Press the CDG/BT Button to switch to Bluetooth mode, "BLUE TOOTH" will appear on display and the PAIR indicator
flashes, after a few seconds, a sound will be heard, now it is in pairing and searching mode, start the Bluetooth function
on the external device, the pairing name "Singing Machine" will appear, select it and make pairing, the unit will send a
piece of sound, the "PAIR" indicator stop blinking after
![](/img.php?id=2971742&img=bga.png)
MASTER VOLUME

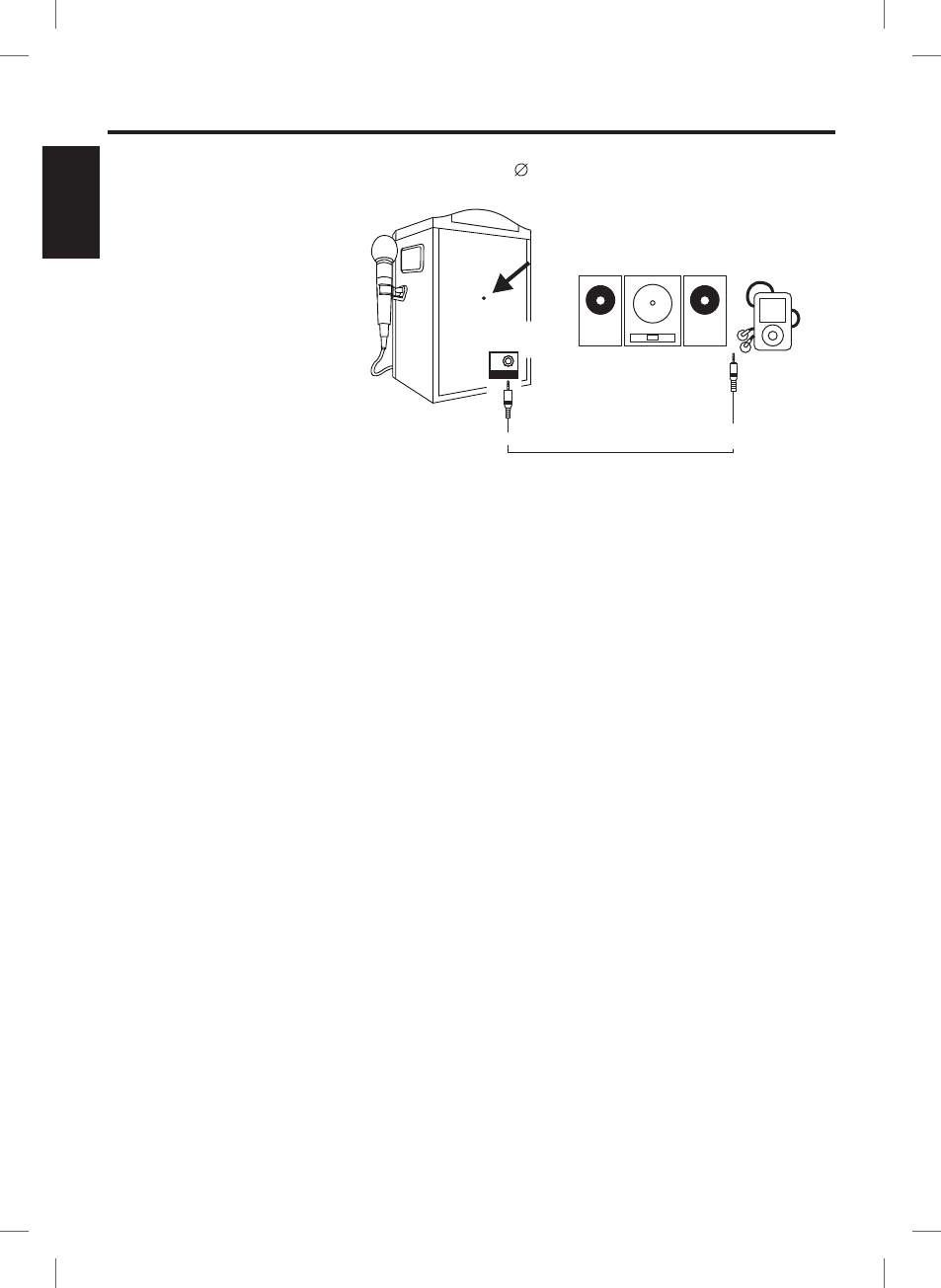

Your Singing Machine is designed to connect your favorite Digital Music device (e.g. iPod/MP3 player, etc.)
You can connect your device by using an appropriate cable (
Rotate to the MASTER VOLUME
control to obtain the desired sound
level.
DWarning - To avoid the over-
burst amplified volume output
or possible over-tuned sound
crack, you are recommended to
adjust the Digital Music device
volume to one third or lower at
the beginning.
3.5mm audio cable not included).
switched ON once the audio cable is
plugged.
Note: Monitor will be turned off when the
audio cable is plugged.
AUDIO OUTPUT
/ HEADPHONE JACK
REAR VIEW OF
SINGING MACHINE
YOUR DIGITAL PLAYER OR MP3 PLAYER
LINE IN OPERATION
LINE IN function can always be
LINE IN
LINE IN
ENGLISH
E9
![](/img.php?id=2971742&img=bgb.png)
TROUBLE SHOOTING GUIDE
If you have followed the instructions and are having difficulty operating the unit, locate the
PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE column to
locate and remedy the problem.
SOLUTION
Insert the power plug into the AC
outlet.
Turn up the volume.
Turn up the volume at TV/PA
system.
Turn on the power at TV/PAsystem.
Follow directions ‘Audio
Connection’page.
PROBLEM
No power when
POWER is on.
No sound.
POSSIBLE CAUSE
No power plug connection at
theAC outlet.
Volume control is set to
minimum.
Volume control on TV set/PA
system is set to minimum.
TV set/PA system power is
OFF.
connected.
Check the outlet with a working
lamp or other electrical appliance.
No power when plugged
in.
The AC outlet may not have
power.
Insert disc correctly.
Wipe clean with soft cloth.
Use a new disc.
Use a new disc.
Only use discs bearing standard
logo.
Disc is inserted upside down.
Disc is dirty.
Disc is scratched.
Disc is warped.
A nonstandard disc is
inserted.
Moisture has formed inside
the CD deck.
CD PLAYER
C
displayed.is
annot work normally or
“”
Wait about 20 to 30 minutes to let it
dry out.
Singing Machine needs to be
reset.
Disconnect the machine from
power source for 30 seconds.
Lens is dirty. Use a CD lens cleaner.
IN jack.
Audio cable has not been
jack.
ENGLISH
removed from the LINE IN Removed Audio cable from LINE
AUDIO OUT jacks not
E10
![](/img.php?id=2971742&img=bgc.png)

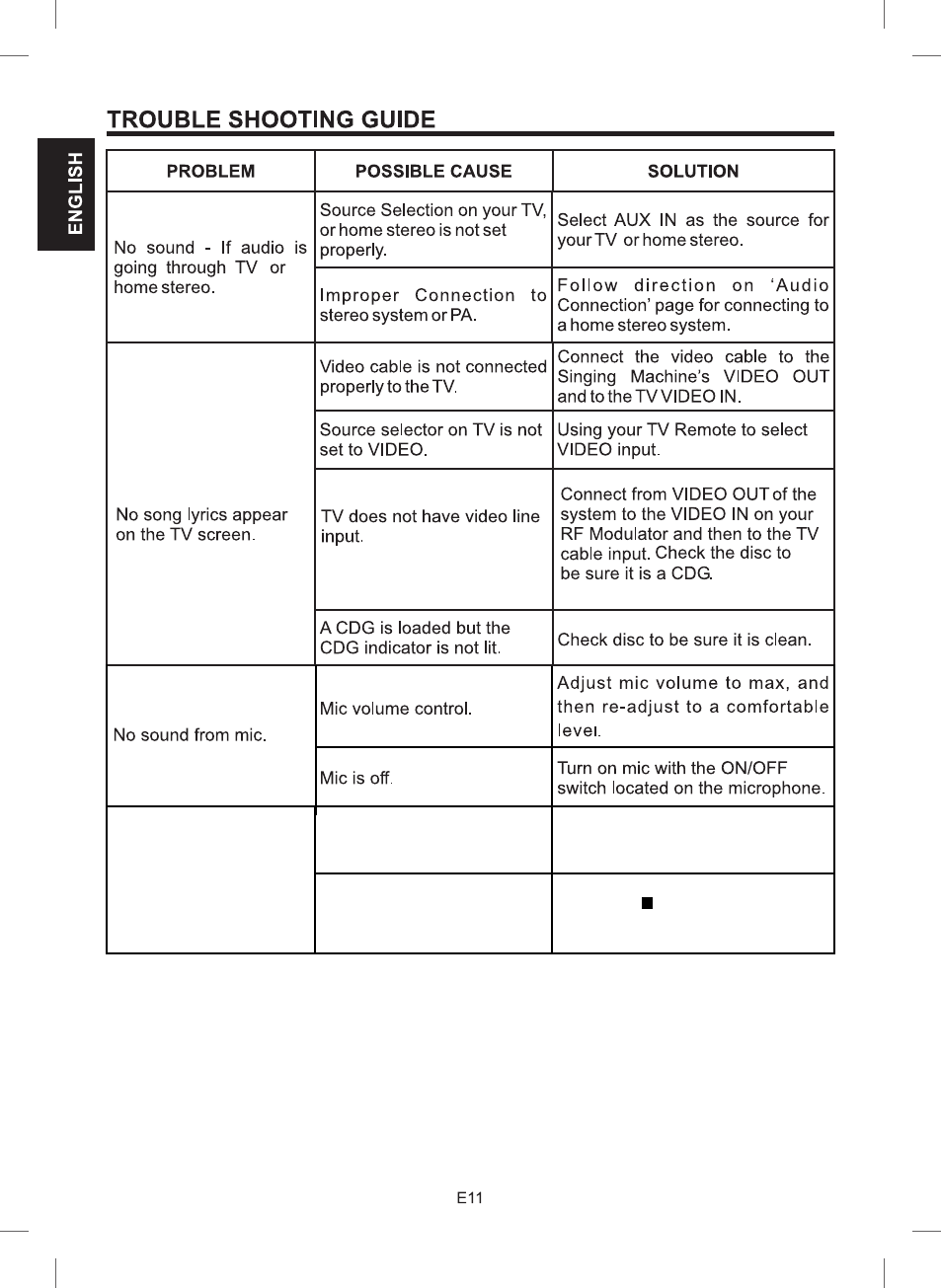

The Bluetooth device
can not be paired
Press the (stop) /PAIR button
to restart Bluetooth pairing mode
Activate the Bluetooth
on your device
Bluetooth on your device
not activated
Bluetooth function is cut off
![](/img.php?id=2971742&img=bgd.png)
3
3.5
ENGLISH
4
MONITOR SECTION
5.5” BLACK AND WHITE MONITOR
NTSC SYSTEM
220 LINE RESOLUTION
9.1 x 8.8 x 13.6 inches / 23.1 x 22.4 x 34.5 cm
7.9 lbs / 3.6 kgs
DIMENSIONS (W x D x H)
3.5mm stereo headphone jack
LINE IN SECTION
DC 5.8V 2A
E12
![](/img.php?id=2971742&img=bge.png)
