User manual
![](/img.php?id=1397504&img=bg1.png)
LG_DWAM82-D module FCC Test manual.doc
Page 1 of 12
© 2010 WSS CONFIDENTIAL
LG DWAM82-DB Module for Hx995
FCC Test S/W manual
Module: DWAM82-DB
Date: Jun 03, 2010
Any STS Information is provided “as is” without any express or implied warranty of any kind, including warranties of
merchantability, non-infringement of intellectual property, or fitness for any particular purpose. In no event shall Wireless Sound
Solutions and/or its affiliate companies, or its suppliers liable for any damages whatsoever arising out of the use of or inability to
use the information or the materials. Wireless Sound Solutions, its affiliate companies, and its suppliers further do not warrant the
accuracy or completeness of information, text, graphics, or other items contained within materials. Wireless Sound Solutions, Inc.
may make changes to materials, or the products described within, at any time, without notice. ©2009 Wireless Sound Solutions.
All ri
g
hts reserved. Wireless Sound Solutions, STS and STS-wireless are trademarks of Wireless Sound Solutions.
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bg2.png)
LG_DWAM82-D module FCC Test manual.doc
Page 2 of 12
© 2010 WSS CONFIDENTIAL
Hardware used:
4CH EVK.
DWAM82-DB module
Test software used:
• For EvK : 20100603_FCC_DWAM82-D_12288MHz_ForEVK.hex
• For DWM82-DB module : 20100603_FCC_DWAM82-D_12288MHz_ForEVK.hex
Objective
Showing how to change each mode needed for FCC Test.
Date Revision Location Change Author
Jun 03, 2010 0.1 SG First Draft Won
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bg3.png)
LG_DWAM82-D module FCC Test manual.doc
Page 3 of 12
© 2010 WSS CONFIDENTIAL
Classification by index number.
< 2400MHz ~ 2483.5MHz>
RF Band Mod/UnMod Tx/Rx Ant A/B Index Remarks
2.4G Modulated Continuous Tx Ant A 0x01 Ch 1, Freq : 2412MHz
0x02 Ch 2, Freq : 2438MHz
0x03 Ch 3, Freq : 2464MHz
Ant B 0x04 Ch 1, Freq : 2412MHz
0x05 Ch 2, Freq : 2438MHz
0x06 Ch 3, Freq : 2464MHz
Continuous Rx Ant A 0x07 Ch 1, Freq : 2412MHz
0x08 Ch 2, Freq : 2438MHz
0x09 Ch 3, Freq : 2464MHz
Ant B 0x0a Ch 1, Freq : 2412MHz
0x0b Ch 2, Freq : 2438MHz
0x0c Ch 3, Freq : 2464MHz
Unmodulated Continuous Tx Ant A 0x0d Ch 1, Freq : 2412MHz
0x0e Ch 2, Freq : 2438MHz
0x0f Ch 3, Freq : 2464MHz
Ant B 0x10 Ch 1, Freq : 2412MHz
0x11 Ch 2, Freq : 2438MHz
0x12 Ch 3, Freq : 2464MHz
Continuous Rx Ant A 0x13 Ch 1, Freq : 2412MHz
0x14 Ch 2, Freq : 2438MHz
0x15 Ch 3, Freq : 2464MHz
Ant B 0x16 Ch 1, Freq : 2412MHz
0x17 Ch 2, Freq : 2438MHz
0x18 Ch 3, Freq : 2464MHz
• The index number can be changed by pressing “Spare 3” button on the EVK.
• For more detailed, you can find at the page 9.
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bg4.png)
LG_DWAM82-D module FCC Test manual.doc
Page 4 of 12
© 2010 WSS CONFIDENTIAL
< 5725MHz ~ 5825MHz>
RF Band Mod/UnMod Tx/Rx Ant A/B Index Remarks
5.8G Modulated Continuous Tx Ant A 0x21 Ch 1, Freq : 5736MHz
0x22 Ch 2, Freq : 5762MHz
0x23 Ch 3, Freq : 5814MHz
Ant B 0x24 Ch 1, Freq : 5736MHz
0x25 Ch 2, Freq : 5762MHz
0x26 Ch 3, Freq : 5814MHz
Continuous Rx Ant A 0x27 Ch 1, Freq : 5736MHz
0x28 Ch 2, Freq : 5762MHz
0x29 Ch 3, Freq : 5814MHz
Ant B 0x2a Ch 1, Freq : 5736MHz
0x2b Ch 2, Freq : 5762MHz
0x2c Ch 3, Freq : 5814MHz
Unmodulated Continuous Tx Ant A 0x2d Ch 1, Freq : 5736MHz
0x2e Ch 2, Freq : 5762MHz
0x2f Ch 3, Freq : 5814MHz
Ant B 0x30 Ch 1, Freq : 5736MHz
0x31 Ch 2, Freq : 5762MHz
0x32 Ch 3, Freq : 5814MHz
Continuous Rx Ant A 0x33 Ch 1, Freq : 5736MHz
0x34 Ch 2, Freq : 5762MHz
0x35 Ch 3, Freq : 5814MHz
Ant B 0x36 Ch 1, Freq : 5736MHz
0x37 Ch 2, Freq : 5762MHz
0x38 Ch 3, Freq : 5814MHz
• The index number can be changed by pressing “Spare 3” button on the EVK.
• For more detailed, you can find at the page 9.
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bg5.png)
LG_DWAM82-D module FCC Test manual.doc
Page 5 of 12
© 2010 WSS CONFIDENTIAL

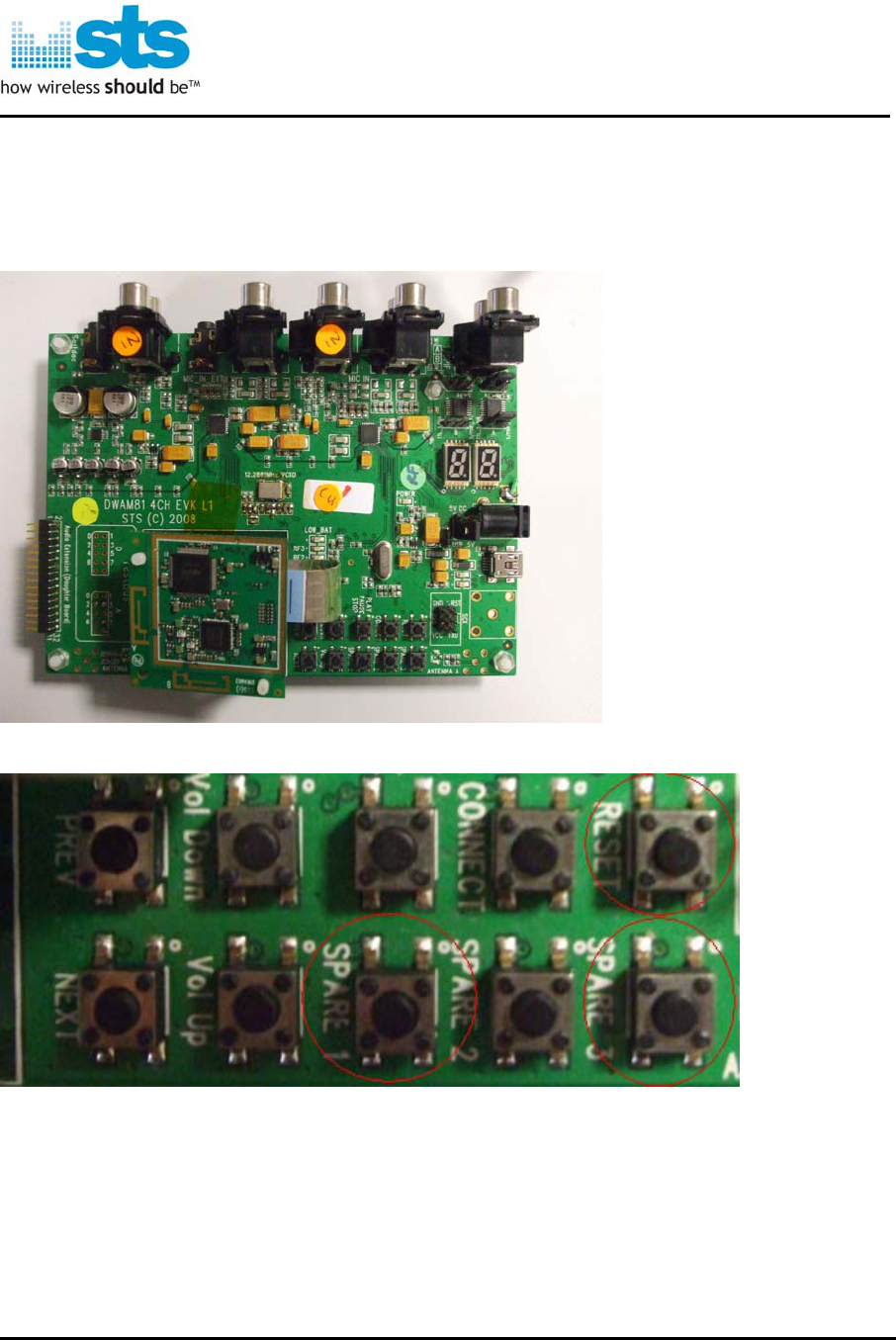

Button descriptions on EVK.
• Reset : To reset the whole system and start newly.
• SPARE_1 : To switch RF band between 2.4G and 5.8G.
There is more detailed information at the page 10.
• SPARE_3 : To select a index number which has own functionality as written above.
There is more detailed information at the page 9.
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bg6.png)
LG_DWAM82-D module FCC Test manual.doc
Page 6 of 12
© 2010 WSS CONFIDENTIAL

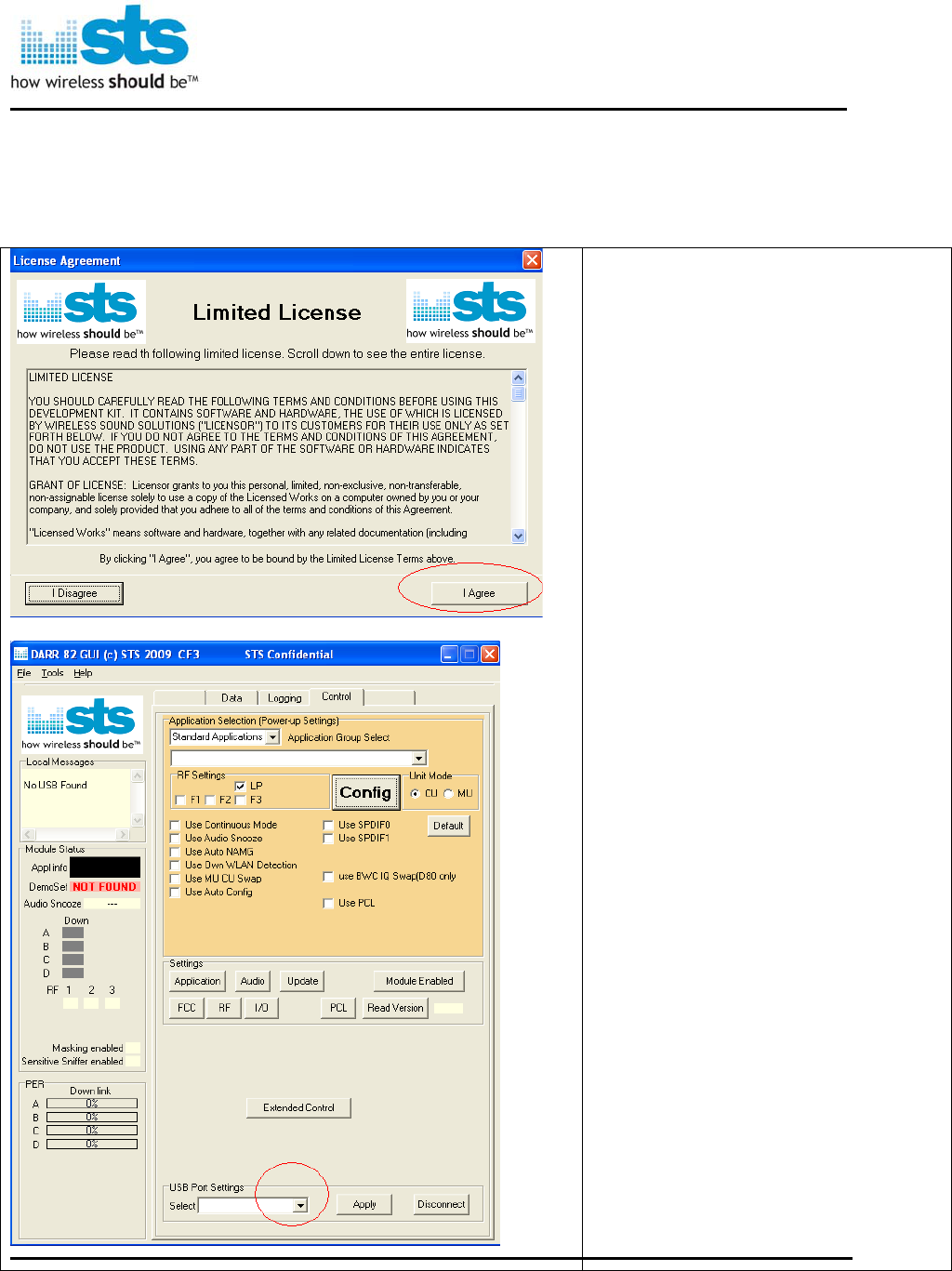

GUI tool descriptions.
- How to update Serial-Com SW for ATMEL MCU.
•
Double click the GUI tools named
“DARR82_GUI_demo_5Ghz_2_6_1.
exe”
• Once the photos as shown left
appear, please click “I Agree” button.
• Go to “USB Port Settings” box at the
bottom of GUI tool
• Select the triangle button.
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bg7.png)
LG_DWAM82-D module FCC Test manual.doc
Page 7 of 12
© 2010 WSS CONFIDENTIAL

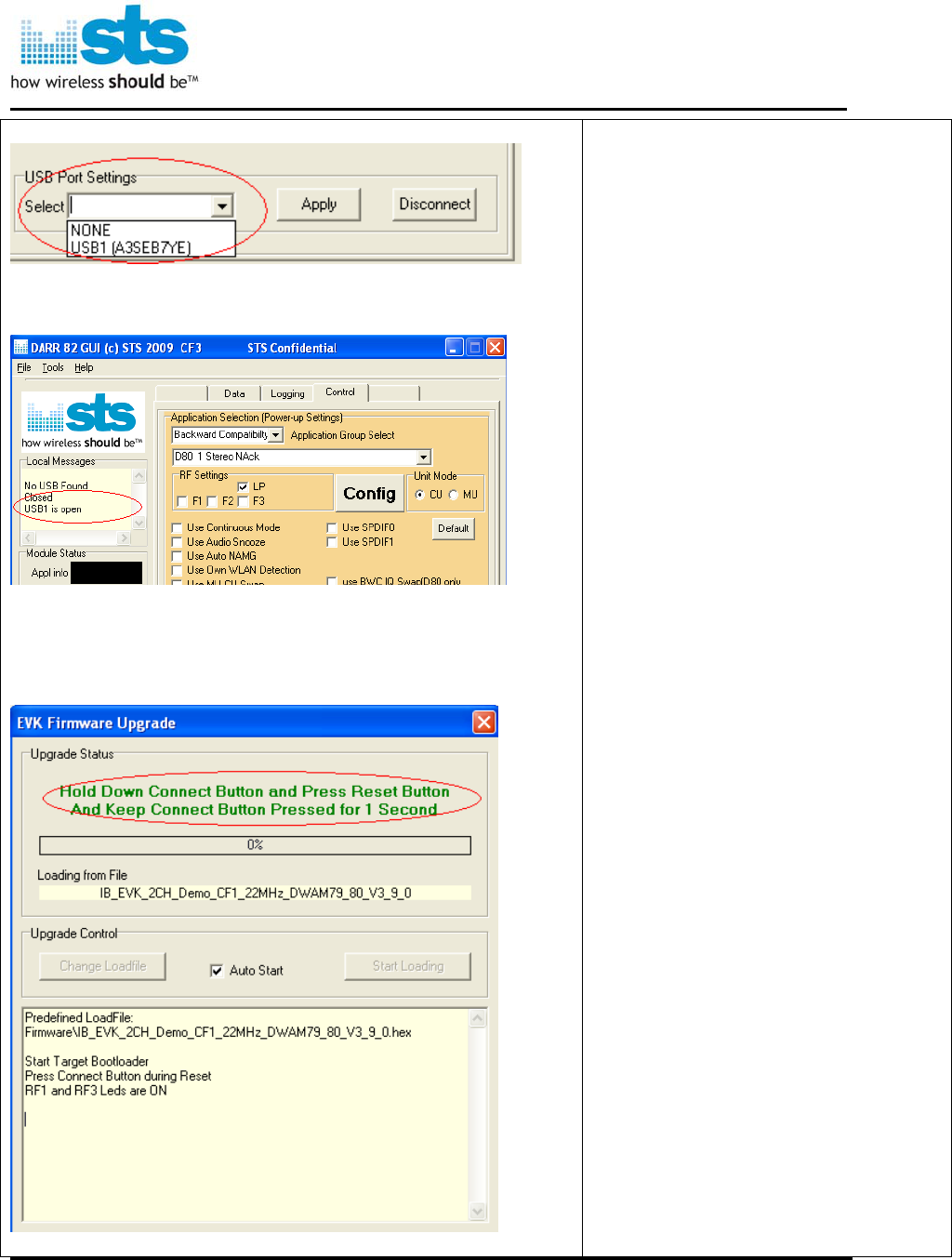

• At this time, select
“USB1(A3SEB7YE) and press the
“Apply” button to confirm the
settings.
• Do not pay any attention to USB
serial number. It may different from
each computer.
• You could see that the port of USB1
Is open.
• Go to Tools on the top of GUI
• Select “EVK Upgrade” under Tools’s
submenu.
• Please press the button as shown
left .
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bg8.png)
LG_DWAM82-D module FCC Test manual.doc
Page 8 of 12
© 2010 WSS CONFIDENTIAL

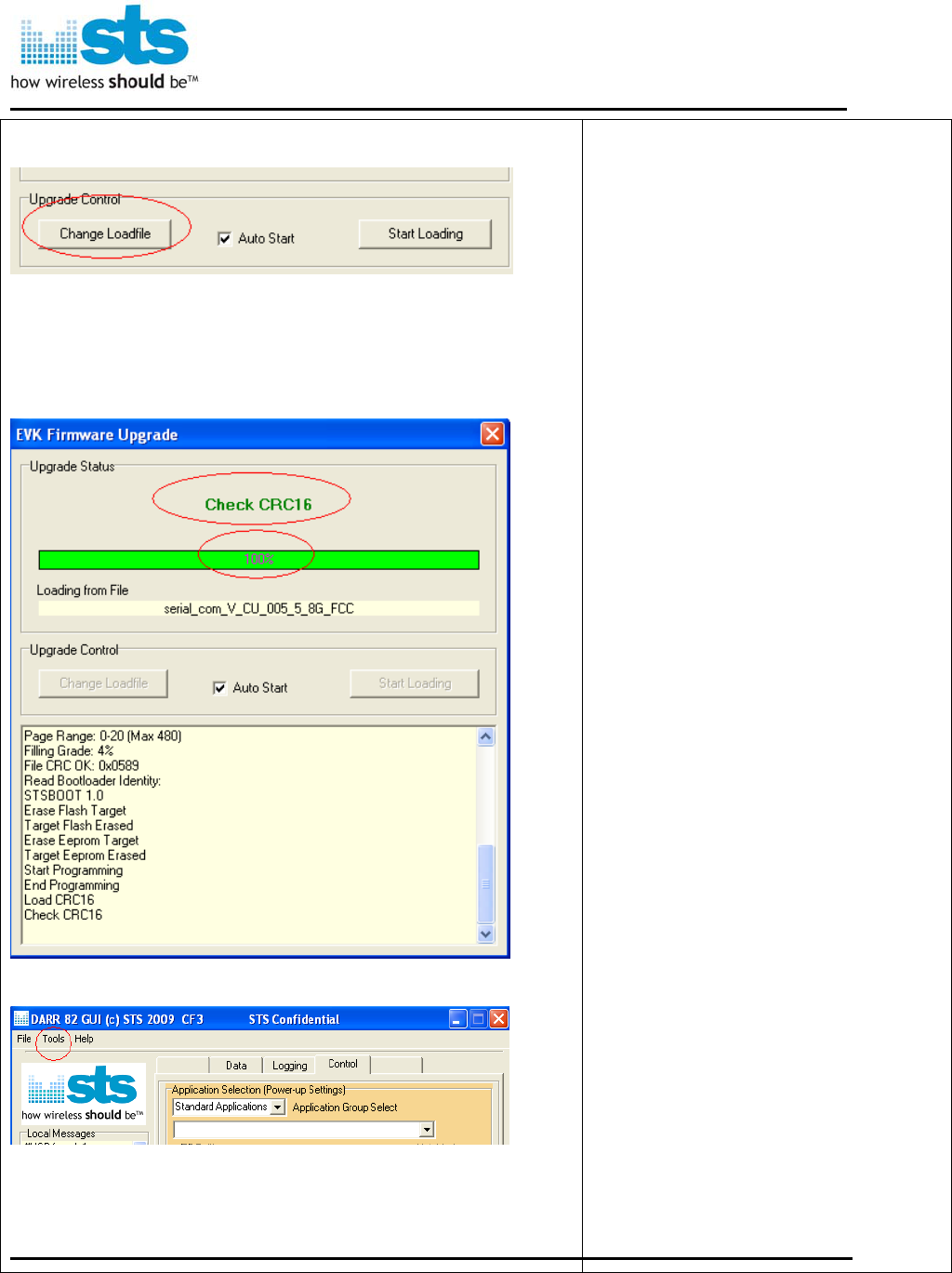

• As shown left, if the button of
“Change Loadfile” is activated,
please select the
serial_com_V_CU_005_5_8G_FCC.
hex located at “\SW\For_EVK\”
• And then press the “Start Loading”
button to update the EVK.
• Once this update process is
successfully done, success
message of “Check CRC16” will be
shown up and disappear a moment
later.
• Go to Tools menu on the top of GUI
and select it.
• Among a few submenus under
Tools please select “RS232 Info”.
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bg9.png)
LG_DWAM82-D module FCC Test manual.doc
Page 9 of 12
© 2010 WSS CONFIDENTIAL

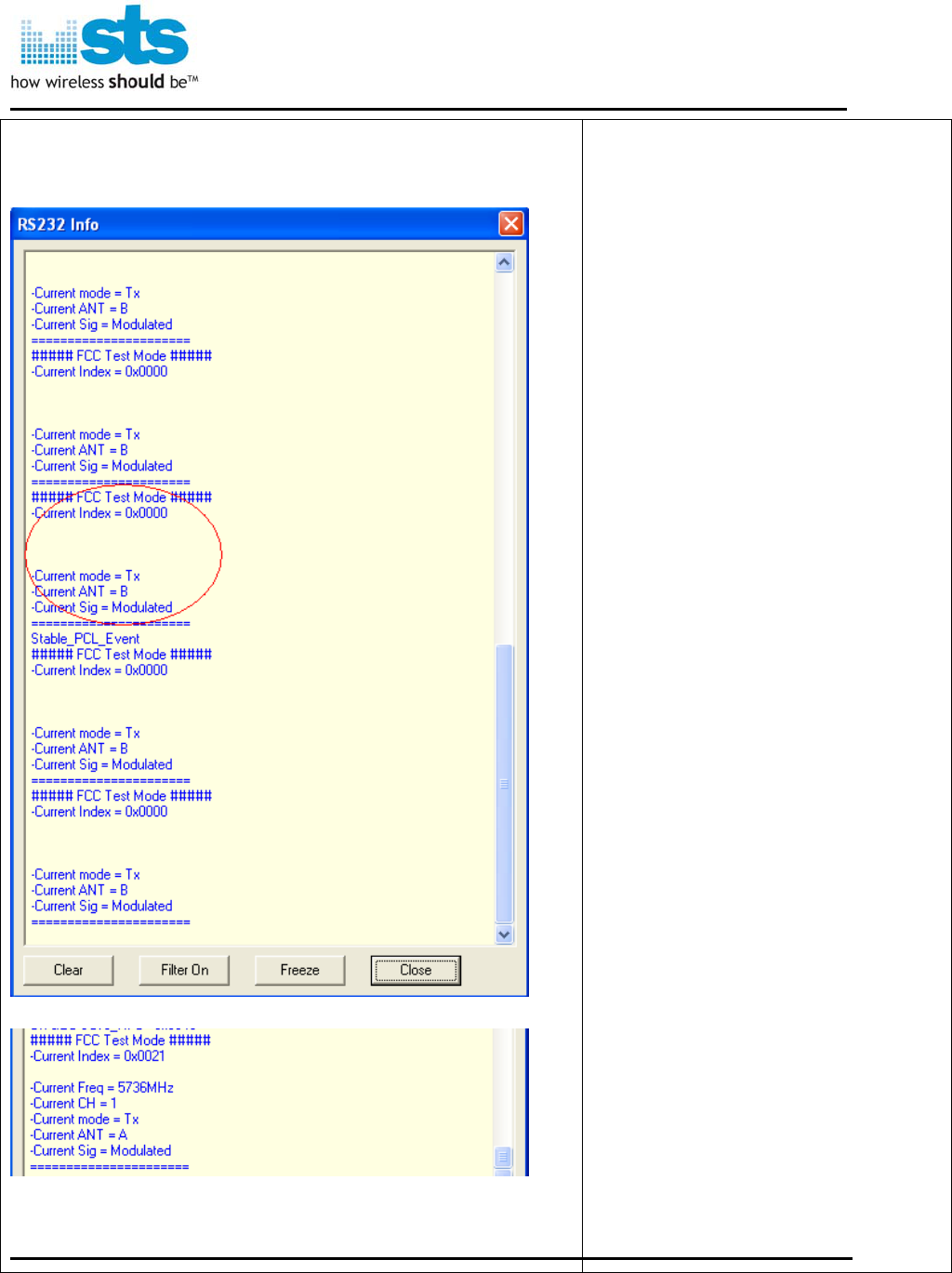

< Index switching at either 2.4GHz or 5.8G>
• The pop up window will come out
after you select “RS232 Info”.
• If you look into the red circle, you
can see the current index number.
Index 0 means the idle status.
• At this time, please press “Spare 3”
button to change current index.
• Every time you press “Spare 3
button, the Current Index number
will change.
• The detailed information about Index
number is at the page 3 and 4.
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bga.png)
LG_DWAM82-D module FCC Test manual.doc
Page 10 of 12
© 2010 WSS CONFIDENTIAL

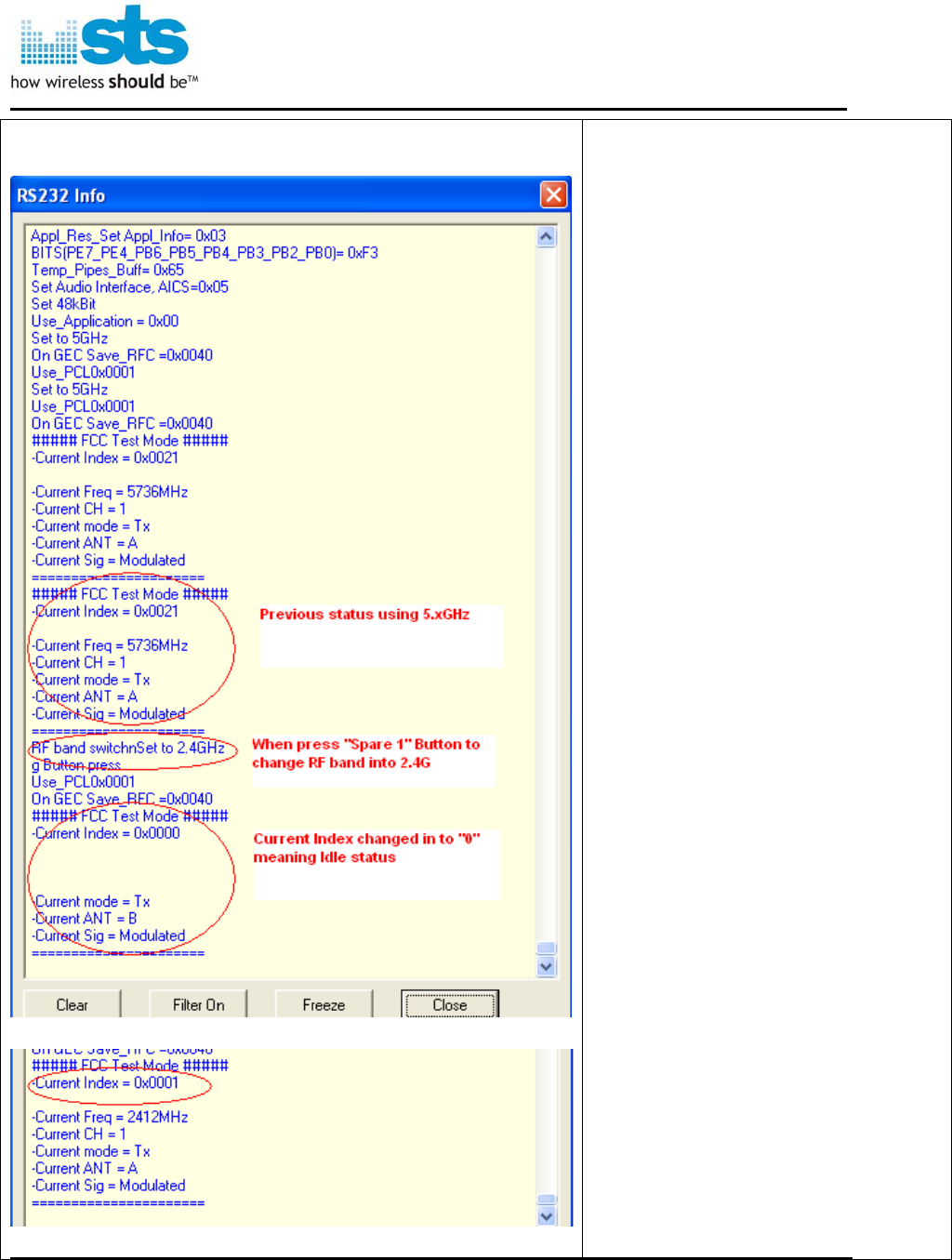

< Band switching between 2.4G and 5.8G>
• The captured photo shows how to
change RF Band from 5.xGHz to
2.xGHz.
• Press “Spare 1” button on the EVK
=> Current Index will set to “0”
• The index from 0x01 to 0x18 will be
available to select by pressing
“Spare 3” button.
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bgb.png)
LG_DWAM82-D module FCC Test manual.doc
Page 11 of 12
© 2010 WSS CONFIDENTIAL

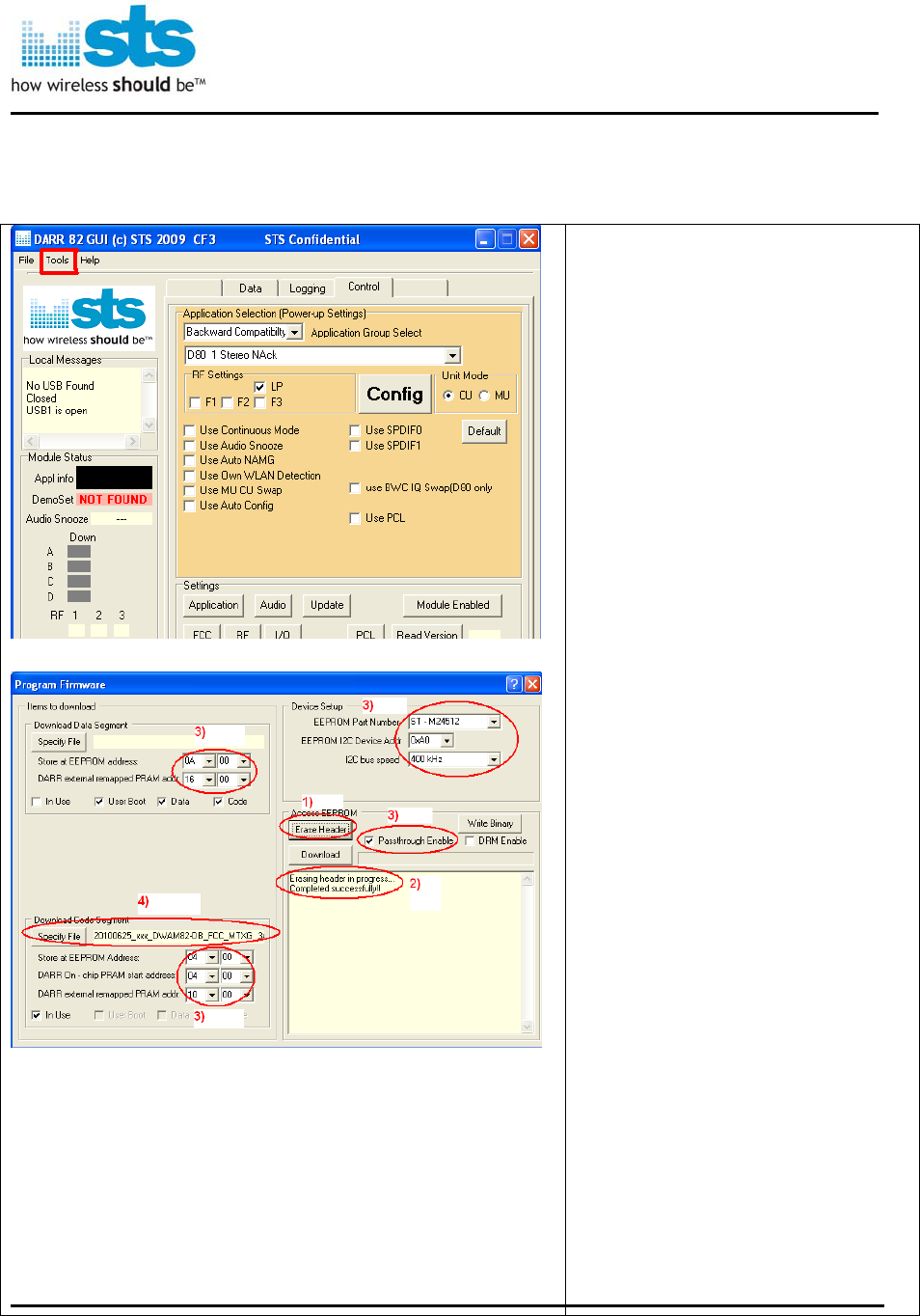

- How to update EEPROM on DWAM82-DB.
• Go to “Tools” at the top menu
and select “Program 8052
Firmware”.
• 1) Press “Erase Button”
• 2) Check the message of
“Completed successfully”.
• 3) Make sure the values are
same as snap-shot.
• 4) Search and select the hex file
ou need to update with.
• Press “Download button” to start
to update EEPROM.
CONFIDENTIAL FOR
LG & Namuga
ONLY
![](/img.php?id=1397504&img=bgc.png)
LG_DWAM82-D module FCC Test manual.doc
Page 12 of 12
© 2010 WSS CONFIDENTIAL

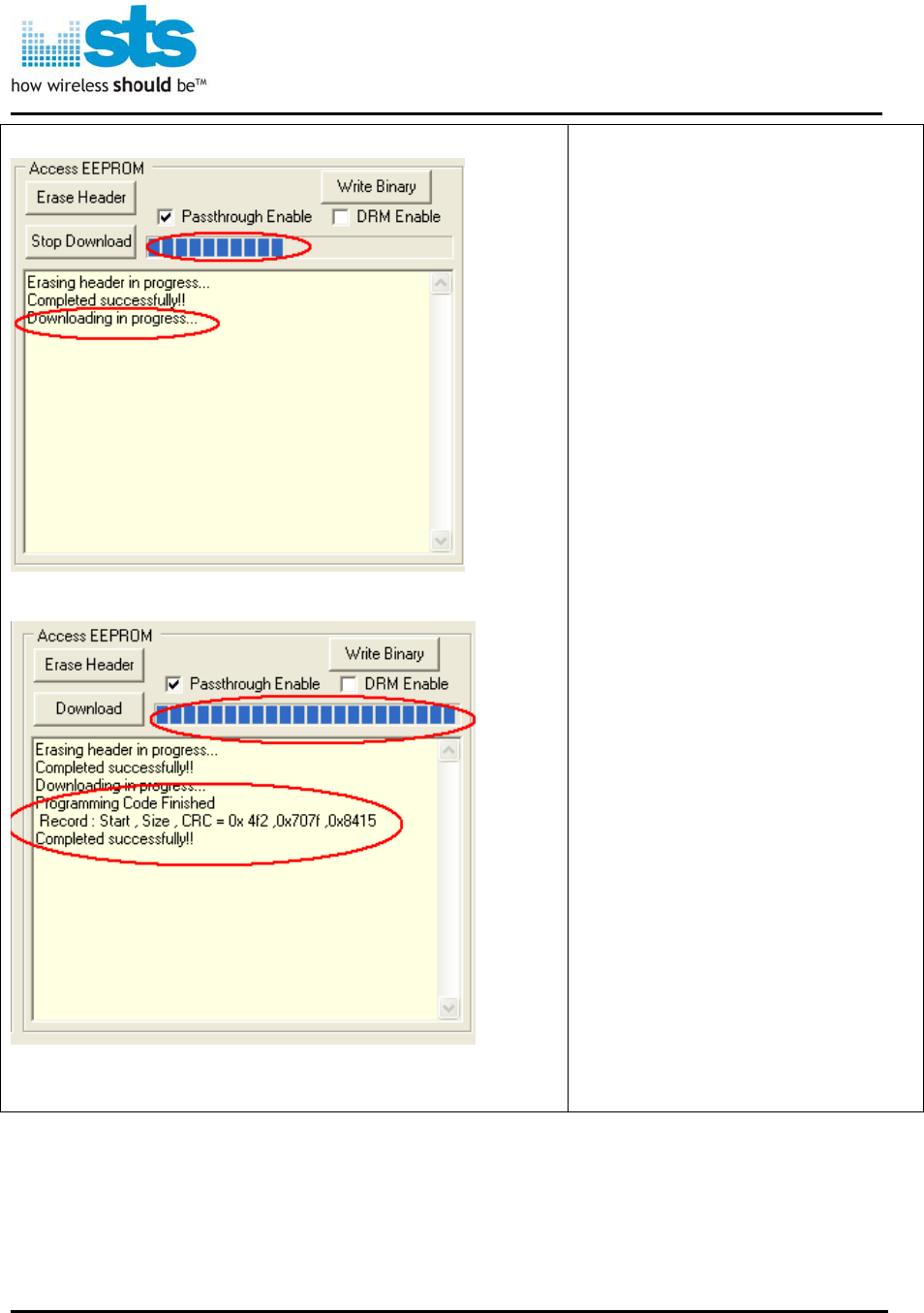

• The bar should be in progress.
• After successful update,
message will show like left snap-
shot.
• CRC value may be different from
each software.
• Press “Reset ” button on EVK.
CONFIDENTIAL FOR
LG & Namuga
ONLY
This device complies with part 15 of FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference received.
2. This device must accept any interference received. Including interference that may cause
undesired operation.
FCC WARNING
This equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user could lose the authority
to operate this equipment if an unauthorized change or modification is made.
To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of
the end product.
Contains Transmitter Module FCC ID: BEJ9QK-DWAM82DB
The antenna must be installed such that 20 cm is maintained between the antenna and users,
and the transmitter module may not be co-located with any other transmitter or antenna.
End users cannot modify this transmitter device. Any Unauthorized modification could void the user‘s
authority to operate this device.
