Realtek Semiconductor RTL8192EHMC 802.11 b/g/n RTL8192E half miniCard User Manual User s manual for FCC
Realtek Semiconductor Corp. 802.11 b/g/n RTL8192E half miniCard User s manual for FCC
Manual
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller ii Rev.0.6
COPYRIGHT
©2007 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means without the written permission of Realtek Semiconductor Corp.
DISCLAIMER
Realtek provides this document “as is”, without warranty of any kind, neither expressed nor implied,
including, but not limited to, the particular purpose. Realtek may make improvements and/or changes in this
document or in the product described in this document at any time. This document could include technical
inaccuracies or typographical errors.
TRADEMARKS
Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are
trademarks/registered trademarks of their respective owners.
USING THIS DOCUMENT
This document is intended for the software engineer’s reference and provides detailed programming
information.
Though every effort has been made to ensure that this document is current and accurate, more information
may have become available subsequent to the production of this guide. In that event, please contact your
Realtek representative for additional information that may help in the development process.
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller iii Rev.0.6
Table of Contents
1. GENERAL DESCRIPTION.........................................................................................................................................5
2. GENERAL FEATURES...............................................................................................................................................7
3. APPLICATION DIAGRAM.........................................................................................................................................9
3.1. DUAL BAND 11N APPLICATION ................................................................................................錯誤! 尚未定義書籤。
3.2. SINGLE BAND 11N APPLICATION.................................................................................................................................9
4. PIN ASSIGNMENTS..................................................................................................................................................10
5. PIN DESCRIPTIONS.................................................................................................................................................11
5.1. PCIE TRANSCEIVER INTERFACE..............................................................................................................................11
5.2. EEPROM INTERFACE ............................................................................................................................................11
5.3. POWER PINS...........................................................................................................................................................11
5.4. LED INTERFACE ....................................................................................................................................................12
5.5. SWITCHING REGULATOR.........................................................................................................................................12
5.6. ATTACHMENT UNIT INTERFACE...............................................................................................................................13
5.6.1. RF Chipset....................................................................................................................................................13
5.7. CLOCK AND OTHER PINS ........................................................................................................................................14
6. ELECTRICAL AND THERMAL CHARACTERISTICS.........................................................................................15
6.1. TEMPERATURE LIMIT RATINGS................................................................................................................................15
6.2. DC CHARACTERISTICS ...........................................................................................................................................15
7. MECHANICAL DIMENSIONS.................................................................................................................................16
8. ORDERING INFORMATION...................................................................................................................................17
9. INSTALLATION .......................................................................................................................................................20
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller iv Rev.0.6
List of Tables
TABLE 1. PCIE TRANSCEIVER INTERFACE.............................................................................................................................11
TABLE 2. EEPROM INTERFACE............................................................................................................................................11
TABLE 3. POWER PINS..........................................................................................................................................................11
TABLE 4. LED INTERFACE....................................................................................................................................................12
TABLE 5. SWITCHING REGULATOR........................................................................................................................................12
TABLE 6. RTL8192E ATTACHMENT INTERFACE WITH RF CHIPSET .........................................................................................13
TABLE 7. CLOCK AND OTHER PINS........................................................................................................................................14
List of Figures
FIGURE 1. DUAL BAND 11N APPLICATION DIAGRAM ............................................................................錯誤! 尚未定義書籤。
FIGURE 2. SINGLE BAND 11N APPLICATION DIAGRAM .............................................................................................................9
FIGURE 3. PIN ASSIGNMENTS................................................................................................................................................10
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 5
Rev.0.6
1. General Description
The Realtek RTL8192E is a highly integrated MIMO wireless LAN (WLAN) solution for the wireless high
throughput 802.11n draft specification. It combines a MAC and 1T2R capable baseband in a single chip.
When coupled with Realtek’s RFIC’s (RTL8256 at 2.4Ghz), the RTL8192E provides complete solution for
a high throughput performance wireless client.
The RTL8192E baseband implements multiple input, multiple output (MIMO) orthogonal frequency division
multiplexing (OFDM) with 1 transmit and 2 receive paths and is compatible with 802.11n Draft specification
2.0. Other features include two spatial streams transmission, short guard interval (GI) of 400ns, spatial
spreading, and transmission over 20 MHz and 40 MHz bandwidth. Moreover, RTL8192E provides one
spatial stream space-time block code (STBC) to extend the range of transmission. At the receiver, extended
range and good minimum sensitivity is achieved by having receiver diversity up to 2 antennas. As the
recipient, the RTL8192E also supports explicit sounding packet feedback that helps senders with
beamforming capability. With 2 independent RF IC, RTL8192E can perform fast roaming without link
interruption.
For legacy compatibility, direct sequence spread spectrum (DSSS), complementary code keying (CCK) and
OFDM baseband processing are included to support all IEEE 802.11b, 802.11g and 802.11n data rates.
Differential phase shift keying modulation schemes, DBPSK and DQPSK with data scrambling capability, are
available along with complementary code keying to provide the data rates of 1, 2, 5.5 and 11Mbps with long
or short preamble. The high speed FFT/IFFT paths, combined with BPSK, QPSK, 16QAM, and 64QAM
modulation of the individual subcarriers and rate compatible punctured convolutional coding with coding
rate of 1/2, 2/3, 3/4, and 5/6, provides the maximum data rate of 54 Mbps and 300 Mbps for IEEE 802.11b/g
and 802.11n MIMO OFDM respectively.
The RTL8192E builds in an enhanced signal detector, an adaptive frequency domain equalizer, and a
soft-decision Viterbi decoder to alleviate the severe multi-path effects and mutual interference in the
reception of multiple streams. For better detection quality, receive diversity with maximal-ratio-combine
(MRC) applying up to 2 receive paths are implemented. Robust interference detection and suppression are
provided to protect against bluetooth, cordless phone, and microwave oven. Radar detection is supported to
further protect RTL8192E from interference. Receive vector diversity for multi-stream application is
implemented for efficient utilization of MIMO channel. Efficient IQ-imbalance, DC offset, phase noise,
frequency offset and timing offset compensations are provided for the radio frequency front-end impairments.
Selectable digital transmit and receiver FIR filters are provided to meet the requirement of transmit spectrum
mask and to reject the adjacent channel interference, respectively.
The RTL8192E supports fast receiver automatic gain control (AGC) with synchronous and asynchronous
control loops among antennas, antenna diversity functions, and adaptive transmit power control function to
obtain the better performance in the analog portions of the transceiver.
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 6
Rev.0.6
The RTL8192E MAC supports 802.11e for multimedia applications, 802.11i for security, and 802.11n for
enhanced MAC protocol efficiency. Using packet aggregation techniques such as A-MPDU with BA and
A-MSDU, protocol efficiency is significantly improved. Power saving mechanisms such as U-APSD, APSD,
and MIMO power saving reduces the power wasted during idle time, and compensates for the extra power
required to transmit MIMO OFDM. The RTL8192E provides simple legacy and 20Mhz/40Mhz co-existence
mechanisms to ensure backward and network compatibility.
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 7
Rev.0.6
2. General Features
General
14 x 14mm2 128-pin LQFP..
CMOS MAC and Baseband MIMO PHY Single Chip for IEEE 802.11b/g/n compatible WLAN
Complete 802.11n MIMO solution coupled with RTL8256 for 2.4G solution.
1x2 MIMO technology for extended reception robustness and exceptional throughput
Maximum PHY data rate up to 150Mbps using 20Mhz bandwidth, 300Mbps using 40Mhz bandwidth
Compatible with 802.11n draft 2.0 specification.
Backward compatible with 802.11b/g devices while operating at 802.11n data rates
200Mbps UDP throughput at 40Mhz mode.
Host Interface
Complies with PCI Express™ Base Specification Revision 1.1
Standards supported
802.11e QoS Enhancement (WMM, WMM-SA Client mode)
802.11h TPC, DFS, Spectrum Measurement
802.11k Radio Resource Measurement
802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services.
CCX
MAC Features
Frame aggregation increase MAC efficiency (A-MSDU, A-MPDU)
Low latency Immediate High-Throughput Block Acknowledgement (HT-BA)
Long NAV for media reservation with CF-End for NAV release
PHY-level spoofing to enhance legacy compatibility
MIMO power saving mechanism
Channel management and co-existence
Multiple BSSID feature allowing RTL8192E to assume multiple MAC identity when used as wireless bridge
Supports Wake-On-WLAN via Magic Packet and wake-up frame
TXOP SIFS bursting guarantees multimedia bandwidth.
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 8
Rev.0.6
Peripheral Interface
General Purpose Input/Output (8 pins)
4-wire EEPROM control interface (93C46 and 93C56)
4-wire RF control interface (RTL8256)
Configurable LED pins (2).
PHY Features
IEEE 802.11n draft 2.0 MIMO OFDM
- 1 transmit and 2 receive paths (1T2R).
- 20MHz and 40MHz bandwidth transmission.
- Short Guard Interval (400ns).
- 1 spatial stream STBC transmission for extended coverage.
- Sounding packet.
DSSS with DBPSK and DQPSK, CCK modulations with long and short preamble.
OFDM with BPSK, QPSK, 16QAM, 64QAM, and 256QAM modulations. Convolutional coding rate: 1/2,
2/3, 3/4, and 5/6.
Maximum data rate 54Mbps in 802.11g and 300Mbps in 802.11n.
OFDM receive diversity with MRC using up to 4 receive paths. Switch diversity used for DSSS/CCK.
Hardware antenna diversity.
Selectable digital transmit and receiver FIR filters
Programmable scaling in transmitter and receiver to trade quantization noise against increasing probability of
clipping.
Fast receiver automatic gain control (AGC).
On-chip ADC and DAC.
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 9
Rev.0.6
3. Application Diagram
3.1. Single band 11n application
External LEDs
EEPROM
ADC
Ext Interface
PCI Express
Host
Interface
2.4G
Transceiver B
2.4G
Transceiver A
RX I/Q
T/Rx Matching
Circuit
Rx Matching
Circuit
Antenna
A
Antenna
B
RTL8256
RTL8192E
MAC
Configuration
Control and
Memory
Baseband
(PHY)
Control
DAC
40 MHz
Clock
40M Crystal
TX I/Q
Figure 1. Single Band 11n Application Diagram
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 10
Rev.0.6

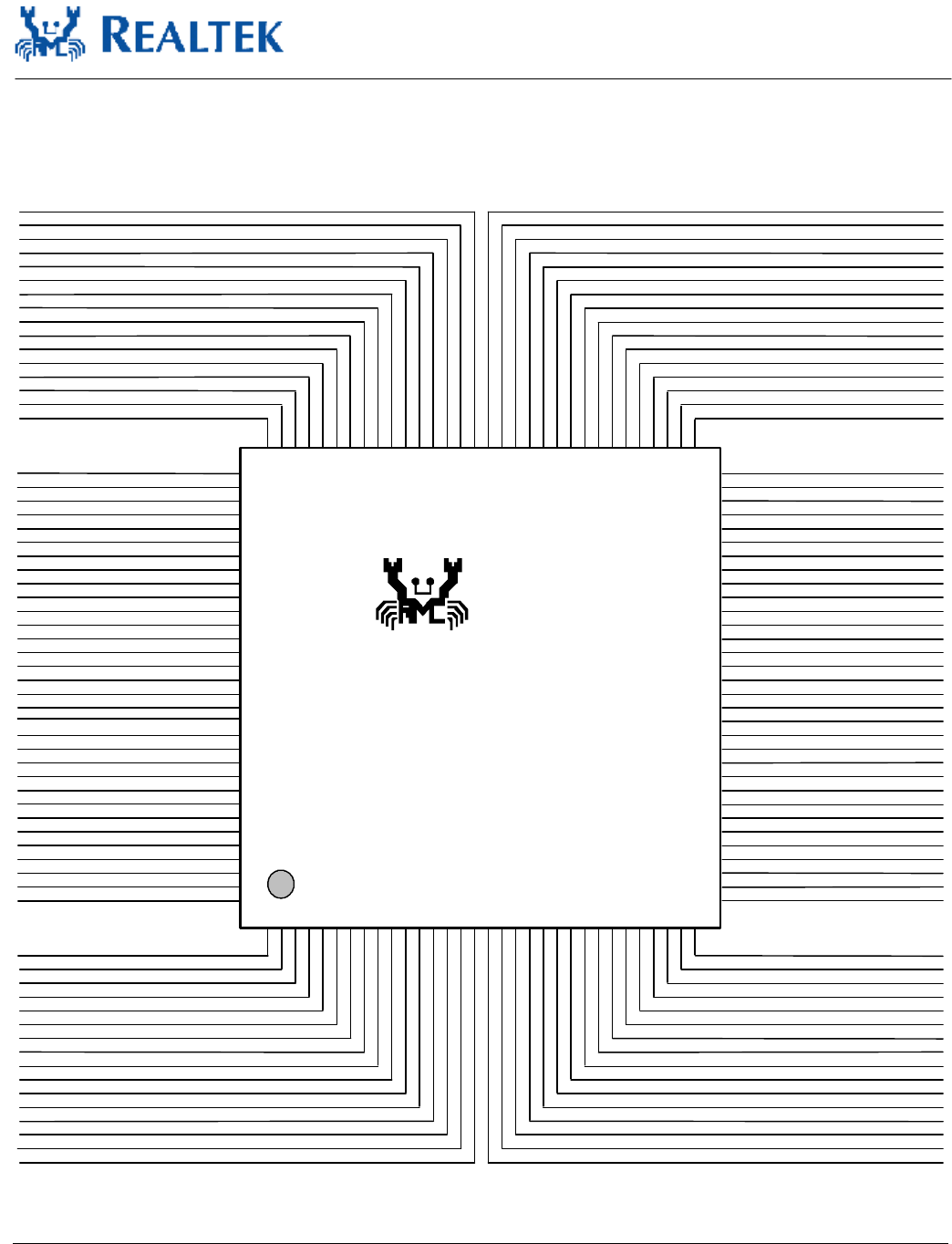

4. Pin Assignments
.
129 GND
RTL8192E
LLLLLLL
TXXXV TAIWAN
33 DVDD33
60 DGND12
59 ISOLATEBPIN
58 EXPWRONPIN
57 DVDD33
56 DGND33
55 HSIP
54 HSIN
53 REFCLK-P
52 REFCLK-M
51 EVDD12
50 HSOP
49 HSON
48 EGND
47 RREF
46 DV12
45 AGND
44 AV33
43 AGND
42 PCIESELPIN
41 EXRSTBPIN
40 EECSPIN
39 EESKPIN
38 EEDIPIN
37 EEDOPIN
36 CLKREQBPIN
35 LANWAKBPIN
34 DGND33
61 DVDD12
63 DGND33
62 PERSTBPIN
64 HG1
128 VDDBG
101 DVDD33
102 DGND33
103 DVDD12
104 DGND12
105 VDDREG
106 VDDPLL
107 REFCKP
108 REFCKN
109 CNDPLL
110 VDD15
111 GND15
112 DA60
113 TSSI5G-2
114 TSSI2G-2
115 TSSI-2
116 RIN-2
117 RIP-2
118 VDDA
119 RQP-2
120 RQN-2
121 GNDA
122 TIN-2
123 TIP-2
124 TQP-2
125 TQN-2
126 TQN-3
127 TQP-3
100 B-RFLEPIN
98 B-RFSDPIN
99 A-RFLEPIN
97 A-RFSDPIN
17 GNDPLL
32 B-TRSWPIN
31 B-TRSWBPIN
30 B-PAPE-5GPIN
29 B-PAPE-2GPIN
28 DVDD12
27 DGND12
26 A-TRSWPIN
25 A-TRSWBPIN
24 A-PAPE-5GPIN
23 A-PAPE-2GPIN
22 DVDD33
21 DGND33
20 XO
19 XI
18 VDD33
16 VDDPLL
1 R15K
2 GNDBG
3 GNDA
5 TIN-3
6 VDDA
7 RQN-3
8 RQP-3
9 VDDA
10 RIP-3
11 RIN-3
12 TSSI2G-3
13 TSSI5G-3
14 RSSI-3
15 GNDA
65 REG-OUT1
80 HG2
79 ENSWREG1-H
78 GPIO[3]
77 DVDD12
76 DGND12
75 GPIO[2]
74 GPIO[1]
73 GPIO[0]
72 LED[1]
71 LED[0]
70 DVDD33
69 DGND33
68 RSET
67 HV1
66 HV1
96 DCND12
81 REG-OUT2
82 HV2
83 HV2
84 DGND33
85 DVDD33
86 GPIO[4]
87 GPIO[5]
88 GPIO[6]
89 GPIO[7]
90 DVDD33
91 DGND33
92 A-RFENVPIN
93 ARFRWPIN
94 A-RFSCKPIN
95 DVDD12
4 TIP-3
Figure 2. Pin Assignments
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 11
Rev.0.6
5. Pin Descriptions
In order to reduce pin count, and therefore size and cost, some pins have multiple functions. In such cases,
the functions are separated with a ‘/’ symbol. Refer to the Pin Assignments diagram on page 10 for a
graphical representation.
The following signal type codes are used in the tables:
I: Input.
O: Output
T/S: Tri-State bi-directional input/output pin.
S/T/S: Sustained Tri-State.
O/D: Open Drain.
P: Power pin.
5.1. PCIE Transceiver Interface
Table 1. PCIE Transceiver Interface
Symbol Type
Pin No Description
HSIN/HSIP I 54/55 Receiver differential pair
HSON/HSOP O 49/50 Transmitter differential pair
REFCLK_N/
REFCLK_P I 52/53 Reference clock differential pair
CLKREQB O 36 Signal for Reference clock Enable
LANWAKEB O 35 Signal for Link reactivation
PERSTB I 62 Fundamental reset
5.2. EEPROM Interface
Table 2. EEPROM Interface
Symbol Type Pin No Description
EESK O 39 EESK in 93C46 (93C56) programming or auto-load mode.
EEDI O 38 EEDI in 93C46 (93C56) programming or auto-load mode.
EEDO I/O 37 EEDO in 93C46 (93C56) programming or auto-load mode.
EECS O 40 EEPROM Chip Select.
93C46 (93C56) chip select.
5.3. Power Pins
Table 3. Power Pins
Symbol Type Pin No Description
DVDD33 P 22, 33,57,70,85,90,101
+3.3V (Digital).
DVDD12 P 28,61,77,95,103 +1.2V (Digital)
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 12
Rev.0.6
Symbol Type Pin No Description
VDDBG P 128 +3.3V (Analog). For Bandgap and Bias
VDD33 P 18 +3.3V (Analog). For XTAL
VDDREG P 105 +2.2V (Analog). For Voltage input of Built-In Regulator in AFE
VDDA P 6,9,118 +1.5V (Analog). For Analog Power of AD/DA,T/RSSI of Left Corner
AFE
VDD15 P 110 +1.5V (Analog). For Digital power of DAC and level shifter of Left
Corner AFE
DGND33 P 21,34,56,63,69,84,91,
102
Ground (Digital 3.3).
DGND12 P 27,60,76,96,104 Ground (Digital 1.2).
VDDPLL P 16,106 +1.5V (Analog). For Analog Power of PLL.
GNDA P 3,15,121 Ground (Analog).
AGND P 43,45, Ground (Analog).
EGND P 48 Ground.
GNDPLL P 17,109 Ground.
GNDBG P 2 Ground.
AV33 P 44 +3.3V (Analog).
DV12 P 46 +1.2V (Analog).
GND15 P 111 Ground.
EVDD12 P 51 Ground.
RREF P 47 For Bandgap and Bias
5.4. LED Interface
Table 4. LED Interface
Symbol Type Pin No Description
LED0, 1 O 71,72 LED Pins (Active low).
5.5. Switching Regulator
Table 5. Switching Regulator
Symbol Type Pin No Description
HV1 I 66,67 Input DVDD33
HG1 I 64 DGND
REG_OUT1 O 65 Regulator output 1.2V
REG_OUT2 O 81 Regulator output 2.2V
HV2 I 82,83 Input DVDD33
HG2 I 80 DGND
ENSWREG_H
I 79 Built-In Switch Regulator Enable
RSET I 68 External pull down reference resister 96K ohm for switch regulator
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 13
Rev.0.6
5.6. Attachment Unit Interface
5.6.1. RF Chipset
RF chipset’s register access is controlled by 4-wire serial interface consisting: Serial Clock Output (SCK),
Serial Data Input/Output (SD), Serial Latch Enable (LE), and Serial Read/Write Select (RW). RF chipset
contains two RF modules, thus uses two sets of 4-wire control interface, where the SCK and RW are shared.
RTL8192E is capable of operating with 2 RF modules. The 4-wire control interface are labeled from A to B.
Table 6. RTL8192E Attachment Interface with RF Chipset
Symbol Type
Pin No
Description
REFCKP, REFCKN
O 107,108
Differential clock output to RF chip.
A_PAPE_5GPIN O 24 5GHz Transmit Power Amplifier Power Enable.
A_PAPE_2GPIN O 23 2.4GHz Transmit Power Amplifier Power Enable.
A_TRSWPIN O 26
A_TRSWBPIN O 25
Transmit/Receive path select.
A_RFSCK
O 94 .Serial Clock Output.
A_RFSD I/O
97 Serial Data Input/Output.
A_RFLE O 99 Serial Latch Enable
RF_A_CT
RL
A_RFRW O 93 Read/Write Select.
B_PAPE_5G O 30 5GHz Transmit Power Amplifier Power Enable.
B_PAPE_2G O 29 2.4GHz Transmit Power Amplifier Power Enable.
B_TRSW O 32
B_TRSWB O 31
Transmit/Receive path select.
The TRSW select signal controls the direction of the Transmit/Receive switch.
B_RFSD I/O
98 Serial Data Input/Output.
RF_B_CT
RL
B_RFLE O 100 Serial Latch Enable
TSSI5G_2 I 113
TSSI5G_3 I 13
Input to the Transmit Power A/D Converter for 5GHz Transmit AGC Control.
TSSI2G_2 I 114
TSSI2G_3 I 12
Input to the Transmit Power A/D Converter for 2.4GHz Transmit AGC Control.
RSSI_2 I 115
RSSI_3 I 14
Analog Input to the Receive Power A/D Converter for Receive AGC Control.
TIP_2 O 123 Baseband In-phase Output Data - differential positive signal for Path2
TIN_2 O 122 Baseband In-phase Output Data - differential negative signal for Path2
TIP_3 O 4 Baseband In-phase Output Data - differential positive signal for Path3
TIN_3 O 5 Baseband In-phase Output Data - differential negative signal for Path3
TQP_2 O 124 Baseband Quadrature Output Data - differential positive signal for Path2
TQN_2 O 125 Baseband Quadrature Output Data - differential negative signal for Path2
TQP_3 O 127 Baseband Quadrature Output Data - differential positive signal for Path3
TQN_3 O 126 Baseband Quadrature Output Data - differential negative signal for Path3
RIP_2 I 117 Analog input for In -phase received data – differential positive signal for Path2
RIN_2 I 116 Analog input for In -phase received data – differential negative signal for Path2
RIP_3 I 10 Analog input for In -phase received data – differential positive signal for Path3
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 14
Rev.0.6
Symbol Type
Pin No
Description
RIN_3 I 11 Analog input for In -phase received data – differential negative signal for Path3
RQP_2 I 119 Analog input for Quadrature received data – differential positive signal for Path2
RQN_2 I 120 Analog input for Quadrature received data – differential negative signal for Path2
RQP_3 I 8 Analog input for Quadrature received data – differential positive signal for Path3
RQN_3 I 7 Analog input for Quadrature received data – differential negative signal for Path3
A_RFENV O 92 RF Chip Enable of RF A&B
5.7. Clock and Other Pins
Table 7. Clock and Other Pins
Symbol Type
Pin No
Description
XI I 19 40MHz OSC Input. 40Mhz Crystal input.
XO I 20 40Mhz Crystal input.
DA6O O 112 6 bit analog signal for PHY debug
R12K I 1 External pull down reference resister 12K ohm for BandGap
EXRSTB I 41 Debug purpose manual reset pin. Not connected on board.
EXPWRON I 58 Debug purpose. Pull high to clear reset state.
PCIESEL I 42 Weakly pull high at power on.
GPIO0 I/O 73 There are 8 General Purpose Input/Output pins. Some are used for power-on latch
purposes.
GPIO1 I/O 74
GPIO2/AuxPwr I/O 75 Weakly pull high at power on to indicate the presence of the auxiliary power on the
mainboard
GPIO3/Sel9356 I/O 78 Weakly pull high at power on to indicate the choice of EEPROM is 93C56. If left not
connected, RTL8192E assumes the EEPROM in use is 93C46.
GPIO4 I/O 86
GPIO5 I/O 87
GPIO6 I/O 88
GPIO7 I/O 89
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 15
Rev.0.6
6. Electrical and Thermal Characteristics
6.1. Temperature Limit Ratings
Table 8. Temperature Limit Ratings
Parameter Minimum Maximum Units
Storage Temperature -55 +125 °C
Ambient Operating Temperature 0 70 °C
Junction Temperature 0 125 °C
6.2. DC Characteristics
Below is a description of the general DC specifications for the RTL8192E.
Table 9. DC Characteristics
Symbol Parameter Conditions Minimum
Typical Maximum
Units
DVDD33
3.3V I/O Supply Voltage 2.97 3.3 3.63 V
DVDD12
1.2V Core Supply Voltage 1.08 1.2 1.32 V
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 16
Rev.0.6
7. Mechanical Dimensions

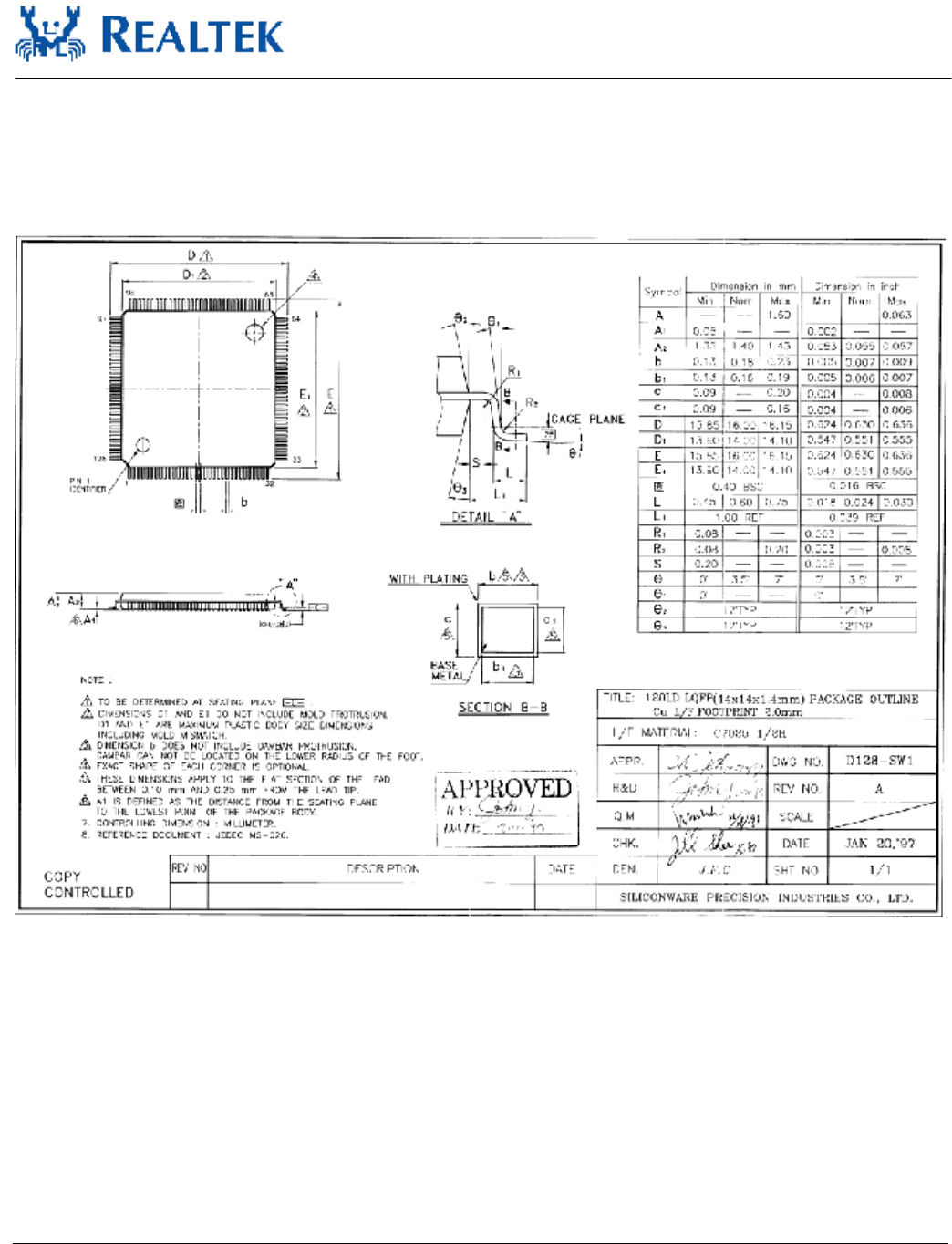

Figure 4. RTL8192E Mechanical Specification
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 17
Rev.0.6
8. Ordering Information
Table 8. Ordering Information
Part Number Package Status
RTL8192E-GR LQFP-128, Green package MP
Functional Specifications
POWER SUPPLY DC 3.2~3.5V from host equipment
MODULATION TYPE CCK, DQPSK, DBPSK for DSSS
64QAM, 16QAM, QPSK, BPSK for OFDM
MODULATION TECHNOLOGY DSSS, OFDM
TRANSFER RATE
802.11b: 11 / 5.5 / 2 / 1Mbps
802.11g: 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6Mbps
Draft 802.11n (20MHz, 800ns GI): 130 / 117 /
104 / 78 / 65 / 58.5 /
52 / 39 / 26 / 19.5 / 13 / 6.5Mbps
Draft 802.11n (40MHz, 800ns GI): 270 / 243 / 216 / 162 /135 / 121.5
/ 108 / 81 / 54 / 40.5 / 27 / 13.5Mbps
Draft 802.11n (20MHz, 400ns GI): 144.444 / 130 / 115.556 / 86.667
/ 72.2 / 65 / 57.8 / 57.778 / 43.333 / 43.3 / 28.9 / 28.889 / 21.7 /
14.444 / 14.4 / 7.2Mbps
Draft 802.11n (40MHz, 400ns GI): 300 / 270 / 240 / 180 / 150 / 135
/ 120 / 90 / 60 / 45 / 30 / 15Mbps
FREQUENCY RANGE 2400MHz ~ 2483.5MHz
NUMBER OF CHANNEL 11 for 802.11b, 802.11g, draft 802.11n (20MHz)
7 for draft 802.11n (40MHz)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 18
Rev.0.6
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied
firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still
responsible for testing their end-product for any additional compliance requirements required with this module installed (for
example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used
on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including
the transmitter) and obtaining a separate FCC authorization.
End Product Labeling :
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be
maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains
FCC ID: TX2-RTL8192EHMC”.
Manual Information To the End User :
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF
module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device
This device has been designed to operate with an antenna having a maximum gain of 3.95 dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more
than required for successful communication.
RTL8192E-GR
Datasheet
Wireless LAN Network Interface Controller 19
Rev.0.6
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.
Taiwan 警語 :
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，
並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
本模組於取得認證後將依規定於模組本體標示審合格籤，並要求平台上標示「本產品內含射頻模組：ID編號」
Realtek Semiconductor Corp.
Headquarters
No. 2, Innovation Road II, Hsinchu Science Park,
Hsinchu, 300, Taiwan, R.O.C.
Tel: 886-3-5780211 Fax: 886-3-5776047
www.realtek.com.tw
