Congratulations for choosing the SAGEM MorphoAccess™1 Automatic
Fingerprint Recognition Terminal. MorphoAccess™ provides an innovative
and effective solution for access control applications using Fingerprint
Verification or/ and Identification.
Among a range of alternative biometric techniques, the use of finger
imaging has significant advantages: each finger constitutes an unalterable
physical signature which develops before birth and is preserved until
death. Unlike DNA, a finger image is unique to each individual - even
identical twins.
The MorphoAccess™ terminal integrates SAGEM image processing
and feature matching algorithms (MorphoSoft™ and MorphoImaging™).
This technology is based on lessons learned during more than 20 years of
experience in the field of biometric identification and the creation of literally
millions of individual fingerprint identification records.
We believe you will find the SAGEM MorphoAccess™ fast, accurate, easy
to use and suitable for physical access control.
The SAGEM MorphoAccess™ offers the following advantages:
• High quality optical sensor ( IQS certified )
• Supports multiple input/output interfaces used in the physical
access control industry.
• Local area network interface for easy interaction with other host
systems.
• Compact size for easy installation and integration into your
available office space.
• Intuitive man machine interface with keyboard and display, that is
easy to use in both setup and operational modes.
• Open architecture, with dedicated applications implemented via
MA5xx/1xx Software Development Kit.
To ensure the most effective use of your SAGEM MorphoAccess™, we
recommend that you read this Installation Guide thoroughly.
1 The SAGEM logo and trademark are the property of SAGEM Sécurité.
All other trademarks or product names are trademarks or product names of the respective title
holders.
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 5
S
SA
AF
FE
ET
TY
Y
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
The installation of this product should be made by a qualified service
technician and should conform to all local codes.
It is strongly recommended that a class II power supply at 12 V ±5% and
0.75 A. min be used in accordance with Safety Electrical Low Voltage
(SELV) parameters. The 12 V power supply cable length should not
exceed 5 meters.
This product may be installed with a power supply conforming to
EN60950, in accordance with the NEC Class 2 requirements; or supplied
by a listed EN60950 external Power Unit marked Class 2, Limited Power
source, or LPS and rated 12 V DC, 0.75 A minimum.
In case of “Power Over Ethernet” use, the POE hub or switch features has
to be conformed with IEEE 802.3-af standard. An insulation greater than
2000V is provided between MA5xx terminal and Ethernet network.
In case of building to building connection it is recommended to connect 0V
to ground. This ground (ground security reference) cable must be
connected with the terminal block board fixation screw marked with the
universal ground symbol ( see p16 ).
E
Eu
ur
ro
op
pe
e
i
in
nf
fo
or
rm
ma
at
ti
io
on
n
:
:
SAGEM hereby declares that the SAGEM MorphoAccess™ has been
tested and found compliant with the following listed standards as required
by the EMC Directive 89/336/EEC: EN55022 (1994) / EN55024 (1998),
EN300-330 (1999) and by the low voltage Directive 73/23/EEC amended
by 93/68/EEC: EN60950 (2000).
Caution: The MA500 terminal is a Class A device. In a residential
environment, this device may cause interference. In this case, the user is
encouraged to try to correct the interference with appropriated measures
such as :
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
6 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
U
US
SA
A
i
in
nf
fo
or
rm
ma
at
ti
io
on
n
Caution: FCC part 15 certificates are pending.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Responsible Party : Sagem Morpho Inc, 1145 Broadway Plaza, Suite 200,
Tacoma, Washington (USA), 98402, (800) 346-2674.
Note : This equipment has been tested and found to comply with the limits
for a Class B (MA520, MA521, OMA520, OMA521) or Class A (MA500)
digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
C
Ca
an
na
ad
di
ia
an
n
i
in
nf
fo
or
rm
ma
at
ti
io
on
n
Caution: Industrial Canadian certificates are pending.
This Class B (MA520, MA521, OMA520, OMA521) or Class A (MA500)
digital apparatus complies with Canadian ICES-003.
Ces appareils numériques de Classe B (MA520, MA521, OMA520,
OMA521) ou Classe A (MA500) sont conformes à la norme NMB-003 du
Canada.
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 7
G
GE
EN
NE
ER
RA
AL
L
D
DE
ES
SC
CR
RI
IP
PT
TI
IO
ON
N

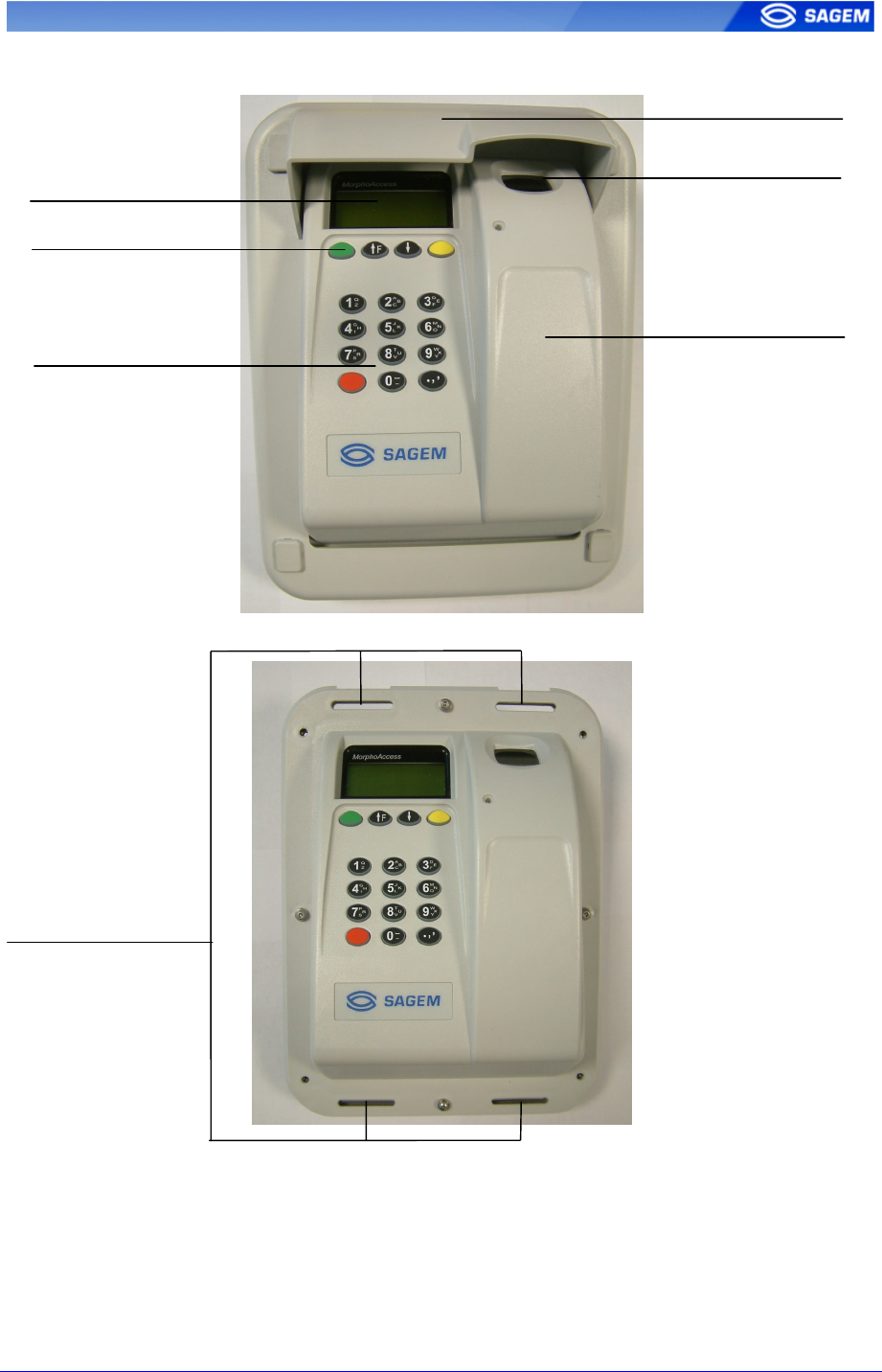

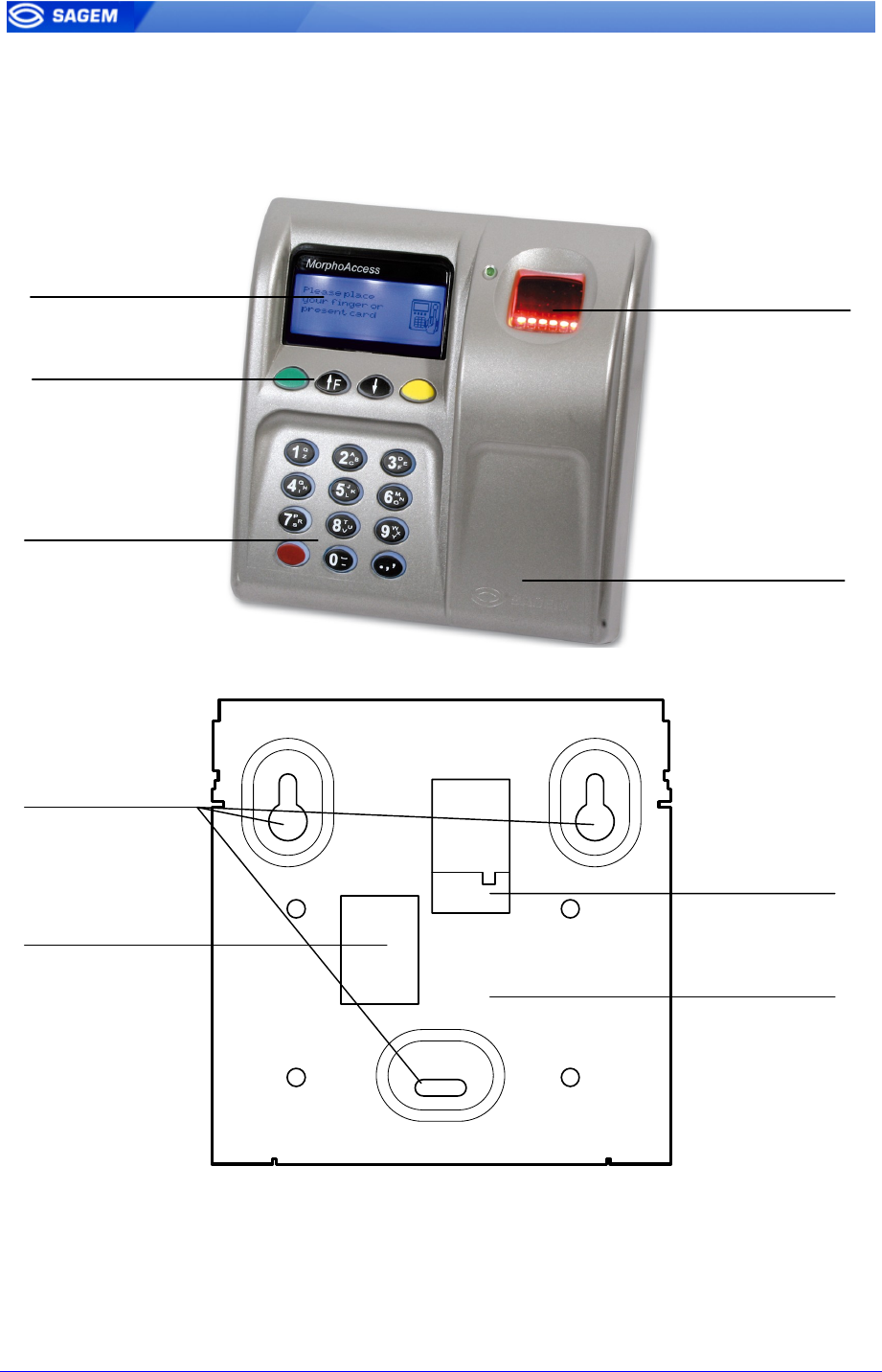

MA5xx versions
Display
128 x 64 dots
Senso
r
Function keys
Keyboard
MIFARE
Card reade
r
( MA520 / 521 only )
Mounting keyholes
Cable entry
Metal chassis
Anti-thef
t
entr
y
MorphoAccess™ supplies:
1 Cover assembly with Chassis and 2 Secured screws for fixation
1 Secured screwdriver Torx 20
1 Chassis fixation kit ( 4 fixations and screws , 1 anti theft block )
8 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
OMA5xx versions
Display
128 x 64 dots
Function keys
Keyboard
MIFARE
Card reade
r
(
MA520 / 521 onl
y
)
Senso
r
Protective viso
r
4 Mounting slots
Outdoor MorphoAccess™ supplies:
1 Cover assembly with chassis and protective visor
1 Secured screwdriver Torx 10
1 Chassis fixation kit ( 4 fixations and screws )
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 9
M
MA
A5
5X
XX
X
V
VE
ER
RS
SI
IO
ON
NS
S
I
IN
NS
ST
TA
AL
LL
LA
AT
TI
IO
ON
N
P
PR
RO
OC
CE
ED
DU
UR
RE
E
S
St
ta
ag
ge
e
1
1:
:
D
Dr
ri
il
ll
li
in
ng
g
t
th
he
e
m
mo
ou
un
nt
ti
in
ng
g
h
ho
ol
le
es
s

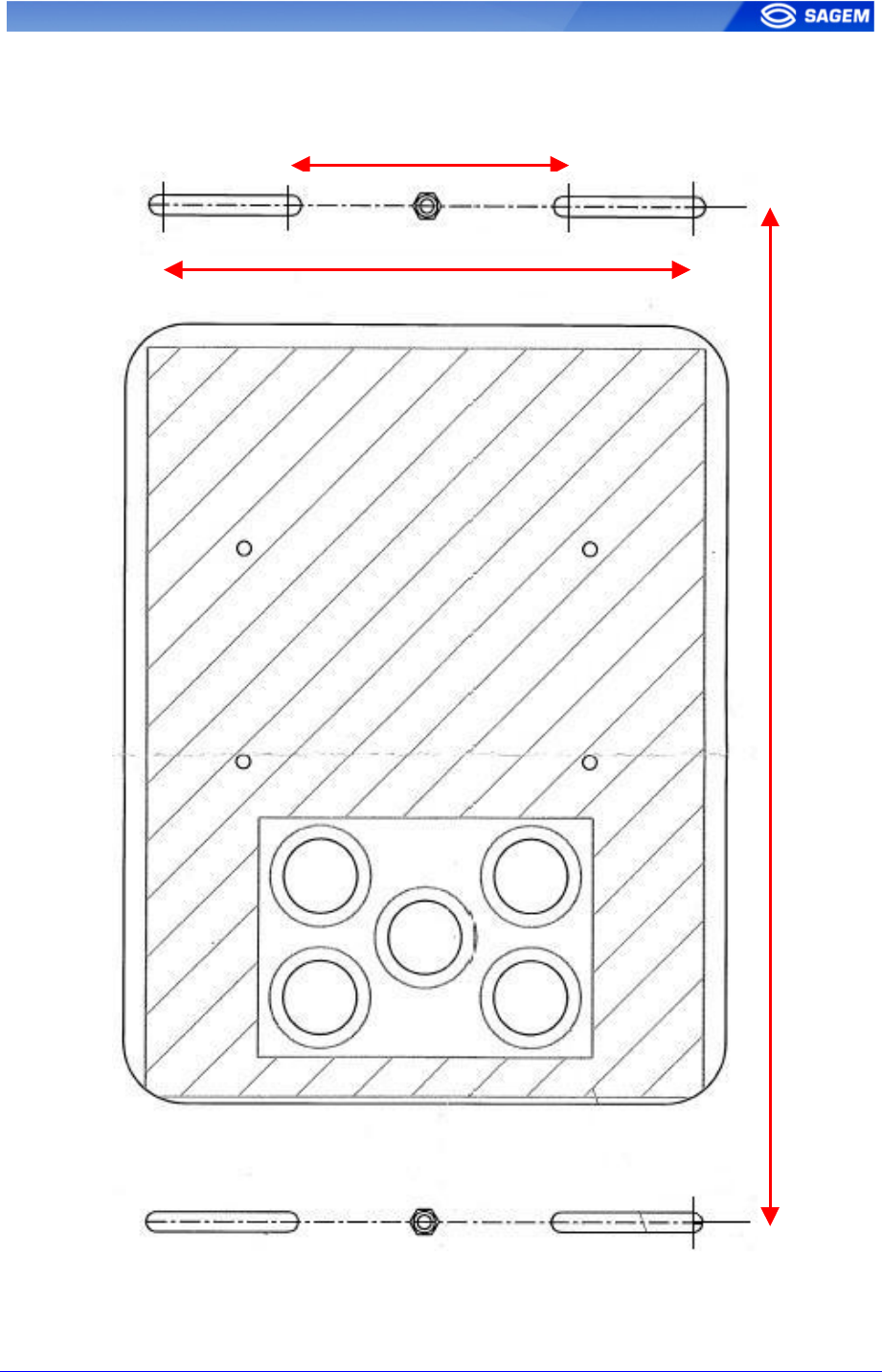

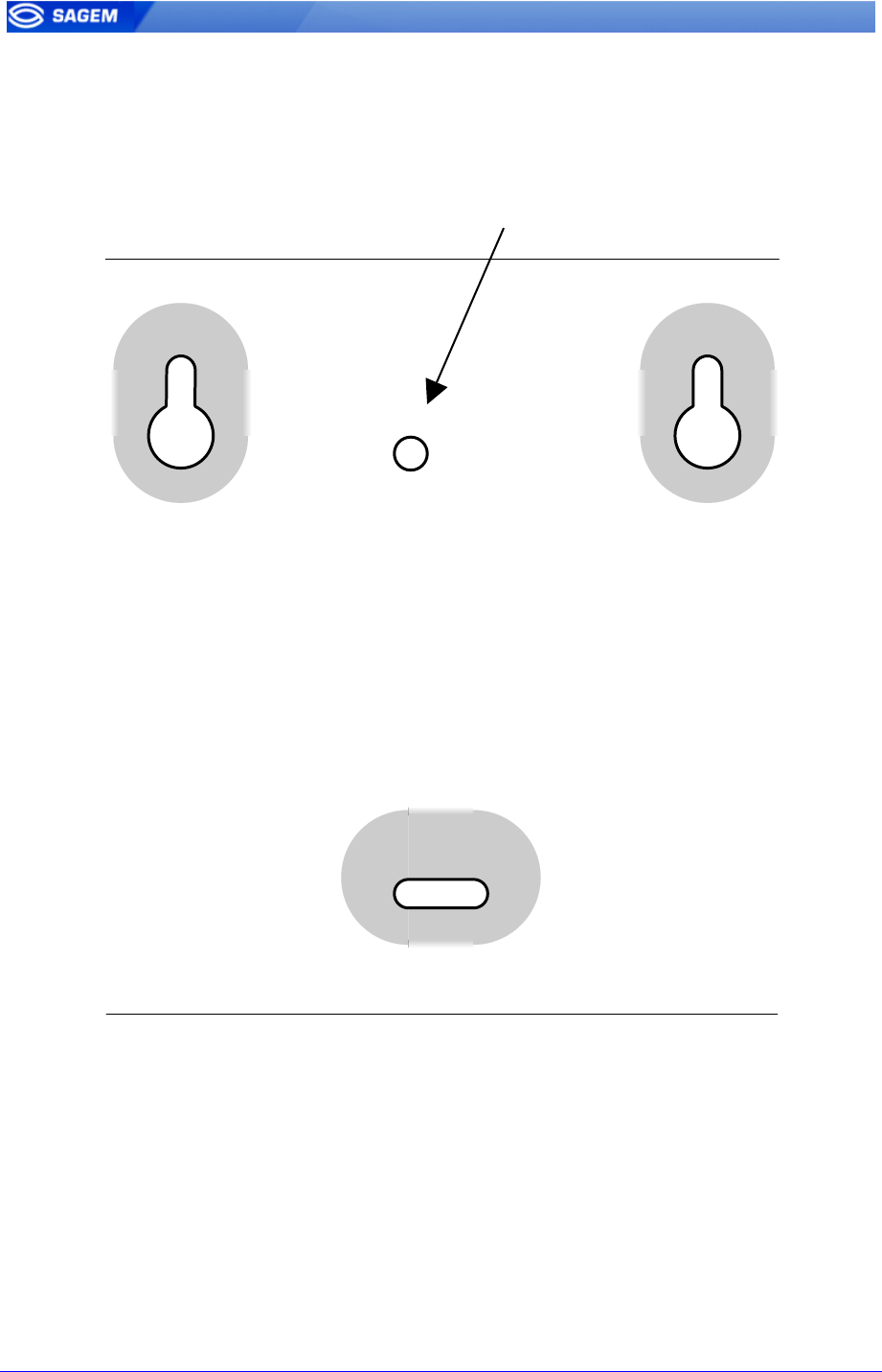

Mounting and cable entry hole location (rear view)
10 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03

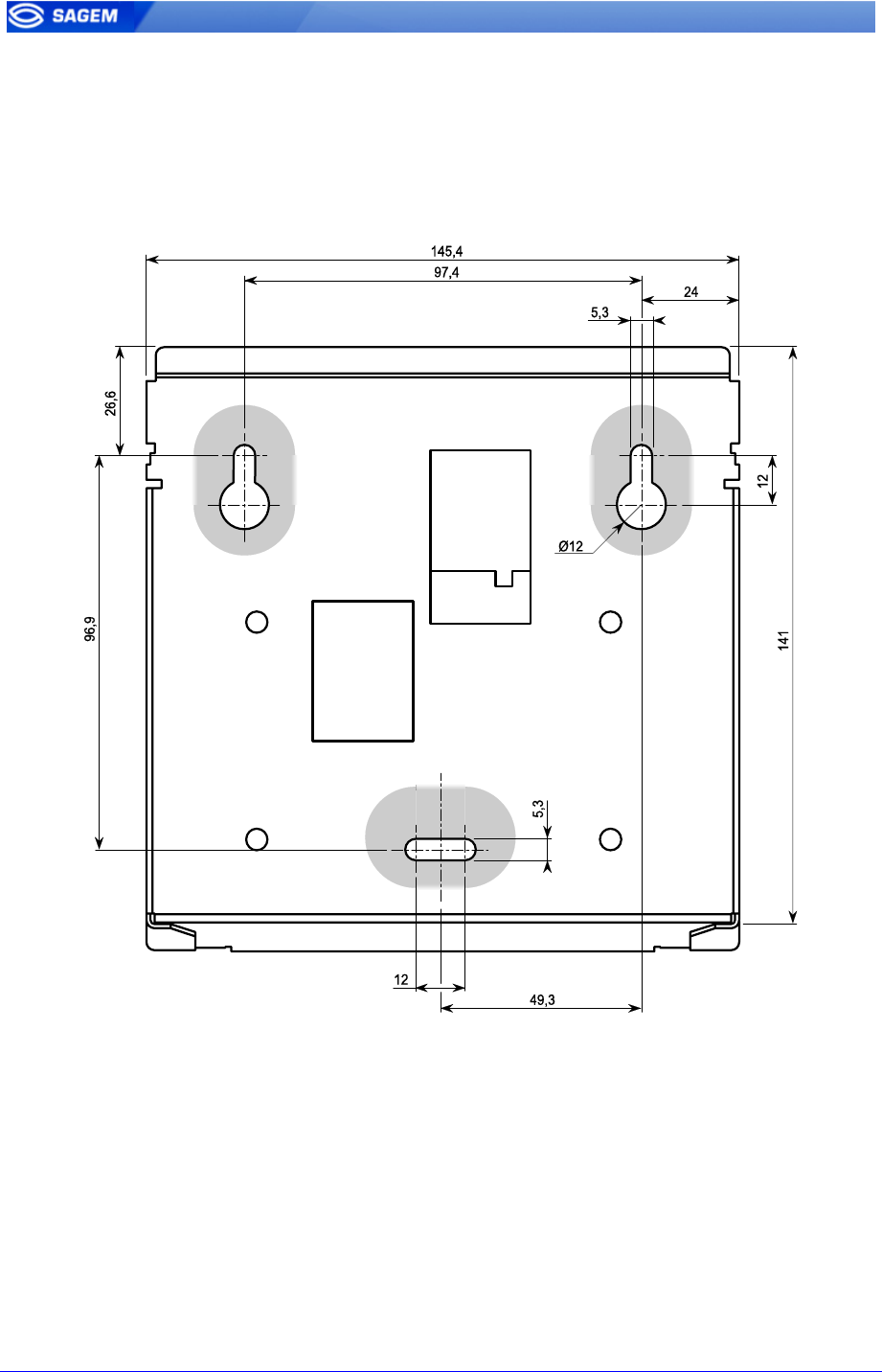

a) Using the dimensional drawing in Appendix 3, drill 2 holes for the
mounting keyholes screws so that the cable entry is in a suitable position
for cabling.
b) Drill the hole for the third screw in the center of the slot so that it is
possible to correct the position later, if necessary.
c) The mounting screws must be 5 mm diameter maximum.
S
St
ta
ag
ge
e
2
2:
:
M
Mo
ou
un
nt
ti
in
ng
g
t
th
he
e
m
me
et
ta
al
l
c
ch
ha
as
ss
si
is
s
a
as
ss
se
em
mb
bl
ly
y

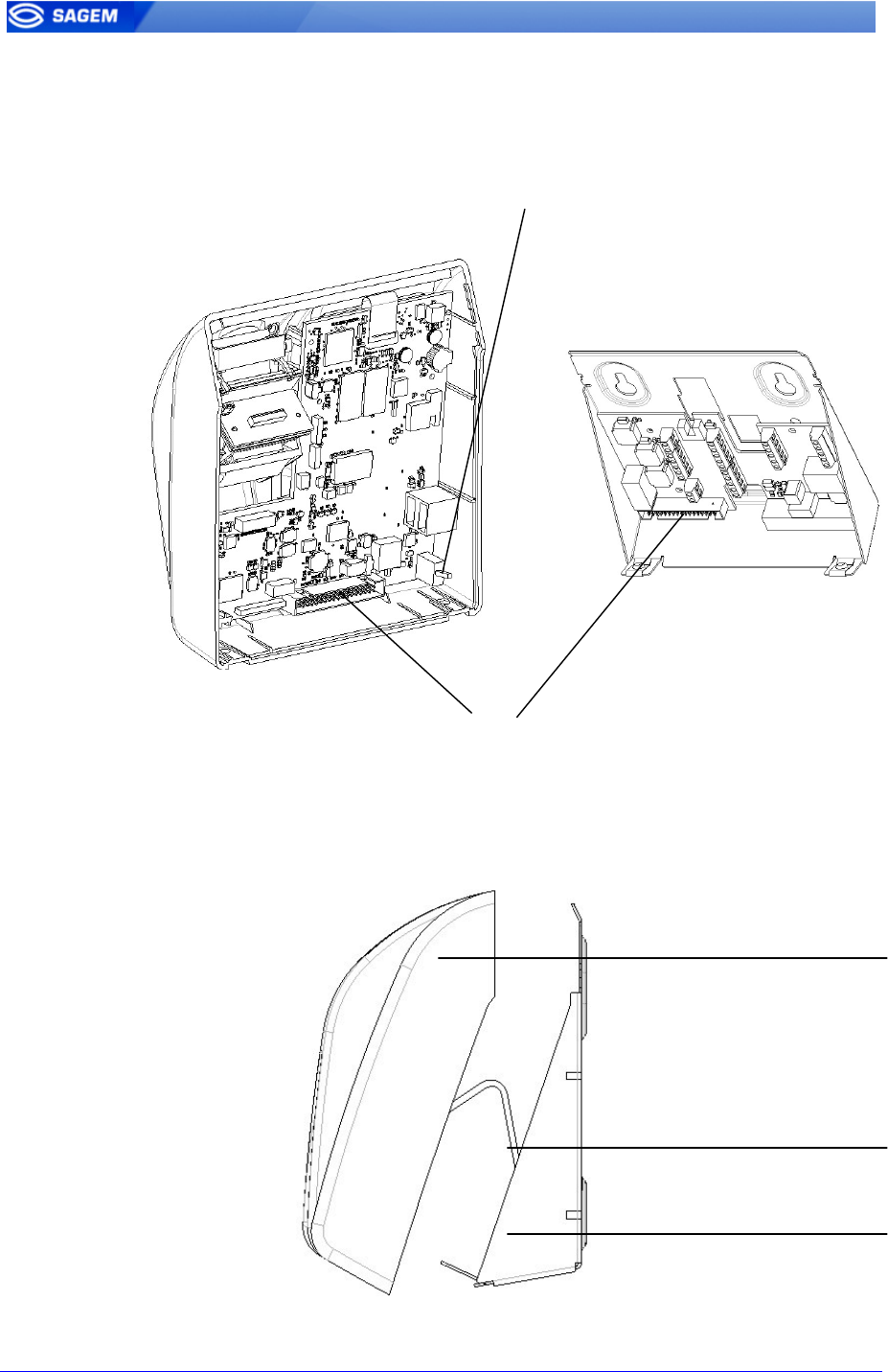

Anti theft switch
Cable entr
y

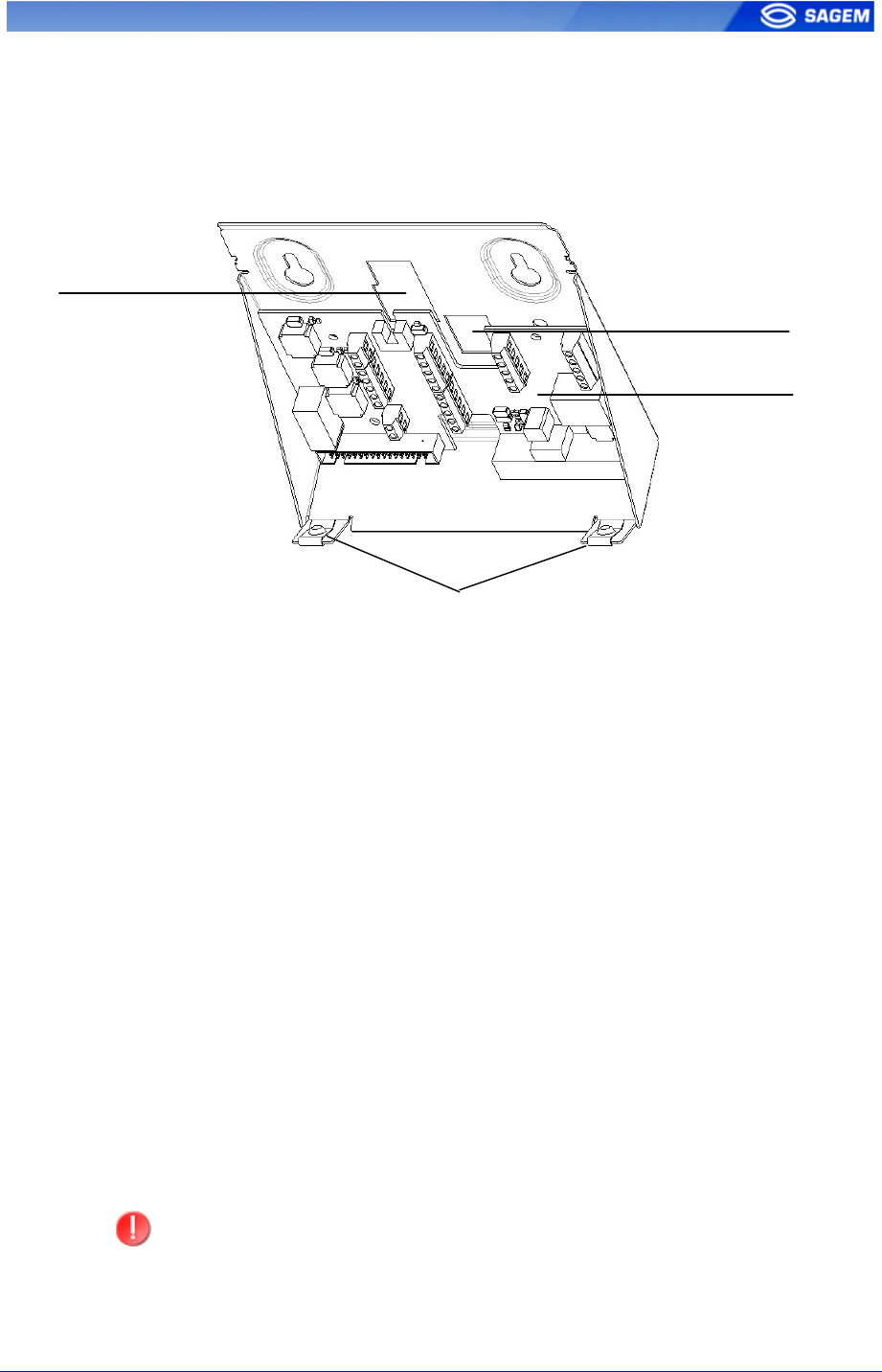

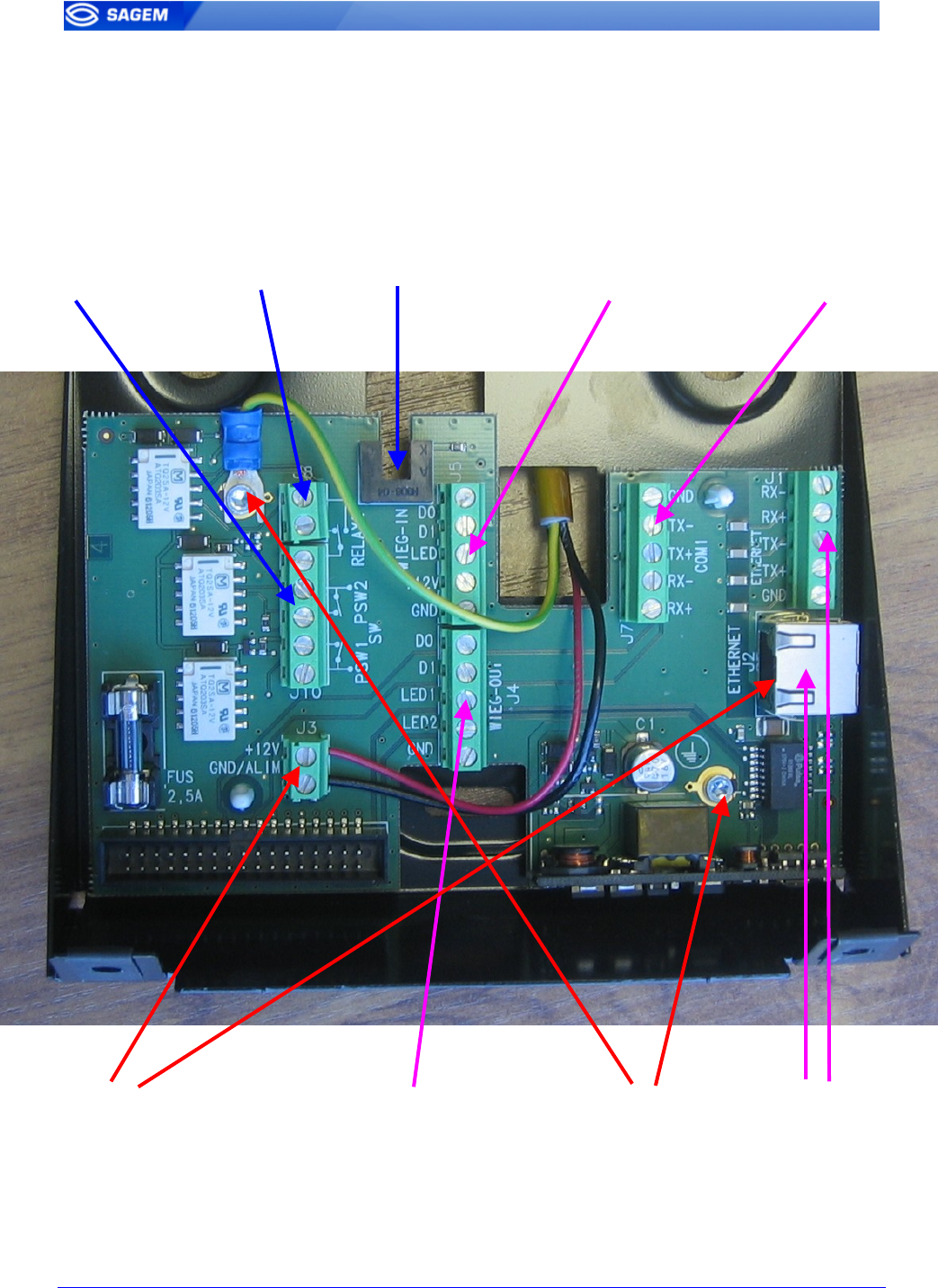

Terminal block board
Chassis bold receivers
a) Disconnect the ribbon cable between the motherboard and the terminal
block board so that the assembly shown above can be detached from the
rest of MorphoAccess™.
b) Pass the connecting cables through the cable entry.
c) Position the chassis assembly against the wall using the two screws in
the mounting keyholes.
d) Hold the chassis in place with a screw through the mounting slot.
e) Adjust the position, and fix in place by tightening all three screws.
f) Adjust the anti theft block into the hole designed for it, and fix in place
the last and fourth screw.
Check that nothing is interfering with the anti theft switch ( opto
component ) and the anti theft block.
g) Connect cables to terminal blocks with adequate torque conformed to
screw dimensions ( see the detailed instructions in the following
sections )
Be sure during manipulation that the power supply from the
electrical source is off.
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 11
S
St
ta
ag
ge
e
3
3:
:
C
Co
on
nn
ne
ec
ct
ti
in
ng
g
t
th
he
e
c
ch
ha
as
ss
si
is
s
a
as
ss
se
em
mb
bl
ly
y
t
to
o
t
th
he
e
c
co
ov
ve
er
r
a
as
ss
se
em
mb
bl
ly
y

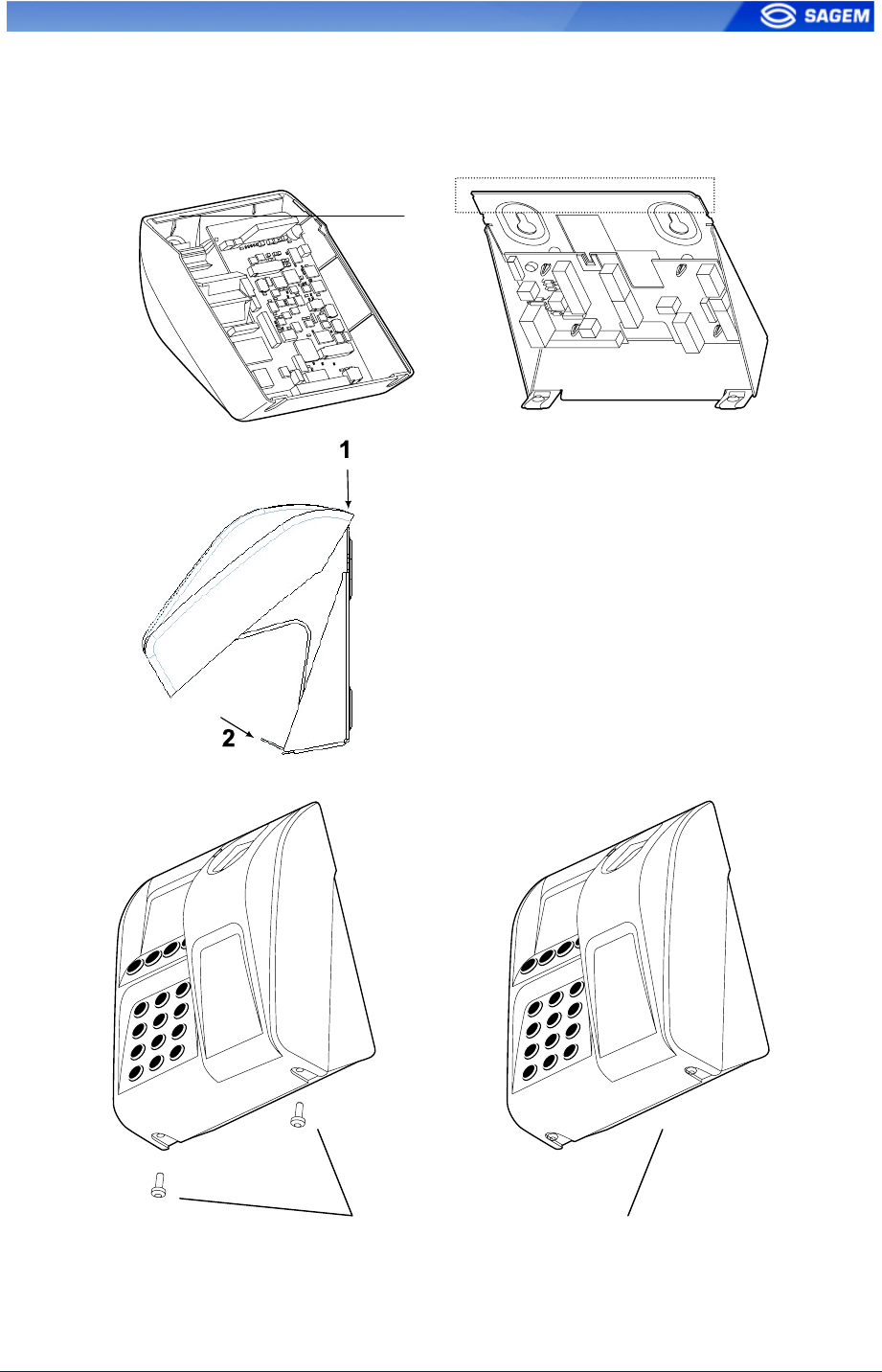

Ribbon cable connector location
Tamper switch
Cover assembly Chassis assembly
Motherboard/terminal block board
ribbon cable connector
Position of the ribbon cable as the case is closed
Cover assembl
y
Chassis assembl
y
The ribbon cable must be folded as
shown so that the case closes
easily without damaging the cable
12 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
S
St
ta
ag
ge
e
4
4:
:
C
Cl
lo
os
si
in
ng
g
M
Mo
or
rp
ph
ho
oA
Ac
cc
ce
es
ss
s™
™
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 13
Catch for the cover assembly lip
Lip
When the ribbon cable has been
connected between the two assemblies
(see stage 3), the cover assembly is fitted
to the chassis assembly.
1 The lip on the cover slides behind the
chassis, to fit over the catch shown on the
diagram above.
2 The cover is fitted onto the chassis by
rotating it.
Fit the two M4x16 assembly screws.
Use screwdriver TORX 20
Assembled
MorphoAccessTM
O
OM
MA
A5
5X
XX
X
V
VE
ER
RS
SI
IO
ON
NS
S
I
IN
NS
ST
TA
AL
LL
LA
AT
TI
IO
ON
N
P
PR
RO
OC
CE
ED
DU
UR
RE
E
S
St
ta
ag
ge
e
1
1:
:
D
Dr
ri
il
ll
li
in
ng
g
t
th
he
e
m
mo
ou
un
nt
ti
in
ng
g
h
ho
ol
le
es
s

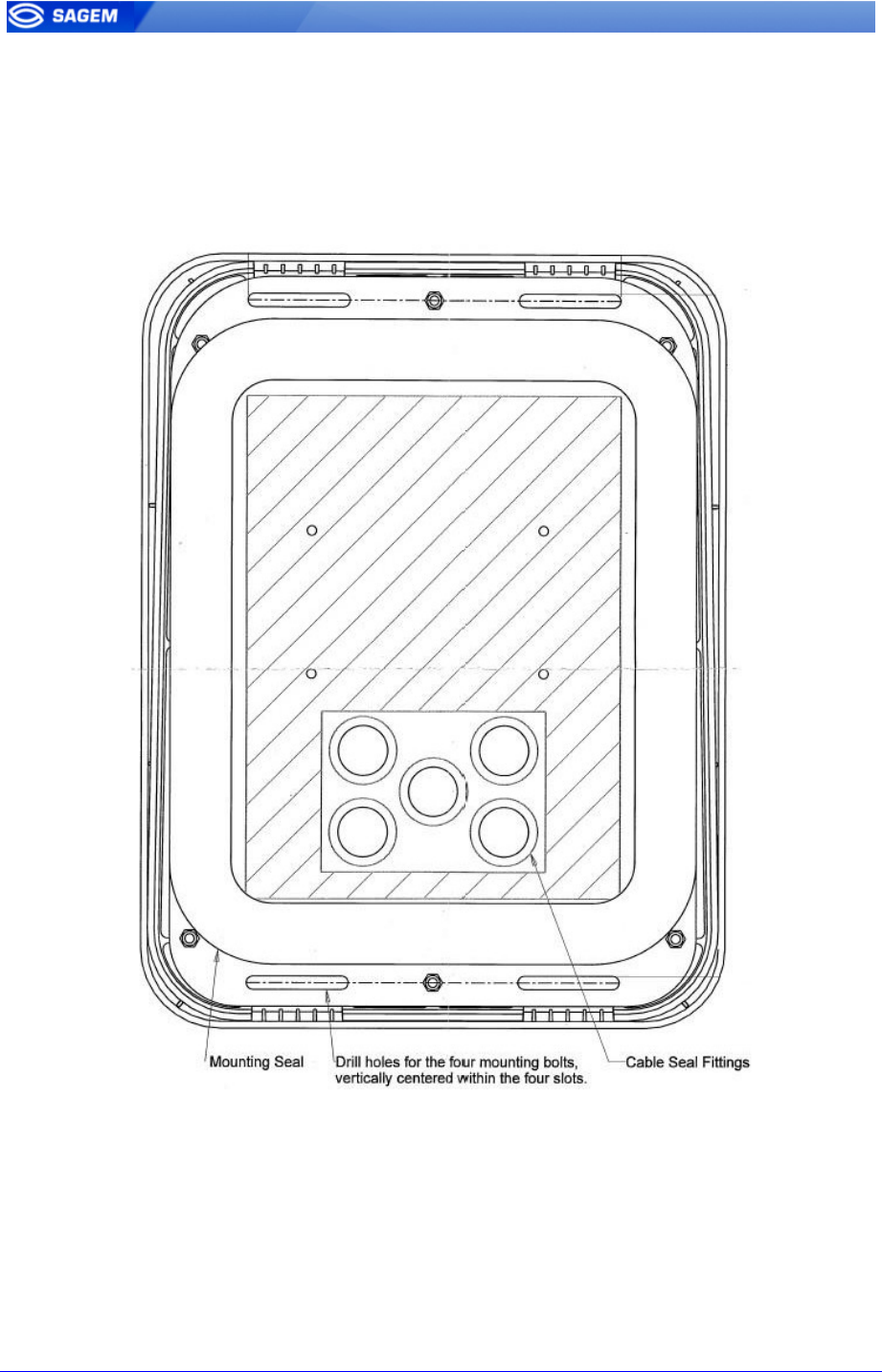

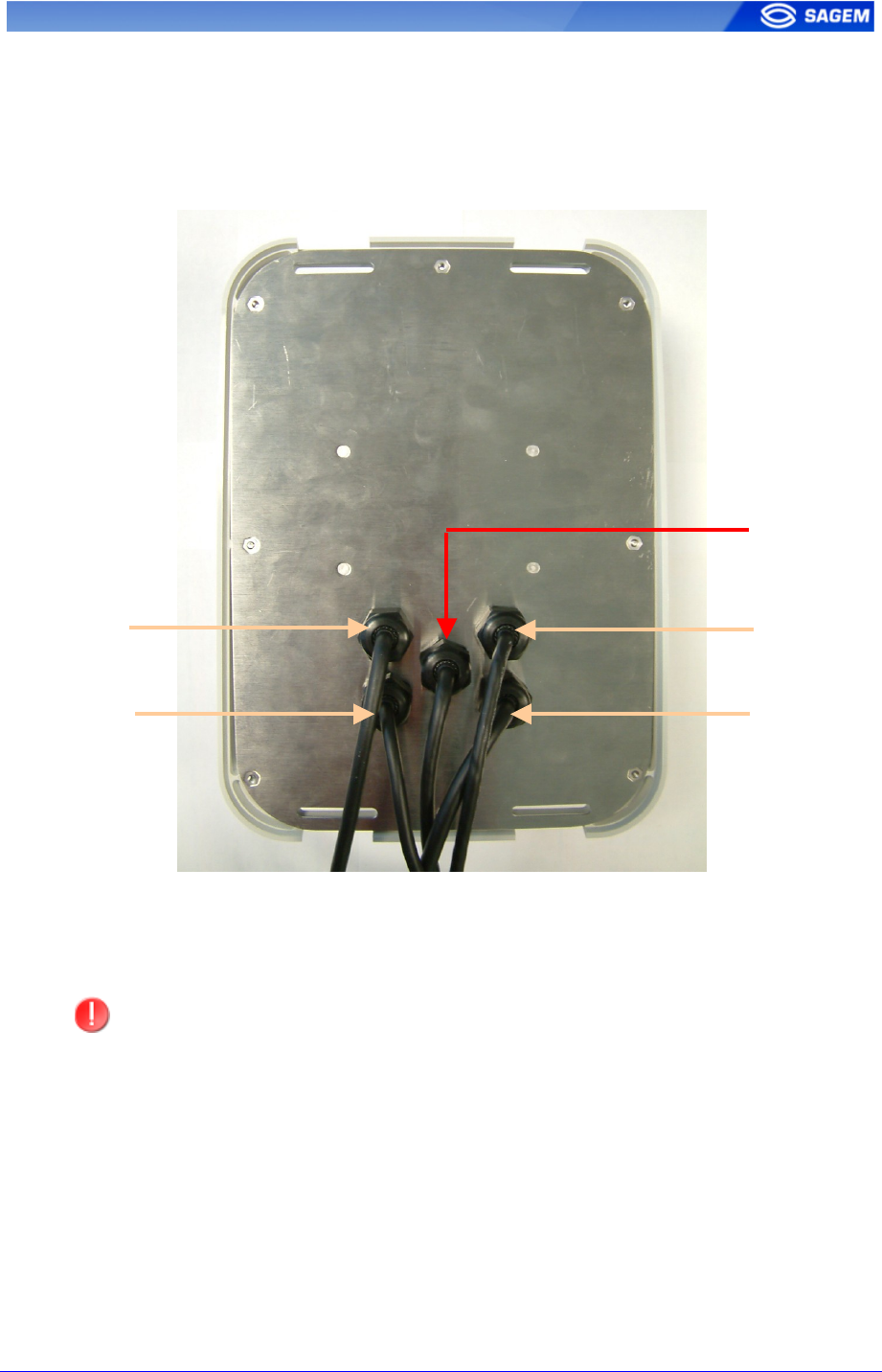

Mounting hole location (rear view)
a) Using the dimensional drawing for OMA5xx in Appendix 3, drill holes
for the four mounting bolts, vertically centered within the four slots.
b) The mounting bolts must be 5 mm diameter maximum.
14 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
S
St
ta
ag
ge
e
2
2
:
:
O
OM
MA
A5
5x
xx
x
f
fi
ix
xi
in
ng
g
a) Remove protective visor ( 4 small caps at each corner ) before fixing
OMA5xx assembly.
Remove the 4 small caps at each corner of the protective visor , with a
small screw driver
Remove the 4 screws , with T10 screw driver supplied.
b) Adjust the OMA5xx assembly in front of the 4 holes.
c) Fix the 4 mounting bolts ( 2 in upper zone , 2 in lower zone )
S
St
ta
ag
ge
e
3
3
:
:
O
OM
MA
A5
5x
xx
x
c
ca
ab
bl
li
in
ng
g
a) Connect necessary OMA cables to user wires ( see the detailed
instructions in the following sections )
S
St
ta
ag
ge
e
4
4
:
:
C
Cl
lo
os
si
in
ng
g
O
OM
MA
A5
5x
xx
x
a) Mount protective visor with 4 screws and T10 screw driver.
b) Put the 4 small caps.
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 15
E
EL
LE
EC
CT
TR
RI
IC
CA
AL
L
I
IN
NT
TE
ER
RF
FA
AC
CE
E
M
MA
A5
5x
xx
x
T
Te
er
rm
mi
in
na
al
l
b
bl
lo
oc
ck
k
b
bo
oa
ar
rd
d
w
wi
ir
ri
in
ng
g
16 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
Anti theft opto Wiegand IN
Dataclock IN
Relay Tamper switch
Anti theft switch
COM
RS422 / RS485
Wiegand OUT
Dataclock OUT
Power supply source
External +12V DC
or
Power Over Ethernet
Ground
security
reference
Ethernet
Terminal block
or
RJ45
O
OM
MA
A5
5x
xx
x
r
re
ea
ar
r
v
vi
ie
ew
w
a
an
nd
d
c
ca
ab
bl
le
es
s
Power Supply
source
Tamper switch
Rela
y
COM RS422/ 485
Wiegand
DataClock
Ethernet RJ45
Wiring ( cables colors and cables positions ) is not exactly the same
as previous OMA2xx/3xx family.
In order to be complied with EMC directives ( See p 6 ), all cables coming
from Access Control system must be shielded.
Both shield wires ( OMA5xx cable , AC system cable ) must be tied together.
Shield wire from OMA5xx cable is the wire without insulation.
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 17
P
Po
ow
we
er
r
S
Su
up
pp
pl
ly
y
s
so
ou
ur
rc
ce
e
MA5xx OMA5xx
Power cable
1 Block 1 +12V In Positive 12 Volts, power supply. Red
2 Block 2
GND/ALIM In Ground power supply. Black
Ground In Ground security reference yellow/green
Power supply:
Must conform to CEE/EEC EN60950 standard
9V to 16 Volts ± 5% (regulated) 1,5 Amp max ( peak )
Power may come from a 12 Volts Wiegand power supply, conforming to the
Security Industry Association's Wiegand standard March 1995 , able to deliver
9 Watts.
In standard operating activity, typical power consumption is 4,5 Watts.
In extreme temperature conditions, with all options ( USB key , 12V output for
Wiegand in ), maximum power consumption is up to 9 Watts.
MA5xx terminal make use of POE functionality ; If Ethernet network is POE
compatible, power supply may come from Ethernet wiring.
For systems placed in other building than supervisor one's, the electrical
security is guaranteed with a "ground connection" to the terminal.
For a higher susceptibility level, we recommend to the installer to connect a
"ground connection" to the terminal.
MA5xx : A cable terminal connected to "ground security reference" must be
tied to the fixation designed for ( see p 16 ).
OMA5xx : the yellow/green wire in power supply cable must be connected to
"ground security reference".
18 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
W
Wi
ie
eg
ga
an
nd
d
o
ou
ut
tp
pu
ut
t
w
wi
ir
ri
in
ng
g
MA5xx OMA5xx
Wiegand Dataclock
cable
1 Block 1 D0 Out Wiegand D0 Green
2 Block 2 D1 Out Wiegand D1 White
3 Block 3 LED1 In Wiegand LED IN 1 (option) Brown
4 Block 4 LED2 In Wiegand LED IN 2 (option) Grey
5 Block 5 GND Ground for Wiegand Black
Electrical interface conforms to the Security Industry Association's Wiegand standard
March 1995, and it is 5V TTL compatible.
D
Da
at
ta
a
C
Cl
lo
oc
ck
k
o
ou
ut
tp
pu
ut
t
w
wi
ir
ri
in
ng
g
MA5xx OMA5xx
Wiegand Dataclock
cable
1 Block 1 D0 Out Data ( 5V TTL ) Green
2 Block 2 D1 Out Clock ( 5V TTL ) White
3 Block 3 LED1 NC NC
4 Block 4 LED2 NC NC
5 Block 5 GND Ground for Dataclock Black
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 19
W
Wi
ie
eg
ga
an
nd
d
i
in
np
pu
ut
t
w
wi
ir
ri
in
ng
g
MA5xx OMA5xx
Wiegand Dataclock
cable
1 Block 1 D0 In Wiegand D0 Blue
2 Block 2 D1 In Wiegand D1 Yellow
3 Block 3 LED Out Wiegand LED OUT 1 (option) Orange
4 Block 4 +12V Out 12 Volts Power output (150 mA max) Red
5 Block 5 GND Ground for Wiegand Black
Electrical interface conforms to the Security Industry Association's Wiegand standard
March 1995, and it is 5V TTL compatible.
D
Da
at
ta
a
C
Cl
lo
oc
ck
k
i
in
np
pu
ut
t
w
wi
ir
ri
in
ng
g
MA5xx OMA5xx
Wiegand Dataclock
cable
1 Block 1 D0 In Data ( 5V TTL ) Blue
2 Block 2 D1 In Clock ( 5V TTL ) Yellow
3 Block 3 LED NC NC
4 Block 4 +12V Out 12 Volts Power output (150 mA max) Red
5 Block 5 GND Ground for Dataclock Black
20 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
C
CO
OM
M
R
RS
S4
42
22
2
s
se
er
ri
ia
al
l
p
po
or
rt
t
MA5xx OMA5xx
COM RS422/RS485
cable
1 Block 1 GND Ground for RS422 Grey or White
2 Block 2 Tx- Out RS422 Negative Transmit Orange
3 Block 3 Tx+ Out RS422 Positive Transmit Orange/White
4 Block 4 Rx- In RS422 Negative Receive Green
5 Block 5 Rx+ In RS422 Positive Receive Green/White
RS422 interface is a full duplex communication.
C
CO
OM
M
R
RS
S4
48
85
5
s
se
er
ri
ia
al
l
p
po
or
rt
t
MA5xx OMA5xx
COM RS422/RS485
cable
1 Block 1 GND Ground for RS485 Grey or White
2 Block 2 Tx- Out RS485 Negative Transmit Orange
3 Block 3 Tx+ Out RS485 Positive Transmit Orange/White
4 Block 4
5 Block 5
RS485 implementation is limited to half-duplex communication. So only Tx+ and Tx-
and ground reference signals are necessary.
Depending on the RS485 network, an impedance adaptation may be required.
For farthest terminal, a 120 Ohms resistor termination may be added to the
terminal, by strapping block 2 and block 3.
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 21
E
Et
th
he
er
rn
ne
et
t
w
wi
ir
ri
in
ng
g
2 ways for Ethernet wiring :
- Terminal block connection ( MA5xx only )
MA5xx OMA5xx
Ethernet cable
1 Block 1 RX- In Receive negative Ethernet RJ45 Pin 6
2 Block 2 RX+ In Receive positive Ethernet RJ45 Pin 3
3 Block 3 TX- Out Transmit negative Ethernet RJ45 Pin 2
4 Block 4 TX+ Out Transmit positive Ethernet RJ45 Pin 1
5 Block 5 GND Ground for shield Ethernet RJ45 Pin 7

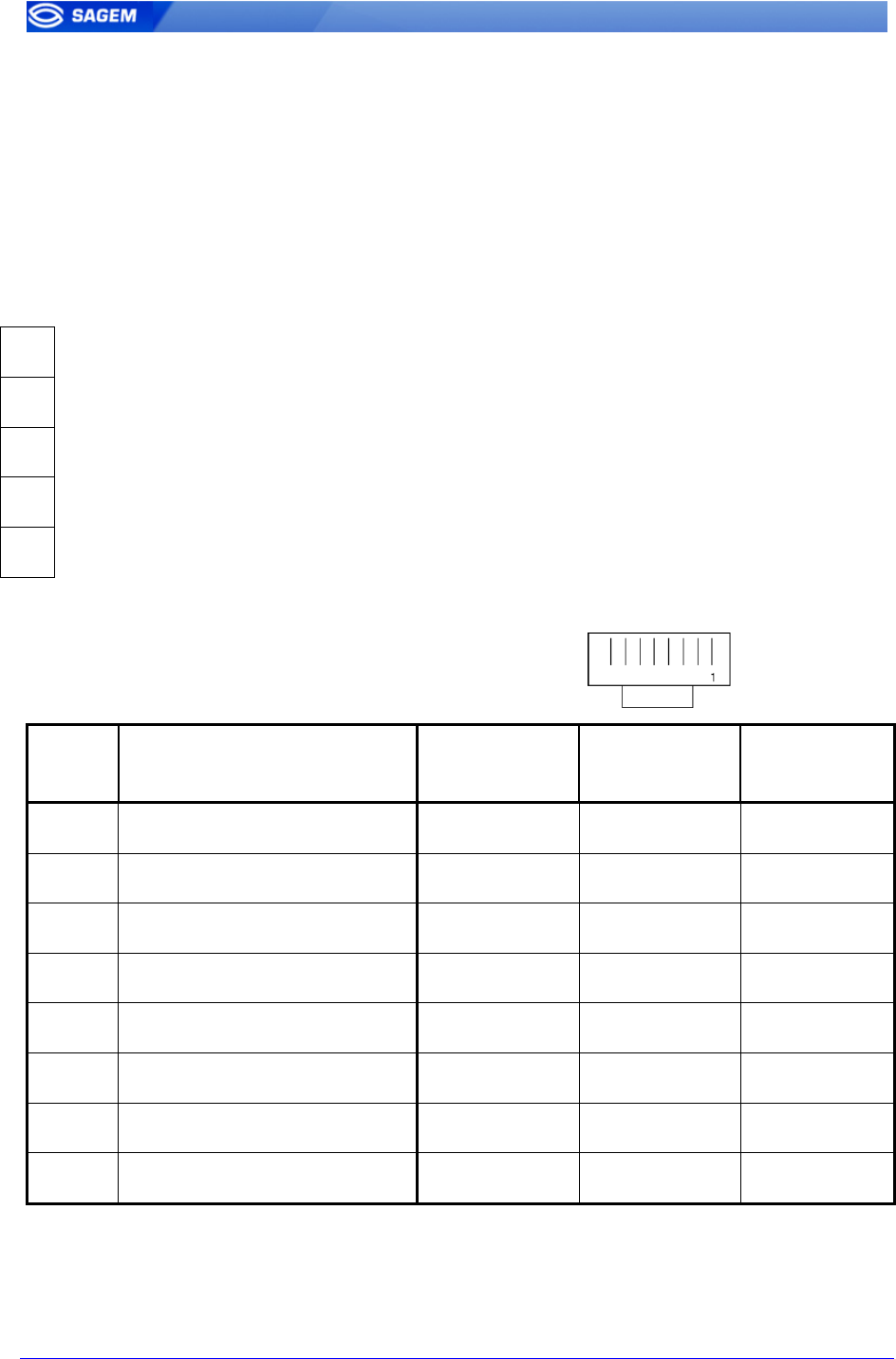

- RJ 45 cabling connection
RJ45
Pinout Signals EIA/TIA
T568B color
EIA/TIA
T568A color
Corel L120
color
1 TX(+) Transmit Data Plus White Orange White Green Grey
2 TX(-) Transmit Data Minus Orange Green White
3 RX(+) Receive Data Plus White Green White Orange Pink
4 No connection Blue Blue Orange
5 No connection White blue White blue Yellow
6 RX(-) Receive Data Minus Green Orange Blue
7 Ground protection (option) White Brown White Brown Purple
8 No connection Brown Brown Brown
RJ45 plug pinout is compliant with 10/100 base T, IEEE802.3 Specification.
RJ45 plug and Ethernet terminal block connections are compliant with Power
Over Ethernet ( POE ) IEEE802.3 af Specification. See details page 27.
22 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
Default IP address from factory setting is : 134.1.32.214
O
Ou
ut
tp
pu
ut
t
r
re
el
la
ay
y
a
an
nd
d
s
se
ec
cu
ur
ri
it
ty
y
s
sw
wi
it
tc
ch
he
es
s
MA5xx OMA5xx
Switch/relay cable
1 Block 1 CRO Contact relay normally open Red
2 Block 2 CRC Contact relay normally closed Orange
3 Block 3 CR Contact relay common Yellow
4 Block 6 TSW2_1 Tamper switch Contact 1 White
5 Block 7 TSW2-0 Tamper switch Contact 0 Green
6 Block 4 ATSW1_1 Anti theft switch Contact 1 Not available
7 Block 5 ATSW1_0 Anti theft switch Contact 0 Not available
Ground Not connected Black (*)
(*) : For this interface connection , it is not recommend to connect black wire to
Ground. Various ground reference are not recommended.
This terminal is part of security system. In order to prevent unauthorized
access into this terminal it is the customer’s responsibility to connect the tamper
switch and the anti theft switch ( MA5xx only ) to the physical access controller
(connected mode).
Anti-theft and tamper switchs ratings
2 A at 30 VDC according to the safety extra low voltage requirements
(62.5 VAC max, 220 VDC max and 125 VAC max) independently of the
power supply.
The tamper function is activated with the proper screw positioning, between cover
and chassis.
Terminal closed : Tamper switch ON
Terminal open : Tamper switch OFF
The anti theft function is activated by the anti theft block positioning in front of the
opto component ( not available with OMA5xx )
Terminal on wall : Anti theft switch ON
Terminal out wall : Anti theft switch OFF
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 23

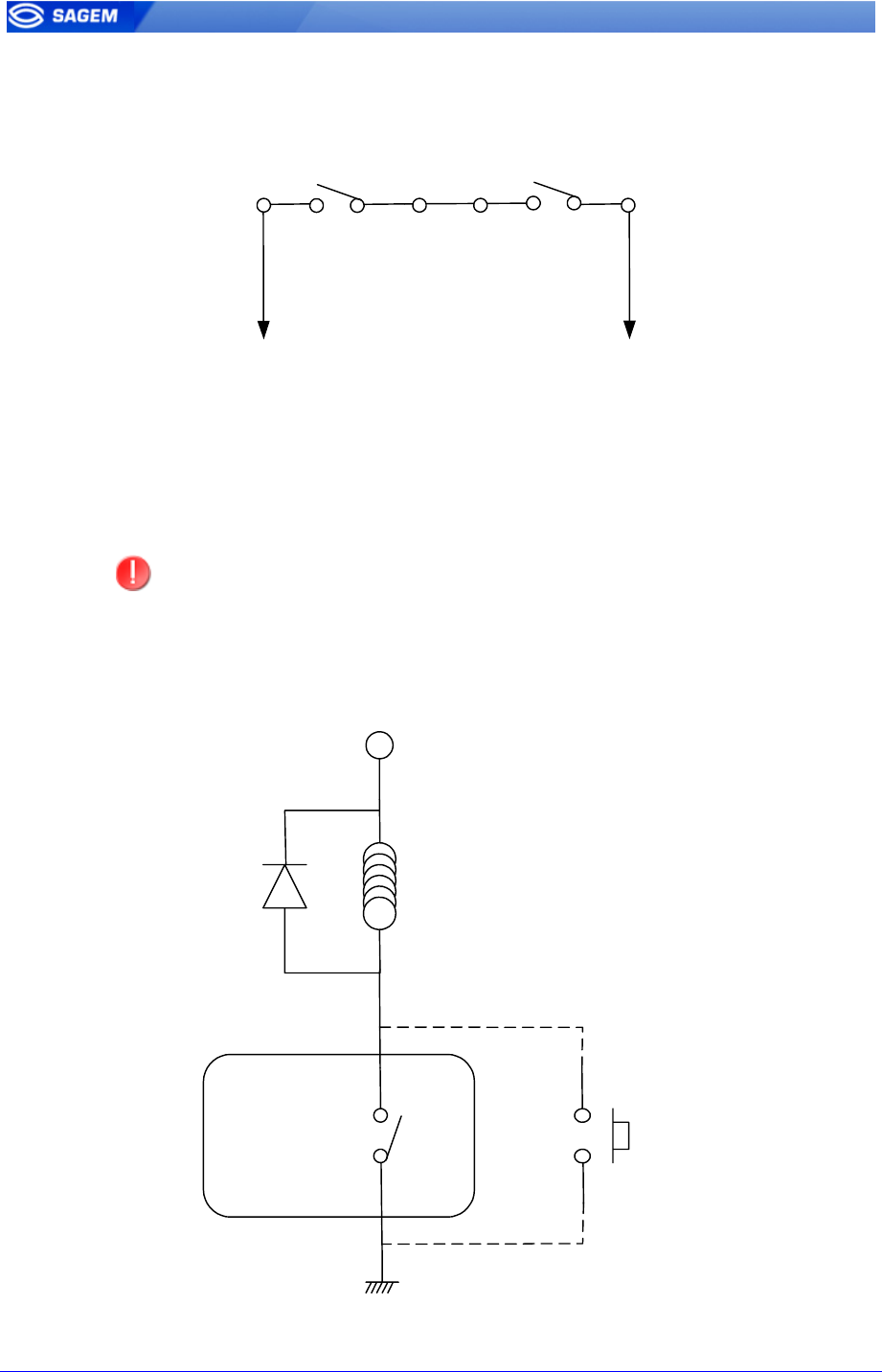

“Security Loop” connection example :
TSW1_0 TSW1_1 ATSW1_0 ATSW1_1
"Security Loop"
Physical Access Controler
Relay ratings
2 A at 30 VDC according to the safety extra low voltage requirements
(62.5 VAC max, 220 VDC max and 125 VAC max) independently of the
power supply.
Inductive charge management require a parallel diode for a better
contact lifetime.
Connection example about electrical door lock focus :
MorphoAccess
MA5xx
CRO
Pin 1
CR
Pin 3
+VCC
( < 30 V )
Electrical Door
Lock
Overswing
Diode
Backside door
button
24 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
U
US
SE
ER
R
I
IN
NT
TE
ER
RF
FA
AC
CE
E
The MorphoAccess™ terminal functions in three operational modes: access
control with identification, access control with authentication or verification, and
proxy mode.
These various modes are detailed in the MA500 Series User Guide.
Terminal configuration may be done locally ( keyboard , USB key ) or remotely
(using the configuration Tool or MEMS software) , by modifying key parameter.
For MA5xx terminal management , MEMS software release must be at least v6.2.
MEMS™ : MorphoAccess Enrolment and Management System
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 25
M
MO
OR
RP
PH
HO
OA
AC
CC
CE
ES
SS
ST
TM
M
M
MA
A5
5X
XX
X
S
SE
ER
RI
IE
ES
S
T
TE
EC
CH
HN
NI
IC
CA
AL
L
C
CH
HA
AR
RA
AC
CT
TE
ER
RI
IS
ST
TI
IC
CS
S
M
Ma
an
n
M
Ma
ac
ch
hi
in
ne
e
I
In
nt
te
er
rf
fa
ac
ce
e
LCD display 128 x 64 pixels
Alphanumeric and function keyboard ( 12 + 4 keypad )
Color LED for information
Multi tone Buzzer
Clock : +/- 4sec / day ( typical conditions ) , minimum 24 hours backup
B
Bi
io
om
me
et
tr
ry
y
Based on SAGEM MSO Biometric Module, FIPS IQS certified: 500dpi
optical sensor
Template Data base:
3000 persons with 2 fingers
5 x 10000 pers with 2 fingers and MA-X license option
Identification: < 1,5s ( 1000 persons in database )
Authentication / verification: < 1s
P
Pe
er
ri
ip
ph
he
er
ra
al
ls
s
i
in
nt
te
er
rf
fa
ac
ce
es
s
Ethernet 10/100 Base T for remote control mode (terminal management)
RS422 for remote control mode (terminal management)
Wiegand (output) or Dataclock ISO2 (output) or COM (RS485 2 wires) for
output information.
Wiegand Input Or Dataclock Input to interface an external reader
USB host for additional configuration
Relay : 1 contact (open and closed)
Tamper switch : Internal use (alarm message) and external contact.
Anti theft : External contact (indoor MA5xx only)
26 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
P
Po
ow
we
er
r
s
su
up
pp
pl
ly
y
9 to 16 Volts ± 5% and 1,5A peak power supply
Cable cross section depends on the length 0. 75mm2 recommended.
Consumption : 750mA maximum rms @12V ( < 1,5 A peak )
350mA typical rms @12V
Power Over Ethernet compatibility ( IEEE802.3 af ) :
Class 0 or Class 3 hub/switch equipment mandatory ( 15,4W )
MA5xx configurations
POE Alternative A compliant with RJ45 and terminal blocks
POE Alternative B compliant with RJ45 only
OMA5xx configuration
POE Alternative A compliant only
“POE Alternative A” means power on data lines : Only 2 pairs are
needed.
“POE Alternative B” means power on 2 extra pairs lines : 4 pairs are
required.
S
Si
iz
ze
e
a
an
nd
d
w
we
ei
ig
gh
ht
t
MA5xx version 160 x 145 x 75 mm
0,800 Kg
OMA5xx version 289 x 218 x 99 mm
2 Kg
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 27
E
En
nv
vi
ir
ro
on
nn
ne
em
me
en
nt
ta
al
l
c
co
on
nd
di
it
ti
io
on
ns
s
Operating temperature -10 °C to + 50 °C.
Operating humidity 10 % < RH < 80 %.
Storage temperature -20 °C to + 70 °C.
Storage humidity RH < 95 %.
Hardness MA5xx : IP30 ( indoor use only )
OMA5xx : IP65 (protection against rain and dust )
Light We recommend MorphoAccess™ installation
within controlled lighting conditions.
Avoid direct exposure of sensor to sunlight.
Avoid intensive UV lights.
28 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
R
Re
ec
co
om
mm
me
en
nd
da
at
ti
io
on
ns
s
A
Ar
re
ea
as
s
c
co
on
nt
ta
ai
in
ni
in
ng
g
c
co
om
mb
bu
us
st
ti
ib
bl
le
es
s
It is strongly recommended that you do not install your SAGEM
MorphoAccess™ in the vicinity of gas stations, petroleum processing
facilities or any other facility containing flammable or combustible gasses
or materials.
G
Ge
en
ne
er
ra
al
l
p
pr
re
ec
ca
au
ut
ti
io
on
ns
s
• Do not attempt to repair your SAGEM MorphoAccess™
yourself. The manufacturer cannot be held responsible for any
damage/accident that may result from attempts to repair
components. Any work carried out by non-authorized personnel
will invalidate your warranty.
• Use your SAGEM MorphoAccess™ with original accessories.
Attempts to integrate the MorphoAccess™ with unapproved
accessories will void your warranty.
• Do not use your MA5xx SAGEM MorphoAccess™ in damp
areas (swimming pool...). Protect your MA5xx from water and
other liquids.
• Do not expose your SAGEM MorphoAccess™ to extreme
temperatures.
• Do not expose MorphoAccess™ sensor to direct sunlight. OMA
visor is able to mask sunlight. With MA terminals, a
complementary visor may be added.
• Due to electrostatic discharge, and depending on the
environment, synthetic carpet should be avoided in areas where
the SAGEM MorphoAccess™ has been installed.
S
Sp
pe
ec
ci
if
fi
ic
c
p
pr
re
ec
ca
au
ut
ti
io
on
ns
s
f
fo
or
r
r
ra
ad
di
io
o
t
te
er
rm
mi
in
na
al
ls
s
It is recommended to install radio terminals ( MA520, MA521 , OMA520
and OMA521 ) at 30cm or more away from metallic elements, such as iron
fixation or lift gate. Performances, in term of Contactless badges reading
distance will decrease when metallic elements are in close proximity to the
terminal.
We advise persons with pacemaker or other electronic disposals
against using this MA5x1 and OMA5x1 versions of
MorphoAccess™ terminal.
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 29
E
Et
th
he
er
rn
ne
et
t
c
co
on
nn
ne
ec
ct
ti
io
on
n
It is recommended to use a category 5 shielded cable (120 OHM). It is
also strongly recommended to insert a repeater unit every 90 m.
Extreme care must be taken while connecting Ethernet wire to the terminal
block board since a low quality connection may strongly impact the
Ethernet signal sensitivity.
It is recommended to connect Rx+ and Rx- with the same twisted-pair wire
(and to do the same with the Tx+/Tx- using different twisted-pair wire).
D
Da
at
te
e
/
/
T
Ti
im
me
e
s
sy
yn
nc
ch
hr
ro
on
ni
iz
za
at
ti
io
on
n
If you expect to use the MorphoAccessTM for application requiring time
precision we recommend that you synchronize your terminal time with an
external clock at regular intervals.
The terminal clock has a +/- 40 10-6 ( ppm ) typical time deviation at
+25°C. Roughly , +/- 4 sec per day.
At +50°C, the time deviation may be up to –8 sec per day
C
Cl
le
ea
an
ni
in
ng
g
p
pr
re
ec
ca
au
ut
ti
io
on
ns
s
A dry cloth should be used, specially for fingerprint sensor.
Acid liquids, alcohol or abrasive materials are forbidden.
W
Wa
ar
rn
ni
in
ng
g
The manufacturer cannot be held responsible if the above
recommendations are not followed or if the SAGEM MorphoAccess™ is
incorrectly used.
B
Bi
io
om
me
et
tr
ri
ic
cs
s
T
Te
er
rm
mi
in
na
al
ls
s
H
Ho
ot
t
Li
in
ne
e
To Access this service, please contact us in order to get your login. Please
send an email rather than call the hot line.
Email: mailto:hotline.biometrics@sagem.com
Phone : + 33 1 58 11 39 19 ( 9H00am to 5H00pm French Time , Monday
to Friday )
30 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
A
AP
PP
PE
EN
ND
DI
IX
X
1
1
-
-
F
FI
IN
NG
GE
ER
RP
PR
RI
IN
NT
T
P
PL
LA
AC
CE
EM
ME
EN
NT
T
R
RU
UL
LE
ES
S
To ensure a good quality contact of your finger on the terminal you must
leave your finger on the sensor until the sensor light is turned off.

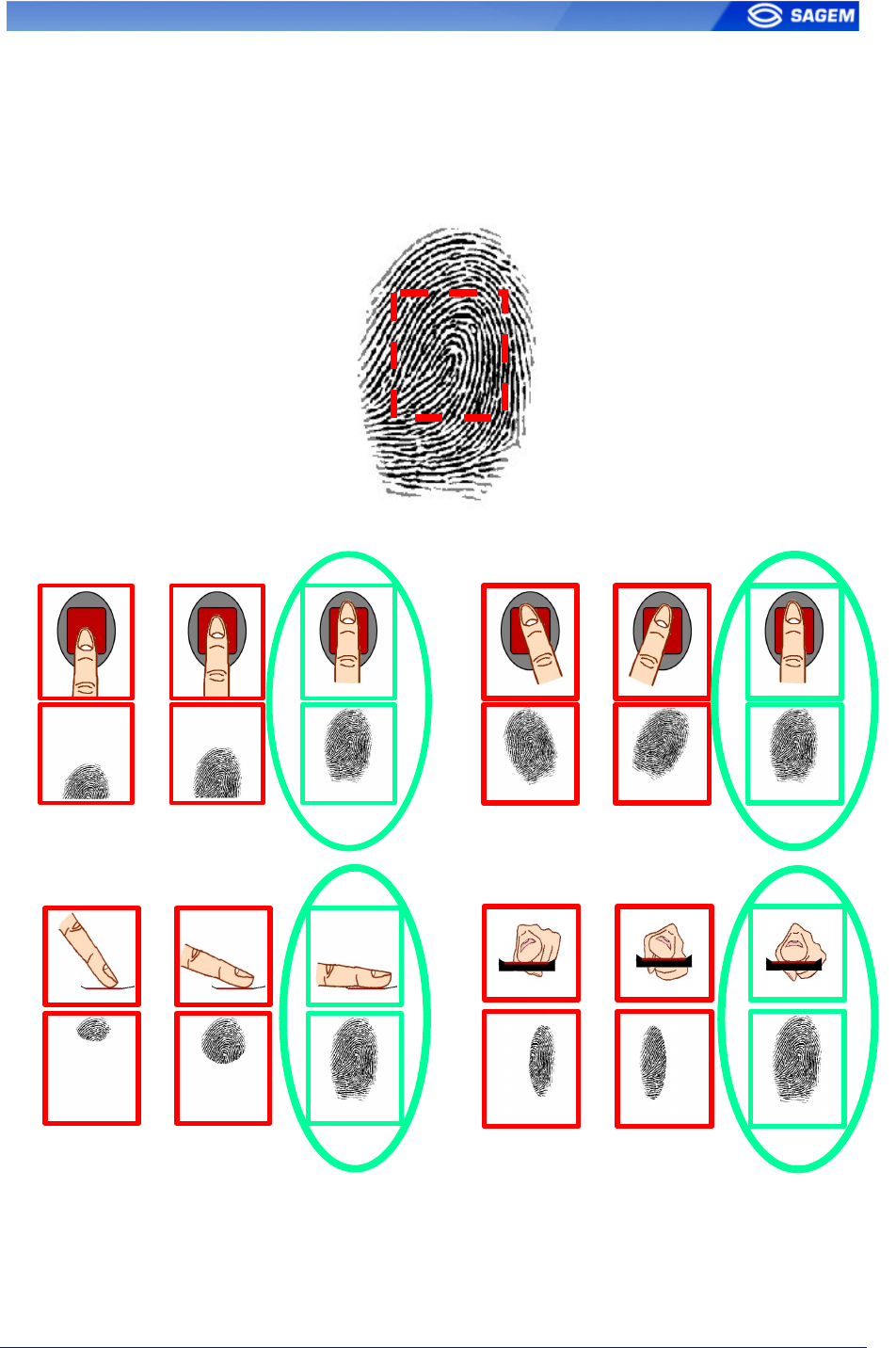

Fingerprint Placement Fingerprint Orientation
Area containing most of the information
Fingerprint Inclination Fingerprint Rotation
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 31
A
AP
PP
PE
EN
ND
DI
IX
X
2
2
–
–
R
RE
EL
LA
AT
TE
ED
D
D
DO
OC
CU
UM
ME
EN
NT
TS
S
Administrator Information
MA500 Series User Guide
This document describes operating mode and terminal settings
MA500 Series Configuration Application User Guide
This document describes the configuration application processing
MA500 Series Parameters Guide
The complete description of terminal configuration files and registry keys
This document gives also parameters default values.
MA500 Series Enrolment application User Guide
This document describes the local enrolment process and features
MA500 Series Log viewer User Guide
This document describes the log viewer process and features
Developer Information
MorphoAccess™ Host Interface Specification
A complete description of remote management commands
MorphoAccess™ Remote Messages Specification
Details how the MorphoAccessTM sends the access control result to a
Central Security Controller
MorphoAccess™ Contactless Card Specification
This document describes the MorphoAccessTM contactless card feature
Support Tools
Configuration Tool User Guide
Configuration Tool user guide, via Ethernet
USB Tool User Guide
Configuration Tool user guide, via USB key
32 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
MA500 Series Upgrade Tools User Guide
Upgrade Tool user guide about firmware upgrading procedures
Terminal Licence Management
Download a licence in MorphoAccessTM using “Terminal Licence
Manager.exe” PC application.
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 33
A
AP
PP
PE
EN
ND
DI
IX
X
3
3
-
-
D
DR
RI
IL
LL
LI
IN
NG
G
T
TE
EM
MP
PL
LA
AT
TE
E
34 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
M
MA
A5
5x
xx
x
v
ve
er
rs
si
io
on
ns
s
Anti theft block
position
Scale : 1 ( Real dimensions )
O
OM
MA
A5
5x
xx
x
v
ve
er
rs
si
io
on
ns
s
70
135
256
Attention : the above image dimensions do not match reality.
SK-53018-03 SAGEM Sécurité document. Reproduction and disclosure forbidden. 35
S
SU
UP
PP
PO
OR
RT
T
C
Cu
us
st
to
om
me
er
r
s
se
er
rv
vi
ic
ce
e
SAGEM Sécurité
SAV Terminaux Biométriques
Boulevard Lénine - BP428
76805 Saint Etienne du Rouvray
FRANCE
Tel: +33 2 35 64 55 05
H
Ho
ot
tl
li
in
ne
e
SAGEM Sécurité
Support Terminaux Biométriques
24, Av du gros chêne
95610 Eragny – FRANCE
hotline.biometrics@sagem.com
Tel: + 33 1 58 11 39 19
https://www.sagem-ds.com/biometrics-customersupport/
Copyright ©2007 SAGEM Sécurité
http://www.sagem-securite.com/
36 SAGEM Sécurité document. Reproduction and disclosure forbidden. SK-53018-03
Siège social: Le Ponant de Paris
27, rue Leblanc - 75512 PARIS CEDEX 15 - FRANCE
