The Genie a Division of Overhead Door ACSDA1 GARAGE DOOR OPENER TRANSMITTER User Manual WK4 Page 1
The Genie Company a Division of Overhead Door Corporation GARAGE DOOR OPENER TRANSMITTER WK4 Page 1
USERS MANUAL

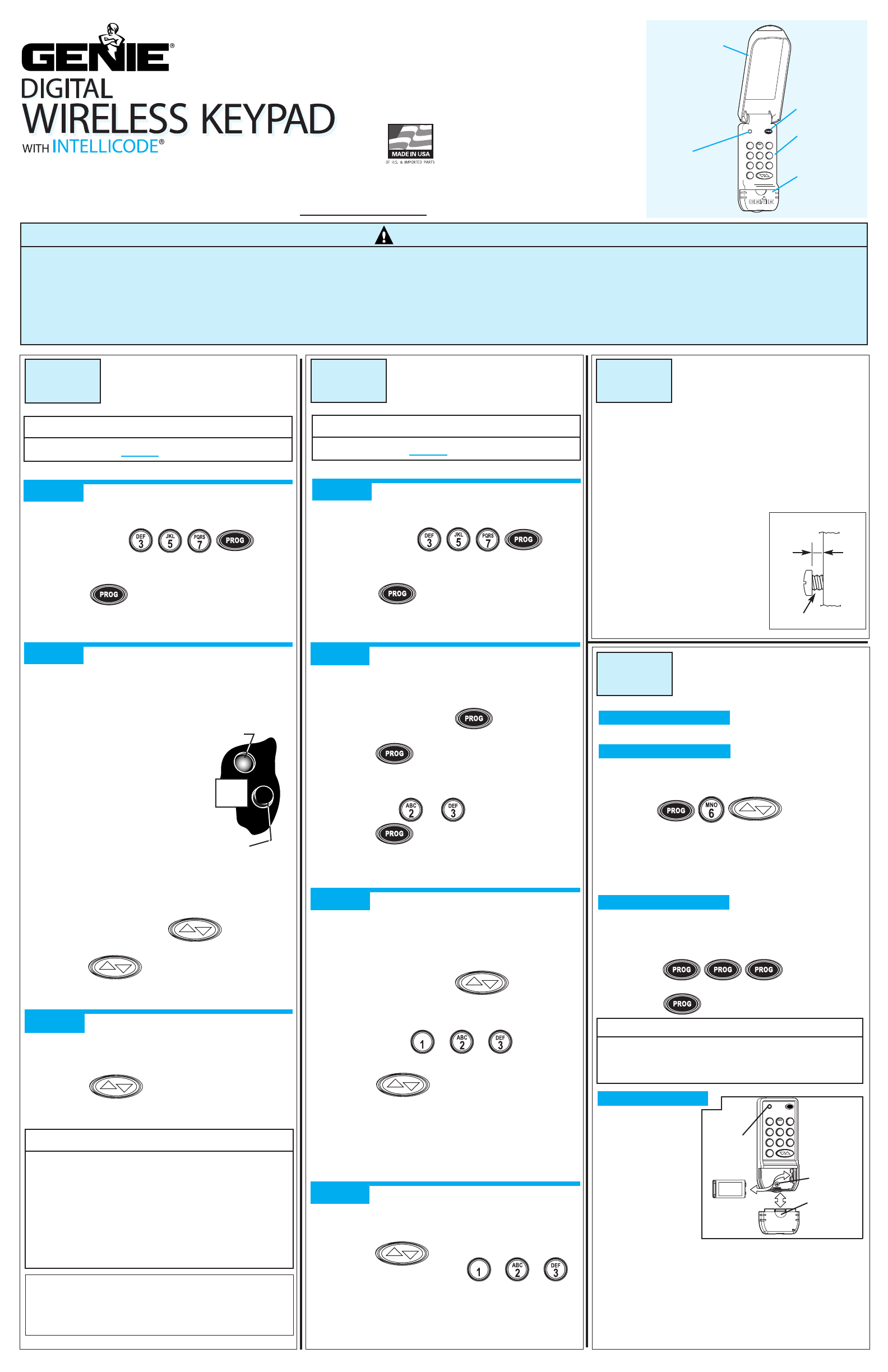

![](/img.php?id=367768&img=bg1.png)
STEP 1: SETTING YOUR WIRELESS KEYPAD PIN
(PERSONAL IDENTIFICATION NUMBER)
AActivate programming mode.
•Press (in order) .
–Red LED blinks - once per second.
•Enter your PIN (3 to 8 characters).
•Press .
–Red LED blinks - twice per second and turns off.
STEP 1: SETTING YOUR WIRELESS KEYPAD PIN
(PERSONAL IDENTIFICATION NUMBER)
AActivate programming mode.
•Press (in order) .
–Red LED blinks - once per second.
•Enter your PIN (3 to 8 characters).
•Press .
–Red LED blinks - twice per second and turns off.
3
DEF
12
456
789
0
GHI JKL MNO
PQRS
TUV
WXYZ
9V
¤
This Wireless Keypad is compatible with all INTELLICODE® radio equipped GENIE® products.
•Drill with 1/16" Drill Bit
•Phillips Screwdriver
•Pencil
•Mounting Screws INCLUDED inside
Battery Compartment
Interchangeable
Flip-up Cover
available in 3
optional Classic
Colors to match
your home’s
exterior decor
Red LED
indicates
Battery Power
and Status
during Use
and Programming
Backlit Keypad
for Ease of Use
at Night
Battery
Compartment
9 Volt Battery
(included)
Instructions
•Ability to Control up to three
Genie® INTELLICODE® Openers
•Simple to Program and Install
•PIN Codes can be up to 8 Characters
•Low Battery Power Indicator
•Stays Programmed During
Battery Change
•Temporary PIN for Special Purpose Access
OPERATING INSTRUCTIONS
(KEEP FOR FUTURE REFERENCE)
A Moving door can cause serious injury or death.
1Keep people clear of opening while door is moving.
2DoNotallow children to play with Wireless Keypad.
3During programming, the door opener could begin to run, so stay away from the
moving door and its parts. To keep the door from moving, close the door and
disconnect it from the Opener by pulling the Emergency Release.
3528135342
WARNING
STEP 3: OPERATING ONE DOOR OPENER
ATo move the garage door:
•Enter your PIN.
•Press .
Proceed to Section 3 - Mounting Instructions.
STEP 2: PROGRAMMING ONE DOOR OPENER
AFind the Learn Code Button and Learn Code
Indicator LED on your door opener.
–If your door opener has a
black antenna wire,
the Learn Code Button
and Indicator LED
are located near the antenna.
(The light lens may need
to be opened.)
–If your door opener does not
have an antenna,
you have an external receiver.
The external receiver cover
must be removed to access
the Learn Code Button
and Indicator LED.
•Press the Learn Code Button.
–
Learn Code Indicator LED (on Opener) will blink.
•Enter your PIN and press on keypad.
–Learn Code Indicator LED stays on.
•Press again.
–Learn Code Indicator LED turns off.
BASIC PROGRAMMING FOR
ONE DOOR OPENER
Red Indicator
LED
Learn
Code
Button
Located
on Opener
Housing
STEP 3: PROGRAMMING DOOR OPENERS
ADecide which door will be door #1, #2 and #3.
•Press the Learn Code Button (see Section 1 Step 2).
–Learn Code Indicator LED (on Opener) blinks.
•Enter your PIN and press .
–Learn Code Indicator LED stays on.
•Press the number you have picked for this
door Opener ( or or ).
–Learn Code Indicator LED stays on.
•Press .
–Learn Code Indicator LED turns off.
BRepeat step A above for each door opener.
Each door opener must be programmed to receive the
signal from the Wireless Keypad.
STEP 4: OPERATING 2 OR 3 DOOR OPENERS
ATo move one of the doors.
•Enter your PIN.
•Press .
•Press door opener number ( or or ).
SEE NOTE AT BOTTOM OF SECTION 1
Proceed to Section 3 - Mounting Instructions.
PROGRAMMING FOR
2 OR 3 DOOR OPENERS MOUNTING INSTRUCTIONS
The Keypad must be mounted in sight of the door(s), at
least 5 feet above the ground and clear of any moving
door parts.
AMount Keypad.(Mounting screws located inside
battery compartment.)
•Remove Battery Cover. See Section 4 Figure 2.
•
Drill a 1/16”pilot hole for the top mounting screw.
•Install a screw into the drilled
hole,leaving a 1/8" gap
between the screw head
and the wall. See Figure 1.
•Hook the Keypad over
the screw.
•Mark, drill pilot hole and
fasten bottom screw.
•Reinstall Battery Cover.
For answers to questions, call 1-800-35 GENIE, or visit
www.geniecompany.com
Additional Genie® products can be ordered using the Accessories
page in your Owner’s Manual or through the 800 number above.
FOR CONVENIENCE
Program Keypad BEFORE mounting.
SECTION
1
SECTION
2
SECTION
3
BASIC
ADDITIONAL OPERATIONS
SECTION
4
USING A TEMPORARY PIN
A temporary PIN allows temporary access to your home by
repair persons, meter readers, etc.
A
Enter your PIN
•
Press .
B
Enter the Temporary PIN (from 3 to 8 characters).
•Press .
NOTE
•
DO NOT reprogram the Door Opener(s).
•
Temporary PIN remains active until the next time your
normal PIN is entered.
FORGOT YOUR PIN
OR
CHANGING YOUR PIN
AErase old PIN :
•Press and hold in order -
.
–Red LED will blink once and turn off.
•Release all buttons.
BProgramming Door Opener(s).
•Return to “Programming”Section 1 or Section 2.
NOTE
•
If the door does not move, check the red LED on Keypad.
If the LED is blinking rapidly, the PIN was entered
incorrectly. After the LED stops blinking,re-enter your
PIN and try again.
•
Any Keypad Button will control the door for 30 seconds
after the door starts moving.
•
Rapid blinking of the red LED indicates an error. After a
few seconds the LED will turn off. Start over.
Wall
screw head gap
Figure 1
FOR CONVENIENCE
Program Keypad BEFORE mounting.
STEP 2: PROGRAMMING THE KEYPAD FOR
MULTIPLE DOOR OPENERS
AAll door openers will use the same PIN.
•Enter your PIN and press .
– Red LED blinks - once per second.
•Press again.
–Red LED blinks - twice per second.
•Press the number of doors (total) you wish
to control ( or ).
•Press .
–Red LED blinks several times and turns off.
Program
Button
FEATURES :
TOOLS NEEDED:
If Safety Reverse does not work properly:
1Close door and disconnect the Opener using Emergency Release Cord.
2Do not use door Opener, Remote Controls, or Wireless Keypad.
3Refer to Door and Door Opener Owner’s Manuals before attempting any repairs.
1"
8
Printed in the U.S.A.
©2003 The Genie Company, D.B.A. GMI Holdings, Inc.
FCC and IC CERTIFIED
This device complies with FCC Part 15 and RSS 210 of Industry Canada.This equipment has been tested and
found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are
designed to provide reasonable protection against harmful interference in a residential installation.This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures: 1.Re-orient or
relocate the receiver antenna. 2.Increase the separation between the opener and receiver. 3.Connect the
opener into an outlet on a circuit different from that to which the appliance is connected. 4.Consult the dealer.
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to
operate the equipment.
CHANGING BAT TERY
If the red LED does
not blink during use,
the battery needs to
be changed.
123
456
789
0
DEF
GHI JKL MNO
PQRS
TUV
WXYZ
PROG
9V
Battery
Press here
Figure 2
Bottom
Mounting
Screw
Red LED
Covers available in:
• Almond
(P/N 00000)
• Sandstone
(P/N 00000)
• Brown
(P/N 00000)
