Manual Part 1

HX460S
HX470S
Submersible Dual Band Marine Portable
Owner's Manual
HX470S
TABLE OF CONTENTS
RF EXPOSURE SAFETY STATEMENT ....................................................................................... 2
FCC AND CANADA RADIO LICENSE INFORMATION ............................................................... 3
FCC NOTICE ................................................................................................................................. 5
1. GENERAL INFORMATION ....................................................................................................... 6
1.1 INTRODUCTION ................................................................................................................ 6
2. ACCESSORIES ......................................................................................................................... 7
2.1 PACKING LIST .................................................................................................................... 7
2.2 OPTIONS ........................................................................................................................... 7
3. ABOUT THIS RADIO ................................................................................................................ 8
3.1 ABOUT THE VHF MARINE BAND ...................................................................................... 8
3.2 ABOUT FRS (Family Radio Service) .................................................................................. 8
3.3 ABOUT RECEIVE ONLY CHANNELS AND FREQUENCIES .......................................... 10
4. GETTING STARTED ............................................................................................................... 12
4.1 BATTERES AND CHARGERS ......................................................................................... 12
4.2 CONNECTING A GPS TO THE CD-25 ............................................................................. 17
5. CONTROLS AND SWITCHES ................................................................................................ 18
6. BASIC OPERATION ............................................................................................................... 22
6.1 INITIAL SETUP ................................................................................................................. 22
6.2 RECEPTION ..................................................................................................................... 23
6.3 TRANSMISSION ............................................................................................................... 24
6.4 NOAA WEATHER CHANNELS ........................................................................................ 25
6.5 PRESET CHANNELS (P0 ~ P9) ....................................................................................... 26
6.6 ENABLING S.O.S STROBE OPERATION ....................................................................... 27
7. ADVANCED OPERATION ON THE MARINE BAND ............................................................. 28
7.1 USA, CANADA, AND INTERNATIONAL CHANNELS ...................................................... 28
7.2 MEMORY SCAN ............................................................................................................... 28
7.3 PRIORITY SCAN .............................................................................................................. 29
7.4 DUAL WATCH ................................................................................................................... 30
7.5 EMERGENCY CHANNEL 16 ............................................................................................ 30
7.6 CHANNEL 9 ...................................................................................................................... 30
7.7 OPERATING ON USA or CANADIAN 13, OR USA CHANNEL 67 ................................... 30
7.8 OPERATING ON USA CHANNEL 67 ............................................................................... 31
7.9 DIGITAL SELECTIVE CALLING ....................................................................................... 31
7.10 SIMPLEX/DUPLEX CHANEL USE ................................................................................. 32
8. CTCSS OPERATION ON THE FRS BAND ............................................................................ 33
8.1 CTCSS CODE OPERATION ............................................................................................ 33
9. BAROMETER AND SCRAMBLER OPERATION .................................................................. 34
9.1 BAROMETRIC PRESSURE METER ................................................................................ 34
9.2 VOICE SCRAMBLER UNIT .............................................................................................. 34
10. OPERATING PRACTICE ...................................................................................................... 35
10.1 EMERGENCY (CHANNEL 16 USE) ............................................................................... 35
10.2 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9) .................................................... 35
10.3 OPERATING ON CHANNEL 13 AND 67 ........................................................................ 36
10.4 PROHIBITED COMMUNICATIONS ................................................................................ 37
10.5 NOAA WEATHER ALERT TESTING .............................................................................. 37
11. RESETTING THE TRANSCEIVER’S MICROPROCESSOR .............................................. 38
12. CLONING .............................................................................................................................. 39
13. MENU (“SET”) MODE .......................................................................................................... 40
14. MAINTENANCE .................................................................................................................... 44
14.1 GENERAL ....................................................................................................................... 44
14.2 REPLACEMENT PARTS ................................................................................................ 44
14.3 TROUBLESHOOTING CHART ...................................................................................... 45
15. INSTALLATION OF OPTIONS .............................................................................................. 46
16.VHF MARINE CHANNEL ASSIGNMENT .............................................................................. 47
17. WARRANTY .......................................................................................................................... 53
18. SPECIFICATIONS ................................................................................................................. 56
HX470S Page 1
Congratulations on your purchase of the HX470S! Whether this is your first
portable marine VHF transceiver, or if you have other STANDARD HORI-
ZON equipment, the STANDARD HORIZON organization is committed to
ensuring your enjoyment of this high performance transceiver, which should
provide you with many years of satisfying communications even in the harsh-
est of environments. STANDARD HORIZON technical support personnel
stands behind every product sold, and we invite you to contact us should
you require technical advice or assistance.
We appreciate your purchase of the HX470S, and encourage you to read
this manual thoroughly, so as to learn and fully understand the capabilities
of the HX470S.
WARNING
This radio is capable of transmitting on VHF Marine and FRS.
The FCC allows the use of VHF Marine band on water areas only. How-
ever the FCC does not allow the use of the VHF Marine band when on
land. If persons use the VHF Marine Band on land and interfere with
others communicating, the FCC will be notified and search for the inter-
ference. Responsible parties found to be transmitting on the VHF Ma-
rine Band on land could be fined up to $10,000 for the first offense.
FRS Band may be used on the land and water. The FCC does however
prohibit the use in aircraft.
HX470SPage 2
RF EXPOSURE SAFETY STATEMENT
SAFETY INFORMATION
Your wireless handheld portable transceiver contains a low power trans-
mitter. When the Push-to-Talk (PTT) button is pushed, the transceiver
sends out radio frequency (RF) signals. In August 1996, the Federal
Communications Commission adopted RF exposure guidelines with
safety levels for hand-held wireless devices.
This device is authorized to operate at a duty factor not to exceed 50%
(this corresponds to 50% transmission time and 50% reception time).
WARNING: To maintain compliance with the FCC’s RF exposure guide-
lines, this transmitter and its antenna must maintain a separation dis-
tance of at least 1 inch (2.5 centimeters) from your face. Speak in a
normal voice, with the antenna pointed up and away from the face at
the required separation distance.
If you use a headset accessory for this radio, with the radio worn on
your body, use only the Vertex Standard belt clip for this transceiver,
and ensure that the antenna is at least 1 inch (2.5 centimeters) from
your body when transmitting.
Use only the supplied antenna. Unauthorized antennas, modifications,
or attachments could damage the transmitter, and may violate FCC regu-
lations.
NOTE
This radio telephone complies with the requirements of RTCM Paper
56-95/SC101 Standards for digital selective calling (DSC) for Marine
transceivers.
HX470S Page 3
FCC AND CANADA RADIO LICENSE INFORMATION
Standard Horizon radios comply with the Federal Communication Commis-
sion (FCC) and Industry-Canada requirements that regulate the Maritime
Radio Service.
MARITIME STATION LICENSE
An FCC ship station license is no longer required for any vessel traveling in
U.S. waters which uses a VHF marine radio, RADAR or EPIRB, and which is
not required to carry radio equipment. However, any vessel required to carry
a marine radio on an international voyage, carrying a HF single side band
radiotelephone or marine satellite terminal. FCC license forms, including
applications for ship (506) and land station licenses can be downloaded via
the Internet at www.fcc.gov/forms. To obtain a form from the FCC, call (888)
225-5322.
MARINE RADIO CALL SIGN
Currently the FCC does not require recreational boaters to have a Ship Radio
Station License. The USCG recommends the boats registration number and
the state to be used.
CANADIAN SHIP STATION LICENSING
You may need a license when traveling in Canada. If you do need a license
contact their nearest field office or regional office or write:
Industry Canada
Radio Regulatory Branch
Attn: DOSP
300 Slater Street
Ottawa, Ontario
Canada, KIA 0C8
FCC/INDUSTRY CANADA INFORMATON
The following data pertaining to the transceiver is necessary to fill out the
license application.
FCC Type Accepted: ........................................................................ Part 80
Output Power with FNB-80LI:....... 1 W (Low), 2.5 W (Mid), and 5 W (High)
Emission: ................................................................... 16K0G3E, 16K0G2B
Frequency Range:................................................. 156.025 to 163.275MHz
FCC Type Number: ..................................................................K66HX470S
Industry Canada Type Approval: ....................................... 511B-HX470S V
HX470SPage 4
FRS LICENSING
No FCC license is required to use the FRS Frequencies. You are allowed to
operate the HX470S on the FRS channels if you are not a representative of
a foreign government, and if you cooperate in the selection and use of chan-
nels in order to reduce interference to others. There is no need to identify
your transmissions with a call sign; however you must monitor the channel
before transmitting to reduce interference with other stations.
HX470S Page 5
FCC NOTICE
Unauthorized changes or modifications to this equipment may void compli-
ance with FCC Rules. Any change or modification must be approved in writ-
ing by STANDARD HORIZON, a Marine Division of VERTEX STANDARD.
NOTICE
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
rIncrease the separation between the equipment and receiver.
rConnect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
rConsult the dealer or an experienced marine electronics techni-
cian for help.
HX470SPage 6
1. GENERAL INFORMATION
1.1 INTRODUCTION
The HX470S is a SUBMERSIBLE miniature 5-Watt portable two way Dual
Band marine transceiver. The transceiver has all allocated USA, Interna-
tional, or Canadian channels. It has emergency channel 16 which can be
immediately selected from any channel by pressing the [16/9] key. NOAA
Weather channels can also be accessed immediately by pressing the [WX]
key. In addition to these functions the HX470S can transmit a Digital Selec-
tive Distress Call with Latitude/Longitude when a GPS is connected to the
CD-25 Cradle Charger.
Besides VHF marine transceiver operation, the HX470S provides FRS (Fam-
ily Radio Service) 460 MHz (0.5 Watts) transceiver operation, receive ONLY
coverage of AM, FM broadcast bands, AM aircraft bands, and MURS.
The HX470S includes the following features: Memory Scanning, Priority Scan-
ning, NOAA Weather Alert, Battery Saver, easy-to-read large LCD display,
EEPROM memory back-up, Battery Life displayed on LCD, and a transmit
Time-Out Timer (TOT).
In the marine band, the transmitter provides a maximum of 5 Watts output,
and has the selection of 2.5 Watts and 1 Watt to assist the user in ensuring
maximum battery life.
The optional SU-1 Barometric Pressure Sensor Unit can be installed to pro-
vide readout of the current barometric pressure.
Or (not simultaneously)
The optional FVP-31 Voice Scrambler can be installed to permit secure voice
communications with other Standard Horizon radios with the FVP-31 or
CVS2500 scramblers installed.
HX470S Page 7
2. ACCESSORIES

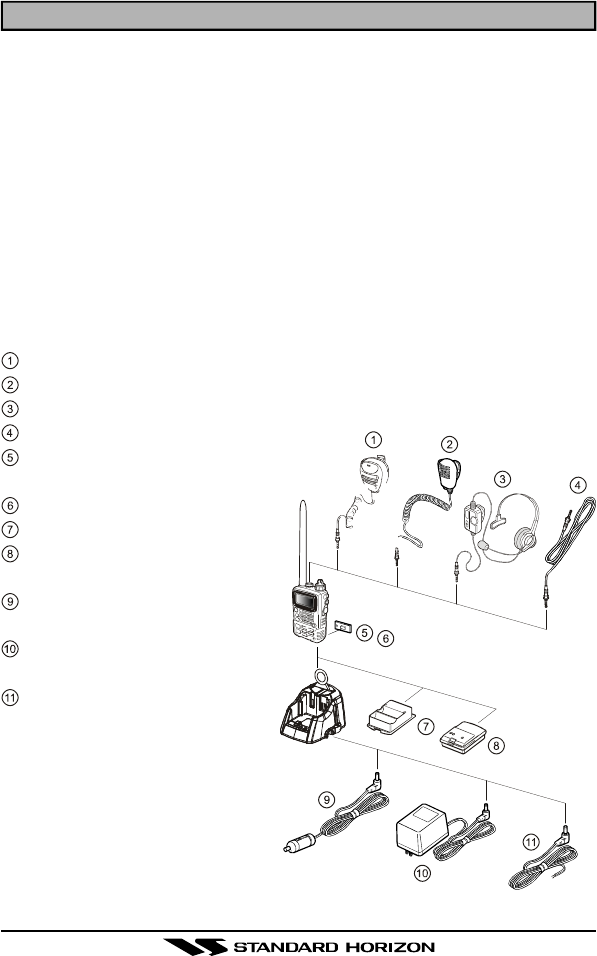

2.1 PACKING LIST
When the package containing the transceiver is first opened, please check
it for the following contents:
rHX470S Transceiver
rFNB-80LI 1300 mAh Lithium Ion Battery Pack
rCD-25 Charger Cradle for HX470S
rNC-72B 120VAC Wall Charger for CD-25
rE-DC-19 DC Cable with 12 V Cigarette Lighter Plug for CD-25
rCLIP-14 Belt Clip with screw
rLanyard
rOwner’s Manual
2.2 OPTIONS
CMP460 Noise-canceling Waterproof Speaker/Microphone
MH-57A4B Mini Speaker/Microphone
VC-24 VOX Headset
CT-32 Clone Cable
SU-1 Barometric Pressure
Sensor Unit
FVP-31 Voice Scrambler
FBA-23 Alkaline Battery Case
FNB-80LI 1300mAh Lithium
Ion Battery Pack
E-DC-19 DC Cable with 12 V
Cigarette Lighter Plug
NC-72C 230-240 VAC Wall
Charger for the FNB-80LI
E-DC-6 DC Cable; plug and
wire only
Note: Before operating the
HX470S for the first time, it is rec-
ommended that the battery be
charged. Please see section 4.1.4
“USING THE CD-25 CHARGER
CRADLE” for details.
HX470SPage 8
3. ABOUT THIS RADIO
3.1 ABOUT THE VHF MARINE BAND
WARNING:
The radio frequencies used in the VHF marine band
lie between 156 and 158 MHz with NOAA Weather
stations available between 161 and 163 MHz. The
marine VHF band provides communications over dis-
tances that are essentially “line of sight” Actual transmission range depends
much more on antenna type, gain and height than on the power output of
the transmitter. On a fixed mount 25W radio transmission expected dis-
tances can be greater than 15 miles, for a portable 5W radio transmission
the expected distance can be greater than 5 miles in “line of sight”.
The user of a Marine VHF radio is subject to severe fines if the radio is
used on land. The reasoning for this is you may be near an inland water-
way, or propagation anomalies may cause your transmission to be heard in
a waterway. If this occurs, depending upon the marine VHF channel on which
you are transmitting, you could interfere with a search and rescue case, or
contribute to a collision between passing ships. For VHF Marine channel
assignments refer to page 47 section 16.

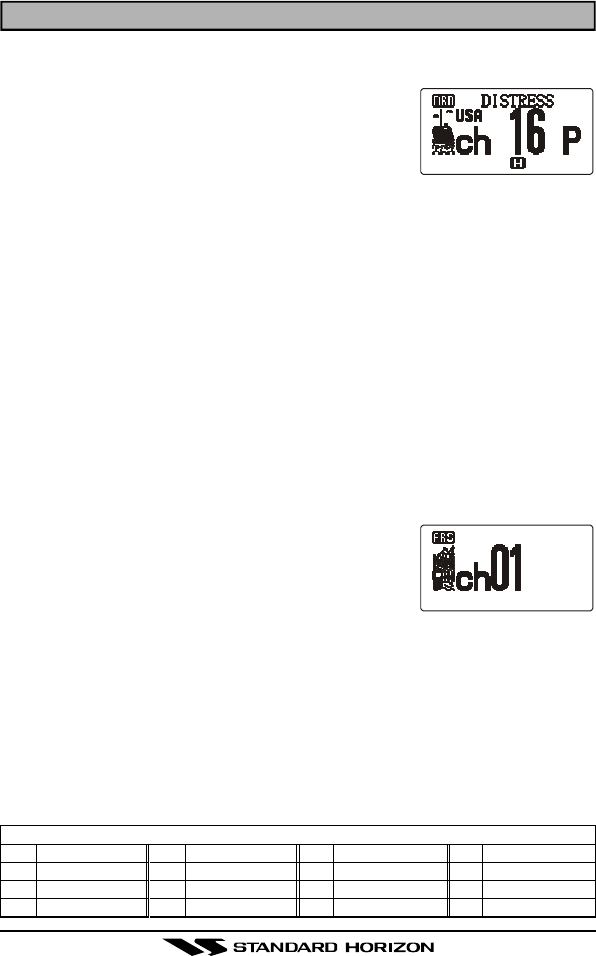

3.2 ABOUT FRS (FAMILY RADIO SERVICE)
FRS is a private, two-way, very short-distance voice
communications service for facilitating family and
group activities
Areas of Operation
You may operate your FRS radio in the United States and certain locations
specified by the FCC [95.192].
If you want to use FRS aboard a vessel or aircraft owned or operated by a U.S.
citizen or company, you will need permission from the captain of the vessel.
You must share the channel with other users [95.191(b)]. There is no mean-
ingful way to share the channel with others unless you listen before trans-
mitting and wait until the channel is available before you transmit. To listen

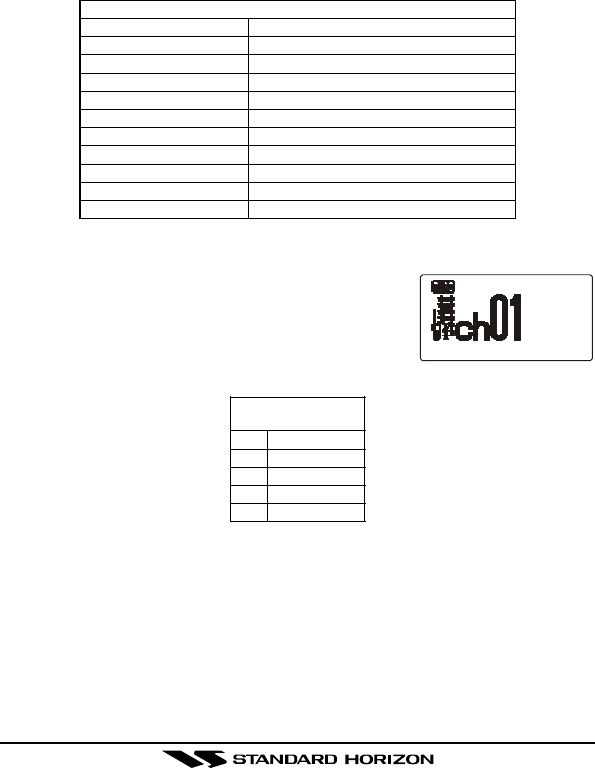

FRS CHANNEL CHART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
-
-
462.5625 MHz
462.5875 MHz
462.6125 MHz
462.6375 MHz
462.6625 MHz
462.6875 MHz
462.7125 MHz
467.5625 MHz
467.5875 MHz
467.6125 MHz
467.6375 MHz
467.6625 MHz
467.6875 MHz
467.7125 MHz
- - -
- - -
HX470S Page 9
to the channel, you must disable any tone squelch.
Also, you must at all times and on all FRS channels, give priority to emer-
gency messages [95.193(d)].
Refer to page 23 (reception), 24 (transmitting), and 33 (CTCSS) for operation.
HX470SPage 10
3.3 ABOUT RECEIVE ONLY CHANNELS and FREQUENCIES

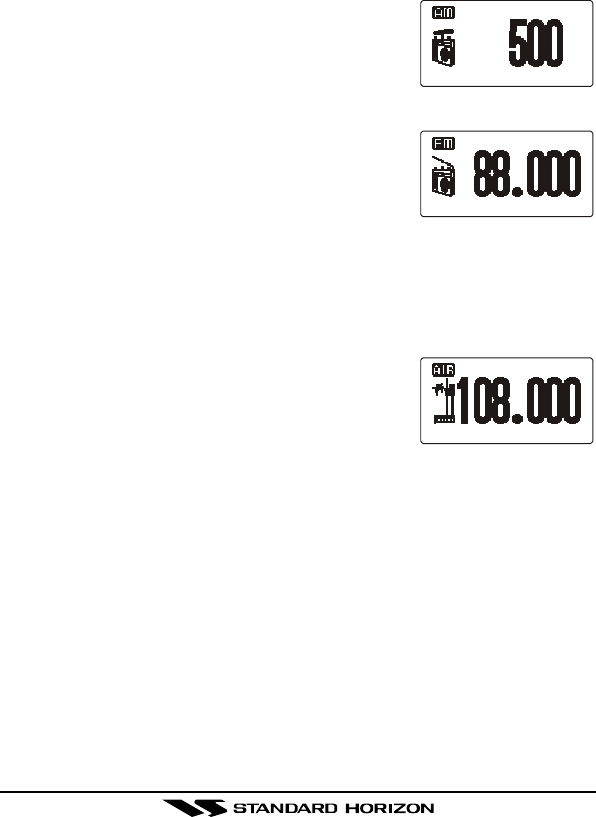

AM/FM Broadcast Bands
The AM/FM bands contained within the HX470S are the same channels you
use every day to listen to music, news and commentary with your car or
home stereo.
The AM broadcast band currently extends from 530
to 1700 kHz. Channels are spaced in even 10 kHz
increments; i.e.: 530, 540, 550, ... , 1600 kHz in the
United States and Canada. Elsewhere, channels are
spaced in 9 kHz increments, i.e.: 531, 540, 549, etc.
The FM broadcast band in the United States extends
from 88 to 108 MHz. Channels are assigned at 200
kHz increments; i.e.: 88.1, 88.3, 88.5, ... , 107.9. The
channels from 88.1 to 91.9 are reserved for non-
commercial educational stations. Outside the United States and Canada,
the boundaries and channel spacing vary. In Japan, the band starts at 76
MHz. In Western Europe, the band generally runs from 88-108 MHz, but
channels can be irregularly spaced, i.e.: 101.25 MHz.
AIR (Aircraft) Bands
The AM VHF aeronautical communications band lies
between 108.000 MHz and 136.975 MHz. This fre-
quency spectrum can be divided into a lower and
upper range. The lower range between 108.000 MHz
and 118.000 MHz is primarily used for navigational aids such as the ILS -
Instrument Landing Systems, DME - Distance Measuring Equipment, and
VOR’s - Very High Frequency Omni Range. The lower range offers very little
in the way of voice communications, it does however provide someone with
a working knowledge of Morse code the opportunity to identify various bea-
cons. The upper range of the aeronautical band 118.000 MHz to 136.975
MHz is where the majority of voice communications can be monitored. Com-
munications in the VHF band are transmitted in AM mode and most if not all
compatible receivers automatically default to this mode. Frequencies within
the aeronautical range are spaced in increments of 25 kHz, as such you will
find transmissions at 118.000, 118.025, 118.050 MHz etc.
The frequency(s) you monitor will determine the nature of traffic you will
hear. As previously mentioned frequencies in the lower range of the aero-
HX470S Page 11
nautical band are mostly occupied by navigational equipment and transmit
non voice signals in Morse code. If you select a frequency in the upper
range the air is suddenly filled with conversations between pilots and air
traffic controllers, pilots and their company dispatchers, flight service sta-
tions, and ATIS broadcasts. Frequencies within the aeronautical band are
designated according to their usage.
Refer to the page 23 for operation.
AIR (Aircraft) BAND FREQUENCY CHART
Frequency Range Communications Usage
108.000 - 117.975 MHz Navigational Aids
118.000 - 121.400 MHz Control Towers
121.500 MHz Int’l Distress Frequency
121.600 - 122.900 MHz Ground & Apron Control
122.700 - 123.900 MHz UNICOM Frequencies
123.450 MHz Air to Air / Pilot chit chat
124.000 - 128.800 MHz Arrivals & Departures
128.825 - 132.000 MHz Company Operations
132.000 - 135.975 MHz Area Control Centre (Enroute)
136.000 - 136.975 MHz Shared ATC/Company Ops & DataLink
MURS (MULTIPLE-USE RADIO SERVICE) Bands
MURS is a private short distance voice communica-
tion service for personal or business activitys of the
general public in the U.S. MURS channels can be
received on this radio. The frequency and channel
number is as follows.
MURS
CHANNEL CHART
1151.820 MHz
2151.880 MHz
3151.940 MHz
4154.570 MHz
5154.600 MHz

Navigation menu
