ACSS an L 3 Communications and Thales 4061400 Mode S Transponder User Manual 00201001 tif

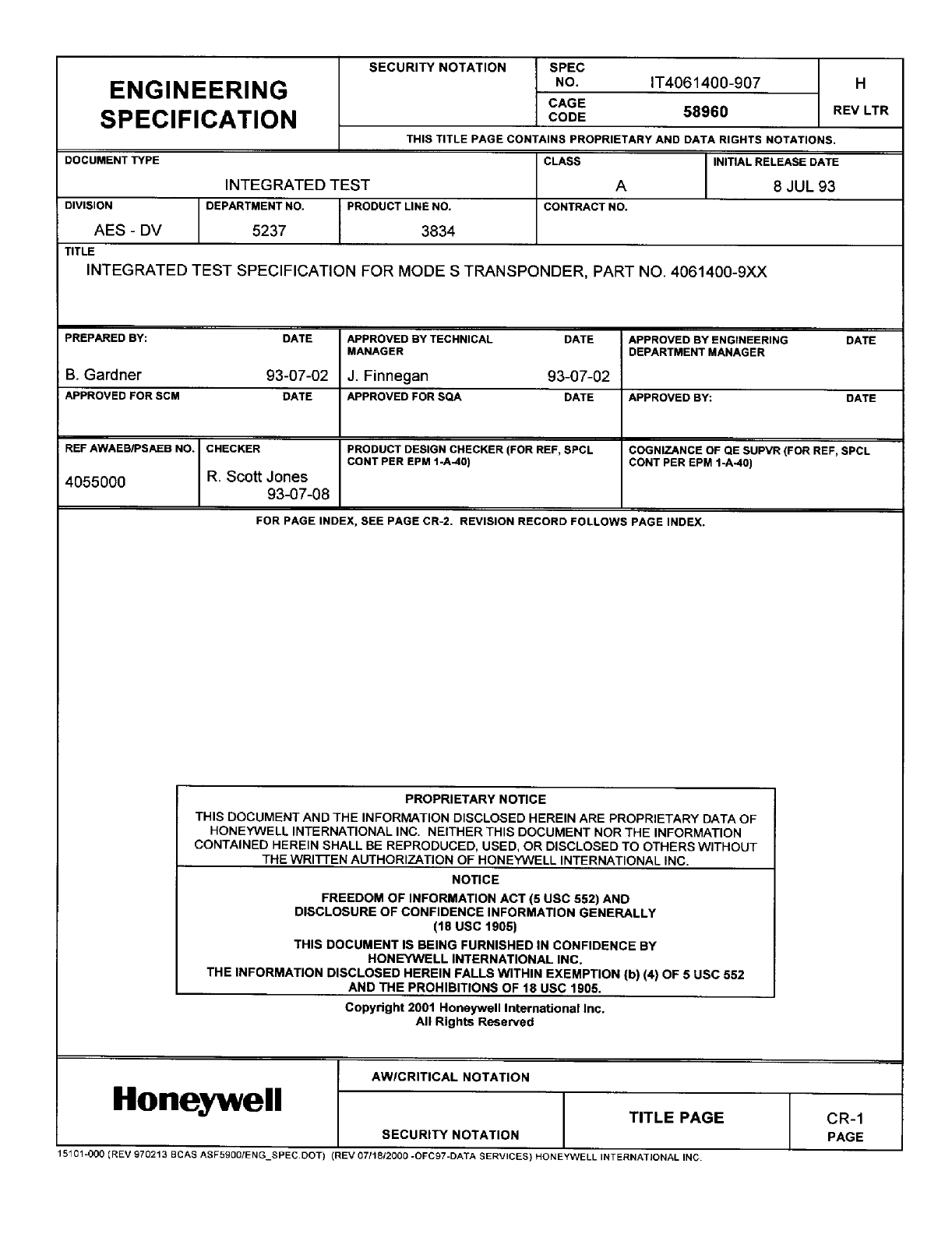

ACSS an L-3 Communications and Thales Company Mode S Transponder 00201001 tif

Test Instructions

ENGINEERING
SPECIFICATION
SECURITY NOTATION SPEC
NO. IT4061400-907
CAGE
CODE 58960
H
REV LTR
THIS TITLE PAGE CONTAINS PROPRIETARY AND DATA RIGHTS NOTATIONS.
DOCUMENT TYPE
DIVISION
AES
-
DV
INTEGRATED TEST
DEPARTMENT NO.
5237
PRODUCTLINENO.
3834
CLASS INITIAL RELEASE DATE
A 8 JUL 93
CONTRACT NO.
TITLE
INTEGRATED TEST SPECIFICATION FOR MODE S TRANSPONDER, PART NO. 4061400-9XX
PREPARED BY: DATE
B. Gardner 93-07-02
APPROVED FOR SCM DATE
REF AWAEB/PSAEB NO. CHECKER
4055000
R.
Scott Jones
93-07-08
APPROVED BY TECHNICAL DATE
MANAGER
J. Finnegan 93-07-02
APPROVED FOR SQA DATE
APPROVED BY ENGINEERING
DEPARTMENT MANAGER DATE
PRODUCT DESIGN CHECKER (FOR REF, SPCL
CONT PER EPM 1-A-40)
APPROVED BY: DATE
COGNIZANCE OF QE SUPVR (FOR REF, SPCL
CONT PER EPM t-A40)
FOR PAGE INDEX, SEE PAGE CR-2. REVISION RECORD FOLLOWS PAGE INDEX.
PROPRIETARY NOTICE
THIS DOCUMENT AND THEINFORMATION DISCLOSED HEREIN ARE PROPRIETARY DATA OF
HONEYWELLINTERNATIONALINC. NEITHERTHISDOCUMENTNORTHEINFORMATION
CONTAINED HEREIN SHALLBE REPRODUCED, USED, OR DISCLOSEDTO OTHERS WITHOUT
THE WRITTENAUTHORIZATION OFHONEYWELLINTERNATIONALINC.
NOTICE
FREEDOM OF INFORMATION ACT (5 USC
552)
AND
DISCLOSURE OF CONFIDENCE INFORMATION GENERALLY
(18 USC
1905)
THIS DOCUMENT IS BEING FURNISHED IN CONFIDENCE BY
HONEYWELL INTERNATIONAL INC.
THE INFORMATION DISCLOSED HEREIN FALLS WITHIN EXEMPTION (b) (4) OF 5 USC 552
AND THE PROHIBITIONS OF 18 USC 1905.
Copyright 2001 Honeywell International Inc.
All Rights Reserved
AW/CRITICAL NOTATION
Honeywell
z,t,
SECURITY NOTATION
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
CR-1

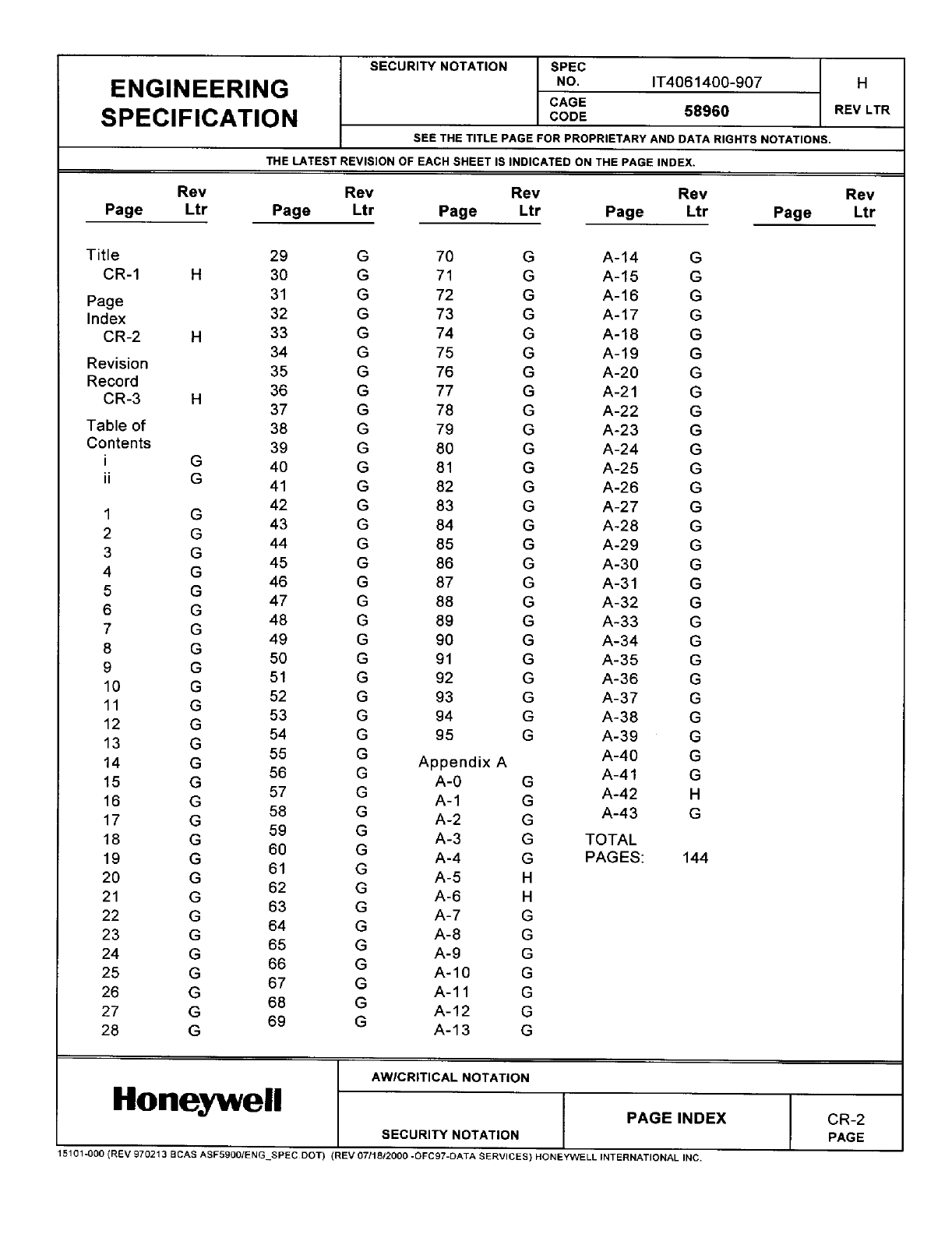

PAGE
ENGINEERING
SPECIFICATION
SECURITY NOTATION SPEC
NO. IT4061400-907 H
CAGE
CODE
58960
REVLTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
THE LATEST REVISION OF EACH SHEET IS INDICATED ON THE PAGE INDEX.
Rev
Page Ltr
Title
CR-1 H
Page
Index
CR-2 H
Revision
Record
CR-3 H
Table of
Contents
i G
ii
G
1 G
2 G
3 G
4 G
5 G
6 G
7 G
8 G
9 G
10 G
11 G
12 G
13 G
14 G
15 G
16 G
17 G
18 G
19 G
20 G
21 G
22 G
23 G
24 G
25 G
26 G
27 G
28 G
Rev Rev Rev Rev
Page Ltr Page Ltr Page Ltr Page Ltr
29 G 70 G A-14 G
30 G 71 G A-15 G
31 G 72 G A-16 G
32 G 73 G A-17 G
33 G 74 G A-18 G
34 G 75 G A-19 G
35 G 76 G A-20 G
36 G 77 G A-21 G
37 G 78 G A-22 G
38 G 79 G A-23 G
39 G 80 G A-24 G
40 G 81 G A-25 G
41 G 82 G A-26 G
42 G 83 G A-27 G
43 G 84 G A-28 G
44 G 85 G A-29 G
45 G 86 G A-30 G
46 G 87 G A-31 G
47 G 88 G A-32 G
48 G 89 G A-33 G
49 G 90 G A-34 G
50 G 91 G A-35 G
51 G 92 G A-36 G
52 G 93 G A-37 G
53 G 94 G A-38 G
54 G 95 G A-39 G
55 G Appendix A A-40 G
56 G A-0 G A-41 G
57 G A-1 G A-42 H
58 G A-2 G A-43 G
59 G A-3 G TOTAL
60 G A-4 G PAGES: 144
61 G A-5 H
62 G A-6 H
63 G A-7 G
64 G A-8 G
65 G A-9 G
66 G A-10 G
67 G A-11 G
68 G A-12 G
69 G A-13 G
Hone well
AW/CRITICAL NOTATION
SECURITY NOTATION
PAGE INDEX
CR-2
PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/1812000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
SECURITY NOTATION
SPEC
NO. IT4061400-907
CAGE
CODE 58960
SEE
THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
H
REV LTR

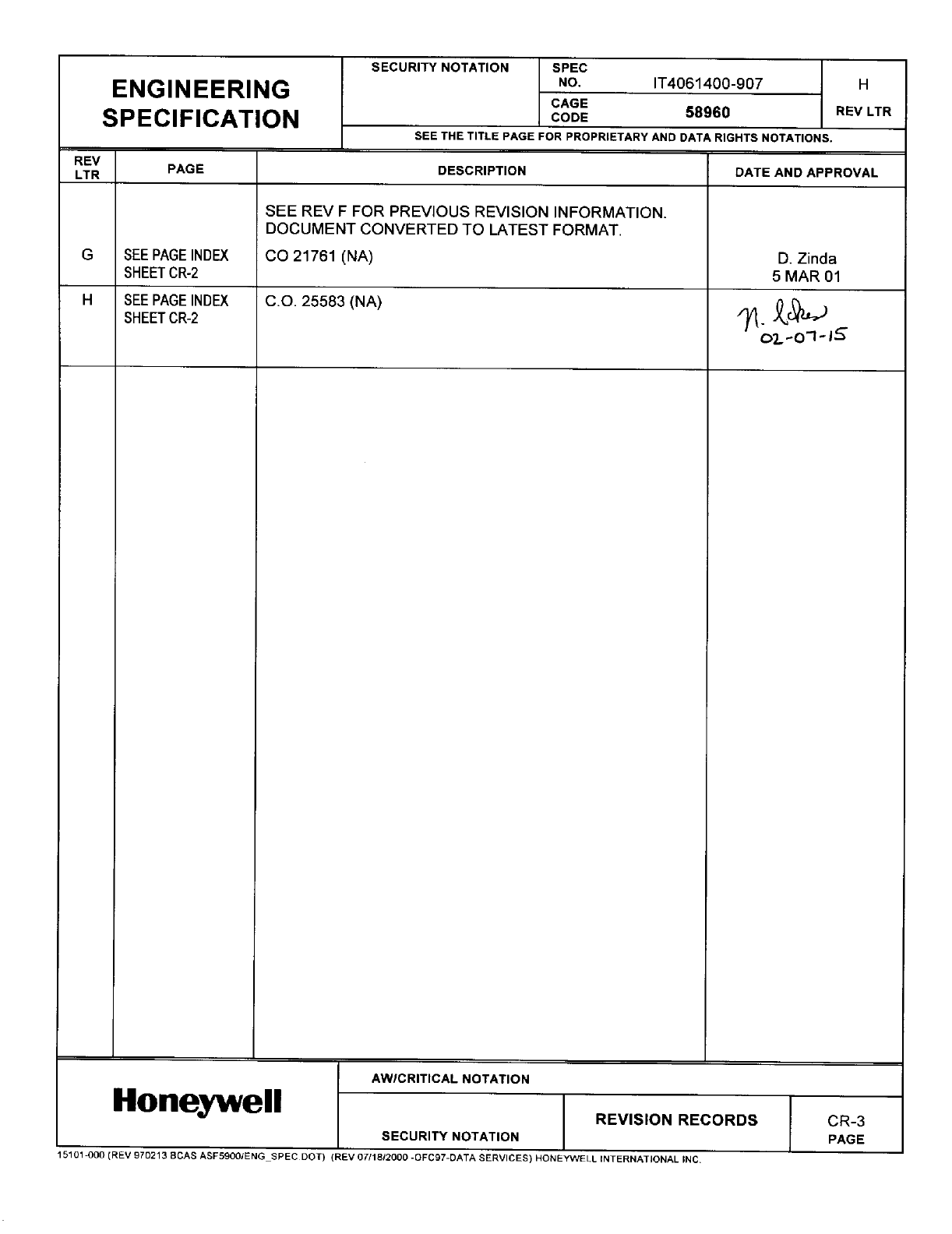

REV
LTR PAGE DESCRIPTION DATE AND APPROVAL
G SEE PAGE INDEX
SHEET CR-2
H SEE PAGE INDEX
SHEET CR-2
SEE REV F FOR PREVIOUS REVISION INFORMATION.
DOCUMENT CONVERTED TO LATEST FORMAT.
CO 21761 (NA)
C.O. 25583 (NA)
D. Zinda
5 MAR 01
o2. -01 - IS"
AW/CRITICAL NOTATION
Hone vell . v,s,o.. co.Ds
SECURITY NOTATION
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
CR-3
PAGE
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
TABLE OF CONTENTS i
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table of Contents
Title Page
1. SCOPE ...................................................................................................................1
2. REFERENCE DOCUMENTS....................................................................................1
3. GENERAL INFORMATION......................................................................................1
4. POWER REQUIREMENTS ....................................................................................18
5. TEST EQUIPMENT................................................................................................18
5.1 HONEYWELL TEST EQUIPMENT................................................................................18
5.2 COMMERCIAL TEST EQUIPMENT ..............................................................................18
6. TEST SETUP ........................................................................................................19
7. TEST REQUIREMENTS ........................................................................................19
8. TEST PROCEDURE ..............................................................................................23
APPENDIX A ALTERNATIVE TEST PROCEDURE FOR PC EMULATION SYSTEM........... A-0
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
TABLE OF CONTENTS (cont)
Title Page
AW/CRITICAL NOTATION
TABLE OF CONTENTS ii
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
List of Figures
Figure 1. Initial Test Equipment Setup..............................................................................................................20

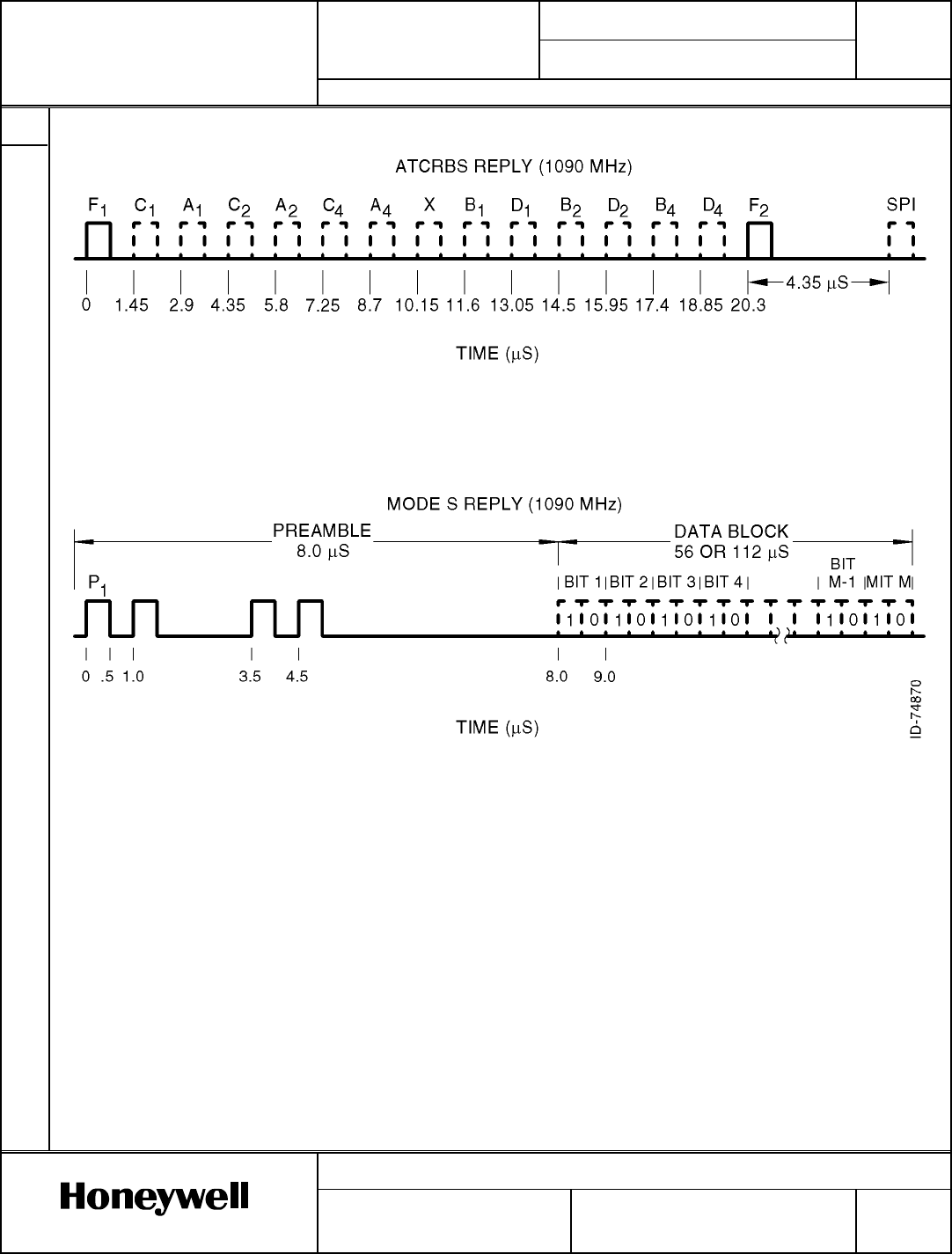

Figure 2. Timing Diagrams ...............................................................................................................................21
List of Tables
Table 1. Initial IFR ATC-1400A Control Settings ................................................................................................6
Initial IFR S-1403 Control Settings ......................................................................................................................6
Table 2. Initial Mode S Transponder (UUT) Configuration .................................................................................7
Table 3. Complemented Mode S Transponder (UUT) Configuration ...............................................................10
Table 4. Initial Setup For Internal RF Self-Test ................................................................................................13
Table 5. Initial Settings For Mode S And Atcrbs (Mode S Sw Running) ..........................................................14
Table 6. Initial 429 Setup (Internal Wrap).........................................................................................................16
Table 6.1. Walking 1s 429 Setup (Internal Wrap).............................................................................................16
Table 7. Initial 429 Setup (External Wrap)........................................................................................................16
Table 8. Initial 429 I/O Interconnects (Mode S Interface Panel).......................................................................17
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 1
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
TITLE: INTEGRATED TEST SPECIFICATION FOR MODE S TRANSPONDER, PART NO.
4061400-9XX
1. SCOPE
This Integrated Test Specification (IT) establishes the manufacturing and operational requirements
that the Mode S Transponder, Part No. 4061400-9XX, must meet to ensure that the unit is in
proper operating condition.
2. REFERENCE DOCUMENTS
These reference documents are not required for performance of the test procedure. The purpose
of listing these documents is to provide an aid for troubleshooting should any discrepancies occur
during the performance of the test procedure.
4061400-9XX End Item Drawing - Mode S Transponder
4061401 Outline and Installation Drawing
64980-90912 HP 64000 System Overview Reference
64980-90928 HP 64000 System Software Reference
1002-6801-000 IFR 1403 Operation/Maintenance Manual
C35-3641-05 System Control Panel User's Manual
3. GENERAL INFORMATION
3.1 All tests shall be performed under the following conditions:
Temperature = 25 ± 5 C
Relative humidity = 95% maximum
Pressure = between 20 and 32 inHg
3.2 Tests 1 thru 10 shall be performed with the HP 64000/UDE or PC/CPI emulation system attached to
the top connector of the unit under test (UUT) A1 CCA (refer to figure 1). All subsequent tests shall
be performed in a stand-alone configuration with the emulation system removed or deactivated.
Power to the UUT shall be removed before attaching or removing any interconnecting systems.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 2
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
3.3 Notes on operating the HP 64000 emulation system are as follows:
3.3.1 All tests requiring the HP 64000 emulation system shall be performed while executing the
SDP-185 monitor software. In the engineering environment, the monitor is invoked by executing
the 'HW' command file from within the MODESP user ID of the HP 64000 system.
3.3.2 All address and data information should be entered in Hex with a leading 0 and trailing H (the H
indicates the data is in hexadecimal). See example in 3.3.3.
3.3.3 Most emulation commands are invoked by pressing HP 64000 softkeys, found directly below the
CRT. Only hexadecimal addresses and data are typed using the standard typewriter keypad of
the HP 64000. For example, to change the contents of location C000 (Hex) to the value AAAA
(Hex), the following HP 64000 command would be entered:
modify memory 0C000H to 0AAAAH
In this example, the words (modify, memory, and to) are entered with single-keystroke
softkeys.
3.4 Notes on operation of the PC emulation system are as follows:
3.4.1 All tests requiring the PC emulation system shall be performed while executing the SDP-185
monitor software. In the engineering environment, the monitor is invoked by executing the 'SCP
MDS' command file.
3.4.2 All address and data information should be entered in Hex with a leading 0/ # for CACHE locations
and a leading 1# for local memory. See example in 3.4.3.
3.4.3 Most emulation commands are invoked by pressing the softkeys. Only addresses, data, and
'MDS' are typed using the standard typewriter keys. For example, to change the contents of
location C000 (Hex) to the value AAAA (Hex), the following PC command would be entered:
modify memory MDS word 0/#C0/0/0/ to AAAA
In this example, the words (modify, memory, word, and to) are entered with single-keystroke
softkeys.
3.5 When testing diversity, the two antenna signals are referred to as ANT A and ANT B. This
conversion is consistent with that used by the IFR transponder test equipment and does not need to
be correlated to the actual top and bottom antenna signals. In other words, the TOP ANT cable can
be connected to either ANT A port or ANT B port of the IFR equipment.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 3
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
3.6 Standard rate and power for ATCRBS and Mode S interrogations are defined as follows:
ATCRBS: 450 Hz, -50 dBm
Mode S: 45 Hz, -50 dBm
3.7 Input discrete signal standards are as follows:
GND - <3.5 V at 100 mA
OPEN - >100k ohms
+5V - 5 ± 1 V dc at 20 mA
+28V - >18 V dc
3.8 Output discrete signal standards are as follows:
GND - <3.5 V dc
OPEN - >100k ohms
+28V - >18 V dc
3.9 Notes on entering data into the IFR S-1403 are listed below:
3.9.1 Data is entered by use of the cursor keys, slew knob, and numeric keypad. Use the cursor keys to
move between input fields (the cursor will not move to an output/display field). Once in the
desired field, use the slew knob and/or numeric keypad to alter the data.
3.9.2 Some fields require the data to toggle through one or more states (for example, the SPR: ON/OFF
field). Use the ON/CAL button to toggle such fields.
3.9.3 Some input fields can be moved through a range of numeric values (for example, the Dv=CAL
field). These fields must first be toggled out of the CAL state and into the data entry mode. The
slew knob and numeric keypad can then be used to provide the desired value.
3.9.4 Some fields require the ENTER key to be pressed after the required data has been selected (for
example, the UF= field).
3.10 Notes and a list of HP 64000 command files (Honeywell Part No. MT4061400-902) are as follows:
3.10.1 The total execution time of this Integrated Test Procedure may be greatly reduced by using the HP
64000 command files listed in paragraph 3.10.3. These command files automatically execute
many keystrokes found in certain tests and match statement-for-statement (excluding 'wait'
statements) the steps found in the IT work steps.
3.10.2 After executing the 'HW' batch file (see paragraph 3.3), execute the command file by typing the
filename (using all caps) into the HP 64000 and pressing RETURN. Most command files pause to
allow the operator to record data. Press any key to resume command file execution.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 4
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
3.10.3 IT Test No. HP 64000 Command Filename
1IT10
2IT20
3 IT30 (See note 1.)
4IT40
5IT50
6IT60
7 IT70 (Shall be executed twice to complete test 7.)
8IT80
9IT81
10 IT90
11 IT100 (See note 2.)
NOTE 1: Before running IT30, test 3 must be performed. IT30 must also be performed at
the completion of the IT to clear E2.
NOTE 2: Before running IT100, end out of emulation mode by entering "END" into the HP
64000.
3.11 Notes and a list of PC command files (Honeywell Part No. MT4061400-101, Revision A) are as
follows:
3.11.1 The total execution time of this Integrated Test Procedure may be greatly reduced by using the PC
command files listed in paragraph 3.11.3. These command files automatically execute many
keystrokes found in certain tests and match statement-for-statement (excluding 'pause'
statements) the steps found in the IT work steps.
3.11.2 After executing the 'SCP MDS' batch file (see paragraph 3.4), execute the command file by typing
the filename (using all caps) into the PC and pressing ENTER. Most command files pause to
allow the operator to record data. Press any key to resume command file execution.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 5
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
3.11.3 IT Test No. PC Command Filename
1IT10
2IT20
3 IT30 (See note 1.)
4IT40
5IT50
6IT60
7 IT70 (Shall be executed twice to complete test 7.)
8IT80
8.1 IT81
9IT90
10 IT100 (See note 2.)
NOTE 1: Before running IT30, test A3 must be performed. IT30 must also be performed at
the completion of the IT to clear E2.
NOTE 2: Before running IT100, end out of emulation mode by entering "END" into the PC.
(Resume testing at test 10.13.)
3.12 This IT conforms to Specification ATLAS ATP SA4061400-905, Revision A or later.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 6
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 1. Initial IFR ATC-1400A Control Settings
Switch Initial Setting
RF LEVEL control -70 dBm
CW/NORM/OFF switch OFF
SUPPRESSOR ON/OFF switch OFF
SLS/ECHO ON/OFF switch OFF
XPDR PULSE WIDTH VAR/CAL switch CAL
FREQ STEP RATE control OFF
MAN/AUTO/MAN STEP switch MAN
XPDR DEV P3/CAL switch CAL
1.0µs/1.45µs switch 1.45 µs
XPDR DEV P2/CAL switch CAL
TO/TAC/TD switch TD
PRF/SQTR ON/OFF switch ON
F2/P2 F1/P1 switch F2/P2
XPDR MODE control A
DISPLAY SELECT control FREQ MHz
PRF/SQTR thumbwheels 45 Hz
DBL INTERR/INTERF PULSE thumbwheels 047.9 µs OFF
XPDR P2/P3 DEV thumbwheels 0.20 µs
FREQ/FUNCTION SELECT thumbwheels 1030 MHz XPDR
DELTA F thumbwheels 0.00 MHz OFF
XPDR PULSE WIDTH thumbwheels 0.00 µs
SLS/ECHO thumbwheels +0 dB
DECODER (at rear of unit) NARROW
NOTE: If unit is cold, provide a 5-minute warmup period. Adjust the FREQ and DELTA F thumbwheels
until the FREQ DISPLAY indicates 1030.00 MHz.
Initial IFR S-1403 Control Settings
Menu Sub-Menu/Field Initial Settings
Sequence S01 UF = 5
ADD = 25252525
S02 thru S16: OFF
Control Menu 1 Func: 1 ATC (ATCRBS)
RF Lvl: +0.0
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 7
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 2. Initial Mode S Transponder (UUT) Configuration
(Mode S Interface Panel)
Signal Name
Switch
Position
Signal
Sense
UUT
Rear Connector
Pin No.
MODE S ADDRESS
A1 0 OPEN J1B-1A
A2 1 GND J1B-1B
A3 0 OPEN J1B-1C
A4 1 GND J1B-1D
A5 0 OPEN J1B-1E
A6 1 GND J1B-1F
A7 0 OPEN J1B-1G
A8 1 GND J1B-1H
A9 0 OPEN J1B-1J
A10 1 GND J1B-1K
A11 0 OPEN J1B-2A
A12 1 GND J1B-2B
A13 0 OPEN J1B-2C
A14 1 GND J1B-2D
A15 0 OPEN J1B-2E
A16 1 GND J1B-2F
A17 0 OPEN J1B-2G
A18 1 GND J1B-2H
A19 0 OPEN J1B-2J
A20 1 GND J1B-2K
A21 0 OPEN J1B-3A
A22 1 GND J1B-3B
A23 0 OPEN J1B-3C
A24 1 GND J1B-3D
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 8
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 2(Cont). Initial Mode S Transponder (UUT) Configuration
(Mode S Interface Panel)
Signal Name
Switch
Position
Signal
Sense
UUT
Rear Connector
Pin No.
ANT PGM 2 OPEN J1A-6K
ANT CABLE DLY T/B BOT GND J1A-3C
B 1 OPEN J1A-3D
A0GND J1A-3E
GILHAM ALT 1 A1 1 GND J1B-4A
A2 0 OPEN J1B-4B
A4 1 GND J1B-4C
B1 0 OPEN J1B-4D
B2 1 GND J1B-4E
B4 0 OPEN J1B-4F
C1 1 GND J1B-4G
C2 0 OPEN J1B-4H
C4 1 GND J1B-4J
D2 0 OPEN J1B-4K
D1 1 GND J1B-5K
GILHAM ALT 2 A1 0 OPEN J1A-1A
A2 1 GND J1A-1B
A4 0 OPEN J1A-1C
B1 1 GND J1A-1D
B2 0 OPEN J1A-1E
B4 1 GND J1A-1F
C1 0 OPEN J1A-1G
C2 1 GND J1A-1H
C4 0 OPEN J1A-1J
D2 1 GND J1A-1K
D4 0 OPEN J1A-2K
ANT BITE ON GND J1B-5J
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 9
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 2(Cont). Initial Mode S Transponder (UUT) Configuration
(Mode S Interface Panel)
Signal Name
Switch
Position
Signal
Sense
UUT
Rear Connector
Pin No.
FUNC TEST ON GND J1B-3H
STBY/ON ON OPEN J1A-7G
SYNC ALT FLAG No. 1 INV OPEN J1A-4J
SYNC ALT FLAG No. 2 VLD +18 V J1B-7J
ALT COMP ON GND J1B-5G
ALT SRC 1 OPEN J1B-6E
ALT TYP SEL B 1 OPEN J1B-6F
A0GND J1B-6G
MAX AIRSPEED 15 1 OPEN J1A-5A
16 0 GND J1A-5B
17 1 OPEN J1A-5C
SDI B 1 OPEN J1A-3G
A0GND J1A-3H
DATA LINK DLP GND J1B-5H
CNTL PNL B OPEN J1A-7D
AIR/GND No. 1 AIR OPEN J1A-5K
AIR/GND No. 2 AIR OPEN J1A-5J
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 10
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 3. Complemented Mode S Transponder (UUT) Configuration
(Mode S Interface Panel)
Signal Name Switch Position Signal Sense
MODE S ADDRESS A1 1 GND
A2 0 OPEN
A3 1 GND
A4 0 OPEN
A5 1 GND
A6 0 OPEN
A7 1 GND
A8 0 OPEN
A9 1 GND
A10 0 OPEN
A11 1 GND
A12 0 OPEN
A13 1 GND
A14 0 OPEN
A15 1 GND
A16 0 OPEN
A17 1 GND
A18 0 OPEN
A19 1 GND
A20 0 OPEN
A21 1 GND
A22 0 OPEN
A23 1 GND
A24 0 OPEN
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 11
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 3(Cont). Complemented Mode S Transponder (UUT) Configuration
(Mode S Interface Panel)
Signal Name Switch Position Signal Sense
ANT PGM 1 GND
ANT CABLE DLY T/B TOP OPEN
B0 GND
A 1 OPEN
GILHAM ALT 1 A1 0 OPEN
A2 1 GND
A4 0 OPEN
B1 1 GND
B2 0 OPEN
B4 1 GND
C1 0 OPEN
C2 1 GND
C4 0 OPEN
D2 1 GND
D4 0 OPEN
GILHAM ALT 2 A1 1 GND
A2 0 OPEN
A4 1 GND
B1 0 OPEN
B2 1 GND
B4 0 OPEN
C1 1 GND
C2 0 OPEN
C4 1 GND
D2 0 OPEN
D4 1 GND
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 12
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 3(Cont). Complemented Mode S Transponder (UUT) Configuration
(Mode S Interface Panel)
Signal Name Switch Position Signal Sense
ANT BITE OFF OPEN
FUNC TEST OFF OPEN
STBY/ON STBY GND
SYNC ALT FLAG No. 1 VLD +18 V
SYNC ALT FLAG No. 2 INV OPEN
ALT COMP OFF OPEN
ALT SRC 2 GND
ALT TYP SEL B 0 GND
A 1 OPEN
MAX AIRSPEED 15 0 GND
16 1 OPEN
17 0 GND
SDI B 0 GND
A 1 OPEN
DATA LINK DL OPEN
CNTL PNL A GND
AIR/GND No. 1 GROUND GND
AIR/GND No. 2 GROUND GND
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 13
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 4. Initial Setup For Internal RF Self-Test
Address Modify to
C000H thru C006H 0000H
C007H thru C00DH 5555H
C00EH D457H
C00FH AAAAH
C01FH FFFFH
C020H AAAAH
C021H AAAAH
C022H 5555H
C023H 5555H
C024H 000DH
C025H 009EH
C026H 00BFH
C028H 002AH
C02AH 5500H
C02BH FFAAH
C02FH 0007H
NOTE 1: Read 1DW4 (location 0D604).
NOTE 2: Copy bits 0 thru 3 of 1DW4 into bits 4 thru 7 and write the value 7H into bits 0 thru 3 of RF
0DW15 (location 0C027).
NOTE 3: Copy bits 4 thru 7 of 1DW4 plus 01DH into bits 0 thru 5 of RF 0DW17(location 0C029).
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 14
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 5. Initial Settings For Mode S And ATCRBS (Mode S SW Running)
(Mode S Interface Panel)
Signal Name Switch Position Signal Sense
MODE S ADDRESS A1 0 OPEN
A2 1 GND
A3 0 OPEN
A4 1 GND
A5 0 OPEN
A6 1 GND
A7 0 OPEN
A8 1 GND
A9 0 OPEN
A10 1 GND
A11 0 OPEN
A12 1 GND
A13 0 OPEN
A14 1 GND
A15 0 OPEN
A16 1 GND
A17 0 OPEN
A18 1 GND
A19 0 OPEN
A20 1 GND
A21 0 OPEN
A22 1 GND
A23 0 OPEN
A24 1 GND
ANT PGM 2 OPEN
ANT CABLE DELAY T/B BOT OPEN
B 1 OPEN
A 1 OPEN
ANT BITE ON GND
FUNC TEST OFF OPEN
STBY/ON ON OPEN
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 15
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 5(Cont). Initial Settings For Mode S And ATCRBS (Mode S SW Running)
(Mode S Interface Panel)
Signal Name Switch Position Signal Sense
ALT COMP OFF OPEN
ALT SRC SEL 2 GND
ALT TYPE SEL B 1 OPEN
A 1 OPEN
CNTL PNL B OPEN
AIR/GND 1 GROUND GND
AIR/GND 2 AIR OPEN
NOTE 1: Disconnect all wires from MAINT DATA OUT A, B jacks on the Mode S interface panel.
NOTE 2: Set up two ARINC sources as shown (can be provided by one 429 source with dual-label
capability):
Transmit speed:
Transmit parity:
Transmit rate:
429 Label:
429 Data:
Connect to:
(On MDS interface
panel)
SOURCE 1
LOW
ODD
168 ms
016 (octal)
1FFE48 (Hex)
CNTL DATA B
SOURCE 2
LOW
ODD
50 ms
203 (octal)
627740 (Hex)
429 ADC 1 and
429 ADC 2
NOTE 3: Run Mode S software by removing or disabling the UDE or CPI interface from the UUT and
reenergizing the unit.
NOTE 4: The UDE or CPI must be removed or disabled to allow LRU software to operate.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 16
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 6. Initial 429 Setup (Internal Wrap)
Config Reg Address Modify To
0 0D218H 08888H
1 0D21AH 08888H
2 0D21CH 00000H
3 0D400H 0FFE0H
N/A 0D220H thru
0D22EH
0FFAAH
Table 6.1. Walking 1S 429 Setup (Internal Wrap)
Config Reg Address Modify To
0 0D218H 08888H
1 0D21AH 08888H
2 0D21CH 00000H
3 0D400H 0FFE0H
N/A 0D220H thru
0D22EH
00000H
Table 7. Initial 429 Setup (External Wrap)
Config Reg Address Modify To
0 0D218H 08888H
1 0D21AH 088AAH
2 0D21CH 00090H
3 0D400H 0FF76H
N/A 0D220H thru
0D22EH
0FF00H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 17
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Table 8. Initial 429 I/O Interconnects (Mode S Interface Panel)
From To
Signal Name UUT Rear
Connector
Pin No.
Signal Name UUT Rear
Connector
Pin No.
DATA LINK OUT
AJ1B-5E
DATA LINK IN
AJ1A-2A
B J1B-5F B J1A-2B
XT COORD
AJ1A-5G
TX COORD
AJ1A-5E
B J1A-5H B J1A-5F
MAINT DATA IN
AJ1B-6A
FLT ID
AJ1A-6A
B J1B-6B B J1A-6B
MAINT DATA OUT
AJ1B-6C
MAINT DATA IN
AJ1A-6A
B J1B-6D B J1A-6B
429 ADC #1
AJ1A-7H
CNTL DATA A
AJ1A-7A
B J1A-7J B J1A-7B
429 ADC #2
AJ1B-5A
CNTL DATA B
AJ1A-7E
B J1B-5B B J1A-7F
FLT ID
AJ1A-6A
CNTL DATA A
AJ1A-7A
B J1A-6B B J1A-7B
CNTL DATA A
AJ1A-7A
CNTL DATA B
AJ1A-7E
B J1A-7B B J1A-7F
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 18
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
4. POWER REQUIREMENTS
115 ± 5 V ac, 400 ± 10 Hz
115 ± 5 V ac or 230 ± 10 V ac, 48 to 66 Hz
5. TEST EQUIPMENT
5.1 Honeywell Test Equipment
4066423-902 CPI (modified with connector board, Part No. 4067220)
4067839 Mode S Interface Panel
4067841-901 RF Cable
4067841-902 RF Cable
4067842 M-S LRU Cooling Tray
4067846 SDP-185 UDE
MT4061400-902 HP 64000/UDE Test Software
MT4061400-101 PC/CPI Test Software
5.2 Commercial Test Equipment
IEEE-488 Cable, 10833A
IFR ATC-1400A Transponder Tester
IFR S-1403 Mode S Tester
HP 64000 System, or equivalent
JCAir 429E ARINC 429 Analyzer, or equivalent
Tektronix 2432A Digital Oscilloscope, or equivalent
Digital Voltmeter, Fluke 77, or equivalent
Omni Spectra, 2021-1314-02, or equivalent zero ohm terminator
Omni Spectra, 3082-2240-00, Type N-SMA or equivalent connector
IBM PC, or equivalent, with a Ziatech IEEE-488 interface card, ZT1444A
G
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 19
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
6. TEST SETUP
6.1 Turn on the commercial test equipment and allow it to warm up. Verify that the test equipment used
is calibrated and working properly.
6.2 Connect the UUT to the IFR test equipment, Mode S interface panel, and HP 64000 system. (See
figure 1.)
7. TEST REQUIREMENTS
7.1 The IFR equipment requires a 5-minute warmup period. No other warmup is required before testing
the Mode S Transponder.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 20
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Figure 1. Initial Test Equipment Setup
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 21
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Figure 2. Timing Diagrams
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 22
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
7.2 The test steps shall be performed in the order listed. In the event of a failure and repair, the test
must be performed again from the beginning.
7.3 All control settings that are altered during the course of a specific test should be returned to their
initial settings before starting a new procedure.
7.4 This procedure is intended to be performed by a knowledgeable technician or engineer. It is
assumed that the equipment will be energized and deenergized as appropriate when changing
connections and setups.
7.5 Individual column definitions are as follows:
Column Description
Rev Ltr Revision letters are used to identify revised material.
Test No. Tests are numbered in sequence.
Opr Limits Unit under test (UUT) shall meet these limits when tested at other than
the manufacturing facility. When an item is marked OPTIONAL, the
corresponding test is not required except as an aid in troubleshooting.
Test Description These items are the parameters to which the UUT was designed and
aid in troubleshooting by specifying the input and output signal
terminals. All conditions required are not repeated for each test, and
conditions established in previous tests also apply.
Switch Pos Positions to which switches must be set are listed in required order
and are grouped to correspond to applicable work steps.
Work Steps This column defines the operations necessary to perform a test and
achieve a result. Set switches to designated positions before
performing corresponding work step.
Mfg Limits UUT shall meet these limits at final buyoff before customer delivery.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS 23
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8. TEST PROCEDURE
8.1 Perform tests 1 thru 28 if using the HP 64000 emulation system.
8.2 Perform tests A1 thru A10 in Appendix A if using the PC/CPI emulation system.
8.3 When alternative tests A1 thru A10 are completed, perform tests 11 thru 28 to complete the test
procedures.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 24
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
1 SOFTWARE LOAD SOFTWARE LOAD
While running the
SDP-185 monitor program
(refer to paragraph 3.3.1),
modify the following
SDP-185 registers as
shown: Modify register
CACHE to 1.
Modify register
EPROM_EN to 1.
Run the SDP-185 monitor
program (refer to
paragraph 3.3.1).
Modify the following
SDP-185 registers as
shown:
Enter "modify register
CACHE to 1"
"modify register
EPROM_EN to 1"
1.1 7FDE:580D
7FDF:EEE0
Observe the CRC words
in program ROM (memory
locations 7FDEH and
7FDFH). The values shall
be as specified for a -902.
Enter "display memory
07FDEH thru 07FDFH"
The values shall be as
specified for a -902.
7FDE:580D
7FDF:EEE0
1.2 7FDE:718F
7FDF:3150
Observe the CRC words
in program ROM (memory
locations 7FDEH and
7FDFH). The values shall
be as specified for a -903.
Enter "display memory
07FDEH thru 07FDFH"
The values shall be as
specified for a -903.
7FDE:718F
7FDF:3150
1.3 7FDE:0E2D
7FDF:F202
Observe the CRC words
in program ROM (memory
locations 7FDEH and
7FDFH). The values shall
be as specified for a -904.
Enter "display memory
07FDEH thru 07FDFH"
The values shall be a
specified for a -904.
7FDE:0E2D
7FDF:F202
1.4 7FDE:4353
7FDF:F5DF
Observe the CRC words
in program ROM (memory
locations 7FDEH and
7FDFH). The values shall
be as specified for a -905
not MOD E.
Enter "display memory
07FDEH thru 07FDFH"
The values shall be as
specified for a -905 not
MOD E.
7FDE:4353
7FDF:F5DF
1.5 7FDE:6C8B
7FDF:BA1D
Observe the CRC words
in program ROM (memory
locations 7FDEH and
7FDFH). The values shall
be as specified for a -905
MOD E.
Enter "display memory
07FDEH thru 07FDFH"
The values shall be as
specified for a -905 MOD
E.
7FDE:6C8B
7FDF:BA1D
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 25
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
2 CACHE RAM CACHE RAM
Modify register CACHE to
0.
Modify register CACHE to
0.
If this IT is being
performed using an
automated test facility,
complete test 2.1.
If this IT is being
performed using an
automated test facility,
complete test 2.1.
If this IT is being
performed using the
manual test fixture,
complete test 2.2.
If this IT is being
performed using the
manual test fixture,
complete test 2.2.
2.1 N/A Automated Procedure Automated Procedure N/A
Write the cache RAM
address (0000H thru
3FFFH) to each location in
cache RAM (20000H thru
23FFFH).
Write the cache RAM
address (0000H thru
3FFFH) to each location in
cache RAM (20000H thru
23FFFH).
2.1.1 0000H thru
3FFFH
Verify that each cache
RAM location contains the
correct data.
Verify that each cache
RAM location contains the
correct data.
0000H thru
3FFFH
Write the complement of
each cache RAM address
(FFFFH thru C000H) to
each location in cache
RAM (20000H thru
23FFFH).
Write the complement of
each cache RAM address
(FFFFH thru C000H) to
each location in cache
RAM (20000H thru
23FFFH).
2.1.2 FFFFH thru
C000H
Verify that each cache
RAM location contains the
correct data.
Verify that each cache
RAM location contains the
correct data.
FFFFH thru
C000H
2.2 N/A Manual Test Procedure Manual Test Procedure N/A
Enter "modify memory
20000H thru 23FFFH to
0AAAAH"
Enter "modify memory
20000H thru 23FFFH to
0AAAAH"
2.2.1 AAAAH Enter "display memory
20000H thru 2007FH"
Enter "display memory
20000H thru 2007FH"
AAAAH
Enter "modify memory
20000H thru 23FFFH to
05555H"
Enter "modify memory
20000H thru 23FFFH to
05555H"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 26
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
2.2.2 5555H Enter "display memory
20000H thru 2007FH"
Enter "display memory
20000H thru 2007FH"
5555H
2.2.3 5555H Enter "display memory
23E80H thru 23FFFH"
Enter "display memory
23E80H thru 23FFFH"
5555H
3 N/A EEPROM EEPROM N/A
Enter "modify register
CACHE TO 0"
Enter "modify register
CACHE to 0"
Write LRU dash and serial
numbers to the EEPROM
locations 9FC0H to
9FCAH respectively. D/N
stands for dash number
and S/N stands for serial
number.
Enter "modify memory
20000H thru 2000AH to
(1st digit of D/N).
(2nd digit of D/N).
(3rd digit of D/N).
(1st digit of S/N).
(2nd digit of S/N).
(3rd digit of S/N).
(4th digit of S/N).
(5th digit of S/N).
(6th digit of S/N).
(7th digit of S/N).
(8th digit of S/N)."
D/N stands for dash
number and S/N for serial
number.
Enter "END"
Switch HBDIS* on UDE
(LED shall be illuminated).
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 27
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
3.1 N/A Enter "SW IT30P" N/A
Enter "run from startup"
NOTE: EEPROM is only
8 bits wide, instead of 16.
If 16 bits of data are
specified, only the least
significant 8 bits are used.
Thus, FE34H is the same
as 34H.
Write the EEPROM
address (00H thru FFH) to
each location in EEPROM
(8000H thru 9FFFH).
Verify each location.
Program will take several
minutes to complete.
Front panel LEDs shall
flash in a repetitive pattern
while the program is
executing. When the
program is complete all
six LEDs shall be
illuminated.
Write the complement of
each EEPROM address
(FFH thru 00H) to each
location in EEPROM
(8000H thru 9FFFH).
Verify each location.
Write the value FFH to
each location in EEPROM
(8000H thru 9FFFH).
Verify each location.
Write the LRU dash and
serial numbers, in ISO-5
format, to the EEPROM
locations 9FC0H to
9FCAH.
Enter "modify register
CACHE to 0"
3.2 PASS Enter "display memory
20010H thru 20011H"
Look in the ASCII decode
display for the Pass/Fail
indicator. Status shall be
as indicated.
PASS
Enter "modify register
CACHE to 1"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 28
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
3.3 PASS Verify that each 8-bit word
in locations 9FC0H thru
9FCAH contains the
proper dash and serial
numbers.
Enter "display memory
9FC0H thru 9FCAH"
Look in the ASCII decode
display and verify that
each 8-bit word contains
the proper dash and serial
numbers.
PASS
Enter "END"
Switch HBDIS* on VDE
(LED shall not illuminate).
Enter "HW"
4 VIDEO RAM VIDEO RAM
Write the video RAM
address (C000H thru
C00FH) to each location
in video RAM (C000H thru
C00FH).
Enter "modify register
CACHE to 1"
Enter "modify memory
0C000H thru 0C003H to
0C000H, 0C001H,
0C002H, 0C003H"
Enter "modify memory
0C004H thru 0C007H to
0C004H, 0C005H,
0C006H, 0C007H"
Enter "modify memory
0C008H thru 0C00BH to
0C008H, 0C009H,
0C00AH, 0C00BH"
Enter "modify memory
0C00CH thru 0C00FH to
0C00CH, 0C00DH,
0C00EH, 0C00FH"
Enter "display memory
0C000H thru 0C00FH"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 29
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
4.1 C000H thru
C00FH
Verify that each video
RAM location contains the
correct data.
Verify that each video
RAM location contains the
correct data.
C000H thru
C00FH
Write the complement of
each video RAM address
(3FFFH thru 3FF0H) to
each location in video
RAM (C000H thru
C00FH).
Enter "modify memory
0C000H thru 0C003H to
3FFFH, 3FFEH, 3FFDH,
3FFCH"
Enter "modify memory
0C004H thru 0C007H to
3FFBH, 3FFAH, 3FF9H,
3FF8H"
Enter "modify memory
0C008H thru 0C00BH to
3FF7H, 3FF6H, 3FF5H,
3FF4H"
Enter "modify memory
0C00CH thru 0C00FH to
3FF3H, 3FF2H, 3FF1H,
3FF0H"
Enter "display memory
0C000H thru 0C00FH"
4.2 3FFFH thru
3FF0H
Verify that each video
RAM location contains the
correct data.
Verify that each video
RAM location contains the
correct data.
3FFFH thru
3FF0H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 30
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
5 INPUT DISCRETES INPUT DISCRETES
Perform test setup in
accordance with table 2.
Perform test setup for the
transponder interface
panel in accordance with
table 2.
Read the following
memory locations:
Enter "modify register
CACHE to 1"
Enter "display memory
0D600H thru 0D605H
repetitively"
The memory locations
shall indicate as follows:
(X = don't care)
5.1 X355H or
XB55H
X4AAH or
XCAAH
5555H
55XXH
6AXXH
XABFH,
bit 12 = 0
0D600H
0D601H
0D602H
0D603H
0D604H
0D605H
0D600H
0D601H
0D602H
0D603H
0D604H
0D605H
X355H or
XB55H
X4AAH or
XCAAH
5555H
55XXH
6AXXH
XABFH,
bit 12 = 0
Complement all of the
discrete input stimuli to
the UUT.
Mode S
Interface
Panel
Table 3
Complement all of the
discrete input stimuli to
the UUT by performing
test setup in accordance
with table 3.
Read the following
memory locations:
The memory locations
shall indicate as follows:
(X = don't care)
5.2 X4AAH or
XCAAH
X355H or
XB55H
AAAAH
AAXXH
95XXH
X744H,
bit 12 = 1
0D600H
0D601H
0D602H
0D603H
0D604H
0D605H
0D600H
0D601H
0D602H
0D603H
0D604H
0D605H
X4AAH or
XCAAH
X355H or
XB55H
AAAAH
AAXXH
95XXH
X744H,
bit 12 = 1
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 31
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
5.3 X5XXH While pressing the Push
To Test button on the
front panel of the UUT,
read memory location
D605H. The value shall
be as indicated.
(X = don't care)
While pressing the Push
To Test button on the
front panel of the UUT,
enter "display memory
0D605H". The value shall
be as indicated.
(X = don't care)
X5XXH
6 OUTPUT DISCRETES OUTPUT DISCRETES
Perform test setup in
accordance with table 2.
Perform test setup in
accordance with table 2.
Write to Output Data Word
0 and Configuration
Register 3 as shown:
Write to Output Data Word
0 and Configuration
Register 3 as shown:
(Enter "modify memory
<address> to <data>")
Address Data
0D607H 0012H
0D400H 2A00H
Address Data
0D607H 0012H
0D400H 2A00H
Verify the state of the
following UUT front panel
LEDs:
Verify the state of the
following UUT front panel
LEDs:
Signal Name Signal Name
6.1 on
off
off
on
off
on
XPDRPASS
XPDRFAIL
CNTLPNL
TOPANT
BOTANT
ALTSIG
XPDRPASS
XPDRFAIL
CNTLPNL
TOPANT
BOTANT
ALTSIG
on
off
off
on
off
on
Verify the following
signals. The signal sense
shall be as specified.
Verify the following
signals. The indicator
lamps on the Mode S
interface panel (or the
signals themselves) shall
be as specified.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 32
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Sig/Lamp Sig/Lamp Sig/Lamp Sig/Lamp
6.2 OPN/ON
(Green)
GND/OFF
OPN/OFF
GND/ON
(Green)
ALT FAIL 1
ALT FAIL 2
XPDR FAIL 1
XPDR FAIL 2
ALT FAIL 1
ALT FAIL 2
XPDR FAIL 1
XPDR FAIL 2
OPN/ON
(Green)
GND/OFF
OPN/OFF
GND/ON
(Green)
Write to Output Data Word
0 and Configuration
Register 3 as shown:
Write to Output Data Word
0 and Configuration
Register 3 as shown:
(Enter "modify memory
<address> to <data>")
Address Data
0D607H 0001H
0D400H 1500H
Address Data
0D607H 0001H
0D400H 1500H
Verify the state of the
following UUT front panel
LEDs:
Verify the state of the
following UUT front panel
LEDs:
Signal Name Signal Name
6.3 off
on
on
off
on
off
XPDRPASS
XPDRFAIL
CNTLPNL
TOPANT
BOTANT
ALTSIG
XPDRPASS
XPDRFAIL
CNTLPNL
TOPANT
BOTANT
ALTSIG
off
on
on
off
on
off
Verify the following
signals. The signal sense
shall be as specified.
Verify the following
signals. The indicator
lamps on the Mode S
interface panel (or the
signals themselves) shall
be as specified.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 33
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Sig/Lamp Signal Name Signal Name Sig/Lamp
6.4 GND/OFF
OPN/ON
(Red)
+5V/ON
(Red)
OPN/OFF
ALT FAIL 1
ALT FAIL 2
XPDR FAIL 1
XPDR FAIL 2
ALT FAIL 1
ALT FAIL 2
XPDR FAIL 1
XPDR FAIL 2
GND/OFF
OPN/ON
(Red)
+5V/ON
(Red)
OPN/OFF
7 SYNCHRO ALTITUDE SYNCHRO ALTITUDE
Perform test setup in
accordance with table 2.
Perform test setup in
accordance with table 2.
Stimulate the UUT
SYNCHRO REF H and
SYNCHRO REF C signals
with a 26 V ac, 400 Hz
sinusoidal waveform.
Stimulate the UUT
synchro altitude inputs
with a second 400 Hz
sinusoid that is
synchronous with the
reference signal (above).
Apply this signal across
the following UUT synchro
inputs with the negative
side of the signal
connected to the Z input:
Mode S
Interface
Panel
26 VAC POL
= +
On the Mode S interface
panel, connect the 26 V
ac REF + and - signals to
the Sync Alt 1/2 RH and
RC signals. Connect the
TEST VAC + signal to the
FX, FY, CX, and CY
signals. Connect the
TEST VAC - signal to the
FZ and CZ signals.
Adjust the amplitude of
the TEST VAC signal to 9
V rms.
SYNC ALT 1 FINE X-Z
SYNC ALT 1 FINE Y-Z
SYNC ALT 1 CRSE X-Z
SYNC ALT 1 CRSE Y-Z
SYNC ALT 2 FINE X-Z
SYNC ALT 2 FINE Y-Z
SYNC ALT 2 CRSE X-Z
SYNC ALT 2 CRSE Y-Z
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 34
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
1. Adjust the amplitude of
this signal to 9 V rms.
Read the digital value for
each synchro source,
using the following
procedure:
Read the digital value for
each synchro source,
using the following
procedure:
1. Write the appropriate
data (see following
table) to memory
location D607H.
2. Wait at least 75 µs.
3. Read location D606H.
4. Record the value.
1. Write the appropriate
data (see following
table) to memory
location D607H.
2. Enter "modify memory
0D607H to <value from
table>"
3. Enter "display memory
0D606H thru 0D606H"
4. Record the value.
The data should fall within
the range shown in the
Limits.
The data should fall within
the range shown in the
Limits.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 35
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Write Source
To Being
D607H Tested
Write Source
To Being
D607H Tested
7.1
CD5 ± 6FH
0H
CD5 ± 6FH
1H
CD5 ± 6FH
2H
CD5 ± 6FH
3H
CD5 ± 6FH
4H
CD5 ± 6FH
5H
CD5 ± 6FH
6H
CD5 ± 6FH
7H
0100H ALT 1 FIN X-Z
(upper 12 bits)
(lower 4 bits)
0120H ALT 1 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
0140H ALT 1 CRS X-Z
(upper 12 bits)
(lower 4 bits)
0160H ALT 1 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0180H ALT 2 FIN X-Z
(upper 12 bits)
(lower 4 bits)
01A0H ALT 2 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
01C0H ALT 2 CRS X-Z
(upper 12 bits)
(lower 4 bits)
01E0H ALT 2 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0100H ALT 1 FIN X-Z
(upper 12 bits)
(lower 4 bits)
0120H ALT 1 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
0140H ALT 1 CRS X-Z
(upper 12 bits)
(lower 4 bits)
0160H ALT 1 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0180H ALT 2 FIN X-Z
(upper 12 bits)
(lower 4 bits)
01A0H ALT 2 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
01C0H ALT 2 CRS X-Z
(upper 12 bits)
(lower 4 bits)
01E0H ALT 2 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
CD5 ± 6FH
0H
CD5 ± 6FH
1H
CD5 ± 6FH
2H
CD5 ± 6FH
3H
CD5 ± 6FH
4H
CD5 ± 6FH
5H
CD5 ± 6FH
6H
CD5 ± 6FH
7H
Reverse the phase 180
degrees on the
SYNCHRO REFERENCE
input to the UUT.
Mode S
Interface
Panel
26 VAC POL
= -
Reverse the phase 180
degrees on the
SYNCHRO REFERENCE
input to the UUT.
Read the digital value for
each synchro source,
using the following
procedure:
Read the digital value for
each synchro source,
using the following
procedure:
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 36
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
1. Write the appropriate
data (see following
table) to memory
location D607H.
2. Wait at least 75 µs.
3. Read location D606H.
4. Record the value.
1. Write the appropriate
data (see following
table) to memory
location D607H.
2. Enter "modify memory
0D607H to <value from
table>"
3. Enter "display memory
D606H"
4. Record the value.
The data should fall within
the range shown in the
Limits.
The data should fall within
the range shown in the
Limits.
Write Source
To Being
D607H Tested
Write Source
To Being
D607H Tested
7.2
329 ± 6FH
0H
329 ± 6FH
1H
329 ± 6FH
2H
329 ± 6FH
3H
329 ± 6FH
4H
329 ± 6FH
5H
329 ± 6FH
6H
329 ± 6FH
7H
0100H ALT 1 FIN X-Z
(upper 12 bits)
(lower 4 bits)
0120H ALT 1 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
0140H ALT 1 CRS X-Z
(upper 12 bits)
(lower 4 bits)
0160H ALT 1 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0180H ALT 2 FIN X-Z
(upper 12 bits)
(lower 4 bits)
01A0H ALT 2 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
01C0H ALT 2 CRS X-Z
(upper 12 bits)
(lower 4 bits)
01E0H ALT 2 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0100H ALT 1 FIN X-Z
(upper 12 bits)
(lower 4 bits)
0120H ALT 1 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
0140H ALT 1 CRS X-Z
(upper 12 bits)
(lower 4 bits)
0160H ALT 1 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0180H ALT 2 FIN X-Z
(upper 12 bits)
(lower 4 bits)
01A0H ALT 2 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
01C0H ALT 2 CRS X-Z
(upper 12 bits)
(lower 4 bits)
01E0H ALT 2 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
329 ± 6FH
0H
329 ± 6FH
1H
329 ± 6FH
2H
329 ± 6FH
3H
329 ± 6FH
4H
329 ± 6FH
5H
329 ± 6FH
6H
329 ± 6FH
7H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 37
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8 429 RECEIVER TESTS
(INTERNAL)
429 RECEIVER TESTS
(INTERNAL)
Internal wrap on receiver
0 thru 7.
Perform test setup in
accordance with table 2.
Perform test setup in
accordance with table 2.
(Accept AAH label with no
masking)
(Accept AAH label with no
masking)
8.1 N/A Perform initial setup in
accordance with table 6.
Perform initial setup in
accordance with table 6.
N/A
Modify memory:
Address Data
0D210H AAAAH
0D211H AAAAH
Enter "modify memory
0D210H thru 0D211H to
AAAAH"
Read the following block
of memory: D200H thru
D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.2 AAAAH
2AAAH
Even Locations
Odd Locations
Even Locations
Odd Locations
AAAAH
2AAAH
(Reject even parity data,
no label qualification)
(Reject even parity data,
no label qualification)
8.3 N/A Perform initial setup per
table 6 except:
Address Data
0D21CH 0249H
0D220H -
0D22EH 0044H
Perform initial setup per
table 6 except:
Address Data
0D21CH 0249H
0D220H -
0D22EH 0044H
N/A
Modify memory:
Address Data
0D210H 5555H
0D211H 5555H
Enter "modify memory
0D210H thru 0D211H to
5555H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 38
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.4 AAAAH
2AAAH
(no change
from test 8.2)
Even Locations
Odd Locations
(Reject nonmatching
labels)
Even Locations
Odd Locations
(Reject nonmatching
labels)
AAAAH
2AAAH
(no change
from test 8.2)
8.5 N/A Perform initial setup in
accordance with table 6
except:
Address Data
0D220H -
0D22EH EF44H
Perform initial setup in
accordance with table 6
except:
Address Data
0D220H -
0D22EH EF44H
N/A
Modify memory:
Address Data
0D210H 5555H
0D211H 5555H
Enter "modify memory
0D210H thru 0D211H to
5555H"
Read the following block
of memory: D200H thru
D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.6 AAAAH
2AAAH
(no change
from test 8.2)
Even Locations
Odd Locations
(Reject due to disable
feature)
Even Locations
Odd Locations
(Reject due to disable
feature)
AAAAH
2AAAH
(no change
from test 8.2)
8.7 N/A Perform initial setup in
accordance with table 6
except:
Address Data
0D218H 0000H
0D21AH 0000H
0D220H -
0D22EH EE44H
Perform initial setup in
accordance with table 6
except:
Address Data
0D218H 0000H
0D21AH 0000H
0D220H -
0D22EH EE44H
N/A
Modify memory:
Address Data
0D210H 5555H
0D211H 5555H
Enter "modify memory
0D210H thru 0D211H to
5555H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 39
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.8 AAAAH
2AAAH
(no change)
Even Locations
Odd Locations
Even Locations
Odd Locations
AAAAH
2AAAH
(no change)
(Accept valid data and
label)
(Accept valid data and
label)
8.9 N/A Perform initial setup in
accordance with table 6
except:
Address Data
0D220H -
0D22EH EE44H
Perform initial setup in
accordance with table 6
except:
Address Data
0D220H -
0D22EH EE44H
N/A
Modify memory:
Address Data
0D210H 5555H
0D211H 5555H
Enter "modify memory
0D210H thru 0D211H to
5555H"
Read the following block
of memory: 0D200H thru
3D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.10 5555H
D555H
Even Locations
Odd Locations
Even Locations
Odd Locations
5555H
D555H
8.11 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 8000H
0D211H 0000H
Enter "modify memory
0D210H to 8000H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.12 8000H
0000H
Even locations
Odd locations
Even locations
Odd locations
8000H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 40
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.13 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 4000H
0D211H 0000H
Enter "modify memory
0D210H to 4000H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.14 4000H
0000H
Even locations
Odd locations
Even locations
Odd locations
4000H
0000H
8.15 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 2000H
0D211H 0000H
Enter "modify memory
0D210H to 2000H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.16 2000H
0000H
Even locations
Odd locations
Even locations
Odd locations
2000H
0000H
8.17 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 1000H
0D211H 0000H
Enter "modify memory
0D210H to 1000H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.18 1000H
0000H
Even locations
Odd locations
Even locations
Odd locations
1000H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 41
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.19 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0800H
0D211H 0000H
Enter "modify memory
0D210H to 0800H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.20 0800H
0000H
Even locations
Odd locations
Even locations
Odd locations
0800H
0000H
8.21 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0400H
0D211H 0000H
Enter "modify memory
0D210H to 0400H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.22 0400H
0000H
Even locations
Odd locations
Even locations
Odd locations
0400H
0000H
8.23 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0200H
0D211H 0000H
Enter "modify memory
0D210H to 0200H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.24 0200H
0000H
Even locations
Odd locations
Even locations
Odd locations
0200H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 42
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.25 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0100H
0D211H 0000H
Enter "modify memory
0D210H to 0100H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.26 0100H
0000H
Even locations
Odd locations
Even locations
Odd locations
0100H
0000H
8.27 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0080H
0D211H 0000H
Enter "modify memory
0D210H to 0080H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.28 0080H
0000H
Even locations
Odd locations
Even locations
Odd locations
0080H
0000H
8.29 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0040H
0D211H 0000H
Enter "modify memory
0D210H to 0040H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.30 0040H
0000H
Even locations
Odd locations
Even locations
Odd locations
0040H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 43
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.31 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0020H
0D211H 0000H
Enter "modify memory
0D210H to 0020H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.32 0020H
0000H
Even locations
Odd locations
Even locations
Odd locations
0020H
0000H
8.33 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0010H
0D211H 0000H
Enter "modify memory
0D210H to 0010H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.34 0010H
0000H
Even locations
Odd locations
Even locations
Odd locations
0010H
0000H
8.35 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0008H
0D211H 0000H
Enter "modify memory
0D210H to 0008H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.36 0008H
0000H
Even locations
Odd locations
Even locations
Odd locations
0008H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 44
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.37 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0004H
0D211H 0000H
Enter "modify memory
0D210H to 0004H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.38 0004H
0000H
Even locations
Odd locations
Even locations
Odd locations
0004H
0000H
8.39 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0002H
0D211H 0000H
Enter "modify memory
0D210H to 0002H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.40 0002H
0000H
Even locations
Odd locations
Even locations
Odd locations
0002H
0000H
8.41 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0001H
0D211H 0000H
Enter "modify memory
0D210H to 0001H"
Enter "modify memory
0D211H to 0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.42 0001H
0000H
Even locations
Odd locations
Even locations
Odd locations
0001H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 45
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.43 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 8000H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 8000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.44 0000H
8000H
Even locations
Odd locations
Even locations
Odd locations
0000H
8000H
8.45 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 4000H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 4000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.46 0000H
4000H
Even locations
Odd locations
Even locations
Odd locations
0000H
4000H
8.47 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 2000H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 2000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.48 0000H
2000H
Even locations
Odd locations
Even locations
Odd locations
0000H
2000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 46
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.49 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 1000H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 1000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.50 0000H
1000H
Even locations
Odd locations
Even locations
Odd locations
0000H
1000H
8.51 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0800H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0800H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.52 0000H
0800H
Even locations
Odd locations
Even locations
Odd locations
0000H
0800H
8.53 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0400H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0400H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.54 0000H
0400H
Even locations
Odd locations
Even locations
Odd locations
0000H
0400H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 47
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.55 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0200H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0200H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.56 0000H
0200H
Even locations
Odd locations
Even locations
Odd locations
0000H
0200H
8.57 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0100H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0100H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.58 0000H
0100H
Even locations
Odd locations
Even locations
Odd locations
0000H
0100H
8.59 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0080H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0080H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.60 0000H
0080H
Even locations
Odd locations
Even locations
Odd locations
0000H
0080H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 48
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.61 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0040H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0040H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.62 0000H
0040H
Even locations
Odd locations
Even locations
Odd locations
0000H
0040H
8.63 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0020H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0020H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.64 0000H
0020H
Even locations
Odd locations
Even locations
Odd locations
0000H
0020H
8.65 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0010H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0010H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.66 0000H
0010H
Even locations
Odd locations
Even locations
Odd locations
0000H
0010H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 49
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.67 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0008H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0008H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.68 0000H
0008H
Even locations
Odd locations
Even locations
Odd locations
0000H
0008H
8.69 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0004H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0004H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.70 0000H
0004H
Even locations
Odd locations
Even locations
Odd locations
0000H
0004H
8.71 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0002H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0002H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.72 0000H
0002H
Even locations
Odd locations
Even locations
Odd locations
0000H
0002H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 50
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
8.73 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0001H
Enter "modify memory
0D210H to 0000H"
Enter "modify memory
0D211H to 0001H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
0D200H thru 0D20FH"
8.74 0000H
0001H
Even locations
Odd locations
Even locations
Odd locations
0000H
0001H
9 429 RECEIVER/
TRANSMITTER TESTS
(EXTERNAL)
429 RECEIVER/
TRANSMITTER TESTS
(EXTERNAL)
Perform test setup in
accordance with tables 2
and 8.
Perform test setup in
accordance with tables 2
and 8.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 51
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Xmtr 0/Rcvr 0 Xmtr 0/Rcvr 0
9.1 N/A (MAINT DATA OUT/AIR
DATA 1)
(MAINT DATA OUT/AIR
DATA 1)
N/A
Connect Xmtr 0 (Maint
Data Out) to Rcvr 0 (429
Air Data 1).
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
0D220H FFAAH
Enter "modify memory
0D220H to FFAAH"
Modify transmitter data:
Address Data
0D210H AAAAH
0D211H AAAAH
Enter "modify memory
0D210H thru 0D211H to
AAAAH"
Enter "display memory
0D200 thru 0D201H"
Data should read as
follows:
Data should read as
follows:
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 52
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Address Address
9.2 AAAAH
2AAAH
0D200H
0D201H
0D200H
0D201H
AAAAH
2AAAH
On Mode S interface
panel, remove
connections on 429 ADC
#1 and reconnect on 575
ADC #1.
On Mode S interface
panel, remove
connections on 429 ADC
#1 and reconnect on 575
ADC #1.
Modify receiver label:
Address Data
0D220H FF55H
Enter "modify memory
0D220H to FF55H"
Modify transmitter data:
Address Data
0D210H 5555H
0D211H 5555H
Enter "modify memory
0D210H thru 0D211H to
5555H"
Enter "display memory
0D200H thru 0D201H"
Data should read as
follows:
Data should read as
follows:
Address Address
9.3 5555H
D555H
0D200H
0D201H
0D200H
0D201H
5555H
D555H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 53
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Xmtr 0/Rcvr 1 Xmtr 0/Rcvr 1
9.4 N/A (MAINT DATA OUT/AIR
DATA 2)
(MAINT DATA OUT/AIR
DATA 2)
N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
0D222H FFAAH
Enter "modify memory
0D222H to FFAAH"
Modify transmitter data:
Address Data
0D210H AAAAH
0D211H AAAAH
Enter "modify memory
0D210H thru 0D211H to
AAAAH"
Enter "display memory
0D202H thru 0D203H"
Data should read as
follows:
Data should read as
follows:
Address Address
9.5 AAAAH
2AAAH
0D202H
0D203H
0D202H
0D203H
AAAAH
2AAAH
On Mode S interface
panel, remove
connections on 429 ADC
#2 and reconnect on 575
ADC #2.
On Mode S interface
panel, remove
connections on 429 ADC
#2 and reconnect on 575
ADC #2.
Modify receiver label:
Address Data
0D222H FF55H
Enter "modify memory
0D222H to FF55H"
Modify transmitter data:
Address Data
0D210H 5555H
0D211H 5555H
Enter "modify memory
0D210H thru 0D211H to
5555H"
Enter "display memory
0D202H thru 0D203H"
Data should read as
follows:
Data should read as
follows:
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 54
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Address Address
9.6 5555H
D555H
0D202H
0D203H
0D202H
0D203H
5555H
D555H
Xmtr 0/Rcvr 2 Xmtr 0/Rcvr 2
9.7 N/A (MAINT DATA OUT/CNTL
DATA B)
(MAINT DATA OUT/CNTL
DATA B)
N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
0D224H FFAAH
Enter "modify memory
0D224H to FFAAH"
Modify transmitter data:
Address Data
0D210H AAAAH
0D211H AAAAH
Enter "modify memory
0D210H thru 0D211H to
AAAAH"
Enter "display memory
0D204H thru 0D205H"
Data should read as
follows:
Data should read as
follows:
Address Address
9.8 AAAAH
2AAAH
0D204H
0D205H
0D204H
0D205H
AAAAH
2AAAH
Modify receiver label:
Address Data
0D224H FF55H
Enter "modify memory
0D224H to FF55H"
Modify transmitter data:
Address Data
0D210H 5555H
0D211H 5555H
Enter "modify memory
0D210H thru 0D211H to
5555H"
Enter "display memory
0D204H thru 0D205H"
Data should read as
follows:
Data should read as
follows:
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 55
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Address Address
9.9 5555H
D555H
0D204H
0D205H
0D204H
0D205H
5555H
D555H
Xmtr 0/Rcvr 3 Xmtr 0/Rcvr 3
9.10 N/A (MAINT DATA
OUT/MAINT DATA IN)
(MAINT DATA
OUT/MAINT DATA IN)
N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
0D226H FFAAH
Enter "modify memory
0D226H to FFAAH"
Modify transmitter data:
Address Data
0D210H AAAAH
0D211H AAAAH
Enter "modify memory
0D210H thru 0D211H to
AAAAH"
Enter "display memory
0D206H thru 0D207H"
Data should read as
follows:
Data should read as
follows:
Address Address
9.11 AAAAH
2AAAH
0D206H
0D207H
0D206H
0D207H
AAAAH
2AAAH
Modify receiver label:
Address Data
0D226H FF55H
Enter "modify memory
0D226H to FF55H"
Modify transmitter data:
Address Data
0D210H 5555H
0D211H 5555H
Enter "modify memory
0D210H thru 0D211H to
5555H"
Enter "display memory
0D206H thru 0D207H"
Data should read as
follows:
Data should read as
follows:
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 56
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Address Address
9.12 5555H
D555H
0D206H
0D207H
0D206H
0D207H
5555H
D555H
Xmtr 0/Rcvr 6 Xmtr 0/Rcvr 6
9.13 N/A (MAINT DATA
OUT/FLIGHT ID)
(MAINT DATA
OUT/FLIGHT ID)
N/A
Perform setup in
accordance with table 7.
Perform setup in
accordance with table 7.
Modify receiver label:
Address Data
0D22CH FFAAH
Enter "modify memory
0D22CH to FFAAH"
Modify transmitter data:
Address Data
0D210H AAAAH
0D211H AAAAH
Enter "modify memory
0D210H thru 0D211H to
AAAAH"
Enter "display memory
0D20CH thru 0D20DH"
Data should read as
follows:
Data should read as
follows:
Address Address
9.14 AAAAH
2AAAH
0D20CH
0D20DH
0D20CH
0D20DH
AAAAH
2AAAH
Modify receiver label:
Address Data
0D22CH FF55H
Enter "modify memory
0D22CH to FF55H"
Modify transmitter data:
Address Data
0D210H 555H
0D211H 5555H
Enter "modify memory
0D210H thru 0D211H to
5555H"
Enter "display memory
0D20CH thru 0D20DH"
Data should read as
follows:
Data should read as
follows:
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 57
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Address Address
9.15 5555H
D555H
0D20CH
0D20DH
0D20CH
0D20DH
5555H
D555H
Xmtr 0/Rcvr 7 Xmtr 0/Rcvr 7
9.16 N/A (MAINT DATA OUT/CNTL
DATA A)
(MAINT DATA OUT/CNTL
DATA A)
N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
0D22EH FFAAH
Enter "modify memory
0D22EH to FFAAH"
Modify transmitter data:
Address Data
0D210H AAAAH
0D211H AAAAH
Enter "modify memory
0D210H thru 0D211H to
AAAAH"
Enter "display memory
0D20EH thru 0D20FH"
Data should read as
follows:
Data should read as
follows:
Address Address
9.17 AAAAH
2AAAH
0D20EH
0D20FH
0D20EH
0D20FH
AAAAH
2AAAH
Modify receiver label:
Address Data
0D22EH FF55H
Enter "modify memory
0D22EH to FF55H"
Modify transmitter data:
Address Data
0D210H 5555H
0D211H 5555H
Enter "modify memory
0D210H thru 0D211H to
5555H"
Enter "display memory
0D20EH thru 0D20FH"
Data should read as
follows:
Data should read as
follows:
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 58
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Address Address
9.18 5555H
D555H
0D20EH
0D20FH
0D20EH
0D20FH
5555H
D555H
Xmtr 1/Rcvr 4 Xmtr 1/Rcvr 4
9.19 N/A (XT COORD/TX COORD) (XT COORD/TX COORD) N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
0D228H FFAAH
Enter "modify memory
0D228H to FFAAH"
Modify transmitter data:
Address Data
0D212H AAAAH
0D213H AAAAH
Enter "modify memory
0D212H thru 0D213H to
AAAAH"
Enter "display memory
0D208H thru 0D209H"
Data should read as
follows:
Data should read as
follows:
Address Address
9.20 AAAAH
2AAAH
0D208H
0D209H
0D208H
0D209H
AAAAH
2AAAH
Modify receiver label:
Address Data
0D228H FF55H
Enter "modify memory
0D228H to FF55H"
Modify transmitter data:
Address Data
0D212H 5555H
0D213H 5555H
Enter "modify memory
0D212H thru 0D213H to
5555H"
Enter "display memory
0D208H thru 0D209H"
Data should read as
follows:
Data should read as
follows:
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 59
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Address Address
9.21 5555H
D555H
0D208H
0D209H
0D208H
0D209H
5555H
D555H
Xmtr 2/Rcvr 5 Xmtr 2/Rcvr 5
9.22 N/A (DATA LINK OUT/DATA
LINK IN)
(DATA LINK OUT/DATA
LINK IN)
N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
0D22AH FFAAH
Enter "modify memory
0D22AH to FFAAH"
Modify transmitter data:
Address Data
0D214H AAAAH
0D215H AAAAH
Enter "modify memory
0D214H thru 0D215H to
AAAAH"
Enter "display memory
0D20AH thru 0D20BH"
Data should read as
follows:
Data should read as
follows:
Address Address
9.23 AAAAH
2AAAH
0D20AH
0D20BH
0D20AH
0D20BH
AAAAH
2AAAH
Modify receiver label:
Address Data
0D22AH FF55H
Enter "modify memory
0D22AH to FF55H"
Modify transmitter data:
Address Data
0D214H 5555H
0D215H 5555H
Enter "modify memory
0D214H thru 0D215H to
5555H"
Enter "display memory
0D20AH thru 0D20BH"
Data should read as
follows:
Data should read as
follows:
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 60
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Address Address
9.24 5555H
D555H
0D20AH
0D20BH
0D20AH
0D20BH
5555H
D555H
10 INTERNAL RF
SELF-TEST
INTERNAL RF
SELF-TEST
Perform test setup in
accordance with table 4.
Set up video ASIC
according to table 4.
Mode S
Interface
Panel
STBY/ON:
ON
Perform test setup in
accordance with table 4.
Enter "END"
Disable heartbeat by
switching HBDIS* switch
on the UDE (LED should
be illuminated).
Enter "SWIT100P"
Enter "trace about
address FINISHED
break_on
measurement_complete"
Enter "run from
STARTUP". Program
takes only a fraction of a
second to run. When all
six front panel LEDs are
illuminated, program is
complete.
Enter "modify register
CACHE to 1"
Short Mode S
Bottom Antenna
Short Mode S
Bottom Antenna
10.1 N/A Initiate the self-test by
writing to memory as
shown.
Address Data
0C02EH 0031H
Enter "modify memory
0C02EH to 0031H"
Enter "display memory
0C000H thru 0C003H"
N/A
The received interrogation
data shall be as shown. Data shall indicate as
follows:
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 61
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Address Address
10.2 5555H 0C000H thru 0C003H 0C000H thru 0C003H 5555H
Long Mode S
Top Antenna
Long Mode S
Top Antenna
10.3 N/A Initiate the self-test by
writing to memory as
shown.
Address Data
0C007H thru
0C00DH AAAAH
0C02EH 0037H
Enter "modify memory
0C007H thru 0C00DH to
AAAAH"
Enter "modify memory
0C02EH to 0037H"
Enter "display memory
0C000H thru 0C007H"
N/A
The received interrogation
data shall be as shown. Data shall indicate as
follows:
Address Address
10.4 AAAAH 0C000H thru 0C006H 0C000H thru 0C006H AAAAH
Mode S Long Squitter
Top Antenna Pwr Vld
Mode S Long Squitter
Top Antenna Pwr Vld
10.5 N/A Set up reply data by
writing to memory as
shown. (Send preamble
pulses only.)
Address Data
0C007H F000H
0C008H thru
0C00DH 0000H
Mode S
Interface
Panel
STBY/ON:
ON
Enter "modify memory
0C007H to F000H"
Enter "modify memory
0C008H thru 0C00DH to
0000H"
N/A
Initiate the self-test by
writing to memory as
shown.
Address Data
0C02EH 003FH
Enter "modify memory
0C02EH to 003FH"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 62
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
10.6 XXX8H
bits 4 and
5 = 1
Observe the top antenna
power valid signal by
reading the self-test status
word, address 0C011H.
This word shall be as
specified.
Enter "display memory
0C011H thru 0C011H"
Location shall be as
specified.
XXX8H
bits 4 and
5 = 1
(X = don't care) (X = don't care)
Mode S Long Squitter
Bot Antenna Pwr Vld
Mode S Long Squitter
Bot Antenna Pwr Vld
10.7 N/A Initiate the self-test by
writing to memory as
shown.
Address Data
0C02EH 003DH
Mode S
Interface
Panel
STBY/ON:
ON
Enter "modify memory
0C02EH to 003DH"
N/A
10.8 XXXX4H
bits 4 and
5 = 1
Observe the bottom
antenna power valid
signal by reading the self-
test status word, address
0C011H. This word shall
be as specified.
Enter "display memory
0C011H thru 0C011H"
This location shall be as
specified.
XXXX4H
bits 4 and
5 = 1
(X = don't care) (X = don't care)
ATCRBS Mode A
Top Antenna
ATCRBS Mode A
Top Antenna
10.9 N/A Set up interrogation data
for Mode A.
Address Data
0C007H E000H
0C008H 0000H
0C009H E000H
0C00AH 0000H
0C00BH 0000H
0C00CH 0000H
0C00DH 0000H
Modify memory according
to the following table:
(Enter "modify memory
<address> to <data>")
Address Data
0C007H E000H
0C008H 0000H
0C009H E000H
0C00AH 0000H
0C00BH 0000H
0C00CH 0000H
0C00DH 0000H
N/A
Initiate the self-test by
writing to memory as
shown.
Address Data
0C02EH 0036H
Enter "modify memory
0C02EH to 0036H"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 63
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
10.10 XXX2H Observe the Mode A
signal by reading the self-
test status word, address
0C011H. Word shall be
as specified.
Enter "display memory
0C011H thru 0C011H"
This location shall be as
specified.
XXX2H
(X = don't care) (X = don't care)
ATCRBS Mode C
Bot Antenna
ATCRBS Mode C
Bot Antenna
10.11 N/A Set up interrogation data
for Mode C.
Address Data
0C007H E000H
0C008H 0000H
0C009H 0000H
0C00AH 0000H
0C00BH 0000H
0C00CH 0E00H
0C00DH 0000H
Modify memory according
to the following table:
(Enter "modify memory
<address> to <data>")
Address Data
0C007H E000H
0C008H 0000H
0C009H 0000H
0C00AH 0000H
0C00BH 0000H
0C00CH 0E00H
0C00DH 0000H
N/A
Initiate the self-test by
writing to memory as
shown.
Address Data
0C02EH 0030H
Enter "modify memory
0C02EH to 0030H"
10.12 XXX1H Observe the Mode A
signal by reading the
self-test status word,
address 0C011H. Word
shall be as specified.
Enter "display memory
0C011H thru 0C011H"
This location shall be as
specified.
XXX1H
(X = don't care) (X = don't care)
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 64
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
10.13 N/A Perform test setup in
accordance with table 1.
Perform test setup in
accordance with table 1.
N/A
STBY/ON
discrete
(hardware path)
S-1403
FUNC 1
Interrogate the UUT with
an ATCRBS Mode A
interrogation at the
standard rate and power.
ATC-1400A
XPDR MODE
A
PRF: 0450
RF Lvl: -50
CW/NORM/
OFF:
NORM
Turn XPDR MODE control
knob to A position. Turn
PRF thumbwheels to 450
Hz.
Mode S
Interface
Panel
STBY/ON:
ON
10.14 >90% Observe the ATCRBS %
reply. The value shall be
as specified.
Read the % reply display
on the ATC-1400A. The
display shall indicate as
specified.
>98%
Switch the UUT to
STANDBY mode.
Mode S
Inteface
Panel
STBY/ON:
STBY
On the Mode S interface
panel, toggle the
STBY/ON switch to the
STBY position.
10.15 <10% Observe the ATCRBS %
reply. The value shall be
as specified.
Read the % reply display
on the ATC-1400A. The
display shall indicate as
specified.
<2%
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 65
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
11 ATCRBS MTL, REPLY
FREQUENCY, DELAY,
AND POWER
ATCRBS MTL, REPLY
FREQUENCY, DELAY,
AND POWER
Perform test setup in
accordance with tables 1
and 5, except set CNTL
DATA B source as shown.
CNTL DATA B
429 source
settings
SPD: low
PAR: odd
RATE:
168 ms
LBL: 016
DATA:
007E38
Perform test setup in
accordance with tables 1
and 5, except set CNTL
DATA B source as shown.
S-1403
FUNC 1
Remove the emulation
system from the UUT.
Turn on the UUT.
Remove the HP 64000
emulation system by
performing the following
steps:
1. Type "END" on the HP
64000 keyboard.
2. Turn off UUT.
3. Remove UDE
connector from the
UUT.
4. Turn on UUT.
Interrogate the UUT with
an ATCRBS Mode A
interrogation at the
standard rate.
ATC-1400A
XPDR MDE A
PRF: 0450
Turn XPDR MODE control
to MODE A position. Turn
PRF thumbwheels to 450
Hz.
ATCRBS MTL at
1029.8 MHz
ATCRBS MTL at
1029.8 MHz
11.1 N/A Set the interrogation
frequency to 1029.8 MHz.
ATC-1400A
DSPLY SEL:
FREQ
FREQ and
DELTA F: as
required
Turn thumbwheels on
FREQ SELECT and
DELTA F until FREQ
DISPLAY indicates
1029.80 MHz.
N/A
Set the interrogation level
to -70 dBm.
ATC-1400A
RF Lvl: -70
Set ATC-1400A RF level
to -70 dBm.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 66
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
11.2 ID 0077 Observe the 4096 code
returned by the UUT.
Code shall be as
specified.
ATC-1400A
CW/NORM/
OFF: NORM
DPLY SEL:
XPDR CODE
Observe the XPDR CODE
display. Display shall
indicate as specified.
ID 0077
11.3 250 TO 630
Watts
Measure and record the
bottom antenna F1 pulse
power. The power shall
be within the limits
specified.
ATC-1400A
F2/P2
F1/P1: F1
On the ATC-1400A,
observe and record the
XMTR PWR display. This
measurement is the
bottom antenna F1 power,
and shall be within the
limits specified.
280 to 550
Watts
11.4 -76 ± 4 dBm Slowly decrement the
interrogation level in 1-dB
steps until the % reply is
less than 90%, then
increment by 1 dB. The
interrogation level shall be
as specified. Record the
value.
Slowly decrement the RF
LEVEL knob on the
ATC-1400A in 1-dB steps
until the % reply indicates
less than 90%, then
increment the RF level by
1 dB. The RF level shall
indicate as specified.
Record the value.
-76 ± 4 dBm
Interrogate the UUT with
an ATCRBS Mode A
interrogation at the
standard rate.
ATC-1400A
XPDR MDE A
PRF: 0450
Turn XPDR MODE control
to MODE A position. Turn
PRF thumbwheels to 450
Hz.
ATCRBS MTL at
1030.0 MHz
ATCRBS MTL at
1030.0 MHz
11.4.1 N/A Set the interrogation
frequency to 1030.0 MHz.
ATC-1400A
DSPLY SEL:
FREQ
FREQ and
DELTA F: as
required
Turn thumbwheels on
FREQ SELECT and
DELTA F until FREQ
DISPLAY indicates
1030.00 MHz.
N/A
Set the interrogation level
to -70 dBm.
ATC-1400A
RF Lvl: -70
Set ATC-1400A RF level
to -70 dBm.
11.4.2 ID 0077 Observe the 4096 code
returned by the UUT.
Code shall be as
specified.
ATC-1400A
CW/NORM/
OFF: NORM
DPLY SEL:
XPDR CODE
Observe the XPDR CODE
display. Display shall
indicate as specified.
ID 0077
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 67
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
11.4.3 -76 ± 4 dBm Slowly decrement the
interrogation level in 1-dB
steps until the % reply is
less than 90%, then
increment by 1 dB. The
interrogation level shall be
as specified. Record the
value.
Slowly decrement the RF
LEVEL knob on the
ATC-1400A in 1-dB steps
until the % reply indicates
less than 90%, then
increment the RF level by
1 dB. The RF level shall
indicate as specified.
Record the value.
-76 ± 4 dBm
11.4.4 N/A Interrogate the UUT with
an ATCRBS Mode C
interrogation at the
standard rate.
ATC-1400A
XPDR MDE C
CW/NORM:
NORM
Turn XPDR MODE control
to MODE C position,
CW/NORM/OFF to
NORM.
N/A
Set the interrogation level
to -70 dBm.
ATC-1400A
RF Lvl: -70
Set ATC-1400A RF level
to -70 dBm.
11.4.5 -76 ± 4 dBm Slowly decrement the
interrogation level in 1-dB
steps until the % reply is
less than 90%, then
increment by 1 dB. The
interrogation level shall be
as specified. Record the
value.
Slowly decrement the RF
LEVEL knob on the
ATC-1400A in 1-dB steps
until the % reply indicates
less than 90%, then
increment the RF level by
1 dB. The RF level shall
indicate as specified.
Record the value.
-76 ± 4 dBm
11.4.6 <1.0 dB Compare values obtained
in tests 11.4.3 and 11.4.5.
Value obtained in 11.4.3
shall be equal to that
obtained in 11.4.5 ±1.0
dB.
Compare values obtained
in tests 11.4.3 and 11.4.5.
Value obtained in 11.4.3
shall be equal to that
obtained in 11.4.5 ±1.0
dB.
<1.0 dB
ATCRBS MTL at 1030.2
MHZ, Top and Bottom
Antennas Switched
ATCRBS MTL at 1030.2
MHZ, Top and Bottom
Antennas Switched
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 68
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
11.5 N/A Disable interrogations and
turn off the UUT.
ATC-1400A
CW/NORM:
OFF
Turn CW/NORM/OFF
switch to OFF position on
the ATC-1400A and turn
off the UUT.
N/A
Reverse the antenna
cables connected to the
Mode S test equipment.
Reverse the antenna
cables connected to the
IFR ANT A and ANT B
ports.
Turn on the UUT. Turn on UUT.
Interrogate the UUT with
an ATCRBS Mode C
interrogation at the
standard rate.
ATC-1400A
XPDR MDE C
CW/NORM:
NORM
Turn XPDR MODE control
to MODE C position,
CW/NORM/OFF to
NORM.
Set the interrogation
frequency to 1030.2 MHz.
ATC-1400A
DSPLY SEL:
FREQ
FREQ and
DELTA F: as
required
Turn thumbwheels on
FREQ SELECT and
DELTA F until FREQ
DISPLAY indicates
1030.20 MHz.
Set the interrogation level
to -70 dBm.
ATC-1400A
RF Lvl: -70
Set ATC-1400A RF level
to -70 dBm.
11.6 7710 Observe the altitude code
returned by the UUT.
Code shall be as
specified.
ATC-1400A
DSPLY SEL:
XPDR CODE
Observe the XPDR CODE
display. Display shall
indicate as specified.
7710
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 69
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
11.7 -76 ± 4 dBm Slowly decrement the
interrogation level in 1-dB
steps until the % reply is
less than 90%, then
increment by 1 dB. The
interrogation level shall be
as specified. Record the
value.
Slowly decrement the RF
LEVEL knob on the
ATC-1400A in 1-dB steps
until the % reply indicates
less than 90%, then
increment the RF level by
1 dB. The RF level shall
indicate as specified.
Record the value.
-76 ± 4 dBm
Return the interrogation
level to -50 dBm.
ATC-1400A
RF Lvl: -50
Set ATC-1400A RF level
to -50 dBm.
Return the interrogation
frequency to 1030.0 MHz.
DSPLY SEL:
FREQ
Turn thumbwheels on
FREQ SELECT and
DELTA F until FREQ
DISPLAY indicates
1030.00 MHz.
ATCRBS Reply
Frequency
ATCRBS Reply
Frequency
11.8 N/A Change the 429 Cntl Data
B source to provide an all
1s (7777) Mode A reply
with SPI (ident).
Cntl Data B
429 source
settings
SPD: low
PAR: odd
RATE:
168 ms
LBL: 016
DATA:
1FFE48
Change the 429 Cntl Data
B source to provide an all
1s (7777) Mode A reply
with SPI (ident).
N/A
11.9 1090 ± 1
MHz
Measure and record the
reply frequency.
Frequency shall be as
specified.
ATC-1400A
XPDR MDE A
Observe the XMTR FREQ
display on the
ATC-1400A. Display shall
indicate as specified.
Record the value.
1090 ± 1
MHz
ATCRBS Reply Delay ATCRBS Reply Delay
11.10 N/A This test measures the
reply delay.
N/A
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 70
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
11.11 2.5 to 3.5 µs Measure and record the
reply delay. Delay shall
be as specified.
Observe the reply delay
field on the S-1403. Field
shall indicate as specified.
Record the value.
2.5 to 3.5 µs
ATCRBS Reply Power ATCRBS Reply Power
11.12 N/A This test measures the
reply power.
N/A
11.13 250 to 630
Watts
Measure and record the
peak reply power of the
F1 pulse.
ATC-1400A
F2/P2
F1/P1: F1
On the ATC-1400A, select
the F1 pulse for power
detection. Observe and
record the XMTR PWR
display. Display shall
indicate as shown.
280 to 550
Watts
Select the ATCRBS F2
pulse for power detection.
S-1403
CONTROL
MENU 2,
Pulse Power
Gate: F2
On the S-1403, change
the pulse power gate
(PPG) field to F2.
11.14 250 to 630
Watts
Measure and record the
top antenna F2 pulse
power.
ATC-1400A
F2/P2
F1/P1: F2
On the ATC-1400A, select
the F2 pulse for power
detection. Observe and
record the XMTR PWR
display. This
measurement is the top
antenna F2 pulse power.
280 to 550
Watts
11.15 <1 dB Calculate and record the
absolute value of the
transmitter droop (in dB),
using the following
formula:
Droop = ABS [10(Log10
P1 - Log10 P2)], where P1
and P2 are the power
measurements taken in
tests 11.13 and 11.14,
respectively. The droop
shall not exceed the
specified limits.
Calculate and record the
absolute value of the
transmitter droop (in dB),
using the following
formula:
Droop = ABS [10(Log10
P1 - Log10 P2)], where P1
and P2 are the power
measurements taken in
tests 11.13 and 11.14,
respectively. The droop
shall not exceed the
specified limits.
<1 dB
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 71
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
12 ATCRBS
INTERROGATION PULSE
WIDTH TOLERANCE
ATCRBS
INTERROGATION PULSE
WIDTH TOLERANCE
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate the UUT with
an ATCRBS Mode A
interrogation with variable
P1, P3 pulse width.
Interrogate at the
standard rate.
ATC-1400A
XPDR MDE A
PRF: 0450
XPDR PLSE
WDTH: VAR
Turn DISPLAY SELECT
control to MODE A
position. Turn PRF
thumbwheels to 450 Hz.
Set the XPDR PULSE
WIDTH switch to VAR.
Use the following table to
set the P1, P3 pulse
widths. The % ATCRBS
reply shall be as specified.
ATC-1400A
CW/NORM/
OFF: NORM
Use the following table to
set the P1, P3 pulse
widths (on ATC-1400A,
adjust the XPDR PULSE
WIDTH thumbwheels).
The % ATCRBS reply
shall indicate as specified.
12.1 >90%
>90%
<10%
P1, P3 Pulse Width
0.70 µs
0.90 µs
0.30 µs
P1, P3 Pulse Width
0.70 µs
0.90 µs
0.30 µs
>98%
>98%
<2%
Return the P1, P3 pulse
width to the nominal
setting.
ATC-1400A
XPDR PLSE
WDTH: CAL
On the ATC-1400A, return
the XPDR PULSE WIDTH
switch to the CAL
position.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 72
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
13 ATCRBS
INTERROGATION PULSE
POSITION TOLERANCE
(MODE A)
ATCRBS
INTERROGATION PULSE
POSITION TOLERANCE
(MODE A)
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate the UUT with
an ATCRBS Mode A
interrogation at the
standard rate, with
adjustable P1-P3 spacing.
ATC-1400A
XPDR MDE A
PRF: 0450
Turn XPDR MODE control
to the A position. Turn
PRF thumbwheels to 450
Hz.
Use the following table to
set the spacing of the
P1-P3 pulses. The
resulting ATCRBS % reply
shall be as specified.
ATC-1400A
CW/NORM/
OFF: NORM
Use the following table to
set the XPDR P2/P3 DEV
thumbwheels and P3
switch on the ATC-1400A.
The resulting ATCRBS %
reply shall be as specified.
13.1 >90%
>90%
<10%
<10%
Dev Delta
P1-P3
0.20 - 7.8 µs
0.20 + 8.2 µs
1.00 + 9.0 µs
1.00 - 7.0 µs
Dev Delta
P1-P3
0.20 - 7.8 µs
0.20 + 8.2 µs
1.00 + 9.0 µs
1.00 - 7.0 µs
>98%
>98%
<2%
<2%
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 73
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
14 ATCRBS
INTERROGATION PULSE
POSITION TOLERANCE
(MODE C)
ATCRBS
INTERROGATION PULSE
POSITION TOLERANCE
(MODE C)
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate the UUT with
an ATCRBS Mode C
interrogation at the
standard rate, with
adjustable P1-P3 spacing.
ATC-1400A
XPDR MDE C
PRF: 0450
Turn XPDR MODE control
to the C position. Turn
PRF thumbwheels to 450
Hz.
Use the following table to
set the spacing of the P1-
P3 pulses. The resulting
ATCRBS % reply shall be
as specified.
ATC-1400A
CW/NORM/
OFF: NORM
Use the following table to
set the XPDR P2/P3 DEV
thumbwheels and P3
switch on the ATC-1400A.
The resulting ATCRBS %
reply shall be as specified.
14.1 >90%
>90%
<10%
<10%
Dev Delta
P1-P3
0.20 - 20.8 µs
0.20 + 21.2 µs
1.00 + 22.0 µs
1.00 - 20.0 µs
Dev Delta
P1-P3
0.20 - 20.8 µs
0.20 + 21.2 µs
1.00 + 22.0 µs
1.00 - 20.0 µs
>98%
>98%
<2%
<2%
15 ATCRBS REPLY RATE
CAPABILITY
ATCRBS REPLY RATE
CAPABILITY
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 74
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Burst Burst
15.1 N/A Interrogate the UUT with a
burst of 120 ATCRBS
Mode A interrogations at a
rate of 1200 per second
and power of -30 dBm.
ATC-1400A
CW/NORM/
OFF: OFF
XPDR MDE A
PRF: 1200
RF Lvl: -30
Turn XPDR MODE control
to MODE A position.
Turn PRF thumbwheels to
1200 Hz.
Turn RF LEVEL knob to
-30 dBm.
N/A
S-1403
FUNC 7,
ATC, 120
ATC-1400A
CW/NORM/
OFF: NORM
Select FUNC 7 (BURST).
Using the cursor keys and
slew knob, change the
fields in the FUNC 7 menu
as follows: FUNC 7 ATC
120.
S-1403
Press BURST
On the S-1403, press the
BURST key to initiate the
interrogations.
15.2 >90% Observe the % ATCRBS
reply. The value shall be
as specified.
Read the ATCRBS %
reply display on the
S-1403. The display shall
indicate as specified.
>98%
Continuous Continuous
15.3 N/A Interrogate the UUT with
an ATCRBS Mode A
interrogation at a rate of
500 per second.
ATC-1400A
XPDR MDE A
PRF: 0500
On the ATC-1400A, turn
the XPDR MODE knob to
the A position. Adjust the
PRF thumbwheels to 500
Hz.
N/A
S-1403
FUNC 1
On the S-1403, select
FUNC 1 (ATCRBS).
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 75
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
15.4 >90%
ID = 7777
Observe the % ATCRBS
reply. The value shall be
as specified. Data shall
be as specified.
ATC-1400A
CW/NORM/
OFF: NORM
Read the % reply display
on the ATC-1400A. The
display shall indicate as
specified. Data shall be
as specified.
>98%
ID = 7777
Reply Rate Limit Reply Rate Limit
15.5 N/A Interrogate the UUT with
an ATCRBS Mode A
interrogation at a rate of
1500 per second.
ATC-1400A
XPDR MDE A
PRF: 1500
On the ATC-1400A, turn
the XPDR MODE knob to
the A position. Adjust the
PRF thumbwheels to 1500
Hz.
N/A
S-1403
FUNC 1
On the S-1403, select
FUNC 1 (ATCRBS).
15.6 >34% Observe and record the %
ATCRBS reply. The value
shall be as specified.
ATC-1400A
CW/NORM/
OFF: NORM
Read and record the %
reply display on the
ATC-1400A. The display
shall indicate as specified.
43 to 46%
ATCRBS SLS
Characteristics
ATCRBS SLS
Characteristics
15.7 N/A Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
N/A
Amplitude Amplitude
15.8 N/A Interrogate the UUT with
an ATCRBS Mode C
interrogation with P2 SLS
pulse of adjustable
amplitude. Interrogate at
the standard rate.
ATC-1400A
XPDR MDE C
PRF: 0450
SLS/ECHO:
-0, ON
Turn XPDR MODE control
to MODE C position.
Turn PRF thumbwheels to
450 Hz.
Turn SLS/ECHO switch to
ON position.
N/A
Use the following table to
adjust the interrogation
RF level. The % ATCRBS
reply for each case shall
be as specified.
ATC-1400A
CW/NORM/
OFF: NORM
Use the following table to
adjust the interrogation
RF level. The % ATCRBS
reply for each case shall
be as specified.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 76
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
15.9 <10%
<10%
<10%
<10%
RF Level
-68 dBm
-40 dBm
-21 dBm
-50 dBm
RF Level
-68 dBm
-40 dBm
-21 dBm
-50 dBm
<2%
<2%
<2%
<2%
Reduce the amplitude of
P2 in 1-dB steps until the
% reply is greater than
90%.
ATC-1400A
SLS/ECHO:
-X
Adjust the SLS
thumbwheels on the
ATC-1400A in 1-dB steps
until the % reply display
indicates >90%.
15.10 -1 to -9 dB Record the amount of P2
attenuation. This value
shall be within the limits
specified.
ATC-1400A
CW/NORM/
OFF: NORM
Record the value shown
on the SLS thumbwheels.
This value shall be within
the limits specified.
-1 to -9 dB
Adjust the interrogation
RF level to -21 dBm.
ATC-1400A
RF Lvl: -21
SLS/ECHO:
-0
Adjust the interrogation
RF level to -21 dBm.
Reduce the amplitude of
P2 in 1-dB steps until the
% reply is greater than
90%.
ATC-1400A
CW/NORM/
OFF: NORM
By adjusting the SLS
thumbwheels on the
ATC-1400A, reduce the
amplitude of P2 in 1-dB
steps until the % reply
display reads >90%.
15.11 -1 to -9 dB Record the amount of P2
attenuation. This value
shall be within the limits
specified.
Record the value shown
on the SLS thumbwheels.
This value shall be within
the limits specified.
-1 to -9 dB
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 77
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Position Position
15.12 N/A Set the P2 attenuation to
0 dB.
ATC-1400A
SLS: -0, ON
RF Lvl: -50
Set the SLS/ECHO
thumbwheels on
ATL-1400A to -0, ON.
N/A
Adjust the position of the
P2 pulse as shown in the
following table. P2 Dev
indicates the amount by
which the P2 position will
move, and Delta indicates
whether the deviation is
added or subtracted (+/-)
to the nominal position.
The % reply for each
position shall be as
shown.
ATC-1400A
CW/NORM/
OFF: NORM
Adjust the P2 DEV
thumbwheels and switch
as shown in the following
table. P2 Dev indicates
the amount by which the
P2 position will move, and
Delta indicates whether
the deviation is added or
subtracted (+/-) to the
nominal position. The %
reply for each position
shall be as shown. (Read
the % reply on the
ATC-1400A.)
15.13 >90%
>90%
<10%
<10%
P2 Dev Delta
0.70 -
0.70 +
0.15 +
0.15 -
P2 Dev Delta
0.70 -
0.70 +
0.15 +
0.15 -
>98%
>98%
<2%
<2%
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 78
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
16 ATCRBS ONLY ALL-
CALL, SHORT P4
POSITION
ATCRBS ONLY ALL-
CALL, SHORT P4
POSITION
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate the UUT with
an ATCRBS Mode A
interrogation with short P4
of adjustable position.
Interrogate at the
standard rate.
ATC-1400A
PRF: 0450
SLS/ECHO:
OFF
XPDR MDE A
Turn PRF thumbwheels to
450 Hz. Turn SLS/ECHO
switch to OFF position.
Turn the XPDR MODE
CNTL to the MODE A
position.
S-1403
FUNC 3,
(ACS,A)
P4:CAL,
Dv = 0
Select FUNC 3 (ACS).
Within the FUNC 3 menu,
select ACS, A and
P4:CAL.
Adjust the position of the
P4 pulse on S-1403 as
shown in the table below.
P4 Dv indicates the
amount by which the P4
position will move from
nominal. The % ATCRBS
reply for each position
shall be as shown.
ATC-1400A
CW/NORM/
OFF: NORM
On the S-1403, adjust the
position of the P4 pulse as
shown in the table below.
P4 Dv indicates the
amount by which the P4
position will move from
nominal. The % ATCRBS
reply for each position
shall be as shown. (Read
the % reply display on the
ATC-1400A.)
16.1 <10%
>90%
<10%
<10%
>90%
P4 Dv
s
+0.3 µs
+0.05 µs
-0.05 µs
-0.3 µs
P4 Dv
s
+0.3 µs
+0.05 µs
-0.05 µs
-0.3 µs
<2%
>98%
<2%
<2%
>98%
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 79
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
17 ATCRBS DIVERSITY ATCRBS DIVERSITY
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Simultaneously
interrogate both UUT
antennas with an
ATCRBS Mode A at
standard rate.
ATC-1400A
PRF: 0450
S-1403
FUNC 1
ANT B: 0
RF Lvl: 0
Set PRF thumbwheels to
0450 on ATC-1400A. In
FUNC 1 menu on S-1403,
turn on antenna B and
ensure RF level is set to
zero.
See paragraph 3.4. See paragraph 3.4.
Use the following table to
set the relative power and
timing of the two
interrogations. The %
ATCRBS reply shall be at
the specified value and
antenna.
ATC-1400A
CW/NORM/
OFF: NORM
Use the following table to
set the relative power and
timing of the two
interrogations. The %
ATCRBS reply shall be at
the specified value and
antenna. Read the %
reply on the ATC-1400A.
17.1
ANTA ANTB
<10% N/A
>90% N/A
>90% N/A
>90% N/A
<10% N/A
>90% N/A
<10% N/A
<10% N/A
ANT A ANT B
RF LVL DELAY
-56 dBm +0.05 µs
-44 dBm +0.05 µs
-44 dBm +0.45 µs
-70 dBm +0.45 µs
-56 dBm -0.05 µs
-44 dBm -0.05 µs
-56 dBm -0.45 µs
-44 dBm -0.45 µs
ANT A ANT B
RF LVL DELAY
-56 dBm +0.05 µs
-44 dBm +0.05 µs
-44 dBm +0.45 µs
-70 dBm +0.45 µs
-56 dBm -0.05 µs
-44 dBm -0.05 µs
-56 dBm -0.45 µs
-44 dBm -0.45 µs
ANTA ANTB
<2% N/A
>98% N/A
>98% N/A
>98% N/A
<2% N/A
>98% N/A
<2% N/A
<2% N/A
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 80
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
18 MODE S MTL, REPLY
FORMAT, REPLY
FREQUENCY, DELAY,
POWER, AND
SQUITTERS
MODE S MTL, REPLY
FORMAT, REPLY
FREQUENCY, DELAY,
POWER, AND
SQUITTERS
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate the UUT with
Mode S UF 5 interrogation
at the standard rate.
ATC-1400A
PRF: 0045
Select 0045 on the PRF
thumbwheels of the
ATC-1400A.
S-1403
FUNC 2
ANT B: OFF
Select FUNC 2 (SEQ -
MODE S ONLY) on the
S-1403.
Mode S MTL Mode S MTL
18.1 N/A Set interrogation level to -
70 dBm.
ATC-1400A
RF Lvl: -70
Set the RF level on the
1400A to -70 dBm.
N/A
18.2 DF = 05
FS = 5
DR = 00
UM = 00
ID = 7777
ADD =
25252525
Observe the Mode S reply
data. Data shall be as
specified.
ATC-1400A
CW/NORM/
OFF: NORM
Observe the decoded
Mode S reply on the
S-1403 sequence menu
(S MENU) display. Data
shall indicate as specified.
DF = 05
FS = 5
DR = 00
UM = 00
ID = 7777
ADD =
25252525
18.3 -77 ± 3 dBm Slowly decrement the
interrogation level in 1-dB
steps until the % reply is
less than 90%, then
increment by 1 dB. The
interrogation level shall be
as specified. Record the
value.
Slowly decrement the RF
LEVEL knob on the
ATC-1400A in 1-dB steps
until the % reply display
indicates less than 90%,
then increment the RF
level by 1 dB. The RF
level shall indicate as
specified. Record the
value.
-77 ± 3 dBm
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 81
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Mode S Reply
Format
Mode S Reply
Format
18.3.1 N/A Return the RF LEVEL
knob on the ATC-1400A
to -70 dBm.
ATC-1400A
RF Lvl:
-70 dBm
Return the RF LEVEL
knob on the ATC-1400A
to -70 dBm.
N/A
Interrogate the UUT with a
Mode S UF 4
interrogation.
S-1403
UF = 04
Select UF#04 on the
S-1403.
18.3.2 DF = 04
FS = 5
DR = 00
UM = 00
AC =
+20200
ADD =
25252525
Observe the decoded
Mode S reply data. Data
shall be as specified.
Verify the AC value
agrees with the coded
altitude measured in
paragraph 11.6. (+20200
= 7710 in Gilliam code)
Observe the decoded
Mode S reply on the
S-1403 sequence menu
(S MENU) display. Data
shall indicate as specified.
Verify the AC value
agrees with the coded
altitude measured in
paragraph 11.6. (+20200
= 7710 in Gilliam code)
DF = 04
FS = 5
DR = 00
UM = 00
AC =
+20200
ADD =
25252525
Interrogate the UUT with a
Mode S UF 20
interrogation.
S-1403
UF = 20
Select UF#20 on the
S-1403.
18.3.3 DF = 04
FS = 5
DR = 00
UM = 00
AC =
+20200
ADD =
25252525
Observe the decoded
Mode S reply data. Data
shall be as specified.
Observe the decoded
Mode S reply on the
S-1403 sequence menu
(S MENU) display. Data
shall indicate as specified.
DF = 04
FS = 5
DR = 00
UM = 00
AC =
+20200
ADD =
25252525
Interrogate the UUT with a
Mode S UF 21
interrogation.
S-1403
UF = 21
Select UF#21 on the
S-1403.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 82
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
18.3.4 DF = 05
FS = 5
DR = 00
UM = 00
ID =
7777
ADD =
25252525
Observe the decoded
Mode S reply data. Data
shall be as specified.
Verify that this ID agrees
with the ID data in
paragraph 15.4.
Observe the decoded
Mode S reply on the
S-1403 sequence menu
(S MENU) display. Data
shall indicate as specified.
Verify that this ID agrees
with the ID data in
paragraph 15.4.
DF = 05
FS = 5
DR = 00
UM = 00
ID =
7777
ADD =
25252525
Interrogate the UUT with a
Mode S UF 11
interrogation
S-1403
UF =11
ADD =
77777777
Select UF#11 on the
S-1403.
Perform test setup in
accordance with tables 1
and 5 except set AIR/GND
1 to AIR. Restore to
normal position after this
test is completed.
AIR/GND 1 to
air or open
Perform test setup in
accordance with tables 1
and 5 except set AIR/GND
1 to AIR. Restore to
normal position after this
test is completed.
18.3.5 DF = 11
AA =
25252525
PI =
00000000
CA =
1 for -902
1 for -903
1 for -904
0 for -905
Observe the decoded
Mode S reply data. Data
shall be as specified.
Observe the decoded
Mode S reply on the
S-1403 sequence menu
(S MENU) display. Data
shall indicate as specified.
DF = 11
AA =
25252525
PI =
00000000
CA =
1 for -902
1 for -903
1 for -904
0 for -905
Mode S Reply
Frequency
Mode S Reply
Frequency
18.4 N/A This test measures Mode
S reply frequency.
This test measures Mode
S reply frequency.
N/A
18.5 1090 ± 1 MHz Measure and record the
reply frequency.
Frequency shall be as
specified.
ATC-1400A
RF Lvl: -50
Observe and record the
XMTR FREQ display on
the ATC-1400A. Display
shall indicate as shown.
1090 ± 1 MHz
Mode S Reply Delay Mode S Reply Delay
18.6 N/A This test measures Mode
S reply delay.
This test measures Mode
S reply delay.
N/A
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 83
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
18.7 128 ±
0.25 µs
Measure and record the
reply delay. Delay shall
be as specified.
Observe and record the
reply field on the S-1403.
Field shall indicate as
specified.
128 ±
0.25 µs
Mode S Reply Power Mode S Reply Power
18.8 N/A This test measures Mode
S reply power.
This test measures Mode
S reply power.
N/A
18.9 250 to 630
Watts
Measure and record the
peak power of the first
preamble pulse of the
Mode S reply. The power
shall be as specified.
S-1403
CONTROL
MENU 2,
Pulse Power
Gate: p1
ATC-1400A
F2/P2
F1/P1: F2
On the S-1403, change
the pulse power gate to
p1. Observe and record
the XMTR PWR display
on the ATC-1400. The
display shall indicate as
specified.
280 to 550
Watts
18.10 250 to 630
Watts
Measure and record the
peak power of the last
data pulse of the Mode S
reply. The power shall be
a specified.
S-1403
CONTROL
MENU 2,
Pulse Power
Gate: P60
ATC-1400A
F2/P2
F1/P1: F2
On the S-1403, change
the pulse power gate to
P60. Observe and record
the XMTR PWR display
on the ATC-1400. The
display shall indicate as
specified.
280 to 550
Watts
18.11 <2 dB Calculate and record the
absolute value of the
transmitter droop (in dB),
using the following
formula:
Droop = ABS [10(Log10
P1 - Log10 P2)], where P1
and P2 are the power
measurements taken in
tests 18.9 and 18.10,
respectively. The droop
shall not exceed the
specified limits.
Calculate and record the
absolute value of the
transmitter droop (in dB),
using the following
formula:
Droop = ABS [10(Log10
P1 - Log10 P2)], where P1
and P2 are the power
measurements taken in
tests 18.9 and 18.10,
respectively. The droop
shall not exceed the
specified limits.
<2 dB
Squitter Monitor Squitter Monitor
18.12 N/A S1403
FUNC 2
ANT B: +.00
On S-1403, enter FUNC 2
and turn on ANT B.
N/A
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 84
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
18.13 PASS Observe the squitter
interval over a period of
10 seconds. The value
shall not exceed the limits
from 0.8 to 1.2 seconds.
Observe the squitter
interval on the S-1403
over a period of 10
seconds. The value shall
not exceed the limits from
0.8 to 1.2 seconds.
PASS
S-1403
ANT B: OFF
19 MODE S REPLY RATE
CAPABILITY
MODE S REPLY RATE
CAPABILITY
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate the UUT with a
UF 5 interrogation at a
rate of 177 per second.
ATC-1400A
PRF: 0177
S-1403
FUNC 2
On the ATC-1400A, adjust
the PRF thumbwheels to
0177.
On the S-1403, select
FUNC 2 (SEQ - MODE S
ONLY).
Observe the following
reply characteristics. The
values shall be as
specified.
ATC-1400A
CW/NORM/
OFF: NORM
Observe the following
reply characteristics on
the ATC-1400A displays.
The values shall be as
specified.
19.1 PASS Over a period of 10
seconds, the Mode S %
reply shall not fall below
90%.
Over a period of 10
seconds, the Mode S %
reply shall not fall below
98%.
PASS
19.2 PASS Reply Frequency
1090 ± 1 MHz
Reply Frequency
1090 ± 1 MHz
PASS
19.3 PASS Reply Power
250 to 630 Watts
Reply Power
280 to 550 Watts
PASS
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 85
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
20 LONG MODE S LONG MODE S
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate the UUT with a
long Mode S interrogation
at the standard rate.
ATC-1400A
PRF: 0045
SLS/ECHO:
OFF
Turn PFR thumbwheels to
45 Hz, turn SLS/ECHO
switch to OFF position.
S-1403
FUNC 2,
ANT B: OFF
S-MENU:
SO1;
UF = 16
RL = 1
MU = 06000
0000000
0000001
ADD = 2525
2525
Select FUNC 2 and set
the S-MENU:
SO1; UF = 16
RL = 1
MU = 06000000000
00000001
ADD = 25252525
20.1 >90% Observe the % Mode S
reply. It shall not fall
below 90%.
ATC-1400A
CW/NORM/
OFF: NORM
Observe the % Mode S
reply. It shall not fall
below 98%.
>98%
20.2 With an oscilloscope, look
at both the suppression
pulse output and the
Mode S reply pulse train
coming from the UUT.
With an oscilloscope look
at both the suppression
pulse output (Sup Pulse
connector on the Mode S
interface panel) and the
Mode S reply transmitter
output on the ATC-1400A.
Use a 50-ohm impedance
on the transmitter and 1M
ohm on the suppression.
20.3 PASS Verify that the
suppression pulse
brackets the Mode S
reply.
Verify that the
suppression pulse
brackets the Mode S
reply.
PASS
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 86
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
20.4 500 ± 50 ns Measure and record the
50-50% pulse width of the
P1 pulse in the Mode S
reply. The measurement
shall be as specified.
Measure and record the
50-50% pulse width of the
P1 pulse in the Mode S
reply. The measurement
shall be as specified.
500 ± 40 ns
21 ATCRBS/MODE S ALL-
CALL, LONG P4
AMPLITUDE
ATCRBS/MODE S ALL-
CALL, LONG P4
AMPLITUDE
Perform test setup in
accordance with tables 1
and 5 except set AIR/GND
1 to AIR.
AIR/GND 1 to
air or open
Perform test setup in
accordance with tables 1
and 5 except set AIR/GND
1 to AIR.
Interrogate the UUT with
an ATCRBS Mode A
interrogation with long P4
of adjustable amplitude.
Interrogate at the
standard rate.
ATC-1400A
PRF: 0045
SLS/ECHO:
OFF
XPDR MDE A
S-1403
FUNC 4,
(ACL)
P4:VAR,
Dv = CAL
Turn PRF thumbwheels to
45 Hz. Turn SLS/ECHO
switch to OFF position.
Turn the XPDR MODE
CONTROL to MODE A.
Select FUNC 4 (ACL).
Within the FUNC 4 menu,
select ACL and P4:VAR.
Use the following table to
adjust the interrogation
RF level and the amount
of P4 attenuation. The %
Mode S reply for each
case shall be as specified.
ATC-1400A
CW/NORM/
OFF: NORM
Use the following table to
adjust the interrogation
RF level and the amount
of P4 attenuation
(SLS/ECHO thumbwheels
on ATC-1400A). The %
Mode S reply for each
case shall be as specified.
Read the value on the
S-1403 Mode S % reply
field.
21.1 <10%
>90%
>90%
<10%
<10%
>90%
RF Level P4
-21 dBm -6
-21 dBm -1
-40 dBm -1
-40 dBm -6
-68 dBm -6
-68 dBm -1
RF Level P4
-21 dBm -6
-21 dBm -1
-40 dBm -1
-40 dBm -6
-68 dBm -6
-68 dBm -1
<2%
>98%
>98%
<2%
<2%
>98%
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 87
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Return P4 to full
amplitude (0 attenuation).
S-1403
P4:CAL
Return P4 to full
amplitude.
22 MODE S SPR POSITION
TOLERANCE
MODE S SPR POSITION
TOLERANCE
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate the UUT with a
Mode S UF 5 interrogation
at the standard rate and
power.
ATC-1400A
PRF 0045
RF Lvl: -50
On the ATC-1400A, adjust
the PRF thumbwheels to
45 Hz.
Use the following table to
vary the position of the
SPR. The resulting %
Mode S reply shall be as
shown.
S-1403
FUNC 2,
SPR,
Dv = as
indicated
ATC-1400A
CW/NORM/
OFF: NORM
Use the following table to
move the SPR from its
nominal position. (Vary
the SPR Dv field of the
S-1403.) The resulting %
Mode S reply shall be as
shown. Read the % reply
on the ATC-1400A.
22.1 <10%
>90%
>90%
<10%
SPR Deviation
+0.25 µs
+0.05 µs
-0.05 µs
-0.25 µs
SPR Deviation
+0.25 µs
+0.05 µs
-0.05 µs
-0.25 µs
<2%
>98%
>98%
<2%
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 88
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
23 MODE S DIVERSITY MODE S DIVERSITY
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Simultaneously
interrogate both UUT
antennas with a Mode S
UF 5 interrogation at
standard rate.
ATC-1400A
PRF: 0045
S-1403
FUNC 2,
ANT B: 0
RF Lvl: 0
Set PRF thumbwheels to
0045 on ATC-1400A. In
FUNC 2 menu on S-1403,
turn on antenna B and
ensure RF level is set to
zero.
See paragraph 3.4. See paragraph 3.4
Use the following table to
set the relative power and
timing of the two
interrogations. The %
Mode S reply shall be at
the specified value and
antenna.
Use the following table to
set the relative power and
timing of the two
interrogations. The %
Mode S reply shall be at
the specified value and
antenna. Read ANT A %
reply on the ATC-1400A.
Read ANT B % reply on
the S-1403.
23.1
ANTA ANTB
<10% >90%
>90% <10%
>90% <10%
>90% <10%
<10% >90%
>90% <10%
<10% >90%
<10% >90%
ANT A ANT B
RF LVL DELAY
-56 dBm +0.05 µs
-44 dBm +0.05 µs
-44 dBm +0.45 µs
-70 dBm +0.45 µs
-56 dBm -0.05 µs
-44 dBm -0.05 µs
-56 dBm -0.45 µs
-44 dBm -0.45 µs
ANT A ANT B
RF LVL DELAY
-56 dBm +0.05 µs
-44 dBm +0.05 µs
-44 dBm +0.45 µs
-70 dBm +0.45 µs
-56 dBm -0.05 µs
-44 dBm -0.05 µs
-56 dBm -0.45 µs
-44 dBm -0.45 µs
ANTA ANTB
<2% >98%
>98% <2%
>98% <2%
>98% <2%
<2% >98%
>98% <2%
<2% >98%
<2% >98%
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 89
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
24 TRANSACTION RESET TRANSACTION RESET
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate the UUT with a
Mode S UF 5 interrogation
followed 75 µs later by
ATCRBS Mode A
interrogation. The rate of
this double interrogation
shall be 45 Hz.
ATC-1400A
DBL INTER:
OFF, 075.0
XPDR MDE A
PRF: 0045
On the ATC-1400A, adjust
the DBL INTERR/INTRF
thumbwheels to 075.0 µs
and OFF. Adjust the PRF
thumbwheels to 0045.
Turn the XPDR MODE
knob to A.
S-1403
FUNC 6,
1ST = SEQ
2ND = ATC
ANT B: OFF
On the S-1403, select
FUNC 6 (DI). In this
menu, select 1ST = SEQ
and 2ND = ATC.
24.1 ATCRBS:
<10%
Mode S:
>90%
Observe the % reply for
both Mode S and
ATCRBS replies. The
values shall be shown.
ATC-1400A
CW/NORM/
OFF: NORM
Read the % reply fields for
both Mode S and
ATCRBS on the S-1403
display. The values shall
indicate as shown.
ATCRBS:
<2%
Mode S:
>98%
Change 1 bit of the Mode
S interrogation address.
S-1403
S01: ADD =
152525
In the sequence menu
(S01) of the S-1403,
change 1 bit in the
interrogation address
(ADD = 152525).
24.2 ATCRBS:
>90%
Mode S:
<10%
Observe the % reply for
both Mode S and
ATCRBS replies. The
values shall be as shown.
S-1403
FUNC 6
Read the % reply fields for
both Mode S and
ATCRBS on the S-1403
display. The values shall
indicate as shown.
ATCRBS:
>98%
Mode S:
<2%
Change 1 bit of the Mode
S interrogation address.
S-1403
S01: ADD =
152521
In the sequence menu
(S01) of the S-1403,
change 1 bit in the
interrogation address
(ADD = 152521).
24.3 ATCRBS:
>90%
Mode S:
<10%
Observe the % reply for
both Mode S and
ATCRBS replies. The
values shall be as shown.
S-1403
FUNC 6
Read the % reply fields for
both Mode S and
ATCRBS on the S-1403
display. The values shall
indicate as shown.
ATCRBS:
>98%
Mode S:
<2%
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 90
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
25 SUPPRESSION BUS SUPPRESSION BUS
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate UUT with an
ATCRBS Mode A
interrogation at the
standard rate and power.
S-1403
FUNC 1
ATC-1400A
PRF: 0450
XPDR MDE A
On the ATC-1400A, set
the PRF thumbwheels to
0450 Hz and the XPDR
MODE knob to A.
With an oscilloscope, look
at both the suppression
pulse output and the
ATCRBS reply pulse train
coming from the UUT.
ATC-1400A
CW/NORM/
OFF: NORM
With an oscilloscope, look
at both the suppression
pulse output (Sup Pulse
connector on the Mode S
interface panel) and the
ATCRBS reply (Xmtr
output on the
ATC-1400A). Use a
50-ohm impedance to look
at the Xmtr output and a
1M ohm impedance for
the suppression pulse.
25.1 PASS Verify that the
suppression pulse
brackets the ATCRBS
reply.
Verify that the
suppression pulse
brackets the ATCRBS
reply.
PASS
25.2 >18 V
<32 V
Measure and record the
amplitude of the
suppression pulse. The
amplitude shall be as
specified.
Measure and record the
amplitude of the
suppression pulse. The
amplitude shall be as
specified.
28 ± 3 V
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 91
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
26 REPLY PULSE
CHARACTERISTICS
REPLY PULSE
CHARACTERISTICS
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Interrogate the UUT with
an ATCRBS Mode A
interrogation at the
standard rate and power.
ATC-1400A
PRF: 0450
XPDR MDE A
On the ATC-1400A, set
the PRF thumbwheels to
0450 Hz and the XPDR
MODE knob to A.
S-1403
FUNC 1
On the S-1403, enter
FUNC 1.
Using an oscilloscope with
50-ohm impedance, look
at the XMTR output of the
ATC-1400A.
26.1 Rise:
<0.1 µs
Fall:
<0.2 µs
Measure and record the
10% to 90% rise and fall
times of the first framing
pulse, F1. The
measurements shall be as
specified.
Measure and record the
10% to 90% rise and fall
times of the first framing
pulse, F1. The
measurements shall be as
specified.
Rise:
<0.1 µs
Fall:
<0.2 µs
26.2 450 ± 100 ns Measure and record the
50-50% pulse width of the
first framing pulse, F1.
The measurement shall
be as specified.
Measure and record the
50-50% pulse width of the
first framing pulse, F1.
The measurement shall
be as specified.
450 ± 80 ns
26.3 20.3 ±
1 µs
Measure and record the
spacing between the two
framing pulses, F1 and
F2. The measurements
shall be as specified.
Measure and record the
spacing between the two
framing pulses, F1 and
F2. The measurements
shall be as specified.
20.3 ±
1 µs
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 92
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
27 ANTENNA TEST ANTENNA TEST
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
Turn UUT off. Turn UUT off.
Remove cable from TOP
ANT and terminate the
TOP ANT port with an
open circuit (infinite ohm)
terminator.
Remove cable from TOP
ANT port on Mode S
interface panel, and
terminate the TOP ANT
port with an open circuit
(infinite ohm) terminator.
Turn UUT on. Turn UUT on.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 93
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
27.1 ON Verify that TOP ANT and
XPDR FAIL indicator
lamps are illuminated
when the TEST button is
pushed momentarily for
any version that is prior to
a -905 MOD E.
Press the TEST button on
the UUT. Verify that, on
the front panel of the
Mode S Transponder, the
TOP ANT and XPDR FAIL
indicator lamps are
illuminated when the
TEST button is pushed
momentarily for any
version that is prior to a
-905 MOD E.
ON
Verify that TOP ANT FAIL
and XPDR PASS indicator
lamps are illuminated
when the TEST button is
pushed momentarily for a
-905 MOD E.
Press the TEST button on
the UUT. Verify that, on
the front panel of the
Mode S Transponder, the
TOP ANT FAIL and XPDR
PASS indicator lamps are
illuminated when the
TEST button is pushed
momentarily for a -905
MOD E.
Turn UUT off. Turn UUT off.
Replace the TOP ANT
cable. Remove cable
from the BOT ANT port
and terminate the BOT
ANT port with an open
circuit (infinite ohm)
terminator.
On the Mode S inter-face
panel, replace the TOP
ANT cable. Remove
cable from the BOT ANT
port and terminate the
port with an open circuit
(infinite ohm) terminator.
Turn UUT on. Turn UUT on.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 94
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
27.2 ON Verify that the BOT ANT
and XPDR FAIL indicator
lamps are illuminated
when the TEST button is
pushed momentarily for
any version that is prior to
a -905 MOD E.
Press the TEST button on
the UUT. Verify that, on
the front panel of the
Mode S Transponder, the
BOT ANT and XPDR FAIL
indicator lamps are
illuminated when the
TEST button is pushed
momentarily for any
version that is prior to a
-905 MOD E.
ON
Verify that BOT ANT FAIL
and XPDR PASS indicator
lamps are illuminated
when the TEST button is
pushed momentairly for a
-905 MOD E.
Press the TEST button on
the UUT. Verify that, on
the front panel of the
Mode S Transponder, the
BOT ANT FAIL and XPDR
PASS indicator lamps are
illuminated when the
TEST button is pushed
momentarily for a -905
MOD E.
Turn off UUT. Turn off UUT.
Replace cable on BOT
ANT port.
On the Mode S interface
panel, replace BOT ANT
cable.
28 SYSTEM STATUS SYSTEM STATUS
Perform test setup in
accordance with tables 1
and 5.
Perform test setup in
accordance with tables 1
and 5.
With Mode S software
running, press the TEST
button on the front panel
of the UUT.
INTFC PNL
AIR/GND 1:
GROUND
AIR/GND 2:
GROUND
With Mode S software
running, press the TEST
button on the front panel
of the UUT.
Observe the front panel
LEDs. They should all
illuminate briefly (lamp
test), then display as
specified.
Observe the front panel
LEDs. They should all
illuminate briefly (lamp
test), then display as
specified.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS 95
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
28.1 on
off
off
off
off
off
Signal Name
XPDRPASS
XPDRFAIL
CNTLPNL
TOPANT
BOTANT
ALTSIG
Signal Name
XPDRPASS
XPDRFAIL
CNTLPNL
TOPANT
BOTANT
ALTSIG
on
off
off
off
off
off
28.2 Perform test 3 to clear any
failures logged in E2.
END OF TEST END OF TEST
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-0
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
APPENDIX A
ALTERNATIVE TEST PROCEDURE FOR PC EMULATION SYSTEM
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-1
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
APPENDIX A
ALTERNATIVE TEST PROCEDURE FOR PC EMULATION SYSTEM
A1. Notes on operation of the PC emulation system are as follows:
A1.1 All tests requiring the PC emulation system shall be performed while executing the SDP-185
monitor software. In the engineering environment, the monitor is invoked by executing the 'SCP
MDS' command file.
A1.2 All address and data information should be entered in Hex with a leading # for CACHE locations
and a leading 1# for local memory. See example in 3.4.3.
A1.3 Most emulation commands are invoked by pressing the softkeys. Only addresses, data, and 'MDS'
are typed using the standard typewriter keys. For example, to change the contents of location C000
(Hex) to the value AAAA (Hex), the following PC command would be entered:
modify memory MDS word 0/#C0/0/0/ to AAAA
In this example, the words (modify, memory, word, and to) are entered with single-keystroke
softkeys.
A2. Notes and a list of PC command files (Honeywell Part No. MT4061400-101, revision a) are as follows:
A2.1 The total execution time of this Integrated Test Procedure may be greatly reduced by using the PC
command files listed in paragraph 3.11.3. These command files automatically execute many
keystrokes found in certain tests and match statement-for-statement (excluding 'pause' statements)
the steps found in the IT work steps.
A2.2 After executing the 'SCP MDS' batch file (see paragraph 3.4), execute the command file by typing
the filename (using all caps) into the PC and pressing ENTER. Most command files pause to allow
the operator to record data. Press any key to resume command file execution.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV
LTR
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-2
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A2.3 IT Test No. PC Command Filename
1IT10
2IT20
3 IT30 (See note 1.)
4IT40
5IT50
6IT60
7 IT70 (Shall be executed twice to complete test 7.)
8IT80
8.1 IT81
9IT90
10 IT100 (See note 2.)
NOTE 1: Before running IT30, test A3 must be performed. IT30 must also be performed
at the completion of the IT to clear E2.
NOTE 2: Before running IT100, end out of emulation mode by entering "END" into the PC.
(Resume testing at test 10.13.)
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-3
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
ALTERNATIVE TEST
PROCEDURES
ALTERNATIVE TEST
PROCEDURES
A1 SOFTWARE LOAD SOFTWARE LOAD
Run the SCP MDS
program (refer to
paragraph 3.4.1).
Run the SCP MDS
program (refer to
paragraph 3.4.1).
A1.1 7FDE:580D
7FDF:EEE0
Observe the CRC words
in program ROM (memory
locations 7FDEH and
7FDFH). The values shall
be as specified for a -902.
Enter "display memory
07FDEH thru 07FDFH"
The values shall be as
specified for a -902.
7FDE:580D
7FDF:EEE0
A1.2 7FDE:718F
7FDF:3150
Observe the CRC words
in program ROM (memory
locations 7FDEH and
7FDFH). The values shall
be as specified for a -903.
Enter "display memory
07FDEH thru 07FDFH"
The values shall be as
specified for a -903.
7FDE:718F
7FDF:3150
A1.3 7FDE:0E2D
7FDF:F202
Observe the CRC words
in program ROM (memory
locations 7FDEH and
7FDFH). The values shall
be as specified for a -904.
Enter "display memory
07FDEH thru 07FDFH"
The values shall be a
specified for a -904.
7FDE:0E2D
7FDF:F202
A1.4 7FDE:4353
7FDF:F5DF
Observe the CRC words
in program ROM (memory
locations 7FDEH and
7FDFH). The values shall
be as specified for a -905
not MOD E.
Enter "display memory
07FDEH thru 07FDFH"
The values shall be as
specified for a -905 not
MOD E.
7FDE:4353
7FDF:F5DF
A1.5 7FDE:6C8B
7FDF:BA1D
Observe the CRC words
in program ROM (memory
locations 7FDEH and
7FDFH). The values shall
be as specified for a -905
MOD E.
Enter "display memory
07FDEH thru 07FDFH"
The values shall be as
specified for a -905 MOD
E.
7FDE:6C8B
7FDF:BA1D
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-4
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A2 CACHE RAM CACHE RAM
Modify register CACHE to
0.
If this IT is being
performed using an
automated test facility,
complete test 2.1.
If this IT is being
performed using an
automated test facility,
complete test 2.1.
If this IT is being
performed using the
manual test fixture,
complete test 2.2.
If this IT is being
performed using the
manual test fixture,
complete test 2.2.
A2.1 N/A Automated Procedure Automated Procedure N/A
Write the cache RAM
address (0000H thru
3FFFH) to each location
in cache RAM (20000H
thru 23FFFH).
Write the cache RAM
address (0000H thru
3FFFH) to each location
in cache RAM (20000H
thru 23FFFH).
A2.1
.1
0000H thru
3FFFH
Verify that each cache
RAM location contains the
correct data.
Verify that each cache
RAM location contains the
correct data.
0000H thru
3FFFH
Write the complement of
each cache RAM address
(FFFFH thru C000H) to
each loca-tion in cache
RAM (20000H thru
23FFFH).
Write the complement of
each cache RAM address
(FFFFH thru C000H) to
each loca-tion in cache
RAM (20000H thru
23FFFH).
A2.1
.2
FFFFH thru
C000H
Verify that each cache
RAM location contains the
correct data.
Verify that each cache
RAM location contains the
correct data.
FFFFH thru
C000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-5
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A2.2 N/A Manual Test Procedure Manual Test Procedure N/A
H Modify memory 20000H
thru 23FFFH to 0AAAAH.
Enter "modify memory
MDS word 0#20000 thru
0#23FFF to AAAA"
A2.2
.1
AAAAH Display memory 20000H
thru 2007FH.
Enter "display memory
MDS word from 0#20000
to 0#23FFF"
AAAAH
H Modify memory 20000H
thru 23FFFH to 5555H.
Enter "modify memory
MDS word 0#20000 thru
0#23FFF to 5555"
A2.2
.2
5555H Display memory 20000H
thru 2007FH.
Enter "display memory
MDS word from 0#20000
to 0#2007F"
5555H
A2.2
.3
5555H Display memory 23E80H
thru 23FFFH.
Enter "display memory
MDS word from 0#23E80
to 0#23FFF"
5555H
A3 N/A EEPROM EEPROM N/A
Write LRU dash and
serial numbers to the
EEPROM locations
9FCOH to 9FCAH
respectively. D/N stands
for dash number and S/N
stands for serial number.
Enter "modify memory
MDS word 0#20000
(1st digit of D/N),
(2nd digit of D/N),
(3rd digit of D/N),
(1st digit of S/N),
(2nd digit of S/N),
(3rd digit of S/N),
(4th digit of S/N),
(5th digit of S/N),
(6th digit of S/N),
(7th digit of S/N),
(8th digit of S/N)."
HD/N stands for dash
number and S/N for serial
number. (Digit space
comma space)
Example: for unit with
dash number 905 and
serial number 90100257,
enter modify memory
MDS word 0#20000 9 , 0 ,
5 , 9 , 0 , 1 , 0 , 0 , 2 , 5 ,
7
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-6
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A3.1 N/A Enter "SCP MDS" N/A
Enter "load verify MDS
IT30P.RA"
Enter "modify registers
MDS E0 80E"
HEnter "modify registers
MDS P 109"
Enter "Set discretes MDS
to 1FA"
Enter "run MDS"
NOTE: EEPROM is only
8 bits wide, instead of 16.
If 16 bits of data are
specified, only the least
significant 8 bits are used.
Thus, FE34H is the same
as 34H.
Program will take several
minutes to complete.
Front panel LEDs shall
flash in a repetitive
pattern while the program
is executing. When the
program is complete all
six LEDs shall be
illuminated.
Write the EEPROM
address (OOH thru FFH)
to each location in
EEPROM (8OOOH thru
9FFFH). Verify each
location.
Write the complement of
each EEPROM address
(FFH thru OOH) to each
location in EEPROM
(8OOOH thru 9FFFH).
Verify each location.
Write the value FFH to
each location in EEPROM
(8OOOH thru 9FFFH).
Verify each location.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-7
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Write the LRU dash and
serial numbers, in ISO-5
format, to the EEPROM
locations 9FCOH to
9FCAH.
A3.2 5041
5353
Enter "display memory
MDS word from 0#20010
to 0#20011"
The memory locations
shall be as indicated.
5041
5353
A3.3 PASS Verify that each 8-bit word
in locations 9FCOH thru
9FCAH contains the
proper dash and serial
numbers.
Enter "display memory
MDS word from 1#9FC0
to 1#9FCA"
Verify that the 8 bits for
each word are as follows:
- Lower 4 bits from the
serial number and dash
number of the UUT.
- Upper 4 bits contain a
3 Hex.
PASS
Enter "END"
Enter "SCP MDS"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-8
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A4 VIDEO RAM VIDEO RAM
Write the video RAM
address (C000H thru
C00FH) to each location
in video RAM (C000H thru
C00FH).
Enter "modify memory
MDS word 1#C000
0C000, 0C001, 0C002,
0C003"
Enter "modify memory
MDS word 1#C0004
0C004, 0C005, 0C006,
0C007"
Enter "modify memory
MDS word 1#C00B
0C008, 0C009, 0C00A,
0C00B"
Enter "modify memory
MDS word 1#C00C
0C00C, 0C00D, 0C00E,
0C00F"
Enter "display memory
MDS word from 1#C000
to 1#C00F
A4.1 C000H thru
C00FH
Verify that each video
RAM location contains the
correct data.
Verify that each video
RAM location contains the
correct data.
C000H thru
C00FH
Write the complement of
each video RAM address
(3FFFH thru 3FF0H) to
each location in video
RAM (C000H thru
C00FH).
Enter "modify memory
MDS word 1#C000 3FFF,
3FFE, 3FFD, 3FFC"
Enter "modify memory
MDS word 1#C004 3FFB,
3FFA, 3FF9, 3FF8"
Enter "modify memory
MDS word 1#C008 3FF7,
3FF6, 3FF5, 3FF4"
Enter "modify memory
MDS word 1#C00C 3FF3,
3FF2, 3FF1, 3FF0"
Enter "display memory
MDS word from 1#C000
to 1#C00F"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-9
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A4.2 3FFFH thru
3FF0H
Verify that each video
RAM location contains the
correct data.
Verify that each video
RAM location contains the
correct data.
3FFFH thru
3FF0H
A5 INPUT DISCRETES INPUT DISCRETES
Perform test setup in
accordance with table 2.
Perform test setup for the
transponder interface
panel in accordance with
table 2.
Read the following
memory locations:
Enter "display memory
MDS word from 1#D600
to 1#D605"
The memory locations
shall indicate as follows:
(X = don't care)
A5.1 X355H or
XB55H
X4AAH or
XCAAH
5555H
55XXH
6AXXH
XABFH,
bit 12 = 0
0D600H
0D601H
0D602H
0D603H
0D604H
0D605H
0D600H
0D601H
0D602H
0D603H
0D604H
0D605H
X355H or
XB55H
X4AAH or
XCAAH
5555H
55XXH
6AXXH
XABFH,
bit 12 = 0
Complement all of the
discrete input stimuli to
the UUT.
Mode S
Interface
Panel
Table 3
Complement all of the
discrete input stimuli to
the UUT by performing
test setup in accordance
with table 3.
Enter "display memory
MDS word from 1#D600
to 1#D605"
Read the following
memory locations:
The memory locations
shall indicate as follows:
(X = don't care)
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-10
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A5.2 X4AAH or
XCAAH
X355H or
XB55H
AAAAH
AAXXH
95XXH
X744H,
bit 12 = 1
0D600H
0D601H
0D602H
0D603H
0D604H
0D605H
OD600H
0D601H
0D602H
0D603H
0D604H
0D605H
X4AAH or
XCAAH
X355H or
XB55H
AAAAH
AAXXH
95XXH
X744H,
bit 12 = 1
A5.3 X5XXH While pressing the Push
To Test button on the
front panel of the UUT,
read memory location
D605H. The value shall
be as indicated.
(X = don't care)
While pressing the Push
To Test button on the
front panel of the UUT,
enter "display memory
MDS word from 1#D605
to 1#D605"
The value shall be as
indicated.
(X = don't care)
X5XXH
A6 OUTPUT DISCRETES OUTPUT DISCRETES
Perform test setup in
accordance with table 2.
Perform test setup in
accordance with table 2.
Write to Output Data
Word 0 and Configuration
Register 3 as shown:
Write to Output Data
Word 0 and Configuration
Register 3 as shown:
(Enter "modify memory
MDS word <address>
<data>")
Address Data
0D607H 0012H
0D400H 2A00H
Address Data
1#D607 0012
1#D400 2A00
Verify the state of the
following UUT front panel
LEDs:
Verify the state of the
following UUT front panel
LEDs:
Signal Name Signal Name
A6.1 on
off
off
on
off
on
XPDRPASS
XPDRFAIL
CNTLPNL
TOPANT
BOTANT
ALTSIG
XPDRPASS
XPDRFAIL
CNTLPNL
TOPANT
BOTANT
ALTSIG
on
off
off
on
off
on
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-11
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
Verify the following
signals. The signal sense
shall be as specified.
Verify the following
signals. The indicator
lamps on the Mode S
interface panel (or the
signals themselves) shall
be as specified.
Sig/Lamp Sig/Lamp Sig/Lamp Sig/Lamp
A6.2 OPN/ON
(Green)
GND/OFF
OPN/OFF
GND/ON
(Green)
ALT FAIL 1
ALT FAIL 2
XPDR FAIL 1
XPDR FAIL 2
ALT FAIL 1
ALT FAIL 2
XPDR FAIL 1
XPDR FAIL 2
OPN/ON
(Green)
GND/OFF
OPN/OFF
GND/ON
(Green)
Write to Output Data
Word 0 and Configuration
Register 3 as shown:
Write to Output Data
Word 0 and Configuration
Register 3 as shown:
(Enter "modify memory
MDS word <address>
<data>")
Address Data
0D607H 0001H
0D400H 1500H
Address Data
1#D607 0001
1#D400 1500
Verify the state of the
following UUT front panel
LEDs:
Verify the state of the
following UUT front panel
LEDs:
Signal Name Signal Name
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-12
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A6.3 off
on
on
off
on
off
XPDRPASS
XPDRFAIL
CNTLPNL
TOPANT
BOTANT
ALTSIG
XPDRPASS
XPDRFAIL
CNTLPNL
TOPANT
BOTANT
ALTSIG
off
on
on
off
on
off
Verify the following
signals. The signal sense
shall be as specified.
Verify the following
signals. The indicator
lamps on the Mode S
interface panel (or the
signals themselves) shall
be as specified.
Sig/Lamp Signal Name Signal Name Sig/Lamp
A6.4 GND/OFF
OPN/ON(Red)
+5V/ON(Red)
OPN/OFF
ALT FAIL 1
ALT FAIL 2
XPDR FAIL 1
XPDR FAIL 2
ALT FAIL 1
ALT FAIL 2
XPDR FAIL 1
XPDR FAIL 2
GND/OFF
OPN/ON(Red)
+5V/ON(Red)
OPN/OFF
A7 SYNCHRO ALTITUDE SYNCHRO ALTITUDE
Perform test setup in
accordance with table 2.
Perform test setup in
accordance with table 2.
Stimulate the UUT
SYNCHRO REF H and
SYNCHRO REF C signals
with a 26 V ac, 400 Hz
sinusoidal waveform.
Stimulate the UUT
synchro altitude inputs
with a second 400 Hz
sinusoid that is
synchronous with the
reference signal (above).
Apply this signal across
the followng UUT synchro
inputs with the negative
side of the signal
connected to the Z input:
Mode S
Interface
Panel
26 VAC POL
= +
On the Mode S Interface
Panel, connect the 26 V
ac REF + and – signals to
the Sync Alt 1/2 RH and
RC signals. Connect the
TEST VAC + signal to the
FX, FY, CX, and CY
signals. Connect the
TEST VAC – signal to the
FZ and CZ signals.
Adjust the amplitude of
the TEST VAC signal to 9
V rms.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-13
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
SYNC ALT 1 FINE X-Z
SYNC ALT 1 FINE Y-Z
SYNC ALT 1 CRSE X-Z
SYNC ALT 1 CRSE Y-Z
SYNC ALT 2 FINE X-Z
SYNC ALT 2 FINE Y-Z
SYNC ALT 2 CRSE X-Z
SYNC ALT 2 CRSE Y-Z
1. Adjust the amplitude of
this signal to 9 V rms.
Read the digital value for
each synchro source,
using the following
procedure:
Read the digital value for
each synchro source,
using the following
procedure:
1. Write the appropriate
data (see following
table) to memory
location D607H.
2. Wait at least 75 µs.
3. Read location D606H.
4. Record the value.
1. Write the appropriate
data (see following
table) to memory
location D607H.
2. Enter "modify memory
MDS word 1#D607
<value from table>"
3. Enter "display memory
MDS word from
1#D606 to 1#D606"
4. Record the value.
The data should fall within
the range shown in the
Limits.
The data should fall within
the range shown in the
Limits.
Write Source
To Being
D607H Tested
Write Source
To Being
D607H Tested
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-14
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A7.1
CD5 ± 6FH
OH
CD5 ± 6FH
1H
CD5 ± 6FH
2H
CD5 ± 6FH
3H
CD5 ± 6FH
4H
CD5 ± 6FH
5H
CD5 ± 6FH
6H
CD5 ± 6FH
7H
0100H ALT 1 FIN X-Z
(upper 12 bits)
(lower 4 bits)
0120H ALT 1 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
0140H ALT 1 CRS X-Z
(upper 12 bits)
(lower 4 bits)
0160H ALT 1 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0180H ALT 2 FIN X-Z
(upper 12 bits)
(lower 4 bits)
01AOH ALT 2 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
01COH ALT 2 CRS X-Z
(upper 12 bits)
(lower 4 bits)
01EOH ALT 2 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0100 ALT 1 FIN X-Z
(upper 12 bits)
(lower 4 bits)
0120 ALT 1 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
0140 ALT 1 CRS X-Z
(upper 12 bits)
(lower 4 bits)
0160 ALT 1 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0180 ALT 2 FIN X-Z
(upper 12 bits)
(lower 4 bits)
01AO ALT 2 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
01CO ALT 2 CRS X-Z
(upper 12 bits)
(lower 4 bits)
01EO ALT 2 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
CD5 ± 6FH
OH
CD5 ± 6FH
1H
CD5 ± 6FH
2H
CD5 ± 6FH
3H
CD5 ± 6FH
4H
CD5 ± 6FH
5H
CD5 ± 6FH
6H
CD5 ± 6FH
7H
Reverse the phase 180
degrees on the
SYNCHRO REFERENCE
input to the UUT.
Mode S
Interface
Panel
26 VAC POL
= -
Reverse the phase 180
degrees on the
SYNCHRO REFERENCE
input to the UUT.
Read the digital value for
each synchro source,
using the following
procedure:
Read the digital value for
each synchro source,
using the following
procedure:
1. Write the appropriate
data (see following
table) to memory
location D607H.
2. Wait at least 75 µs.
3. Read location D606H.
4. Record the value.
1. Write the appropriate
data (see following
table) to memory
location D607H.
2. Enter "modify memory
MDS word 1#D607
<value from table>"
3. Enter "display memory
MDS word from
1#D606 to 1#D606"
4. Record the value.
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-15
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
The data should fall within
the range shown in the
Limits.
The data should fall within
the range shown in the
Limits.
Write Source
To Being
D607H Tested
Write Source
To Being
D607H Tested
A7.2
329 ± 6FH
OH
329 ± 6FH
1H
329 ± 6FH
2H
329 ± 6FH
3H
329 ± 6FH
4H
329 ± 6FH
5H
329 ± 6FH
6H
329 ± 6FH
7H
0100H ALT 1 FIN X-Z
(upper 12 bits)
(lower 4 bits)
0120H ALT 1 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
0140H ALT 1 CRS X-Z
(upper 12 bits)
(lower 4 bits)
0160H ALT 1 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0180H ALT 2 FIN X-Z
(upper 12 bits)
(lower 4 bits)
01AOH ALT 2 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
01COH ALT 2 CRS X-Z
(upper 12 bits)
(lower 4 bits)
01EOH ALT 2 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0100 ALT 1 FIN X-Z
(upper 12 bits)
(lower 4 bits)
0120 ALT 1 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
0140 ALT 1 CRS X-Z
(upper 12 bits)
(lower 4 bits)
0160 ALT 1 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
0180 ALT 2 FIN X-Z
(upper 12 bits)
(lower 4 bits)
01AO ALT 2 FIN Y-Z
(upper 12 bits)
(lower 4 bits)
01CO ALT 2 CRS X-Z
(upper 12 bits)
(lower 4 bits)
01EO ALT 2 CRS Y-Z
(upper 12 bits)
(lower 4 bits)
329 ± 6FH
OH
329 ± 6FH
1H
329 ± 6FH
2H
329 ± 6FH
3H
329 ± 6FH
4H
329 ± 6FH
5H
329 ± 6FH
6H
329 ± 6FH
7H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-16
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8 429 RECEIVER TESTS
(INTERNAL)
429 RECEIVER TESTS
(INTERNAL)
Internal wrap on receiver
0 thru 7.
Perform test setup in
accordance with table 2.
Perform test setup in
accordance with table 2.
(Accept AAH label with no
masking)
(Accept AAH label with no
masking)
A8.1 N/A Perform initial setup in
accordance with table 6.
Perform initial setup in
accordance with table 6.
N/A
Modify Memory:
Address Data
OD210H AAAAH
OD211H AAAAH
Enter "modify memory
MDS word 1#D210 thru
1#D211 to AAAA"
Read the following block
of memory: D200H thru
D20FH.
Enter "display memory
MDS word from 1#D200
to 1#D20F"
A8.2 AAAAH
2AAAH
Even locations
Odd locations
Even locations
Odd locations
AAAAH
2AAAH
(Reject even parity data,
no label qualification)
(Reject even parity data,
no label qualification)
A8.3 N/A Perform initial setup per
table 6 except:
Address Data
D21CH 0249H
D220H -
D22EH 0044H
Perform initial setup per
table 6 except:
Address Data
1#D21C 0249
1#D220 -
1#D22E 0044
N/A
Modify Memory:
Address Data
D210H 5555H
D211H 5555H
Enter "modify memory
MDS word 1#D210 thru
1#D211 to 5555"
Read the following block
of memory: D200H thru
D20FH.
Enter "display memory
MDS word from 1#D200
to 1#D20F"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-17
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.4 AAAAH
2AAAH
Even locations
Odd locations
(Reject nonmatching
labels)
Even locations
Odd locations
(Reject nonmatching
labels)
AAAAH
2AAAH
(no change
from test 8.2)
A8.5 N/A Perform initial setup in
accordance with table 6
except:
Address Data
D220H -
D22EH EF44H
Perform initial setup in
accordance with table 6
except:
Address Data
1#D220 -
1#D22E EF44
N/A
Modify Memory:
Address Data
D210H 5555H
D211H 5555H
Enter "modify memory
MDS word 1#D210 thru
1#D210 to 5555"
Read the following block
of memory: D200H thru
D20FH.
Enter "display memory
MDS word from 1#D200
to 1#D20F"
A8.6 AAAAH
2AAAH
(no change
from test 8.2)
Even locations
Odd locations
(Reject due to disable
feature)
Even locations
Odd locations
(Reject due to disable
feature)
AAAAH
2AAAH
(no change
from test 8.2)
A8.7 N/A Perform initial setup in
accordance with table 6
except:
Address Data
D218H 0000H
D21AH 0000H
D220H -
D22EH EE44H
Perform initial setup in
accordance with table 6
except:
Address Data
1#D218 0000
1#D21A 0000
1#D220 -
1#D22E EE44
N/A
Modify Memory:
Address Data
D210H 5555H
D211H 5555H
Read the following block
of memory: D200H thru
D20FH.
Enter "modify memory
MDS word 1#D210 thru
1#D211 to 5555"
Enter "display memory
MDS word from 1#D200
to 1#D20F"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-18
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.8 AAAAH
2AAAH
(no change)
Even locations
Odd locations
Even locations
Odd locations
AAAAH
2AAAH
(no change)
(Accept valid data and
label)
(Accept valid data and
label)
A8.9 N/A Perform initial setup in
accordance with table 6
except:
Address Data
D220H -
D22EH EE44H
Perform initial setup in
accordance with table 6
except:
Address Data
1#D220 -
1#D22E EE44
N/A
Modify Memory:
Address Data
D210H 5555H
D211H 5555H
Enter "modify memory
MDS word 1#D210 thru
1#D211 to 5555"
Read the following block
of memory: D200H thru
D20FH.
Enter "display memory
MDS word from 1#D200
to 1#D20F"
A8.10 5555H
D555H
Even locations
Odd locations
Even locations
Odd locations
5555H
D555H
A8.11 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 8000H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
8000H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.12 8000H
0000H
Even locations
Odd locations
Even locations
Odd locations
8000H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-19
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.13 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory
Address Data
0D210H 4000H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
4000H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.14 4000H
0000H
Even locations
Odd locations
Even locations
Odd locations
4000H
0000H
A8.15 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 2000H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
2000H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.16 2000H
0000H
Even locations
Odd locations
Even locations
Odd locations
2000H
0000H
A8.17 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify memory:
Address Data
0D210H 1000H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
1000H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.18 1000H
0000H
Even locations
Odd locations
Even locations
Odd locations
1000H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-20
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.19 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0800H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0800H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.20 0800H
0000H
Even locations
Odd locations
Even locations
Odd locations
0800H
0000H
A8.21 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0400H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0400H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.22 0400H
0000H
Even locations
Odd locations
Even locations
Odd locations
0400H
0000H
A8.23 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0200H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0200H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH
A8.24 0200H
0000H
Even locations
Odd locations
Even locations
Odd locations
0200H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-21
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.25 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0100H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0100H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.26 0100H
0000H
Even locations
Odd locations
Even locations
Odd locations
0100H
0000H
A8.27 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0080H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0080H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.28 0080H
0000H
Even locations
Odd locations
Even locations
Odd locations
0080H
0000H
A8.29 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0040H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0040H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.30 0040H
0000H
Even locations
Odd locations
Even locations
Odd locations
0040H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-22
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.31 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0020H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0020H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.32 0020H
0000H
Even locations
Odd locations
Even locations
Odd locations
0020H
0000H
A8.33 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0010H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0010H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.34 0010H
0000H
Even locations
Odd locations
Even locations
Odd locations
0010H
0000H
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-23
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.35 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0008H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0008H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.36 0008H
0000H
Even locations
Odd locations
Even locations
Odd locations
0008H
0000H
A8.37 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0004H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0004H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.38 0004H
0000H
Even locations
Odd locations
Even locations
Odd locations
0004H
0000H
A8.39 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0002H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0002H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-24
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.40 0002H
0000H
Even locations
Odd locations
Even locations
Odd locations
0002H
0000H
A8.41 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0001H
0D211H 0000H
Enter "modify memory
MDS word 1#D210H to
0001H"
Enter "modify memory
MDS word 1#D211H to
0000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.42 0001H
0000H
Even locations
Odd locations
Even locations
Odd locations
0001H
0000H
A8.43 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 8000H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
8000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.44 0000H
8000H
Even locations
Odd locations
Even locations
Odd locations
0000H
8000H
A8.45 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 4000H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
4000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-25
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.46 0000H
4000H
Even locations
Odd locations
Even locations
Odd locations
0000H
4000H
A8.47 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 2000H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
2000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.48 0000H
2000H
Even locations
Odd locations
Even locations
Odd locations
0000H
2000H
A8.49 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 1000H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
1000H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.50 0000H
1000H
Even locations
Odd locations
Even locations
Odd locations
0000H
1000H
A8.51 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0800H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0800H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-26
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.52 0000H
0800H
Even locations
Odd locations
Even locations
Odd locations
0000H
0800H
A8.53 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0400H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0400H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.54 0000H
0400H
Even locations
Odd locations
Even locations
Odd locations
0000H
0400H
A8.55 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0200H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0200H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.56 0000H
0020H
Even locations
Odd locations
Even locations
Odd locations
0000H
0200H
A8.57 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0100H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0100H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-27
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.58 0000H
0100H
Even locations
Odd locations
Even locations
Odd locations
0000H
0100H
A8.59 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0080H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0080H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.60 0000H
0080H
Even locations
Odd locations
Even locations
Odd locations
0000H
0080H
A8.61 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0040H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0040H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.62 0000H
0040H
Even locations
Odd locations
Even locations
Odd locations
0000H
0040H
A8.63 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0020H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0020H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-28
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.64 0000H
0020H
Even locations
Odd locations
Even locations
Odd locations
0000H
0020H
A8.65 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0010H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0010H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.66 0000H
0010H
Even locations
Odd locations
Even locations
Odd locations
0000H
0010H
A8.67 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0008H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0008H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.68 0000H
0008H
Even locations
Odd locations
Even locations
Odd locations
0000H
0008H
A8.69 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0004H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0004H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-29
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A8.70 0000H
0004H
Even locations
Odd locations
Even locations
Odd locations
0000H
0004H
A8.71 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0002H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0002H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.72 0000H
0002H
Even locations
Odd locations
Even locations
Odd locations
0000H
0002H
A8.73 N/A Perform initial setup in
accordance with table 6.1.
Perform initial setup in
accordance with table 6.1.
N/A
Modify Memory:
Address Data
0D210H 0000H
0D211H 0001H
Enter "modify memory
MDS word 1#D210H to
0000H"
Enter "modify memory
MDS word 1#D211H to
0001H"
Read the following block
of memory: 0D200H thru
0D20FH.
Enter "display memory
MDS word from 1#D200H
thru 1#D20FH"
A8.74 0000H
0001H
Even locations
Odd locations
Even locations
Odd locations
0000H
0001H
A9 429 RECEIVER/
TRANSMITTER TESTS
(EXTERNAL)
429 RECEIVER/
TRANSMITTER TESTS
(EXTERNAL)
Perform test setup in
accordance with tables 2
and 8.
Perform test setup in
accordance with tables 2
and 8.
Xmtr 0/Rcvr 0 Xmtr 0/Rcvr 0
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-30
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A9.1 N/A (MAINT DATA OUT/AIR
DATA 1)
(MAINT DATA OUT/AIR
DATA 1)
N/A
Connect Xmtr 0 (Maint
Data Out) to Rcvr 0 (429
Air Data 1).
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
D220H FFAAH
Enter "modify memory
MDS word 1#0D220
FFAA"
Modify transmitter data:
Address Data
D210H AAAAH
D211H AAAAH
Enter "modify memory
MDS word 1#D210 thru
1#D211 to AAAA"
Enter "display memory
MDS word from 1#D200
to 1#D201"
Data should read as
follows:
Data should read as
follows:
Address Address
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-31
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A9.2 AAAAH
2AAAH
D200H
D201H
D200H
D201H
AAAAH
2AAAH
On Mode S interface
panel, remove
connections on 429 ADC
#1 and reconnect on 575
ADC #1.
On Mode S interface
panel, remove
connections on 429 ADC
#1 and reconnect on 575
ADC #1.
Modify receiver label:
Address Data
D220H FF55H
Enter "modify memory
MDS word 1#0D220
FF55"
Modify transmitter data:
Address Data
D210H 5555H
D211H 5555H
Enter "modify memory
MDS word 1#D210 thru
1#D211 to 5555"
Enter "display memory
MDS word from 1#D200
to 1#D201"
Data should read as
follows:
Data should read as
follows:
Address Address
A9.3 5555H
D555H
D200H
D201H
D200H
D201H
5555H
D555H
Xmtr 0/Rcvr 1 Xmtr 0/Rcvr 1
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-32
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A9.4 N/A (MAINT DATA OUT/AIR
DATA 2)
(MAINT DATA OUT/AIR
DATA 2)
N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
D222H FFAAH
Enter "modify memory
MDS word 1#0D222
FFAAH"
Modify transmitter data:
Address Data
D210H AAAAH
D211H AAAAH
Enter "modify memory
MDS word 1#D210 thru
1#D211 to AAAA"
Enter "display memory
MDS word from 1#D202
to 1#D203"
Data should read as
follows:
Data should read as
follows:
Address Address
A9.5 AAAAH
2AAAH
D202H
D203H
D202H
D203H
AAAAH
2AAAH
On Mode S interface
panel, remove
connections on 429 ADC
#2 and reconnect on 575
ADC #2.
On Mode S interface
panel, remove
connections on 429 ADC
#2 and reconnect on 575
ADC #2.
Modify receiver label:
Address Data
D222H FF55H
Enter "modify memory
MDS word 1#0D222
FF55H"
Modify transmitter data:
Address Data
D210H 5555H
D211H 5555H
Enter "modify memory
MDS word 1#D210 thru
1#D211 to 5555"
Enter "display memory
MDS word from 1#D202
to 1#D203"
Data should read as
follows:
Data should read as
follows:
Address Address
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-33
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A9.6 5555H
D555H
D202H
D203H
D202H
D203H
5555H
D555H
Xmtr 0/Rcvr 2 Xmtr 0/Rcvr 2
A9.7 N/A (MAINT DATA OUT/CNTL
DATA B)
(MAINT DATA OUT/CNTL
DATA B)
N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
D224H FFAAH
Enter "modify memory
MDS word 1#0D224
FFAAH"
Modify transmitter data:
Address Data
D210H AAAAH
D211H AAAAH
Enter "modify memory
MDS word 1#D210 thru
1#D211 to AAAA"
Enter "display memory
MDS word from 1#D204
to 1#D205"
Data should read as
follows:
Data should read as
follows:
Address Address
A9.8 AAAAH
2AAAH
D204H
D205H
D204H
D205H
AAAAH
2AAAH
Modify receiver label:
Address Data
D224H FF55H
Enter "modify memory
MDS word 1#0D224
FF55H"
Modify transmitter data:
Address Data
D210H 5555H
D211H 5555H
Enter "modify memory
MDS word 1#D201 thru
1#D211 to 5555"
Enter "display memory
MDS word from 1#D204
to 1#D205"
Data should read as
follows:
Data should read as
follows:
Address Address
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-34
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A9.9 5555H
D555H
D204H
D205H
D204H
D205H
5555H
D555H
Xmtr 0/Rcvr 3 Xmtr 0/Rcvr 3
A9.10 N/A (MAINT DATA
OUT/MAINT DATA IN)
(MAINT DATA
OUT/MAINT DATA IN)
N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
D226H FFAAH
Enter "modify memory
MDS word 1#0D226
FFAA"
Modify transmitter data:
Address Data
D210H AAAAH
D211H AAAAH
Enter "modify memory
MDS word 1#D210 thru
1#D211 to AAAA"
Enter "display memory
MDS word from 1#D206
to 1#D207"
Data should read as
follows:
Data should read as
follows:
Address Address
A9.11 AAAAH
2AAAH
D206H
D207H
D206H
D207H
AAAAH
2AAAH
Modify receiver label:
Address Data
D226H FF55H
Enter "modify memory
MDS word 1#0D226
FF55"
Modify transmitter data:
Address Data
D210H 5555H
D211H 5555H
Enter "modify memory
MDS word 1#D210 thru
1#D211 to 5555"
Enter "display memory
MDS word from 1#D206
to 1#D207"
Data should read as
follows:
Data should read as
follows:
Address Address
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-35
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A9.12 5555H
D555H
D206H
D207H
D206H
D207H
5555H
D555H
Xmtr 0/Rcvr 6 Xmtr 0/Rcvr 6
A9.13 N/A (MAINT DATA
OUT/FLIGHT ID)
(MAINT DATA
OUT/FLIGHT ID)
N/A
Perform setup in
accordance with table 7.
Perform setup in
accordance with table 7.
Modify receiver label:
Address Data
D22CH FFAAH
Enter "modify memory
MDS word 1#0D22C
FFAA"
Modify transmitter data:
Address Data
D210H AAAAH
D211H AAAAH
Enter "modify memory
MDS word 1#D210 thru
1#D211 to AAAA"
Enter "display memory
MDS word from 1#D20C
to 1#D20D"
Data should read as
follows:
Data should read as
follows:
Address Address
A9.14 AAAAH
2AAAH
D20CH
D20DH
D20CH
D20DH
AAAAH
2AAAH
Modify receiver label:
Address Data
D22CH FF55H
Enter "modify memory
MDS word 1#0D22C
FF55"
Modify transmitter data:
Address Data
D210H 5555H
D211H 5555H
Enter "modify memory
MDS word 1#D210 thru
1#D211 to 5555"
Enter "display memory
MDS word from 1#D20C
to 1#D20D"
Data should read as
follows:
Data should read as
follows:
Address Address
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-36
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A9.15 5555H
D555H
D20CH
D20DH
D20CH
D20DH
5555H
D555H
Xmtr 0/Rcvr 7 Xmtr 0/Rcvr 7
A9.16 N/A (MAINT DATA OUT/CNTL
DATA A)
(MAINT DATA OUT/CNTL
DATA A)
N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
D22EH FFAAH
Enter "modify memory
MDS word 1#0D22E
FFAA"
Modify transmitter data:
Address Data
D210H AAAAH
D211H AAAAH
Enter "modify memory
MDS word 1#D210 thru
1#D211 to AAAA"
Enter "display memory
MDS word from 1#D20E
to 1#D20F"
Data should read as
follows:
Data should read as
follows:
Address Address
A9.17 AAAAH
2AAAH
D20EH
D20FH
D20EH
D20FH
AAAAH
2AAAH
Modify receiver label:
Address Data
D22EH FF55H
Enter "modify memory
MDS word 1#0D22E
FF55"
Modify transmitter data:
Address Data
D210H 5555H
D211H 5555H
Enter "modify memory
MDS word 1#D210 thru
1#D211 to 5555"
Enter "display memory
MDS word 1#D20E to
1#D20F"
Data should read as
follows:
Data should read as
follows:
Address Address
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-37
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A9.18 5555H
D555H
D20EH
D20FH
D20EH
D20FH
5555H
D555H
Xmtr 1/Rcvr 4 Xmtr 1/Rcvr 4
A9.19 N/A (XT COORD/TX COORD) (XT COORD/TX COORD) N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
D228H FFAAH
Enter "modify memory
MDS word 1#0D228
FFAA"
Modify transmitter data:
Address Data
D212H AAAAH
D213H AAAAH
Enter "modify memory
MDS word 1#D212 thru
1#D213 to AAAA"
Enter "display memory
MDS word from 1#D208
to 1#D209"
Data should read as
follows:
Data should read as
follows:
Address Address
A9.20 AAAAH
2AAAH
D208H
D209H
D208H
D209H
AAAAH
2AAAH
Modify receiver label:
Address Data
D228H FF55H
Enter "modify memory
MDS word 1#0D228
FF55"
Modify transmitter data:
Address Data
D212H 5555H
D213H 5555H
Enter "modify memory
MDS word 1#D212 thru
1#D213 to 5555"
Enter "display memory
MDS word from 1#D208
to 1#D209"
Data should read as
follows:
Data should read as
follows:
Address Address
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-38
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A9.21 5555H
D555H
D208H
D209H
D208H
D209H
5555H
D555H
Xmtr 2/Rcvr 5 Xmtr 2/Rcvr 5
A9.22 N/A (DATA LINK OUT/DATA
LINK IN)
(DATA LINK OUT/DATA
LINK IN)
N/A
Perform initial setup in
accordance with table 7.
Perform initial setup in
accordance with table 7.
Modify receiver label:
Address Data
D22AH FFAAH
Enter "modify memory
MDS word 1#0D22A
FFAA"
Modify transmitter data:
Address Data
D214H AAAAH
D215H AAAAH
Enter "modify memory
MDS word 1#D214 thru
1#D215 to AAAA"
Enter "display memory
MDS word from 1#D20A
to 1#D20B"
Data should read as
follows:
Data should read as
follows:
Address Address
A9.23 AAAAH
2AAAH
D20AH
D20BH
D20AH
D20BH
AAAAH
2AAAH
Modify receiver label:
Address Data
D22AH FF55H
Enter "modify memory
MDS from 1#0D22A
FF55"
Modify transmitter data:
Address Data
D214H 5555H
D215H 5555H
Enter "modify memory
MDS from 1#D214 thru
1#D215 to 5555"
Enter "display memory
MDS word from 1#D20A
to 1#D20B"
Data should read as
follows:
Data should read as
follows:
Address Address
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-39
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A9.24 5555H
D555H
D20AH
D20BH
D20AH
D20BH
5555H
D555H
A10 INTERNAL RF
SELF-TEST
INTERNAL RF
SELF-TEST
Perform test setup in
accordance with table 4.
Set up video ASIC
according to table 4.
Mode S
Interface
Panel
STBY/ON:
ON
Perform test setup in
accordance with table 4.
Enter "END"
Enter "SCP MDS"
Enter "load verify MDS
IT100P.RA"
Enter "modify registers
MDS E0 80E"
Enter "modify registers
MDS P 109."
Enter "Set discretes MDS
to IFA."
Enter "run MDS"
Program takes only a
fraction of a second to
run. When all six front
panel LEDs are
illuminated, program is
complete.
Short Mode S
Bottom Antenna
Short Mode S
Bottom Antenna
A10.1 N/A Initiate the self-test by
writing to memory as
shown.
Address Data
OC02EH 0031H
Enter "modify memory
MDS word 1#0C02E
0031"
Enter "display memory
MDS word from 1#C000
to 1#C003"
N/A
The received interrogation
data shall be as shown.
Data shall indicate as
follows:
Address Address
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-40
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A10.2 5555H 0C000H thru 0C003H 0C000H thru OC003H 5555H
Long Mode S
Top Antenna
Long Mode S
Top Antenna
A10.3 N/A Initiate the self-test by
writing to memory as
shown.
Address Data
0C007H thru
0C00DH AAAAH
0C02EH 0037H
Enter "modify memory
MDS word 1#C007 thru
1#C00D to AAAA"
Enter "modify memory
MDS word 1#0C02E
0037"
N/A
Enter "display memory
MDS word from 1#C000
to 1#C007"
The received interrogation
data shall be as shown.
Data shall indicate as
follows:
Address Address
A10.4 AAAAH 0C000H thru 0C006H 0C000H thru 0C006H AAAAH
Mode S Long Squitter
Top Antenna Pwr Vld
Mode S Long Squitter
Top Antenna Pwr Vld
A10.5 N/A Set up reply data by
writing to memory as
shown. (Send preamble
pulses only.)
Address Data
0C007H F000H
0C008H thru
0C00DH 0000H
Mode S
Interface
Panel
STBY/ON:
ON
Enter "modify memory
MDS word 1#C007 F000"
Enter "modify memory
MDS word 1#C008 thru
1#C00D to 0000"
N/A
Initiate the self-test by
writing to memory as
shown.
Address Data
0C02EH 003FH
Enter "modify memory
MDS word 1#0C02E
003F"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-41
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A10.6 XXX8H
bits 4 and
5 = 1
Observe the top antenna
power valid signal by
reading the self-test
status word, address
0C011H. This word shall
be as specified.
Enter "display memory
MDS word from 1#C011
to 1#C011"
Location shall be as
specified.
XXX8H
bits 4 and
5 = 1
(X = don't care) (X = don't care)
Mode S Long Squitter
Bot Antenna Pwr Vld
Mode S Long Squitter
Bot Antenna Pwr Vld
A10.7 N/A Initiate the self-test by
writing to memory as
shown.
Address Data
0C02EH 003DH
Mode S
Interface
Panel
STBY/ON:
ON
Enter "modify memory
MDS word 1#C02E 003D"
N/A
A10.8 XXXX4H
bits 4 and
5 = 1
Observe the bottom
antenna power valid
signal by reading the self-
test status word, address
0C011H. This word shall
be as specified.
Enter "display memory
MDS word from 1#C011
to 1#C011"
This location shall be as
specified.
XXXX4H
bits 4 and
5 = 1
(X = don't care) (X = don't care)
ATCRBS Mode A
Top Antenna
ATCRBS Mode A
Top Antenna
A10.9 N/A Set up interrogation data
for Mode A.
Address Data
0C007H E000H
0C008H 0000H
0C009H E000H
0C00AH 0000H
0C00BH 0000H
0C00CH 0000H
0C00DH 0000H
Modify memory according
to the following table:
(Enter "modify memory
<address> to <data>")
Address Data
1#C007 E000
1#C008 0000
1#C009 E000
1#C00A 0000
1#C00B 0000
1#C00C 0000
1#C00D 0000
N/A
Initiate the self-test by
writing to memory as
shown.
Address Data
0C02EH 0036H
Enter "modify memory
MDS word 1#0C02E
0036"
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-42
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
HA10
.10
XXX2H Observe the Mode A
signal by reading the self-
test status word, address
0C011H. Word shall be
as specified.
IFR 1400
CW/NORM/
OFF:
OFF
Turn IFR 1400
CW/NORM/OFF Switch to
“OFF” position. Enter
"display memory MDS
word from 1#C011 to
1#C011"
This location shall be as
specified.
XXX2H
(X = don't care) (X = don't care)
ATCRBS Mode C
Bot Antenna
ATCRBS Mode C
Bot Antenna
A10
.11
N/A Set up interrogation data
for Mode C.
Address Data
0C007H E000H
0C008H 0000H
0C009H 0000H
0C00AH 0000H
0C00BH 0000H
0C00CH 0E00H
0C00DH 0000H
Modify memory according
to the following table:
(Enter "modify memory
<address> to <data>")
Address Data
1#C007 E000
1#C008 0000
1#C009 0000
1#C00A 0000
1#C00B 0000
1#C00C 0E00
1#C00D 0000
N/A
Initiate the self-test by
writing to memory as
shown.
Address Data
0C02EH 0030H
Enter "modify memory
MDS word 1#0C02E
0030"
A10
.12
XXX1H Observe the Mode A
signal by reading the self-
test status word, address
0C011H. Word shall be
as specified.
Enter "display memory
MDS word from 1#C011
to 1#C011"
This location shall be as
specified.
XXX1H
(X = don't care) (X = don't care)
SECURITY NOTATION SPEC
NO. IT4061400-907
SEE PAGE INDEX
FOR THIS SHEET
REV LETTER
CAGE
CODE 58960 REV LTR
SEE THE TITLE PAGE FOR PROPRIETARY AND DATA RIGHTS NOTATIONS.
REV TEST SPECIFICATION PROCEDURE SPECIFICATION
LTR NO. OPR LIMITS C TEST DESCRIPTION SWITCH POS C WORK STEPS MFG LIMITS
AW/CRITICAL NOTATION
SUPPLEMENTS
A
-43
SECURITY NOTATION PAGE
15101-000 (REV 970213 BCAS ASF5900/ENG_SPEC.DOT) (REV 07/18/2000 -OFC97-DATA SERVICES) HONEYWELL INTERNATIONAL INC.
ENGINEERING
SPECIFICATION
A10
.13
N/A Perform test setup in
accordance with table 1.
Perform test setup in
accordance with table 1.
N/A
STBY/ON
discrete
(hardware path)
S-1403
FUNC 1
Interrogate the UUT with
an ATCRBS Mode A
interrogation at the
standard rate and power.
ATC-1400A
XPDR MODE
A
PRF: 0450
RF Lvl: -50
CW/NORM/
OFF:
NORM
Turn XPDR MODE control
knob to A position. Turn
PRF thumbwheels to 450
Hz.
Mode S
Interface
Panel
STBY/ON:
ON
A10
.14
>90% Observe the ATCRBS %
reply. The value shall be
as specified.
Read the % reply display
on the ATC-1400A. The
display shall indicate as
specified.
>98%
Switch the UUT to
STANDBY mode.
Mode S
Interface
Panel
STBY/ON:
STBY
On the Mode S inter-face
panel, toggle the
STBY/ON switch to the
STBY position.
A10
.15
<10% Observe the ATCRBS %
reply. The value shall be
as specified.
Read the % reply display
on the ATC-1400A. The
display shall indicate as
specified.
<2%
This is the end of PC/CPI
emulation testing.
Continue testing UUT with
tests 11 thru 28.

Navigation menu
