AEE Wireless Technology 870VL 2.4G Wireless Transceiver User Manual Users manual

Shenzhen AEE Wireless Technology Co., Ltd. 2.4G Wireless Transceiver Users manual

Users manual

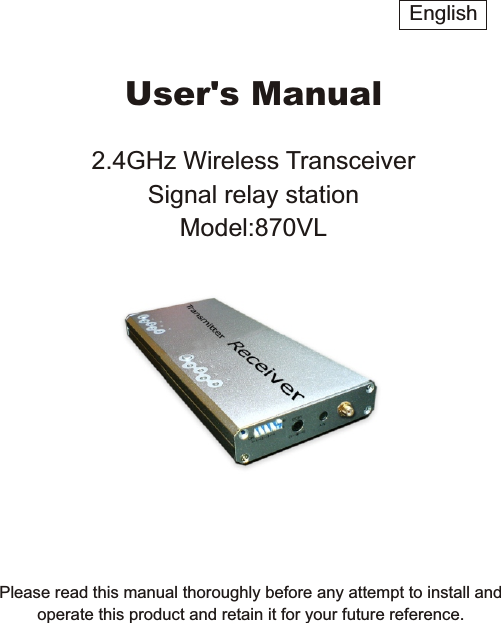

Please read this manual thoroughly before any attempt to install andoperate this product and retain it for your future reference.User's Manual2.4GHz Wireless TransceiverSignal relay stationModel:870VLEnglish

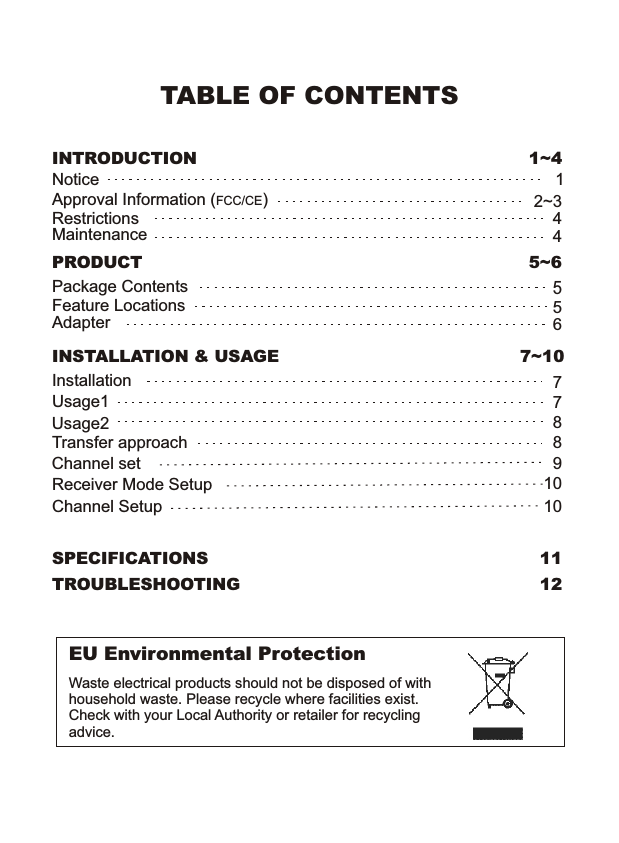

TABLE OF CONTENTSINSTALLATION & USAGEUsage1InstallationUsage27INTRODUCTION 1~4NoticeApproval Information (FCC/CE)12~38EU Environmental ProtectionWaste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.7~10PRODUCT 5~6Package ContentsFeature Locations655AdapterSPECIFICATIONS 11TROUBLESHOOTING 12Transfer approachChannel setReceiver Mode SetupRestrictionsMaintenance44Channel Setup 1010987

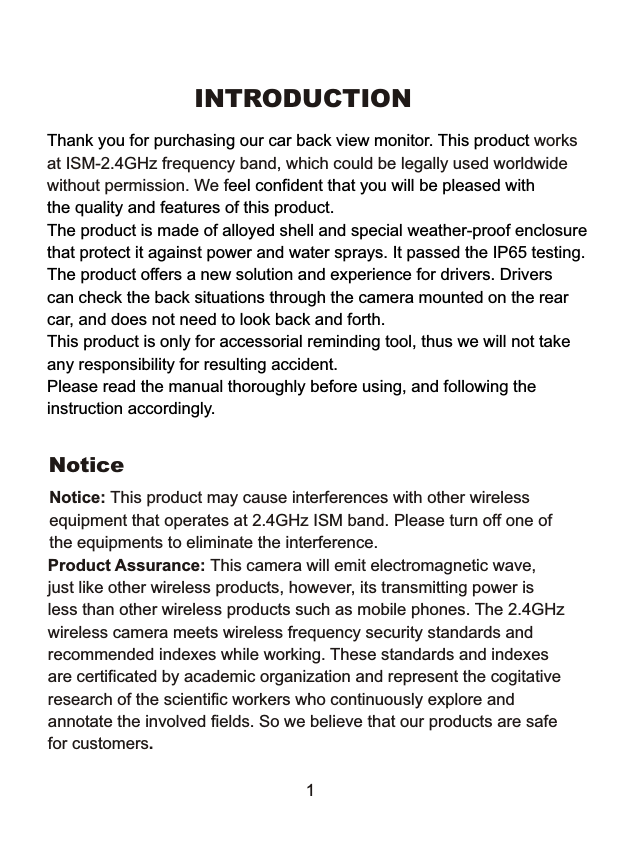

INTRODUCTIONThank you for purchasing our car back view monitor. This product eel confident that you will be pleased withthe quality and features of this product.The product is made of alloyed shell and special weather-proof enclosurethat protect it against power and water sprays. It passed the IP65 testing.The product offers a new solution and experience for drivers. Driverscan check the back situations through the camera mounted on the rearcar, and does not need to look back and forth.This product is only for accessorial reminding tool, thus we will not takeany responsibility for resulting accident.Please read the manual thoroughly before using, and following theinstruction accordingly.worksat ISM-2.4GHz frequency band, which could be legally used worldwidewithout permission. We fNoticeNotice: This product may cause interferences with other wireless equipment that operates at 2.4GHz ISM band. Please turn off one ofthe equipments to eliminate the interference. Product Assurance: This camera will emit electromagnetic wave, just like other wireless products, however, its transmitting power isless than other wireless products such as mobile phones. The 2.4GHzwireless camera meets wireless frequency security standards and recommended indexes while working. These standards and indexes are certificated by academic organization and represent the cogitativeresearch of the scientific workers who continuously explore and annotate the involved fields. So we believe that our products are safefor customers.1

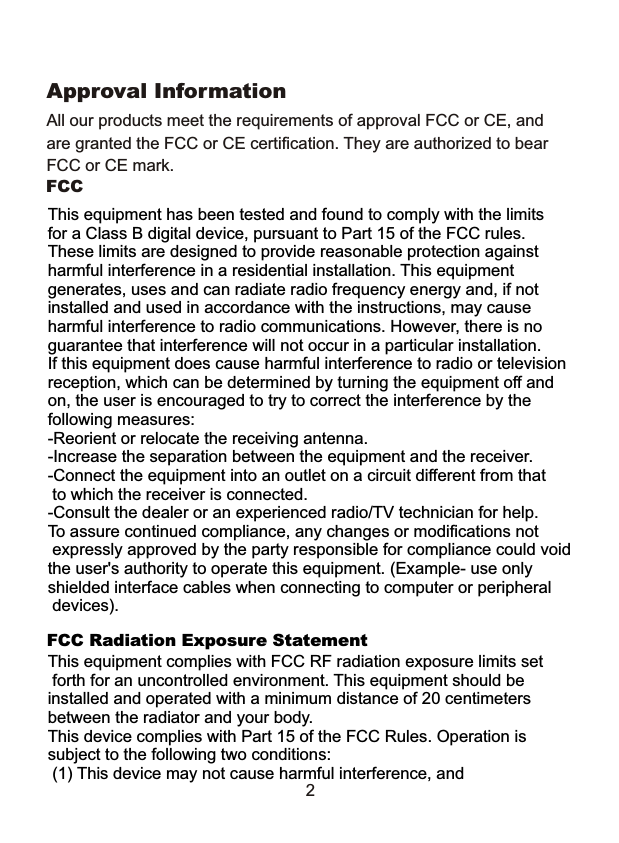

All our products meet the requirements of approval FCC or CE, and are granted the FCC or CE certification. They are authorized to bearFCC or CE mark. Approval Information2FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and the receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices).This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimetersbetween the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, andFCC Radiation Exposure Statement

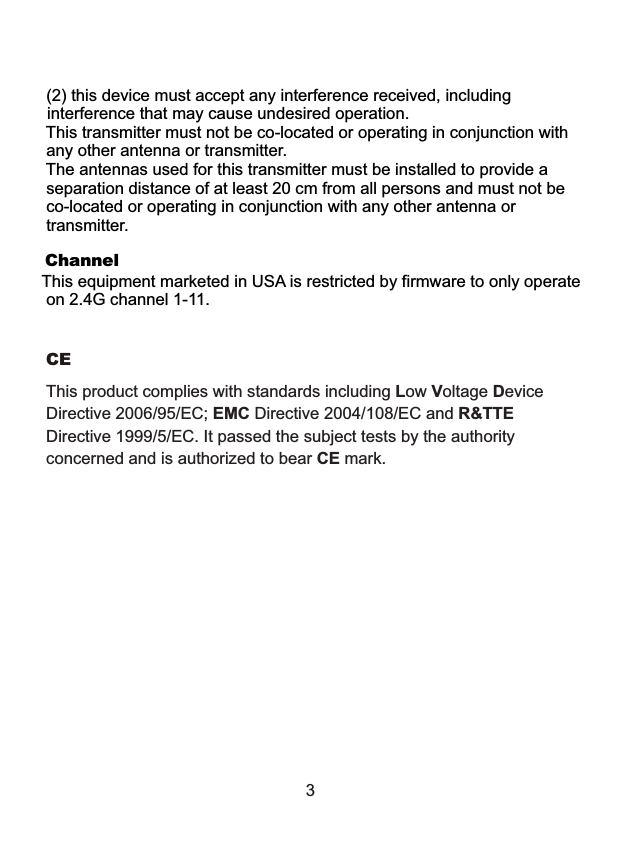

3This product complies with standards including Low Voltage Device Directive 2006/95/EC; EMC Directive 2004/108/EC and R&TTE Directive 1999/5/EC. It passed the subject tests by the authority concerned and is authorized to bear CE mark.CE (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.This equipment marketed in USA is restricted by firmware to only operate on 2.4G channel 1-11.Channel

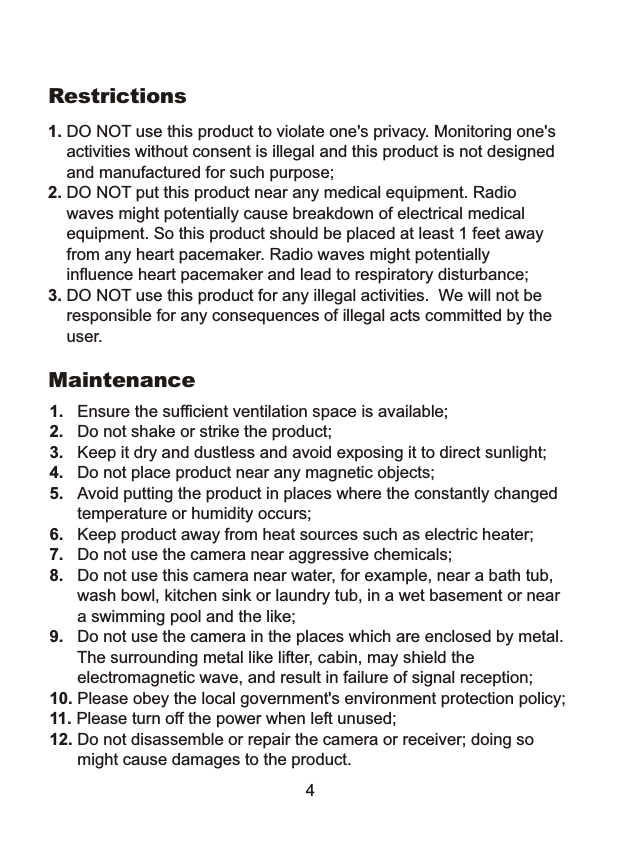

1. DO NOT use this product to violate one's privacy. Monitoring one's activities without consent is illegal and this product is not designed and manufactured for such purpose; 2. DO NOT put this product near any medical equipment. Radio waves might potentially cause breakdown of electrical medical equipment. So this product should be placed at least 1 feet away from any heart pacemaker. Radio waves might potentially influence heart pacemaker and lead to respiratory disturbance;3. DO NOT use this product for any illegal activities. We will not be responsible for any consequences of illegal acts committed by the user.Restrictions1. Ensure the sufficient ventilation space is available;2. Do not shake or strike the product;3. Keep it dry and dustless and avoid exposing it to direct sunlight;4. Do not place product near any magnetic objects; 5. Avoid putting the product in places where the constantly changed temperature or humidity occurs;6. Keep product away from heat sources such as electric heater;7. Do not use the camera near aggressive chemicals;8. Do not use this camera near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool and the like;9. Do not use the camera in the places which are enclosed by metal. The surrounding metal like lifter, cabin, may shield the electromagnetic wave, and result in failure of signal reception;10. Please obey the local government's environment protection policy;11. Please turn off the power when left unused;12. Do not disassemble or repair the camera or receiver; doing so might cause damages to the product.Maintenance4

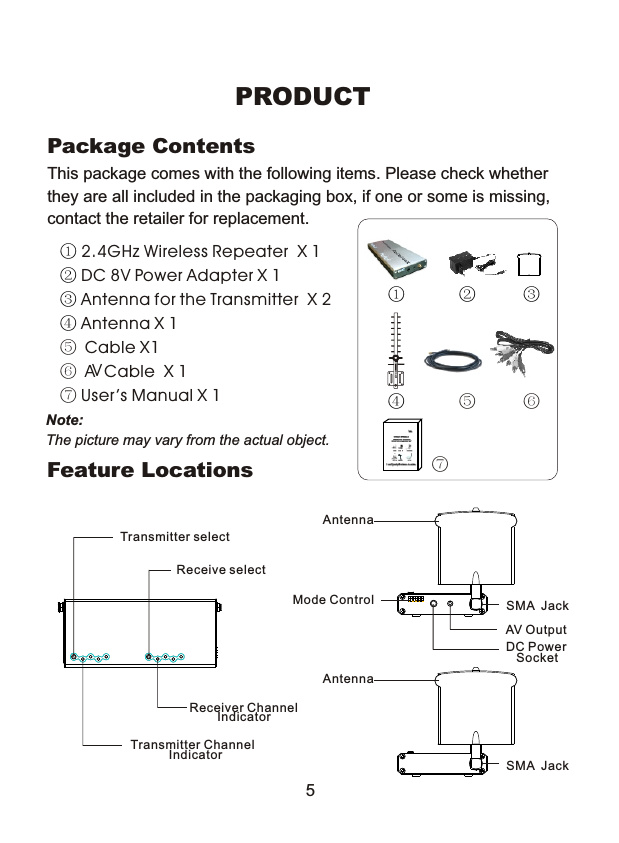

Feature LocationsThis package comes with the following items. Please check whether they are all included in the packaging box, if one or some is missing, contact the retailer for replacement.Package ContentsPRODUCTNote:The picture may vary from the actual object.① ② ③④⑤ ①②③④ 2.4GHz Wireless Repeater X 1 DC 8V Power Adapter X 1 Antenna for the Transmitter X 2 Antenna X 1⑤ Cable X1⑥ A Cable X 1 ⑦ User ’s Manual X 1VTransmitter Channel IndicatorReceiver Channel IndicatorTransmitter selectReceive selectAntennaAntennaSMA JackAV OutputMode ControlDC Power SocketSMA Jack5⑥⑦

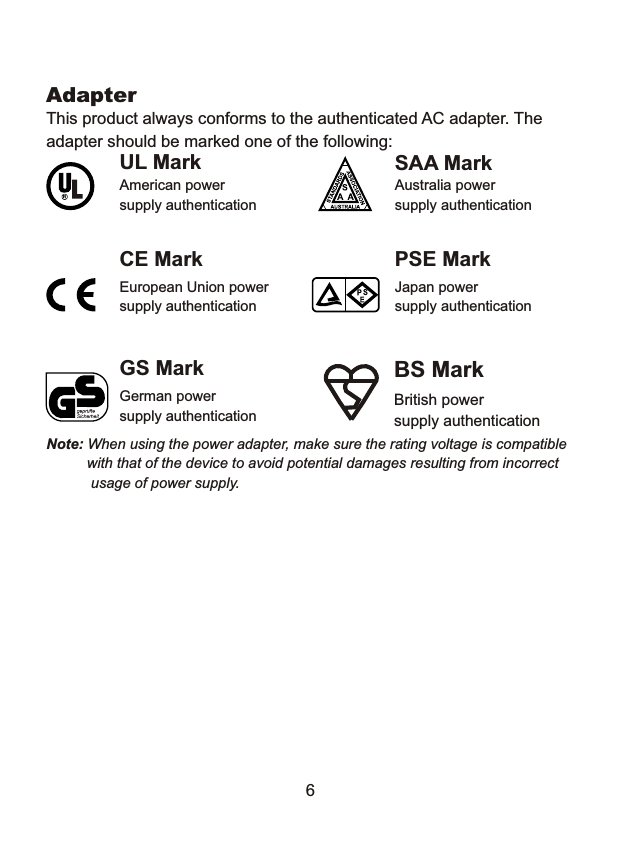

This product always conforms to the authenticated AC adapter. Theadapter should be marked one of the following:Note: When using the power adapter, make sure the rating voltage is compatible with that of the device to avoid potential damages resulting from incorrect usage of power supply. UL MarkAmerican powersupply authenticationSAA MarkAustralia powersupply authenticationGS MarkGerman powersupply authenticationEuropean Union powersupply authenticationCE Mark PSE MarkJapan powersupply authenticationAdapterBS MarkBritish powersupply authentication6

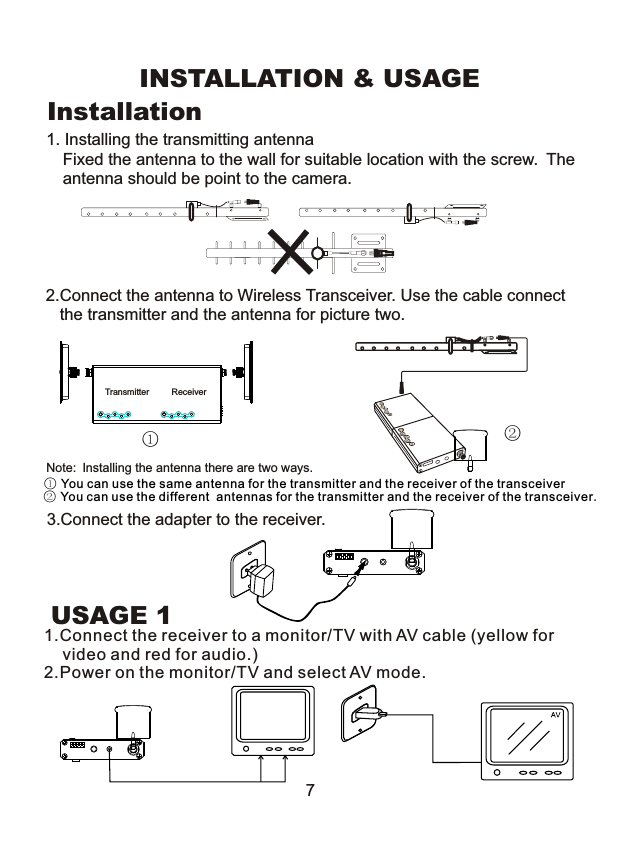

INSTALLATION & USAGEInstallation2.Connect the antenna to Wireless Transceiver. Use the cable connect the transmitter and the antenna for picture two.Transmitter Receiver3.Connect the adapter to the receiver.USAGE 171.Connect the receiver to a monitor/TV with AV cable (yellow for video and red for audio.)2.Power on the monitor/TV and select AV mode.1. Installing the transmitting antennaFixed the antenna to the wall for suitable location with the screw. Theantenna should be point to the camera.①②Note: Installing the antenna there are two ways. ① You can use the same antenna for the transmitter and the receiver of the transceiver② You can use the different antennas for the transmitter and the receiver of the transceiver.

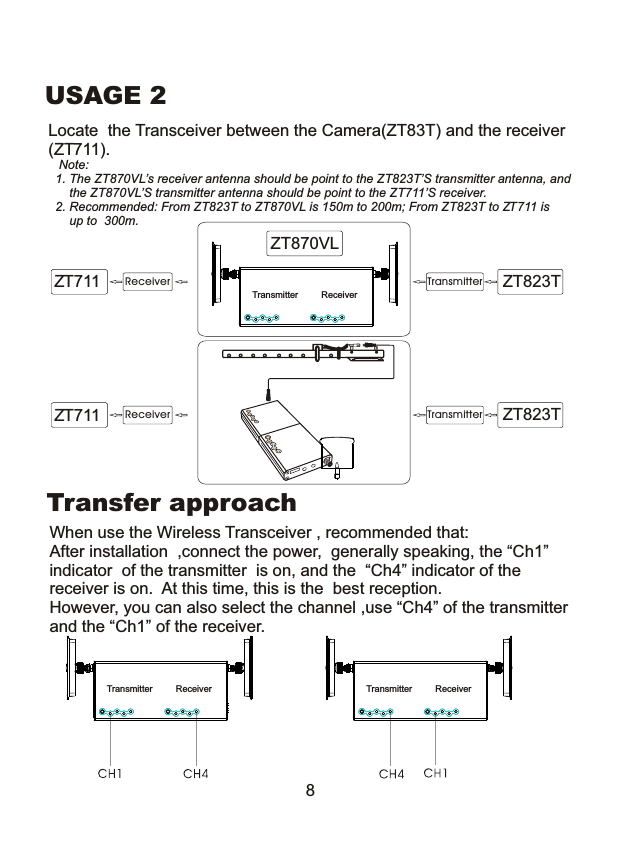

Transfer approachWhen use the Wireless Transceiver , recommended that:After installation ,connect the power, generally speaking, the “Ch1” indicator of the transmitter is on, and the “Ch4” indicator of thereceiver is on. At this time, this is the best reception.However, you can also select the channel ,use “Ch4” of the transmitterand the “Ch1” of the receiver. USAGE 2Transmitter Receiver Transmitter Receiver8ZT823TZ 711TReceiver TransmitterZT870VL Note: 1. The ZT870VL’s receiver antenna should be point to the ZT823T’S transmitter antenna, and the ZT870VL’S transmitter antenna should be point to the ZT711’S receiver. 2. Recommended: From ZT823T to ZT870VL is 150m to 200m; From ZT823T to Z 711 is up to 300m. TTransmitter ReceiverLocate the Transceiver between the Camera(ZT83T) and the receiver(Z 711).TZT823TZ 711TReceiver Transmitter

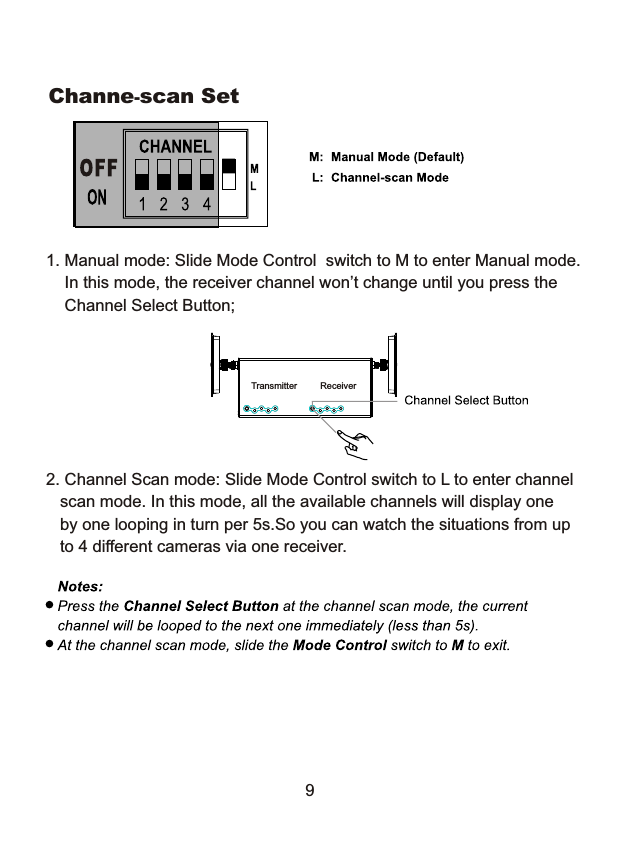

Channe-scan Set1. Manual mode: Slide Mode Control switch to M to enter Manual mode. In this mode, the receiver channel won’t change until you press the Channel Select Button;2. Channel Scan mode: Slide Mode Control switch to L to enter channel scan mode. In this mode, all the available channels will display one by one looping in turn per 5s.So you can watch the situations from up to 4 different cameras via one receiver.Transmitter Receiver9

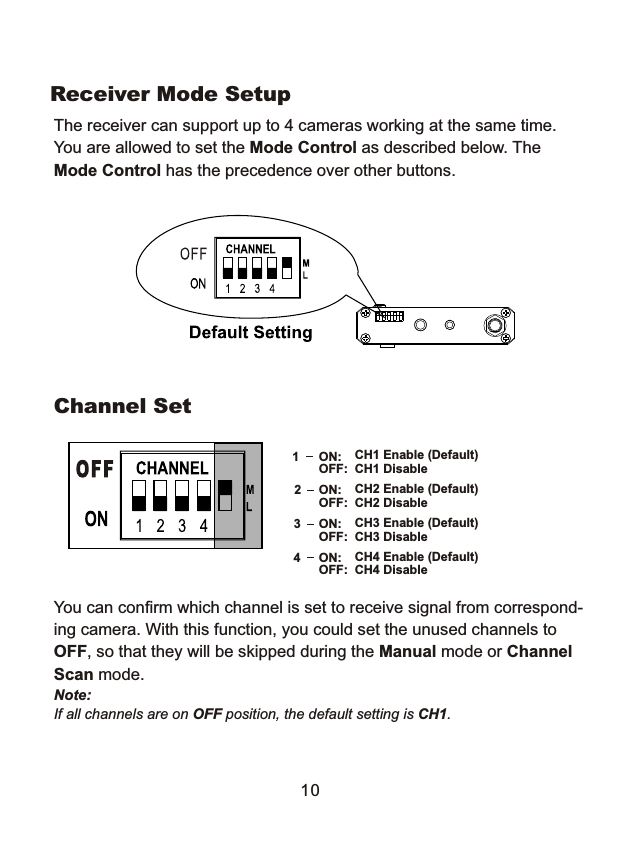

The receiver can support up to 4 cameras working at the same time.You are allowed to set the Mode Control as described below. The Mode Control has the precedence over other buttons.Receiver Mode Setup1CH1 Enable (Default)CH1 DisableON:OFF:2CH2 Enable (Default) CH2 Disable ON:OFF:3CH3 Enable (Default) CH3 DisableON:OFF:4CH4 Enable (Default) CH4 DisableON:OFF:You can confirm which channel is set to receive signal from correspond-ing camera. With this function, you could set the unused channels to OFF, so that they will be skipped during the Manual mode or Channel Scan mode.Note:If all channels are on OFF position, the default setting is CH1.Channel Set10
SPECIFICATIONS*Actual transmission range may vary according to the weather, location,interference and building construction.*All the specifications are subject to minor change without prior notice.2,400~2,483MHz 2414MHz/2432MHz/2450MHz/2468MHzFMPAL/NTSC(AUTO)6.5MHz40dB(AGC Off)7~10mW(Nominal value FCC:2mW CE:10mW)100m(min)LED75ohm156mm*68mm*19mm(MAINBODY)85%8V/300mA-10 C~+50 C/-14 F~122 F-20 C~+60 C/-4 F~140 FΦ3.5mm260mA(Max.)50ohmSMAΦ3.5mm (AUDIO+VIDEO)50dB10kohm100~20KHz≤-85dBmTransmission FrequencyWork TransmissionModulation TypeUnobstructed Effective RangeChannel SelectChannel IndicatorReceiving SensitivityDimensions(W*D*H)Storage HumidityStorage TemperatureOperating TemperaturePower SupplyPower InputConsumption Current RF Input Impedance Antenna InputAV OutputSound Control SensitivityTransmission Power+-100KHz+-1.0 0.2Vp-p(Nominal value 1Vp-p)+-1.2 0.4Vp-p(Nominal value 1Vp-p)Color standardVoice standardAudio Output LevelAudio Output ImpedanceAudio Frequency RangeVideo Output LevelVideo Output ImpedanceFrequency StabilitySNR AudioPushbutton Switches choice11

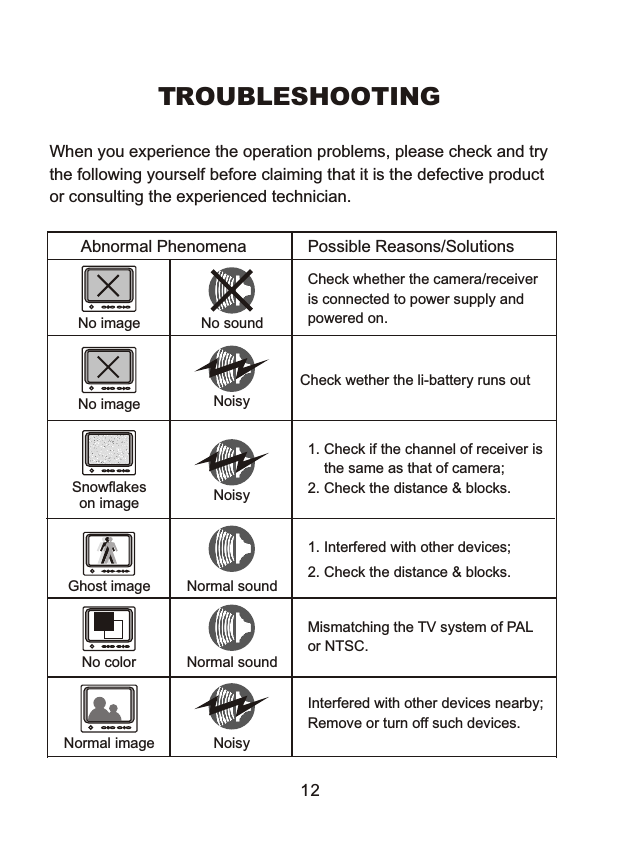

TROUBLESHOOTINGWhen you experience the operation problems, please check and try the following yourself before claiming that it is the defective product or consulting the experienced technician. Abnormal Phenomena Possible Reasons/SolutionsCheck whether the camera/receiveris connected to power supply and powered on.1. Check if the channel of receiver is the same as that of camera;2. Check the distance & blocks.Mismatching the TV system of PAL or NTSC.1. Interfered with other devices;2. Check the distance & blocks.Interfered with other devices nearby; Remove or turn off such devices. No imageSnowflakeson imageNormal imageNo colorGhost imageNo soundNoisyNoisyNormal soundNormal soundNo image NoisyCheck wether the li-battery runs out12
