AISOLUTION KDC400 Barcode Scanner(Bluetooth) User Manual Appendix G KDC400

AISOLUTION CO., LTD. Barcode Scanner(Bluetooth) Appendix G KDC400

Users Manual

KDC400UserManual
November
,20
11
COPYRIGHT, LICENSE, and WARNING PAGE
Copyright 2011 by KoamTac, Inc. All rights reserved.
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical
means, without permission in writing from KoamTac, Inc. The material in this manual is subject to change
without notices. KoamTac reserves the right to make changes to any product to improve reliability,
function, or design. KoamTac doesn’t assume any product liability arising out of, or in connection with,
the application or use of any product, circuit, or application described herein. Follow all warnings and
instructions marked on manual and units. Use only the power source specified in this manual or marked
on the units.
May be covered under one or more pending and/or US Patents, including US Pat. No. 7,769,917;
7,954,710.
KDC® is a registered trademark and property of KoamTac, Inc.
KoamTac® is a registered trademark and property of KoamTac, Inc.
KTSync® is a registered trademark and property of KoamTac, Inc.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO ANY TYPE OF MOISTURE. DO
NOT LOOK DIRECTLY INTO LASER OR POINT THE LASER INTO ANOTHER PERSON’S EYES. EXPOSURE
TO THE BEAM MAY CAUSE EYE DAMAGE.
CAUTION:
Changes or modifications not expressly approved by the manufacturer responsible for compliance could
void the user’s authority to operate the equipment.
WARNING:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
INFORMATION TO USER:
This equipment has been tested and found to comply with the limit of a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation; if this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user, is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient / Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit difference from
that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
WARNING: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

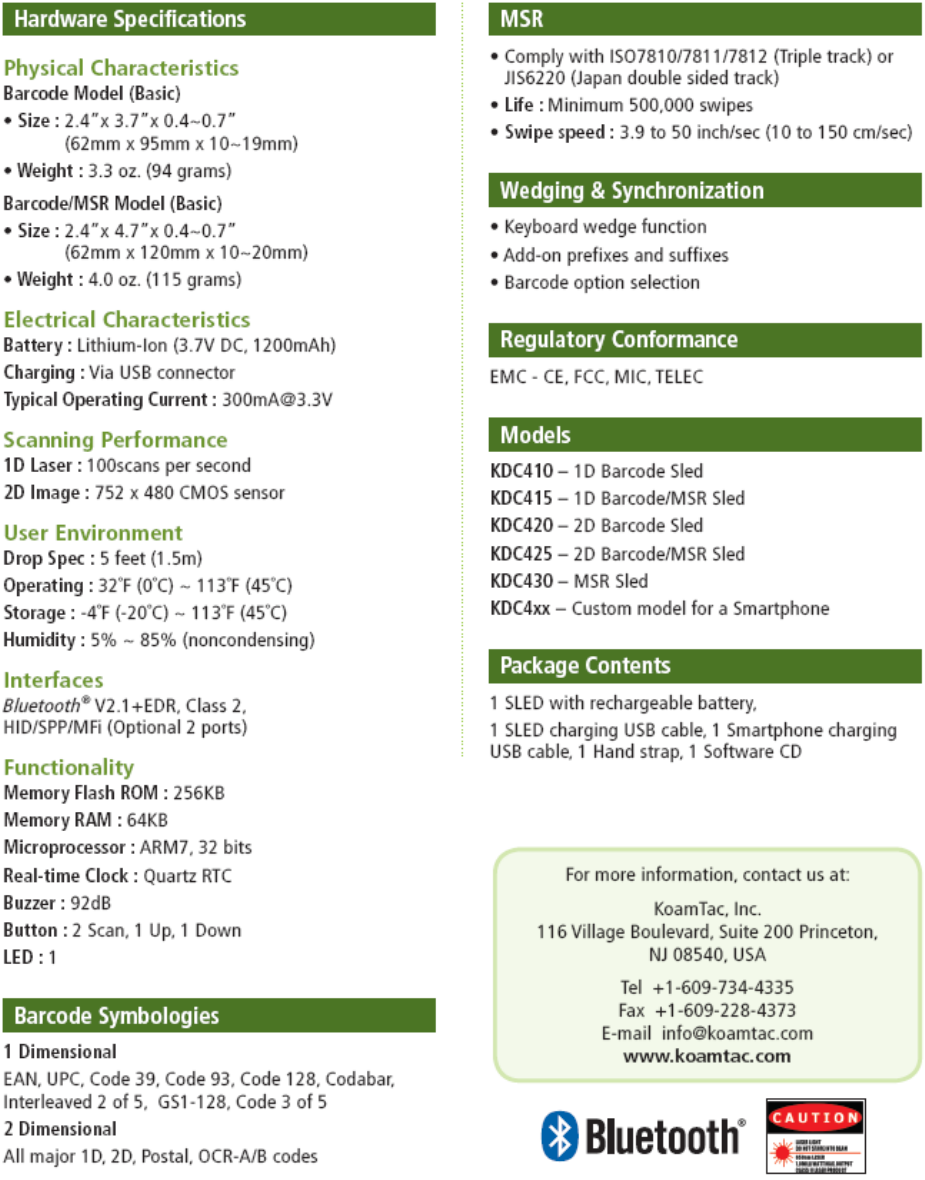

1. INTRODUCTION
Congratulations on purchasing KoamTac’s revolutionary barcode scanner and data collector.
Lightweight and compact, with a user-friendly design and superior functionality, KoamTac’s KDC works
in a variety of portable applications. Use it independently or as an accessory to your PC, PDA, or
smartphone. To find out more about KoamTac, Inc. and our family of products, visit us at
www.koamtac.com.
Table 1 - Features of KDC
FEATURES KDC100 KDC200 KDC250 KDC300 KDC400
USB CONNECTIONS 2 1 1 1
1
RECHARGEABLE BATTERY YES YES YES YES
YES
SCAN ENGINE Laser Laser Laser
Imager Laser/
Imager
AUTOMATIC DATA UPLOAD YES YES YES YES YES
STORES10,000+ BARCODES YES YES YES YES No
KTSYNC® SOFTWARE YES YES YES YES
YES
SDK FOR DEVELOPERS YES YES YES YES
YES
SUPPORTS MICROSOFT©
WINDOWS XP, VISTA, 7 &
MOBILE 5.0+
YES YES YES YES
YES
ANDROID, BLACKBERRY,
IOS NO YES YES YES
YES
BLUETOOTH NO YES YES YES
YES
GPS NO NO YES NO NO
1.1 KDC Package
The standard KDC package contains:
1. One KDC Barcode Data Collector
2. One USB Cable
3. One Lanyard (KDC100/200/250/300) or One Hand Strap (KDC400)
4. KoamTac Installation CD with
KTSync© for Microsoft Windows XP, Vista, 7 and Mobile 5.0+
KDC Device Driver
User Manual
5. One Protective KDC Rubber Case (KDC100/200/250/300) or One Smartphone Protective
Rubber Case (KDC400)
NOTE: Depending on your region or distributor, package contents may vary.
KDC100/200/250/300 KDC400

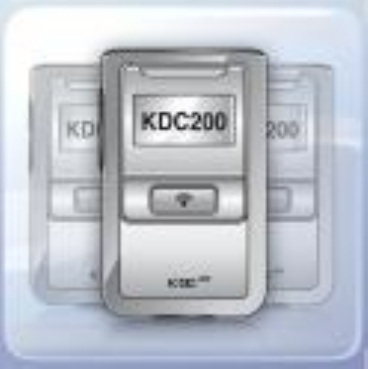

Figure 1 – KDC Package

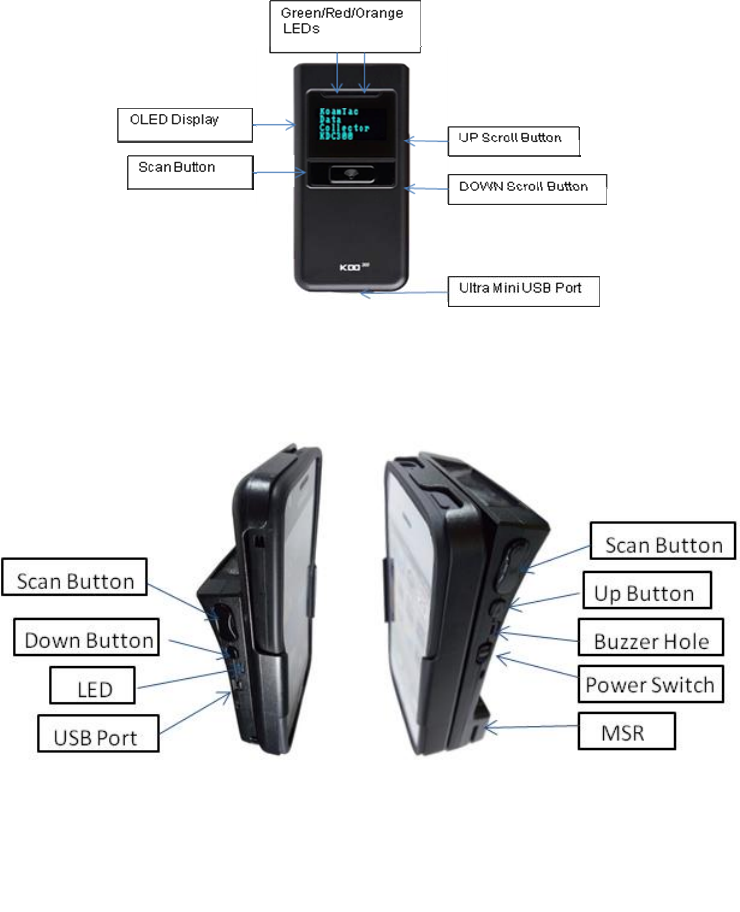

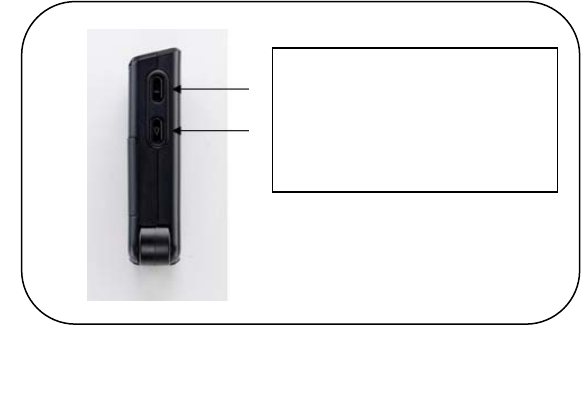

1.2 KDC Characteristics
Before you use your KDC, please become familiar with its physical characteristics. Refer to Figure 2 and
Figure 3 below which indicate placement of scan and scroll buttons, OLED display, LEDs, and ports on
your KDC. All KDC models are similar except for the KDC100 which includes an additional USB
connector.
KDC100 Barcode Reader and Data Collector
KDC200 / KDC250 / KDC300
Barcode Reader and Data Collector
KDC200

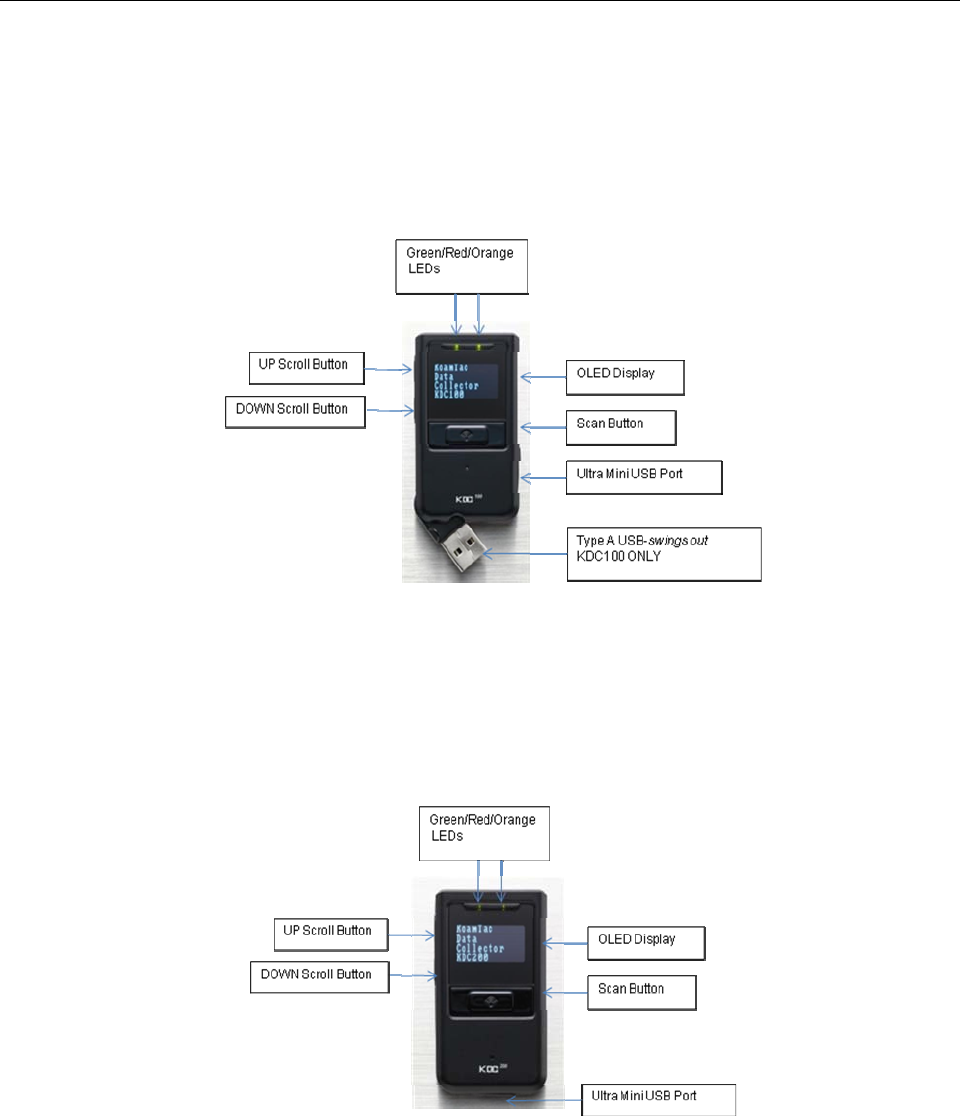

Figure 2 - Characteristics of KDC100
KDC250/300
KDC400
Figure 3 - Characteristics of KDC200 / KDC250 / KDC300
2. INSTALLATION
2.1 KoamTac Installation Wizard
Windows XP
WARNING: DO NOT CONNECT KDC TO USB PORT PRIOR TO INSTALLATION
1. Insert KoamTac Installation CD into your computer’s CD drive.
2. Click Start icon then My Computer icon. A listing of devices on your computer will be displayed
including the disk drive containing the KoamTac Installation CD.
3. Click on the KoamTac Installation CD icon then click on the Setup directory. Click on the
PC_Setup.exe file which executes the KTSync Setup Wizard.
NOTES
If KTSync Setup Wizard locates an older version of KTSync on your computer, you will be
prompted to remove the older program before installing the new version. Select Remove
KTSync then click Finish. When removal is complete, click Close. Go to Step 2 to run KTSync
Setup Wizard.
If you have any problems, please refer to the Manual Installation section.

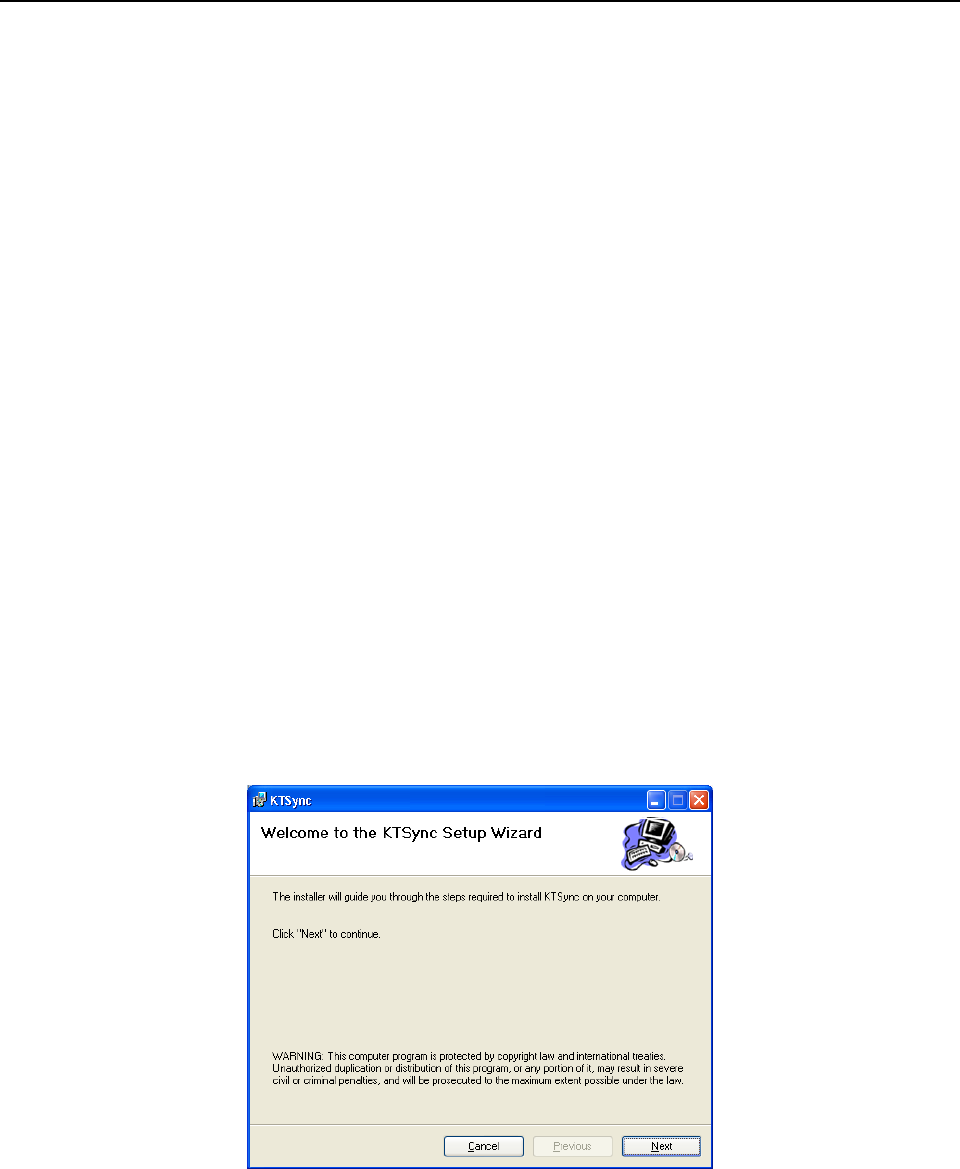

KTSync Setup Wizard
Below are the screen images you will see during the installation of KTSync.
Click Next icon in KTSync Setup Wizard window
Click Next icon in KTSync Confirm Installation window
Within a few minutes, installation of KTSync will be complete. Click Close icon and wait for the
Device Driver Installation Wizard to load.
Device Driver Installation Wizard
Below are the screen images you will see during the installation of the KDC Device Driver.
Click Next icon in Device Driver Installation Wizard window
Click Continue Anyway icon in Software Installation Logo testing window
Click Finish icon in Device Driver Installation Wizard window
Connect KDC to Computer
Using the USB cable included with the KDC, follow the directions below.
Connect the cable’s ultra mini USB connector to the KDC.
Connect the cable’s Type A USB connector to your PC.
Wait until your computer beeps and/or displays the message Found New Hardware.

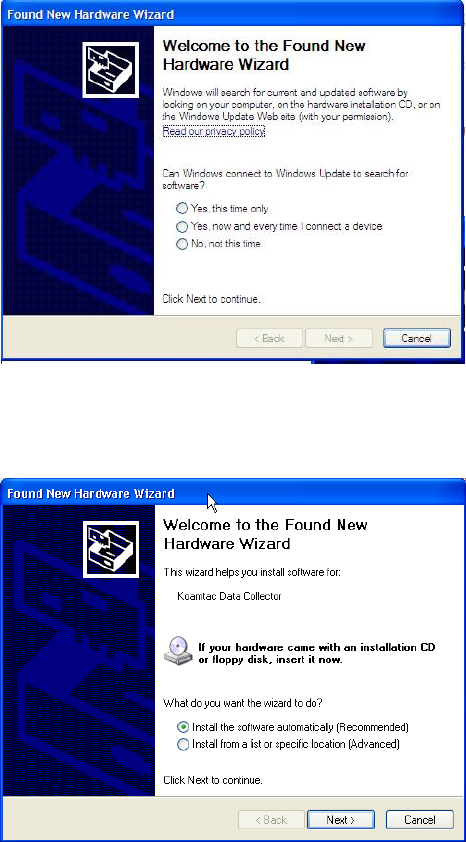

Found New Hardware Wizard
Select “No, not this time” option in Found New Hardware Wizard and click Next if your PC pops
up the following Found New Hardware Wizard.
Select “Install the software automatically (Recommended)” option in Found New Hardware
Wizard and click Next if your PC pops up the following Found New Hardware Wizard.

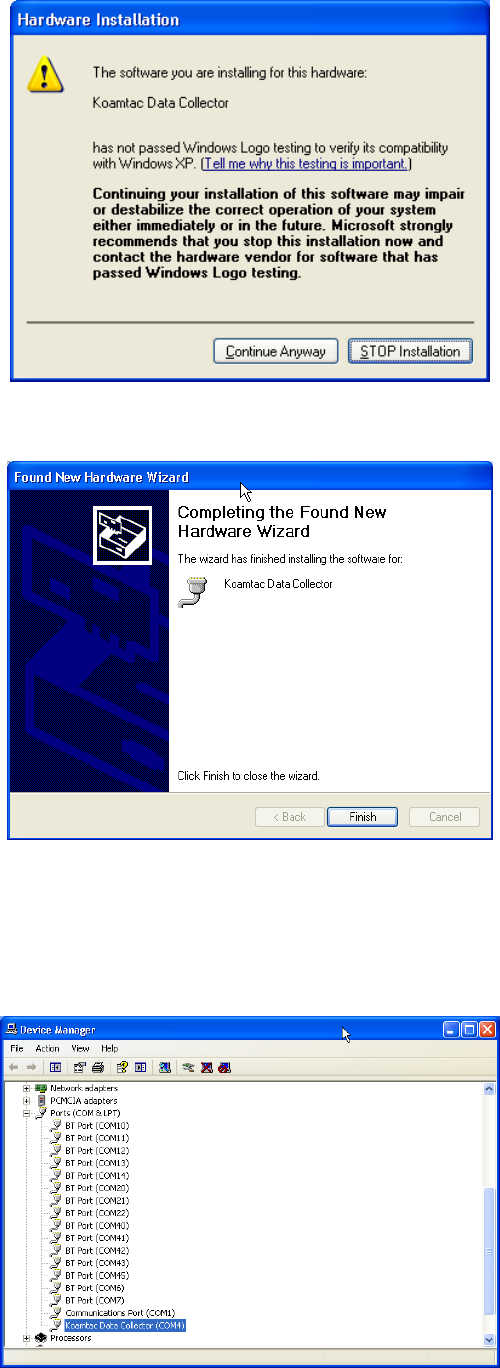

Click Continue Anyway icon in Software Installation Logo testing window
Click Finish icon in Found New Hardware Wizard window
Verify COM Port Address
User can verify installed COM Port in Device Manager
Vista and Windows 7
WARNING: DO NOT CONNECT KDC TO USB PORT PRIOR TO INSTALLATION
1. Insert KoamTac Installation CD into your computer’s CD drive.
2. Click Start icon then My Computer icon. A listing of devices on your computer will be displayed
including the disk drive containing the KoamTac Installation CD.
3. Click on the KoamTac Installation CD icon then click on the Setup directory. Click on the
PC_Setup.exe file which executes the KTSync Setup Wizard.
NOTES
If KTSync Setup Wizard locates an older version of KTSync on your computer, you will be
prompted to remove the older program before installing the new version. Select Remove
KTSync then click Finish. When removal is complete, click Close. Go to Step 2 to run KTSync
Setup Wizard.
If you have any problems, please refer to the Manual Installation section.

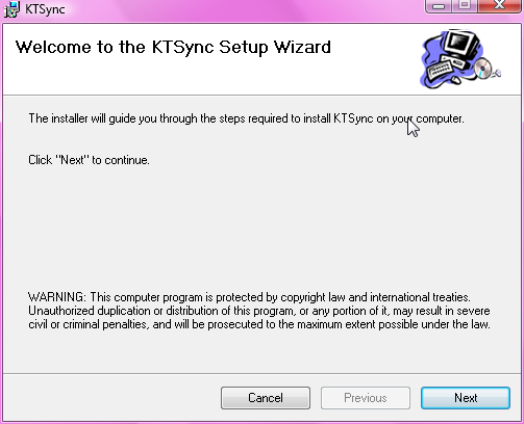

KTSync Setup Wizard
Below are the screen images you will see during the installation of KTSync.
Click Next icon in KTSync Setup Wizard window

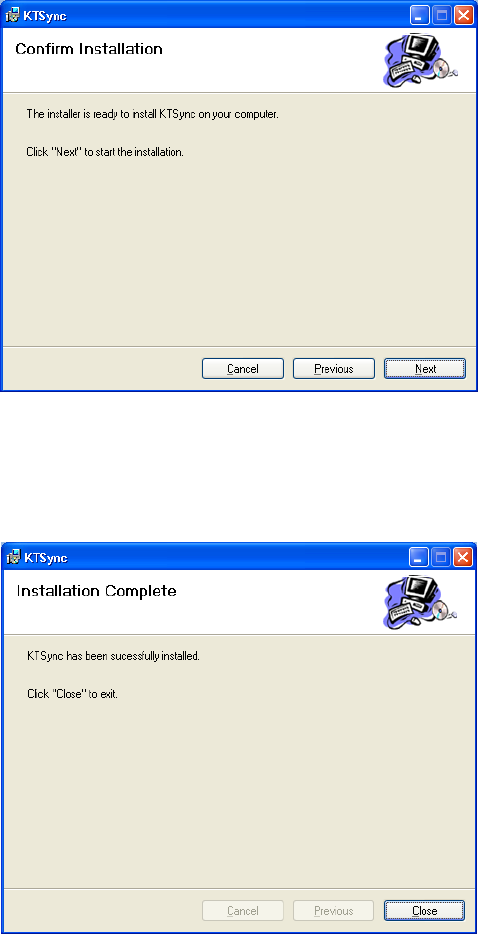

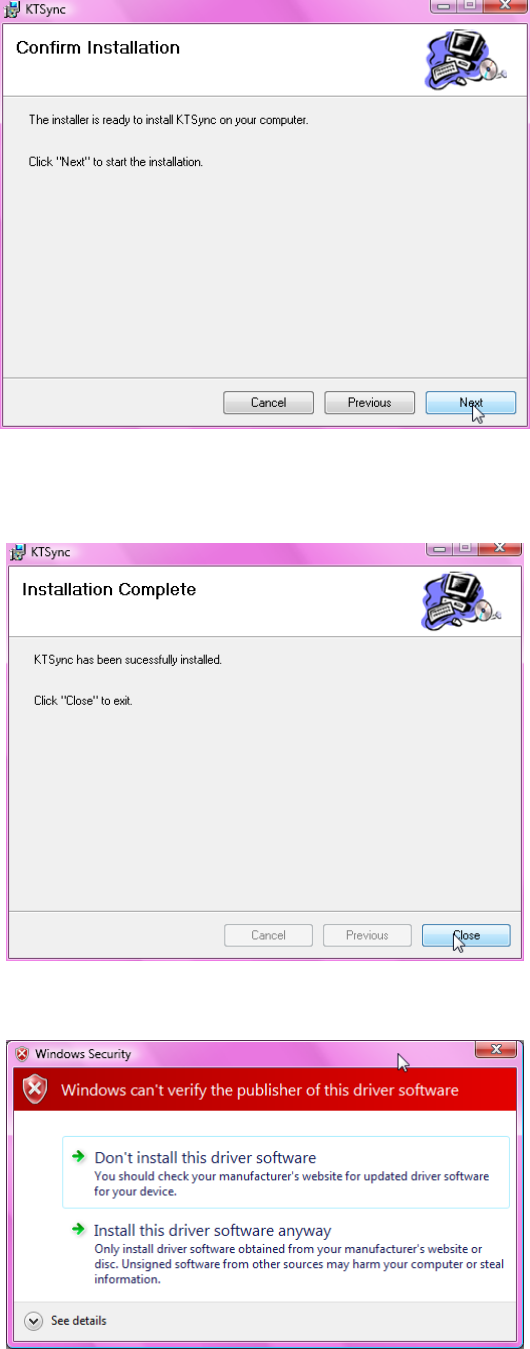

Click Next icon in KTSync Confirm Installation window
Click Close icon in KTSync Installation Complete window and wait for Device Driver Installation
Wizard
Click Install this driver software anyway in Windows Security window
Click Finish icon in Device Driver Installation Wizard window
Connect KDC to Computer
Using the USB cable included with the KDC, follow the directions below.
Connect ultra mini USB connector to the KDC.
Connect Type A USB connector to your PC.
Wait until your computer beeps and/or displays the message Found New Hardware.
Verify COM Port Address
User can verify installed COM Port in Device Manager
Windows Mobile 5.0+
WARNING: PLEASE CONNECT PDA TO PC PRIOR TO INSTALLATION
1. PC_Setup.exe creates Mobile_Setup.exe file under C:\Program Files\KoamTac\KTSync\Windows.Mobile
directory
2. Execute Mobile_Setup.exe

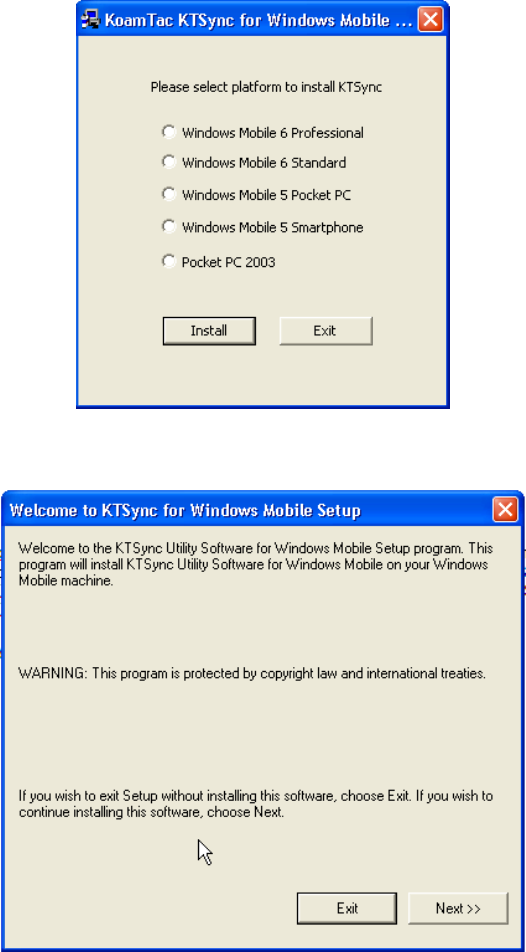

Select Windows Mobile version to install.
Click Next icon.

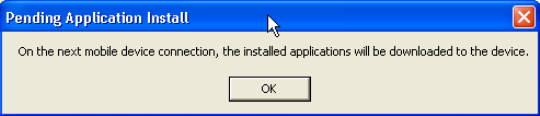

Click OK icon in Pending Application Install window
Follow the instructions on PDA screen
COM port Assignment
User should assign a COM port for KDC before using pKTSync.
User should pair KDC with PDA using PDA Bluetooth manager and assign a COM port for
Bluetooth communication
Please refer to the PDA manual for the details of COM port assignment method
Android
Download and install aKTSync from the Android Market.
http://www.androidzoom.com/android_applications/productivity/ktsync_luxv.html
Blackberry
Download and install bKTSync from the Blackberry App World.
http://appworld.blackberry.com/webstore/content/16861?lang=en
iPad/iPhone/iPod touch
Download and install iKTSync from the Apple App Store.
http://itunes.apple.com/us/app/ktsync/id372916602?mt=8
2.2 Manual Installation
NOTE: If you have the KDC100, it has two ports, Ultra Mini and standard Type A which swings
out. See Figure 2 for more details.
Windows XP, Vista, and 7
1. Insert the KoamTac Installation CD into your computer’s disk drive.
2. Create a directory called KoamTac on your computer.
3. Copy XP.Vista.7 directory from KoamTac CD to KoamTac directory. The XP.Vista.7 directory
contains KTSync® programs for Microsoft® Windows XP, Vista, Windows 7 and user
manuals.
4. Connect KDC cable to ultra mini USB connector on the KDC.
5. Connect KDC cable to Type A USB connector on your computer. Wait until your computer
beeps and/or displays the message New Hardware Found. You will be prompted to search
for a device driver for KDC.
6. Browse then select KTReader.inf file from the KoamTac directory created in Step 2. Follow
screen prompts to continue with the device driver installation.
NOTE: KTReader.inf is the device driver for 32bit Microsoft® Windows XP, Vista, and
Windows 7. If you have a 64bit computer, use KTReader.inf file from XP.Vista.64bit folder
in the KoamTac directory.
Windows Mobile 5.0+
Please connect your Windows Mobile PDA to your computer before software installation.
Create a directory and name it KoamTac on the PDA.
Copy Mobile5.0_6.0 directory from KoamTac CD to PDA KoamTac directory.
Mobile5.0_6.0 contains KTSync® programs for Microsoft® Windows Pocket PC 2003, Mobile
5.0, Mobile 6.0 Standard, and Mobile6.0 Professional. It also includes KDC User Manual.
3. OPERATING THE KDC
3.1 Getting Started
Attach Hand Strap to KDC
To prevent possible damage to the KDC, we strongly recommend wearing it around your hand by the
included hand strap. Also, please don’t swing KDC by the hand strap because contact with another
object may cause it to malfunction or become damaged.
To attach the hand strap:
1. Fit the thin end of hand strap through the pillar of the KDC.
2. Loop the thick end of strap through the thin loop
3. Pull the strap tight to secure
Charge KDC Battery
Prior to using the KDC, you must charge its battery. To charge the battery, follow these directions.
1. Connect the KDC cable to the ultra mini USB connector on the KDC.
2. Connect the KDC cable to Type A USB connector on your computer.
3. Your KDC battery will begin charging. Within a few minutes, two small LEDs on the front panel will
illuminate orange. When the battery is fully charged, the LEDs will illuminate green.
KDC100 KDC200 KDC250/300
2 Hours 2 Hours 4 Hours
Table 2 – Approximate Time to Charge KDC Battery
Press UP and DOWN Scroll Buttons
simultaneously to access the KDC
menu.
Configure KDC
The KDC is designed to meet the data collection requirements of many different industries in a variety of
dynamic situations. To perform well in these diverse environments, the KDC is designed to be
configured easily and quickly. But, to perform at its maximum level, the KDC must be configured
properly. Until you are familiar with configuring the KDC, it is recommended that you DO NOT modify the
KDC settings. The KDC can be configured in three different methods which are explained in Section 3.3
– KDC Menus, Chapter 4 –Synchronization, and Appendix C – Special Barcodes.
CONFIGURATION METHODS FOR THE KDC
KDC Menu
KTSync® Software
Special Barcodes
Figure 4 - Location of Scroll Buttons
3.2 Basics
Reading Barcodes
Reading a barcode is simple. Point the KDC at a barcode and press the scan button. Be sure to point
the scan engine at the barcode, not at your face, and make sure to position the light beam on the
barcode. If the barcode is scanned successfully, you will hear one beep and the LEDs will illuminate in
green.
If the scan was unsuccessful, you will hear two beeps and the LEDs will illuminate in red. If you have
problems scanning a barcode, try the following suggestions while pointing the KDC at the barcode and
depressing the scan button.
Modify the angle of the KDC in relation to the barcode, making the angle bigger or smaller as needed.
Modify the distance between the barcode and the KDC, moving closer or further away as needed.
Check option settings defined in the KDC menu section and change options as needed.
Check that the barcode’s width does not exceed the light beam’s width and vice versa.
Synchronizing Barcode Data to PC
Use the KTSync® program to synchronize barcode data from the KDC to your PC. Please refer to
Chapter 4 for details.
3.3 KDC Menus
Top
Menu Sub Menu Options KDC410(i) KDC415(i) KDC420(i) KDC425(i) KDC430(i)
EAN13 Enabled/Disabled Enabled Enabled N/A N/A N/A
EAN8 Enabled/Disabled Enabled Enabled N/A N/A N/A
UPCA Enabled/Disabled Enabled Enabled N/A N/A N/A
UPCE Enabled/Disabled Enabled Enabled N/A N/A N/A
CODE39 Enabled/Disabled Enabled Enabled N/A N/A N/A
ITF14 Enabled/Disabled Enabled Enabled N/A N/A N/A
CODE128 Enabled/Disabled Enabled Enabled N/A N/A N/A
I2of5 Enabled/Disabled Enabled Enabled N/A N/A N/A
CODABAR Enabled/Disabled Enabled Enabled N/A N/A N/A
GS1-128 Enabled/Disabled Enabled Enabled N/A N/A N/A
CODE93 Enabled/Disabled Enabled Enabled N/A N/A N/A
CODE35 Enabled/Disabled Enabled Enabled N/A N/A N/A
BooklandEAN Enabled/Disabled Disabled Disabled N/A N/A N/A
EAN13withAddon Enabled/Disabled Disabled Disabled N/A N/A N/A
EAN8withAddon Enabled/Disabled Disabled Disabled N/A N/A N/A
UPCAwithAddon Enabled/Disabled Disabled Disabled N/A N/A N/A
Set
Barcodes
(410/415)
UPCEwithAddon Enabled/Disabled Disabled Disabled N/A N/A N/A
1D Symbology Codabar N/A N/A Enabled Enabled N/A
Code 11 N/A N/A Enabled Enabled N/A
Code 32 N/A N/A Enabled Enabled N/A
Code 39 N/A N/A Enabled Enabled N/A
Code 93 N/A N/A Enabled Enabled N/A
Code 128 N/A N/A Enabled Enabled N/A
EAN-8 N/A N/A Enabled Enabled N/A
EAN-13 N/A N/A Enabled Enabled N/A
GS1 Composit N/A N/A Enabled Enabled N/A
I2of5 N/A N/A Enabled Enabled N/A
Matrix 2of5 N/A N/A Enabled Enabled N/A
MSI N/A N/A Enabled Enabled N/A
Plessey N/A N/A Enabled Enabled N/A
PosiCode N/A N/A Enabled Enabled N/A
GS1 Omni N/A N/A Enabled Enabled N/A
GS1 Limited N/A N/A Enabled Enabled N/A
GS1 Expanded N/A N/A Enabled Enabled N/A
S2of5 Ind N/A N/A Enabled Enabled N/A
S2of5 IATA N/A N/A Enabled Enabled N/A
TCL39 N/A N/A Enabled Enabled N/A
Telepen N/A N/A Enabled Enabled N/A
Trioptic N/A N/A Enabled Enabled N/A
UPCA N/A N/A Enabled Enabled N/A
UPCE0 N/A N/A Enabled Enabled N/A
Set
Barcodes
(420/425)
UPCE1 N/A N/A Enabled Enabled N/A
2D Symbology AztecCode N/A N/A Enabled Enabled N/A
AztecRunes N/A N/A Enabled Enabled N/A
CodablockF N/A N/A Enabled Enabled N/A
Code16K N/A N/A Enabled Enabled N/A
Code49 N/A N/A Enabled Enabled N/A
DataMatrix N/A N/A Enabled Enabled N/A
MaxiCode N/A N/A Enabled Enabled N/A
MicroPDF N/A N/A Enabled Enabled N/A
PDF417 N/A N/A Enabled Enabled N/A
QRCode N/A N/A Enabled Enabled N/A
HanXin Code N/A N/A Enabled Enabled N/A
Postal Codes Postnet N/A N/A Enabled Enabled N/A
PlanetCode N/A N/A Enabled Enabled N/A
UK Post N/A N/A Enabled Enabled N/A
Canada Post N/A N/A Enabled Enabled N/A
Kix Post N/A N/A Enabled Enabled N/A
Australia Post N/A N/A Enabled Enabled N/A
Japan Post N/A N/A Enabled Enabled N/A
China Post N/A N/A Enabled Enabled N/A
Korea Post N/A N/A Enabled Enabled N/A
OCR OCR Off N/A N/A Enabled Enable N/A
OCR A N/A N/A Disabled Disabled N/A
OCR B N/A N/A Disabled Disabled N/A
OCR USC N/A N/A Disabled Disabled N/A
OCR MICR N/A N/A Disabled Disabled N/A
OCR SEMI N/A N/A Disabled Disabled N/A
CodaBar_NoStartStop
Chars Enabled/Disabled Disabled Disabled N/A N/A N/A
UPCE_as_UPCA Enabled/Disabled Disabled Disabled N/A N/A N/A
EAN8_as_EAN13 Enabled/Disabled Disabled Disabled N/A N/A N/A
UPCE_as_EAN13 Enabled/Disabled Disabled Disabled N/A N/A N/A
ReturnCheckDigit Enabled/Disabled Disabled Disabled N/A N/A N/A
VerifyCheckDigit Enabled/Disabled Disabled Disabled N/A N/A N/A
UPCA_as_EAN13 Enabled/Disabled Disabled Disabled N/A N/A N/A
I2of5_VerifyCheckDigit Enabled/Disabled Disabled Disabled N/A N/A N/A
Code39_VerifyCheckD
igit Enabled/Disabled Disabled Disabled N/A N/A N/A
I2of5_ReturnCheckDig
it Enabled/Disabled Disabled Disabled N/A N/A N/A
Code39_ReturnCheck
Digit Enabled/Disabled Disabled Disabled N/A N/A N/A
UPCE_ReturnCheckDi
git Enabled/Disabled Enabled Enabled N/A N/A N/A
UPCA_ReturnCheckDi
git Enabled/Disabled Enabled Enabled N/A N/A N/A
EAN8_ReturnCheckDi
git Enabled/Disabled Enabled Enabled N/A N/A N/A
Barcode
Options
(410/415)
EAN13_ReturnCheck
Digit Enabled/Disabled Enabled Enabled N/A N/A N/A
Codabar Tx StartStop(Enable/disable) N/A N/A Disabled Disabled N/A
Check
Digit(DoNotVerify/VerfyDONotTX/Verify
DoTx) N/A N/A DoNotVerify DoNotVerify N/A
Concatenate(Disable/Enable/Required) N/A N/A Enabled Enabled N/A
Barcode
Options
(420/425)
Code39 Tx StartStop(Enable/disable) N/A N/A Disabled Disabled N/A
Check
Digit(DoNotVerify/VerfyDONotTX/Verify
DoTx) N/A N/A DoNotVerify DoNotVerify N/A
Append(Enable/Disable) N/A N/A Disabled Disabled N/A
Full ASCII(Enable/Disable) N/A N/A Disabled Disabled N/A
I2of5 Check
Digit(DoNotVerify/VerfyDONotTX/Verify
DoTx) N/A N/A DoNotVerify DoNotVerify N/A
Code11 Check Digit(2 digits/1 digit) N/A N/A 2 digits 2 digits N/A
Code128 Concatenate(Disable/Enable) N/A N/A Disabled Disabled N/A
Telepen Output(Original/AIM) N/A N/A AIM AIM N/A
UPCA VerifyChkDgt(Enabled/Disabled) N/A N/A Enabled Enabled N/A
NumberSys(Enabled/Disabled) N/A N/A Enabled Enabled N/A
2DgtAddenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
5DgtAddenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
Req. Addenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
Sep. Addenda(Enabled/Disabled) N/A N/A Enabled Enabled N/A
Coupon Code(Enabled/Disabled) N/A N/A Enabled Enabled N/A
UPCE Expand(Enabled/Disabled) N/A N/A Disabled Disabled N/A
Req. Addenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
Sep. Addenda(Enabled/Disabled) N/A N/A Enabled Enabled N/A
Check Digit(Enabled/Disabled) N/A N/A Enabled Enabled N/A
NumberSys(Enabled/Disabled) N/A N/A Enabled Enabled N/A
2DgtAddenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
5DgtAddenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
EAN-13 VerifyChkDgt(Enabled/Disabled) N/A N/A Enabled Enabled N/A
2DgtAddenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
5DgtAddenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
Req. Addenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
Sep. Addenda(Enabled/Disabled) N/A N/A Enabled Enabled N/A
ISBN Trans.(Enabled/Disabled) N/A N/A Disabled Disabled N/A
EAN-8 VerifyChkDgt(Enabled/Disabled) N/A N/A Enabled Enabled N/A
2DgtAddenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
5DgtAddenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
Req. Addenda(Enabled/Disabled) N/A N/A Disabled Disabled N/A
Sep. Addenda(Enabled/Disabled) N/A N/A Enabled Enabled N/A
MSI Tx CheckChar(Enabled/Disabled) N/A N/A Disabled Disabled N/A
PosiCode A and B/A&B LimitedA/A&B LimitedB N/A N/A A&B LimitedB A&B LimitedB N/A
GS1 UPCEAN Ver.(Enabled/Disabled) N/A N/A Disabled Disabled N/A
GS1 Emulation(No Emulate/GS1 128
Emul/GS1 Emulate) N/A N/A No Emulate No Emulate N/A
PostNet Tx CheckChar(Enabled/Disabled) N/A N/A Disabled Disabled N/A
PlanetCode Tx CheckChar(Enabled/Disabled) N/A N/A Disabled Disabled N/A
Scan Angle Narrow/Wide Wide Wide N/A N/A N/A
Filter Normal/High Normal Normal N/A N/A N/A
Time Out .5 seconds to 10 seconds 2 second(s) 2 second(s) 2 second(s) 2 second(s) N/A
Min. Barcode Length 2 to 36 characters 4 chars 4 chars 4 chars 4 chars N/A
Security Level 1 to 4 level 2 level 2 level N/A N/A N/A
Image Capture Enabled/Disabled N/A N/A Disabled Disabled N/A
Auto Trigger Enabled/Disabled Disabled Disabled Disabled Disabled N/A
Reread Delay Continuous, Short, Medium, Long, Extra
Long Medium Medium Medium Medium N/A
Finger Trigger Enabled/Disabled N/A N/A N/A N/A N/A
Start Position N/A N/A N/A N/A N/A
No. of Char(s) N/A N/A N/A N/A N/A
Scan
Options
Partial Display
Action N/A N/A N/A N/A N/A
Wedge Only Default
Wedge & Store Always Default Default Default Default
Store Only
Save if Sent
Wedge / Store
Save if Not Sent
Barcode only Default Default Default Default N/A
Data Format
Packet Data
Data Editor/Prefix Delete Delete Delete Delete Delete N/A
Data Editor/Suffix Delete Delete Delete Delete Delete N/A
Data Editor/AIM ID None/In Prefix/In Suffix None None None None N/A
Data Editor/Partial
Data Start Position 1 1 1 1 N/A
No. of Char(s) 0 chars 0 chars 0 chars 0 chars N/A
Action Select Select Select Select N/A
Handshake Enabled/Disabled Disabled Disabled Disabled Disabled N/A
Terminator None, CR, LF, CR+LF, Tab
Right/Left/Down/Up Arrow CR+LF CR+LF CR+LF CR+LF CR+LF
Data
Process
Chk Duplicate Enabled/Disabled Disabled Disabled Disabled Disabled N/A
Power Enabled/Disabled N/A N/A N/A N/A N/A
Pairing Pairing neighboring Bluetooth devices N/A N/A N/A N/A N/A
Auto Connect Enabled/Disabled N/A N/A N/A N/A N/A
Auto Power On Enabled/Disabled N/A N/A N/A N/A N/A
Auto Power On/Power
Off Time Disable, 1sec to 10second(s) N/A N/A N/A N/A N/A
Auto Power Off Enabled/Disabled N/A N/A N/A N/A N/A
Auto Power Off/Beep
Warning Enabled/Disabled N/A N/A N/A N/A N/A
Auto Power Off/Power
Off Time 1 to 30 minutes N/A N/A N/A N/A N/A
PowerOff Msg Enabled/Disabled N/A N/A N/A N/A N/A
MAC Address 12 Characters Bluetooth MAC Address N/A N/A N/A N/A N/A
BT FW Version v1.2.xrt Bluetooth Firmware Version N/A N/A N/A N/A N/A
Discovering Discovering neighboring Bluetooth
devices N/A N/A N/A N/A N/A
Connecting to View Connect to Bluetooth device N/A N/A N/A N/A N/A
Bluetooth
Wakeup Nulls Enabled/Disabled N/A N/A N/A N/A N/A
BT Config ConnectDevice SPP Default(410) Default(415) Default(420) Default(425) Default(430)
HID iOS
iPhone Default(410i) Default(415i) Default(420i) Default(425i) Default(430i)
SPP2.0
HID normal
Auto Connect Enabled/Disabled Disabled Disabled Disabled Disabled Disabled
Auto Power On Enabled/Disabled Disabled Disabled Disabled Disabled Disabled
Auto Power On/Power
On Time Disable, 1sec to 10second(s) Disabled Disabled Disabled Disabled Disabled
Auto Power Off Enabled/Disabled Disabled Disabled Disabled Disabled Disabled
Auto Power Off/Beep
Warning Enabled/Disabled Disabled Disabled Disabled Disabled Disabled
Auto Power Off/Power
Off Time 1 to 30 minutes 5 minutes 5 minutes 5 minutes 5 minutes 5 minutes
PowerOff Msg Enabled/Disabled Disabled Disabled Disabled Disabled Disabled
MAC Address 12 Characters Bluetooth MAC Address N/A N/A N/A N/A N/A
BT FW Version v1.2.xrt Bluetooth Firmware Version N/A N/A N/A N/A N/A
Wakeup Nulls Enabled/Disabled Disabled Disabled Disabled Disabled Disabled
BT Toggle Enabled Enabled Enabled Enabled Enabled
HID AutoLock Disabled,1,2,3,4,5,10,15 minutes 1 minutes 1 minutes 1 minutes 1 minutes 1 minutes
HID Keyboard US,German,French,Italian,Spanish US US US US US
HID Delay/Initial Disabled, 1,2,3,5,10 secs Disabled Disabled Disabled Disabled Disabled
HID Delay/Inter char Disabled,10, 20, 30, 50, 100msec Disabled Disabled Disabled Disabled Disabled
HID Ctrl Char Disabled, Alt+Numpad, ^+Character Disabled Disabled Disabled Disabled Disabled
Power Enabled/Disabled Enabled Enabled Enabled Enabled Enabled
Pairing Pairing neighboring Bluetooth devices
Discovering Discovering neighboring Bluetooth
devices N/A N/A N/A N/A N/A
Connecting to View Connect to Bluetooth device N/A N/A N/A N/A N/A
BT
Service
HID Sync
Memory Size(3.0 only) 0.5/3.5, 1/3, 2/2, 3/1, 4/0 N/A N/A N/A N/A N/A
No. of Stored Barcodes N/A N/A N/A N/A N/A
Memory Status
Free Memory Available N/A N/A N/A N/A N/A
Memory(Empties Data)
Application Memory N/A N/A N/A N/A N/A
Reset Memory
BT Registry(KDC100 Not use) N/A N/A N/A N/A N/A
Auto Erase Enabled/Disabled Disable Disable Disable Disable Disable
Sleep Timeout Disable, 1sec to 10minute(s) 5 second(s) 5 second(s) 5 second(s) 5 second(s) 5 second(s)
YYYY:MM:DD & N/A N/A N/A N/A N/A
Date / Time
HH:MM:SS N/A N/A N/A N/A N/A
Battery % of Battery Charge Available N/A N/A N/A N/A N/A
Version Firmware Version & Serial No. N/A N/A N/A N/A N/A
Button Lock Enabled/Disabled Disabled Disabled Disabled Disabled Disabled
Beep Sound Enabled/Disabled Enabled Enabled Enabled Enabled Enabled
Beep Volume Low/High Low Low Low Low Low
Auto Exit Enabled/Disabled N/A N/A N/A N/A N/A
Port Status Enabled/Disabled N/A N/A N/A N/A N/A
System
Config
Display Format Time & Battery / Type & Time / Type &
Battery / Memory Status / GPS
Data(KDC250 only)/Barcode Only N/A N/A N/A N/A N/A
Menu Barcode Enabled/Disabled N/A N/A Disabled Disabled N/A
Scrolling Enabled/Disabled N/A N/A N/A N/A N/A
Brightness 1 to 15 level(8 level) N/A N/A N/A N/A N/A
Factory Default Restores Default Settings
MSR Data Only Default Default Default Default N/A
Data Format
Packet Data
Track Separator N/A CR+LF N/A CR+LF CR+LF
Use Track1 N/A Yes N/A Yes Yes
Use Track2 N/A Yes N/A Yes Yes
Use Track3 N/A Yes N/A Yes Yes
Beep on error reading Enabled/Disabled N/A Disabled N/A Disabled Disabled
MSR
Config
Encryption Enabled/Disabled N/A Enabled N/A Disabled Disabled
Table 3 - KDC Menu Options

Navigation menu
