ACV-5100 Acendo Vibe™ Conferencing Sound Bar with Camera
Overview
The ACV-5100 features a hinged Wall Mount Bracket, which allows easy installation as
well as access to the Connector Bay without having to dismount the unit. The Wall
Mount Bracket features a cutout for cable routing and straps for cable management.
Note: Do not lift the ACV-5100 by the camera.
Credenza Installation
Note: To ensure highest possible sound quality, the rubber feet on the bottom panel
must remain in place for surface-mount installations.
The ACV-5100 can sit on a hard, flat surface such as a credenza, tabletop or desk.
When choosing a surface location, consider a space that will not interfere with
workspaces or other installed devices. Connect cables as necessary - see the
Connections section for details.
Wall Mount Installation
For best aesthetic in wall mount installations, remove the rubber feet from the bottom
panel: carefully peel each foot off of the bottom surface.
Removing the Wall Mount Bracket
1. Open the Wall Mount Bracket (held closed by internal magnets).
2. Press and hold the Release Button to slide the Bracket out (over the button) to
disengage the pins on the Bracket from the hinges on the unit (FIG. 2).
3. Lift the Wall Mount Bracket off of the hinges to remove (FIG. 3):
Wall Mount Considerations
•Distance between conference table and display: The closer the table is to the
wall-mounted display. the lower the display should be mounted. As a general
guide, the display should be mounted between 40” and 48” from the floor.
•Avoid obstructing the camera view: The lens of the camera must be positioned
beyond the bottom surface of the display in order to avoid partially blocking the
camera view.
•Position camera for full visibility: In small rooms, it may be necessary to manually
tilt the camera up to maximize visibility for all participants.
Using the Bracket Mounting Guide
The Wall Mount Bracket features instructions etched on the inner surface that describe
how to position the ACV-5100 beneath a wall-mounted display to avoid obstructing the
1. Remove the Bracket from the ACV-5100 (see FIG.7on page 9).
2. Turn the Bracket vertically and place against the wall, centered directly beneath
the wall-mounted display.
3. Align the top of the bracket (see Bottom of Display) with the bottom surface of
the display.
4. Use the top edge of the notch in the Bracket (see Top flat surface of Acendo Vibe
to determine the closest placement for the ACV-5100 beneath the display. Mark
the mounting surface.
5. Align the top flat surface of the ACV-5100 with the mark made in step 4.
6. Mount the Bracket using mounting screws and optional mounting spacers (see
FIG. 6).
Mounting the Wall Mount Bracket and Attaching the ACV-5100
1. Use the Wall Mount Bracket as a template to mark the locations for the four
mounting screws (not included). Use mounting screws and hardware appropriate
for the surface being utilized to secure the Bracket to the wall.
Optionally, place the four included Wall Mount Spacers between the Bracket and
the wall to create a 5mm gap for routing flat cables if not hiding them behind the
drywall (see FIG. 7).
2. Attach the ACV-5100 to the Bracket by sliding the pins on the Bracket into the
hinges on the rear of the main unit (see FIG. 3):
a. Position the ACV-5100 with the bottom panel facing the wall and align the
hinges on the main unit with the pins on the Bracket.
b. Carefully slide the pins into the hinges, until the Bracket snaps into place.
Note: Press the Bracket into place so that the last pin depresses the Release
Button, allowing the pins to slide into the hinges (see FIG. 3)
c. With the ACV-5100 attached to the Bracket, rotate the unit up to its seated
position. Note that the Bracket snaps shut and is held closed via internal
magnets.
Note: Ensure that cables do not obstruct the complete closing of the unit.

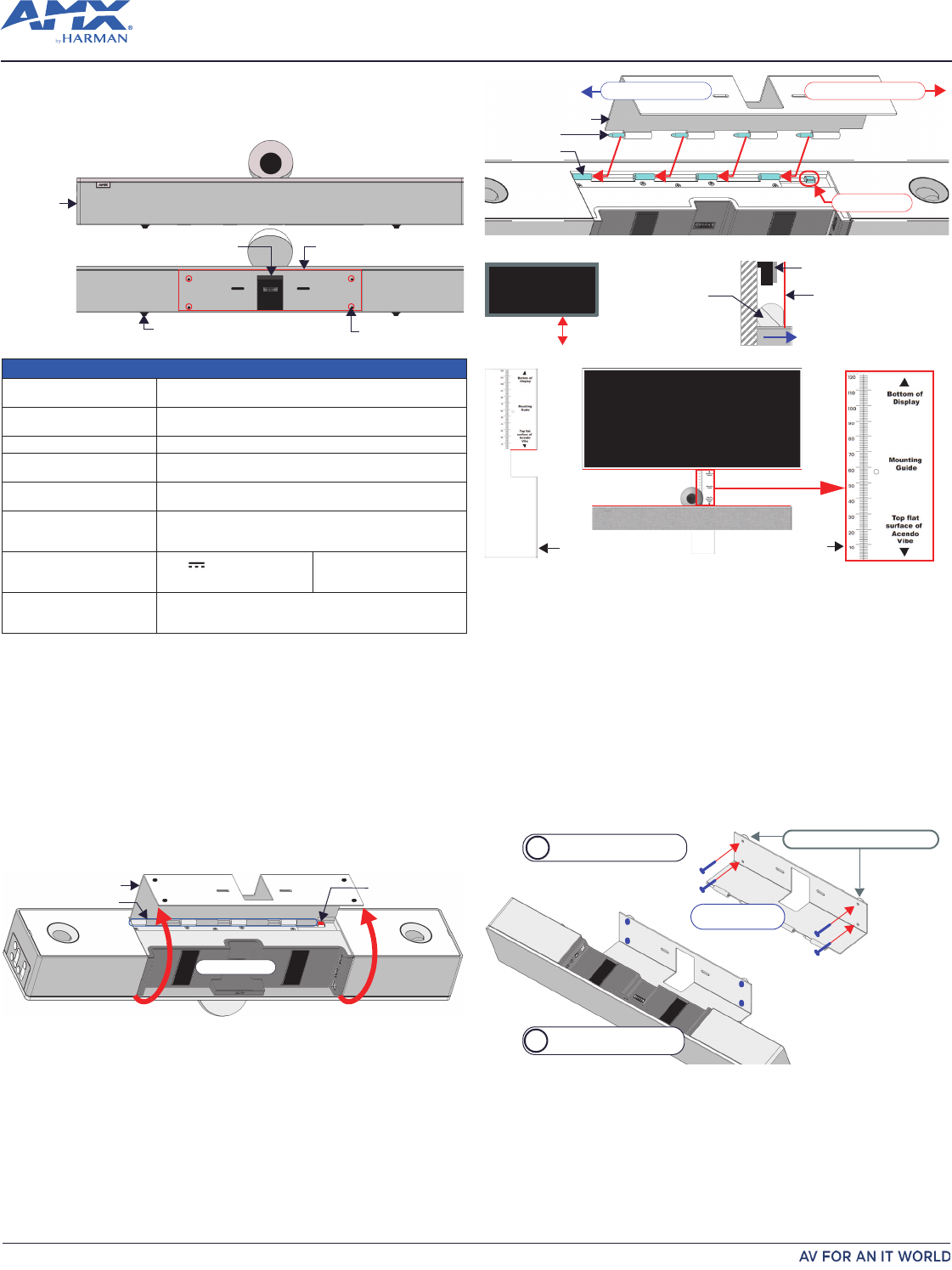

FIG. 1 ACV-5100 (FRONT/REAR VIEWS)
PRODUCT SPECIFICATIONS
MODELS AVAILABLE • ACV-5100GR, Grey (FG4151-00GR)
• ACV-5100BL, Black (FG4151-00BL)
DIMENSIONS (HWD) • 5" x 23 1/2" x 3 15/16" (76 mm x 590 mm x 100 mm)
• Depth with optional wall mount spacers: 4 1/8” (105 mm)
)gk 39.2( sbl 54.6THGIEW
ACTIVE POWER REQUIREMENTS • ~100-240V, 1.3A max
• Only use the included power supply
REGULATORY COMPLIANCE FCC 47 CFR Part 15, Subpart C / Subpart B (emissions)
EN 55024, EN 60950-1, IEC/EN/UL 60065:2014
ENVIRONMENTAL • Temperature (Operating): 32° F to 122° F (0° C to C)
• Temperature (Storage): -4° F to 158° F (-20° C to 70° C)
• Humidity (Operating): 5% to 85% RH non-condensing
INCLUDED ACCESSORIES • 15V / 4A.Power Supply
• Remote Control
• 6’ USB 2.0 Cable
• 5mm Wall Mount Spacers (4)
• Lock-Down Screws (2)
OPTIONAL ACCESSORIES
• CBL-USB-FL2-16, USB 2.0 16ft Extension Cable (FG10-2220-16)
• CBL-USB-FL2-33, USB 2.0 33ft Extension Cable (FG10-2220-33)
• ACR-5100, Meeting Collaboration System (FG4051-00)
FIG. 2 ACV-5100 BOTTOM VIEW - OPENING THE WALL MOUNT BRACKET
Camera
Front
RearRubber feet (removable, x2) mounting holes (x4)
Wall Mount Bracket
Side Panel
Keypad
Cable Cutout
Wall Mount Bracket
Hinges/Pins
Release Button
Connector Bay
FIG. 3 ACV-5100 BOTTOM VIEW - REMOVING THE BRACKET
FIG. 4 ACV-5100 WALL MOUNT CONSIDERATIONS
FIG. 5 USING THE MOUNTING GUIDE
FIG. 6 WALL MOUNTING THE ACV-5100
Wall Mount Bracket
Pins (x4)
Hinges (x4)
Slide pins in to install Slide pins out to remove
Release Button
Display
40-48” from floor
Camera lens should be
positioned beyond the display
to avoid obstructing the view
Display
ACV-5100 Camera
Display
front
(side view)
Mounting Bracket Mounting Guide
(etched into surface)
(top view)
ACV-5100
Display
Mount the Bracket to the
wall via 4 mounting screws
Attach the ACV-5100 to the
Bracket via hinges & pins
b
a
mounting screws
(x4, not included)
mounting spacers (x4, optional)
45°
© 2017 Harman. All rights reserved. Modero, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of
HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/ REV: A
Last Revised: 11/01/2017
3. Connect cables as necessary (inside the Connector Bay - see FIG. 2).
4. Rotate the ACV-5100 into seated position. The Bracket is secured with magnets (
FIG. 7).
Connections
All connectors are located within the Connector Bay (rear panel).
• For surface installations, place the unit face-down and open the Connector Bay
Door to manage cables/connectors.
• For wall-mounted installations, simply rotate the ACV-5100 unit down and away
from the wall to access the Connector Bay.
There are two sets of connectors on the inner side panels of the Connector Bay. Each
connector is labeled on the elastic cable straps. Run each cable through the cable
access hole in the bracket/door and under the cable strap.
Rotating the ACV-5100 Into the Seated Position
After connecting all cables, close the Bracket to return the ACV-5100 to it’s seated
position. The Bracket is secured via internal magnets (FIG. 7):
Installing Lock-Down Screws
The ACV-5100 comes with two (flat-head) Lock-Down Screws that can be added after
the ACV-5100 has been installed and connected. The Lock-Down Screws prevent the
Bracket from being opened accidentally. With the Bracket/Connector Bay Door
closed, install the Lock-Down Screws in the bottom panel (FIG. 8):

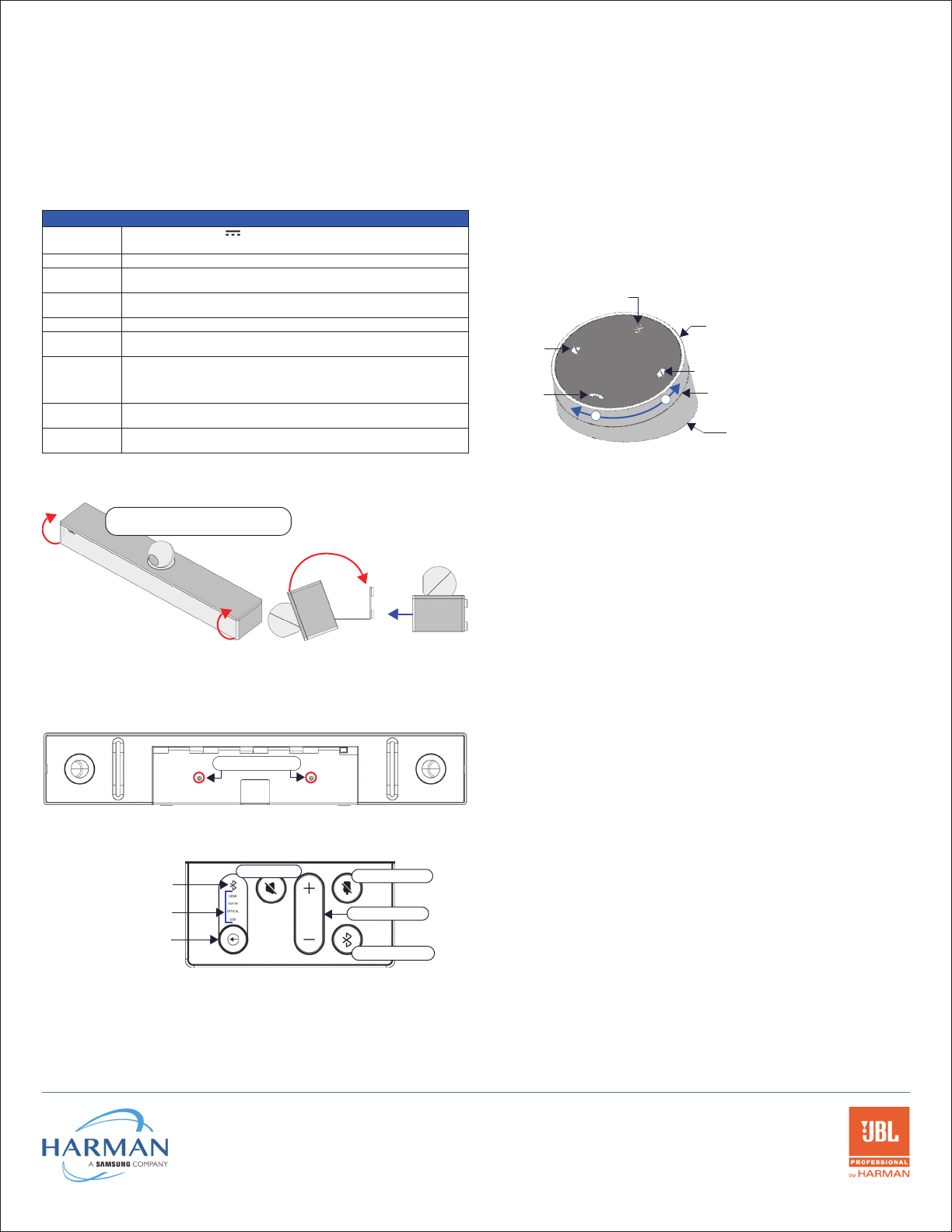

Side Panel Keypad
All controls and LEDs are on the left side panel of the ACV-5100 (FIG. 9):
Volume and Mute Controls
The ACV-5100 features a 10W/channel stereo amplifier, speakers, microphones, and
DSP algorithms by JBL.
• Use the Volume Up/Down buttons to adjust speaker volume.
•Mute Speaker and Mute Microphone enable/disable the speakers and
microphone. Note that these buttons illuminate to indicate when the sound
functions are muted.
Camera
The ACV-5100 is equipped with a wide-angle camera for videoconferencing. The
ACV-5100 supports Skype™ technology for video conferencing via it’s USB port:
1. Connect the ACV-5100 to a laptop/PC via USB.
2. Use Source Select button on the the ACV-5100 (FIG.9) to select USB (if necessary).
3. Start Skype on laptop/PC and select the AMX Acendo Vibe as the webcam:
a. In Skype, select Tools > Options from the main menu bar.
b. In the Skype™ - Options window, select Video Settings and select AMX
Acendo Vibe from the Select webcam menu.
c. In the Skype™ - Options window, select Audio Settings and select AMX
Acendo Vibe Microphone and Speakers:
• Microphone: Select Microphone (3-AMX Acendo Vibe)
• Speakers: Select Speakers (3-USB AUDIO CODEC)
Note: To adjust the camera’s viewing angle, simply grasp the camera and move it to
the desired position.
Remote Control
The ACV-5100 includes a wireless remote control (FIG.10):
Pairing the Remote Control to the Acendo Vibe
1. With the ACV-5100 powered on, press the Source Select and Bluetooth buttons
(see FIG. 9) simultaneously for 5 seconds.
2. Press the Bluetooth button on the Remote Control. The button flashes to indicate
that the remote is in pairing mode.
When the pairing is complete, the Bluetooth LED on the remote remains lit while
the devices are paired.
Note: If the pairing is not immediately successful, press the Bluetooth button on the
Remote Control a second time.
Pairing the Acendo Vibe with a Bluetooth Source Device
1. Press the Bluetooth button on the ACV-5100 (FIG.9) to turn Bluetooth device
discovery mode on. The Bluetooth LED flashes to indicate discovery mode is
active.
2. On the source device (such as a phone), verify that Bluetooth pairing is enabled,
and select the Acendo Vibe for pairing. The Bluetooth LED on the ACV-5100 lights
to indicate that the Bluetooth device is paired to the ACV-5100.
Use the Source Select button on the ACV-5100 (FIG.9) to select Bluetooth as the audio
source (if necessary).
At this point, the Bluetooth LED is lit, Bluetooth audio is being sent to the ACV-5100
speakers, and microphone audio is being sent to the paired Bluetooth device.
Acendo Vibe Configuration Tool
The ACV-5100 is configured via the Acendo Vibe Configuration Tool software (available
to download from AMX). In most cases the default settings should work fine without any
need for adjustment.
For details, see the ACENDO VIBE Instruction Manual, available to view or download
from www.amx.com.
Setup Mode
In order for the Acendo Vibe Configuration Tool to communicate with the Acendo
Vibe, the unit must be in Setup Mode.
To place the ACV-5100 in Setup Mode, press the Source and Mic Mute keys
simultaneously for 5 seconds (see FIG. 1).
Note: All of the LEDs blink to indicate that the unit is in Setup Mode. While in Setup
Mode, the ACV-5100’s USB interface is enabled, and the Virtual COM port is visible to an
attached PC.
Additional Documentation
For instructions on configuring the Acendo Vibe via the Acendo Vibe Configuration
Tool, as well as file transfer, firmware updates, programming and troubleshooting info,
see the Acendo Vibe Instruction Manual, available to view or download from
www.amx.com.
Refer to AMX University for online videos that demonstrate many of the installation steps
described in this Quick Start Guide.
ACV-5100 CONNECTIONS
DC POWER Connect the included 15V power supply to this barrel connector. Only use the power
supply included with the ACV-5100.
OPTICAL AUDIO Use this TOSLINK connector to receive Optical Stereo Input from an audio source device.
AUX OUT Use this 1/8” mini-stereo connector to send analog stereo sound from the ACV-5100 to an
auxiliary device.
AUX IN Use this 1/8” mini-stereo connector to receive analog stereo sound from an analog audio
source device.
HDMI OUT (Type A) Connect to an HDMI input on a display device.
HDMI IN (Type A) Connect to an HDMI output from a source device, such as a laptop or Acendo
Core.
USB Use the USB 2.0 Type-B port to connect a PC/laptop to the ACV-5100 as a source device.
Acendo Vibe is plug-and-play with PC/laptop using standard UAC/UVC drivers.
The USB connection is also used to configure the ACV-5100 via the AMX Acendo Vibe
configuration application and for file transfers.
RS-232 3-pin captive-wire connector provides serial communication with the Acendo Vibe. Refer to
the Acendo Vibe Instruction Manual for serial command definitions.
MOTION 3-pin captive-wire connector provides connectivity for an (optional) motion sensor. Refer to
the Acendo Vibe Instruction Manual for details on using a motion sensor.
FIG. 7 ROTATING THE ACV-5100 INTO ITS SEATED POSITION
FIG. 8 ACV-5100 BOTTOM VIEW - LOCK DOWN SCREW LOCATIONS
FIG. 9 ACV-5100 LEFT SIDE PANEL KEYPAD
Rotate the ACV-5100 into seated position
(Bracket is secured with magnets)
front
open closed
Lock-Down Screws
Input LEDs (light to
indicate the active source)
Source Select (press to
c
ycle through source options)
Bluetooth LED (lights to
indicate Bluetooth is the
selected audio source)
Volume Up/Down
Mute microphone
Bluetooth pairing
Mute speaker
FIG. 10 ACENDO VIBE REMOTE CONTROL
Bluetooth
Mute Microphone
Mute Speaker
End Call
Source Select pushbutton
(on back side)
(press to enter pairing mode)
Volume Up/Down
+
-(rotate ring to adjust)
Battery Compartment (bottom panel)
Unlock & twist to open

Navigation menu
