ARGtek Communication WIFI-004 802.11 b/g/n WLAN USB Adapter User Manual Quick Installation Guide

ARGtek Communication Inc. 802.11 b/g/n WLAN USB Adapter Quick Installation Guide

Manual 2

Quick User Manual Guide
(DOME BASE)

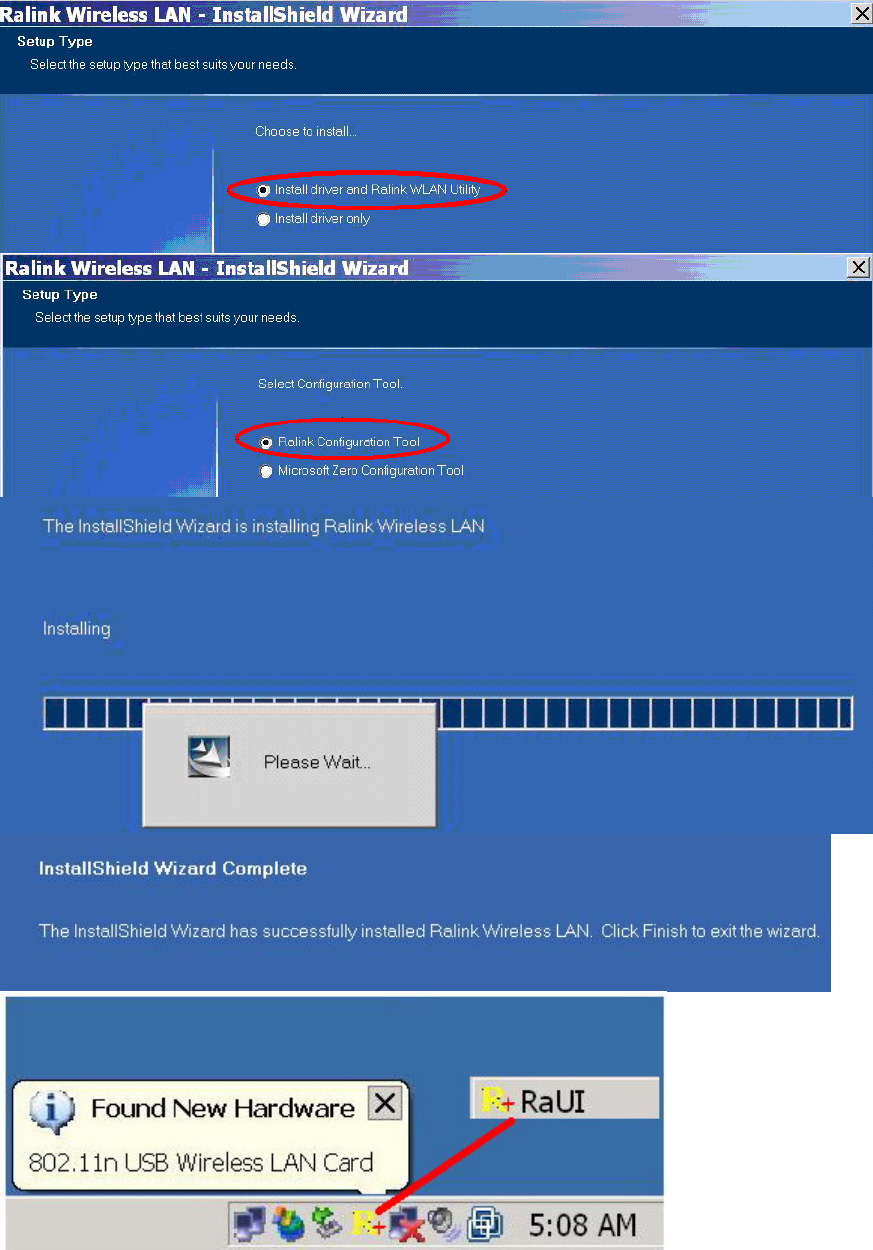

Step 1: RaUI (Ralink Utility) Installation
You can double click a small Ralink icon appears in the notifications area of the
taskbar to maximize the dialog box or you may also click the mouse’s right button to
close RaUI.

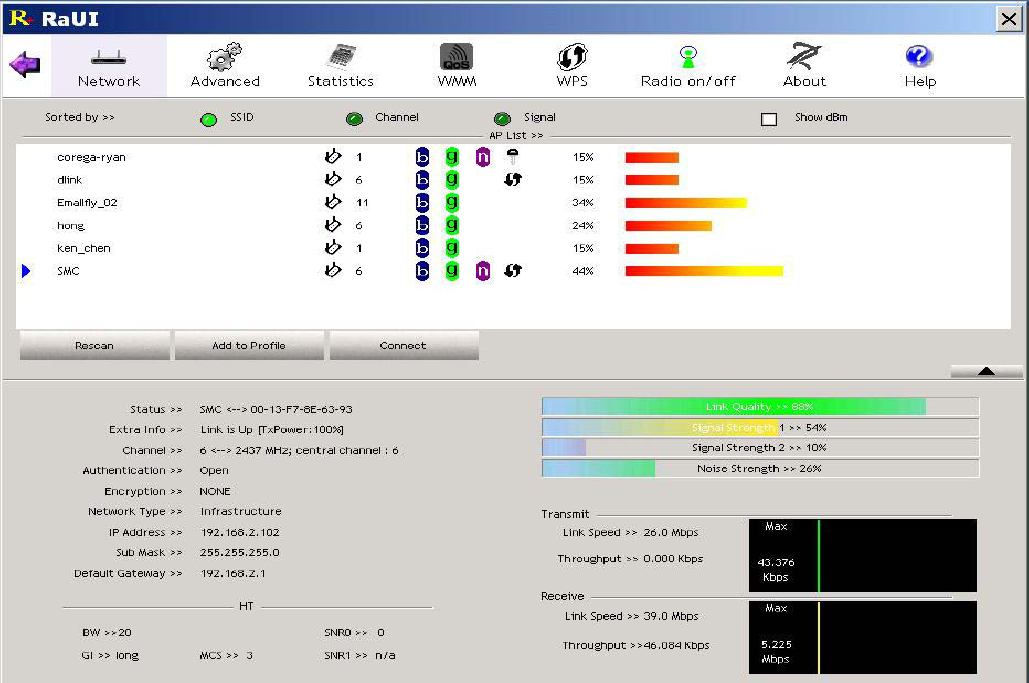

Step 2: Start RaUI (Ralink Utility)
When
starting
RaUI,
the
system
will
connect
to
the
AP
with
best
signal
strength
without
setting
a
profile
or
matching
a
profile
setting. The
AP
list
includes
most used
fields,
such
as
SSID,
network
type,
channel
used,
wireless
mode,
security
status
and
the
signal percentage.
1.
Functional
Section:
Profile

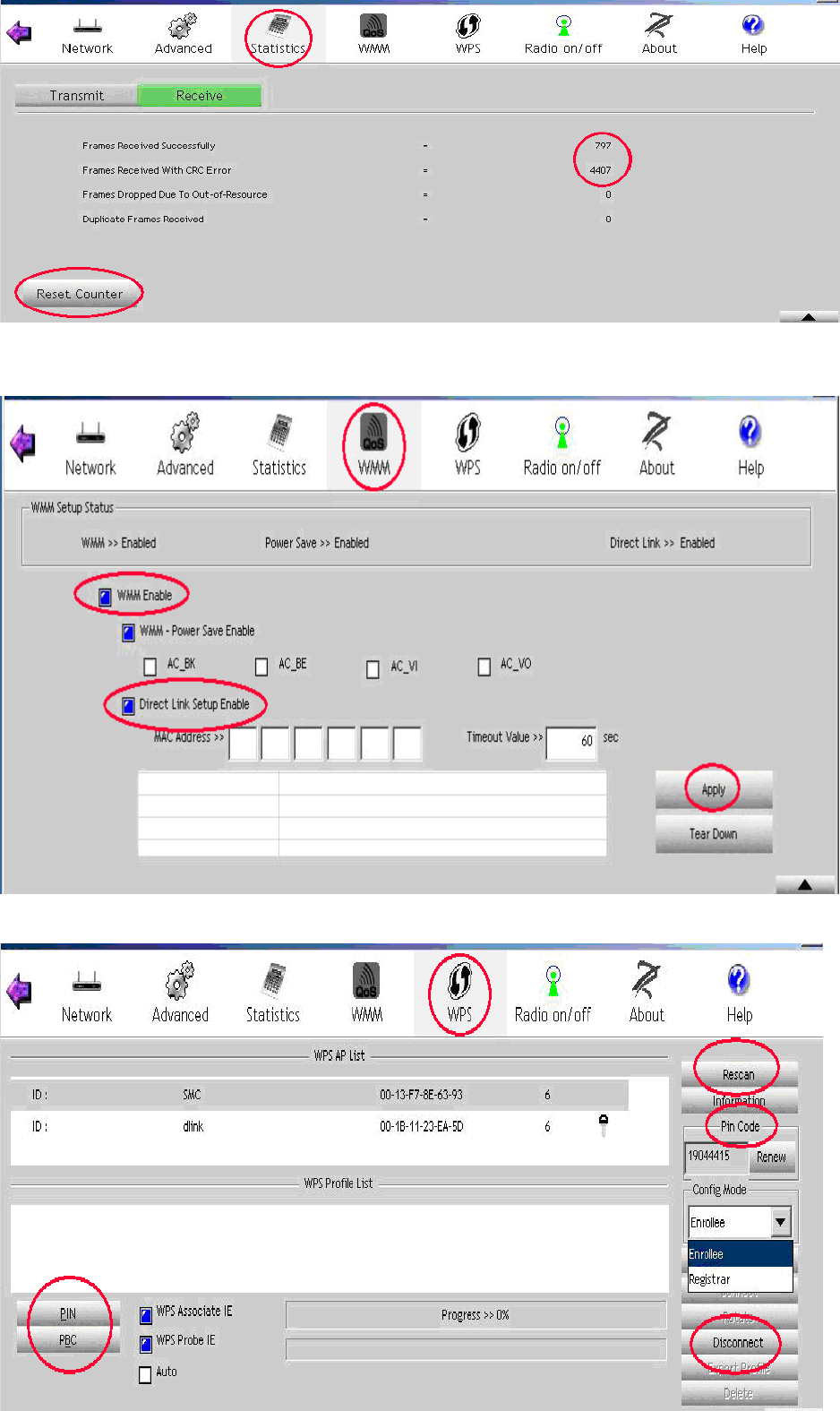

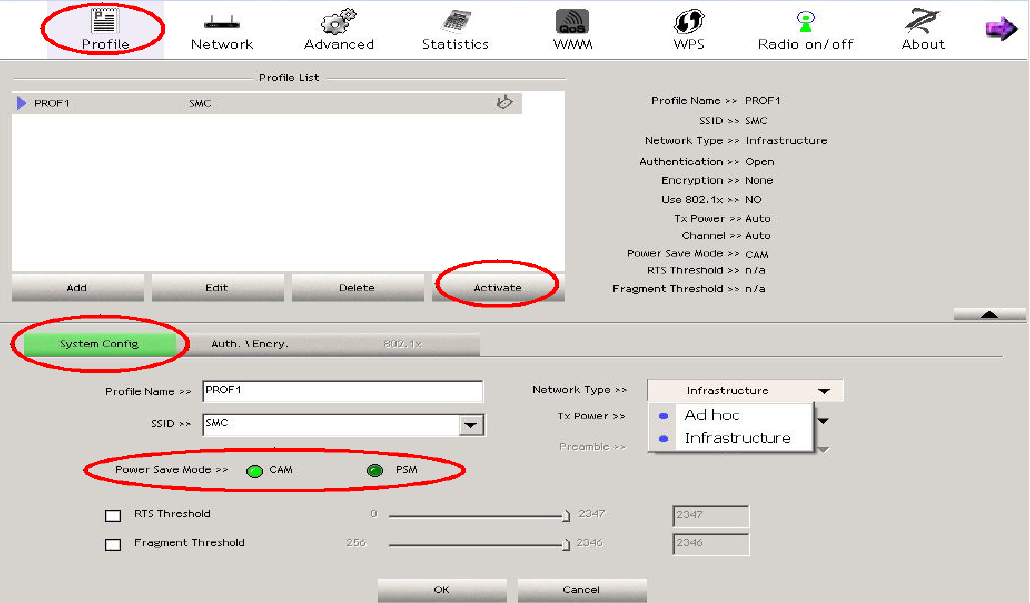

page: The list keeps a record of your favorite wireless settings or others hotspots. You can
activate either one on the preference list for quick connection.
Statistics
page:
WMM
page:
WPS
page:
2. Status
Section:
Authentication
Status
Ralink
icon
in
system
tray Wirless
NIC
can
not
be
detected
Black Color
Signal
strength
is
good Signal
strength
is
normal
Signal
strength
is
weak Signal is not connected yet
3:
Software AP
Mode

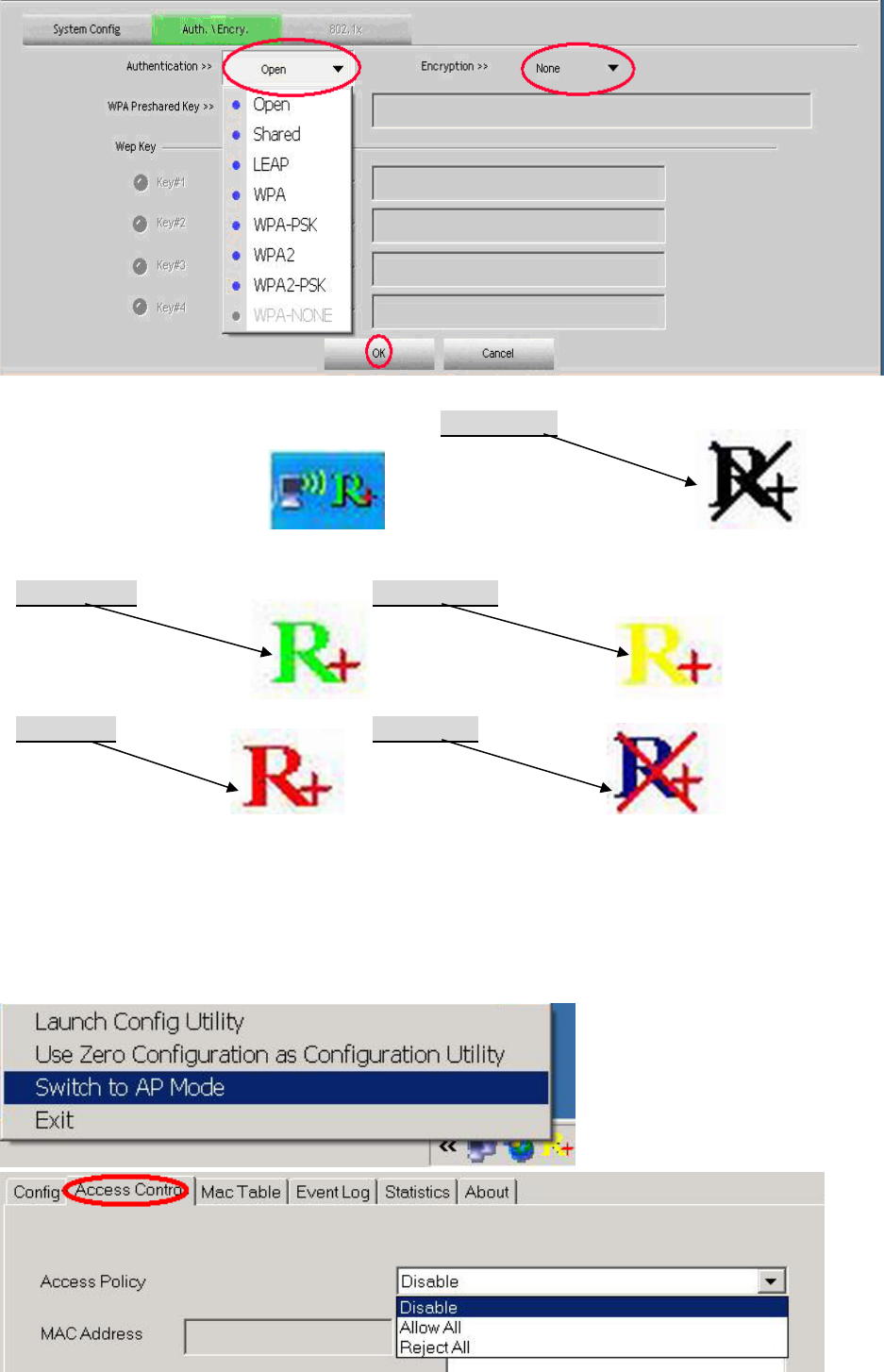

Click mouse’s right button on Ralink icon in system tray.
Green Color Yellow Color
Blue Color Red Color

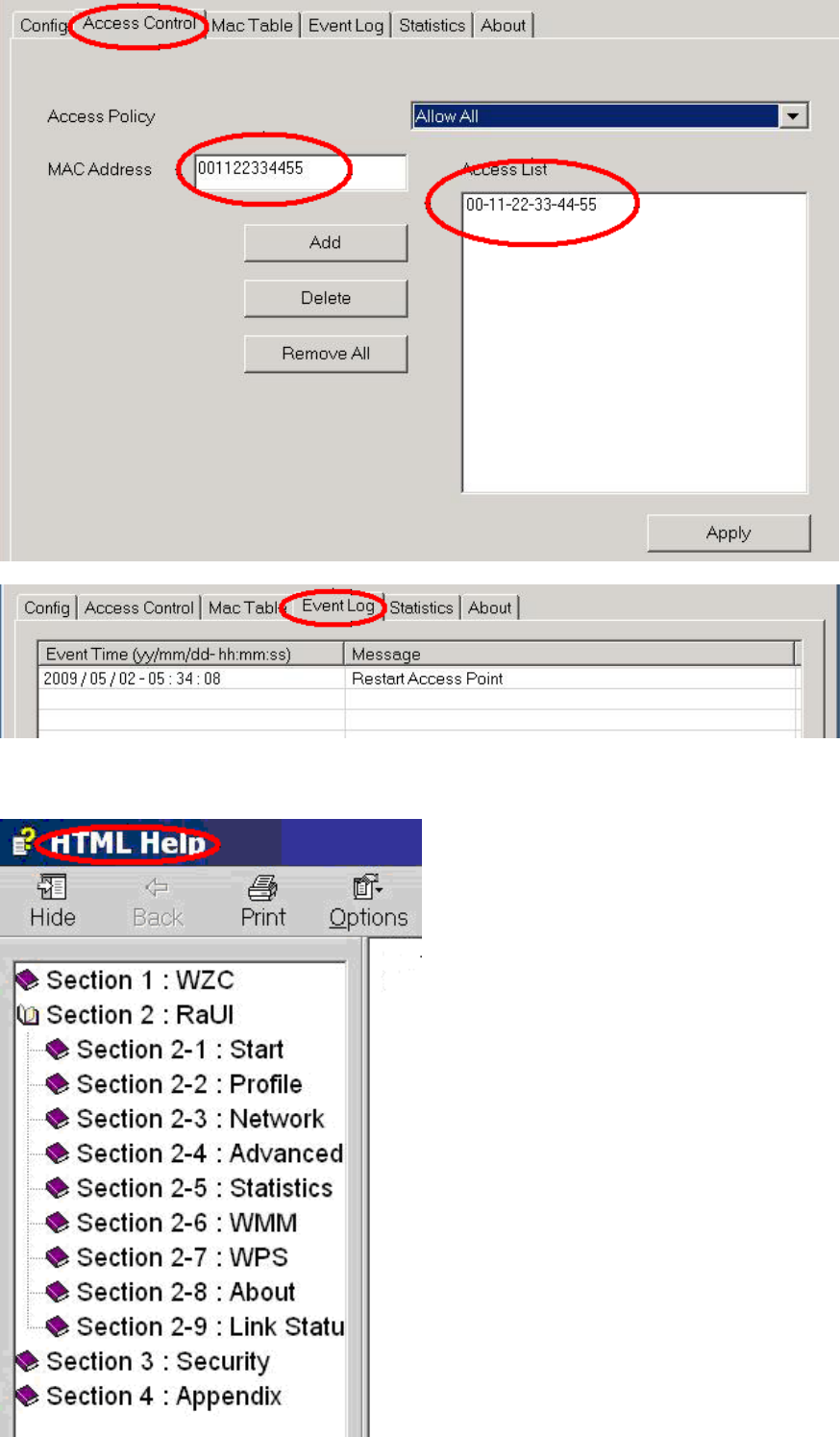

4: For more information please refer to HTML Help in Help Page
