User Manual
DSL-N10
11N Wireless ADSL Modem Router
DSL-N10
11N Wireless ADSL Modem Router
Power ADSL Internet Wireless 1 2 3
LAN
4
2
Copyright © 2010 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK Computer Inc.
(“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or
altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME
WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY
ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identication or
explanation and to the owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License
(“GPL”), under the Lesser General Public License Version (“LGPL”) and/or other Free Open
Source Software Licenses. Such software in this product is distributed without any warranty
to the extent permitted by the applicable law. Copies of these licenses are included in this
product.
Where the applicable license entitles you to the source code of such software and/or other
additional data, such data should have been shipped along with this product.
You may also download it for free from http://support.asus.com/download.
The source code is distributed WITHOUT ANY WARRANTY and licensed under the same
license as the corresponding binary/object code.
ASUSTeK is eager to duly provide complete source code as required under various Free
Open Source Software licenses. If however you encounter any problems in obtaining the
full corresponding source code we would be much obliged if you give us a notication to the
email address gpl@asus.com, stating the product and describing the problem (please do
NOT send large attachments such as source code archives etc to this email address).
E6067
First Edition
October 2010
3
Table of contents
About this guide .................................................................................... 4
Chapter 1: Knowing your wireless router
Package contents .................................................................................. 6
System requirements ............................................................................ 6
Before you proceed ............................................................................... 6
Rear panel ......................................................................................... 8
Bottom panel ..................................................................................... 9
Mounting options ................................................................................. 10
Chapter 2: Getting started

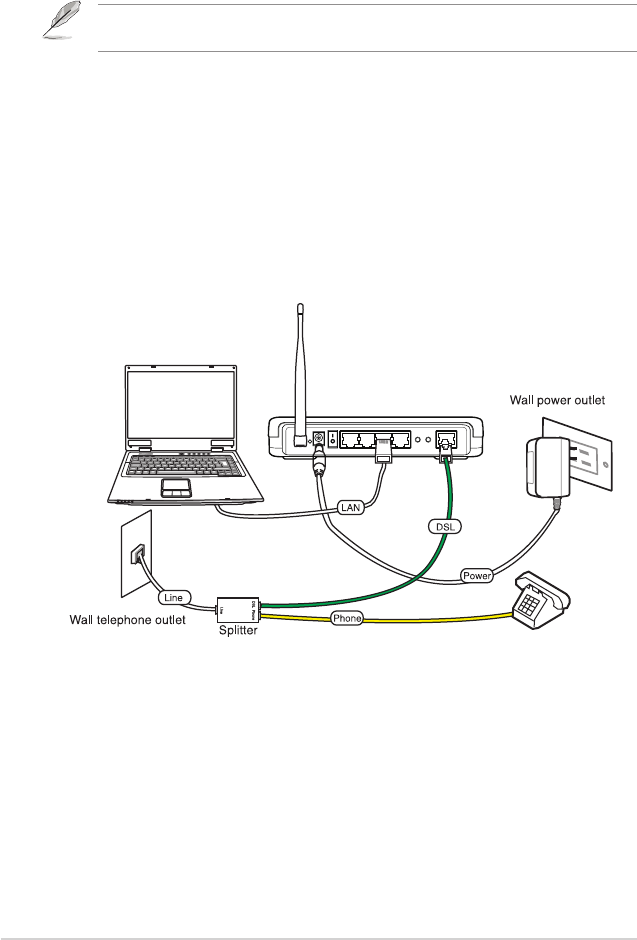

Setting up the wireless router .............................................................11
Using the Quick Internet Setup (QIS) ..................................................11
Setting up the wireless ADSL router ............................................... 12
Chapter 3: Conguring the network clients
Accessing the wireless router ............................................................ 16

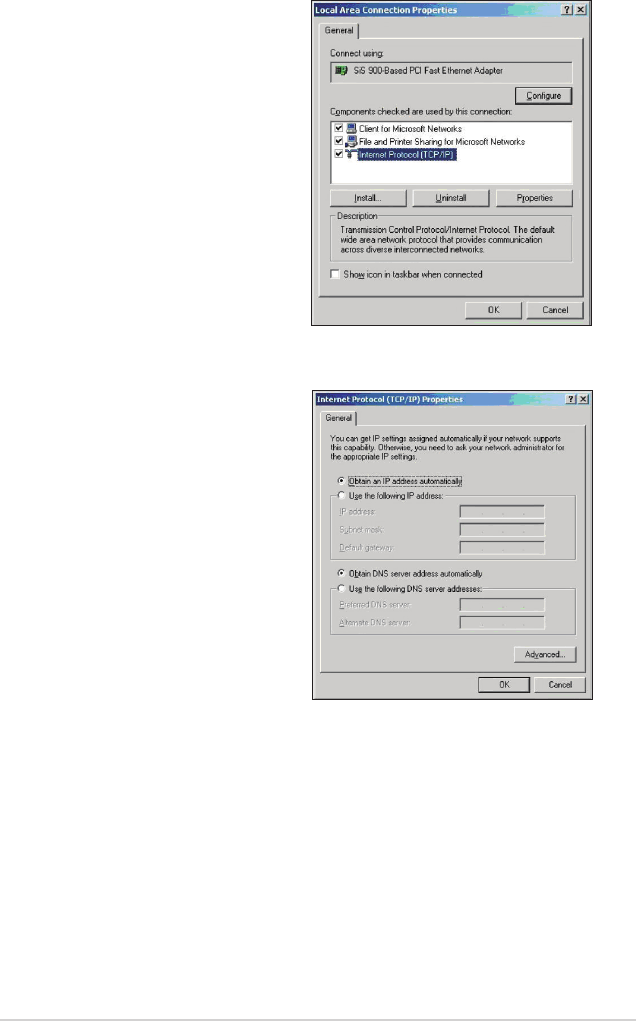

Setting an IP address for wired or wireless clients .......................... 16
Chapter 4: Conguring via the web GUI

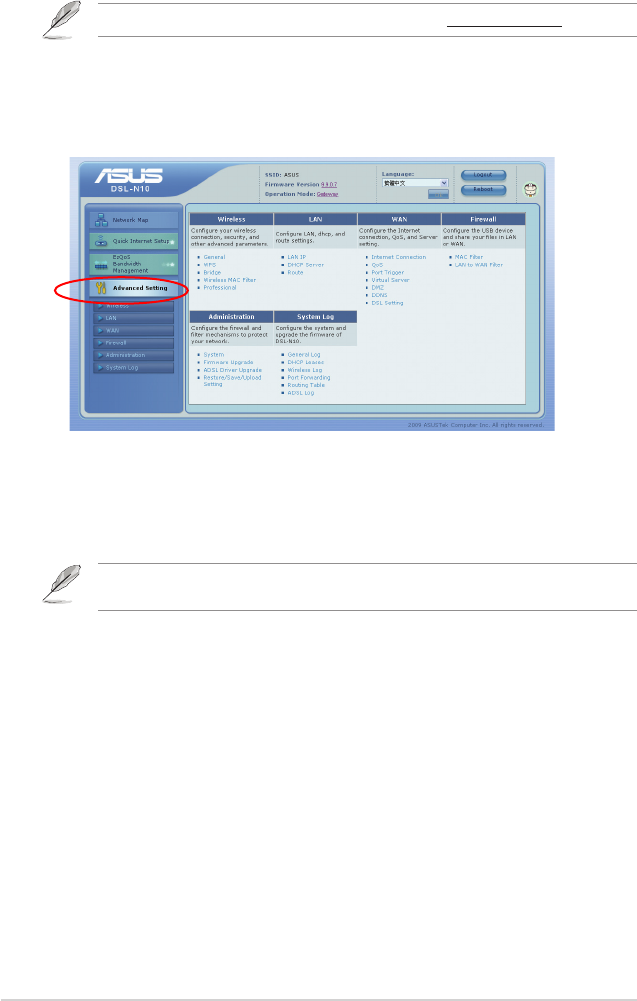

Conguring via the web GUI ............................................................... 20
Using the Network Map ....................................................................... 21

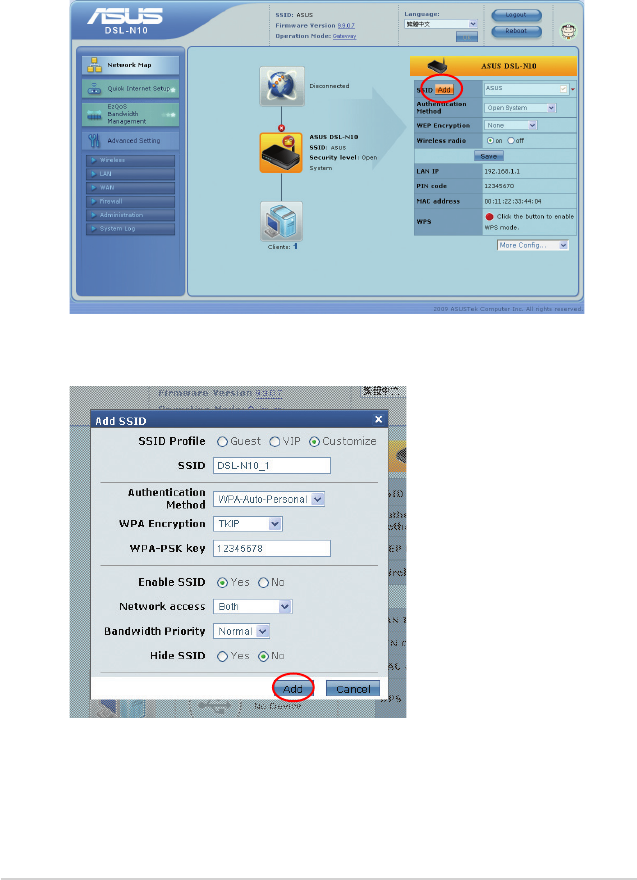

Creating multiple SSID proles ....................................................... 22
Managing bandwidth with EzQoS ...................................................... 23
Upgrading the rmware ...................................................................... 24

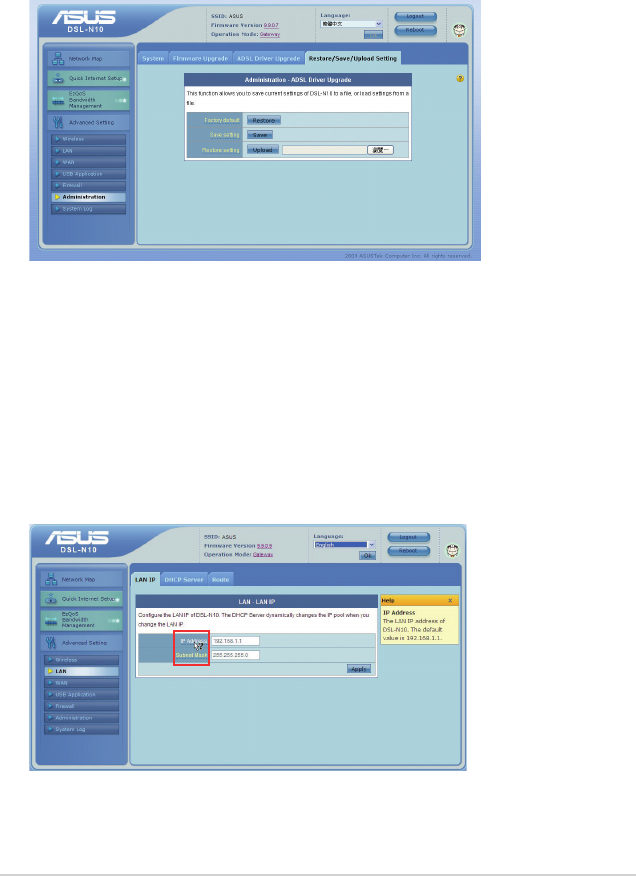

Restoring/Saving/Uploading settings ................................................ 25
Chapter 5: Installing the utilities

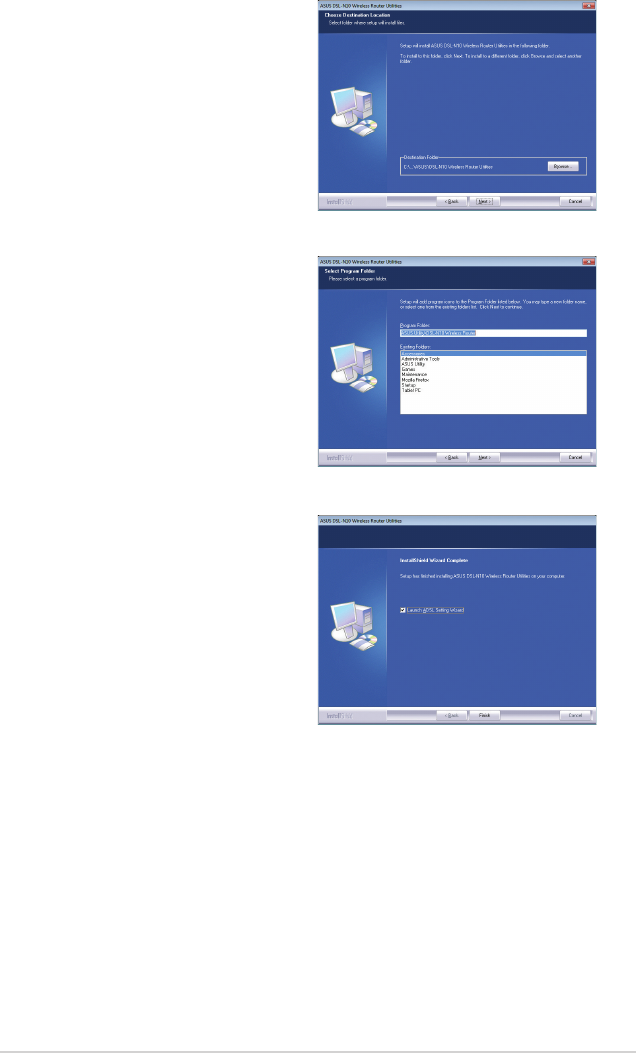

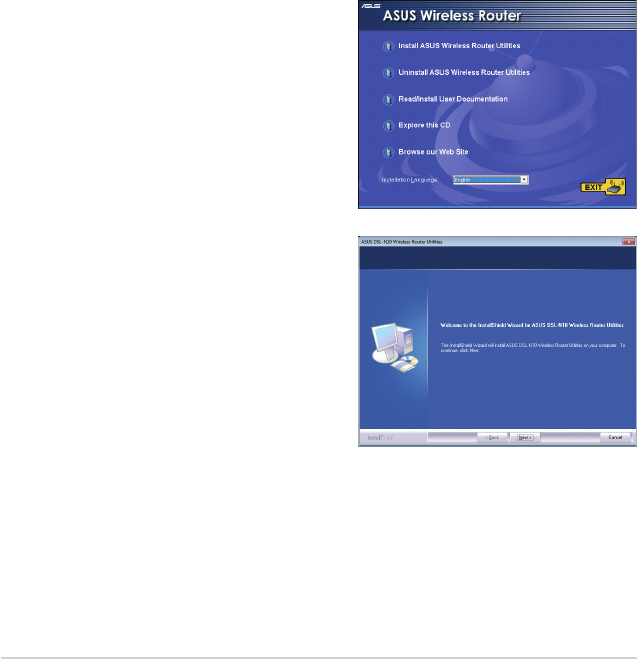

Installing the utilities ........................................................................... 26

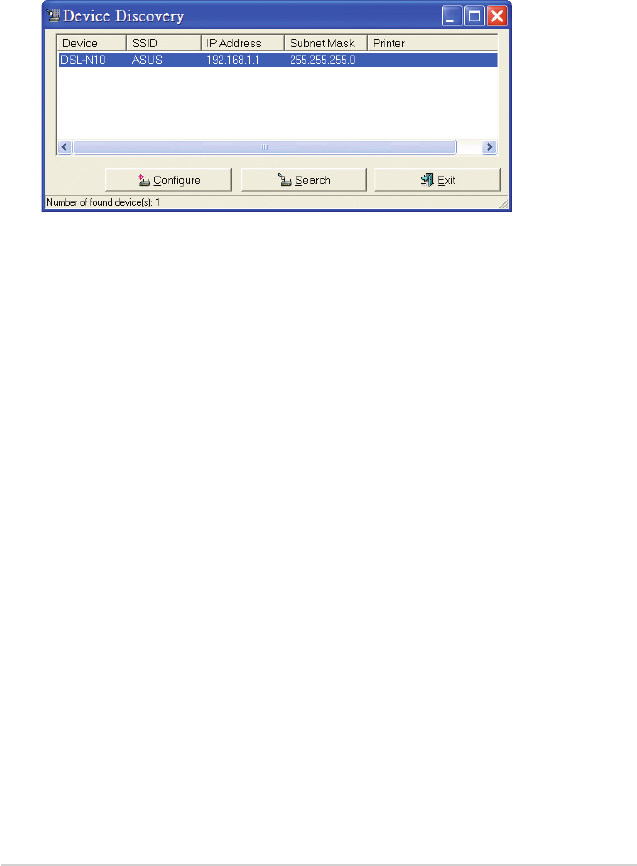

Device Discovery ................................................................................. 28
Firmware Restoration .......................................................................... 29
ADSL Setting Wizard ........................................................................... 30
Using ADSL Setting Wizard ............................................................ 30
4
Table of contents
About this guide
This user guide contains information that you need to install and congure the
ASUS Wireless ADSL Router.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Knowing your wireless router
This chapter provides information on the package contents, system
requirements, hardware features, and LED indicators of the ASUS Wireless
ADSL Router.
• Chapter 2: Getting started
This chapter provides instructions on setting up the Router and Access Point
modes of the ASUS Wireless ADSL Router.
• Chapter 3: Conguring the network clients
This chapter provides instructions on setting up the clients in your network to
work with your ASUS Wireless ADSL Router.
Chapter 6: Troubleshooting
Troubleshooting ................................................................................... 37
ASUS DDNS Service ............................................................................ 40
Frequently Asked Questions (FAQs) ............................................... 40
Appendices
Declaration of Conformity for R&TTE directive 1999/5/EC ............. 42
CE Mark Warning ............................................................................ 42
GNU General Public License .......................................................... 42
REACH 48
Safety Warning ................................................................................ 48
ASUS Contact Information .................................................................. 49
Networks Global Hotline Information ................................................ 50
5
• Chapter 4: Conguring via the web GUI
This chapter provides instructions on conguring the ASUS Wireless ADSL
Router using its web Graphical User Interface (web GUI).
• Chapter 5: Installing the utilities
This chapter provides information on the utilities that are available from the
support CD.
• Chapter 6: Troubleshooting
This chapter provides you with a troubleshooting guide for solving common
problems you may encounter when using the ASUS Wireless ADSL Router.
• Appendices
This chapter provides you with the regulatory Notices and Safety Statements.
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when
trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.
6DSL-N10 Chapter 1: Knowing your wireless router
1
Knowing your
wireless ADSL router
Package contents
Check the following items in your ASUS Wireless ADSL Router package.
DSL-N10 Wireless ADSL Router x1
5dBi detachable antenna x1
Power adapter x1
Support CD (manual, utilities) x1
RJ-45 cable x1
RJ-11 cable x1
Quick Start Guide x1
ADSL connection setting table x1
Warranty card x1
Note: If any of the items is damaged or missing, contact your retailer.
System requirements
Before installing the ASUS Wireless ADSL Router, ensure that your system/
network meets the following requirements:
• An Ethernet RJ-45 port (10Base-T/100Base-TX), or
at least one IEEE 802.11b/g/n device with wireless capability
• An installed TCP/IP and Internet browser
Before you proceed
Take note of the following guidelines before installing the ASUS Wireless ADSL
Router:
• The length of the Ethernet cable that connects the device to the network (hub,
ADSL/cable modem, router, wall patch) must not exceed 100 meters.
• Place the device on a at and stable surface as far from the ground as
possible.
• Keep the device clear from metal obstructions and away from direct sunlight.
7
Chapter 1: Knowing your wireless router DSL-N10
Status indicators
LED Status Indication
Power
Solid light Power on
Flashing fast (once per
second)
Reset mode
Flashing very fast (ve times
per second)
Launching WPS function
Normal ashing Rescue mode
Off Power off / Failure
ADSL
Solid light ADSL link is established.
Flashing No ADSL link, or unable to establish
ADSL link
Internet
Solid light Internet connection is established.
Flashing Transmitting or receiving data
Off Internet connection is failed.
Wireless
Solid light Wireless is enabled.
Flashing Establishing WLAN connection
Off No wireless connection
LAN1~LAN4
Solid light Has physical connection to an Ethernet
network
Flashing Transmitting or receiving data (through
Ethernet cable)
Off No power or no physical connection
• Keep the device away from transformers, heavy-duty motors, uorescent lights,
microwave ovens, refrigerators, and other industrial equipment to prevent
signal loss.
• Install the device in a central area to provide ideal coverage for all wireless
mobile devices.
• Install the device at least 20cm from a person to ensure that the product is
operated in accordance with the RF Guidelines for Human Exposure adopted
by the Federal Communications Commission.
Hardware features
Front panel
DSL-N10
11N Wireless ADSL Modem Router
Power ADSL Internet Wireless 1 2 3
LAN
4
8DSL-N10 Chapter 1: Knowing your wireless router
Rear panel
Label Description
Reset Press this button for more than ve seconds to reset the
system to its factory default settings. If this function failed,
refer to section Firmware Restoration on page 29 for
details on how to restore your router to default settings.
Power Insert the AC adapter into this port to connect your router
to a power source.
On/Off Press this button to turn the power on/off.
LAN1-LAN4 Connect RJ-45 Ethernet cables to these ports to establish
LAN connection.
WPS Press this button to launch WPS function.
Wireless On/Off Press this button to enable or disable wireless function.
ADSL Connect to a splitter or to a telephone outlet via an RJ-11
cable.
ANT Reset Power On/
Off LAN4 LAN3 LAN2 LAN1 WPS
Wireless
On/Off ADSL
9
Chapter 2: Setting up the hardware DSL-N10

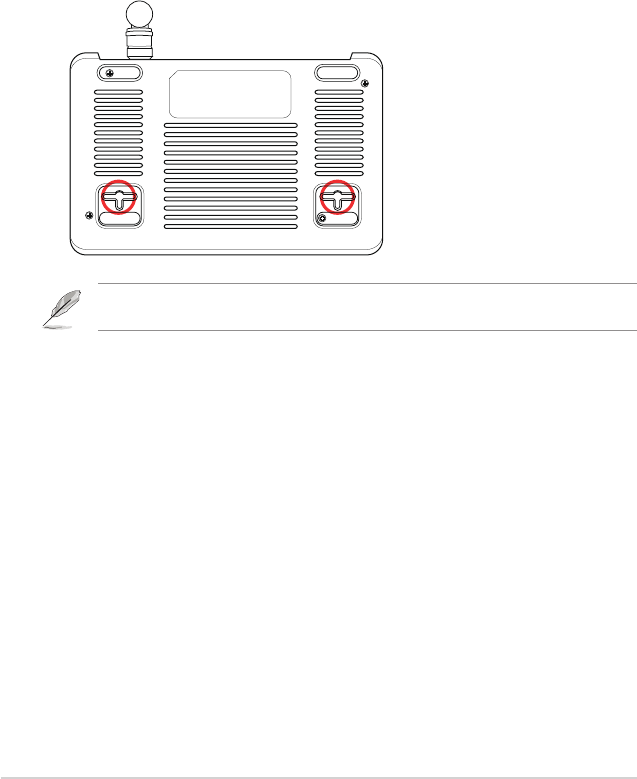

Bottom panel
1
2
Item Description
1Mounting hooks
Use the mounting hooks to mount your router on concrete or
wooden surfaces using two round head screws.
2Air vents
These vents provide ventilation to your router.
Note: For details on mounting your router on a wall or ceiling, refer to the section Mounting
options on the next page of this user manual.
10 DSL-N10 Chapter 2: Setting up the hardware
Mounting options
Out of the box, the ASUS Wireless ADSL Router is designed to sit on a raised
at surface like a le cabinet or book shelf. The unit may also be converted for
mounting to a wall or ceiling.
To mount the ASUS Wireless ADSL Router:
1. Look on the underside for the two mounting hooks.
2. Mark two upper holes in a at surface.
3. Tighten two screws until only 1/4'' is showing.
4. Latch the hooks of the ASUS Wireless ADSL Router onto the screws.
Note: Re-adjust the screws if you cannot latch the ASUS Wireless ADSL Router onto the screws
or if it is too loose.
11
Chapter 2: Setting up the hardware DSL-N10
2
Getting started
Setting up the wireless router
The ASUS Wireless ADSL Router includes a web Graphical User Interface (web
GUI) that allows you to congure the wireless ADSL router using your web browser
on your computer.
Note: For details on conguring your wireless router using the web GUI, refer to Chapter 4:
Conguring via the web GUI.
Using the Quick Internet Setup (QIS)
The Quick Internet Setup (QIS) function, which is integrated in the wireless ADSL
router’s web GUI, detects the Internet connection type (VPI/VCI value, ADSL
connection type, and Encapsulation mode) automatically and guides you in setting
up your network quickly.

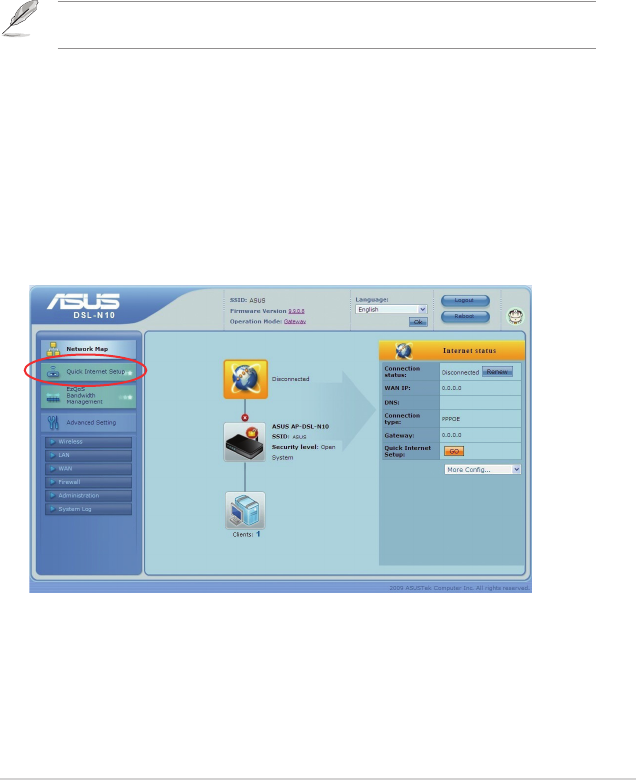

The QIS web page appears automatically after you connected all your devices and
launched your web browser. You may also launch the QIS from the Network Map
page in the web GUI. To do this, click Quick Internet Setup on the left column.
12 DSL-N10 Chapter 2: Setting up the hardware
Setting up the wireless ADSL router
The ASUS wireless ADSL router meets various working scenarios with proper
congurations. You may need to change the wireless router’s default settings so as
to meet the requirements in your wireless environment.
Notes: We recommend that you use wired connection for initial conguration to avoid possible
setup problems due to wireless uncertainty.
To set up the wireless ADSL router:
1. Connect your devices.
To set up via wired connection
a. Insert the splitter's line connector to the phone outlet and connect your
phone into the phone port (A).
b. Connect your wireless router's ADSL port to the splitter’s DSL port (B).
c. Using the bundled RJ-45 LAN cable, connect your computer to the wireless
router's LAN port (C).
ASUS Wireless ADSL Router
ANT Reset Power Power LAN4 LAN3 LAN2 LAN1 WPS
Wireless
On/Off ADSL
ADSL
(A)
(B)
(C)
13
Chapter 2: Setting up the hardware DSL-N10
ASUS Wireless ADSL Router
ANT Reset Power Power LAN4 LAN3 LAN2 LAN1 WPS
Wireless
On/Off ADSL
ADSL

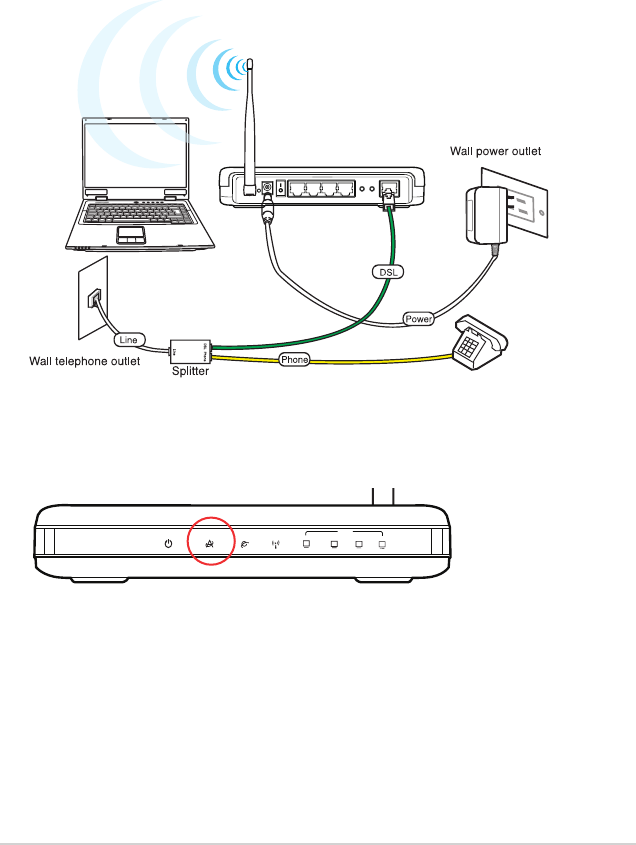

To set up via wireless connection:
a. Insert the splitter's line connector to the phone outlet and connect your
phone into the phone port (A).
b. Connect your wireless router's ADSL port to the splitter’s DSL port (B).
c. Turn on your computer and double-click the wireless network icon on the
Windows® task bar to view available networks. Select your wireless router.
By default, there is no security key for the wireless router. Click Connect
and the connection is completed within seconds.
(A)
(B)
2. Before starting ADSL setting procedure, ensure that the ADSL indicator on
DSL-N10 front panel become solid.
DSL-N10
11N Wireless ADSL Modem Router
Power ADSL Internet Wireless 1 2 3
LAN
4
14 DSL-N10 Chapter 2: Setting up the hardware
Note:
• The PPPoE Internet connection type is used in this setup case. The setup screen varies with
different Internet connection types.
• Obtain the required information such as the user name and password from your Internet
Service Provider (ISP).

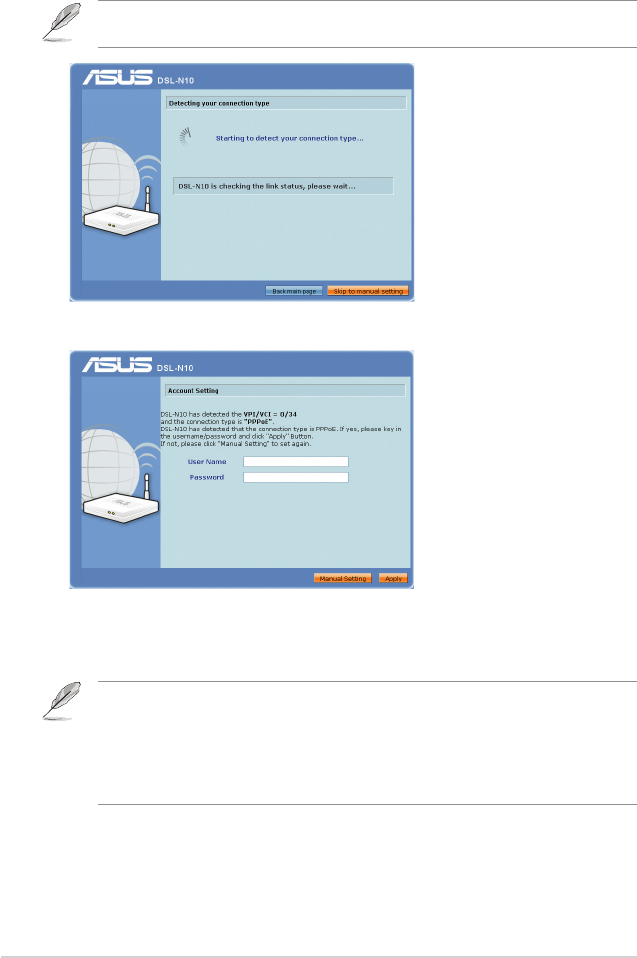

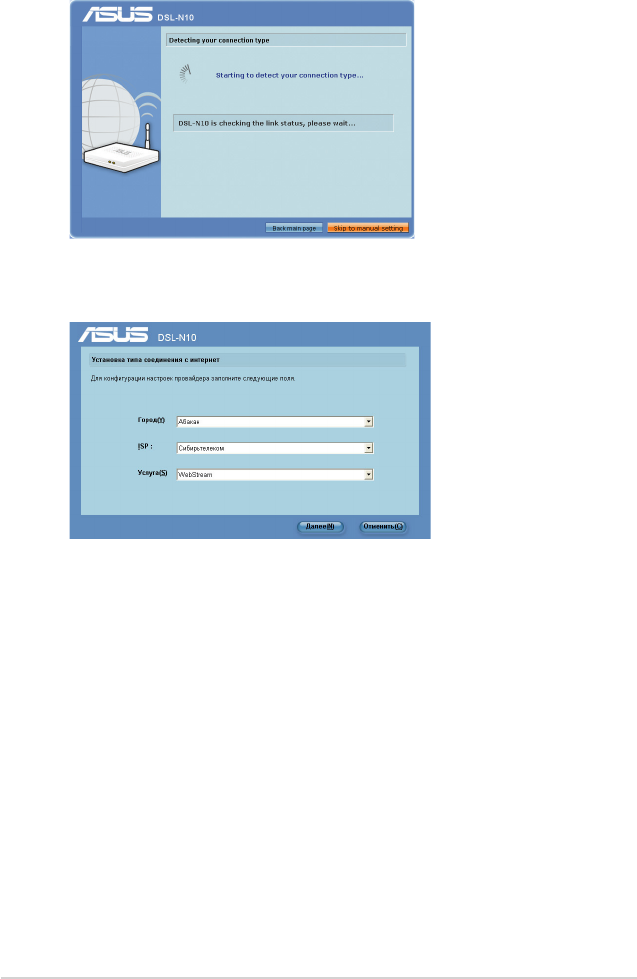

3. Launch your web browser. The QIS web page appears automatically and starts
detecting your connection type, VPI/VCI value and encapsulation mode.
Note: If the QIS web page does not appear after you launched your web browser, disable the
proxy settings on your web browser.
4. Key in the user name and password. Click Apply.
If the QIS cannot detect your Internet connection type, click Manual Setting
and set up the Internet connection manually.
15
Chapter 2: Setting up the hardware DSL-N10
5. The Internet connection setup is completed.
• Click Going to Internet to surf the Internet.
• Click Simply Wireless Security Setting to congure the basic security
settings including the SSID, authentication, and encryption methods for the
wireless router.
• Click Advanced Setting page to manually congure advanced settings for
the wireless router.
• Click Add to Favorites to add this URL to your Favorites list for quick
access to the web GUI.
16 DSL-N10 Chapter 3: Conguring the clients
3
Conguring the
network clients
Accessing the wireless ADSL router
Setting an IP address for wired or wireless clients
To access the ASUS Wireless ADSL Router, you must have the correct TCP/IP
settings on your wired or wireless clients. Ensure that the clients’ IP addresses are
within the same subnet as the ASUS Wireless ADSL Router.
By default, the ASUS Wireless ADSL Router integrates the DHCP server function,
which automatically assigns IP addresses to the clients in your network.
But in some instances, you may want to manually assign static IP addresses on
some of the clients or computers in your network rather than automatically getting
IP addresses from your wireless router.
Follow the instructions below that correspond to the operating system installed on
your client or computer.
Note: In the Router mode, if you want to manually assign an IP address to your client, we
recommend that you use the following settings:
• IP address: 192.168.1.xxx (xxx can be any number between 2 and 254. Ensure that the IP
address is not used by another device)
• Subnet Mask: 255.255.255.0 (same as the ASUS Wireless ADSL Router)
• Gateway: 192.168.1.1 (IP address of the ASUS Wireless ADSL Router)
• DNS: 192.168.1.1 (ASUS Wireless ADSL Router) or assign a known DNS server in your
network
17
Chapter 3: Conguring the clients DSL-N10
Windows® 2000
1. Click Start > Control Panel >
Network and Dial-up Connection.
Right-click Local Area Connection
then click Properties.
2. Select Internet Protocol (TCP/IP),
then click Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address: and
key in IP address, Subnet mask,
and Default gateway.
4. Select Obtain DNS server
address automatically if you
want the DNS server settings to be
assigned automatically. Otherwise,
select Use the following DNS
server addresses: and key in the
Preferred and Alternate DNS
server.
5. Click OK when done.
18 DSL-N10 Chapter 3: Conguring the clients

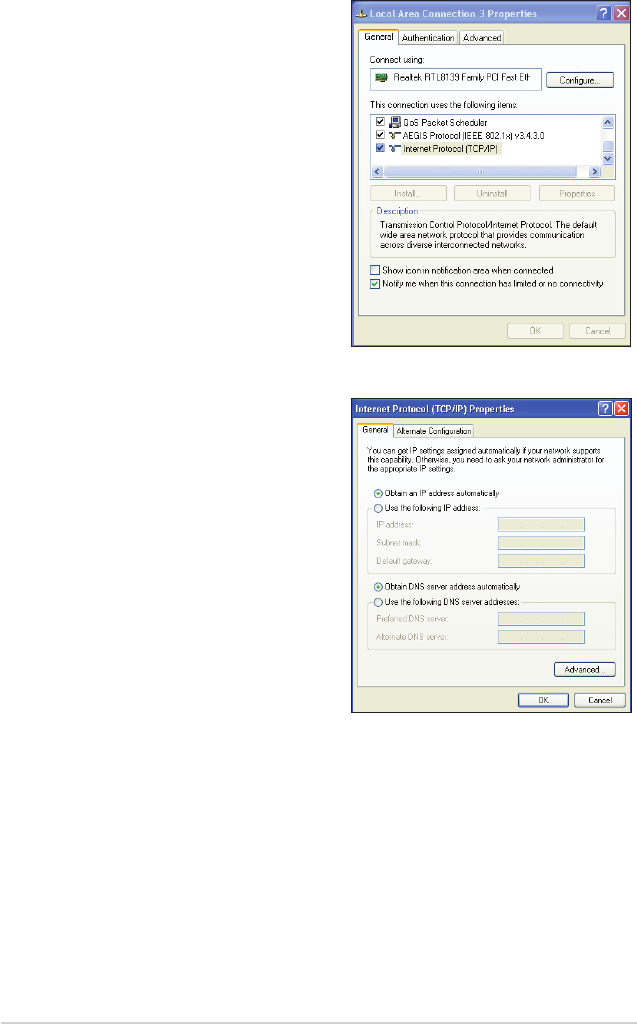

Windows® XP
1. Click Start > Control Panel >
Network Connection. Right-click
Local Area Connection then select
Properties.
2. Select Internet Protocol (TCP/IP),
then click Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address: and
key in IP address, Subnet mask,
and Default gateway.
4. Select Obtain DNS server
address automatically if you
want the DNS server settings to be
assigned automatically. Otherwise,
select Use the following DNS
server addresses: and key in the
Preferred and Alternate DNS
server.
5. Click OK when done.
19
Chapter 3: Conguring the clients DSL-N10

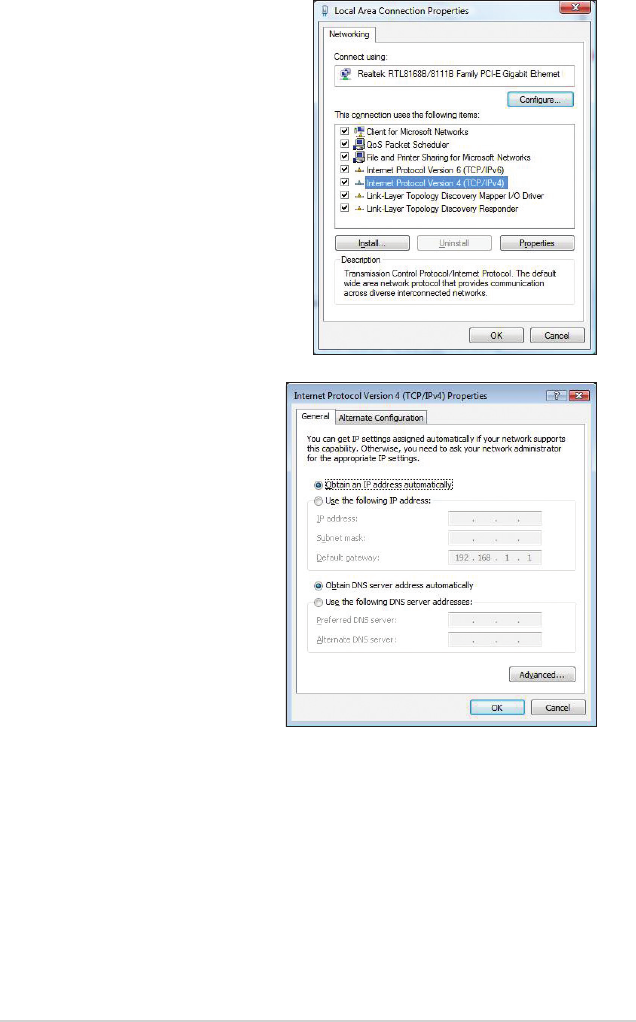

Windows® Vista/7
1. Go to Start > Control Panel >
Network and Internet > Network
and Sharing Center. Click View
status > Properties > Continue.
2. Select Internet Protocol
Version 4 (TCP/IPv4), then click
Properties.
3. Select Obtain an IP address
automatically if you want
the IP settings to be assigned
automatically. Otherwise, select
Use the following IP address:
and key in IP address and
Subnet mask.
4. Select Obtain DNS server
address automatically if you
want the DNS server settings
to be assigned automatically.
Otherwise, select Use the
following DNS server
addresses: and key in the
Preferred and Alternate DNS
server.
5. Click OK when done.
20 DSL-N10 Chapter 4: Conguring via the web GUI
4
Conguring via
the web GUI
Conguring via the web GUI
The router’s web Graphical User Interface (web GUI) allows you to congure these
features: Network Map, Quick Internet Setup, EZQoS Bandwidth Management
and other Advanced Setting.
To access the web GUI:

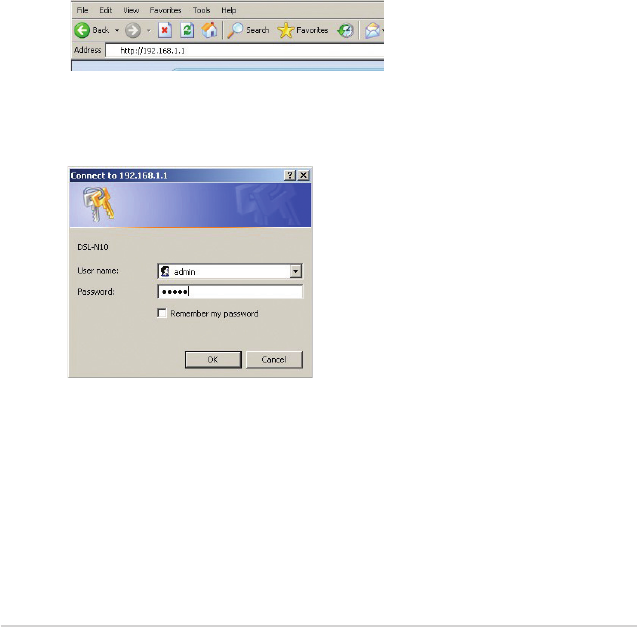

1. Launch a web browser, then key in the router’s IP address (192.168.1.1). The
login page of the router’s web GUI appears.
2. On the login page, key in the default user name (admin) and password
(admin).
21
Chapter 4: Conguring via the web GUI DSL-N10
3. From the main page, click the navigation menu or links to congure the various
features of the ASUS Wireless ADSL Router.
Using the Network Map
Network Map allows you to view the status and congure the connection settings
of the Internet, system, and clients in your network. It enables you to quickly set up
your Wide Area Network (WAN) using the Quick Internet Setup (QIS) feature.
To view the status or congure the settings, click any of these icons displayed on
the main page:
Icon Description
Internet status
Click this icon to display information on the Internet
connection status, WAN IP address, DNS, connection type,
and gateway address. From the Internet status screen, use
the Quick Internet Setup (QIS) feature to quickly set up your
WAN.
System status
Click this icon to display information on the SSID,
authentication and encryption methods, LAN IP, MAC
address, or turn the wireless radio on/off. Enable the WPS
mode from the System status screen.
Client status
Click this icon to display information about the clients or
computers in the network, and allows you to block/unblock
a client.
22 DSL-N10 Chapter 4: Conguring via the web GUI
Creating multiple SSID proles
The wireless router allows you to create multiple SSID proles that meet various
working scenarios.
To create an SSID prole:
1. Under System status, click Add.
2. Congure the prole settings, then click Add.
23
Chapter 4: Conguring via the web GUI DSL-N10
Managing bandwidth with EzQoS
EzQoS Bandwidth Management enables you to set the bandwidth priority and
manage the network trafc.
To set up the bandwidth priority:
1. Click EzQoS Bandwidth Management from the navigation menu at the left
side of your screen.
2. Click each of these four applications to set the bandwidth priority:
Icon Description
Gaming Blaster
The router handles gaming trafc at rst priority.
Internet Application
The router handles the e-mail, web browsing and other Internet
applications trafc at rst priority.
FTP
The router handles at rst priority the trafc of downloading/
uploading data to/from the FTP server.
Voip/Video Streaming
The router handles the audio/video trafc at rst priority.
3. Click Save to save the conguration settings.
24 DSL-N10 Chapter 4: Conguring via the web GUI
Upgrading the rmware
Note: Download the latest rmware from the ASUS website at http://www.asus.com.
To upgrade the rmware:
1. Click Advanced Setting from the navigation menu at the left side of your
screen.
2. Under the Administration menu, click Firmware Upgrade.
3. In the New Firmware Fileeld, click Browse to locate the new rmware on your
computer.
4. Click Upload. The uploading process takes about three minutes.

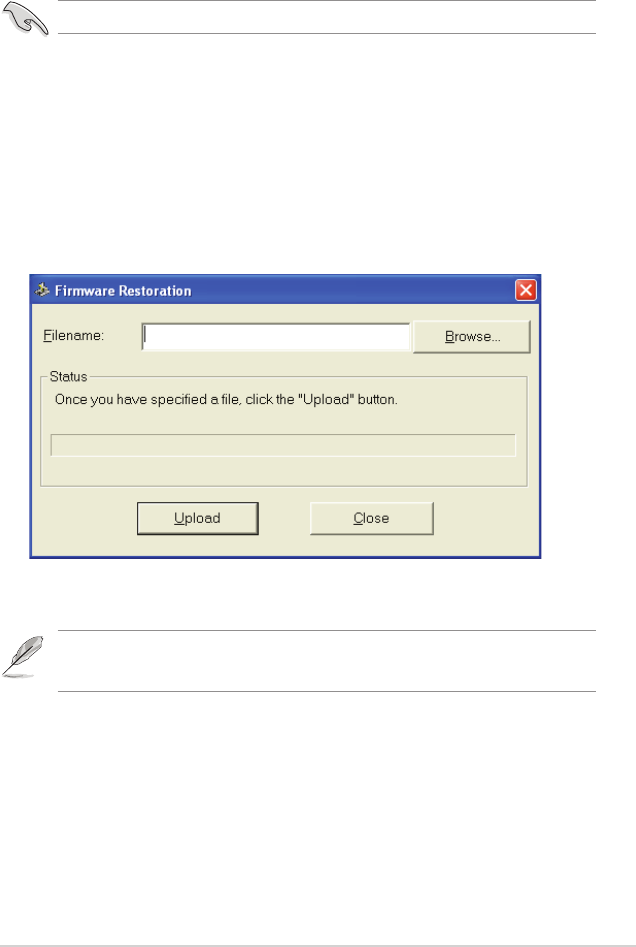

Note: If the upgrade process fails, use the Firmware Restoration utility to restore the system. For
details on this utility, refer to the section Firmware Restoration in Chapter 5 of this user manual.
25
Chapter 4: Conguring via the web GUI DSL-N10
Restoring/Saving/Uploading settings
To restore/save/upload the settings:
1. Click Advanced Setting from the navigation menu at the left side of your
screen.
2. Under the Administration menu, click Restore/Save/Upload Setting.
3. Select the tasks that you want to do:
• To restore to the default factory settings, click Restore, and click OK in the
conrmation message.
• To save the current system settings, click Save, and click Save in thele
download window to save the system le in your preferred path.
• To restore previous system settings, click Browse to locate the systemle that
you want to restore, then click Upload.
For more information about Advanced Setting, click the hyperlinked text. The help
information displayed on the right column guides you to use the router’s functions.
26 DSL-N10 Chapter 5: Installing the utilities
5
Installing
the utilities
2. Click Next.
Installing the utilities
The support CD contains the utilities for conguring the ASUS Wireless ADSL
Router. To install the ASUS WLAN Utilities in Microsoft® Windows, insert the
support CD in the CD drive. If Autorun is disabled, run setup.exe from the root
directory of the support CD.
To install the utilities:
1. Click Install...Utilities.
27
Chapter 5: Installing the utilities DSL-N10
3. Click Next to accept the default
destination folder or click Browse to
specify another path.
4. Click Next to accept the default
program folder or enter another
name.
5. Click Finish when setup is
completed.
28 DSL-N10 Chapter 5: Installing the utilities
Device Discovery
Device Discovery is an ASUS WLAN utility that detects an ASUS Wireless ADSL
Router and enables you to congure the device.
To launch the Device Discovery utility:
From your computer’s desktop, click Start > All Programs > ASUS Utility >
DSL-N10 Wireless ADSL Router > Device Discovery.
• Click Congure to access the web GUI and congure the wireless router.
• Click Search to search for ASUS wireless routers within range.
• Click Exit to exit the application.
29
Chapter 5: Installing the utilities DSL-N10
Firmware Restoration
Firmware Restoration is used on an ASUS Wireless ADSL Router that failed during
its rmware upgrading process. It uploads the rmware that you specify. The
process takes about three to four minutes.
Note: This is not a rmware upgrade utility and cannot be used on a working ASUS Wireless
ADSL Router. Normal rmware upgrades must be done through the web interface. Refer to
Chapter 4: Conguring via the web GUI for more details.
To launch the rescue mode and use the Firmware Restoration utility:
1. Unplug the wireless router from the power source.
2. Hold the Restore button at the rear panel and simultaneously re-plug the
wireless router into the power source. Release the Restore button when the
Power LED at the front panel ashes slowly, which indicates that the wireless
router is in the rescue mode.
3. From your computer’s desktop, click Start > All Programs > ASUS Utility >
DSL-N10 Wireless ADSL Router > Firmware Restoration.
Important: Launch the rescue mode before using the Firmware Restoration utility.
4. Specify a rmware le, then click Upload.
30 DSL-N10 Chapter 5: Installing the utilities
ADSL Setting Wizard
ADSL Setting Wizard helps you to set up your ADSL settings and establish a
secure wireless network using WPS function.
Note:
• You can use wired connection with an RJ-45 cable or a wireless LAN adapter with WPS
function.
• Windows® operating systems and wireless LAN cards/adapters that support WPS:
Using ADSL Setting Wizard
OS Support Wireless Adapter Support
Windows Vista 32/64
Windows 7 32/64
Windows 2008
ASUS/Intel wireless LAN card (not support WL-
167g and WL-160W)
ASUS WL-167g v2 driver v.3.0.6.0 or later
ASUS WL-160N/WL-130N driver v.2.0.0.0 or later
Windows XP SP2/SP3
Windows 2003 32-bit SP2/SP3
ASUS/Intel wireless LAN card (not support WL-
167g and WL-160W)
ASUS WL-167g v2 driver v.1.2.2.0 or later
ASUS WL-160N/WL-130N driver v.1.0.4.0 or later
Windows XP/2003 64-bit
Windows XP 32-bit SP1/ XP 32-bit
Windows 2003 32-bit SP1 / 2003
32-bit
Windows 2000 SP4
ASUS wireless LAN card with ASUS WLAN Utility
ASUS WL-167g v2 driver v.1.2.2.0 or later
ASUS WL-160N/WL-130N driver v.1.0.4.0 or later
To use ADSL Setting Wizard:
1. Follow the onscreen instructions to set up your hardware. You can use either
wired or wireless connection. When done, click Next.
Note: Use the ADSL Setting Wizard with one wireless client at a time. If the wireless client
cannot discover the wireless router, shorten the distance between the client and the router.
31
Chapter 5: Installing the utilities DSL-N10
2. Press the WPS button on your router. (Only for using wireless client card with
WPS function)
WPS button
3. On the ADSL Setting Wizard, click Next to continue.
Notes:
• When running WPS, the Internet connection pauses briey then reestablishes the connection.
• If the WPS button is pushed without running the ADSL Setting Wizard, the Power LED
indicator ashes and Internet connection pauses briey and then reestablishes the connection.
32 DSL-N10 Chapter 5: Installing the utilities

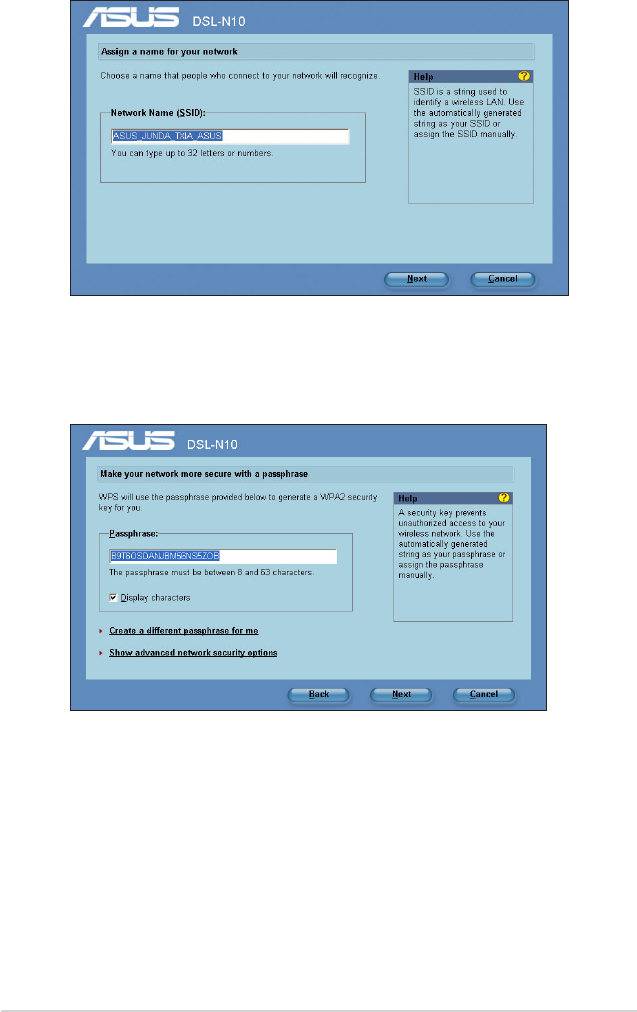

4. Key in desired network name or SSID (service set identier). When done, click
Next.
5. Create and key in a passphrase consisting of 8-63 characters or use the
automatically generated passphrase then click Next.
A passphrase is a sentence, phrase, or sequence of alpha-numeric characters
used to generate a security key.
33
Chapter 5: Installing the utilities DSL-N10

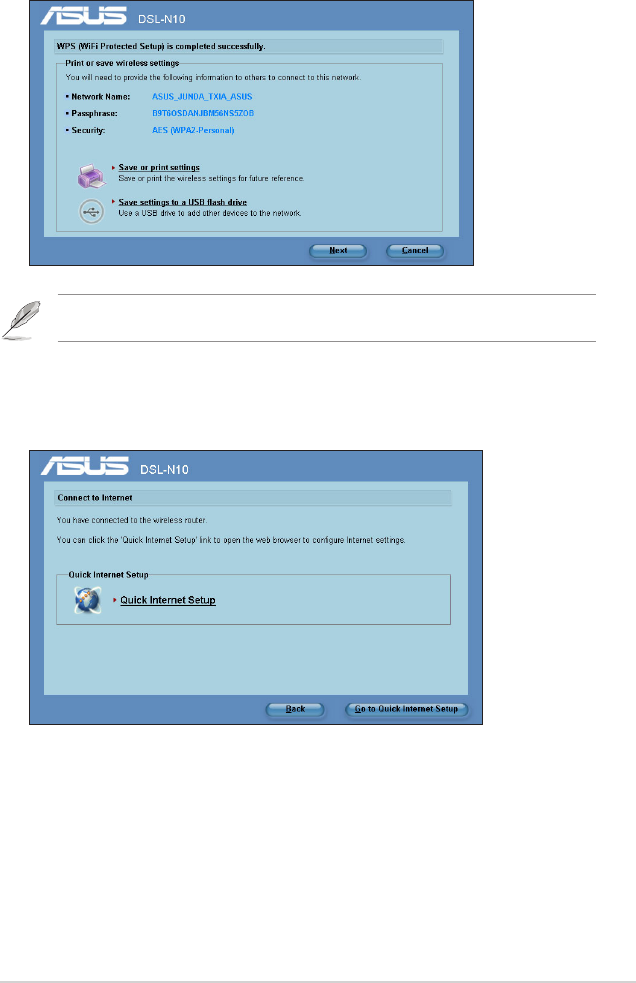

6. When nished, click Save or print settings for future reference or Save
settings to a USB ash drive to add other devices to the network. Click Next
to connect to the Internet.
7. You have connected to the wireless router. If you want to congure the Internet
(WAN) settings, click Quick Internet Setup.
Note: For more details on adding devices to the network using a USB ash drive, refer to the
section Adding network devices using a USB ash drive on the next page.
34 DSL-N10 Chapter 5: Installing the utilities
8. For Internet (WAN) settings, refer to section Using the Quick Internet Setup
(QIS) in Chapter 2 of this manual.
If you are a Russian user, follow the onscreen instructions to nish the ADSL
Internet (WAN) settings.
35
Chapter 5: Installing the utilities DSL-N10
Adding network devices using a USB ash drive
With the ADSL Setting Wizard, you can add devices to your network using a USB
ash drive.
To add network devices using a USB ash drive:
1. In the ADSL Setting Wizard, click Save settings to a USB ash drive.
2. Insert a USB ash drive into your computer's USB port, then select the drive
from the dropdown list. When done, click Next.
36 DSL-N10 Chapter 5: Installing the utilities
3. Unplug the USB flash drive from your computer then insert it to the other
computer that you want to add to your wireless network.
4. Locate SetupWireless.exe from the USB drive, and double-click to run it. Click
Yes to add the computer to the wireless network.
5. Click OK to exit the Wireless Network Setup Wizard.
37
Chapter 6: Troubleshooting DSL-N10
6
Troubleshooting
Troubleshooting
This troubleshooting guide provides solutions to some common problems that you
may encounter while installing or using the ASUS Wireless ADSL Router. These
problems require simple troubleshooting that you can perform by yourself. Contact
the ASUS Technical Support if you encounter problems not mentioned in this
chapter.
Problem Action
I cannot access the web GUI
for conguring the router.
1. Launch a web browser, then click Tools >
Internet Options...
2. Under Temporary Internet les, click
Delete Cookies... and Delete Files...
3. Disable the proxy settings of the web
browser.
The client cannot establish a
wireless connection with the
router.
Out of Range:
• Put the router closer to the wireless client.
• Try to change the channel settings.
Authentication:
• Use wired connection to connect to the
router.
• Check the wireless security settings.
• Press the Restore button at the rear panel
for more than ve seconds.
Cannot nd the router:
• Press the Restore button at the rear panel
for more than ve seconds.
• Check the setting in the wireless adapter
such as SSID and encryption settings.
• Check if the wireless indicator on the front
panel is off. Press the Wireless On/Off
button at the rear panel.
38 DSL-N10 Chapter 6: Troubleshooting
Problem Action
Cannot access the Internet
via wireless LAN adapter.
• Move the router closer to the wireless client.
• Check whether the wireless adapter is
connected to the correct wireless router.
• Check whether the wireless channel in use
conforms to the channels available in your
country/area.
• Check the encryption settings.
• Check if the ADSL or Cable connection is
correct.
• Retry using another Ethernet cable.
• Check if the wireless indicator on the front
panel is off. Press the Wireless On/Off
button at the rear panel.
Internet is not accessible. • Check the status indicators on the ADSL
modem and the wireless router.
• Check if the WAN LED on the wireless
router is ON. If the LED is not ON, change
the cable and try again.
• Check if the wireless indicator on the front
panel is off. Press the Wireless On/Off
button at the rear panel.
If the ADSL indicator light
blinks continuously or
stays off, Internet access
is not possible - the Router
is unable to establish a
connection with the ADSL
network.
• Ensure that all your cables are all properly
connected .
• Disconnect the power cord from the ADSL
or cable modem, wait a few minutes, then
reconnect the cord.
• If the ADSL light continues to blink or stays
OFF, contact your ADSL service provider.
Network name or encryption
keys are forgotten.
• Try setting up the wired connection and
conguring the wireless encryption again.
• Press the Restore button at the rear panel
of the wireless router for more than ve
seconds.
39
Chapter 6: Troubleshooting DSL-N10
Problem Action
How to restore the system to
its default settings?
• Press the Restore button at the rear panel
of the wireless router for more than ve
seconds.
• Refer to the section Restoring/Saving/
Uploading settings in Chapter 4 of this
user manual.
The following are the factory default settings:
User Name: admin
Password: admin
Enable DHCP: Yes (if WAN cable is plugged in)
IP address: 192.168.1.1
Domain Name: (Blank)
Subnet Mask: 255.255.255.0
DNS Server 1: 192.168.1.1
DNS Server 2: (Blank)
SSID: ASUS
I cannot use 192.168.1.1 to
enter the web GUI.
Check the router’s operation mode.
• In the Router mode, the default IP address
is 192.168.1.1.
• In the AP mode, use Device Discovery to
nd the router’s IP address.
40 DSL-N10 Chapter 6: Troubleshooting
ASUS DDNS Service
DSL-N10 supports the ASUS DDNS service. When exchanging devices at the
service center, if you have registered the ASUS DDNS service and want to keep
the original domain name, data transfer is a must. Visit your local service center for
more information.
Notes:
• If there is no activity in the domain - such as reconguring the router or accessing the
registered domain name - within 90 days, the system automatically deletes the registered
information.
• If you encounter any problem or difculty in using your device, contact the service center.
Frequently Asked Questions (FAQs)
1. Will the registered information be lost or registered by others?
If you have not updated the registered information in 90 days, the system
automatically deletes the registered information and the domain name may be
registered by others.
2. I did not register the ASUS DDNS for the router I bought six months ago.
Can I still register it?
Yes, you can still register the ASUS DDNS service for your router. The DDNS
service is embedded in your router, so you can register the ASUS DDNS
service anytime. Before registering, click Query to check if the hostname has
been registered or not. If not, the system registers the hostname automatically.
3. I have registered a domain name before and it has been working well until
my friends told me that they could not access my domain name.
Check the following:
1. The internet is working well.
2. The DNS server is working well.
3. The last time you updated the domain name.
If there are still problems in accessing your domain name, contact the service
center.
4. Can I register two domain names to separately access my http and ftp
servers?
No, you cannot. You can only register one domain name for one router. Use
port mapping to implement security in the network.
41
Chapter 6: Troubleshooting DSL-N10
5. After restarting the router, why is it that I see different WAN IPs in MS
DOS and in the router conguration page?
This is normal. The interval time between the ISP DNS server and ASUS
DDNS results in different WAN IPs in MS DOS and in the router conguration
page. Different ISPs may have different interval time for IP updating.
6. Is the ASUS DDNS service free, or is it just a trial version?
The ASUS DDNS service is a free and embedded service in some ASUS
routers. Check your ASUS router if it supports the ASUS DDNS service.
42 DSL-N10 Appendices
Declaration of Conformity for R&TTE directive
1999/5/EC
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been conducted. These are
considered relevant and sufcient.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1 and EN 301
489-17 has been conducted. These are considered relevant and sufcient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 328- 2 has been conducted.
These are considered relevant and sufcient.
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
Operation Channels: Ch1~11 for N. America, Ch1~14 Japan, Ch1~13 Europe
(ETSI)
GNU General Public License
Licensing information
This product includes copyrighted third-party software licensed under the terms of
the GNU General Public License. Please see The GNU General Public License
for the exact terms and conditions of this license. We include a copy of the GPL
with every CD shipped with our product. All future rmware updates will also
be accompanied with their respective source code. Please visit our web site for
updated information. Note that we do not offer direct support for the distribution.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license
document, but changing it is not allowed.
Appendices
43
Appendices DSL-N10
Preamble
The licenses for most software are designed to take away your freedom to
share and change it. By contrast, the GNU General Public License is intended
to guarantee your freedom to share and change free software--to make sure the
software is free for all its users. This General Public License applies to most of the
Free Software Foundation’s software and to any other program whose authors
commit to using it. (Some other Free Software Foundation software is covered
by the GNU Library General Public License instead.) You can apply it to your
programs, too.
When we speak of free software, we are referring to freedom, not price. Our
General Public Licenses are designed to make sure that you have the freedom to
distribute copies of free software (and charge for this service if you wish), that you
receive source code or can get it if you want it, that you can change the software or
use pieces of it in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny
you these rights or to ask you to surrender the rights. These restrictions translate
to certain responsibilities for you if you distribute copies of the software, or if you
modify it.
For example, if you distribute copies of such a program, whether gratis or for a
fee, you must give the recipients all the rights that you have. You must make sure
that they, too, receive or can get the source code. And you must show them these
terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you
this license which gives you legal permission to copy, distribute and/or modify the
software.
Also, for each author’s protection and ours, we want to make certain that everyone
understands that there is no warranty for this free software. If the software is
modied by someone else and passed on, we want its recipients to know that what
they have is not the original, so that any problems introduced by others will not
reect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents. We wish to
avoid the danger that redistributors of a free program will individually obtain patent
licenses, in effect making the program proprietary. To prevent this, we have made it
clear that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modication follow.
Terms & conditions for copying, distribution, & modication
0. This License applies to any program or other work which contains a notice
placed by the copyright holder saying it may be distributed under the terms of
44 DSL-N10 Appendices
this General Public License. The “Program”, below, refers to any such program
or work, and a “work based on the Program” means either the Program or
any derivative work under copyright law: that is to say, a work containing
the Program or a portion of it, either verbatim or with modications and/or
translated into another language. (Hereinafter, translation is included without
limitation in the term “modication”.) Each licensee is addressed as “you”.
Activities other than copying, distribution and modication are not covered
by this License; they are outside its scope. The act of running the Program is
not restricted, and the output from the Program is covered only if its contents
constitute a work based on the Program (independent of having been made by
running the Program). Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program’s source code
as you receive it, in any medium, provided that you conspicuously and
appropriately publish on each copy an appropriate copyright notice and
disclaimer of warranty; keep intact all the notices that refer to this License and
to the absence of any warranty; and give any other recipients of the Program a
copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may
at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it,
thus forming a work based on the Program, and copy and distribute such
modications or work under the terms of Section 1 above, provided that you
also meet all of these conditions:
a) You must cause the modied les to carry prominent notices stating that
you changed the les and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in
part contains or is derived from the Program or any part thereof, to be licensed
as a whole at no charge to all third parties under the terms of this License.
c) If the modied program normally reads commands interactively when run,
you must cause it, when started running for such interactive use in the most
ordinary way, to print or display an announcement including an appropriate
copyright notice and a notice that there is no warranty (or else, saying that
you provide a warranty) and that users may redistribute the program under
these conditions, and telling the user how to view a copy of this License.
(Exception: if the Program itself is interactive but does not normally print such
an announcement, your work based on the Program is not required to print an
announcement.)
These requirements apply to the modied work as a whole. If identiable
sections of that work are not derived from the Program, and can be reasonably
considered independent and separate works in themselves, then this License,
and its terms, do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as part of a whole
which is a work based on the Program, the distribution of the whole must be on
the terms of this License, whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless of who wrote it.
45
Appendices DSL-N10
Thus, it is not the intent of this section to claim rights or contest your rights to
work written entirely by you; rather, the intent is to exercise the right to control
the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with
the Program (or with a work based on the Program) on a volume of a storage
or distribution medium does not bring the other work under the scope of this
License.
3. You may copy and distribute the Program (or a work based on it, under Section
2) in object code or executable form under the terms of Sections 1 and 2 above
provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source
code, which must be distributed under the terms of Sections 1 and 2 above on
a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any
third party, for a charge no more than your cost of physically performing source
distribution, a complete machine-readable copy of the corresponding source
code, to be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute
corresponding source code. (This alternative is allowed only for noncommercial
distribution and only if you received the program in object code or executable
form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making
modications to it. For an executable work, complete source code means
all the source code for all modules it contains, plus any associated interface
denition les, plus the scripts used to control compilation and installation of
the executable. However, as a special exception, the source code distributed
need not include anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless that component itself
accompanies the executable.
If distribution of executable or object code is made by offering access to copy
from a designated place, then offering equivalent access to copy the source
code from the same place counts as distribution of the source code, even
though third parties are not compelled to copy the source along with the object
code.
4. You may not copy, modify, sublicense, or distribute the Program except as
expressly provided under this License. Any attempt otherwise to copy, modify,
sublicense or distribute the Program is void, and will automatically terminate
your rights under this License. However, parties who have received copies, or
rights, from you under this License will not have their licenses terminated so
long as such parties remain in full compliance.
46 DSL-N10 Appendices
5. You are not required to accept this License, since you have not signed it.
However, nothing else grants you permission to modify or distribute the
Program or its derivative works. These actions are prohibited by law if you do
not accept this License. Therefore, by modifying or distributing the Program (or
any work based on the Program), you indicate your acceptance of this License
to do so, and all its terms and conditions for copying, distributing or modifying
the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program),
the recipient automatically receives a license from the original licensor to
copy, distribute or modify the Program subject to these terms and conditions.
You may not impose any further restrictions on the recipients’ exercise of the
rights granted herein. You are not responsible for enforcing compliance by third
parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement
or for any other reason (not limited to patent issues), conditions are imposed
on you (whether by court order, agreement or otherwise) that contradict the
conditions of this License, they do not excuse you from the conditions of this
License. If you cannot distribute so as to satisfy simultaneously your obligations
under this License and any other pertinent obligations, then as a consequence
you may not distribute the Program at all. For example, if a patent license
would not permit royalty-free redistribution of the Program by all those who
receive copies directly or indirectly through you, then the only way you could
satisfy both it and this License would be to refrain entirely from distribution of
the Program.
If any portion of this section is held invalid or unenforceable under any
particular circumstance, the balance of the section is intended to apply and the
section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or
other property right claims or to contest validity of any such claims; this section
has the sole purpose of protecting the integrity of the free software distribution
system, which is implemented by public license practices. Many people have
made generous contributions to the wide range of software distributed through
that system in reliance on consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute software through any
other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a
consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries
either by patents or by copyrighted interfaces, the original copyright holder
who places the Program under this License may add an explicit geographical
distribution limitation excluding those countries, so that distribution is permitted
only in or among countries not thus excluded. In such case, this License
47
Appendices DSL-N10
incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the
General Public License from time to time. Such new versions will be similar in
spirit to the present version, but may differ in detail to address new problems or
concerns.
Each version is given a distinguishing version number. If the Program species
a version number of this License which applies to it and “any later version”, you
have the option of following the terms and conditions either of that version or
of any later version published by the Free Software Foundation. If the Program
does not specify a version number of this License, you may choose any version
ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose
distribution conditions are different, write to the author to ask for permission.
For software which is copyrighted by the Free Software Foundation, write to
the Free Software Foundation; we sometimes make exceptions for this. Our
decision will be guided by the two goals of preserving the free status of all
derivatives of our free software and of promoting the sharing and reuse of
software generally.
NO WARRANTY
11 BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS
NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING
THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE
THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL
NECESSARY SERVICING, REPAIR OR CORRECTION.
12 IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED
TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER
PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS
PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING
ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM
(INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING
RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD
PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY
OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
48 DSL-N10 Appendices
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and
Restriction of Chemicals) regulatory framework, we published the chemical
substances in our products at ASUS REACH website at http://scr.asus.com/
english/index.aspx
Safety Warning
SAFE TEMP: This wireless router should be only used in environments with
ambient temperatures between 5ºC(41ºF) and 40ºC(104ºF).
DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem
during electrical storms.
49
Appendices DSL-N10
ASUS Contact Information
ASUSTeK COMPUTER INC. (Asia Pacic)
Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259
Website www.asus.com.tw
Technical Support
Telephone +886228943447
Support Fax +886228907698
Online support support.asus.com
ASUS COMPUTER INTERNATIONAL (America)
Address 800 Corporate Way, Fremont, CA 94539, USA
Telephone +15107393777
Fax +15106084555
Website usa.asus.com
Online support support.asus.com
ASUS COMPUTER GmbH (Germany and Austria)
Address Harkort Str. 21-23, D-40880 Ratingen, Germany
Telephone +491805010923*
Fax +492102959911
Website www.asus.de
Online contact www.asus.de/sales
Technical Support
Telephone (Component, Networking) +491805010923*
Telephone (System/Notebook/Eee/LCD) +491805010920*
Fax +492102959911
Online support support.asus.com
* EUR 0.14/minute from a German xed landline; EUR 0.42/minute from a mobile phone.
50 DSL-N10 Appendices
Area Hotline Number Support
Languages
Working
Hour
Working
Day
Australia 1300-2787-88 English 9:00-18:00 Mon. to Fri.
Austria 0043-820240513 German 9:00-18:00 Mon. to Fri.
Belgium 0032-78150231 Dutch /French 9:00-17:00 Mon. to Fri.
China 800-820-6655;
021-34074610 Simplied Chinese 9:00-18:00 Mon. to Sun.
Denmark 0045-3832-2943 Denish/English 9:00-17:00 Mon. to Fri.
Finland 00358-9693-7969 Finnish/English/
Swedish 10:00-18:00 Mon. to Fri.
France 0033-170949400 France 9:00-17:45 Mon. to Fri.
Greece 00800-44-14-20-44 Greek 9:00-13:00;
14:00-18:00 Mon. to Fri.
Hong Kong 3582-4770
Cantonese/
Chinese/
English
10:00-20:00 Mon. to Fri.
10:00-17:00 Sat.
Ireland 0035-31890719918 English 9:00-17:00 Mon. to Fri.
Japan 0800-123-2787 Japanese 9:00-18:00 Mon. to Fri.
9:00-17:00 Sat. to Sun.
Malaysia
+603 2148 0827 (Check
Repair Detail Status
Only)
+603-6279-5077
Bahasa Melayu/
English 10:00-19:00 Mon. to Fri.
Netherlands
/ Luxembourg 0031-591-570290 Dutch / English 9:00-17:00 Mon. to Fri.
New Zealand 0800-278-788 /
0800-278-778 English 9:00-17:00 Mon. to Fri.
Norway 0047-2316-2682 Norwegian
/English 9:00-17:00 Mon. to Fri.
Philippine +632-636 8504;
180014410573 English 9:00-18:00 Mon. to Fri.
Poland 00225-718-033
00225-718-040 Polish 9:00-17:00
8:30-17:30 Mon. to Fri.
Portugal 707-500-310 Portuguese 9:00-17:00 Mon. to Fri.
Russia +8-800-100-ASUS; +7-
495-231-1999
Russian/
English 9:00-18:00 Mon. to Fri.
Singapore
+65-6720-3835
(Check Repair Detail
Status Only)
-66221701
English 11:00-19:00 Mon. to Fri.
Slovak 00421-232-162-621 Czech 8:00-17:00 Mon. to Fri.
Spain 902-88-96-88 Spanish 9:00-18:00 Mon. to Fri.
Sweden 0046-8587-6940 Swedish/
English 9:00-17:00 Mon. to Fri.
Networks Global Hotline Information
51
Appendices DSL-N10
Area Hotline Number Support
Languages
Working
Hour
Working
Day
Switzerland
0041-848111010 German/French 9:00-18:00 Mon. to Fri.
0041-848111014 French 9:00-17:45 Mon. to Fri.
0041-848111012 Italian 9:00-17:00 Mon. to Fri.
Taiwan 0800-093-456;
02-81439000
Traditional Chi-
nese
9:00-12:00;
13:30-18:00 Mon. to Fri.
Thailand +662-679-8367 -70; 001
800 852 5201 Thai/English 9:00-18:00 Mon. to Fri.
Turkey +90-216-524-3000 Turkish 09:00-18:00 Mon. to Fri
United Kingdom 0044-870-1208340;
0035-31890719918 English 9:00-17:00 Mon. to Fri.
Networks Global Hotline Information
52 DSL-N10 Appendices
Manufacturer: ASUSTeK Computer Inc.
Tel: +886-2-2894-3447
Address: No. 150, LI-TE RD., PEITOU, TAIPEI
112, TAIWAN
Authorised representative
in Europe:
ASUS Computer GmbH
Address: HARKORT STR. 21-23, 40880
RATINGEN, GERMANY
Authorised distributors
in Turkey:
BOGAZICI BIL GISAYAR SAN. VE TIC. A.S.
Tel: +90 212 3311000
Address: AYAZAGA MAH. KEMERBURGAZ
CAD. NO.10 AYAZAGA/ISTANBUL
CIZGI Elektronik San. Tic. Ltd. Sti.
Tel: +90 212 3567070
Address: CEMAL SURURI CD. HALIM MERIC IS
MERKEZI
No: 15/C D:5-6 34394 MECIDIYEKOY/
ISTANBUL
EEE Yönetmeliğine Uygundur.

Navigation menu
