English
User Manual
ASUS Tablet
P1801-T
English
P1801-T ASUS Tablet can be used with P1801 ASUS All-in-one PC
COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO
EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING
FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective
companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE
SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING
THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2012 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from
ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no
more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other
actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the
listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this
Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are
collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR
DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR
ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR
RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
December 2012
E7909
English
3
ASUS Tablet
Table of Contents
About this manual ................................................................................................................................................ 5
Conventions used in this manual ....................................................................................................................... 5
Typography ................................................................................................................................................................. 5
Safety information ................................................................................................................................................ 6
Setting up your system...........................................................................................................................................6
Care during use ......................................................................................................................................................... 6
Sound Pressure Warning ........................................................................................................................................ 7
Package contents .................................................................................................................................................. 8
Chapter 1: Hardware Setup
Getting to know your ASUS Tablet ................................................................................................................. 9
Front view ....................................................................................................................................................................9
Side views ....................................................................................................................................................................10
Bottom view ...............................................................................................................................................................11
Rear view .....................................................................................................................................................................12
Chapter 2: Using your ASUS Tablet
Placing your ASUS Tablet on the table or desk ........................................................................................... 13
Charging your ASUS Tablet ................................................................................................................................ 14

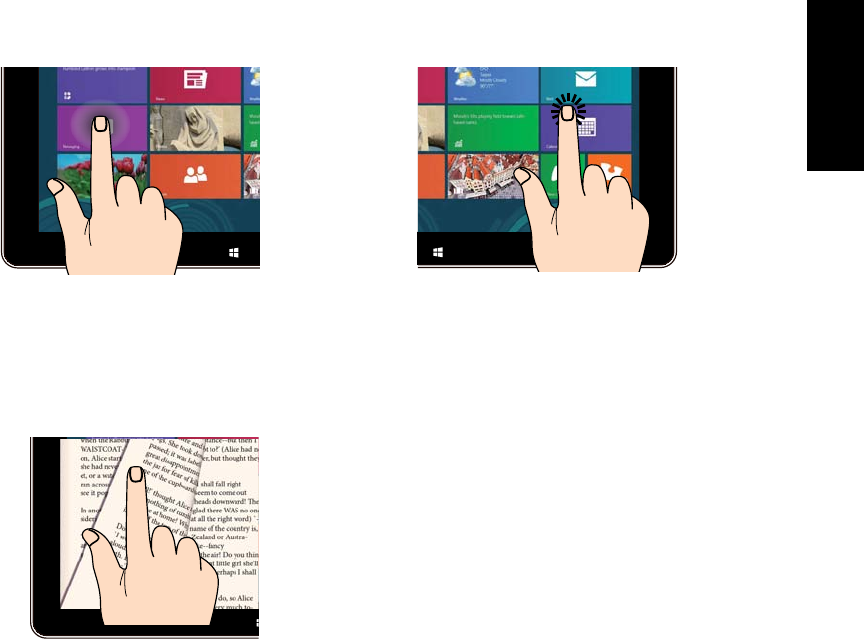

Using Gestures ....................................................................................................................................................... 14
Chapter 3: Working with Android®
Basics ......................................................................................................................................................................... 16
Unlocking your device ............................................................................................................................................ 16
Entering the camera mode ................................................................................................................................... 16

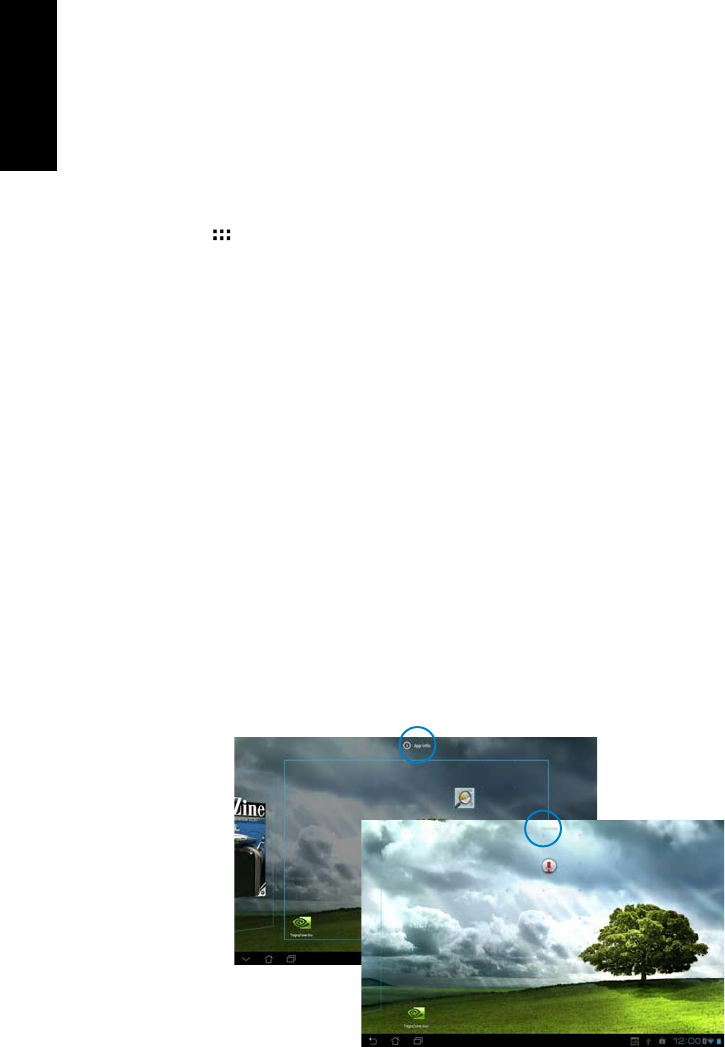

Home Screen .............................................................................................................................................................. 17
Screen Views............................................................................................................................................................... 18
Connecting to the world .................................................................................................................................... 19

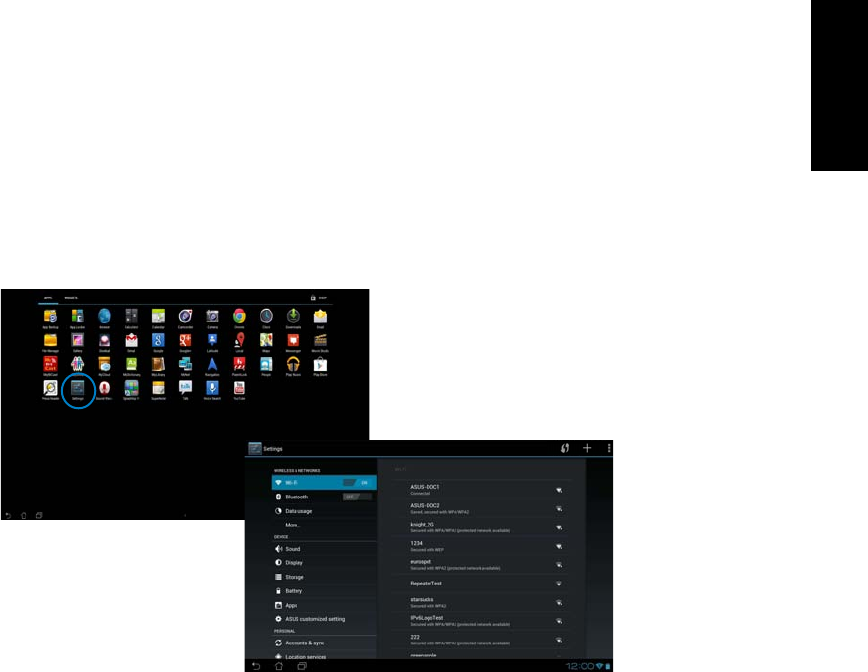

Connecting to Wi-Fi networks ............................................................................................................................. 19
Using Bluetooth ........................................................................................................................................................20
Using apps and widgets ..................................................................................................................................... 22
Managing Apps ......................................................................................................................................................... 22
Task Manager .............................................................................................................................................................25

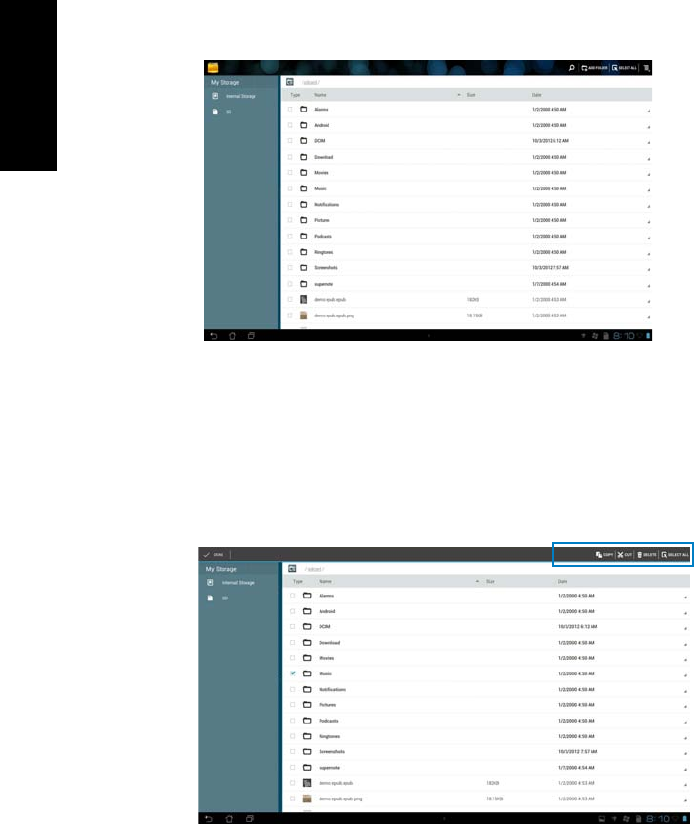

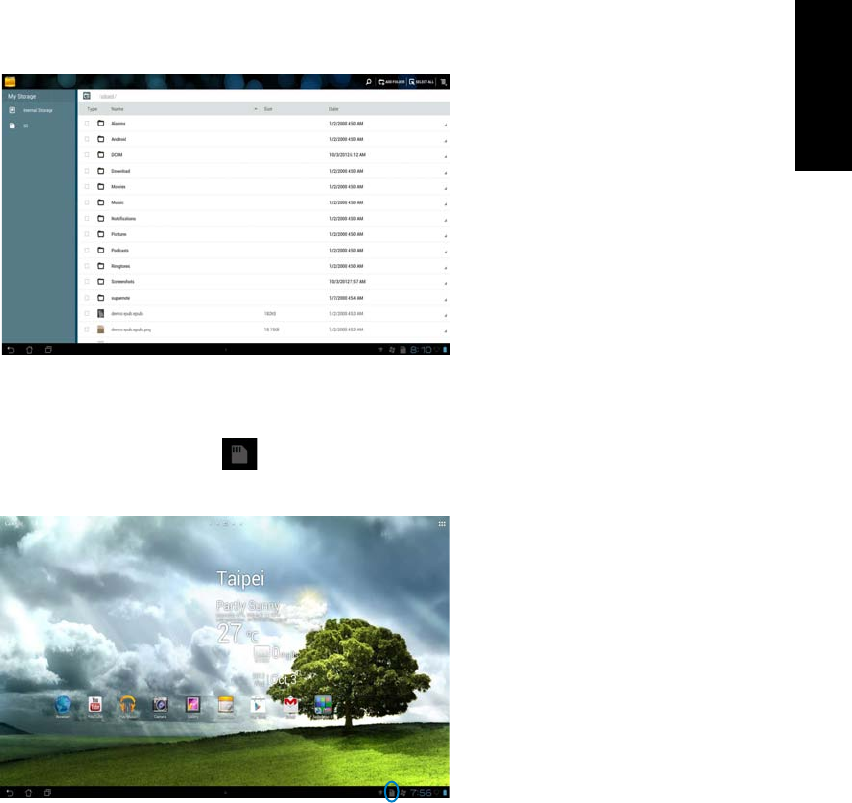

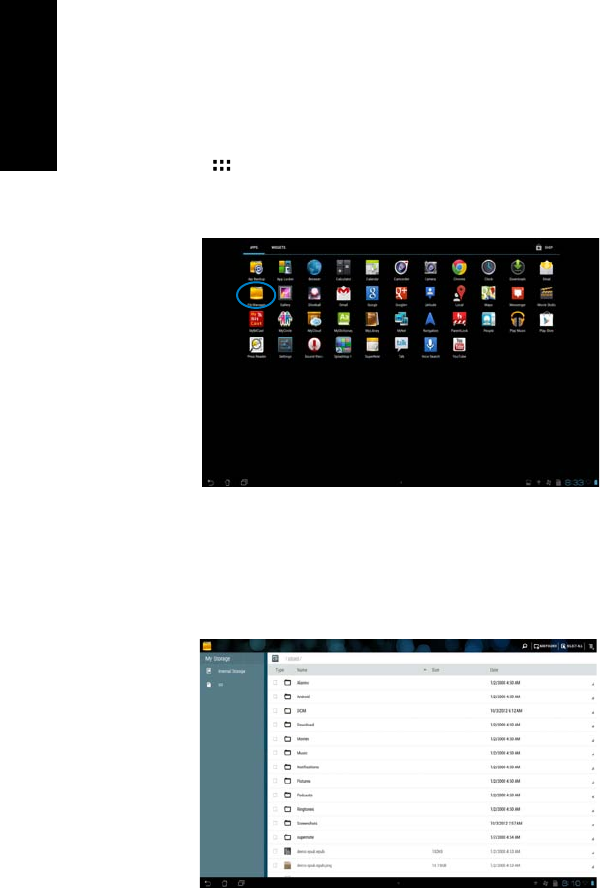

File Manager ............................................................................................................................................................... 26

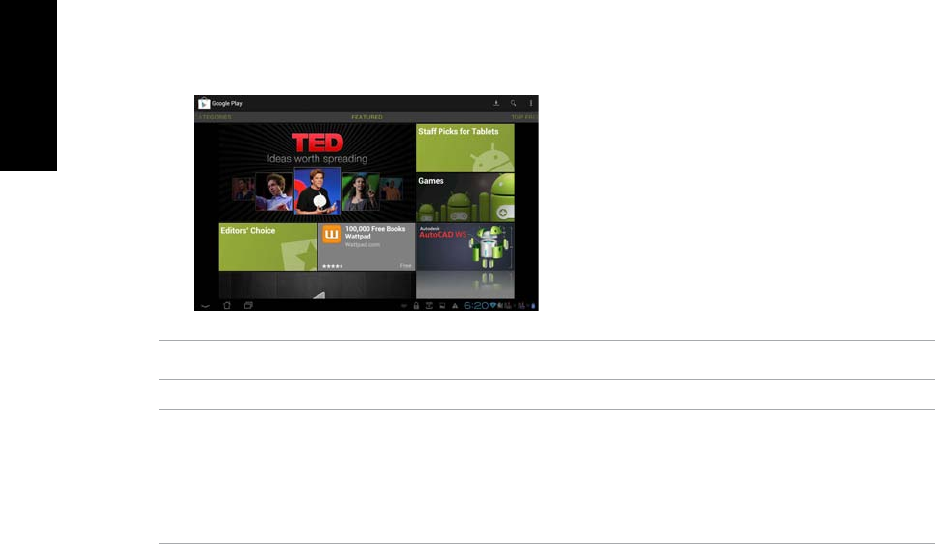

Play Store .....................................................................................................................................................................29
Settings ........................................................................................................................................................................ 31
Music ............................................................................................................................................................................34
English
4
ASUS Tablet
Table of Contents
Gallery ........................................................................................................................................................................... 35
Camera ......................................................................................................................................................................... 39
Email ..............................................................................................................................................................................41

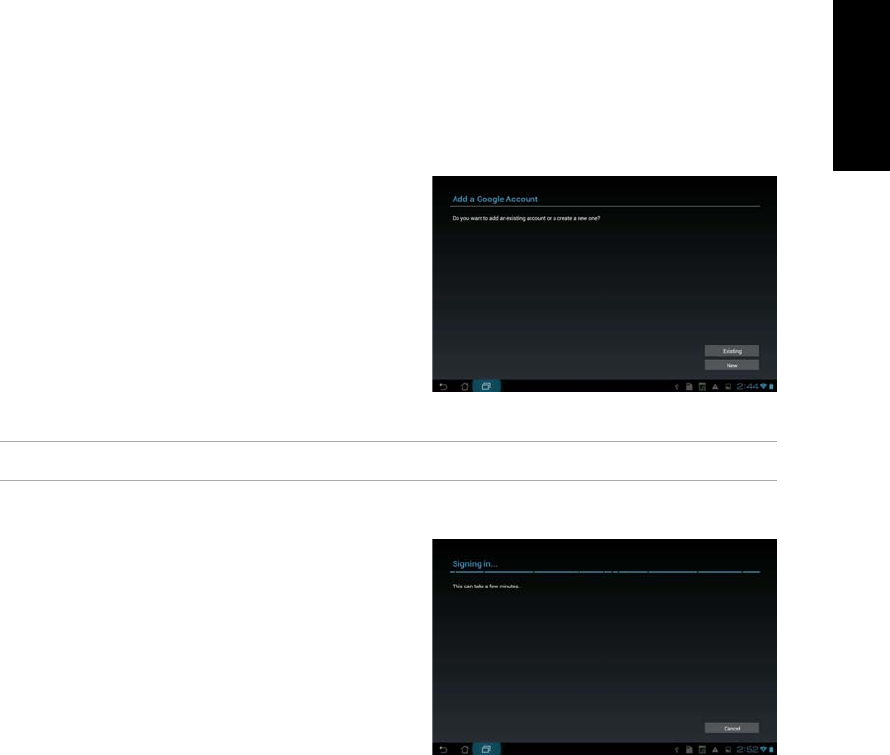

Gmail ............................................................................................................................................................................43

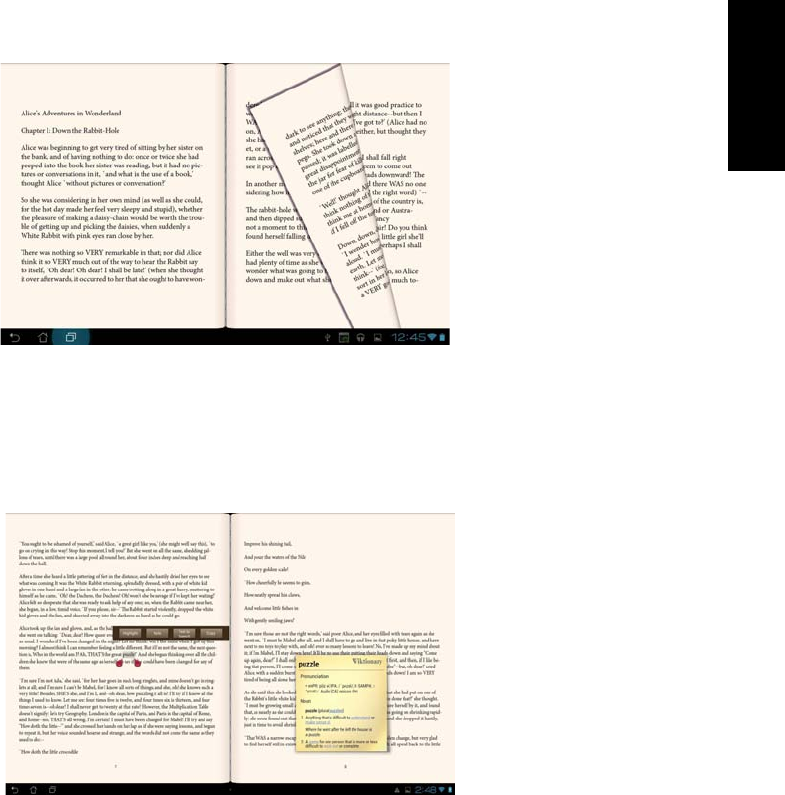

MyLibrary ..................................................................................................................................................................... 45

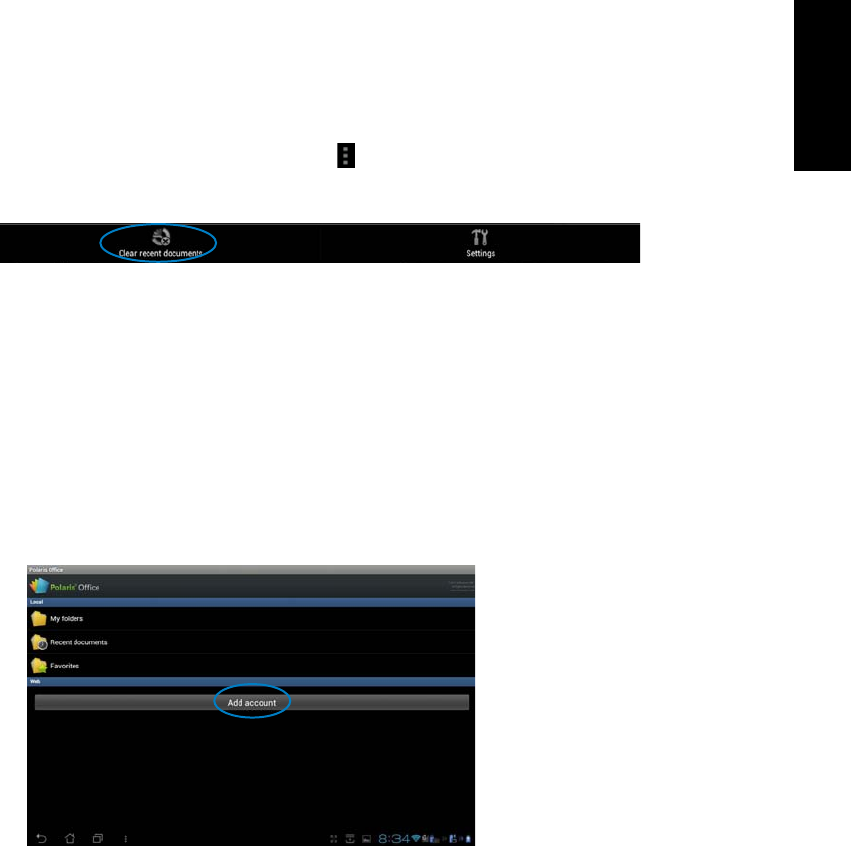

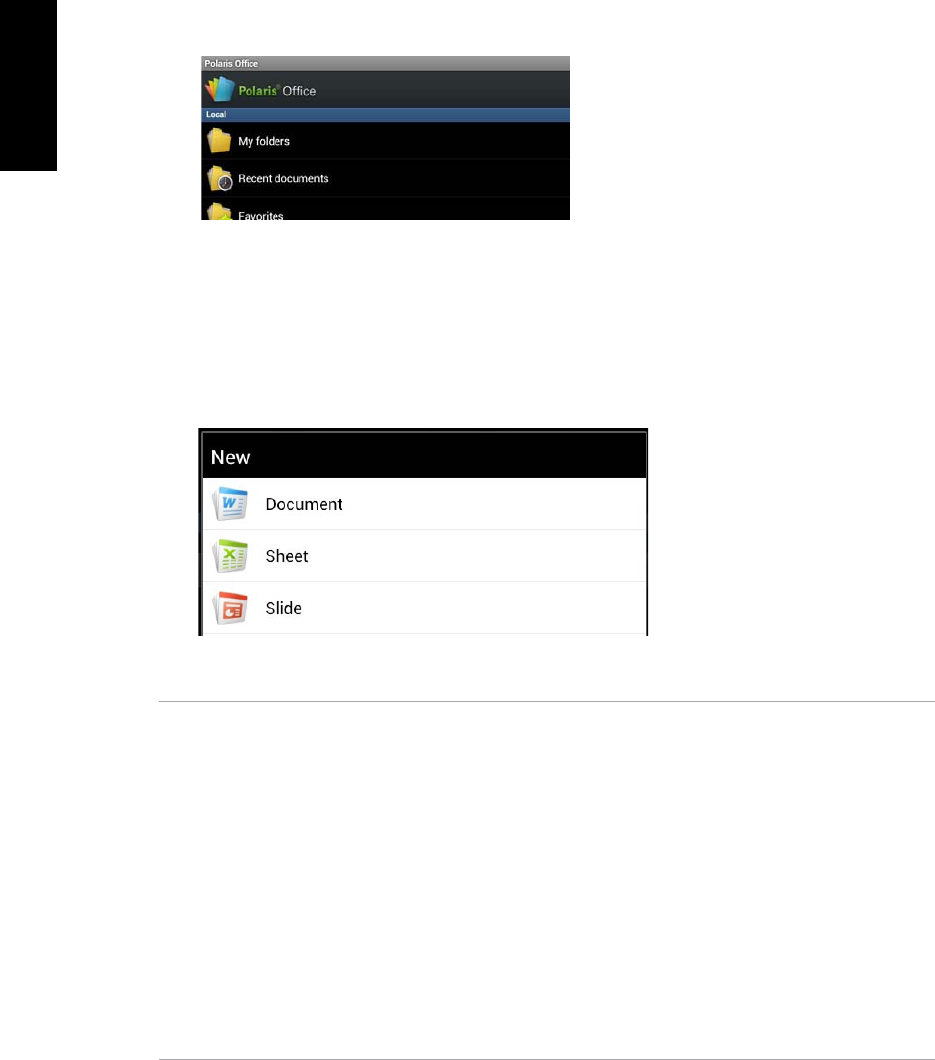

Polaris® Office ............................................................................................................................................................ 49

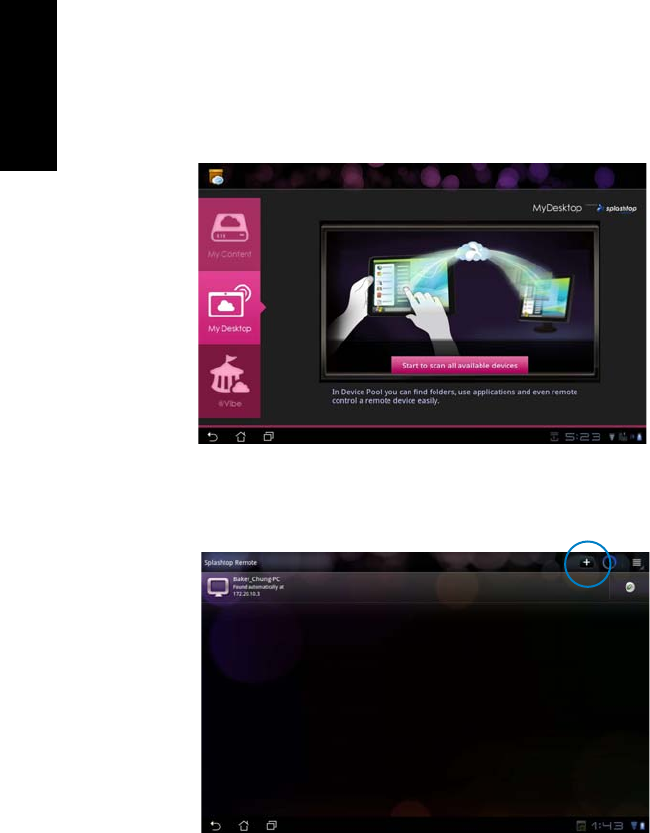

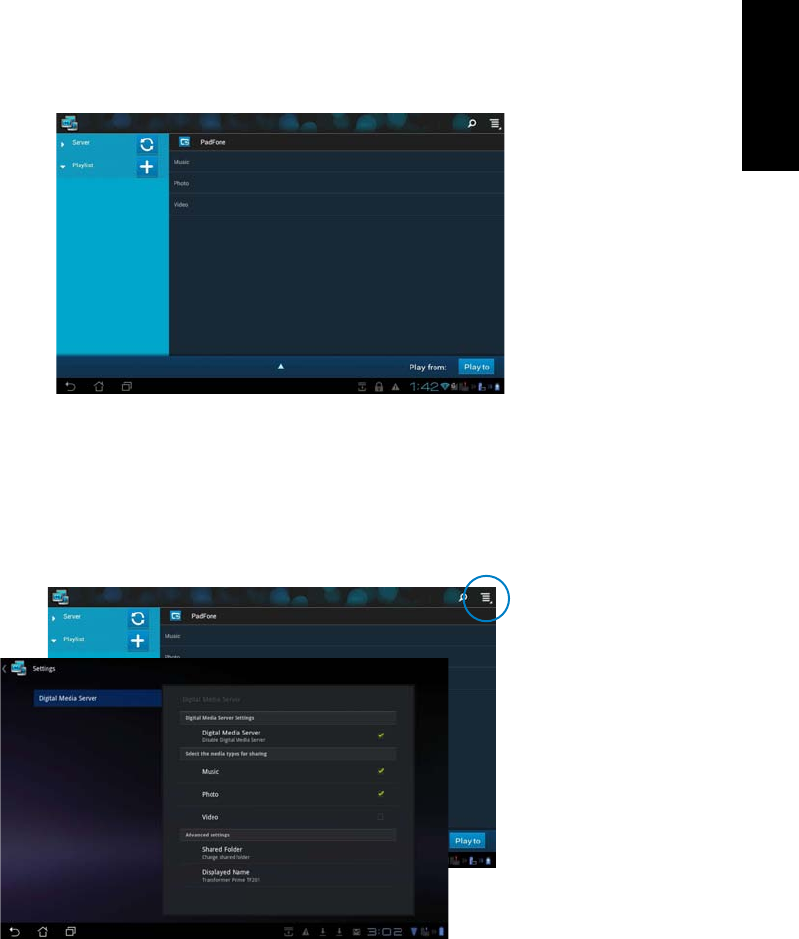

MyNet ......................................................................................................................................................................... 52

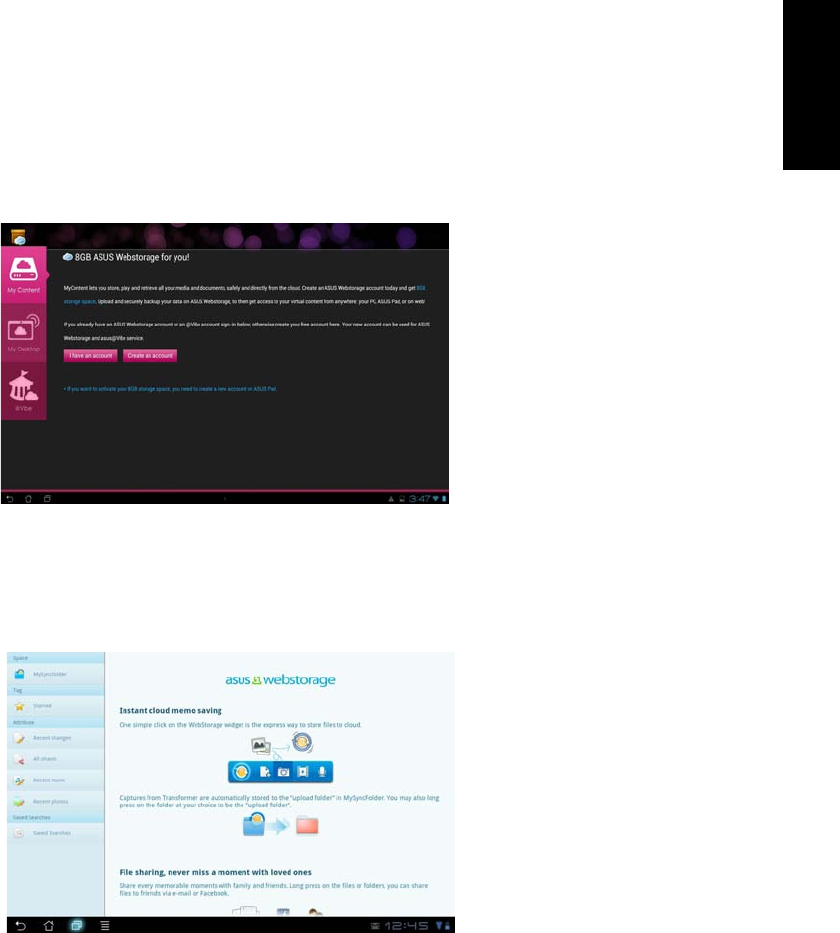

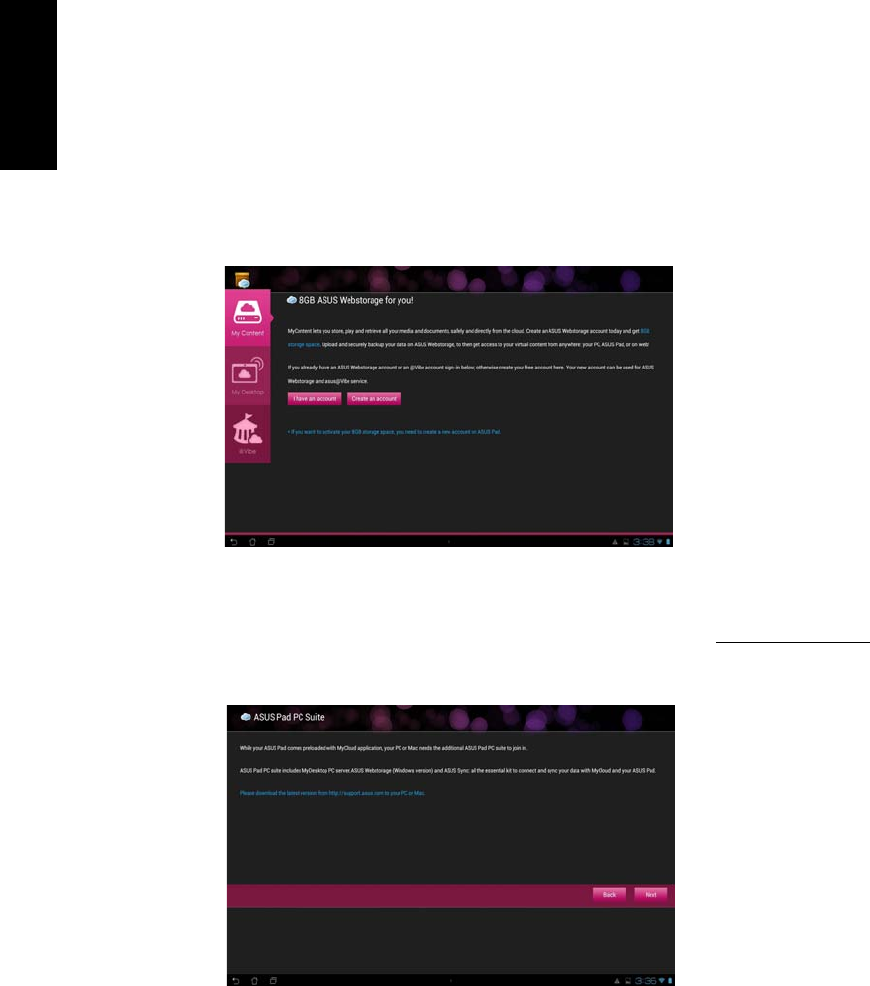

MyCloud ...................................................................................................................................................................... 56

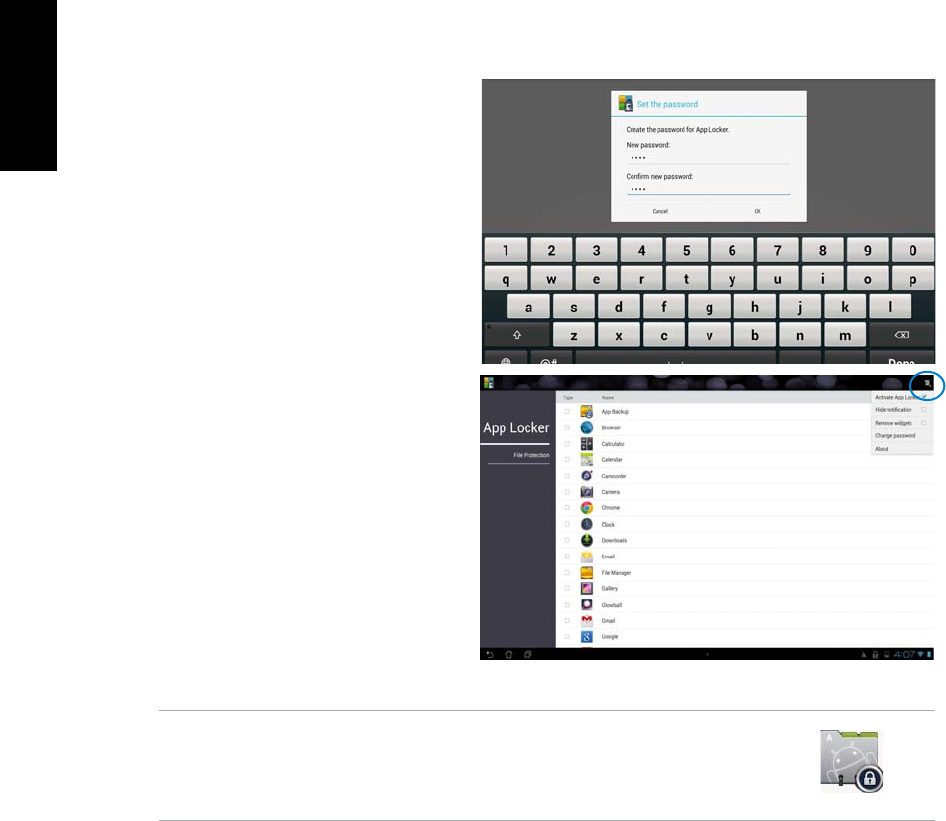

App Locker .................................................................................................................................................................. 64

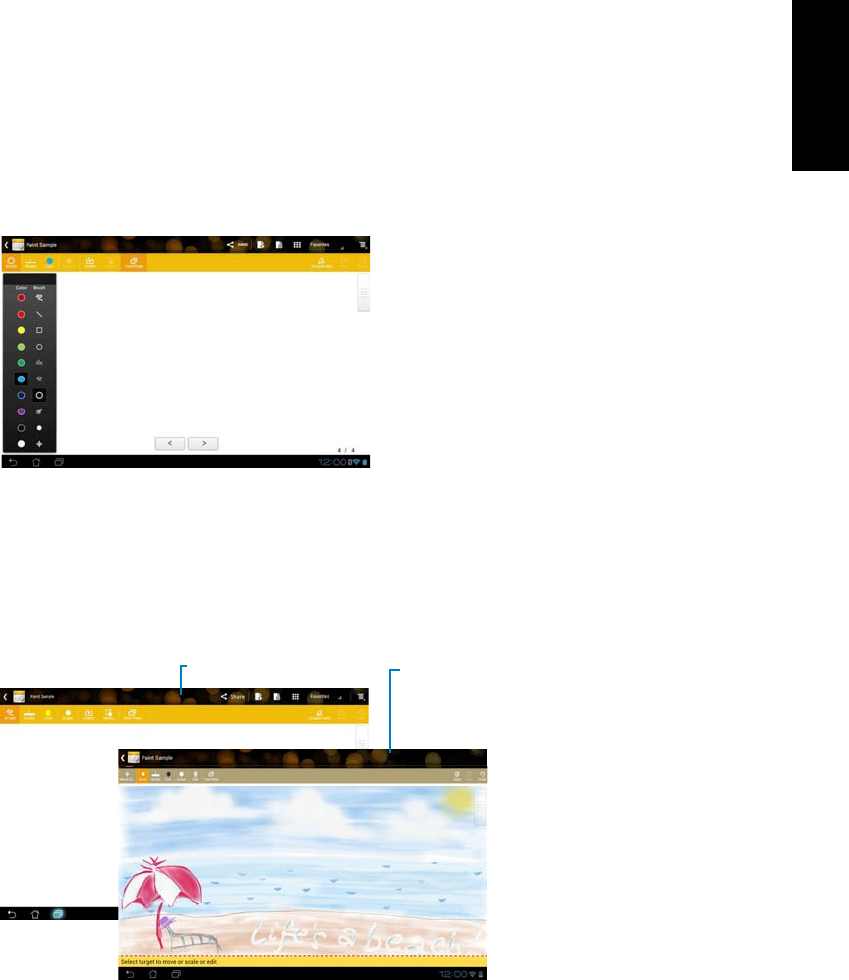

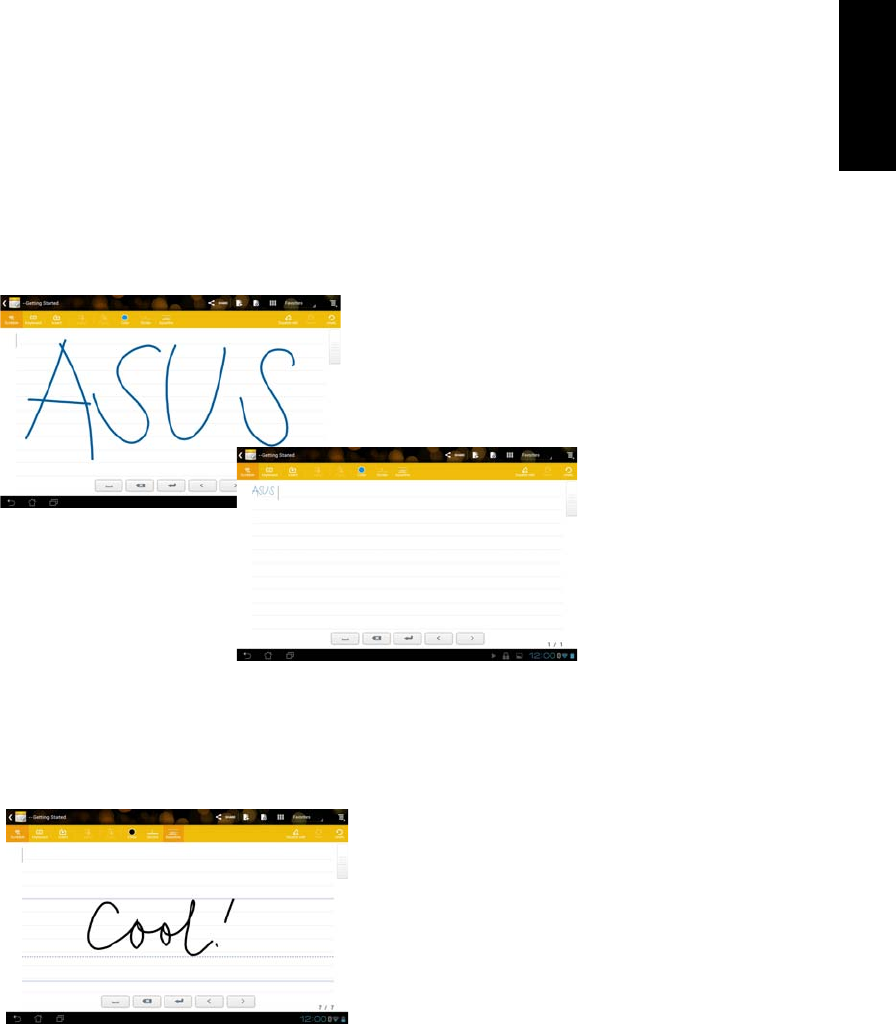

SuperNote .................................................................................................................................................................. 65

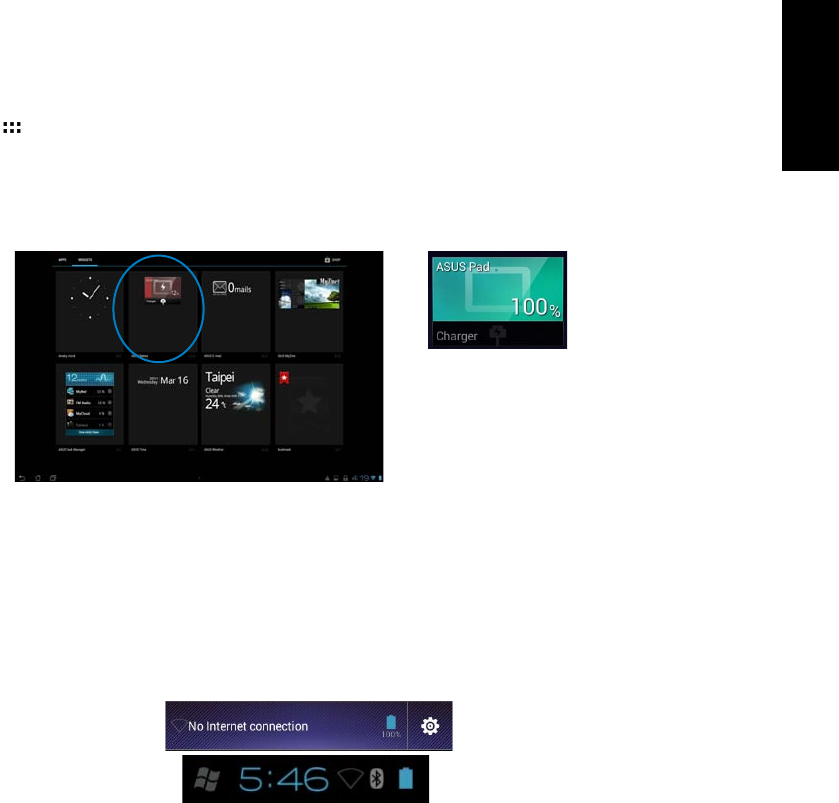

Adding widgets .........................................................................................................................................................70
ASUS Battery ..............................................................................................................................................................71
Appendices
Notices ...................................................................................................................................................................... 72
English
5
ASUS Tablet
About this manual
This manual provides information about the hardware and software features of your ASUS
Tablet, organized through the following chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your ASUS Tablet.
Chapter 2: Using your ASUS Tablet
This chapter provides you with information on using your ASUS Tablet.
Chapter 3: Working with Android®
This chapter provides an overview of using Android® in your ASUS Tablet.
Conventions used in this manual
To highlight key information in this manual, some text are presented as follows:
IMPORTANT! This message contains vital information that must be followed to complete a task.
NOTE: This message contains additional information and tips that can help complete tasks.
WARNING! This message contains important information that must be followed to keep you safe
while performing tasks and prevent damage to your ASUS Tablet's data and components.
Typography
Bold This indicates a menu or an item that must be selected.
Italic This indicates sections that you can refer to in this manual.
All illustrations and screenshots in this manual are for reference only. Actual product
specications and software screen images may vary with territories. Visit the ASUS
website at www.asus.com for the latest information.
English
6
ASUS Tablet
Safety information
Your ASUS Tablet is designed and tested to meet the latest standards of safety for information
technology equipment. However, to ensure your safety, it is important that you read the
following safety instructions.
Setting up your system
Read and follow all instructions in the documentation before you operate your system.
Do not use this product near water or a heated source such as a radiator.
Set up the system on a stable surface.
Openings on the chassis are for ventilation. Do not block or cover these openings. Ensure
that you leave plenty of space around the system for ventilation. Never insert objects of any
kind into the ventilation openings.
Use this product in environments with ambient temperatures between 0˚C and 40˚C.
If you use an extension cord, ensure that the total ampere rating of the devices plugged
into the extension cord does not exceed its ampere rating.
Care during use
Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned o, a small amount of electrical current still ows. Always
unplug all power, modem, and network cables from the power outlets before cleaning the
system.
The touch screen requires periodic cleaning to achieve the best touch sensitivity. Keep the
screen clean from foreign objects or excessive dust accumulation. To clean the screen:
Turn o the system and disconnect the power cord from the wall.
Spray a small amount of a household glass cleaner onto the supplied cleaning cloth
and gently wipe the screen surface.
Do not spray the cleaner directly on the screen.
Do not use an abrasive cleaner or a coarse cloth when cleaning the screen.
If you encounter the following technical problems with the product, unplug the power cord
and contact a qualied service technician or your retailer.
The power cord or plug is damaged.
Liquid has been spilled into the system.
The system does not function properly even if you follow the operating instructions.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
English
7
ASUS Tablet
The system was dropped or the cabinet is damaged.
The system performance changes.
Sound Pressure Warning
Excessive sound pressure from earphones or headphones can cause hearing damage or loss.
Adjustment of the volume control as well as the equalizer to settings other than the center
position may increase the earphones or headphones output voltage and the sound pressure
level.
•
•
English
8
ASUS Tablet
Package contents
ASUS Tablet Tablet USB adapter and cable
Quick Guide
Quick Start Guide Warranty Card
NOTES:
• Contact your retailer if any of the items are damaged or missing.
• Contents may vary per country or region.
English
9
ASUS Tablet
Chapter 1: Hardware Setup
Getting to know your ASUS Tablet

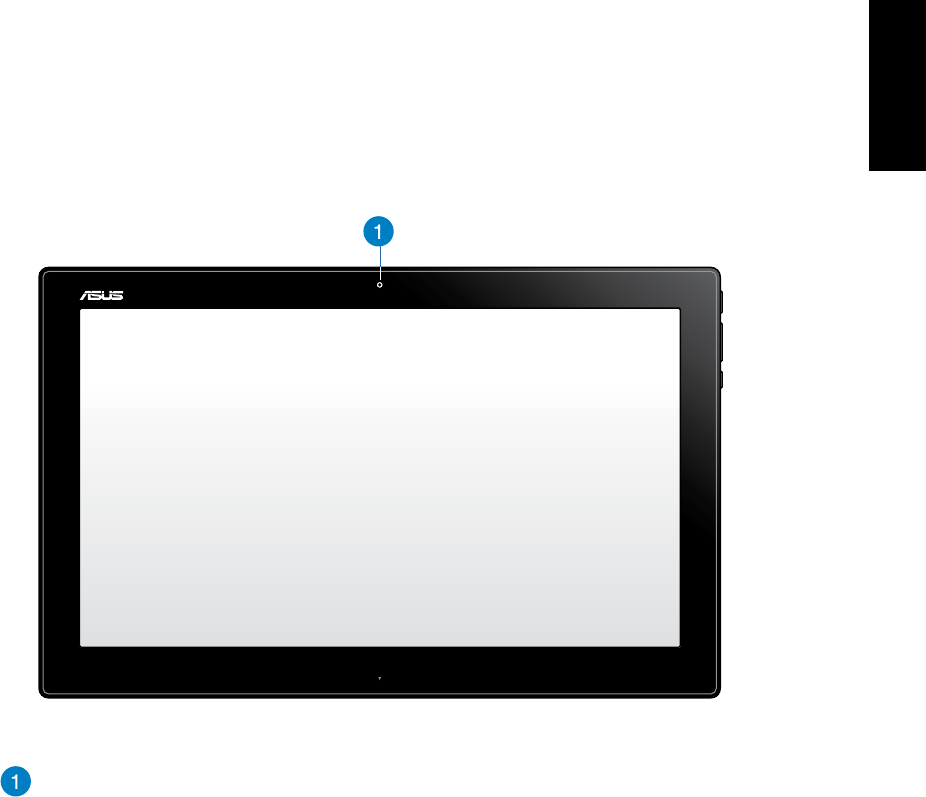

Front view
Webcam
The built-in webcam allows you to start video chats online.
English
10
ASUS Tablet

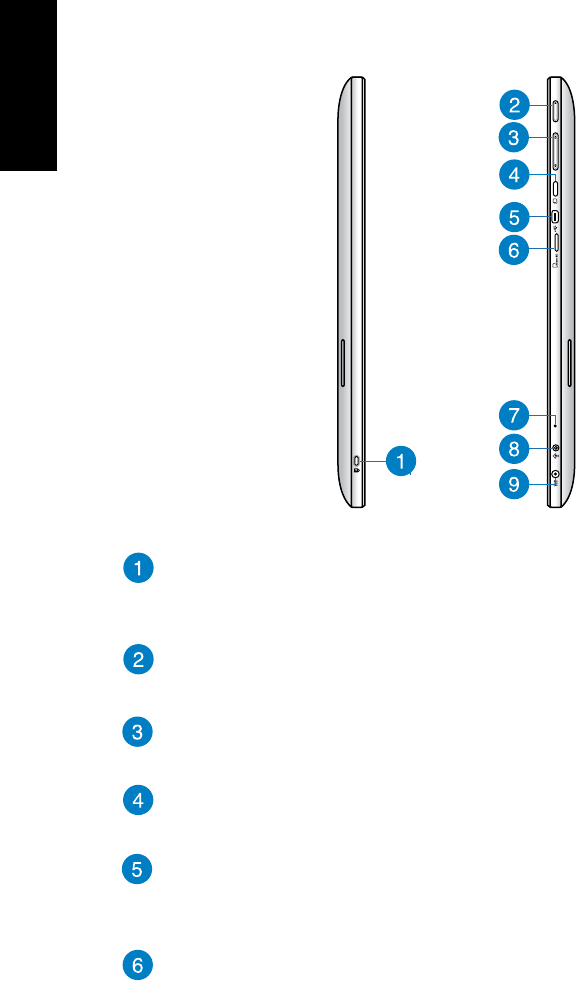

Side views
Kensington® lock port
The Kensington® lock port allows you to secure your ASUS Tablet using Kensington®
compatible security products.
Power button
Press this button to turn on your ASUS Tablet.
Volume control
Press to turn the volume up/down.
Mode button
Press this button to switch your operating system from Windows® 8 to Android™.
Mini USB port
This mini Universal Serial Bus (USB) 2.0 port allows you to connect compatible USB 2.0
or USB 1.1 devices to your ASUS Tablet using a mini USB cable.
MicroSD card reader
Your ASUS Tablet comes with an additional built-in memory card reader that supports
microSD and microSDHC card formats.
English
11
ASUS Tablet
Microphone
The built-in microphone can be used for video conferencing, voice narrations, or
simple audio recording.
Headphone output/microphone input combo port
This port allows you to connect your ASUS Tablet to amplied speakers or
headphones. You can also use this port to connect your ASUS Tablet to an external
microphone.
Power input
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage to the
PC, always use the supplied power adapter.
WARNING! The power adapter may get warm or hot when in use. Do not cover the
adapter and keep it away from your body.

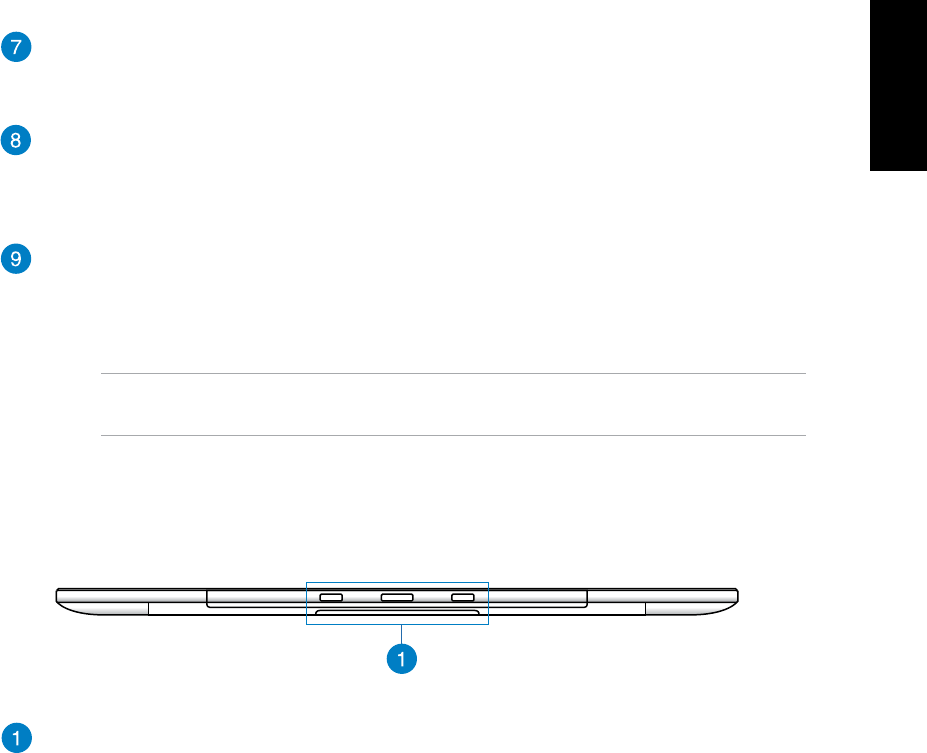

Bottom view
Connecting holes
Align and insert the guiding poles into these holes to securely attach the tablet to the
PC Station.
English
12
ASUS Tablet
Rear view
Audio speakers
Your ASUS Tablet is equipped with built-in high quality speakers.

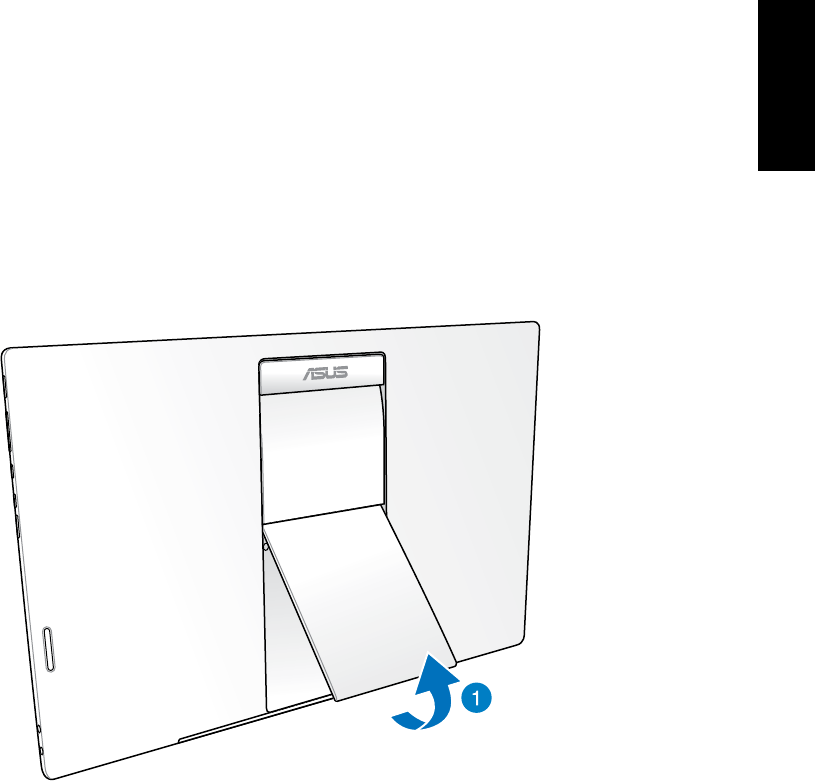

Tablet stand
Pull out and adjust the stand to provide stable support for your tablet when it is
placed on a table or desk.
Tablet handle
Carry the tablet easily using the ergonomic tablet handle.
NOTE: The magnet at the back of your ASUS Tablet may de-magnetize nearby objects.
English
13
ASUS Tablet
Chapter 2: Using your ASUS Tablet
Placing your ASUS Tablet on the table or desk
To place your ASUS Tablet on the table or desk:
1. Pull and adjust the tablet stand.
2. Place your ASUS Tablet on a at surface such as a table or desk.
English
14
ASUS Tablet
Charging your ASUS Tablet
110V-220V
Using Gestures
The gestures allow you to launch programs and access the settings of your ASUS Tablet. The
functions can be activated by using the hand gestures to your ASUS Tablet’s display panel.
Zoom out Zoom in
Bring together your two ngers on the
touch panel.
Spread apart your two ngers on the touch
panel.
Connect the power adapter to your ASUS Tablet’s DC-in port and plug to the correct socket
outlet with the correct input rating. The output voltage of the adapter is 100Vac~240Vac.
English
15
ASUS Tablet
Tap and hold Tap/Double tap
Tap an app to launch it.
•
To move an app, tap and hold the app tile
and drag it to a new location.
•
Flip
•
Use your nger back and forth between
home screens, through dierent images
in the Gallery, or pages in MyLibrary and
SuperNote.
English
16
ASUS Tablet
Chapter 3: Working with Android®
Basics
Unlocking your device
Touch and drag the lock icon to the unlocked icon.
Entering the camera mode
Touch and drag the lock icon to the camera icon.
English
17
ASUS Tablet
Home Screen
Open Google Text search
Open Google Voice search
Return to the previous screen
Return to Home Screen
Display recent apps
Open All apps
screen
Notication area & Settings
Shortcuts
Display local weather information. Touch
to customize weather widget settings,
location, and frequency updates.
Displays local date
Displays your e-mail inbox. Touch
to congure the email account for
the rst time, and touch to read
e-mails in the e-mail inbox folder.
NOTE: The Home Screen may update and change with Android OS.
English
18
ASUS Tablet
Screen Views
The screen view rotates automatically when you hold the tablet horizontally to vertically, and
vice versa.
Landscape view Portrait view
English
19
ASUS Tablet
Connecting to the world
Connecting to Wi-Fi networks
Wi-Fi wireless networking technology allows you to exchange data wirelessly over a network.
To use Wi-Fi, enable the Wi-Fi feature in your ASUS Tablet and connect to a wireless network.
Some wireless networks are secured with a key or protected with digital certicates and
requires additional steps to set up; others are open and you can easily connect to them.
NOTE: Turn OFF Wi-Fi when you’re not using it to help save battery power.
To enable Wi-Fi and connect to a Wi-Fi network:
1. Touch to go to the All apps screen then touch Settings .
2. Slide the Wi-Fi switch to ON. When enabled, your ASUS Tablet scans for available Wi-Fi
networks.
3. Touch a network name to connect to it. If the network is secured or protected, you are
prompted to key in a Password or key in other credentials.
IMPORTANT! If your ASUS Tablet nds a network that you have connected to previously, it
automatically connects to it.
English
20
ASUS Tablet
Using Bluetooth
Enabling or disabling Bluetooth in your device
Bluetooth is a wireless standard used for exchanging data over short distances. Bluetooth
exists in many products, such as smartphones, computers, tablet devices, and headsets.
Bluetooth is very useful when transferring data between two or more devices that are near
each other.
The rst time you connect to a Bluetooth device, you must pair it with your ASUS Tablet.
TIP: Turn OFF Bluetooth in your ASUS Tablet when you’re not using it to help save battery
power.
To enable or disable Bluetooth in your ASUS Tablet, touch to go to the All apps screen then
touch Settings . Slide the Bluetooth switch to ON.
Pairing your ASUS Tablet with a Bluetooth device
Before you can connect to a device, you must rst pair your ASUS Tablet to that device. Once
paired, the devices stay paired unless you unpair them.
To pair your ASUS Tablet to a device:
1. Touch to go to the All apps screen then touch Settings . Slide the Bluetooth
switch to ON.
2. Touch Bluetooth to display all available Bluetooth devices within range. If the device you
want to pair with is not in the list, ensure that its Bluetooth feature is turned ON and set as
Discoverable. See the technical documentation that came with the device to learn how to
turn its Bluetooth ON and how to set it to discoverable.
English
21
ASUS Tablet
3. If your ASUS Tablet has nished scanning before your Bluetooth device is ready, touch
Search for devices.
4. In the list of available devices, touch the Bluetooth device you want to pair with. Follow
the succeeding screen instructions to complete the pairing. If necessary, refer to the
technical documentation that came with the device.
Connecting your ASUS Tablet to a Bluetooth device
After you have paired your ASUS Tablet to a Bluetooth device, you can easily reconnect to it
again manually, after it is back in range.
To connect:
1. Touch to go to the All apps screen then touch Settings . Slide the Bluetooth
switch to ON.
2. In the list of PAIRED DEVICES, touch the name of the paired device.
Unpairing and conguring a Bluetooth device
To unpair or congure a Bluetooth device:
1. Touch to go to the All apps screen then touch Settings . Slide the Bluetooth
switch to ON.
2. Touch Bluetooth to display the Bluetooth settings.
3. Touch the Bluetooth Quick Settings icon beside the connected Bluetooth device you want
to unpair or congure.
4. From the Bluetooth Quick Settings screen, you can do any of the following:
• Touch Unpair to unpair the device.
• Touch Rename to rename the Bluetooth device.
• Touch any of the listed proles to enable or disable prole.
5. Touch when you’re nished.
English
22
ASUS Tablet
Using apps and widgets
Managing Apps
App shortcut
You can create shortcuts for your favorite apps on your ASUS Tablet Home Screen.
1. Touch to go to the All apps screen.
2. From the All apps screen, touch and hold the icon of the app you wish to move then drag
and place the app on the Home Screen.
App info
You can view the detailed app information while you are creating a shortcut for the app. While
holding an app from the All apps screen to the Home Screen, the App info will appear on the
top of the Home Screen page. Drag the app to App info to display its detailed information.
Removing App from Home Screen
You can remove app shortcuts from your ASUS Tablet Home Screen. The original app will
remain in your All apps screen. To remove an app in your Home Screen:
1. Touch and hold an app on your Home Screen until
X Remove
appears.
2. Drag the app to
X Remove
to remove it from the Home Screen.
English
23
ASUS Tablet
App Folder
Create folders to organize your applications and shortcuts on your ASUS Tablet Home Screen.
1. On your ASUS Tablet’s Home Screen, touch and drag an app or shortcut onto another app
and a folder will appear.
2. Touch the new folder and tap Unnamed Folder to rename the folder.
English
24
ASUS Tablet
Recent Apps
Recent apps are displayed on the left panel of the Home Screen. You can nd detailed
information and manage your apps from the Recent Apps list.
1. Touch the Recent Apps icon at the lower left corner of the Home Screen.
2. Swipe up or down the list to view Recent Apps. Swipe a recent app to the left or right to
remove from the list.
3. Touch and hold a recent app to display the menu. Select to remove app from list or display
app information.
English
25
ASUS Tablet
Task Manager
ASUS widget displays a list of currently running utilities and applications and their usages in
percentages on your ASUS Tablet.
1. Touch to go to the All apps screen.
2. Touch WIDGETS to display the widgets menu.
3. Touch and hold ASUS Task Manager to display the ASUS Task Manager box on the Home
Screen.
4. Touch and hold the widget to display the sizing brackets. Pull the sizing bracket upward or
downward to show the complete list of tasks.
5. Tap beside each running app to close the app. Touch One-click Clean to close
running apps all at once.
English
26
ASUS Tablet
File Manager
File Manager allows you to easily locate and manage your data either on the internal storage
device or the connected external storage devices.
To access the internal storage device:
1. Touch to go to the All apps screen.
2. Touch File Manager then go to My Storage.
3. The Internal Storage (/sdcard/) and any connected external storage devices (/Removable/)
are displayed on the left panel. Touch the source icon on the left panel to display the
content list, and touch to select an item.
English
27
ASUS Tablet
To access the external storage device:
1. Touch the USB or SD card icon on the bottom right corner of your Home Screen to
display the notication box.
4. Touch the Return folder icon to return to the root directory of My Storage.
English
28
ASUS Tablet
2. Touch the USB or SD card icon to display its contents.
To copy, cut, delete, or share les:
Tick the le you wish to copy, cut, share, or delete and touch the action icon found at the tool
bar on the upper right corner of they File Manager screen.
You can also tick the le and drag/drop it to your desired destination folder.
English
29
ASUS Tablet
Play Store
Access lots of fun games and tools in the Play Store using your Google account. If you don’t
have a Google account, please create one.
To access the Play Store:
1. From the Home screen, tap Play Store .
3. You need a Google account to access Google Play. If you don’t have an existing account,
tap New.
4. Type your Email and Password to Sign in if you already have an account.
English
30
ASUS Tablet
IMPORTANT! Download the latest Adobe Flash Player version 11.1.112.60 for Jelly Bean devices.
NOTES:
• You cannot restore the deleted applications, but you can login with the same ID and
download them again.
• Some applications are free and some might charge you through a credit ca
5. After signing in, you can start downloading and adding apps to your device from the Play
Store.
English
31
ASUS Tablet
Settings
Settings screen allows you to congure the settings of your ASUS Tablet, including Wireless &
networks, Device, Personal, and System settings. Touch the tabs on the left to switch screens
and do the congurations.
There are two ways to go to the Settings screen.
From the All apps screen:
Touch Settings to display the settings menu.
English
32
ASUS Tablet
From ASUS Quick Setting:
Touch the notication area on the bottom right corner to launch the ASUS Quick Settings
panel.
Display local date and time
Settings Menu
Dock / Tablet Battery Status
Internet
connection
status
Auto Brightness
Quick Setting Adjustment Panel.
Touch the individual icons to turn on/
o the function.
Display settings
Brightness Manual Adjustment
Performance
setting
English
33
ASUS Tablet
Silent mode
ASUS Quick Setting Adjustment Panel
Touch any of the following icons to enable or disable its assigned function.
Icon and baseline
light up when
enabled
Performance mode
Wi-Fi
Bluetooth
Auto-rotate screen
Auto-Sync
Power Saving
Balanced mode
IMPORTANT!
• Balanced mode [Default mode]: Balances the system’s performance and power usage.
• Performance mode: Maximizes the system’s performance but consumes more battery power.
• Power saving mode: Energy saving mode
Notication Panels
Notication panels will appear under the Quick Setting panel for alerts or updates in apps,
incoming emails, and utillity status.
IMPORTANT! Swipe a notication to the right or to the left to remove item from the list.
GPS
English
34
ASUS Tablet
Music
Touch Play Music on the Home Screen to play your music les. This application automatically
collects and displays all the audio les stored in your ASUS Tablet and connected external
storage devices.
You can shue and play all audio les randomly or ip to select an album for your listening
pleasure.
Use the buttons on the top to conveniently sort or search your audio les.
NOTE:
The audio and video codec supported by your ASUS Tablet:
Decoder
Audio Codec: AAC LC/LTP, HE-AACv1(AAC+), HE-AACv2(enhanced AAC+), AMR-NB, AMR-WB,
MP3, FLAC, MIDI, PCM/WAVE, Vorbis, WAV a-law/mu-law, WAV linear PCM, WMA 10, WMA
Lossless, WMA Pro LBR
Video Codec: H.263, H.264, MPEG-4, VC-1/WMV, VP8
Encoder
Audio Codec: AAC LC/LTP, AMR-NB, AMR-WB
Video Codec: H.263, H.264, MPEG-4
Sort the audio les by Recent, Albums,
Artists, Songs, Playlists, and Genres
Search for a music le
Settings for Music
English
35
ASUS Tablet
Gallery
Touch Gallery on the Home Screen to browse for images or video les. This app automatically
collects and displays all the images and video les stored in your ASUS Tablet.
From the Gallery, you can display images in a slideshow or touch to select for image or video
les.
You can also use the menu buttons on the upper right corner of the Gallery screen to sort the
les by album, by location, by time, by people, or by tags.
Videos and photos
Quick launch camera
Gallery settings
English
36
ASUS Tablet
Sharing and deleting albums
Touch and hold an album in the Gallery until the Tool bar on top appears.
Using the Tool bar options, you can upload, delete, or share selected albums online.
Tool bar
Share the selected album through
Bluetooth
®
, Picasa
®
, MyBitCast,
Google+
®
, or Gmail
®
Delete icon
English
37
ASUS Tablet
Sharing, deleting, and editing images
Touch an image in the Gallery and use the tool bar on the upper right corner to share, delete,
or edit a selected image.
Tool bar
CAUTION! You cannot restore a deleted le.
Share the selected album through
Bluetooth
®
, Picasa
®
, MyBitCast,
Google+
®
, or Gmail
®
Delete icon
English
38
ASUS Tablet
Gallery widget
The Photo Gallery widget allows immediate access to your favorite photos or albums right
from the Home Screen.
1. Touch to go to the All apps screen.
2. Touch Widgets to display the widgets menu.
3. Touch and hold Photo Gallery until the gallery widget box moves to the Home Screen
and displays the Choose images menu box.
4. Choose the album or image that you wish to place as a widget on the Home Screen.
English
39
ASUS Tablet
Camera
Touch Camera from the All apps screen to take pictures, record videos, or create panoramic
images. You can use the front camera or the back camera to take pictures or record videos.
The image and video les are saved to Gallery.
Camera mode
Albums
Zoom in
Capture button
Flash
Mode switch
Camera switch
Zoom out
English
40
ASUS Tablet
Video mode
Panoramic mode
Panoramic image
Capture button
Captured range
Record button
Video mode
Eects
White balance
Settings
English
41
ASUS Tablet
Email
Email allows you to add several e-mail accounts and conveniently browse and manage your
e-mails.
To set up an email account:
4. Wait while your ASUS Tablet automatically
checks your incoming and outgoing mail
server settings.
5. Congure the Account options and
touch Next.
1. Touch to go to the All apps screen.
2. Touch Email to launch the email app.
3. From the email app screen,key in your Email
address and Password, then touch Next.
English
42
ASUS Tablet
6. Provide a name for the account and key in the
name you want displayed on the outgoing
messages. Touch Next to log into your mail
inbox.
To add email accounts:
1. Touch to go to the All apps screen, touch
Email and login using the account
that you’ve previously set up.
2. Touch then Settings. Touch Add account
on the upper right corner to add new email
accounts.
NOTE: You can include all your e-mail
accounts in Email.
English
43
ASUS Tablet
Gmail
Gmail (Google mail) allows you to access your Gmail account, receive, and compose e-mails.
To set up a Gmail account:
NOTE: Touch New if you do not own a Google Account.
2. Wait while your ASUS Tablet communicates with
Google servers to set up your account.
1. Touch Gmail from the Home screen. Touch
Existing and type your existing Email and
Password, then touch Sign in.
English
44
ASUS Tablet
3. You can use your Google account to backup and
restore your settings and data. Touch Done to
sign in to your Gmail.
IMPORTANT: If you have several e-mail accounts in addition to Gmail, use Email to set up and
access all your e-mail accounts at same time.
English
45
ASUS Tablet
MyLibrary
MyLibrary, an integrated interface for your e-book collections, allows you to place your
purchased or downloaded e-books into dierent bookshelves and genres.
Touch to go to the All apps screen, then touch MyLibrary.
NOTE: Log into asus@vibe to download more e-books.
IMPORTANT:
• MyLibrary supports e-books in ePub, PDF and TXT format.
• You may need Adobe Flash® player to open some e-books. Download Adobe Flash® player
before using MyLibrary.
All your bookshelves
Search for an e-book
Sort by title, author, date, or My Array
Books on the selected bookshelf
Selection mode
Recent Read List and other settings
English
46
ASUS Tablet
Reading your e-books
To read e-books:
1. Touch to select an e-book on the bookshelf.
2. Touch and hold the screen to show the tool bar on the top.
NOTES:
• Android initiates the download and installation of necessary resource if you would like to use
the text-to-speech function.
• Tap on the Bookmark list and select the marked page to show the bookmark icon on the
upper right corner of the screen.
Chapter list
Use text-to-speech
function for in this page
Insert bookmark
Search key words
Zoom out/ Zoom in
Bookmark list and Day/ Night mode
Marker
Page scroll
English
47
ASUS Tablet
3. Flip pages like a real book or move the page scroll at the bottom.
Making notes on your e-books
1. Touch and hold on a desired word or sentence until the tool menu and the dictionary
denition are displayed.
2. Once selected, you either highlight the selected word with a marker, add a note, use
text-to-speech function for the selected text, or simply copy the word.
3. Move the selection point to extend the selected region to a whole phrase or sentence if
needed.
English
48
ASUS Tablet
Maps
Google Maps allows you to nd establishments, view maps, and get directions. Use the tool
bar on the top to get directions or create your own maps.
Touch to go to the All apps screen, then touch Maps.
English
49
ASUS Tablet
Polaris® Oce
Polaris
®
Oce is a set of interrelated desktop applications that allows you to create, read, and
edit documents, spreadsheets, and presentations.
To use Polaris
®
Oce:
1. Touch to go to the All apps screen.
2. In the All apps screen, touch Polaris® Oce.
English
50
ASUS Tablet
NOTE:
• Polaris® Oce 3.0 supports le types as below:
• Microsoft Word: .doc/ .docx
• Microsoft Excel: .xls/ .xlsx
• Microsoft Powerpoint: .ppt/ .pptx
• Adobe Acrobat: .pdf
• Text: .txt
• Images: .bmp/ .jpg/ .jpeg/ .png/ .gif/ .wbpm
• Zip Archivex: .zip
• Polaris® Oce 3.0 currently saves les into .doc/ .xls/ .ppt formats only.
Adding new les
Touch New File, then do any of the following:
Touch Document to start the word processor to edit documents.
Touch Sheet to start the spreadsheet to perform calculation and manage information.
Touch Slide to start the application to create and share presentations.
•
•
•
3. Touch My Folders on the upper left and select the le.
English
51
ASUS Tablet
Adding Accounts
You are allowed to edit your les with Polaris® Oce from other accounts, including Google
docs and Box.net.
1. Touch Add account.
2. Select a desired service to add.
3. Key in your e-mail account and password and touch OK to add the account.
Accessing/clearing your recent les
To access and clear your recent les, do either of the following:
• From the Polaris
®
Oce screen, touch Recent Documents to conveniently access your
recently-edited les.
• From the Recent Documents screen, touch then select Clear recent documents to
delete your recent les.
English
52
ASUS Tablet
Conguring Settings
Touch and select Settings. You are allowed to congure the following: Create back-up le,
Display le extensions, and Clear Recent Files.
MyNet
MyNet allows you to store, save, and stream audio, video, and image les between your ASUS
Tablet and a DLNA device such as your computer, TV, or speakers.
NOTE: DLNA (Digital Living Network Alliance) is the networking standard that allows network
devices to seamlessly communicate with each other.
IMPORTANT:
• MyNet works with Microsoft Media Player 11 or later version only.
• MyNet will not work if the devices are connected via 3G network.
• Your ASUS Tablet and the DLNA device such as computer, TV, or speakers must be connected
to the same wireless network. Otherwise, MyNet will not function.
English
53
ASUS Tablet
1. Ensure that your ASUS Tablet and your computer are connected to the same wireless
network.
2. Click and enable Allow remote control of my Player and Automatically allow devices
to play my media in Windows Media Player on your computer. Go to More streaming
options to congure, if necessary.
3. On the Server list, select the source device on the left panel to view the contents.
Source device
Current source
Content
Search and Settings
English
54
ASUS Tablet
4. You can do any of the following:
• Select a le and touch Play to on the bottom right to start playing on the target
device.
• Touch and hold a le to upload or download it to and from the connecting devices.
English
55
ASUS Tablet
• You can also select a le from the Playlist. The Playlist oers a common space for the
connected devices to share les. Tap the plus sign (+) to create new lists.
5. To enable Digital Media Server, touch Settings on the upper right corner and tick
Digital Media Server Settings to allow the other connecting devices to access media
les on your ASUS Tablet. You can also select the location of the le you want to share.
English
56
ASUS Tablet
MyCloud
MyCloud is a convenient app to access your cloud contents and synchronize them with your
ASUS Tablet, remotely control your computer, and access asus@vibe, ASUS’ one-stop digital
entertainment site.
To launch MyCloud:
1. From the All apps screen, touch MyCloud.
2. Click Next to continue.
3. MyCloud needs to work with ASUS ASUS Tablet Suite to avail its full function. Download
and install ASUS ASUS Tablet Suite from the ASUS support site at support.asus.com to
your computer. Click Next to continue.
English
57
ASUS Tablet
My Content
My Content allows you to access your data such as music, video, or audio les from ASUS
Webstorage.
To access MyContent:
1. Touch I have an account to sign in or touch Create an account to create your free
account.
2. After signing in, you will see all your data stored in ASUS Webstorage. Locate your data
according to its category.
English
58
ASUS Tablet
My Desktop
My Desktop allows you to remotely control your computer from your ASUS Tablet.
You will need to download ASUS Tablet Suite to your computer rst to enable My Desktop on
your ASUS Tablet.
Installing and setting up the ASUS PC Suite on your computer
1. Ensure that your computer is connected to the
Internet.
2. Double-click the le you downloaded from the ASUS
support site.
3. Click Restart Now to reboot your computer.
4. Click GO to congure the necessary settings for My
Desktop.
5. Click Next to continue.
English
59
ASUS Tablet
6. Read the license agreement and click Accept to
continue.
7. Create a password and click Next.
8. Click Enjoy Now to continue.
9. Copy your computer’s IP address for later use on
your ASUS Tablet.
English
60
ASUS Tablet
3. Touch the plus sign (+) on the upper right corner to add your computer’s information.
Using My Desktop on your ASUS Tablet
1. Ensure that your ASUS Tablet and your computer are connected to the same wireless
network. Touch My Desktop.
2. Touch the screen to scan the available devices.
English
61
ASUS Tablet
4. Touch OK to continue.
5. Manually enter your computer’s IP address and other information, then touch Done.
NOTES:
• The devices must be connected to the same wireless network while enabling My Desktop.
• My Desktop will not work if the devices are connected via 3G network.
English
62
ASUS Tablet
On your ASUS Tablet:
Go to Settings and enter your Google account in Internet discovery. Your device will
automatically detect your computer.
Setting up Internet Discovery for My Desktop
On your computer:
1. Download and activate Splashtop Streamer from the ASUS support site.
2. Go to Network in Splashtop Remote Streamer.
3. Key in your Google credentials in the Email and Password elds then click Sign in.
English
63
ASUS Tablet
asus@vibe
asus@vibe is a one-stop entertainment platform that serves as a value-added service for
all ASUS products. With asus@vibe, you can access or download a wealth of exciting and
engaging digital content such as music, videos, games, magazines, and e-books. You can also
tune into your favorite radio stations and stream live TV anytime and anywhere.
NOTES:
• Log in with your ASUS Access account to enjoy the multimedia content in asus@vibe.
• The contents on asus@vibe may vary with country or region.
1. From the All apps screen, touch asus@vibe.
2. Login by using your account.
3. Scroll and select your desired disc or radio station.
English
64
ASUS Tablet
App Locker
App Locker allows you to password-protect your apps.
NOTES:
• Locked apps will have lock icons on the Home Screen.
• You will be asked for your password everytime you access the locked apps.
To use App Locker:
1. From the All apps screen, touch on
App Locker .
2. Set up your password.
3. Tick the apps you would like to lock.
4. Activate App Locker from Settings on the
upper right corner.
English
65
ASUS Tablet
SuperNote
SuperNote is a convenient app used for writing and painting on your ASUS Tablet. You can take
notes, send instant messages, draw sketches, create e-cards with audio recordings or diaries
with video, and lots more.
All your notebooks, paintbooks, pages
viewed, and favorites
View books Sort by page or last modied
Delete, copy,
move, import or
export pages
Setting,backup,
restore
Pages and contents
English
66
ASUS Tablet
Using SuperNote
To create a new notebook:
1. Touch + Add New on the left panel of the SuperNote main page.
2. Key in a name for the le and select Notebook or Paintbook.
3. Select the page color and font size, then touch OK.
4. Touch the return path on the upper left for an overall view of the books and note pages.
5. On the upper right, touch Share to share by bluetooth, e-mail, webstorage, short
messages, social networks, or online gallery.
Share and Export Settings
Goes back to SuperNote’s
main page
Space
Backspace
Next page
Previous page
Page Scroll
New page
Delete page
Return
Favorites
English
67
ASUS Tablet
Using the SuperNote Notebook
SuperNote Notebook is designed to allow you to scribble and doodle on your ASUS Tablet
continuously regardless of page lines. The app automatically adjusts the scribbled note to t
into the page lines.
1. Choose Scribble mode or Keyboard mode to enter your notes.
2. In Scribble mode, select Color and Stroke weight to customize strokes.
3. Touch to set a spot for the text cursor, then scribble on the tablet. The app automatically
adjusts the scribbled note to t into the page lines.
4. Touch the Baseline function for penmanship guidelines, if necessary.
English
68
ASUS Tablet
5. Touch Insert to make annotations, create time stamps, insert photos, drawings from
paintbook, picture from gallery, voice, video, or other text and picture le.
6. Insert a new page in the notebook or delete to discard unwanted pages.
7. Touch Read Only to enable Read Only mode to view and ip through the note pages and
avoid entering unnecessary marks on the pages.
8. Touch Undo to delete changes. Touch Redo to keep the changes.
Insert/ Delete page
Disable Edit
Redo/ Undo
English
69
ASUS Tablet
Using the SuperNote Paintbook
SuperNote Paintbook provides you with an immediate interface to draw and save to an
electronic le. The Paintbook is similar to the Notebook in structure with additional color
options and brush selections for you to draw freely on a canvas.
1. Select Brush, Stroke, and Color to customize strokes.
2. Tap Tool Plate to display Brush and Color palettes.
3. Once you enter the rst stroke or tap Select, the canvas switches to Edit mode.
4. Tap Select to move, scale, rotate, or edit the selected area. A red dotted box will appear to
designate the area.
5. Tap Done to return to Paintbook mode.
Edit mode
Paintbook mode
English
70
ASUS Tablet
Adding widgets
Use widgets to conveniently access useful and fun applications on your ASUS Tablet Home
Screen. You can nd them in the Widgets tab in the All Apps screen, ready to be moved into
your Home Screen.
To see your widgets, Touch to go to the All apps screen, then touch Widgets.
From the main Widgets screen, you can:
Drag a widget to another screen.
Swipe left or right to move between screens and view more widgets.
IMPORTANT:
• You may be prompted to perform additional tasks (such as registration, activation) before you
can use a selected widget.
• If there is not enough room on the screen where you placed a widget, the widget won’t get
added to that screen.
To remove a widget:
Touch and hold the widget until
X Remove
appears then without lifting your nger, drag
the widget into
X Remove
.
•
•
•
English
71
ASUS Tablet
ASUS Battery
This special widget shows the individual battery status of your AIO Transformer by percentage
and color. The more battery power, the brighter the color.
1. Touch to go to the All apps screen.
2. Touch Widgets to display the widgets menu.
3. Touch and hold ASUS Battery to display the ASUS Battery app.
4. The ASUS Quick Setting and the notications panel also display the battery status. The
battery status of the ASUS Tablet is shown separately. When battery is low, the battery
icon turns from blue to red with an exclamation mark. There will also be a warning sound
to notify you when the battery is running low.
English
72
ASUS Tablet
Appendices
Notices
REACH
Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of
Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS
REACH website at http://csr.asus.com/english/REACH.htm
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards
for protecting our environment. We believe in providing solutions for you to be able to
responsibly recycle our products, batteries, other components, as well as the packaging
materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling
information in dierent regions.
COATING NOTICE
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is
applied to insulate the device except on the areas where the I/O ports are located.
Beschichtungshinweis
WICHTIG!Um die elektrische Isolation und die elektrische Sicherheit zu gewährleisten, ist das
Gehäuse mit einer Beschichtung zur Isolation versehen. Diese Beschichtung ist an den E/A-
Anschlüssen des Gerätes nicht vorhanden.
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference, and
This device must accept any interference received including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
manufacturer’s instructions, may cause harmful interference to radio communications.
•
•
English
73
ASUS Tablet
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit dierent from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT! Outdoor operations in the 5.15~5.25 GHz band is prohibited. This device has
no Ad-hoc capability for 5250~5350 and 5470~5725 MHz.
CAUTION: Any changes or modications not expressly approved by the guarantee of this
device could void the user’s authority to operate the equipment.
RF exposure warning
This equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment. The equipment must not be co-located or operating in conjunction with any
antenna or transmitter.
The highest SAR value for this device is 0.614 W/kg.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
This class B digital apparatus complies with Canadian ICES-003.
•
•
•
•
English
74
ASUS Tablet
IC Radiation Exposure Statement for Canada
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. To maintain compliance with IC RF exposure compliance requirements, please
avoid direct contact to the transmitting antenna during transmitting. End users must follow
the specic operating instructions for satisfying RF exposure compliance.
Operation is subject to the following two conditions:
This device may not cause interference and
This device must accept any interference, including interference that may cause undesired
operation of the device.
Canada, Industry Canada (IC) Notices
This Class B digital aparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: 1) this device may not cause interference,
and 2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the wireless device is below the Industry Canada (IC) radio
frequency exposure limits. The wireless device should be used in such a manner such that the
potential for human contact during normal operation is minimized.
This device has been evaluated for and shown compliant with the IC Specic Absorption
Rate (“SAR”) limits when installed in specic host products operated in portable exposure
conditions.
The highest SAR value for this device is 0.614 W/kg.
Canada, avis d’Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-
210.
Son fonctionnement est soumis aux deux conditions suivantes: 1) cet appareil ne doit pas
causer d’interférence et 2) cet appareil doit accepter toute interférence, notamment les
interférences qui peuvent aecter son fonctionnement.
Informations concernant l’exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans l est inférieure à la limite d’exposition aux
fréquences radio d’Industry Canada (IC). Utilisez l’appareil de sans l de facon à minimiser les
contacts humains lors du fonctionnement normal.
•
•
English
75
ASUS Tablet
Declaration of Conformity (R&TTE directive 1999/5/EC)
The following items were completed and are considered relevant and sucient:
Essential requirements as in [Article 3]
Protection requirements for health and safety as in [Article 3.1a]
Testing for electric safety according to [EN 60950]
Protection requirements for electromagnetic compatibility in [Article 3.1b]
Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301 489-17]
Eective use of the radio spectrum as in [Article 3.2]
Radio test suites according to [EN 300 328-2]
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
CE marking for devices without wireless LAN/Bluetooth
The shipped version of this device complies with the requirements of the EEC directives
2004/108/EC “Electromagnetic compatibility” and 2006/95/EC “Low voltage directive”.
/
CE marking for devices with wireless LAN/ Bluetooth
This equipment complies with the requirements of Directive 1999/5/EC of the European
Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications
Equipment and mutual recognition of conformity.
is for class II device.
The highest SAR value for this device is 0.163 W/kg.
Wireless Operation Channel for Dierent Domains
N. America 2.412-2.462 GHz Ch01 through CH11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
•
•
•
•
•
•
•
English
76
ASUS Tablet
NO DISASSEMBLY
The warranty does not apply to the products that
have been disassembled by users
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic
equipment, and mercury-containing button cell battery) should not be placed in municipal
waste. Check local regulations for disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin
indicates that the battery should not be placed in municipal waste.
No Exposure to Liquids
DO NOT expose to or use near liquids, rain, or moisture. This product is not
waterproof or oil-proof.
請勿將電池當作一般垃圾丟棄。這個標誌表示電池不應視為一般垃圾丟棄。
English
77
ASUS Tablet
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume levels for long periods.
English
78
ASUS Tablet
Global Environmental Regulation Compliance and Declaration
ASUS follows the green design concept to design and manufacture our products, and
makes sure that each stage of the product life cycle of ASUS product is in line with global
environmental regulations. In addition, ASUS disclose the relevant information PC Stationd on
regulation requirements.
Please refer to http://csr.asus.com/english/Compliance.htm for information disclosure based
on regulation requirements ASUS is complied with:
Japan JIS-C-0950 Material Declarations
EU REACH SVHC
Korea RoHS
Swiss Energy Laws
ENERGY STAR complied product
ENERGY STAR is a joint program of the U.S. Environmental Protection Agency
and the U.S. Department of Energy helping us all save money and protect
the environment through energy ecient products and practices.
All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR
standard, and the power management feature is enabled by default. The
monitor and computer are automatically set to sleep after 15 and 30 minutes
of user inactivity. To wake your computer, click the mouse or press any key
on the keyboard.
Please visit http://www.energy.gov/powermanagement for detail information on power
management and its benets to the environment. In addition, please visit http://www.
energystar.gov for detail information on the ENERGY STAR joint program.
NOTE: ENERGY STAR is NOT supported on Freedos and Linux-based products.
English
80
ASUS Tablet
Manufacturer ASUSTeK Computer Inc.
Tel: +886-2-2894-3447
Address: 4F, No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN
Authorised
representative in
Europe
ASUSTeK Computer GmbH
Address: HARKORT STR. 21-23, 40880 RATINGEN, GERMANY

Navigation menu
