ASUSTeK Computer T200 3.5G Modular Transmitter User Manual Updated Manual
ASUSTeK Computer Inc 3.5G Modular Transmitter Updated Manual
Updated Manual
Classification Confidential
Doc Number
Date June 23, 2007
Version Draft v0.2
E-Tool for EMP U360 Operating Manual
ASUSTeK Computer Inc.
Mobile Communication Business Unit
R&D Div.1
Writer：Kevin Hsu & Jim
Reviser：Aden Chang
ASUSTeK Strictly Confidential
1
Revision History
Date Description Old Version
New Version
2007/06/01 Draft created V0.1
2007/06/23 Add “Get Slot ID” and “Switch to TP Mode”
Function
V0.2
ASUSTeK Strictly Confidential
2
Contents
1 Introduction ................................................................................................................................. 3
2 Set Slot ID ................................................................................................................................... 3
3 Switch to TP Mode.................................................................................錯誤
錯誤錯誤
錯誤! 尚未定義書籤
尚未定義書籤尚未定義書籤
尚未定義書籤。
。。
。
4 Operating Method ....................................................................................................................... 4
ASUSTeK Strictly Confidential
3
1 Introduction
This document describes the operating method by using E-Tool for EMP U360.

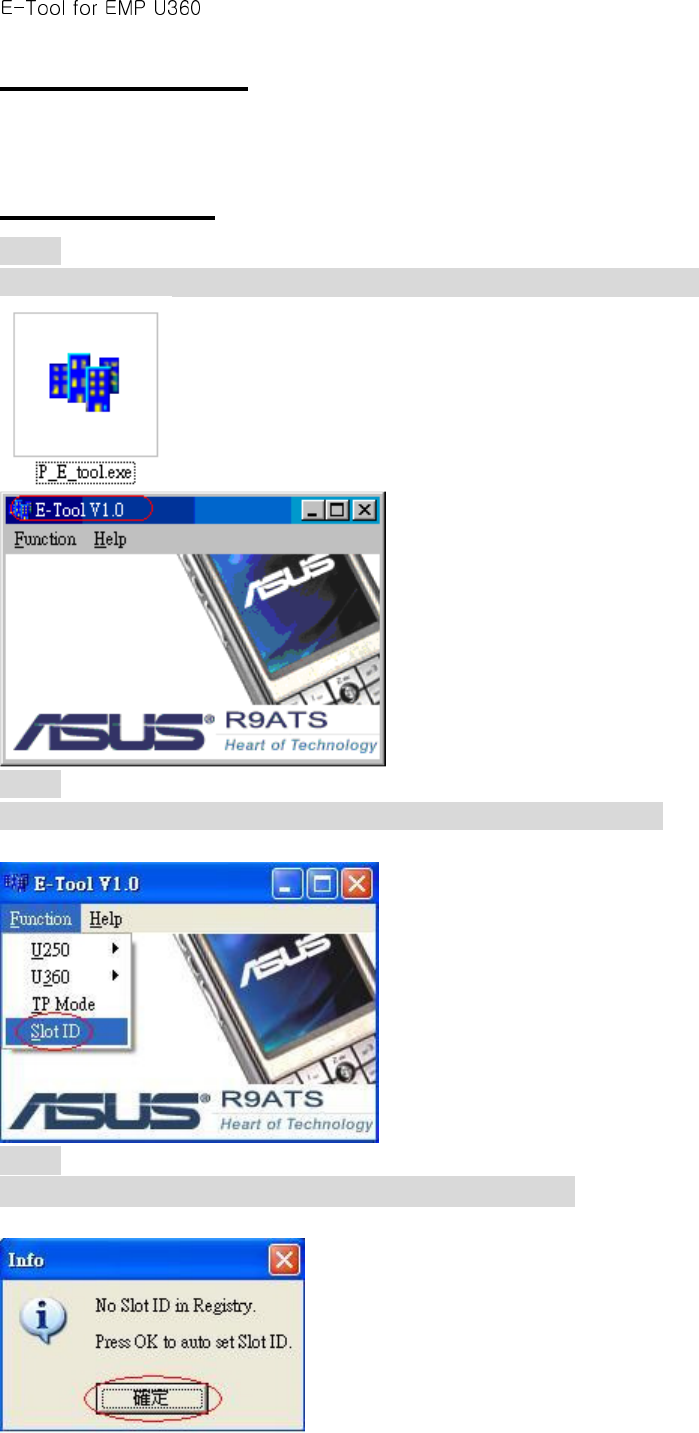

2 Set Slot ID

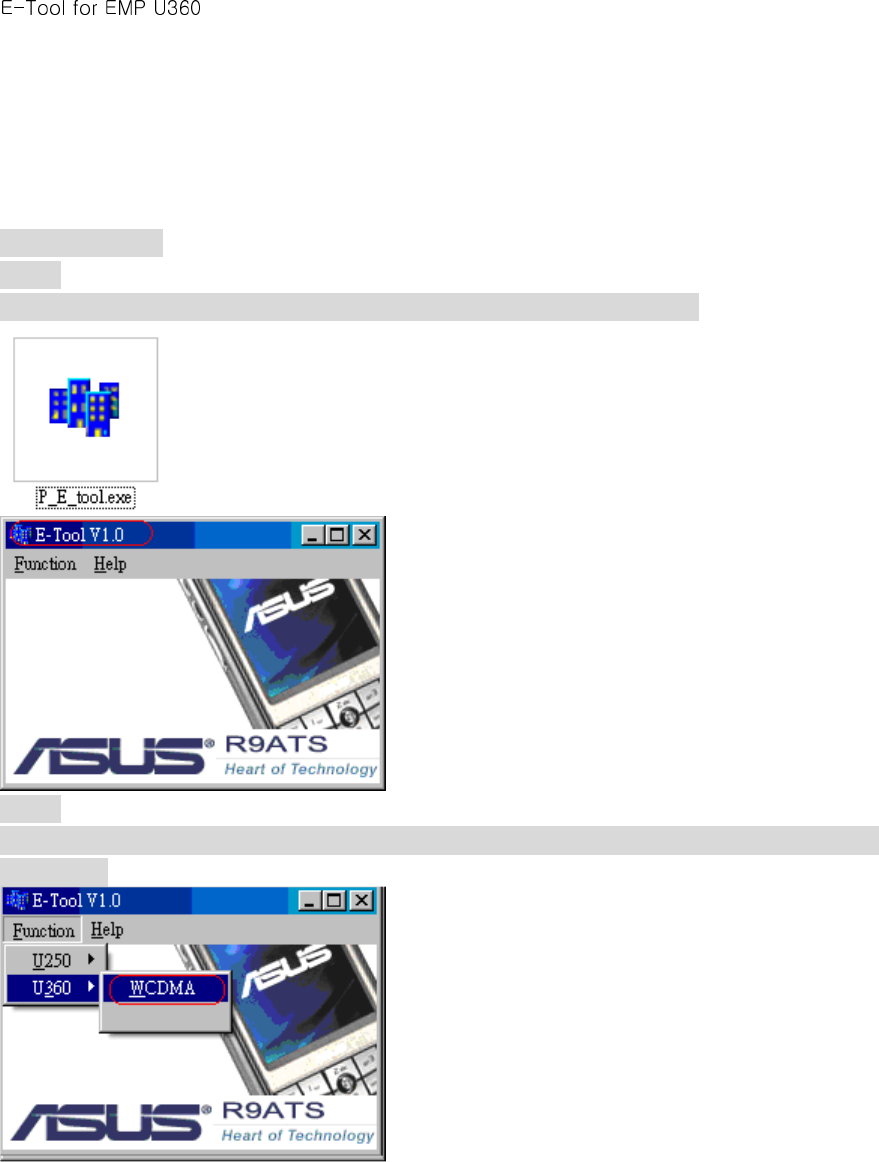

Step 1
The E-Tool V1.0 dialog box will show when you execute P_E_tool.exe.
Step 2
Choose Function->Slot ID, and click it to Set Slot ID automatically.
Step 3
It will show the following dialog , click “確定” to continue.
ASUSTeK Strictly Confidential
4

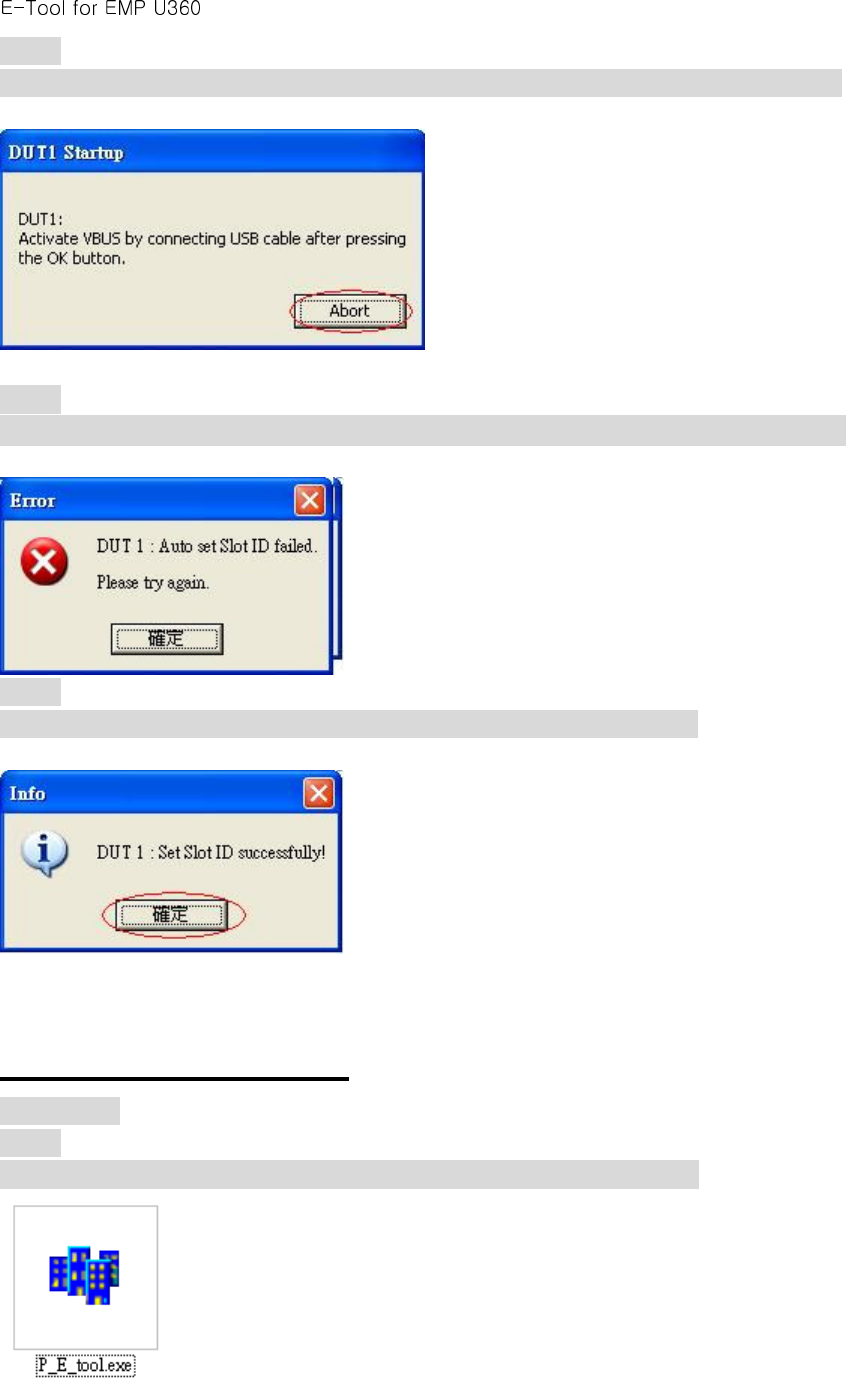

Step 4
It will show the following dialog, turn on inactive DUT ,then click “Abort” to continue.
Step 5
If it shows the following dialog , click“確定” and please repeat Step2 through to Step4 .
Step 6
If the following dialog appeared , it represents Set Slot ID successfully.
4 Operating Method
GSM PART
Step 1
The E-Tool V1.0 dialog box will show when you execute P_E_tool.exe.
ASUSTeK Strictly Confidential
5
Step 2
Choose Function->U360->GSM, and click GSM to show GSM_U360_form dialog box.
Step 3

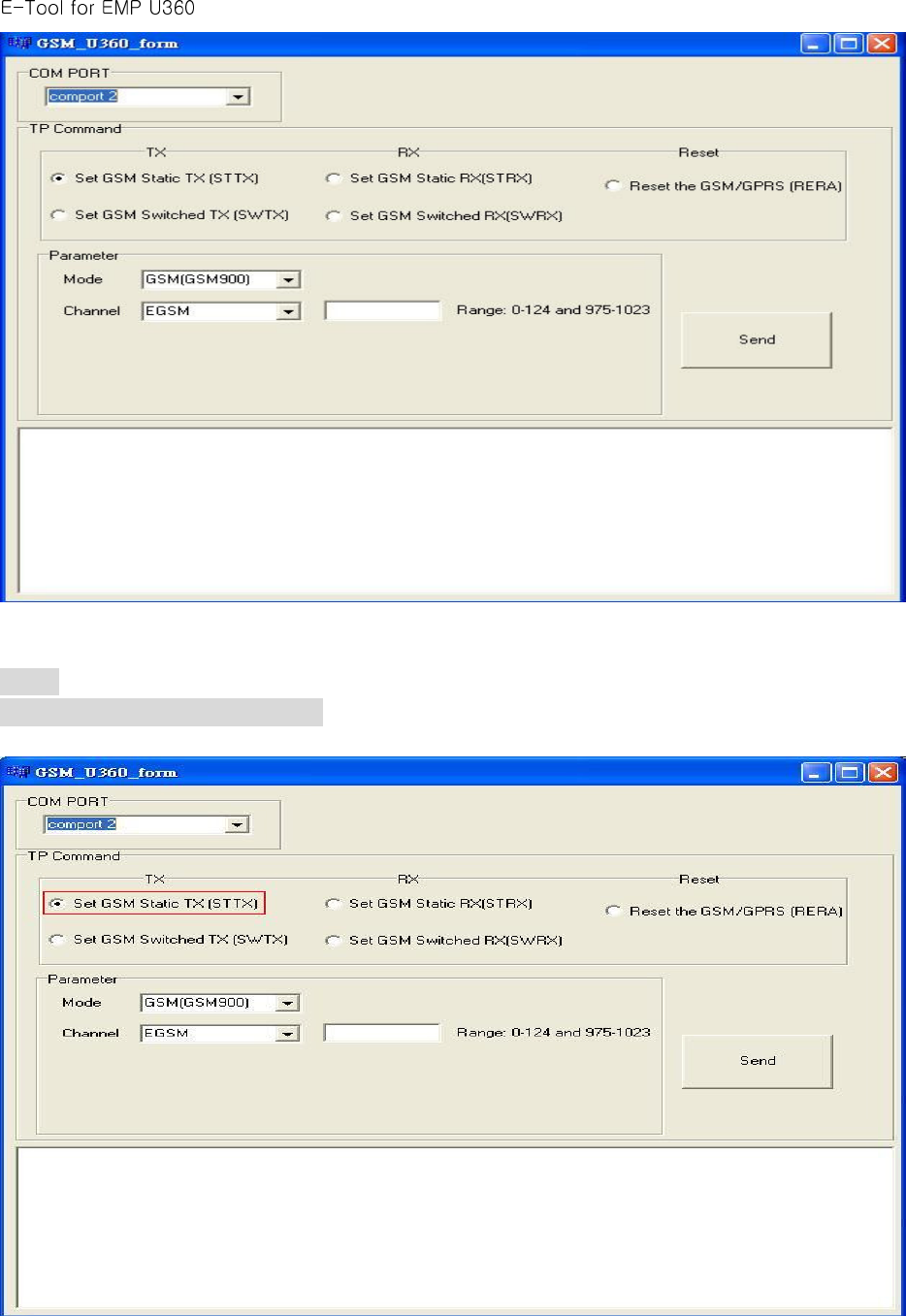

Choice com port number to communicate with Mustang.
ASUSTeK Strictly Confidential
6
Step 4
Choice which tp command to send

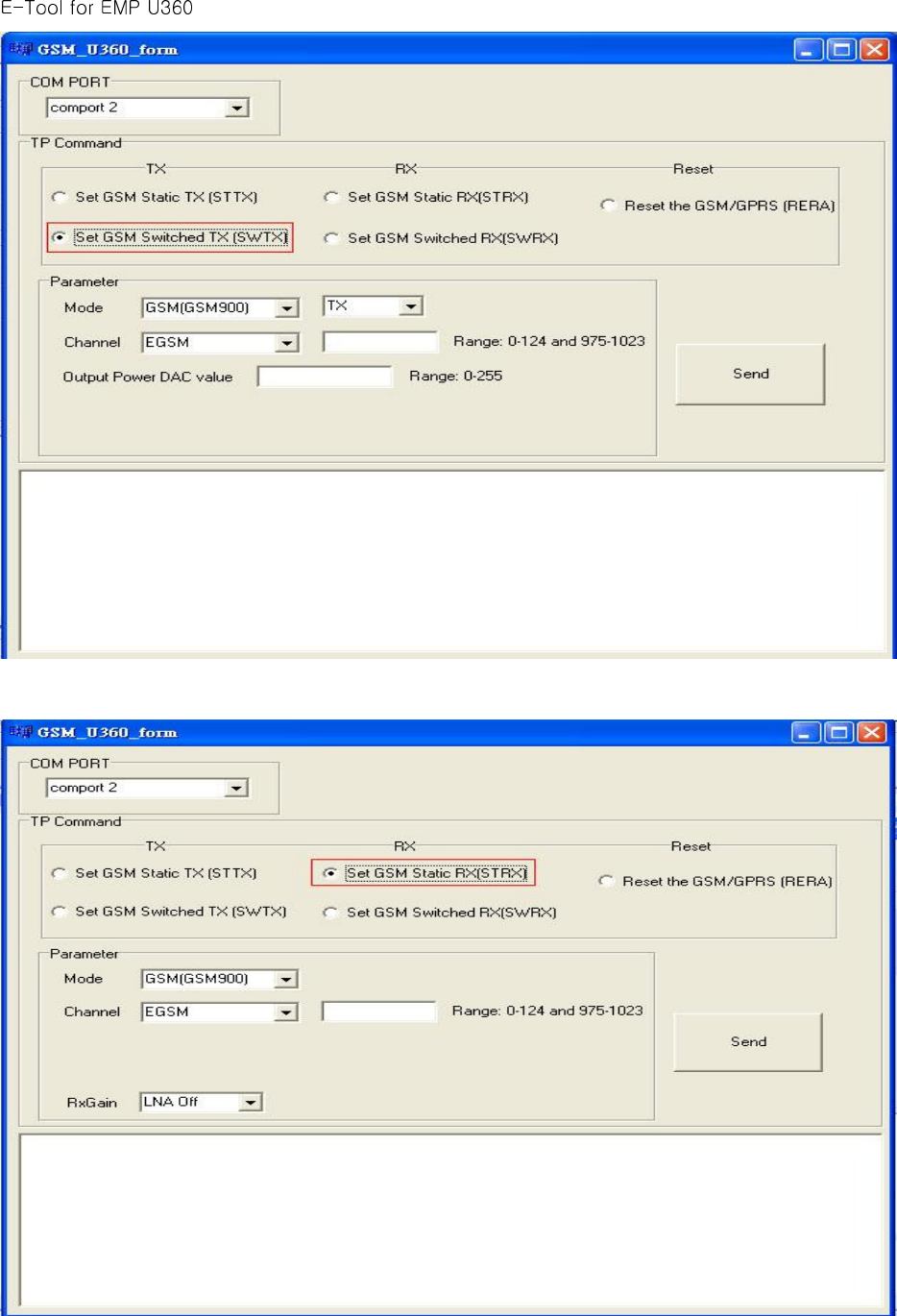

Set GSM Static TX
Set GSM Switched TX
ASUSTeK Strictly Confidential
7
Set GSM Static RX

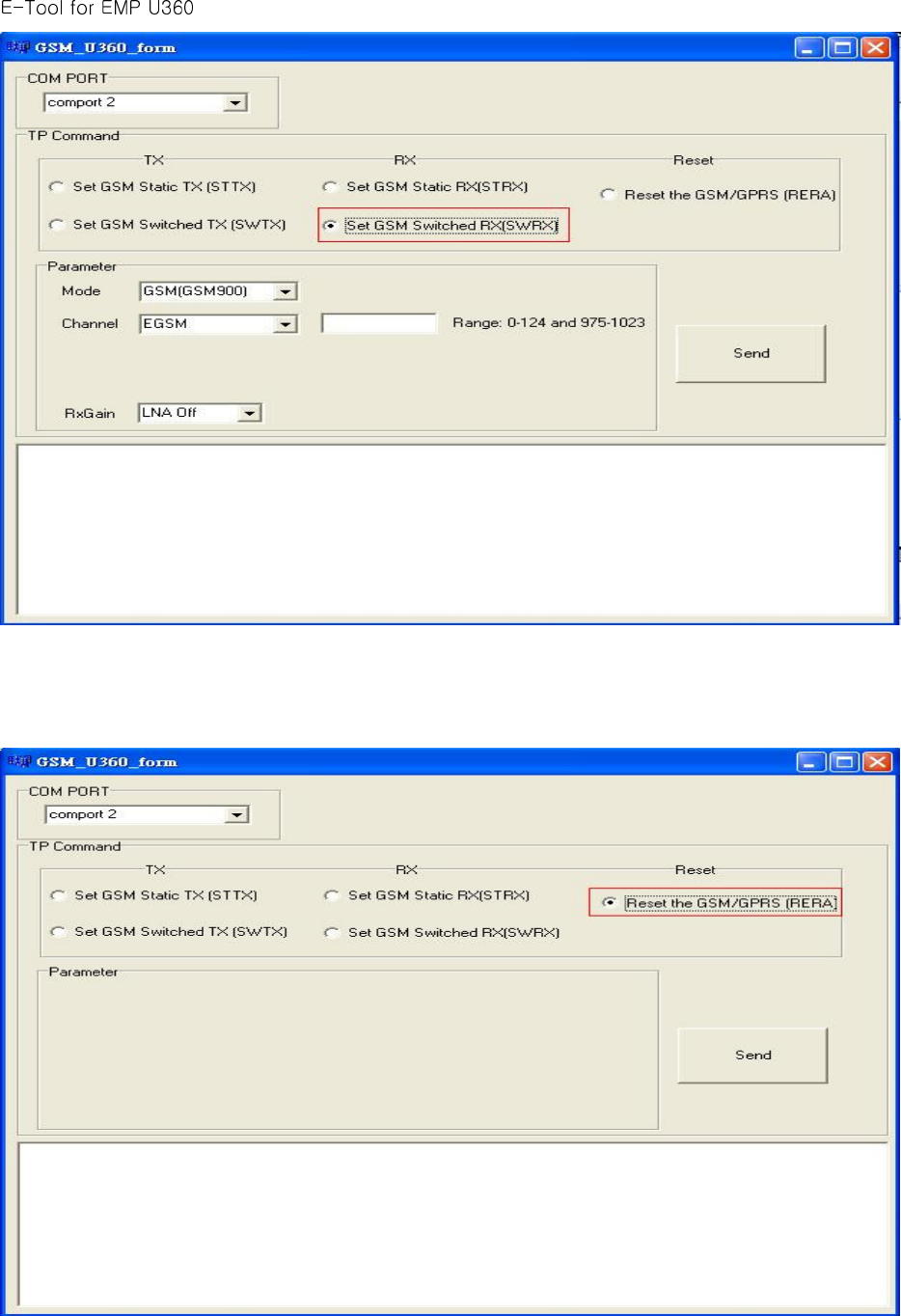

Set GSM Switched RX
ASUSTeK Strictly Confidential
8
Reset the GSM Radio
Result is showed as below
ASUSTeK Strictly Confidential
9
WCDMA PART
Step 1
The E-Tool V1.0 dialog box will show when you execute P_E_tool.exe.
Step 2
Choose Finction->U360->WCDMA, and click WCDMA to show WCDMA_U360_form
dialog box.
ASUSTeK Strictly Confidential
10

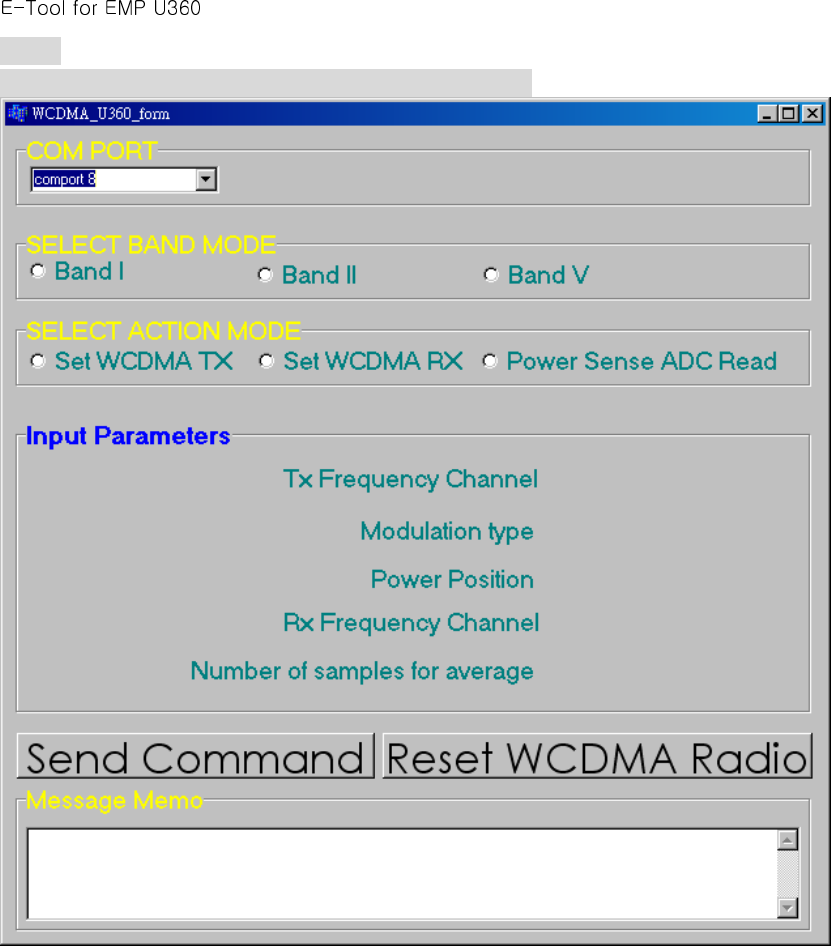

Step 3
Choice com port umber to communicate with Mustang.
ASUSTeK Strictly Confidential
11
Step 4
Choice Band MODE to send the tp command

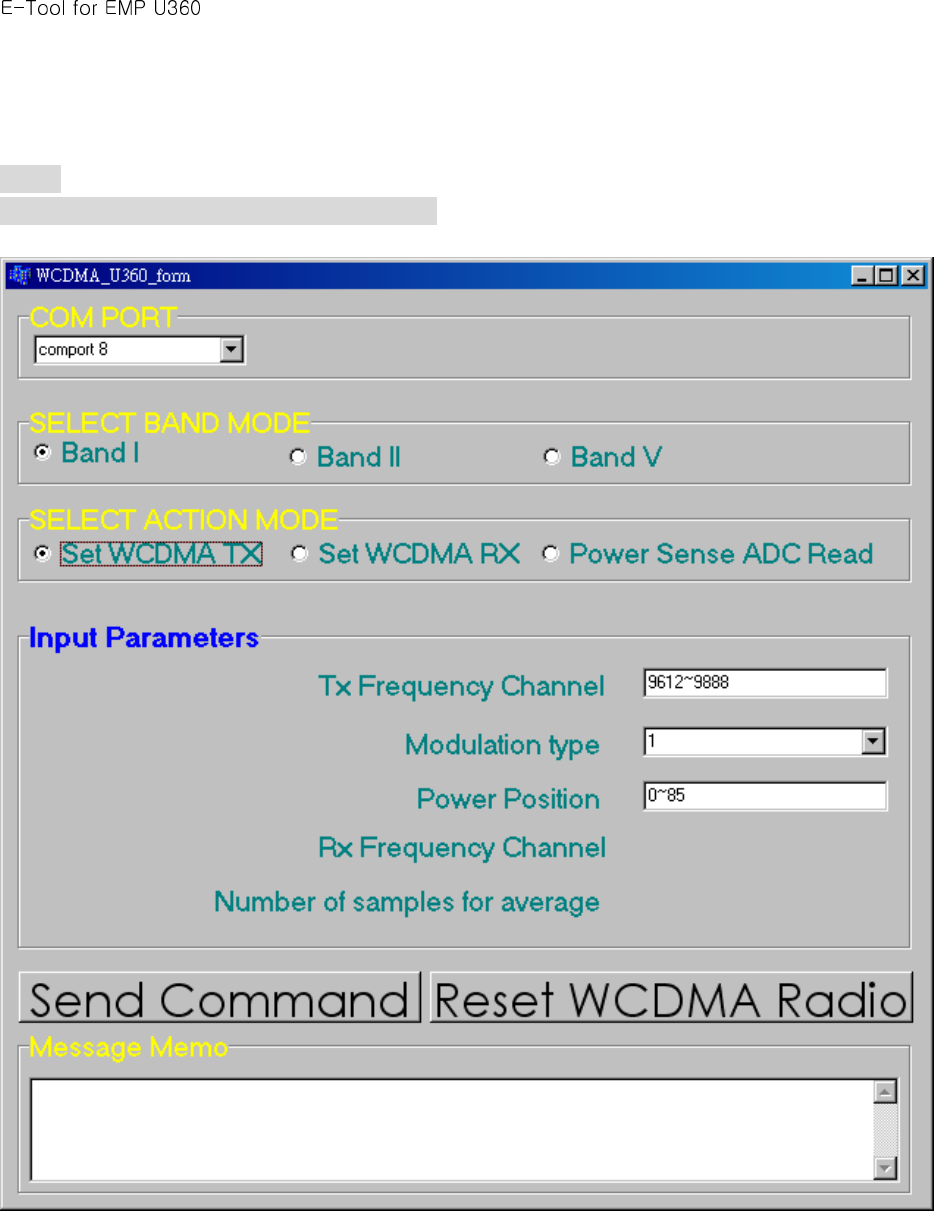

Set WCDMA TX
ASUSTeK Strictly Confidential
12

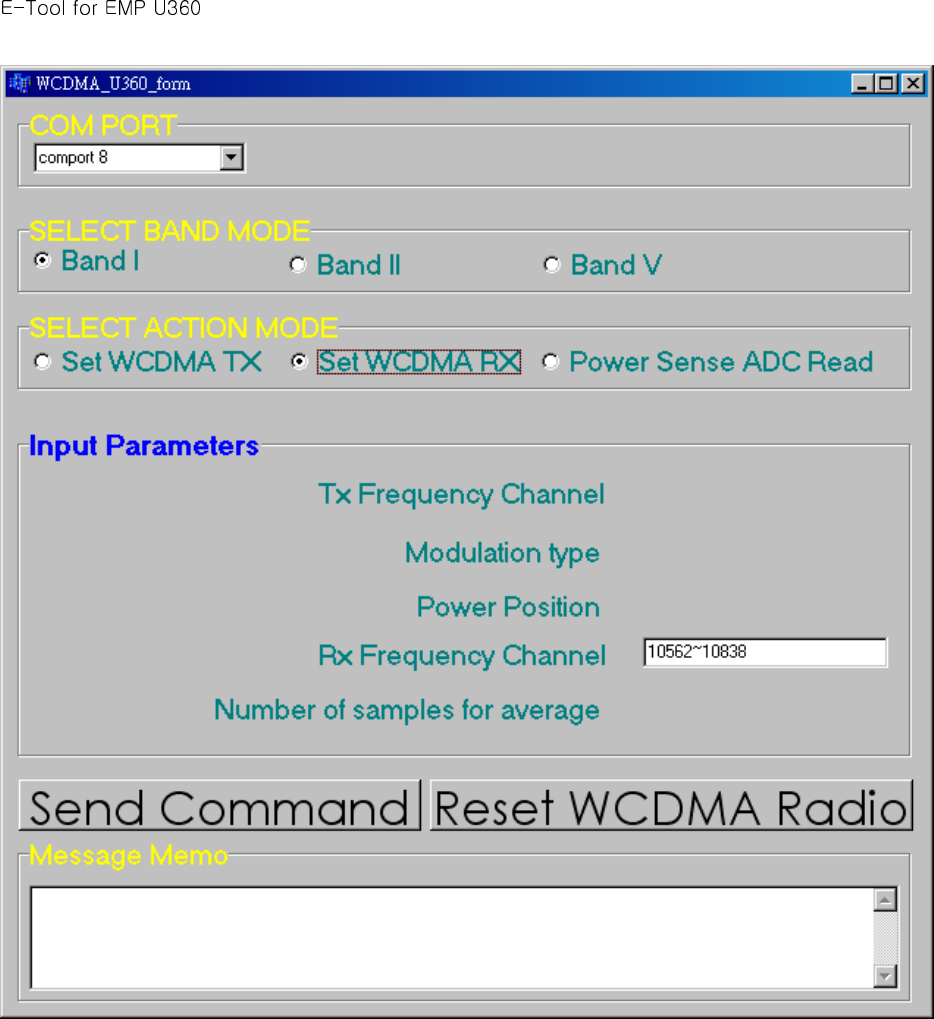

Set WCDMA RX
ASUSTeK Strictly Confidential
13

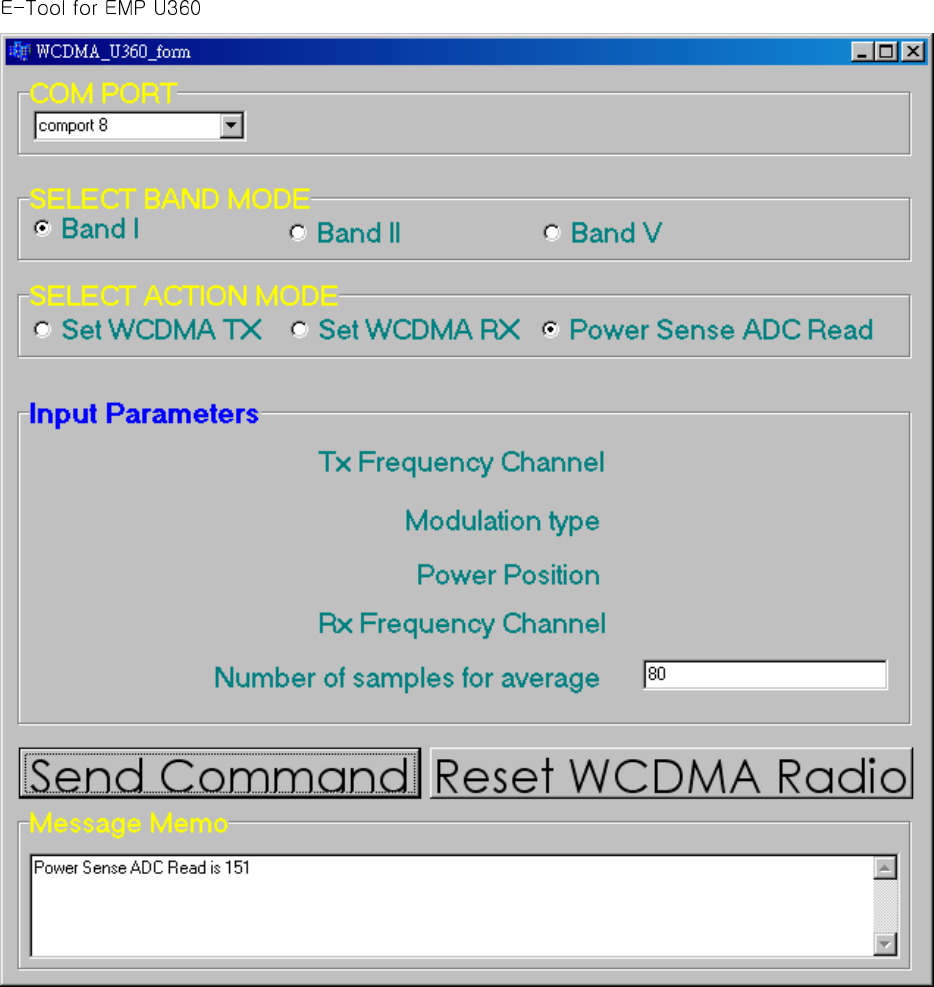

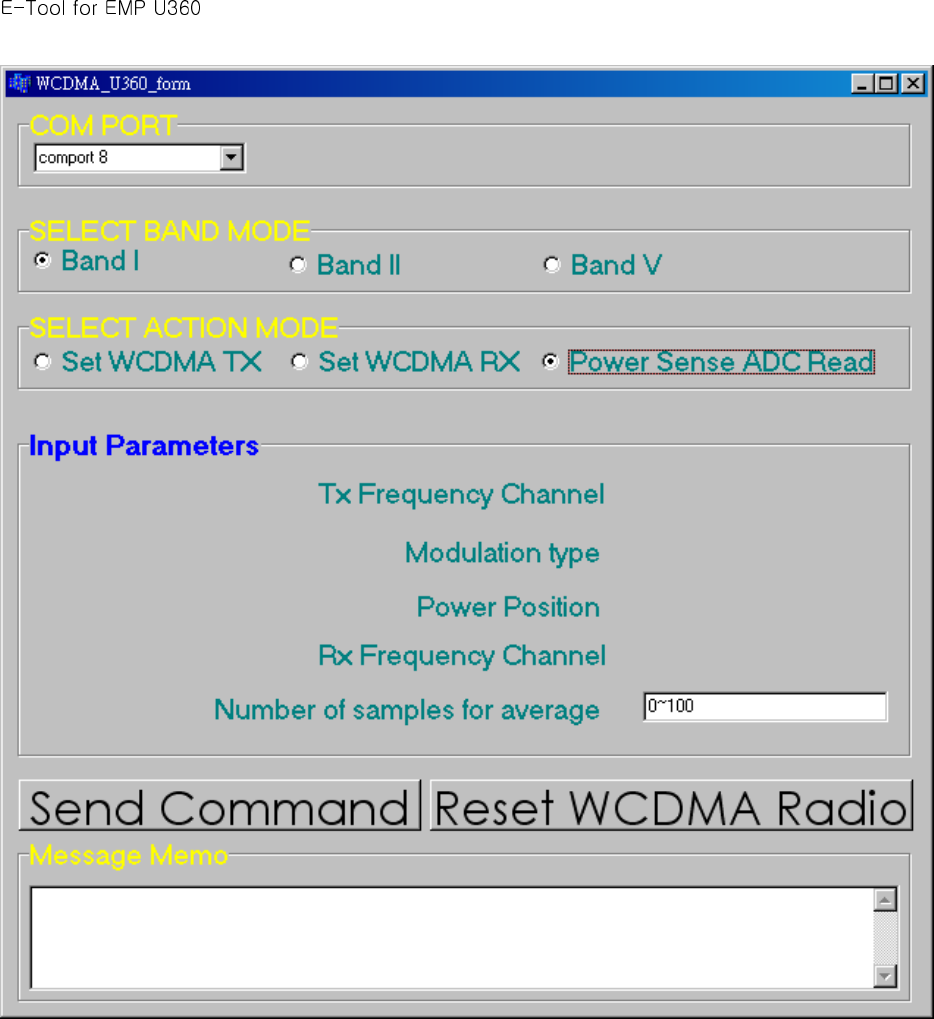

POWER Sense ADC Read
Result is showed as below
ASUSTeK Strictly Confidential
14
ASUSTeK Strictly Confidential
15

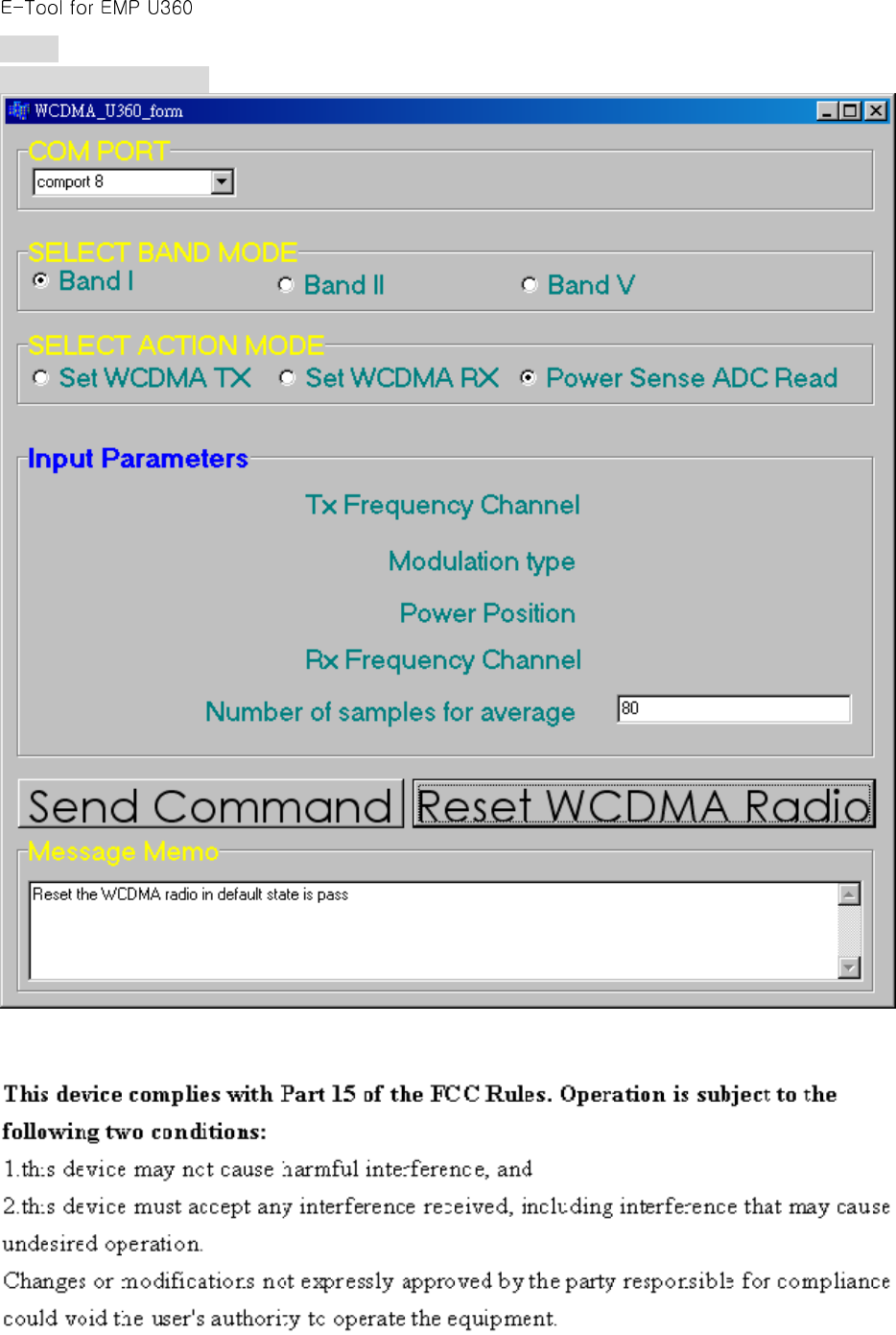

Step 5
Reset WCDMA Radio
Compliance with FCC rules and regulation:
*The maximum antenna gain allowed for use with this device is 0 dBi.
ASUSTeK Strictly Confidential
16
*When the module is installed in the host device, the FCC ID label must be visible through a
window on the final device or it must be visible when an access panel, door or cover is easily
removed. If not, a second label must be placed on the outside of the final device that contains the
following text: “Contains FCC ID: MSQT 200”.
*RF Exposure Warning:
In order to comply with FCC RF Exposure requirements, this device must be installed such that
a minimum 20 cm separation distance is maintained between the EUT's antenna(s) and all persons
during normal operation. In addition, the antenna(s) must not be co-located or operated in
conjunction with any other antenna or transmitter. OEM integrators may not provide instructions
to end-users pertaining to installation or removal of the EUT.
