ATEC AV370A 37 Inches TFT LCD TV User Manual

ATEC Co., Ltd. 37 Inches TFT LCD TV Users Manual

User Manual 9

Using the LCD TV
2-31
Configuring the PIP/POP/PBP Functions
Various functions for watching TV can be configured.
(Language, Transparency, ISM Method, Timer, Caption, Parental etc.)

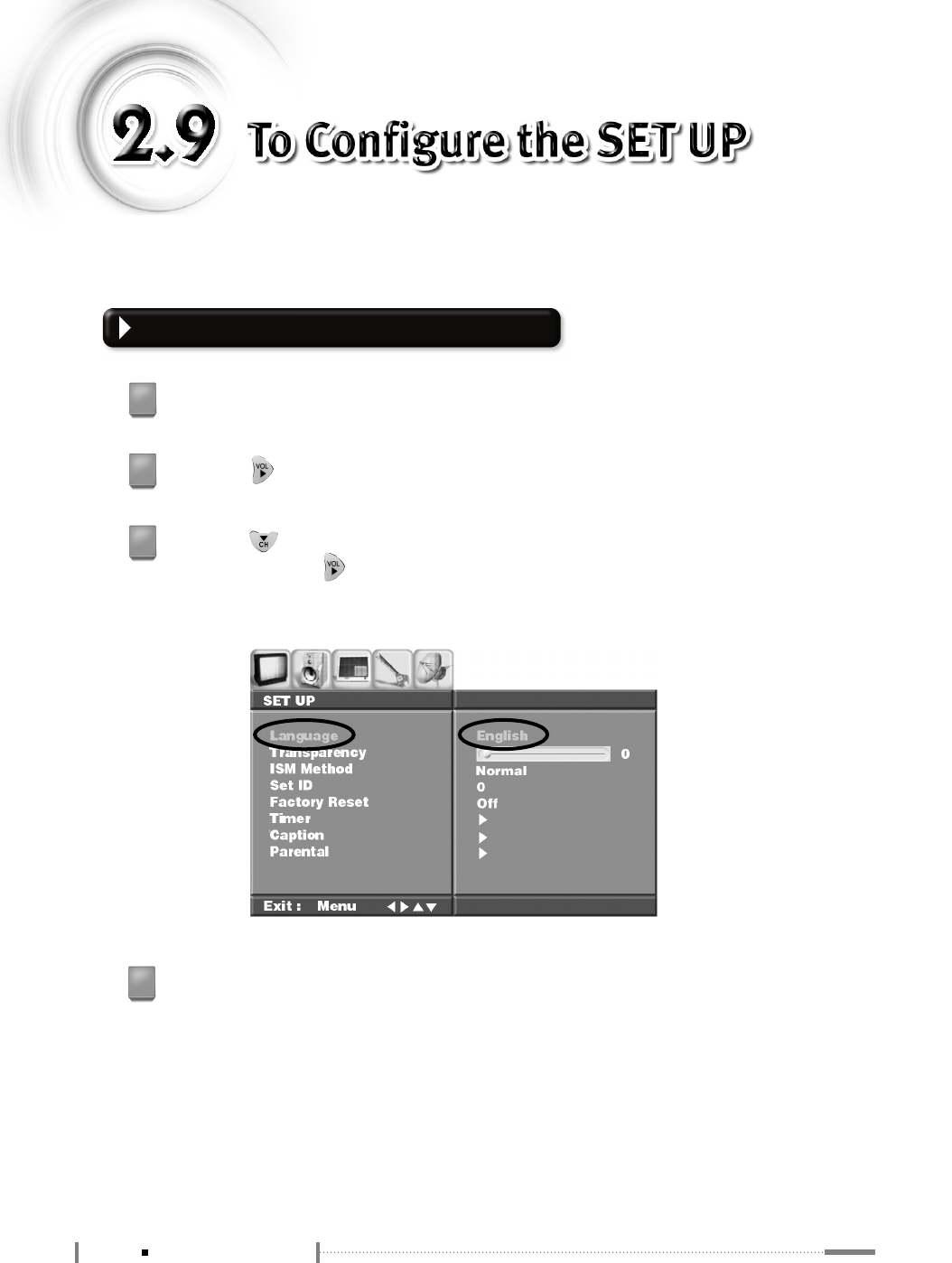

Selecting the Main Screen Language
Press the <MENU> button on the remote control.
1
Press the < > button on the remote control to navigate to the ‘SET UP’ menu.
2
Press the < > button on the remote control to navigate to the ‘Language’
submenu. Press the < > button on the remote control to select the preferred
language. When selection is complete, press the <OK> button.
(English, Deutsch, Français, Español, Italiano, Korean)
3
When configuration is complete, press the <MENU> button to close the ‘Menu’ screen.
4
2-32 To Configure the SET UP
Using the LCD TV

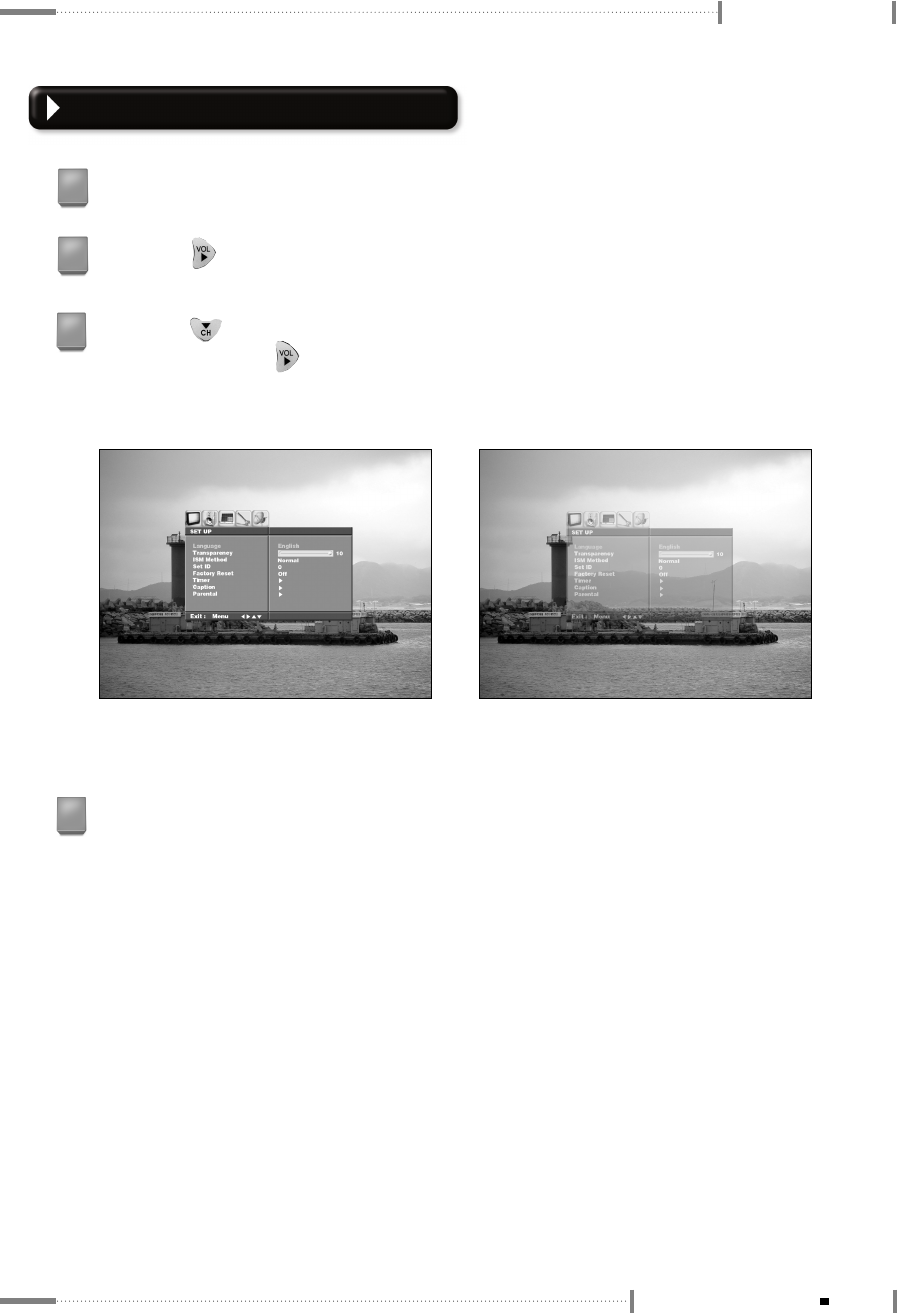

Adjusting Image Transparency
Press the <MENU> button on the remote control.
1
Press the < > button on the remote control to navigate to the ‘SET UP’ menu.
2
Press the < > button on the remote control to navigate to the ‘Transparency’
submenu. Press the < > button on the remote control to adjust the Image
Transparency. When adjustment is complete, press the <OK> button (the settings
possible are 0~10).
<Before Adjusting Image Transparency: 0> <After Adjusting Image Transparency: 10>
3
When configuration is complete, press the <MENU> button to close the ‘Menu’ screen.
4
2-33
To Configure the SET UP
Using the LCD TV

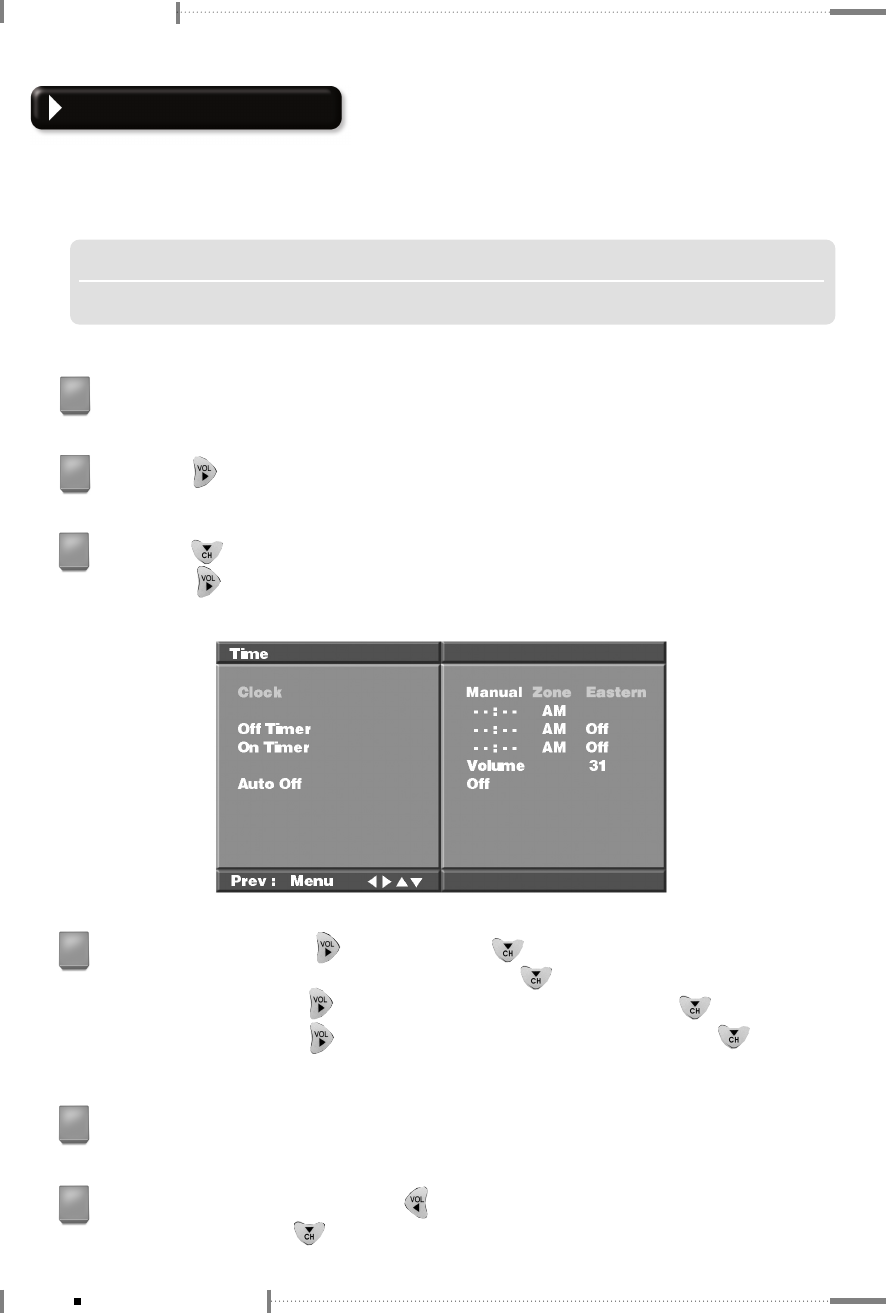

Setting Sleep Timer
Set the sleep timer to switch the TV power to the standby mode automatically when a
specified time has elapsed.
Press the <MENU> button on the remote control.
1
Press the < > button on the remote control to navigate to the ‘SET UP’ menu.
2
Under ‘Clock’, press the < > button and the < > button on the remote control to
set the current time. (When setting time, press the < > button on the remote control
to set ‘Hour’, press the < > button to move to’Minutes’, press the < > button to
set ‘Minutes’, press the < > button to move to ‘AM/PM’, and press the < >
button to select ‘AM/PM’.)
4
Select Auto to specify the Time Zone.
5
Press the < > button on the remote control to navigate to the ‘Timer’ submenu, and
press the < > button on the remote control. The ‘Time Selection’ screen will be
displayed.
3
When setting is complete, press the < > button on the remote control to navigate to
‘Clock’, and press the < > button to navigate to ‘Off Timer’.
6
N󳀏O󳀏T󳀏E
▶
Press the <SLEEP TIMER> button on the remote control to set the sleep timer.
2-34 To Configure the SET UP
Using the LCD TV
In ‘Off Timer’, press the < > button and the < > button on the remote control to set
the ‘TV Off’ timer. (When setting time, press the < > button on the remote control to
set ‘Hour’, press the < > button to move to ‘Minutes’, press the < > button to set
‘Minutes’, press the < > button to move to ‘AM/PM’, and press the < > button to
select ‘AM/PM’.)
7
When configuration is complete, press the < > button on the remote control to navigate
to ‘Off Timer’, and press the < > button on the remote control to navigate to ‘Auto
Off’. Press the < > button on the remote control to select ‘On’.
8
When configuration is complete, press the <MENU> button to close the ‘Menu’ screen.
9
N󳀏O󳀏T󳀏E
▶
To turn the TV off automatically, see the section on ‘Off Timer’ settings for visual settings.
The program channel and volume level can also be configured for cases when the LCD TV is turned on.
Viewing Closed Captions
The LCD TV can decodes and displays the closed caption that are broadcast with
certain TV shows. These captions are usually subtitles for the hearing impaired or
foreign-language translations. All VCRs record the closed caption signal from
television program, so home-recorded video tapes also provide closed captions. Most
prerecorded commercial video tapes provide closed captions as well. Check for the
closed caption symbol in television schedule and on the tape’s packing : CC
Press the <MENU> button on the remote control.
1
Press the < > button on the remote control to navigate to the ‘SET UP’ menu.
2
N󳀏O󳀏T󳀏E
▶
The Caption feature does not work with PC signals.
2-35
To Configure the SET UP
Using the LCD TV

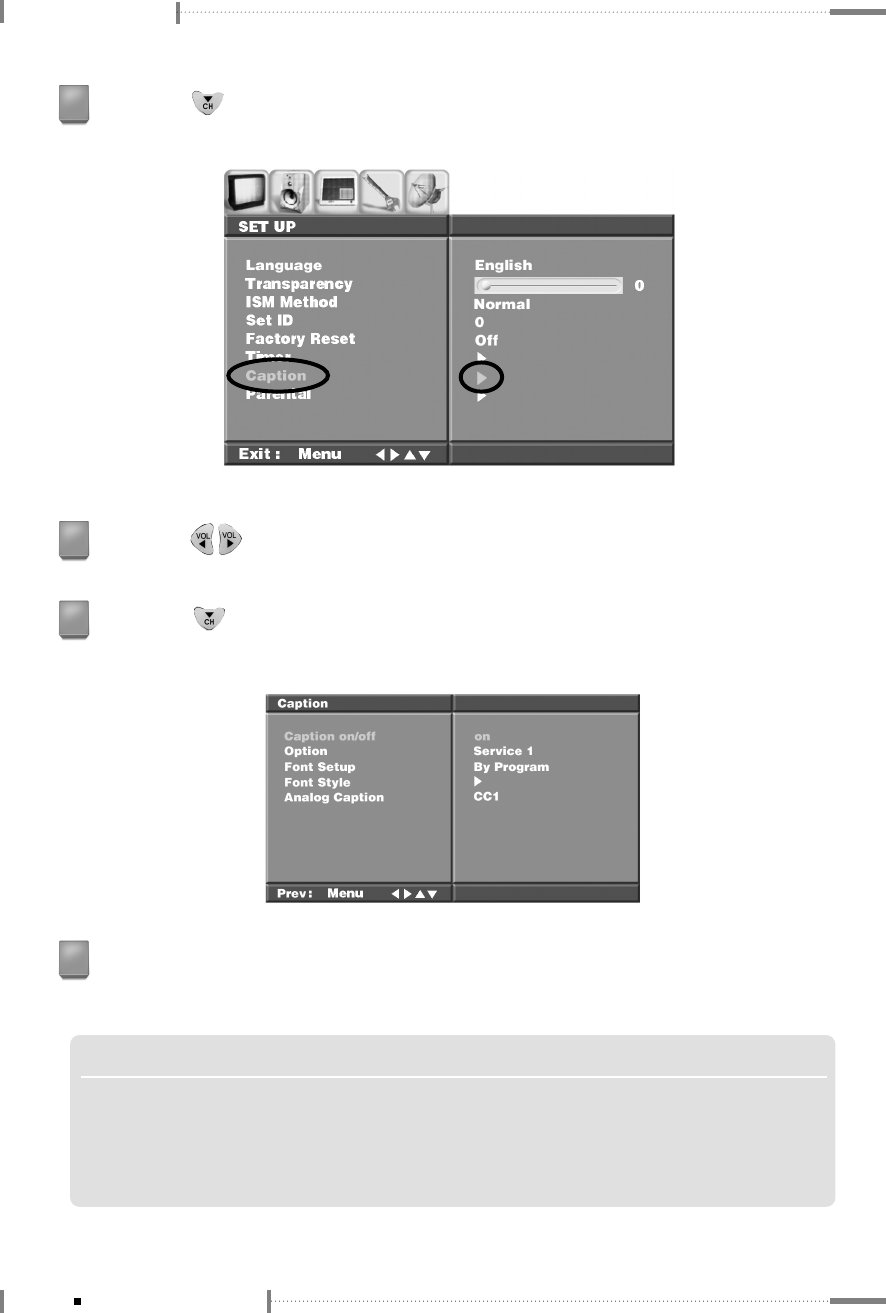

Press the < > button on the remote control to navigate to the ‘Caption’
submenu.
3
Press the < > buttons on the remote control.
4
N󳀏O󳀏T󳀏E 󳀏S
▶
In Caption mode, captions appear at the bottom of the screen, and they usually cover only a small portion
of the picture.
▶
In TEXT mode, information is not related to the program, such as news or weather, is displayed. Text
often covers a large portion of the screen.
Press the < > buttons to move to ‘Analog Caption’. And the press the <VOL / VOL>
buttons to select ‘CC1~4’ or ‘TEXT1~4’.
5
The options available for Digital Caption are Option, Font Setup and Font Style.
6
2-36 To Configure the SET UP
Using the LCD TV
When you have finished, press the <MENU> button to close the ‘Menu’ screen.
6
N󳀏O󳀏T󳀏E
▶
Different Channel and Field display different information :
Field 2 carries additional information that supplements the information in Field 1.(for example, Channel 1
may have subtitles in English, while Channel 2 has subtitles in Spanish.)

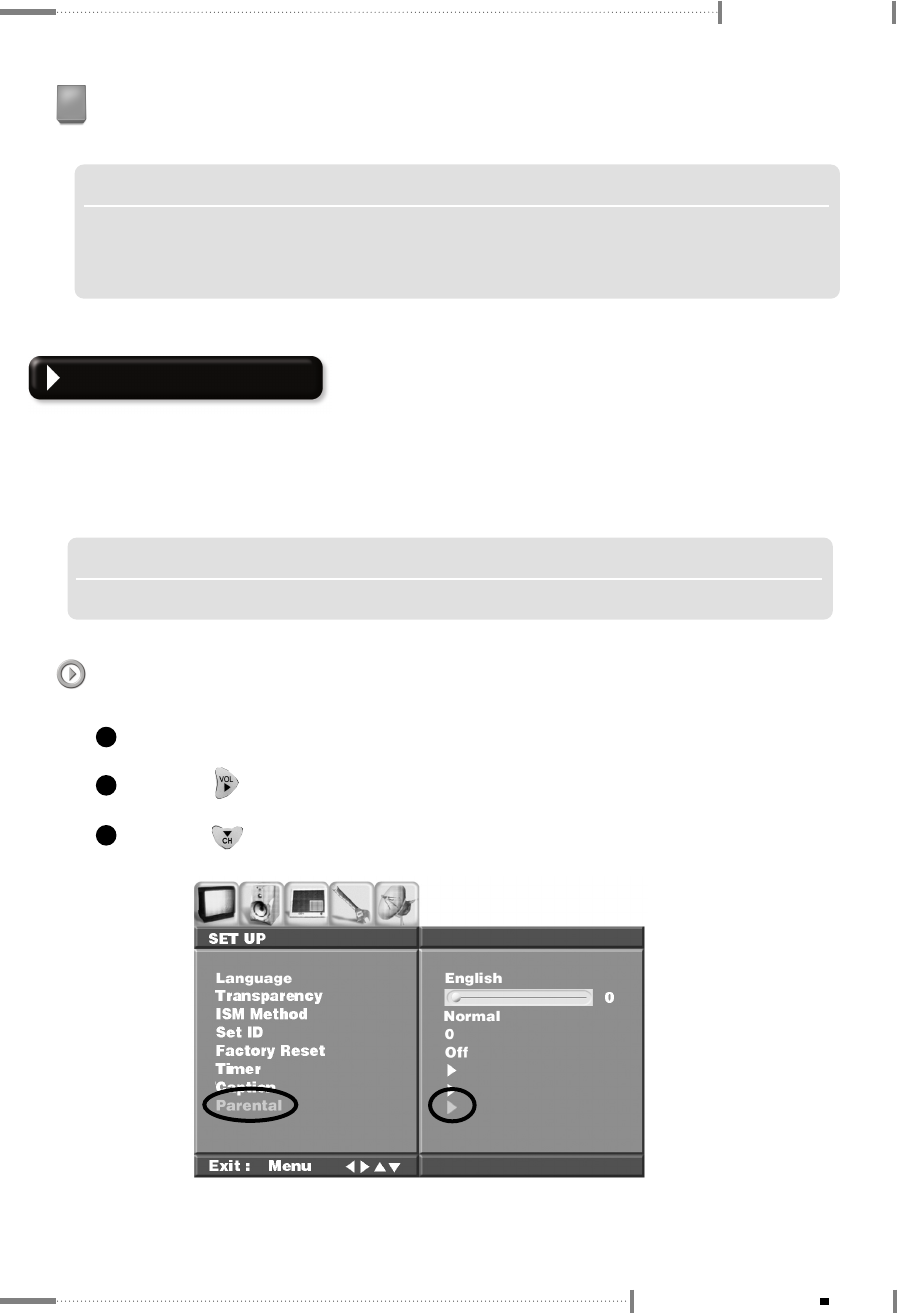

Using the Parental
The Parental feature automatically locks out programming that is deemed inappropriate
for children. The user must enter a PIN(Personal ID Number) before any of the Parental
restriction can be changed.
N󳀏O󳀏T󳀏E
▶
The Parental feature does not work with PC signals.

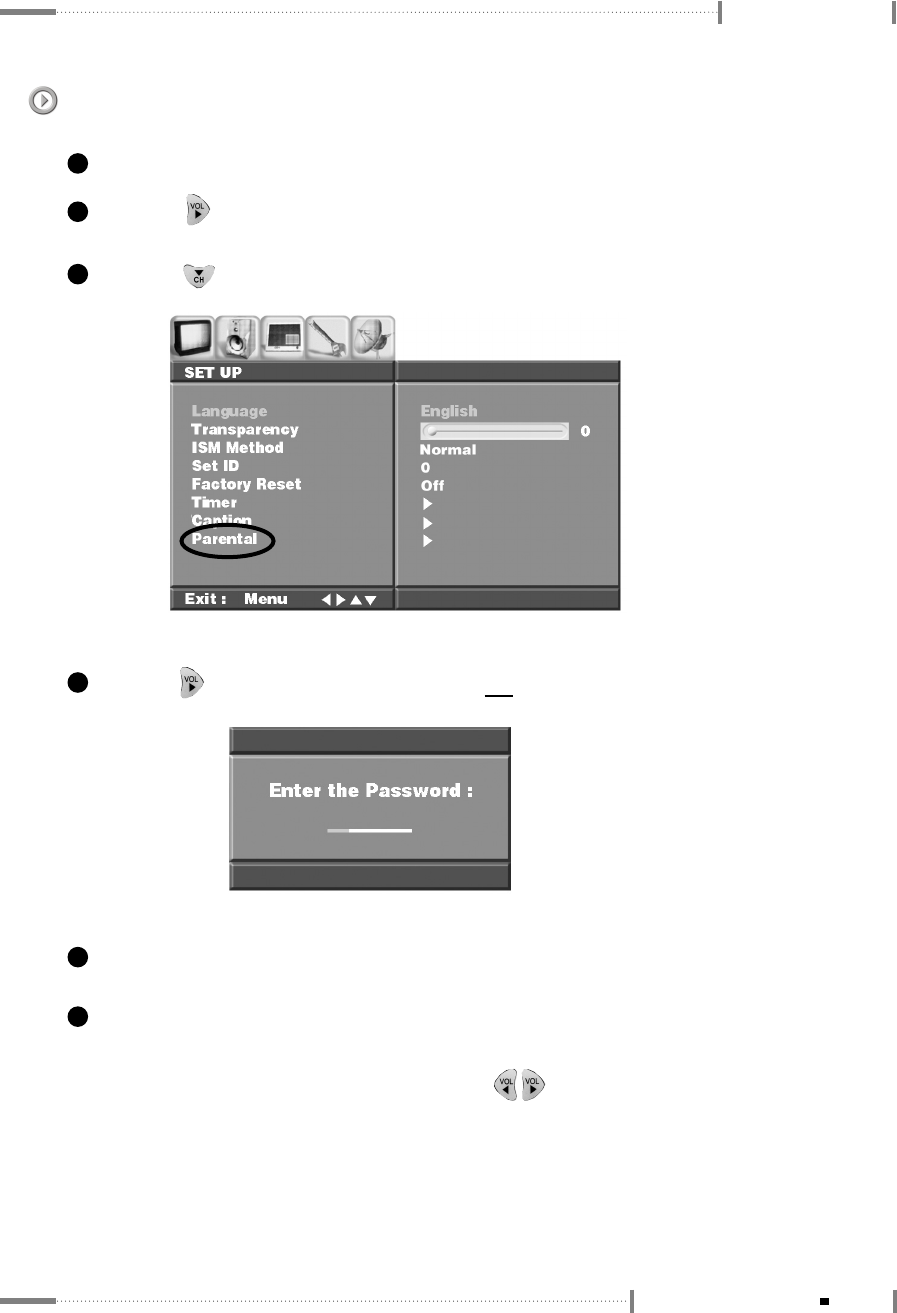

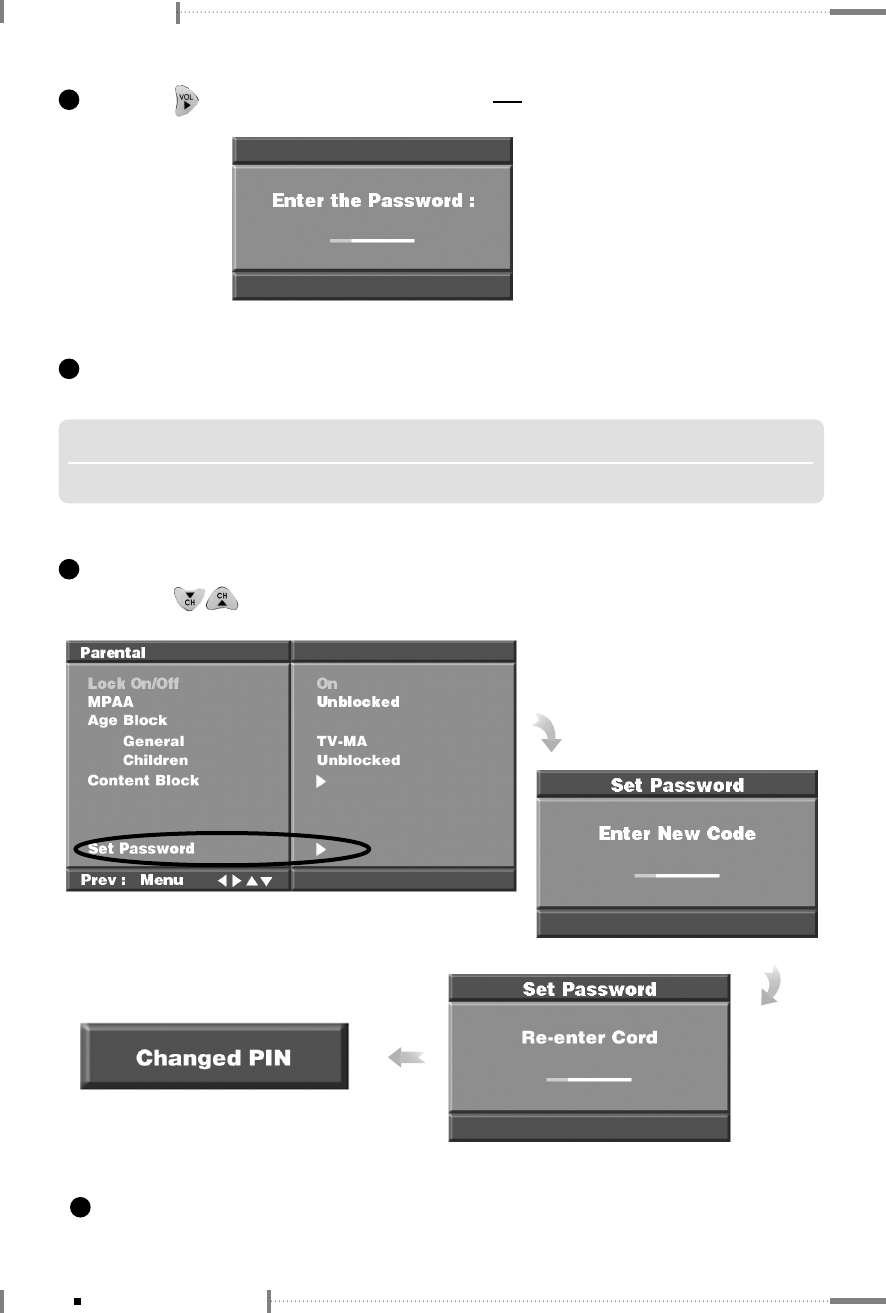

Setting Up Your PIN (Personal ID Number)
1
Press the <MENU> button on the remote control.
2
Press the < > button on the remote control to navigate to the ‘SET UP’ menu.
3
Press the < > button on the remote control to navigate to the ‘Parental’ submenu.
2-37
To Configure the SET UP
6
After entering a valid PIN number, the ‘Parental’ menu screen will appear.
Press the < > buttons to select ‘Set Password’.
7
When you have finished, press the <MENU> button to colse the ‘Menu’ screen.
Using the LCD TV
N󳀏O󳀏T󳀏E
▶
The default PIN number for a new set is ‘1-1-1-1’.
5
Enter 4-digit PIN number.
4
Press the < > button. The ‘Enter the Password : ’ screen is displayed.
2-38 To Configure the SET UP
Using the LCD TV

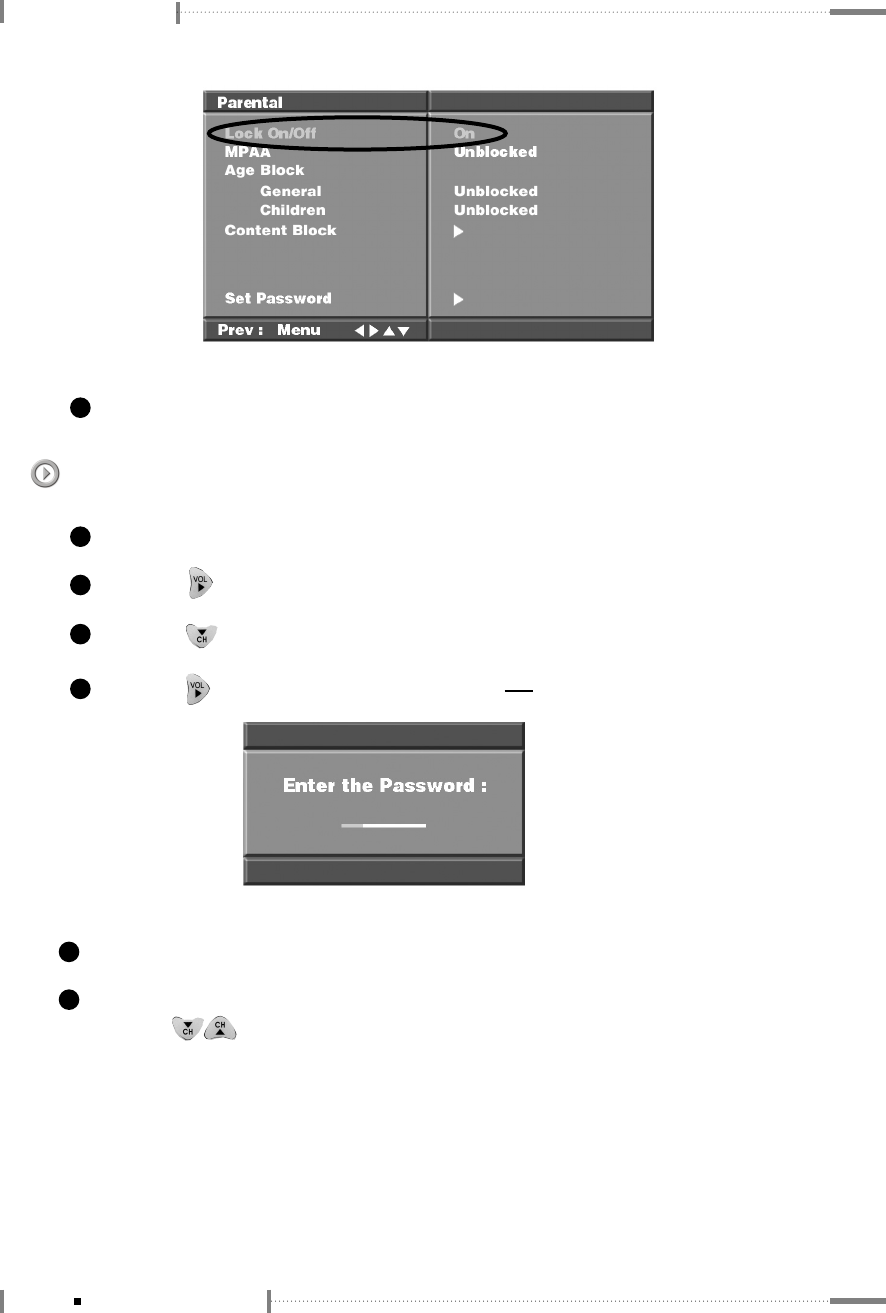

How to On/Off the Parental
1
Press the <MENU> button on the remote control.
2
Press the < > button on the remote control to navigate to the ‘SET UP’ menu.
3
Press the < > button on the remote control to navigate to the ‘Parental’ submenu.
4
Press the < > button. The ‘Enter the Password : ’ screen is displayed.
5
Enter 4-digit PIN number.
6
After entering a valid PIN number, the Parental menu is displayed and the Parental
Lock will be highlighted.
To turn On or Off the Parental feature, press the < > buttons to select Parental
Lock On/Off.
2-39
To Configure the SET UP
Using the LCD TV
4
Press the < > button. The ‘Enter the Password : ’ screen is displayed.
5
Enter 4-digit PIN number.
6
After entering a valid PIN number, the Parental sub menu screen will appear.
Press the < > buttons to move to ‘MPAA’ submenu.
7
When you have finished, press the <MENU> button to close the ‘Menu’ screen.
How to Setup Restriction Using the MPAA
1
Press the <MENU> button on the remote control.
2
Press the < > button on the remote control to navigate to the ‘SET UP’ menu.
3
Press the < > button on the remote control to navigate to the ‘Parental’ submenu.
2-40 To Configure the SET UP
7
Press the < > buttons to select particular MPAA category.
The < > buttons will cycle through the MPAA categories.
Using the LCD TV
8
When you have finished, press the <MENU> button to colse the ‘Menu’ screen.
N󳀏O󳀏T󳀏E
▶
The Parental will automatically block any category that is ‘More restrictive’. For example, if you block the
PG-13 & Above category, then R & Above, NC-17 & Above, and X will be automatically blocked also.
G & Above General audience (no restrictions).
MPAA
PG & Above Parental guidance suggested.
PG-13 & Above Parents strongly cautioned.
R & Above Restricted. Children under 17 should be accompanied
by an adult.
NC-17 & Above No Children under age 17.
XAdults only
Unblocked Not rated
2-41
To Configure the SET UP
Using the LCD TV
6
After entering a valid PIN number, the Parental sub menu screen will appear.
Press the < > button to move to ‘Age Block’.
Age Block
General TV-G & Above General audience
Children TV-Y Young Children
TV-Y7 Children 7 and over
Unblocked Not rated
TV-PG & Above Parental guidance
TV-14 & Above Viewers 14 and over
TV-MA Mature audience
UnbloCked Not rated
4
Press the < > button. The ‘Enter the Password : ’ screen is displayed.

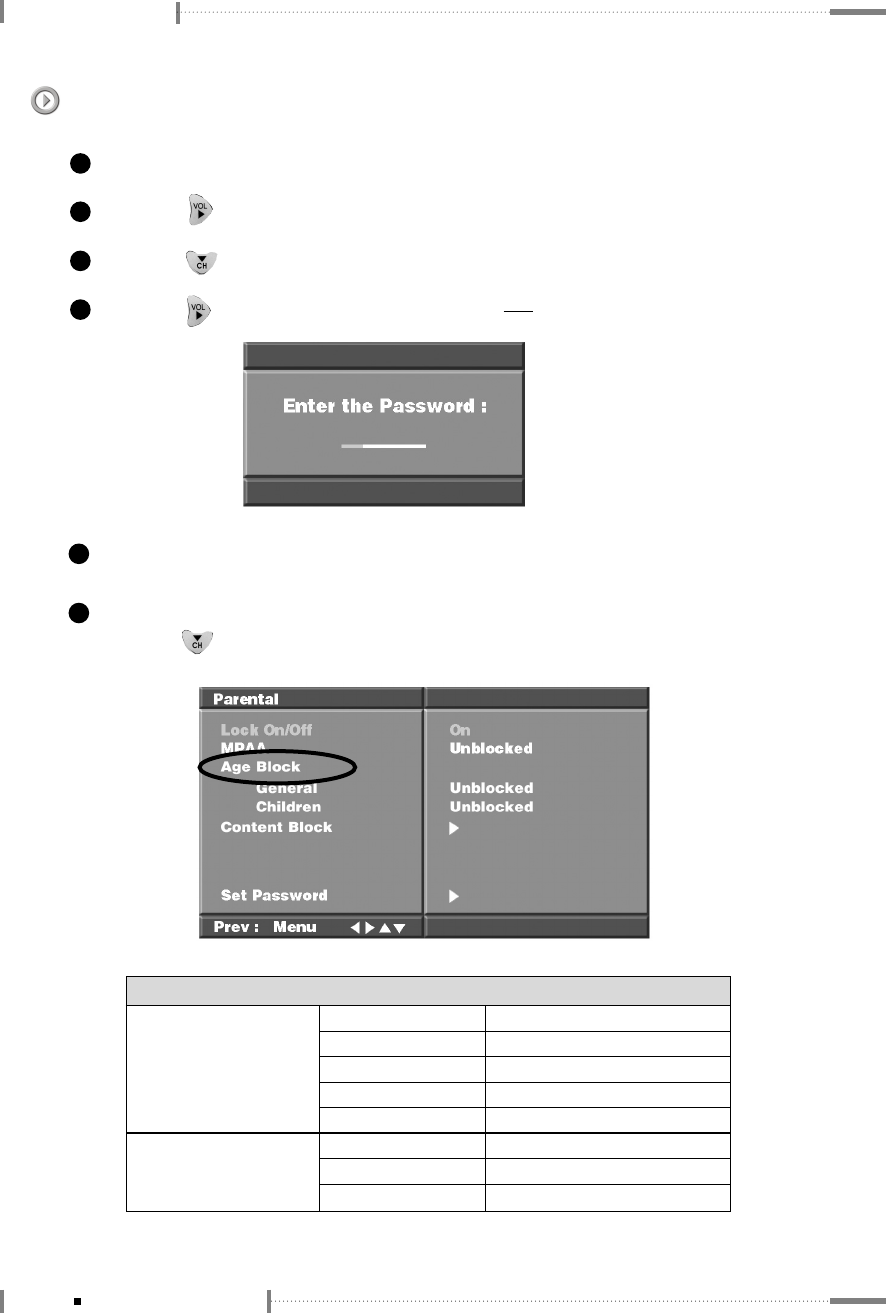

How to Setup Restriction Using the TV Guidelines
1
Press the <MENU> button on the remote control.
2
Press the < > button on the remote control to navigate to the ‘SET UP’ menu.
3
Press the < > button on the remote control to navigate to the ‘Parental’ submenu.
5
Enter 4-digit PIN number.
2-42 To Configure the SET UP

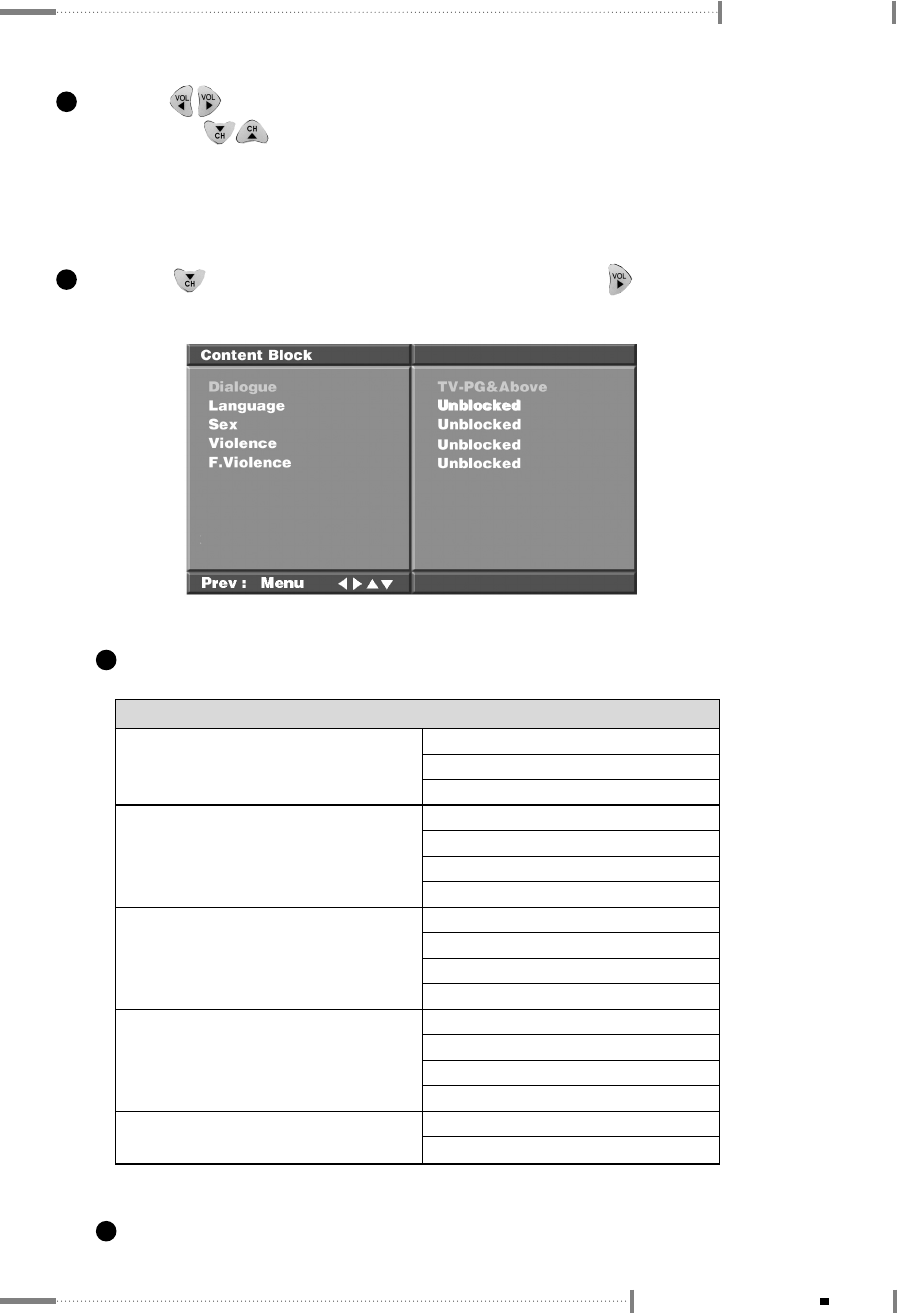

To set the ‘Content Block’.
Using the LCD TV
9
When you have finished, press the <MENU> button to colse the ‘Menu’ screen.
10
7
Press the < > buttons to move to one of the six age-based categories in column
and press the < > buttons will cycle through the MPAA categories.
For example, if you block TV-Y category, then TV-Y7 will be automatically blocked.
Similarly, if you block TV-G & Above category, then all the categories in the ‘young adult’
will be blocked (TV-G & Above, TV-PG & Above, TV-14 & Above and TV-MA).
8
Press the < > button to select ‘content Block’ and press the < > button.
The ‘content Block’ submenu screen will appear.
Content Block
TV-PG & Above
Dialogue
(Sexual Suggestive Dialog)
TV-PG & Above
Language
(Adult Language)
TV-14 & Above
Unblocked
TV-14 & Above
TV-MA
Unblocked
TV-PG & Above
Sex
(Sexual Situation) TV-14 & Above
TV-MA
Unblocked
TV-PG & Above
Violence TV-14 & Above
TV-MA
Unblocked
TV-Y7
F.Violence (Fantasy Violence)
Unblocked
2-43
To Configure the SET UP

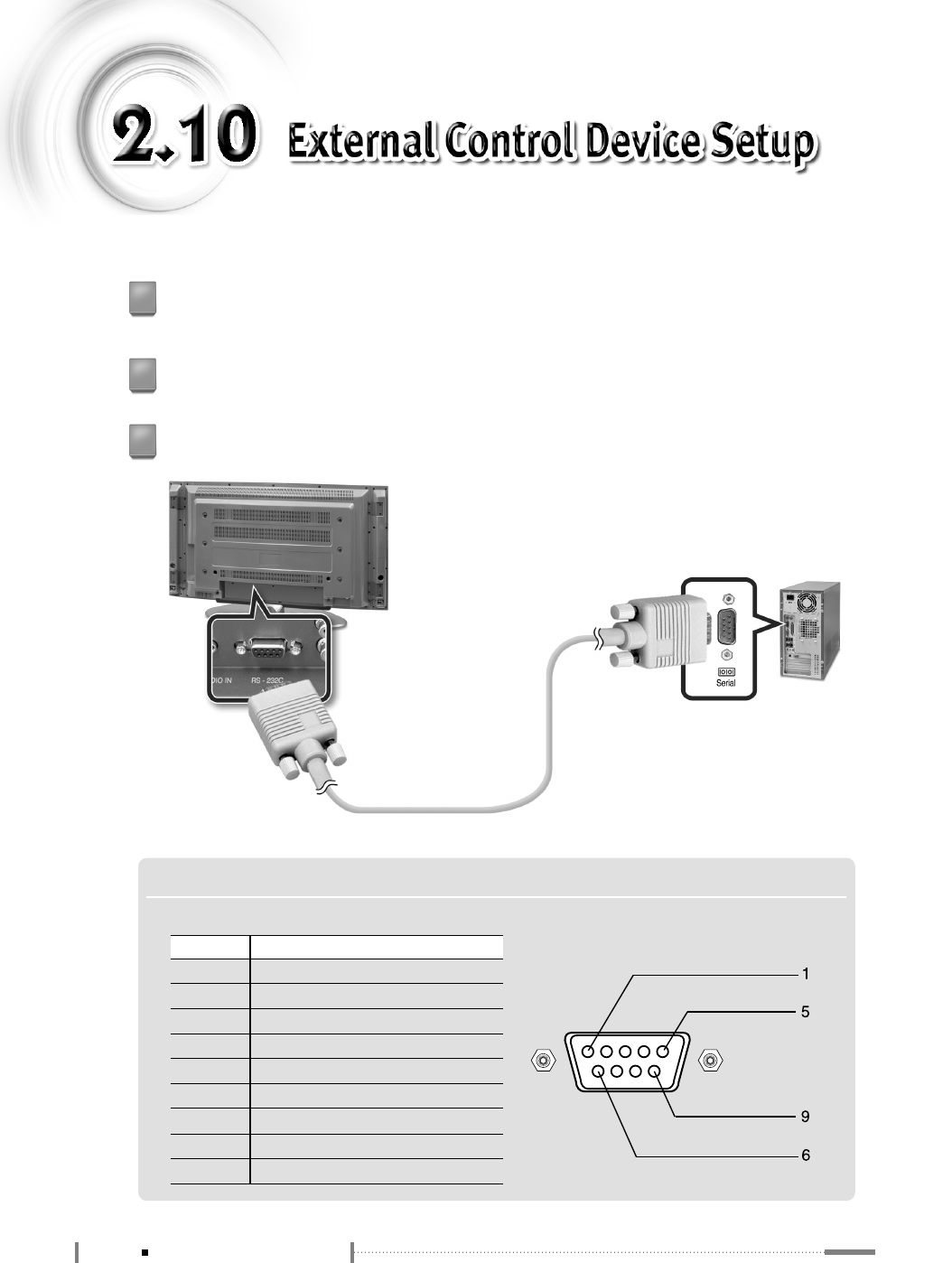

Connect the RS-232C input jack to an external control device (such as a computer or an A/V
control system) and control the Monitor’s functions externally.
1
Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
2
RS-232C connection cables are not supplied with the Monitor.
3
N󳀏O󳀏T󳀏E
▶▶Type of Connector : D-Sub 9-pin Male
No. Pin Name
1
2
3
4
5
6
7
8
9
No Connection
RXD (Receive data)
TXD (Transmit data)
DTR (DTE side ready)
GND
DSR (DCE side ready)
RTS (Ready to send)
CTS (Clear to send)
No Connection
2-44 External Control Device Setup
Using the LCD TV
N󳀏O󳀏T󳀏E

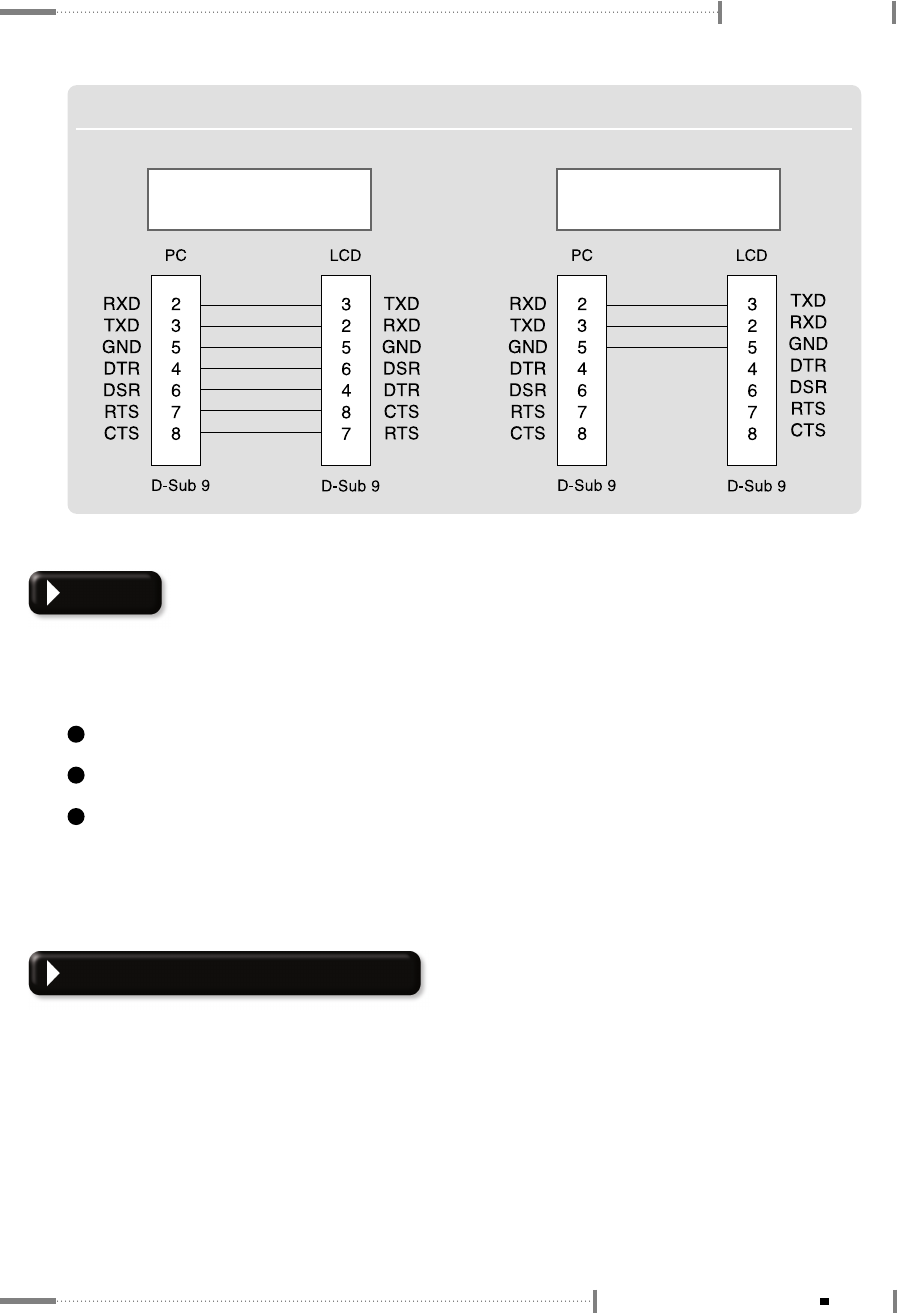

▶▶RS-232C Configurations
7-Wire Configuration
(Standard RS-232C cable)
3-Wire Configuration
(Not standard)
Press the <MENU> button and then use the ▲/▼button to select the SPECIAL menu.
1
Press the ▶button and then use ▲/▼button to select Set ID.
2
Press the ▶button and then use ◀/▶button to adjust Set ID to choose the desired
monitor ID number.
• The adjustment range of Set ID is 0 ~ 99.
3
Set ID
- Use this function to specify a monitor ID number.
- Refer to ‘Real Data Mapping 1’.
Communication Parameters
- Baud rate : 9600 bps (UART)
- Data length : 8 bits
- Parity : None
- Stop bit : 1 bit
- Communication code : ASCII code
2-45
External Control Device Setup
Using the LCD TV
•Menu doesn’t display on screen when setting the 4, 12, 13, and 26 ~ 32.
COMMAND 1
Power
Input Select
Volume Mute
Volume Control
Contrast
Brightness
Color
Tint
Sharpness
PIP/POP/PBP
PIP Position
Treble
Bass
Balance
Color Temperature
AV and HD H Position
AV and HD V Position
PIP Input Source
k
k
k
k
k
k
k
k
k
k
k
k
k
k
k
k
k
k
COMMAND 2
a
b
e
f
g
h
i
j
k
n
q
r
s
t
u
v
w
y
DATA(Hexadecimal)
0 ~ 1
0 ~ 7
0 ~ 1
0 ~ 64
0 ~ 64
0 ~ 64
0 ~ 64
0 ~ 64
0 ~ 64
0 ~ 4
0 ~ 3
0 ~ 14
0 ~ 14
0 ~ 64
0 ~ 3
0 ~ 64
0 ~ 64
0 ~ 7
Command Reference List
2-46 External Control Device Setup
Using the LCD TV
N󳀏O󳀏T󳀏E
▶▶Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : k,
[Command 2] : To control LCD set.
[Set ID] : You can adjust the Set ID to choose desired monitor ID number in Special menu. Adjustment
range is 0 ~ 99. When selecting Set ID ‘0’, every connected LCD set is controlled.
Set ID is indicated as decimal (0~99) on menu and as Hexadecimal (0x0~0x63) on
transmission/receiving protocol.
[DATA] : To transmit command data.
Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return ASCII code ‘0x0D’
[ ] : ASCII code ‘space (0x20)’
▶▶OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
The Monitor transmits ACK (acknowledgement) based on this format when receiving normal data. At this
time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns
the data of the PC computer.
▶▶Error Acknowledgement
[Command2][ ][Set ID][ ][NG][x]
The Monitor transmits ACK (acknowledgement) based on this format when receiving abnormal data from
non-viable functions or communication errors.
Data 1 : Illegal Code
2 : Not supported function
3 : Wait more time
Power (Command2 : a)
●To control Power On/Off of the Monitor.
- Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 0 : Power Off
1 : Power On
- Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
2-47
External Control Device Setup
Using the LCD TV
●To show Power On/Off.
- Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Data 0 : Power Off
1 : Power On
- Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
In a like manner, if other functions transmit ‘FF’ data based on this format,
Acknowledgement data feedback presents status about each function.
Input Select (Command2 : b) (Main Picture Input)
●To select input source for the Monitor. You can also select an input source using the
INPUTSELECT button on the Monitor’s remote control.
- Transmission
[k][b][ ][Set ID][ ][Data][Cr]
Data 0 : TV 1 : AV1 2 : AV2
3 : AV3 4 : COMPONENT
6 : RGB 7 : DVI
- Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
Volume Mute (Command2 : e)
●To control volume mute on/off. You can also adjust mute using the MUTE button on
remote control.
- Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
- Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
2-48 External Control Device Setup
Using the LCD TV
Volume Control (Command2 : f)
●To adjust volume. You can also adjust volume with the volume buttons on remote control.
- Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
- Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
Contrast (Command2 : g)
●To adjust screen contrast. You can also adjust contrast in the Video menu.
- Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
- Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
Real data mapping 1 0 : Step 0
⋯
A : Step 10 (SET ID 10)
⋯
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
⋯
64 : Step 100
Brightness (Command2 : h)
●To adjust screen brightness. You can also adjust brightness in the Video menu.
- Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping 1’.
- Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
2-49
External Control Device Setup
Using the LCD TV
Color (Command2 : i)
●To adjust the screen color. You can also adjust color in the Video menu.
- Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping 1’.
- Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
Tint (Command2 : j)
●To adjust the screen tint. You can also adjust tint in the Video menu.
- Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data Red : 0 ~ Green : 64
Refer to ‘Real data mapping 1’.
- Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
Sharpness (Command2 : k)
●To adjust the screen sharpness. You can also adjust sharpness in the Video menu.
- Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64
Refer to ‘Real data mapping 1’.
- Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
2-50 External Control Device Setup
Using the LCD TV
PIP/POP/PBP (Command2 : n)
●To control the PIP (Picture-in-Picture) or Twin Picture. You can also control the
PIP/Twin picture mode using the PIP or TWIN PICTURE button on the remote
control or in the Twin menu.
- Transmission
[k][n][ ][Set ID][ ][Data][Cr]
Data 0 : PIP OFF 1 : PIP
2 : POP 3 : PBP1 4 : PBP2
- Acknowledgement
[n][ ][Set ID][ ][OK][Data][x]
PIP Position (Command2 : q)
●To select sub picture position for PIP. You can also adjust the sub picture position using
Win.position on the remote control or in the Twin menu.
- Transmission
[k][q][ ][Set ID][ ][Data][Cr]
Data 0: Right down on screen
1: Left down on screen
2: Left up on screen
3: Right up on screen
- Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
Treble (Command2 : r)
●To adjust treble. You can also adjust treble in the Audio menu.
- Transmission
[k][r][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64
Refer to ‘Real data mapping 1’.
- Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
(Operates only when SSM is set to USER.)
2-51
External Control Device Setup
Using the LCD TV
Bass (Command2 : s)
●To adjust bass. You can also adjust bass in the Audio menu.
- Transmission
[k][s][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64
Refer to ‘Real data mapping 1’.
- Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
(Operates only when SSM is set to USER.)
Balance (Command2 : t)
●To adjust balance. You can also adjust balance in the Audio menu.
- Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64
Refer to ‘Real data mapping 1’.
- Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
Color Temperature (Command2 : u)
●To adjust color temperature. You can also adjust CSM in the PC menu.
- Transmission
[k][u][ ][Set ID][ ][Data][Cr]
Data 0: Normal 1: Cool
2: Warm 3: User
- Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
2-52 External Control Device Setup
Using the LCD TV
AV and HD H Position (Command2 : v)
●To adjust AV and HD mode H Posion
- Transmission
[k][v][ ][Set ID][ ][Data][Cr]
Data 0 ~ 64
- Acknowledgement
[v][ ][Set ID][ ][OK][Data][x]
AV and HD V Position (Command2 : w)
●To adjust AV and HD mode V Posion
- Transmission
[k][w][ ][Set ID][ ][Data][Cr]
Data 0 ~ 64
- Acknowledgement
[w][ ][Set ID][ ][OK][Data][x]
PIP Input Select (Command2 : y)
●To select input source for sub picture in PIP mode.
- Transmission
[k][y][ ][Set ID][ ][Data][Cr]
Data 0 : TV 1 : AV1 2 : AV2
3 : AV3 4 : COMPONENT
6 : RGB 7 : DVI
- Acknowledgement
[y][ ][Set ID][ ][OK][Data][x]
2-53
External Control Device Setup

Navigation menu
