Abocom Systems BSM202 Bluetooth Audio Adapter User Manual bsm202 transmitter indd

Abocom Systems Inc Bluetooth Audio Adapter bsm202 transmitter indd

Users Manual

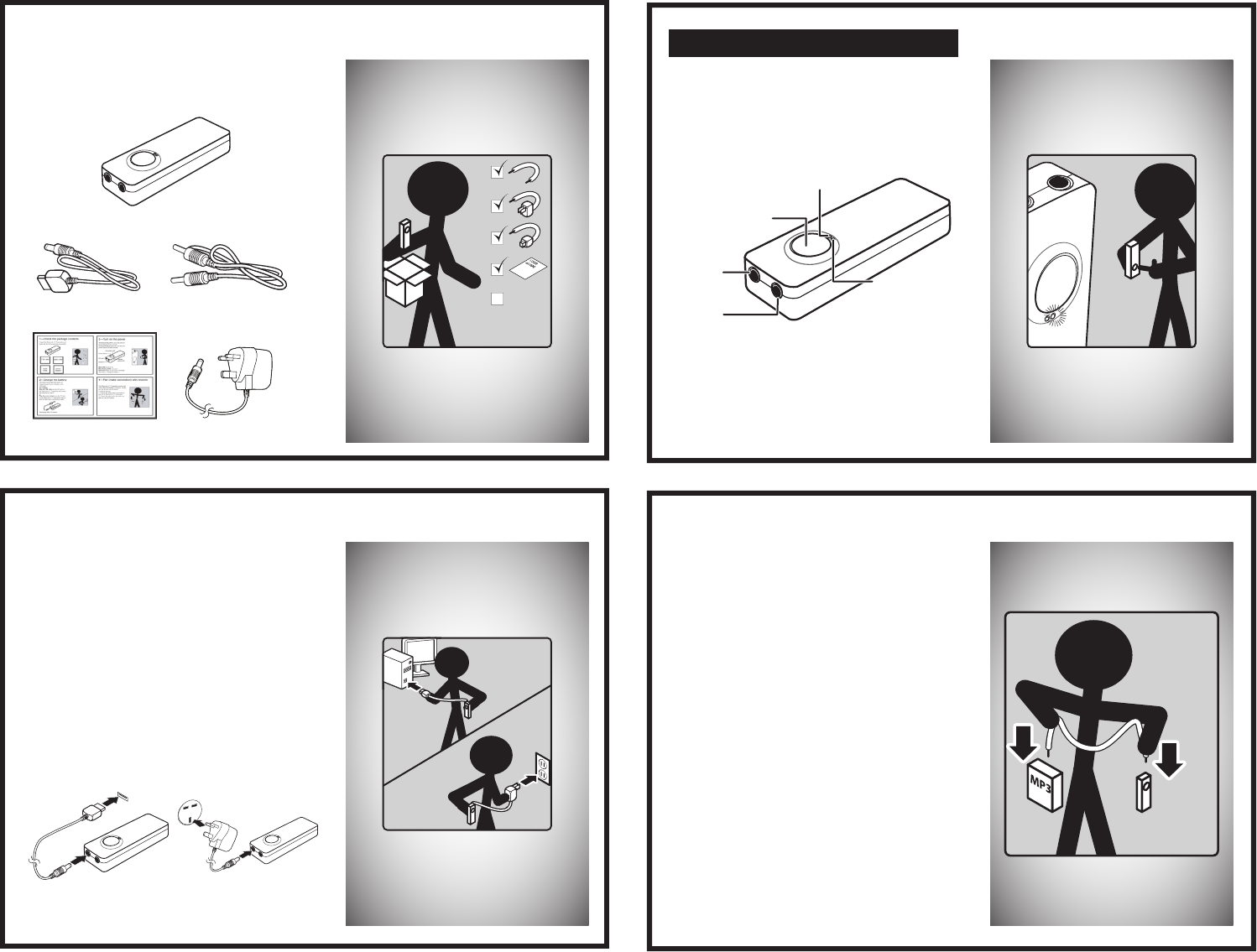

1—Check the package contents
2—Charge the battery
3—Turn on the power
4—Pair (make connection) with receiver
Unpack the Bluetooth A/V Transmitter and
check that the following items are included:
The battery lasts eight hours and is re-
charged using the power adapter or the
To recharge:
Plug the USB cable
into the DC jack on
the Bluetooth A/V Transmitter and connect
the other end to your PC.
or
Plug the power adapter
into the DC jack
on the Bluetooth A/V Transmitter and con-
nect the other end to an electrical outlet.
To turn on the power
, press and hold the
power button until the power LED lights blue.
To turn off the power
, press and hold the
power button until the power LED turns off.
The Bluetooth A/V Transmitter can be used
with a bluetooth headset or receiver. On fi rst
use, the devices must be paired.
To pair the devices.
1. Connect the audio cable to the audio in
jack on the Bluetooth A/V Transmitter.
2. Connect the other end to the audio out
jack on your MP3 player.
Blue LED
power is on
Blue fl ashing LED
connected to device
Red LED
battery is charging, turns off
when charged
Red fl ashing LED
battery is low, recharge
before LED turns off
Power button
Power button
Charge
status LED
Power/link LED
DC jack
Audio in
Recharging takes 90 minutes.
Bluetooth A/V Transmitter
USB Cable
Audio Cable
Quick Guide
Power Adapter

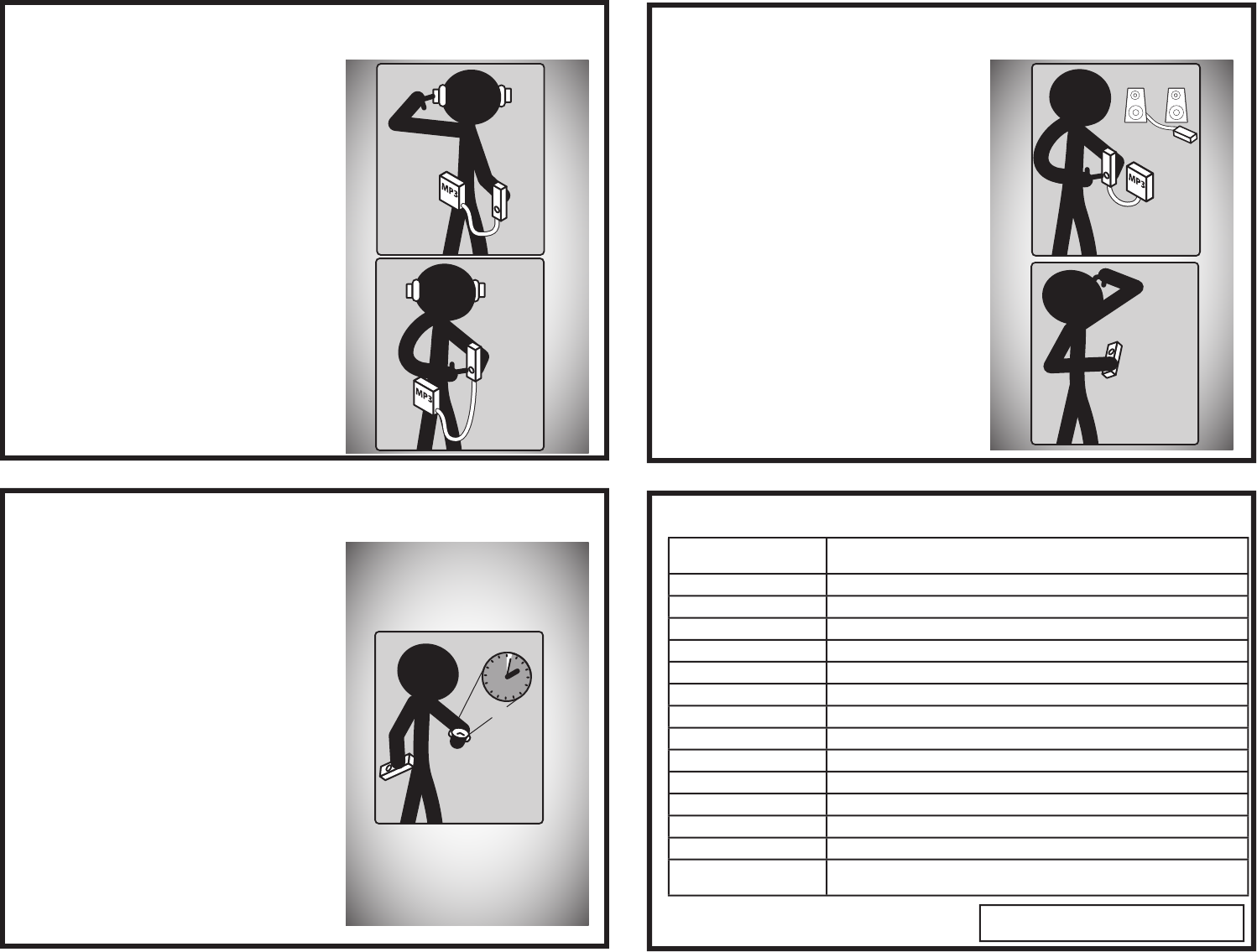

5—Connecting with a receiver (cont.)
6—Wait for devices to connect
90 seconds
7—Using other devices
8—Specifi cations
3. Turn on the power on your headset.
4. Turn on the power on the Bluetooth A/V
Transmitter.
The devices connect (pair) after 90 seconds.
The
Bluetooth A/V Transmitter can be used
with the following devices:
Headsets
Receivers/speakers
Troubleshooting
If the Bluetooth A/V Transmitter does not
work, try the following:
- Ensure connecting devices are charged
- Turn off all devices and then turn them on
in the order shown in this guide
- Ensure devices are within the 10-meter
range
Serial number & Firmware version:
Standards
Bluetooth specifi cation V1.2 compliant.
Bluetooth A2DP profi le (AV Profi le)
Frequency Band
2402 ~ 2480 MHz
Tx Power
0.25 ~ 2.5mW (Bluetooth Power Class II)
Rx Sensitivity
< -80dBm (BER 0.1%)
Distance
> 10m (open space)
Audio Connector
Audio Stereo jack 3.5 mm
Audio Streaming Format
SBC 48.000 kHz
Audio Frequency Range
20Hz ~ 22 kHz
Audio S/N
> 85dB
Audio THD
< -83dB
Audio Output Power
> 20mWrms
Battery Life 500mA
Music play : > 8 hrs.
Power supply
Supply by integrated Polymer rechargeable battery Operation >8hrs.
Physical Specifi cation:
75 mm (H) x 26 mm (W) x 14.5 mm (D)
Environmental Range:
Operating temperature:-10 ~ +50 degrees centigrade
Humidity: Relative humidity 0 ~ 95%
?
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must
follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
