INSTALLING THE DRIVER
Installation of the SD WLAN Card Driver to the Pocket PC using
Microsoft Active Sync®
1. Connect your PDA to your computer and make sure Active-Sync® has
established a connection between the two devices.
2. Insert the included CD-ROM to your PC. The main screen will appear,
click Install Driver to start driver installation.
![](/img.php?id=694705&img=bg2.png)
2
Note: Do not insert the SD WLAN Card into the card slot of your
PDA until the Driver installation has been performed.

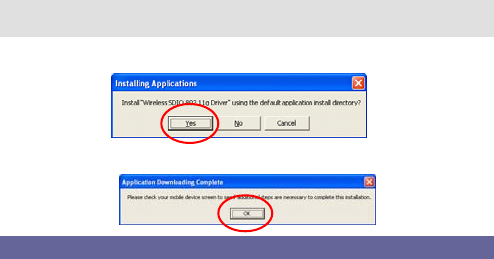

3. Click “YES” to continue the installation.
4. Click “OK” to complete the driver installation.
ACCESSING THE WLAN UTILITY
1. Insert the SDIO Wireless LAN Card into the SD slot of your PDA
2. Go to Start > Settings > Connections tab > Wireless Ethernet to access
the Windows CE built-in WLAN utility
![](/img.php?id=694705&img=bg3.png)
3
CONFIGURING WLAN UTILITY
Select an available AP or router from the list and tap Connect to make a
connection.
![](/img.php?id=694705&img=bg4.png)
4
Wireless tab
Wireless Network Select an available network device from
the list and tap Connect.
Network to access Select the type of network access from
the pull-down list.
All available: A group of wireless
devices communicating with both
access points and network adapters.
Only access points: A group of
wireless devices communicating
directly with only access points.
Only computer-to-computer: A group
of wireless devices communicating
directly with each other without the use
of an access point.
Automatically connect to
non-preferred networks Tap the checkbox to enable this
function, if the Automatically connect
to non-preferred networks is enabled,
your device will detect all the new
networks for you to configure.
![](/img.php?id=694705&img=bg5.png)
5
![](/img.php?id=694705&img=bg6.png)
6
Network Adapters tab
My network Card connects to Tap Work or The internet from
the pull-down menu.
Work: Connects to the network in
your office.
The internet: Connects to your
ISP at home.
Tap an adapter to modify
settings Tap an adapter from the list to
enter its configuration screen.

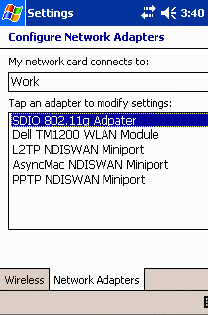

If SDIO 802.11g Adapter is tapped, the following screen will appear for
you to configure:
![](/img.php?id=694705&img=bg7.png)
7
![](/img.php?id=694705&img=bg8.png)
8

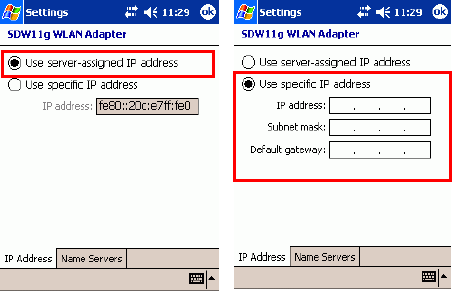

IP Address tab
Use server-assigned IP address To use DHCP, tap User assigned-IP
Address. The Wireless Router will
act as a DHCP server. An IP Address
will be obtained from the Wireless
Router.
![](/img.php?id=694705&img=bg9.png)
9
Use specific IP address IP Address: Enter the IP address
(within the range of the wireless
router’s IP address, for instance, if
the IP address of the router which
you wish to connect is
192.168.1.254, you may enter the IP
address here from 192.168.1.1 to
192.168.1.253 ).
Subnet mask: The Subnet Mask
must be the same as that set on your
Ethernet network.
Default Gateway: Enter the IP
address of your network’s gateway.
The gateway is the device that
enables communication between
your computers and the Internet. In
most cases, your router acts as your
gateway.
![](/img.php?id=694705&img=bga.png)
10
![](/img.php?id=694705&img=bgb.png)
11

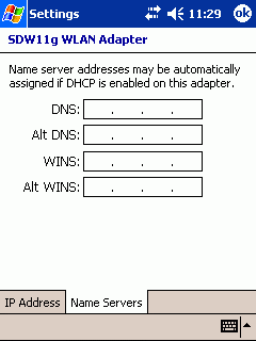

Name Servers tab
DNS Enter the IP address of your ISP's server, which
translates the names of websites into IP addresses.
Alt DNS The secondary IP address of your ISP’s server.
WINS The Windows Internet Naming Service (WINS)
converts NetBIOS names to IP addresses. If using a
WINS server, please enter that server’s IP address.
Otherwise, leave this field blank.
Alt WINS The secondary IP address of your WIN server.
M73-APO11-270
12
