61Security settings
Chapter 7: The
Fingerprint Reader
Security settings
Your Acer M900DF Smartphone has an integrated fingerprint
reader that you can use to secure your phone and personal
information or as a navigation device. To start using the
security features of your phone, you will need to enroll your
fingerprint as described in “Set up fingerprint security“ on
page 19.
Once you have successfully enrolled
your fingerprint, you will be able set up
a private folder and other security
settings.
To set up security, tap Start > Settings >
Golden Finger and swipe your enrolled
finger or enter your password (default
is four zeroes: 0000). Tap the Protection
tab to adjust the settings.
From the Protection tab, you can
choose to require a fingerprint when
starting up your Acer M900DF Smart-
phone and how long to wait before
locking the phone again. You can also elect to protect your
personal information.
Select the Finger tab to enroll another finger. From the Pass-
word tab, you can change the default password and enter a
hint to remind you.
![](/img.php?id=1228786&img=bg2.png)
Acer M900DF Smartphone User Guide62
Note: The password should be between four and 12 alphanumeric
characters. Ensure it is a password you won’t forget and that other
people won’t be able to guess easily.
Private Folder
Your Acer M900DF Smartphone sup-
ports a Private Folder that is only acces-
sible via a fingerprint or password. To
set up the private folder, tap Start >
Settings > Golden Finger > Private tab.
Important: You can only have one pri-
vate folder on the phone. If you wish to
set up a new private folder, you will need
to delete any exisiting folder first.
From this tab you can give your private
folder a name, set how large it will be
and where it will be located. Tap Create
to create the folder with the parameters you set.
To open the private folder, you can simply tap Private Folder at
the bottom of the Home page.
Navigate with the fingerprint
reader
To enable the fingerprint reader navigation features, tap Start
> Settings > System tab > Finger Navigation. You can use the
fingerprint reader to navigate around the screen by sliding
your finger across the reader. The navigation feature can per-
form many of the same actions as a mouse on a computer.
![](/img.php?id=1228786&img=bg3.png)
63Navigate with the fingerprint reader
Once you’ve moved the cursor to the
desired location, tap the fingerprint
reader lightly to activate a link, launch a
program or do any other function that
would normally be done by right-click-
ing a mouse.
The top slider adjusts the sensitivity of
the fingerprint reader, controlling how
fast the mouse or cursor moves when
the reader detects finger motion.
Higher sensitivity settings will result in
faster mouse/cursor motion with rela-
tively less finger motion.
Nav Mode
determines the performance mode, which controls
how quickly readings are taken as you slide your finger on the
reader.
The
Nav Emulation
feature has the following settings:
Mode Description
HP Higher Performance: Requires higher power and
drains the battery faster.
MP Medium Performance: Offers the optimal balance
between performance and battery life.
LP Lower Performance: Offers the best battery life.
Mode Description
DPAD Gives you 8-way directional control. It simulates
the up, down, left and right arrow keys on the
keyboard.
Rocker Mimics a 4-way rocker control, which allows
motion in only one direction at any time.
Joystick Emulates a 4-way joystick using simulated arrow
key presses.
![](/img.php?id=1228786&img=bg4.png)
Acer M900DF Smartphone User Guide64
When you select DPAD, Rocker or Joystick emulation, a
Delay
before first repeat
control will be displayed. Use this control to
set the delay between the first motion and repeat motions.
Tip: When the slider is moved fully over towards “Long”, the time
delay is infinite, and you must remove your finger from the reader
before another motion is generated.
The
Tap Sensitivity
control is used to adjust tap settings. The
default value that should be acceptable to a wide range of
users. If you move the slider towards “Slow,” you can rest your
finger on the reader for a longer period while still being able
to tap.
Tip: To disable tapping, move the slider all the way over to “Fast.”
This effectively disabled tapping since it is impossible to tap that
quickly.
Touch
stick
Delivers mouse movement in any direction with
instant automatic motion repeat and has tapping
enabled (has a similar action to a touch stick
embedded in a notebook keyboard).
Mouse Delivers mouse movement in any direction and
has tapping enabled.
Off Navigation features will not be used.
Mode Description
![](/img.php?id=1228786&img=bg5.png)
65Put your Acer M900DF Smartphone in flight
Chapter 8: Advanced
Operation
Put your Acer M900DF
Smartphone in flight mode
You can enter flight mode to turn off telephone, Bluetooth
and WLAN functions and use the Acer M900DF Smartphone as
a handheld device during a flight. Check with your airline to
make sure this is permitted onboard.
Some airlines may provide wireless Internet services on board
that can be accessed via the WLAN feature. Check prior to your
departure whether this service is available on your flight.
Switch your Acer M900DF Smartphone off during takeoff and
landing as it may interfere with aircraft electronic systems.
Enter flight mode
1. Access the Comm. Manager (refer to “Comm. Manager” on
page 66).
2. Tap Flight Mode ON to turn off
all phone, Bluetooth and WLAN
functions.
Tip: Press and hold for five
seconds to exit flight mode
and re-activate wireless con-
nections (note: only connec-
tions that were enabled prior
to entering flight mode will be
re-activated).
![](/img.php?id=1228786&img=bg6.png)
Acer M900DF Smartphone User Guide66
Comm. Manager
Your Acer M900DF Smartphone features phone, Bluetooth
and WLAN functions. This section will explain how to activate
and set basic phone, Bluetooth and wireless network (WLAN)
connection settings through the Comm. Manager screen.
Tip: Tap and hold the name of any communication type to open its
associated Settings page.
Use the Comm. Manager
To access the Comm. Manager, tap any of the communication
icons at the top of the screen or Start > Programs > Comm.
Manager.
Activate or deactivate connections
You can choose to activate one or all connections from the
Comm. Manager window.
Each connection icon will be highlighted when turned on.
Adjust connection settings
This section will show you how to adjust detailed settings for
your phone, wireless and Bluetooth connections.
Phone connections
Once you have inserted a SIM card, the Acer M900DF Smart-
phone will automatically detect your network provider.
For all phone settings, tap Settings > Phone. Here you can
adjust ringtone, security, services, network and CB (Cell Broad-
cast) settings.
![](/img.php?id=1228786&img=bg7.png)
67Adjust connection settings
Adjust phone connection settings
You can use the Connection Wizard to configure country and
network settings for your phone connection, as well as create
customized phone connections.
1. Tap Start > Settings > Connections tab > Connection
Wizard.
2. Select your country and network operator from the lists.
3. Tap OK to confirm and save.
To detect these settings automatically, tap Search.
To edit network parameters, tap Edit.
Once all settings are complete, tap OK to confirm and save.
Create and edit new phone connections
If your country is not listed, or you want to create a customized
GPRS or CSD connection, refer to ‘Creating a new connection’
in the Phone Data Manager Help menus for detailed informa-
tion on how to do this.
Select a network
You can set the Acer M900DF Smartphone to detect your net-
work automatically or set it manually.
Detect a network automatically:
1. Tap Start > Settings > Phone > Network tab.
2. Select Automatic from the Network Selection list.
3. Tap Find Network. Your network will be automatically
detected.
Select a network manually:
1. Tap Start > Settings > Phone > Network tab.
2. Select Manual from the Network Selection list. A list of
available networks will appear.
![](/img.php?id=1228786&img=bg8.png)
Acer M900DF Smartphone User Guide68
3. Select a network from the list and tap OK.
When your current network is unavailable, tap Select to select
another network to use.
Note: Contact your service provider should you have any problems
obtaining voice mail and the text message service center numbers.
Adjust wireless network settings
You can use your Acer M900DF Smartphone to connect to a
wireless local area network (WLAN) to exchange information
with your PC or network and access the Internet.
If there are multiple WLANs available, your Acer M900DF
Smartphone will prompt you to choose a network when you
activate the WLAN function. Select a network and specify
whether it will be used primarily for Work or The Internet. The
Acer M900DF Smartphone will save your settings and connect
to your chosen
network.
Wireless power management
When activated, wireless connections use considerable battery
power so we recommend customizing power management
options to get the most out of your battery.
Note: When battery power is lower than 20 percent, a notification
message will appear asking if you want to continue using wireless
functions or not.
You can create, view and edit all available wireless networks in
your area, and configure network adapter card settings.
![](/img.php?id=1228786&img=bg9.png)
69Adjust connection settings
View wireless networks
1. Tap Start > Settings > Connections tab > Wi-Fi > Wireless
tab.
2. Scroll through the list to view all available networks.
3. Tap the Networks to access list to sort by All available, Only
access points or Only computer-to-computer connections.
Create new wireless network connections
1. Tap the Start > Settings > Connections tab > Wi-Fi >
Wireless tab.
2. Tap Menu > Add New... from the list.
3. Enter all required information to configure the wireless
network. Refer to the Help menus to guide you through the
configuration screens for each setting.
Edit wireless network connections
1. Tap the Start > Settings > Connections tab > Wi-Fi >
Wireless tab.
2. Select a connection from the list.
3. Tap Menu > Edit.
4. Enter all required information to configure the wireless
network. Refer to the Help menus to guide you through the
configuration screens for each setting.
Adjust network adapter settings
1. Tap Start > Settings > Connections tab > Wi-Fi > Network
Adapters tab.
2. Select a network adapter from the list.
3. Tap Edit.
4. Select to use a server-assigned IP address or enter a specific
IP address.
5. Tap OK to confirm and save.
![](/img.php?id=1228786&img=bga.png)
Acer M900DF Smartphone User Guide70
Adjust Bluetooth settings
You can create and adjust Bluetooth connections, accessibility
settings and service settings to get the most out of the Acer
M900DF Smartphone’s Bluetooth functions.
Bluetooth connections
You can use Bluetooth to exchange information between your
Acer M900DF Smartphone and other mobile devices.
For all Bluetooth settings, tap Settings > Connection tab >
Bluetooth. Here you can adjust Bluetooth profiles, status,
accessibility, and services settings. You can also view version
information.
Create new bluetooth connections
The simplest way to set up and configure a new Bluetooth
connection is to use the Bluetooth Manager.
1. Tap Start > Settings > Connections tab > Bluetooth >
Devices tab.
2. Tap Add new device... Your Acer M900DF Smartphone will
search for devices in range.
3. Select the device you want to connect to.
4. Tap Next and follow all onscreen instructions to set up the
connection.
Adjusting Bluetooth visibility
1. Tap the Start > Settings > Connections tab > Bluetooth >
Mode tab.
2. Select whether to turn the Bluetooth function On or Off
and whether the device should be visible to other devices or
not.
3. Tap OK to confirm and save.
![](/img.php?id=1228786&img=bgb.png)
71Phone settings
Setting up COM ports
1. Tap the Start > Settings > Connections tab > Bluetooth >
COM Ports tab.
2. Follow the onscreen instructions to register the connected
Bluetooth devices as an effective COM port.
Phone settings
Many phone settings are automatically configured by your
Acer M900DF Smartphone when you insert a SIM card. The
device will communicate with your service provider and auto-
matically obtain all necessary settings, such as network name,
voice mail and text message center numbers.
You can, however, view and modify these settings yourself if
necessary, through the Phone Settings screen.
Tap Start > Settings > Personal tab > Phone.
Configure caller options
You can configure certain caller options to keep control over
your incoming and outgoing calls.
Bar outgoing or incoming calls using call barring; choose who
to display your identity to with caller ID; specify a number to
which calls can be forwarded if you are unavailable using call
forwarding; choose to be notified if an incoming call is waiting
using call waiting.
Set up caller ID
1. Tap Start > Settings > Personal tab > Phone > Services tab.
2. Select Caller ID from the list and tap Get Settings.
3. Select who to provide your caller ID to.
4. Tap OK to confirm and save.
![](/img.php?id=1228786&img=bgc.png)
Acer M900DF Smartphone User Guide72
Set up call forwarding
1. Tap Start > Settings > Personal tab > Phone > Services tab.
2. Select Call Forwarding from the list and tap Get Settings.
3. Specify whether to forward all calls or only under certain
conditions. Tap the checkboxes to select the option you
require and enter number(s) to which the calls will be
forwarded.
4. Tap OK to confirm and save.
Set up call waiting
1. Tap Start > Settings > Personal tab > Phone > Services tab.
2. Select Call Waiting from the list and tap Get Settings.
3. Select whether to be notified or not when a call is waiting.
4. Tap OK to confirm and save.
Note: Refer to the Help menus for more detailed information on
adjusting phone settings.
Choose a profile and ring tone
A profile contains settings for alert notification, device vol-
ume, ring type and tone.
1. Tap Start > Programs > Phone > Sound Profiles. There are
three profiles:
2. Select a profile and use the lists and sliders to adjust set-
tings to customize your profile.
3. Tap Advance to set further options for each profile.
Profile Description
Normal The default profile. Call alert levels are set to medium.
Vibrate Intended for discreet use. Call alert is muted and set to
vibrate.
Silent Call alert is muted and vibrate is turned off.
![](/img.php?id=1228786&img=bgd.png)
73Manage contacts
4. Tap OK to confirm and save.
Manage contacts
Your Acer M900DF Smartphone features an address book that
allows you to save contacts to either the internal memory or
onto your SIM card.
Further options are explained in this section that are accessible
via the Contact screen menu. To access the menu, tap Menu
and use the 3-way rocker key to scroll up and down the menu.
Add and edit contacts
To add a new contact:
1. Enter the telephone number on the Phone screen.
2. Tap Menu > Save to Contacts.
3. Tap <New Contact> and select whether this is a SIM Contact
or Outlook Contact.
4. Enter the required information.
5. Tap the Notes tab to enter any additional information for
the contact.
6. Tap OK to save.
You can choose to save contacts directly to your SIM card. This
is useful if you use your SIM card with multiple phones and you
always need your address book to hand.
Note: You can only enter a contact name and telephone number
when creating a new SIM contact. If more information is required,
create a regular phone contact.
Edit a contact
1. Tap Start > Contacts.
2. Tap on the contact you want to edit.
![](/img.php?id=1228786&img=bge.png)
Acer M900DF Smartphone User Guide74
3. Tap Menu > Edit.
4. Edit the contact information and tap OK to save.
Copy contacts
You can copy contacts stored in internal memory to your SIM
card, and vice versa.
Copy a contact from internal memory to
the SIM card
Note: Copying a contact from internal memory to your SIM will only
copy the contact’s name and phone number. Names longer than 14
characters will be truncated.
1. Tap Start > Contacts.
2. Tap the internal memory contact you want to save.
3. Tap Menu > Copy Contact > To SIM.
4. Edit the information as required.
5. Tap OK to save the contact to your SIM card.
Copy a contact from the SIM card to
internal memory
1. Tap Start > Contacts.
2. Tap the SIM contact you want to save.
3. Tap Menu > Copy Contact > To Contacts.
4. Edit the information as required.
5. Tap OK to save the contact to your internal memory.
Send contacts via text or beam
You can send your contacts details to other phones using text
messaging or via beam.
![](/img.php?id=1228786&img=bgf.png)
75Manage contacts
Send contacts via message
1. Tap Start > Contacts.
2. Select a contact.
3. Tap Menu > Send Contact > Messages.
4. Select the contact information you want to send and tap
Done.
5. Specify a recipient and tap Send.
Send contacts via beam
1. Tap Start > Contacts.
2. Select a contact.
3. Tap Menu > Send Contact > Beam.
4. Select the Bluetooth device to send the contact to.
Delete contacts
To free up space on either the internal memory or on your SIM
card, you can delete contacts from your address book.
1. Tap Start > Contacts.
2. Select a contact.
3. Tap Menu > Delete Contact.
4. Tap Yes to permanently delete the contact.
Assign a ring tone and picture to
specific contacts
You can assign a specific ringtone and picture to a particular
contact so they are easily identifiable when they call.
1. Tap Start > Contacts.
2. Tap on the contact you wish to assign a ringtone/picture to.
3. Tap Menu > Edit.
![](/img.php?id=1228786&img=bg10.png)
Acer M900DF Smartphone User Guide76
4. Tap Select a picture... to open My Pictures. Tap the desired
picture to assign a picture to the contact.
5. Scroll to Ringtone and tap the field. Select a ringtone from
the drop-down list.
6. Tap OK to confirm and save.
Namecard Manager
Namecard Manager is an application that integrates optical
character recognition and a contact list with the camera func-
tion. It provides tools for converting data on namecards to a
digital format that can be integrated into a unified Contact list.
Tap Start > Programs > Multimedia > Namecard Manager.
Recognize namecard information
Place the namecard on a flat surface and tap Recognize to dis-
play the namecard on the screen. Press the Camera button
halfway down to focus on the namecard and all the way down
to take a photo.
Tip: Before taking the picture, the following pointers help to
improve recognition quality.
If the original name card is a landscape design, it is recommended
to rotate the Acer M900DF Smartphone before taking the picture.
Hold the camera lens 10 to 12 cm above the namecard.
Move the camera up and down so that the namecard is framed by
the red markers in the four corners of the screen.
Tap
Language
to select the language used on the namecard and
Identify
to run OCR and insert the details into the contact list.
You may modify the recognized text by tapping on a field.
The image of the namecard will be repositioned so you can
confirm the contents. Select the field to modify and correct
any errors using the keyboard or onscreen keyboard.
![](/img.php?id=1228786&img=bg11.png)
77SIM Manager
Manage namecard information
Tap Manage to open the namecard database.
Note: The database only stores images and information for
namecards that have already been recognized.
Tap the “Wand” icon in the upper right-hand corner of the
screen to open a letter table. Tap a letter to display the infor-
mation for all the namecards filed under that letter.
Select a namecard to expand its contents and view the original
picture of the namecard.
Tap Menu to show the menu:
•New: Create a new digital name card.
•Import: Import and recognize an existing picture of a
namecard. Supported formats are BMP, JPG and PNG.
•Edit: Modify the name card information.
•Delete: Delete the selected name card.
SIM Manager
SIM Manager allows you to manage your SIM phonebook and
to copy the phonebook entries to Contacts. To start SIM Man-
ager, tap Start > Programs > Phone > SIM Manager.
The standard display mode is to show your SIM contacts and
Contacts entries at the same time. You may change this by tap-
ping SIM, Contact or Standard at the bottom of the screen.
You can sort your contacts by tapping Name or Pos (only for
SIM contacts) at the top of the list of contacts.
Tap and hold on a contact to Dial that contact’s number, Send
SMS, Edit, Delete or Copy to Contact/SIM.
Tap Menu at the bottom of the screen to reveal:
![](/img.php?id=1228786&img=bg12.png)
Acer M900DF Smartphone User Guide78
New SIM Contact: Add a new phonebook entry to the SIM
card.
Refresh: Refresh the contact lists.
SMS Management: Enter the SMS management screen.
SIM Information: View your SIM card information.
My Phone Numbers: Displays the information of the inserted
SIM card
About: View the version and copyright information of SIM
Manager.
Copy contact information
You can copy contact information to/from the Contacts list
from/to the SIM card. You may copy individual contacts, multi-
ple contacts or all contacts.
• To copy all contacts, tap the box alongside Name: Tap
and hold any contact and select Copy to Contact/SIM.
• To copy multiple contacts, tap the box alongside each
contact: Tap and hold any contact and select Copy to
Contact/SIM.
• To copy a single contact, tap and hold any contact, and
select Copy to Contact/SIM.
SMS Management
Tap Menu > SMS Management to enter the SMS management
screen and display SMS content on the SIM card.
Double tap the number in the Pos column to view the corre-
sponding SMS.
To delete an SMS, select the SMS and then Del selected SMS.
![](/img.php?id=1228786&img=bg13.png)
79Connect to a PC and install software
Connect to a PC and install
software
You can use Microsoft ActiveSync (on Windows XP) or the Win-
dows Mobile Device Center (on Windows Vista) to synchronize
the information on your computer with the information on
your Acer M900DF Smartphone, comparing and updating data
on both locations. This serves as backup data in case something
happens to your Acer M900DF Smartphone.
Connect to a PC
The packaged mini USB sync cable enables you to synchronize
the information on your Acer M900DF Smartphone with the
data on your computer using ActiveSync.
Plug the mini USB sync cable
into the mini USB connector
on your Acer M900DF Smart-
phone. Plug the USB client
connector into an available
USB port on your computer.
Configure USB to
PC settings
You can enable advanced net-
working to enhance your USB
to PC connection, should you
be experiencing any prob-
lems synchronizing your data
with ActiveSync.
1. Tap Start > Settings > Connections tab > USB to PC.
2. Check the Enable advanced network functionality checkbox
to enable.
![](/img.php?id=1228786&img=bg14.png)
Acer M900DF Smartphone User Guide80
3. Tap OK to confirm and save.
Other functions
Manage your calendar
You can set appointments and event reminders with the calen-
dar feature.
Set a new appointment:
1. Tap Start > Calendar.
2. Tap Menu > New Appointment.
3. Enter appointment information and reminder frequency.
4. Tap OK to confirm and save.
To edit an appointment, tap the entry and then tap Edit to
open the appointment entry screen.
Create tasks
Tasks can be set to remind you of specific things you must do
and the completion deadlines.
Create a new task
1. Tap Start > Programs > Tasks.
2. Tap Menu > New Task.
3. Enter all task information, start and due dates and how
often to be reminded.
4. Tap OK to confirm and save.
To edit an appointment, tap the entry and then tap Menu >
Edit to open the task entry screen.
Note: For more information on other options available in the calen-
dar and task screens, refer to the Help menus.
![](/img.php?id=1228786&img=bg15.png)
81Multimedia playback
Browse the Internet
In order to browse the Internet with your Acer M900DF Smart-
phone, you must be connected to a 3G or wireless network or
to a computer with an Internet connection via ActiveSync.
Tap Start > Internet Explorer to open the browser.
To adjust your browser settings, tap Menu > Tools > Options.
Start Windows Live:
1. Tap Start > Programs > Windows Live.
2. Sign in with your email address and password and your con-
tacts list appears.
Multimedia playback
Your Acer M900DF Smartphone comes supplied with a variety
of programs that you can use to enjoy multimedia content.
FM Tuner
FM Tuner allows you to listen to your favorite local radio sta-
tions and save them to an easily-accessible list of favorites.
To start FM Tuner tap Start > Programs > Multimedia > FM
Tuner.
Note: You will need to connect your headset to enjoy radio
programs.
![](/img.php?id=1228786&img=bg16.png)
Acer M900DF Smartphone User Guide82
The FM Tuner screen indicates the
frequency the tuner is receiving (1), volume
level (2) and your defined favorites (3).
Tap the frequency display to open a
number pad that allows you to enter a
different frequency.
Tap My Favorite to manage your list of
favorite radio stations. To add a favorite,
select the position in the list that you’d like
to add the favorite at, and tap to open
the frequency allocation window. Enter
the frequency using the keyboard.
Important: There are restrictions on the range of frequencies that
may be legally listened to in many countries. The FM Tuner on your
Acer M900DF Smartphone has three predefined geographical
regions: EUROPE, JAPAN and USA. You may only set a frequency
within the range specified for each region.
![](/img.php?id=1228786&img=bg17.png)
83Multimedia playback
Use Windows Media Player
You can use Windows Media Player to play videos you have
taken with your Acer M900DF Smartphone as well as other
media files, such as MP3 music files.
The following formats are supported:
Play video or audio files
1. Tap Start > Programs > File Explorer.
2. Locate the file to playback, and tap once to play it in Win-
dows Media Player.
Streaming Player
Steaming Player allows you to view
streamed video off the Internet directly on
your phone.
If you try to open an audio or movie video
that is not supported by Microsoft
Windows Media Player, for example RTSP
or HTTP, the system will automatically
switch to Streaming Player.
Alternatively tap Start > Programs >
Multimedia > Streaming Player to
manually launch the player. You can enter
the address of the content you wish to access in the address
bar.
Type Formats
Audio WMA, MP3, WAV, AAC
Video WMV
![](/img.php?id=1228786&img=bg18.png)
Acer M900DF Smartphone User Guide84
Tap anywhere on the playback window to display the content
full-screen. Tap the screen again to return to the normal dis-
play mode.
Satellite Data Update
Warning: Satellite Data Update is not supported in the USA.
Tap Start > Programs > GPS > Satellite Data Update.
You may need to log into your provider’s server to download
instant satellite data and enable the GPS function.
Note: All the following connections allow your Acer M900DF Smart-
phone to download the latest GPS data. If there is more than one
connection available, the system will automatically select the best
connection, in the following order: Sync connection to PC; WLAN;
GPRS (not supported when roaming).
The system will update GPS data automatically based on a
schedule.
Check the automatic update checkbox.
Set the date and time.
You will see the expiration date of the GPS data. On the due
date, a warning message will appear to remind you.
Alternatively, tap the Download Button to update the GPS
data manually.
Important: You may be charged additional fees when connecting
over GPRS.
![](/img.php?id=1228786&img=bg19.png)
85Satellite Data Update
Personalize your Acer M900DF
Smartphone
This section takes you through all settings that can be adjusted
under the Personal tab in the Settings screen.
Adjust the volume
To adjust the volume, tap at the top of the Home screen.
The volume control appears.
• Use the upper slider to adjust the ring volume.
• Use the lower slider to adjust system volume.
• Use the icons at the top of the screen to turn all sounds
on, set to vibrate only or mute all sounds.
• If you adjust the volume during a call, the speaker vol-
ume will be adjusted.
Configure start menu programs
You can select the programs you most frequently use and put
them in the Start menu as shortcuts.
1. Tap Start > Settings > Personal tab > Menus.
2. Select the programs to appear in the Start menu from the
list.
3. Tap OK to confirm and save.
Configure sounds and notifications
You can specify sounds to play for certain events or when cer-
tain actions are performed.
1. Tap Start > Settings > Personal tab > Sounds & Notifications
> Sounds tab.
2. Select to enable sounds for events or programs. You can
also specify to enable sounds when tapping the screen or
pressing buttons.
![](/img.php?id=1228786&img=bg1a.png)
Acer M900DF Smartphone User Guide86
3. Tap the Notifications tab.
4. Select an event from the list and the notification options
for that event are displayed.
5. Adjust the settings.
6. Repeat steps 4 and 5 to adjust notification options for other
events.
7. Tap OK to confirm and save.
Configure backlight settings
You can specify the appearance and conditions under which
the screen backlight will be on or off.
1. Tap Start > Settings > System tab > Backlight > Battery
Power tab.
2. Select the timing for the backlight to turn on and off when
your Acer M900DF Smartphone is running on battery
power.
3. Tap the External Power tab. Select the timing of the back-
light to turn on or off when your Acer M900DF Smartphone
is running on external power.
4. Tap the Backlight Level tab. Adjust the backlight brightness
level and automatic level selection options.
5. Tap OK to confirm and save.
Tip
: Backlight settings greatly affect battery life. Configure these set-
tings carefully to ensure that you get the most out of your battery.
Manage system certificates
System certificates are used to positively identify your Acer
M900DF Smartphone to other systems.
Tap Start > Settings > System tab > Certificates to view all
certificates.
![](/img.php?id=1228786&img=bg1b.png)
87Satellite Data Update
Set the clock and alarms
You can set the current date and time for two locations, and
set multiple alarms.
Refer to “Set the date and time” on page 52 for information
on how to set the time and date.
Set alarms
1. Tap Start > Settings > System tab > Clock & Alarms > Alarms
tab.
2. Tap the checkbox to activate an alarm.
3. Tap Description and enter a name for the alarm.
4. Select the day and time for the alarm.
5. Tap OK to confirm and save.
Adjust microphone volume
You can adjust the microphone volume level and activate the
Automatic Gain Control (AGC) feature.
1. Tap Start > Settings > System tab > Microphone.
2. Move the slider to adjust the microphone volume.
3. Tap OK to confirm and save.
Configure regional settings
You can adjust regional settings for number, currency, date
and time formats to match those used in your country.
1. Tap Start > Settings > System tab > Regional Settings.
2. Tap the Region, Number, Currency, Date and Time tabs to
view information for your region. Adjust any if necessary.
3. Tap OK to confirm and save.
Power saving options
1. Tap Start > Settings > System tab > Power > Advanced tab.
![](/img.php?id=1228786&img=bg1c.png)
Acer M900DF Smartphone User Guide88
2. Select the interval after which your Acer M900DF Smart-
phone will turn off if not in use. You can specify two inter-
vals: one for when on battery power, and one for when on
external power.
View power status
Tap Start > Settings > System tab > Power > Battery tab to view
battery power status.
Remove programs
You can remove programs you have installed on your Acer
M900DF Smartphone to free up extra storage memory.
Note: You can only remove programs you have installed, you can-
not remove programs installed during manufacture.
1. Tap Start > Settings > System tab > Remove Programs.
2. Tap the program you want to remove from the list.
3. Tap Remove and the program will be uninstalled.
Configure screen options
You can change orientation, align the screen, enable
ClearType and adjust text size to make viewing your Acer
M900DF Smartphone as comfortable as possible.
1. Tap Start > Settings > System tab > Screen > General tab.
2. Select screen orientation and tap Align Screen if you need
to re-align the screen.
3. Tap the ClearType tab. Select to enable ClearType.
4. Tap the Text Size tab. Move the slider to adjust text size.
5. Tap OK to confirm and save.
![](/img.php?id=1228786&img=bg1d.png)
89Reset your Acer M900DF Smartphone
Reset your Acer M900DF
Smartphone
You may have to perform a reset if your Acer M900DF Smart-
phone fails to respond when buttons are pressed or the screen
is tapped.
Note: Before performing a reset, ensure that your Acer M900DF
Smartphone is not locked. Press any key or tap the screen to see if
the fingerprint screen opens.
Soft reset
A soft reset allows your Acer M900DF Smart-
phone to get a fresh start, similar to rebooting
your computer. All data and settings information
are retained after resetting.
Important: To reduce risking damage to your Acer
M900DF Smartphone, only use the supplied stylus
to reset the device.
Using the tip of your stylus, lightly press the
Reset button inside the hole on the side of your
Acer M900DF Smartphone.
Cold boot
A cold boot will clear the RAM of your Acer M900DF Smart-
phone. It is similar to turning a computer off and then turning
it back on.
![](/img.php?id=1228786&img=bg1e.png)
Acer M900DF Smartphone User Guide90
Important: To reduce risking damage to your Acer M900DF Smart-
phone, only use the supplied stylus to reset the device.
Hold down the power button and use the tip of your stylus to
lightly press the Reset button inside the hole on the side of
your Acer M900DF Smartphone.
Clean boot
Warning! You should only perform a clean boot when all other
reset options have failed to restore your Acer M900DF Smartphone
to an operational state.
A clean boot will restore your Acer M900DF Smartphone to the
state it was when you got it from the factory.
Warning! This will erase all your personal information, any contacts
stored on your phone and any programs you installed.
![](/img.php?id=1228786&img=bg1f.png)
91Reset your Acer M900DF Smartphone
If your screen is responding to stylus
input: Go to Start > Programs > Utilities
> Default Settings. Read the warning
information and enter the security code
in the empty textbox. Tap OK to pro-
ceed.
If your screen is not responding to stylus
input: Press the reset button while hold-
ing the power button down. When you
see the Acer screen, press and hold the
Record button. You will see a screen
asking you to confirm the clean boot, press the camera button
to confirm. If you do not press the camera button, your Acer
M900DF Smartphone will reboot to as normal.
![](/img.php?id=1228786&img=bg20.png)
Acer M900DF Smartphone User Guide92
![](/img.php?id=1228786&img=bg21.png)
93Use the stereo headset
Chapter 9: Accessories
and Tips
This chapter shows you how to use accessories with your Acer
M900DF Smartphone, as well as provide useful tips for when
you are using your Acer M900DF Smartphone.
Use the stereo headset
Your Acer M900DF Smartphone comes packaged with a stereo
headset with built-in microphone for handsfree use when
making calls.
To use the headset, plug it into the mini USB port in the side of
the unit.
When the headset is plugged in, all audio is routed to the
headset, and the speakers are turned off.
• To answer an incoming call, press the silver button on
the microphone.
• Adjust the volume with the integrated volume wheel.
• End the call by pressing the silver button again.
Use a Bluetooth headset
Your Acer M900DF Smartphone’s Bluetooth functions make it
fully compatible with all Bluetooth headsets. This allows you
to use the unit handsfree when making calls, without the
inconvenience of wires.
To set up your Bluetooth headset:
1. Turn on Bluetooth using the Comm. Manager (please see
“Comm. Manager“ on page 66).
![](/img.php?id=1228786&img=bg22.png)
Acer M900DF Smartphone User Guide94
2. Connect to the headset as described in “Create new blue-
tooth connections“ on page 70.
3. Tap the icon for your Bluetooth headset.
4. Enter your headset passkey and tap OK or press the OK
button.
5. Tap Finish to complete setup.
When you want to answer an incoming call, press the
“answer” button on your Bluetooth headset. Press or End
to end the call.
Tip: As well as being essential for handsfree operation when driv-
ing, you can also use your Bluetooth headset when at home or in
the office, to avoid carrying your Acer M900DF Smartphone around
with you at all times. In ideal conditions, Bluetooth range is up to
10 metres, or 30 feet.
Use your Acer M900DF
Smartphone as a modem
When connected to your PC, your Acer M900DF Smartphone
can function as a modem via GPRS or UMTS.
You can also use a USB connection or the Bluetooth function
of your Acer M900DF Smartphone to connect to your PC or
laptop and act as a modem. You must first set up an ISP con-
nection on your PC or laptop.
1. Click Start > Settings > Control Panel.
2. Click Network Connections > Create a new connection.
3. Click Next to begin the New Connection Wizard.
4. Select Connect to the Internet and click Next.
5. Select Set up my connection manually and click Next.
6. Select Connect to a dial-up modem and click Next.
![](/img.php?id=1228786&img=bg23.png)
95Use your Acer M900DF Smartphone as a mo-
7. Enter the name of your ISP (Internet Service Provider) and
click Next.
8. Enter your ISP’s phone number. The number must begin
with ‘*99#’. Click Next.
9. Select one option from the Connection Availability screen
and click Next.
10.Enter your username and password and click Next.
11.Click Finish to complete the setup.
You can now establish a Bluetooth connection between your
PC and your Acer M900DF Smartphone. When you attempt to
access the Internet on your PC, the Acer M900DF Smartphone
will dial the ISP number specified to establish a connection.
Use a USB connection
1. Close ActiveSync if it is running. This helps Internet sharing
to function properly.
2. Tap Start > Programs > Internet
Sharing.
3. Select USB from the PC connec-
tion drop-down menu.
4. Select your network connection
type from the network connec-
tion drop-down menu.
5. Tap Connect.
Your Acer M900DF Smartphone will now act as a modem.
Use a Bluetooth connection
You can also use Bluetooth to link your PC to your Acer
M900DF Smartphone to connect to the Internet. Ensure that
Bluetooth is enabled from the Comm. Manager (refer to
“Comm. Manager” on page 66), and that other devices can
discover your Acer M900DF Smartphone. To do this, open the
![](/img.php?id=1228786&img=bg24.png)
Acer M900DF Smartphone User Guide96
Comm. Manager, tap Settings > Bluetooth > Mode tab, and
check Make this device visible to other devices.
Ensure that your computer’s Bluetooth adapter is switched on.

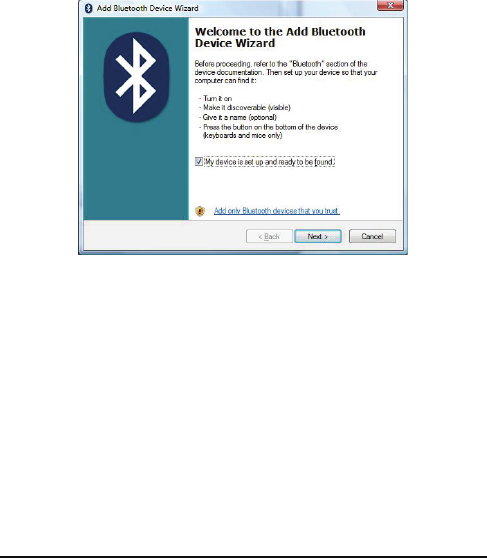

• Open Bluetooth Places and click Add..., then follow
the steps of the Add Bluetooth Device Wizard.
• Double click on your Acer M900DF Smartphone device
name.
![](/img.php?id=1228786&img=bg25.png)
97Use your Acer M900DF Smartphone as a mo-

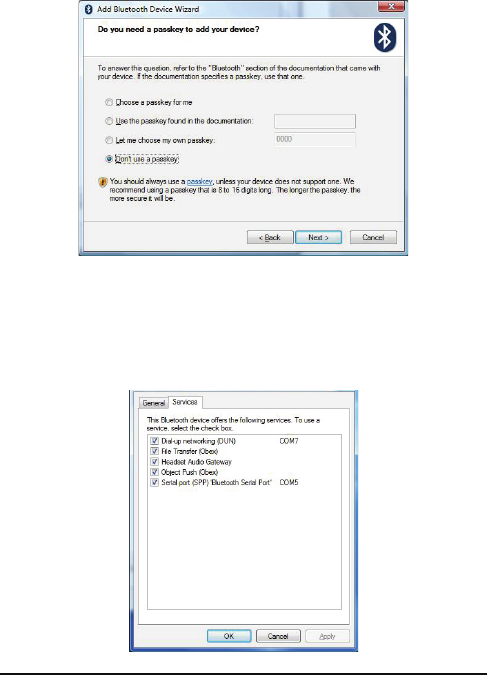

• Select Let me choose my own passkey when requested,
and enter a passkey.
• Your Acer M900DF Smartphone will ask to allow pair-
ing, and for the Passkey. Enter the same code you
entered above and tap OK.
• Windows will automatically connect to your Acer
M900DF Smartphone and detect what services are
available.
![](/img.php?id=1228786&img=bg26.png)
Acer M900DF Smartphone User Guide98
Insert a micro SD card
Your Acer M900DF Smartphone features a memory expansion
slot that accepts a micro SD card to expand memory and stor-
age capacity.
Open the micro SD reader cover and insert the micro SD card
into the slot. Make sure the gold connectors are facing
upwards. Push the card in until it clicks into place.
![](/img.php?id=1228786&img=bg27.png)
99FAQ, troubleshooting and error messages
Appendix
FAQ, troubleshooting and error
messages
This section lists frequently asked questions that may arise dur-
ing the use of your Acer M900DF Smartphone, and gives easy
answers and solutions to these questions.
Aspect Question Answer
Audio Why is there no
sound coming
from the device?
If the headset is plugged into the
device, the speaker is automatically
shut off. Disconnect the headset.
Check that the device volume set-
ting is not muted. Tapany of the
icons at the top of the Home
screen.
Check that the volume control is
not at its lowest setting.
Touch screen Why is the touch
screen not
responding to my
stylus taps?
The screen may have lost its align-
ment. Go to Start > Settings > Sys-
tem tab > Screen to re-align the
screen.
Multimedia
files
Why can’t I view
my picture files?
You may be trying to view an
image that is not supported. Refer
to “Supported formats” on
page 57 for more information.
Why can’t I view
my video files?
You may be trying to view a video
that is not supported. Refer to
“Supported formats” on page 57
for more information.
![](/img.php?id=1228786&img=bg28.png)
Acer M900DF Smartphone User Guide100
Why can’t I play
my music files?
You may be trying to play a file
that is not supported. Refer to
“Multimedia playback” on page 81
for more information.
System infor-
mation and
performance
How do I check
the OS version of
my device?
Tap Start > Settings > System tab >
System Information to check the
OS version and other hardware and
software information.
How do I restore
the system back to
its default factory
settings?
Perform a clean boot. Refer to
“Clean boot” on page 90 for more
information.
What should I do
if the system stops
functioning nor-
mally or crashes?
Perform a reset. Refer to “Soft
reset” on page 89 for more infor-
mation.
Power I couldn’t turn on
the device.
The battery power may be
depleted. Recharge the device.
Refer to “Charge the battery” on
page 17 for more information.
Even when fully
recharged, the
battery seems to
run down very
quickly.
Check power saving options. Tap
Start > Settings > System tab >
Power to configure power saving
options.
Aspect Question Answer
![](/img.php?id=1228786&img=bg29.png)
101FAQ, troubleshooting and error messages
Error messages
Error
message
Description
Connection canceled Operation canceled by the user.
Service unavailable -
please try again later
The network is not stable, or server has not
responded. Try again later.
Connection unavailable -
please check your network
settings
No path to the destination is available.
Please check the settings in Start > Settings
> Connections tab.
1. If your Smartphone is connected to
your PC via USB, check both the PC's
network settings and ActiveSync set-
tings (when connected via USB, nei-
ther Wi-Fi nor GPRS/3G is used).
2. If Wi-Fi is enabled, check the Wi-Fi
settings from Start > Settings > Con-
nections tab > Comm. Manager
(when Wi-Fi is enabled, GPRS/3G will
not be used).
Note: You might need to log into the wire-
less environment.
3. If you are using a GPRS/3G network,
check the settings from Start -> Set-
tings -> Connections Page -> Connec-
tions. If the Acer M900DF
Smartphone is currently roaming, and
the Exclude international GPRS/3G
roaming is checked, you will need to
uncheck it.
Notes:
1. Try using Internet Explorer to connect
to a website to verify your network
connection.
2. When the wireless signal is weak, the
data connection may be unstable.
Please try again later.
![](/img.php?id=1228786&img=bg2a.png)
Acer M900DF Smartphone User Guide102
Specifications
Performance
• Qualcomm 8250 1.0 GHz
• System memory:
• 256 MB of SDRAM
• 512 MB of Flash ROM
• 8 GB of MoviNand
• Windows Mobile 7.0 for Pocket PC Phone Edition
Display
• 3.8” TFT touchscreen
• 800 x 480 resolution
• 65K color support
Multimedia
• Formats supported
Connectivity
• Bluetooth 2.1+EDR
• IEEE Wi-Fi 802.11 b/g WLAN
• GSM 850 / 900 / 1800 / 1900
Type Formats
Audio
playback
WMA, MP3, WAV, AAC, AMR
Ringtone SP-MIDI, MIDI, MMF, AMR, AWB, RMI, MP3, AAC
Video
recording
3GP, MPEG-4, H.263, AVI, WMV
Video
playback
3GP, MPEG-4, WMV, H.263, H.264
![](/img.php?id=1228786&img=bg2b.png)
103Specifications
• UMTS 850 / 1900 / 2100
• HSDPA / HSUPA / EDGE / GPRS
Camera
• 5 megapixel auto-focus
Battery
• High density, rechargeable 1530 mAh Lithium Polymer
battery (changeable)
Note: Length of battery operation will depend on power consump-
tion which is based on system resource use. For example, constantly
using the backlight or using power-demanding applications will
shorten battery life between charges.
Design and ergonomics
• Stylish, light and robust design
Height 119 mm
Width 62 mm
Thickness 17.2 mm
Weight 190 g (including battery and stylus)
![](/img.php?id=1228786&img=bg2c.png)
Acer M900DF Smartphone User Guide104
Warnings and precautions
• Do not use this product near water.
• Do not place this product on an unstable cart, stand or
table. If the product falls, it could be seriously dam-
aged.
• Slots and openings are provided for ventilation to
ensure reliable operation of the product and to pro-
tect it from overheating. These openings must not be
blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or
other similar surface. This product should never be
placed near or over a radiator or heat register, or in a
built-in installation unless proper ventilation is pro-
vided.
• Never push objects of any kind into this product
through cabinet slots as they may touch dangerous
voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind onto
or into the product.
• To avoid damage of internal components and to pre-
vent battery leakage, do not place the product on a
vibrating surface.
• Never use this product when engaging in sporting
activities, exercising, or in any vibrating environment
which may cause a short circuit or damage, and even a
risk of explosion from the battery pack.
CAUTION when listening to music
To protect your hearing, follow these instructions.
• Increase the volume gradually until you can hear
clearly and comfortably.
• Do not increase the volume level after your ears have
adjusted.
![](/img.php?id=1228786&img=bg2d.png)
105Warnings and precautions
• Do not listen to music at high volumes for extended
periods.
• Do not increase the volume to block out noisy sur-
roundings.
• Decrease the volume if you can’t hear people speaking
near you.
Battery information
This product uses a Lithium Polymer battery. Do not use it in a
humid, wet and/or corrosive environment. Do not put, store or
leave your product in or near a heat source, in a high tempera-
ture location, in strong direct sunlight, in a microwave oven or
in a pressurized container, and do not expose it to tempera-
tures over 60 °C (140 °F). Failure to follow these guidelines may
cause the battery to leak acid, become hot, explode or ignite
and cause injury and/or damage. Do not pierce, open or disas-
semble the battery. If the battery leaks and you come into con-
tact with the leaked fluids, rinse thoroughly with water and
seek medical attention immediately. For safety reasons, and to
prolong the lifetime of the battery, charging will not occur at
low (below 0 °C/32 °F) or high (over 40 °C/104 °F) temperatures.
The full performance of a new battery is achieved only after
two or three complete charge and discharge cycles. The bat-
tery can be charged and discharged hundreds of times, but it
will eventually wear out. When the talk and standby times are
noticeably shorter than normal, buy a new battery. Use only
Acer approved batteries, and recharge your battery only with
Acer approved chargers designated for this device.
Unplug the charger from the electrical plug and the device
when not in use. Do not leave a fully charged battery con-
nected to the ac charger, since overcharging may shorten its
lifetime. If left unused, a fully charged battery will lose its
charge over time. If the battery is completely discharged, it
![](/img.php?id=1228786&img=bg2e.png)
Acer M900DF Smartphone User Guide106
may take a few minutes before the charging indicator appears
on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any
charger or battery that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can
occur when a metallic object such as a coin, clip, or pen causes
direct connection of the positive (+) and negative (-) terminals
of the battery. (These look like metal strips on the battery.)
This might happen, for example, when you carry a spare bat-
tery in your pocket or purse. Short-circuiting the terminals may
damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car
in summer or winter conditions, will reduce the capacity and
lifetime of the battery. Always try to keep the battery between
15 °C and 25 °C (59 °F and 77 °F). A device with a hot or cold
battery may not work temporarily, even when the battery is
fully charged. Battery performance is particularly limited in
temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Bat-
teries may also explode if damaged. Dispose of batteries
according to local regulations. Please recycle when possible.
Do not dispose as household waste.
Replacing the battery pack
Your Acer M900DF Smartphone uses lithium batteries. Replace
the battery with the same type as that which came bundled
with your product. Use of another battery may present a risk
of fire or explosion.
Warning! Batteries may explode if not handled properly. Do not
disassemble or dispose of them in fire. Keep them away from chil-
dren. Follow local regulations when disposing of used batteries.
![](/img.php?id=1228786&img=bg2f.png)
107Warnings and precautions
Additional safety information
Your device and its enhancements may contain small parts.
Keep them out of the reach of small children.
Operating environment
Warning! For safety reasons, turn off all wireless or radio transmit-
ting devices when using your Acer x960 Smartphone device under
the following conditions. These devices may include, but are not
limited to: wireless LAN (WLAN), Bluetooth and/or 3G.
Remember to follow any special regulations in force in any
area, and always switch off your device when its use is prohib-
ited or when it may cause interference or danger. Use the
device only in its normal operating positions. This device meets
RF exposure guidelines when used normally, and it and its
antenna are positioned at least 1.5 cm (5/8") away from your
body. Do not cover the antenna with metal and you should
position the device at the above-stated distance from your
body. To successfully transmit data files or messages, this
device requires a good quality connection to the network. In
some cases, transmission of data files or messages may be
delayed until such a connection is available. Ensure that the
above separation distance instructions are followed until the
transmission is completed. Parts of the device are magnetic.
Metallic materials may be attracted to the device, and persons
with hearing aids should not hold the device to the ear with
the hearing aid. Do not place credit cards or other magnetic
storage media near the device, because information stored on
them may be erased.
Medical devices
Operation of any radio transmitting equipment, including
wireless phones, may interfere with the functionality of inade-
![](/img.php?id=1228786&img=bg30.png)
Acer M900DF Smartphone User Guide108
quately protected medical devices. Consult a physician or the
manufacturer of the medical device to determine if they are
adequately shielded from external RF energy or if you have
any questions. Switch off your device in health care facilities
when any regulations posted in these areas instruct you to do
so. Hospitals or health care facilities may be using equipment
that could be sensitive to external RF transmissions.
Pacemakers. Pacemaker manufacturers recommend that a min-
imum separation of 15.3 cm (6") be maintained between wire-
less devices and a pacemaker to avoid potential interference
with the pacemaker. These recommendations are consistent
with the independent research by and recommendations of
Wireless Technology Research. Persons with pacemakers
should do the following:
• Always keep the device more than 15.3 cm (6") from
the pacemaker.
• Not carry the device near your pacemaker when the
device is switched on. If you suspect interference,
switch off your device, and move it.
Hearing aids. Some digital wireless devices may interfere with
some hearing aids. If interference occurs, consult your service
provider.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles such as electronic
fuel injection systems, electronic antiskid (antilock) braking
systems, electronic speed control systems, and air bag systems.
For more information, check with the manufacturer, or its rep-
resentative, of your vehicle or any equipment that has been
added. Only qualified personnel should service the device, or
install the device in a vehicle. Faulty installation or service may
be dangerous and may invalidate any warranty that may apply
to the device. Check regularly that all wireless equipment in
![](/img.php?id=1228786&img=bg31.png)
109Warnings and precautions
your vehicle is mounted and operating properly. Do not store
or carry flammable liquids, gases, or explosive materials in the
same compartment as the device, its parts, or enhancements.
For vehicles equipped with an air bag, remember that air bags
inflate with great force. Do not place objects, including
installed or portable wireless equipment in the area over the
air bag or in the air bag deployment area. If in-vehicle wireless
equipment is improperly installed, and the air bag inflates,
serious injury could result. Using your device while flying in air-
craft is prohibited. Switch off your device before boarding an
aircraft. The use of wireless teledevices in an aircraft may be
dangerous to the operation of the aircraft, disrupt the wireless
telephone network, and may be illegal.
Potentially explosive environments
Switch off your device when in any area with a potentially
explosive atmosphere and obey all signs and instructions.
Potentially explosive atmospheres include areas where you
would normally be advised to turn off your vehicle engine.
Sparks in such areas could cause an explosion or fire resulting
in bodily injury or even death. Switch off the device at refuel-
ing points such as near gas pumps at service stations. Observe
restrictions on the use of radio equipment in fuel depots, stor-
age, and distribution areas; chemical plants; or where blasting
operations are in progress. Areas with a potentially explosive
atmospheres are often, but not always, clearly marked. They
include below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such as pro-
pane or butane), and areas where the air contains chemicals or
particles such as grain, dust or metal powders.
Follow any restrictions. Do not use the device where blasting is
in progress.
![](/img.php?id=1228786&img=bg32.png)
Acer M900DF Smartphone User Guide110
Emergency calls
Important: Wireless phones, including this device, operate
using radio signals, wireless networks, landline networks, and
user-programmed functions. Because of this, connections in all
conditions cannot be guaranteed. You should never rely solely
on any wireless device for essential communications like medi-
cal emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate sig-
nal strength. Some networks may require that a valid SIM
card is properly inserted in the device.
2. Press as many times as needed to clear the display and
ready the device for calls.
3. Enter the official emergency number for your present loca-
tion. Emergency numbers vary by location.
4. Press .
If certain features are in use, you may first need to turn those
features off before you can make an emergency call. Consult
this guide or your service provider for more information.
When making an emergency call, give all the necessary infor-
mation as accurately as possible. Your wireless device may be
the only means of communication at the scene of an accident.
Do not end the call until given permission to do so.
Disposal and recycling
information
Do not throw this electronic device into the trash when
discarding.
To minimize pollution and ensure utmost protection of the
global environment, please recycle. For more information on
the Waste from Electrical and Electronics Equipment (WEEE)
![](/img.php?id=1228786&img=bg33.png)
111Taking care of your Acer M900DF Smartphone
regulations, visit
http://www.acer-group.com/public/Sustainability/
sustainability01.htm
Mercury advisory
For projectors or electronic products containing an LCD/CRT
monitor or display:
Lamp(s) inside this product contain mercury and must be recy-
cled or disposed of according to local, state or federal laws. For
more information, contact the Electronic Industries Alliance at
www.eiae.org. For lamp-specific disposal information, check
www.lamprecycle.org.
Taking care of your Acer M900DF
Smartphone
1. DO take care not to scratch the screen of your Acer M900DF
Smartphone. Keep the screen clean. When working with
your Acer M900DF Smartphone, use the supplied stylus or
plastic-tipped pens intended for use with touch-sensitive
screens. Never use an actual pen or pencil or other sharp
object on the screen surface.
2. DO NOT expose your Acer M900DF Smartphone to rain or
moisture. Do not let water enter the circuitry through the
front panel buttons or expansion slots. In general, treat
your Acer M900DF Smartphone as you would a mobile
phone or other small electronic device.
![](/img.php?id=1228786&img=bg34.png)
Acer M900DF Smartphone User Guide112
3. DO be careful not to drop your Acer M900DF Smartphone
or subject it to any strong impact. Do not place your Acer
M900DF Smartphone in your back pocket.
4. DO NOT expose your Acer M900DF Smartphone to extreme
temperatures. For example, do not leave your Acer M900DF
Smartphone on the dashboard of a car on a hot day or
when temperatures are below freezing point. Also, keep it
away from heaters and other sources of heat.
5. DO NOT use or store your Acer M900DF Smartphone in any
location that is dusty, damp or wet.
6. DO use a soft, damp cloth to clean your Acer M900DF
Smartphone. If the surface of the screen becomes soiled,
clean it with a soft cloth moistened with diluted window-
cleaning solution.
7. DO NOT press down on the screen with force, otherwise
you may crack the screen.
![](/img.php?id=1228786&img=bg35.png)
113Safety regulations
Safety regulations
LCD pixel statement
The LCD unit is produced with high-precision manufacturing
techniques. Nevertheless, some pixels may occasionally misfire
or appear as black or red dots. This has no effect on the
recorded image and does not constitute a malfunction.
Radio device regulatory notice
Note: Regulatory information below is for models with wireless
LAN and/or Bluetooth only.
General
This product complies with the radio frequency and safety
standards of any country or region in which it has been
approved for wireless use. Depending on configuration, this
product may or may not contain wireless radio devices (such as
wireless LAN and/or Bluetooth modules). Information below is
for products with such devices.
FCC INTERFERENCE STATEMENT
This mobile device meets the guidelines for exposure to radio
waves. Your mobile device is a radio transmitter and receiver.
It is designed not to exceed the limits for exposure to radio
waves recommended by international guidelines.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance
![](/img.php?id=1228786&img=bg36.png)
Acer M900DF Smartphone User Guide114
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
RF exposure warning:
• The equipment complies with FCC RF exposure limits
set forth for an uncontrolled environment.
• The equipment must not be co-located or operated in
conjunction with any other antenna or transmitter.
Max. SAR Measurement
PCS1900: 1.09 W/kg
![](/img.php?id=1228786&img=bg37.png)
115
A
ActiveSync
synchronizing 80
application buttons 36
B
backlight settings 86
battery
charging 17
information 103
installing 16
Bluetooth
connections 70
headset 93
sending contacts 75
settings 67
C
calendar 80
call barring 71
call forwarding 72
call history 27
dialing a call history
number 27
options 34
call waiting 72
caller ID 71
calls
answering 31
ending 31
from other applications
27
on-screeen options 31
putting on hold 31
rejecting 31
swapping between 31
using the on-screen dial
pad 26
camera
editing photo 59
icons and indicators 55
information 103
shooting a video 57
supported formats 57
switching cameras in a
video call 31
taking a photo 57
turning on and off 31
clock and alarms 87
connecting to a PC 79
connections
managing 71
connectivity 102
contacts
adding and editing 73
assigning ring tones 73
deleting 75
making calls to a con-
tact 26
D
date and time
setting 52
design 103
display 102
E
error messages 99
F
FAQs 99
flight mode 65, 68
G
GPRS 51, 67, 94
![](/img.php?id=1228786&img=bg38.png)
Acer M900DF Smartphone116
H
help
menus 8
sources 8
I
input options 41
input settings 40
international numbers 32
L
LED indicators 14, 17
M
microphone volume 87
MMS messages 45
N
naming 53
network
selecting 67
O
on-screen dial pad 26
on-screen keyboard 37
P
performance 102
personalizing 52
phone
connections 66, 67
settings 71
photos & videos
editing 59
power management 68
profiles 72
Q
QWERTY keyboard 38
R
regional settings 87
ring tones 72
S
safety regulations 104
screen options 88
SD card 98
SIM Card
Entering PIN Code 18
Installing 15
SIM toolkit 76
software
list 104
removing 88
sounds and notifications 85
speakerphone 32
specifications 102
Start menu 85
status icons 51
stylus 35
symbol key 40
system certificates 86
T
tasks 80
troubleshooting 99
turning on 18
U
unpacking 11
USB connector 102
V
video calls
the video call screen 29
views
left 14
Voice Call / Video Call Menu
29
voice calls
the voice call screen 28
