USERS MANUAL 2 OF 4

c) Proximity Readers

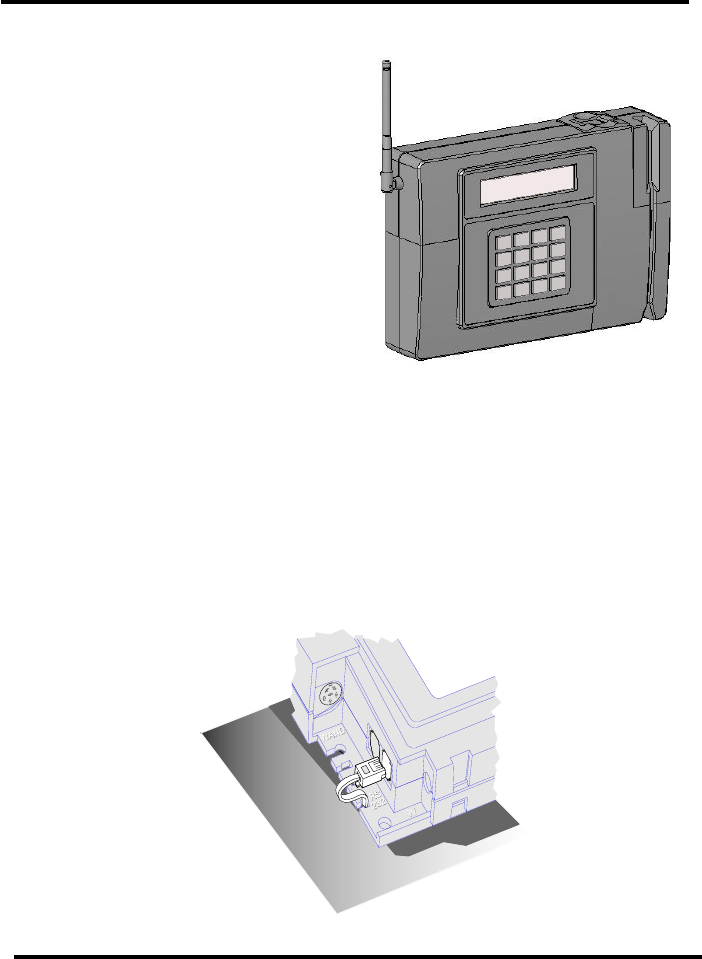

Two Proximity Readers are available on the DC7000. The first

Proximity Reader uses 125kHz, Read Only, ISO Proximity Card, 64 Bit

Encoding (Manchester). Serial Output Data String contains a 9 Bit

Header, 40 Bits of Data, 14 Parity Bits and 1 Stop Bit.

The second reader is a HID Reader that uses HID Badges:

125kHz, Read Only, H10301 (Std. 26 Bit), Facility Code 101.

Note: the reader is not restricted to 26 Bit badges

4. Ports and Connections

Ethernet Port

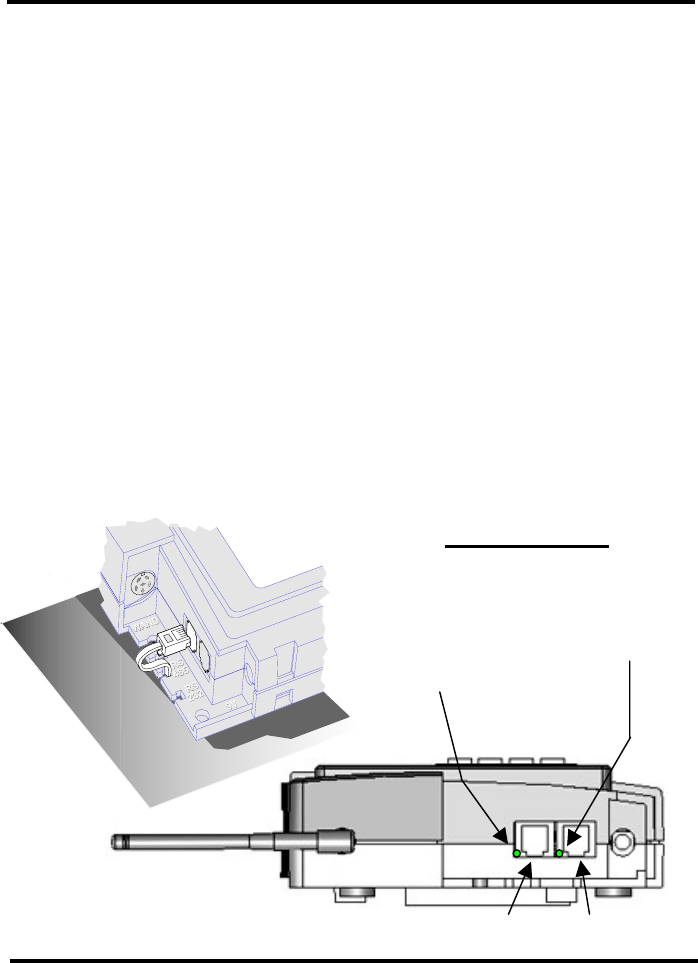

The Ethernet port is located on the lower left corner of the terminal. It is

a 10 position 8-pin female port, which will accept a male

10/100BASE-T (RJ-45) modular connector. The terminal has the

capability to communicate across an intranet, a WAN or the Internet.

Indicator Lights

Green Wireless

RF Activity

LED

Front Green LED:

Ethernet Link

Rear Green LED:

Ethernet Receive

Ethernet Port RS232 Port

Wireless WiFi Connection

The Wireless Ethernet connection

is established via Wireless 802.11b.

RS-232 Serial port

The RS-232 serial port is located on the lower left corner of the

terminal. It is a six position 4-pin female port, which will accept a male

RJ-11 modular connector.

The DC7000 Terminal can use RS-232 serial communication to

connect directly to a host computer. A connection for an IBM® PC or

IBM-PC compatible computer is shown on the following page.
