INSTALLATION GUIDE
GENERAL INFORMATION
The 6160RF keypad/transceiver is a is a combination unit
that contains the following:
A 6160 Alphanumeric Addressable Keypad
A 5881M RF Receiver
A 5800TM Transmitter Module
The 6160RF Keypad/Transceiver may be used on any
control panel that supports the 6160 Keypad (e.g., VISTA-
10SE, VISTA-15, VISTA-20SE, VISTA-40, VISTA-50P).
FEATURES
Wireless Features
Supports wireless key transmitters (5804, 5804BD).
Supports wireless keys with Signal Sentry (high-
security) (5804E).
Provides a nominal range of 200' for the RF
transmitters (some transmitters have a shorter range).
Supports RF jam detection when the receiver is enabled.
UL The following transmitters are not intended for use in UL
installations: 5804, 5804BD, 5804BDV, 5804E and 5827BD.
Programming Features
Provides default settings for the functions of the
wireless keys.
Provides a method to enroll up to eight (8) encrypted
(high security) devices.
Additional Features
Provides tamper protection that causes the system to
annunciate a trouble condition if the cover is removed.
(If supported by the control panel). The tamper switch
has not been evaluated for UL installation.
Capable of sending status signals (Armed, Ready, etc.)
to bi-directional units such as 5804BD, 5804BDV and
5827BD.
APPLICATION GUIDELINES FOR THE 6160RF
Use the following guidelines when planning an
installation:
If using bi-directional devices, be sure to enable the
transmitter module in the 6160RF.
If transmitters are programmed into the control
panel, be sure to enable the receiver. (Make sure you
do not exceed the number of receivers supported by
the control panel.)
You must set the House ID only if you are using RF
keypads and/or bi-directional devices; AND the House
ID Source is the 6160RF (Local).
Note: If the House ID source is the panel, enter *99 into keypad.
6160RF Application Guide
The guide, provided below, outlines how to program the
wireless keys, RF receiver, and the House ID in the
6160RF for your particular installation.
* Two 6160RFs are needed for this application: one connected to partition 1’s keypad terminals, and
one connected to partition 2’s.
** If using an RF keypad on only one partition, the 6160RF’s partition assignment must match the
partition set in field 1*48.
*** If set for Local on a partition control, the 6160RF’s partition assignment must match the one
programmed in the BD device.
Control Panel
RF keypads and/or
Bi-directional
devices on more
than 1 partition?
Program
RF Receiver
House ID
Source***
As
VISTA-10SE, VISTA-15,
VIA-30PSE NO Enable System
VISTA-20SE NO Enable System
YES* Disable Local
VISTA-40, VISTA-50P NO** Enable System
YES Disable Local
Preliminary - 6 September 2002
2
INSTALLING THE 6160RF
Locate the 6160RF in an area and at a height where it is
convenient for user operation. The 6160RF must be at
least 10 ft from the control panel to ensure proper
operation of the RF receiver.
Mounting And Wiring
The 6160RF has terminal blocks for connection to power
and data wires, and relay contact wires. Removing the
keypad’s case back accesses these terminal blocks.
The 6160RF can be surface mounted directly to walls, or
to a single- or double-gang U.S./Italian style electrical box.
Follow these steps to mount and wire the keypad:
1. Detach the case back by pushing up into one of the two
slots at the bottom of the keypad with the blade of a
small screwdriver (this will push in the release snap),
then pull that side of the case back away. Repeat for
the other side. Refer to Figure 1 for location of the case
back release snaps.
ARMED
READY
MOUNTING
RELEASE
SNAPS
NOTE:
TO REMOVE REAR COVER
PUSH IN THE TWO MOUNTING
SNAPS LOCATED ALONG THE
BOTTOM OF THE KEYPAD
AND LIFT COVER UP.
6164RF-003-V0

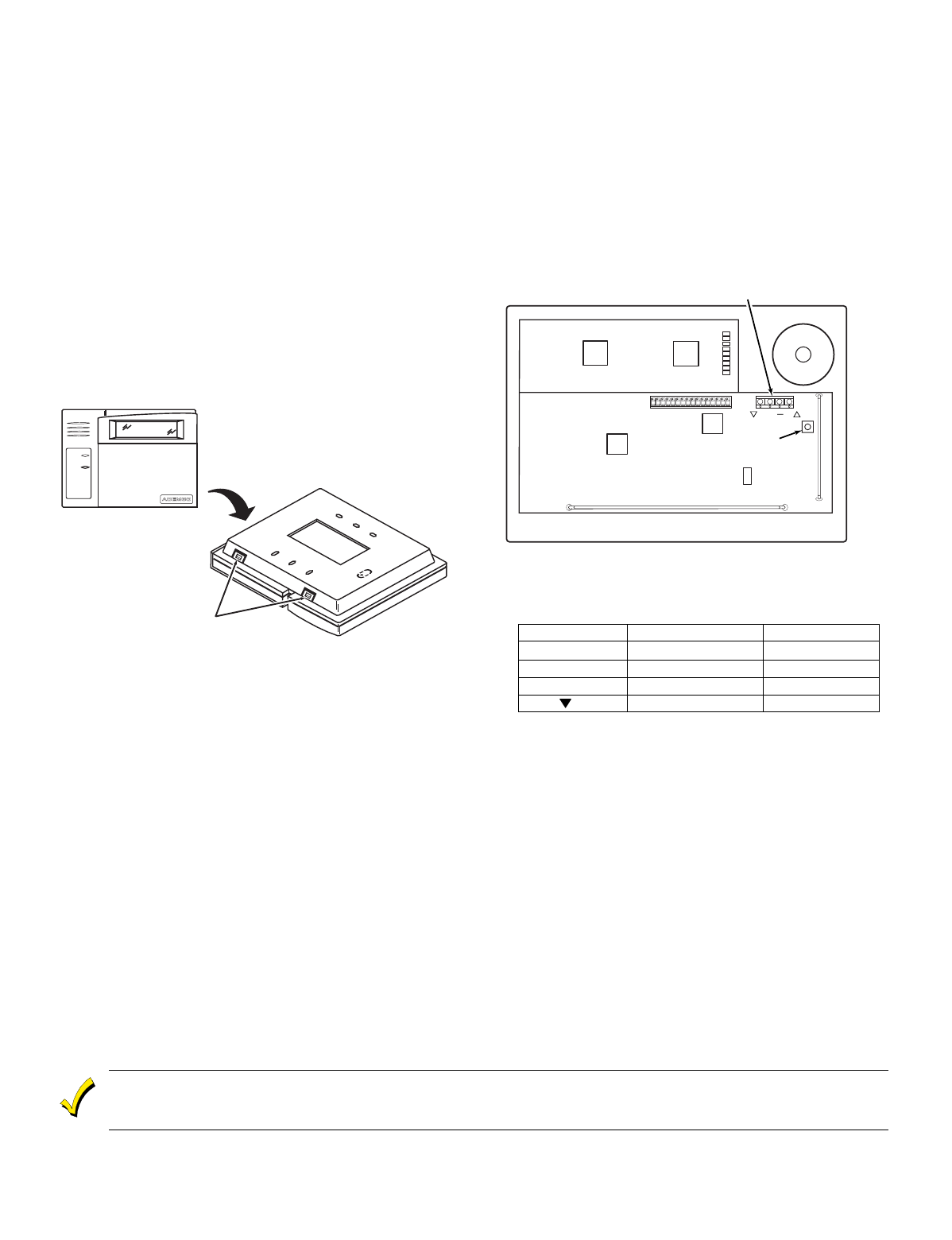

Figure 1. Removing the Case Back
2. Pass the wiring from the control panel through the
opening in the case back. (see the control panel’s
instructions for proper run lengths.)
a. If surface wiring is being used, wiring may be
routed through the top or the bottom left-side
breakout in the case back. See Figure 2. The
breakouts must be punched out using a screwdriver
before mounting the case back.
b. If desired, wires may be strain-relieved to the wire
tie point on the inside of the case back with a tie
wrap (not supplied).
3. Mount the case back to a wall or to an electrical box
using the 25mm-long self-tapping screws supplied
(mollies for drywall are not supplied).
Note: If you wish to tamper-protect the keypad for removal from the
wall, use an additional mounting screw in the tamper hole in
the case back (see Figure 2 for location).
4. Connect the power and data wires from the control
panel to the terminals on the 6160RF as indicated
Figure 3 and Table 1.
G
6160RF-002-V0
Y+
TAMPER
SWITCH
WIRING TERMINALS
(TO CONTROL PANEL)
+
+
+
+
Figure 3 - 6160RF Wiring Details
Table 1 - Wiring Table
Keypad Control Panel Wire Color
G Data In Green
- -Aux Pwr (GND) Black
+ +Aux Pwr Red
Y Data Out Yellow
5. Re-attach the keypad to the mounted case back.
Attach the top of the keypad first, and then press the
bottom section down until it snaps into place securely.
6. Peel off protective film on the LED panel and install the
keypad labels as required.
6160RF PROGRAMMING
Entering Program Mode
Press the [1] and [3] keys simultaneously for a few seconds within 30 seconds after applying power or within 30 seconds after
removing the case back. The current keypad address CON ADDRESS = XX will be displayed. Press the [] key.
Programming Operations
Once you have entered the Program mode, you may advance between prompts by pressing the [] key. This will also store
displayed information.
Programming the 6160RF
Note: Refer to the control panel’s installation instructions for the acceptable keypad and receiver addresses.
If you are using a wireless key in High-Security mode (e.g.;5804E) in the control panel, it will occupy one of the devices in the
6160RF.
When operating the system in High-Security mode, only encrypted wireless keys will function.
3
STEP DESCRIPTION DISPLAY CHOICES
1. Enter the program mode by pressing the [1] and [3] keys simultaneously for
a few seconds within 30 seconds after applying power or within 30 seconds
after removing the case back.
(Keypad Address) Enter the two digit keypad address. Press the [] key to
continue.
'32%((6)77
=
<<01-31
2. (Receiver Enable) Enter [1] to enable, or [0] to disable Receiver. Enable the
receiver if RF transmitters or wireless keypads are programmed into the
control. Press the [] key to continue.
6)')-:)6
32?
=
3**A
1= ON
0 = OFF
3. If receiver is enabled, enter the two digit receiver address.
(01-30)
Press the [] key to continue.
6)'%((6)77
=
<< 01-30
4. (Transmitter Enable) Enter [1] to enable, or [0] to disable.
Enter [1] if bi-directional devices are being used.
Note: If the House ID source is the System, and more than one 6160RF is used,
make sure only one has the Transmitter Module enabled.
Press the [] key to continue.
86%271-88)6
32?
=
3**A
1= ON
0 = OFF
5. (House ID) Enter 99 (System) to use the House ID programmed into the
control panel
Enter 01-31 (Local) to use the House ID programmed into the 6160RF.
Notes:
(1) If the House ID Source is the System, RF Keypads and bi-directional units MUST
match the House ID programmed into the panel.
(2) If the House ID Source is Local, the RF Keypads and bi-directional units MUST
match the House ID programmed into the 6160RF.
Press the [] key to continue.
,397)-(
=
<<01-31 = Local
99 = System
6. (Enable High Security mode) Enter [1] to select High Security Mode
Note: If this mode is enabled, the 6160RF will only recognize encrypted devices.
Press the [] key to continue.
,-+,7)'96-8=
3**?
=
32A
1= Enable
0 = Disable
7. (Delete High Security Devices) Press the [] key to skip this prompt and
exit Program Mode.
Note: If you need to delete encrypted devices refer to the Deactivating High Security
Devices section.
()0)8)():-')7#
1= YES
0 = NO
ACTIVATING HIGH SECURITY DEVICES
This following procedure should be followed if using High-Security (encrypted) devices.
STEP DESCRIPTION
1. Put the control panel in Go/ No Go Test mode. (See the Installation Guide for the panel being installed.)
2. Follow the instruction provided with the wireless device to for installing the High-security (encrypted) device.
3. The 6160RF will momentarily display the serial number of the device.
4. Disable the Go/ No Go Test mode and follow the normal procedure for programming the device into the control panel
(refer to the Installation Instructions for the device that you are programming).
DEACTIVATING HIGH SECURITY DEVICES
This mode gives you the ability to disable all individual wireless keys that have been directly programmed into
the 6160RF. This is particularly useful if a user loses a wireless key.
! High-Security (encrypted) devices must also be deleted from the panel. Once High-Security (encrypted) devices have been
deleted, the devices will no longer function.
STEP DESCRIPTION DISPLAY CHOICES
1. Enter the keypad's local program mode within 60 seconds of power-up
by pressing and holding down the [1] and [3] keys at the same time for
3 seconds. The current keypad address will be displayed with the
cursor under the "tens" digit. Press the [] key to continue.
'32%((6)77
=
<<01-31
2. (Delete High Security Devices) Press the [1] key to remove all high-
security (encrypted) devices. Press the [] key to continue. ()0)8)():-')7#
23?
=
=)7A
1= YES
0 = NO
3. If YES was selected in Step 2 the unit will display a confirm request to
delete the stored high security device. Press the [1] key to accept,
followed by the [] key to exit the programming mode.
%6)=39796)#
23?
=
=)7A
1= YES
0 = NO
TROUBLESHOOTING
The error messages listed in the following table cause the 6160RF to produce a single ding tone. The table describes the error
messages and the corrective actions.
Display Probable Cause Corrective Action
Lb Low battery in the wireless key 1. Replace the battery if the wireless key has a replaceable battery.
2. Replace the transmitter if the wireless key does not have a replaceable battery.
Open Ckt Open circuit Verify that the Data Out (DO) wire is connected properly.
Incompat.
Con. Incompatible connection Verify that the control panel is not a First Alert-type control panel.
Check 09 1. 6160RF Receiver is not
communicating.
2. Another device on the keypad
terminals is not communicating to
the control panel.
1. Verify that the Data In (DI) wire is connected properly.
2. Verify the wiring connections between the control and all other devices.
SPECIFICATIONS
Physical: 5-3/8” H x 7-3/8” W x 1-1/4” D
(137mm x 187mm x 32mm)
Wiring: Refer to Table 1
Range: 200 ft (60.9 m) nominal
Frequency: 345 MHz
Current: Standby 50mA
Backlighting on and
Sounder on 150mA
Display: 2 x 16 alphanumeric supertwist LCD, backlit
Sounder: Tone Generator Integrated Circuit. (fire alarm is loud pulsing
tone; burglary/audible panic alarm is continuous tone)
FOR DETAILS ON THE LIMITATIONS OF THE ENTIRE ALARM SYSTEM, REFER TO THE INSTALLATION INSTRUCTIONS FOR THE
CONTROL PANEL BEING INSTALLED IN CONJUCTION WITH THIS DEVICE.
FCC STATEMENT FCC ID CFS8DL6160RF
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 15 STATEMENT
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual.
Unauthorized changes or modifications could void the user's authority to operate the equipment.
ADEMCO LIMITED WARRANTY
Alarm Device Manufacturing Company, a Division of Pittway Corporation, and its divisions, subsidiaries and affiliates ("Seller"), 165 Eileen Way,
Syosset, New York 11791, warrants its products to be in conformance with its own plans and specifications and to be free from defects in materials and
workmanship under normal use and service for 24 months from the date stamp control on the product or, for products not having an Ademco date
stamp, for 12 months from date of original purchase unless the installation instructions or catalog sets forth a shorter period, in which case the shorter
period shall apply. Seller's obligation shall be limited to repairing or replacing, at its option, free of charge for materials or labor, any product which is
proved not in compliance with Seller's specifications or proves defective in materials or workmanship under normal use and service. Seller shall have no
obligation under this Limited Warranty or otherwise if the product is altered or improperly repaired or serviced by anyone other than Ademco factory
service. For warranty service, return product transportation prepaid, to Ademco Factory Service, 170 Michael Drive, Syosset, New York 11791.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, OF MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE OR
OTHERWISE, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO CASE SHALL SELLER BE LIABLE TO ANYONE
FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, OR
UPON ANY OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE SELLER'S OWN NEGLIGENCE
OR FAULT.
Seller does not represent that the products it sells may not be compromised or circumvented; that the products will prevent any personal injury or
property loss by burglary, robbery, fire or otherwise; or that the products will in all cases provide adequate warning or protection. Customer understands
that a properly installed and maintained alarm may only reduce the risk of a burglary, robbery, fire or other events occurring without providing an alarm,
but it is not insurance or a guarantee that such will not occur or that there will be no personal injury or property loss as a result. CONSEQUENTLY,
SELLER SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPERTY DAMAGE OR OTHER LOSS BASED ON A CLAIM THE
PRODUCT FAILED TO GIVE WARNING. HOWEVER, IF SELLER IS HELD LIABLE, WHETHER DIRECTLY OR INDIRECTLY, FOR ANY LOSS OR
DAMAGE ARISING UNDER THIS LIMITED WARRANTY OR OTHERWISE, REGARDLESS OF CAUSE OR ORIGIN, SELLER'S MAXIMUM LIABILITY
SHALL NOT IN ANY CASE EXCEED THE PURCHASE PRICE OF THE PRODUCT, WHICH SHALL BE THE COMPLETE AND EXCLUSIVE REMEDY
AGAINST SELLER. This warranty replaces any previous warranties and is the only warranty made by Seller on this product. No increase or alteration,
written or verbal, of the obligations of this Limited Warranty is authorized.
165 Eileen Way, Syosset, NY 11791
Copyright 2002 PITTWAY CORPORATION
i.¢l
K0903ax 9/02

Navigation menu
