3G Communicator
Lyric-3G / Lyric-3GC
Installation Instructions
General Information
The Lyric-3G/Lyric-3GC Communication Modules allow the Lyric Controller to communicate with the Central Station via
the 3G cellular network.
IMPORTANT: Before installing the communication module, make sure power (both AC and battery) is removed from the
controller or use the “Install Cellular Module” mode described in the Replacing the Module section below.

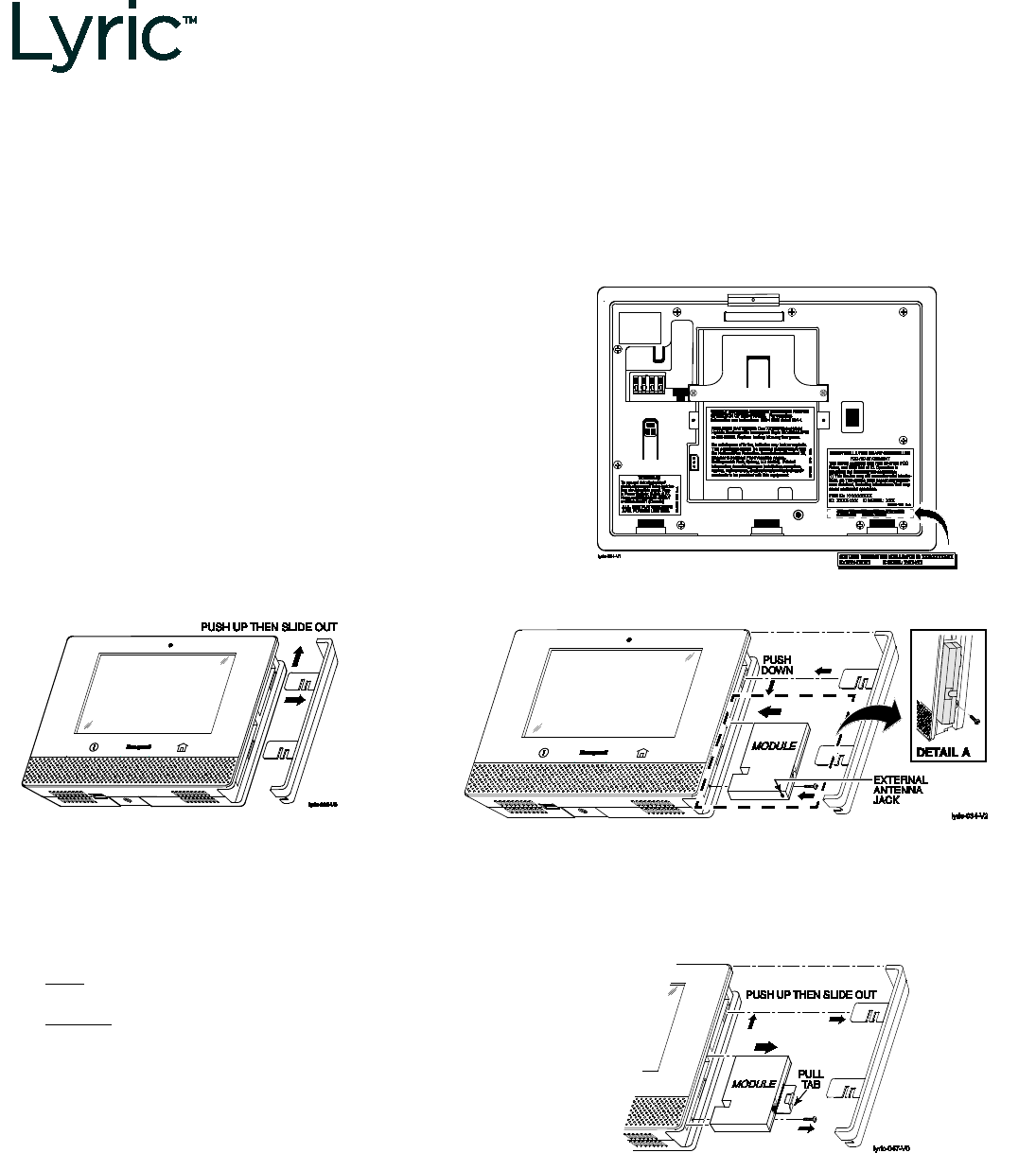

Installing the Lyric-3G Module
1. Install the provided FCC/IC label (P/N 800-19687) on
the control’s case back.
2. Remove bezel from right-hand side of control to expose
the radio module slot. To remove the bezel, push
upward then slide it out.
3. Insert the module into the slot. Push firmly to mate the
edge connector. Install the securing screw to ensure
proper connection and operation.
4. Replace the bezel.
5. After all other controller connections are made, power
up the controller.
6. Program and register the module during the controller’s
initial association with its AlarmNet 360 account. Refer
to the controller’s Programming Guide for details.
7. Check the signal strength before permanently locating
the Lyric Controller. See Checking Signal Strength
section.
Typical FCC/IC Label Location
Removing the Bezel
Installing the Lyric-3G Module
Replacing the Module
In the event the module needs to be replaced, the Control must first be put in module replacement (“Install Cellular
Module”) mode to avoid causing a tamper alarm or damaging the module. Module replacement mode deactivates
tamper protection and removes power from the module connector for about 15 minutes.
1. Select the Install Cell button.
User: Security –Tools – user code – Advanced – Install
Cellular Module
Installer: Security –Tools – installer code – Test –
Install Cellular Module
a. Select
Yes
at the prompt to continue.
b. A popup window displays steps for module
replacement. Keep this window open until
replacement is completed
2. Remove the side bezel. See diagram at right.
3. Remove the screw that secures the module.
4. Remove the communication module from its
connection slot by using the pull tab.
5. Insert the new module into the slot. Push firmly to
mate the edge connector. Replace the screw.
6. Replace the bezel.
7. When installation is complete, press
OK
at the
replacement steps window. Confirmation of proper
installation appears. Press OK to exit.
HONYEYWELL
PRELIMINARY
Ê800-19181@Š
800-19181 4/15 Rev. A
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
Copyright © 2015 Honeywell International Inc.
www.honeywell.com/security
Checking Signal Strength
When choosing a suitable mounting location, check the
communicator’s signal strength to ensure proper
operation. For most installations, using the module’s
internal antenna, mounting the Lyric controller as high as
practical, and avoiding large metal components provides
adequate signal strength for proper operation.
Use the Lyric Controller “Cellular Information” screen to
display signal strength (in dBm):
Security
–
Tools
–
[installer code]
–
Program
–
Comm.
Diagnostics
–
Cellular Information
Compare the RSCP (received signal code power [3G]) or
RSSI (received signal strength indicator [2G]) number
displayed to the Signal Strength Guide at right to ensure
adequate signal strength. If necessary, relocate the
Controller to obtain better signal strength (press
Cellular Information
again to refresh the reading).
Signal Strength Guide
RSCP (3G) – if module is using the 3G Network
Good ......... -20 to -90 dBm
OK ............. -91 to -100 dBm
Marginal .. -101 to -106 dBm
Bad ............ -107 to -120 dBm
RSSI (2G) – if module is using the 2G Network
Good ......... -20 to -89 dBm
OK ............. -90 to -98 dBm
Marginal .. -99 to -104 dBm
Bad ............ -105 to -120 dBm
If adequate signal strength cannot be achieved, an
external antenna should be used. Use external antenna
kit model Cell-ANTST.
Specifications
Dimensions: ....
2-5/8”W x 3-1/8”L x 1/2”D
Voltage Input
.. 5V (provided by the controller)
Current
Idle ............... 60mA, standby
Transmit ..... 500mA
Environmental
Operating temperature: -20ºC to +55ºC,
(for compliance agency: 0ºC to +49ºC)
Storage temperature: -40º to +70ºC
Humidity: 0 to 95% relative humidity, non-condensing
(for compliance agency 0% to 85%)
Frequency Bands: 2G GSM/GPRS/EDGE
Quad Band 850/900/1800/1900 MHz
3G UMTS Band V, Band II 850/1900MHz
WCDMA
HSUPA
HSDPA
External Antenna Kit: Cell-ANTST
SUPPORT & WARRANTY
For the latest documentation and online support, please go to:
https://mywebtech.honeywell.com/
For the latest warranty information, please go to:
www.honeywell.com/security/hsc/resources/wa.
MyWebTech Warranty
RF Exposure Warning
The antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 7.8 in (20 cm) from all persons and must
not be co-located or operated in conjunction with any other transmitter
except in accordance with FCC multi-transmitter product procedures.
Mise en Garde
Exposition aux Frequences Radio:
L'antenne (s) utilisée pour cet
émetteur doit être installée à une distance de séparation d'au moins 7,8
pouces (20 cm) de toutes les personnes.
FEDERAL COMMUNICATIONS COMMISSION (FCC) & INDUSTRY CANADA (IC) STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or
modifications could void the user's authority to operate the equipment.
FCC CLASS B STATEMENT
This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information:
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause
interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications
in Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• If using an indoor antenna, have a quality outdoor antenna installed.
• Reorient the receiving antenna until interference is reduced or eliminated.
• Move the radio or television receiver away from the receiver/control.
• Move the antenna leads away from any wire runs to the receiver/control.
• Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
INDUSTRY CANADA CLASS B STATEMENT
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules, and RSS-210 of IC. Operation is subject to the following two conditions: (1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS-210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne
doit pas causer d' interférences nuisibles. (2) Cet appareil doit accepter toute interférence reçue y compris les interférences causant une réception indésirable.
IMPORTANT NOTE ABOUT EXTERNAL ANTENNAS
If an external cellular radio antenna is used, the antenna may
be installed or replaced ONLY by a professional installer.
TO THE INSTALLER
For the Lyric-3G, the external antenna must not exceed
a maximum directional gain (including cable loss) of 6.0 dBi
at 850 MHz and 2.5 dBi at 1900 MHz.
