Advance Security TR18 Car Alarm Transceiver User Manual CARLINK IVU MANUAL
Advance Security Inc Car Alarm Transceiver CARLINK IVU MANUAL
Users Manual
1
CARLINK IVU
OPERATION MANUAL
HHU CPU: 28pin 2K ROM SIZE. HT48R30A SSOP
IVU CPU: 14pin 1K ROM SIZE. PIC16F630 SOP
1. Transmitter programming: It only retain 4 transmitter programmed. If the memory is
exceeded, the system will start to delete transmitters from memory in chronological order.
2-WAY 46-BIT (HOPPING CODE.)
Hold SW in IVU until LED flashing (0.25” ON,0.25”OFF), you are in the transmitter
programming mode. Within 5", press BTN in TX1, LED on 1”; press BTN in TX2,LED on
2”..indicating the signal have been stored into memory.
Transmitter
Button System Function Remark
Lock Doors & Arm System
Unlock Doors & Disarm System
(1.5-second)
Trunk Release Press and Hold for 1.5
seconds.
Car Locator
Panic Function Press and Hold for 3 seconds.
Activate or Turn Off The Remote Start Operate as manual
NOTE: a. 2 code must be the same, then you can use.
b. Example:2-WAY 46 bit, when you use. Compare with hopping code is
necessary.
c. RF DECODE :
1. Decode as following:
1) Each Bit must shorter than 3000us.
2) 0000, FFFF without decode
3)Compare Code with EEprom.
d. exit: leave it for 5” .
2.HHU reaction
2.1 LOCK: 1 CHIRP, LOCK ICON ON
2.2 UNLOCK: 2 CHIRP, UNLOCK ICON ON
2.3 TRUNK: MELODY, TRUNK ICON ON
2.4 REMOTE START: 1 CHIRP, START ICON FLASH
2.5 REMOTE STOP: 3 CHIRP, START ICON OFF
2.6 CAR LOCATOR: MELODY, CALRLOCATOR ICON ON
2.7 PANIC: MELODY, PANIC ICON ON
3.HHU after 2”,LCD OFF, it is SLEEP MODE, it doesn’t accept any commend.
REMOTE START as well.
2

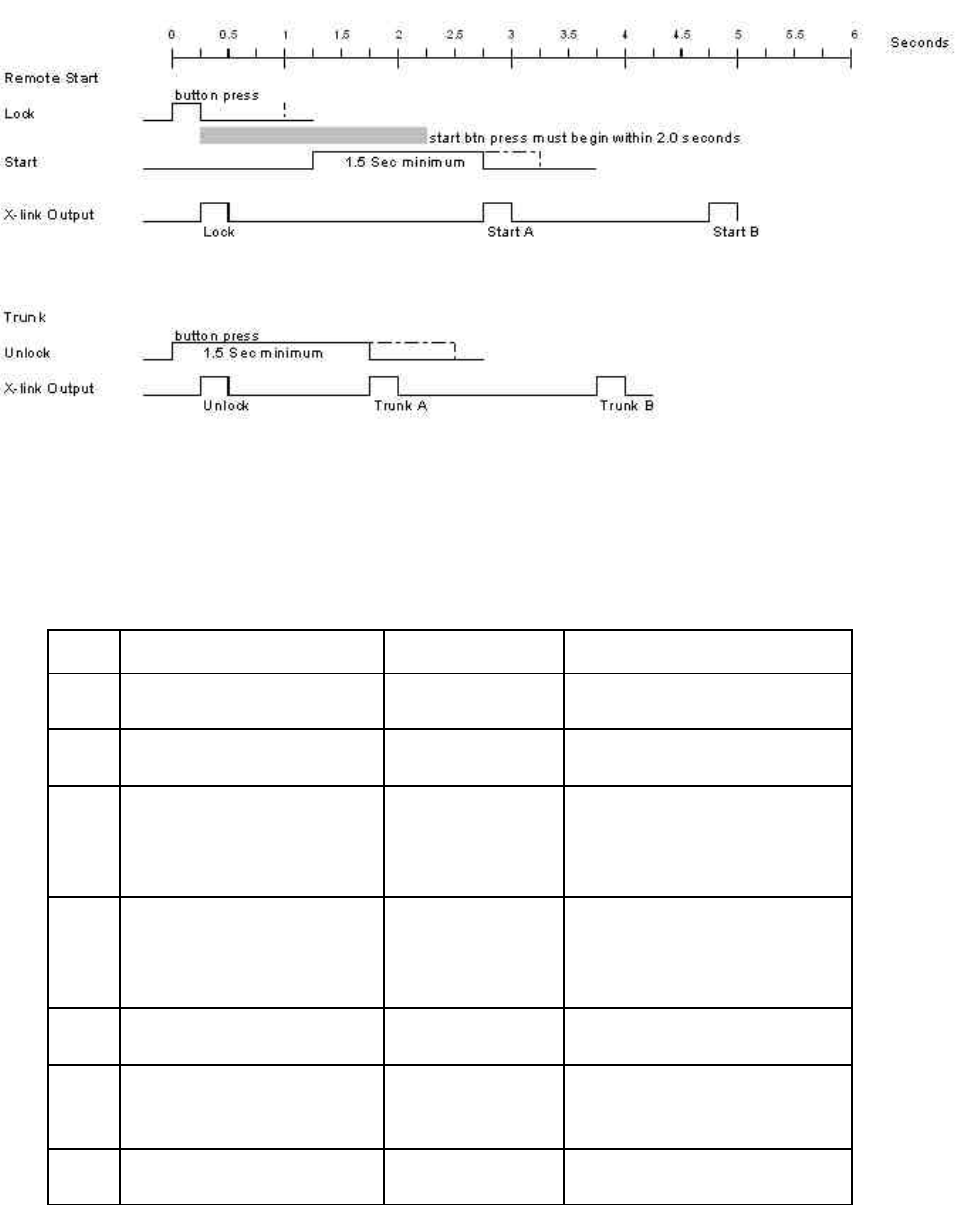

4.Relationship between TRUNK & Remote Start :
4.1 It will send code twice while open TRUNK & REMOTE START, CODE(A) -> LOW 2” ->
CODE(B)
4.2 While Remote Start, press STRAT BTN, it will Turn Off The Remote Start
5. (IVU TO X-LINK )
DBI
Digital Commands Commands Alarm Functions
FE44
1111 1110 0100 0100
LOCK FUNCTION LOCK FROM
REMOTE
FE90
1111 1110 1001 0000
UNLOCK FUNCTION UNLOCK
FROM REMOTE
FEB8
FE30
1111 1110 1011 1000
(A)
1111 1110 0011 0000
(B)
TRUNK FUNCTION TRUNK
FROM REMOTE
FE44
FE14
1111 1110 0100 0100
(A)
1111 1110 0001 0100
(B)
REMOTE
START FUNCTION REMOTE
START FROM REMOTE
FEE4
1111 1110 1110 0100
REMOTE STOP
FUNCTION REMOTE
STOP FROM REMOTE
FED8
1111 1110 1101 1000
CAR LOCATOR
FUNCTION CAR
LOCATOR FROM
REMOTE
FED4
1111 1110 1101 0100
PANIC
FUNCTION PANIC FROM
REMOTE
3
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions.
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may
cause undesired operation.
Per FCC 15.21, you are cautioned that changes or modifications not expressly approved
by the part responsible for compliance could void the user’s authority to operate the
equipment.
