1.0. Introduction
ACR1283L is a PC-linked reader with 1 contactless interface, 4 SAM
interface
Document Title Here
Document Title Here
Document Title Here
ACR1283L
Design Specification
Version 1.00.00
Page 5 of 10
info@acs.com.hk
www.acs.com.hk
2.0. Features
• Plug and play USB with 12Mbps；
• Complies with PCSC/CCID standard ；
• Complies with ISO 7816 part 1 to 4 for all SAM slots；
• Supports the following Tag Types:
o MIFARE Classic. E.g. MIFARE 1K, 4K, MINI and Ultralight ；
o ISO14443-4 Type A；
o ISO14443-4 Type B；
• Upgrade firmware through USB interface；
• Programmable by end user；
• User-controllable peripherals, e.g. LED, Buzzer
• Reading range for contactless tag is about 4 -5 cm, depend on
card type and environment ；
• Support encryption algorithms, e.g. DES、3DES、AES;
Document Title Here
Document Title Here
Document Title Here
ACR1283L
Design Specification
Version 1.00.00
Page 6 of 10
info@acs.com.hk
www.acs.com.hk

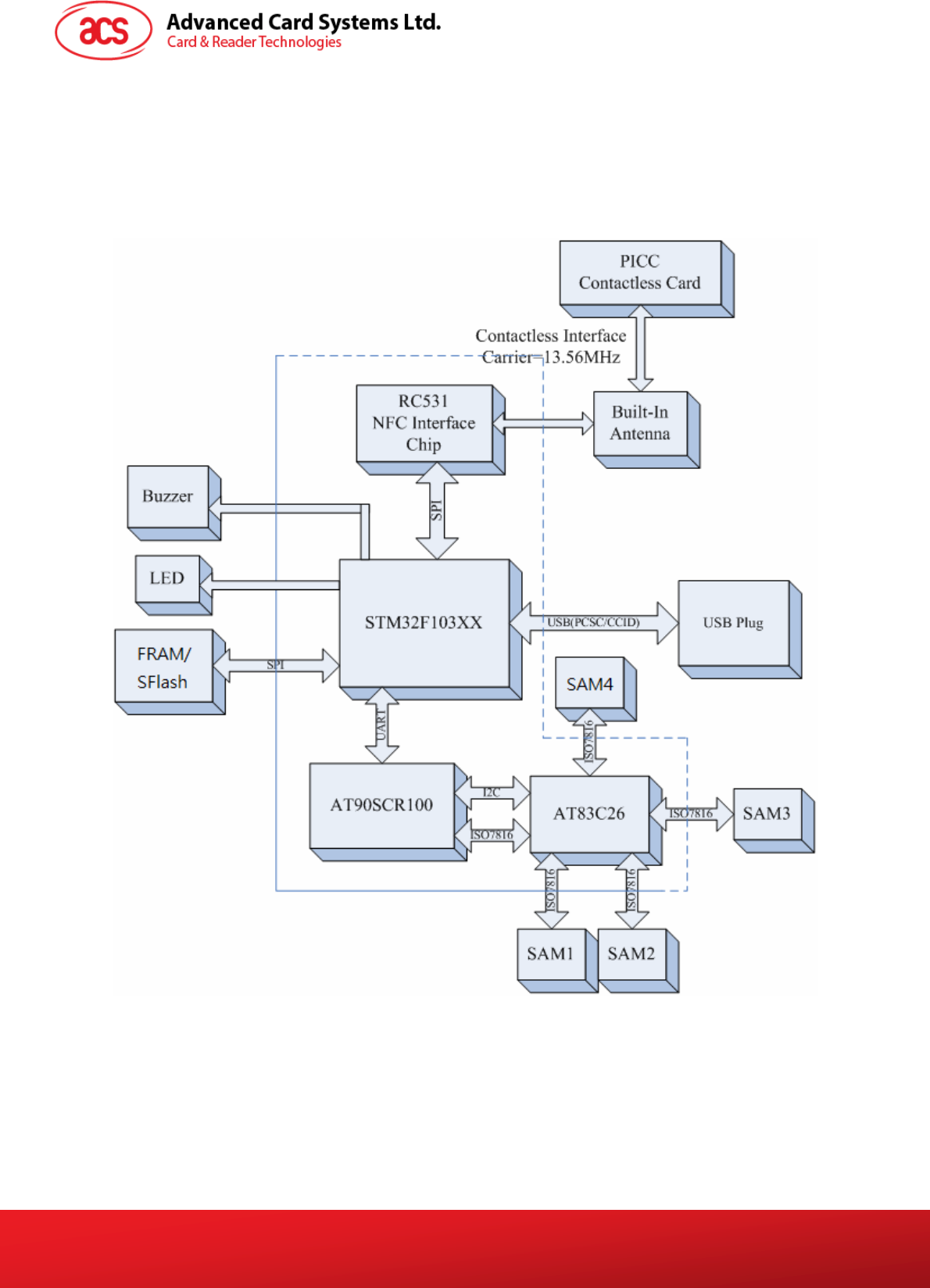

3.0. Architecture
SCM32 is for main processor for communication with PC, and control the contactless chip,
communication with AT90 with connect with SAM card and peripherals. RC531 act as a contactless
chip to perform the communication between contactless tags and SCM32
Document Title Here
Document Title Here
Document Title Here
ACR1283L
Design Specification
Version 1.00.00
Page 7 of 10
info@acs.com.hk
www.acs.com.hk
4.0. Connection with computer

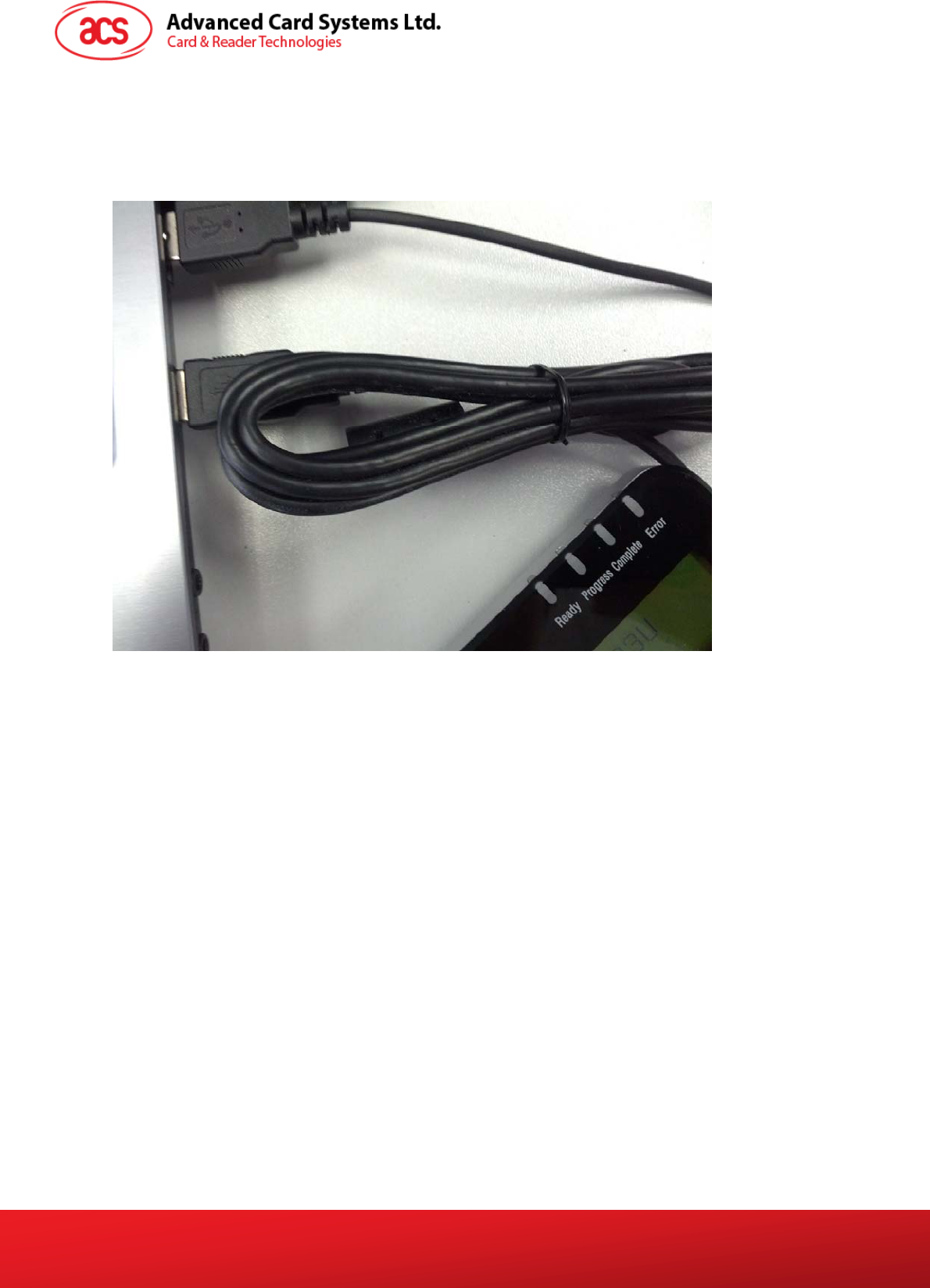

4.1. Plug the ACR1283L to a computer USB port, it is just
providing the power for ACR1283L
Document Title Here
Document Title Here
Document Title Here
ACR1283L
Design Specification
Version 1.00.00
Page 8 of 10
info@acs.com.hk
www.acs.com.hk
4.2. No driver is required, When you put a contactless card on the
reader, the green LED at the “Ready” logo will flash
Document Title Here
Document Title Here
Document Title Here
ACR1283L
Design Specification
Version 1.00.00
Page 9 of 10
info@acs.com.hk
www.acs.com.hk

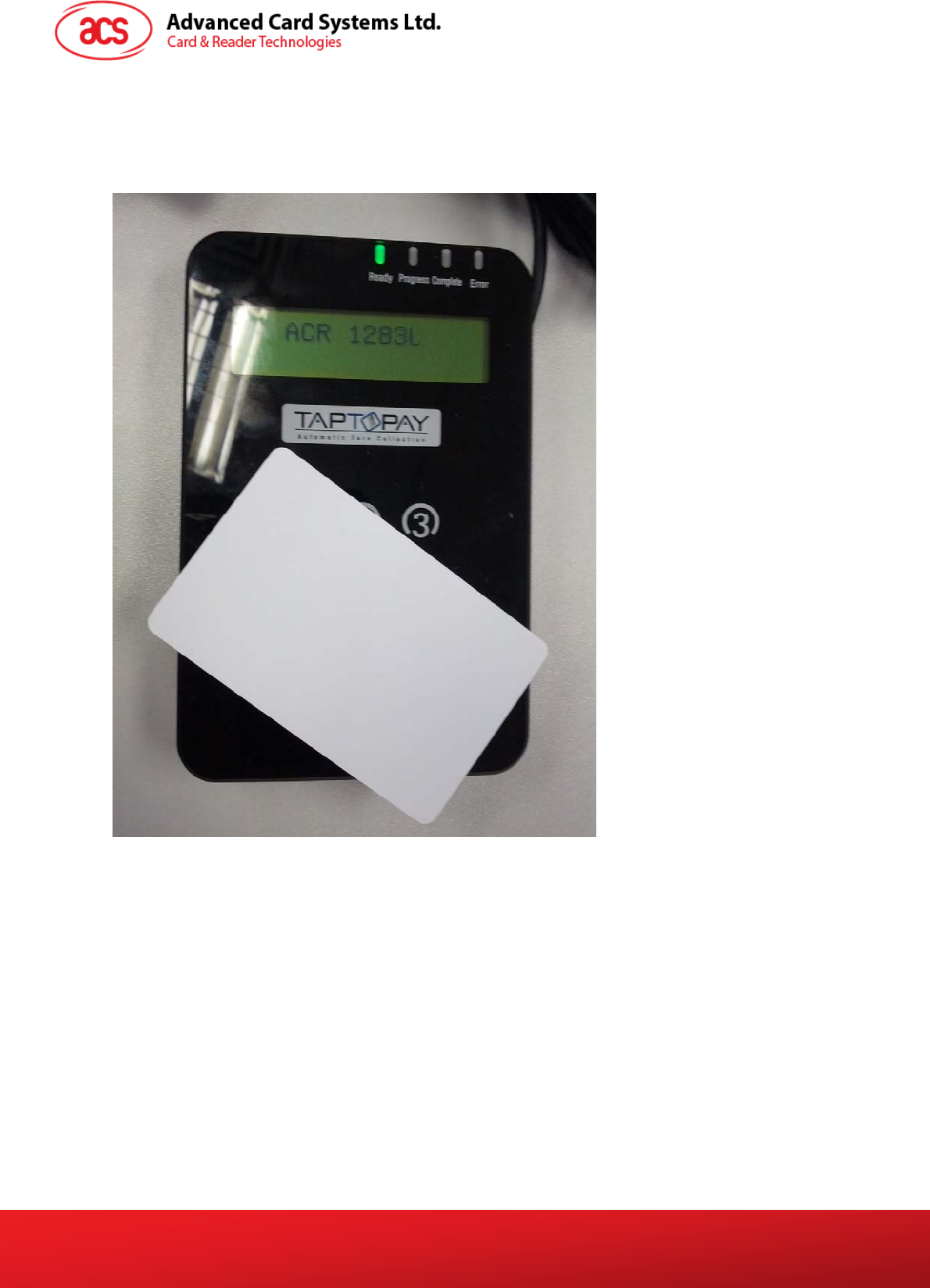

4.3. When you put a mifare card on it, you will hear a beep sound
and the green LED will be highlighted, the UID will be shown
on APDU program
Document Title Here
Document Title Here
Document Title Here
ACR1283L
Design Specification
Version 1.00.00
Page 10 of 10
info@acs.com.hk
www.acs.com.hk
