Aeon Labs DSB54-ZWUS RECESSED DOOR SENSOR User Manual Recessed Door Sensor manual 2CDR

Aeon Labs LLC. RECESSED DOOR SENSOR Recessed Door Sensor manual 2CDR

User Manual

Recessed Door Sensor
View the expanded manual:
http://aeot.ec/spprt/recessed
From Aeotec by Aeon Labs' Intelligence series comes
the Recessed Door Sensor. Invisibly installed, it sits
within a door and its frame to provide all the
information needed by a Z-Wave system for security,
safety, and ambiance, and it does it all without altering
a room's aesthetics.

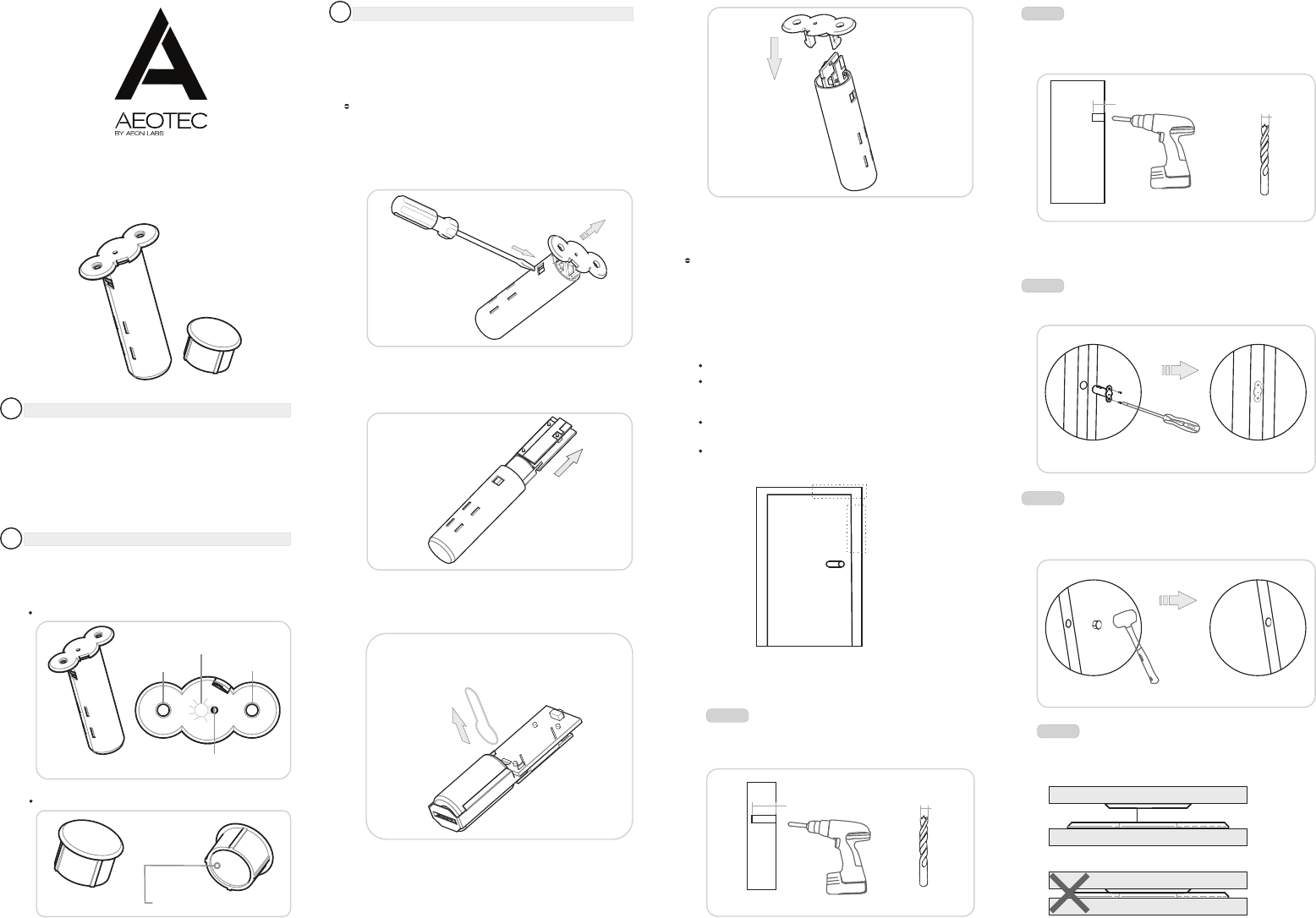

Your Recessed Door Sensor is comprised of two parts:
the larger Main Sensor and the smaller Magnetic
Sensor.
The larger Main Sensor
Separate the Main Sensor's two sections by first
removing its lid and then removing its internal
components.
Remove the clear battery insulator by pulling it away
from the Main Sensor.
Install your Recessed Door Sensor
With the Main Sensor powered and activated, it is now
time to inlay it within your selected doorframe and to also
install the Magnetic Sensor.
Top of the door
Side of the door
Prepare a space for the Main Sensor by drilling a hole
into your doorframe using a 19mm wide drill bit. The
hole should be 65 mm deep.
Step 1
65mm deep 19mm
Drill bit
Drill a corresponding hole in your door. The hole should be
15 mm deep. As stated, the position of this hole should align
exactly with the one hole you just created in the doorframe.
Again, use a 19mm wide drill bit.
Step 2
15mm deep
19mm
Drill bit
Doorframe
Door
Insert the Main Sensor into the hole you created in the
doorframe then secure it using two screws.
Step 3
With your door and doorframe prepared and the drill holes
created, it's now time to mount both parts of your Recessed
Door Sensor.
Secure with screws Done
Place a small amount of white glue (PVA) inside the hole
you created for the Magnetic Sensor. Then place the sensor
over and into the hole, and insert it by tapping gently on it
with a rubber hammer.
Step 4
Tap with hammer Done
1
3
Aeotec Recessed Door Sensor
2Familiarise yourself with your door sensor
Main Sensor
LED
Screw Hole
Z-Wave Button Hole
Magnetic Sensor
The Magnetic Sensor
A magnet in the plastic shell
Using a slot-head screwdriver, remove the Main
Sensor's lid by pressing gently against its exposed
connector.
Quick Start
The installation of your Recessed Door Sensor has two
major steps: the installation of the Main Sensor and the
insta llation of the Magne t ic Se nsor. Power ed by
batteries, your door sensor will use wireless technology
to talk to your Z-Wave network once installed.
Prepare the Main Sensor
The first step in installing your Recessed Door Sensor is
to activate the Main Sensor.
1.
2.
3.
With the battery insulator removed, reinsert the
internal components into the Main Sensor's enclosure
before reattaching its lid. The Main Sensor will now
look as it did prior to step 1.
4.
Note: Ensure that the Main Sensor's button aligns with
the button hole of its lid.
Before beginning it is important to select a suitable
position for your Recessed Door Sensor. For the following
instructions, your Recessed Door Sensor should be:
Installed at the top of a door or the side of door.
Positioned away from metal that could interfere with
its magnetic functionality. This includes your door's
plate, handle or lock mechanism.
Installed in a suitable location to ensure a clear(at
least 1mm) separation when the door is closed.
Positioned exactly above or beside the hole you'll later
in your door for the installation of the Magnetic Sensor.
The rectangular areas highlighted above are the most
appropriate installation positions.
The gap between the two parts of your sensor must be
at least 1mm. If they are not, re-affix the Main Sensor
potentially by altering its hole.
Step 5
Magnetic
Sensor
Main Sensor
1mm
Magnetic
Sensor
Main Sensor
Screw Hole
Remove
Operating distance: Up to 100 feet / 30 meters indoors
and 300 feet / 100 meters outdoors.
Battery: lithium cell CR2, 3 volt battery, 800mAh.
Operating temperature: -10℃ to 60℃.
Relative humidity: 8%~80%.
Aeon Labs warrants to the original purchaser of Products
that for the Warranty Period (as defined below), the
Products will be free from material defects in materials
and workmanship. The foregoing warranty is subject to
the proper installation, operation and maintenance of the
Products in accordance with installation instructions and
the operating manual supplied to Customer. Warranty
claims must be made by Customer in writing within thirty
(30) days of the manifestation of a problem. Aeon Labs'
sole obligation under the foregoing warranty is, at Aeon
Labs' option, to repair, replace or correct any such defect
that was present at the time of delivery, or to remove the
Products and to refund the purchase price to Customer.

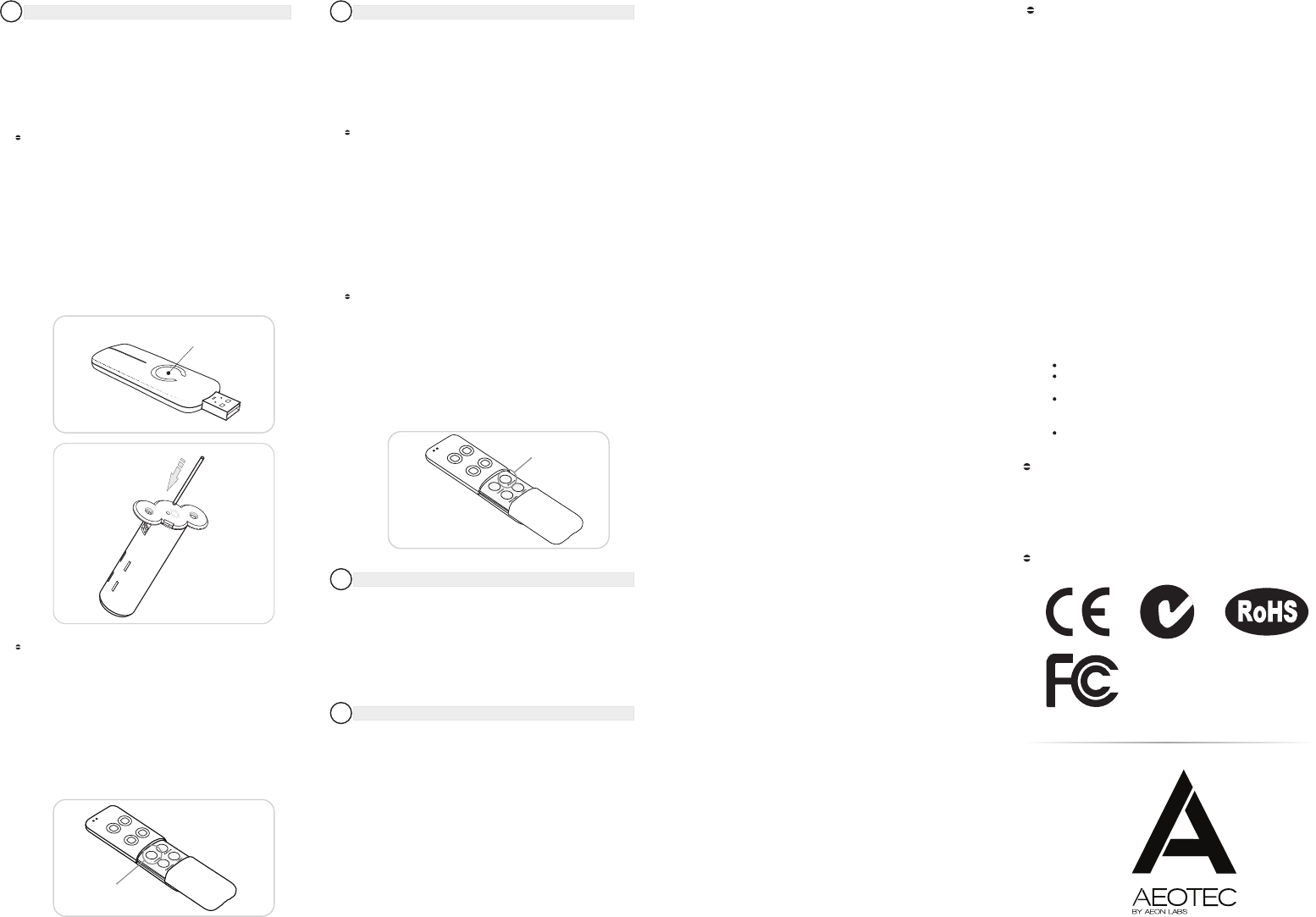

With your Recessed Door Sensor installed within a
door and its frame, it's time to add it to your Z-Wave
network. The following instructions tell you how to do
this using Aeotec's Z-Stick and Minimote controllers. If
you are using other products as your main Z-Wave
controller, please refer to the part of their respective
manuals that tells you how to add new devices to your
network.
If your Z-Stick is plugged into a gateway or a
computer, unplug it.
Take your Z-Stick to the door in which your
Recessed Door Sensor has been installed.
Press the Action Button on your Z-Stick.
Press the Z-Wave Button on your Main Sensor with
a small pin or toothpick.
I f y o ur R e ce s s e d D oo r S e n s or h a d b ee n
successfully linked to your network, the LED light
will be blinking for a few seconds. If the linking was
unsuccessful, the LED light will be blinking for 8
seconds before turning off.
Press the Action Button on the Z-Stick to take it out
of installation mode.
Action Button
Add your sensor to your Z-Wave network
4
1.
2.
3.
4.
5.
6.
Take your Minimote to the door in which your
Recessed Door Sensor has been installed.
Press the Include button on your Minimote.
Press the Z-Wave Button on your Main Sensor with
a small pin or toothpick.
I f y o ur R e ce s s e d D o o r S e n s or h a d b e e n
successfully linked to your network, the LED light
will be blinking for a few moments. If the linking was
unsuccessful, the LED light will be blinking for 8
seconds before turning off.
Press any button on your Minimote to take it out of
installation mode.
Include
1.
2.
3.
4.
5.
Your sensor can be removed from your Z-Wave network
at any time. You’ll need to use your Z-Wave network’s
main controller to do this. The following instructions tell
you how to do this using Aeotec by Aeon Labs’ Z-Stick
and Minimote controllers. If you are using other products
as your main Z-Wave controller, please refer to the part
of their respective manuals that tells you how to remove
devices from your network.
If your Z-Stick is plugged into a gateway or a
computer, unplug it.
Take your Z-Stick to your Recessed Door Sensor. Hold
the Action Button on your Z-Stick for 3 seconds.
Press the Z-Wave Button on your Main Sensor with a
small pin or toothpick.
If your Recessed Door Sensor had been successfully
removed from your network, the LED light will turn off.
If the removal was unsuccessful, the LED light will be
remain illuminate.
Press the Action Button on your Z-Stick to take it out of
removal mode.
Take your Minimote to your
Press the Remove button on your Minimote.
Press the Z-Wave Button on your Recessed Door
with a small pin or toothpick.
If your Recessed Door Sensor had been successfully
removed from your network, the LED light will turn off.
If the removal was unsuccessful, the LED light will
remain illuminate.
Press any button on your Minimote to take it out of
removal mode.
Recessed Door Sensor.
Sensor
Removing your sensor from your Z-Wave network
5
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
Technical Sepcifications
6
Warranty
7
The "Warranty Period" begins on the date the Products is
delivered and continues for 12 months.
Any repairs under this warranty must be conducted by an
authorized Aeon Labs service representative and under
Aeon Labs' RMA policy. Any repairs conducted by
unauthorized persons shall void this warranty.
Excluded from the warranty are problems due to
accidents, acts of God, civil or military authority, civil
disturbance, war, strikes, fires, other catastrophes,
misuse, misapplication, storage damage, negligence,
electrical power problems, or m o dification to the
Products or its components.
Aeon Labs does not authorize any person or party to
assume or create for it any other obligation or liability in
connection with the Products except as set forth herein.
Aeon Labs will pass on to Customer all manufacturers'
Mat eria l war rant ies to t h e ex tent tha t the y ar e
transferable, but will not independently warrant any
Material.
Customer must prepay shipping and transportation
charges for returned Products, and insure the shipment
or accept the risk of loss or damage during such shipment
and transportation. Aeon Labs will ship the repaired or
replacement products to Customer freight prepaid.
Customer shall indemnify, defend, and hold Aeon Labs
and Aeon Labs' affiliates, shareholders, directors,
officers, employees, contractors, agents and other
representatives harmless from all demands, claims,
a ct i on s , c a u se s o f a c t io n , p r oc e ed i n gs , s ui t s ,
assessments, losses, damages, liabilities, settlements,
judgments, fines, penalties, interest, costs and expenses
(including fees and disbursements of counsel) of every
kind (i) based upon personal injury or death or injury to
property to the extent any of the foregoing is proximately
caused either by a defective product (including strict
liability in tort) or by the negligent or willful acts or
omissions of Customer or its officers, employees,
subcontractors or agents, and/or (ii) arising from or
relating to any actua l or a lleged infringemen t o r
misappropriation of any patent, trademark, mask work,
copyright, trade secret or any actual or alleged violation
of any other intellectual property rights arising from or in
connection with the products, except to the extent that
such infringement exists as a result of Aeon Labs'
manufacturing processes.
IN NO EVENT SHALL AEON LABS BE LIABLE FOR ANY
INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL O R
CONSEQUENTIAL DAMAGES, OR DAMAGES FOR
LOSS OF PROFITS, REVENUE, OR USE INCURRED BY
CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN
ACTION IN CONTRACT, OR TORT, OR OTHERWISE
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. AEON LABS' LIABILITY AND CUSTOMER'S
EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION
ARISING IN CONNECTION WITH THIS AGREEMENT
OR THE SALE OR USE OF THE PRODUCTS, WHETHER
BASED ON NEGLIGENCE, STRICT LIABILITY, BREACH
OF WARR ANT Y, BR E ACH OF AG REEM ENT, O R
EQUITABLE PRINCIPLES, IS EXPRESSLY LIMITED TO,
AT AEON LABS' OPTION, REPLACEMENT OF, OR
REPAYMENT OF THE PURCHASE PRICE FOR THAT
PORTION OF PRODUCTS WITH RESPECT TO WHICH
DAMAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND
ARISING IN CONNECTION WITH THIS AGREEMENT
OR THE SALE OR USE OF PRODUCTS SHALL BE
DEEMED WAIVED UNLESS MADE IN WRITING WITHIN
THIRTY (30) DAYS FROM AEON LABS'S DELIVERY, OR
THE DATE FIXED FOR DELIVERY IN THE EVENT OF
NONDELIVERY.
THE INDEMNITY AND WARRANTY IN ABOVE ARE
EXCLUSIVE AND IN LIEU OF ALL OTHER INDEMNITIES
OR WARRANTIES, WHETHER EXPRESS OR IMPLIED,
I N C L U D I N G T H E I M P L I E D W A R R A N T I E S O F
M E R C H A N T A B I L I T Y A N D F I T N E S S F O R A
PARTICULAR PURPOSE.
THE MANUFACTURER IS NOT RESPONSIBLE FOR
ANY RADIO OR TV INTERFERENCE CAUSED BY
U N A U T H O R I Z E D M O D I F I C AT I O N S T O T H I S
EQUIPMENT. SUCH MODIFICATIONS COULD VOID
T H E U S E R'S A U T H OR I T Y T O O P ER AT E T H E
EQUIPMENT.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received,
including interference that may cause undesired
operation. This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
int erfe renc e b y o ne o r m ore o f t he f ollo wing
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
di f fere nt f rom t hat t o w hich th e r ecei ver i s
connected.
Consul the dealer or an experienced radio/TV
technician for help.
1.
2.
FCC NOTICE(for USA)
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Contact your local government for information regarding
the collection systems available.
Warning
Version:501005400001-AA www.aeotec.com
If you’re using a Minimote:
If you’re using a Z-Stick:
If you are using a Minimote:
If you are using a Z-Stick:
Certifications (regional):

Navigation menu
