Description: XC-1XT provides unsurpassed wide area unsecured outdoor instruion detection.
Combining Microwave & PIR detection technologies the XC-1XT ensures excellent coverage without
nuisance alarms. Dual outputs allow the use of a single detector for annunciation and security,
or allow multiple functioning via different control device assignments.
Outdoor Dual Technology Intrusion Detector
40FT L X 56 W (12m x 17m)
For best results install the XC-1XT at a mounting height between 6.6 ft.(2.0m) and 8.2 ft. (2.5m). Mount the unit so it is
looking into an area free of obstructions, do not mount the unit so it is looking directly at heating or cooling sources. Avoid
viewing operating machinery or objects which have the potential for movement. Do not aim unit so it is looking at public
road / pathways.

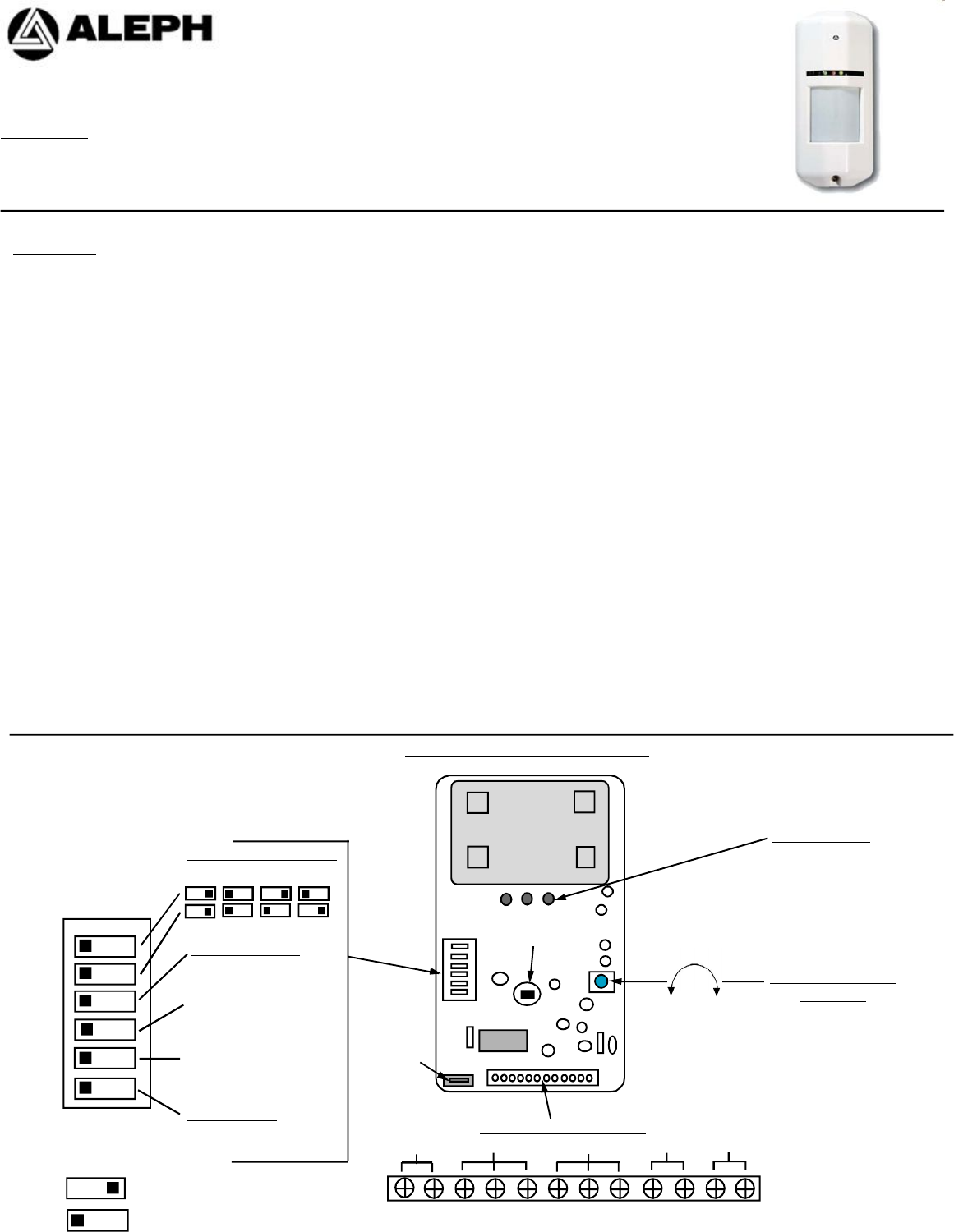

Installation:
Function Select Switch
Prior to re-attaching front cover to unit; Set PIR sensitivity, PulseCount, LED Enable, Detection mode, and 50/60Hz
Flourescent Light immunity setting (Selectable Switch 1,2,3,4,5, and 6) as desired.
If the detector is viewing a narrow area, a PC setting of 4 should be avoided, as the small area may not allow enough
movement to detect intruders. A PC of “4” is best suited for a wide open detection area. For High Security applications set
PIR Sensitivity to “High Sensitivity=(SW1 & 2 = 120% or 100%), this allows for a quicker detection at the edge of the
detection area. Animal Immunity characteristics are not available when a “High Sensitivitysetting is configured on the
XC-1XT. Animal Immunity function is enabled by placing PIR Sensitivity at 60%. Use Microwave Sensitivity adjustment
potentiometer to adjust Microwave sensitivity (Preset @ 50%). A properly adjusted MW will detect crossing movement just
inside the protected area but not outside of the PIR coverage area.
SW-5 allow for the selection of Dual-Technology (MW & PIR) or PIR only detection modes. A PIR only detection mode is
useful when there is operating machinery or exposed fans always active within the protected area.
If the installation site is subject to severe vibrations (via close proximity to railroad tracks and /or large truck movement),
ensure that the mounting point is on a riged surface. In some situations it may be necessary to place a piece of plywood
between the mounting surface and the XC-1XT detector to buffer wall movement.
Walk-Test: Once installation and initial setup is complete, perform a full walk test to insure that the detection parameters are met, if
required make control adjustments to fine tune detection characteristics. In order to insure detection quality, the XC-1XT
should be tested routinely, with no more than a one year period between tests.
Control Layout and Configuration:
Terminal Configuration
T T NC NO C NC NO C + -
TAMPER ALARM 1 ALARM 2 SPARE POWER
LED Indicators
Green = PIR
Red = Alarm
Amber = MW
Switch ON
Wire the XC-1XT to the control panel device using 18 to 24 AWG standard non-shielded wire, do not run wiring parallel to
AC wiring. Wiring should be in accordance with NEC, NFPA 70 for North America.
SW-1 & 2 :PIR Sensitivity
Switch OFF
SW-1
SW-2
SW-6
SW-5
SW-3
SW-4
SW-3 Pulse Count
3 off - PC2
3 on - PC4
SW-4 LED Enable
4 off - LED’s Enabled
4 on - LED’s Disabled
SW-5 Detection Mode
5 off - Dual (MW & PIR)
5 on - PIR Only
SW-6 50/60 Hz
6 off - 60Hz
6 on - 50Hz
Microwave Sensitivity
Adjustment
uW Module Do not Touch
PIR Detector Do not Touch
Tamper Switch
3
1
2
6
4
5
The Sensitivity Adjustment
allows for MW coverage to be
fine set to the protected area.
Preset = 50%
Max. = increases sensitivity
Min. = decreases sensitivity
OFF ON
120% 100% 80% 60%
MIN. MAX.

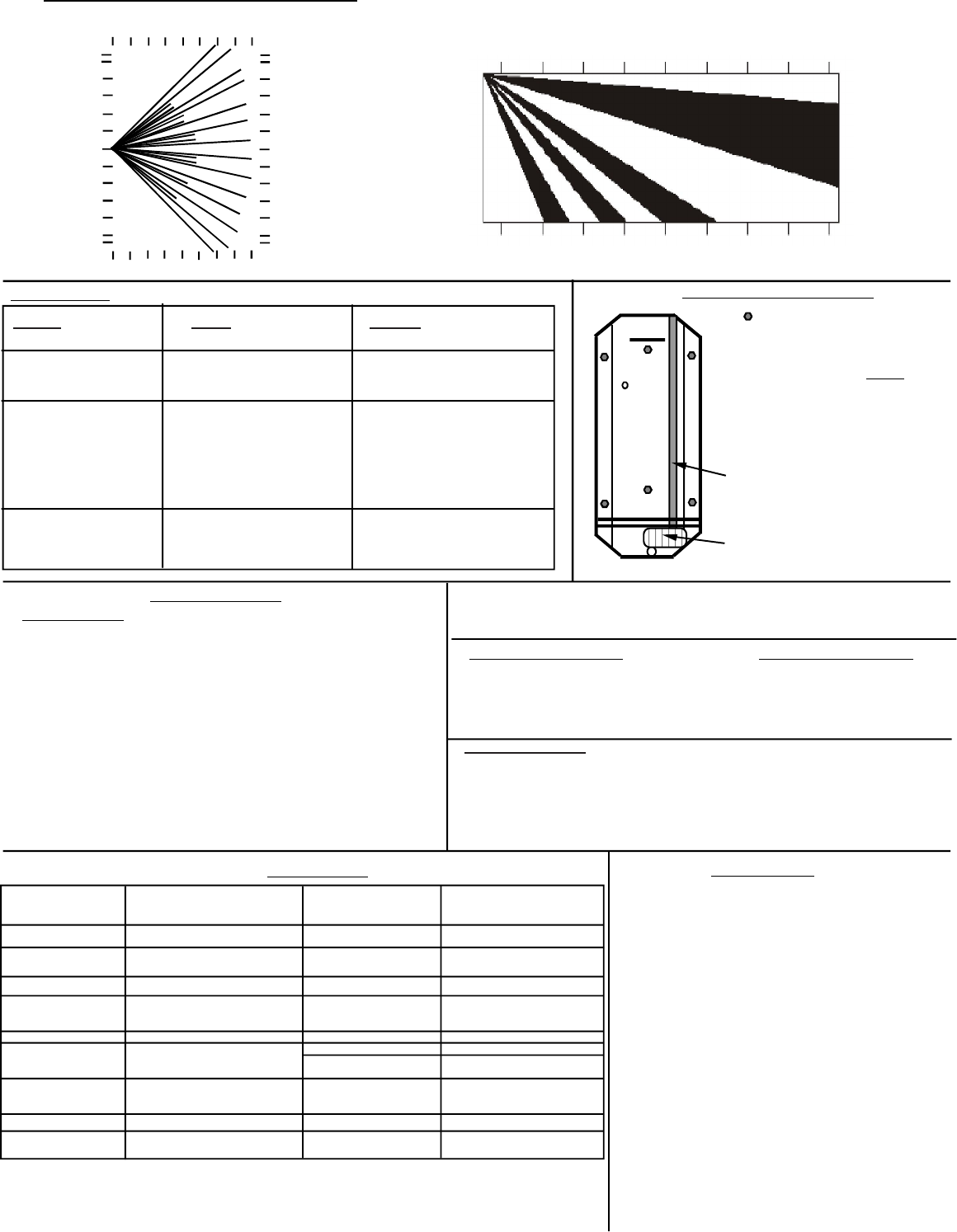

DetectionPattern Ilustration(Standard Lens)
Contact Aleph
Specifications
FCC Information: FCC ID: DNHXC-002-00
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio / TV technician for help.
The user should not modify or change this equipment without written approval from ALEPH.
Modification could void authority to use this equipment.
Nippon Aleph Corporation
-Security Products Headquarters-
1-28-52, Komaoka, Tsurimi-ku,
Yokohama-shi, Kanagawa-ken
JAPAN, 230-0071
Tel: +81 045-575-4290 / Fax: +81 045-580-1676
E-mail: security@po.nippon-aleph.co.jp
WEB: http://www.nippon-aleph.co.jp
Aleph America Corporation
4700 Aircenter Cir, Reno, NV, 89502
USA
Tel: 775 827 8000 / Fax: 775 827 8044
E-mail: info@aleph-usa.com
WEB: http://www.aleph-usa.com
Aleph Europe Ltd.
1 Newton Close, Park Farm Industrial Estate
Wellingborough, Northamptonshire, NN8 6UW
England
Tel: 044 193 367 9600 / Fax: 044 193 340 1165
E-mail: info@alepheurope.com
WEB: http://www.alepheurope.com
MODEL : XC-1XT
MODEL : XC-1XTEU
P/N 9-900-009-00 Rev. A
Aleph hereby declares that the XC-1XTEU and XC-1XTUK Intrusion Detector is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may
be consulted at http://www.alepheurope.com/
Testing and Maintenance:
- INSPECTION: An inspection of this unit should be made periodically, consisting of, but not
limited to all mounting, wiring and the condition of the interior components.
- CLEANING: Clean the external plastic parts of this unit with a soft, damp cloth.
- TESTING: This unit should be tested routinely for proper operation. At a minimum,
operation should be fully checked yearly.
- NOTES: This unit is designed to be incorporated into an overall alarm system. As it is part
of the system ALEPH cannot assume responsibility for theft or damage if the system fails to
operate.
When installing this unit in a corner mount
application, install screws into one side of the
case. Installing screws into both sides of the
case when walls are uneven causes the plastic
case to become distorted thus water can be
allowed entry into the unit.
Power Requirements 9.5-16 VDC, 12VDC Nominal Alarm Output Two Form C
(NC/NO)outputs
30 VDC/350mA Max.
Current Draw 35 mA Max. Tamper Output NC/ 30VDC/500mA
Warm Up Period <50 Seconds Operating Temperature -4°F to +122°F (-20°C to +50°C)
Alarm Period 2.4 Seconds Humidity Limits 95% Max. Non-condensing
LED Indicators Red = Alarm Dimensions (H x W x D) 6.3in.(L) X 2.76in.(W) X 1.73in.(D)
Amber = Microwave (160mm x 70mm x 43.9mm)
Green = PIR
Weight 6.2 oz. (176 g) PIR Detector Type Dual Element
MW Detector Type 10.525GHz (US and EU) Range Stand. Lens 40ft L x 56ft W
10.687GHz (UK) Range Optional Lens 80ft L x 8ft W
(Curtain)
PIR Sensitivity Four Adjustable Settings Pulse Count 2 or 4 Step Catch
60%, 80%, 100% and 120%
MW Range adjustment Adjustable via a Potentiometer IP Rating IP54
Mounting Height 6.6 ft (2.0m) to 8.2ft (2.5m)
In a continuing effort to improve product performance, specifications
and design characteristics may be changed without prior notice.
U.S. & International Patents Pending
Troubleshooting:
Unit does not power up. No or low input power. Apply proper input voltage.
Input power polarity reversed. Correct wiring polarity.
Alarm LED does not light up. SW-4 is set to ON/ Disabled Set SW-4 to “OFF”.
Detedtion Sensitivity setting incorrect. Set SW-1 &2 and/or MW range
adjustment to match desired area.
Pulse Count setting incorrect for area. Set SW-3 to correct PC.
Alarm LED/ Relay Triggers W/O Incorrect Sensor mounting height. Increase/Decrease mounting height.
movement in the detection area Unsecured environment animals/rodents Block animal/rodent access.
in protected area.
Machinery operating in sensor view Remove the hazard / Re-aim sensor so
it is not viewing hazard/machinery.
Direct sunlight/headlight in sensor view. Switch detection mode to “Dual”, add
curtain/shade to block light sources.
Severe vibration at mounting wall. Buffer mounting with plywood. Relocate XC-1XT
mounting position.
LED indicates alarm, no alarm output Incorrect wiring at alarm output terminals. Correct wiring fault.
Open circuit in wiring between detector & Replace/ Repair wiring.
control panel.
Lightning damage to detector and/or control Replace damaged equipment.
panel.
Trouble Cause Remedy
After wiring, install the foam wiring access bug
guard to prevent ingress of dust and insects.
Rear Cover (Interior View, PCB removed)
= Six Mounting Points available.
Exterior Wiring Channel
28
25
20
15
10
5
0
28
5
10
15
20
25
01.5 3.0 4.5 6.0 7.5 9.0 10.5 12.0
0510 15 20 25 30 35 40
8.5
7.5
6.0
4.5
3.0
1.5
0
8.5
1.5
3.0
4.5
6.0
7.5
.75 1.5 3.0 4.5 6.0 7.5 9.0 10.5 12.0
0
8.5
MODEL : XC-1XTUK
{European info here}
