Alien Technology ATRM900F01 RFID READER User Manual

Alien Technology Corporation RFID READER Users Manual

Contents

Users Manual

Alien Technology Corporation

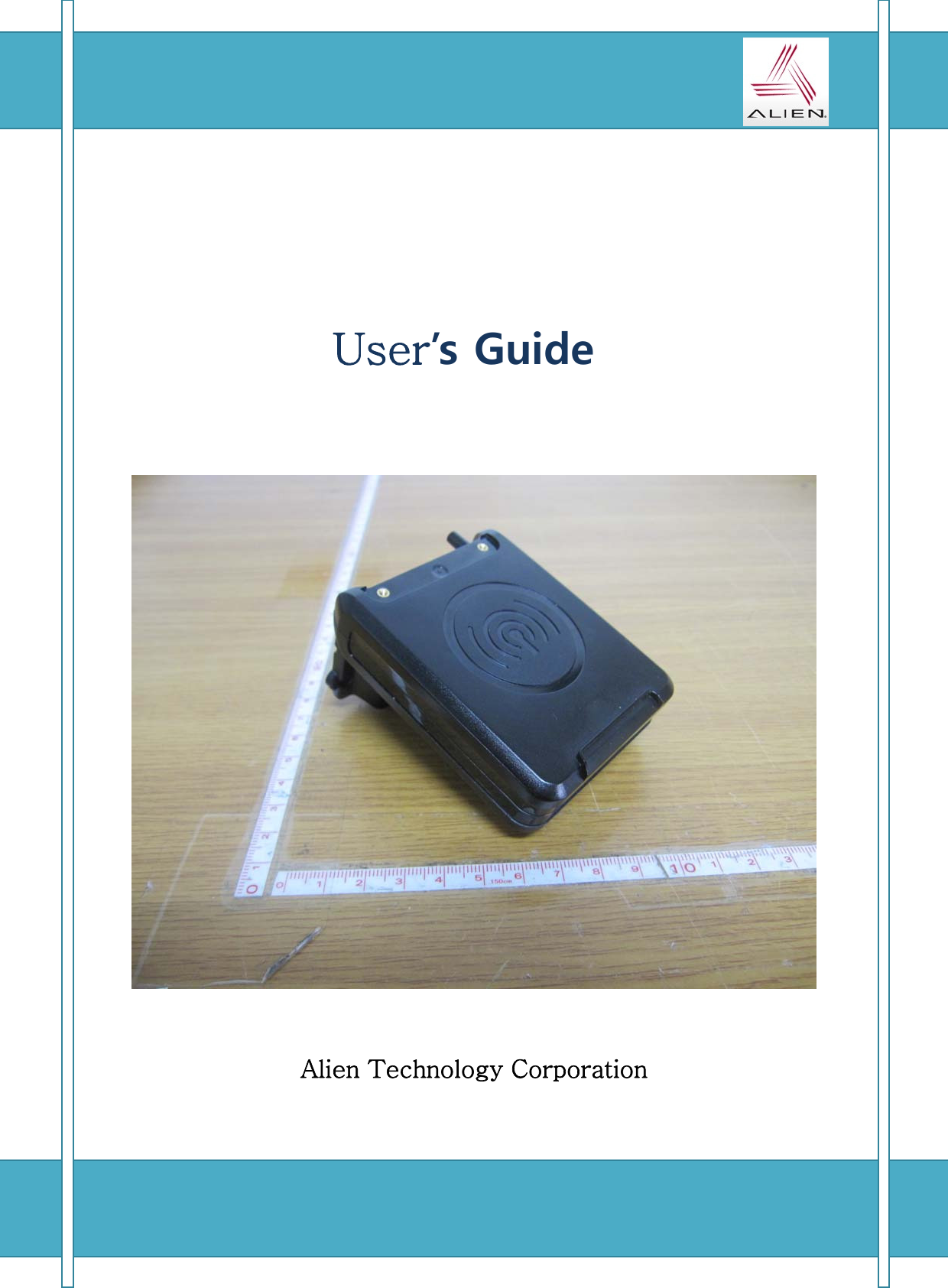

User’s Guide
User’s Guide
2

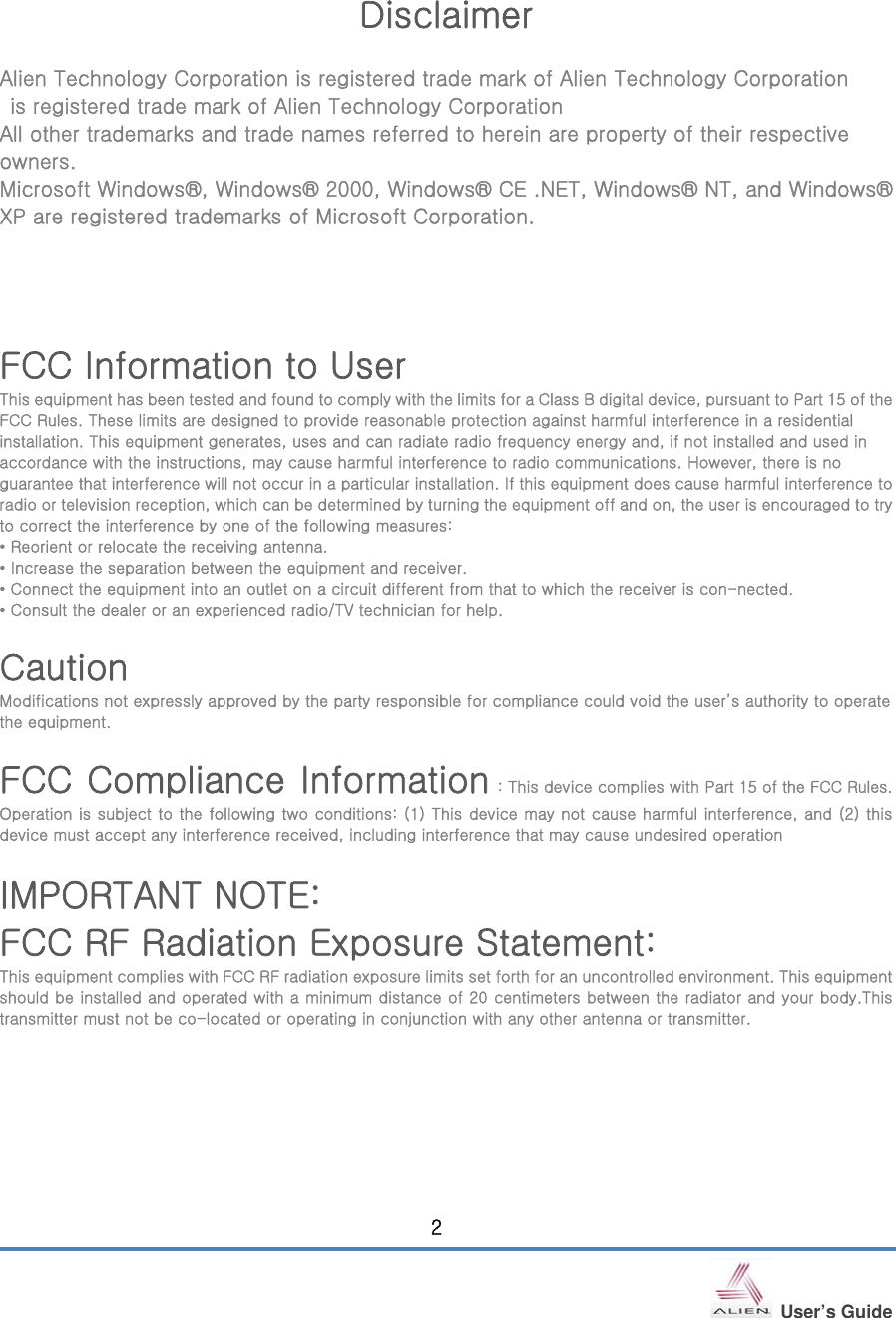

Disclaimer
Alien Technology Corporation is registered trade mark of Alien Technology Corporation
is registered trade mark of Alien Technology Corporation
All other trademarks and trade names referred to herein are property of their respective
owners.
Microsoft Windows®, Windows® 2000, Windows® CE .NET, Windows® NT, and Windows®
XP are registered trademarks of Microsoft Corporation.
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
User’s Guide
3

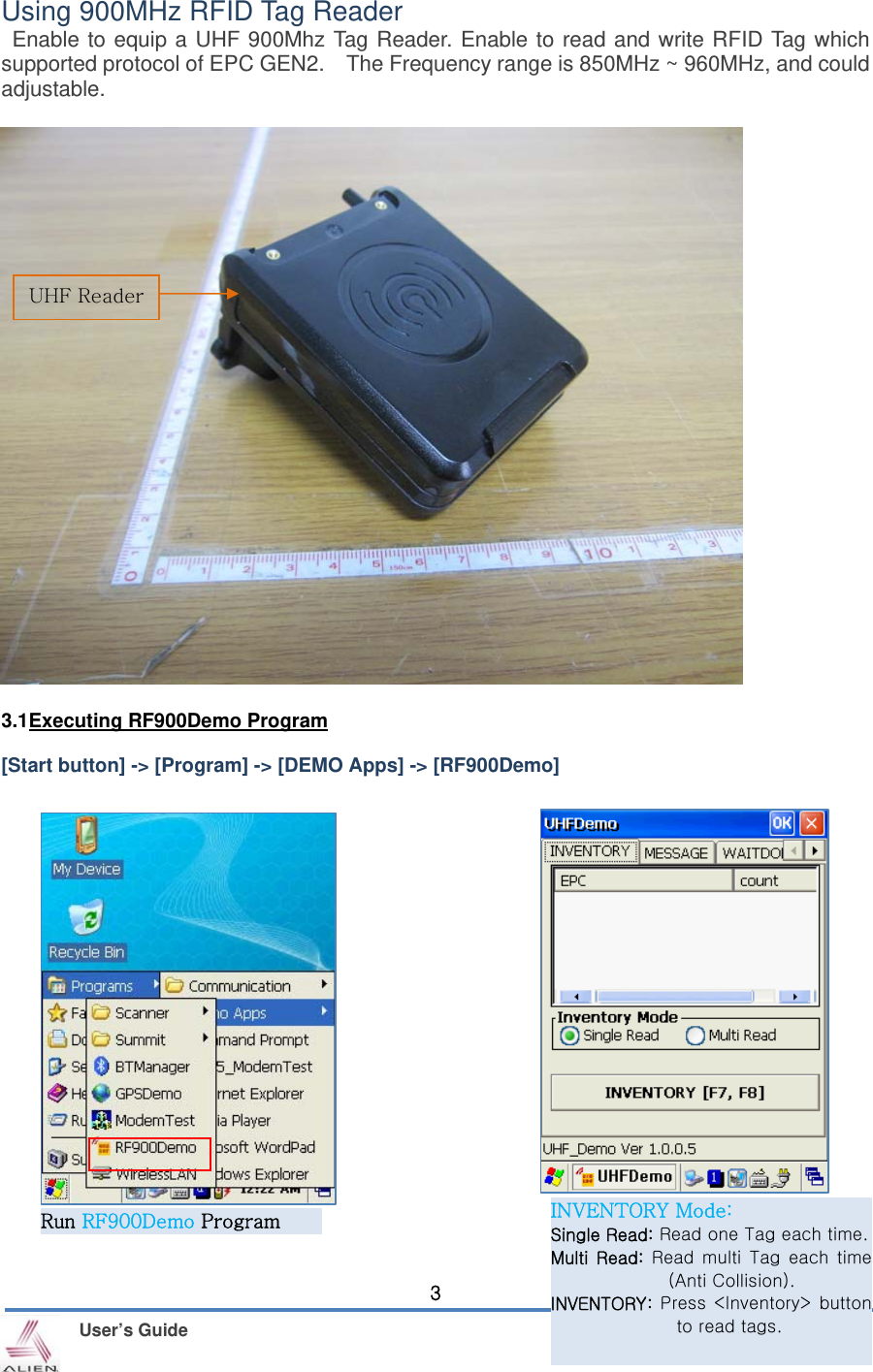

Using 900MHz RFID Tag Reader
Enable to equip a UHF 900Mhz Tag Reader. Enable to read and write RFID Tag which
supported protocol of EPC GEN2. The Frequency range is 850MHz ~ 960MHz, and could
adjustable.
3.1Executing RF900Demo Program
[Start button] -> [Program] -> [DEMO Apps] -> [RF900Demo]
UHF Reader
Run RF900Demo Program INVENTORY Mode:
Single Read: Read one Tag each time.
Multi Read: Read multi Tag each time
(Anti Collision).
INVENTORY: Press <Inventory> button
to read tags.
User’s Guide
4

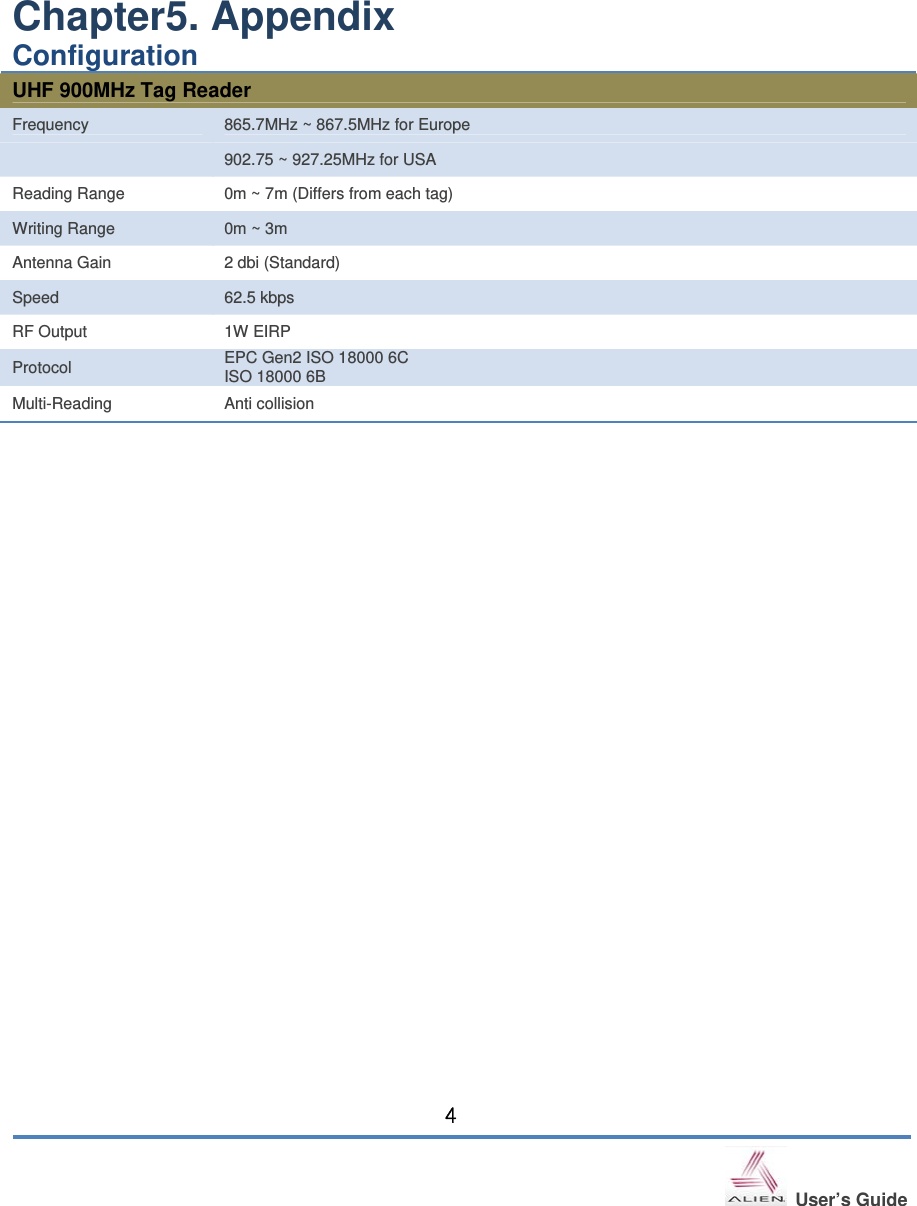

Chapter5. Appendix
Configuration
UHF 900MHz Tag Reader
Frequency 865.7MHz ~ 867.5MHz for Europe
902.75 ~ 927.25MHz for USA
Reading Range 0m ~ 7m (Differs from each tag)
Writing Range 0m ~ 3m
Antenna Gain 2 dbi (Standard)
Speed 62.5 kbps
RF Output 1W EIRP
Protocol EPC Gen2 ISO 18000 6C
ISO 18000 6B
Multi-Reading Anti collision
