Alien Technology B2450R01 Frequency Hopping Tag Identification Reader User Manual 299797

Alien Technology Corporation Frequency Hopping Tag Identification Reader 299797

UserManual.wiki >

Alien Technology >

B2450R01 User Manual >

User Guide Part 1 HTML Version

User Guide Part 1

2450MHz

Battery

ALIEN TECHNOLOGY

(2450MHz Battery System)

USER GUIDE

NANOSCANNER READER USERGUIDE • DOC ??? i

The contents of this document are the property of Alien Technology™ Corporation and are

For additional copies if this document please contact:

Alien Technology Corporation

18220 Butterfield Blvd.

Morgan Hill, CA 95037

www.alientechnology.com

The information contained herein has been carefully checked and is believed to be

accurate; however, no responsibility is assumed for inaccuracies. Alien Technology

Corporation reserves the right to make changes without prior notice. This document is not

covered by any warranty either expressed or implied. Any correction, comments, or

additions to the contents of this document should be directed to Alien Technology

Corporation at the above address.

NanoBlock and FSA are registered trademarks of Alien Technology Corporation. Alien

Technology is a trademark of Alien Technology Corporation. All other trademarks are the

property of their respective owners.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with instruction manual,

may cause harmful interference with radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

Any change or modification to this product voids the user’s authority to operate per FCC

Part 15 Subpart A Section 15.21 regulations.

CAUTION

Reader antennas should be positioned so that personnel in the area for prolonged

periods may safely remain at least 20 cm (7.9 in) in an uncontrolled environment

from the antenna’s surface. See FCC OET Bulletin 56 “Hazards of radio frequency

and electromagnetic fields” and Bulletin 65 “Human exposure to radio frequency

electromagnetic fields.”

TABLE OF CONTENTS

NANOSCANNER READER USERGUIDE • DOC ??? ii

Alien Technology

Nanoscanner Reader

User Guide

Table of Contents

CHAPTER 1 INTRODUCTION .............................................................................. 1

AUDIENCE ................................................................................................................ 1

NANOSCANNER READER OVERVIEW.......................................................................... 1

Requirements .................................................................................................. 2

Specifications .................................................................................................. 2

Nanoscanner Reader............................................................................................2

Nanoscanner Reader Transmit and Receive Antennas ........................................3

RS-232 Port Pinouts .............................................................................................3

Other Components................................................................................................4

Tag Overview .................................................................................................. 4

Features and benefits ...........................................................................................4

Internal and external interface capabilities............................................................4

Benefits of Battery-powered over Beam-powered Backscatter Tags ....................4

Benefits of Backscatter Tags over “Active” Transmitter Tags ...............................5

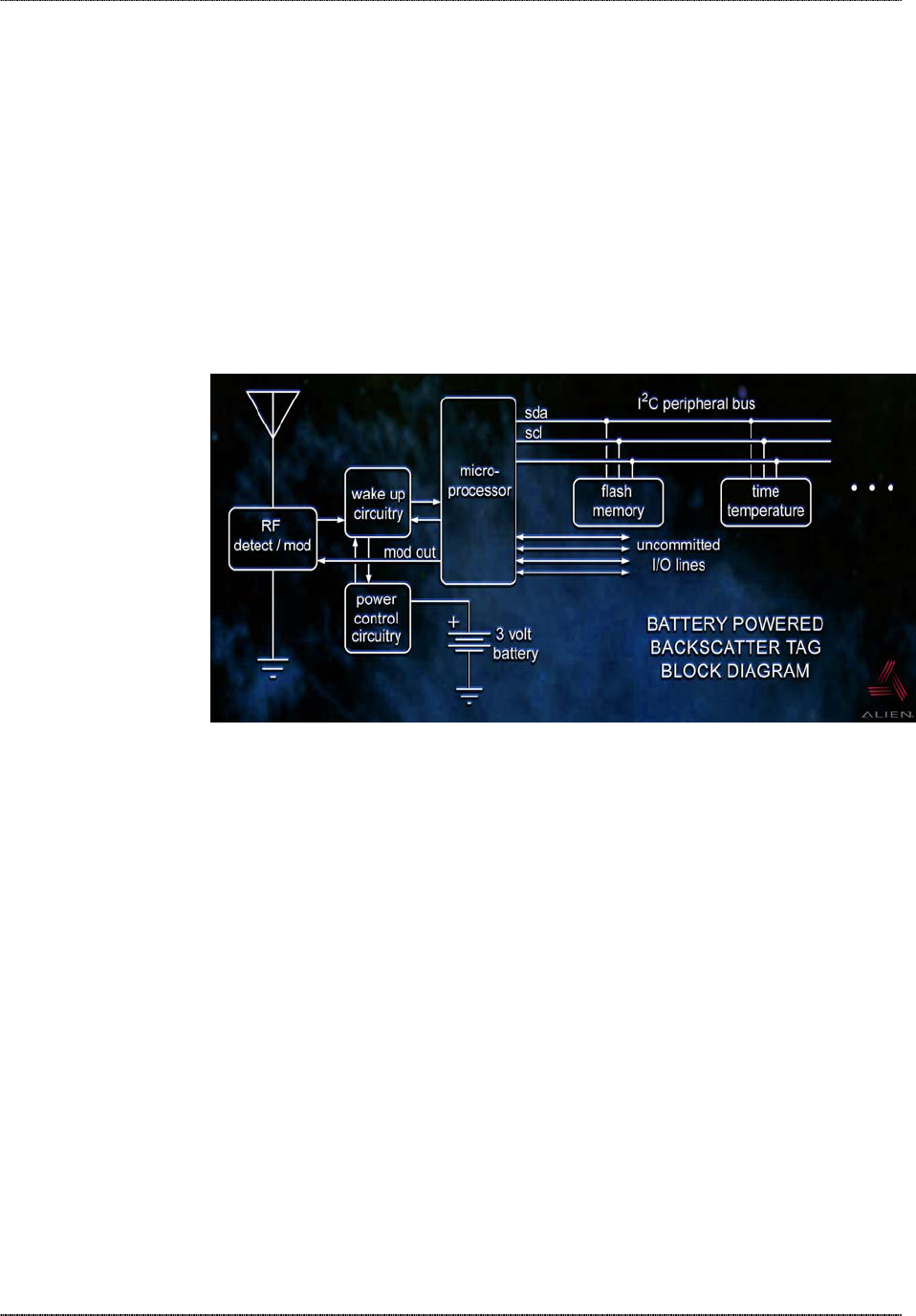

Tag Block Diagram ...............................................................................................5

Applications for 2450 MHz Battery-powered Backscatter Tag/Reader

Systems ........................................................................................................... 5

Reader Block Diagrams................................................................................... 6

CHAPTER 2 INSTALLATION AND OPERATION................................................ 7

REQUIREMENTS ....................................................................................................... 7

RECEIVING THE NANOSCANNER DEVELOPER’S KIT..................................................... 7

Nanoscanner Reader Features ....................................................................... 8

I/O Panel...............................................................................................................8

LED Designations .................................................................................................8

Antenna Panel ......................................................................................................9

SYSTEM ASSEMBLY AND BENCH TEST ..................................................................... 10

Bench Test or Demo Connections ................................................................10

Bench Test Procedure................................................................................... 12

SYSTEM DESIGN .................................................................................................... 13

INSTALLATION ........................................................................................................ 13

Installation Procedure.................................................................................... 14

SYSTEM OPERATION .............................................................................................. 16

Software Developers...........................................................................................16

Custom System Users ........................................................................................16

Alien RFID Gateway Demo Software Users........................................................16

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW....................................... 17

TABLE OF CONTENTS

NANOSCANNER READER USERGUIDE • DOC ??? iii

INTRODUCTION ....................................................................................................... 17

COMMUNICATING WITH THE NANOSCANNER ............................................................. 17

Overview........................................................................................................ 17

Serial Communication.........................................................................................18

Network Communication.....................................................................................18

Web Based Communication................................................................................18

READER DISCOVERY AND THE READER HEARTBEAT................................................. 18

DHCP and Device Auto Discovery ................................................................ 18

Serial Interrogation ........................................................................................ 19

Network Heartbeats....................................................................................... 19

Heartbeats and Software ....................................................................................20

TAG LIST CONCEPTS .............................................................................................. 21

Persist Time................................................................................................... 21

Tag Details ....................................................................................................21

Tag List Size.................................................................................................. 22

READING TAGS OVER THE NETWORK....................................................................... 22

INTERACTIVE MODE ................................................................................................ 22

Basic Text Tag Read Command .........................................................................22

XML Tag Read Command ..................................................................................22

AUTONOMOUS MODE.............................................................................................. 23

Defining the Autonomous Read Operation.................................................... 23

Enter Autonomous Mode (Not shown on the state diagram.).............................23

Waiting State.......................................................................................................23

Start Working Trigger..........................................................................................24

Working State .....................................................................................................24

Stop Working Trigger ..........................................................................................25

Evaluation ...........................................................................................................25

True/False Pause................................................................................................25

Notify Needed Trigger.........................................................................................25

Autonomous Mode Examples ....................................................................... 25

Example 1. Background Reading.......................................................................25

Example 2. Triggered Reading ..........................................................................26

Example 3. Triggered Reading w/Notification .....................................................26

NOTIFICATION MODE .............................................................................................. 27

Defining the Notification Address .................................................................. 28

Defining the Notification Format .................................................................... 28

LISTENING FOR TAGS OVER THE NETWORK.............................................................. 29

CHAPTER 4 READERÙHOST COMMUNICATIONS INSTALLATION............ 30

INTRODUCTION ....................................................................................................... 30

Audience........................................................................................................ 30

Requirements ................................................................................................ 31

Conventions................................................................................................... 31

SETTING UP READER-HOST COMMUNICATIONS ........................................................ 31

Command Line Operation: Direct Serial Communication ............................. 31

Command Line Operation: Telnet Communication ....................................... 32

HTML-Based Operation: Web Communication ............................................. 32

INSTALLING READER ON HOST VIA SERIAL PORT (ALL) ............................................ 32

NETWORK INSTALLATION (OPTIONAL) ...................................................................... 34

CHAPTER 5 READERÙHOST PROTOCOL..................................................... 37

INTRODUCTION ....................................................................................................... 37

READER OPERATION OVERVIEW ............................................................................. 37

Text-Based Command Line Operation.......................................................... 38

Web-based HTML Operation ........................................................................ 38

COMMANDS OVERVIEW........................................................................................... 40

Interactive Commands ........................................................................................40

Autonomous Commands ....................................................................................40

TABLE OF CONTENTS

NANOSCANNER READER USERGUIDE • DOC ??? iv

Command Format.......................................................................................... 40

Suppressing Command Prompts .................................................................. 41

Interactive Command Format..............................................................................41

Non-Interactive Command Format......................................................................41

XML Commands............................................................................................ 41

COMMAND SUMMARIES........................................................................................... 42

Command List ............................................................................................... 42

Command List with Functions ....................................................................... 43

General Commands............................................................................................43

Network Configuration Commands .....................................................................43

Time Commands.................................................................................................44

External IO Commands.......................................................................................44

Tag List Commands............................................................................................44

Autonomous Mode Commands...........................................................................44

Notify Mode Commands .....................................................................................45

USING THE COMMANDS .......................................................................................... 45

General Commands – Text Based ................................................................ 46

Help (h) ...............................................................................................................46

Info (i)..................................................................................................................46

!...........................................................................................................................46

Q (Quit) ...............................................................................................................46

Get TagList .........................................................................................................46

Get ReaderName................................................................................................46

Set ReaderName ................................................................................................46

Get ReaderType .................................................................................................46

Get ReaderVersion .............................................................................................47

Get Username.....................................................................................................47

Set Username .....................................................................................................47

Get Password .....................................................................................................47

Set Password......................................................................................................47

Get AntennaSequence........................................................................................48

Set AntennaSequence ........................................................................................48

Reboot ................................................................................................................48

FactorySettings ...................................................................................................48

General Commands – Web Based................................................................ 49

Commands/Operations via Web General Tab ...................................................49

Network Configuration Commands – Text Based ......................................... 51

Get DHCP ...........................................................................................................51

Set DHCP ...........................................................................................................51

Get IPAddress.....................................................................................................51

Set IPAddress .....................................................................................................51

Get Gateway .......................................................................................................51

Set Gateway .......................................................................................................51

Get Netmask .......................................................................................................52

Set Netmask .......................................................................................................52

Get DNS..............................................................................................................52

Set DNS..............................................................................................................52

Get HeartbeatPort...............................................................................................53

Set HeartbeatPort ...............................................................................................53

Get HeartbeatTime .............................................................................................53

Set HeartbeatTime..............................................................................................53

Get CommandPort ..............................................................................................54

Set CommandPort ..............................................................................................54

Network Commands – Web Based ............................................................... 54

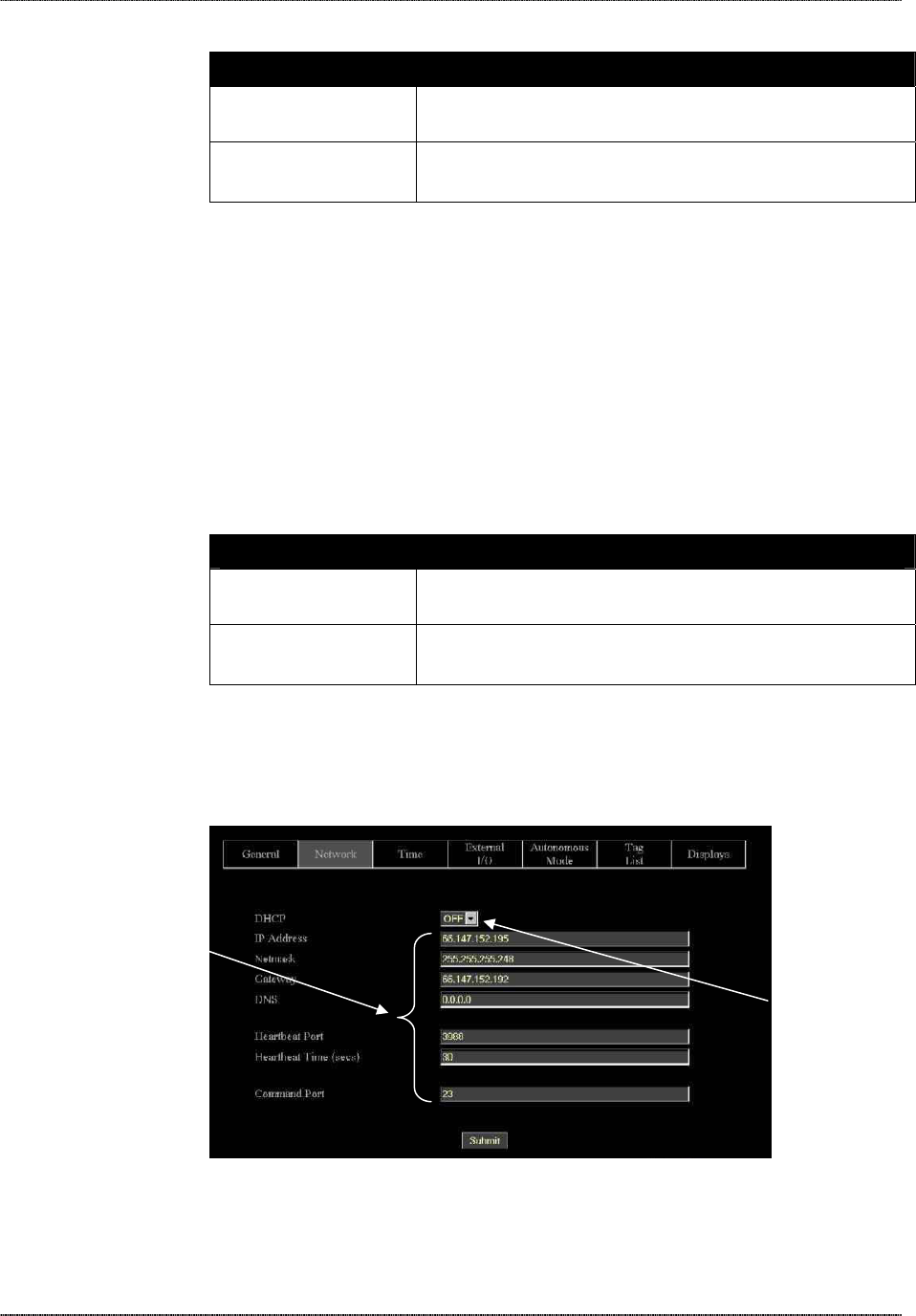

Commands/Operations via Web Network Tab ....................................................54

Time Commands – Text Based.......................Error! Bookmark not defined.

Get Time ............................................................... Error! Bookmark not defined.

Set Time................................................................ Error! Bookmark not defined.

Get TimeZone ....................................................... Error! Bookmark not defined.

Set TimeZone ....................................................... Error! Bookmark not defined.

Get TimeServer..................................................... Error! Bookmark not defined.

TABLE OF CONTENTS

NANOSCANNER READER USERGUIDE • DOC ??? v

Set TimeServer ..................................................... Error! Bookmark not defined.

Time Commands – Web Based ......................Error! Bookmark not defined.

Commands/Operations via Web Time Tab ........... Error! Bookmark not defined.

External I/O Commands ..................................Error! Bookmark not defined.

Set ExternalOutput................................................ Error! Bookmark not defined.

Get ExternalOutput ............................................... Error! Bookmark not defined.

Get ExternalInput .................................................. Error! Bookmark not defined.

External I/O Commands – Web Based ...........Error! Bookmark not defined.

Commands/Operations on Web External I/O Tab. Error! Bookmark not defined.

Tag List Commands – Command Line............Error! Bookmark not defined.

Get TagList (n) ...................................................... Error! Bookmark not defined.

Set TagListFormat ................................................ Error! Bookmark not defined.

Get TagListFormat ................................................ Error! Bookmark not defined.

Get AcquireMode .................................................. Error! Bookmark not defined.

Clear TagList......................................................... Error! Bookmark not defined.

Get PersistTime .................................................... Error! Bookmark not defined.

Set PersistTime..................................................... Error! Bookmark not defined.

Tag List Commands – Web Based..................Error! Bookmark not defined.

Commands/Operations on Web Tag List Tab ....... Error! Bookmark not defined.

Autonomous Mode Commands.......................Error! Bookmark not defined.

Get AutoMode....................................................... Error! Bookmark not defined.

Get AutoWaitOutput.............................................. Error! Bookmark not defined.

Get AutoStartTrigger............................................. Error! Bookmark not defined.

Get AutoWorkOutput............................................. Error! Bookmark not defined.

Get AutoAction...................................................... Error! Bookmark not defined.

Get AutoStopTrigger ............................................. Error! Bookmark not defined.

Get AutoStopTimer ............................................... Error! Bookmark not defined.

Get AutoTrueOutput.............................................. Error! Bookmark not defined.

Get AutoTruePause .............................................. Error! Bookmark not defined.

Get AutoFalseOutput ............................................ Error! Bookmark not defined.

Get AutoFalsePause............................................. Error! Bookmark not defined.

AutoModeReset .................................................... Error! Bookmark not defined.

Autonomous Mode Commands – Web Based Error! Bookmark not defined.

Commands/Operations on Web Autonomous Mode Tab.....Error! Bookmark not

defined.

Notify Mode Commands..................................Error! Bookmark not defined.

Get NotifyMode ..................................................... Error! Bookmark not defined.

Get NotifyAddress................................................. Error! Bookmark not defined.

Set NotifyAddress ................................................. Error! Bookmark not defined.

Get NotifyTime ...................................................... Error! Bookmark not defined.

Set NotifyTime ...................................................... Error! Bookmark not defined.

Get NotifyTrigger................................................... Error! Bookmark not defined.

Set NotifyTrigger ................................................... Error! Bookmark not defined.

Get NotifyFormat.................................................. Error! Bookmark not defined.

Set NotifyFormat ................................................... Error! Bookmark not defined.

Get MailServer ...................................................... Error! Bookmark not defined.

Set MailServer ...................................................... Error! Bookmark not defined.

NotifyNow.............................................................. Error! Bookmark not defined.

Notify Mode Commands – Web Based ...........Error! Bookmark not defined.

Commands/Operations on Web Autonomous Mode Tab.....Error! Bookmark not

defined.

CHAPTER 6 READERÙHOST PROTOCOL EXTENSIONS FOR BATTERY

POWERED BACKSCATTER TAGS........ ERROR! BOOKMARK NOT DEFINED.

INTRODUCTION .......................................................ERROR! BOOKMARK NOT DEFINED.

Masks ..............................................................Error! Bookmark not defined.

Tags.................................................................Error! Bookmark not defined.

Memory............................................................Error! Bookmark not defined.

Sensors ...........................................................Error! Bookmark not defined.

Logging............................................................Error! Bookmark not defined.

TABLE OF CONTENTS

NANOSCANNER READER USERGUIDE • DOC ??? vi

COMMAND SUMMARIES...........................................ERROR! BOOKMARK NOT DEFINED.

Command List .................................................Error! Bookmark not defined.

Command List with Functions .........................Error! Bookmark not defined.

Mask Commands .................................................. Error! Bookmark not defined.

Tag Commands .................................................... Error! Bookmark not defined.

Memory Commands.............................................. Error! Bookmark not defined.

Sensor Commands ............................................... Error! Bookmark not defined.

Logging Commands .............................................. Error! Bookmark not defined.

USING THE COMMANDS ..........................................ERROR! BOOKMARK NOT DEFINED.

Mask Commands.............................................Error! Bookmark not defined.

Get Mask............................................................... Error! Bookmark not defined.

Set Mask............................................................... Error! Bookmark not defined.

Tag Commands ...............................................Error! Bookmark not defined.

Get Tagid .............................................................. Error! Bookmark not defined.

Get Taginfo ........................................................... Error! Bookmark not defined.

Get Tagtime .......................................................... Error! Bookmark not defined.

Set Tagtime........................................................... Error! Bookmark not defined.

Memory Commands ........................................Error! Bookmark not defined.

Set Memory........................................................... Error! Bookmark not defined.

Get Memory .......................................................... Error! Bookmark not defined.

Set MemoryPacketSize......................................... Error! Bookmark not defined.

Get MemoryPacketSize ........................................ Error! Bookmark not defined.

Clear Memory ....................................................... Error! Bookmark not defined.

Sensor Commands..........................................Error! Bookmark not defined.

Get SensorValue................................................... Error! Bookmark not defined.

Logging Commands ........................................Error! Bookmark not defined.

Get LoggingMode ................................................. Error! Bookmark not defined.

Set LoggingMode.................................................. Error! Bookmark not defined.

Get LoggingInterval............................................... Error! Bookmark not defined.

Set LoggingInterval ............................................... Error! Bookmark not defined.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES ... ERROR! BOOKMARK

NOT DEFINED.

READOMETER ........................................................ERROR! BOOKMARK NOT DEFINED.

TAG LIST................................................................ERROR! BOOKMARK NOT DEFINED.

OPTIMIZE READER SETTINGS..................................ERROR! BOOKMARK NOT DEFINED.

Readometer Settings.......................................Error! Bookmark not defined.

Tag List Settings..............................................Error! Bookmark not defined.

Advanced Tag List Options .............................Error! Bookmark not defined.

Running Tag List using Global Scroll as the Acquire Mode .Error! Bookmark not

defined.

Running Tag List in duty cycle mode ....................Error! Bookmark not defined.

CHAPTER 1 INTRODUCTION

NANOSCANNER READER USERGUIDE • DOC ??? 1

CHAPTER 1

Introduction

The Nanoscanner Reader User Guide provides instructions for installing and

operating the Nanoscanner reader. It also covers the reader firmware protocol in

detail for use in configuring reader-host communications and developing

application software.

This book is designed for use by those who wish to develop software products

and extended systems that take full advantage of the Nanoscanner reader’s

capabilities.

For an overview of RFID technology and a glossary of terms, please refer to the

RFID Primer included with your Nanoscanner Reader Developer’s Kit.

Audience

For the purposes of this book, we assume the readers of the Nanoscanner User

Guide:

 Are competent PC users.

 Have minimal previous knowledge of radio-frequency identification

technology.

 Are experienced in software development and/or hardware systems

integration.

Nanoscanner Reader Overview

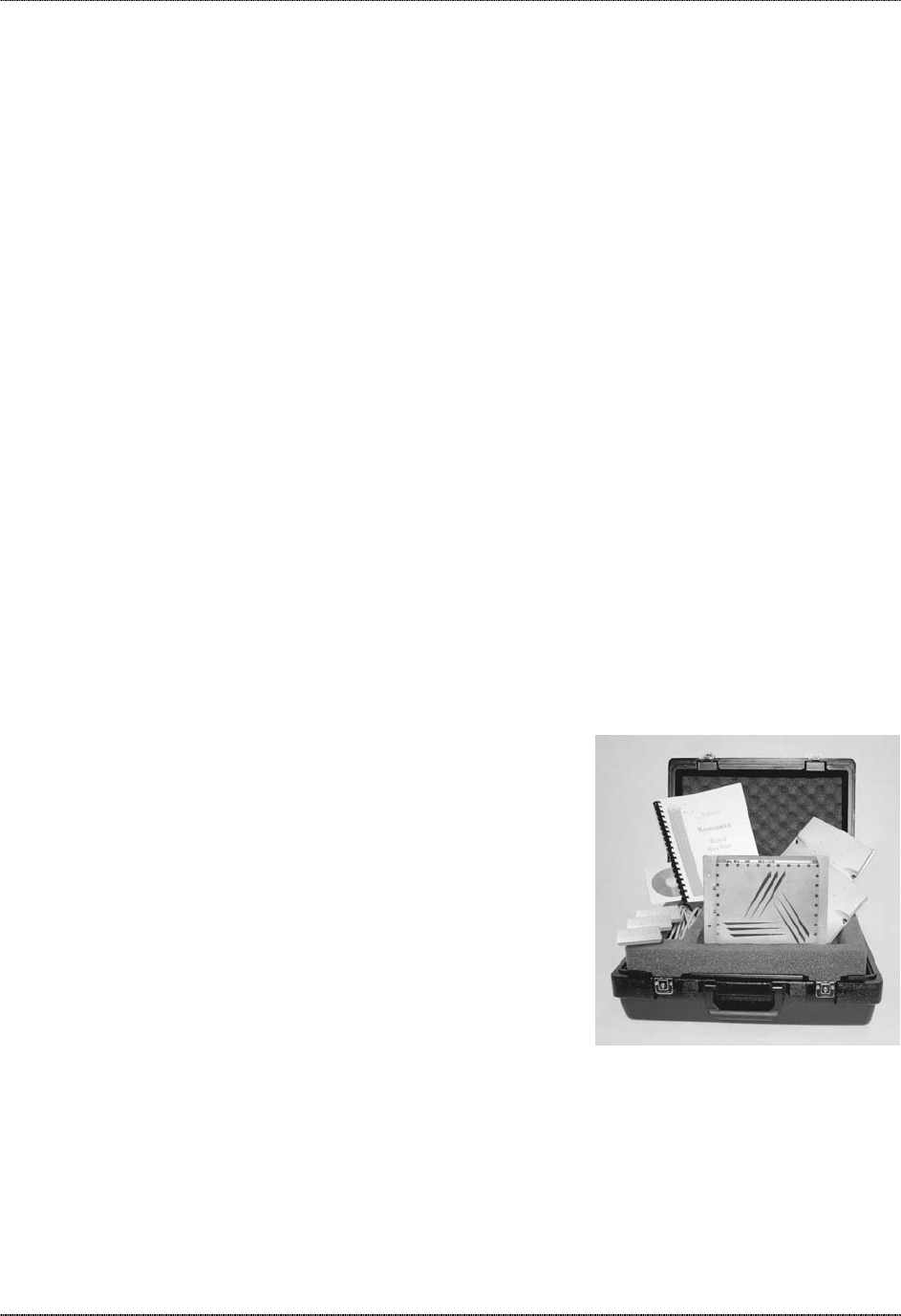

The Nanoscanner is delivered with the following components and accessories:

• Nanoscanner reader and tags

• Two antennas (1 transmit, 1 receive) with 2 coaxial cables

• RS-232 reader-to-PC cable (with 9-pin male and female connectors)

• Reader power supply and cables (two sections: one attached, one detached)

• Nanoscanner Reader User Guide on CD-ROM

CHAPTER 1 INTRODUCTION

NANOSCANNER READER USERGUIDE • DOC ??? 2

Requirements

In order to fully interface with the Nanoscanner reader you will need the

following:

 PC running Windows 98 or higher, with CD-ROM drive and one available

RS-232 serial port.

 Standard 120 VAC power.

 Host software (Alien demo software or your own custom software).

 Alien battery-powered backscatter tags

 Standard power cord (desired length) with grounded, 3-pronged plugs

Specifications

Specifications for key components of the Nanoscanner reader system are

provided in the tables below:

NANOSCANNER READER

Name Nanoscanner Reader

Part Number 0500017-001

Model Number B2450R01

Architecture Point-to-multipoint reader network

Frequency 2402 MHz – 2480 MHz

Hopping Channels 79

Channel Spacing 1000 KHz

Channel Dwell Time < 0.3 Seconds

RF Transmitter < 30 dBm

Modulation Method On Off Keying (OOK)

20 db Modulation Bandwidth TBD

RF Receiver 2 channels

Power Consumption 25 Watts (120 VAC at 500 mW)

Communications Interface RS-232, LAN TCPI/IP

Inputs/Outputs 2 coax antenna, 8 logic I/O, comm ports, power

Dimensions (cm) 17.8 x 24.1 x 6.7 (in) 7 x 9.5 x 2.63

Weight Approximately 1.8 kg (4 lb)

Operating Temperature 0°C to +50°C (+32 °F to +122°F)

CHAPTER 1 INTRODUCTION

NANOSCANNER READER USERGUIDE • DOC ??? 3

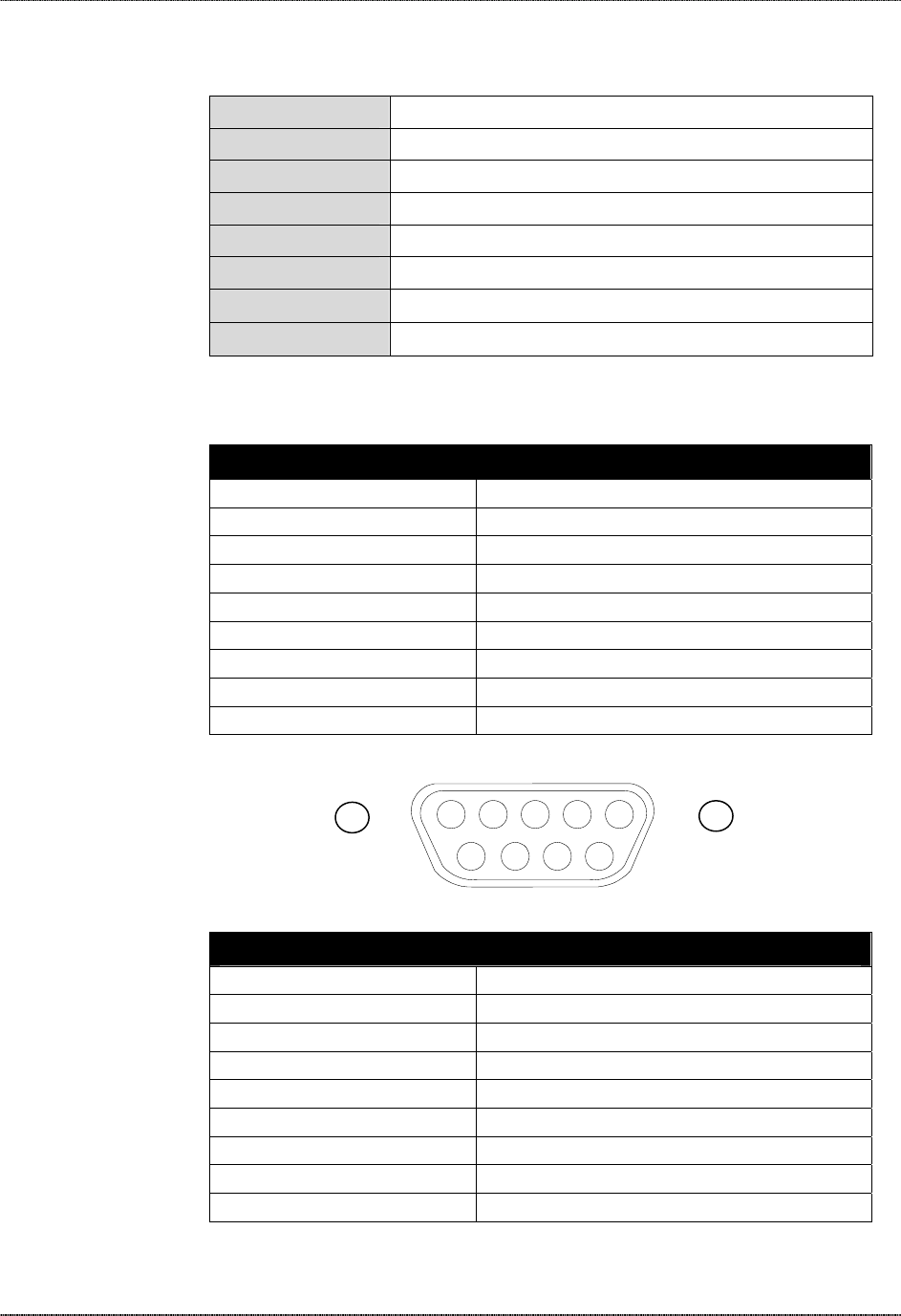

NANOSCANNER READER TRANSMIT AND RECEIVE ANTENNAS

3 dB Beamwidth Azimuth 55° Elevation 55°

Frequency 2402 MHz - 2480 MHz

Gain (dBi) ≤ 6 dBi

Polarization Circular

RF Connector Reverse-gender TNC

VSWR 1.5:1

Dimensions (cm) 15.2 x 15.2 x 3.2 • (in) 6 x 6 x 1.25

Weight .27 kg • 0.6 lb

RS-232 PORT PINOUTS

RS232 Connector (female)

Pin 1 Connected to pins 4 and 6

Pin 2 Request to send from host

Pin 3 Clear to send to host

Pin 4 Connected to pins 1 and 6

Pin 5 Ground

Pin 6 Connected to pins 1 and 4

Pin 7 Receive (Rx) from host

Pin 8 Transmit (Tx) to host

Pin 9 Not Connected

I/O Port Connector (male)

Pin 1 Out 0

Pin 2 Out 1

Pin 3 Out 2

Pin 4 Out 3

Pin 5 Ground

Pin 6 In 0

Pin 7 In 1

Pin 8 In 2

Pin 9 In 3

NOTE: Reader I/O pins can be configured for high-to-low or low-to-high

transitions through software control.

54321

9 8 7 6

CHAPTER 1 INTRODUCTION

NANOSCANNER READER USERGUIDE • DOC ??? 4

OTHER COMPONENTS

RS-232 Serial Cable DB-9 male/female serial

Tag Overview

Battery-powered backscatter tags are used

exclusively in this Alien 2450 MHz system.

FEATURES AND BENEFITS

• Long-range tag/sensor/actuator – up to

30 meters

• 2450MHz, FCC Part 15 unlicensed

power levels

• >512 bytes read-write memory

• 4 I/O pins, with A->D and D->A

converter

• Expandable read/write NV memory,

capable of being expanded to 256K

bytes if needed using I2C bus and the

addition of external flash memory chips

INTERNAL AND EXTERNAL INTERFACE

CAPABILITIES

• Temperature sensing/recording

• Tamper detection (banding material

broken, box opened, etc.)

• Shock, vibration, tilt and acceleration monitoring

• Enabling and disabling electronic devices (security)

• Beeping or blinking tags for quick location and alarms

BENEFITS OF BATTERY-POWERED OVER BEAM-POWERED BACKSCATTER TAGS

• Higher performance-to-price ratio

• Monitoring (e.g., temperature logging, time-based tamper detection)

• Better accuracy (longer range = more margin at a shorter range

• Lower-power readers (unlicensed)

• Multi-region (worldwide) antenna (Only needs to modulate and backscatter

the reader‘s signal. RF energy is not powering the device.)

• Range and bearing – positioning possible

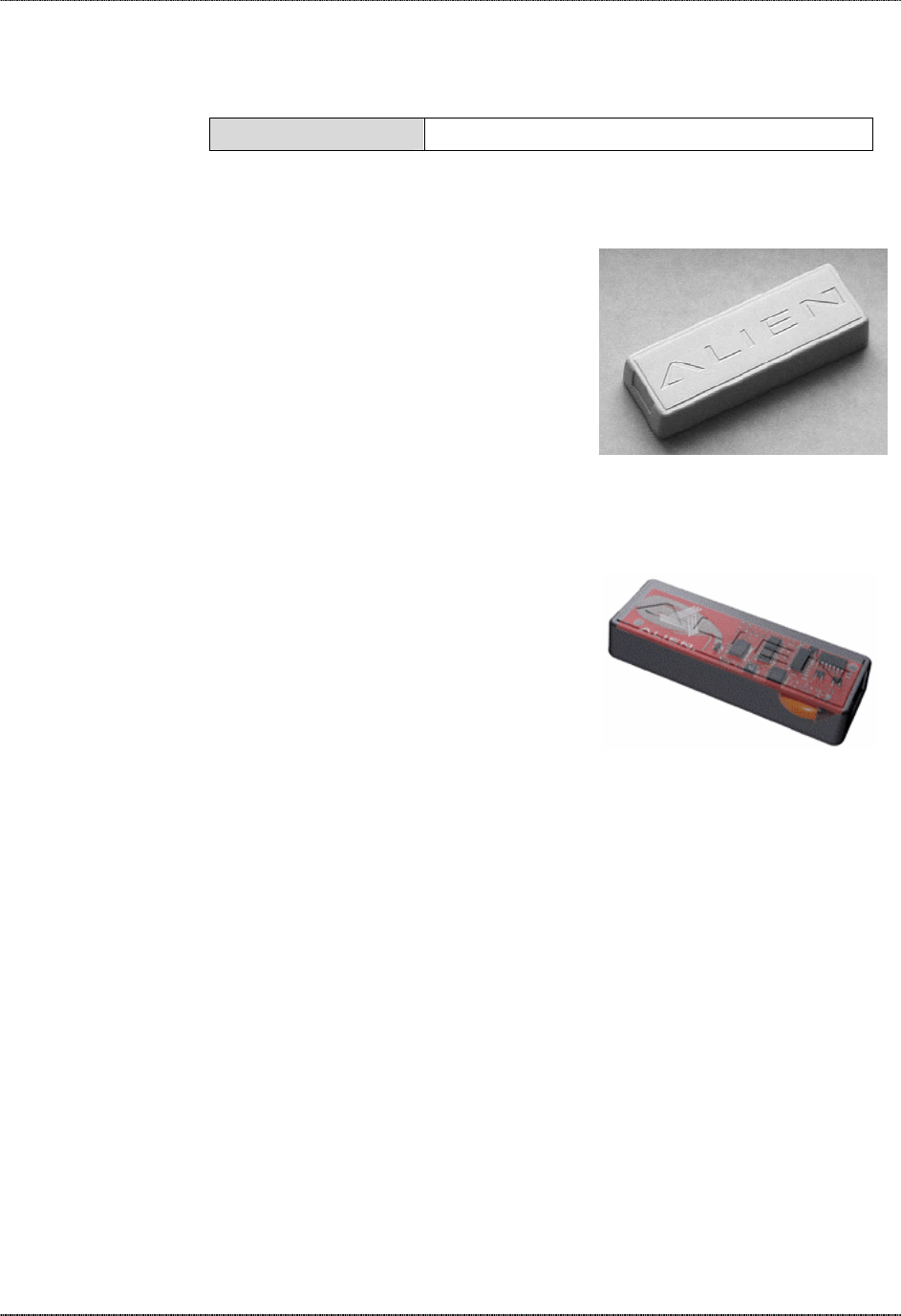

Alien battery

owered backscatter tag: outer

case (above) and (transparent case

showing internal circuitry (below).

CHAPTER 1 INTRODUCTION

NANOSCANNER READER USERGUIDE • DOC ??? 5

BENEFITS OF BACKSCATTER TAGS OVER “ACTIVE” TRANSMITTER TAGS

• Lower cost, simpler circuitry

• Longer battery life

• Stealthier (safer in sensitive environments, e.g., airplane)

• No transmitter tags can be used worldwide due to licensing issues, spectral

pollution, etc.

TAG BLOCK DIAGRAM

The following diagram illustrates the design of the battery-powered backscatter

tag.

Applications for 2450 MHz Battery-powered Backscatter

Tag/Reader Systems

A variety of applications have already been identified that can benefit from the

use of battery-powered backscatter tags and readers, including the following:

• Long range identification

• Vehicle-asset tracking

• Supply chain automation

• Time temperature monitoring

• Tamper detection (safe/secure supply chain)

• Security/ access systems

• Sensor monitoring

• Immobilizer / beeper / LED (can control outputs)

• Passive tag data storage for hierarchical asset tracking systems

• Location capability has been proven

CHAPTER 1 INTRODUCTION

NANOSCANNER READER USERGUIDE • DOC ??? 6

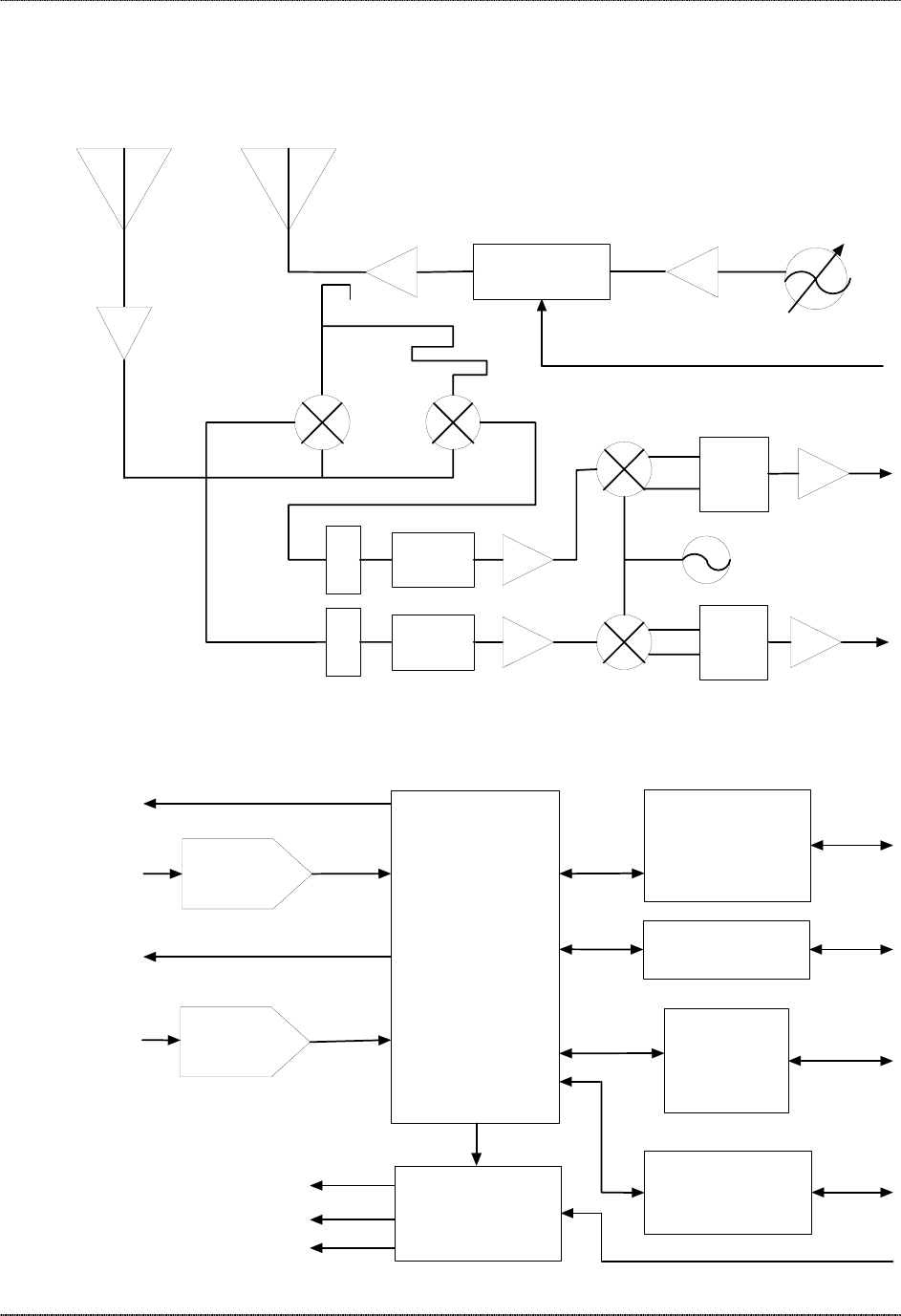

Reader Block Diagrams

Modulation Switch

LNA

Pad

10.7 MHz

Band Pass

Filter

10.7 MHz Band

Pass Filter

Low

Pass

Filter

Low

Pas s

Filter

2402 - 2480 MHz Source

Tra n s m it An t e nna

Receive Antenna

90 degrees

I Channel

Q channel 10.7MHz IF Source

Lattice

Amp/Filter

Lattice

Amp/Filter

From DSP

Q to DSP

I to DSP

2450MHz Reader Front End

2450MHz Reader Logic Blocks

TMS320C5402

Digital

Signal

Processor

RS-232

Standard

Serial

Port

Rabbit

LAN TCP/IP

Interface

(Optional)

Optically Isolated

RS-485

(Optional)

Power Control Circuitry

Digital I/O Signal Block

256KHz 12-bit A/D

256 KHz 12-bit A/D

Mod O u t

I channel

Source

Frequency

Q channel

V3 12VDC In

Power Control

CHAPTER 2 INSTALLATION AND OPERATION

NANOSCANNER READER USERGUIDE • DOC ??? 7

CHAPTER 2

Installation and Operation

This chapter describes the Nanoscanner reader and provides installation and

operation information. Later chapters detail networking and the Reader<–>Host

protocol, which will allow you to create software that will interact with the reader

and perform the desired processing functions.

Requirements

In order to fully interface with the Nanoscanner reader you will need the

following:

 PC running Windows 98 or higher, with CD-ROM drive (for demo system

software) and one available RS-232 serial port.

 Standard 120 VAC power.

 Host software (either Alien’s demo software or your own custom software).

 Alien battery-powered backscatter tags

 Standard power cord (desired length) with grounded, 3-pronged plugs

Receiving the Nanoscanner Developer’s Kit

Your Nanoscanner Reader Developer’s Kit

will be shipped with the items listed below.

Please verify the contents of your received

shipment before assembling.

• Nanoscanner reader

• Two antennas (1 transmit. 1 receive)

with 2 coaxial cables

• RS-232 reader-to-PC cable (with 9-pin

male and female connectors)

• Reader power supply and cables (two

sections: one attached, one detached)

• CD-ROM containing demonstration

software, user guides and documentation

• Assortment of tags

CHAPTER 2 INSTALLATION AND OPERATION

NANOSCANNER READER USERGUIDE • DOC ??? 8

Nanoscanner Reader Features

The Nanoscanner reader contains only two types of external user interface:

connector ports and LEDs. One panel contains I/O connectors and LEDs. The

side panel contains the antenna ports

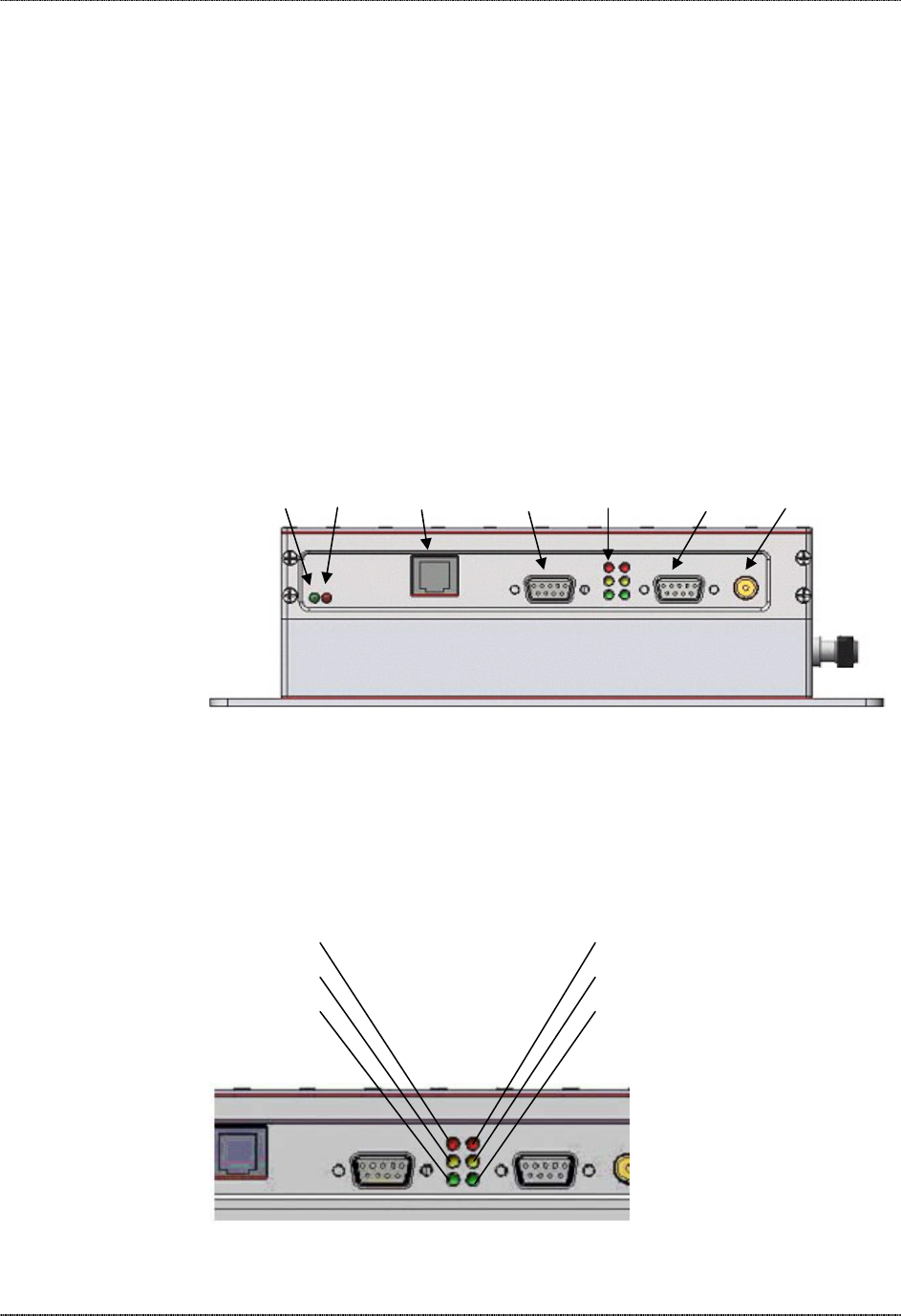

I/O PANEL

The I/O panel (shown below) contains the following features:

• Network LEDs (2)

• LAN TCP/IP port

• 9-pin D male I/O port

• Reader LEDs (6)

• 9-pin D female RS-232 serial port

• Power connector

LED DESIGNATIONS

Reader LEDs provide external indication of six conditions as shown in both the

illustration below and the table that follows it:

Reader I/O panel

Power connect

I/O

(male)

LEDs

RS-232

(female)

LAN

TCP/IP

Network LEDs

Link Active

Antenna

ports (2)

RF Power

Sniff

Lock

Processor Running

Reader LED designations on I/O panel

CHAPTER 2 INSTALLATION AND OPERATION

NANOSCANNER READER USERGUIDE • DOC ??? 9

Reader LEDs

Left Column LEDs Right Column LEDs

Red RF on Red Comm TX

Communications transmit

to processor

Yellow Sniff

Detect tag signal

Yellow Comm RX

Communications receive

from processor

Green Lock

Lock on tag signal

Green Processor Running

Network LEDs

Green Link Red Active

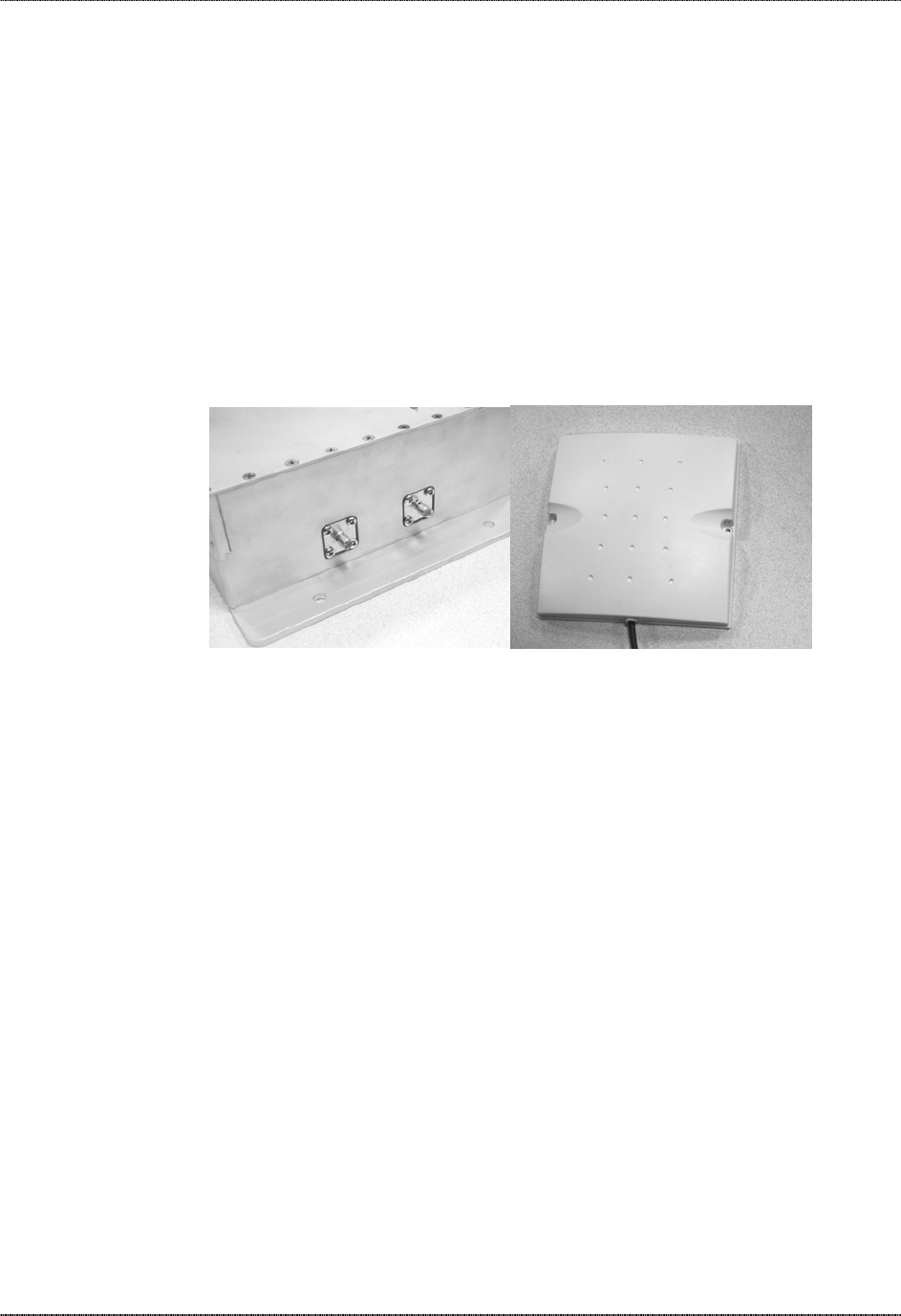

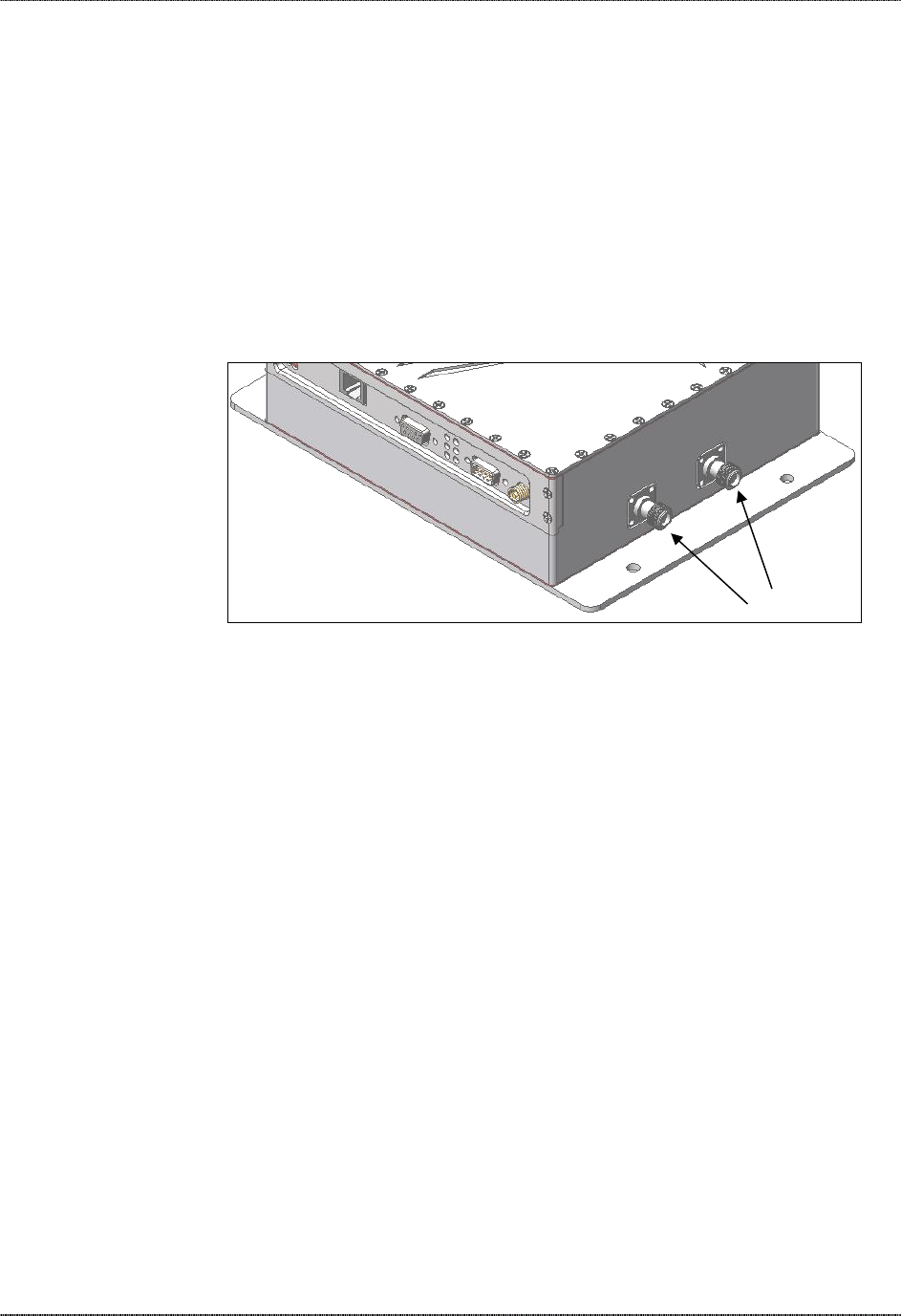

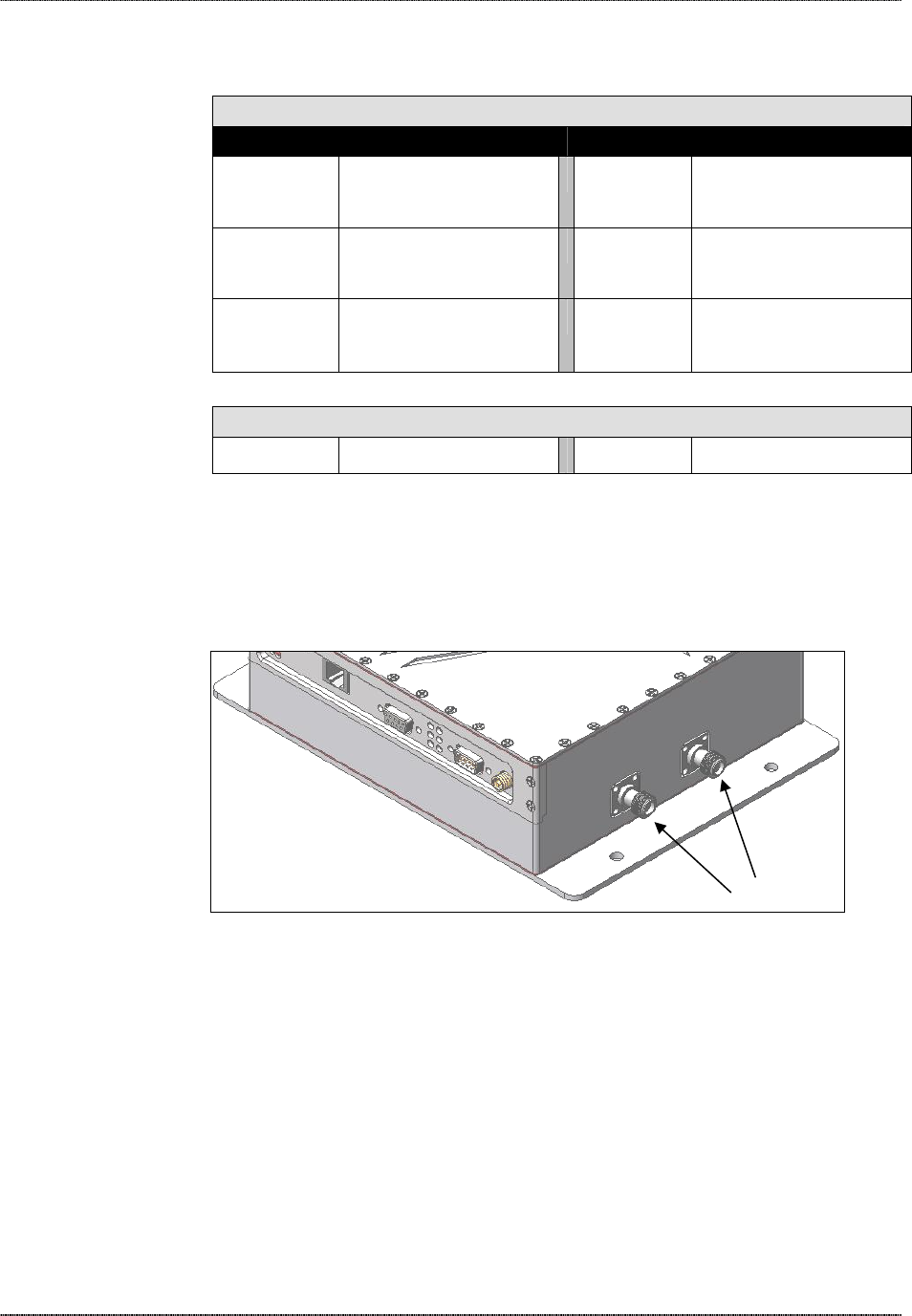

ANTENNA PANEL

The antenna panel (perpendicular to the reader’s I/O panel) contains two coax

antenna connector ports as shown below. These are reverse-gender connectors.

Either antenna can be used on either port, but both antennas are required for

reader operation.

Antenna ports (reverse gender)

CHAPTER 2 INSTALLATION AND OPERATION

NANOSCANNER READER USERGUIDE • DOC ??? 10

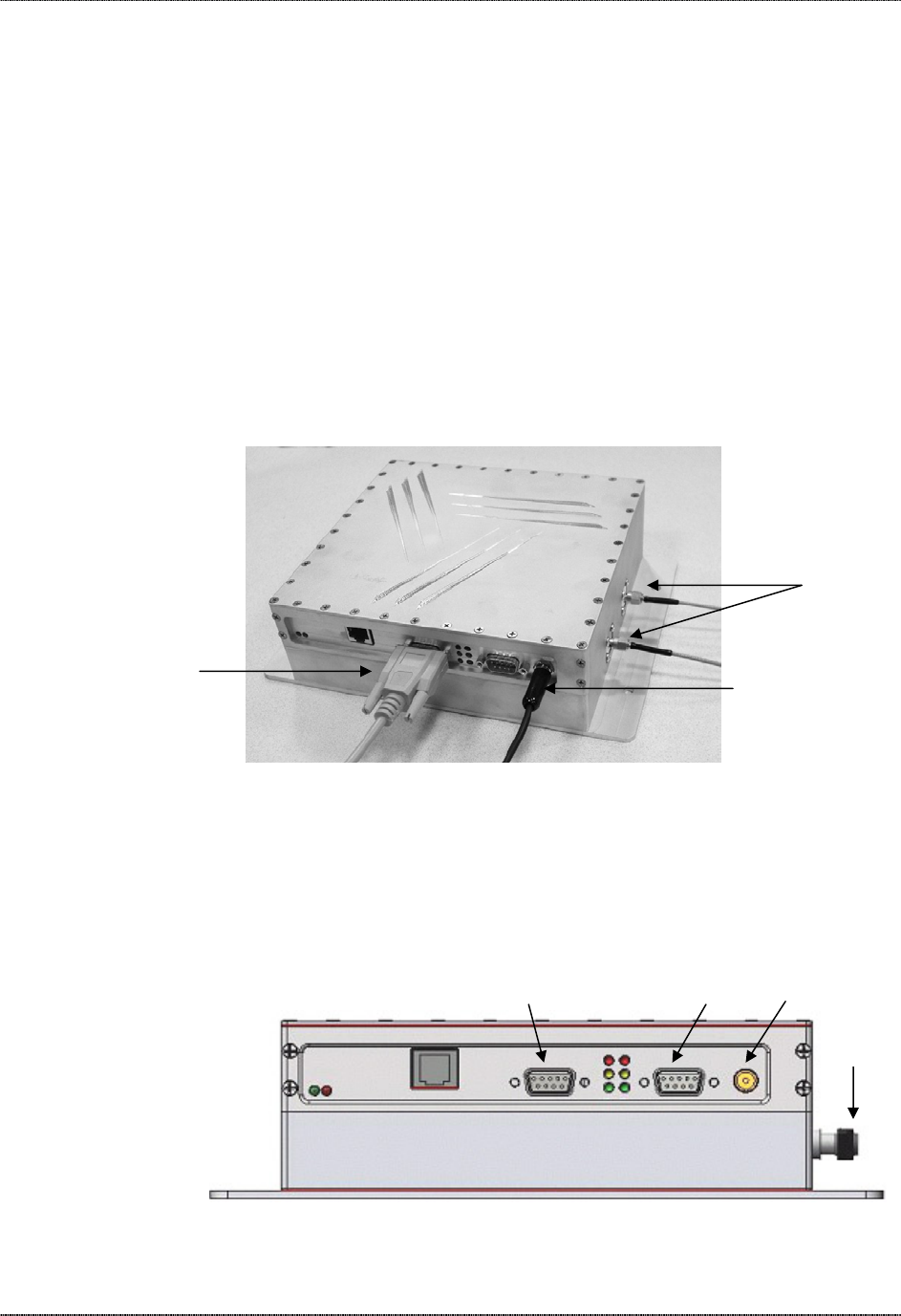

System Assembly and Bench Test

Assembling the Nanoscanner reader system is very easy.

We recommend you set up the system and verify its operation in a bench test

configuration before installing it in a live application.

You will need two available 120 VAC wall outlets.

Bench Test or Demo Connections

1. Situate the PC on a tabletop. Ensure the following conditions:

• Two standard 120 VAC outlets are available nearby (one for reader, one

for PC if needed).

• Sufficient space is available on the tabletop for the PC, reader and

antenna.

2. Connect the RS-232 cable to the reader.

• Align the cable connector so that its shape and pins match the shape

and holes of the DB-9 serial port.

• Push the aligned connector into the port.

• Finger-tighten the screws to secure the cable/connector to the reader.

Antennas

Ports

To power supply &

120 VAC wall outlet

RS-232 to PC

Reader I/O panel

Power connect

I/O

(male)

Anntena

Ports

RS-232

(female)

CHAPTER 2 INSTALLATION AND OPERATION

NANOSCANNER READER USERGUIDE • DOC ??? 11

3. Connect the RS-232 cable to the serial port on the PC.

4. Connect antenna coaxial cables to each antenna port (0 and 1).

• You can use either antenna on either port.

• Antenna port 1 is on the right if viewing reader with flange side down.

Port 0 is on the left.

• Align the coax cable’s center pin and push into the port

• Screw the fitting from the cable end onto the reader connector clockwise

until finger tight to secure the cable to the reader.

CAUTION: Antennas must be attached before connecting power to the

reader. Applying power without both antennas connected (or the ports properly

terminated) can damage the reader.

5. Connect the power supply to the reader.

• Using the thin cable attached to power supply, push the connector into

the port until it is securely seated.

6. Plug power cord into power supply.

• Use the female end of a standard 3-pronged power cord.

7. Plug the power supply cable into the wall outlet and verify power.

• The red LED will be illuminated when power is on.

8. Plug in the PC (if necessary) and turn it on.

• If the PC is a laptop operating on battery power, it is not necessary to

plug it into the wall outlet.

9. Launch the desired host software application.

• You may use Alien’s RFID Gateway demo system software or custom

software developed per the reader-host protocol for your specific

application.

Antenna ports (reverse gender)

CHAPTER 2 INSTALLATION AND OPERATION

NANOSCANNER READER USERGUIDE • DOC ??? 12

You are now ready to bench test or demonstrate the Nanoscanner system.

Bench Test Procedure

1. Access an operational mode suitable for bench testing.

• Select a mode that will allow multiple consecutive reads of a single tag.

• Refer to the applicable software application user guide for specific

instructions.

2. Position the reader to you can see the LEDs.

• You may also want to position the PC so you can view the monitor

simultaneously for later tests.

3. Shield a tag in a metal enclosure or enclosed in your hand.

• Begin with the tag shielded from the reader antennas and move it toward

the antenna while observing the LEDs.

4. Verify the Sniff LED illuminates when the tag approaches the read

window.

• Sniff is the yellow LED on the left-hand column of LEDs at the center of

the reader I/O panel.

5. Verify the Lock LED illuminates when the tag is inside the read window.

• Lock is the green LED in the left-hand column of LEDs at the center of

the reader I/O panel.

6. Verify the host receives the tag data.

• Refer to indications specified in applicable user guide to verify the tag

was read successfully.

7. If bench test conditions are verified, proceed to installation.

NOTE: If all conditions appear to be operational but system fails to read tags,

disconnect system power and reapply power to perform a hard reset.

CHAPTER 2 INSTALLATION AND OPERATION

NANOSCANNER READER USERGUIDE • DOC ??? 13

System Design

The following Installation section provides basic guidance for configuring

components in your RFID system. You should consider the overall design of your

specific system before permanently mounting the equipment.

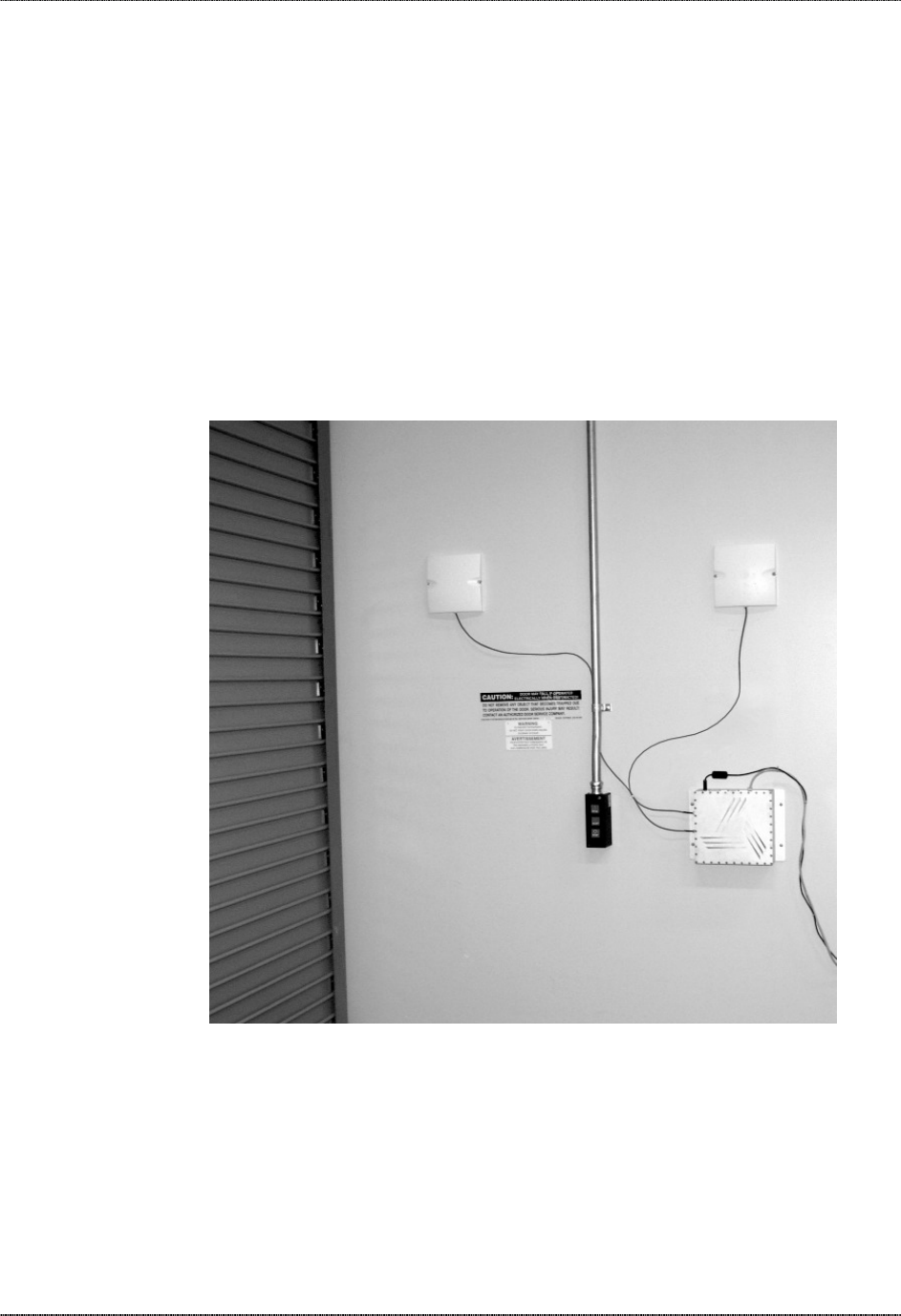

Installation

Installation involves all the same connection steps required for bench test.

However, instead of situating equipment on a tabletop, the reader and antenna

and their accessories will mounted in your application environment.

Antennas should be mounted about ½ meter (1.5 ft) apart, situated at the

average height at which tags are expected to be presented to the system.

CHAPTER 2 INSTALLATION AND OPERATION

NANOSCANNER READER USERGUIDE • DOC ??? 14

Requirements

Before installing your Nanoscanner reader system you will need the following:

 PC running Windows 98 or higher, with CD-ROM drive (for demo system

software) and one available RS-232 serial port

 Standard 120 VAC power for the reader location and PC location

 Host software

 Any additional RS-232 cables or connectorized antenna coax cables needed

to accommodate routing requirements

 Standard grounded, three-pronged power cord of desired length

 Mounting hardware suitable for the surface to which equipment is to be

attached (e.g., wood screws, moly-bolts, brackets, etc.)

Installation Procedure

1. Select mounting position for antenna(s).

CAUTION: Reader antennas should be positioned so that personnel in the

area for prolonged periods may safely remain at least 20 cm (7.9 in) in an

uncontrolled environment from the antenna’s surface. See FCC OET Bulletin

56 “Hazards of radio frequency and electromagnetic fields” and Bulletin 65

“Human exposure to radio frequency electromagnetic fields.”

Note: Only the antennas supplied with the unit can be used in order to

comply with FCC regulations.

• Mount the antennas at the periphery of the desired read window (either

overhead or at the side), so that the position of the most distant tag

passing through the window is no farther from the antenna than the

maximum range specified for your system design.

• Place the antennas within about 1/2 meter (1.5 ft) apart. Mounting them

closer than may result in crosstalk between the two antennas.

• Position the antennas at a height approximately midway between the

highest and lowest expected tag position. (For example, a pallet tag may

be the lowest tag position to be read, while the top-most case on a fully

stacked pallet may represent your highest tag position.)

CHAPTER 2 INSTALLATION AND OPERATION

NANOSCANNER READER USERGUIDE • DOC ??? 15

2. Select mounting position for reader.

• Reader should be positioned close enough to the antenna to

accommodate the cable length without putting strain on the connectors.

• Be sure power is available to the selected reader location.

3. Select location for host PC.

• Situate the host PC within 50 ft of the reader in a safe location away from

vehicular and foot traffic.

4. Install reader.

• Secure the reader through the three mounting holes on either flange to

its mounting location (wall, post, mounting bracket) using appropriate

hardware.

• If desired, position the reader so that the LEDs are easily observed.

5. Install antennas.

• Secure each antenna through the mounting holes on either flange to its

mounting location using appropriate hardware.

6. Connect antennas to reader.

• Route coax cables from antennas to reader according to your system

design specifications and secure them properly.

• Align the connector for each cable with the reader antenna port, push

into the port, and finger-tighten screw fitting.

7. Connect reader to host PC.

• Align the RS-232 connector with the corresponding serial port on the

reader and push the connector onto the pins. Finger-tighten the screws

to secure the cable to the reader.

• Align and connect the other end of the RS-232 with the serial port on the

PC.

CAUTION: Antennas must be attached before connecting power to the

reader. Applying power without both antennas connected can damage the

reader.

8. Connect power to the reader.

• Push the power supply connector into the reader port.

• Plug the female end of the power cord into the power supply.

• Plug the male end of the power cord into the 120 VAC outlet.

9. Connect power to the PC.

CHAPTER 2 INSTALLATION AND OPERATION

NANOSCANNER READER USERGUIDE • DOC ??? 16

System Operation

SOFTWARE DEVELOPERS

If you are a software developer, the balance of this document provides the

information you will need to install the reader on the host computer, communicate

with it, and customize its performance via text commands to enable reader

operation tailored to the desired application.

CUSTOM SYSTEM USERS

If you are a custom system user, please refer to your host software user guide for

information regarding system and software operations.

ALIEN RFID GATEWAY DEMO SOFTWARE USERS

If you are using the Alien RFID Gateway demonstration software, please refer to

the Demonstration Software Guide.

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 17

CHAPTER 3

Nanoscanner System Overview

This chapter provides an overview of the major features found in a Nanoscanner

reader.

Specific instructions for setting up a reader are provided in Chapter 4: Reader-

Host Communications Installation.

Reader commands and their uses are covered in Chapter 5: Reader-Host

Protocol.

Introduction

The most basic function of the Nanoscanner reader is to read RFID tags and to

allow a user or application access to a list of these tags.

The Nanoscanner reader is designed to perform this function either connected to

a host via serial cable, or on a network as a standalone unit or in conjunction with

other readers on the network.

To assist in the networked operation, the reader has two important features

designed to simplify network management:

• Reader Heartbeats allow network applications to easily discover readers on a

network.

• Autonomous Mode reading allows unattended readers to look for tags and

send notification messages to listening services on the network when certain

conditions arise.

These important concepts, along with the basics of communicating with the

reader, are discussed in this chapter.

Communicating with the Nanoscanner

Overview

Commands can be issued to the Nanoscanner in one of three ways:

• Serial communication

• Network communication

• Web-based interaction

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 18

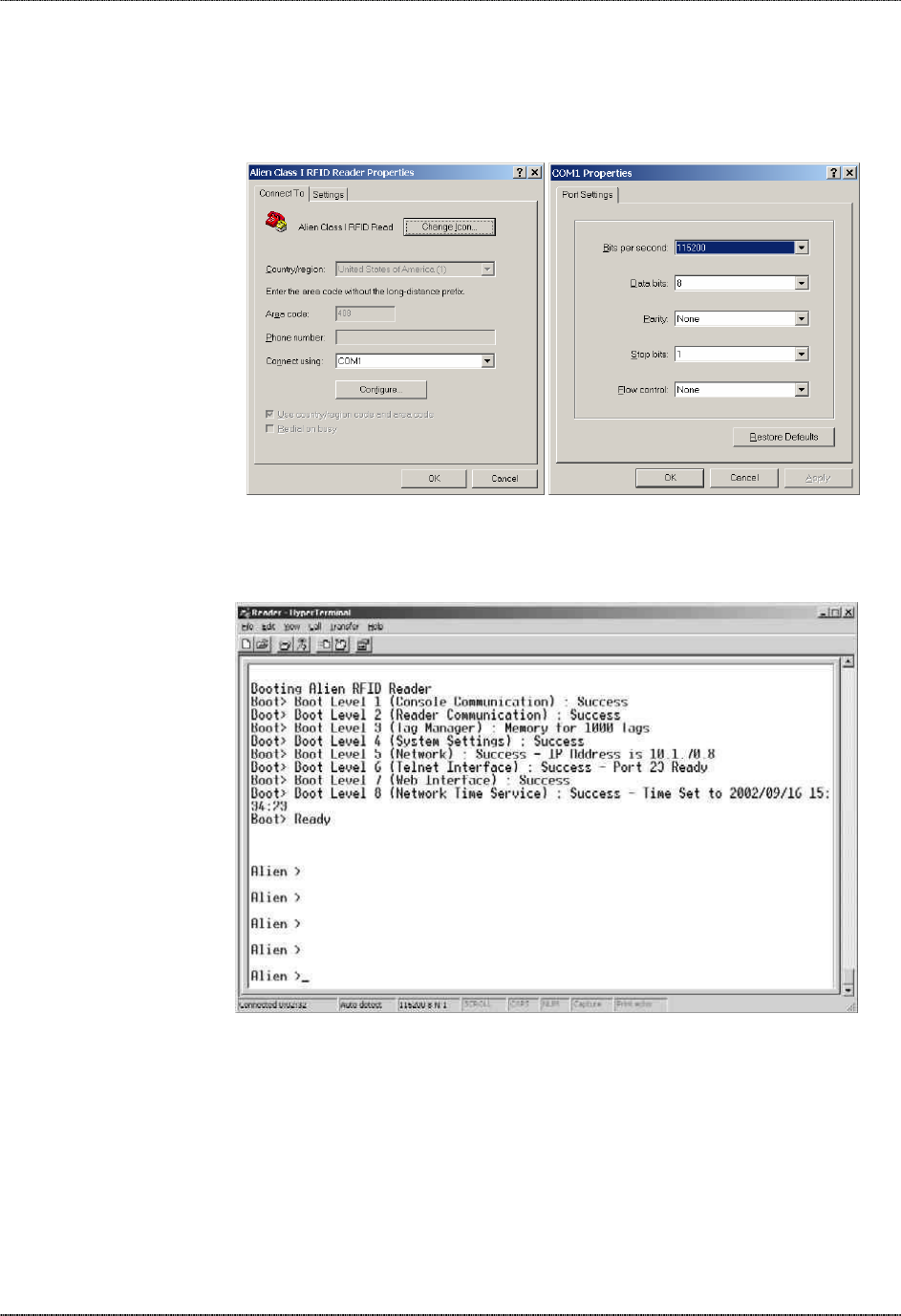

SERIAL COMMUNICATION

Commands can be issued to the Nanoscanner using a direct serial connection

from a computer to the reader. The following settings are required for the serial

communication:

Baud Rate : 115200

Data Bits : 8

Parity : None

Stop Bits : 1

Flow Control : None

NETWORK COMMUNICATION

Commands can be issued to the Nanoscanner over the Internet or Intranet. The

reader is equipped with a standard Ethernet port (10 Base T) allowing it to be

physically connected to a network. By default the Nanoscanner will use DHCP to

wake up and join a network. If DHCP is not available on the network, the

Nanoscanner can be manually configured for the network via Serial

communication.

By default the Nanoscanner will listen to incoming commands over port 23, the

standard Telnet port.

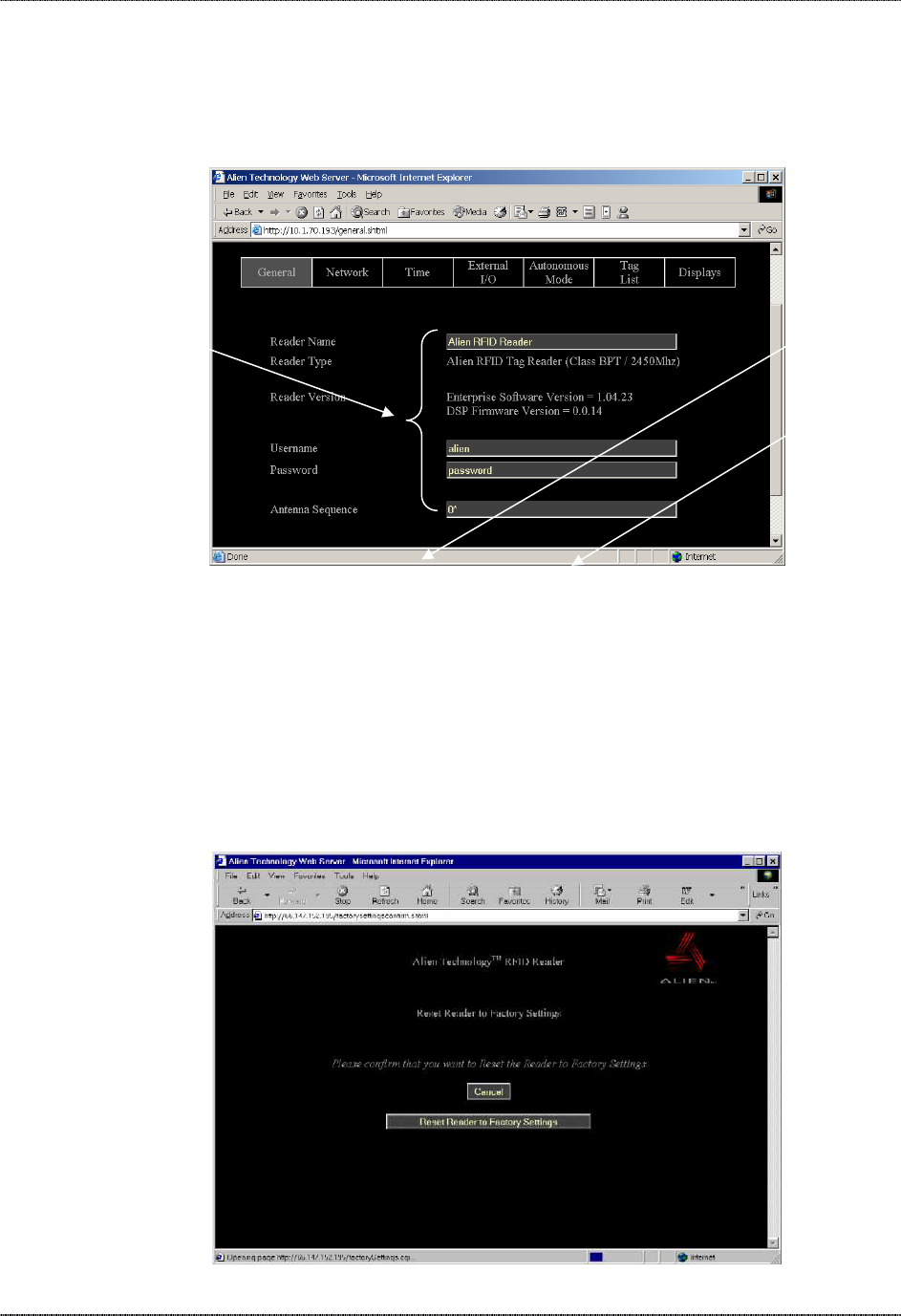

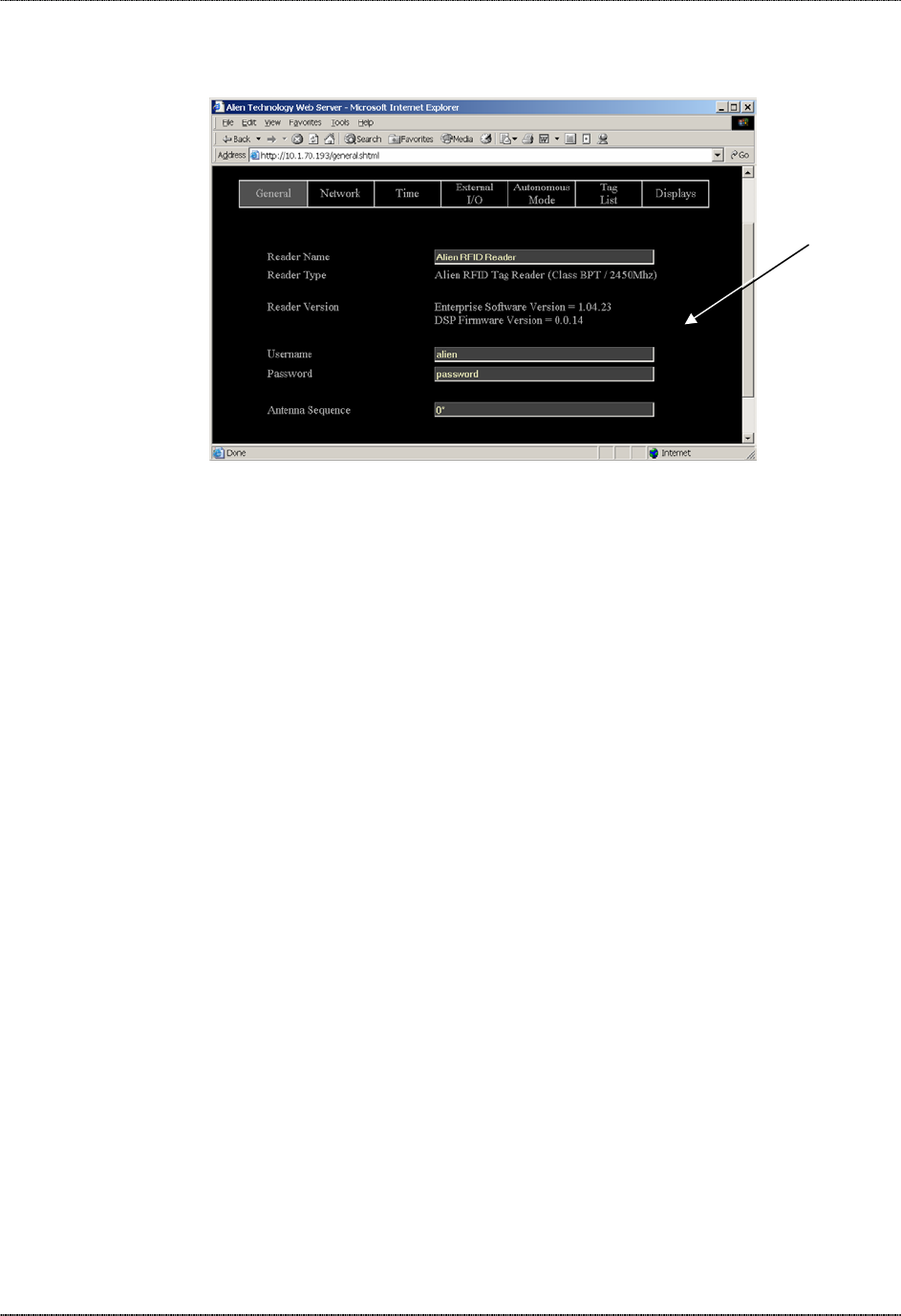

WEB BASED COMMUNICATION

The Nanoscanner contains a built in Web-server that allows all aspects of the

reader to be controlled and configured via web pages served up by the reader.

This web server operates on the standard port 80 used by most web servers.

Reader Discovery and the Reader Heartbeat

One of the problems common to many network appliances is simply discovering

where the device is on the network. To operate these devices over the network,

users must know the device’s IP address.

If an IP address is hard-coded into the device, this problem is solved, and often a

label on the device will detail this IP address.

However, many systems do not use a hard-coded IP address, requiring the user

or system to assign an address each time the device is booted up (this is called

DHCP, dynamic host configuration protocol).

DHCP and Device Auto Discovery

The DHCP mode of operation eliminates the need for the user to perform

network configuration for the device. The device simply is plugged into the

network socket, booted-up and immediately becomes a citizen of the network.

However, the user still needs to learn the IP address of the device; all that is

known at this point is that the device does have an IP address and has booted

itself on the network. The actual IP address the device is using is still not known.

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 19

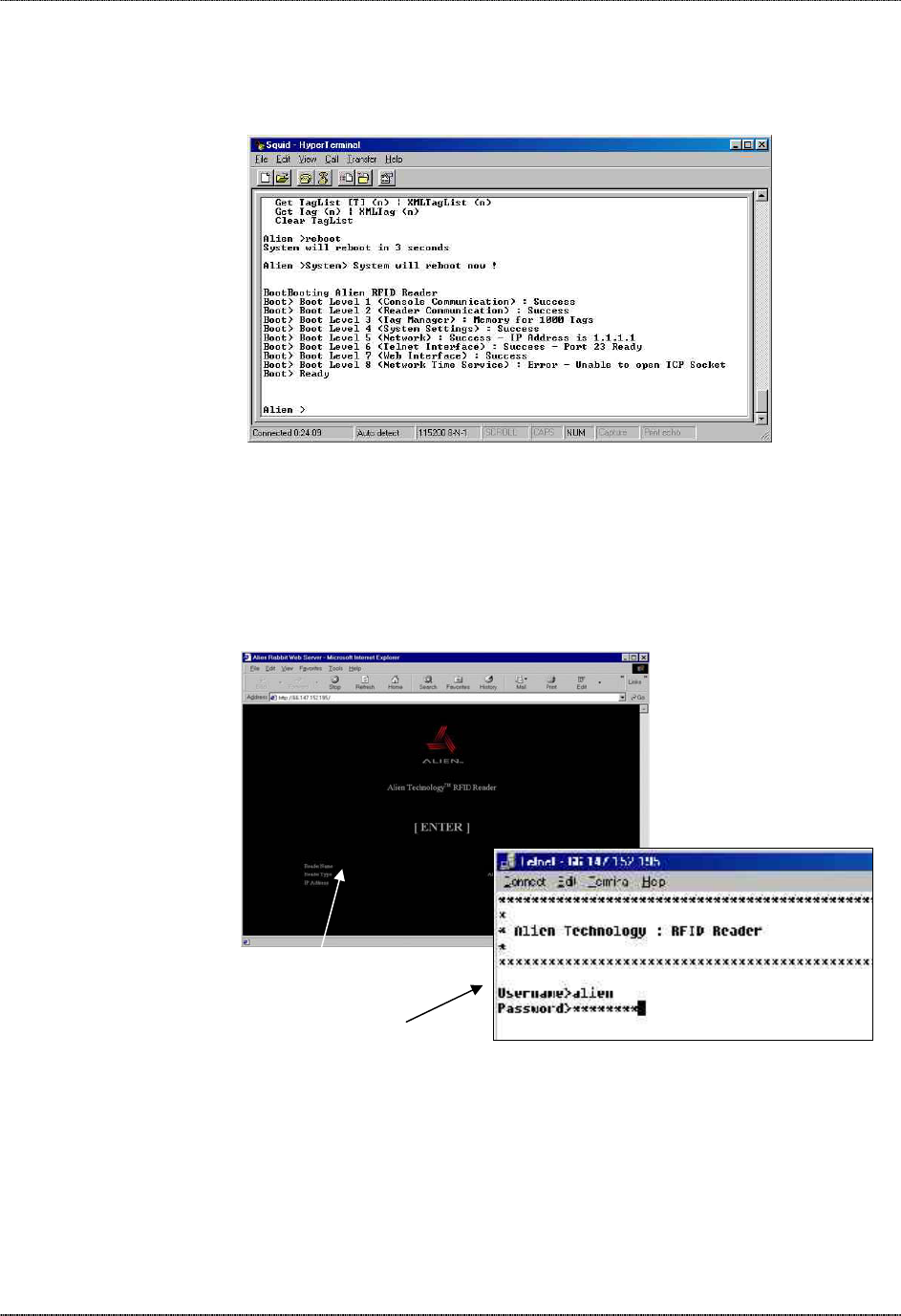

Serial Interrogation

One of the simplest methods to find out the reader’s IP address is to connect via

the serial connection and type the command “get IPaddress’” to return the IP

address currently in use by the device.

However, this requires a physical connection between a host computer and the

reader—a connection that in many cases is simply impractical to set up.

Network Heartbeats

The preferred way to find out a reader’s IP address is to listen for it on a network.

Once a reader has booted successfully onto a network it will repeatedly send out

an electronic heartbeat to this network. This heartbeat can be listened for by

network applications, and provides enough information about the reader to locate

it on the network and begin communication with it.

In network parlance, the heartbeat message is sent via UDP packets (universal

datagram packets) to all network addresses on the reader’s subnet.

There are two relevant configuration options available via the reader’s command

line or web interface to affect this heartbeat:

• Set | Get HeartbeatTime: This command specifies the time interval

separating successive heartbeat messages sent out over the network. The

time is specified in seconds, with a value of zero turning off the heartbeats.

The default value for this setting is 30 seconds, i.e., send out a heartbeat

message every 30 seconds.

• Set | Get HeartbeatPort. This command specifies the port number to

address the UDP heartbeat messages to. This port number is the port

number that must be listened to by interested parties on the network. The

default value for this setting is 3988, i.e., send out a heartbeat message to

UDP port 3988 of every machine on the subnet.

The format of the heartbeat is a small XML text-based message, containing

information about the reader (name and type), the reader’s network connection

(IP address and command port) and the length of time before the next heartbeat

will be sent out.

<Alien-RFID-Reader-Heartbeat>

<ReaderName>Alien RFID Reader</ReaderName>

<ReaderType>Alien RFID Tag Reader (Class BPT /

2450Mhz)</ReaderType>

</Alien-RFID-Reader-Heartbeat>

The Reader Name parameter in the message is the user-defined name

associated with the reader. This name can be set by a user to help identify which

reader is which.

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 20

• For example, multiple readers in a warehouse may be named “loading bay

1”, “loading bay 2” etc., thus providing a clear indication as to the physical

location of the reader.

The Reader Type parameter details the specific type of reader sending out the

heartbeat. This information is hard-coded into the reader’s firmware and is not

user-configurable.

The IP Address and Command Port parameters detail the location of the

reader on the network. The IP address is simply the network address of the

reader. The command port is the port number on which the reader is listening for

incoming user commands. Typically this is port 23, the standard telnet port,

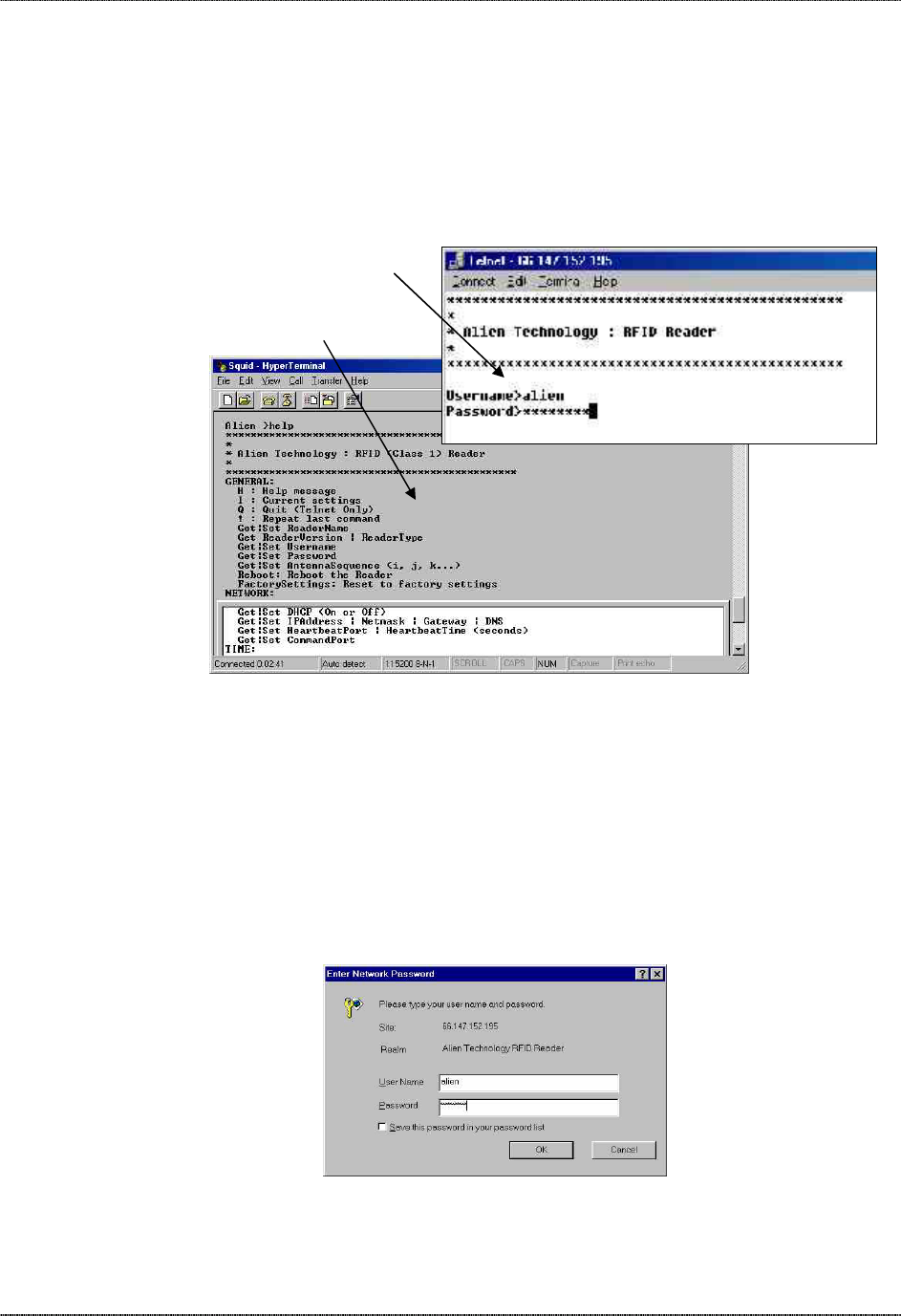

allowing a user to communicate with the reader over the network by typing “telnet

23” into most computers.

Heartbeat Time parameter. The final piece of information in the heartbeat

message is the time to the next heartbeat. This time (in seconds) enables any

application software to detect whether a reader is powered-down or the network

connection breaks; if a new heartbeat is not received after the expected time

period, then such an interruption to normal service can be detected.

HEARTBEATS AND SOFTWARE

The Nanoscanner Reader Developer’s Kit that accompanies the Nanoscanner

reader provides source code and software libraries to listen for and understand

these network heartbeats in both Java and Visual Basic languages.

The Alien RFID Gateway application, also bundled with the development kit,

uses the Java version of these libraries to build its active reader list on the main

screen.

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 21

Tag List Concepts

During normal operation the Nanoscanner maintains an internal list of the tags

that are active.

Active tags are those read by the reader at least once within a predefined time

period. Any new tags presented to the reader are added to this list, and any tags

that have not been seen for a while are removed from the list.

At any time a programmatic call can be made to the reader to retrieve this list of

tags.

The reader always has a concept of “what’s out there”, internally represented by the

reader Tag List

Persist Time

The persist time defines the duration between the time a tag was last read and

the time it is removed from the Tag List. Setting this value to a small time (~1

second) will cause the Tag List to contain only what the reader has seen in the

last second, i.e., a fair representation of what the reader sees at any one time.

Setting the persist time to a long duration allows a history of tags to be built up.

For example, setting the persist time to 1 hour allows a list to be built up detailing

all the tags read over the last hour.

Tag Details

Each entry in the Tag List is stored as the Tags’ unique 96-bit ID, followed by a

16 bit checksum (used to verify the ID was correclty read), followed by the read

count (the number of times the tag has been read in the current session), the

discovery time (the time the tag was first seen), and the antenna (the antenna ID

that tag was last read from).

8000 0100 8820 FFA4 1010 A3EF

8000 1010 A3EF 0100 8820 3F02

8000 1010 A3EF 0400 0232 3F06

8020 1010 A3EF 0150 2057 3F12

A000 1045 A3DF 0400 0232 3F06

C280 1010 A3EF 0150 2057 3F12

8020 459E A3EF 0150 2057 3B00

New tags detected are added to the tag

list.

Reader Tag List...

All tags listed are active.

Tags not read for a while are removed

from the list.

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 22

Tag List Size

The Tag List is currently configured to hold up to 500 unique tag IDs and their

associated data.

Reading Tags over the Network

The Alien RFID reader provides two methods with which to read tags: interactive

mode and autonomous mode.

• In interactive mode, the controlling application must issue commands to the

reader to read tags. This command will always return immediately with a list

of tags in view of the reader.

• In autonomous mode, the reader is set up to constantly reads tags, and to

initiate a conversation with a network listener when certain events arise.

While both methods are equally valid, the choice of method will usually be

determined by the needs of the controlling application.

Although it may be easier and require less coding to work in interactive mode, a

little investment in programming effort lets the user set up autonomous mode to

provide a more scalable system for multiple readers.

Interactive Mode

Reading tags in interactive mode is as simple as issuing a single command to the

reader via its network interface.

BASIC TEXT TAG READ COMMAND

This command is “get taglist”. The result is a text-based list of tags that the

reader can see, for example:

Tag:041C 1820 2812 4080 0000 AB54, CRC:97FC, Disc:2003/01/21 02:24:00, Count:1, Ant:0

Tag:1155 8B14 5661 D40B 0001 F456, CRC:04C1, Disc:2003/01/21 04:14:47, Count:1, Ant:0

XML TAG READ COMMAND

At any time the format of the taglist can be specified using the set tagListFormat

command. One of the options is XML format which would return the same tag list

as:

<Alien-RFID-Tag-List>

<Alien-RFID-Tag>

</Alien-RFID-Tag>

<Alien-RFID-Tag>

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 23

</Alien-RFID-Tag>

</Alien-RFID-Tag-List>

Autonomous Mode

Autonomous mode is a multi-stage configuration and operation mode that

enables hands-free monitoring of tags.

• The first stage requires you to issue a series of configuration commands to

the reader. These commands detail how and when to read tags, and then

when tags are found, who to tell.

• Once configured, the reader can be left to operate on its own.

The application must then set up a listening service to listen for messages

from the reader detailing any tags that it has read.

One of the major benefits to this mode of operation is that many readers can be

configured to send tag messages to a single network application. Thus, a single

application can listen for and process data from multiple readers over the

network.

Defining the Autonomous Read Operation

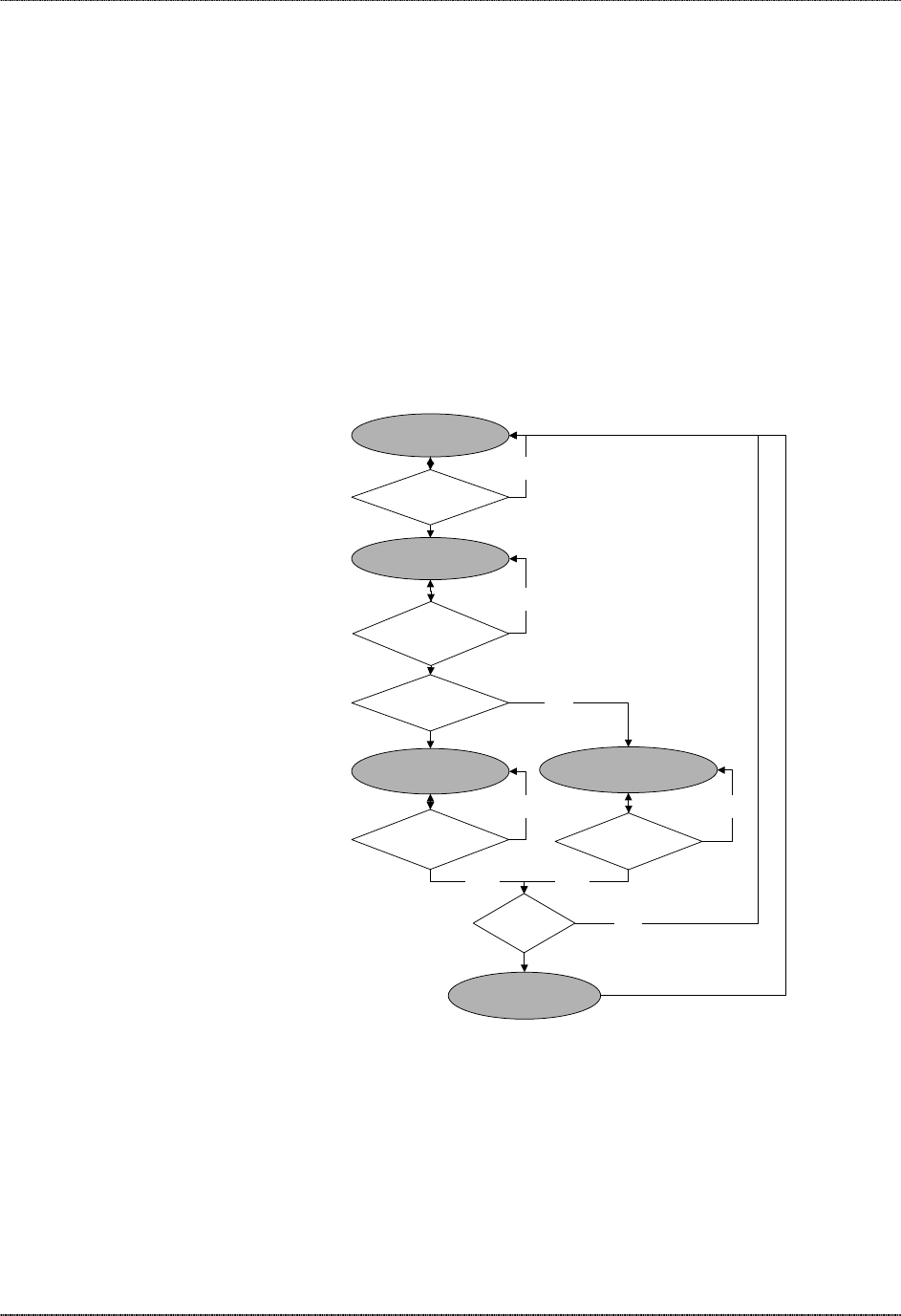

Autonomous mode functionality is summarized in the state diagram shown

below. Fundamentally, a reader operating in Autonomous Mode moves between

several states: Waiting, Working, Evaluation and Notification. Waiting, Working

and Evaluation states have associated with them an optional digital output state

that is set upon entering the state. Movement from one state to another is

initiated by an expiration of a timer, a trigger event on one or more of the digital

input lines or changes to the tag list.

Each element of the State Diagram is described below. Associated with each

element are one or more commands that are used to configure the reader.

ENTER AUTONOMOUS MODE (Not shown on the state diagram.)

The user puts the reader into Autonomous Mode with the AutoMode command.

Set AutoMode = On puts the Reader into Autonomous Mode. Set AutoMode

= Off returns it to Interactive Mode.

WAITING STATE

Upon entering Autonomous Mode, the reader automatically enters the Waiting

State. While waiting for a Start Working Trigger (see below) the reader holds the

digital output lines at a value set by the AutoWaitOutput command. (i.e., Set

AutoWaitOutput=3 would cause both output lines to go high when the reader

is in the Waiting state.)

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 24

START WORKING TRIGGER

The receipt of a trigger pattern on the digital input lines will cause the reader to

move from the Waiting state to the Working state. The start condition is set by

the AutoStartTrigger command. The AutoStartTrigger command takes

two parameters, a rising edge pattern and a falling edge pattern. Set

AutoStartTrigger = 2,0 would cause the reader to enter the working state

on receipt of a rising edge on pin 2. Set AutoStartTrigger= 0,3 would

cause the reader to enter the working state after the receipt of a falling edge on

both pins one and two. Set AutoStartTrigger= 0,0 causes the reader to

immediately drop into the Working state. Note: One cannot mix rising and falling

edge patterns with the current version of Nanoscanner firmware.

Autononmous Mode State Diagram

WORKING STATE

In the working state, the reader holds the digital output lines at the value defined

by the AutoWorkOutput command. Set AutoWorkOutput =3 would hold

both output lines high while the reader is working. The action the reader performs

while in the working state is determined by the AutoAction command. Set

AutoAction = Acquire causes the reader to repeatedly acquire tag list data

(1) Wait

(Wait Output)

(2) Start?

(R/F Edges)

(3) Doing Action

(Work Output)

(4) Stop?

(Time/Trig)

(5) Eval

Found?

Prog?

(6a) True Pause

(True Output)

(6b) False Pause

(False Output)

(7a) Pause

Expired?

(7b) Pause

Expired?

yes

(8) Notify

Needed?

(9) Issue

Notification

yes

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 25

using the parameters set in the AcquireMode and PersistTime commands.

The reader continues working until the Stop Working Trigger conditions are met.

(See below)

STOP WORKING TRIGGER

Like the Start Working Trigger, the Stop Working Trigger can be a change on the

digital input lines. Use the AutoStopTrigger command with a rising,falling

edge pattern to set the trigger conditions. Set AutoStopTrigger = 1,0

would look for a rising edge on pin 1 to leave the Working state. In addition, one

may use the AutoStopTimer command to repeat the Working action for a

specified period of time. (i.e., Set AutoStopTimer = 1300 would cause the reader

to perform the Working action for 1.3 seconds and then perform the Evaluation.)

EVALUATION

At the Evaluation decision point, the reader looks to see if new Tags have been

added to the tag list since the last evaluation. If so, it drops to the True Pause

state, if not, it drops to the False Pause state. Note: the Evaluation looks at the

tag list and thereby is dependent on the state of the PersistTime variable.

TRUE/FALSE PAUSE

After evaluation, the Reader sets the output lines to the values specified in the

AutoTrueOutput and AutoFalseOutput commands. This condition is held

for AutoTruePause or AutoFalsePause milliseconds before the test for

Notification. Set AutoTrueOutput = 1 and Set AutoTruePause=20 would

cause the reader to hold pin 1 high and pin 2 low for 20 milliseconds before

returning to the Waiting State.

NOTIFY NEEDED TRIGGER

The reader checks if Automatic Notification is enabled, (NotifyMode=On) and if

the notification conditions are met to see if a notification should be issued. Notify

conditions are set by the state of the NotifyTrigger command and may be set

to “add” “remove” “change” or “true” “false”.

If a notification is to be issued, the tag list data is sent to the NotifyAddress.

The Reader then returns to the Waiting state.

Autonomous Mode Examples

EXAMPLE 1. BACKGROUND READING

In this case, we would like the reader to monitor the tag field continuously. The

application will periodically poll for the tag list. If a new tag is seen, pin 1 will be

flashed high for 50 msec. Otherwise, pin 2 will be flashed high for 50 msec.

AutoModeReset

Set AutoAction=Acquire

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 26

Set AutoStartTrigger=0,0

Set AutoStopTimer = 0

Set AutoTrueOutput =1

Set AutoTruePause =50

Set AutoFalseOutput = 2

Set AutoFalsePause = 50

Set AutoMode=On

EXAMPLE 2. TRIGGERED READING

Here a forklift will cause an electric eye to send a pulse to the reader. We want

the reader to look for the rising edge on this pulse and look for tags for 1.8

seconds before going back to the Wait state. We wont make any changes to the

output pins.

AutoModeReset

Set AutoAction=Acquire

Set AutoStartTrigger=1,0

Set AutoStopTimer = 1800

Set AutoTruePause =0

Set AutoFalsePause = 0

Set AutoMode=On

EXAMPLE 3. TRIGGERED READING W/NOTIFICATION

A trigger is used to start the reading. If a tag is found, send an email message.

After the email is sent, return to the waiting state.

AutoModeReset

Set AutoAction=Acquire

Set AutoStartTrigger=1,0

Set AutoStopTimer = 0

Set AutoTruePause =0

Set AutoFalsePause = 0

Set NotifyAddress = Borg@AlienTechnology.com

Set MailServer= sigourney.alien.com

Set NotifyTrigger=Add

Set NotifyMode=On

Set AutoMode=On

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 27

Notification Mode

The last stage in configuring the autonomous mode is to tell the reader under

what conditions to notify listeners about tag lists. Listeners (network applications /

people) will be notified only when preset conditions arise, such as when new tags

are read, or tags disappear from view.

• Set NotifyTime = time (secs)

The NotifyTime command instructs the reader to send out a copy of its tag

list to a listener every n seconds, regardless of changes to the tag list or not.

Thus, this is a simple, predetermined way to force the reader to send out its

tag list to a listener.

• Set NotifyTrigger = trigger

The NotifyTrigger command specifies a trigger that must occur before a tag

list is sent out to a listener. There are a number of permissible triggers than

can be set:

Trigger Name Meaning

ADD Send message when new tag is read and added to the tag list

REMOVE Send message when a tag is removed from the tag list

CHANGE Send message when a tag is either added to or removed from

the tag list

TRUE Send messages when the evaluation task of the autonomous

state loop evaluates to true, i.e., typically when tags are added

FALSE Send messages when the evaluation task of the autonomous

state loop evaluates to false, i.e., typically when tags are not

found

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 28

Defining the Notification Address

You must tell the reader where to send notification messages to when it is

operating in autonomous mode.

The Alien reader can be instructed to send out messages over the internet to a

specified machine or over email to specified email address. This is configured

using a single command:

• Set NotifyAddress = address

The format of the address indicates the method of delivery:

NotifyAddress Description

user@domain.com

Send a message via e-mail to the address specified. The

address is specified in standard email form, i.e.,

user@domain.com

NOTE: the MailServer parameter must be configured for this to

work.

hostname:port Send a message to a specified port on a networked machine.

The address takes the form “hostname:port.” For example,

“123.01.02.98:3450” or “listener.alientechnology.com:10002”

serial Send a message to the serial connection. The word “serial” is

used as the address. The word is not case sensitive.

Defining the Notification Format

You must tell the reader the format required for any tag list that it sends out.

When a notification message is sent out it contains two parts to its document:

• The first part of the document details the reader that sent the message and

the reason the message was sent.

• The second part to the message is a list of tags (either newly added or

removed tags, or the complete list of tags as seen by the reader):

The format of the message is configured using a single command:

• Set NotifyFormat = format

The format may be one of the following:

NotifyFormat Description

text

Tag lists are sent out as plain text messages, one tag ID per

line.

xml Tag lists are sent out as an XML text format

CHAPTER 3 NANOSCANNER SYSTEM OVERVIEW

NANOSCANNER READER USERGUIDE • DOC ??? 29

• Text formatted tag lists take the form:

#Alien RFID Reader Auto Notification Message

#ReaderName: Spinner Reader

#ReaderType: Alien RFID Tag Reader (Class BPT / 2450Mhz)

#IPAddress: 10.1.70.13

#CommandPort: 23

#Time: 2003/01/21 12:48:59

#Reason: TEST MESSAGE

Tag:1115 F268 81C3 C012 0000 4523, CRC:2483, Disc:2003/01/21 09:00:51, Count:1, Ant:0

Tag:0100 0100 0002 0709 1234 A34E, CRC:8594, Disc:2003/01/21 11:00:10, Count:1, Ant:0

Tag:1054 A334 54E1 7409 F983 2DE5, CRC:2083, Disc:2003/01/21 11:50:03, Count:1, Ant:0

#End of Notification Message

• XML Formatted tag lists take the form:

<Alien-RFID-Reader-Auto-Notification>

<ReaderName>Spinner Reader</ReaderName>

<ReaderType>Alien RFID Tag Reader (Class BPT / 2450Mhz)</ReaderType>

<Reason>TEST MESSAGE</Reason>

<Alien-RFID-Tag-List>

<Alien-RFID-Tag>

</Alien-RFID-Tag>

<Alien-RFID-Tag>

</Alien-RFID-Tag>

</Alien-RFID-Tag-List>

</Alien-RFID-Reader-Auto-Notification>

Listening for Tags over the Network

When a reader has been configured for autonomous mode, all interactive

communications with the reader can be stopped and it can be left to work on its

own.

It is then up to the network application to listen for any notification messages

from the reader.

Libraries are provided in the Nanoscanner Reader Developer’s Kit to provide this

functionality in both Java and Visual Basic languages. In both cases, setting up a

listening service is a simple coding task, involving less than 10 lines of code.

CHAPTER 4 READER-HOST COMMUNICATIONS INSTALLATION

NANOSCANNER READER USERGUIDE • DOC ??? 30

CHAPTER 4

ReaderÙHost Communications Installation

The Nanoscanner reader is designed to be programmed using simple ASCII text-

based commands from any programming language.

Introduction

The CD provided with your Nanoscanner Reader Developer’s Kit includes

extensive examples of code developed by Alien for the Nanoscanner using Java

and VisualBasic programming languages. These examples will serve as models

for developing new software for the reader.

This section of the Nanoscanner Reader Developer’s Guide describes how to

install the reader on a host computer, as well as how to issue commands and

interact with the reader using three different methods:

• Command line operation over serial communication.

• Command line operation over Telnet communication.

• HTML based operation over Web communication.

Whether using direct serial communication with the reader or using one of the

network communication options, you will require serial communications for initial

reader installation.

Audience

For the purposes of this chapter, it is assumed that users:

• May be IT specialists, network specialists or programmers.

• Will operate the reader via the host either with direct serial communication or

via network.

• Have minimal previous knowledge of radio-frequency identification

technology.

Additionally, it is assumed that:

• Users installing the reader via direct serial communication are skilled in the

application of RS-232 serial protocol.

• Users installing the reader for network communication are skilled in basic

network configuration.

CHAPTER 4 READER-HOST COMMUNICATIONS INSTALLATION

NANOSCANNER READER USERGUIDE • DOC ??? 31

• Programmers are competent in at least one programming or scripting

language and have the ability to issue ASCII-based commands with that

language.

Requirements

Serial communication requires:

• A text-based serial communications program (such as Windows

HyperTerminal) running on any computer.

Ethernet communication requires:

• An Ethernet network.

• Standard Web browser or Telnet communication program

Conventions

The following conventions are used in this section:

• Keys to be pressed are shown in brackets and all caps. Example: Press the

[ENTER] key.

• Upon entering any command instruction, you must press [ENTER] to send

the command.

• Specific characters and commands to be typed in are shown within quotation

marks. Example: At the prompt type “Set DHCP=ON”.

• Values to be provided and typed in by the user are shown within brackets in

upper and lowercase. Example: At the prompt type “Set IPaddress=[ IP

address value]” or “Set IPaddress=xxx.xxx.xxx.xxx.” The actual command

typed in would appear as: “Set IPaddress=10.1.60.5”.

• Nanoscanner reader commands are case insensitive. Although, for clarity,

the commands may be shown in upper and lower case in this document, you

may type them in all lowercase characters, if you prefer.

• A space is required between the command (verb) such as “get” or “set” and

the specific parameters as in the example “Get IPaddress.” However, no

space is required between the parameter elements such as “IP” and

“address.”

Setting up Reader-Host Communications

You can interact with the reader via the three methods mentioned earlier: direct

serial, Telnet and Web. Serial and Telnet communications both involve command

line operation. Web communication uses HTML.

Command Line Operation: Direct Serial Communication

This method is required for installing a new Nanoscanner, whether directly or via

network. Serial communications requires no preconfiguration and can be

performed easily with most computers.

CHAPTER 4 READER-HOST COMMUNICATIONS INSTALLATION

NANOSCANNER READER USERGUIDE • DOC ??? 32

This method enables real-time operation of the reader via a serial

communications (“comm.”) port. Serial communication is the simplest means by

which to connect the reader to the host and implement ASCII command protocol.

Command Line Operation: Telnet Communication

Telnet communication requires a network connection via the reader’s Ethernet

port and allows the reader to operate like a Telnet server.

This mode offers the same form of command line interaction with the

Nanoscanner, but requires the Nanoscanner to be configured for and running on

a network in order to use it.

HTML-Based Operation: Web Communication

This mode allows you to operate and interact with the reader via the Web

interface. Web mode offers the simplest means of interaction via a series of

HTML pages and Java Applets served up by the Nanoscanner itself. All

interaction with the reader takes place inside a standard Web browser such as

Internet Explorer or Netscape Navigator.

NOTE: Before for you can configure the reader for network (Telnet or Web)

access, you must first set up the reader for direct serial communications.

By default, all Nanoscanner readers are preconfigured to use DHCP when

presented with an Ethernet connection. However, you must first establish a direct

serial connection in order to learn the reader’s IP Address.

Installing Reader on Host via Serial Port (ALL)

Whether you will ultimately be operating the reader directly via serial

communications or via a network connection, you will need to install the reader

initially using the serial port instructions.

NOTE: Example screens shown in this section are from HyperTerminal.

1. Ensure the reader is properly connected to power and at least one antenna

per installation instructions in Chapter 2.

2. Connect one end of the serial cable to the reader’s COM port and the other

end to either COM port 1 or COM port 2 on the host computer.

3. Launch the desired serial communications program (such as HyperTerminal

which is supplied with Windows 98 and 2000).

4. Enter (or verify) the following settings to configure the serial communications

program:

• Baud Rate: 115200

• Data Bits: 8

• Parity: None

• Stop Bits: 1

• Flow Control: None

CHAPTER 4 READER-HOST COMMUNICATIONS INSTALLATION

NANOSCANNER READER USERGUIDE • DOC ??? 33

Once configured, the software should allow you to communicate with the

Nanoscanner.

• HyperTerminal example configuration screens are shown below:

5. At the command prompt, you may now type any command followed by the

[ENTER] key to submit the command.

The following basic commands are helpful in verifying the reader-host

interface:

• Help (or “h”) – Provides a list of all commands available

• Info (or “i”) – Provides a list of current settings for the reader

• Get TagList – Scans field immediately for tags and reports the results

NOTE: Nanoscanner reader commands are case insensitive and may be typed in

all lowercase characters, if preferred.

CHAPTER 4 READER-HOST COMMUNICATIONS INSTALLATION

NANOSCANNER READER USERGUIDE • DOC ??? 34

For a detailed explanation of all commands available, please refer to Chapter 6:

Reader–Host Protocol.

Network Installation (Optional)

To configure the system for network operation, you will use the commands

shown under the NETWORK heading.

There are 5 NETWORK commands that may be used for network configuration:

• Get | Set DHCP (On of Off)

• Get | Set IP address

• Get | Set Netmask

• Get | Set Gateway

• Get | Set DNS

1. To access the command list, type “H” or “Help”.

2. If DHCP (Dynamic Host Configuration Protocol - an automatic configuration

protocol that runs on many networks) is supported at your site, proceed to

step 3.

If DHCP is NOT supported at your site, skip to step 6.

If DHCP is supported at your site:

3. Type “Set DHCP=ON”.

• DHCP will automatically configure the other four parameters.

4. Issue the command “Get IPaddress” and the reader will return its assigned

address.

5. Skip to step 9.

If DHCP is not supported at your site:

6. Type “Set DHCP=OFF”.

• Reader will return the message “DHCP = OFF”.

7. Contact your system administrator for the following parameter values:

IPaddress

Netmask (or sub-netmask)

Gateway

DNS

8. Type each of the 4 commands below with the assigned values:

Set IPaddress=xxx.xxx.xxx.xxx

Set Netmask=xxx.xxx.xxx.xxx (or sub-netmask)

Set Gateway=xxx.xxx.xxx.xxx

Set DNS=xxx.xxx.xxx.xxx

• If value is accepted, the reader will return accepted value.

CHAPTER 4 READER-HOST COMMUNICATIONS INSTALLATION

NANOSCANNER READER USERGUIDE • DOC ??? 35

• If value is not accepted, reader will return “0.0.0.0”.

9. Type “Reboot” to reboot the reader and implement the commands.

To verify your network connection to the reader:

10. Launch a browser.

11. Enter the reader’s assigned IP address.

• If the IP address is valid, the Alien reader portal will display.

12. For Web access, click the [ENTER] box.

For Telnet access, skip to step 13.

13. At the prompt, enter your username and password. (These are case

sensitive and must be typed as specified.)

Current settings are:

• Username = alien

Web portal (above)

Telnet portal (right)

CHAPTER 4 READER-HOST COMMUNICATIONS INSTALLATION

NANOSCANNER READER USERGUIDE • DOC ??? 36

• Password = password

14. You are now ready to interact with the reader via commands.

• For Telnet operation, you will be using the text command lines in the

same manner as in direct serial communication. The only difference is in

the use of the “Q” command to quit the Telnet session.

• For Web operation, you will be using the HTML screens as shown.

Reader commands and instructions for their use in both command line and

HTML operations are provided in the next chapter, Chapter 5: Reader-Host

Protocol.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 37

CHAPTER 5

ReaderÙHost Protocol

The Reader <–> Host protocol is a text-based communications protocol for

configuring and operating the Alien Nanoscanner RFID reader for enterprise host

systems connectivity.

Introduction

This chapter describes the programming interface that links the Alien

Nanoscanner RFID reader to the outside world.

For a overview of the reader system, see Chapter 3: Nanoscanner System

Overview.

For instructions on setting up reader operation via a host computer, see Chapter

4: Reader-Host Communications Installation.

Reader Operation Overview

As detailed in Chapter 4, you may interact with the reader and configure its

operation using either of two methods:

• Text-based command line operation (via direct serial or Telnet connection)

• Web-based HTML operation

For the purposes of these instructions, the serial and Telnet operations will be

considered essentially identical. Where any significant differences exist in the

command line operation methods or the Web-based HTML operation, the

instructions will note those exceptions.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 38

Text-Based Command Line Operation

To interact with the reader via command line operation you must either be

communicating directly with the reader via the serial port connection to the host,

or via the Internet and a Telnet connection.

In both cases the screens will look similar and will thus be considered identical

for the purposes of the instructions that follow.

Telnet Exceptions:

• In Telnet operation you must issue the command “Q” to quit the session.

• Accessing reader control via Telnet requires an authorized user name and

password (both of which can be changed via the General command set).

Web-based HTML Operation

The Nanoscanner reader includes a built-in Web server that can serve up a

number of easy-to-use Web pages for configuring and using the reader.

Like Telnet, the Web connection also requires an authorized user name and

password.

Telnet connection (right)

Direct serial connection via

HyperTerminal (below)

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 39

Most of the pages served up by the Web server are simple HTML pages.

However there also a number of simple Java Applets that are used to provide an

interactive environment for reading tags in the field. These Java Applets are all

Java 1.1 compliant applets and will work in standard Netscape and Internet

Explorer browsers.

Once access with the reader has been established through the Web, you may

execute any of the reader commands discussed in this chapter. The presentation

of these commands differs from command-line operation only in the simplicity

and convenience of the HTML screens and prompts.

Web-based

HTML screen

showing general

commands tab

with username

and password

fields.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 40

Commands Overview

There are two distinct categories of reader-host command: those initiated by the

enterprise host (interactive commands), and those initiated by the reader itself

(autonomous commands).

INTERACTIVE COMMANDS

Interactive commands are initiated by a programmer, who creates and issues a

command to the reader. The reader always responds to these commands with an

immediate reply.

Interactive commands are used to configure and operate the reader, as well as to

interrogate tags and retrieve stored lists on demand.

AUTONOMOUS COMMANDS

Autonomous commands instruct the reader to perform certain tasks, without

human intervention, according to conditions set by the programmer.

These commands typically tell the reader to read tags and then send messages

to the outside world based on user-defined triggers. For example, the reader can

be instructed to search the field until it sees a tag, then to read the tag and mail

the tag ID to a specified email address.

Command Format

All commands between the enterprise host system and the reader are human

readable ASCII text-based messages. For example, a command to set the logical

name of the reader using the Set Reader Name command takes the form:

Set ReaderName = My Alien Reader [CR][LF]

All commands to the reader are single line ASCII commands. These commands

are always terminated by a single carriage return / line feed character pair

[CR][LF], ascii code 0x0D followed by ascii 0x0A.

All replies from the reader are either single line or multiple line ASCII replies.

These replies are always terminated by a single carriage return / line feed

character pair [CR][LF] followed by a NULL character, ASCII codes 0x0D, 0x0A,

0x00. Where a reply comprises multiple text lines, each line is separated by a

single carriage return / line feed character pair [CR][LF], ascii code 0x0D followed

by ASCII 0x0A.

An example of a single line command / response is:

>Get ReaderName[CR][LF]

>ReaderName = Alien Reader[CR][LF][0]

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 41

An example of a multiple line command / response is:

>Get ReaderVersion[CR][LF]

>ReaderVersion = 1.0[CR][LF]

FirmwareVersion = 1.0[CR][LF]

SoftwareVersion = 1.0[CR][LF][0]

Commands are case insensitive, i.e., “set readername” is equivalent to “Set

ReaderName.”

Suppressing Command Prompts

By default all commands are set up for interactive use over a serial console or

telnet style interface. Consequently replies are always followed by a command

prompt indicating that user input is required. Often this command prompt is not

required, especially when client software is written that programmatically

communicates with the reader. To account for these applications, all command

prompts can be suppressed by making the first character of any command be an

0x1 character. For example:

INTERACTIVE COMMAND FORMAT

Alien> get ReaderName[CR][LF]

ReaderName = Alien Reader[CR][LF][0]

Alien>[CR][LF]

NON-INTERACTIVE COMMAND FORMAT

[1]get ReaderName[CR][LF]

ReaderName = Alien Reader[CR][LF][0]

XML Commands

There are a few cases where text-based replies and messages are formatted in

XML format for easier computer parsing. The following messages are sent in

XML format:

• Heartbeat Messages (see Heartbeat command description).

• Notification Messages (if notifyFormat = xml; see Notify command

description).

• The Get TagList commands (if tagListFormat = xml)

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 42

Command Summaries

Command List

General Commands

• Help

• Info

• ! (repeat last command)

• Q (Quit) Telnet Only

• Get|Set ReaderName

• Get ReaderType

• Get ReaderVersion

• Get|Set Username

• Get|Set Password

• Get|Set AntennaSequence

• Reboot

• FactorySettings

Network Configuration

Commands

• Get|Set DHCP

• Get|Set IPAddress

• Get|Set Gateway

• Get|Set Netmask

• Get|Set DNS

• Get|Set HeartbeatPort

• Get|Set HearbeatTime

• Get|Set CommandPort

Time Commands

• Get|Set Time

• Get|Set TimeZone

• Get|Set TimeServer

Tag List Commands

• Get|Set AcquireMode

• Get|Set PersistTime

• Get TagList (n)

• Get|Set TagListFormat

• Clear TagList

•

External I/O Commands

• Get|Set ExternalOutput

• Get ExternalInput

Autonomous Mode

Commands

• Get|Set AutoMode

• Get|Set AutoWaitOutput

• Get|Set AutoStartTrigger

• Get|Set AutoWorkOutput

• Get|Set AutoAction

• Get|Set AutoStopTrigger

• Get|Set AutoStopTimer

• Get|Set AutoTrueOutput

• Get|Set AutoTruePause

• Get|Set AutoFalseOutput

• Get|Set AutoFalsePause

• AutoModeReset

Notify Mode Commands

• Get|Set NotifyMode

• Get|Set NotifyAddress

• Get|Set NotifyFormat

• Get|Set NotifyTime

• Get|Set NotifyTrigger

• Get|Set MailServer

• NotifyNow

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 43

Command List with Functions

GENERAL COMMANDS

Command Description

Help (or “h”) List all reader commands available.

Info (or (“i”) List all current reader settings.

Get TagList Scan the field, read tags and report. (see Tag List

Commands for details.)

! (exclamation mark) Repeats the last command issued.

Q Quit session (TELNET ONLY)

Get ReaderName

Set ReaderName

Allows an arbitrary name to be associated with and

retrieved from the reader.

Get ReaderType Get a description of the reader type

Get ReaderVersion Get the reader software/hardware versions.

Get Username

Set Username

Get and Set the Username used for the Network

based access control

Get Password

Set Password

Get and Set the Password used for the Network based

access control

Get AntennaSequence

Set AntennaSequence

Get and Set the antenna port sequence the reader

should use.

Reboot Reboot the reader.

FactorySettings Reset the reader to its original factory settings.

NETWORK CONFIGURATION COMMANDS

Command Description

Get DHCP

Set DHCP

Turn on or off the DHCP mode for the reader. If DHCP

is on, the reader will automatically configure itself for

the network on power-up.

Get IPAddress

Set IPAddress

Set and Get the network ID (IP Address) of the reader.

If DHCP is enabled this will be set automatically.

Get Gateway

Set Gateway

Set and Get the network gateway. If DHCP is enabled

this will be set automatically.

Get Netmask

Set Netmask

Set and Get the subnet mask. If DHCP is enabled this

will be set automatically.

Get DNS

Set DNS

Set and Get the domain name server. If DHCP is

enabled this will be set automatically.

Get HeartbeatPort

Set HeartbeatPort

The reader periodically sends out heartbeat messages

to the network. The port over which this is done can

configured.

Get HeartbeatTime

Set HeartbeatTime

Set and Get the time interval, in seconds, between

successive heartbeats.

Get CommandPort

Set CommandPort

The reader reacts to commands over the network only

if they are directed at a specific command port on the

reader. This port can be configured using these

commands.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 44

TIME COMMANDS

Command Description

Get Time

Set Time

Get and Set the real time clock on the reader in Local

time.

Get TimeZone

Set TimeZone

Get and Set the time zone offset from UTC for the real

time clock.

Get TimeServer

Set TimeServer

Get and Set the location of a network time server.

EXTERNAL IO COMMANDS

Command Description

Get ExternalOutput

Set ExternalOutput

Get and Set the External Output pin values.

Get ExternalInput Get the External Input pin values.

TAG LIST COMMANDS

Command Description

Get AcquireMode

Set AcquireMode

Specifiy how the Nanoscanner reads tags.

Get PersistTime

Set PersistTime

Get the current list of active tags the from reader in

plain text format.

Get TagList (n)

Get the current list of active tags the from reader in

plain text format.

Get TagListFormat

Set TagListFormat

Set and Get the format for tag lists.

Clear TagList Clear the list of active tags on the reader.

AUTONOMOUS MODE COMMANDS

Command Description

Get AutoMode

Set AutoMode

Switch auto mode on and off.

Get AutoWaitOutput

Set AutoWaitOutput

Speicify the value of the output pins while in wait

mode.

Get AutoStartTrigger

Get and Set the trigger that sends the auto mode state

into working state.

Get AutoWorkOutput

Set AutoWorkOutput

Specify the value of the output pins while in work

mode.

Get AutoAction

Set AutoAction

Get and Set the action to perform in auto mode

Get AutoStopTrigger Set and Get the external trigger that will move the auto

mode state from work mode to evaluate mode.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 45

Set AutoStopTrigger

Get AutoStopTimer

Set AutoStopTimer

Set and Get the timer that will move the auto mode

state from work mode to evaluate mode.

Get AutoTrueOutput

Set AutoTrueOutput

Specify the value of the output pins when the auto

mode evaluation returns a True condition.

Get AutoTruePause

Set AutoTruePause

Set and Get the pause time after the auto mode

evaluation returns a True condition.

Get AutoFalseOutput

Set AutoFalseOutput

Specify the value of the output pins when the auto

mode evaluation returns a False condition.

Get AutoFalsePause

Set AutoFalsePause

Set and Get the pause time after the auto mode

evaluation returns a False condition.

AutoModeReset Reset all automode values to their default states.

NOTIFY MODE COMMANDS

Command Description

Get NotifyMode

Set NotifyMode

Switch notify mode on and off.

Get NotifyFormat

Set NotifyFormat

Get and Set the format for tag lists pushed out in notify

mode.

Get NotifyAddress

Set NotifyAddress

Get and Set the address to push tag lists to.

Get NotifyTime

Set NotifyTime

Get and Set the time interval for automatically pushing

tag lists.

Get NotifyTrigger

Set NotifyTrigger

Get and Set the trigger for pushing tag lists.

Get MailServer

Set MailServer

Set and Get an SMTP mail server. This is only

required if notification email messages are sent out.

NotifyNow Send an immediate message via the notification

system.

Using the Commands

This section describes each command, its use and the response formats.

NOTE: Nanoscanner reader commands are case insensitive, that is, you can

use upper or lower case, or any combination thereof, and the reader will

understand the command. Capitalization of commands is used in this document

and in actual command responses is solely for the purpose of readability.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 46

General Commands – Text Based

General commands cover basic reader and antenna functions and information.

HELP (H)

This command lists all reader commands available. You may also type just the

letter “h” to send this command.

INFO (I)

This provides a list of current reader settings. You may also type just the letter “i”

to send this command.

This command (exclamation mark) asks the reader to repeat the last command

issued.

Q (QUIT)

(For Telnet operation only) The Quit command allows you to exit the current

Telnet session.

GET TAGLIST

This instructs the reader to scan the field for tags, read them and report the

results. (For more details, see the Get TagList command under the Tag List

Commands section.)

GET READERNAME

SET READERNAME

The reader can be assigned an arbitrary text name to aid identification in

multiple-reader environments. This name can be retrieved and changed at any

time throughout reader operation.

Example

Command

Response

>Get ReaderName

>ReaderName = My First Alien Reader

Command

Response

>Set ReaderName = My Second Alien Reader

>ReaderName = My Second Alien Reader

GET READERTYPE

The reader type can be retrieved using this command. The resulting text will be a

single-line reply describing the model number of the reader and related

information.

Example

Command

Response

>Get ReaderType

>ReaderType = Alien RFID Tag Reader (Class 1 / 915MHz)

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 47

GET READERVERSION

The reader version can be retrieved using this command. The resulting text is a

multi-line reply. Each line of the reply describes the version number of a major

reader component.

Example

Command

Response

>Get ReaderVersion

>Enterprise Software Version = 1.05.01

Micro Firmware Version = 02.04.18

DSP Firmware Version = 02.13.02

GET USERNAME

SET USERNAME

The reader can be operated over the network. When operated in this mode it

uses a simple username/password authentication scheme to stop unwelcome

visitors accessing it. This command allows the username to be defined and

obtained.

• A username/password pair is not required when operating the reader via

serial connection.

• The default username setting is “alien” NOTE: The username is case

sensitive and must be entered in all lowercase.

Example

Command

Response

>Get Username

>Username = alien

Command

Response

>Set Username = hal

>Username = hal

GET PASSWORD

SET PASSWORD

The reader can be operated over the network. When operated in this mode it

uses a simple username/password authentication scheme to stop unwelcome

visitors accessing it. This command allows the password to be defined and

obtained.

• A username/password pair is not required when operating the reader via

serial connection.

• The default password setting is “password” NOTE: The password is case

sensitive and must be entered in all lowercase.

Example

Command

Response

>Get Password

>Password = password

Command

Response

>Set Password = 1234fab

>Password = 1234fab

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 48

GET ANTENNASEQUENCE

SET ANTENNASEQUENCE

The reader can support the use of multiple antennas. This command allows the

user to select which antenna port(s) to use and in what sequence.

NOTE: Currently, the reader supports only one set of antennas on port 0.

• If using only one antenna, you will assign just one antenna port number.

• To instruct the reader to cycle through the antenna list on each

successive tag read, enter the port designations for all antennas to be used

(0 and 1) and the order in which they should be used.

Multiple antennas are specified by passing in a comma separated list as the

argument. An asterisk (*) by a number indicates the antenna currently in use.

The default value is 0.

Example

Command

Response

>Get AntennaSequence

>AntennaSequence = 0*

Command

Response

>Get AntennaSequence

>AntennaSequence = 0, 1*

To always use antenna 1:

Command

Response

>Set AntennaSequence =1

>AntennaSequence =1

To cycle between antenna 0 and antenna 1:

Command

Response

>Set AntennaSequence =0, 1

>AntennaSequence =0*, 1

REBOOT

The Reboot command will immediately cause the reader to reboot itself.

Example

Command

Response

>Reboot

>Reader is rebooting now !

FACTORYSETTINGS

The FactorySettings command will reset all settings in the reader to their default

values.

Example

Command

Response

>FactorySettings

>All settings have been reset !

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 49

General Commands – Web Based

General commands are issued via the Web page to manipulate reader and

antenna functions and access information.

COMMANDS/OPERATIONS VIA WEB GENERAL TAB

Command equivalents found on the Web-based “General” tab are:

• Get | Set ReaderName

• Get ReaderType and Reader Version

• Get | Set Username

• Get | Set Password

This screen

lets you

cancel or

continue to

reset reader

to factory

settings.

Web view

General tab

covers all Get

and Set

general

commands...

...Plus

Reboot

and

Factory

Settings

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 50

• Get | Set AntennaSequence

• Reboot

• Factory settings (see below)

When you click on the “Reset reader factory settings” option at the bottom of

the General tab screen, you will have an opportunity to change your mind

before the command is accepted.

At this second screen you may click -[CANCEL] to stop the reset, or you can

click the [Reset Reader Factory Settings] button to proceed.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 51

Network Configuration Commands – Text Based

These commands allow you to configure and retrieve settings related to reader

communications with the network.

GET DHCP

SET DHCP

The reader supports automatic network configuration using the widely available

DHCP protocol. If DHCP is available at the reader installation site, this protocol

can be switched on. If DHCP is not available or not desired the use of this

protocol can be switched off.

• Valid command parameters are ON and OFF.

• The default setting is ON.

NOTE: After making changes with this command, you must reboot the reader to

implement the changes.

Example

Command

Response

>Get DHCP

>DHCP=ON

Command

Response

>Set DHCP=OFF

>DHCP=OFF

GET IPADDRESS

SET IPADDRESS

If DHCP is not used for automatic configuration, the reader must be manually

configured for use on a network. The IPAddress command pair allow you to

assign and retrieve the host’s IP address.

NOTE: After making changes with this command, you must reboot the reader to

implement the changes.

Example

Command

Response

>Get IPAddress

>IPAddress =12.34.56.78

Command

Response

>Set IPAddress =34.55.33.12

>IPAddress =34.55.33.12

GET GATEWAY

SET GATEWAY

If DHCP is not used for automatic configuration, the reader must be manually

configured for use on a network. The gateway command pair allow the network

gateway to be assigned and retrieved.

• Gateway must be specified as a numerical IP address.

NOTE: After making changes with this command, you must reboot the reader to

implement the changes.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 52

Example

Command

Response

>Get Gateway

>Gateway=34.56.78.90

Command

Response

>Set Gateway=12.56.23.01

>Gateway=12.56.23.01

GET NETMASK

SET NETMASK

If DHCP is not used for automatic configuration, the reader must be manually

configured for use on a network. The subnet mask command pair allow the

subnet mask to be assigned and retrieved.

• A subnet mask must be specified as a numerical IP address.

NOTE: After making changes with this command, you must reboot the reader to

implement the changes.

Example

Command

Response

>Get Netmask

>Netask=255.255.255.128

Command

Response

>Set Netmask=255.255.255.0

>Netmask=255.255.255.0

GET DNS

SET DNS

If DHCP is not used for automatic configuration, the reader must be manually

configured for use on a network. The DNS command pair allow the DNS server

location to be assigned and retrieved.

• A DNS server must be specified as a numerical IP address.

NOTE: After making changes with this command, you must reboot the reader to

implement the changes.

Example

Command

Response

>Get DNS

>DNS=12.34.56.78

Command

Response

>Set DNS=45.224.124.34

>DNS=45.224.124.34

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 53

GET HEARTBEATPORT

SET HEARTBEATPORT

The reader can be configured to periodically send out a heartbeat message to

the network. This heartbeat takes the form of a single UDP packet (Universal

Datagram Packet) broadcast out to the entire subnet that the reader is configured

for.

The Set HeartbeatPort command allows you to configure the actual port number

that this packet is sent out to.

Listening for this heartbeat can be used to initially locate a reader on a network

and subsequently make sure that the reader is still alive.

• The default port setting for this command is 3988

The format of the UDP packet is a single XML document detailing the reader:

<Alien-RFID-Reader-Heartbeat>

<ReaderName>Alien RFID Reader</ReaderName>

<ReaderType>Alien RFID Tag Reader (Class 1 / 915Mhz)</ReaderType>

</Alien-RFID-Reader-Heartbeat>

NOTE: Changes made with this command will take effect immediately.

Example

Command

Response

>Get HeartbeatPort

>HeartbeatPort=3004

Command

Response

>Set HeartbeatPort=10002

>HeartbeatPort=10002

GET HEARTBEATTIME

SET HEARTBEATTIME

The reader can be configured to periodically send out a heartbeat message to

the network. This heartbeat takes the form of a single UDP packet (Universal

Datagram Packet) broadcast out to the entire subnet that the reader is configured

for.

The time interval between heartbeats can be assigned and retrieved using this

command.

• All intervals are specified in seconds.

• A setting of zero (seconds) will suspend the output of any further heartbeats.

• The default setting for this command is 30 seconds.

NOTE: Changes made with this command will take effect immediately.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 54

Example

Command

Response

>Get HeartbeatTime

>HeartbeatTime=30

Command

Response

>Set HeartbeatTime=60

>HeartbeatTime=60

GET COMMANDPORT

SET COMMANDPORT

The reader can be configured and operated over the network using standard

network sockets. The CommandPort settings are used to assign and retrieve the

exact port number used by the reader for this network connectivity.

• The default setting for this command is 23 (the standard Telnet port)

Changes to this setting do not affect serial communication and/or Web

communication with the reader.

NOTE: Changes made with this command will take effect immediately.

Example

Command

Response

>Get CommandPort

>CommandPort=23

Command

Response

>Set CommandPort=10004

>CommandPort=10004

Network Commands – Web Based

Network commands are issued via the Web page to set up and access reader

networking parameters.

COMMANDS/OPERATIONS VIA WEB NETWORK TAB

Command equivalents found on the Web-based “Network” tab are:

• Get DHCP

Toggles DHCP

On and Off

Web view

Network tab

covers all Get

and Set

network

commands.

CHAPTER 7 WEB BASED APPLICATION EXAMPLES

NANOSCANNER READER USERGUIDE • DOC ??? 55

• Set DHCP (toggles DHCP On and OFF)

• Get | Set IPaddress

• Get | Set Gateway

• Get | Set Netmask

• Get | Set DNS

• Get | Set HeartbeatPort

• Get | Set HearbeatTime

• Get | Set CommandPort
