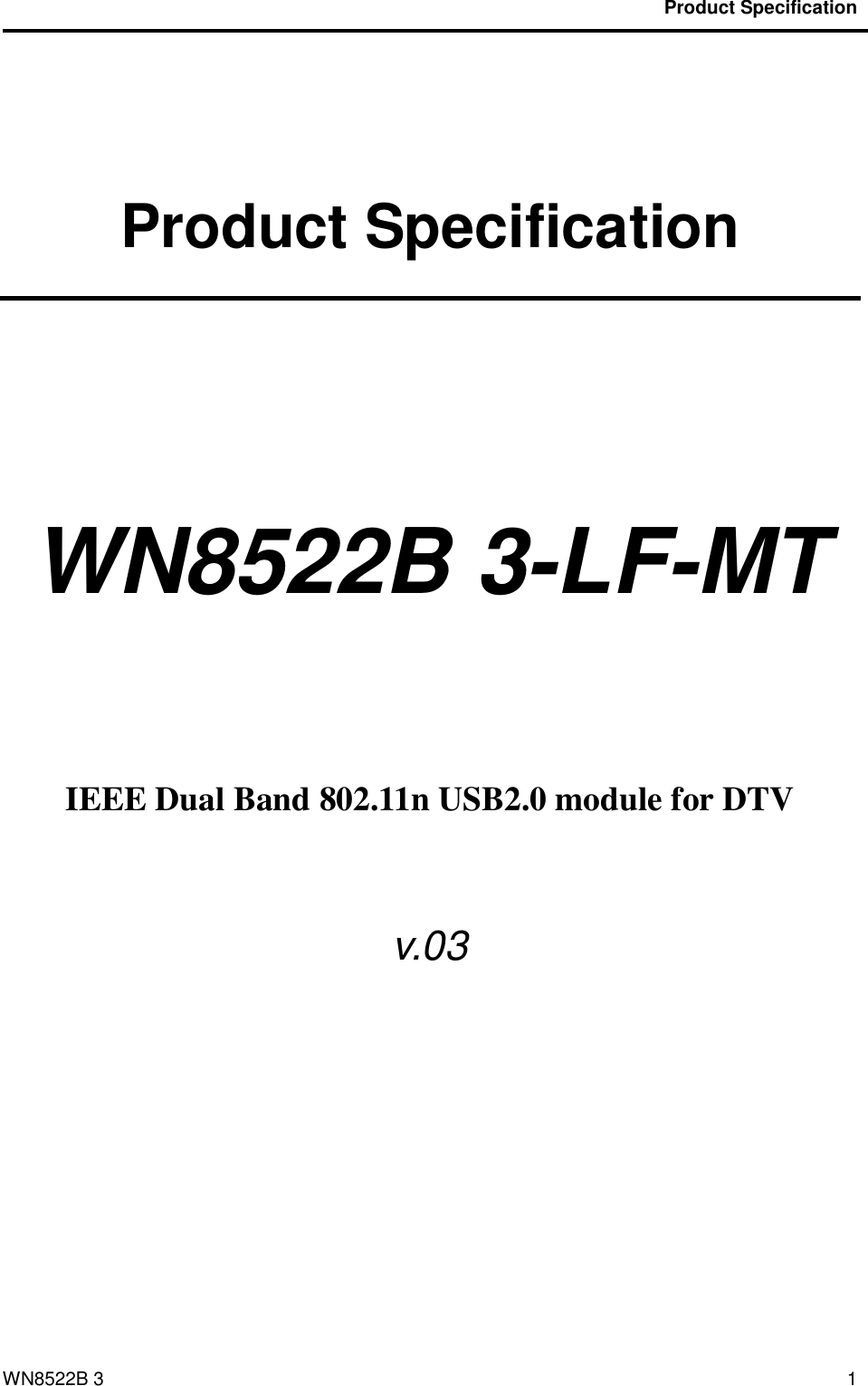

Product Specification WN8522B 3 1 Product Specification WN8522B 3-LF-MT IEEE Dual Band 802.11n USB2.0 module for DTV v.03

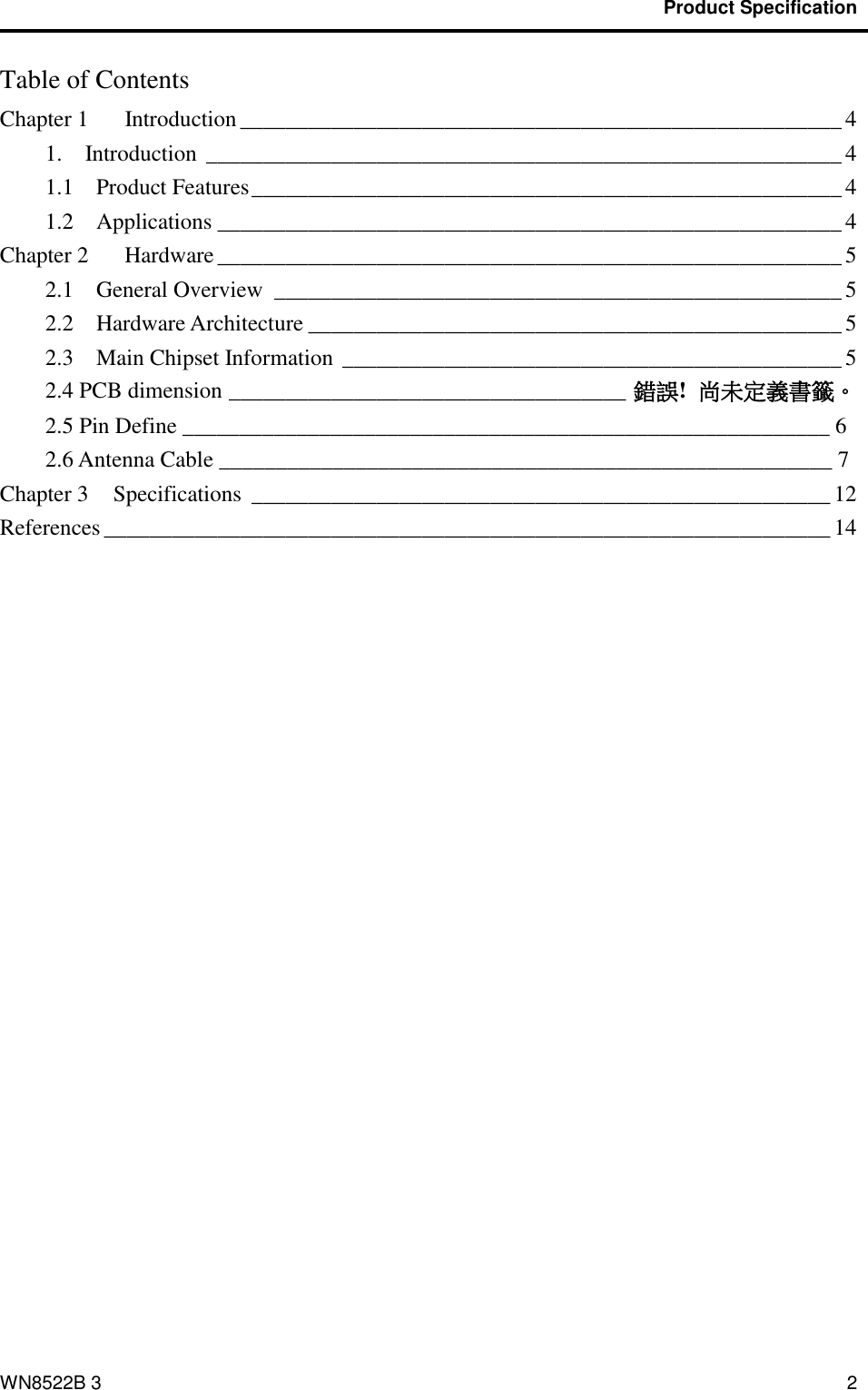

Product Specification WN8522B 3 2 Table of Contents Chapter 1 Introduction _____________________________________________________ 4 1. Introduction ________________________________________________________ 4 1.1 Product Features ____________________________________________________ 4 1.2 Applications _______________________________________________________ 4 Chapter 2 Hardware _______________________________________________________ 5 2.1 General Overview __________________________________________________ 5 2.2 Hardware Architecture _______________________________________________ 5 2.3 Main Chipset Information ____________________________________________ 5 2.4 PCB dimension ___________________________________ 錯誤! 尚未定義書籤。 2.5 Pin Define _________________________________________________________ 6 2.6 Antenna Cable ______________________________________________________ 7 Chapter 3 Specifications ___________________________________________________ 12 References ________________________________________________________________ 14

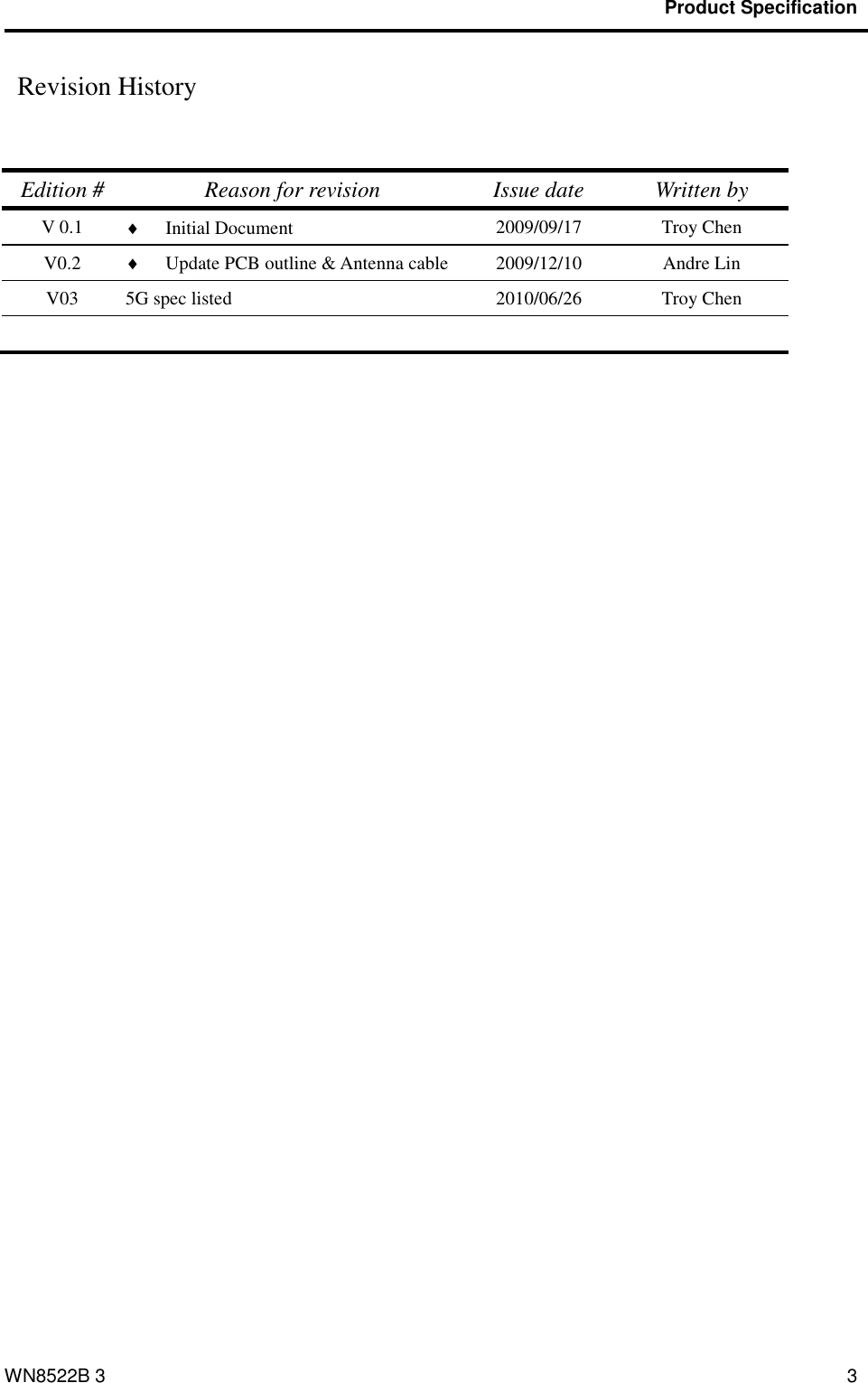

Product Specification WN8522B 3 3 Revision History Edition # Reason for revision Issue date Written by V 0.1  Initial Document 2009/09/17 Troy Chen V0.2  Update PCB outline & Antenna cable 2009/12/10 Andre Lin V03 5G spec listed 2010/06/26 Troy Chen

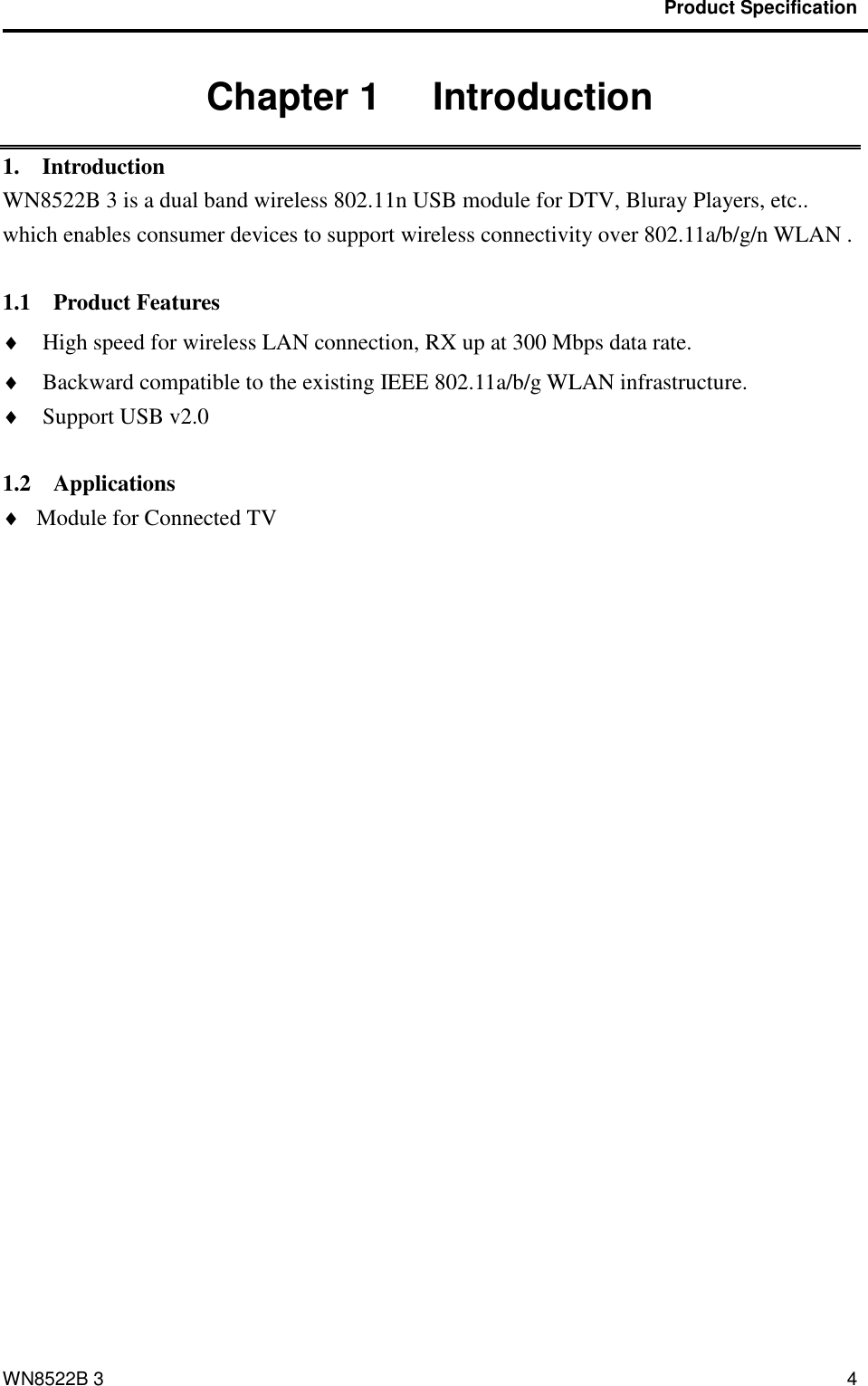

Product Specification WN8522B 3 4 Chapter 1 Introduction 1. Introduction WN8522B 3 is a dual band wireless 802.11n USB module for DTV, Bluray Players, etc.. which enables consumer devices to support wireless connectivity over 802.11a/b/g/n WLAN . 1.1 Product Features  High speed for wireless LAN connection, RX up at 300 Mbps data rate.  Backward compatible to the existing IEEE 802.11a/b/g WLAN infrastructure.  Support USB v2.0 1.2 Applications  Module for Connected TV

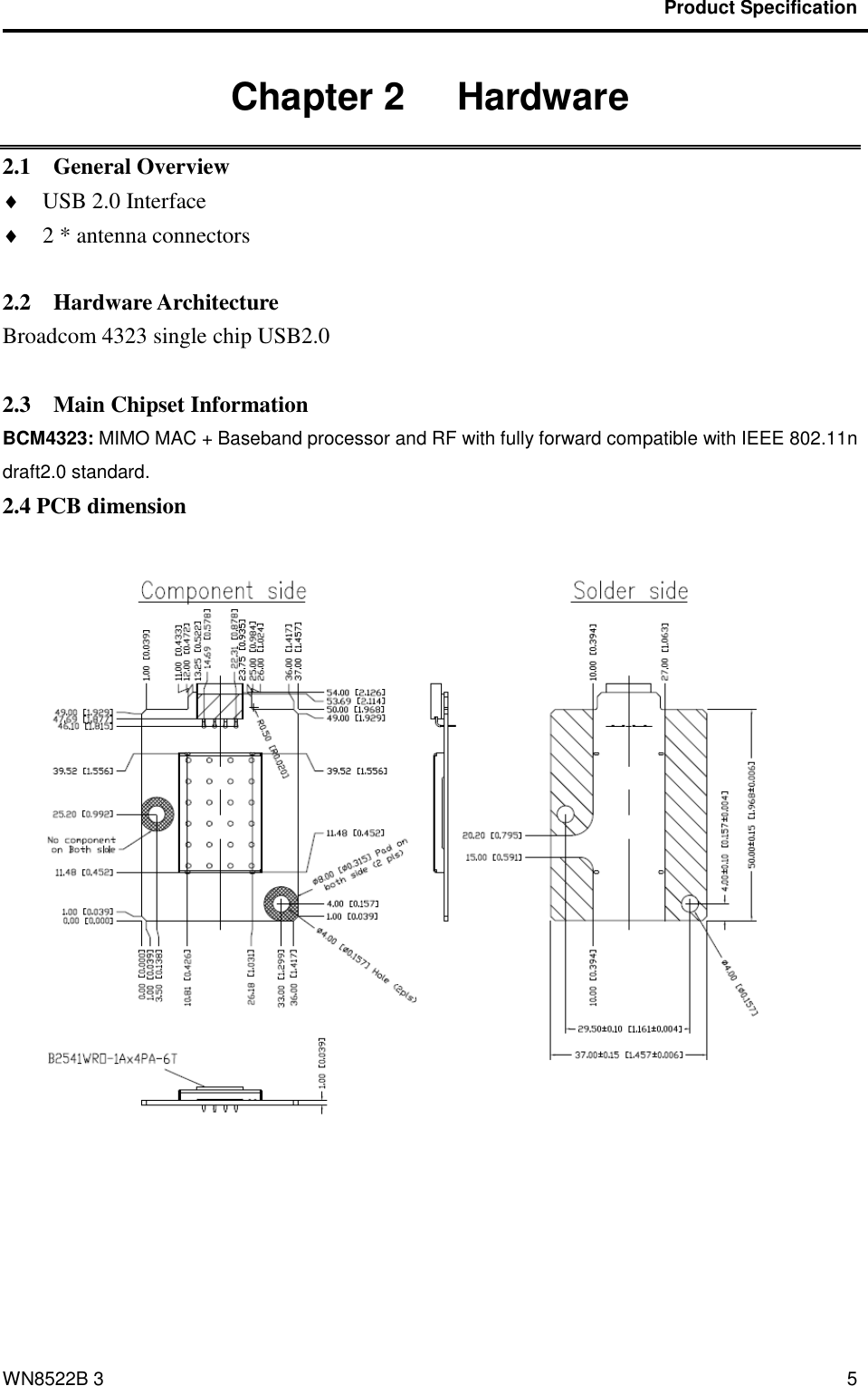

Product Specification WN8522B 3 5 Chapter 2 Hardware 2.1 General Overview  USB 2.0 Interface  2 * antenna connectors 2.2 Hardware Architecture Broadcom 4323 single chip USB2.0 2.3 Main Chipset Information BCM4323: MIMO MAC + Baseband processor and RF with fully forward compatible with IEEE 802.11n draft2.0 standard. 2.4 PCB dimension

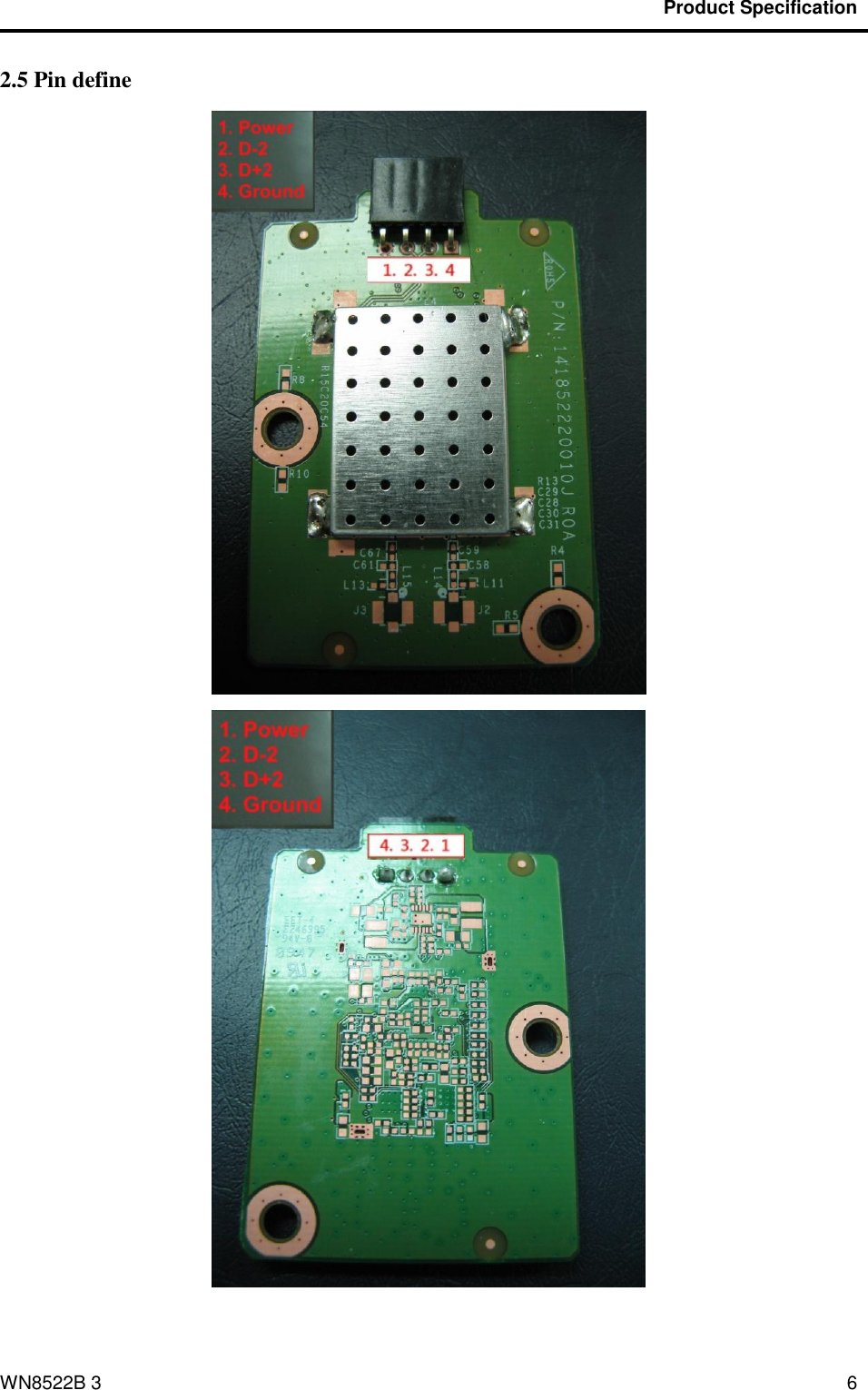

Product Specification WN8522B 3 6 2.5 Pin define

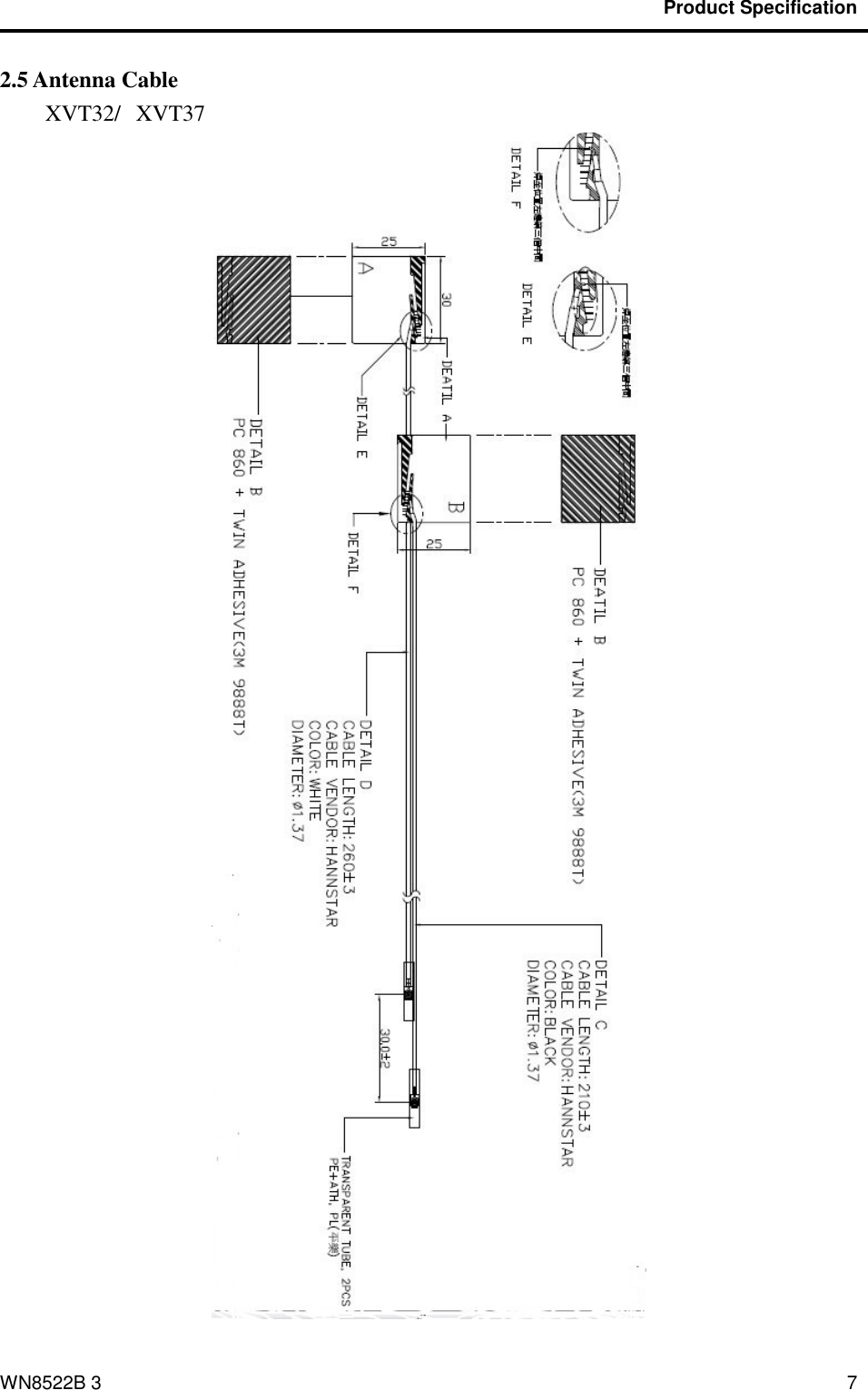

Product Specification WN8522B 3 7 2.5 Antenna Cable XVT32/ XVT37

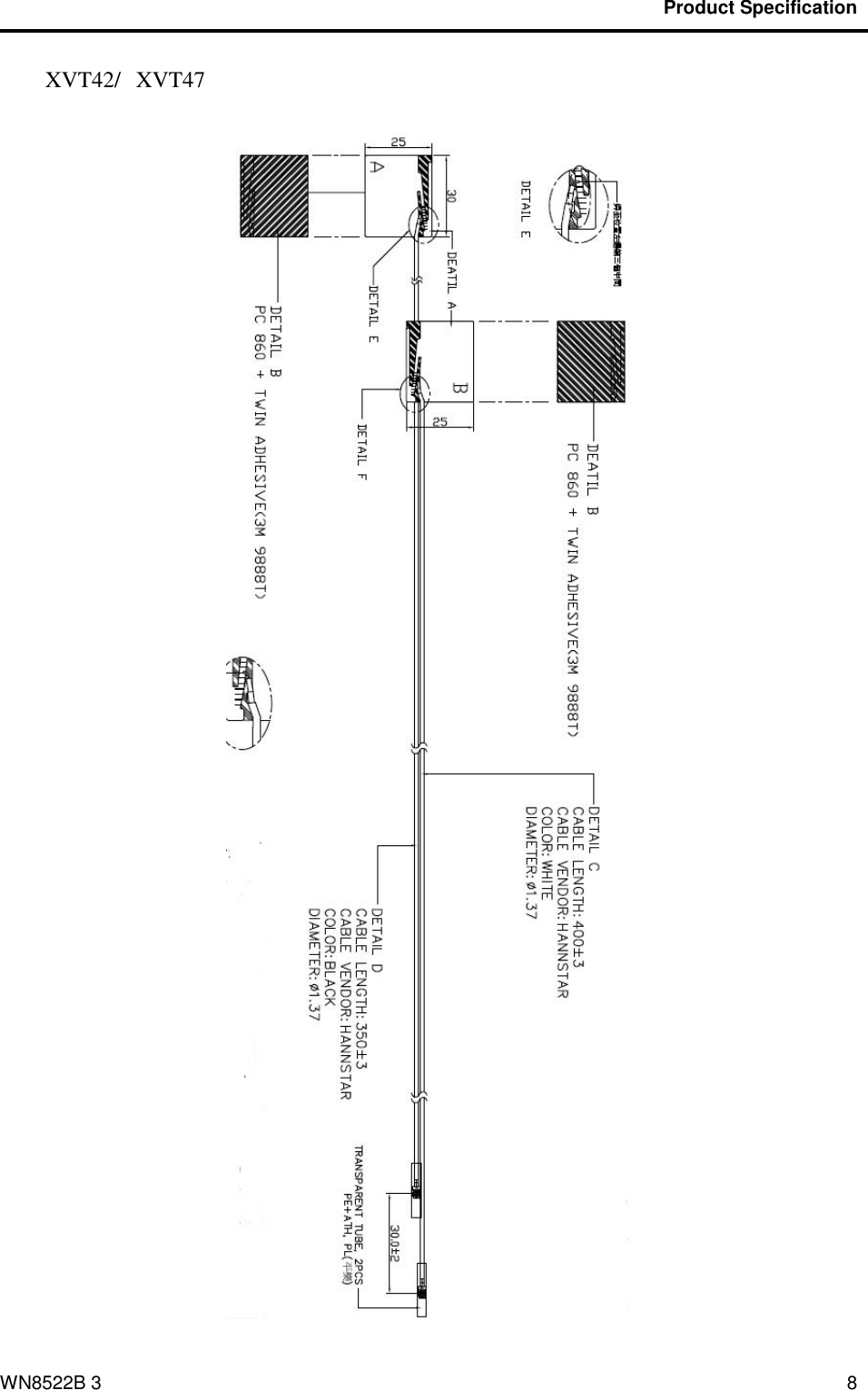

Product Specification WN8522B 3 8 XVT42/ XVT47

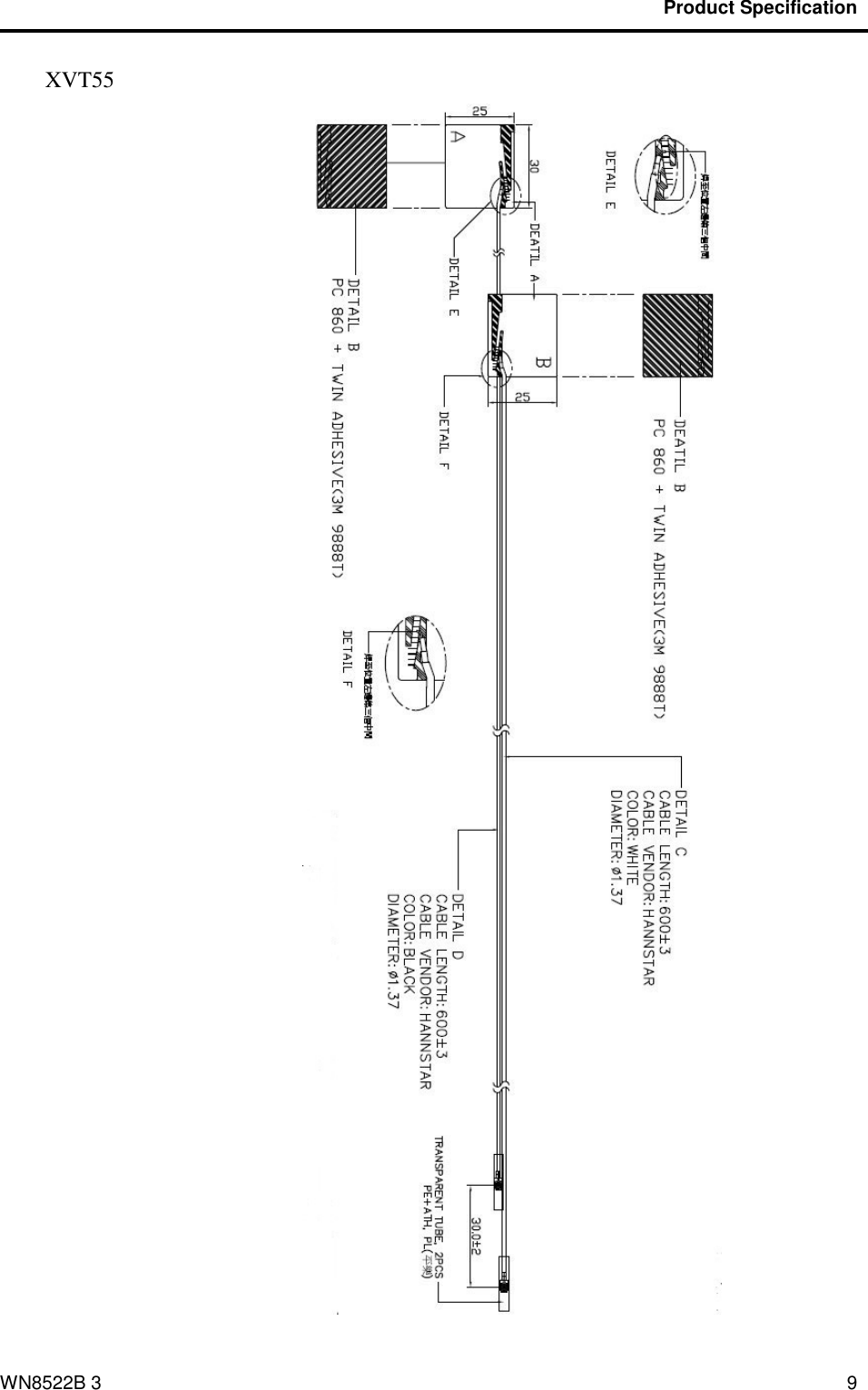

Product Specification WN8522B 3 9 XVT55

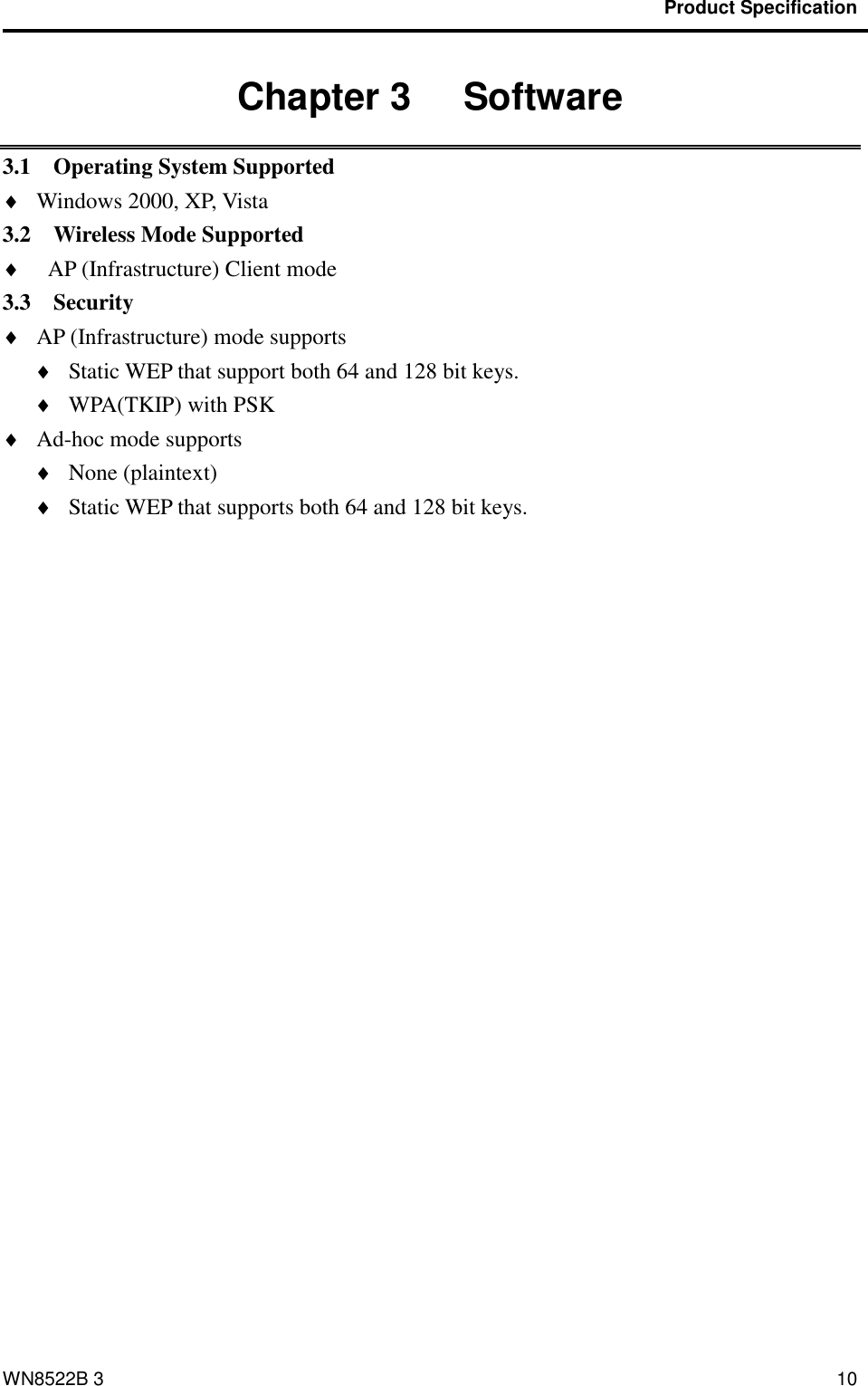

Product Specification WN8522B 3 10 Chapter 3 Software 3.1 Operating System Supported  Windows 2000, XP, Vista 3.2 Wireless Mode Supported  AP (Infrastructure) Client mode 3.3 Security  AP (Infrastructure) mode supports  Static WEP that support both 64 and 128 bit keys.  WPA(TKIP) with PSK  Ad-hoc mode supports  None (plaintext)  Static WEP that supports both 64 and 128 bit keys.

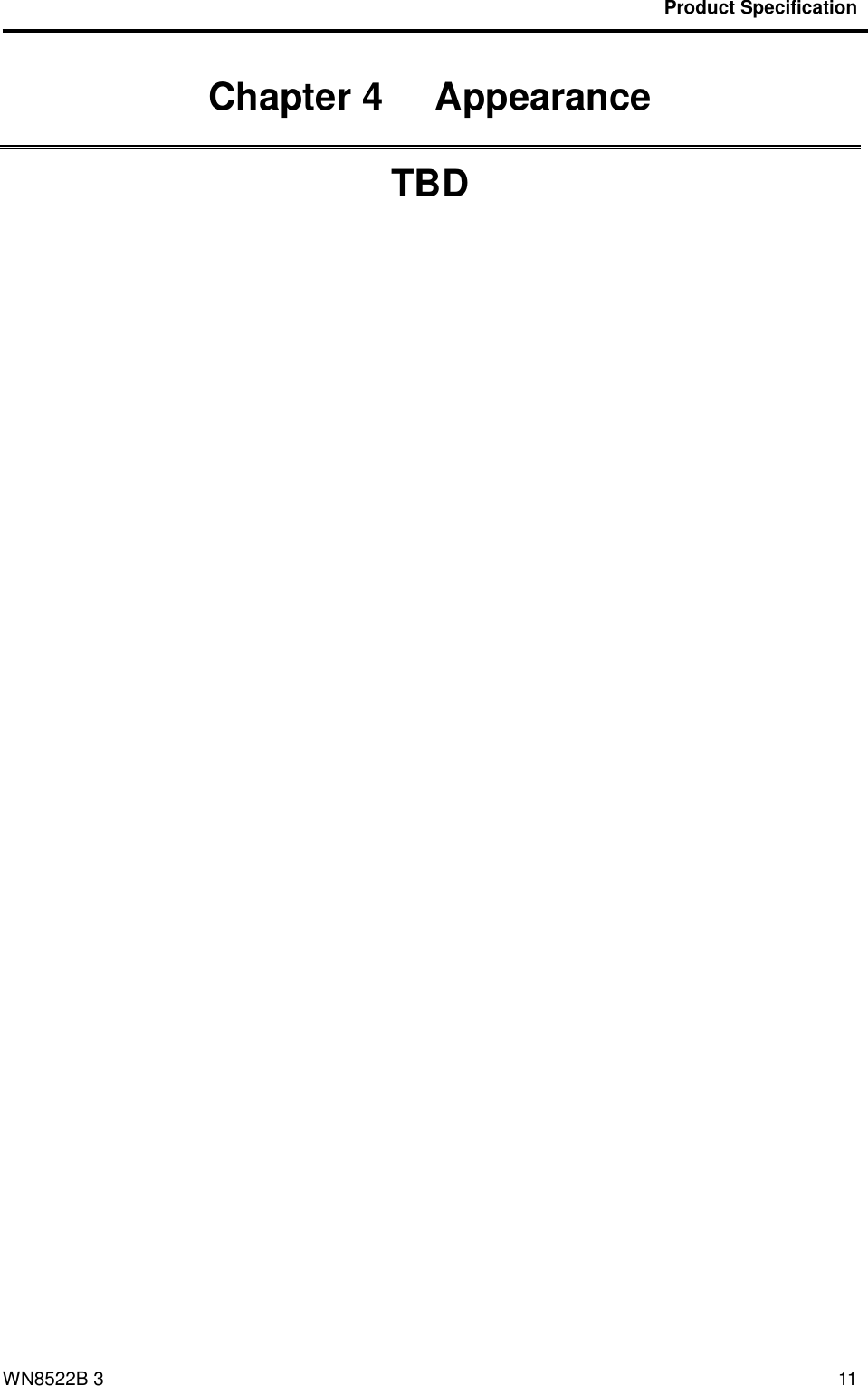

Product Specification WN8522B 3 11 Chapter 4 Appearance TBD

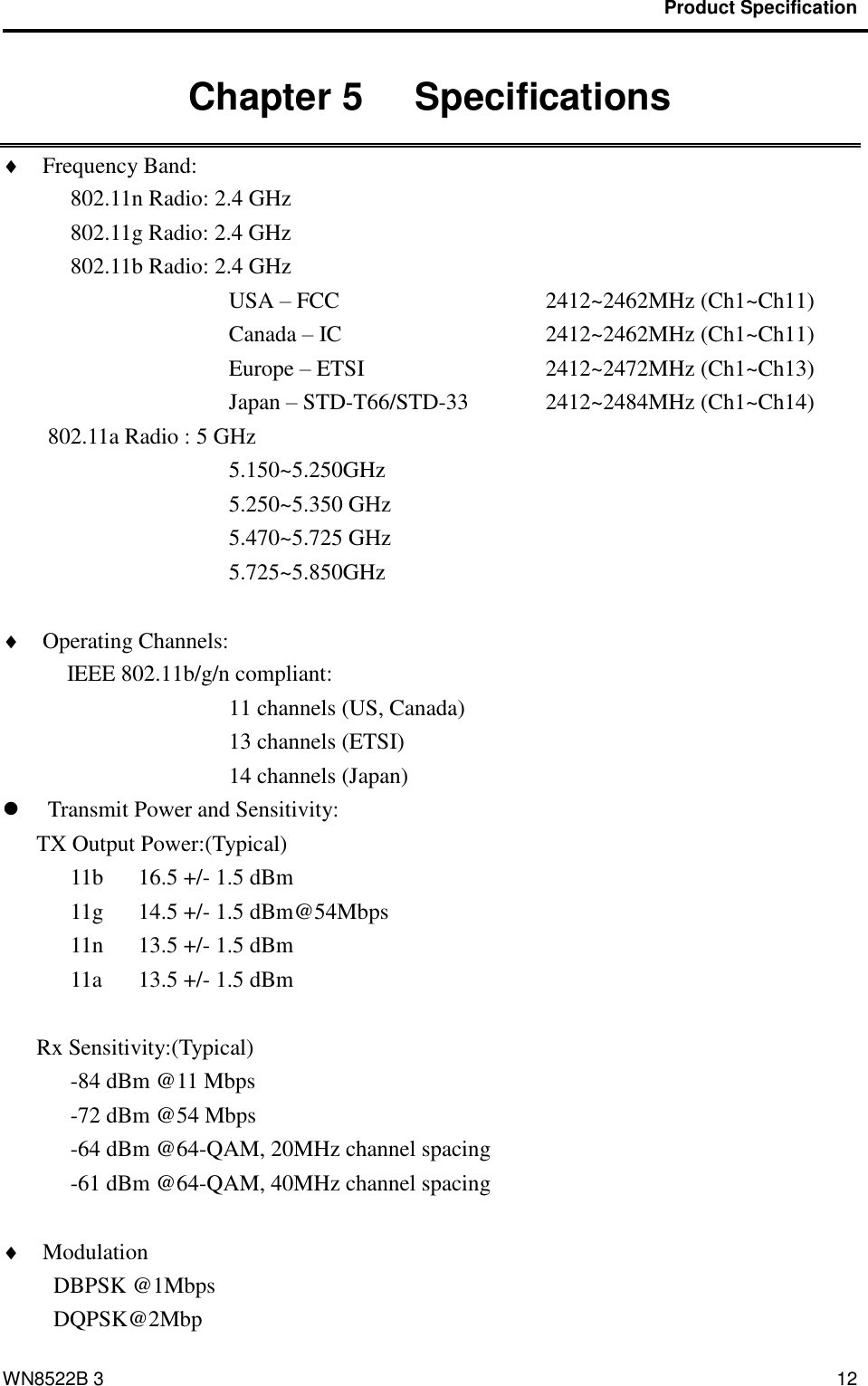

Product Specification WN8522B 3 12 Chapter 5 Specifications  Frequency Band: 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14) 802.11a Radio : 5 GHz 5.150~5.250GHz 5.250~5.350 GHz 5.470~5.725 GHz 5.725~5.850GHz  Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan)  Transmit Power and Sensitivity: TX Output Power:(Typical) 11b 16.5 +/- 1.5 dBm 11g 14.5 +/- 1.5 dBm@54Mbps 11n 13.5 +/- 1.5 dBm 11a 13.5 +/- 1.5 dBm Rx Sensitivity:(Typical) -84 dBm @11 Mbps -72 dBm @54 Mbps -64 dBm @64-QAM, 20MHz channel spacing -61 dBm @64-QAM, 40MHz channel spacing  Modulation DBPSK @1Mbps DQPSK@2Mbp

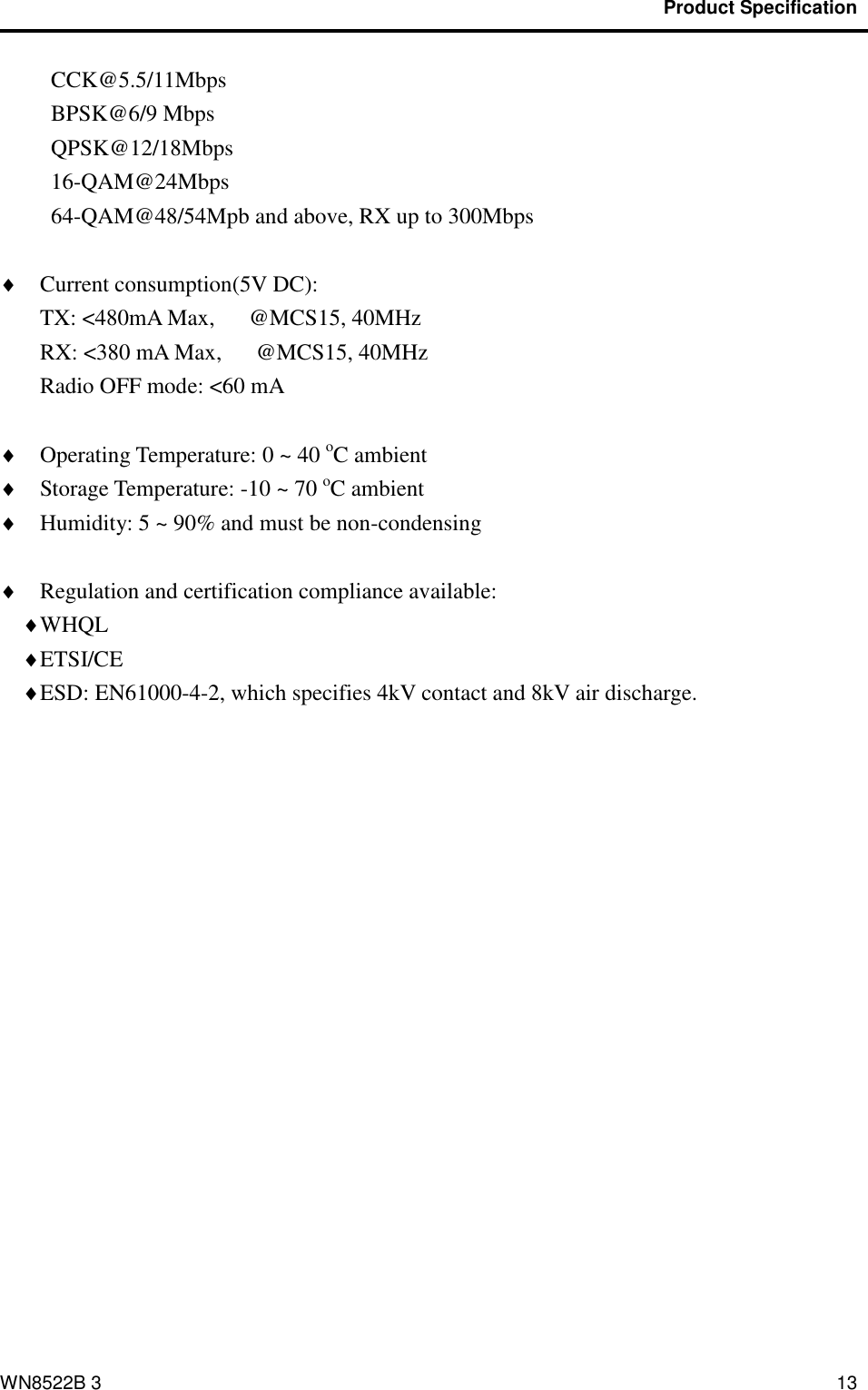

Product Specification WN8522B 3 13 CCK@5.5/11Mbps BPSK@6/9 Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mpb and above, RX up to 300Mbps  Current consumption(5V DC): TX: <480mA Max, @MCS15, 40MHz RX: <380 mA Max, @MCS15, 40MHz Radio OFF mode: <60 mA  Operating Temperature: 0 ~ 40 oC ambient  Storage Temperature: -10 ~ 70 oC ambient  Humidity: 5 ~ 90% and must be non-condensing  Regulation and certification compliance available:  WHQL  ETSI/CE  ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge.

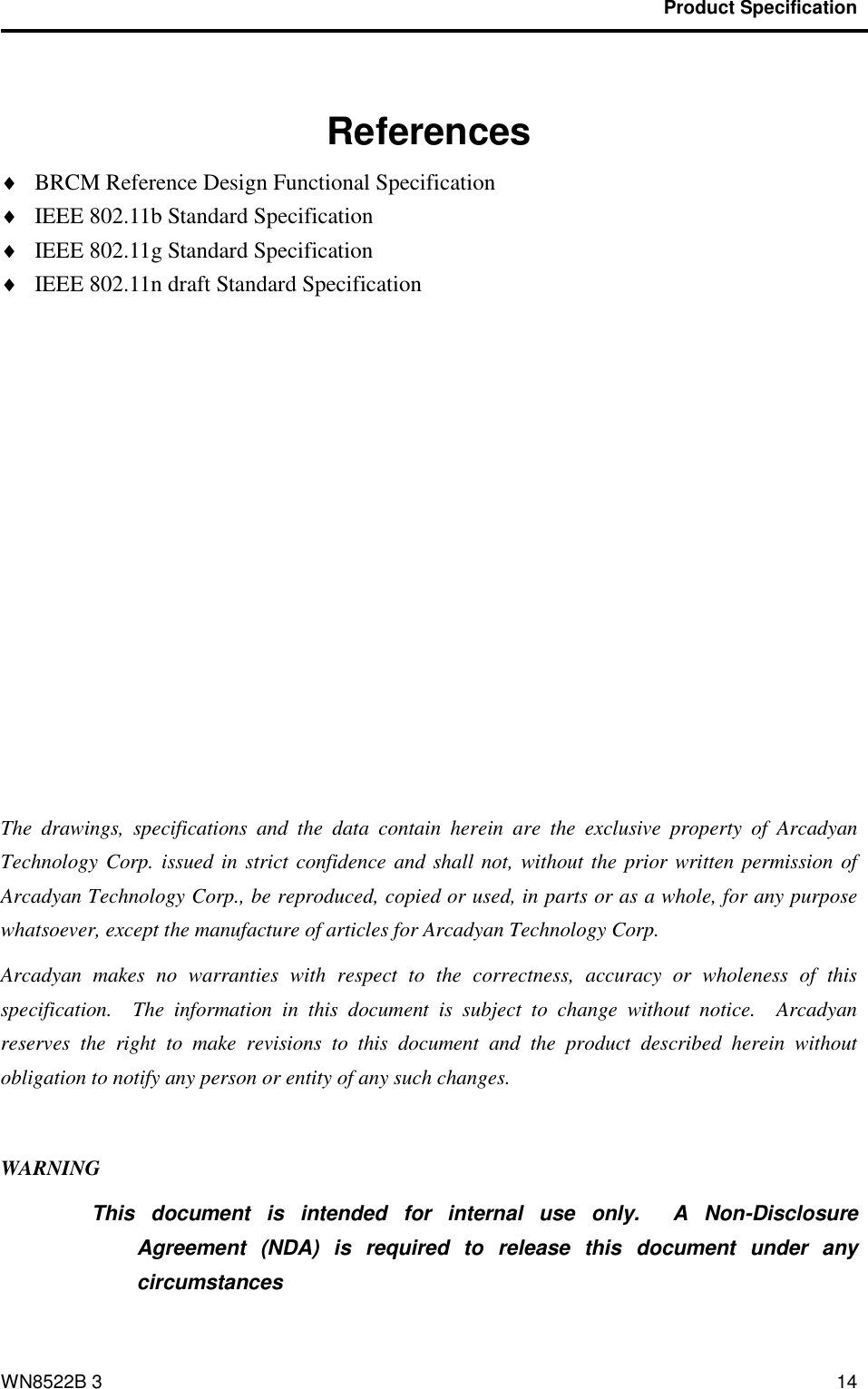

Product Specification WN8522B 3 14 References  BRCM Reference Design Functional Specification  IEEE 802.11b Standard Specification  IEEE 802.11g Standard Specification  IEEE 802.11n draft Standard Specification The drawings, specifications and the data contain herein are the exclusive property of Arcadyan Technology Corp. issued in strict confidence and shall not, without the prior written permission of Arcadyan Technology Corp., be reproduced, copied or used, in parts or as a whole, for any purpose whatsoever, except the manufacture of articles for Arcadyan Technology Corp. Arcadyan makes no warranties with respect to the correctness, accuracy or wholeness of this specification. The information in this document is subject to change without notice. Arcadyan reserves the right to make revisions to this document and the product described herein without obligation to notify any person or entity of any such changes. WARNING This document is intended for internal use only. A Non-Disclosure Agreement (NDA) is required to release this document under any circumstances

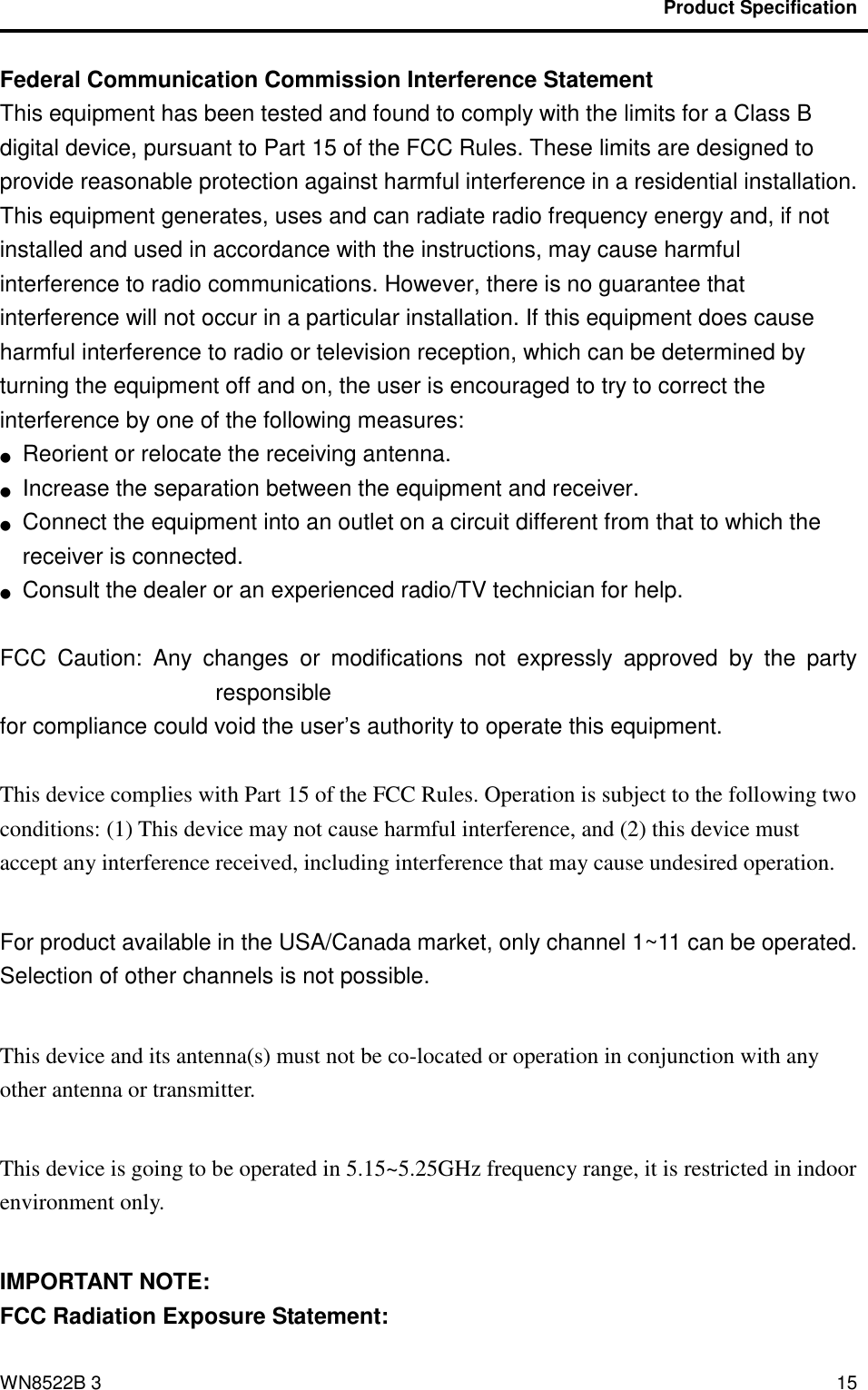

Product Specification WN8522B 3 15 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. IMPORTANT NOTE: FCC Radiation Exposure Statement:

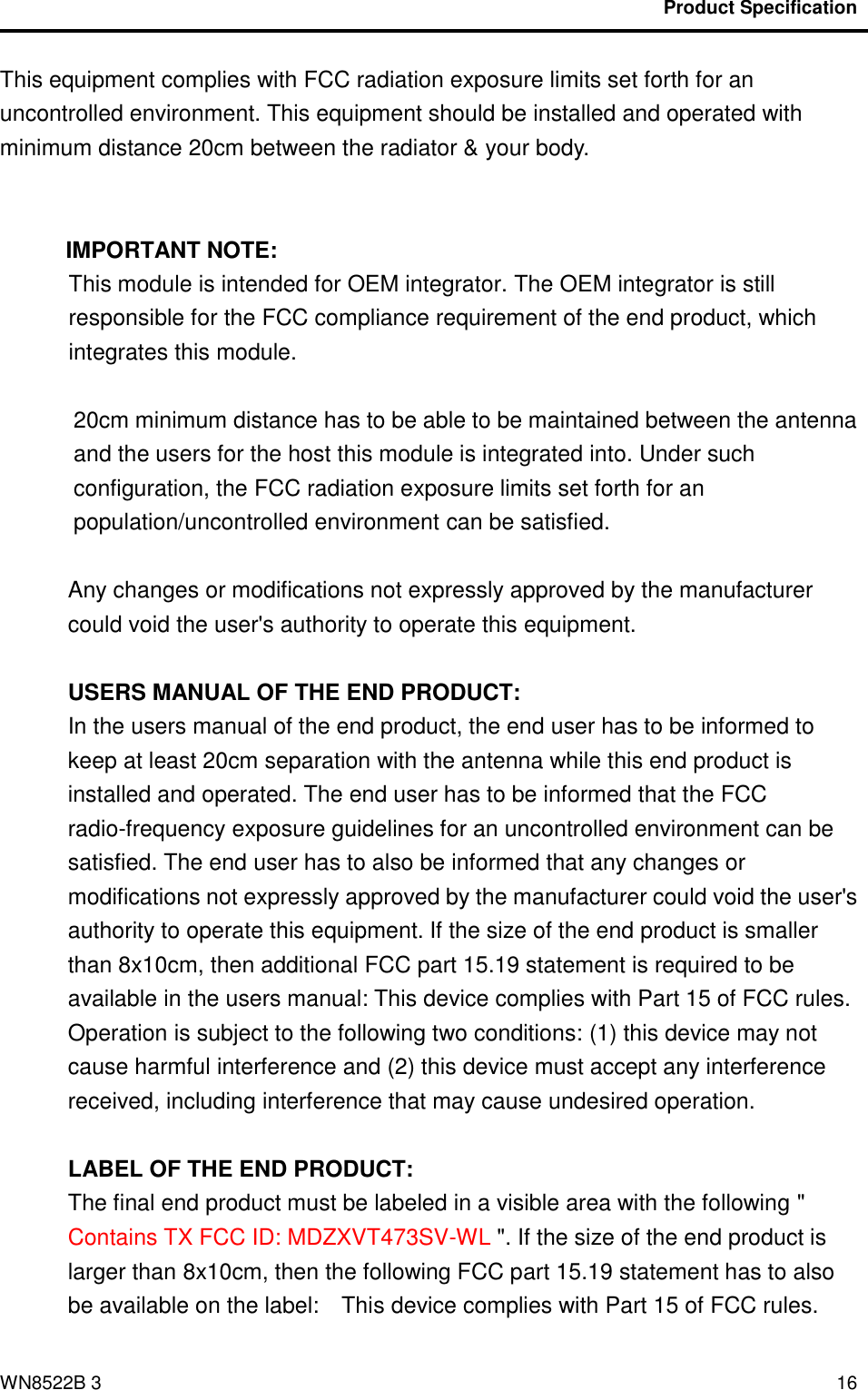

Product Specification WN8522B 3 16 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: MDZXVT473SV-WL ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules.
