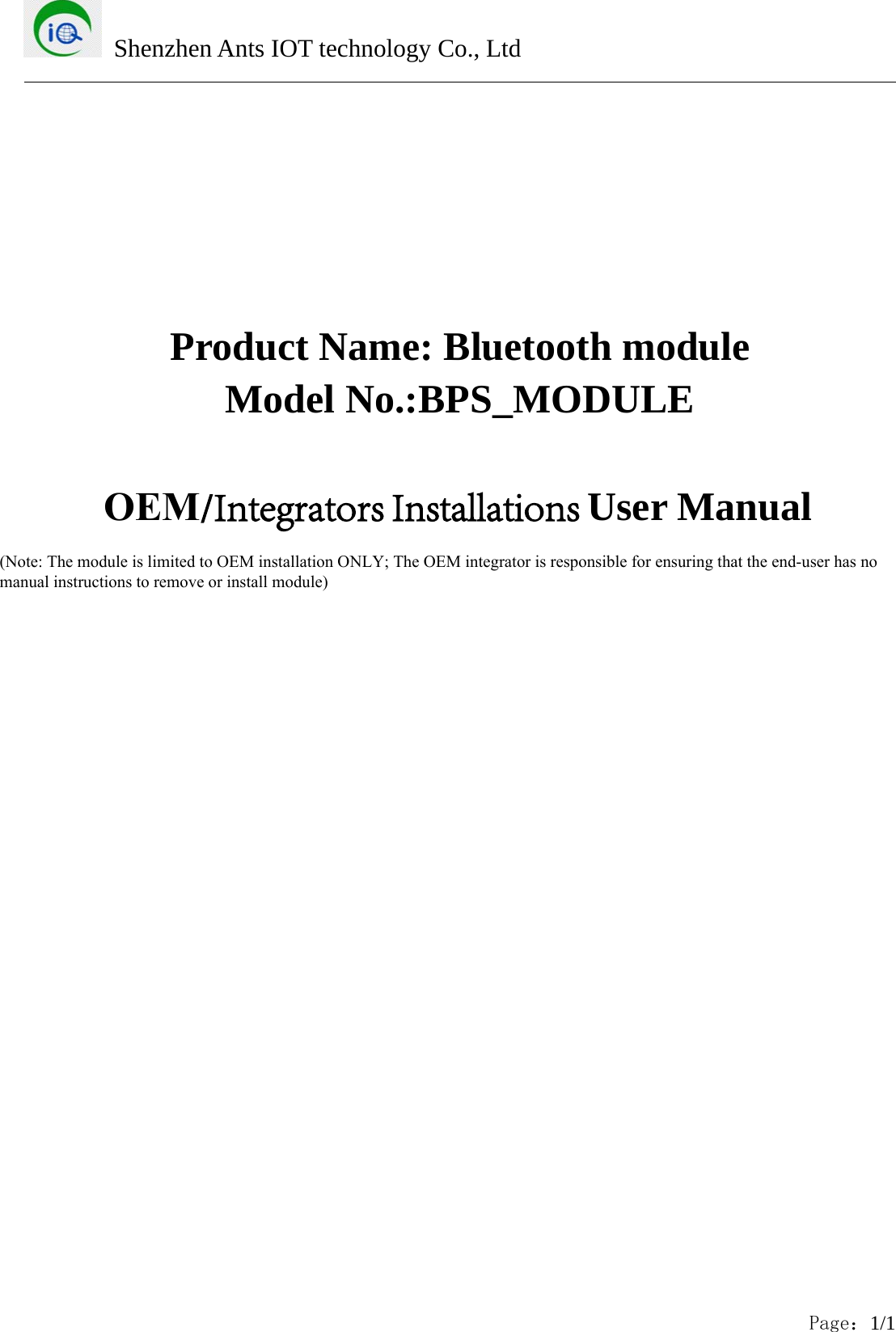

Shenzhen Ants IOT technology Co., LtdPage:1/1Product Name: Bluetooth moduleModel No.:BPS_MODULEOEM/Integrators Installations User Manual(Note: The module is limited to OEM installation ONLY; The OEM integrator is responsible for ensuring that the end-user has no manual instructions to remove or install module)

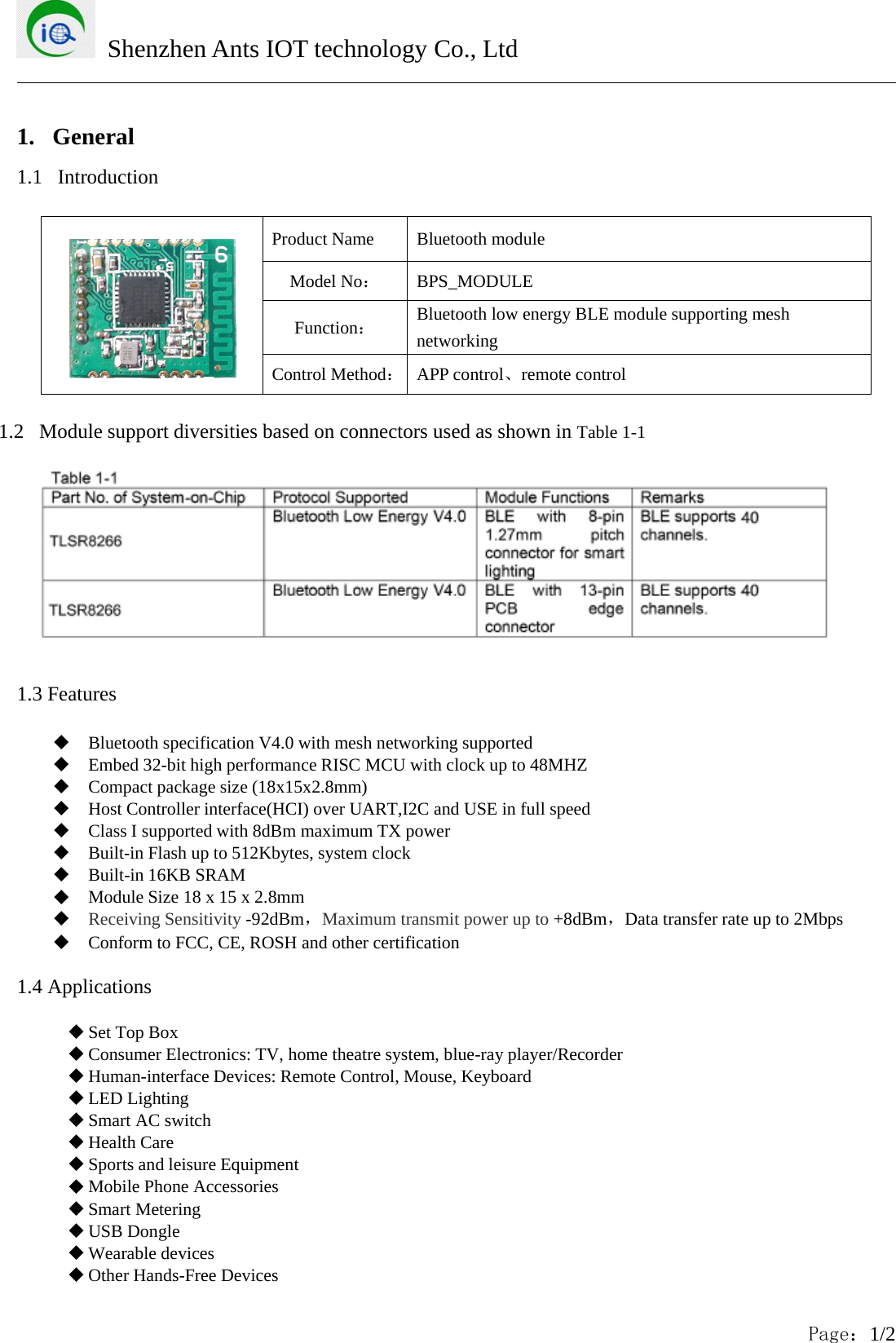

Shenzhen Ants IOT technology Co., LtdPage:1/21. General1.1 IntroductionProduct Name Bluetooth moduleModel No:BPS_MODULEFunction:Bluetooth low energy BLE module supporting meshnetworkingControl Method:APP control、remote control1.2 Module support diversities based on connectors used as shown in Table 1-11.3 FeaturesBluetooth specification V4.0 with mesh networking supportedEmbed32-bithighperformanceRISCMCUwithclockupto48MHZCompact package size (18x15x2.8mm)Host Controller interface(HCI) over UART,I2C and USE in full speedClass I supported with 8dBm maximum TX powerBuilt-in Flash up to 512Kbytes, system clockBuilt-in 16KB SRAMModule Size 18 x 15 x 2.8mmReceiving Sensitivity -92dBm,Maximum transmit power up to +8dBm,Data transfer rate up to 2MbpsConform to FCC, CE, ROSH and other certification1.4 ApplicationsSet Top BoxConsumer Electronics: TV, home theatre system, blue-ray player/RecorderHuman-interface Devices: Remote Control, Mouse, KeyboardLED LightingSmart AC switchHealth CareSports and leisure EquipmentMobile Phone AccessoriesSmart MeteringUSB DongleWearable devicesOther Hands-Free Devices

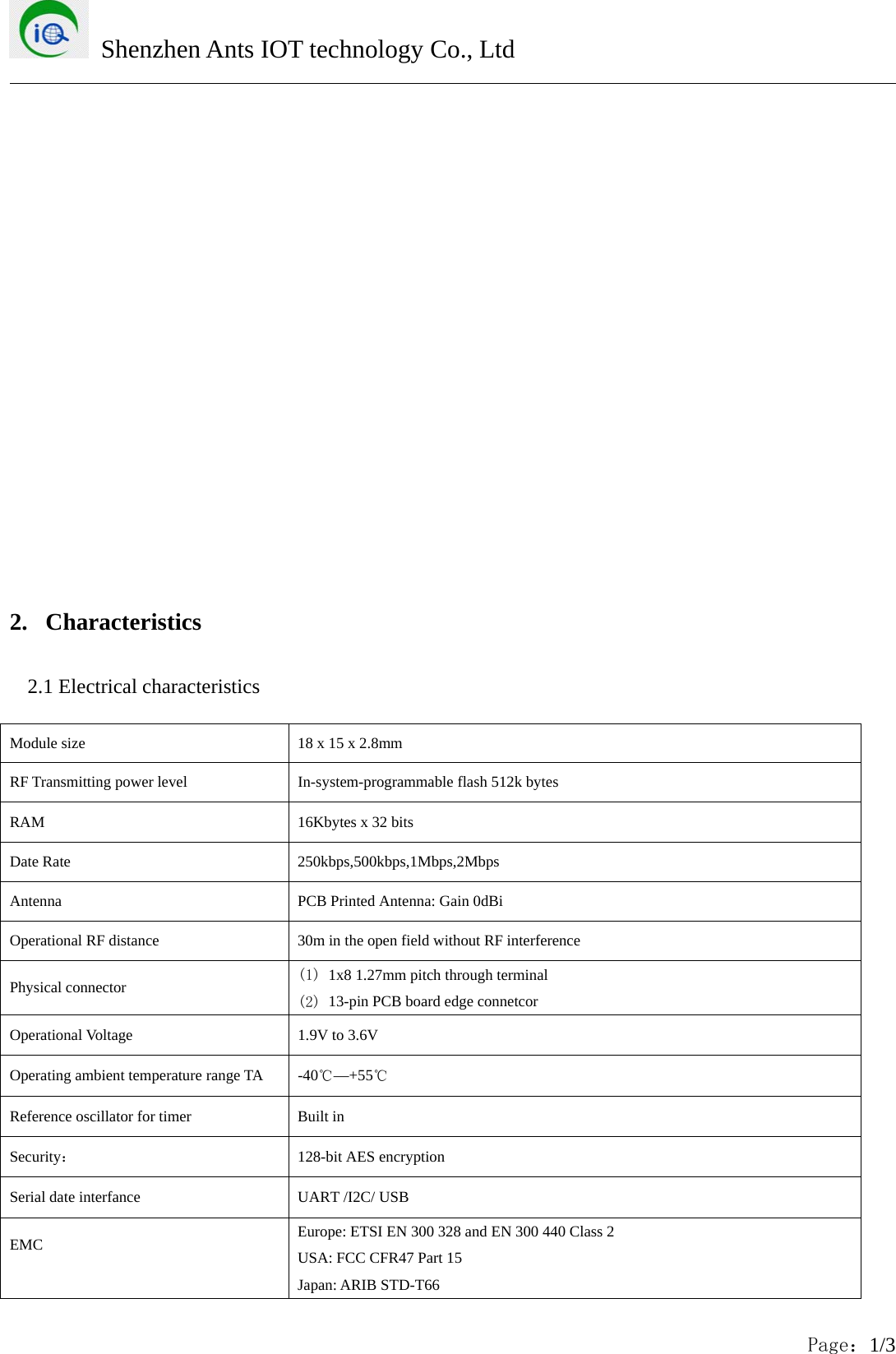

Shenzhen Ants IOT technology Co., LtdPage:1/32. Characteristics2.1 Electrical characteristicsModule size 18 x 15 x 2.8mmRF Transmitting power level In-system-programmable flash 512k bytesRAM 16Kbytes x 32 bitsDate Rate 250kbps,500kbps,1Mbps,2MbpsAntenna PCB Printed Antenna: Gain 0dBiOperational RF distance 30m in the open field without RF interferencePhysical connector (1) 1x8 1.27mm pitch through terminal(2) 13-pin PCB board edge connetcorOperational Voltage 1.9V to 3.6VOperating ambient temperature range TA -40℃—+55℃Reference oscillator for timer Built inSecurity:128-bit AES encryptionSerial date interfance UART /I2C/ USBEMC Europe: ETSI EN 300 328 and EN 300 440 Class 2USA: FCC CFR47 Part 15Japan: ARIB STD-T66

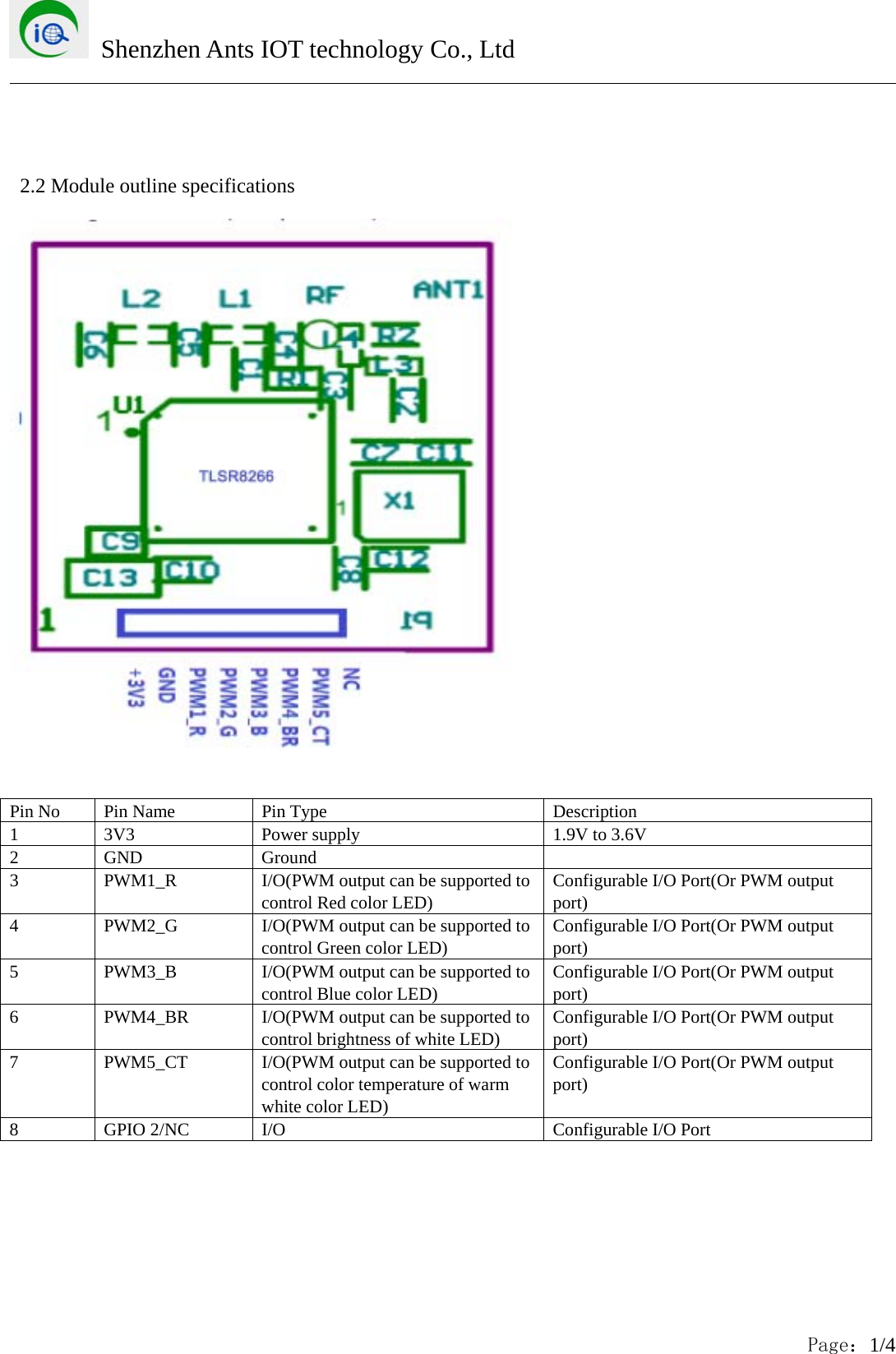

Shenzhen Ants IOT technology Co., LtdPage:1/42.2 Module outline specificationsPin No Pin Name Pin Type Description1 3V3 Power supply 1.9V to 3.6V2 GND Ground3 PWM1_R I/O(PWM output can be supported tocontrol Red color LED)Configurable I/O Port(Or PWM outputport)4 PWM2_G I/O(PWM output can be supported tocontrol Green color LED)Configurable I/O Port(Or PWM outputport)5 PWM3_B I/O(PWM output can be supported tocontrol Blue color LED)Configurable I/O Port(Or PWM outputport)6 PWM4_BR I/O(PWM output can be supported tocontrol brightness of white LED)Configurable I/O Port(Or PWM outputport)7 PWM5_CT I/O(PWM output can be supported tocontrol color temperature of warmwhite color LED)Configurable I/O Port(Or PWM outputport)8 GPIO 2/NC I/O Configurable I/O Port

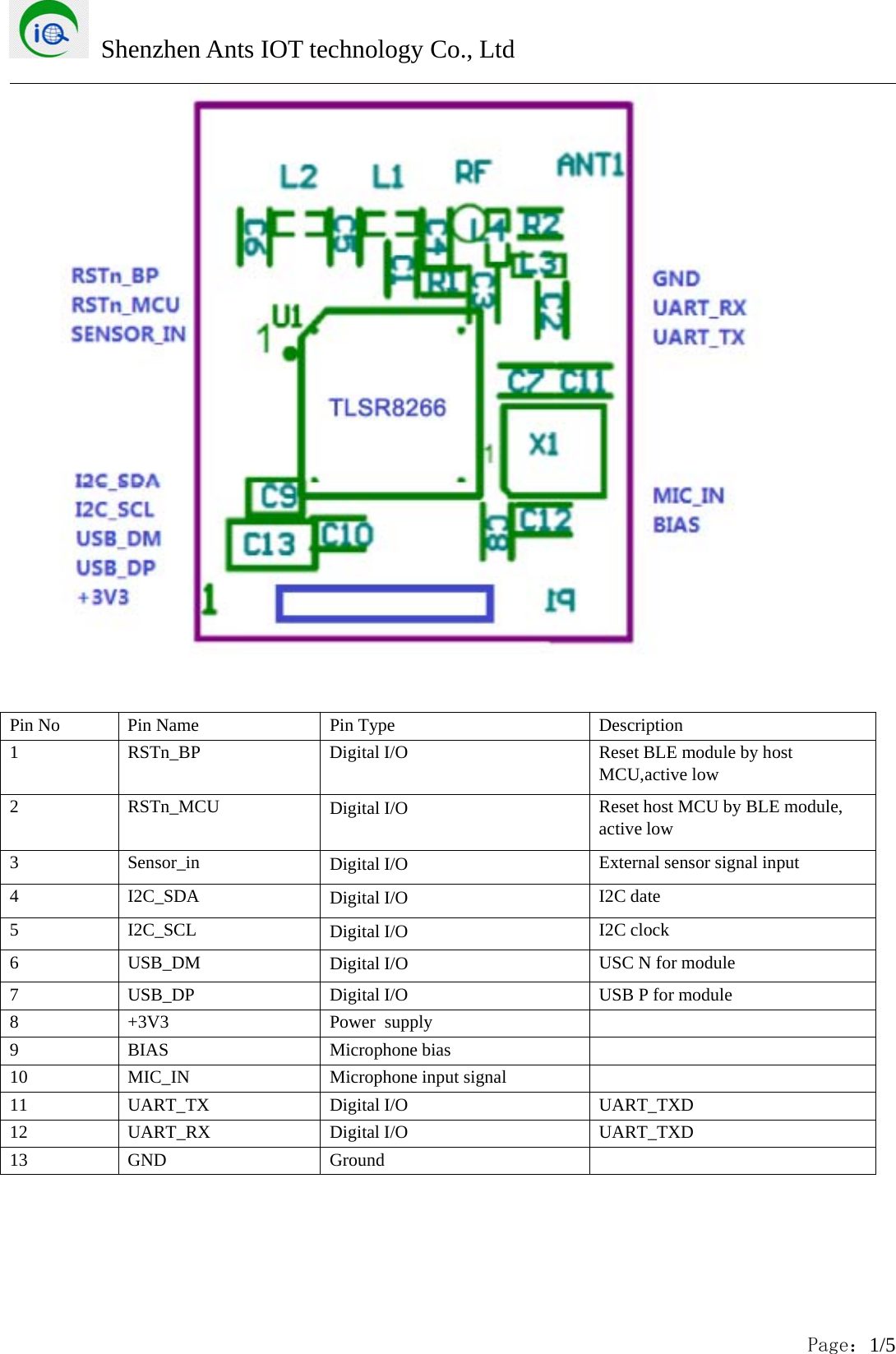

Shenzhen Ants IOT technology Co., LtdPage:1/5Pin No Pin Name Pin Type Description1 RSTn_BP Digital I/O Reset BLE module by hostMCU,active low2RSTn_MCUDigital I/O Reset host MCU by BLE module,active low3Sensor_in Digital I/O External sensor signal input4I2C_SDA Digital I/O I2C date5I2C_SCL Digital I/O I2C clock6USB_DM Digital I/O USC N for module7 USB_DP Digital I/O USB P for module8 +3V3 Power supply9 BIAS Microphone bias10 MIC_IN Microphone input signal11 UART_TX Digital I/O UART_TXD12 UART_RX Digital I/O UART_TXD13 GND Ground

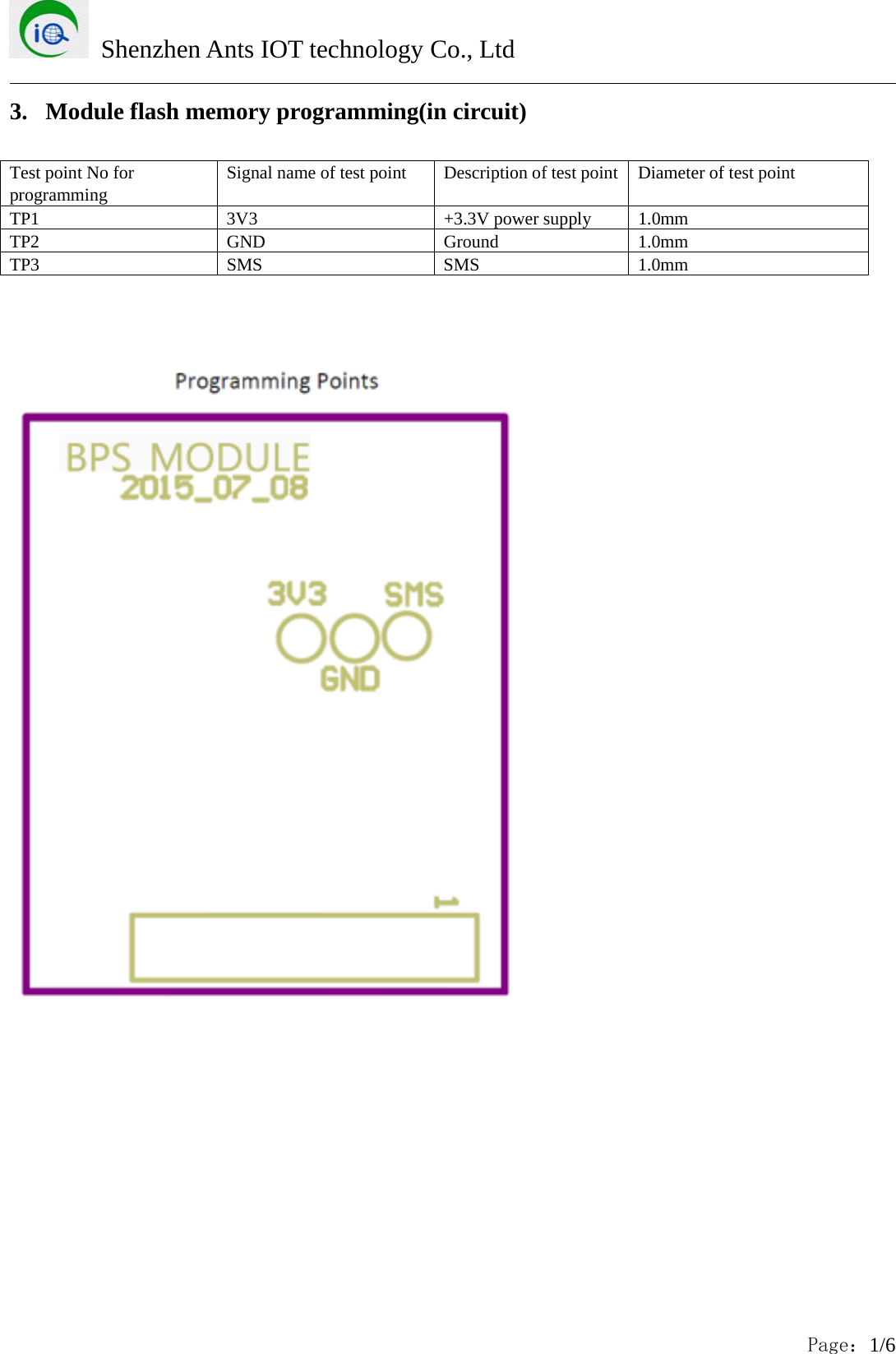

Shenzhen Ants IOT technology Co., LtdPage:1/63. Module flash memory programming(in circuit)Test point No forprogrammingSignal name of test point Description of test point Diameter of test pointTP1 3V3 +3.3V power supply 1.0mmTP2 GND Ground 1.0mmTP3 SMS SMS 1.0mm
Shenzhen Ants IOT technology Co., LtdPage:1/7FCC Warning:If the FCC identification number is not visible when the module is installed inside another device, then theoutside of the device into which the module is installed must also display a label referring to the enclosedmodule. This exterior label can use wording such as the following:“Contains Transmitter Module FCC ID: 2AH7Z-MYBLE ”when the module is installed inside another device, the user manual of this device must contain belowwarning statements;1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesiredoperation.2. Changes or modifications not expressly approved by the party responsible for compliance could void theuser's authority to operate the equipment.FCC statement:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any Changes or modifications not expressly approved by the party responsible for compliance could void the user'sauthority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of theFCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radio communications. However, there is no guaranteethat interference will not occur in a particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.That separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and different antenna configurations. This product is mounted inside of the end product only by professional installers OEM. They use this module with changing the power and control signal setting by software of end product within the scope of this application. End user can not change this setting. The equipment complies with RF exposure limits. This module is limited to installation in mobile or fixed applications. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.
