OEM Manual

AIOS-4.0 Page : 1

Arcadyan Corporation

OEM/Integrator Manual

Arcadyan Model: AIOS4.0S, AIOS4.0V, AIOS4.0R, AIOS4.0F

AIOS-4.0 Page : 2

Arcadyan Corporation

Table of Contents

0. SUMMARY OF THIS PRODUCT ........................................................................................................ 3

1. SPECIFICATION................................................................................................................................. 3

1-1 Basic Specification................................................................................................................................ 3

1-2 Certification Requirement...................................................................................................................... 4

2. DETAIL SPECIFICATION ....................................................................................................................... 5

2-1. Product Specification............................................................................................................................ 5

2-2. FW Product Specification ..................................................................................................................... 5

2-3. I/O Specification .................................................................................................................................. 5

2-3-1. LED Specification...................................................................................................................... 5

2-3-2. Connector Specification.............................................................................................................. 6

2-3-3. GPIO Map................................................................................................................................. 7

2-3-4. Power Sequence......................................................................................................................... 9

2-3-5. Power Consumption................................................................................................................... 9

2-3-6. ESD Transient SPEC................................................................................................................ 10

2-3-7. PCB Dimension .............................................................................................................................. 10

3. WIRELESS SPECIFICATION ........................................................................................................... 11

3-1 Radio 0 specification ........................................................................................................................... 11

3-1-1 WLAN0 specification................................................................................................................ 11

3-1-2 Bluetooth specification.............................................................................................................. 13

3-2 Radio 0 specification ........................................................................................................................... 13

3-2-1 WLAN1 specification................................................................................................................ 13

FCC & IC Statement:......................................................................................................................... 14



AIOS-4.0 Page : 3

Arcadyan Corporation

0. SUMMARY OF THIS PRODUCT

This product is AIOS-4.0X. There are 4 types of different audio product, AIOS4.0S, AIOS4.0V, AIOS4.0R,

AIOS4.0F

1. SPECIFICATION

1-1 Basic Specification

2. Item Contents

Manufacture Arcadyan

D&M JP AIOS-4.0X

TYM AIOS-4.0X

Shipment Name

ANAM AIOS-4.0X

Product Name Wireless LAN Network Module

Series Name Lego module

JP AIOS-4.0 Model Name

US -

SOC Vendor Model name

CPU Broadcom BCM58305

2.4GHz MAC/BB/RF Broadcom BCM4356

2.4GHz PA(Tx) Refer wireless spec

2.4GHz LNA(Rx) Refer wireless spec

2.4GHz BPF(Rx) Co-layout

5GHz MAC/BB/RF Broadcom BCM4356

5GHz PA(Tx) Refer wireless spec

5GHz LNA(Rx) Refer wireless spec

5GHz BPF(Rx) Co-layout

WAN None none

Chip

PHY

LAN Broadcom BCM58305 internal

ODM Arcadyan

FW spec Broadcom SDK AxC-FC2 for function test

Driver Utility

Driver/Utility

ODM Arcadyan

Refer wireless spec

Support Band

Item Link Rate Number of ports

AIOS-4.0 Page : 4

Arcadyan Corporation

Item Link Rate Number of ports

LAN 10/100M 1 LAN 10/100/1000M 1

Interface

USB 2.0 1

Supply Voltage 5V

Power consumption 9W

Weight Under 78g

Dimensions 87 x 74 x 1.6mm

Temperature 0~70 degC

Operating Environment

Humidity 10~85 % (Non Condensing)

Temperature -10~85 degC

Humidity 10~85 % (Non Condensing)

Design life time 5years at 25 degrees

Made in China

1-2 Certification Requirement

USA

FCC Parts15B/15C/15E

FCC ID Approval( with DFS)

DFS/TPC

FCC Bulletin OET-65C

Canada

IC certificate

RSS RSS-247 RF report

RSS-102 MPE report

European

CE EN 300 328/EN 301 893

EN 301 489-1/-17

EN62311

Japan

ARIB STD-T66 / ARIB STD-T71 TELEC ID

AIOS-4.0 Page : 5

Arcadyan Corporation

2. Detail Specification

2-1. Product Specification

Items Contents

Vendor Broadcom

Parts number BCM58305

CPU

Operation frequency 1.25GHz Dual Core

Type DDR3L

Width 16bit

Operation Freq 1600MHz

RAM

Capacity 256MB

Type NAND Flash

I/O speed 20ns

ROM

Capacity 4Gb

Number of port 2

Type Color Connector

Vendor Chip

MAC Broadcom BCM58305

Chip

PHY Broadcom BCM58305

Wired

LAN

Standard 10BASE-T/100BASE-Tx/1000BASE-Tx

- Standard USB2.0 -

USB

- Bus power 5V -

2-2. FW Product Specification

For detail, refer to FW Specification Requirement sheet

2-3. I/O Specification

2-3-1. LED Specification

Items Name Color

LED Interface POWER/DIAG Green

AIOS-4.0 Page : 6

Arcadyan Corporation

2-3-2. Connector Specification

Items Contents

Female 40x2p

Box header connector Female 21x2p

J9091 – 40x2 pin connector

Pin Define Pin Define Pin Define Pin Define

1 PWM0 2 PWM1 41 SPI0_MISO 42 TDP_PHY0_CH0

3 PWM2 4 VDD5_IN 43 GND 44 GND

5 VDD5_IN 6 VDD5_IN 45 SPI0_CLK 46 SPI0_MOSI

7 MCLK_I2S_0 8 SPDIF_OUT 47 UART1_TX 48 UART1_RTS

9 GND 10 GND 49 UART1_RX 50 UART1_CTS

11 WS_I2S_0 12 SDIN_I2S_0 51 USB2_VBUS_EN 52 PWM3

13 BITCLK_I2S_0 14 SDOUT_I2S_0 53 GPIO_02 54 GPIO_03

15 GND 16 GND 55 GPIO_04 56 GPIO_05

17 WS_I2S_1 18 SDIN_I2S_1 57 GPIO_06 58 GPIO_07

19 BITCLK_I2S_1 20 SDOUT_I2S_1 59 GPIO_08 60 GPIO_09

21 GND 22 GND 61 GPIO_10 62 GPIO_11

23 WS_I2S_2 24 SDIN_I2S_2 63 GPIO_12 64 GPIO_13

25 BITCLK_I2S_2 26 SDOUT_I2S_2 65 GPIO_14 66 GPIO_15

27 GND 28 GND 67 GPIO_16 68 GPIO_17

29 I2C0_SDA 30 USB2_P2_DM 69 GPIO_18 70 GPIO_19

31 I2C0_SCL 32 USB2_P2_DP 71 GPIO_20 72 GPIO_21

33 GND 34 GND 73 GPIO_22 74 RESET_BUTTON

35 I2C1_SDA 36 TDN_PHY0_CH1 75 GPIO_24 76 GPIO_25

37 I2C1_SCL 38 TDP_PHY0_CH1 77 ADC_AUXIN_0 78 ADC_AUXIN_1

39 SPI0_SS 40 TDN_PHY0_CH0

79 ADC_AUXIN_2 80 ADC_AUXIN_3

J9092 – 2x21 pin connector

Pin Define Pin Define Pin Define Pin Define

1 LCD_CLCP 2 GND 23 LCD_CLD15 24 LCD_CLD14

3 GND 4 LCD_CLFP 25 LCD_CLD17 26 LCD_CLD16

5 LCD_CLLP 6 LCD_CLAC 27 LCD_CLD19 28 LCD_CLD18

7 GND 8 LCD_CLD00 29 LCD_CLD21 30 LCD_CLD20

9 LCD_CLD01 10 LCD_CLD02 31 LCD_CLD23 32 LCD_CLD22

11 LCD_CLD03 12 LCD_CLD04 33 GND 34 GND

13 LCD_CLD05 14 LCD_CLD06 35 TDN_PHY1_CH0 36 TDN_PHY1_CH1

15 LCD_CLD07 16 LCD_CLD08

37 TDP_PHY1_CH0 38 TDP_PHY1_CH1

AIOS-4.0 Page : 7

Arcadyan Corporation

17 LCD_CLD09 18 LCD_CLD10 39 TDN_PHY1_CH2 40 TDN_PHY1_CH3

19 LCD_CLD11 20 GND 41 TDP_PHY1_CH2 42 TDP_PHY1_CH3

21 LCD_CLD13 22 LCD_CLD12

J4 - Console connector Footprint Pin Define

Pin Pin Define

1 VDD3_3

2 UART3_TX

3 UART3_RX

4 GND

J2 - JTAG connector Footprint Pin Define

VDD5_IN SPEC:

2-3-3. GPIO Map

Using GPIO of XXXX

XXXXX

Item Function Connect to I/O Active

CPU

1 GPIO_05 I/O

2 GPIO_022 I/O

3 USB2_VBUS_EN O

4 GPIO_08 I/O

5 GPIO_09 I/O

6 GPIO_10 I/O

7 GPIO_11 I/O

8 GPIO_12 I/O

Pin Pin Define Pin Pin Define

1 JTAG_RST 2 GND

3 JTAG_TDI 4 GND

5 JTAG_TDO 6 GND

7 JTAG_TMS 8 GND

9 JTAG_TCK 10 GND

11 SYS_RST_L 12 UART3_TX

13 UART3_RX 14 VDD3_3

AIOS-4.0 Page : 8

Arcadyan Corporation

9 GPIO_13 I/O -

10 RF1_GPIO_6 I/O -

11 RF1_BT_GPIO_5 I/O

12 GPIO_14 I/O

13 GPIO_15 I/O

14 GPIO_16 I/O

15 GPIO_17 I/O

16 GPIO_18 I/O

17 GPIO_19 I/O

18 RF2_GPIO_6 I/O

19 GPIO_21 I/O

20 MODULE_TYPE_0 I

21 MODULE_TYPE_1 I

22 MODULE_TYPE_2 I

23 GPIO_04 I/O

24 WL2_REG_ON O

25 MODULE_REV0 I

26 MODULE_REV1 I

27 MODULE_REV2 I

28 GPIO_20 I/O

29 RF1_BT_DEV_WAKE O

30 FACTORY_RESET_BUTTON I

31 GPIO_07 I/O

32 GPIO_24 I/O

33 GPIO_25 I/O

34 GPIO_02 I/O

35 GPIO_06 I/O

36 DSP_DDR_CLK_TERM_EN_L O

37 DSP_VDD_EN_L O

38 DSP_DDR_EN_L O

39 WL1_REG_ON O

40 BT1_REG_ON O

41 AON_GPIO5 I

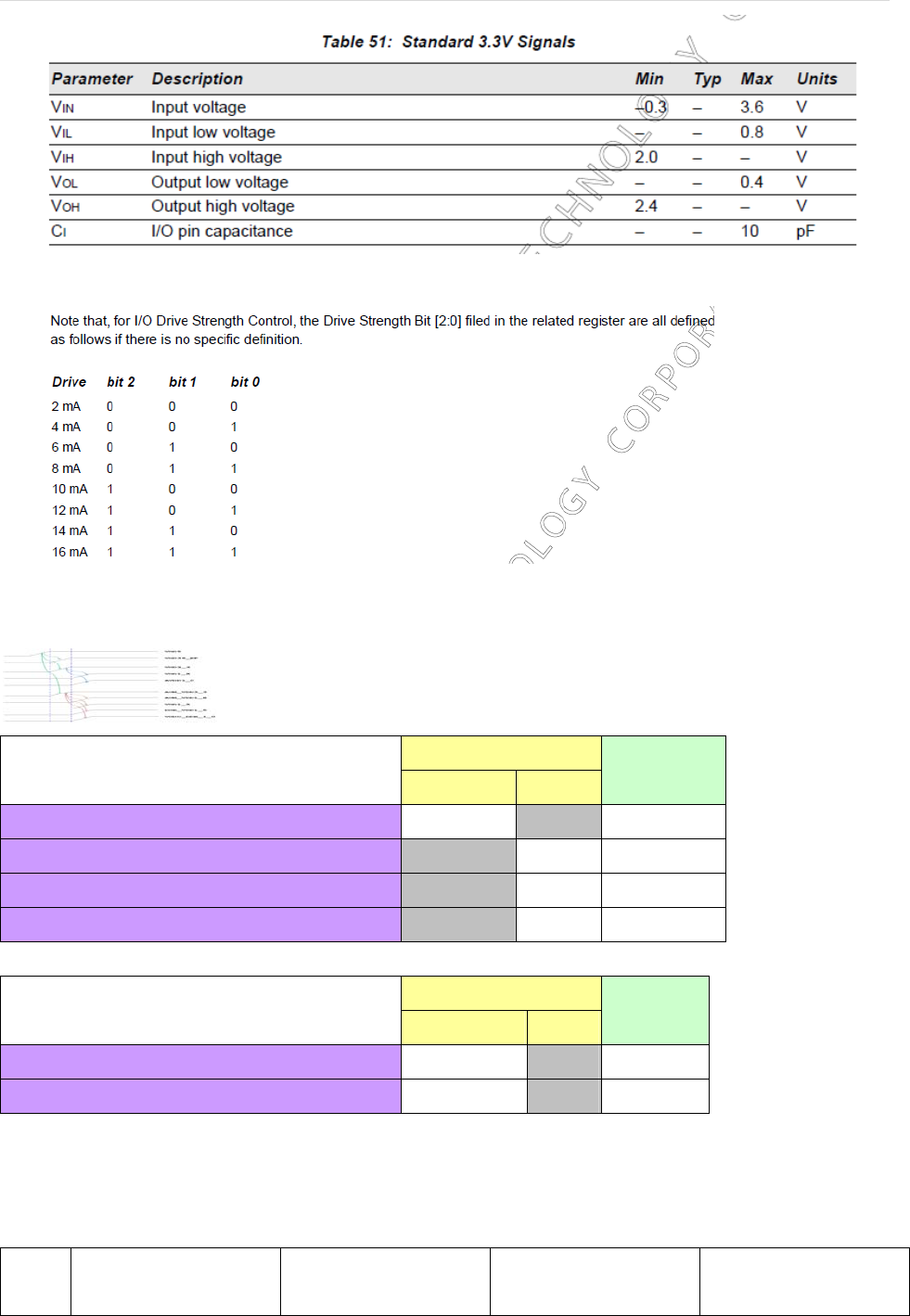

Logic Input high/low Voltage:

AIOS-4.0 Page : 9

Arcadyan Corporation

Drive IO Strength

2-3-4. Power Sequence

Spec

BCM 58305 Power Sequence Spec min(us) max Measurement

Vdd3_3 ramp-up Time 100 - 711.19us

VDDC_DDR_1_0 ramp-up Time - 15ms 671.58us

VDD1_35 ramp-up Time - 15ms 699.80us

DDR_VDD1_35 ramp-up Time - 15ms 716.31us

Spec

BCM 4356 Power Sequence Spec min(us) max Measurement

RF_Vdd3_6 ramp-up Time 40 - 771.95us

RF_dd3_6 up before RF_Vdd3_3 0 - 2.12ms

2-3-5. Power Consumption

Status Active Sleep

echo standby >

Deep Sleep

echo mem >

Power off

poweroff

AIOS-4.0 Page : 10

Arcadyan Corporation

/sys/power/state /sys/power/state

Power Irms(mA) Watt(mW) Irms(mA) Watt(mW) Irms(mA) Watt(mW) Irms(mA) Watt(mW)

5V 518.5 2592.5 396.1 1980.5 87 435 15.3 76.5

2-3-6. ESD Transient SPEC

ESD Test SPEC : <1> Contact 4kV

<2> Air 8kV

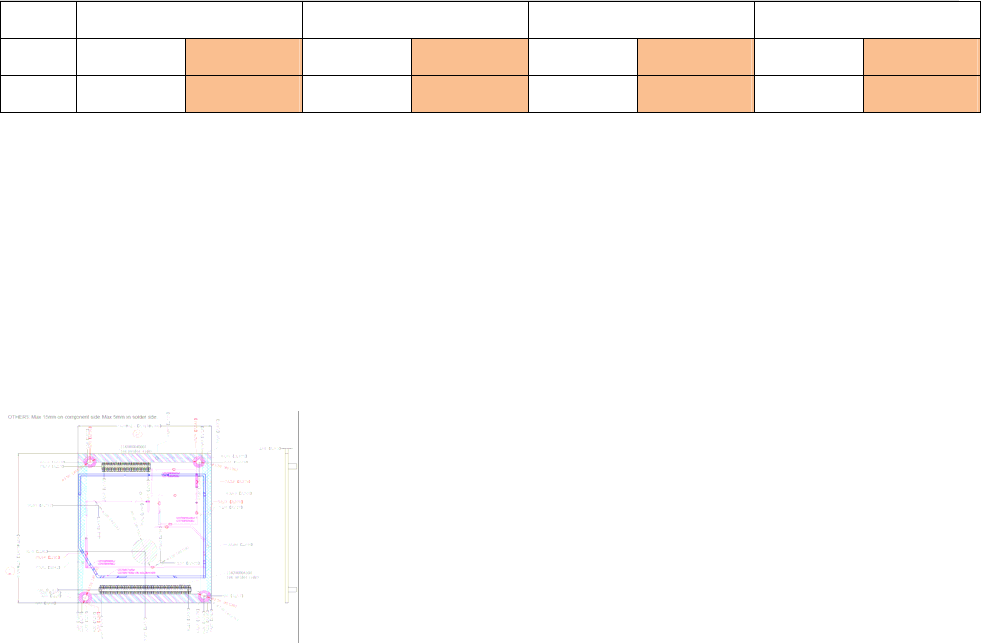

2-3-7. PCB Dimension

AIOS-4.0 Page : 11

Arcadyan Corporation

3. Wireless Specification

There are two radios on module, radio 0 and radio 1. Radio 0 include a dual band (2.4 GHz and 5 GHz) WIFI

and Bluetooth. Radio 1 is only 5 GHz WIFI.

Radio 0 is a Station (STA), it could have soft-AP function. Soft-AP does not use DFS channel. Radio 1 is a

AP.

3-1 Radio 0 specification

Radio 0 include a dual band (2.4 GHz and 5 GHz) WIFI and Bluetooth.

3-1-1 WLAN0 specification

ItemSpecificationRemark

ChipBCM4356

InterfacePCIe

Frequency2400~2483.5MHz(FCC,CE,JP)

2471~2497MHz(JP)

5150~5250MHz(W52,U‐NII‐1,Band1)

5250~5350MHz(W53,U‐NII‐2A,Band2)

5470~5725MHz(W56,U‐NII‐2C,Band3)

5725~5850MHz(W58,U‐NII‐3,Band4)

DFSsupport

DataRateIEEE802.11b:

11,5.5,2,1Mbps

IEEE802.11a

54,48,36,24,18,12,9,6Mbps

IEEE802.11g

54,48,36,24,18,12,9,6Mbps

IEEE802.11nHT20

Upto150Mbps

IEEE802.11nHT40

Upto300Mbps

IEEE802.11acVHT80

Upto886.7Mbps



AIOS-4.0 Page : 12

Arcadyan Corporation

MIMO2T2R

ReceiverSensitivity2.4GHzBand

IEEE802.11b:

‐97dBm@1Mbps

‐88dBm@11Mbps

IEEE802.11g

‐92dBm@6Mbps

‐74dBm@54Mbps

IEEE802.11nHT20

‐90dBm@MCS0

‐71dBm@MCS7

IEEE802.11nHT40

‐87dBm@MCS0

‐68dBm@MCS7



5GHzband

IEEE802.11a

‐91dBm@6Mbps

‐75dBm@54Mbps

IEEE802.11nHT20

‐91dBm@MCS0

‐72dBm@MCS7

IEEE802.11nHT40

‐89dBm@MCS0

‐69dBm@MCS7

IEEE802.11acVHT20

‐91dBm@MCS0

‐72dBm@MCS8

IEEE802.11acVHT40

‐89dBm@MCS0

‐69dBm@MCS9

IEEE802.11acVHT80

‐86dBm@MCS0

‐61dBm@MCS7

AIOS-4.0 Page : 13

Arcadyan Corporation

3-1-2 Bluetooth specification

ItemSpecificationRemark

Chip BCM4356 

InterfaceUART

Frequence2400~2483.5MHz

Receivesensitivity‐80dBm

3-2 Radio 0 specification

Radio 0 is Bluetooth, 2.4G and 5 GHz WIFI.

3-2-1 WLAN1 specification

ItemSpecificationRemark

Chip BCM4356 

InterfacePCIe

Frequency5150~5250MHz(W52,U‐NII‐1,Band1)

5250~5350MHz(W53,U‐NII‐2A,Band2)

5470~5725MHz(W56,U‐NII‐2C,Band3)

5725~5850MHz(W58,U‐NII‐3,Band4)

DFSsupport

DataRateIEEE802.11a

54,48,36,24,18,12,9,6Mbps

IEEE802.11nHT20

Upto150Mbps

IEEE802.11nHT40

Upto300Mbps

IEEE802.11acVHT80

Upto886.7Mbps

MIMO2T2R

ReceiverSensitivity5GHzband

IEEE802.11a

AIOS-4.0 Page : 14

Arcadyan Corporation

‐91dBm@6Mbps

‐75dBm@54Mbps

IEEE802.11nHT20

‐91dBm@MCS0

‐72dBm@MCS7

IEEE802.11nHT40

‐89dBm@MCS0

‐69dBm@MCS7

IEEE802.11acVHT20

‐91dBm@MCS0

‐72dBm@MCS8

IEEE802.11acVHT40

‐89dBm@MCS0

‐69dBm@MCS9

IEEE802.11acVHT80

‐86dBm@MCS0

‐61dBm@MCS7

FCC & IC Statement:

FCC Statement:

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

AIOS-4.0 Page : 15

Arcadyan Corporation

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other

channels is not possible.

This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or

transmitter except in accordance with FCC multi-transmitter product procedures.

This device is restricted for indoor use.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with minimum distance 20 cm between the radiator & your

body.

Module is limited to OEM installation ONLY “

OEM integrators is responsible for ensuring that the end-user has no manual instructions to remove or install

module”

If (1) the module’s FCC ID is not visible when installed in the host, or (2) if the host is marketed so that end

users do not have straightforward commonly used methods for access to remove the module so that the

FCC ID of the module is visible; then an additional permanent label referring to the enclosed module:

“Contains Transmitter Module FCC ID: RAX-AIOS4-0S” or “Contains FCC ID: RAX-AIOS4-0S” must be

used. The host OEM user manual must also contain clear instructions on how end users can find and/or

access the module and the FCC ID.”

A host product is required to comply with all applicable FCC equipment authorizations regulations,

requirements and equipment functions not associated with the transmitter module portion. For example,

compliance must be demonstrated to regulations for other transmitter components within the host product; to

requirements for unintentional radiators (Part 15B), such as digital devices, computer peripherals, radio

receivers, etc.; and to additional authorization requirements for the non-transmitter functions on the

transmitter module (i.e., Verification, or Declaration of Conformity) (e.g., Bluetooth and WiFi transmitter

modules may also contain digital logic functions) as appropriate.

To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring

compliance with the module(s) installed and is fully operational. For example, if a host was previously

authorized as an unintentional radiator under the Declaration of Conformity procedure without a transmitter

certified module and a module is added, the host manufacturer is responsible for ensuring that after the

module is installed and operational the host continues to be compliant with the Part 15B unintentional

radiator requirements. Since this may depend on the details of how the module is integrated with the host,

AIOS-4.0 Page : 16

Arcadyan Corporation

the grantee (the party responsible for the module grant) shall provide guidance to the host manufacturer for

compliance with the Part 15B requirements.”

“The following statements must be included in the user’s manual of the end product:”

Part 15.19 and 15.21 statements (please indicate what they are)

“FCC RF Exposure requirements: The antenna(s) used for this transmitter must be installed to provide a

separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other

antenna or transmitter, except in accordance with FCC multi-transmitter product procedures”

IC Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de

licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de

brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d'en compromettre le fonctionnement.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other

channels is not possible.

Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être

exploités. Sélection d'autres canaux n'est pas possible.

This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or

transmitter except in accordance with IC multi-transmitter product procedures.

Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une

autre antenne ou transmetteur.

Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350 MHz,

5470-5600 MHz and 5650-5725 MHz

Sélection dynamique de fréquences (DFS) pour les dispositifs fonctionnant dans les bandes 5250-5350

MHz, 5470-5600 MHz et 5650-5725 MHz

The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for

harmful interference to co-channel mobile satellite systems.

les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une

utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites

mobiles utilisant les mêmes canaux.

AIOS-4.0 Page : 17

Arcadyan Corporation

The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall

be such that the equipment still complies with the e.i.r.p. limit.

le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5250-5350 MHz et

5470-5725 MHz doit se conformer à la limite de p.i.r.e.

The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the

equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as

appropriate.

le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5850 MHz)

doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le

cas.

Users should also be advised that high-power radars are allocated as primary users (i.e. priority

users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference

and/or damage to LE-LAN devices.

De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont

désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850

MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.

For indoor use only.

Pour une utilisation en intérieur uniquement.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20 cm between the

radiator & your body.

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement

non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la

source de rayonnement et votre corps.

AIOS-4.0 Page : 18

Arcadyan Corporation

This radio transmitter (IC: 4711A-AIOS40S) has been approved by Industry Canada to operate with the

antenna types listed below with the maximum permissible gain and required antenna impedance for each

antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain

indicated for that type, are strictly prohibited for use with this device.

Le présent émetteur radio (IC: 4711A-AIOS40S) a été approuvé par Industrie Canada pour fonctionner avec

les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour

chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain

maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

Antenna list:

Gain (dBi)

Set Brand P/N Type Connector 2.4GHz 5GHz

1 Airgain N2420DG3-T2L-PK1-G30U PIFA I-PEX 3.10 3.66

2 Airgain N2420DG3-T2L-PK1-G100U PIFA I-PEX 3.10 3.66

3 Airgain N2420DG3-T2L-PK1-G600U PIFA I-PEX 3.10 3.66

4 Airgain N2425D-T2L-PK1-G30U PIFA I-PEX 1.90 3.50

5 Airgain N2425D-T2R-PK1-G150U PIFA I-PEX 1.90 3.50

6 Airgain N2425D-T2R-PK1-G30U PIFA I-PEX 1.90 3.50

7 Airgain N2425D-T2R-PK1-G500U PIFA I-PEX 1.90 3.50

Gain (dBi)

Set Brand Model No. Type Connector 2.4GHz 5GHz

8 Arcadyan WN9722A-DM Dipole I-PEX 2.94 3.19

9 Arcadyan WN9722A-DM-300mm Dipole I-PEX 2.76 2.63

10 Arcadyan WN9722A-DM-500mm Dipole I-PEX 1.99 2.59

Note: The EUT has ten sets of antenna, and each set contains two antennas.

Arcadyan Technology AIOS4-0S HEOS 4.X Platform Module User Manual OEM Manual

Arcadyan Technology Corporation HEOS 4.X Platform Module OEM Manual

Contents

OEM Manual

Navigation menu

Namespaces

Views

Navigation
