USER MANUAL

5634RCS User’s Manual

Congratulations on purchasing the most sophisticated modem available. Your modem

combines advanced technology with state-of-the-art features to bring you the modern

advanced communications device available today!

This modem provides the following features.

n Modem Capabilities

¨ K56Flex, V.90, 56000bps, 33600bps, 31200bps

¨ ITU-T V.34, V.32bis, V.32, V.23, V.22bis, V.22, V.21, Bell 212A, and 103

¨ V.42LAPM and MNP 2-4, and MNP 10 error correction

¨ V.42bis and MNP 5 data compression

n Fax Capabilities

¨ ITU-T V.33, V.17, V.29, V.27ter, and V.21 Channel 2, 300 to 14400bps.

¨ TIA/EIA 578 Class 1 Fax

n Voice Capabilities

¨ Concurrent DTMF and tone detection

¨ Remote or local telephone answering machine/ voice mail control

¨ Enhanced ADPCM compression/decompression

¨ Record/playback via handset or mic/speaker

n Caller ID

n Speakerphone Capabilities

¨ Full-duplex speakerphone (acoustic and line echo cancellation)

¨ Microphone gain and muting

¨ Speaker volume control and muting

¨ Room Monitor

n ASVD (Analog simultaneous voice and data) or AudioSpan (simultaneous

audio/voice and data)

¨ ITU-T V.61 modulation (4.8 kbps data plus audio)

¨ Handset, headset, or half-duplex speakerphone

n Voice View Protocol Support

¨ Voice mode (local handset and FDSP)

¨ Voice View data mode (V.17,V.29,V.27ter,and V.21 ch2)

n Video Ready Modem

¨ Follows H.324, V.80,V.70 DSVD standard

Trademark

Windows and MS-DOS are trademarks of Microsoft Corporation. IBM PC/AT is a

trademark of International Business Machines. Other product or company names are

trademarks or registered trademarks of their respective holders.

5634RCS User’s Manual

Table of Contents

CHAPTER 1 INSTALLING THE MODEM.............................................................4

1.1 CHECKING YOUR COMPONENTS.................................................................................................4

1.2 WHAT ELSE YOU NEED .............................................................................................................4

1.3 INSTALLING THE MODEM ...........................................................................................................4

1.4 PREREQUISITES ......................................................................................................................4

1.5 CONNECTING TO A COMPUTER OR TERMINAL...............................................................................5

1.6 CONNECTING TO THE TELEPHONE LINE.......................................................................................5

1.7 CONNECTING TO YOUR TELEPHONE ...........................................................................................6

1.8 CONNECTING TO AN AC OUTLET ...............................................................................................6

1.9 USING A EXTERNAL MIC AND SPEAKER ......................................................................................6

1.10 VERIFYING YOUR CONNECTION ................................................................................................6

1.11 MODEM LEDS.......................................................................................................................8

CHAPTER 2 TYPING COMMANDS AND RECEIVING RESPONSES .................10

2.1 TYPING A COMMAND.................................................................................................................10

2.2 TO TYPE A COMMAND LINE ........................................................................................................10

2.3 CORRECTING A TYPING MISTAKE................................................................................................10

2.4 READABILITY...........................................................................................................................10

2.5 TYPING MORE THAN 40 CHARACTERS.........................................................................................11

2.6 OMITTING A PARAMETER...........................................................................................................11

2.7 REPEATING A COMMAND LINE ....................................................................................................11

2.8 MODEM RESPONSES ................................................................................................................11

2.9 WORD OR NUMERIC RESPONSES ...............................................................................................12

2.9.1 X0 response set..............................................................................................................12

2.9.2 X1 response set..............................................................................................................12

2.9.3 X2 response set..............................................................................................................12

2.9.4 X3 response set..............................................................................................................13

2.9.5 X4 response set..............................................................................................................13

2.10 CORRECTION & COMPRESSION RESPONSES..............................................................................13

CHAPTER 3 USING CONFIGURATION PROFILES............................................19

3.1 STORING A PROFILE .................................................................................................................19

3.2 RECALLING A PROFILE ..............................................................................................................19

3.3 RESET AND RECALLING PROFILE ................................................................................................20

CHAPTER 4 ERROR CORRECTION AND DATA COMPRESSION....................22

4.1 ERROR-CORRECTION PROTOCOLS.............................................................................................22

4.2 V.42 ......................................................................................................................................22

4.3 CONFIGURING FOR AUTO-RELIABLE OPERATION...........................................................................22

4.4 CONFIGURING FOR RELIABLE OPERATION....................................................................................23

4.5 TURNING OFF ERROR-CORRECTION ...........................................................................................23

4.6 MNP5 AND V.42BIS DATA-COMPRESSION ..................................................................................23

CHAPTER 5 LIST OF MODEM COMMANDS ......................................................24

ECHO CHARACTERS IN COMMAND MODE ...........................................................................................25

HOOK SWITCH...............................................................................................................................25

SPEAKER VOLUME .........................................................................................................................25

MODEM RESPONSES ......................................................................................................................26

RESPONSE FORMAT.......................................................................................................................26

TELEPHONE JACK CONTROL...........................................................................................................28

PULSE MAKE/BREAK RATIO..............................................................................................................28

SET OPERATING MODE ...................................................................................................................31

CHAPTER 6 LIST OF MODEM S-REGISTER......................................................33

5634RCS User’s Manual

6.1 READING AN S-REGISTER VALUE...............................................................................................33

6.2 CHANGING AN S-REGISTER VALUE.............................................................................................33

6.3 S-REGISTER DESCRIPTIONS......................................................................................................33

CHAPTER 7 HARDWARE QUICK INSTALLATION GUIDE................................51

7.1 FOR WINDOWS 95 ..............................................................................................................51

7.2 FOR WINDOWS 3.1X OR DOS..............................................................................................52

CHAPTER 8 WINDOWS 95 MODEM DRIVER INSTALLATION..........................54

8.1 INSTALL THE MODEM TO WINDOWS 95.......................................................................................54

8.2 TESTING THE INSTALLATION OF THE MODEM................................................................................57

8.3 MANUALLY INSTALL THE MODEM................................................................................................59

A FCC COMPLIANCE ..........................................................................................59

A.1 FCC NOTICE..........................................................................................................................60

A.2 FCC REQUIREMENT................................................................................................................60

B RECOMMENDED INITIALIZATION STRINGS .................................................61

C PIN ASSIGNMENTS..........................................................................................62

C.1 RS-232C CONNECTOR ...........................................................................................................63

C.2 RS-232C PIN ASSIGNMENTS ...................................................................................................63

TROUBLESHOOTING..........................................................................................63

5634RCS User’s Manual

This installation guide provides detailed instructions for installing your modem with

computer or terminal.

1.1 Checking your components

Unpack your components and make sure you have the following items:

l The modem

l A modular telephone cable to connect your modem to the telephone line

l Power adapter

l This installation guide and user's manual

l Communication software and manual (option)

l You will also need an available RS-232 serial port on the personal computer and a

properly configured RS-232C interface cable.

l Microphone (option)

l Stereo audio cable (option)

l A driver disk for Windows 95, Windows NT3.51, Windows NT 4.0

When you open your package, make sure all of the above items are included and not

damaged. If you see that any components are damaged, please notify your dealer

immediately.

1.2 What else you need

To complete your data communication system, you will need the following items:

l Some type of communication software, if not included.

l An optional telephone set ( you do not need to use a telephone with your modem ).

1.3 Installing the modem

Your modem fits neatly under most standard desk-top telephone. You should place your

modem near a 110 or 220 VAC power source (such as a wall outlet). The distance

between the modem and your computer, terminal, or printer is determined by the length of

your RS-232-C cable.

Be sure you can clearly see the panel LEDs, reach the ON/OFF switch on the back panel,

and hear the built-in speaker when you dial calls or the speakerphone is in use.

1.4 Prerequisites

When connecting your modem to a computer, you will need:

l An available RS-232-C serial port.

5634RCS User’s Manual

l An RS-232-C cable with at least one male connector for connecting to your modem;

Your computer's requirements determine the gender of the connector on the other end.

l Software that lets the modem communicates with your computer.

If you lack any of these items, refer to your computer reference manual or contact your

computer dealer. If your computer does not have an RS-232C DB25 connector, obtain an

adapter cable from your computer dealer.

1.5 Connecting to a computer or terminal

Use the following procedure to connect your modem to a computer or terminal.

1. Plug the male DB-25 connector on your RS-232C cable into the RS-232 connector on

the back of the modem (see Figure 1-1).

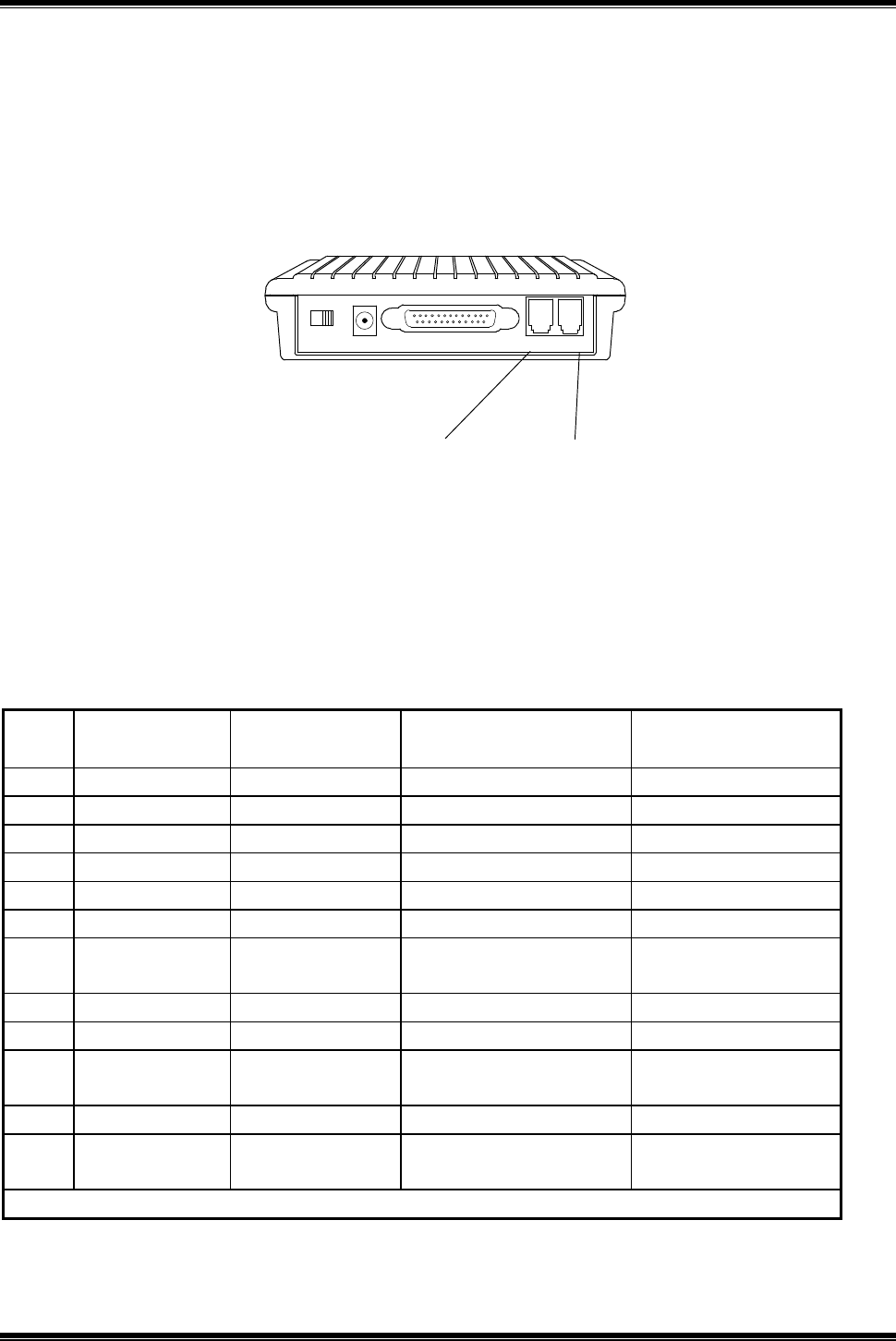

PHONE

LINE JACK

ON OFF AC 9V RS232

LINE PHONE

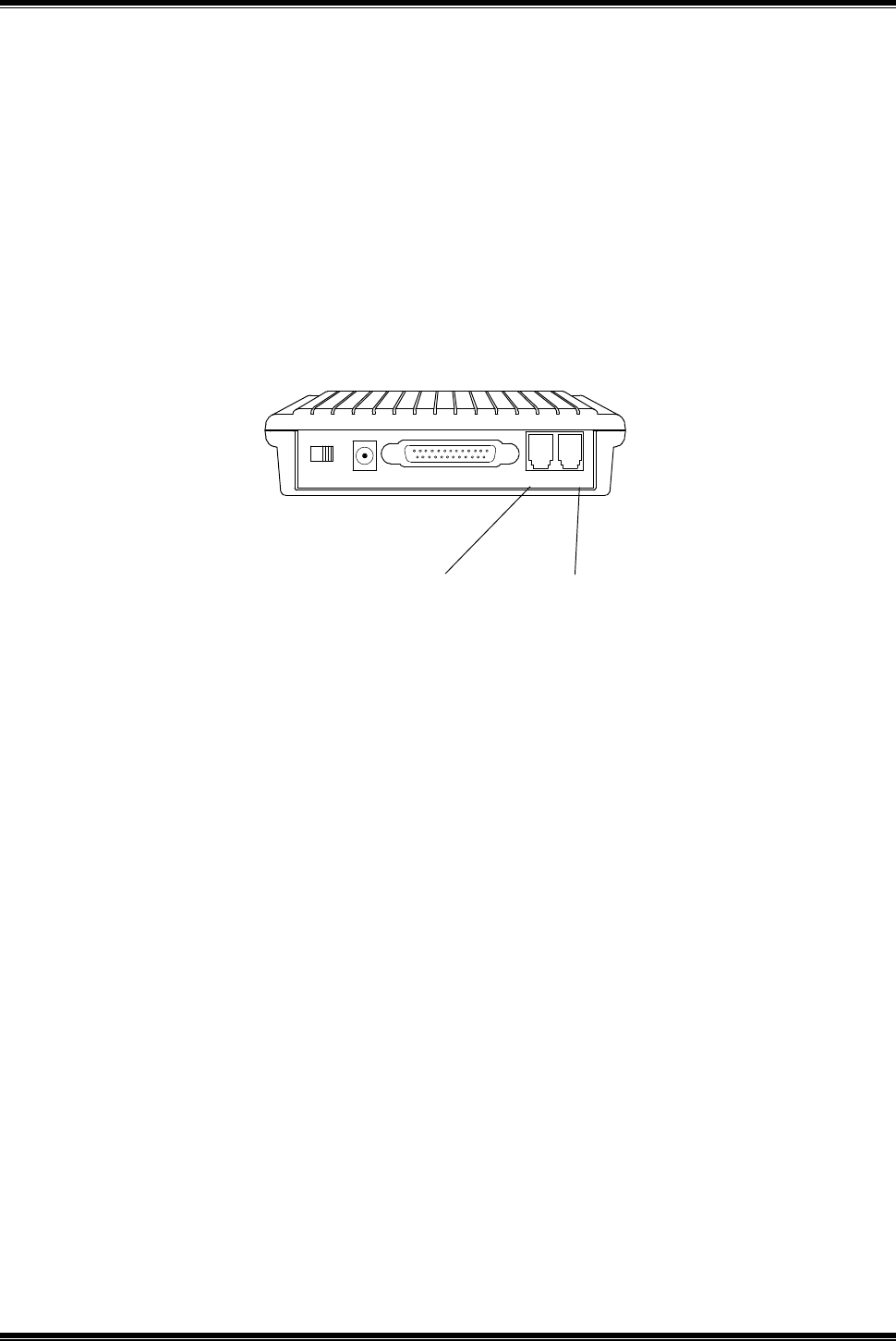

Figure 1-1. Back of modem

2. Plug the other end of the cable into the appropriate RS-232C connector on your

computer or terminal. If you need assistance, refer to the manual that accompanied

your equipment or contact your computer dealer.

3. After making the connection, check your computer or terminal requirements for the

Carrier Detect and Data Terminal Ready signals. The &C command affects the Carrier

Detect signal, and &D command affects the Data Terminal Ready signal. Refer to

Chapter 5 List of modem commands.

1.6 Connecting to the telephone line

Use the following procedure to connect your modem to the telephone line:

1. Make sure you have an RJ-11 telephone jack. If you need a modular jack, either obtain

a telephone adapter from a telephone or electronics store and follow the installation

instructions provided with the adapter, or have your local telephone company replace

your existing telephone jack with a modular-type jack and your existing telephone cord

with a modular cord.

2. Unplug your telephone's cable from the wall jack.

3. Take one end of the modular telephone cable supplied with your modem and plug into

the LINE jack on the back of the modem (see Figure 1-1).

4. Plug the other end of the telephone cord into the telephone jack on the wall.

5634RCS User’s Manual

1.7 Connecting to your telephone

Your modem is so convenient. It provides a second modular telephone jack that lets you

connect your telephone to the same telephone line the modem is using. This lets you

manually dial data calls or make voice calls when you are not using your modem.

Use the following procedure to connect your telephone to your modem:

1. Connect the telephone's modular cord into the PHONE jack on the back of your

modem (see figure 1-1).

2. Lift your telephone's handset and listen for a dial tone.

1.8 Connecting to an AC outlet

Use the following procedure to connect your modem to an AC outlet:

1. Insert the supplied power cable into the round AC-IN connector next to the POWER

switch on the back of the modem (see figure 1-1).

2. Plug the end with the power pack into either a 110 or 220 VAC outlet.

3. Turn the POWER switch to ON position, then the MR LED goes on.

4. Turn on the computer or terminal connected to the modem.

1.9 Using a external MIC and speaker1

If you want to use an external MIC or speaker instead of using the built-in speaker, you

need to insert your external MIC or speaker cable into the round MIC or speaker

connector. After you’ve inserted the external MIC or speaker, the default built-in speaker

will be disabled.

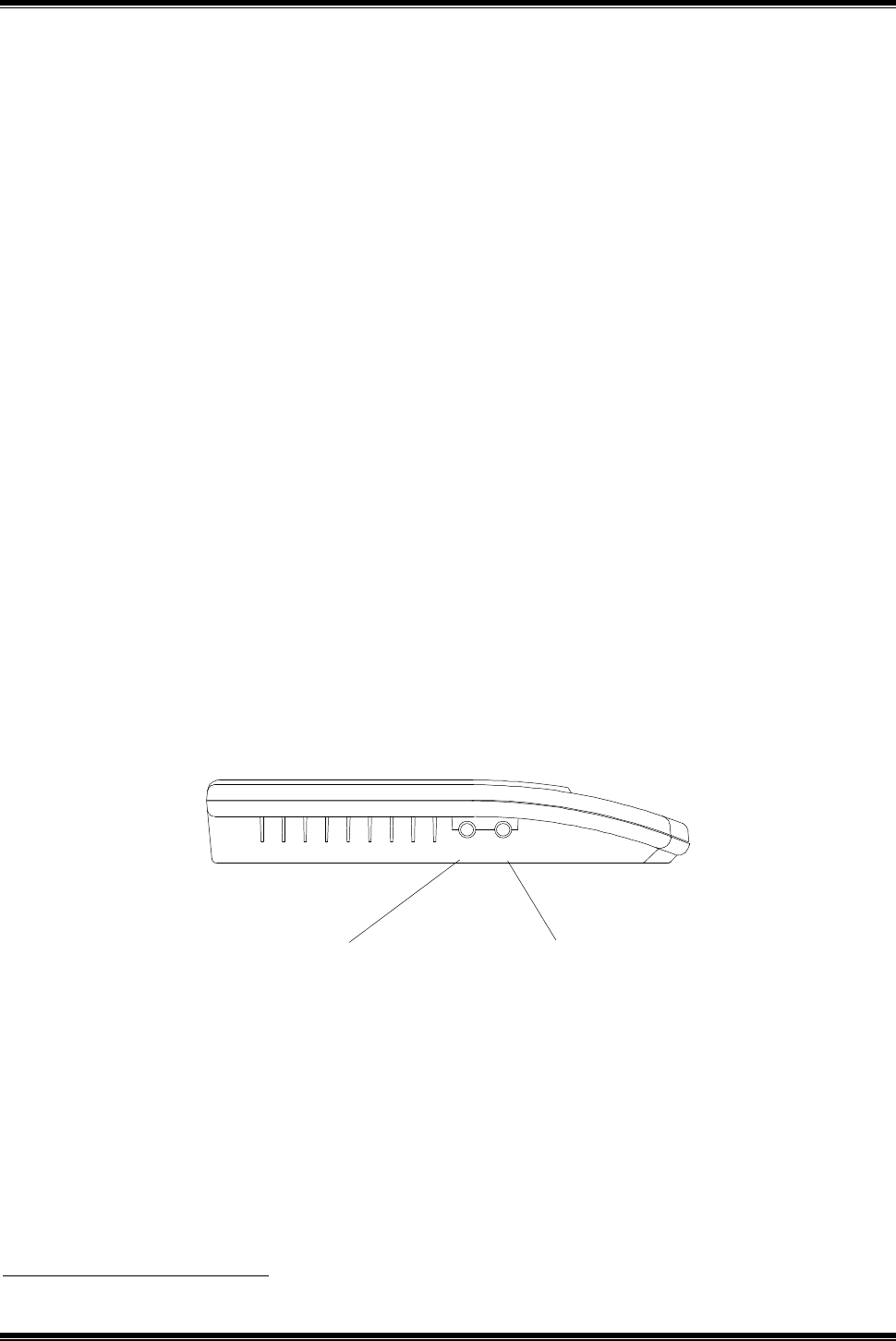

SPEAKERMICROPHONE

Figure 1-2 Side view of the modem

1.10 Verifying your connection

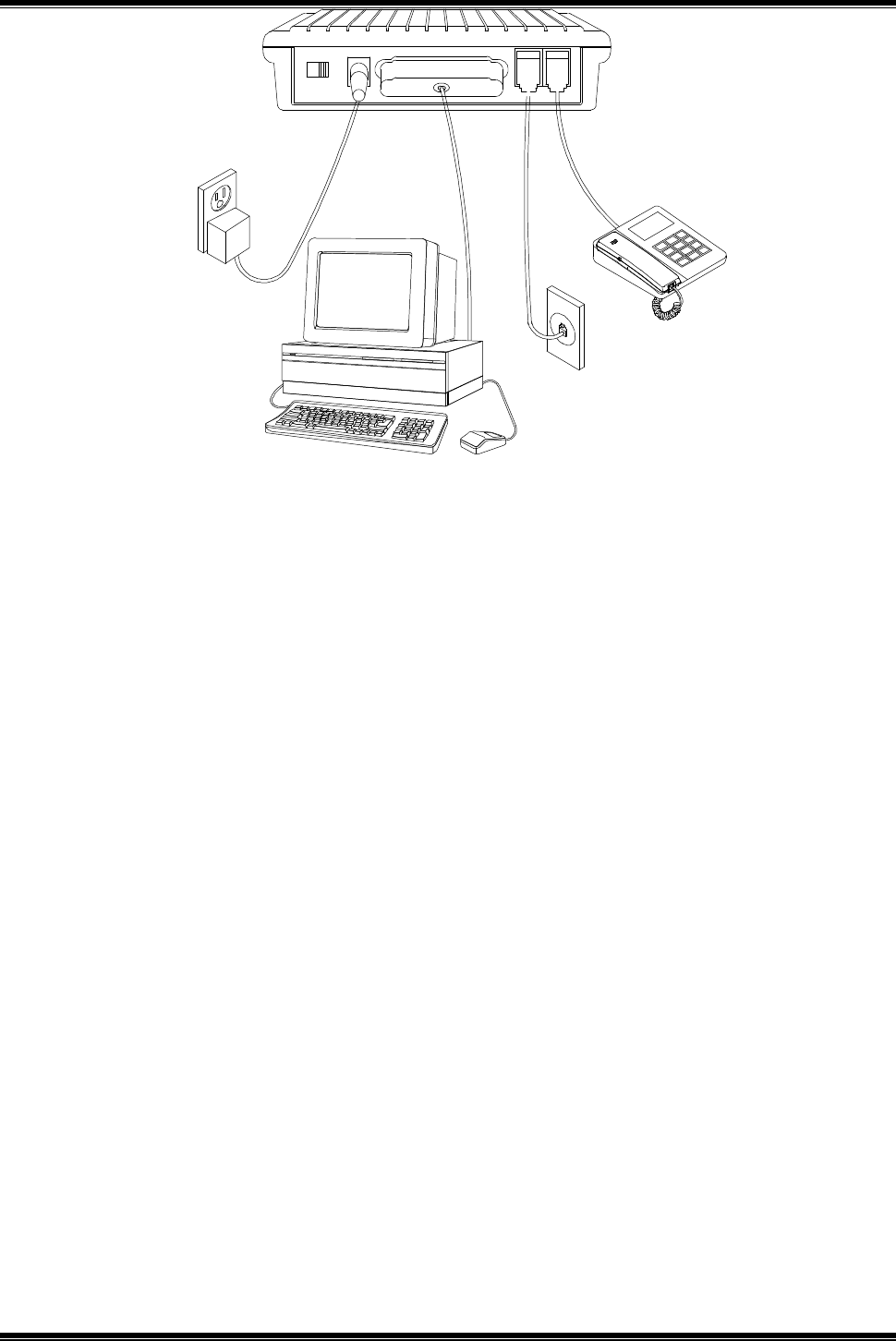

Before proceeding, make sure your connection matches the one shown in Figure 1-3.

1 If you modem is shipped without speakerphone function, the MIC and speaker will not work in your system. You

can record and playback your voice messages via the handset.

5634RCS User’s Manual

PHONE JACK

LINE JACK

COMPUTER

CONNECTOR

POWER

ON OFF

Figure 1-3. Completed modem installation

If you connected the modem to a computer, place the computer into terminal mode and

complete the configuration information required by the software. Refer to your software

manual to find out which commands to use.

Then use the following procedure to verify your modem connections:

1. Type AT and press the Enter key. The RD and TD LEDs flash on the modem front

panel. If your system is operating properly, your modem sends an OK response to your

computer screen and wait for your next command.

If the LEDs did not FLASH, or if you did not receive a response, make sure your computer

is sending commands to your modem at a speed of 300, 1200, 2400, 9600, 19200, 38400,

57600 or 115200bps. If this does not solve your problem, contact your computer dealer.

2. Use your communication software to prepare your computer to dial a call. Then type

ATD x phone number, where x is either T for Touch-Tone dialing or P for Pulse dialing

and phone number is the telephone number that your modem is using

For example, if your modem is connected to the telephone line 555-2121 and Touch-Tone

dialing is supported in your calling area, type ATDT 555 2121

3. Press the Enter key. You should receive a BUSY response and you should hear the

busy signal through the modem speaker because the modem is calling itself.

Your modem is now ready for operation. Refer to the manual that came with your

communication software to begin communication. If you will be communicating directly

with your modem, or if you want to find out more about the modem's operation, proceed to

use's manual.

5634RCS User’s Manual

l If you want to turn off your modem, set the POWER switch on the back of the modem

to the OFF position.

1.11 Modem LEDs

The modem has 9 front panel LEDs, which keep you constantly informed of the modem's

status. Figure 1-4 shows the LEDs.

MIC

RTS

CTS

Figure 1-4. Top panel of modem

LED Meaning

AA AA is Auto-Answer LED. This LED goes ON when the modem is set up to

auto-answer incoming calls

CTS CTS is the Clear To Send LED. This LED goes ON when your modem

sends your computer the CTS signal, indicating that the computer can

begin transmitting data.

RTS RTS is the Request To Send LED. This LED goes ON when your modem

receives from your computer, indicating that the computer wants to

transmit data.

CD CD is the Carrier Detect LED. This LED goes ON when the modem detects

a remote modem's carrier signal.

OH OH LED is the Off Hook. This LED goes ON when the modem is off-hook

(using the telephone line).

RD RD is the Receive Data LED. This LED blinks each time your computer

receives data from your modem. When data is received at a fast rate, the

LED may appear to be ON.

TD TD is the Transmit Data LED. This LED blinks each time data is being

transmitted from your computer's serial port to your modem. When data is

being transmitted as fast data rates, this LED may appear to be ON.

5634RCS User’s Manual

LED Meaning

TR TR is the Data Terminal Ready LED. This LED goes ON when the modem

is receiving a Data Terminal Ready (DTR) signal from your computer. Your

computer sends this sign al when the computer is ready to send or receive

data ( DTR is ON ). This LED does not work with Macintosh, which uses

the DTR signal for hardware flow control purposes.

MR MR is the Modem Ready LED, This LED goes ON when your modem is

connected to an AC outlet and turned on.

5634RCS User’s Manual

Chapter 2 describes the format to use when typing modem commands. Chapter 2 also

describes the responses that your modem sends to your computer screen when you

execute, or try to execute, modem commands.

If you will be using a communication software program to make data calls, you will

probably not need to type commands, because your software program will handle these

tasks for you. Similarly, you will probably not see the responses because your software

program may intercept them.

However, if you perform data activities directly with your modem, you will find the format

for typing modem commands and modem response helpful.

2.1 Typing a command

Using commands, you can have your modem perform a variety of activities, such as

dialing or answering a data call or sending a fax. In order to send commands to your

modem, You must type a command line while your modem is in command mode.

2.2 To type a command line

1. Type AT. These characters must precede every command line. (except when you type

the A/ command, described on page 31)

2. Type the commands you want your modem to execute. A command line can contain

up to 40 characters.

3. Press the Enter key. The modem will then execute the commands on the command

line.

2.3 Correcting a typing mistake

If you make a mistake while typing a command, press the Backspace key to delete the

error. You can delete every command except AT.

2.4 Readability

To make a command line easy to read, you can insert spaces parentheses, hyphens, and

other punctuation in your command line. For example:

AT M3 DT 9, 1(818)555-1234

Your modem ignores spaces and punctuation when executing a command line, but these

characters apply to the 40 characters limit.

5634RCS User’s Manual

2.5 Typing more than 40 characters

If you want to type more than 40 characters on a command line, type a regular command

line (up to 40 characters long) and end it with a semicolon as the last character. When

you press Enter, your modem executes the commands and returns to command mode, so

you can type your next command line.

2.6 Omitting a parameter

Some commands require a numeric parameter such as 0,1, or 2. For example, the Q

command determines whether your modem sends a modem response after executing a

modem command line:

Q0 tells the modem to send responses.

Q1 tells the modem not to send response.

If you type ATQ and press the Enter key without typing a parameter of 0 or 1 after the Q,

it's like typing Q0 and the modem will send modem responses.

2.7 Repeating a command line

For your convenience, the last command line you execute remains stored in the modem's

memory until you type a new command line and press the Enter key. If you want to re-

execute the last command, type A/.

When you want to use the A/ command, you don't need to preface it with the AT

characters or end it by pressing the Enter key. Just type A/ to have your modem

automatically re execute the last command line.

The A/ command is particularly useful when you want your modem to re-execute a lengthy

command line or redial a number that was busy.

You can continue using A/ to automatically re-execute the last command line until you

type a new command line that begins with AT or reset your modem, or until your modem

loses power.

2.8 Modem responses

When you send a command to your modem, it sends a response to your computer. For

example, if you send a modem command to your modem, the modem should respond with

OK. You may never see these responses, however because certain communication

software will intercept them before they can be displayed on your computer screen.

This section describes the modem responses returned by the modem when you

communicate directly with the modem. If you will be using a communication software

5634RCS User’s Manual

program to make data calls, you may not see these responses because your software

program will probably intercept the responses.

Response sets

Modem responses can come from one of five response sets. These response sets are

designed X0, X1, X2, X3, and X4.

The response sets determine which modem responses are sent by the modem. They also

define certain dialing characteristics and how the modem handles dial tones and busy

signals, as described in the following sections.

2.9 Word or numeric responses

Modem responses can appear as words or numbers. Your modem is set up to return word

responses. Word responses are followed by a carriage return and line feed.

If your modem is operating under an application that handles character strings inefficiently

or cannot handle them at all, you can use the V0 command to switch to numeric modem

responses. Numeric responses are followed by a carriage return only.

If you do not want to receive modem responses at all, you can use Q1 command to

disable them. You may want to disable responses entirely if your modem is connected to a

printer and you do not want the modem responses printed.

2.9.1 X0 response set

The X0 response set consists of the first five responses in Table 2-1. with this response

set, you receive the CONNECT response for all connections, regardless of the speed at

which they're made.

When you send a Dial command line with this response set in effect, the modem will wait

two seconds after receiving your Dial command, then automatically dial the telephone

number whether or not a dial tone is present This is known as "blind dialing." You may

want to use blind dialing if you will be using the modem in an area that has an irregular or

weak dial tone that your modem cannot always detect.

2.9.2 X1 response set

The X1 response set consists of the all responses in Table 2-1, except NO DIALTONE,

BUSY and NO ANSWER. When you send a Dial command with this response set in effect,

your modem will blind dial call.

2.9.3 X2 response set

The X2 response set consists of all responses in Table 2-1, except BUSY and NO

ANSWER.

5634RCS User’s Manual

When you send a Dial command with this response set in effect, your modem will listen

for a dial tone before dialing. If it does not detect a dial tone within five seconds, it hangs

up and returns the NO DIALTONE response.

2.9.4 X3 response set

The X3 response set consists of all responses in Table 2-1, except NO DIALTONE.

When this response set is in effect and you send a Dial command to your modem, your

modem will blind dial the call. If the telephone number dialed is busy, your modem will

send the BUSY response.

2.9.5 X4 response set

The X4 response set is the factory-default response set. It consists of the all responses in

Table 2-1. This response set allows the modem to detect a dial tone and also a busy

signal.

2.10 Correction & compression responses

If your modem supports the MNP and V.42/V.42bis error-correction and data-compression

protocols, you can use the Wn command to enable the extended responses shown in

Table 2-1.

l The W command that enables negotiation progress responses is not the same

command as the W dialing modifier used in dial command lines.

The default setting, W0, disables extended responses. With W0, all CONNECT responses

report the DTE speed.

To receive the CARRIER and PROTOCOL responses in Table 2-1, send the W1

command. When this command is in effect, the CONNECT response will show the DTE

speed.

If you want the CONNECT response to show the DCE speed rather than the DTE speed,

send W2 command. With this command, extended responses will be disabled.

Modems that support the MNP and V.42/V.42bis error-correction and data-compression

protocol can also use the \V1 command to append /ARQ to the end of all CONNECT

responses when your modem makes an error-correction data connection with a remote

modem.

If you do not want /ARQ appended to the end of CONNECT responses when an error-

correction data connection is made, send the \V0 command.

5634RCS User’s Manual

Table 2-1. Modem responses

Word Response Number

Response Meaning

OK 00 Modem successfully executed a command

line.

CONNECT 01 If X0 is in effect, modem made a data

connection at 0-300,1200, 2400, 9600,

19200bps, Otherwise modem made a data

connection at 0-300 bps.

RING 02 Modem detected an incoming ring.

NO CARRIER 03 Remote carrier signal not detected.

ERROR 04 You typed an invalid command line, a

checksum error occurred, or your command

line is too long.

CONNECT 1200 05 Modem made a 1200bps data connection.

NO DIALTONE 06 Modem has not detected a dial tone. (this

response is enabled when X2, X4 or the W

dial modifier is in effect.

BUSY 07 Modem detected a busy signal. (this

response is enabled when X3 or X4 is in

effect.

NO ANSWER 08 Modem did not detect silence when dialing a

command line containing the @ dial modifier.

CONNECT 600 09 Modem made a data connection at 600bps. *

CONNECT 2400 10 Modem made a data connection at 2400bps.

CONNECT 4800 11 Modem made a data connection at 4800bps.

CONNECT 9600 12 Modem made a data connection at 9600bps.

CONNECT 7200 13 Modem made a data connection at 7200bps.

CONNECT

12000 14 Modem made a data connection at

12000bps. *

CONNECT

14400 15 Modem made a data connection at

14400bps. *

CONNECT

19200 16 Modem made a data connection at

19200bps. *

CONNECT

38400 17 Modem made a data connection at

38400bps. *

CONNECT

57600 18 Modem made a data connection at

57600bps. *

5634RCS User’s Manual

CONNECT

115200 19 Modem made a data connection at

115.2kbps. *

5634RCS User’s Manual

Word Response Number

Response Meaning

CONNECT

75TX/1200RX 22 Modem made a data connection at 75bps

transmit and 1200bps receive. *

CONNECT

1200TX/75RX 23 Modem made a data connection at 1200bps

*transmit and 75bps receive.

DELAYED 24 Modem return this result code when a call

fails to connect and the number dialed is

considered "delayed" due to country

blacklisting requirement.

BLACKLISTED 32 Modem return this result code when a call

fails to connect and the number dialed is

considered "blacklisted".

FAX 33 Modem connection is established in fax mode

DATA 35 Modem connection is established in data

mode.

CARRIER 300 40 Carrier detected at 300bps. **

CARRIER

1200/75 44 Carrier - transmit 1200bps, receive 75bps. **

CARRIER

75/1200 45 Carrier - transmit 75bps, receive 1200bps. **

CARRIER 1200 46 Carrier detected at 1200bps. **

CARRIER 2400 47 Carrier detected at 2400bps. **

CARRIER 4800 48 Carrier detected at 4800bps. **

CARRIER 7200 49 Carrier detected at 7200bps. **

CARRIER 9600 50 Carrier detected at 9600bps. **

CARRIER 12000 51 Carrier detected at 12000bps. **

CARRIER 14400 52 Carrier detected at 14400bps. **

CARRIER 16800 53 Carrier detected at 16800bps. **

CARRIER 19200 54 Carrier detected at 19200bps. **

CARRIER 21600 55 Carrier detected at 21600bps. **

CARRIER 24000 56 Carrier detected at 24000bps. **

CARRIER 26400 57 Carrier detected at 26400bps. **

CARRIER 28800 58 Carrier detected at 28800bps. **

CONNECT

16800 59 Modem made a data connection at

16800bps.

CONNECT

21600 61 Modem made a data connection at

21600bps.

CONNECT

24000 62 Modem made a data connection at

24000bps.

CONNECT

26400 63 Modem made a data connection at

26400bps.

CONNECT

28800 64 Modem made a data connection at

28800bps.

5634RCS User’s Manual

Word Response Number

Response Meaning

COMPRESSION:

CLASS 5 66 MNP compression negotiated.**

COMPRESSION:

V.42BIS 67 V.42bis compression negotiated.**

COMPRESSION:

NONE 69 No compression negotiated. **

PROTOCOL:

NONE 70 Asynchronous operation. **

PROTOCOL:

LAPM 77 V.42 LAPM. **

CARRIER 31200 78 Carrier detected at 31200bps. **

CARRIER 33600 79 Carrier detected at 33600bps. **

PROTOCOL:

ALT 80 MNP negotiated. **

CONNECT

33600 84 Modem made a data connection at

33600bps.

CONNECT

31200 91 Modem made a data connection at

31200bps.

CARRIER 32000 150 Carrier detected at 32000bps.

CARRIER 34000 151 Carrier detected at 34000bps.

CARRIER 36000 152 Carrier detected at 36000bps.

CARRIER 38000 153 Carrier detected at 38000bps.

CARRIER 40000 154 Carrier detected at 40000bps.

CARRIER 42000 155 Carrier detected at 42000bps.

CARRIER 44000 156 Carrier detected at 44000bps.

CARRIER 46000 157 Carrier detected at 46000bps.

CARRIER 48000 158 Carrier detected at 48000bps.

CARRIER 50000 159 Carrier detected at 50000bps.

CARRIER 52000 160 Carrier detected at 52000bps.

CARRIER 54000 161 Carrier detected at 54000bps.

CARRIER 56000 162 Carrier detected at 56000bps.

CONNECT

32000 165 Modem made a data connection at

32000bps.

CONNECT

34000 166 Modem made a data connection at

34000bps.

CONNECT

36000 167 Modem made a data connection at

36000bps.

CONNECT

38000 168 Modem made a data connection at

38000bps.

CONNECT

40000 169 Modem made a data connection at

40000bps.

CONNECT

42000 170 Modem made a data connection at

42000bps.

5634RCS User’s Manual

Word Response Number

Response Meaning

CONNECT

44000 171 Modem made a data connection at

44000bps.

CONNECT

46000 172 Modem made a data connection at

46000bps.

CONNECT

48000 173 Modem made a data connection at

48000bps.

CONNECT

50000 174 Modem made a data connection at

50000bps.

CONNECT

52000 175 Modem made a data connection at

52000bps.

CONNECT

54000 176 Modem made a data connection at

54000bps.

CONNECT

56000 177 Modem made a data connection at

56000bps.

* These response are displayed when the W0 or W1 command is in effect.

** These responses are displayed when the W1 command is in effect

5634RCS User’s Manual

Your modem is preset so that you can begin transferring data files as soon as you install

the modem and load your communication software.

If you dialing and answering requirements do not match the modem's default configuration

profile, you can create your own profiles and store them safely in your modem's

nonvolatile memory. The profiles will be saved, even when you turn off your modem.

When you need to use a certain profile, send the appropriate command.

You can save two custom configuration profiles in your modem's nonvolatile memory. You

save profiles using &Wn command. The n can be the number 0 or 1, which corresponds

to the location in nonvolatile memory where you want the profile stored.

Using the &Wn command, you can store the following commands (refer to Chapter 5 for

description of these commands):

B1, T, E1, F0, L2, M1, Q0, V1, X4, Y0, &C0, &D0, &G0, &J0, &K3, &L0, &P0, \A3, \B2,

%C1, \N3 .........

You can also store the following register values (refer to Chapter 6 for a description of

these registers):

S0=0, S2=43, S6=2, S7=30, S8=2, S9=6, S10=14, S11=95, S12=50, S18=0, S25=5 ...

3.1 Storing a profile

The following example shows how you can store a profile. Assume that you want to save

the following commands in profile 0:

X1 E0 &C1 &D0 &M0 S0=3

To do so :

1. Type AT

2. Type the commands shown above

3. Type the &W0 command as the last command on the command line to save these

commands as user Profile 0.

4. Press the Enter key. This custom configuration profile is now saved under user Profile

3.2 Recalling a profile

After you store a custom configuration profile, you can recall it using the AT&Yn

command. For example, to recall profile 0 :

Type AT&Y0

5634RCS User’s Manual

1. Press the Enter key. The next time you turn on or reset your modem, it will drive its

operating characteristics from Profile 0.

2. To recall Profile 1 instead of Profile 0, type AT&Y1 instead of AT&Y0.

3.3 Reset and recalling profile

If you prefer, you can use ATZn command to reset the modem and load a stored

configuration profile : For example, to reset your modem and recall Profile 0 :

1. Type ATZ0

2. Press the Enter key.

Returning to the default profile

1. To return to the factory default profile 0:

2. Type AT&F0

Press the Enter key. Your modem returns to basic asynchronous operation, which is the

profile in effect when you received your modem. The following table lists the modem's

default profile.

Setting Default Obtained from Memory

Auto-answer Disable Yes

Backspace character 08 No

Bell / CCITT compatibility at 1200

bps Bell 212A Yes

Busy signal detect Enabled Yes

Carriage return character 13 No

Line feed character 10 No

Communication rate 57600bps Yes

Data Set Ready option Always Yes

Data Terminal Ready option DTR hang up Yes

Data Terminal Ready pulse width 0.5 seconds Yes

Echo On Yes

Escape character definition 43 (+++) Yes

Guard tones Disabled Yes

Long space disconnect Disabled Yes

Parity None Yes

Pulse make/break ratio 39/61 (US

setting) Yes

Responses Word Yes

Response enabled All Yes

RTS-to-CTS delay 50

milliseconds Yes

5634RCS User’s Manual

Setting Default Obtained from Memory

Speaker status On, but off

when carrier

detected

Yes

Speaker volume Medium Yes

Test timer setting 0 second Yes

Wait for carrier after dialing 50 seconds Yes

Wait for dial tone 2 seconds No

Wait for dial tone before dialing Enabled Yes

5634RCS User’s Manual

Your modem supports sophisticated MNP 1- 4 and V.42 error- correcting protocols. These

protocols ensure the transmission of error-free data − even over noisy, error- prone

telephone lines. Your modem also supports the V.42bis and MNP 5 data-compression

protocols, which maximizes data throughput and significantly reduces the time needed to

exchange data.

4.1 Error-correction protocols

Your modem includes two error-correction protocols:

l MNP level 1 through 4

l CCITT V.42

When these protocols are used, the two modems perform calculations on each "packet" of

data being exchanged and compare their values. If the values do not match, the receiving

modem requests the sending modem to re transmit the packet.

MNP is an acronym for Microcom Networking Protocol. MNP detects and corrects errors

that occur when data is exchanged between two systems. Errors can result from

telephone- line noise and other signal distortions.

4.2 V.42

V.42bis the accepted international standard for error correction, ratified by ITU-T in

January 1990. It is generally felt that the handshake and protocol establishment process

of V.42 is superior to that MNP 4. Therefore, it will provide better initial connections on

poor quality telephone lines.

Moreover, while the effective data speed of V.42 and MNP 4 are almost identical over

noise-free telephone lines, V.42 provides significantly better performance than the ITU-T-

specified MNP4 over noisy telephone lines.

4.3 Configuring for auto-reliable operation

Auto-reliable operation is the modem's default configuration, so if you haven't given the

modem any \N commands, it should already be in auto-reliable mode.

Auto-reliable mode lets your modem communicate with both MNP/V.42/V.42bis modems

and modems that do not use MNP/V.42/V.42bis :

1. Type AT\N3%C3 (Factory Setting)

2. Press the Enter key. Your modem responds with OK. When your modem originates or

answers calls, it will try to make a V.42bis/V.42 connection. If either or both fail, your

modem will try to make an MNP connection. If that fails, your modem will try to make a

normal connection that does not use error correction.

5634RCS User’s Manual

4.4 Configuring for reliable operation

To communicate with remote MNP modems only:

1. Type AT\N5

2. Press the Enter key. Your modem responds with OK. When your modem originates or

answers calls, it will try to make an MNP connection. If that fails, your modem will

hang up and return to command mode.

To communicate with remote V.42 modems only:

1. Type AT\N4

2. Press the Enter key. Your modem responds with OK. When your modem originates or

answers calls, it will try to make a V.42/V.42bis connection. If that fails, your modem

will hang up and return to command mode.

4.5 Turning off error-correction

To turn off the MNP/V.42 error correction and communicate with non-MNP/V.42 modems:

1. Type AT\N0 and press the Enter key to return to standard operation with buffering. or

AT\N1 and press the Enter key to return to standard operation without buffering.

2. Your modem responds with OK.

4.6 MNP5 and V.42bis data-compression

There are two major data-compression protocols used in data communications, MNP5 and

V.42bis. MNP5 was the first data-compression protocol to be developed and provides a

data-compression ratio of 2:1.

In January 1990, ITU-T ratified the V.42bis data-compression protocol as the international

standard. V.42bis performs significantly better than MNP5, providing a data-compression

ratio of approximately 3:1 − and in some case, up to 4:1.

By supporting both types of data-compression protocols, your modem can communicate

with the installed base of MNP5 and V.42bis modems and modems.

To communicate with remote MNP5 modems only

1. Type AT%C1

2. Press the Enter key. Your modem responds with OK. When your modem originates or

answers calls, it will try to make an MNP5 connection. If that falls, your modem will

hang up and return to command mode.

To turn off V.42bis and MNP5 data compression:

1. Type AT%C0 ; Press the Enter key. Your modem responds with OK.

5634RCS User’s Manual

Chapter 5 describes the modem commands available to your modem. If you will be using

a data communication software program to send and receive files, you will probably not

need to use these commands, because your software program will handle these tasks for

you. However, if you want to bypass your communication software program and perform

modem tasks directly with your modem, you will find the commands described in this

chapter helpful.

Standard modem commands begin at Table 5-1. MNP/V.42/V.42bis commands begin on

page 38. If a command requires parameters such as 0 and 1, the parameter is identified

as n in the left column and described in the right column in the following tables.

l Remember that each command, except for +++ and A/, is prefaced by AT and

executed when you press the Enter key. To review the format used to send modem

commands, refer to Chapter 2.

Please refer to Chapter 4 for more information on MNP/V.42/V.42bis error correction and

data compression protocols.

Table 5-1. Standard modem commands

Modem

Commands Description

+ + + Keep data connection and move from data mode to command

mode

When your modem enters the data mode, typing +++ allows it to

escape to the command mode while preserving the connection to

remote modem.

AAnswer command

Force the modem to go off-hook in answer mode without waiting

for a ring. Use this command to manually answer an incoming call.

A/ Re-execute last command

Repeat the last command line it executed. Not preceded with AT

nor followed by pressing the Enter key. This command is useful

when you want the modem to redial a telephone number that was

busy. The last command line executed stays in the modem's

memory until power is turned off or the modem is reset. Either

action invalidates the A/ command, because there is no command

in memory to execute.

Bn Protocol for 300 or 1200bps operation

0 ITU-T V.21 or V.22 mode when modem is operating at 300

or 1200bps

1 Bell 103 or 212A mode when modem is operating at 300 or

1200bps ( default)

5634RCS User’s Manual

Modem

Commands Description

Cn 1 Return OK message.

DDial command

Puts the modem into the originate mode, allowing it to

automatically dial a telephone number. The telephone number to

be dialed, the symbols # and * and the dial modifiers P, R, S=n, T,

W, @, !, ; and, can follow the D command.

Example : ATDT (818) 555-1212

En Echo characters in command mode

Determines whether the modem echoes to your computer screen

the keyboard commands you type during command mode

0 Do not echo commands

1 Echo commands(default)

Hn Hook switch

0 Go on-hook(hang up modem)

1 Go off-hook

I0 Report product code

1 Compute and report checksum

2 Compute checksum and report result of comparison to

pressured checksum

3 Report firmware revision, model, and interface type

4 Report response programmed by an OEM

5 Report the country code parameter

6 Report modem data pump model and code revision

7 Reports the DAA code (world-class models only)

Ln Speaker volume

0 Low

1 Low

2 Medium(default)

3 High

Mn Speaker status

0 Speaker always off

1 Speaker on until carrier is detected(default)

2 Speaker always on

3 Speaker is off when receiving carrier and during dialing, but

on during answering.

Nn DCE data rate

0 When originating or answering call, handshake only at the

communication standard specified by S37.

1 When originating or answering call, handshake only at the

communication standard specified by S37. During

handshake, modem may fallback to a lower speed (default)

5634RCS User’s Manual

Modem

Commands Description

On RETURN to data mode after using escape characters to switch

to command node

0 Return to data mode

1 Perform equalizer retrain sequence, then return to data

mode. A retrain causes the modem to optimize its operating

characteristics to obtain the best data transmission. This

command works at speeds of 2400bps or faster.

Qn Modem responses

Determines whether the modem returns responses after you

execute, or try to execute, a modem command. Modem responses

are described in Chapter 2.

0 Send responses to local computer (default)

1 Do not send response

PSet Pulse Dial Default

This command forces pulse dialing until the next T dial modifier or

T command is received. Sets S14 bit 5. As soon as a dial

command is executed which explicitly specifies the dialing mode

for that particular call (e.g., ATDT…), this command is overridden

so that all future dialing will be tone dialed.

Sn? Display the value of Register n

Refer to Chapter 6 for more information.

Example: ATS0?

Requests the modem to display the value of Register S0, the auto-

answer register.

Sn=v Change the value of Register n to v

Refer to Chapter 6 for more information

Example : ATS0=2

Changes the value of the auto-answer register (S0) to 2.

TSet Tone Dial Default

This command forces DTMF dialing until the next P dial modifier or

P command is received. The modem will set an S-Register bit to

indicate that all subsequent dialing should be conducted in tone

mode.

Vn Response format

If modem responses are enabled (Q0 in effect), determines

whether the responses are shown in numeric or word format.

0 Numeric response format

1 Word response format (default)

5634RCS User’s Manual

Modem

Commands Description

Wn Negotiation process responses

Responses that report the carrier speed of the remote modem, the

error-correction protocol used, and the data compression method

used(if any). Modem responses are described in Chapter 2.

0 CONNECT responses show DTE speed, and disable all

extended responses. (default)

1 CONNECT responses show DTE speed, and enable

CARRIER and PROTOCOL extended responses.

2 CONNECT responses show DCE speed, and disable all

extended responses.

Xn Response set

Determines the response set used.

0 Modem ignores dialtone and busy signal; enables

responses 0-4.

1 Modem ignores dialtone and busy signal; enables all

responses except 6,7,and 8.

2 Modem ignores busy signal; enables all responses except 7

and 8.

3 Modem ignores dialtone and busy signal; enables all

responses except 6 and 8.

4 Modem recognizes dialtone and busy signal; enables all

responses. (default)

Yn Long space disconnect

0 Disable long space disconnect (default)

1 Enable long space disconnect

Zn Reset

Resets the modem and loads one of two configuration profiles

stored with the &Wn command. Refer to Chapter 3 for more

information.

0 Reset and retrieve configuration from profile 0

1 Reset and retrieve configuration from profile 1

&Cn Carrier Detect signal status

Controls the Data Carrier Detect (DCD) signal.

0 Forced on continuously

1 Follows status of remote carrier signal (default)

&Dn Data Terminal Ready signal status

Determines how your modem reacts to Data Terminal Ready

(DTR) signal

0 Determines how modem responds to the DTR signal

1 Modem enters command mode when DTR goes off

2 Modem goes on-hook and returns to command mode when

DTR goes off; auto-answer is disabled if DTR is off (default)

3 Modem resets when DTR goes off

5634RCS User’s Manual

Modem

Commands Description

&Fn Fetch the factory default

0 Fetch the factory configuration 0

1 Fetch the factory configuration 1

&Gn Guard tones

Guard tones are used internationally, but are not used in the USA.

0 Disabled (default)

1 Generate 550Hz guard tone

2 Generate 1800Hz guard tone

&Jn Telephone Jack Control

This command is only included for compatibility and performs no

function except to load the S-Register.

0 &J0 command

1 &J1 command

&Kn Flow control

This command can be used to control the flow of data between

your modem and computer. Flow control is necessary when the

speed between your computer and modem is different than the

speed between your modem and the remote modem.

0 Disable flow control.

1 Reserved

2 Reserved

3 Enable hardware (RTS/CTS) flow control (default).

4 Enable software (XON/XOFF) flow control.

5 Enable transparent software flow control (XON/XOFF)

6 Enable both hardware and software flow control (default

for fax mode and voice mode)

&Ln Telephone line type

0 Switched dial-up telephone line (default)

&Mn 0 Select direct asynchronous mode

&Pn Pulse make/break ratio

0 39/61 ratio at 10 pulses per second (default)

1 33/67 ratio at 10 pulses per second

2 39/61 ratio at 20 pulses per second

3 33/67 ratio at 20 pulses per second

&Qn 0 Select direct asynchronous mode

1 Reserved

2 Reserved

3 Reserved

4 Reserved

5 Modem negotiates an error corrected link

6 Select asynchronous operation in normal mode

5634RCS User’s Manual

Modem

Commands Description

&Rn Clear to send signal status

Controls the Clear To Send (CTS) signal during synchronous

operation. During asynchronous command and Data Modes, CTS

is always ON.

0 CTS signal tracks the Request To Send (RTS) signal

(default)

1 Modem ignores RTS and keeps CTS active continuously,

regardless of RTS status.

&Sn Data Set Ready signal status

0 DSR signal always ON (default)

1 DSR signal is ON during handshaking and OFF in test or

idle mode. DSR is OFF when the remote carrier signal is

lost

&Tn 0 Terminate any test in progress

1 Initiate local analog loopback

2 Returns ERROR result code

3 Initiate local digital loopback

4 Allow remote digital loopback

5 Disallow remote digital loopback request

6 Request an RDL without self-test

7 Request an RDL with self-test

8 Initiate local analog loop with self-test

&V View any stored configuration profiles

1 Display connection statistics

&Wn Write S register values to one of two profiles

The following commands and registers can be stored in nonvolatile

memory :

Commands: Bn, Cn, En, Ln, Mn, Qn, Vn, Yn, Xn, &Cn, &Dn,

&Gn, &Ln, &Pn........

S37

0 Write S register values to profile 0

1 Write S register values to profile 1

&Yn Select stored profile on power-up reset

This command tells the modem which profile to use the next time

the modem is turned on or reset.

0 Load Profile 0 (default)

1 Load Profile 1

&Zn=Ax Stored up four telephone numbers in nonvolatile memory

n is the memory location (0-3)

A is T(for touch tone) or P (for pulse)

x is the phone number to be stored

To dial a stored number, use the ATDS=n command

Example : AT &Z0=T 1 818 555 2121

5634RCS User’s Manual

stores in memory position 0 the telephone number 1 818 555

2121, which will be Touch Tone (T) dialed.

Table 5-2. MNP/V.42/V.42bis commands

MNP/

V.42/V.42bis

Commands

Description

%Cn Enable/disable MNP Class 5 data compression

0 Disable data compression

1 Enable MNP 5 data compression

2 Enable V.42bis data compression

3 Enable both V.42bis and MNP 5 data compression.

(default)

%En Line Quality Monitor and Auto-retrain or Fallback/Fall

Forward

This command determines whether your modem retrains

automatically and resynchronizes the flow of data if it detect

telephone-line problems that could adversely affect data.

0 Disable auto-retrain

1 Enable line quality monitor and auto-retrain

2 Enable line quality monitor and fallback/ fall forward.

(default)

%L Return received line signal level

%Q Report the line signal quality

%7 Plug and Play serial number

%8 Plug and Play vendor ID and product number

\Bn Send break to remote system

Equivalent to pressing the Break key on a host keyboard. For

standard (non-MNP) or V.42 connections, type a number from 1

to 9 after this command to indicate how long the modem is to

provide the break signal. The number will be multiplied by 100

milliseconds and the break signal provided for that duration.

Default is 0, which sends a break of 300 milliseconds. Ref. “\Kn”,

defines how your modem treats breaks.

\Gn Modem port flow control

Controls the modem's DCE flow control feature

0 Turn off port flow control(default)

1 Turn on XON/XOFF port flow control. Use this setting if the

modem is receiving data from the remote system faster

than it can process

\Kn Set break control

Determines the action performed by the modem when it receives

a break from the DTE port or the modem port. The action taken

by your modem depends on the mode that the modem is in, as

shown in the following tables. Default is 5.

5634RCS User’s Manual

In Data Mode; if reliable mode, send break to the remote system

\K0,\K2,\K4

\K1

\K3

\K5

Enter Command Mode, don't send break to remote modem

Modem clears modem and terminal buffers, and sends break to

remote system

Modem does not clear terminal and modem buffers, and sends

break to remote modem

Modem sends break to remote modem in sequence with any

transmitted data

In Command Mode; if reliable mode, send break to the remote system

\K0 or \K1

\K2 or \K3

\K4 or \K5

Modem clears modem and terminal buffers, and sends break to

remote system

Modem does not clear terminal and modem buffers, and sends

break to remote modem

Modem sends break to remote modem in sequence with any

transmitted data

In Data Mode; if break is received at modem port, send it to serial port

\K0 or \K1

\K2 or \K3

\K4 or \K5

Modem clears modem and terminal buffers, and sends break to

remote system

Modem does not clear terminal and modem buffers, and sends

break to remote modem

Modem sends break to remote modem in sequence with any

transmitted data

MNP/

V.42/V.42bis

Commands

Description

\Nn Set operating mode

Selects the type of asynchronous data connection the modem will

try to establish. A modem that uses V.42 can not communicate

with one using MNP, since the two error correction protocols are

different. However, this command ensures that your modem will

be can automatically communicate with modems that use

V.42bis, MNP, or no error-correction protocol.

0 Normal mode

1 Direct mode

2 reliable mode

3 V.42 auto-reliable mode(default)

4 V.42 reliable mode

5 MNP reliable mode

\Vn 0 Disable single line connect message

1 Enable single line connect message

5634RCS User’s Manual

Table 5-3. MNP 10 commands

MNP 10

Commands Description

-Kn MNP extended service

This command enables or disables conversion of a V.42 LAPM

connection to an MNP 10 connection.

0 Disables V.42 LAPM to MNP 10 conversion. (default)

1 Enables V.42 LAPM to MNP 10 conversion

2 Enables V.42 LAPM to MNP 10 conversion; inhibits MNP

extended services initiation during V.42 LAPM answer mode

detection phase

-SEC=n 0 Disable MNP 10EC

1 Enable MNP 10EC and set transmit level <tx level> 0 to 30 (0

dBm to -30 dBm)

5634RCS User’s Manual

S-

-r

Your modem has S-registers that affect various operating characteristics, let you obtain

information about the modem, and let you test the modem. Each S-Register has a factory-

set value, which you can read or change to fit your particular requirements. Chapter 6

explains how to read and change S-Register repeatedly. A sequential list of S-Register is

also provided.

6.1 Reading an S-Register value

To read the current value of an S-Register :

1. Type ATSr? from the command mode, where r is an S-Register number.

2. Press the Enter key. The modem responds with decimal value of the S-Register , in

three-digit form, followed by OK.

To read values from more than one S-Register :

1. Type ATSr?Sr? from the command mode and press the Enter key. For example, to

read the value of Register S0 (auto-answer after the number of rings specified by this

S-Register value) and S1(count the number of incoming rings), type ATS0?S1? from

the command mode.

2. Press the Enter key. The modem displays the first S-Register value, a carriage return,

the next S- Register value, a carriage return, and OK(or 0).

6.2 Changing an S-Register value

To change an S-Register value, use the Sr=n command, where r is an S-Register number

and n is the new value you want to assign to the S-Register. For example, to have the

modem auto-answer incoming calls after the third ring:

Type ATS0=3 from the command mode.

1. Press the Enter key. The modem responds with OK or 0 to show it has executed your

command and changed the S-Register value. The value remains in effect until the

modem is turned off and on, or reset. The modem then revert to its default S-Register

values (in this case, Register S0 returns to a value of 0, disabling auto answer).

6.3 S-Register descriptions

Table 6-1 summarizes the modem S-Register, their default values, and their functions.

5634RCS User’s Manual

Table 6-1 S-Register description

S-

S0 0-255

rings 0Auto-answer

Assigning a value from 1 to 255 in Register

S0 tells the modem how many rings must

occur before it can auto-answers calls. The

default, 0, turns off the auto-answer feature.

S1 0-255

rings 0Count incoming rings

rings when your telephone line rings. When

this value equals the value in Register S0,

the modem auto-answer calls. This S-

after the last ring.

S2 0-255,

ASCII 43

(+) Escape character value

characters, that switch the modem from data

mode to command mode without losing the

connection to the remote modem. Values

greater than 127 disable the escape

feature, preventing a return to the command

mode. To return to command mode with the

escape characters disabled, the remote

modem must hang up or an ON-to-OFF

transition of the DTR interface signal must

occur with &D1, &D2 or &D3 in effect.

S3 0-127,

ASCII 13

(Carriage

Return)

Carriage return character

carriage return (end-of-line) character, This

is the character used to end the command

line(and have the modem execute the line)

and also the character that follows modem

responses.

S4 0-127,

ASCII 10

(Line Feed) Line feed character

feed character. The modem sends this

character after a carriage return only when

word responses are sent (V1 command in

effect). If a line feed characters is not

wanted, change this register value to a null

character.

5634RCS User’s Manual

S-

S5 0-32 ,

ASCII 8

(Backspace) Backspace character.

backspace character is the one created by

passing the Backspace key and the

character echoed to move the cursor to the

left. To change this value, assign an ASCII

value between 0 and 32 or greater than

127. Do not use values between 33 and 126

since they correspond to printable ASCII

characters.

S6 4-255

seconds 4Dial tone wait time

modem waits before dialing the first digit in

Dial command line. This feature is

convenient when it takes longer than two

seconds to obtain a dial tone.

S7 1-255

seconds 50 Carrier wait time

seconds to wait for a remote modem's

carrier signal before hanging up. The S7

value can be increased if the modem does

not detect a carrier within the specified time.

If the modem detects a remote carrier signal

within the specified time, it sends a

CONNECT response and enter data mode.

If it does not detect a remote carrier within

the specified time, it sends NO CARRIER ,

hangs up, and remains in command mode.

S8 0-255

seconds 2Comma pause time for dial delay

seconds to pause for each comma (,) in a

Dial command line. The comma is used

when dialing through a PBX or other special

telephone service to wait for an outside

telephone line.

S9 1-255

tenths

of a

second

6Carrier detect response time

remote modem's carrier signal must be

present so the modem does not mistake the

signal for a busy signal, ring, or voice. The

default setting requires the modem to the

carrier signal for at least 0.6 seconds before

recognizing it. Increasing the time in this S-

modem will mistake noise such as a busy

5634RCS User’s Manual

signal or voice foe carrier signal.

5634RCS User’s Manual

S-

S10 1-255

tenths

of a

second

14 Carrier loss time

of a remote modem's carrier signal and

when the modem disconnects. This allows

the remote modem's carrier signal to

momentarily disappear from the telephone

line without the modem disconnecting.

S11 50-255

ms 95 Touch-Tone speed

Touch-Tone (DTMF) dialing. Increasing this

value to 255 slows the dialing rate to 1.9

digits per second. Do not select a value less

than 50 milliseconds. (Register S11 does

not effect pulse dialing, which is fixed at 10

pulses per second.)

S12 0-255

1/50

seconds

50 Escape character guard time

required before and after typing the escape

characters. The default setting, 50, equals

one second. To reduce the chance that

transmitted data is mistaken for escape

characters, the S12 value can be increased,

but this makes using the escape characters

time-consuming. If a small value is used, it

may be hard to type the three escape

characters fast enough, especially if the

guard time is less than the time needed to

send 1 character at the current transmission

speed. If S12=0, there will be no time

requirement for typing escape characters.

5634RCS User’s Manual

S-

S14 General Bit Mapped Options Status

Bit 0¡ÐThis bit is ignored.

Bit 1¡ÐCommand echo (En)

0= Disabled (E0)

1= Enabled (E1) (Default)

Bit 2¡ÐQuiet mode (Qn)

0= Send result codes

(Q0)(Default)

1= do not send result code (Q1)

Bit 3¡ÐResult codes(Vn)

0= Numeric

1= Verbose (V1) (Default)

Bit 5¡ÐTone(T)/Pulse(P)

0= Tone(T) (Default)

1= /Pulse(P)

Bit 7¡ÐOriginate/Answer

0= Answer

1= Originate (Default)

S16 General Bit Mapped Test Options Status

Bit 0¡ÐLocal analog loopback

0= Disabled (Default)

1= Enabled (&T1)

Bit 2¡ÐLocal digital loopback

0= Disable(Default)

1= Enable(&T3)

Bit 3¡ÐRemote digital loopback (RDL)

status

0= Modem not in RDL(Default)

1= RDL in progress

Bit 4¡ÐRDL required(AT&T6)

0= RDL not requested(Default)

1= RDL requested

Bit 5¡Ð RDL with self test

0= Disabled (Default)

1= Enabled(&T7)

Bit 6¡ÐLocal analog loopback (LAL)with

self test

0= Disabled (Default)

1= Enabled(&T8)

Bit 7¡ÐNot used

5634RCS User’s Manual

S-

S18 0-255

seconds 0Test Timer

modem tests. The tests can run from 1 to

255 seconds, depending on the value in

S18. The factory setting turns off the timer.

If the command &T0 is used to end the

modem tests, the value of S18 can be set to

0 to turn off the test timer.

AutoSync Bit Mapped Options

Defines the options for AutoSync operation .

S19 must be set to the desired value before

&Q4 is issued.

S19 Bit

Mapped 0,

hex

Bit 1 BSC/HDLC format select

0 = BSC selected (default)

1 = HDLC selected

Bit 2 Address detection enable/disable

0 = Disabled (default)

1 = Enabled

Bit 3 NRZI/NZI coding select

0 = NRZI (default)

1 = NZI

Bit 4 Idle indictor select

0 = Mark idle (default)

1 = Flag or sync idle

S20 0 - 255 0AutoSync HDLC Address or BSC Sync

Character

S-Register S20 defines the HDLC address

or BSC Sync Character for AutoSync

operation. S20 must be set to the desired

value before &Q4 is issued.

5634RCS User’s Manual

S-

S21 424/General Bit Mapped Options Status

Indicates the status of command options.

Bit 0¡ÐSet by &Jn command but ignored

otherwise.

Bit 2¡ÐCTS behavior(&Rn)

0= CTS tracks RTS (&R0)

1= CTS always on (&R1) (Default)

Bit 3-4¡ÐDTR behavior(&Dn)

0= &D0 selected (Default)

. 1= &D1 selected

. 2= &D2 selected

3= &D3 selected

Bit 5¡ÐRSLD(DCD) behavior(&Cn)

0= &C0 selected (Default)

. 1= &C1 selected

Bit 6¡ÐDSR behavior(&Sn)

0= &S0 selected (Default)

. 1= &S1 selected

Bit 7¡ÐLong space disconnect(Yn)

0= Y0 (Default)

. 1= Y1

S22 117 117 Speaker/Results Bit Mapped Options

Status

Indicates the status of command options

Bits 0-1¡ÐSpeaker volume (Ln)

0= Off(L0)

1=Low(Default)

2=Medium(L2)

3=High(L3)

Bits 2-3¡ÐSpeaker control (Mn)

0= Disabled(M0)

1=Off on carrier(Default)

2=Always on(L2)

3=On during handshake(L3)

Bits 4-6¡ÐLimit result codes (Xn)

0= X0

4= X1

5= X2

6= X3

7= X4(Default.)

5634RCS User’s Manual

S-

S23 62 General Bit Mapped Options Status

Indicates the status of command options

Bits 1¡ÐGrant RDL

0=RDL not allowed (&T5)

(Default)

1=RDL allowed(&T4)

Bits 1-3¡ÐDTE Rate

0= 0-300 bps

1= 600 bps

2= 1200 bps

3= 2400 bps

4= 4800 bps

5= 9600 bps

6= 19200 bps

7=38400 bps or higher

(Default)

Bits 4-5¡ÐAssumed DTE parity

0= even

1= not used

2= odd

3= none (Default)

Bits 6-7¡ÐGuard tone (&Gn)

0= None(&G0) (Default)

1= None (&G1)

2= 1800 Hz (&G2)

S25 0-255

1/100

seconds

5DTR delay

modem waits to hang up after the Data

Terminal Ready signal goes from ON to

OFF, if &D2 is in effect.

S26 0-255

1/100

seconds

1RTS/CTS delay

modem waits after the Request to Send

signal goes from ON to OFF before

asserting the Clear to Send signal.

5634RCS User’s Manual

S-

S27 73 Bit Mapped Options Status

Indicates the status of command options

Bits 0,1,3 Synchronous /asynchronous

selection (&Mn/&Qn)

3 1 0

0 0 0 = &M0 or

&Q0

0 0 1 = &M1 or

&Q1

0 1 0 = &M2 or

&Q2

0 1 1 = &M3 or

&Q3

1 0 0 = &Q4

1 0 1 = &Q5

(Default)

1 1 0 = &Q6

Bit 2 Leased line control (&Ln)

0 = Dial up line

(&L0)(Deault)

Bits 4-5 Internal clock select (&Xn)

0=Internal clock (&X0)

(Default)

1 = External clock (&X1)

2 = Slave clock (&X2)

Bit 6 CCITT/Bell mode select (Bn)

0 = CCITT mode (B0)

1 = Bell mode (B1)

(Default)

S28 0Bit Mapped Options Status

Bits 3-4 Plus dialing (&Pn)

0 = 39%~61%

make/break ratio at 10 pluses

per second (&P0)

1 = 33%~67%

make/break ratio at 10 pluses

per second (&P1)

2 = 39%~61%

5634RCS User’s Manual

S-

make/break ratio at 20 pluses

per second (&P2)

3 = 33%~67%

make/break ratio at 20 pluses

per second (&P3)

Bits 6-7 MNP Link Negotiation Speed

(*Hn)

0 = Link negotiation at

highest speed (*H0)

(Default)

1 = Link negotiation at

1200 bps (*H1)

2 = Link negotiation at

4800 bps (*H2)

S29 0-255

10 ms

interval

70 Flash Dial modifier Time

Sets the length of time, in units of 10 ms ,

that the modem will go on-hook when it

encounters the flash (!) dial modifier in the

dial string. The time can be limited as it is a

country dependent parameter.

5634RCS User’s Manual

S-

S30 0-255

tens of

seconds

(disable) Disconnect Inactivity Timer

Sets the length of time , in tens of seconds,

that the modem will stay online before

disconnecting when no data is sent or will

reset the timer. The timer is inoperative in

synchronous mode.

S31 194 BIT Mapped Options Status

Bit 0 ¡ÐSingle line connect message

enable/disable(\Vn)

0=Message controlled by

S95, Wn and Vn (\V0)(Default)

1= Single line connect

message (\V1)

Bit 1 ¡ÐAuto line speed detection (Nn)

0= Disabled (N0)

1= Enabled (N1) (Default)

Bits 2-3¡ÐError correction progress

messages (Wn)

0= DTE speed only (W0)

(Default)

1= Full reporting (W1)

2= DCE speed only (W2)

Bits 4-5¡ÐCaller ID(#CID)

0=Caller ID disabled

(#CID=0) (Default)

1=Short (formatted) Caller ID

enabled (#CID=1)

2=Long (unformatted) Caller

ID enabled (#CID=1)

Bits 6-7¡ÐReserved

S32 0 - 255 11, hex Sets the value of the XON character

S33 0 - 255 13, hex Sets the value of the XOFF character

5634RCS User’s Manual

S-

S36 Bit

Mapped

Bit 0-2

07, hex LAPM Failure Control

This value indicates what should happen

upon a LAPM failure.

0Modem disconnect.

1Modem stays on-line and direct mode

connection is established.

3Modem stays on-line and a normal

mode connection is established.

4An MNP connection is attempted and

if it fail, the modem disconnects.

5An MNP connection is attempted and

if it fails a direct mode connection is

established.

7 An MNP connection is attempted

and if it fails a normal mode

connection is established. (Default)

S37 Bit

Mapped Desired Line Connection Speed

the following functions.

0 Attempt automode connection. If N0 is

active, connection is attempted at the

most recently sensed DTE speed. If N1

is active ,connection is attempted at the

highest possible speed. (Default)

1-3 Attempt a 300 bps connection

5 Attempt a V.22 1200 bps connection

6 Attempt a V.22bis 2400 bps

connection

7 Attempt a V.23 connection

8 Attempt a V.32bis 4800 bps

connection

9 Attempt a V.32bis 9600 bps

connection

10 Attempt a V.32bis 12000 bps

connection

11 Attempt a V.32bis 14400 bps

connection

12 Attempt a V.32bis 7200 bps

connection

5634RCS User’s Manual

S-

S38 0-255

seconds 20 Delay Before Forced Hang Up

This register specifies the delay between

the modem’s receipt of the H command to

disconnect (or ON-to-OFF transition of DTR

if the modem is programmed to follow the

signal), and the disconnect operation.

Applicable to error-correction connection

only. This register can be used to ensure

that data in the modem buffer is sent before

the modem disconnects.

If S38 is set to a value between 0 and 254,

the modem will wait that number of seconds

for the remote modem to acknowledge all

data in the modem buffer before

disconnecting. If time expires before all data

is sent, the NO CARRIER result code will be

issued to indicated that data has been lost.

If all data is transmitted prior to time-out, the

response to the H0 command will be OK.

If S38 is set to 255, the modem does not

time-out and continues to attempt to deliver

data in the buffer until the connection is lost

or the data is delivered.

S39 3Flow Control Bit Mapped Options Status

Indicates the status of command options.

Bit 0-2 Status of command options

0= No flow control

3= RTS/CTS (&K3) (Default.)

4= XON/XOFF (&K4)

5= Transparent XON (&K5)

6= Both methods (&K6)

5634RCS User’s Manual

S-

105 (Non-

NP 10

models)

107 (MNP

10 models)

General Bit Mapped Options StatusS40

Bit 0-1 MNP Extended Services (-Kn)

0= Disable extended services (-K0) (Default for non-MNP

10 models.)

1= Enable extended services (-K1) (Default for MNP 10

models.)

2= Enable extended services (-K2)

Bit 2 Power Level Adjustment for Cellular Use

()Mn)

0= Auto-adjustment ()M0) (Default)

1= Force adjustment ()M1)

Bits 3-5 Break Handling (\Kn)

0= \K0

1= \K1

2= \K2

3= \K3

4= \K4

5= \K5 (Default)

Bits 6-7 MNP Block Size (\An)

0= 64 chars (\A0)

1= 128 chars (\A1) (Default)

2= 192 chars (\A2)

3= 256 chars (\A3)

5634RCS User’s Manual

S-

3General Bit Mapped Options Status

Indicates the status of command options

S41

Bit 0-1 Compression selection (%Cn)

0= Disabled (%C0)

1= MNP 5(%C1)

2= V.42 bis (%C2)

3= MNP 5 and V.42 bis (%C3) (Default)

Bit 2,6 Auto retrain and fallback/fall forward

(%En)

Bit 6 Bit 2

0 0 = Retrain and fallback/fall forward disabled

(%E0) (Default)

0 1 = Retrain enabled (%E1)

1 0 = Fallback/fall forward enabled (%E2)

Bit 4 Block mode control (\Ln)

0= Stream mode (\L0) (Default)

1= Block mode (\L1)

Bit 7 Enable fallback to V.22bis/V.22 (-Qn)

0= Disabled (-Qn)

1= Enable (-Q1) (Default)

S46 138 Data Compression Control

Control selection of compression. The

following actions are executed for the given

values:

S46=136 Execute error correction protocol

with no compression

S46=138 Execute error correction protocol

with compression (Default)

5634RCS User’s Manual

S-

S48 7V.42 Negotiation Action

The V.42 negotiation process determines

the capabilities of the remote modem.

However, when the capabilities of the

remote modem are known and negotiation is

unnecessary, this process can be bypassed

if so desired.

S48=0 Disable negotiation; bypass the

detection and negotiation phases;

and proceed with LAPM.

S48=7 Enable negotiation.(Default)

S48=128 Disable negotiation; bypass the

detection and negotiation phases;

and proceed at once with the

fallback action specified in S36.

Can be used to force MNP.

S82 128 Break Handling Options

S82 is for compatability purposes only,

changing this register will not have any

affect.

S91 0-

15dBm 10 PSTN Transmit Attenuation Level

Sets the transmit attenuation level from 0 to

15 dBm for the PSTN mode, resulting in a

transmit level from 0 to -15dBm, in some

countries, the transmit level may not be

changed and there are checks to prevent

transmit attenuation level change using

ConfigurACE.

S92 0-

15dBm 10 Fax Transmit Attenuation Level

Sets the transmit attenuation level from 0 to

15dBm for the fax mode, resulting in a

transmit level from 0 to -15 dBm. In some

countries, the transmit level may not be

changed and there are checks to prevent

5634RCS User’s Manual

S-

transmit attenuation level change using

Configure.

S-

Call Failure Reason Code

When the modem issues a NO CARRIER

result code, a value is written to this S-

the failed connection. S86 records the first

event that contributes to a NO CARRIER

message. The cause codes are:

S86 0-255

seconds

S86=0

S86=4

S86=5

S86=9

S86=12

S86=13

S86=14

Normal disconnect, no error

occurred.

Loss of carrier.

V.42 negotiation failed to detect

an error- correction modem at the

other end.

The modems could not find a

common protocol.

Normal disconnect initialed by

the remote modem.

Remote modem does not

respond after 10 re-transmissions

of the same message.

Protocol violation.

S95 Bit

Mapped 0Register S95 is bit-mapped. A bit set to 1 in

this register enables the corresponding

response, regardless of the W command in

effect.

5634RCS User’s Manual

S-

Bit 0 CONNECT response shows DCE speed, not DTE

speed

Bit 1 Append /ARQ to CONNECT word responses when

an error-correction connection is made

Bit 2 Enable CARRIER nnnn response

Bit 3 Enable PROTOCOL nnnn response

Bit 5 Enable COMPRESSION response

58 Cellular Transmit Level

This bits in this register are set by the @Mn

and: En commands to support cellular

connections.

S201 0-63

Bit 0-4 Initial Cellular Power Level Setting (@Mn;

default = @M0)

Bit 5 Compromise Equalizer Enable

Command(:En;default=E1)

Before you begin installing your modem, run the following tests first:

Identify an available COM port address and IRQ (interrupt) for your modem.

Do you have either a sound card, a network card, a scanner card, or a bus mouse? If you

do so, find out their IRQ settings from your computer dealer or from the hardware manuals.

7.1 FOR WINDOWS 95

n Add a COM Port

1. Please choose START then Settings, then Control Panel. In Control Panel, double

click on Add New Hardware. In the "Add New Hardware Wizard" Click on "Next

>" button. It will then ask you if you want Windows 95 to search for New Hardware,

click on YES, and then the "Next >" button. Read the Warning, and if you agree,

click on "Next >". Now wait for the Wizard to complete its inspection of your system

configuration. You can click on "Details" and if all is correct, then click on "Finish"

button. Then when it asks, click on "Yes" to reboot your computer.

2. Now go to START, then SETTINGS, then Control Panel. Double Click on System.

Then click on the Device Manager TAB. Double Click on "Ports (COM & LPT)".

Whatever COM ports show up, you cannot use for the modem, unless you disable

them first in the BIOS of you COMPUTER, ON the Motherboard or on your I/O Card.

If you choose to disable one of your current ports to put the modem in, then rerun this

test to make sure that it was actually disabled correctly.

3. You can now continue to OPTION 1 of this section.

5634RCS User’s Manual

n Refer to Chapter 8 to continue the installation of the modem

7.2 FOR WINDOWS 3.1x or DOS

Turn your computer on and go to the "C" prompt (C:\>).

If you have MS-DOS 6.0, or higher, or MS-Windows 3.1x, type MSD (Microsoft Diagnostic)

at "C" prompt. This will not work if you only have Windows 95, (see above section).

MSD is going to give you information on your computer system. Look and see if you

can locate an entry call "COM Port." There should be a number right next to that entry

identifying the number of COM ports you have. Write the number down on a piece of

paper.

Press "C" to go into the COM Port screen.

Write the port addresses for each COM Port down. Regardless of what MSD says,

"03F8" is COM1, "02F8" is COM2, "03E8" is COM3, and "02E8" is COM4. If it has

"02E8" under COM3, don't worry about it. It just means you skipped a COM Port, this is

very common. You only have to go by the port addresses.

OPTION 1

If you only have "03F8" in the COM Port screen and do not have any sound card, network

adapter, scanner card, bus mouse, or other device using IRQ3, set your modem's

switches or jumpers to COM2 IRQ3 according to the user's manual that cames with your

modem (both COM and IRQ must be set). If you only have "02F8" for COM port, set

your modem to COM1 IRQ4, again following the directions of your Modem User's manual.

OPTION 2

If you have both "03F8" and "02F8" and do not have any sound, network, scanner card,

bus mouse, or other device using IRQ5, set your modem to COM3 IRQ5.

OPTION 3

If you have "03F8" and also have "02E8" and you do not have any sound, network,

scanner card, bus mouse, or other devices using IRQ5, set your modem to COM2 IRQ5.

OPTION 4

If you have "03F8" and also have "02E8" and you do have another device using IRQ5,

please consult your "Multi I/O Card User's Manual" and have COM4 "02E8" IRQ3

disabled. This "Multi I/O Card User's Manual" ought to come with your computer system.

Check with your computer dealer if you can't find one in the package. Set your modem

to COM2 IRQ3 after COM4 IRQ3 is disabled on the I/O card.

5634RCS User’s Manual

OPTION 5

If you have both "03F8" and "02F8" and you do have another device using IRQ5 while you

don't have any external device connected to COM2 "02F8", have COM2 "02F8" IRQ3 on

your I/O card disabled. Set your modem to COM2 IRQ3 after COM2 IRQ3 has been

disabled on your I/O card.

OPTION 6 (depends on your system's multi-I/O card)

If you have both "03F8" and "02F8" and do have another device using IRQ5 while there is

an external device connected to COM2 "02F8" and a serial mouse is connected to COM1

"03F8," you can try to put your modem on COM4 IRQ3. However, this is not always

guaranteed to work. It is our experience that whether or not this kind of setting works or

not depends a lot on the multi-I/O card itself. Sometimes the I/O card does not like to

share IRQ (IRQ3 in this case) with another device. Sometimes this setting will work for

a while and suddenly stopped working. Sometimes it will work flawlessly. The PC

Bus architecture was not designed to share IRQ's.

OPTION 7

If you have a setting that matches Option 6 above and Option 6 does not work on your

system, you can try to move the device that's using IRQ5 to an unused IRQ and set your

modem to COM3 IRQ5. If the device that's using IRQ5 does not support other IRQ's,

you have ran out of available IRQ. Consult your local dealer or a consultant to see if

they can give you some advice. You must also realize that if your system is fully loaded

with no available COM Port or IRQ, another device must be sacrificed (disabled) to make

room for the fax modem.

When you find the COM Port and IRQ setting for your modem, set the modem according

to the instructions in your Fax Modem User's manual. Turn your computer off, unplug

the power cord, remove the cover to your computer, locate an available expansion slot on

the motherboard, remove the screw that's holding the slot cover if there is one, and

carefully slide the modem into the slot completely. Secure the modem in the slot with

the screw. Connect your DEDICATED phone wire to the fax/modem's "LINE" jack.

You may want to install the software that came with the package and test the modem

before you put the computer cover back. But be careful not to touch any system

components with the power cord plugged into the wall socket.

NOTE: Windows 3.1x Systems (COM Port Packing)

If you are skipping COM3, and you are installing any Windows based communications

software, you will need to add the following two lines to your SYSTEM.INI file's [386Enh]

section:

Example: COM3IRQ=-1

COM3BASE=03E8

5634RCS User’s Manual

This applies in general to any skipped COM Port, where 'x' is the Port Number skipped.

COMxIRQ=-1

COMxBASE= {note the appropriate port address}

Port Addresses

COM1 = 03F8 COM2 = 02F8

COM3 = 03E8 COM4 = 02E8

After following the directions in our Hardware Conflict Resolution Guide, please follow

these procedures to install the driver:

8.1 Install the Modem to Windows 95

1. Boot the system from Windows 95. Windows will auto-detect the existence of the

modem.

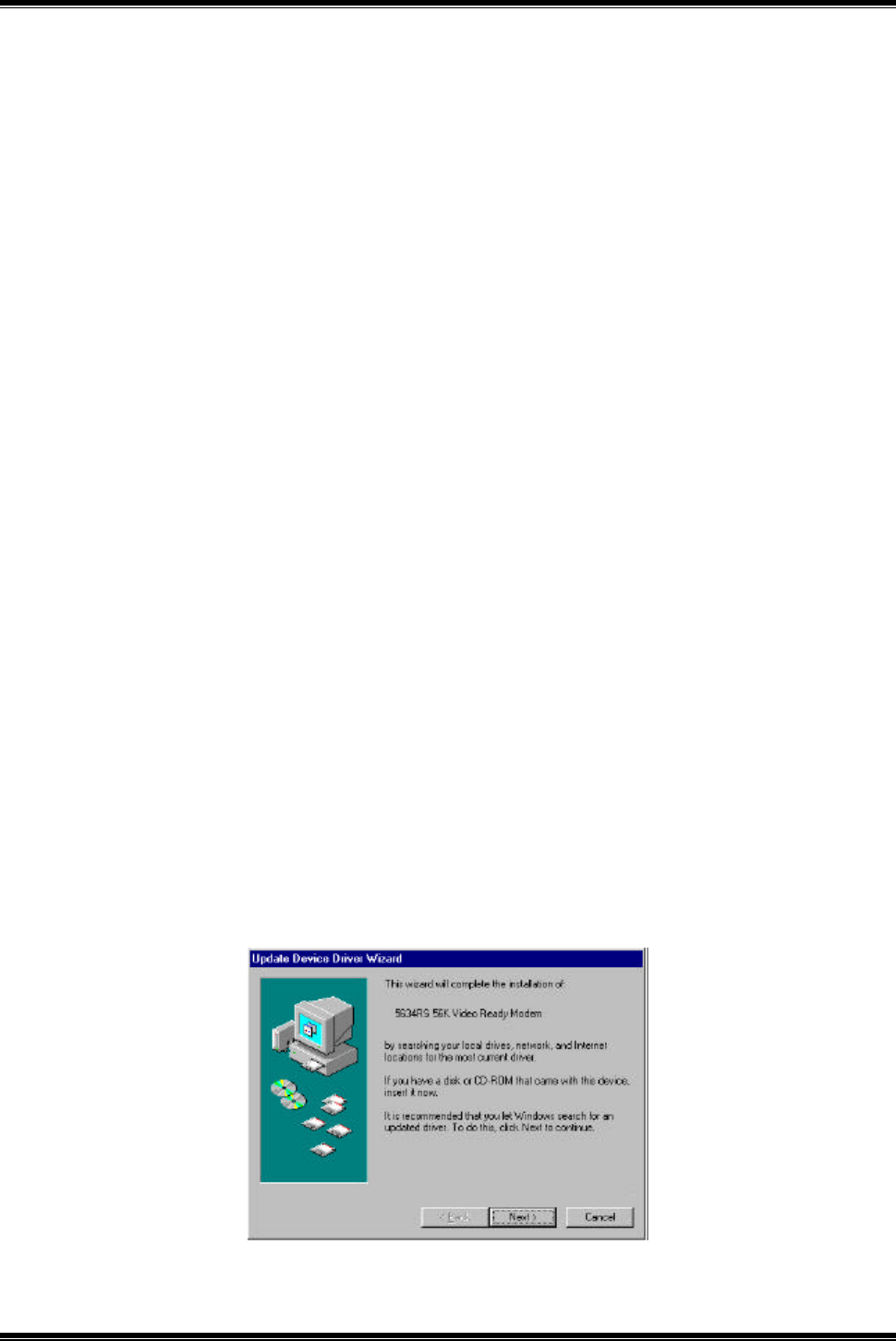

2. Now Windows will begin the “Update Device Driver Wizard”. Click on the “Next”

Button.

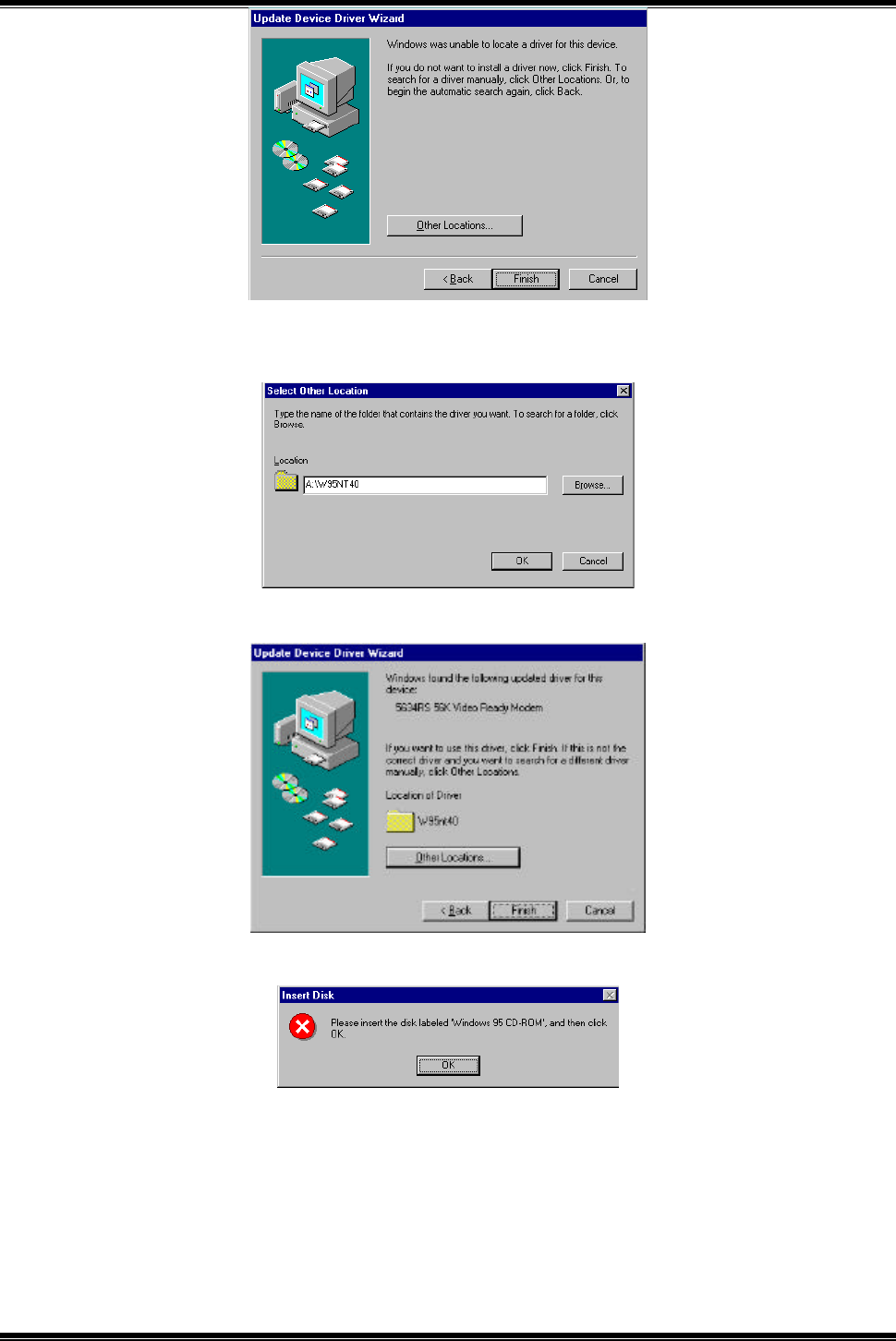

3. Click on the “Other Locations..” button to indicate the right path of the driver.

5634RCS User’s Manual

4. Type the name of the driver path (ie A:\W95NT40) or you can browse the folders to

indicate the path that contains the drivers) then click the “OK” button.

5. Click on the “Finish” button if the displayed modem model name fits yours.

6. Insert the Windows 95 CD-ROM to let the system copy necessary files for the modem.

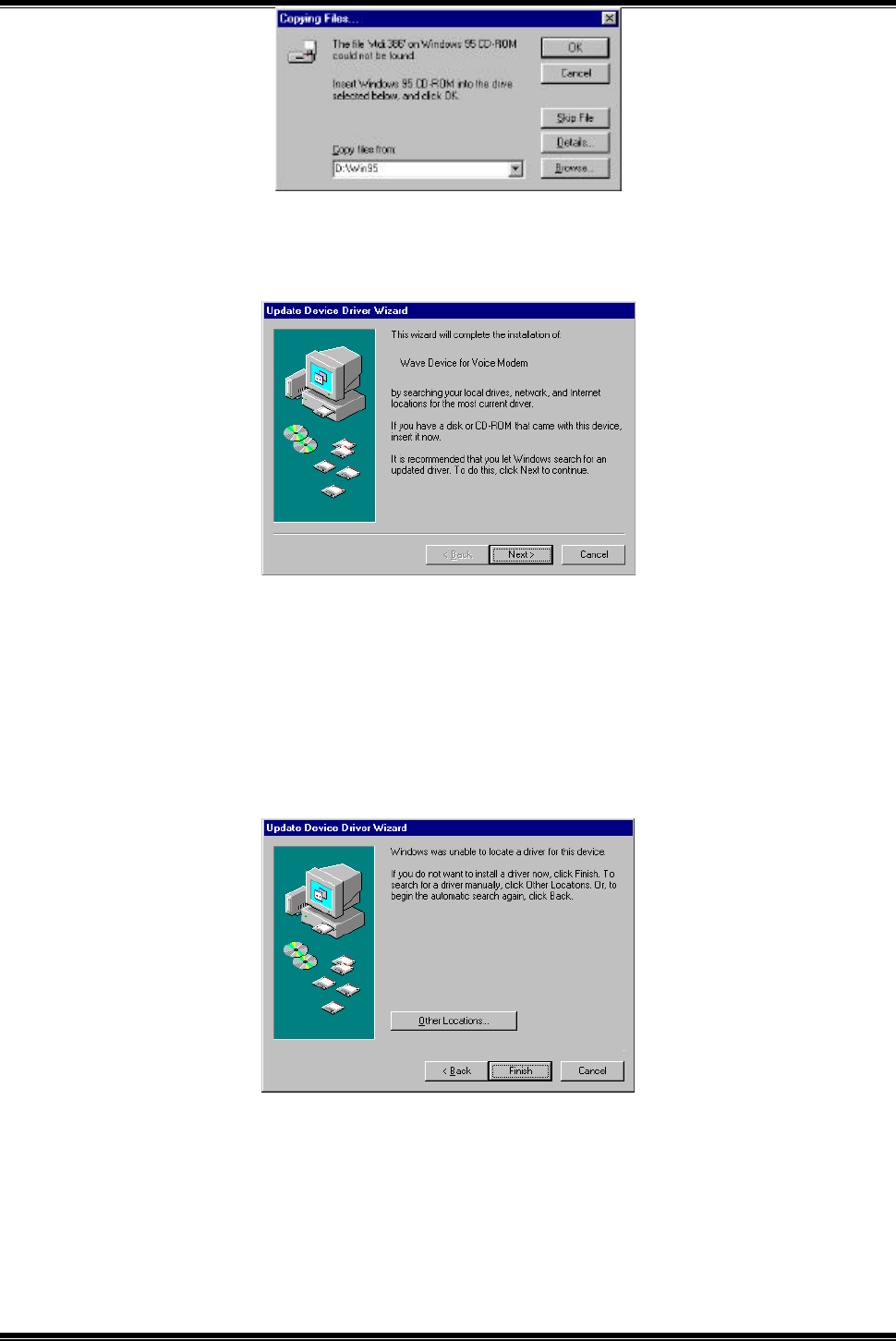

7. Indicate the right path for the CD-ROM (i.e. D:\Win95) or you can browse other

folders that contain the OSR2 source files.

5634RCS User’s Manual

8. After completed to copy the modem driver, the “Update Device Driver Wizard” will

continue to complete the installation the “Wave Device for the Voice Modem” for

modem. Click on the “Next” button.

9. Click on the “Other Locations…” button if the wave driver and the modem are in the

same directory.

10. Type the name of the driver path (ie A:\W95NT40) or you can browse the folders to

indicate the path that contains the drivers) then click the “OK” button.

5634RCS User’s Manual

11. Click on the “Finish” button.

12. Now you’ve completed to install the drivers for the modem.

8.2 Testing the installation of the modem

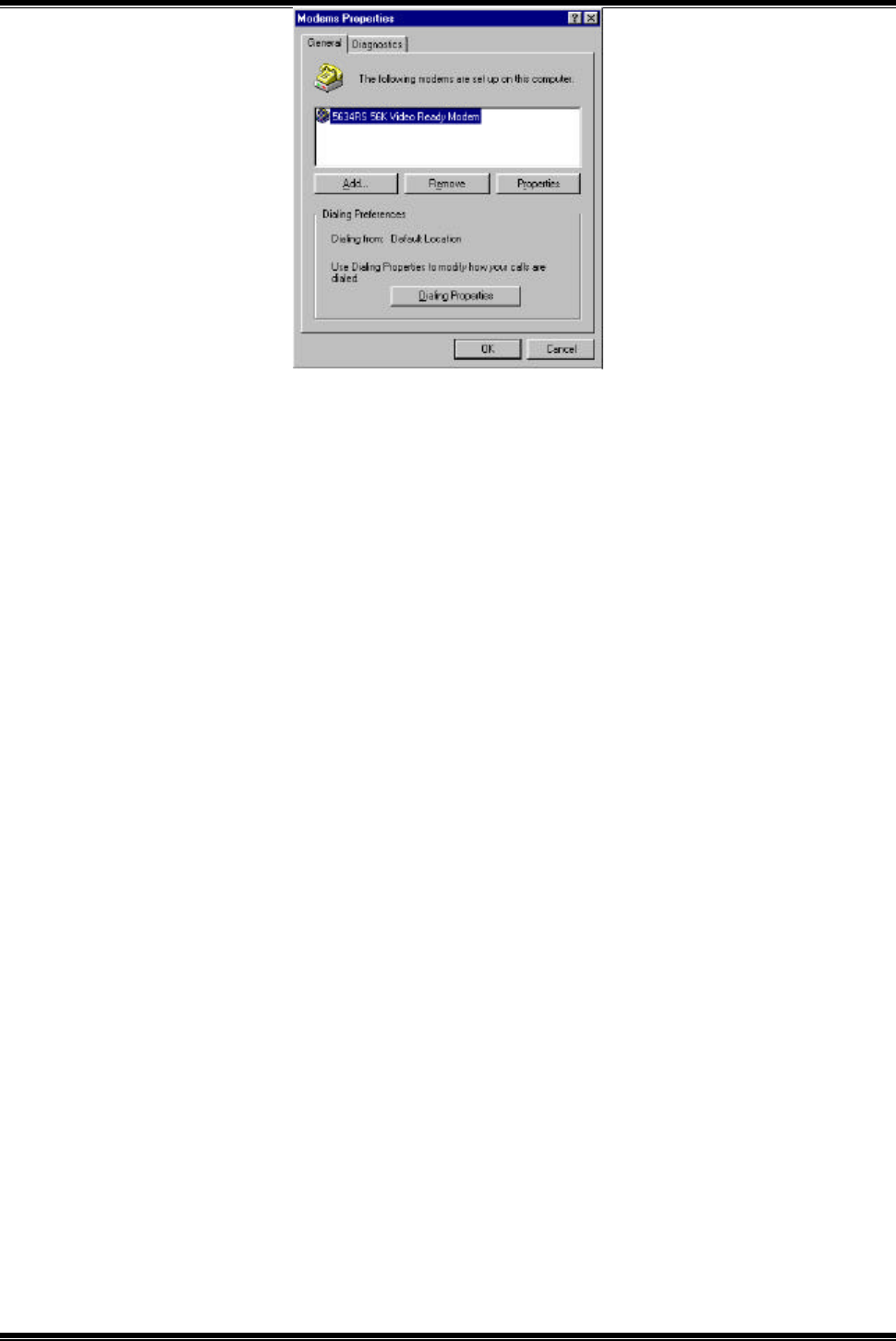

1. Double click the “Modem” icon in the “Control Panel”. Choose “Diagnostics”.

5634RCS User’s Manual

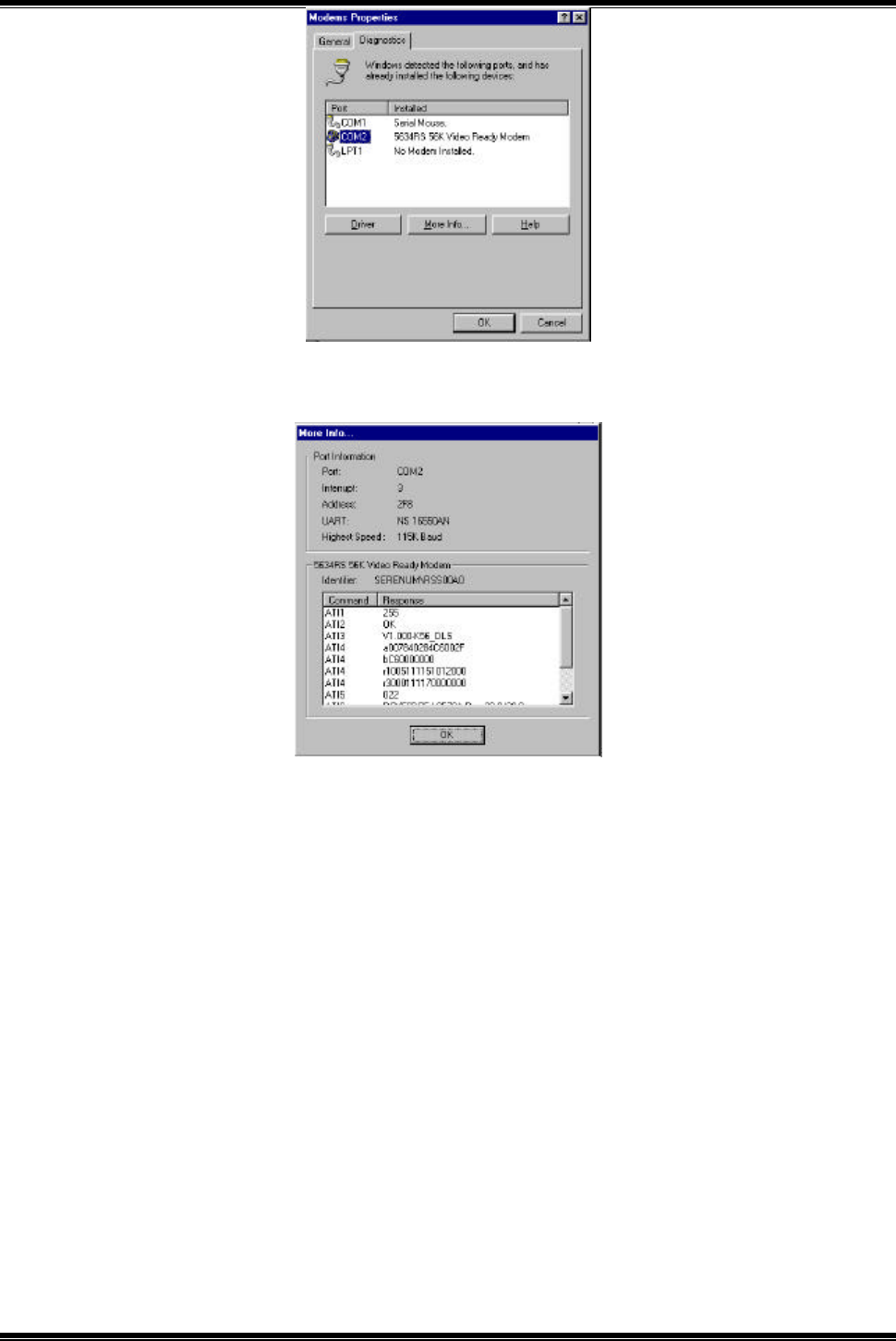

2. Choose “COM2 5634RCS 56K Video Ready Modem” and click on the “More Info..”

button.

5634RCS User’s Manual

3. When the screen shows correct information above the modem, it means the modem

can work properly under your system.

8.3 Manually Install the Modem

1. Click on the “Modem” icon twice to begin configuring its setting. Choose “Don't

detect my modem; I will select it from a list.”, then click on “Have disk”.

2. Indicate the driver path such as “A:\win95” for Windows, then click on “Next” button.

3. After installing the new Windows 95 driver for your modem. It comes with a list of

modem models: "5634RCS 56K Video Ready Modem, …". Select the model that fits

yours.

4. Window now will ask you to insert the Windows 95 CD disk to copy necessary driver

files to the Windows 95 system.

5. After Windows has auto detected your hardware COM port setting, it will show the

suggesting COM port. You can select the port such as "Communication Port

[COM2]".

6. After querying the new COM port, it should come up your modem type.

7. Click on "Finish". Shut down the computer.

8. When you reboot your system, you'll be ready for using your modem.

5634RCS User’s Manual

Appendix A provides compliance information about your modem.

A.1 FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures :

l Reorient of relocate the receiving antenna.

l Increase the separation between the equipment and receiver.

l Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

l Consult the dealer or an experienced radio / TV technician for help.

This unit was tested with shielded cables on the peripheral devices. Shielded cables must

be used with the unit to insure compliance. This statement can be deleted if unit was not

tested with shielded cables.

The manufacture is not responsible for any radio or TV interference caused by

unauthorized modifications to this equipment. Such modifications could void the user's

authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following

two condition:(1) This device may not cause harmful interference, and (2) This device

must accept any interference that may cause undesired operation.

A.2 FCC Requirement

This equipment complies with Part 68 of the FCC Rules. On the base unit of this

equipment is a label that contains, among other information, the FCC Registration

Number and Ringer Equivalence Number(REN) for this equipment. If requested, this

information must be given to telephone company.

The REN is useful to determine the quantity of devices you may connect to your

telephone line and still have all of those devices ring when your telephone number is

called. In most, but not all area, the sum of the REN's of all devices connected to one line

should not exceed five(5.0). To be certain of the number of devices you may connect to

your line, as determined by the REN, you should contact your local telephone company to

determine the maximum REN for your calling area.

5634RCS User’s Manual

If your equipment causes harm to the telephone network, the telephone company may

discontinue your service temporarily. If possible, they will notify you in advance. But if

advance notice is not practical, you will be notified as soon as possible. You will be

informed of your right to file a complain with the FCC. Your telephone company may make

changes in its facilities, equipments, operations or procedures that could affect the proper

functioning of your equipment. If they do, you will be notified in advance to give you an

opportunity to maintain uninterrupted telephone service.

The equipment may not be used on coin service by the telephone company. Connection

to party lines is subject to state tariffs.

This modem does support “Fax Branding” function. Please refer the manual of

communication software for instruction.

5634RCS User’s Manual

This section provides recommended initialization strings for various conditions for those

models that are included in this manual. Please be advised that these recommended

initial strings were produced by our technicians for general usage only. If you want your

modem to perform specific operations, it is your responsibility to find out what the software

packages or the on-line service requires and go over this manual to find the necessary

commands to enable or disable features on the modem. If you are unable to find a

proper initialization string for your modem, please have the software company or the

service provider contact us. We will try to work out a recommended initialization string

for you. Thank you.

A recommended initialization string for general purpose data communications:

5634RS AT&F&C1&D2&K3\N3%C3

Recommended initialization to turn off error-correction, data-compression and flow-control

as required by many of the banking software. Some software also requires numeric

response instead of word response.

5634RCS AT&F%C0\N0&Q0+MS=*

Note: Add V0\V0 to the end of the initialization string if numeric response is required.

Usually, you will need to tell the modem to start its negotiation at a particular speed.

Please go back to the section in chapter 5 that tells you about your +MS command

and set the value accordingly.

Recommended initialization string for some modem-to-modem games:

5634RCS AT&F&C1&D2&K3\N3%C3

5634RCS User’s Manual

Appendix C provides RS-232C technical information for the modem.

C.1 RS-232C Connector

The modem provides a DTE interface via a 25-pin female (DB-25s) connector that

conforms to the EIA RS-232C standard. The connector is labeled RS-232 and located on

the back of the modem ( see Figure B-1).

PHONE

LINE JACK

ON OFF AC 9V RS232

LINE PHONE

Figure B-1 DB25 connector on the modem back panel

C.2 RS-232C Pin Assignments

Table B-1 summarizes the RS-232C pin assignments that pertain to the modem. Your

cable must provide these signals for your computer to communicate with your modem.

Table C-1. RS-232C pin assignments

Pin Abbreviation V.24

Designation Function Signal Direction

2TXD 103 Transmit Data To modem

3RXD 104 Receive Data From modem

4RTS 105 Request to Send To modem

5CTS 106 Clear to Send From modem

6DSR 107 Data Set Ready From modem

7 102 Signal Ground Common

8DCD 109 Received Line

Signal Detector From modem

15* TXCLK 114 Transmit Clock From modem

17* RXCLK 115 Receive Clock From modem

20 DTR 108 Data Terminal

Ready To modem

22 RI 125 Ring Indicator From modem

24* XTCLK 113 External Serial

Clock Transmit To modem

* These signals are used during synchronous operation only.

5634RCS User’s Manual

The following diagnostic diagram will illustrate some simple methods to isolate your

modem problem. Refer to the flowchart in figure C-1 step by step to isolate your hardware

problem.

POWER

Power Adpater

damage

Check if the line

quality is OK

(you can try to use

another phone line

with your modem)

Check if the dialing

up AT command

operation is

correctly set

Check if the COM

Port and RS-232

cable are linked

properly

Check if the

communication

software is

correctly

configured

Check if the Power

Adapter is O.K.

Check if the MR

indicator is turned

Check if TR

indicator is turned

Try to Dial up or

answer a call

Check if OH

indicator is turned

Wait for remote

modem "Carrier"

signal

Check the dialing

or answering AT

command is been

correct set

Check if the CD

indicator is turned

Check if the

remote modem is

ready to receiving

your call

Baud Rate is

setting correctly

Modify the baud

rate setting

YES

NO YES

YES

Contact the

delear

YES

Display

"CONNECT"

message

Type AT

then press

Enter

YES

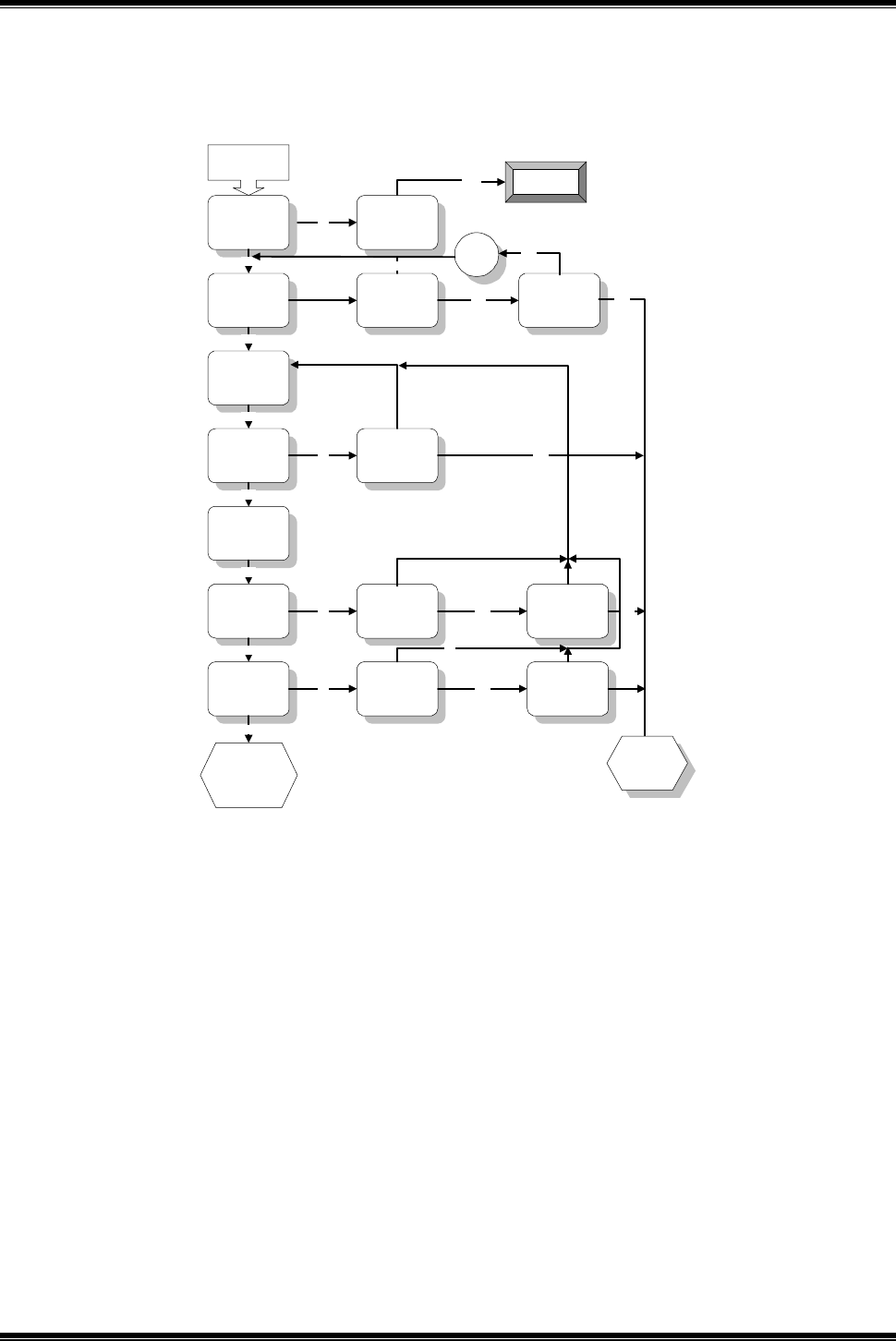

Figure C-1 Hardware Troubleshooting Diagnosis

Archtek Telecom MRCES56 User Manual 5634RCS

Archtek Telecom Corporation 5634RCS

USER MANUAL

Navigation menu

Namespaces

Views

Navigation
