Ascalade Technologies DT19R51 1.9GHz cordless phone User Manual B255OMR00 002
Ascalade Technologies, Inc. 1.9GHz cordless phone B255OMR00 002
Contents
- 1. USERS MANUAL 1
- 2. USERS MANUAL 2
USERS MANUAL 2

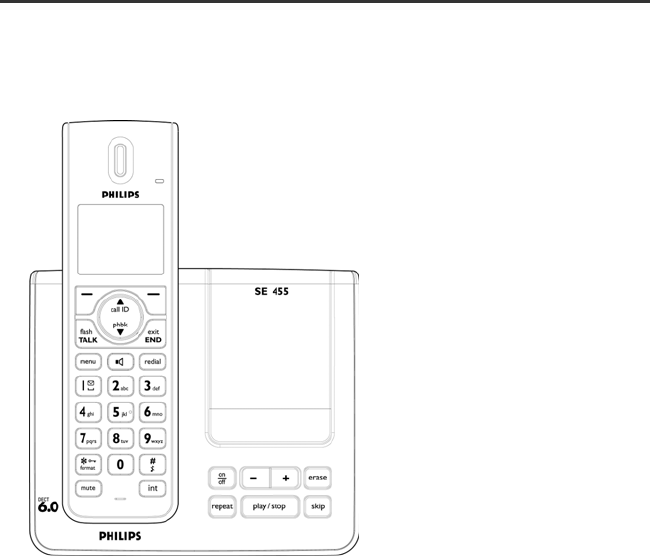

SE450/455
User Guide
PCE DRAFT
1.8/1.9GHZ DECT TELEPHONE
DIGITAL ANSWERING MACHINE
LOW RADIATION
CALLER ID
HANDS-FREE

3
Important Safety Instructions
Important Safety Instructions
Some of the following information may not apply
to your particular product; however, when using
telephone equipment, basic safety precautions
should always be followed to reduce the risk of
fire, electric shock and injury to persons,
including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked
on the product.
3. Unplug this product from the wall outlet
before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for
cleaning.
4. Telephones should not be used while you are
in a bathtub, shower or pool. Immersion of
the telephone or handset in water could
cause an electrical shock.
5. Slots and openings in the cabinet back or
bottom are provided for ventilation, to
protect it from overheating. These openings
must not be blocked or covered. The
openings should never be blocked by placing
the product on the bed, sofa, rug, or other
similar surface. This product should not be
placed in a built-in installation unless proper
ventilation is provided.
6. This product should be operated only from
the type of power source indicated on the
marking label. If you are not sure of the type
of power supply to your home, consult your
dealer or local power company.
7. Do not allow anything to rest on the power
cord. Do not locate this product where the
cord will be abused by persons walking on it.
8. Do not overload wall outlets and extension
cords as this can result in the risk of fire or
electric shock.
9. Never push objects of any kind into this
product through cabinet slots as they may
touch dangerous voltage points or short out
parts that could result in a risk of fire or
electric shock. Never spill liquid of any kind
on the product.
10. To reduce the risk of electric shock, do not
disassemble this product, but take it to a
qualified service personnel when service or
repair work is required. Opening or
removing covers may expose you to
dangerous voltages or other risks. Incorrect
reassembly can cause electric shock when the
appliance is subsequently used.
11. Do not expose the product to extreme
temperatures such as areas near a hot
radiator or stove or in a hot car.
12. Do not place lighted candles, cigarettes,
cigars, etc., on the telephone.
13. Never touch uninsulated telephone wires or
terminals unless the telephone line has been
disconnected at the network interface.
14. Never install or modify telephone wiring
during a lightning storm.
15. Never install telephone jacks in wet locations
unless the jack is specifically designed for wet
locations.
16. Use caution when installing or modifying
telephone lines to prevent electrical shock
and/or fire.
17. Unplug this product from the wall outlet and
refer servicing to qualified service personnel
under the following conditions:
A. When the power supply cord or plug is
damaged or frayed.
B. If the product has been exposed to rain or
water.
C. If the product does not operate normally
by following the operating instructions.
D. If the product’s cabinet has been damaged.
E. If the product exhibits a distinct change in
performance.
18. Avoid using a telephone (other than a
cordless type) during an electrical storm.
There may be a remote risk of electric shock
from lightning.
19. Do not use the telephone to report a gas leak
in the vicinity of the leak.
20. Do not place this product on an unstable cart,
stand or table. The product may fall, causing
serious damage to the product.

4Important Safety Instructions
IF YOUR PRODUCT UTILIZES
BATTERIES, THE FOLLOWING
ADDITIONAL PRECAUTIONS SHOULD
BE OBSERVED:
1. Use only the type and size of battery(ies)
specified in the user manual.
2. Do not dispose of the battery(ies) in fire.
They may explode. Check with local codes
for possible special disposal instructions.
3. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be
toxic if swallowed.
4. Exercise care in handling battery(ies) in order
not to short out the battery(ies) with
conducting materials such as rings, bracelets,
and keys. The battery(ies) or conductor may
overheat and cause burns.
5. Do not attempt to recharge the battery(ies)
provided with or identified for use with this
product that are not intended to be charged.
The battery(ies) may leak corrosive
electrolyte or explode.
6. Do not attempt to rejuvenate the battery(ies)
provided with or identified for use with this
product by heating them. Sudden release of
the battery(ies) electrolyte may occur causing
burns or irritation to eyes or skin.
7. When replacing battery(ies), all batteries
should be replaced at the same time. Mixing
fresh and discharged batteries could increase
internal cell pressure and rupture the
discharged battery(ies). (Applies to products
employing more than one separately
replaceable primary battery.)
8. When inserting battery(ies) into this product,
the proper polarity or direction must be
observed. Reverse insertion of battery(ies)
can cause charging, and that may result in
leakage or explosion.
9. Remove battery(ies) from this product if
storing over 30 days because the battery(ies)
could leak and damage the product.
10. Discard “dead” battery(ies) as soon as
possible since “dead“ batteries are more
likely to leak in a product.
11. Do not store this product, or the battery(ies)
provided with or identified for use with this
product, in high-temperature areas.
Batteries that are stored in a freezer or
refrigerator for the purpose of extending
shelf life should be protected from
condensation during storage and defrosting.
Batteries should be stabilized at room
temperature prior to use after cold storage.
12. If your product uses rechargeable
battery(ies), charge the battery(ies) only in
accordance with the instructions and
limitation specified in the User Manual.
SAVE THESE INSTRUCTIONS

- 1 -
Table of Contents
1 Environment...................................................................................................... 2
2 Safety ................................................................................................................ 3
3 What’s in the Box?............................................................................................ 5
4 Welcome........................................................................................................... 6
5 About your phone............................................................................................. 7
6 Getting Started................................................................................................ 11
7 Call .................................................................................................................. 17
8 Intercom and Conference Calls ..................................................................... 22
9 Text and Numbers.......................................................................................... 25
10 Phonebook ..................................................................................................... 26
11 Call Log........................................................................................................... 30
12 Redial List ....................................................................................................... 32
13 Custom Options ............................................................................................. 34
14 Calling Features.............................................................................................. 37
15 Network Services............................................................................................ 42
16 Extra Features................................................................................................. 46
17 The System..................................................................................................... 49
18 The Answering Machine................................................................................. 52
19 Appendix......................................................................................................... 61
- 2 -
Environment
Environmental
Remember to observe local regulations regarding the disposal of your packaging
materials, exhausted batteries and old equipment. Promote their recycling where
possible.
Recycling & disposal
Disposal instructions for old products: The purpose of the WEEE directive (Waste
Electrical and Electronic Equipment; 2002/96/EC) is to ensure that products are
recycled using the best available treatment, recovery and recycling techniques to
ensure human health and high environmental protection. Your product is
designed and manufactured with high quality materials and components which
can be recycled and reused.
• Do not dispose of your old product in your general household
waste bin.
• Inform yourself about the local separate collection system for
electrical and electronic products marked by this symbol.
Use one of the following disposal options:
• Dispose of the complete product (including its cables, plugs and accessories)
in the designated WEEE collection facilities.
• If you purchase a replacement product, hand your complete old product back
to the retailer. He should accept it as required by the WEEE directive.
Disposal instructions for batteries:
Batteries should not be disposed of with general household waste.

- 3 -
Safety
IMPORTANT
This product is not designed for making emergency telephone calls when the
power fails. Alternative arrangements should be made for access to emergency
services.
Power requirements
This product requires an electrical supply of 100-240 volts, single-phase
alternating current, excluding IT installations defined in standard EN 60950.
Handset Charger Adapter
Input: 100-240VAC 50/60Hz
Output: 7.5VDC 200mA
Base station Adapter
Input: 100-240VAC 50/60Hz
Output: 7.5VDC 500mA
Battery requirements
The handset requires a power source of two rechargeable NiMH batteries, size
AAA 1.2V 750mAh (HR10/44).
CAUTION: Use only the mains adapter supplied with this equipment. Incorrect
adapter polarity or voltage can seriously damage the unit.
CAUTION: The electrical network is classified as dangerous according to criteria
in the standard EN 60950. The only way to power down this product is by
unplugging the power supply from the electrical outlet. Ensure the electrical
outlet is located close to the apparatus and is always easily accessible.
W
ARNING: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
Never use non-rechargeable batteries. Use the recommended type supplied
w
ith this product. NiMH batteries must be disposed of in accordance with the
applicable waste disposal regulations.
Safety
- 4 -
Telephone connections
The voltage on the network is classified as TNV-3 (Telecommunication Network
Voltages, as defined in the standard EN 60950). Following a power cut, the call in
progress as well as the date and time settings is lost.
Hearing aid
Please note that this telephone works by sending radio signals between the base
station and the handset. These signals may interfere with some hearing aids,
causing a humming noise.
Safety precautions
• Do not allow the handset to come into contact with liquids or moisture.
• Do not open the handset, base station or charger. This could expose you to
high voltages.
• Do not allow the charging contacts or the battery to come into contact with
conductive materials.
• There is a slight chance that your product could be damaged by an electrical
storm. We recommend that you unplug the product from the power supply and
telephone socket during a storm.
• Do not use the handset in an explosive hazard area such as where there is
gas leaking.
• It is recommended that this product is not used near intensive care medical
equipment or by persons with pacemakers.
• This product can interfere with electrical equipment such as answering
machines, television, radio, and computers if placed too close. We
recommend that you position the base station at least one meter from such
appliances.
The marking certifies compliance with technical regulations in accordance
with Directive 1999/5/EC for the safety of the user, electromagnetic perturbations
and for radio spectrum.

- 5 -
What’s in the Box?
Congratulations on your purchase and welcome to Philips! To fully benefit from
the support that Philips offers, register your product at www.philips.com/welcome.
This product comes with the following items. For missing item(s), contact your
dealer.
Base station with
Bracket
Handset Handset Battery Cover
[Image to be added]
Power Supply Unit NiMH AAA Rechargeable
Batteries x 2
Line Cord
This User Manual Quick Start Guide Warranty Card
NOTE: The line adapter may not be attached to the line cord. You may
find the line adapter in the box. In this case, you have to connect the
line adapter to the line cord first before plugging the line cord to the
line socket.
In multi-handset packs, you will find one or more additional handset,
chargers with power supply units and additional rechargeable
batteries.
- 6 -
Welcome
This user guide provides you with the information and instructions you need to get
the most from your phone.
HOW TO USE THIS USER GUIDE?
The following symbols are used to alert you to important information.
Warning: Critical information for preventing personal injury.
Caution: Critical information for preventing damage to the
product.
Tip: Information for easier operation.
Note: Explanatory or critical information for carrying out an
operation correctly.
NEED MORE HELP?
• See the Frequently Asked Questions section in this user guide on page 63.
• Visit our online help www.philips.com/support

- 7 -
About your phone
THE HANDSET
1 Call Log/Up key
Scroll up menu
Increase earpiece volume
Enter call log
2 Left soft key
Confirm selection
Enter options menu
3 Right soft key
Delete text or digit(s)
Cancel operation
View more record information
4 Talk/Recall key
Make and receive calls
Send flash signal
5 End /On/Off key
End call
Exit menu / operation
Turn handset on/off
6
Menu key
Access main menu
7
Phonebook/Down key
Scroll down menu
Decrease earpiece volume
Enter phonebook
8 Spe a ker ke y
Turn speaker on / off
9 Re d i a l k ey
Enter redial list & dial last number
12 Ri n ge r O ff / P ause k ey
Dial # and enter pause
Turn ringer on / off
Change input letter case
10
Digit keys
Dial digit and enter text
Use as shortcut key for quick dial
13 Mu t e k ey
Mute / unmute microphone
11 St ar/Ke y l o ck ke y
Dial *
Lock / unlock keypad
14 Intercom/Conference key
Make intercom call
Make conference call
About Your Phone
- 8 -
THE BASE AND ANSWERING MACHINE
1 Answering Machine On/Off key
Turn the answering machine on/off
5 B a c k w a r d key
Skip backward during playback
2 Vo l u me do wn
Decrease speaker volume
6 Pla y / S t o p k ey
Play messages
Stop message playback
3 De l e t e key
Delete messages
7 Forward key
Skip forward during playback
4 Vo l u me up
Increase speaker volume
8 Pag e k ey
Find handset(s)
Enter registration mode
9 LED message counter
Display message number
Display answering machine operation

About Your Phone
- 9 -
THE ICONS
Each icon gives you a visual message of what is happening on your handset.
Battery level Signal strength
Call in progress Alarm on
Speaker on Ringer off
Call log Phonebook
Answering machine Voicemail indicator
More options upward More options downward
THE MENUS
Your phone offers a variety of features and functions grouped in the menus.
Browsing the menus
The main menu includes the Phonebook, Clock & Alarm, Personal Set, Advanced
Set, Network Service and Answering Machine menus.
From standby mode, you can,
• Press to enter the main menu.
• Press to enter the incoming call log.
• Press to enter the phonebook.
• Press to enter the redial list.
TIP: Use or to navigate the menus.
TIP: Quick Exit. Press and hold to exit from any menu instantly.
A
ll unconfirmed changes will not be saved.
About Your Phone
- 10 -
Taking a glance at the menus
Main menu
Other menus
Phonebook Advanced set Answer machine Call log
New entry
List entry
Edit entry
Select melody
Delete entry
Delete all
Direct memory
Play
Delete all
Answer on/off
Record OGM
Answer mode
Ans settings
Call list
Copy to phbk
Delete
Delete all
TAM
Redial list
Personal set
Handset name
Handset tones
Language
Contrast
Auto hang up
Easy call
Conference
Call barring
Russian CID
XHD sound
Change PIN
Registration
Unregister
Country
Reset
Area code
Carrier code
Auto prefix
Recall time
Dial mode
First ring
Redial list
Copy to phbk
Delete
Delete all
Clock & alarm Net services
Set date & time
Set format
Alarm
Alarm tone
Call forward
Callfwd busy
Callfwd unans
Voicemail 1
Voicemail 2
Info 1
Info 2
Call return
Cancel call back
Withhold ID
* This menu item is country-dependent.

- 11 -
Getting Started
CONNECTING YOUR PHONE
1. Connect the output plug of the mains
adapter to the bottom of the base
station.
2. Connect the mains adapter to a
standard wall outlet.
3. Connect the telephone line cord to the
phone socket at the bottom of the
base station and the wall phone
socket.
CONNECTING YOUR CHARGER
* For multi-pack models only
1. Connect the output plug of the mains
adapter to the bottom of the charger.
2. Connect the mains adapter to a
standard wall outlet.
Getting Started
- 12 -
WALL MOUNTING THE BASE
The base is designed to support wall mounting. To wall mount the base, follow
the instructions below.
1. Remove the bracket from the back of the base station by pressing
down the two latches on the top of the bracket.
2. Turn the bracket upside down and then re-insert the bracket to the
back of the base station.
3. Insert screws (not included) into the wall.
4. Align the mounting holes on the back of the base with the screws
on the wall.
5. Slide the base down into place.
For US, replace steps 3 and 4 above with
“Align the mounting holes on the back of the base with a standard wall phone
mounting jack.”
[Image to be added for EU version]
CAUTION: Other wall mounting methods are not recommended and may
damage the product.

Getting Started
- 13 -
CHARGING YOUR HANDSET
1. Place the 2 rechargeable batteries
(included) into the battery
compartment.
2. Slide the battery door firmly into place.
3. Place the handset on the base.
W
ARNING: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
Never use non-rechargeable batteries. Use recommended type supplied with
this product. NiMH batteries must be disposed of in accordance with the
applicable waste disposal regulations.
NOTE: Charge the handset(s) for 24 hours before initial use!
NOTE: Handset may get warm during initial charging. This is normal.
The handset may take a few seconds to power up.
CAUTION: Check the battery polarity when inserting in the battery
compartment. Incorrect polarity may damage the product.
Getting Started
- 14 -
CHECKING THE BATTERY LEVEL
The battery icon displays the current battery level.
= Battery full = Battery empty. Require charging.
Your handset may power down shortly if it is not charged after the battery is
empty. If you are on the phone when the battery is nearly empty, you will hear
warning tones. Your call may be cut off shortly after the warning.
GREETING YOU WITH “WELCOME”
This feature only applies to model(s) with multiple-country or language support.
At first startup, your handset greets you with a “Welcome” message. After the
welcome message, you can set the country or language to start using the phone.
Setting your country/language
It is necessary to set the correct country for the phone for it to work properly
according to your country’s standards.
After the welcome message,
6. Select your country or language.
7. Press
OK
to confirm. The country/language setting is saved.
After setting the country/language, you can set the date and time. The phone is
now ready to use. If you wish to set the date and time later, you can skip the
setting by pressing
BACK
.
To re-configure your country or language setting, see Changing the country
setting on page 51 or Setting the display language on page 34.
NOTE: Press
OK
to skip the welcome message.

Getting Started
- 15 -
SETTING THE CLOCK
Your phone has a digital clock. Set the clock before initial use of the phone.
Setting the date and time
1. Press .
2. Select Clock & alarm Æ Set date/time. Press
OK
.
3. Use the digit keys to enter the date.
4. Press
OK
. The handset displays the time editing screen.
5. Use digit keys to enter the time.
6. Press
OK
. The setting is saved.
Setting the date and time format
This feature only applies to model(s) with date/time format support.
You can choose how your phone displays the date (DD/MM or MM/DD) and time
(12-hour or 24-hour). Each handset can have different date and time format.
1. Press .
2. Select Clock & alarm Æ Set format. Press
OK
.
3. Select Date format or Time format.
4. Select the setting you want.
5. Press
OK
. The setting is saved.
WHAT IS STANDBY MODE?
Your phone is in standby mode when it is idle. The standby screen displays the
handset name, the handset number, the date and time, the signal icon, and the
battery icon.
Getting Started
- 16 -
CHECKING THE SIGNAL STRENGTH
The signal icon displays the link status between your handset and the base
station. A steady icon means your handset and the base station are linked. A
flashing icon means your handset and the base station are not linked.
If you move too far away from the base station while you are on the phone, you
will hear warning tones notifying you that your handset is almost out of range –
lost link. Take your handset closer to the base station or your call may be cut off
shortly after the warning.
SWITCHING YOUR HANDSET ON/OFF
Switching off your handset
1. Press and hold . The handset’s screen turns off.
Switching on your handset
1. Press . The handset may take a few seconds to power up.
NOTE: If your handset has lost link, you will not be able to make or
receive any calls. You will also not be able to carry out many of the
phone’s functions and features.
NOTE:
Y
our handset cannot receive any calls if the power is switched off.

- 17 -
Call
MAKING A CALL
This section describes the different ways to make a call.
1. Press .
2. Dial the phone number. The number displays on the screen and is
dialed out.
Pre-dialing
Pre-dialing lets you view and edit the number before making the call.
1. Enter the phone number. The number displays on the screen. You
can make changes before dialing out.
2. Press to dial out the call.
NOTE: Low Battery. During a call, you will hear warning tones if your
handset is almost out of battery. Charge your handset or your call may
soon be cut off. For details, see Checking
the
battery
leve
l
on page 14.
TIP: Press
BACK
to erase a digit.
Press and hold to enter a pause. P displays on the screen.
NOTE: Signal Strength. Check the signal strength before making a call and
during a call. For details, see Checking the signal strength on page 16.
NOTE: Emergency Call. This telephone is not designed for making
emergency telephone calls when the power fails. Alternative
arrangements should be made for access to emergency services.
NOTE: Call Timer. The call timer displays the talk time of your current call.
Call
- 18 -
Redialing the last number
1. Press .
2. Press . The last number displays on screen and is dialed out.
Calling from the redial list
1. Press .
2. Select the record you want to call.
3. Press . The number is dialed out.
Calling from the phonebook
For details on the phonebook, see Phonebook on page 26.
1. Press to access the phonebook.
2. Select the phonebook record you want to call.
3. Press to dial out the call.
Calling from the call log
You can return a call from the incoming (received or missed) call log. For details, see
Call Log on page 30.
1. Press .
2. Select Call List. Press
OK
.
3. Select the call record you want to call.
3. Press to dial out the call.
ENDING A CALL
1. Press .
TIP: Auto hang up. Place the handset on the base or charging cradle
to end the call automatically. See
A
uto
hang
up on page 37.

Call
- 19 -
ANSWERING A CALL
When you receive a call, your phone rings. Press or to answer the call.
Turning off the ringer
You can turn off the ringer for all incoming calls.
1. Press and hold during standby. displays on the screen. For
details on the ringer setting, see Personalizing your phone’s sounds
on page 35.
ANSWERING A CALL (FOR RUSSIA-MODEL)
If you have a Russia-model phone, the tips and notes mentioned in the Answering
a call section still applies to you. However, in your country, there are 2 ways to
answer a call depending on your Caller ID setting.
NOTE: Ringer. When the handset rings during an incoming call, do not
put the handset too close to your ear as the ringer volume may
damage your hearing.
TIP: Silent Ringer. When the phone is ringing, press to turn off
the ringer for the current call.
NOTE: Handsfree. Handsfree activation can suddenly increase the
earpiece volume to a very high level. Make sure the handset is not too
close to your ear.
NOTE: Caller ID Service. Subscribe from your service provider.
TIP: Missed Call Alert. When a call is missed, your handset displays a
notification message. The handset’s LED and icon also flash.
Call
- 20 -
Caller ID service enabled,
1. Press
OK
to view the Caller ID when your phone is ringing.
2. Press or to answer the call.
Caller ID service disabled,
1. Press or to answer the call when your phone is ringing.
Russian CID setting
This feature changes the caller ID setting.
1. Press .
2. Select Advanced set Æ Caller ID. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
DURING A CALL
This section describes the features that are available during a call.
Adjusting the earpiece volume
1. Press or to adjust the volume during a call. Press
OK
to
confirm. The earpiece volume is adjusted and the phone goes
back to the call screen.
Muting the microphone
The mute feature allows you to speak to someone in the house privately.
1. Press during a call. Your handset displays Mute on. The caller
cannot hear you, but you can still hear his voice.
Press again to un-mute the microphone. You can now
communicate with the caller.
USING THE SPEAKER OR HANDSFREE
1. Press to turn on/off the speaker.

Call
- 21 -
MAKING A SECOND CALL
During a call,
1. Press OR
Press
OK.
Select Init. 2nd call. Press
OK
again.
Your first call will be put on hold.
2. Dial the number you want for the 2nd call. The number displays on
the screen and is dialed out.
Answering a second call
During a call, your phone sounds a short beep periodically to notify you of an
incoming call.
1. Press to answer the call. The first call is put on hold, and you
are now connected to the second call.
Toggling between two external calls
1. Press OR
Press
OK
and select Switch calls. Press
OK
.
The current call is put on hold, and you are now connected to the
other call.
NOTE: 2nd Call Service. Subscribe from your service provider.
NOTE: 2nd Call Service. Subscribe from your service provider.
NOTE: Conference. The conference feature may require additional
charges from your service provider.
To start a conference call, while connected to two external calls, you
can press
OK
, select Conference, and then press
OK
again. You can
now talk to both parties at once.
- 22 -
Intercom and Conference Calls
An intercom call is a call to another handset that shares the same base station. A
conference call involves a conversation between another handset and outside
caller(s).
CALLING ANOTHER HANDSET
1. Press . The handset(s) available for intercom is displayed.
2. Select or press the desired handset number. Press
OK
.
The desired handset rings.
3. Press on the desired handset.
The intercom is established.
4. Press to cancel or end the intercom call.
While you are on the phone
While talking on the phone, you can call another handset.
1. Press during the call. The external caller is automatically being
put on hold.
2. Select or press the target handset number. Press
OK
.
3. Wait for the other party to answer your call.
To toggle between the calls
1. Press to switch between the outside call and the intercom call.
N
O
TE:
Y
ou will hear busy tone if the handset you call calling is not available.
NOTE: If the base station only has 2 handsets (yours and another handset)
registered to it, you can press to call the other handset instantly.

Intercom and Conference Calls
- 23 -
TRANSFERRING A CALL
1. Press during a call.
2. Select or press the target handset number. Press
OK
.
3. Press after the other party answers your call. The outside call
is now transferred to the other handset.
MAKING A CONFERENCE CALL
A 3-way conference call is a call between you, outside caller(s), and another handset
user in your house.
During an external call,
1. Press to initiate an internal call. The handset(s) available for
intercom is displayed. The external caller is automatically being
placed on hold.
2. Select or press the desired handset number. Press
OK
.
Your desired handset rings.
3. Press on the desired handset.
The intercom is established.
4. Press and hold on your handset. You are now on a 3-way
conference call with the external call and the desired handset.
5. Press to end the conference call.
TIP: Auto Conference. You can join an ongoing external call with
another handset by pressing . See Activating/Deactivating auto
conference on page 37.
NOTE: A 3-way conference call requires 2 handsets that share the same
base station.
Intercom and Conference Calls
- 24 -
During the conference call,
1. Press to put the external call on hold and go back to the
internal call.
The external call is put on hold automatically.
Press to toggle between the external and internal call.
2. Press and hold to establish the conference call again.
NOTE: Any handset hangs up during a conference call will leave the
other handset still in connection with the external call.

- 25 -
Text and Numbers
You can enter text and numbers for handset name, phonebook records, and
others menu items.
ENTERING TEXT AND NUMBERS
1. Find the key with the character you want.
2. Press it as many times as needed for the character you want.
Input table
Key Characters (Upper case) Key Characters (Lower case)
0 . 0 , / : ; “ ; ! ¡ ? ¿
* + - % \ ^ ~ |
0 . 0 , / : ; “ ; ! ¡ ? ¿
* + - % \ ^ ~ |
1 [Sp] 1 @ _ # = < > ( )
& ¤ £ $ ¥ [ ] { } ° § …
1 [Sp] 1 @ _ # = < > ( )
& ¤ £ $ ¥ [ ] { } ° § …
2 A B C 2 À Â Æ Á Ã Ă Ä Å Ą Ç Ć Č 2 a b c 2 à â Æ á ã ă ä å ą ç ć č
3 D E F 3 Ď Đ Ė Ě È É Ê Ë Ę ∆ Φ 3 d e f 3 ď đ ė ě è é ê ë ę ∆ Φ
4 G H I 4 Ğ Í Ì Î Ï İ Γ 4 g h i 4 ğ í ì î ï I Γ
5 J K L 5 Λ Ł Ĺ Ľ 5 j k l 5 Λ ł ĺ ľ
6 M N O 6 Ñ Ň Ń Ó Ô Õ Ö Ő 6 m n o 6 ñ ň ń ó ô õ ö ő
7 P Q R S 7 Ř Ş Š Ś β Π Θ Σ 7 p q r s 7 ř ş š ś β Π Θ Σ
8 T U V 8 Ţ Ť Ù Ú Û Ü Ů Ǚ Ű 8 t u v 8 ţ ť ù ú û ü ů ǚ ű µ
9 W X Y Z 9 Ý Ž Ź Ż ſ Ø Ω Ξ Ψ 9 w x y z 9 ý ž ź ż ƒ ø Ω Ξ Ψ
SWITCHING BETWEEN UPPERCASE AND LOWERCASE
By default, all characters entered will be in uppercase. You can press to
switch between uppercase and lowercase letters.
TIP: Editing. Use
BACK
to delete and or to move the cursor.
- 26 -
Phonebook
Your phone has a phonebook that can store up to 100 records. You can access
the phonebook from your handset. Each record can have a name up to 14
characters long and a number up to 24 digits long.
VIEWING THE PHONEBOOK
1. Press .
2. Select the contact you want to view.
3. Press to view the details of a record (name, number, VIP melody).
Searching a record
You can search the phonebook by scrolling or by searching the first character.
Searching by scrolling
1. While in the phonebook, press or to scroll.
Searching by the first character
1. While in the phonebook, press the digit key that contains the
character you want to search by.
During a call
You can access the phonebook and use the number during a call.
1. Press and hold during a call OR
Press
OK
. Select Phonebook. Press
OK
.
2. Select the contact you want.
3. Press
OK
. The number displays on the screen and is dialled out.
TIP: Use or to navigate the menus.
TIP: Options Menu. While viewing the phonebook, you can press
OK
to
access the phonebook options menu.

Phonebook
- 27 -
CALLING FROM THE PHONEBOOK
See Calling from the phonebook on page 18.
ADDING A RECORD
1. Press .
2. Select Phonebook Æ New entry. Press
OK
.
3. Enter the name. Press
OK
.
4. Enter the number.
5. Press
OK
to confirm. Your new record is saved.
EDITING A RECORD
1. Press .
2. Select Phonebook Æ Edit entry. Press
OK
.
3. Select the contact you want to edit. Press
OK
.
4. Edit the name if necessary. Press
OK
.
5. Edit the number if necessary. Press
OK
to confirm. The record is
saved.
TIP: Editing. Use
BACK
to delete and or to move the cursor.
NOTE: Memory Full. If your phonebook is full, the handset displays a
notification message. Delete some records before adding new ones.
NOTE: Text and Number Editing. See Text
a
n
d
Numbers on page
25.
NOTE: Duplicate Record. Contacts with identical number cannot be
saved.
TIP: Pause. Press and hold to insert a pause.
Phonebook
- 28 -
SETTING VIP MELODIES
You can assign different ringer melodies for each phonebook contacts. Your
phone will ring the selected melody when the caller ID matches the number in
your phonebook.
1. Press .
2. Select Phonebook Æ Select melody. Press
OK
.
3. Select the contact you want. Press
OK
. The current melody is
displayed.
4. Select a ring melody using and . Press
OK
. The setting is
saved.
DELETING A RECORD
1. Press .
2. Select Phonebook Æ Delete entry. Press
OK
.
3. Select the contact you want to delete. Press
OK
. The handset
displays a confirmation request.
4. Press
OK
to confirm. The record is deleted.
DELETING ALL RECORDS
1. Press .
2. Select Phonebook Æ Delete all. Press
OK
. The handset displays a
confirmation request.
3. Press
OK
to confirm. All records are deleted.
USING QUICK DIAL
You can store up to 9 direct access memories (key 1 – 9). A long press on the
keys in standby will automatically dial your stored phone number.
Depending on your country, key 1 and key 2 may be preset to the voice mail
number and information service number of your network operator respectively. In
this case, key 1 and key 2 will not be available for setting direct access memories.

Phonebook
- 29 -
Assigning a quick dial key
1. Press .
2. Select Phonebook Æ Direct memory. Press
OK
.
3. Select an available key from the list. Press
OK
.
4. Select the contact you want. Press
OK
. The setting is saved.
Making a call
1. Press and hold an assigned quick dial key during standby. The
programmed number is dialed out.
Editing a quick dial key
1. Press .
2. Select Phonebook Æ Direct memory. Press
OK
.
3. Select the quick dial key you want to change. Press
OK
.
4. Select Change. Press
OK
.
5. Select a new contact. Press
OK
. The setting is saved
Cancelling a quick dial key
1. Press .
2. Select Phonebook Æ Direct memory. Press
OK
.
3. Select the quick dial key you want to cancel. Press
OK
.
4. Select Delete to cancel the quick dial key. Press
OK
. The handset
displays a confirmation request.
5. Press
OK
to confirm. The quick dial key is cancelled.
- 30 -
Call Log
The call log stores the call history of all incoming (missed or received). The
incoming call history includes the caller name, number, call time and date. This
feature is available if you have registered to the Caller ID service (CLI) with your
service provider.
Your phone can store up to 50 call records. The call log icon and the handset
LED will blink to remind you of any unanswered calls received. If the identity of the
caller is not withheld, the name (or number) of the caller will be displayed. The call
records are displayed in chronological order with the most recent received call at
the top of the list.
VIEWING THE CALL RECORDS
1. Press .
2. Select Call List, and then press
OK
to enter the incoming call log.
3. Select the record you want to view. Press for more information.
RETURNING A CALL
To call from the incoming call log, see Calling from the call log on page 18.
NOTE: Call back from the call list may not work for all received numbers.
TIP: Use or to navigate the menus.

Call Log
- 31 -
SAVING A CALL RECORD TO YOUR PHONEBOOK
1. Enter the call log.
2. Select the record you want while browsing the log. Press
OK
.
3. Select Copy to phbk. Press
OK
.
4. Enter and edit the name if necessary. Press
OK
.
5. Enter and edit the number if necessary. Press
OK
. The record is
saved.
DELETING A CALL RECORD
1. Enter the call log.
2. Select the record you want while browsing the log. Press
OK
.
3. Select Delete. Press
OK
. The handset displays a confirmation
request.
4. Press
OK
to confirm. The record is deleted.
DELETING ALL CALL RECORDS
1. Enter the call log.
2. Press
OK
to enter the options menu while browsing the log.
3. Select Delete all. Press
OK
. The handset displays a confirmation
request.
4. Press
OK
to confirm. All records are deleted.
- 32 -
Redial List
The redial list stores call history of dialed calls. The dialed call history includes the
name and number called. Your phone can store up to 10 redial records.
VIEWING THE REDIAL RECORDS
1. Press to enter the dialed call log.
2. Select the record you want to view. Press for more information.
REDIALING A CALL
To call from the redial list, see Calling from the redial list on page 18.
SAVING A REDIAL RECORD TO YOUR PHONEBOOK
1. Enter the redial list.
2. Select the record you want while browsing the list. Press
OK
.
3. Select Copy to phbk. Press
OK
.
4. Enter and edit the name if necessary. Press
OK
.
5. Enter and edit the number if necessary. Press
OK
. The record is
saved.
DELETING A REDIAL RECORD
1. Enter the redial list.
2. Select the record you want while browsing the list. Press
OK
.
3. Select Delete. Press
OK
. The handset displays a confirmation
request.
4. Press
OK
to confirm. The record is deleted.
TIP: Use or to navigate the menus.

Redial list
- 33 -
DELETING ALL REDIAL RECORDS
1. Enter the redial list.
2. Press
OK
to enter the options menu while browsing the list.
3. Select Delete all. Press
OK
. The handset displays a confirmation
request.
4. Press
OK
to confirm. All records are deleted.
- 34 -
Custom Options
Make this your phone – change the look and sound of the handset to suit your
needs and tastes.
PERSONALIZING YOUR PHONE’S DISPLAY
Naming your handset
Each handset can have its own name (up to 12 characters). It is displayed on the
screen in standby.
1. Press .
2. Select Personal set Æ Handset name. Press
OK
.
3. Enter or edit the name. Use
BACK
to make corrections.
4. Press
OK
to confirm. The setting is saved.
Setting the display language
This feature only applies to model(s) with multiple-language support.
1. Press .
2. Select Personal set Æ Language. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
Adjusting the screen contrast level
1. Press .
2. Select Personal set Æ Contrast. Press
OK
.
3. Select the new setting. The contrast effect will display while you are
browsing through the different contrast levels. Press
OK
to confirm.
The setting is saved.
NOTE: Available languages for selection vary with different countries.

Custom Options
- 35 -
PERSONALIZING YOUR PHONE’S SOUNDS
Setting your handset’s ringer melody
You can choose from 12 different ringer melodies.
1. Press .
2. Select Personal set Æ Handset tones Æ Ring melody. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
Setting your handset’s ringer volume
There are 6 ringer volume levels (including ringer off) and a progressive setting.
1. Press .
2. Select Personal set Æ Handset tones Æ Ring volume. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
Setting the key tone
Key tone is the sound you hear when you press a key on your handset.
1. Press .
2. Select Personal set Æ Handset tones Æ Key beep. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
Enhancing the audio quality
XHD sound mode is an exclusive feature making your phone conversations
sounding just like real-life conversations. When activated, the XHD sound mode
transmits with high fidelity all the emotions of the call, as if your correspondent
was talking next to you.
TIP: Press and hold during standby to turn off the ringer.
displays on the screen.
Custom Options
- 36 -
1. Press .
2. Select Advanced set Æ XHD sound. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
During a call
1. Press
OK
to enter the options menu. The handset displays the XHD
setting you can change to.
2. Press
OK
to change the setting. The setting is saved.

- 37 -
Calling Features
Your phone supports a number of call-related features to help you handle and
manage your calls.
AUTO HANG UP
Auto hang up allows you to end a call by placing the handset on the base or
charging cradle without pressing any key.
Activating/Deactivating auto hang up
1. Press .
2. Select Personal set Æ Auto hang up. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
AUTO CONFERENCE
Auto conference lets you join an external call with another handset by simply
pressing .
Activating/Deactivating auto conference
1. Press .
2. Select Advanced set Æ Conference. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
DIAL MODE
Dial mode is the telephone signal used in your country. Your phone supports tone
(DTMF) and pulse (rotary) dialing. Your phone shall already be set up for use in
your country. For details, consult your service provider.
Setting the dial mode
1. Press .
2. Select Advanced set Æ Dial mode. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
Calling Features
- 38 -
RECALL SELECTION
Recall is a signal that needs to be sent to the network when making or answering
a second call. Your phone shall already be set up for use in your country. For
details, consult your service provider.
Setting the recall duration
There are 3 recall time options: Short, Medium, and Long. The number of
available options varies with different countries.
1. Press .
2. Select Advanced set Æ Recall time. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
CALL BARRING
Call barring allows you to block selected numbers from dialing out.
Activating/deactivating call barring
1. Press .
2. Select Advanced set Æ Call barring. Press
OK
.
3. Enter the system PIN. Press
OK
.
4. Select Mode. Press
OK
.
5. Select the new setting. Go to step 6 if you selected On or step 7 if
you selected Off.
6. Enter the barred number (if it is not set previously).
7. Press
OK
. The setting is saved.
TIP: Temporar
y
Tone. If your phone is in pulse dialing, press and hold
during a call for temporary tone mode. ‘d’ displays. Digits entered
after ‘d’ are sent out as tone signal (for this call only).

Calling Features
- 39 -
Setting barred numbers
You can set up to 4 numbers of 1 – 4 digits long. Outgoing calls starting with one
of the 4 programmed numbers will be blocked from dialing out.
1. Press .
2. Select Advanced set Æ Call barring. Press
OK
.
3. Enter the system PIN. Press
OK
.
4. Select Number Æ Number 1 (2, 3, 4). Press
OK
.
5. Enter the number you want to block. Press
OK
. The setting is
saved.
AREA CODE MANAGEMENT
This feature only applies to model(s) with area code support.
This feature automatically removes the area code of an incoming call. You can
define an area code (up to 6 digits) you want to remove. The phone number will
be saved in the call log without the area code.
Activating area code removal
1. Press .
2. Select Advanced set Æ Area code. Press
OK
.
3. Enter the area code. Press
OK
. The setting is saved.
Deactivating area code removal
1. Press .
2. Select Advanced set Æ Area code. Press
OK
.
3. Use
BACK
to delete all the digits. Press
OK
. The setting is saved.
Calling Features
- 40 -
CARRIER CODE
This feature only applies to model(s) with carrier code support.
For some telephone service providers, you may need to add the carrier code
when making a call outside of your local area. The area code feature
automatically helps you decide if the carrier code is needed when you are
returning a call from the incoming call log.
You only have to program the carrier code of your service provider, and your
phone will do the rest for you.
1. Press .
2. Select Advanced set Æ Carrier code. Press
OK
.
3. Enter the carrier code number. Press
OK
. The setting is saved.
AUTO PREFIX
This feature only applies to model(s) with auto prefix support.
The auto prefix feature checks and formats your outgoing call number before it is
dialed out. If the first few digits of the number match the detect number you set in
the menu, they will be replaced by the prefix number you set in the menu.
For example, you set the detect number as 604 and prefix number as 1250.
When you have dialed out a number such as 6043338888, your phone will
change the number to 12503338888 when it dials out.
NOTE: Area Code. Remember to program your local area code in the
area code menu.
NOTE: Carrier Code. It is a 2 or 3-digit code that represents a service
provider. Consult your service provider to find out its code.
NOTE: The maximum length of detect digits is 5 digits. The maximum
length of auto prefix number is 10 digits.

Calling Features
- 41 -
1. Press .
2. Select Advanced set Æ Auto prefix. Press
OK
.
3. Enter the Detect number. Press
OK
.
4. Enter the Prefix number. (To enter a pause, press and hold .)
Press
OK
. The setting is saved.
FIRST RING
This feature only applies to model(s) with first ring support.
If you have subscribed for Caller ID service with your service provider, your phone
can suppress the first ring before the Caller ID. After resetting, your phone will
automatically detect if Caller ID service is subscribed and start to suppress the
first ring. You can change this setting to suit your preference.
Turning first ring on/off
1. Press .
2. Select Advanced set Æ First ring. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
NOTE: Reset First Ring Status. To reset the first ring status, you can
reset the system from the Reset menu. See Restoring default settings
on page 51.
NOTE: Dialed Number. If the dialed number starts with º, # or P, the
handset will not do any reformatting.
NOTE: Empty Detect Number. If the user only sets the prefix number
and leaves the detect number empty, the prefix number will be added
to all outgoing calls.
- 42 -
Network Services
The network services feature allows you to listen to information provided by your
network provider. The availability of this feature is dependent of your country and
your subscription with the network provider. This information are stored by the
network rather than in your handset itself. Contact your network provider for more
information about this feature.
CALL FORWARD
This feature lets you forward your calls to another number. There are a few options:
Call forward: forward all incoming calls.
Callfwd busy: forward calls only when the line is busy.
Callfwd unans: forward calls only when they are not answered.
Activating call forward
1. Press .
2. Select Netw. services. Press
OK
.
3. Select the call forward options you want. Press
OK
to confirm.
4. Select Activate. Press
OK
.
5. Enter the number you want to forward your calls to. Press
OK
. A call
is made to the service centre.
Deactivating call forward
1. Press .
2. Select Netw. services. Press
OK
.
3. Select the call forward options you want. Press
OK
to confirm.
4. Select Deactivate. Press
OK
. A call is made to the service centre.
NOTE: Incorrect codes. Network services may not work if the incorrect
activation and/or deactivation codes are entered.

Network Services
- 43 -
Editing the activation/deactivation codes
You can make changes to the prefix and suffix to the call forward codes.
1. Press .
2. Select Netw. services. Press
OK
.
3. Select the call forward options you want. Press
OK
to confirm.
4. Select Change codes. Press
OK
.
5. Select Activation Æ Prefix (Suffix). Press
OK
OR
Select Deactivation. Press
OK
.
6. Enter or edit the code. Press
OK
. The setting is saved.
VOICEMAIL
You will see an envelope icon on your handset when there is a voicemail
waiting in your mailbox. When all the voicemail records are cleared from the call
log, the envelope icon will turn off.
Retrieving voicemail(s)
You can make a call to the voicemail service centre to retrieve your voicemail(s).
Your phone supports 2 voicemail service numbers.
1. Press .
2. Select Netw. services. Press
OK
.
3. Select the voicemail service you want. Press
OK
.
4. Select Call. Press
OK
. A call is made to the service centre.
Editing the voicemail service numbers
1. Press .
2. Select Netw. services. Press
OK
.
3. Select the voicemail service you want. Press
OK
.
TIP: Voicemail 1 Shortcut. Press and hold 1 during standby to make a
call to the voicemail 1 service centre directly.
Network Services
- 44 -
4. Select Settings. Press
OK
.
5. Enter or edit the voicemail number. Press
OK
. The setting is saved.
INFO CENTRE
Your phone supports 2 info centre numbers.
Calling the info centre
1. Press .
2. Select Netw. services. Press
OK
.
3. Select the info centre you want. Press
OK
.
4. Select Call. Press
OK
. A call is made to the info centre.
Editing the info centre numbers
1. Press .
2. Select Netw. services. Press
OK
.
3. Select the info centre you want. Press
OK
.
4. Select Settings. Press
OK
.
5. Enter or edit the number. Press
OK
. The setting is saved.
CALL RETURN
The call return service allows you to check who called you last.
Calling the call return service centre
1. Press .
2. Select Netw. services Æ Call return Æ Call. Press
OK
. A call is made
to the service centre.
Editing the service centre number
1. Press .
TIP: Info 1 Shortcut. Press and hold 2 during standby to make a call to
the info 1 centre directly.

Network Services
- 45 -
2. Select Netw. services Æ Call return Æ Settings. Press
OK
.
3. Enter or edit the number. Press
OK
. The setting is saved.
CANCEL CALL BACK
The call back service notifies you when a party you have tried to call becomes
available. After activating this service from your service provider, you can choose
to cancel it from the menu.
Cancelling call back
1. Press .
2. Select Netw. services Æ Cancel call bk Æ Call. Press
OK
. A call is
made to the service centre to cancel the call back option.
Editing the cancel call back service number
1. Press .
2. Select Netw. services Æ Cancel call bk Æ Settings. Press
OK
.
3. Enter or edit the number. Press
OK
. The setting is saved.
WITHHOLDING ID
This feature enables you to suppress your Caller ID to the caller.
Activating withhold ID
1. Press .
2. Select Netw. services Æ Withhold ID Æ Activate. Press
OK
. The
withhold ID code is dialed out.
3. Enter the number you want to call. The number is dialed out and
your information is withheld from the other party.
Editing the withhold ID code
1. Press .
2. Select Netw. services Æ Withhold ID Æ Settings. Press
OK
.
3. Enter or edit the number. Press
OK
. The setting is saved.
- 46 -
Extra Features
Discover and explore the additional features your phone offers! Find out how
these features can benefit you and help you make the most of your phone.
ALARM CLOCK
You can use your phone as an alarm clock to wake you up. You can set the alarm to
ring once or daily.
Setting the alarm
1. Press .
2. Select Clock & alarm Æ Alarm. Press
OK
.
3. Select On once or On daily. Press
OK
.
4. Enter the alarm time.
5. Press
OK
. The alarm is set and the icon displays.
Turning off the alarm
When the alarm rings
1. Press or
OK
to turn off the alarm. Pressing other keys cannot
stop the alarm.
Before the alarm rings
1. Press .
2. Select Clock & alarm Æ Alarm. Press
OK
.
3. Select Off. Press
OK
. The setting is saved.
NOTE: If you do not press any key after the alarm clock rings for 1
minute, it will turn off automatically.
TIP: You can set the time format to 12-hour or 24-hour. See Setting
the
date
a
n
d
time
forma
t
on page 15.

Extra Features
- 47 -
Setting the alarm melody
1. Press .
2. Select Clock & alarm Æ Alarm tone. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
EASY CALL
Easy call allows you to dial out a programmed number by pressing any handset
key (except
BACK
.)
Activating easy call
1. Press .
2. Select Advanced set Æ Easy call Æ Mode. Press
OK
.
3. Select On. Press
OK
.
4. Enter the easy call number (if it is not set previously). Press
OK
. The
setting is saved.
Setting the easy call number
1. Press .
2. Select Advanced set Æ Easy call Æ Number. Press
OK
.
3. Enter the easy call number. Press
OK
. The setting is saved.
Deactivating easy call
1. Press
BACK
during standby. The easy call menu displays.
2. Select Off. Press
OK
. The setting is saved.
NOTE: Alarm Volume. The alarm volume is set to the same level as the
ringer volume. If the ringer is off, the alarm volume is set to level 1.
Extra Features
- 48 -
KEYPAD LOCK
You can lock the keypad to prevent accidental presses on the handset while you
are carrying it around.
Locking the keypad
1. Press and hold during standby. The keypad is locked. Keys
locked is displayed.
Unlocking the keypad
1. Press and hold . The keypad is unlocked.
MISSING HANDSET(S)
1. Press on the base station. All the handsets connected to this
base station ring.
2. Press on the base station again to stop paging. All the
handsets stop ringing OR
Press any key on the handset to stop the paging for that handset.
NOTE: Calls. You
w
ill not be able to make any calls including
emergency calls when the keypad is locked. You can still answer
incoming calls. The keypad will be unlocked during the call, and then it
will be re-locked automatically after you finish the call.

- 49 -
The System
REGISTERING ADDITIONAL HANDSET(S)
The procedures described below are the procedures you will find in your handset.
The procedures may vary according to the handset you want o register. In this
case, refer to the manufacturer’s instruction of the additional handset.
Additional handsets must be registered to the base station before you can use
them. Your base station can register up to 5 handsets. The system PIN may be
required for registering or unregistering handsets.
1. Press on the base station for 3 seconds.
2. Press on the handset.
3. Select Advanced set Æ Register. Press
OK
.
4. Enter the system PIN (Pre-set: 0000). Use
BACK
to make
corrections.
5. Press
OK
. Your handset starts searching for the base.
Registration shall be completed within 60 seconds. The base
automatically assigns a handset number to the handset.
NOTE: If the PIN is incorrect or no base is found within a certain period,
your handset displays a notification message.
The System
- 50 -
DELETING A HANDSET
Use one handset to unregister another handset that shares the same base
station.
1. Press .
2. Select Advanced set Æ Unregister. Press
OK
.
3. Enter the system PIN. Use
BACK
to make corrections.
4. Press
OK
. Select the handset (number) you want to delete.
5. Press
OK
. The handset is deleted.
CHANGING YOUR PIN
The system PIN is used for registration and protecting access rights to some of
the menus and remote access to the answering machine. The pre-set PIN is
0000. You can personalize your PIN for greater security.
1. Press .
2. Select Advanced set Æ Change PIN. Press
OK
.
3. Enter the system PIN. Use
BACK
to make corrections.
4. Press
OK
to confirm the system PIN.
5. Enter the new system PIN. Press
OK
.
6. Enter the new system PIN again for verification. Press
OK
. The
setting is saved.
TIP: Handset Number. The handset number displays beside the
handset name during standby.
NOTE: Forgotten PIN. Write down your PIN and save it for future use. If
you have forgotten the PIN, reset your phone and your PIN code will be
restored to the factory pre-set PIN (0000). To reset your phone, see
Restoring default settings on page 51.

The System
- 51 -
CHANGING THE COUNTRY SETTING
This feature only applies to model(s) with multiple-country support.
You can change the country setting of your phone when you are using it in
another country. If your handset displays Welcome, refer to Greeting you with
“Welcome” on page 14.
1. Press .
2. Select Advanced set Æ Country. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
RESTORING DEFAULT SETTINGS
You can reset your phone settings to the original factory settings.
1. Press .
2. Select Advanced set Æ Reset. Press
OK
. The handset displays a
confirmation request.
3. Press
OK
to confirm. All settings have been reset.
To see a list of default setting, see Default (pre-programmed) settings on page 61.
NOTE: The availability of this menu is dependent on your country.
NOTE: After reset, your handset’s power switches off. It will switch back
on in a few seconds after updating all the settings. All handsets return
to the Welcome screen afte
r
reset.
- 52 -
The Answering Machine
Your SE455 includes a telephone answering machines that records unanswered
calls when it is on. Once switched on, your answering machine is ready to be
used. By default, your answering machine is set to Answer and Record mode.
You can also access the machine remotely.
The LED message counter (two digits 7-segment display) on the base will show
the number of the messages when the answering machine is on.
-- Memory full 00
AA Remote access
Recording
The 2-digit number shows:
- The volume level during adjustment, or
- The message number
(blink for new messages)
You can use the answering machine menu on the handset to change the settings
of the answering machine.
TURNING ON THE ANSWERING MACHINE
You can turn on the answering machine either through the base or the handset.
Through the handset, Through the base,
1. Press .
2. Select Answer machine Æ Answer
on/off. Press
OK
.
3. Select On. Press
OK
. The setting is
saved.
1. Press to turn on the answering
machine during standby.
Once switched on, your answering machine will answer incoming calls after a
certain number of rings depending on the ring delay setting. See Setting the ring
delay on page 58.

The Answering Machine
- 53 -
TURNING OFF THE ANSWERING MACHINE
You can turn off the answering machine either through the base or the handset.
Through the handset, Through the base,
1. Press .
2. Select Answer machine Æ Answer
on/off. Press
OK
.
3. Select Off. Press
OK
. The setting is
saved.
1. Press to turn off the answering
machine during standby.
Once switched off, the message counter turns off.
SETTING THE ANSWERING MACHINE LANGUAGE
This feature only applies to model(s) with multiple-language support.
The answering machine language is the language for the pre-recorded OGM and
voice prompt instructions (for models that support voice prompts) announced by
the answering machine.
1. Press .
2. Select Answer machine Æ Settings Æ Language. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
SETTING THE ANSWER MODE
By default, the answering machine is set to Answer & Rec mode (message can
be left by the callers), this can be changed to Answer Only (no message can be
left by the callers. The caller will be prompted to call back later.
1. Press .
2. Select Answer machine Æ Answer mode. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
NOTE: Memory Full. Answering machine automatically switches to
answer only mode.
The Answering Machine
- 54 -
OUTGOING MESSAGES (OGM)
The outgoing message is the message your caller hears when the answering
machine picks up the call. Your answering machine comes with 2 pre-recorded
outgoing messages: Answer and Record mode and Answer Only mode.
Recording an outgoing message
The maximum length of the outgoing message is 60 seconds. After recording,
your new outgoing message will automatically replace the old one.
1. Press .
2. Select Answer machine Æ Record OGM. Press
OK
.
3. Select Answer & rec. or Answer only. Press
OK
.
4. Select Record OGM. Press
OK
.
5. Start recording after the beep.
6. Press
OK
to stop recording or recording will stop after 60 seconds.
The recorded outgoing message will play back automatically for
review.
Listening to the current outgoing message
1. Press .
2. Select Answer machine Æ Record OGM Press
OK
.
3. Select Answer & rec. or Answer only. Press
OK
.
4. Select Play. Press
OK
. The handset plays the current outgoing
message.
TIP: Restore Pre-recorded outgoing message. If you want to restore
the pre-recorded outgoing message, simply delete your current
outgoing message.

The Answering Machine
- 55 -
Deleting an outgoing message
1. Press .
2. Select Answer machine Æ Record OGM Press
OK
.
3. Select Answer & rec. or Answer only. Press
OK
.
4. Select Delete. Press
OK
. The handset displays a confirmation
request.
5. Press
OK
to confirm. The pre-recorded outgoing message is
restored.
INCOMING MESSAGES (ICM)
Each message can be up to 2 minutes long. When you have received new
messages on your answering machine, the answering machine display will keep
flashing the number of new messages received and the handset will display a
notification message. If you pick up the phone when the caller is leaving a message,
the recording will stop and you can talk to the caller directly.
Playing incoming messages
Incoming messages will be played back in the sequence they were recorded.
From the base
1. Press . Press to start or stop message playback.
• Adjust the volume. Press to increase or to decrease the
speaker’s volume.
NOTE: Memory Full. The answering machine automatically switches to
answer only mode. Delete some messages to allow room for new
messages.
NOTE: The pre-recorded outgoing message cannot be deleted.
The Answering Machine
- 56 -
• Skip backward.
• During message playback, press to replay the
message from the beginning.
• During the first second of the current message, press
to play the previous message.
• Skip forward. Press to skip to the next message.
• Stop playback. Press .
• Delete current message. Press .
From the handset
1. Press .
2. Select Answer machine Æ Play. Press
OK
. New messages start
playing. Old messages start playing if there is no new message.
• Stop playback. Press
BACK
.
• Enter options menu. Press
OK
.
• Adjust the volume. Press to increase or decrease the
volume.
Deleting an incoming message
From the base
1. Press during message playback. The current message is
deleted.
From the handset
1. During message playback, press
OK
to enter the options
menu.
2. Select Delete. Press
OK
. The current message is deleted.
NOTE: Deleted message(s) cannot be recove
r
ed.

The Answering Machine
- 57 -
Deleting all old incoming messages
From the base
1. Press and hold during standby. All old messages are
permanently deleted.
From the handset
1. Press .
2. Select Answer machine Æ Delete all. Press
OK
. The handset
displays a confirmation request.
3. Press
OK
to confirm. All old messages are permanently deleted.
CALL SCREENING
Call screening allows you to hear the caller while he is leaving a message. You
can then decide if you want to talk to the caller directly.
From the base
You can use and to adjust the speaker’s volume during call screening.
The lowest volume level turns call screening off.
From the handset
The call screening feature on the handset can be changed from the handset
menu.
1. Press on the handset.
2. Select Answer machine Æ Settings Æ HS screening. Press
OK
.
3. Select the new setting. Go to step 4 if you selected On or step 5 if you
selected Off.
4. Select the handset you want for screening.
5. Press
OK
. The setting is saved.
NOTE: Unread message(s) cannot be deleted, and deleted message(s)
cannot be recovered.
The Answering Machine
- 58 -
During call screening, use and to adjust the screening volume.
MESSAGE ALERT
Message alert gives you an indication that the answering machine has new
message(s). You will see the number of new messages flashing on the base, and
you will also see the icon flashing and a notification message on the handset.
SETTING THE RING DELAY
Ring delay is the number of times your phone will ring before the answering
machine picks up the call. This setting only applies when your answering machine
is switched on. You can change this setting from 3 – 8 rings or economy.
1. Press .
2. Select Answer machine Æ Settings Æ Ring delay. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
TIP: Handset Call Screening.
Y
our handset automaticall
y
turns on the
speaker for handset screening. To listen from the earpiece, press to
turn off the speaker.
NOTE: The call screening on/off setting cannot be changed during ICM
recording.
TIP: Economy. This is a cost effecti
v
e way to manage your messages
when accessing your answering machine remotely. When economy is
selected, your answering machine will pick up the call after 3 rings if
you have new messages or 5 rings if you do not have any messages.

The Answering Machine
- 59 -
REMOTE ACCESS
You can operate your answering machine when you are away from home by
calling your phone from a touch tone phone and entering your 4-digit PIN code.
Activating/deactivating remote access
You can allow or block remote access to your answering machine.
1. Press .
2. Select Answer machine Æ Settings Æ Remote access. Press
OK
.
3. Select the new setting. Press
OK
. The setting is saved.
Accessing your answering machine remotely
1. Make a call to your home number from a touch tone phone.
2. Press when the outgoing message starts playing.
3. Enter your PIN code. You now have access to your answering
machine, and new message(s) starts playing.
4. Press a key to carry out a function. See the Remote access
commands table below for a list of available functions.
NOTE:
Y
ou have 2 tries to enter the correct PIN code before your phone
hangs up.
NOTE: The remote access PIN code is the same as your system PIN.
To change your PIN, see Changing your PIN on page 50.
NOTE: When no message is playing, your phone will hang up
automatically if no key is pressed for 8 seconds.
The Answering Machine
- 60 -
Remote access commands
Key Function
1 Repeat current or play previous
message
2 Play messages
3 Skip to next message
6 Delete current message
7 Switch answering machine on
(not available during playback)
8 Stop message playback
9 Switch answering machine off
(not available during playback)

- 61 -
Appendix
DEFAULT (PRE-PROGRAMMED) SETTINGS
General Setting
Language Handset Name
Date Time
Date Format Time Format
Alarm Network Services
Backlight Contrast
Auto Hang Up Conference
Recall Time Dial Mode
Easy Call Area Code
Carrier Code Auto Prefix
First Ring Russian CID
Sounds Setting
Handset Ring Melody Handset Ring Volume
Alarm Tone Handset Key Beep
Receiver Volume XHD Sound
Call Log Setting
Incoming Call Log Unchanged Dialed Call Log Unchanged
System Setting
Country PIN Code 0000
Answering Machine Setting
Answer Machine Status Voice Language
Base Call Screening Handset Call Screening
Message Alert Speaker Volume
Remote Access
Appendix
- 62 -
TECHNICAL DATA
General telephone features
• Caller name & number identification
• 9 phonebook memories with direct access
• Conference call and voicemails
• Intercom
Battery
• 2 x AAA NiMH Rechargeable 750mAh batteries
Weight and dimensions
• Handset: xxx grams
161 x 32 x 46 mm (H x D x W)
• Base: xxx grams
77 x 117 x 131 mm (H x D x W)
Temperature range
• Operation: 0°C to +46°C
• Storage: -25°C to +70°C
Relative humidity
• Operation: Up to 95% at 40°C
• Storage: Up to 95% at 40°C

Appendix
- 63 -
FREQUENTLY ASKED QUESTIONS
www.philips.com/support
Problem(s) Tip(s)
No dialing tone • Check your phone connections.
• The handset may be out of range. Move closer.
Signal icon flashing • The handset may be out of range. Move closer.
• If the handset displays Unregistered, register the handset. See
page 15.
Registration fails
continuously
• Your base memory may be full. Delete an un-used handset and try
again. See page 50.
No parking tone • The handset may not be placed properly on the cradle. Try again.
• Charging contacts may be dirty. Disconnect the power supply first
and then clean contacts with a damp cloth.
Handset on the
charger does not
charge
• Check that the batteries are inserted correctly.
• Make sure the handset is placed properly on the charger. The
battery icon animates while charging.
• Batteries may be defective. Purchase new ones from your dealer.
No display • Check that the batteries are charged.
• Check the power and phone connections.
Bad audio
(crackles, echo,
etc.)
• The handset may be nearly out of range. Move closer to the base.
• The phone may be receiving interference from nearby electrical
appliances. Move the base.
• The phone may be at a location with thick walls. Move the base.
Handset does not
ring
• Check that the handset ringer is turned on. See page 35.
Caller ID does not
display
• Service may not be activated. Check with your service provider.
• The caller’s information may be withheld or is unavailable.
Cannot make /
answer a 2nd call
• Service may not be activated. Check with your service provider.
• Check that the recall selection is correct. See page 38.

24 Appendix
11 Appendix
11.1 Equipment approval Information
Your telephone equipment is approved for
connection to the public switched telephone
network and is in compliance with parts 15 and
68, FCC Rules and Regulations and the Technical
Requirements for Telephone Terminal
Equipment published by ACTA.
11.2 Notification to the local telephone
company
On the bottom of this equipment is a label
indicating, among other information, the US
number and Ringer Equivalence Number (REN)
for the equipment. You must, upon request,
provide this information to your telephone
company.
The REN is useful in determining the number of
devices you may connect to your telephone line
and still have all of these devices ring when your
telephone number is called. In most (but not all)
areas, the sum of the RENs of all devices
connected to one line should not exceed 5. to be
certain of the number of devices you may connect
to your line as determined by the REN, you
should contact your local telephone company.
A plug and jack used to connect this equipment to
the premises wiring and telephone network must
comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant
telephone cord and modular plug is provided with
this product. It is designed to be connected to a
compatible modular jack that is also compliant.
See installation instructions for details.
11.3 Notes
• This equipment may not be used on coin
service provided by the telephone company.
• Party lines are subject to state tariffs, and
therefore, you may not be able to use your
own telephone equipment if you are on a party
line. Check with your local telephone company.
• Notice must be given to the telephone
company upon permanent disconnection of
your telephone from your line.
• If your home has specially wired alarm
equipment connected to the telephone line,
ensure the installation of this product does not
disable your alarm equipment. If you have
questions about what will disable alarm
equipment, consult your telephone company
or a qualified installer.
11.4 Rights of the Phone Company
Should your equipment cause trouble on your
line which may harm the telephone network, the
telephone company shall, where practicable,
notify you that temporary discontinuance of
service may be required. Where prior notice is
not practicable and the circumstances warrant
such action, the telephone company may
temporarily discontinue service immediately. In
case of such temporary discontinuance, the
telephone company must:
(1) promptly notify you of such temporary
discontinuance; (2) afford you the opportunity to
correct the situation; and (3) inform you of your
right to bring a complaint to the Commission
pursuant to procedures set forth in Subpart E of
Part 68, FCC Rules and Regulations.
The telephone company may make changes in its
communications facilities, equipment, operations
or procedures where such action is required in
the operation of its business and not inconsistent
with FCC rules and Regulations. If these changes
are expected to affect the use or performance of
your telephone equipment, the telephone
company must give you adequate notice, in
writing, to allow you to maintain uninterrupted
service.
11.5 Interference Information
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:

25
Appendix
(1) this device may not cause harmful
interference; and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to
comply with the limits for a Class b digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
(that is, the antenna for radio or television that
is “receiving” the interference).
• Reorient or relocate and increase the
separation between the telecommunications
equipment and receiving antenna.
• Connect the telecommunications equipment
into an outlet on a circuit different from that to
which the receiving antenna is connected.
If these measures do not eliminate the
interference, please consult your dealer or an
experienced radio/television technician for
additional suggestions. Also, the Federal
Communications Commission has prepared a
helpful booklet, “How To Identify and Resolve
Radio/TV Interference Problems”. This booklet is
available from the U.S. Government Printing
Office, Washington, D.C. 20402.
Please specify stock number 004-000-00345-4
when ordering copies.
11.6 Noise
Electrical pulse noise is present at one time or
another. This is most intense during electrical
storms. Certain kinds of electrical equipment,
such as light dimmers, fluorescent bulbs, motors,
fans, etc., also generate pulse noise. Because radio
frequencies are susceptible to this, you may on
occasion hear pulse noise through the receiver.
This is usually only a minor annoyance and should
not be interpreted as a defect of the unit.
11.7 FCC RF Radiation Exposure
Statement
This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with a minimum distance of
20 centimeters between the radiator and your
body. This transmitter must not be co-located or
operating in conjunction with any other antenna
or transmitter.
For hand held operation, this phone has been
tested and meets the FCC RF exposure
guidelines. For Body-worn operation, use only
with the belt clip. Use of other accessories may
not ensure compliance with FCC RF exposure
guidelines.
11.8 Hearing Aid Compatibility (HAC)
This telephone system meets FCC and Industry
Canada standards for Hearing Aid Compatibility.
11.9 Privacy
Privacy of communications may not be ensured
when using this telephone.
11.10 Additional Information
I.C. Notice

26 Appendix
11.11 Terminal Equipment
Note
This equipment meets the applicable Industry
Canada Terminal Equipment Technical
Specifications.
This is confirmed by the registration number. The
abbreviation, IC, before the registration number
signifies that registration was performed based on
a Declaration of Conformity indicating that
Industry Canada technical specifications were
met. It does not imply that Industry Canada
approved the equipment.
Note
The Ringer Equivalence Number (REN) for this
terminal equipment is marked on the equipment
itself. The REN assigned to each terminal
equipment provides an indication of the
maximum number of terminals allowed to be
connected to a telephone interface. The
termination on an interface may consist of any
combination of devices subject only to the
requirement that the sum of the Ringer
Equivalence Numbers of all the devices does not
exceed five.
11.12 Radio Equipment
The term “IC:” before the radio certification
number only signifies that Industry Canada
technical specifications RSS-213 and ICES-003
were met. Operation is subject to the following
two conditions : (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
11.13 Do not attempt to repair or modify
this equipment
Repairs to certified equipment should be made by
an authorized maintenance facility designated by
the supplier.
Any repairs or alterations made by the user to
the equipment may render the equipment void in
product warranty and compliance. This could also
void the user’s authority to operate the
equipment.
11.14 The RBRC® seal
The RBRC® Seal on the nickel
metal hydride battery indicates
that Philips Royal Electronics is
voluntarily participating in an
industry program to collect and
recycle these batteries at the end
of their useful lives, when taken out of service
within the United States and Canada.
The RBRC® program provides a convenient
alternative to placing used nickel metal hydride
batteries into the trash or municipal waste, which
may be illegal in your area.
Philips’s participation in RBRC® makes it easy for
you to drop off the spent battery at local retailers
participating in the RBRC® program or at
authorized Philips product service centers. Please
call 1-800-8-BATTERY for information on Ni-MH
battery recycling and disposal bans/restrictions in
your area. Philips’s involvement in this program is
part of its commitment to protecting our
environment and conserving natural resources.
RBRC® is a registered trademark of Rechargeable
Battery Recycling Corporation.
PHILIPS CONSUMER ELECTRONICS
P.O. BOX 671539, MARIETTA,
GA 30006-0026, USA
Phone: 888-744-5477
USA Service Center
Canada Service Center
PHILIPS CONSUMER SERVICE DIVISION
4977 LEVY STREET, VILLE ST. LURENT,
QUEBEC, H4R 2N9, CANADA

© 2007 Koninklijke Philips Electronics N.V.
All rights reserved.
Reproduction in whole or in part is prohibited without
the written consent of the copyright owner.
Document order number: 3111 285 xxxxx
Printed in PRC
