Instruction Manual
(Notice D’exploitation)
PA1000 - Overhead Garage Door Operator
WARNING: It is vital for the safety of persons
to follow all instructions. Failure to comply
with the installation instructions and the safety
warnings may result in serious personal injury
and/or property and remote control opener
damage. Please save these instructions for
future reference.
AVERTISSEMENT: pour la sécurité des usagers,
il est essentiel de suivre toutes les instructions.
Le non- respect des instructions d’installation et
des avertissements de sécurité peut causer de
graves blessures et/ou endommager l’appareil
et la télécommande. Veuillez conserver ces
instructions pour future référence.
To reduce the risk of electric shock, this
equipment has a grounding type plug that has a
third (grounding) pin. This plug will only fit into
a grounding type outlet. If the plug does not fit
into the outlet, contact a qualified electrician
to install the proper outlet. Do not change the
plug in any way.
Pour reduire les risques de choc electrique, cet
appareil est quipe d’une fiche avec mise a la
terre comportant une troisieme broche (broche
deterre). Cette fiche ne peut etre branche que
dans une prise avec mise a la terre. S’il n’est
pas possible de la brancher dans la prise, faire
poser une prise appropriee par un electricien
qualifie. Ne pas modifier la fiche.
Safety Rules 05
System Specications 06
Default Settings and Technical Specication 06
About Your Operator 07
Operating Controls 08
Kit Contents 10
Installation
Knockdown C-Rail Assembly 12
C-Rail Assembly 13
Mounting Operator for Track Type Door 14
Mounting Door Bracket & Arms 15
Safety Beam Installation 15
Setting Speed and Limits
Setting Speed Mode 17
Setting Limits Position 18
Testing Safety Obstruction Force 19
Setting Safety Obstruction Force 20
Coding Transmitters
Door 21
Courtesy Light 21
Vacation Mode 22
Auxiliary Output 22
Pet Mode 23
Erasing Transmitter Codes 23
Mounting Wall Transmitter 23
Accessories
Terminal Block 24
Remote Aerial 24
Wired Wall Switch / Key Switch 24
Battery Back Up Installation 25
CONTENTS
PA1000V1 Overhead Garage Door Operator
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
3PA1000 Instruction Manual (Instructions d’installation)
How to Use Your Operator
Remote Control Transmitter 26
In-Build Locking 27
Manual Door Operation 27
Power Failure 27
Removing Transmitter Battery 27
Safety Beam Option 28
Auto-Close Option 28
Courtesy Light 28
Auxiliary Output 28
Vacation Mode 28
Pet Mode 28
Service 28
Maintenance 29
Troubleshooting Guide 30
Parameters 31
Spare Parts List 32
Warranty 34
Optional Accessories 36
CONTENTS
PA1000V1 Overhead Garage Door Operator
PA1000 Instruction Manual (Instructions d’installation)4
Safety Rules
(Les règles de la sécurité)
Please read these important safety rules
These safety alert symbols indicate a personal safety or property damage
instruction exists. READ THESE INSTRUCTIONS CAREFULLY.
This automatic garage door operator is designed and tested to offer safe service
provided it is installed and operated in strict accordance with the following
safety rules. Failure to comply with the installation instructions and the safety
warnings may result in death, serious personal injury and/or property damage.
CAUTION: If your garage has no pedestrian entrance
door, an emergency access device should be installed.
This accessory allows manual operation of the garage
door from outside in case of power failure.
Position the Garage Door Operator so that the power plug
is accessible when inserted into the power outlet.
This opener should be installed in accordance with relevant
US and Canada Standards.
Do not allow children to play with door controls.
Keep transmitters away from children.
Watch the moving door and keep people away until the
door is completely opened or closed.
Activate the operator only when the garage door is in full
view, free of obstructions and with the opener properly
adjusted.
Keep the garage door balanced. Sticking or binding doors
must be repaired. Garage doors, door springs, brackets
and their hardware are under extreme tension and can
cause serious personal injury. Do not attempt any garage door
adjustment. Do not use if repair or adjustment is needed. Call
for professional garage door service.
Install the wall transmitter in a location where the garage
door is visible, but out of the reach of children at a height
of at least 5 feet (1.53m).
Disconnect electric power to the garage door operator
before removing covers.
Door must have Safety Beams tted.
Do not wear rings, watches or loose clothing while
installing or servicing a garage door operator.
This operator is not suitable for commercial, industrial
or common entry applications.
To avoid serious personal injury from entanglement,
remove all unnecessary ropes or chains and disable
any equipment such as locks which are not needed
for powered operation.
Installation and wiring must be in compliance with
your local building and electrical codes. Connect
the power cord only to properly earthed mains. If
an extension lead must be used, make sure it is a 3-core
lead and approved to 7 amp capacity.
To reduce the risk of electric shock, this equipment
has a earthing type plug that has a third (earthing)
pin. This plug will only t into a earthing type outlet.
If the plug does not t into outlet, contact a qualied
electrician to install the proper outlet. Do not change the
plug in any way.
If the power cord is damaged, it must be replaced
by the manufacturer, its service agent or a similarly
qualied person in order to avoid a hazard.
This operator is a plug in domestic appliance and is
designed for indoor use only. It must be installed in a
dry position that is protected from the weather.
The opener is not intended for use by young children
or inrm persons without supervision.
WARNING! It is vital for the safety of
persons to follow all instructions. Save
these instructions.
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
5PA1000 Instruction Manual (Instructions d’installation)
System Specifications
Factory Default Settings
Default Step Maximum
Maximum motor run time 30 Secs. - -
Courtesy light time 3 Mins. approx. - -
Obstruction force margin 2 1 14
Auto close time 30 Secs - -
Technical Specifications
Input Voltage 120Vac / 60Hz
Fuse (primary) 1.3A (slow blow)
Input power (max) 200 Watts
Standby power, less than 2 Watts
Transformer secondary output Voltage 24Vac
Motor type 24Vdc geared motor with permanent magnet
Shuttle travel distance in the C-Rail 9.19ft (2.8m) approximately (standard)
Maximum shuttle travel distance in the C-Rail 16.4ft (5m) (with extended C-Rail)
Maximum door area 177sq.ft (16.5 m2)
Maximum door hanging weight 441lbs (200kg)
Receiver type UHF Multifrequency FM-Receiver
Receiver code storage capacity 14 X 4 button transmitter codes
Transmitter frequency 433.47MHz; 433.92MHz; 434.37MHz
Coding type TrioCode™
Number of code combinations Over 4.29 billion random codes
Code generation Nonlinear encryption algorithm
Remote control battery CR2032 3 Volts
Courtesy light 2 LED Modules
Controller fuse 10A (slow blow)
NOTE: Intermittent operations may occur in areas which experience very strong winds. The strong wind puts extra
pressure on the door and tracks which may in turn trigger the safety obstruction detection system intermittently.
PA1000 Instruction Manual (Instructions d’installation)6
Thank you for choosing a PA1000 automatic garage door
operator.
The technically advanced construction of this operator
ensures you enjoy the following benets:
Warranty
xxx (x) years / xxxx cycles full parts and labour warranty
on motor, electronics and mechanical components of the
operator when installed by a garage door professional
(conditions such as annual garage door servicing apply).
TrioCode™ Frequency Hopping Technology
Every time a transmitter is used, it simultaneously sends a
signal over three different frequencies, reducing the chance
of interference from other radio frequency sources.
Code Hopping Technology
Every time a transmitter is used a new security code
is generated from over 4.29 billion possible code
combinations. This greatly enhances the security of the
system and makes “code grabbing” a thing of the past!
Multi-Channel Transmitter
Multi-channel transmitters allow you to operate other
devices such as an adjoining garage door or automated
gate from the same handy unit.
Warranty Expired Indicator
The operator will indicate that the number of cycles
covered by the warranty has been reached by ashing the
courtesy light 10 times after each operation. This ashing
will continue for 20 cycles unless it is reset by pressing the
SET button while the courtesy light is ashing.
S-ALPS (Semi Automatic Limits Positioning
System)
The S-ALPS system does away with manual adjustment of
the door’s limits position using mechanical parts, such as
cams and microswitches.
Safety Reversing System
The automatic safety reverse system signicantly reduces
the risk of death or serious injury if trapped by a closing door.
The safety reverse force can be adjusted for environmental
conditions such as windy areas.
Safety Infra-Red Beam Protection
The Safety Beam is the infrared (IR) invisible light beam
system which shall protect the doorway. The door stops
and reverse to the full position if anything passes through
the beam.
Soft Start/Soft Stop
The operator eases into and out of an operating cycle.
This makes operation smoother and quieter and
most importantly reduces wear and tear on the door
and operator.
Courtesy Light
The courtesy light automatically switches on for
approximately three (3) minutes when operating the
door. This can also be programmed to turn on and off
from a transmitter.
Memory Retention
In case of a power failure, the operator does not lose
the transmitter codes or limit settings.
Soft Start/Soft Stop
The opener eases into and out of each cycle making
for smoother and quieter operation, as well as reducing
wear and tear on the door and operator.
Manual Release
The manual release handle allows the door to be
operated by hand in the event of a power failure.
Self Locking
There is no need to manually lock your garage door, as
the operator ‘positively’ locks the door when closed.
Periodic Maintenance Indicator
The SERVICE LED will illuminate to indicate that
periodic maintenance is required. Contact your garage
door professional for service.
Service Fault Indicator
Flashing LEDs on the control panel easily identify
operational problems or service requirements.
Dynamic Door Proling
Changing door characteristics are automatically
compensated for and “learnt” with each operation of
the door.
External Aerial
An external aerial can be connected for sites where
radio reception is a problem.
Vacation Mode
A transmitter can be programmed to disable the
garage door operator radio receiver. This is ideal if the
door is to be left idle for prolonged periods.
Pet (Pedestrian) Mode
A transmitter can be programmed to open the door
partially to allow pets access to the garage. The door
opening height is adjustable via a handheld programmer.
Auxiliary Output
You can program a spare button on your transmitter to
operate this output, which can control items that use a
momentary close switching mechanism.
About Your Operator
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
7PA1000 Instruction Manual (Instructions d’installation)

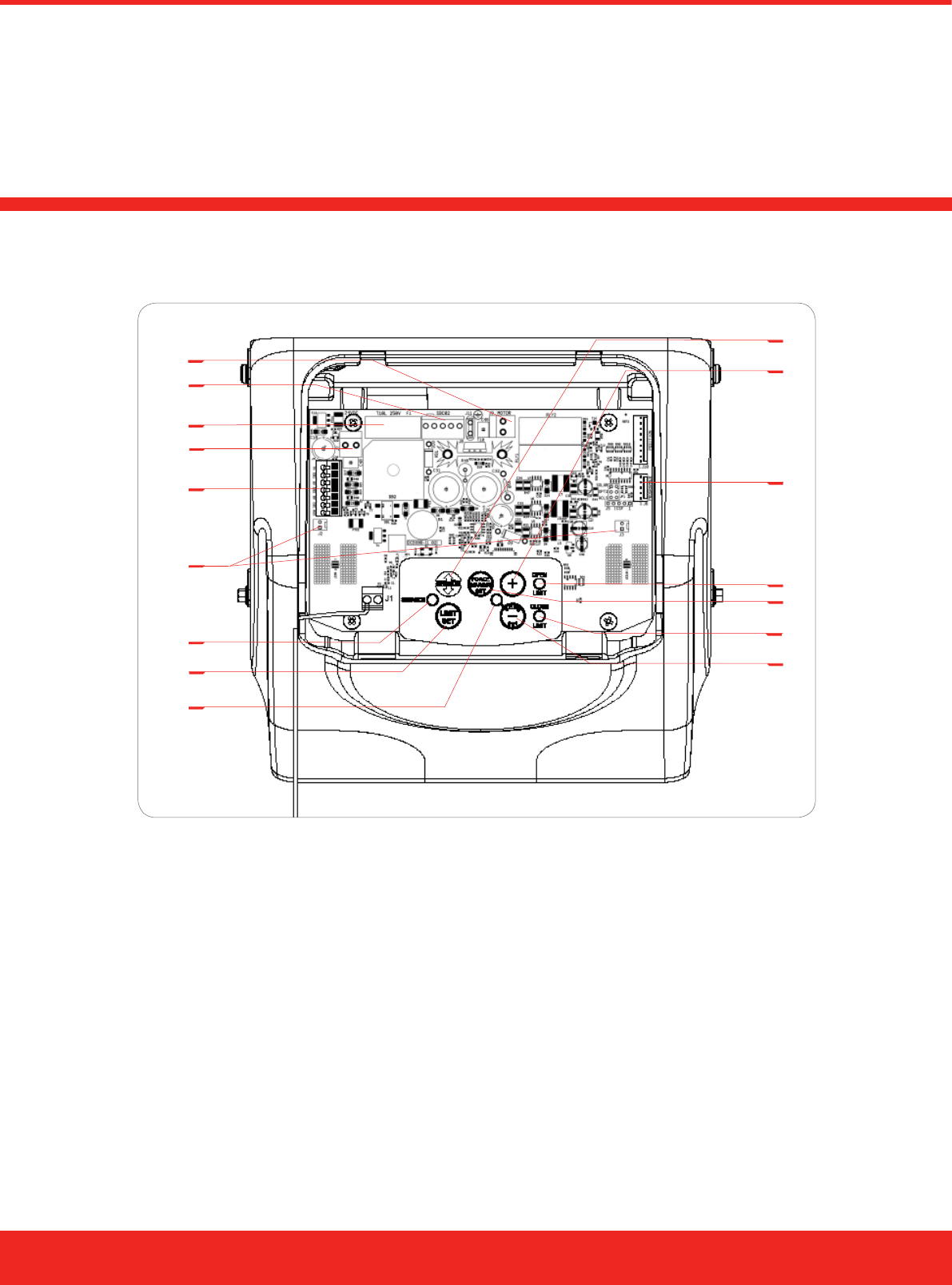

Operating controls
Terminal is used to connect Vac to the control board.
10 Amps fuse to protect the electronic circuit board.
This connector is used to connect Battery Charger
SBC02 to the opener.
DC 24V motor connects to this connector.
Operate (blue) Button is used during installation to test
the open, stop and close cycles for the opener. The
opener has to be initialised by the Limit set button before
the Operate Button becomes operable.
Plus (+) Green Button is used during installation to
help set the open limit position. Pressing and holding
this button will move the door in the open direction.
Movement stops when the button is released.
Prog input is used to connect a PG-3 Programmer for
editing functions, diagnostic purposes and accessing
special features.
Open Limit (Green) LED illuminates and ashes when
the door is opening and remains steady on when the
open limit position has been reached.
Force Margin Set The obstruction force pressure is set
automatically by the opener during installation. The
pressure can be adjusted manually using the Force
Margin Set Button. Holding the Force Margin Set Button
and pressing the Plus (+) or Minus (-) Button will increase
or decrease the amount of force. The force margin set
is only ever used if other environmental factors (wind,
etc..) Affect the operations of the door/opener.
Close Limit Red LED illuminates and ashes when the
door is closing and remains steady on when the close
limit position has been reached.
Minus (-) Red Code Set Button is used during installation
to help set the close limit position. Pressing and holding
this button will move the door in the close direction.
Movement stops when the button is released.
Code Set LED light ashes when a code is being stored
or when a transmitter button is pressed.
Limit set Button is used during the installation phase
together with the open and close buttons to set the door
limit positions. The Limit set button is also used to re-
initialise the opener.
Service LED (yellow) indicates when the opener requires
service or repairs.
Courtesy LED Light Module Connectors are used to
connect +24V LED light modules.

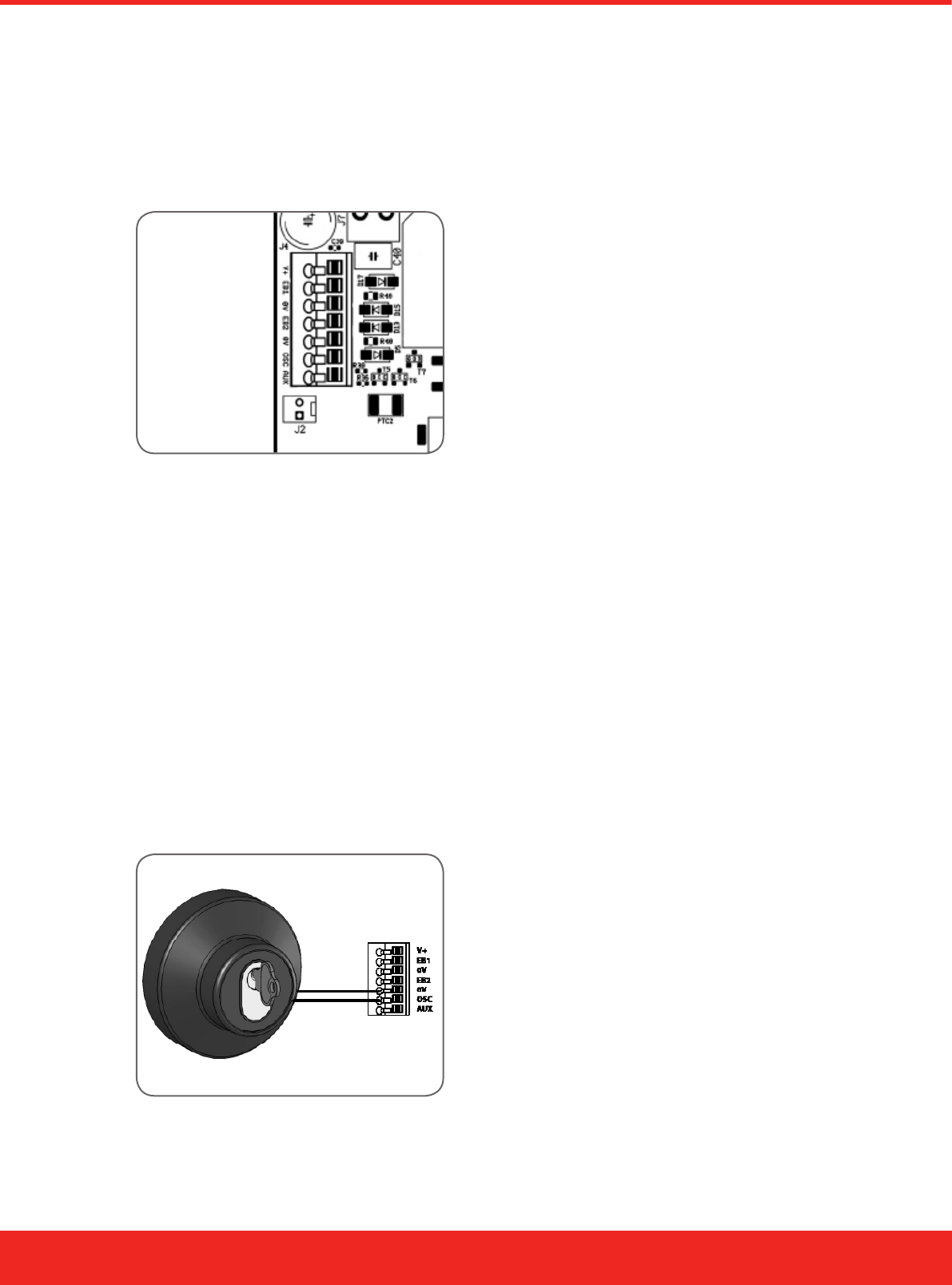

Terminal Block (J4):
V+ (+35V/+24V) is used to power Accessories such
as external receiver (200mA max).
EB1 (mandatory) input is used to connect to Safety
Beam.
0V is a 0 volt connection for Safety Beam.
EB2 input is used to connect to Safety Beam.
0V is a 0 volt connection for Safety Beam.
OSC (Operate) is used for the connection of a wired
switch (momentary contact). This switch can then
be used to open, stop or close the door. Install the
wall switch in a location where the switch is out of
reach of children and the garage door is visible.
AUX allows the opener to operate other devices
such as an alarm system.
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.
11.
12.
13.
14.
15.
16.
PA1000 Instruction Manual (Instructions d’installation)8
24V power input connector.
10Amp fuse.
SBC02 Battery Backup Connector
Motor connector
OPERATE (Blue) button
Plus (+) (Green) button
PG-3 Programmer connector
Open Limit LED
Operating controls
01
02
03
04
16
15
14
13
12
05
06
07
08
09
10
11
01.
02.
03.
04.
05.
06.
07.
08.
Fig.01
FORCE MARGIN SET Button
Close Limit LED
Minus (-) (Red) CODE SET button
Code Set LED
LIMIT SET Button
Service LED
Courtesy light module Connectors
Accessories (J4) Connector
09.
10.
11.
12.
13.
14.
15.
16.
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
9PA1000 Instruction Manual (Instructions d’installation)

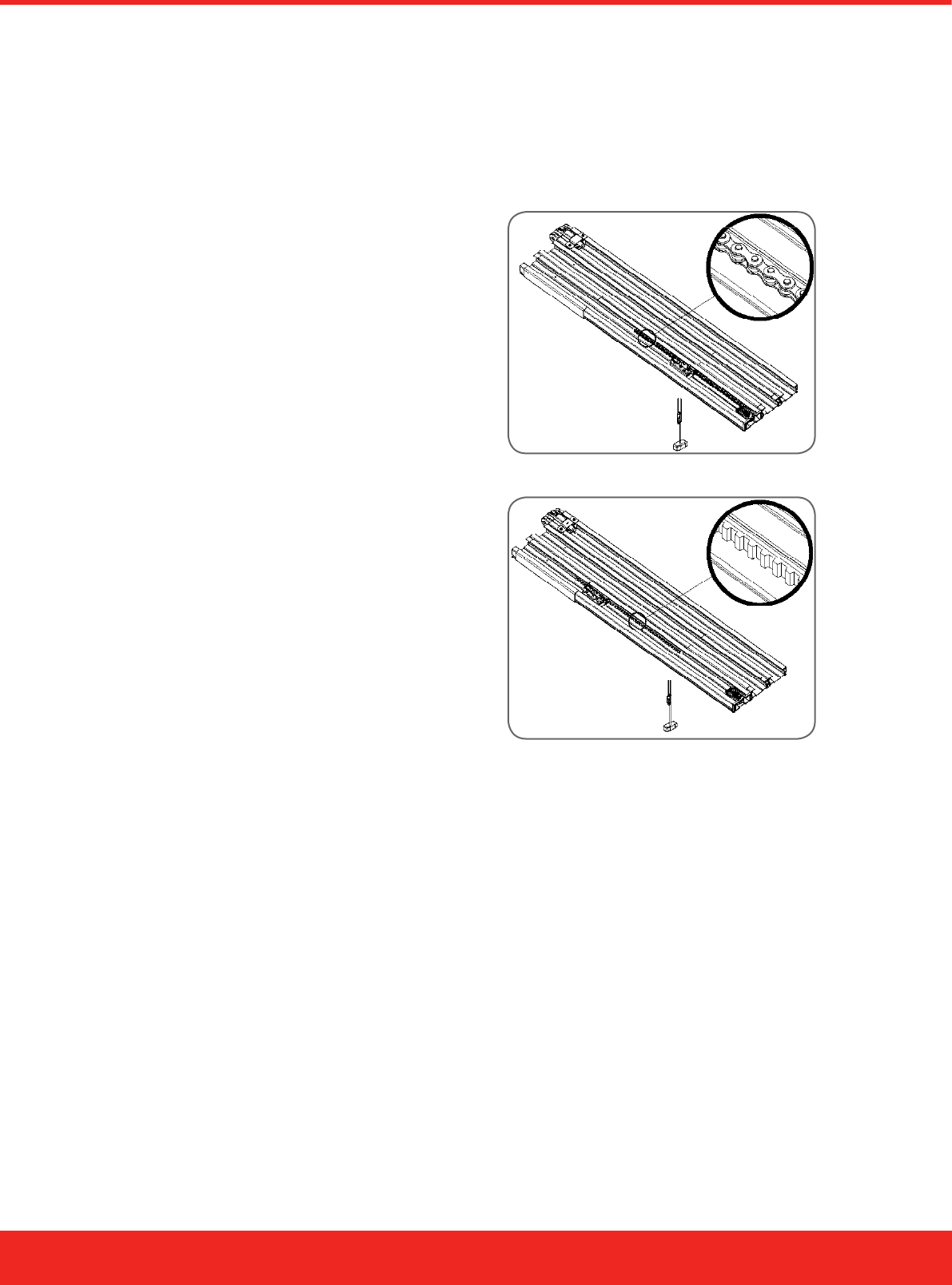

Kit contents:
Powerhead Drive Unit Kit (Fig.02).
1 X PA1000 drive unit;
1 X Handheld Transmitter with battery;
1 X Wall mount Transmitter with battery;
2 X Door attachment arms;
1 X Accessory and hardware pack.
PLUS
Single Piece Track With Pre-Assembled Chain
(Fig.03)
NOTE: Chain in one piece rail has been tensioned by the
factory. Do not adjust the tension of the chain.
IMPORTANT NOTE: If modication to the track length
required, adjustment must be made only from power head
End.
OR
Single Piece Track With Pre-Assembled
Timing Belt (Fig.04)
NOTE: Timing belt in one piece rail has been tensioned by
the factory. Do not adjust the tension of the timing belt.
IMPORTANT NOTE: If modication to the track length
required, adjustment must be made only from power head
End.
Fig.02
Fig.04
Fig.03
PA1000 Instruction Manual (Instructions d’installation)10
OR
Multi-Piece Knockdown Track with
Pre-Assembled Chain (Fig.05)
IMPORTANT NOTE: If modication to the track length
required, adjustment must be made only from power head
End.
OR
Multi-Piece Knockdown Track With
Pre-Assembled Timing Belt (Fig.06)
IMPORTANT NOTE: If modication to the track length
required, adjustment must be made only from power head
End.
Kit contents:
Fig.05
Fig.06
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
11PA1000 Instruction Manual (Instructions d’installation)
Knockdown C-Rail Assembly
Step 1
Unpack and assemble
the C-Rail as shown
above in Fig.07.
Fig.07
PA1000 Instruction Manual (Instructions d’installation)12
C-Rail Assembly
Step 2

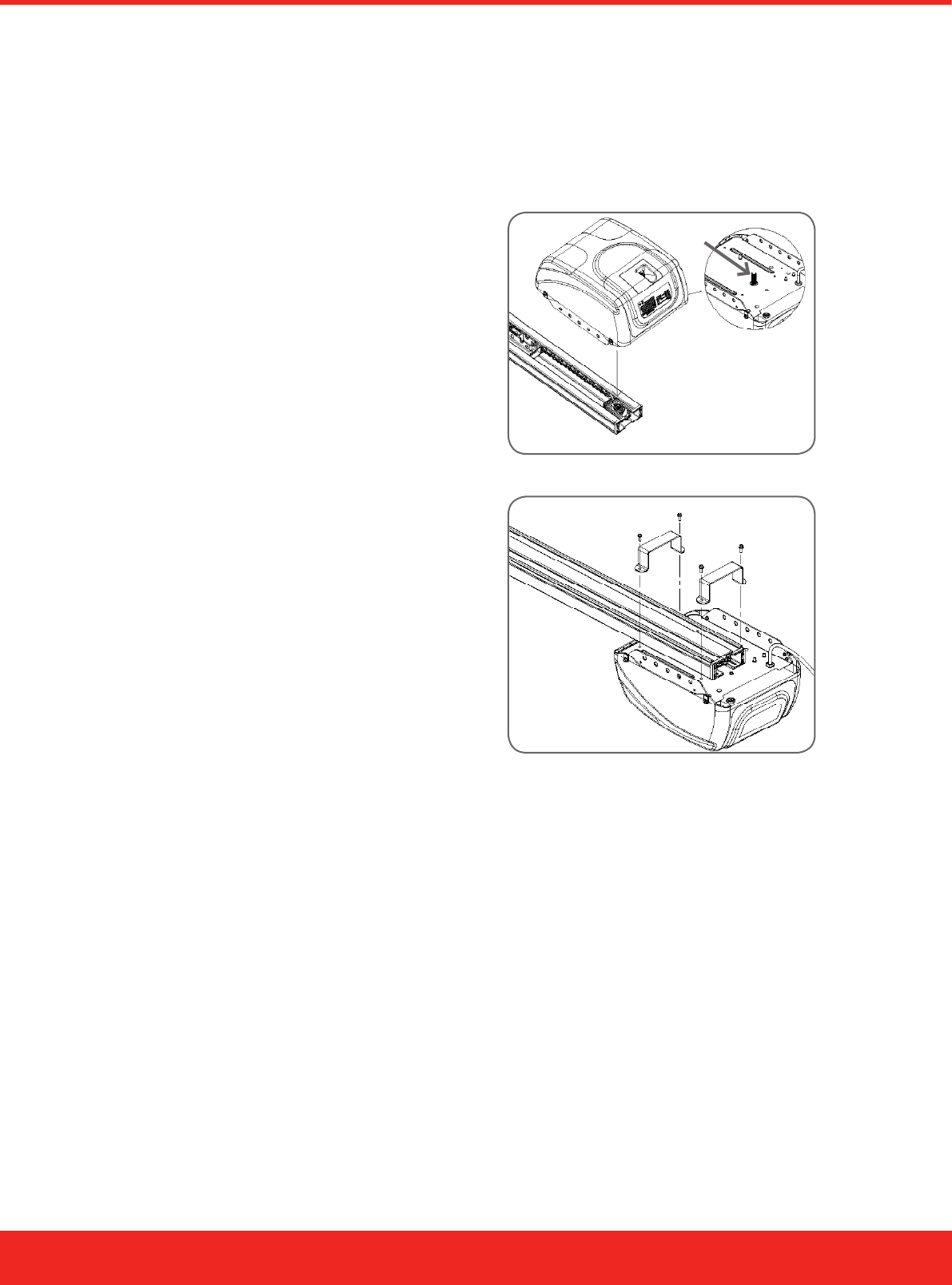

Locate and insert the shaft of drive unit into sprocket as
shown in Fig.08.
Step 3
Fix the two track brackets with four screws supplied in
accessory pack as shown in Fig.09.
Locate shaft into sprocket
Shaft
4 Taptite screws ‘S’ M4 X 10
2 Track brackets VP1
Fig.09
Fig.08
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
13PA1000 Instruction Manual (Instructions d’installation)
Mounting Operator for a Track Type
Door
Step 4 - Determine Bracket Position
Open the door and nd the highest point of travel of the
top door panel. Using a level, transfer this height to the wall
above the door (Fig 10) and mark a line 0.197” (60mm)
above it.
Determine the centre point on the wall above and on top of
the door. Then draw two lines 0.0705” (21.5mm) on each
side of the centre point (Fig.11).
Step 5 - Mounting the Wall Bracket
The wall bracket should be mounted 0.197” (60mm) above
highest point of the doors travel, 0.0705” (21.5mm) from
the centre point (Fig.11).
If the wall bracket is mounted onto concrete or brick wall,
use 8mm or 5/6 loxins or dynabolts. If mounting onto
wooden lintel or beam, use wood screw #20 or equivalent
(minimum 1.97” (50mm) long).
WARNING: Make sure concrete, brick wall or timber lintels
are solid and sound so as to form a secure mounting
platform.
Step 6 - Attach the C-Rail to the Wall Bracket
When the wall bracket is rmly secured in its proper
position, attach the C-Rail support assembly to wall bracket
with 0.295” (90mm) long clevis pin and secure with
supplied snap pin (Fig.12).
Leave the drive unit in its packing box for protection during
installation.
Step 7 - Securing the Powerhead to the
Ceiling
Raise the drive unit from the packing box and support it
in a horizontal position with a step ladder, then open the
garage door. Rest the operator on the open door and use a
scrap piece of wood to bring it to horizontal level. Line up
the track perpendicular to the wall.
Secure the perforated angle (not supplied) to the ceiling
above where drive unit mounting holes will be once fully
installed (Fig.13).
Connect angle and drive unit with two at perforated strips
of angle (not supplied) with M8 x 20mm screws, and nuts.
Strips should not extend more than 0.059” (18mm) below
centre of drive unit mounting holes (Fig 13).
For an alternative mounting option go to Step 8 Page 15.
43
21.5
21.5
SNAP PIN
PIN
WALL BRACKET
PLACE OPENER ON TOP OF
FABRIC CLOTH OR CARDBOARD BOX
TO AVOID SCRATCHES
Track
Level
Door
Drilled holes
Structural member
Fig.13
Fig.12
Fig.11
Fig.10
WARNING: The operator must be securely
fastened to a structural support of the garage.
Failure to fasten the operator correctly may
lead to operator failure causing serious
personal injury and/or property damage.
PA1000 Instruction Manual (Instructions d’installation)14
Mounting Door Bracket and Arms
Step 8 - Alternative Mounting Option

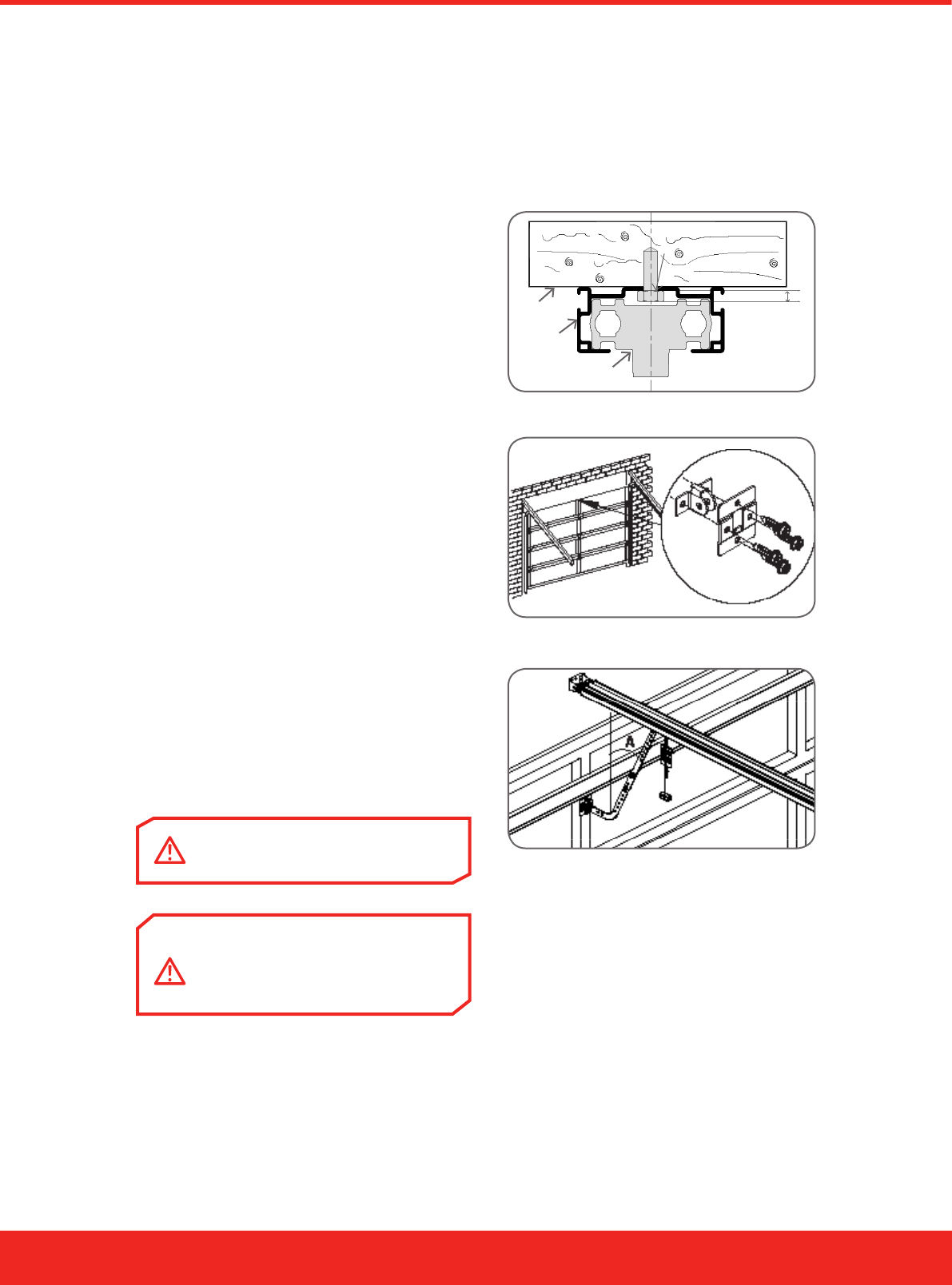

The operator can be fastened to the roof by drilling a hole
in the centre of the C-Rail and driving a bolt through it into
structural timber support. The height of bolt head must not
exceed 0.24” (6mm) (Fig.14).
Mounting door bracket and arms
Step 9 - Mounting Door Bracket
The door bracket comes in two parts. The bottom plate with
two mounting holes is used on its own for any one piece
doors. The top plate is placed over the bottom plate and
uses 4 mounting holes for extra strength. This is used on
sectional doors (Fig.15).
Mount the door bracket to the centre line of the door, 1/3
panel down (Fig.15) using M6 or equivalent screws (not
supplied) alternatively it can be welded on steel doors.
NOTE: As various types of doors exist, if in doubt about the
strength of the door, reinforcement may need to be added
to the frame of the door panel where necessary. Damage
to the door panel may occur if the bracket is installed
incorrectly on a panel with insufcient strength. The door
operator warranty does not cover damage caused by the
operator to the door and/or door panel.
Step 14 - Attaching the Arms
Assemble bent and straight arms (as shown in Fig.16) with
bolts and nuts supplied in accessory pack. Then connect
assembled arm to the door bracket and the trolley by clevis
pin and snap pin. Trolley must be in disengage position.
Always use both the bent and straight arm.
The angle “A“ must not be less than 10 degrees (See Fig.
16).
Ceiling
Aluminium rail
Shuttle VP2 assembly
Drill hole at centre of
track (recommended
bolt size M6 or M8)
The height
of bolt head
must not
exceed 6 mm
Fig.14
Fig.15
Fig.16
WARNING: connecting the bent arm other
way around may damage the door.
IMPORTANT NOTE: If the manual release
handle is more than 5.91ft (1.8 meters) from
oor level when the operator is installed,
extend the handle to a height less than 5.91ft
(1.8 meters).
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
15PA1000 Instruction Manual (Instructions d’installation)
Fig.17
WARNING: When the Safety Beam is tted,
the doorway must be clear of all obstructions
and persons at all times. The location of the
beams and manner in which it is installed
might not give safety protection at all
times. Check to make sure that the height
of the beam and type used give maximum
protection possible.
IMPORTANT NOTE: The Safety Beam must
be installed and connected before the travel
limits are set.
Step 15 - Safety Infra-Red Beam
A Safety Beam extends across the door opening. This Safety
Beam is designed to detect an obstruction while the door is
closing and to send a signal to the door operator to reverse or
stop the door movement.

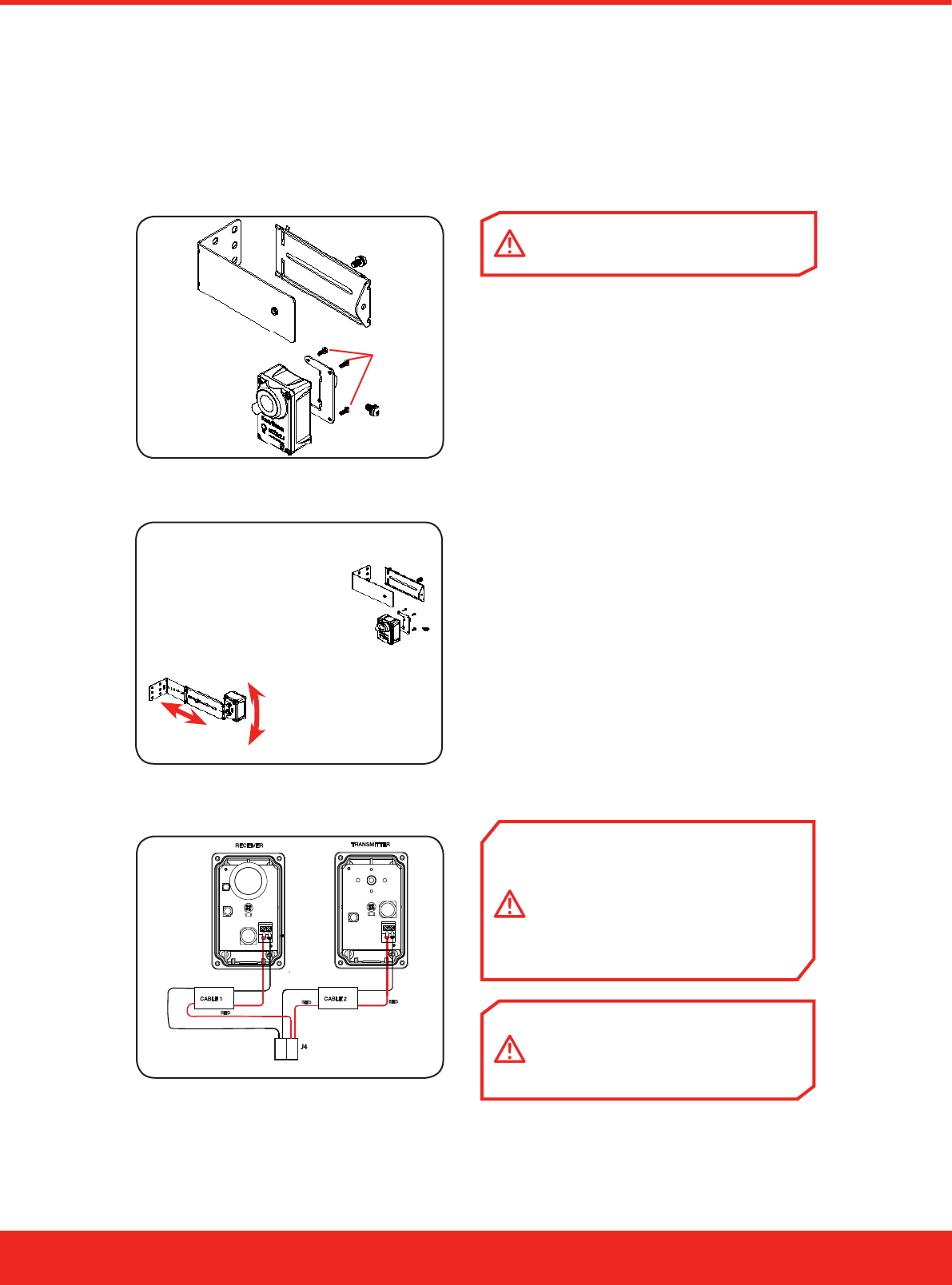

Step 15.1 - Fitting the Safety Beam
Attach the mounting bracket (4) to the adjustment a.
bracket (3) with the pan head screw (5) (supplied).
(Fig. 17).
Attach the bracket (2) to the Safety Beam transmitter b.
(PE3-V1-TX) (1) with four taptite screws (6) (M3x5) and
attach the other side to the adjustment bracket (3) with
the pan head screw (5) (supplied).
Repeat steps “a” and “b” to assemble the Safety Beam c.
(PE3-V1-RX) receiver.
Locate the Safety Beam in a strategic location in the d.
door opening. We recommends that the sensor is placed
no higher than 6” and no lower than 5”above the oor
level. Connect as per the wiring diagram (Fig. 19).
Step 15.2 - Alignment
Power up the PA1000 with the Safety Beam connected. a.
The green LED of the transmitter should be ON to
indicate that power is present.
If the receiver is connected properly and the red LED is b.
ashing while the green LED of the transmitter is ON,
the transmitter and/or receiver are not aligned.
Make horizontal and/or vertical adjustment c. (Fig. 18) on
the transmitter and/or receiver until the red LED of the
receiver turns steady on, indicating alignment.
12
3
4
5
5
Fig.18
Fig.19
WARNING: Install the Safety Beam as per
diagram in Fig. 19. Tampering with the Safety
Beam could result in serious personal injury
and/or property damage and will void the
warranty.
Safety Beam Installation
6
RED
BLACK
RED
BLACK
RED
BLACK
BLACK
EB1
0V
J4 TERMINAL BLOCK
(DCB08 CONTROL BOARD)
PA1000 Instruction Manual (Instructions d’installation)16
Setting Speed and Limits
Step 16 - Setting Speed Mode
The default speed of the operator has been set to suit the
majority of applications. However, there are 3 speed modes
available if required:
SLOW - suits one piece door without tracks.1.
MEDIUM (default) - suits majority of applications.2.
FAST - suits some special applications.3.
The speed settings can only be changed before setting the
travel limits. If the operator speed needs to be changed,
please complete the following steps below. If medium
(default) mode is appropriate skip straight to Step 17.1
(Setting Travel Limits). Pressing the OPERATE button will
cycle through all three speed modes. To change the speed
setting, use the following steps:
Engage the C-Rail’s trolley (attached to the door via the a.
arms) with the chain index by moving the door.
If the trolley does not “click” rmly onto the chain b.
index, ensure that the manual release cord is not in the
disengaged position by pulling it backwards.
Turn on the power to the operator. The c. Close Limit
LED will be ashing.
Remove the buttons cover with a blade screwdriverd.
(Fig. 20).
Press the e. OPERATE button once, twice or three time
to select SLOW, MEDIUM or FAST speed mode.

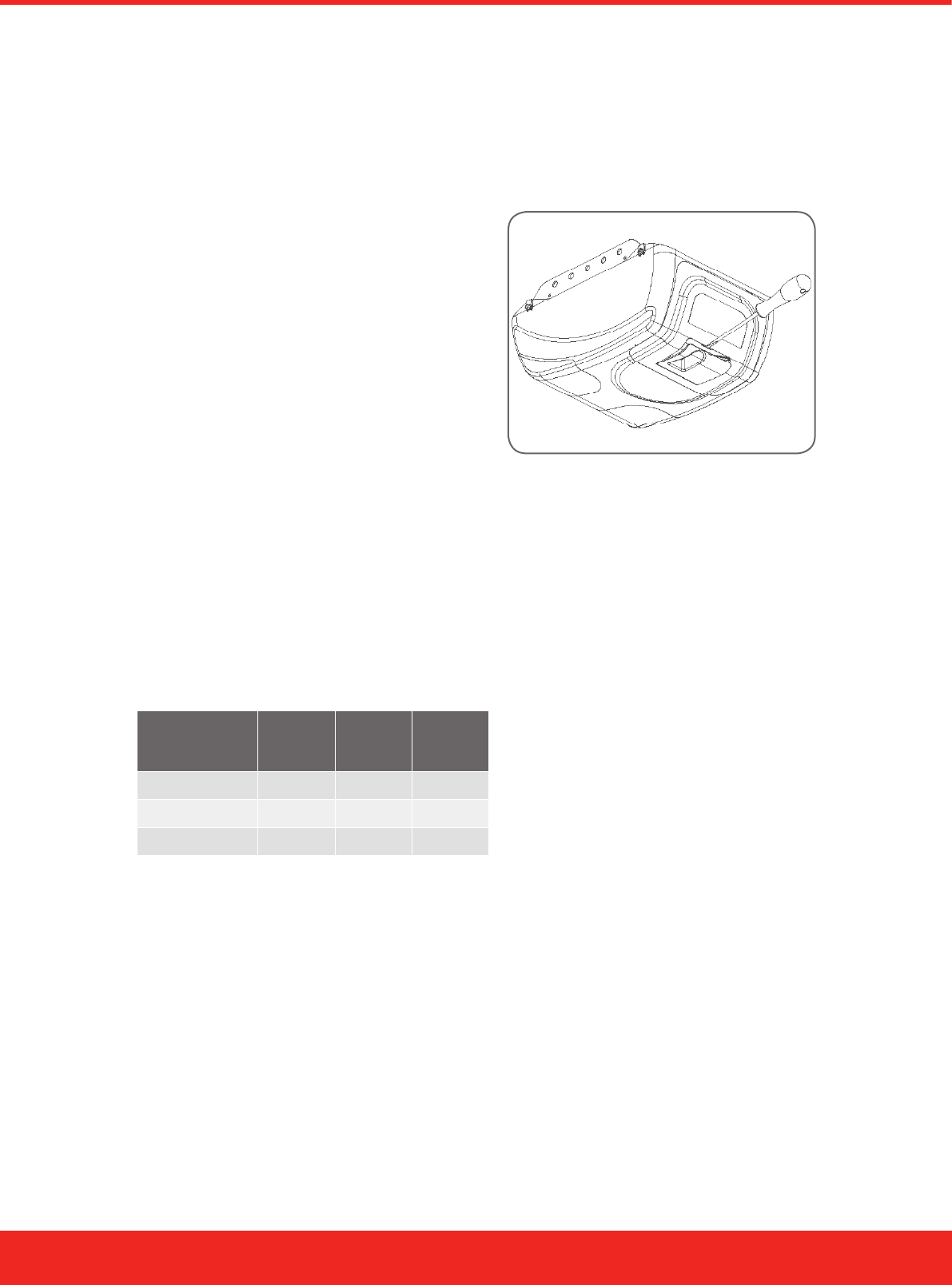

Fig.20
Door Opener
Speed Mode
Open LED
(green)
status
Open LED
(red)
status
Beeper
Medium (Default) ON ON ON
Fast ON OFF ON
Slow OFF ON OFF
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
17PA1000 Instruction Manual (Instructions d’installation)
Setting Speed and Limits
Step 17 - Setting Travel Limits
NOTE: The door and shuttle must be engaged
into the chain/belt index. The door should be
open approximately half way.
Remove the controls cover (Fig.20) to access the controls
panel and place it back when nish programming.

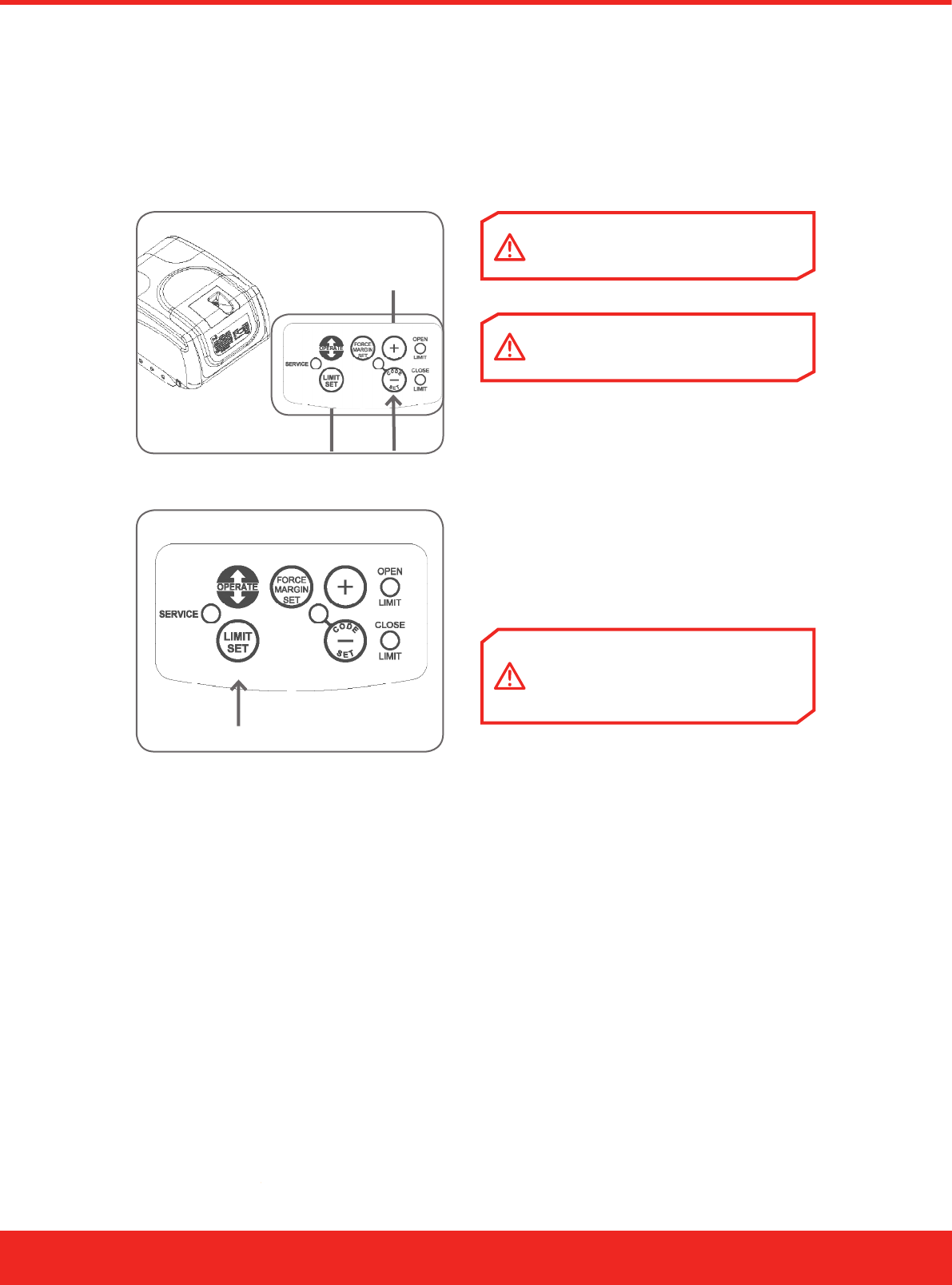

17.1 - Setting Limits Positions (Fig.21)
1. Press red Minus (-) Button and hold it, the door will start
closing. Release the button once when the door has reached
your desired closed limit position.
2. Press the limit set button. This action will store into
memory the closed limit position.
3. Press the green Plus (+) Button and hold it, the door will
start opening. Release the button once when the door has
reached your desired open limit position.
4. Read the WARNING below.
IMPORTANT WARNING: Please be aware that
the garage door will start closing automatically
once Step 4 is performed. The door will also
automatically re-open after fully closing with a
small pause between the cycles.
5. Press the Limit set button. This action will store into memory
the door limit position. The door will now automatically close
to its limit position then fully open to calculate the safety
obstruction forces. Please be aware of the above warning.
The door operator can now be operated via the OPERATE
button.
17.2 Resetting Door Limit Positions (Fig.22)
The door travel limit positions can be deleted for new
positions by the following steps below:
1. Press and hold Limit set button for six (6) seconds until
you hear three beeps and the red Close Limit LED starts
to ash.
2. Release the button.
3. Follow Step 17.1 to set new travel limit positions.
Fig.22
Fig.21
IMPORTANT NOTE: The operate button will
not function until the open and close limits
positions are set.
PA1000 Instruction Manual (Instructions d’installation)18
Testing Safety Obstruction Force
18.1 - Testing the Close Cycle
Press the OPERATE button to open the door 1.
(Fig.23).
Place an object approximately 1-1/2”(38mm) high 2.
(or a 2”x 4” board laid at) on the oor under center
of garage door opening (Fig.24).
Press the OPERATE button to close the door.3.
When door contacts the object, the door must stop 4.
(within 2 seconds) and reverse to open position.
If the door does not properly reverse.
Check the “close” limit position. It should not have •
reached its “close” limit before hitting board.
If the door STOPS but does not reverse, decrease •
FORCE (refer to Step 18.4).
18.2 - Testing the Open Cycle
Press the OPERATE button to close the door (1. Fig.23).
Press again to open the door. When the door is 2.
reaching half of the opening distance, grab the bottom
rail of the door rmly, the door should stop.
If the door does not stop when opening, the force may be
excessive and need adjusting, refer to Step 18.4.

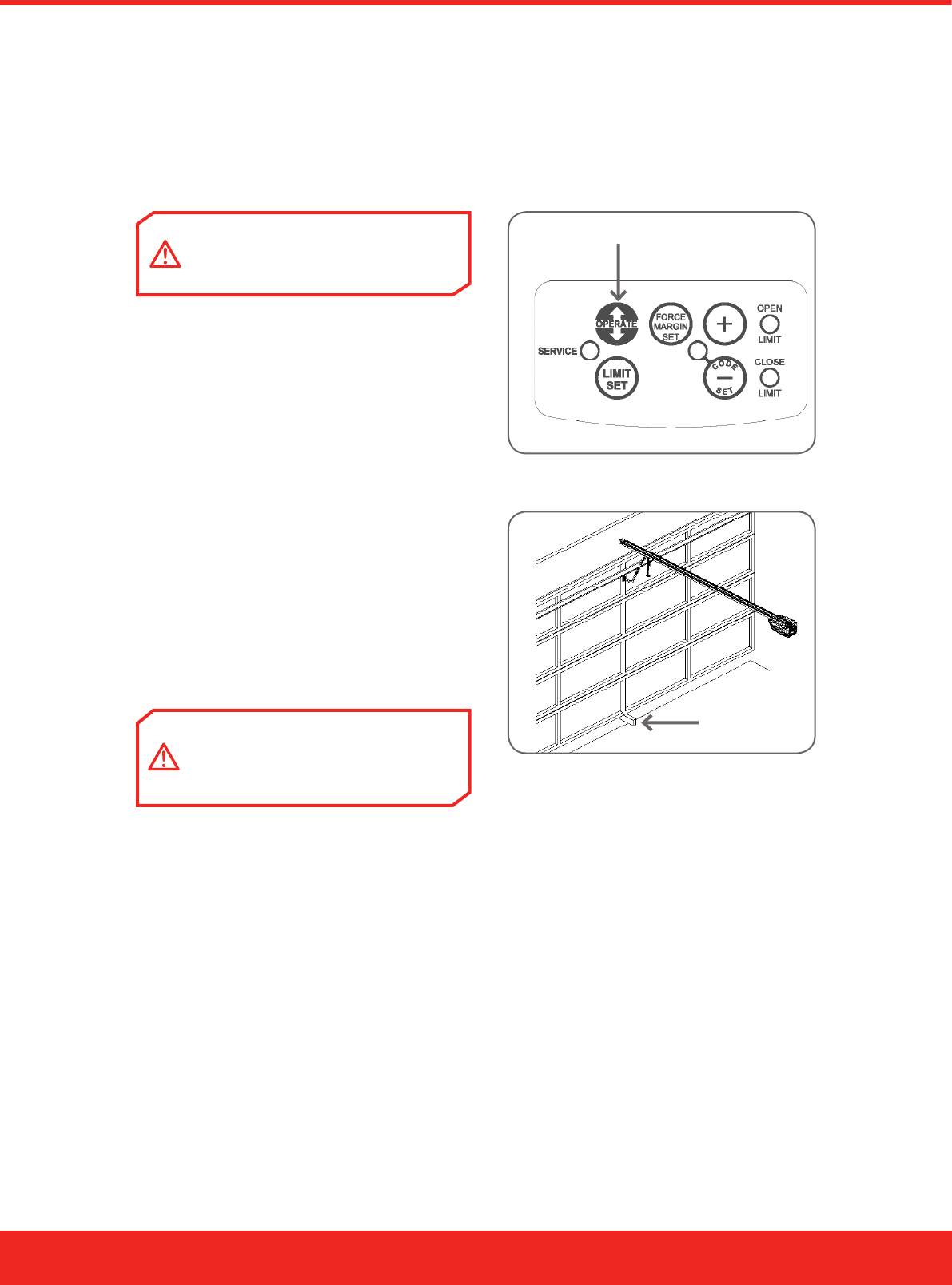

Fig.24
Fig.23
IMPORTANT WARNING: If the door is
closing and is unable to re-open when
obstructed, discontinue use. Do not use a
door with faulty obstruction sensing. Repair
fault and re-test before using.
CAUTION: Please take care when testing the
safety obstruction force. Excessive force may
cause serious personal injury and/or property
damage can result from failure to follow this
warning.
2”x 4” board
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
19PA1000 Instruction Manual (Instructions d’installation)
Adjusting Safety Obstruction Force
The safety obstruction force is calculated automatically and
set in memory on the operator. It is usually not necessary
to adjust the safety obstruction force. The only time the
force may need to be increased is due to environmental
conditions, for example, windy or dusty areas, and areas
with extreme temperature changes.
WARNING: Safety Beam must be installed if
the closing force as measured at the bottom
edge of the door exceed 200N (20kg).

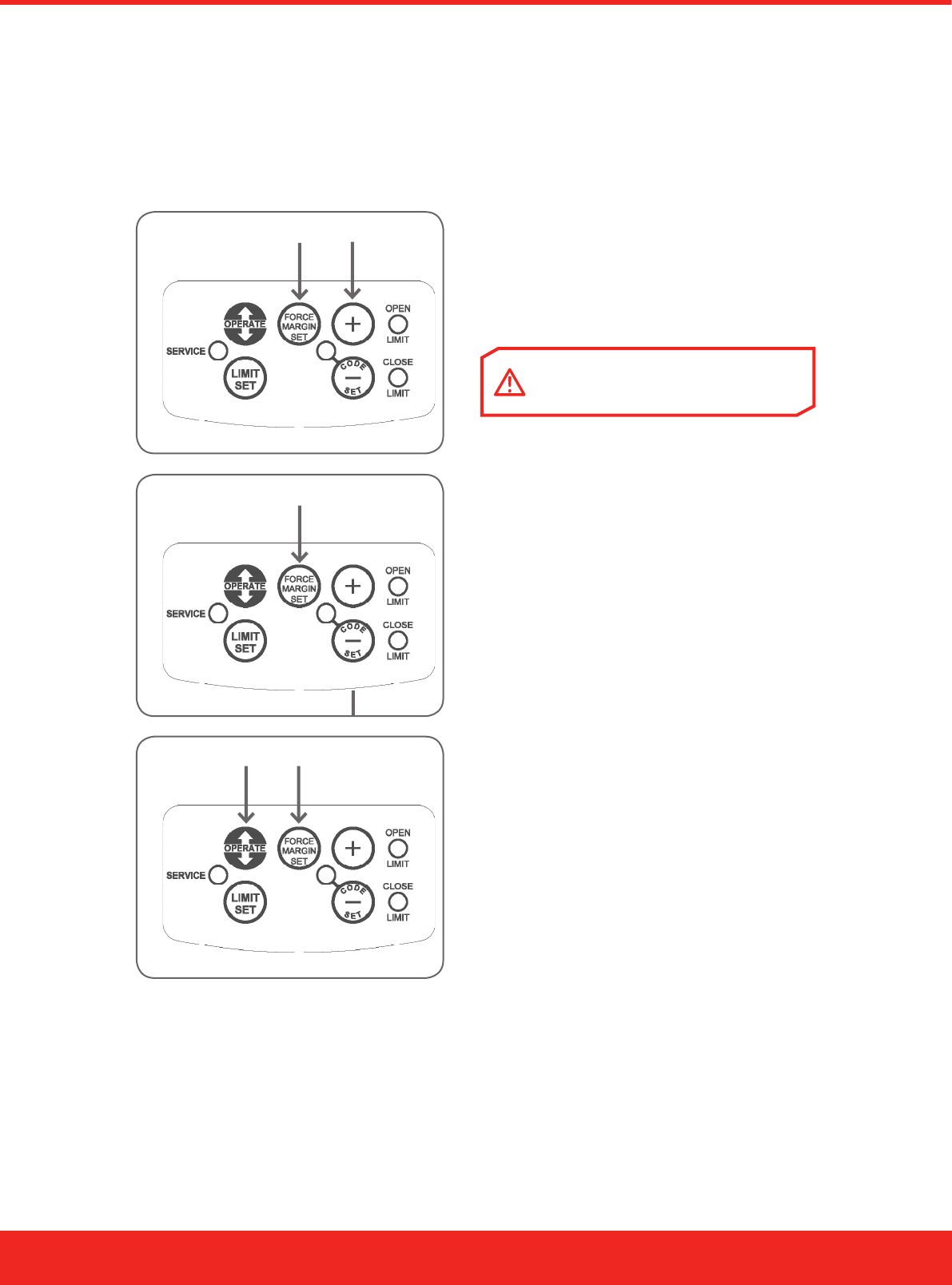

18.3 To Increase Force Pressure (Fig.25)
Press and hold the FORCE MARGIN SET button.1.
While holding down the FORCE MARGIN SET button, 2.
press the Plus (+) button. Each press increases the
force margin.
The Open Limit LED will ash each time the plus 3.
button is pressed to indicate an increase in force.
If the Open Limit LED ashes continuously when the 4.
plus button is being pressed, this indicates that the
maximum force pressure setting has been reached.
Test the force again as per 5. Step 17.1 and 17.2
above.
18.4 To Decrease Force Pressure (Fig.26)
Press and hold the FORCE MARGIN SET button. 1.
While holding down the FORCE MARGIN SET button, 2.
press the Minus (-) Button. Each press decreases
the force margin. The Close Limit LED will ash
each time the minus button is pressed.
If the Close Limit LED ashes continuously when 3.
the minus button is being pressed, this indicates
that the minimum force pressure setting has been
reached.
Test the force again as per 4. Step 18.1 and 18.2
above.
18.5 To Recall Factory Set Force
While holding down the 1. FORCE MARGIN SET button,
press the LIMIT SET button (Fig.27) for two seconds.
Release both buttons. The default setting should now 2.
be recalled.

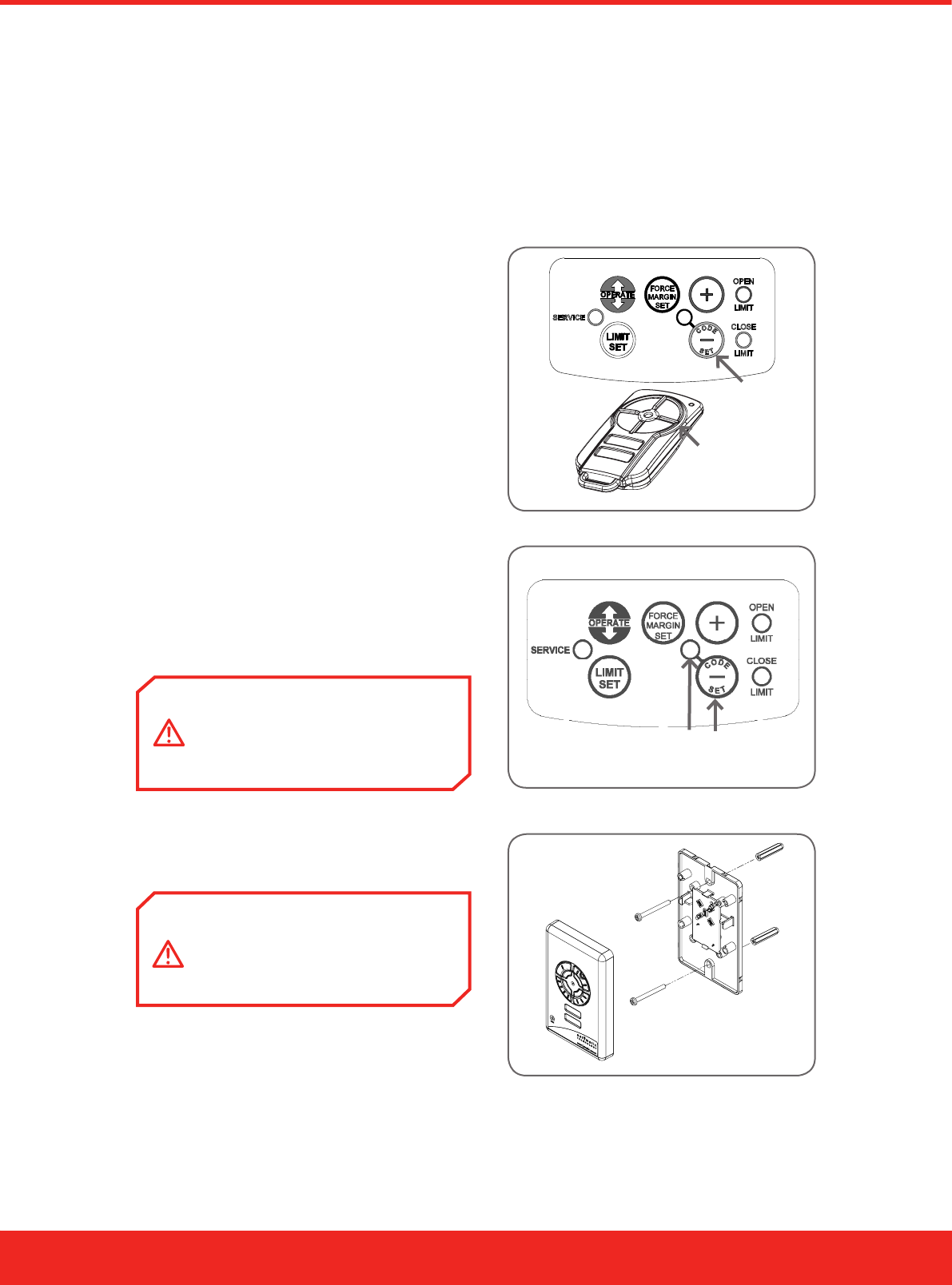

Fig.25
Setting Safety Obstruction Force
Fig.26
Fig.27
PA1000 Instruction Manual (Instructions d’installation)20
Coding Transmitters
Step 19 - Setting Transmitters Codes
The garage door operator can only operate from remote
control transmitters that have been programmed into the
opener’s receiver. The receiver needs to learn the codes
of any remote control transmitter that will be used with the
operator. Up to 14 codes can be stored in the receivers
memory.
19.1 - Storing the Transmitters Code (Fig.28)
Make sure that the battery is inserted in the 1.
handheld (or wall) transmitter.
Press the CODE SET button on the operator, the 2.
CODE SET LED will illuminate to indicate that the
opener is in Code Learn mode. If a valid code is
not stored within 15 seconds the opener will exit
Code Learn.
Press the transmitter button (one of four) that you want 3.
to control the door for two seconds. The CODE SET LED
will begin to ash.
Press and release the same transmitter button again. 4.
The CODE SET LED will illuminate for one second and
then go out.
The transmitter is now coded to operate the door. Press 5.
that button to test.
19.2 - Setting the Transmitter to Operate the
Courtesy Light (Fig.29)
Although the courtesy light comes on with each operation
of the operator, it may also be controlled (ON/OFF) by a
transmitter without operating the door.
Press CODE SET button twice. The CODE SET LED 1.
will start illuminate and the courtesy light will turn
on to indicate that the light code learning is active.
Choose a transmitter button, which is not already 2.
coded into the receiver. Press this button for two
seconds and CODE SET LED will begin to ash.
Press the same transmitter button again. The CODE 3.
SET LED will illuminate for one second and then
go out.
The transmitter is now coded to operate the light. 4.
Press that button to test.

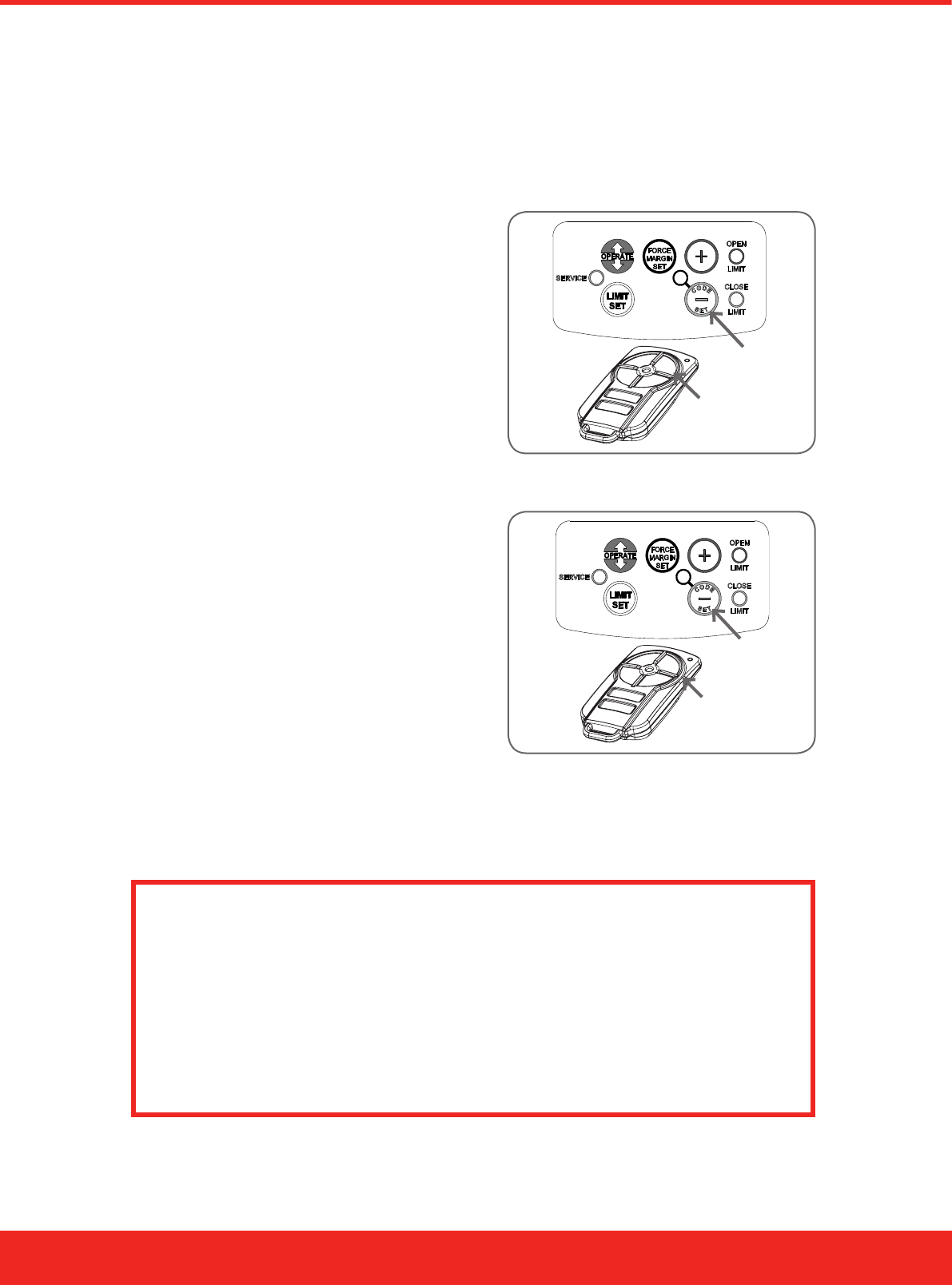

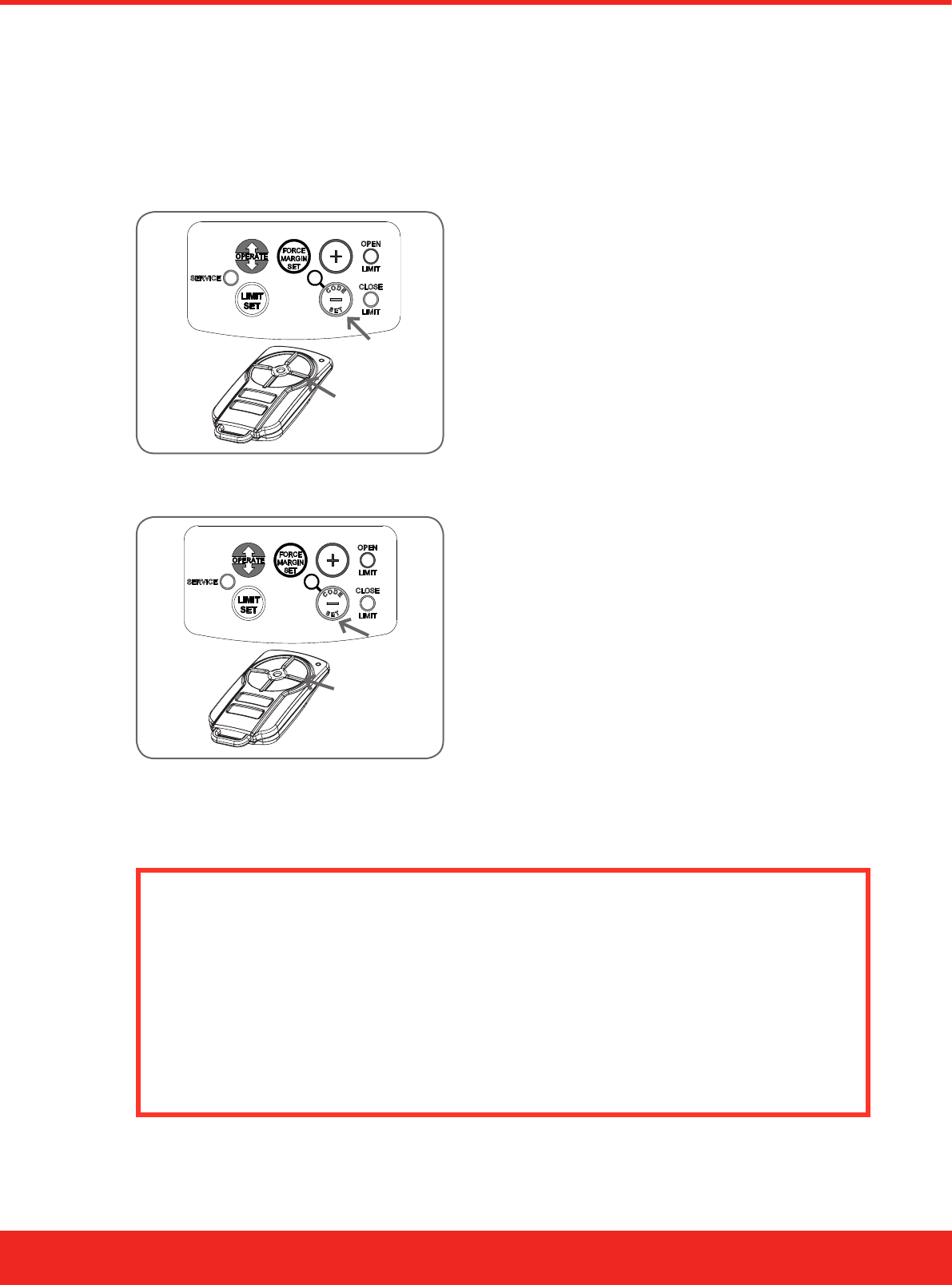

Press Code set
button once
Select one of the four
buttons that you wish to
use to control the door
Press Code set
Button twice
Select one of the
four buttons (not
programmed yet)
that you wish to
use to control the
Courtesy Light
Fig.28
Fig.29
Transmitters Compliance Statement
Transmitters comply with all United States and Canadian legal requirements as of the date
of manufacture. To comply with FCC Part 15 and or RSS 210 of Industry Canada (IC) rules,
adjustment or modications of this receiver and / or transmitter are prohibited, except for
changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE
PARTS. Tested to Comply with FCC Standard FOR HOME OR OFFICE USE. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
21PA1000 Instruction Manual (Instructions d’installation)
19.3. Setting the Transmitter to Operate
Vacation Mode
The opener can be programmed into a “Vacation Mode”
where the operator will not respond to any transmitter
except one programmed unit.
Press CODE SET button three times. The CODE SET 1.
LED will illuminate and the courtesy light will ash
slowly (once every two seconds) to indicate Vacation
learning mode is active.
Choose a transmitter button that is not already coded 2.
into the receiver. Press this button for two seconds and
the CODE SET LED will begin to ash.
Press the same transmitter button again. The CODE 3.
SET LED will illuminate for one second and then go out,
and the courtesy light will also switch off. This indicates
that the code has been stored.
To activate the Vacation Mode facility, close the garage 4.
door and press the coded transmitter button for 5
seconds. The CODE SET LED will illuminate to indicate
that the operator is in “Vacation Mode”.
To exit “Vacation Mode”, press the transmitter button 5.
momentarily until the CODE SET LED turns off.
19.4. Setting the Transmitter to Operate
Auxiliary Output (Fig.31)
It is possible to operate other devices (e.g. alarm systems)
using one of the spare buttons of a multi-channel transmitter
coded into the Auxiliary Output feature.
Press CODE SET button four times. The CODE SET 1.
LED will illuminate and the courtesy light will ash
quickly (twice per second) to indicate that learning
mode for the “Auxiliary Output” is active.
Choose a transmitter button that is not already coded 2.
into the receiver. Press this button for two seconds
and the CODE SET LED will begin to ash.
Press the same transmitter button again. The CODE 3.
SET LED will illuminate for one second and then do
out, and the courtesy light will also switch off. This
indicates that the code has been stored.
Press Code
set Button
three times
Select one of the
four buttons (not
programmed yet)
that you wish to
use to control the
Auxiliary Output
Press Code set
Button four times
Select one of the
four buttons (not
programmed yet)
that you wish to
use to control the
Vacation Mode
Fig.31
Fig.30
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encourage to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna•
Increase the separation between the equipment and receiver•
Connect the equipment into an outlet on a circuit different from that to which the receiver is •
connected
Consult your local dealer or an experienced radio/TV technician for help.•
Coding Transmitters
PA1000 Instruction Manual (Instructions d’installation)22
19.5 - Setting the Transmitter to Operate Pet
(Pedestrian) Mode (Fig.32)
The opener can be programmed into a “Pet Mode” where
the door opens partially to allow pet to enter/exit the garage.
Press CODE SET button ve times. The CODE SET LED 1.
will illuminate and the courtesy light will ash quickly
(twice per second) to indicate that the learning mode
for “Pet Mode” is active.
Choose a transmitter button that is not already coded 2.
into the receiver. Press this button for two seconds and
the CODE SET LED will begin to ash.
Press the same transmitter button again. The CODE SET 3.
LED will illuminate and then go out, and the courtesy
light will also switch off. This indicates that the code has
been stored.
19.6- To Erase Programmed Codes (Fig.33)
If the Code Set button is pressed and held on for 6 seconds,
the LED will blink rapidly for one second to indicate that all
programmed codes have been erased.
19.7 Installation of Wall Mounted
Transmitter (Fig.34)
IMPORTANT WARNING: Locate the Wall
Mounted Transmitter:
Within sight of door.•
At minimum height of 5 feet so shall •
children are not able to reach it, and
Away from moving parts of the door.•
To set the transmitter codes refer to Step 19.1.
Press Code set
Button ve times
Select one of the
four buttons (not
programmed yet)
that you wish to
use to control the
door for “Pet Mode”
Fig.32
Fig.33
Fig.34
Coding Transmitters
WARNING: The manufacturer is not
responsible for any radio or TV interference
caused by unauthorized modications to
this equipment. Such modications could
void the user’s authority to operate the
equipment.
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
23PA1000 Instruction Manual (Instructions d’installation)
Accessories
Terminal Block
A variety of wired accessory items can be connected to
the terminal block J4 such as Safety Beam, Electric Key
Switch and more (Fig. 35).
Terminal connections from top down are as follows:
V+1. (+35V/+24V);
EB12. (Safety Beam input, mandatory);
0V3. (0V for Safety Beam);
EB24. (Safety Beam input);
0V5. (Common ground for accessories and Safety
Beam);
OSC6. (Open/Stop/Close trigger)
AUX OUT7. (Auxiliary output trigger)
Remote Aerial (optional)
Some sites can cause poor radio reception, i.e. wherever
there is a large mass of metal like all steel garages or
underground car parks (large masses of steel reinforced
concrete). Metal mass can cause the radio signal to be
reduced.
Poor radio reception will be noticed by a reduction in the
operating range of the remote control transmitters used for
this garage door operator.
You can test to evaluate if tting an external aerial will
benet as follows:
• test the maximum operating range of the remote
control transmitter with the garage door closed; then
• test the maximum operating range of the remote
control transmitter with the garage door open.
If the range is improved with the door open then you can
install a remote aerial kit to improve the radio reception.
Mount the aerial to a suitable location on the outside of
the garage. The radio receiver in your garage door operator
is similar to the receiver in your television set; the better
the position of the aerial, the better the reception will be.
Where possible, mount the aerial as high as possible away
from masses of metal and in line of sight to the position
where you would normally operate your remote control
transmitter.
Wired Wall Switch/Electric Key Switch (optional)
A wired wall switch or electric key switch can be connected
to the operator as an alternative to using the remote control
transmitter. The electric key switch (Fig.36) also acts as an
external release mechanism which is ideal if your garage
does not have a pedestrian door.
To connect the switch to the operator’s terminal block refer
to Fig.36.
The switch behaves just like a remote control transmitter:
each turn of the key will cycle through an open - stop -
close function.
NOTE: Please refer to the Electric Key Switch/Release unit’s
instruction sheet for installation procedure.
Fig.35
Fig.36
V+
EB1
OV
EB2
0V
OSC
AUX
PA1000 Instruction Manual (Instructions d’installation)24

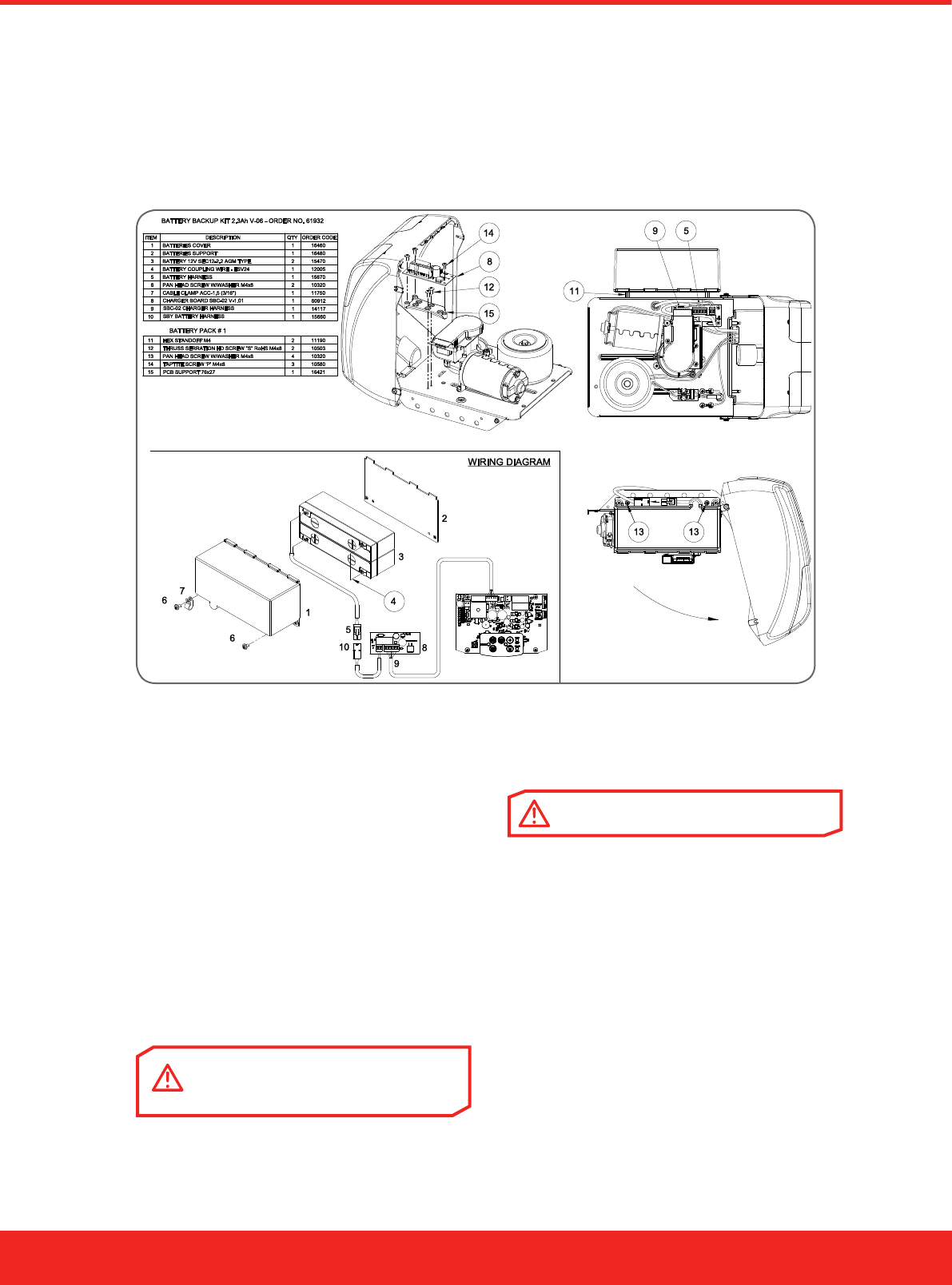

Battery Backup Installation
(Optional)
Battery Back Up (optional)
The operator has provision for a Battery Back Up kit that
allows continued operation of the door in the absence of
mains power.
Installation
Disconnect power to the operator.1.
Remove screws and swing open the cover 2. (Fig 37).
Mount the PCB support with two screws item # 12. 3.
Secure the SBC0-2 Charger Board onto the PCB
support with three (3) screws item #14.
Feed the 2-wire battery harness item # 5 through the 4.
grommet on the base plate and connect to SBCO-2
battery charger board.
Feed charger harness from SBCO-2 battery charger 5.
board to the control board and plug onto the 5 pin
connector marked “SBCO-2” on the control board.
Mount Battery Backup and secure with item 11 and 6.
13.
Connect item 5 and 10 together 7. (Fig 37).
Reconnect power.8.
Testing Battery Back Up
Press either the OPERATE button or transmitter to 1.
activate the operator.
Whilst the door is in motion disconnect mains power - 2.
the operator should continue to operate.
NOTE: Wait for the door to complete its travel
before proceeding to the next step
Press either the OPERATE button or transmitter to 3.
activate the opener.
Whilst the door is in motion re-connect power. The 4.
door should complete the cycle as normal.
Troubleshooting
If door stops or moves very slowly under battery power,
then the batteries may have little to no charge.
To remedy this connect mains power and leave the batteries
to charge. The batteries may take 24 to 48 hours to reach
their maximum charge capacity.
Fig. 37
WARNING: After the next step the operator
may become active (even when power is off)
due to a residual charge in the batteries.
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
25PA1000 Instruction Manual (Instructions d’installation)
Fig.38
How to Use Your Operator
For maximum efciency of your operator, your garage door
must be in good operating condition.
An annual service of your garage door by an authorised
dealer is recommended.
CAUTION: Activate the operator only when the
door is in full view, free of obstructions and
with the operator properly adjusted. No one
should enter or leave the garage while the door
is in motion. Do not allow children to play near
the door.
WARNING: This opener is a mains voltage
plug in domestic appliance and there are no
user serviceable parts inside this operator.
Remote Control Transmitter
• To operate the garage door operator, press the
programmed button of the remote control transmitter
until your door begins to move (usually 2 seconds).
Make sure you can see the door when you use the
remote control transmitter.
• If you are in a vehicle you should aim the remote
control transmitter through your windscreen. If your
remote control transmitter has a visor clip, it should
be secured to the visor so that when the remote
control transmitter is operated it is transmitting
through the vehicle windscreen (Fig.38).
• Check that the door is fully closed before you drive
away.
• If you press the remote control transmitter whilst the
door is moving the door will stop. The next press of
the transmitter will move the door in the opposite
direction.
The remote control transmitter may also be programmed to
operate the following features (see pages 21 to 22 - Coding
Transmitter Features):
• to turn the courtesy light on and off without
operating the door,
• to activate the Auxiliary Output,
• to put the door into “Pet Mode” where it opens
partially to allow pet access to the garage, and/or
• to put the garage door operator into “Vacation Mode”
where it will not respond to any remote control
transmitters.
NOTE: Additional remote control transmitters may be
purchased at any time.
PA1000 Instruction Manual (Instructions d’installation)26
REPLACE WITH BATTERY CR2032
Fig.39
How to Use Your Operator
In-built Locking Facility
DO NOT lock your door with the locking bars when your
operator is engaged. This operator has an in-built locking
facility. With the operator engaged your door will be locked
whether the power is on or off.
Manual Door Operation
CAUTION: When operating the manual
release while the door is open. It may fall
rapidly due to weak or broken springs, or
an improperly balanced door.
CAUTION! Do not disengage the operator to
manual operation with children/persons or
any objects including motor vehicles within
the doorway.
To disengage the operator from the door, (preferably with
the door in the closed position) pull down on the string
handle on an angle towards the door. This will allow you to
manually open or close the door. To re-engage the operator
pull the string handle away from the door.
WARNING! When the operator is manually
disengaged, the door is no longer locked. To
lock the door manually, re-engage the operator
after the door is closed.
Power Failure
When there is a power failure, the operator will be unable to
automatically open or close your garage door. To use your
door whilst there is no power you will need to disengage the
opener and use the door manually – see Manual Operation
above.
Removing the battery from transmitter
(Battery Type: 3V Lithium Battery CR2032). Use a
nonmetallic object (e.g. plastic Pen) to remove the battery
(Fig.39).
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
27PA1000 Instruction Manual (Instructions d’installation)
How to Use Your Operator
Safety Beam Option
A Safety Beam Kit must be tted to this operator.
When this Kit is tted, the operation of this device is •
such that if an object (i.e. car, child, etc.) blocks the
Safety Beam, then the garage door opener will not
close the door automatically.
When the Safety Beam is tted but not operating •
correctly, then the door once opened automatically,
will not close automatically. The door may be closed
by reverting to manual operation – see Manual
Operation.
Auto Close Option
To have the Auto Close option you must also have a Safety
Infra-Red Beam tted and functioning. To enable the Auto
close function remove the back cover from the opener and
place the AUTO-CLOSE jumper near the right hand side
LED light module.
When this option is selected the garage door operator will
attempt to close the door automatically 30 seconds after
opening.
If the Safety Infra-Red Beam is interrupted whilst the door
is closing (e.g. by a person walking through the doorway),
the door will reverse to the fully open position.
If the door does not close automatically, you may close the
door using the Manual Operation.
Courtesy Light
The Courtesy Light will illuminate for approximately 3
minutes each time the door is operated automatically.
Spare buttons of multi-channel remote control transmitters
can be programmed to turn the light on and off by remote
control.
See Step 19.2 for more information.
Auxiliary Output
This function allows the operator to operate other devices
such as external lights, or an alarm system.
To use this function, a spare button of a remote control
transmitter must be programmed to operate the Auxiliary
Output feature.
See Step 19.4 for more information.
Vacation Mode
The radio receiver of the garage door operator can be
turned off using a remote control transmitter to activate the
Vacation Mode facility. Whilst in vacation mode the operator
will not respond to any remote control transmitter.
To activate the Vacation Mode facility, see Step 19.3.
NOTE: Program only one button to control “Vacation Mode”.
This will reduce the possibility of accidental activation of
this feature.
Pet Mode
A remote control transmitter can be programmed to open
the door partially to allow pet access to the garage.
To activate “Pet Mode” press the transmitter button that
has been programmed for “Pet Mode”. The door will open
partially. Pressing the button again will return the door to
the closed position.
See Step 19.5 for more information.
Service
While the door operator does not require regular servicing,
to function correctly the door must be in good operating
condition. As a reminder the PA1000 has a built in
maintenance counter. This counter has a factory default of
3000 cycles, which is the recommended service interval.
When this counter expires the yellow SERVICE LED will light
up and opener beep three times at the start of each cycle.
In addition the courtesy light will ash and the operator
beeps ve times at the end of open cycle (when the door
is fully open).
These warning signals will self extinguish after 30 cycles.
When this service counter is triggered it is strongly
recommended you contact your garage door dealer to
arrange a door service.
However, if you choose not to have your door serviced the
counter can be reset simply by pressing the LIMIT SET
button.
PA1000 Instruction Manual (Instructions d’installation)28
Maintenance
The Service LED will indicate the requirement for a
service and/or adjustment. To reset the Service LED
when the door is serviced, reprogram the Door Travel
Limits and the Door Travel Force – on completion of
this programming the Service LED will go out.
Whilst your operator does not require any periodic
maintenance, the door that it is tted to does. Your
garage door is a large, heavy, moving object and should
be tested regularly to ensure it is in good condition. A
poorly maintained door could cause fatal or serious
injuries.
To ensure long and trouble free life of your operator
the following is recommended:
Monthly
• Disengage the operator and manually operate
the door: The door must be smooth to operate
by hand, an operating force on the bottom rail
should not exceed 150N (15kg (33lb)) force.
• Each month check that the operator reverses
when the door contacts a 1-1/2” high object
placed on the oor. Refer to Testing the Safety
System (see Pages 18-19).
NOTE: If the door does not operate smoothly or the
safety reverse test failed, CONTACT A TRAINED
DOOR SYSTEM TECHNICIAN.
Yearly
We suggest that you contact your nearest Authorised Dealer
to perform an annual door service.
Warranty Expired Indicator
When the opener reaches the number of cycles covered
by warranty the courtesy light will ash 10 times after each
operation to indicate that the warranty has expired. This
ashing will continue for twenty (20) operations unless the
user acknowledges the warranty expiry indicator and stops
the light from ashing. To stop the courtesy light ashing
press the LIMIT SET button while the light is ashing after
an operation.
WARNING! Failure to maintain your garage
door may void the warranty on your garage
door operator.
Date Service by Signature Invoice No. Amount
Service Record
Record any maintenance in the following table to assist in any warranty service.
CAUTION: Frequently examine the
installation, in particular cables, springs
and mountings, for signs of wear, damage or
imbalance. Do not use if repair or adjustment
is needed since a fault in the installation
or an incorrectly balanced door may cause
injury.
Adjustments should only be carried out by
experienced persons, as this function can
be dangerous if not performed under strict
safety procedures.
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
29PA1000 Instruction Manual (Instructions d’installation)
If You Need a Service Call
If the operator needs service, call the dealer who installed
the garage door operator (for product assistance contact
..................)
Before calling for service you should have the following
information to assist in providing the appropriate
service:
Has anything happened since the door was last 1.
operating OK e.g. storm, a jolt to the door etc?
How easy is it to manually open and close the 2.
door?
What model is the operator?3.
Who installed the operator?4.
When was it installed? 5.
Fault Indicator
When a fault is detected the service LED will start to ash
and a number of beeps will sound to indicate that there
is a fault. The fault will be active each time an attempt is
made to operate the door.
Pressing the LIMIT SET button will reset the operator. If
the fault continues to be tripped contact your dealer for
assistance.
Troubleshooting Guide
Symptom Possible cause Remedy
The opener does not work from the
hand remote control transmitter
Garage door in poor condition e.g.
springs may be broken
The opener does not have power
The battery in the remote control
transmitter is at
The opener has been put into
“Vacation Mode”
The transmitter code has not been
set
Check the door for normal operation
– see monthly maintenance.
Plug a device e.g. a lamp, into the
power point and check that it is OK.
Replace the battery
Turn off “Vacation Mode” by pressing
transmitter button
See remote control transmitter &
code setting procedure
The motor runs but the door does
not move
The opener is disengaged Re-engage the opener
The remote control transmitter range
varies or is restricted
Variations are normal depending
on conditions e.g. temperature or
external interference
The battery is at or faulty
Position of the remote control
transmitter in the motor vehicle
Position of the aerial will not pick up
the radio signal
See Instructions for correct use of
remote control transmitter
Replace the battery
Change the position – see
Instructions for correct use
Install an external aerial kit – see
Accessories Section
The light does not work Light module is not inserted/
connected properly
Check for correct connection
otherwise replace module If both fail
contact your dealer for support
The door reverses for no apparent
reason
This may occur occasionally from
weather changes
The opener automatically adjusts to
compensate for changes in the door
operating force
The door opens but will not close Auto close or safety Infra-Red beam
not operating correctly
Check the installation
PA1000 Instruction Manual (Instructions d’installation)30
Parameters
Door status indicators
Door opener state Open LED green Close LED red Door status
LED yellow
Beeper
Open On
Close On
Opening Flashing
Closing Flashing
Door travel stopped Flashing Flashing
Door obstructed when opening Flashing
Door obstructed when closing Flashing Beeps while
door is moving
Opener overloaded Alternating ashes Alternating ashes
Door in open position with auto-
close mode selected
One second ashes
Mains power interrupted Rapid ashes
Button Function
OPERATE Opens/Stops/Closes the door
CODE SET Codes a transmitter button for operate function
FORCE MARGIN SET & PLUS (+) Increases the obstruction force margin setting
FORCE MARGIN SET & MINUS
(-)
Decreases the obstruction force margin setting
FORCE MARGIN SET (then) SET Reloads the factory set default obstruction force margin setting
Press SET (for 6 sec) Clears the door limits set positions. Limits then need to be reset.
SET press and hold until all LEDs
are off
Deletes control parameters excluding transmitter storage memory
DOOR CODE press and hold until
DOOR CODE LED starts ashing
Deletes all transmitter storage memory.
SET & DOOR CODE press and
hold until all LEDs are off
Deletes all control parameters and transmitter storage memory.
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
31PA1000 Instruction Manual (Instructions d’installation)

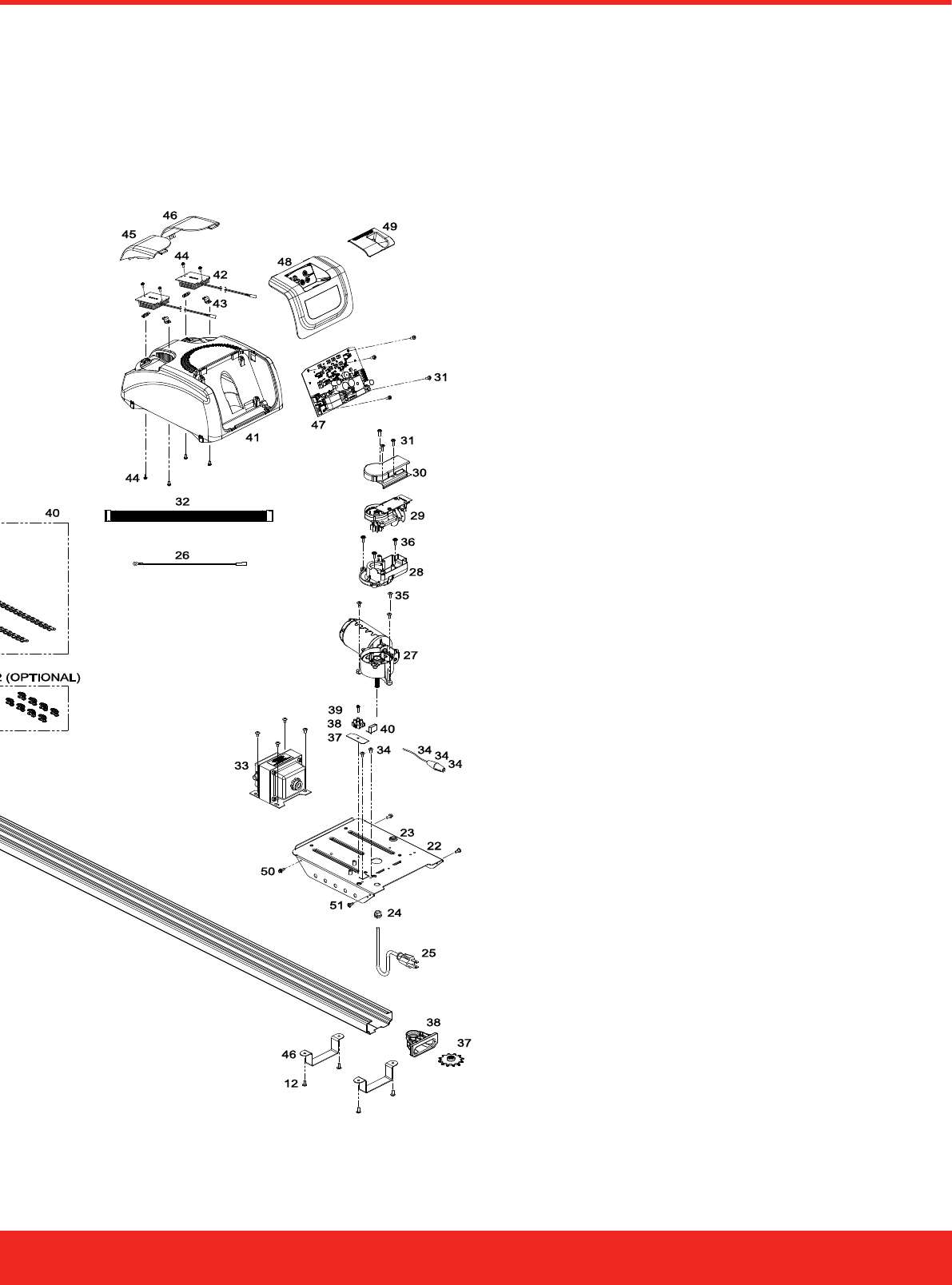

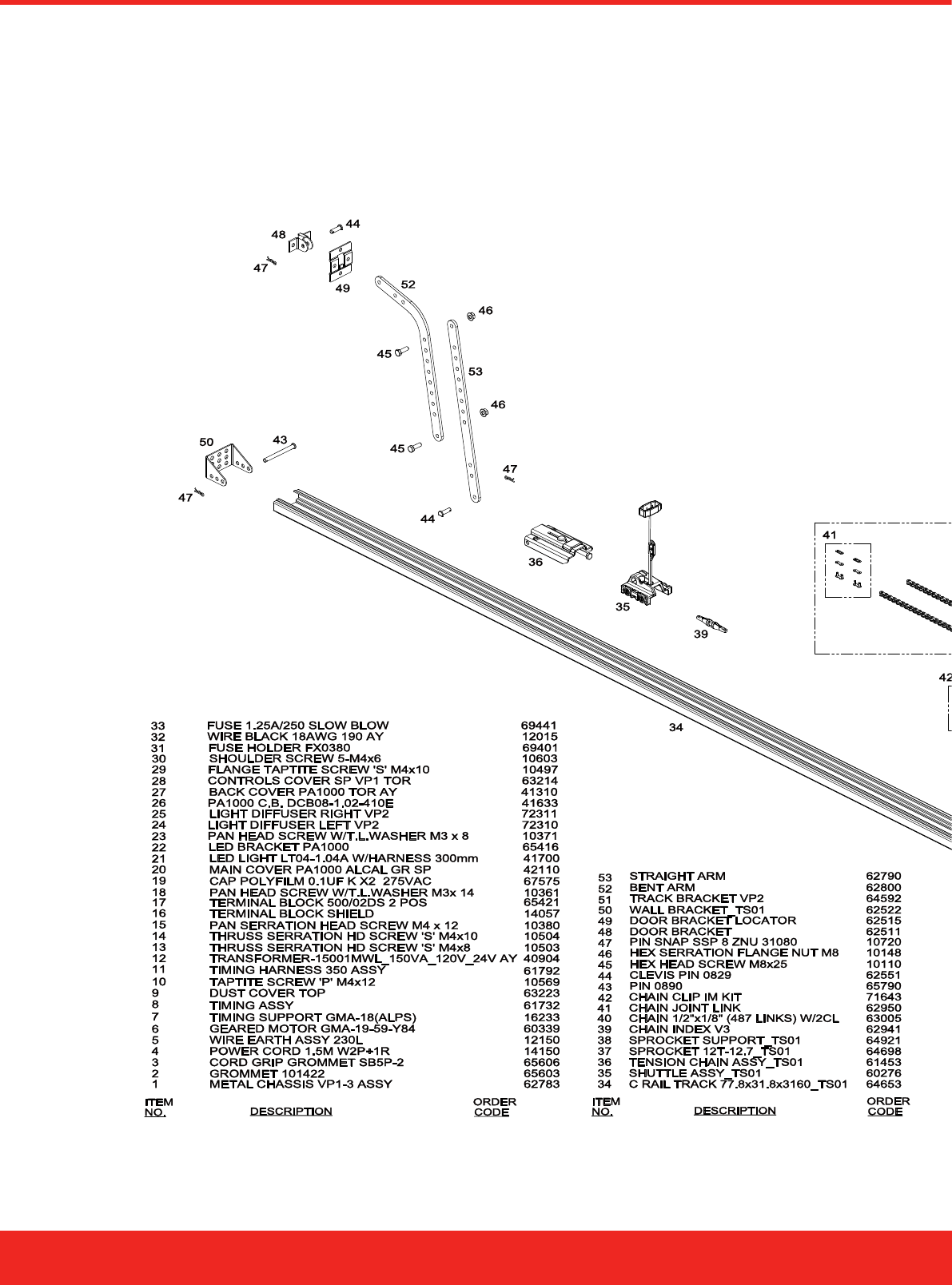

Spare Parts List
PA1000 Instruction Manual (Instructions d’installation)32
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
33PA1000 Instruction Manual (Instructions d’installation)
Warranty
1. Denitions
2. .
PA1000 Instruction Manual (Instructions d’installation)34
Purchased From:
Installed By:
Installed Date:
The Purchaser shall complete this certicate and keep it together with a copy of the receipt of purchase in a safe
place – production of such information will assist the handling of a claim made under this warranty.
Warranty
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
35PA1000 Instruction Manual (Instructions d’installation)
Optional Accessories
There is a range of additional accessories for your convenience and security.
• Safety Infra-Red Beams - Gives additional protection if the door is closing onto your property or person. Simply
breaking the beam “stops” the door! Must be tted if auto closing feature is operational.
• Keyring remote control transmitter - Ideal for personal use when entry into the house may be via the garage.
• Remote Control Transmitter Wall Button - Allows you to operate your operator within 32.8ft (10 metres) of the
door. Ideal for mounting inside the house.
• Combo Access Kit - Keyswitch function will open the door without a remote control transmitter. Can be used to
manually disengage the operator, recommended when the garage door is the only access to the garage.
• Remote Aerial Kit - For sites where radio range may be reduced (metal garages).
Contact your authorized dealer for installation of these accessory items.
When installing Accessories, always follow the manufacturer’s instructions included with the product.
Only our Accessories purchased from an authorised garage door professional offer the highest quality
and assure you of trouble free opener operation.
PA1000 Instruction Manual (Instructions d’installation)36
Diamond PD Power Drive : Instruction Manual
© Copyright 2011
37PA1000 Instruction Manual (Instructions d’installation)
www.
©Copyright October 2011. All Rights Reserved.
