Automotive Data Solutions TR2650A CAR ALARM(TWO WAY) User Manual
Automotive Data Solutions Inc. CAR ALARM(TWO WAY)
user manual
OWNER’S
MANUAL
®/MD
TR2650A
INSTRUCTIONS EN FRANÇAIS AU VERSO
2016/08
2 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
WELCOME TO IDATASTART
Congratulations on the purchase of your iDataStart remote start system. Please take a moment to review the
following table of contents to help you quickly access the information you need.
iDataStart remote overview 3
iDataStart remote functions & confirmations 4-9
Programming a new iDataStart remote 9
Replacing iDataStart remote batteries 10
Remote starting from your factory key fob 10
Adjusting engine runtime settings 11
Key takeover following remote start 11
When servicing your vehicle (Valet Mode) 12
Remote start troubleshooting 13
Vehicle shutdown troubleshooting 14
Limited lifetime warranty 15
FCC statement 16
SAR information statement 17-18
IC statement 19
Headquartered in Montreal, Canada, Automotive Data Solutions Inc. (ADS) is a privately held company specialized in the
development and marketing of remote start and audio integration solutions destined for the automotive aftermarket. ADS’
award-winning products (marketed under the iDatalink
®
, iDatalink Maestro
®
and iDataStart
®
brands) are sold and installed
through a network of Authorized Dealers across North America, South America, Europe and Russia. For more information
about ADS’ products and services, visit www.adsdata.ca.
IDATASTART OWNER’S GUIDE 3
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM

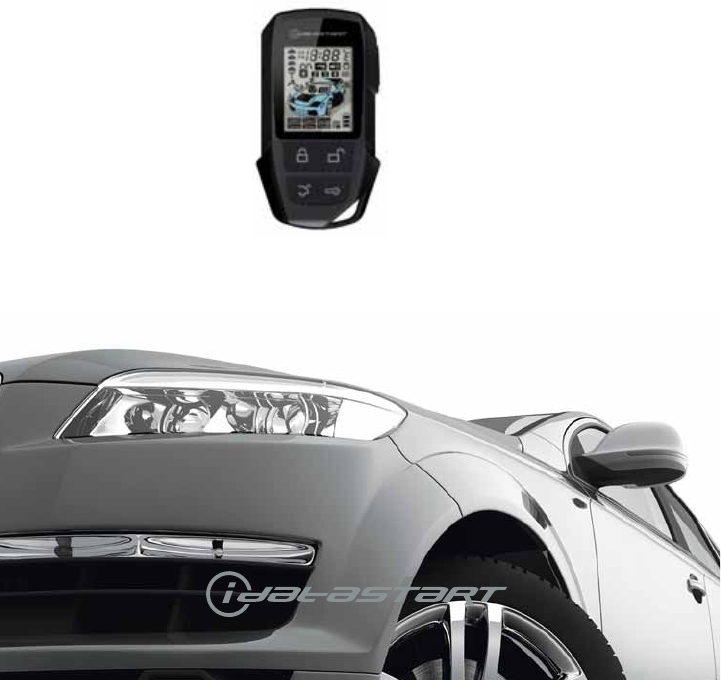

REMOTE MODEL TR2650A
Technology Lora 2-WAY
Max. Range 1 Mile
Buttons 5
Transmit Confirmation (TX) Chime
Receive Confirmation (RX) LCD icon + Chime
Batteries Required CR2450 x 1
Avg. Battery Life 6-12 months
Warranty 1 year

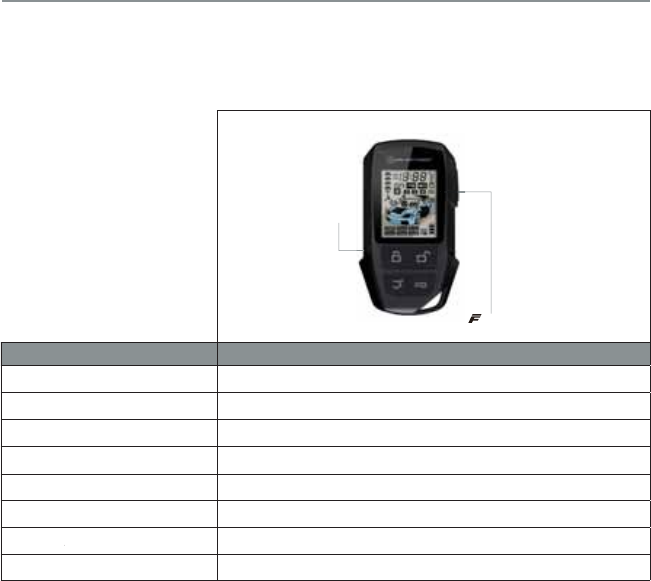

IDATASTART REMOTE OVERVIEW
Your iDataStart remote start system may include one or both long-range remotes listed below. Please take a
moment to familiarize yourself with their general features.
BUTTON
CASING
RELEASE
4 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
IDATASTART REMOTE FUNCTIONS & CONFIRMATIONS
Your iDataStart LCD remote can pack over 30 functions using only 5 buttons. In order to get the most out
of your remotes, please take a moment to get acquainted with
the following functions below:
NOTES:
1. All functions must be enabled by an Authorized Dealer during installation to be functional on remote
2. Non-highlighted icons = Press & release button
3. Highlighted (grey) icons = Press & hold button for 2.5 seconds
4. Coma (,) between icons = Press buttons one after the other
5. Plus (+) between icons = Press buttons together
6. Timeout between each button press = 3 seconds
7. Function* = Available in 2nd Car Mode
8. When remote is on silent mode, no sound can be heard from the remote (no chirp!)
9. For toggle functions, remote starter answered with (1, 2 or 3 chirps and blink on the remote
(1: ON, 2: OFF, 3: IMPOSSIBLE)
10. If remote do 6 chirps and 6 blinks, remote is locked, you need to unlock it first (Unlock remote)
BUTTONS FUNCTION DESCRIPTION CONFIRMATION FEEDBACK
Lock & Arm*
Secures your vehicle by
locking the doors and
arming the alarm. 1 chirp, display and
Unlock & Disarm*
Access your vehicle by
unlocking the doors and
disarming the alarm.
2 chirps, display and
-- 1 chirp, display for 3 seconds.
IDATASTART OWNER’S GUIDE 5
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
BUTTONS FUNCTION DESCRIPTION CONFIRMATION FEEDBACK
Query*
Queries vehicle and ve-
hicle battery voltage and
interior temperature.
Query voltage: 1 chirp, display volt-
age (ex: ) for 3 seconds.
Query temperature: 1chirp, display
temperature (ex: ) for 3
seconds.
Query shut down error: 3 chirps,
display error (ex: ) for 3
seconds.
Panic* Triggers the panic siren. 1 chirp, and flash
5 times.
AUX 5* To be completed by Autho-
rized Dealer if applicable 1 chirp, display .
Trunk Release* Releases the trunk or
hatch. 1 chirp, display .
Engine Start/Stop* Starts and stops the
engine.
Engine start: 1 chirp, display .
Engine run: 4 chirps, display .
and remaining runtime.
Start error: 1 long chirp, display
start error.
Engine stop: 3 chirps, display start
error.
,AUX 1 To be completed by Autho-
rized Dealer if applicable 1 chirp, display .
6 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM

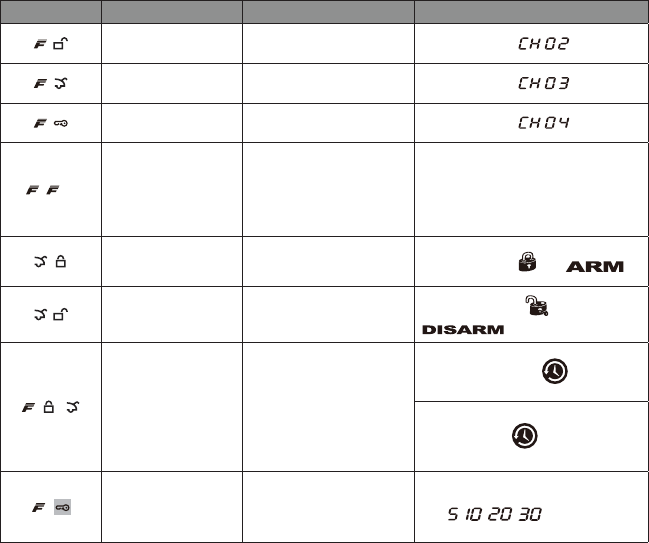

BUTTONS FUNCTION DESCRIPTION CONFIRMATION FEEDBACK
,AUX 2 To be completed by Autho-
rized Dealer if applicable 1 chirp, display .
,AUX 3 To be completed by Autho-
rized Dealer if applicable 1 chirp, display .
,AUX 4 To be completed by Autho-
rized Dealer if applicable 1 chirp, display .
, , *2nd Car Mode
Controls two iDataStart-
equipped vehicles using
one remote. Works with
all functions marked with
an asterisk (*).
Same as 1st car.
,Silent Lock* Disables the vehicle’s
horn and alarm siren. 1 chirp, display and .
,Silent Unlock* Disables the vehicle’s
horn and alarm siren. 2 chirps, display and
.

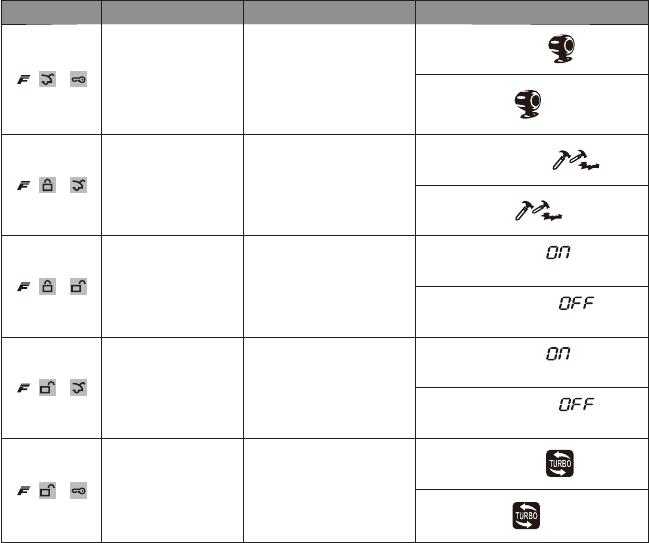

, + Valet Mode
ON/OFF
Turns off remote start
and security features
when servicing your
vehicle or valet parking.
Keyless entry features
remains functional.
ON:1 chirp, display .
OFF: 2 chirps, disappears.
, Runtime Extend
Seamlessly extends your
engine runtime without
restarting your vehicle.
1 chirp, display runtime minutes
(ex: )
IDATASTART OWNER’S GUIDE 7
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
BUTTONS FUNCTION DESCRIPTION CONFIRMATION FEEDBACK
, + Mute
ON/OFF
Disables the vehicle’s
horn and alarm siren
even when alarm is
triggered. Remote will
still receive alarm noti-
fication.
ON: 1 chirp, display .
OFF: 2 chirps, disappears.
, + Shock Sensor
ON/OFF
Disables shock sensors
if installed.
ON: 1 chirp, display .
OFF: 2 chirps, disappears.
, + Ignition Lock
ON/OFF
Automatically locks
doors when engine is
running.
ON: 1 chirp, display for 3
seconds.
OFF: 2 chirps, display for 3
seconds.
, + Passive Lock & Arm
ON/OFF
Automatically locks
& arms your vehicle
60 seconds after you
unlock it.
ON: 1 chirp, display for 3
seconds.
OFF: 2 chirps, display for 3
seconds.
, + Turbo
ON/OFF
Cool down your turbo
before turning the engine
off. Programmable
runtime from 1 to 4
minutes.
ON: 1 chirp, display .
OFF: 2 chirps, disappears.
8 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM

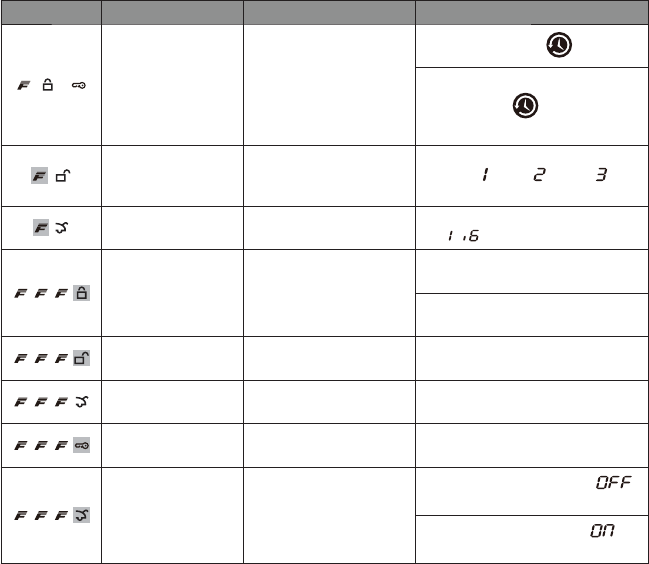

BUTTONS FUNCTION DESCRIPTION CONFIRMATION FEEDBACK
, + Weather Start
ON/OFF
Set your vehicle to
automatically remote
start every 2, 3 or 4 hours
(programmable) or from
a temperature sensor
sold separately.
ON: 1 chirp, display .
OFF: 2 chirps, disappears.
, Query Remote
Technology
Shows the remote
technology on LCD for 3
seconds.
Displays remote technology
(ex: AM = / FM = / SST = )
for 3 seconds.
,Query Remote
Firmware Version
Displays firmware version
(ex: ) for 3 seconds.
, , , Lock Remote Disables all functions on
your remote.
ON: 1 chirp + LCD backlight flash
1 time.
On button press: 6 chirps + 6 times
and remote LCD backlight flashes.
, , , Unlock Remote
ON/OFF
Enables all functions on
your remote.
ON: 2 chirps + LCD backlight flash
2 times.
, , , No beep on takeover ON: 1 chirp
OFF: 2 chirps
, , , Invert function of
query remote start
ON: 1 chirp
OFF: 2 chirps
, , , Mute Remote
Toggle
To toggle between a
silent remote or not (2).
Chirp OFF: 2 chirps, display
for 3 seconds.
Chirp ON: 1 chirp, displays for
3 seconds.
IDATASTART OWNER’S GUIDE 9
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
BUTTONS FUNCTION DESCRIPTION CONFIRMATION FEEDBACK
, , , Remote Settings
1. Set time
2. Set alarm time
3. Set backlight ON/OFF
4. Set vibration on/off
5. Set chirp on/off
6. Set remote turn off time.
up or on
down or off
next option

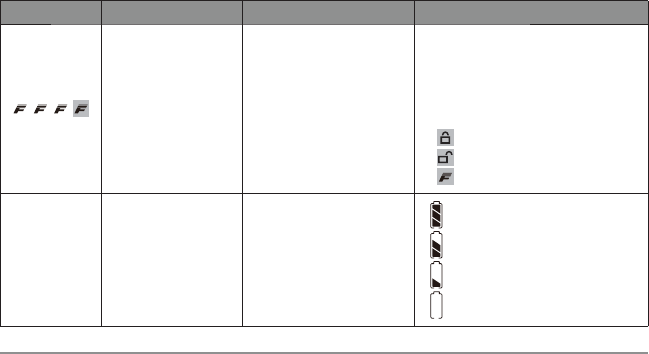

Battery Level Shows the remote
battery level.
75% - 100%
50% - 75%
25% - 50%
0% - 25%
PROGRAMMING A NEW IDATASTART REMOTE
Are you replacing a lost or damaged remote or simply adding an extra remote to your iDataStart system?
Please take note of the following:
1. A functional iDataStart system must already be installed in your vehicle.
2. All new remotes must be installed by an iDataStart Authorized Dealer.
3. A maximum of 4 remotes can be programmed to your iDataStart system.
10 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
REMOTE STARTING FROM FACTORY KEY FOB
Available on most vehicles, your iDataStart system will enable remote start functionality from your factory
key fob as follows:
BUTTON PRESS FUNCTION
3x rapidly Start engine
3x rapidly Stop engine
Remote start range will vary by key fob. If your iDataStart system does not include long range remotes,
you may still add iDataStart remotes (sold separately) at a later date. Ask your iDataStart Authorized
Dealer for details.
Follow the steps below to replace the batteries in your iDataStart remotes OR scan the QR code below to
view a video tutorial.
1. Insert a 25 cent coin into the hollow (bottom left) corner of your iDataStart remote.
2. Gently twist the coin until the casing pops open.
3. Use your coin to pry open the rest of the case perimeter.
4. Carefully remove the circuit board from the case.
5. Slide the old battery out of its enclosure and replace with the new battery.
6. Carefully replace the circuit board into bottom half of the casing.
7. Snap top and bottom casings back together using your hands.
REPLACING IDATASTART REMOTE BATTERIES
IDATASTART OWNER’S GUIDE 11
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
ADJUSTING ENGINE RUNTIME SETTINGS
Once remote started from your factory key fob or long-range remote, your vehicle will run for the
programmed ‘runtime’ setting. The default runtime is 15 minutes but it can also be programmed for
3, 5, 10, 25, 30 or 35 minutes. If you wish to change your remote start runtime setting, contact your
iDataStart Authorized Dealer.
KEY TAKEOVER FOLLOWING REMOTE START
Available on some vehicles, the ‘key takeover’ procedure ensures that your engine does not turn off
when entering the car during the remote start runtime, following a remote start command. Follow the
instructions below or scan the QR code to view a video tutorial.
For Standard Key Vehicles
1. Unlock and enter vehicle
2. Close doors
3. Insert key into ignition and turn ignition to ON position
4. Press foot brake
For Push-To-Start Vehicles
1. Unlock and enter vehicle with valid smartkey
2. Close doors
3. Press foot brake
NOTE: To prevent your vehicle from shutting down, complete the steps below within the programmed
delay time (45 seconds, 90 seconds, 3 minutes or 4 minutes). Key takeover procedure may vary by
vehicle, ask your iDataStart Authorized Dealer for deatails.
12 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
WHEN SERVICING YOUR VEHICLE
To ensure safety during vehicle servicing, the remote starter must be placed in ‘Valet Mode’. The ‘Valet
Mode’ will disable remote start functionality. To activate or deactivate the ‘Valet Mode’, follow the
instructions below or scan the QR codes to view a video tutorial.

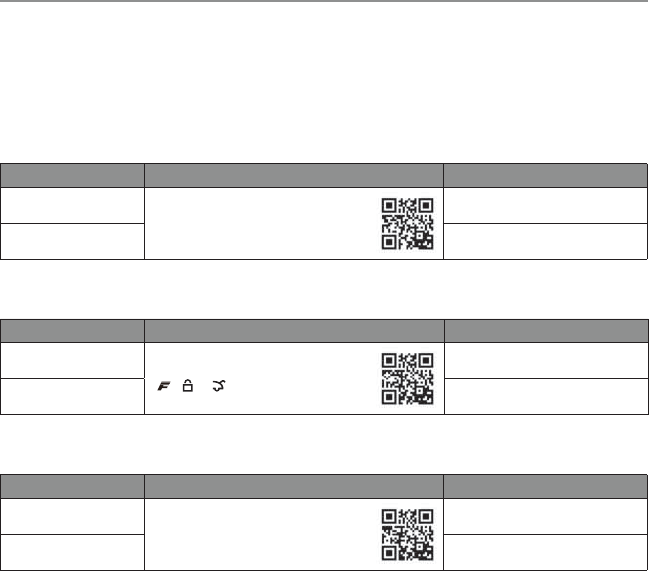

With Vehicle Key
FUNCTION ACTION # OF PARKING LIGHT FLASHES
Valet Mode ON Cycle ignition OFF/ON 2x rapidly,
then press brake 3x.
1
Valet Mode OFF 2
With iDataStart Remote
FUNCTION ACTION # OF PARKING LIGHT FLASHES
Valet Mode ON Turn ignition ON, then press
, +
1
Valet Mode OFF 2
With iDataStart Antenna
FUNCTION ACTION # OF LED & PARKING LIGHT FLASHES
Valet Mode ON Turn ignition ON, then press
& hold button for 5 seconds
1
Valet Mode OFF 2
IDATASTART OWNER’S GUIDE 13
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
REMOTE START TROUBLESHOOTING
If your iDataStart remote fails to start the vehicle, the parking lights will flash three times immediately,
then flash a number of times according to the errors below:
# OF PARKING LIGHT
FLASHES DIAGNOSTIC SOLUTION
3 + 1 Engine is already running Turn engine OFF
3 + 2 Key in ignition at ON position Remove key from ignition
3 + 4 Trunk is open Close trunk
3 + 5 Foot brake is ON Release foot brake
3 + 6 Hood is open Close hood
3 + 8 Tach failure Contact Authorized Dealer
3 + 10 System is in Valet Mode Exit Valet Mode
3 + 11 Can communication failure Contact Authorized Dealer
14 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
VEHICLE SHUTDOWN TROUBLESHOOTING
If the remote start sequence has been completed and the vehicle shuts down, the vehicle’s parking lights
will flash 4 times immediately, then flash a number of times according to the errors below:
# OF PARKING LIGHT
FLASHES DIAGNOSTIC SOLUTION
4+1 No engine rev detected Turn ignition ON before trying to remote
start
4+3 Foot brake detected Release foot brake
4+4 Hood open detected Close hood
4+5 Engine revving over 3000 RPM Check your accelerator pedal
4+6 Glow plug error Contact Authorized Dealer
4+7 Vehicle speed sensor error Contact Authorized Dealer
4+8 ‘Check Engine’ light detected Clear ‘Check Engine’ code
4+9 Low fuel detected Add fuel
4+10 Door open detected Close door
4+11 CAN communication failure Contact Authorized Dealer
4+13 Key takeover not allowed Key fob not detected OR Takeover
procedure not completed correctly OR
takeover is not available for your vehicle
4+14 Module overheat protection Contact Authorized Dealer
IDATASTART OWNER’S GUIDE 15
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
LIMITED LIFETIME WARRANTY
Automotive Data Solutions Inc. (“ADS”) warrants to the original purchaser of the iDataStart product that
the following components product shall be free of defects in material and workmanship under normal
use and circumstances:
Control module and installation harnesses
For as long as the original purchaser owns the vehicle in which it was originally installed.
Remote transmitters and antenna
For the period of one (1) year from the date of original installation.
Excludes battery replacement.
In the event of any product malfunction during the Warranty period, the original purchaser must return
to the Authorized Dealer where it was originally purchased with the original proof of purchase. If a
malfunction is detected, the Authorized Dealer will elect to repair or replace the product at its discretion.
Labor costs may be applicable and are at the discretion of the Authorized Dealer.
THE LIMITED LIFETIME WARRANTY IS AUTOMATICALLY VOID IF:
• An original proof of purchase is not provided when servicing the product
during the warranty period;
• The date code and/or serial number is defaced, missing, or altered;
• The iDataStart product is transferred to another vehicle;
• The vehicle in which the product was originally installed is transferred to a new owner.
ADS is not responsible for any damages whatsoever, including but not limited to any consequential
damages, incidental damages, damages for loss of time, loss of earnings, commercial loss, loss of
economic opportunity and the like that may or may not have resulted from the installation or operation
of an iDataStart product.
16 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
•
•
•
•
IDATASTART OWNER’S GUIDE 17
SAR Information Statement
5IF wireless CAR ALARM (TWO WAY) is a radio transmitter. It is designed and manufactured not to exceed
the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications
Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The guidelines are based on standards that were
developed by independent scientific organizations through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety margin designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless CAR ALARM (TWO WAY)s employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is W/kg.The highest SAR value for this
model CAR ALARM (TWO WAY) when tested for use at the extremity is 0.047 W/Kg .
While there may be differences between the SAR levels of various CAR ALARM (TWO WAY) and at various
positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment
Authorization for this model CAR ALARM (TWO WAY) with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this model CAR ALARM (TWO WAY) is on file with
the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on
FCC ID:2AEPJ-TR2650A
This device complies with FCC and ISED 10-g extremity SAR requirements when the device is used at 0 mm
separation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
18 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
IC statement
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and.
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
End user must follow the specific operating instructions for satisfying RF exposure compliance.
Thistransmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The device is designed to meet the requirements for exposure to radio waves established by theFederal
CommunicationsCommission (USA). These requirements set a SAR limit of W/kg, averaged over one
gram of tissue.
The highest SAR value reported under. This standard during product certification for use when properly test
at the extremityis 0.047 W/kg.
Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes:
l'appareil ne doit pas produire de brouillage, et
l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest
susceptible d'encompromettre le fonctionnement.
Cetéquipementestconforme aux limitesd'exposition aux rayonnements de la IC définies pour un
environnement non contrôlé.
L'utilisateur final doit respecter les instructions de fonctionnement
spécifiques pour satisfaire la conformité aux expositions RF. Cetémetteur ne doit pas être
co-localiséesouopérant en conjonction avec uneautreantenneouémetteur.
L'appareil mobile estconçu pour répondre aux exigences en matièred'exposition aux ondes radio établiespar
la Federal Communications
Commission (Etats-Unis). Cesexigencesdéfinissent la valeur SAR limite à W/kg, en moyenne pour un
gramme de tissu.La valeur SAR la plus élevée pour cemodèled’alarme de voiture (deuxvoies) lorsqu’ilesttesté
pour uneutilisation à l’extrémitéest de 0.047 W/ Kg
Cetappareilrespecte les exigences de 10 g extrémité SAR FCC et ISED lorsquel’appareilestutilisélors de la
séparation de 0 mm.
CAN ICES-3 (B)/NMB-3(B)
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
®/MD
Operation Frequency: 915 MHz
Channel numbers: 1
Modulation technology: LoRa
Antenna Type: Internal Antenna
Antenna gain: -1.25dBi
Max power:30dBm
