Automotive Data Solutions TR3450AF CAR ALARM (TWO WAY) User Manual

Automotive Data Solutions Inc. CAR ALARM (TWO WAY)

user manual

OWNER’S MANUAL®2016/06hc3

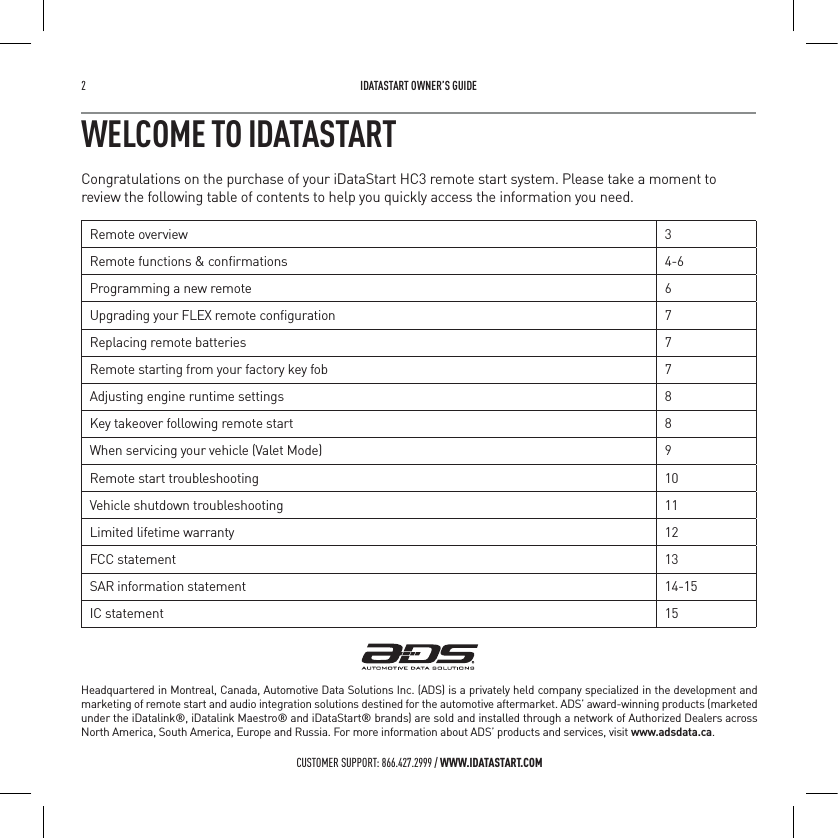

2 IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMWELCOME TO IDATASTARTCongratulations on the purchase of your iDataStart HC3 remote start system. Please take a moment to review the following table of contents to help you quickly access the information you need.Remote overview 3Remote functions & confirmations 4-6Programming a new remote 6Upgrading your FLEX remote configuration 7Replacing remote batteries 7Remote starting from your factory key fob 7Adjusting engine runtime settings 8Key takeover following remote start 8When servicing your vehicle (Valet Mode) 9Remote start troubleshooting 10Vehicle shutdown troubleshooting 11Limited lifetime warranty 12FCC statement 13SAR information statement 14-15IC statement 15Headquartered in Montreal, Canada, Automotive Data Solutions Inc. (ADS) is a privately held company specialized in the development and marketing of remote start and audio integration solutions destined for the automotive aftermarket. ADS’ award-winning products (marketed under the iDatalink®, iDatalink Maestro® and iDataStart® brands) are sold and installed through a network of Authorized Dealers across North America, South America, Europe and Russia. For more information about ADS’ products and services, visit www.adsdata.ca.

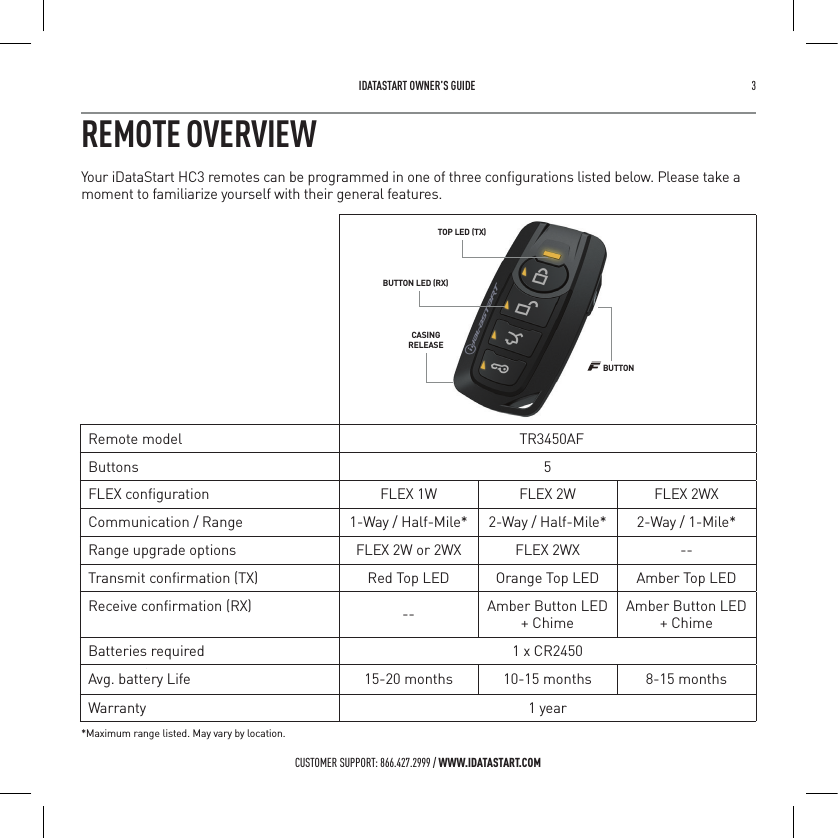

IDATASTART OWNER’S GUIDE 3 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMRemote model TR3450AFButtons 5FLEX configuration FLEX 1W FLEX 2W FLEX 2WXCommunication / Range 1-Way / Half-Mile* 2-Way / Half-Mile* 2-Way / 1-Mile*Range upgrade options FLEX 2W or 2WX FLEX 2WX --Transmit confirmation (TX) Red Top LED Orange Top LED Amber Top LEDReceive confirmation (RX) -- Amber Button LED+ ChimeAmber Button LED+ ChimeBatteries required 1 x CR2450Avg. battery Life 15-20 months 10-15 months 8-15 monthsWarranty 1 yearREMOTE OVERVIEWYour iDataStart HC3 remotes can be programmed in one of three configurations listed below. Please take a moment to familiarize yourself with their general features.TOP LED (TX)BUTTON LED (RX)BUTTONCASINGRELEASE*Maximum range listed. May vary by location.

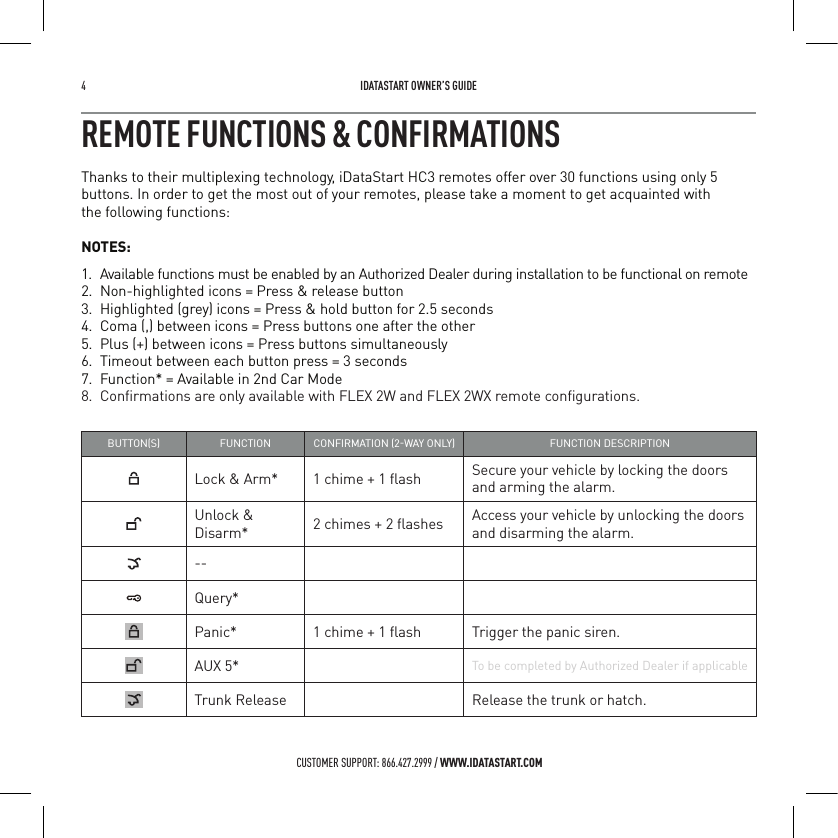

4 IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMREMOTE FUNCTIONS & CONFIRMATIONSThanks to their multiplexing technology, iDataStart HC3 remotes offer over 30 functions using only 5 buttons. In order to get the most out of your remotes, please take a moment to get acquainted with the following functions:NOTES:1. Available functions must be enabled by an Authorized Dealer during installation to be functional on remote2. Non-highlighted icons = Press & release button3. Highlighted (grey) icons = Press & hold button for 2.5 seconds4. Coma (,) between icons = Press buttons one after the other5. Plus (+) between icons = Press buttons simultaneously6. Timeout between each button press = 3 seconds7. Function* = Available in 2nd Car Mode8. Confirmations are only available with FLEX 2W and FLEX 2WX remote configurations.BUTTONS FUNCTION CONFIRMATION 2WAY ONLY FUNCTION DESCRIPTION Lock & Arm* 1 chime + 1 flash Secure your vehicle by locking the doors and arming the alarm. Unlock & Disarm* 2 chimes + 2 flashes Access your vehicle by unlocking the doors and disarming the alarm. --Query*Panic* 1 chime + 1 flash Trigger the panic siren.AUX 5* To be completed by Authorized Dealer if applicableTrunk Release Release the trunk or hatch.

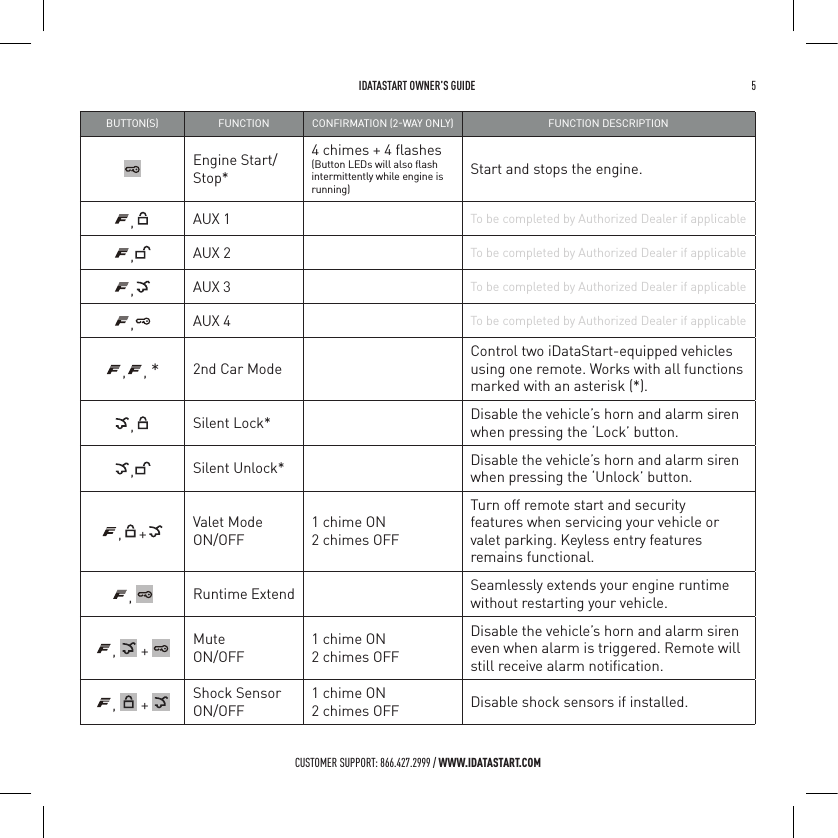

IDATASTART OWNER’S GUIDE 5 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMBUTTONS FUNCTION CONFIRMATION 2WAY ONLY FUNCTION DESCRIPTION Engine Start/Stop*4 chimes + 4 flashes(Button LEDs will also flash intermittently while engine is running)Start and stops the engine. ,AUX 1 To be completed by Authorized Dealer if applicable,AUX 2 To be completed by Authorized Dealer if applicable,AUX 3 To be completed by Authorized Dealer if applicable,AUX 4 To be completed by Authorized Dealer if applicable, , *2nd Car ModeControl two iDataStart-equipped vehicles using one remote. Works with all functions marked with an asterisk (*).,Silent Lock* Disable the vehicle’s horn and alarm siren when pressing the ‘Lock’ button.,Silent Unlock* Disable the vehicle’s horn and alarm siren when pressing the ‘Unlock’ button., + Valet Mode ON/OFF1 chime ON2 chimes OFFTurn off remote start and security features when servicing your vehicle or valet parking. Keyless entry features remains functional., Runtime Extend Seamlessly extends your engine runtime without restarting your vehicle., + Mute ON/OFF1 chime ON2 chimes OFFDisable the vehicle’s horn and alarm siren even when alarm is triggered. Remote will still receive alarm notification., + Shock Sensor ON/OFF1 chime ON2 chimes OFF Disable shock sensors if installed.

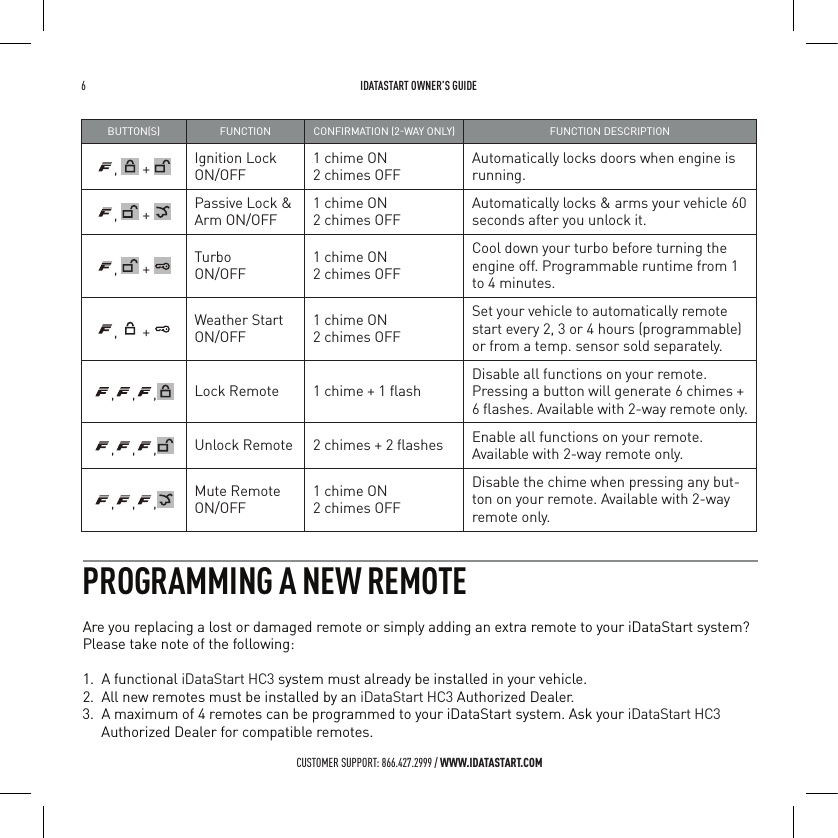

6 IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMBUTTONS FUNCTION CONFIRMATION 2WAY ONLY FUNCTION DESCRIPTION , + Ignition Lock ON/OFF1 chime ON2 chimes OFFAutomatically locks doors when engine is running., + Passive Lock & Arm ON/OFF1 chime ON2 chimes OFFAutomatically locks & arms your vehicle 60 seconds after you unlock it., + Turbo ON/OFF1 chime ON2 chimes OFFCool down your turbo before turning the engine off. Programmable runtime from 1 to 4 minutes., + Weather Start ON/OFF1 chime ON2 chimes OFFSet your vehicle to automatically remote start every 2, 3 or 4 hours (programmable) or from a temp. sensor sold separately.,,, Lock Remote 1 chime + 1 flashDisable all functions on your remote. Pressing a button will generate 6 chimes + 6 flashes. Available with 2-way remote only.,,, Unlock Remote 2 chimes + 2 flashes Enable all functions on your remote. Available with 2-way remote only.,,, Mute Remote ON/OFF1 chime ON2 chimes OFFDisable the chime when pressing any but-ton on your remote. Available with 2-way remote only.PROGRAMMING A NEW REMOTEAre you replacing a lost or damaged remote or simply adding an extra remote to your iDataStart system? Please take note of the following: 1. A functional iDataStart HC3 system must already be installed in your vehicle.2. All new remotes must be installed by an iDataStart HC3 Authorized Dealer.3. A maximum of 4 remotes can be programmed to your iDataStart system. Ask your iDataStart HC3 Authorized Dealer for compatible remotes.

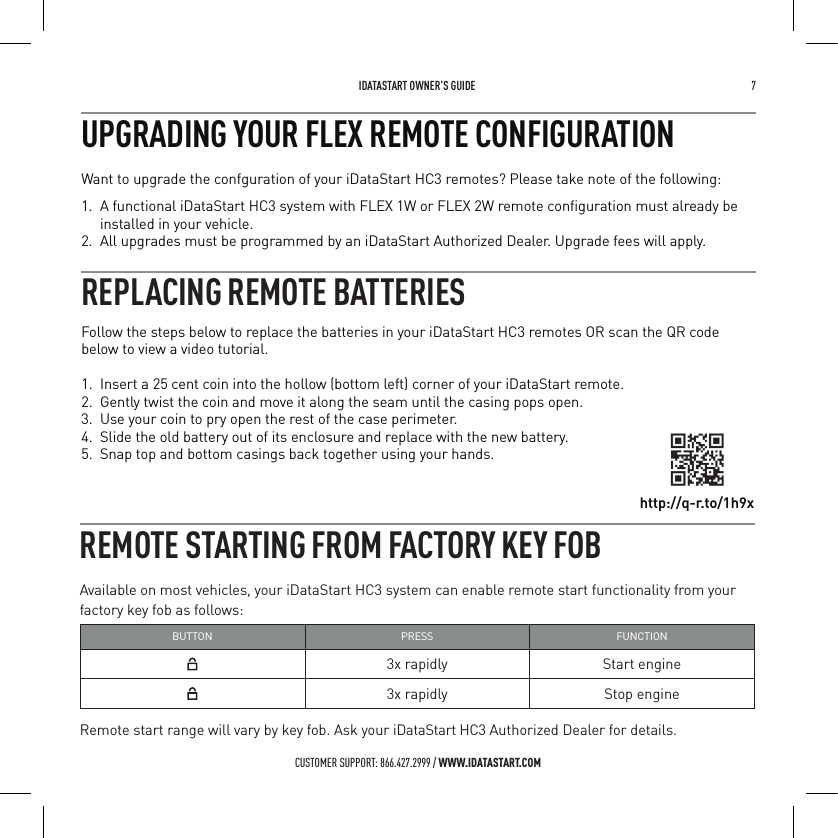

IDATASTART OWNER’S GUIDE 7 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMUPGRADING YOUR FLEX REMOTE CONFIGURATION Want to upgrade the confguration of your iDataStart HC3 remotes? Please take note of the following:1. A functional iDataStart HC3 system with FLEX 1W or FLEX 2W remote configuration must already be installed in your vehicle.2. All upgrades must be programmed by an iDataStart Authorized Dealer. Upgrade fees will apply.REMOTE STARTING FROM FACTORY KEY FOBAvailable on most vehicles, your iDataStart HC3 system can enable remote start functionality from your factory key fob as follows:BUTTON PRESS FUNCTION3x rapidly Start engine3x rapidly Stop engineRemote start range will vary by key fob. Ask your iDataStart HC3 Authorized Dealer for details.Follow the steps below to replace the batteries in your iDataStart HC3 remotes OR scan the QR code below to view a video tutorial. 1. Insert a 25 cent coin into the hollow (bottom left) corner of your iDataStart remote.2. Gently twist the coin and move it along the seam until the casing pops open.3. Use your coin to pry open the rest of the case perimeter.4. Slide the old battery out of its enclosure and replace with the new battery.5. Snap top and bottom casings back together using your hands.REPLACING REMOTE BATTERIEShttp://q-r.to/1h9x

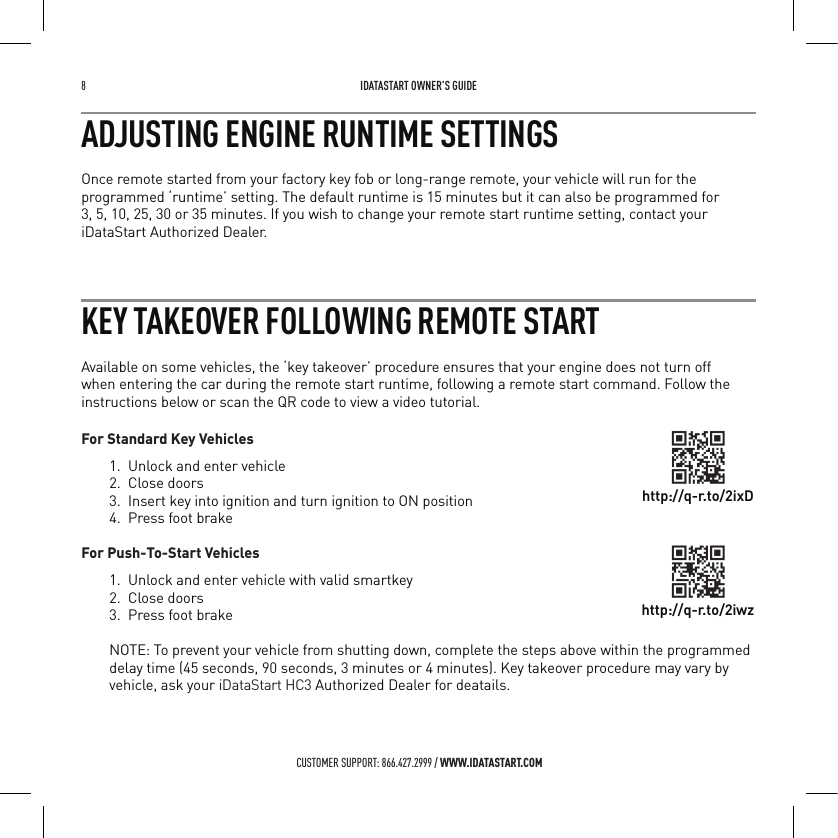

8 IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMADJUSTING ENGINE RUNTIME SETTINGSOnce remote started from your factory key fob or long-range remote, your vehicle will run for the programmed ‘runtime’ setting. The default runtime is 15 minutes but it can also be programmed for 3, 5, 10, 25, 30 or 35 minutes. If you wish to change your remote start runtime setting, contact your iDataStart Authorized Dealer.KEY TAKEOVER FOLLOWING REMOTE STARTAvailable on some vehicles, the ‘key takeover’ procedure ensures that your engine does not turn off when entering the car during the remote start runtime, following a remote start command. Follow the instructions below or scan the QR code to view a video tutorial.For Standard Key Vehicles1. Unlock and enter vehicle2. Close doors3. Insert key into ignition and turn ignition to ON position4. Press foot brake For Push-To-Start Vehicles1. Unlock and enter vehicle with valid smartkey2. Close doors3. Press foot brakeNOTE: To prevent your vehicle from shutting down, complete the steps above within the programmed delay time (45 seconds, 90 seconds, 3 minutes or 4 minutes). Key takeover procedure may vary by vehicle, ask your iDataStart HC3 Authorized Dealer for deatails.http://q-r.to/2ixDhttp://q-r.to/2iwz
IDATASTART OWNER’S GUIDE 9 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMWHEN SERVICING YOUR VEHICLETo ensure safety during vehicle servicing, the remote starter must be placed in ‘Valet Mode’. The ‘Valet Mode’ will disable remote start functionality. To activate or deactivate the ‘Valet Mode’, follow the instructions below or scan the QR codes to view a video tutorial.With Vehicle Key FUNCTION ACTION # OF PARKING LIGHT FLASHESValet Mode ONCycle ignition OFF/ON 2x rapidly, then press brake 3x.1Valet Mode OFF 2With iDataStart RemoteFUNCTION ACTION # OF PARKING LIGHT FLASHESValet Mode ON Turn ignition ON, then press , + 1Valet Mode OFF 2With iDataStart Antenna FUNCTION ACTION # OF LED & PARKING LIGHT FLASHESValet Mode ONTurn ignition ON, then press & hold button for 5 seconds1Valet Mode OFF 2 http://q-r.to/2aDQhttp://q-r.to/244hhttp://q-r.to/1pmn

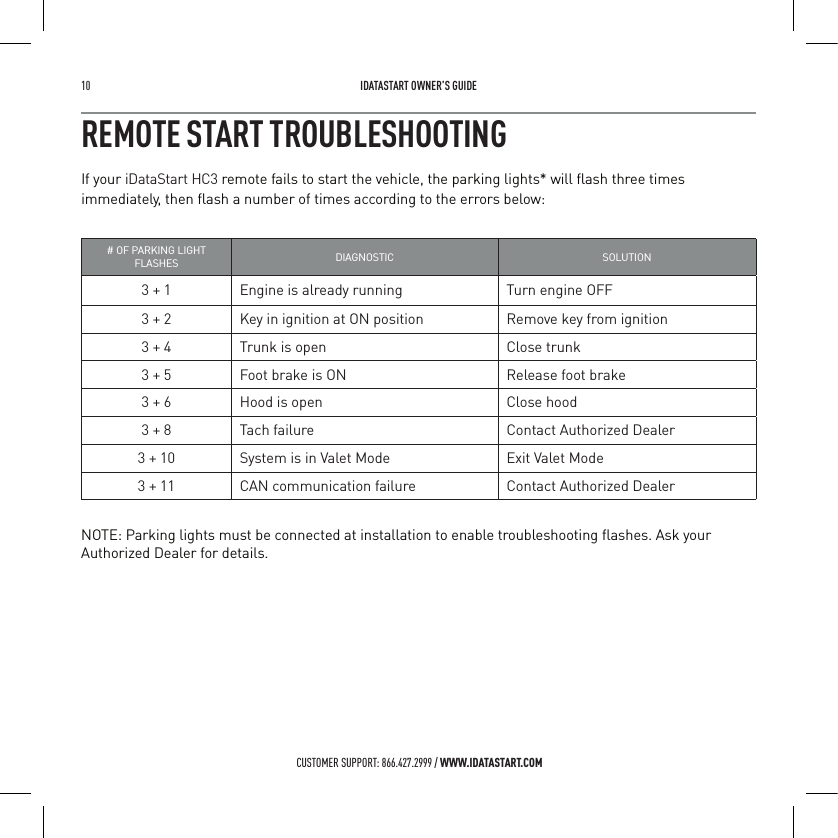

10 IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMREMOTE START TROUBLESHOOTINGIf your iDataStart HC3 remote fails to start the vehicle, the parking lights* will flash three times immediately, then flash a number of times according to the errors below:# OF PARKING LIGHT FLASHES DIAGNOSTIC SOLUTION3 + 1 Engine is already running Turn engine OFF3 + 2 Key in ignition at ON position Remove key from ignition3 + 4 Trunk is open Close trunk3 + 5 Foot brake is ON Release foot brake3 + 6 Hood is open Close hood3 + 8 Tach failure Contact Authorized Dealer3 + 10 System is in Valet Mode Exit Valet Mode3 + 11 CAN communication failure Contact Authorized DealerNOTE: Parking lights must be connected at installation to enable troubleshooting flashes. Ask your Authorized Dealer for details.

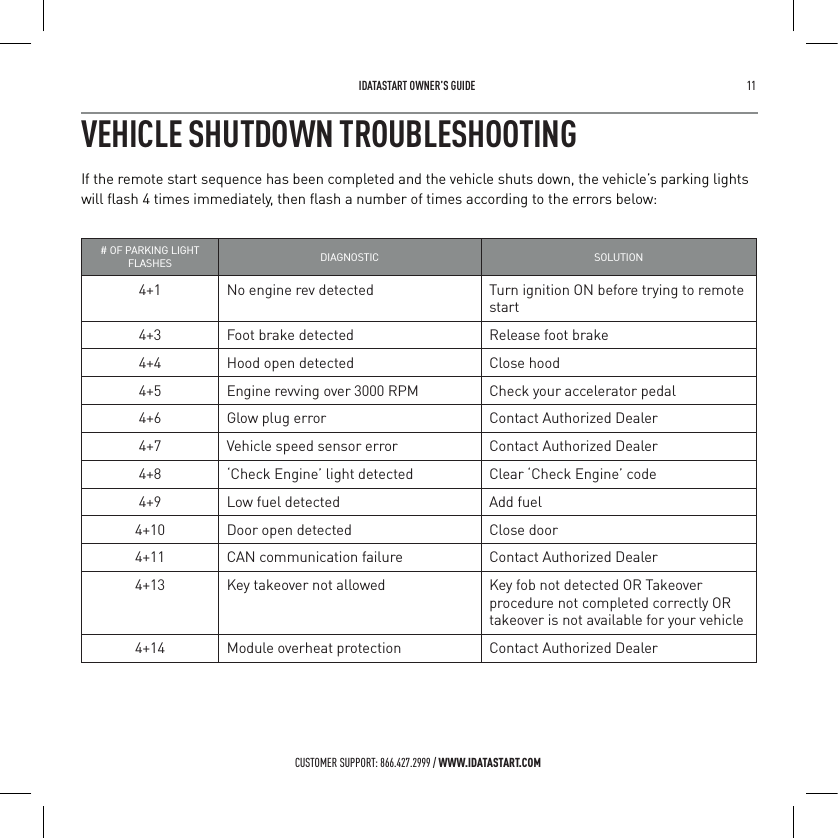

IDATASTART OWNER’S GUIDE 11 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMVEHICLE SHUTDOWN TROUBLESHOOTINGIf the remote start sequence has been completed and the vehicle shuts down, the vehicle’s parking lights will flash 4 times immediately, then flash a number of times according to the errors below:# OF PARKING LIGHT FLASHES DIAGNOSTIC SOLUTION4+1 No engine rev detected Turn ignition ON before trying to remote start4+3 Foot brake detected Release foot brake4+4 Hood open detected Close hood4+5 Engine revving over 3000 RPM Check your accelerator pedal4+6 Glow plug error Contact Authorized Dealer4+7 Vehicle speed sensor error Contact Authorized Dealer4+8 ‘Check Engine’ light detected Clear ‘Check Engine’ code4+9 Low fuel detected Add fuel4+10 Door open detected Close door4+11 CAN communication failure Contact Authorized Dealer4+13 Key takeover not allowed Key fob not detected OR Takeover procedure not completed correctly OR takeover is not available for your vehicle4+14 Module overheat protection Contact Authorized Dealer

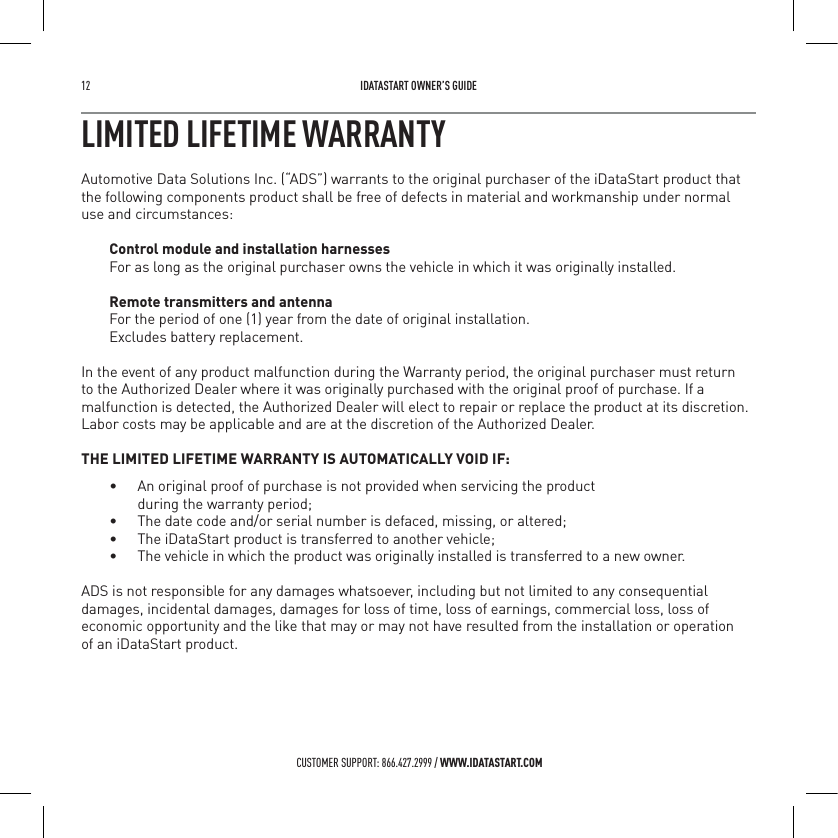

12 IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMLIMITED LIFETIME WARRANTYAutomotive Data Solutions Inc. (“ADS”) warrants to the original purchaser of the iDataStart product that the following components product shall be free of defects in material and workmanship under normal use and circumstances:Control module and installation harnessesFor as long as the original purchaser owns the vehicle in which it was originally installed.Remote transmitters and antennaFor the period of one (1) year from the date of original installation. Excludes battery replacement. In the event of any product malfunction during the Warranty period, the original purchaser must return to the Authorized Dealer where it was originally purchased with the original proof of purchase. If a malfunction is detected, the Authorized Dealer will elect to repair or replace the product at its discretion. Labor costs may be applicable and are at the discretion of the Authorized Dealer. THE LIMITED LIFETIME WARRANTY IS AUTOMATICALLY VOID IF:• An original proof of purchase is not provided when servicing the product during the warranty period;• The date code and/or serial number is defaced, missing, or altered;• The iDataStart product is transferred to another vehicle;• The vehicle in which the product was originally installed is transferred to a new owner.ADS is not responsible for any damages whatsoever, including but not limited to any consequential damages, incidental damages, damages for loss of time, loss of earnings, commercial loss, loss of economic opportunity and the like that may or may not have resulted from the installation or operation of an iDataStart product.

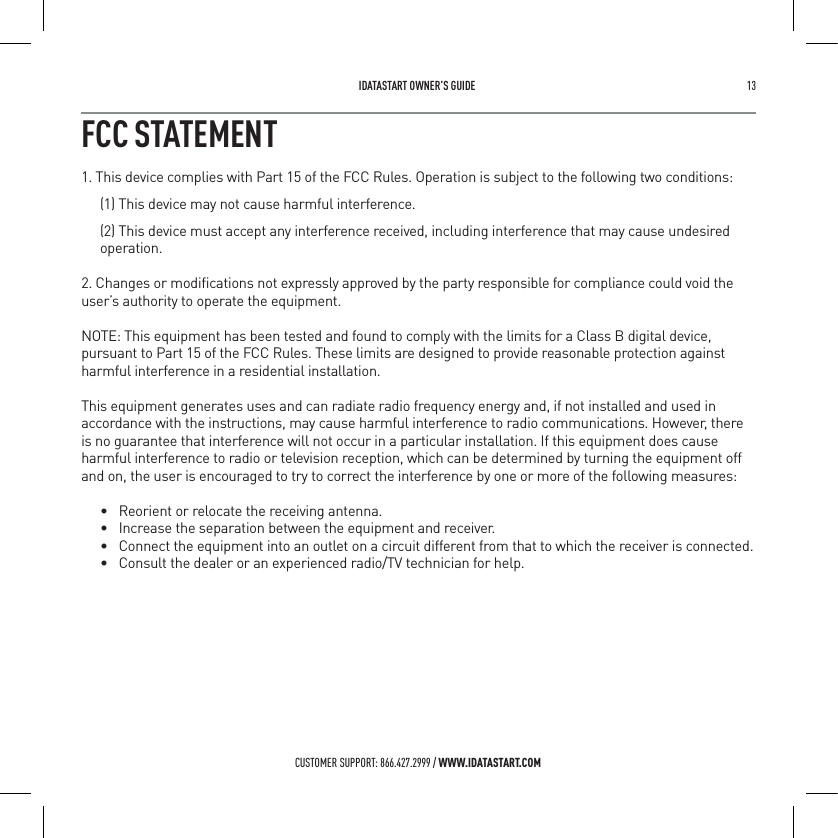

IDATASTART OWNER’S GUIDE 13 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMFCC STATEMENT1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

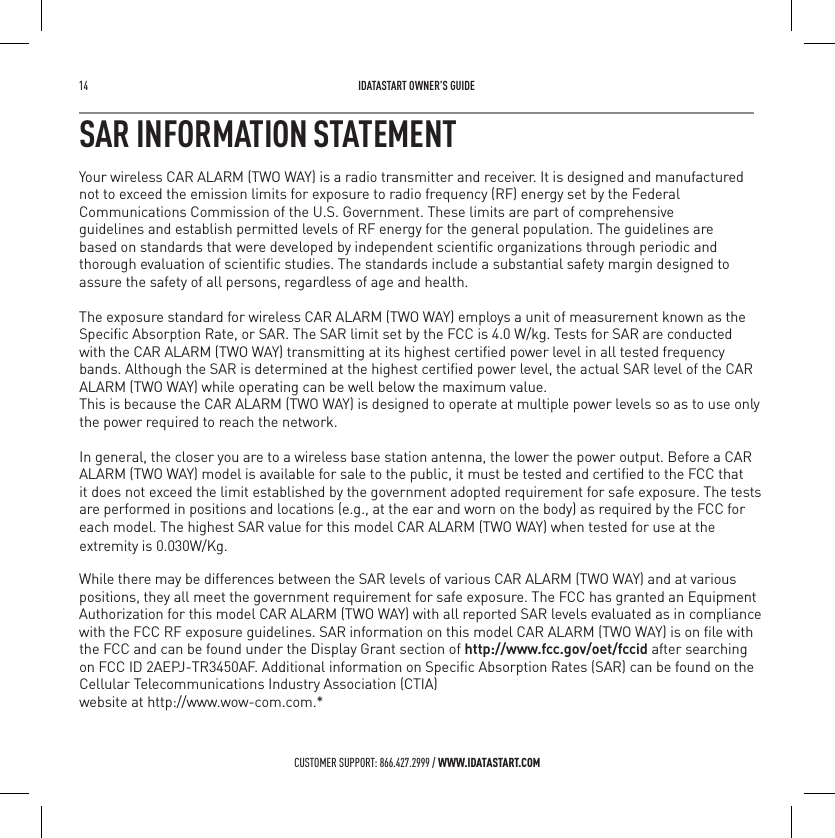

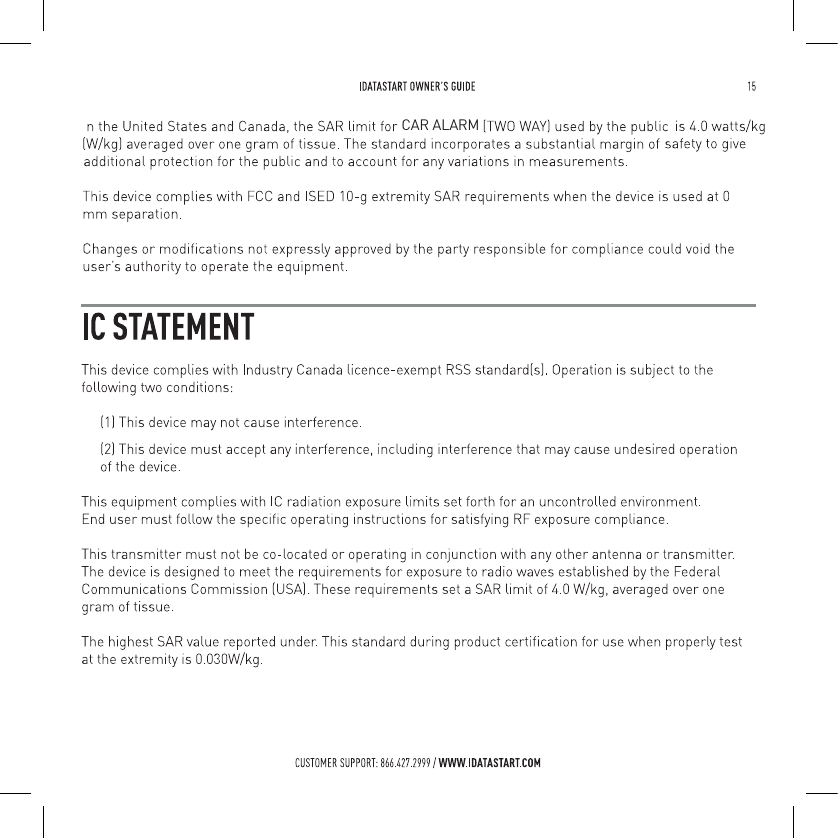

14 IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMSAR INFORMATION STATEMENTYour wireless CAR ALARM (TWO WAY) is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless CAR ALARM (TWO WAY) employs a unit of measurement known as theSpecific Absorption Rate, or SAR. The SAR limit set by the FCC is 4.0 W/kg. Tests for SAR are conducted with the CAR ALARM (TWO WAY) transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the CAR ALARM (TWO WAY) while operating can be well below the maximum value. This is because the CAR ALARM (TWO WAY) is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a CAR it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model CAR ALARM (TWO WAY) when tested for use at the While there may be differences between the SAR levels of various CAR ALARM (TWO WAY) and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model CAR ALARM (TWO WAY) with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model CAR ALARM (TWO WAY) is on file with on FCC ID 2AEPJ-TR3450AF. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) website at http://www.wow-com.com.* ALARM (TWO WAY) model is available for sale to the public, it must be tested and certified to the FCC that the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching extremity is 0.030W/Kg.
CAR ALARM

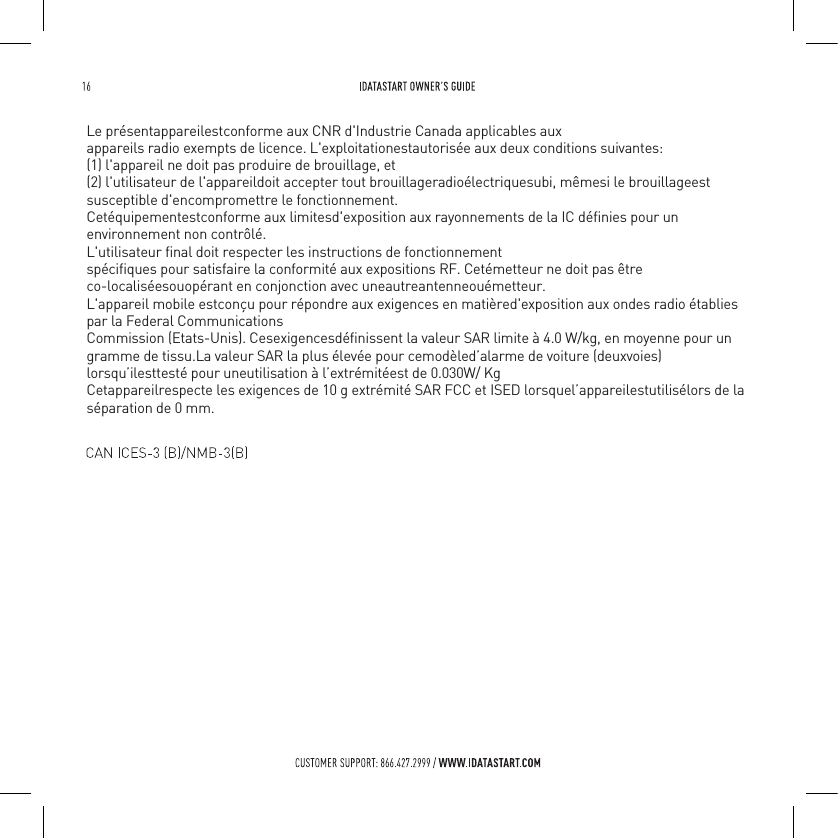

Le présentappareilestconforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes:(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageestsusceptible d'encompromettre le fonctionnement.Cetéquipementestconforme aux limitesd'exposition aux rayonnements de la IC définies pour un environnement non contrôlé. L'utilisateur final doit respecter les instructions de fonctionnementspécifiques pour satisfaire la conformité aux expositions RF. Cetémetteur ne doit pas être co-localiséesouopérant en conjonction avec uneautreantenneouémetteur.L'appareil mobile estconçu pour répondre aux exigences en matièred'exposition aux ondes radio établiespar la Federal CommunicationsCommission (Etats-Unis). Cesexigencesdéfinissent la valeur SAR limite à 4.0 W/kg, en moyenne pour ungramme de tissu.La valeur SAR la plus élevée pour cemodèled’alarme de voiture (deuxvoies) lorsqu’ilesttesté pour uneutilisation à l’extrémitéest de 0.030W/ KgCetappareilrespecte les exigences de 10 g extrémité SAR FCC et ISED lorsquel’appareilestutilisélors de la séparation de 0 mm.
®CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMhc32016/062016/06
