Automotive Data Solutions TR3450AF CAR ALARM (TWO WAY) User Manual
Automotive Data Solutions Inc. CAR ALARM (TWO WAY)
user manual
OWNER’S MANUAL
®
2016/06
hc3
2 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
WELCOME TO IDATASTART
Congratulations on the purchase of your iDataStart HC3 remote start system. Please take a moment to
review the following table of contents to help you quickly access the information you need.
Remote overview 3
Remote functions & confirmations 4-6
Programming a new remote 6
Upgrading your FLEX remote configuration 7
Replacing remote batteries 7
Remote starting from your factory key fob 7
Adjusting engine runtime settings 8
Key takeover following remote start 8
When servicing your vehicle (Valet Mode) 9
Remote start troubleshooting 10
Vehicle shutdown troubleshooting 11
Limited lifetime warranty 12
FCC statement 13
SAR information statement 14-15
IC statement 15
Headquartered in Montreal, Canada, Automotive Data Solutions Inc. (ADS) is a privately held company specialized in the development and
marketing of remote start and audio integration solutions destined for the automotive aftermarket. ADS’ award-winning products (marketed
under the iDatalink®, iDatalink Maestro® and iDataStart® brands) are sold and installed through a network of Authorized Dealers across
North America, South America, Europe and Russia. For more information about ADS’ products and services, visit www.adsdata.ca.
IDATASTART OWNER’S GUIDE 3
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
Remote model TR3450AF
Buttons 5
FLEX configuration FLEX 1W FLEX 2W FLEX 2WX
Communication / Range 1-Way / Half-Mile* 2-Way / Half-Mile* 2-Way / 1-Mile*
Range upgrade options FLEX 2W or 2WX FLEX 2WX --
Transmit confirmation (TX) Red Top LED Orange Top LED Amber Top LED
Receive confirmation (RX) -- Amber Button LED
+ Chime
Amber Button LED
+ Chime
Batteries required 1 x CR2450
Avg. battery Life 15-20 months 10-15 months 8-15 months
Warranty 1 year

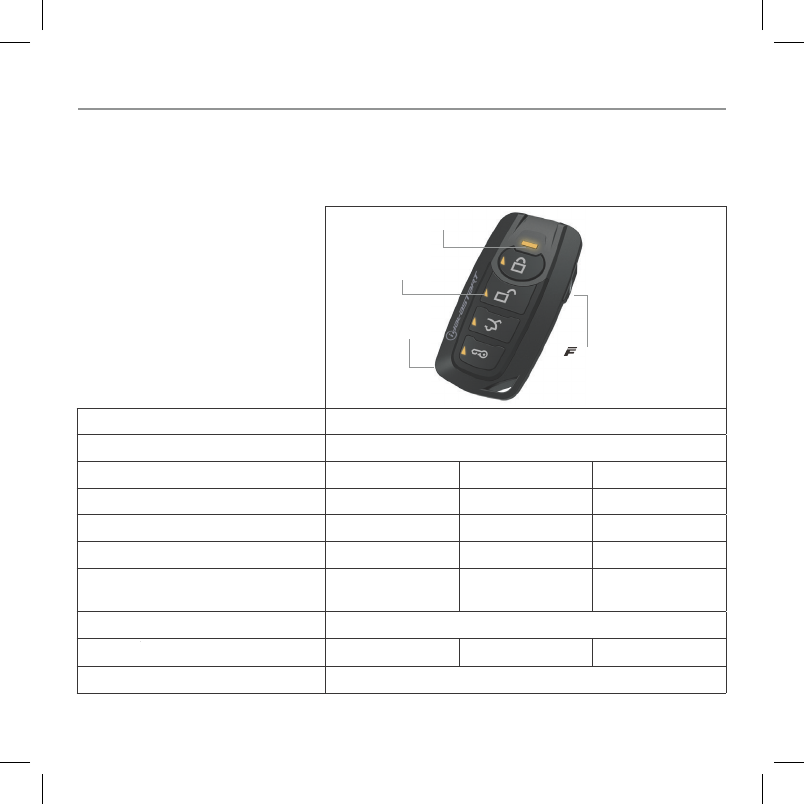

REMOTE OVERVIEW
Your iDataStart HC3 remotes can be programmed in one of three configurations listed below. Please take a
moment to familiarize yourself with their general features.
TOP LED (TX)
BUTTON LED (RX)
BUTTON
CASING
RELEASE
*Maximum range listed. May vary by location.
4 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
REMOTE FUNCTIONS & CONFIRMATIONS
Thanks to their multiplexing technology, iDataStart HC3 remotes offer over 30 functions using only 5
buttons. In order to get the most out of your remotes, please take a moment to get acquainted with
the following functions:
NOTES:
1. Available functions must be enabled by an Authorized Dealer during installation to be functional on remote
2. Non-highlighted icons = Press & release button
3. Highlighted (grey) icons = Press & hold button for 2.5 seconds
4. Coma (,) between icons = Press buttons one after the other
5. Plus (+) between icons = Press buttons simultaneously
6. Timeout between each button press = 3 seconds
7. Function* = Available in 2nd Car Mode
8. Confirmations are only available with FLEX 2W and FLEX 2WX remote configurations.
BUTTONS FUNCTION CONFIRMATION 2WAY ONLY FUNCTION DESCRIPTION
Lock & Arm* 1 chime + 1 flash Secure your vehicle by locking the doors
and arming the alarm.
Unlock &
Disarm* 2 chimes + 2 flashes Access your vehicle by unlocking the doors
and disarming the alarm.
--
Query*
Panic* 1 chime + 1 flash Trigger the panic siren.
AUX 5* To be completed by Authorized Dealer if applicable
Trunk Release Release the trunk or hatch.
IDATASTART OWNER’S GUIDE 5
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
BUTTONS FUNCTION CONFIRMATION 2WAY ONLY FUNCTION DESCRIPTION
Engine Start/
Stop*
4 chimes + 4 flashes
(Button LEDs will also flash
intermittently while engine is
running)
Start and stops the engine.
,AUX 1 To be completed by Authorized Dealer if applicable
,AUX 2 To be completed by Authorized Dealer if applicable
,AUX 3 To be completed by Authorized Dealer if applicable
,AUX 4 To be completed by Authorized Dealer if applicable
, , *2nd Car Mode
Control two iDataStart-equipped vehicles
using one remote. Works with all functions
marked with an asterisk (*).
,Silent Lock* Disable the vehicle’s horn and alarm siren
when pressing the ‘Lock’ button.
,Silent Unlock* Disable the vehicle’s horn and alarm siren
when pressing the ‘Unlock’ button.
, + Valet Mode
ON/OFF
1 chime ON
2 chimes OFF
Turn off remote start and security
features when servicing your vehicle or
valet parking. Keyless entry features
remains functional.
, Runtime Extend Seamlessly extends your engine runtime
without restarting your vehicle.
, + Mute
ON/OFF
1 chime ON
2 chimes OFF
Disable the vehicle’s horn and alarm siren
even when alarm is triggered. Remote will
still receive alarm notification.
, + Shock Sensor
ON/OFF
1 chime ON
2 chimes OFF Disable shock sensors if installed.
6 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
BUTTONS FUNCTION CONFIRMATION 2WAY ONLY FUNCTION DESCRIPTION
, + Ignition Lock
ON/OFF
1 chime ON
2 chimes OFF
Automatically locks doors when engine is
running.
, + Passive Lock &
Arm ON/OFF
1 chime ON
2 chimes OFF
Automatically locks & arms your vehicle 60
seconds after you unlock it.
, + Turbo
ON/OFF
1 chime ON
2 chimes OFF
Cool down your turbo before turning the
engine off. Programmable runtime from 1
to 4 minutes.
, + Weather Start
ON/OFF
1 chime ON
2 chimes OFF
Set your vehicle to automatically remote
start every 2, 3 or 4 hours (programmable)
or from a temp. sensor sold separately.
,,, Lock Remote 1 chime + 1 flash
Disable all functions on your remote.
Pressing a button will generate 6 chimes +
6 flashes. Available with 2-way remote only.
,,, Unlock Remote 2 chimes + 2 flashes Enable all functions on your remote.
Available with 2-way remote only.
,,, Mute Remote
ON/OFF
1 chime ON
2 chimes OFF
Disable the chime when pressing any but-
ton on your remote. Available with 2-way
remote only.
PROGRAMMING A NEW REMOTE
Are you replacing a lost or damaged remote or simply adding an extra remote to your iDataStart system?
Please take note of the following:
1. A functional
iDataStart HC3
system must already be installed in your vehicle.
2. All new remotes must be installed by an
iDataStart HC3
Authorized Dealer.
3. A maximum of 4 remotes can be programmed to your iDataStart system. Ask your
iDataStart HC3
Authorized Dealer for compatible remotes.
IDATASTART OWNER’S GUIDE 7
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
UPGRADING YOUR FLEX REMOTE CONFIGURATION
Want to upgrade the confguration of your iDataStart HC3 remotes? Please take note of the following:
1. A functional iDataStart HC3 system with FLEX 1W or FLEX 2W remote configuration must already be
installed in your vehicle.
2. All upgrades must be programmed by an iDataStart Authorized Dealer. Upgrade fees will apply.
REMOTE STARTING FROM FACTORY KEY FOB
Available on most vehicles, your iDataStart HC3 system can enable remote start functionality from your
factory key fob as follows:
BUTTON PRESS FUNCTION
3x rapidly Start engine
3x rapidly Stop engine
Remote start range will vary by key fob. Ask your
iDataStart HC3
Authorized Dealer for details.
Follow the steps below to replace the batteries in your iDataStart HC3 remotes OR scan the QR code
below to view a video tutorial.
1. Insert a 25 cent coin into the hollow (bottom left) corner of your iDataStart remote.
2. Gently twist the coin and move it along the seam until the casing pops open.
3. Use your coin to pry open the rest of the case perimeter.
4. Slide the old battery out of its enclosure and replace with the new battery.
5. Snap top and bottom casings back together using your hands.
REPLACING REMOTE BATTERIES
http://q-r.to/1h9x
8 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
ADJUSTING ENGINE RUNTIME SETTINGS
Once remote started from your factory key fob or long-range remote, your vehicle will run for the
programmed ‘runtime’ setting. The default runtime is 15 minutes but it can also be programmed for
3, 5, 10, 25, 30 or 35 minutes. If you wish to change your remote start runtime setting, contact your
iDataStart Authorized Dealer.
KEY TAKEOVER FOLLOWING REMOTE START
Available on some vehicles, the ‘key takeover’ procedure ensures that your engine does not turn off
when entering the car during the remote start runtime, following a remote start command. Follow the
instructions below or scan the QR code to view a video tutorial.
For Standard Key Vehicles
1. Unlock and enter vehicle
2. Close doors
3. Insert key into ignition and turn ignition to ON position
4. Press foot brake
For Push-To-Start Vehicles
1. Unlock and enter vehicle with valid smartkey
2. Close doors
3. Press foot brake
NOTE: To prevent your vehicle from shutting down, complete the steps above within the programmed
delay time (45 seconds, 90 seconds, 3 minutes or 4 minutes). Key takeover procedure may vary by
vehicle, ask your
iDataStart HC3
Authorized Dealer for deatails.
http://q-r.to/2ixD
http://q-r.to/2iwz
IDATASTART OWNER’S GUIDE 9
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
WHEN SERVICING YOUR VEHICLE
To ensure safety during vehicle servicing, the remote starter must be placed in ‘Valet Mode’. The ‘Valet
Mode’ will disable remote start functionality. To activate or deactivate the ‘Valet Mode’, follow the
instructions below or scan the QR codes to view a video tutorial.
With Vehicle Key
FUNCTION ACTION # OF PARKING LIGHT FLASHES
Valet Mode ON
Cycle ignition OFF/ON 2x rapidly,
then press brake 3x.
1
Valet Mode OFF 2
With iDataStart Remote
FUNCTION ACTION # OF PARKING LIGHT FLASHES
Valet Mode ON Turn ignition ON, then press
, +
1
Valet Mode OFF 2
With iDataStart Antenna
FUNCTION ACTION # OF LED & PARKING LIGHT
FLASHES
Valet Mode ON
Turn ignition ON, then press
& hold button for 5 seconds
1
Valet Mode OFF 2
http://q-r.to/2aDQ
http://q-r.to/244h
http://q-r.to/1pmn
10 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
REMOTE START TROUBLESHOOTING
If your
iDataStart HC3
remote fails to start the vehicle, the parking lights* will flash three times
immediately, then flash a number of times according to the errors below:
# OF PARKING LIGHT
FLASHES DIAGNOSTIC SOLUTION
3 + 1 Engine is already running Turn engine OFF
3 + 2 Key in ignition at ON position Remove key from ignition
3 + 4 Trunk is open Close trunk
3 + 5 Foot brake is ON Release foot brake
3 + 6 Hood is open Close hood
3 + 8 Tach failure Contact Authorized Dealer
3 + 10 System is in Valet Mode Exit Valet Mode
3 + 11 CAN communication failure Contact Authorized Dealer
NOTE: Parking lights must be connected at installation to enable troubleshooting flashes. Ask your
Authorized Dealer for details.
IDATASTART OWNER’S GUIDE 11
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
VEHICLE SHUTDOWN TROUBLESHOOTING
If the remote start sequence has been completed and the vehicle shuts down, the vehicle’s parking lights
will flash 4 times immediately, then flash a number of times according to the errors below:
# OF PARKING LIGHT
FLASHES DIAGNOSTIC SOLUTION
4+1 No engine rev detected Turn ignition ON before trying to remote
start
4+3 Foot brake detected Release foot brake
4+4 Hood open detected Close hood
4+5 Engine revving over 3000 RPM Check your accelerator pedal
4+6 Glow plug error Contact Authorized Dealer
4+7 Vehicle speed sensor error Contact Authorized Dealer
4+8 ‘Check Engine’ light detected Clear ‘Check Engine’ code
4+9 Low fuel detected Add fuel
4+10 Door open detected Close door
4+11 CAN communication failure Contact Authorized Dealer
4+13 Key takeover not allowed Key fob not detected OR Takeover
procedure not completed correctly OR
takeover is not available for your vehicle
4+14 Module overheat protection Contact Authorized Dealer
12 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
LIMITED LIFETIME WARRANTY
Automotive Data Solutions Inc. (“ADS”) warrants to the original purchaser of the iDataStart product that
the following components product shall be free of defects in material and workmanship under normal
use and circumstances:
Control module and installation harnesses
For as long as the original purchaser owns the vehicle in which it was originally installed.
Remote transmitters and antenna
For the period of one (1) year from the date of original installation.
Excludes battery replacement.
In the event of any product malfunction during the Warranty period, the original purchaser must return
to the Authorized Dealer where it was originally purchased with the original proof of purchase. If a
malfunction is detected, the Authorized Dealer will elect to repair or replace the product at its discretion.
Labor costs may be applicable and are at the discretion of the Authorized Dealer.
THE LIMITED LIFETIME WARRANTY IS AUTOMATICALLY VOID IF:
• An original proof of purchase is not provided when servicing the product
during the warranty period;
• The date code and/or serial number is defaced, missing, or altered;
• The iDataStart product is transferred to another vehicle;
• The vehicle in which the product was originally installed is transferred to a new owner.
ADS is not responsible for any damages whatsoever, including but not limited to any consequential
damages, incidental damages, damages for loss of time, loss of earnings, commercial loss, loss of
economic opportunity and the like that may or may not have resulted from the installation or operation
of an iDataStart product.
IDATASTART OWNER’S GUIDE 13
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
14 IDATASTART OWNER’S GUIDE
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
SAR INFORMATION STATEMENT
Your wireless CAR ALARM (TWO WAY) is a radio transmitter and receiver. It is designed and manufactured
not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general population. The guidelines are
based on standards that were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a substantial safety margin designed to
assure the safety of all persons, regardless of age and health.
The exposure standard for wireless CAR ALARM (TWO WAY) employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 4.0 W/kg. Tests for SAR are conducted
with the CAR ALARM (TWO WAY) transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the CAR
ALARM (TWO WAY) while operating can be well below the maximum value.
This is because the CAR ALARM (TWO WAY) is designed to operate at multiple power levels so as to use only
the power required to reach the network.
In general, the closer you are to a wireless base station antenna, the lower the power output. Before a CAR
it does not exceed the limit established by the government adopted requirement for safe exposure. The tests
are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for
each model. The highest SAR value for this model CAR ALARM (TWO WAY) when tested for use at the
While there may be differences between the SAR levels of various CAR ALARM (TWO WAY) and at various
positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment
Authorization for this model CAR ALARM (TWO WAY) with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this model CAR ALARM (TWO WAY) is on file with
on FCC ID 2AEPJ-TR3450AF. Additional information on Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Association (CTIA)
website at http://www.wow-com.com.*
ALARM (TWO WAY) model is available for sale to the public, it must be tested and certified to the FCC that
the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching
extremity is 0.030W/Kg.
CAR ALARM
Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest
susceptible d'encompromettre le fonctionnement.
Cetéquipementestconforme aux limitesd'exposition aux rayonnements de la IC définies pour un
environnement non contrôlé.
L'utilisateur final doit respecter les instructions de fonctionnement
spécifiques pour satisfaire la conformité aux expositions RF. Cetémetteur ne doit pas être
co-localiséesouopérant en conjonction avec uneautreantenneouémetteur.
L'appareil mobile estconçu pour répondre aux exigences en matièred'exposition aux ondes radio établies
par la Federal Communications
Commission (Etats-Unis). Cesexigencesdéfinissent la valeur SAR limite à 4.0 W/kg, en moyenne pour un
gramme de tissu.La valeur SAR la plus élevée pour cemodèled’alarme de voiture (deuxvoies)
lorsqu’ilesttesté pour uneutilisation à l’extrémitéest de 0.030W/ Kg
Cetappareilrespecte les exigences de 10 g extrémité SAR FCC et ISED lorsquel’appareilestutilisélors de la
séparation de 0 mm.
®
CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COM
hc
3
2016/062016/06
