UNII configuration guide
AB-Access Config & User Guide
version 5.5
July 27, 2004
Company Confidential
Axxcelera Broadband Wireless
175 Science Parkway
Rochester, New York 14620
support@axxcelera.com
www.axxcelera.com
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 2 of 129
1 Revision History
Version Date Author Comments
5.0 Jan 9, 02 Matt
Olson Updated for 5.0 system software
5.0 Jan 14, 2002 Joe Higgs Format edits
5.0 Feb 19, 2002 Matt
Olson More 5.0 updates
5.0 Feb 20, 2002 Matt
Olson Added sections from old UNII Config &
User Guide.
5.1 Dec 13, 2002 Matt
Olson Updated for the 5.1.8 System Software
& 5.1.6 EMS.
5.2.x Apr 17, 2003 Matt
Olson Updated for the 5.2.x System software.
5.3.x Sept 12, 2003 Matt
Olson Updated for the 5.3.x System software.
5.4 April 27, 2004 Michael
Wilkinson Updated for the ETSI standard
5.5 July 27, 2004 Joe Higgs Updated to include certain installation
warnings and advice
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 3 of 129
PLEASE READ THESE SAFETY PRECAUTIONS!
RF Energy Health Hazard
Professional installation required. The radio equipment described in this guide uses radio
frequency transmitters. Although the power level is low, the concentrated energy from a directional
antenna may pose a health hazard.
Use the following chart for determining the minimum safe distance. Do not allow
people to come within the minimum safe distance of the antenna while the transmitter is
operating.
Peak Gain of
Antenna Minimum
Safe Distance
18 dBi 20 cm
20 dBi 20 cm
23 dBi 25 cm
25 dBi 32 cm
30 dBi 56 cm
37.6 dBi 135 cm
Protection from Lightning
Article 810 of the US National Electric Department of Energy Handbook 1996 specifies that
radio and television lead-in cables must have adequate surge protection at or near the point of entry
to the building. The code specifies that any shielded cable from an external antenna must have the
shield directly connected to a 10 AWG wire that connects to the building ground electrode.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 4 of 129
FCC Notice, USA
The AB-Access units comply with Part 15 of the FCC rules. Operation is subject to the
following three conditions:
• This device may not cause harmful interference.
• This device must accept any interference received including interference that
may cause undesired operation.
• Units with support for an external antenna must be professionally installed.
This device is specifically designed to be used under Part 15, Subpart E of the FCC Rules and
Regulations. Any unauthorized modification or changes to this device without the express approval
of Axxcelera Broadband may void the user’s authority to operate this device. Furthermore, this
device is intended to be used only when installed in accordance with the instructions outlined in this
manual. Failure to comply with these instructions may also void the user’s authority to operate this
device and/or the manufacturer’s warranty
Conditions specific to AB-Extender:
AB-Extender complies with Part 15 of the FCC rules. The device is specifically designed to
be used under Part 15, Sub-part E of the FCC rules and regulations. Operation is subject to following
conditions:
• The device to utilize a fixed mount antenna, for use on a permanent outdoor
structure.
• The device to be installed by qualified installation/deployment personnel, and a
minimum of 25 centimeters of separation must exist between the device and
persons, when the device is operating.
• The device installers and operators should be aware of the transmitter operating
conditions, specified in the AB-Extender installation manual and other associated
user documentation, as well as the antenna co-location requirements of Part
1.1307 (b) (3), of FCC rules, pertaining to RF exposure.
• The device may not cause harmful interference.
• The device must accept interference received, including interference that may
cause undesired operation.
The device is intended to be used only when installed in accordance with instructions
outlined in this manual. Failure to comply with these instructions may void the user's authority to
operate this device and/or the manufacturer's warranty. Furthermore, any unauthorized modification
or changes to this device without the express approval of Axxcelera Broadband may also void the
user's authority to operate this device.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 5 of 129
Table of Contents
1
Revision History ......................................................................................................................2
PLEASE READ THESE SAFETY PRECAUTIONS!
...3
2 Document Overview ..............................................................................................................11
3 AB-Access Overview.............................................................................................................12
3.1 Topologies...................................................................................................................12
3.1.1 CLIP (RFC 1577)......................................................................................................12
3.1.2 1483 Bridging (RFC 1483)......................................................................................12
3.1.3 Native ATM..............................................................................................................12
3.1.4 PPPoA (RFC 2364)..................................................................................................12
4 AB-Access..............................................................................................................................13
4.1 Reference Model .........................................................................................................13
4.2 ATM Switch..................................................................................................................14
4.3 Subnetting ...................................................................................................................14
4.4 Peak Cell Rate - PCR ..................................................................................................14
4.5 SNMP............................................................................................................................15
4.6 Rupee...........................................................................................................................15
4.6.1 LINUX.......................................................................................................................16
4.6.2 DOS..........................................................................................................................16
4.6.3 Rupee Option Definitions ......................................................................................16
4.7 RTFD (Return To Factory Default).............................................................................17
4.7.1 RTFD IP Configurations.........................................................................................17
4.7.2 Recover ...................................................................................................................18
4.7.3 Procedure to restore the default configuration...................................................18
4.7.4 Disabling the RTFD Feature ..................................................................................18
4.8 Web Page.....................................................................................................................18
4.8.1 Radio Survey...........................................................................................................19
4.9 RF-Energy Scanning...................................................................................................20
4.10 Static Channel Scanning .......................................................................................21
4.11 PTP Power Control.................................................................................................22
5 RF Design and Planning .......................................................................................................23
5.1 Overview ......................................................................................................................23
5.2 The U-NII, ISM and ETSI Channel Plan......................................................................23
5.3 Air Interface.................................................................................................................23
5.4 Wireless MAC ..............................................................................................................24
5.4.1 Downstream burst..................................................................................................24
5.4.1.1 Access Point Turnaround Time (ATT)...............................................................24
5.4.1.2 Frame Descriptor Header (FDHDR)..................................................................24
5.4.1.3 Reservation Grant (RG) ....................................................................................24
5.4.1.4 Downstream Acknowledgement (DACK) ..........................................................25
5.4.1.5 Downstream Data Cells (DCELL) .....................................................................25
5.4.1.6 Subscriber Turnaround Time (STT) ..................................................................25
5.4.1.7 Reservation Request (RR) ................................................................................25
5.4.1.8 Upstream Acknowledgement (UACK)...............................................................25
5.4.1.9 Upstream Cell (UCELL/UCELLR) .....................................................................25
5.5 Delay Compensation ..................................................................................................25
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 6 of 129
5.6 RF Channels spacing and output power ..................................................................27
5.7 TDD (Time Division Duplex).......................................................................................27
5.8 AP and SU Specifications ..........................................................................................28
5.8.1 AP/SU/Extender Functional Block Diagram.........................................................28
5.8.2 Radio Specifications ..............................................................................................29
5.8.3 Subscriber Unit Antenna .......................................................................................30
5.8.4 Access Point Antenna............................................................................................31
5.8.5 Extender Antenna...................................................................................................32
5.9 Topology Types ..........................................................................................................33
5.10 Interference Types..................................................................................................34
5.10.1 Type 1 Interference.................................................................................................35
5.10.2 Type 2 Interference.................................................................................................35
5.10.3 Type 3 Interference.................................................................................................36
5.10.4 Type 4 Interference.................................................................................................36
5.11 Recommended Channel Plans..............................................................................37
5.11.1 Six-Sector, Three-Frequency Plan........................................................................37
5.11.2 Six-Sector, Six-Frequency Plan ............................................................................38
5.12 Antenna Spacing ....................................................................................................38
6 Static Configurations ............................................................................................................40
6.1 resolve .........................................................................................................................40
6.1.1 device ......................................................................................................................40
6.1.2 nat ............................................................................................................................41
6.1.3 subnet......................................................................................................................41
6.1.4 rip accept.................................................................................................................41
6.1.5 rip send....................................................................................................................42
6.1.6 rip relay....................................................................................................................42
6.1.7 route add .................................................................................................................42
6.1.8 ipatm lifetime ..........................................................................................................43
6.1.9 relay .........................................................................................................................43
6.1.10 ipatm pvc add .........................................................................................................43
6.2 system.conf.................................................................................................................45
6.2.1 channel....................................................................................................................45
6.2.2 antenna....................................................................................................................45
6.2.3 mode........................................................................................................................45
6.2.4 mid ...........................................................................................................................46
6.2.5 bid ............................................................................................................................46
6.2.6 interface...................................................................................................................46
6.2.7 duplex......................................................................................................................47
6.2.8 backoff.....................................................................................................................47
6.2.9 provider ...................................................................................................................47
6.2.10 key............................................................................................................................48
6.2.11 mask ........................................................................................................................48
6.2.12 leds ..........................................................................................................................49
6.2.13 max_mid..................................................................................................................49
6.2.14 tx_watchdog............................................................................................................49
6.2.15 ptp............................................................................................................................50
6.2.16 dfs ............................................................................................................................50
6.2.17 dfs_threshold..........................................................................................................50
6.3 initswitchcli .................................................................................................................51
6.3.1 tp ..............................................................................................................................51
6.3.2 sp .............................................................................................................................51
6.3.3 add ...........................................................................................................................52
6.4 initmr1483....................................................................................................................52
6.4.1 floodmode ...............................................................................................................53
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 7 of 129
6.4.2 up .............................................................................................................................53
6.5 initr1483 .......................................................................................................................53
6.5.1 pvc ...........................................................................................................................53
6.6 initbridge......................................................................................................................54
6.6.1 spanning..................................................................................................................54
6.6.2 device add...............................................................................................................54
6.7 dhcpd.conf...................................................................................................................55
6.7.1 subnet......................................................................................................................55
6.7.2 range........................................................................................................................55
6.7.3 option routers .........................................................................................................55
6.7.4 max-lease-time........................................................................................................56
6.7.5 option domain-name ..............................................................................................56
6.7.6 option domain-name-servers ................................................................................56
6.8 snmpinit.......................................................................................................................56
6.8.1 access write ............................................................................................................56
7 CLIP_T ....................................................................................................................................58
7.1 Static CLIP_T Eth AP ..................................................................................................58
7.1.1 AP Configuration Files...........................................................................................59
7.1.1.1 AP resolve.........................................................................................................59
7.1.1.2 AP system.conf .................................................................................................59
7.1.2 SU Configuration Files...........................................................................................60
7.1.2.1 SU resolve.........................................................................................................60
7.1.2.2 SU system.conf .................................................................................................60
7.1.3 Troubleshooting .....................................................................................................60
7.1.3.1 Can’t ping the radio from the terrestrial interface..............................................60
7.1.3.2 Can’t ping across the wireless link ....................................................................61
7.2 Static CLIP_T ATM AP ................................................................................................62
7.2.1 AP Configuration Files...........................................................................................63
7.2.1.1 AP resolve.........................................................................................................63
7.2.1.2 AP system.conf .................................................................................................63
7.2.2 SU Configuration Files...........................................................................................64
7.2.2.1 SU resolve.........................................................................................................64
7.2.2.2 SU system.conf .................................................................................................64
7.2.3 Troubleshooting .....................................................................................................64
7.2.3.1 Can’t ping the radio from the terrestrial interface..............................................64
7.2.3.2 Can’t ping across the wireless link ....................................................................66
7.3 Hybrid CLIP_T Eth AP ................................................................................................68
7.3.1 AP Configuration Files...........................................................................................69
7.3.1.1 AP resolve.........................................................................................................69
7.3.1.2 AP system.conf .................................................................................................69
7.3.1.3 AP Switchcli ......................................................................................................69
7.3.2 SU1 Configuration Files.........................................................................................70
7.3.2.1 SU1 resolve.......................................................................................................70
7.3.2.2 SU1 system.conf ...............................................................................................71
7.3.3 SU2 Configuration Files.........................................................................................71
7.3.3.1 SU2 resolve.......................................................................................................71
7.3.3.2 SU2 system.conf ...............................................................................................72
7.3.4 Troubleshooting .....................................................................................................72
7.3.4.1 Can’t ping the radio from the terrestrial interface..............................................72
7.3.4.2 Can’t ping across the wireless link ....................................................................72
8 CLIP_S ....................................................................................................................................74
8.1 Static CLIP_S (routed management).........................................................................74
8.1.1 Routed Management PRO/CON ............................................................................74
8.1.2 AP Configuration Files...........................................................................................75
8.1.2.1 AP resolve.........................................................................................................75
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 8 of 129
8.1.2.2 AP system.conf .................................................................................................76
8.1.2.3 AP initswitchcli ..................................................................................................76
8.1.3 SU Configuration Files...........................................................................................76
8.1.3.1 SU resolve.........................................................................................................76
8.1.3.2 SU system.conf .................................................................................................77
8.1.4 Troubleshooting .....................................................................................................78
8.1.4.1 Can’t ping the radio from the terrestrial interface..............................................78
8.1.4.2 Can’t ping across the wireless link ....................................................................79
8.2 Static CLIP_S (switched management).....................................................................81
8.2.1 Switched Management PRO/CON.........................................................................81
8.2.2 AP Configuration Files...........................................................................................82
8.2.2.1 AP resolve.........................................................................................................82
8.2.2.2 AP system.conf .................................................................................................82
8.2.2.3 AP initswitchcli ..................................................................................................83
8.2.3 SU Configuration Files...........................................................................................83
8.2.3.1 SU resolve.........................................................................................................83
8.2.3.2 SU system.conf .................................................................................................84
8.2.4 Troubleshooting .....................................................................................................84
8.2.4.1 Can’t ping the radio from the terrestrial interface..............................................84
8.2.4.2 Can’t ping across the wireless link ....................................................................85
9 Hybrid CLIP_S........................................................................................................................87
9.1.1 AP1 Configuration Files.........................................................................................87
9.1.1.1 AP1 resolve.......................................................................................................87
9.1.1.2 AP1 system.conf ...............................................................................................88
9.1.1.3 AP1 initswitchcli ................................................................................................89
9.1.2 SU1 Configuration Files.........................................................................................89
9.1.2.1 SU1 resolve.......................................................................................................89
9.1.2.2 SU1 system.conf ...............................................................................................90
9.1.3 AP2 Configuration Files.........................................................................................90
9.1.3.1 AP2 resolve.......................................................................................................90
9.1.3.2 AP2 system.conf ...............................................................................................91
9.1.3.3 AP2 initswitchcli ................................................................................................91
9.1.4 SU2 Configuration Files.........................................................................................92
9.1.4.1 SU2 resolve.......................................................................................................92
9.1.4.2 SU2 system.conf ...............................................................................................92
9.1.5 Troubleshooting .....................................................................................................93
9.1.5.1 Can’t ping the radio from the terrestrial interface..............................................93
9.1.5.2 Can’t ping across the wireless link ....................................................................95
10 1483_T.................................................................................................................................96
10.1 Static 1483_T...........................................................................................................96
10.1.1 AP Configuration Files...........................................................................................97
10.1.1.1 AP resolve.........................................................................................................97
10.1.1.2 AP initbridge......................................................................................................97
10.1.1.3 AP initmr1483....................................................................................................97
10.1.1.4 AP system.conf .................................................................................................97
10.1.2 SU Configuration Files...........................................................................................98
10.1.2.1 SU resolve.........................................................................................................98
10.1.2.2 SU initbridge......................................................................................................98
10.1.2.3 SU system.conf .................................................................................................98
10.1.2.4 SU initr1483 ......................................................................................................98
10.1.3 Troubleshooting .....................................................................................................99
10.1.3.1 Can’t ping the radio from the terrestrial interface..............................................99
10.1.3.2 Can’t ping the radio across the wireless link. ....................................................99
11 1483_S ..............................................................................................................................100
11.1 Static 1483_S (routed management)...................................................................100
11.1.1 Routed Management PRO/CON ..........................................................................100
11.1.2 AP Configuration Files.........................................................................................101
11.1.2.1 AP resolve.......................................................................................................101
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 9 of 129
11.1.2.2 AP system.conf ...............................................................................................101
11.1.2.3 AP initswitchcli ................................................................................................102
11.1.3 SU Configuration Files.........................................................................................102
11.1.3.1 SU resolve.......................................................................................................102
11.1.3.2 SU initbridge....................................................................................................102
11.1.3.3 SU system.conf ...............................................................................................103
11.1.3.4 SU initr1483 ....................................................................................................103
11.1.4 Troubleshooting ...................................................................................................103
11.1.4.1 Can’t ping the radio from the terrestrial interface............................................103
11.1.4.2 Can’t ping the radio across the wireless link. ..................................................105
11.2 Static 1483_S (switched management) ..............................................................106
11.2.1 Switched Management PRO/CON.......................................................................106
11.2.2 AP Configuration Files.........................................................................................107
11.2.2.1 AP resolve.......................................................................................................107
11.2.2.2 AP system.conf ...............................................................................................107
11.2.2.3 AP initswitchcli ................................................................................................107
11.2.3 SU Configuration Files.........................................................................................108
11.2.3.1 SU resolve.......................................................................................................108
11.2.3.2 SU initbridge....................................................................................................108
11.2.3.3 SU system.conf ...............................................................................................108
11.2.3.4 SU initr1483 ....................................................................................................108
11.2.4 Troubleshooting ...................................................................................................109
11.2.4.1 Can’t ping the radio from the terrestrial interface............................................109
11.2.4.2 Can’t ping across the wireless link ..................................................................110
12 Native ATM .......................................................................................................................112
12.1 Static Native ATM .................................................................................................112
12.1.1 AP Configuration Files.........................................................................................113
12.1.1.1 AP resolve.......................................................................................................113
12.1.1.2 AP system.conf ...............................................................................................113
12.1.1.3 AP initswitchcli ................................................................................................114
12.1.2 SU Configuration Files.........................................................................................114
12.1.2.1 SU resolve.......................................................................................................114
12.1.2.2 SU system.conf ...............................................................................................115
12.1.2.3 SU initswitchcli ................................................................................................115
12.1.3 Troubleshooting ...................................................................................................115
12.1.3.1 Can’t ping the radio from the terrestrial interface............................................115
12.1.3.2 Can’t ping the radio across the wireless link. ..................................................117
13 Extender ...........................................................................................................................119
13.1 Ethernet Extender.................................................................................................119
13.1.1 BHM Configuration Files......................................................................................120
13.1.1.1 BHM resolve....................................................................................................120
13.1.1.2 BHM initbridge.................................................................................................120
13.1.1.3 BHM initr1483 .................................................................................................120
13.1.1.4 BHM system.conf ............................................................................................120
13.1.2 BHS Configuration Files ......................................................................................121
13.1.2.1 BHS resolve ....................................................................................................121
13.1.2.2 BHS initbridge .................................................................................................121
13.1.2.3 BHS system.conf.............................................................................................121
13.1.2.4 BHS initr1483 ..................................................................................................121
13.1.3 Troubleshooting ...................................................................................................122
13.1.3.1 Can’t ping the radio from the terrestrial interface............................................122
13.1.3.2 Can’t ping the radio across the wireless link. ..................................................122
13.2 ATM Extender .......................................................................................................123
13.2.1 BHM Configuration Files......................................................................................124
13.2.1.1 BHM resolve....................................................................................................124
13.2.1.2 BHM system.conf ............................................................................................124
13.2.1.3 BHM initswitchcli .............................................................................................125
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 10 of 129
13.2.2 BHS Configuration Files ......................................................................................125
13.2.2.1 BHS resolve ....................................................................................................125
13.2.2.2 BHS system.conf.............................................................................................126
13.2.2.3 BHS initswitchcli..............................................................................................126
13.2.3 Troubleshooting ...................................................................................................126
13.2.3.1 Can’t ping the radio from the terrestrial interface............................................126
13.2.3.2 Can’t ping the radio across the wireless link. ..................................................128
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 11 of 129
2 Document Overview
This document covers technical specifications and configuration information for the AB-
Access system. It also covers some general troubleshooting steps to resolve issues that may occur
while configuring or deploying the AB-Access system. This document should only be used as a
reference for the 5.3.8 or newer System Software.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 12 of 129
3 AB-Access Overview
3.1
Topologies
There are three topologies that are available with the AB-Access units CLIP, 1483 Bridging,
and Native ATM. There are several configuration variations within these topologies but all will be
referred by these names with an extension.
3.1.1
CLIP (RFC 1577)
CLIP stands for Classical IP and is a routed topology. The AP or SU acts as a standard
Layer 3 IP router, which means when data comes into the unit it analyzes the IP header and sends it
out one of its interfaces based on the information in the header and its routing tables. It is important
to note that only IP traffic can be passed over the units in this configuration.
3.1.2
1483 Bridging (RFC 1483)
1483 Bridging is a Layer 2 bridge, which will pass any valid Ethernet frame regardless of
protocol. 1483 is also referred to as MPoA (Multi-protocol over ATM). The basic concept of how the
bridge works is simple. It has two tables one for the terrestrial interface and one for the wireless
interface. The terrestrial table stores all source MAC address it has learned from the terrestrial
interface. It learns the MAC addresses by storing the source MAC address of any packet that has
originated from a device on its terrestrial interface. If a packet is received that has a destination MAC
address that is already in the table it will be discarded. The reason for this is if the destination MAC
address is in the table it must mean that the device with that MAC address is on the terrestrial side
of the radio. The wireless table works in the same manor except it learns the source MAC address of
packets that have been received from the wireless interface. It is important to note that all broadcast
packets will be sent over the link. It is also important to note that the implementation of 1483 bridging
that the AB-Access system uses is LLC/SNAP encapsulation and we do not support the VC
multiplexing implementation.
3.1.3
Native ATM
Native ATM is a mode where both the AP and the SU act as an ATM switch. In this mode
ATM cells are simply passed through the switching layer of the radio at layer 2. It is important to note
that the AB-Access radio only supports PVC and not SVC.
3.1.4
PPPoA (RFC 2364)
PPPoA is no longer supported.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 13 of 129
4 AB-Access
4.1
Reference Model

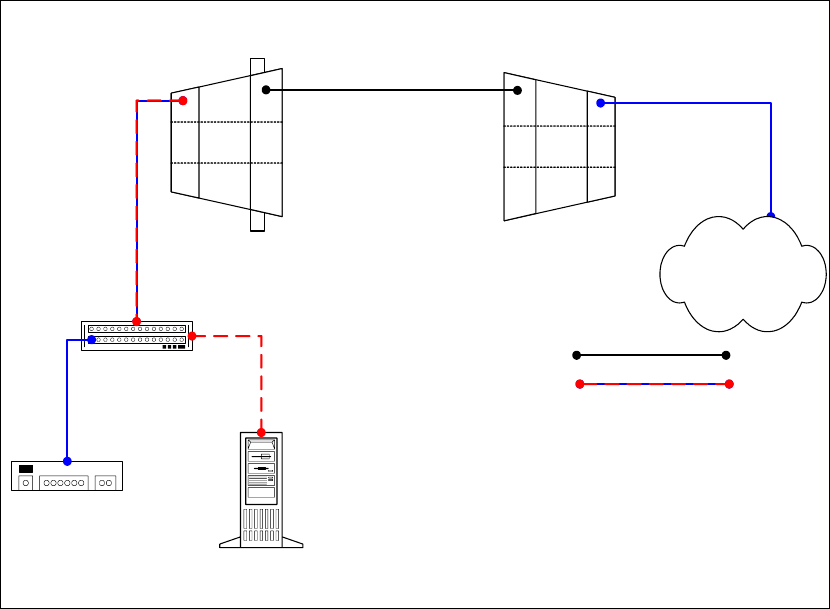

The diagram below is the architectural reference model for this document. Depending upon
the required architecture, certain layers of this model may or may not be used.
Please note that both the wireless and terrestrial interfaces have access to all of the
functions of the unit. This is designed to allow the reader to understand where an incoming service
is terminating and where its configuration is managed. Management files (on Flashfs) for each layer
are as follows:
All: system.conf
Routing Layer: resolve
Bridging Layer: resolve, initbridge, initmr1483 or initr1483
Switching Layer: initswitchcli
An E or A will indicate the Terrestrial interface type below the interface at the corner. As an
example, the diagram above shows an SU (on the left) with an Ethernet terrestrial interface and an
AP (on the right) with an ATM interface. The Wireless interface is always ATM.
Additional services/clients such as NAT and/or DHCP will be depicted at the appropriate
interface.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 14 of 129
4.2
ATM Switch
ATM switches are referenced throughout this document. The ATM switch used for illustration
purposes is the FVC Access NGI. The switch used for the troubleshooting screenshots represents FVC
software version 5.07. Some of the commands for older FVC switch software are different.
4.3
Subnetting
Subnetting within the AB-Access radios is done in hexadecimal format. There for it is
necessary to know the decimal to hex conversions for commonly used subnets. CIDR notation
is also used to define the subnets in all the diagrams, so refer to the chart below for any
questions on subnetting.
Decimal
Subnet HEX
Subnet CIDR
0 00 /24
128 80 /25
192 C0 /26
224 E0 /27
240 F0 /28
248 F8 /29
252 FC /30
4.4
Peak Cell Rate - PCR
The Peak Cell Rate is policing not pacing, there for it will discard all cells received over
the limit and not buffer them. This means the cells will be have to be retransmitted via an upper
layer protocol. To calculate the Peak Cell Rate you simply divide the desired bandwidth by the
number of bits in an ATM cell. An ATM cell is 53 bytes consisting of a 5-byte header and a 48-
byte payload. In the following example, the PCR for a 1 Megabit circuit is calculated. PCR
values are rounded to the nearest integer.
1024000 bps/(48 bytes-per-cell*8 bits-per-byte) = 2667
The following table lists PCR values for several, common data rates.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 15 of 129
Data Rate PCR
56 kbps 146
128 kbps 333
256 kbps 667
512 kbps 1333
1 Mbps 2667
2 Mbps 5333
5 Mbps 13333
4.5
SNMP
SNMP access has been added to AB-Access in software load 5.1.x and newer. This allows
you to monitor various parameters within the radio. Listed below are the non-standard MIB’s added
to AB-Access.
Object Name Object Descriptor AB-Access Info
snmpTotalSetVars 1.3.6.1.2.1.11.14 RSSI (only available on SU)
snmpOutSetRequests 1.3.6.1.2.1.11.27 PP processor loading (%)
snmpOutTooBigs 1.3.6.1.2.1.11.20 Channel Number
snmpOutNoSuchNames 1.3.6.1.2.1.11.9 Antenna polarization (0=H,
1=V)
snmpOutBadValues 1.3.6.1.2.1.11.22 SU distance from AP (meters)
snmpInSetRequests 1.3.6.1.2.1.11.17 # of ARP entries in the ARP
table
4.6
Rupee
There are configurations that are not covered by the upgrade scripts. Even if they are
covered, you will probably want to add settings that are specific to your network. To do this you can
edit the individual files and rupee them to the units. This is not meant to replace the upgrade script.
It is only meant to send individual configuration files to a unit.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 16 of 129
You can send individual files from DOS or LINUX; unlike the upgrade scripts. The reason
for this is that the upgrade script is using expect scripting and can only be run from a Unix based OS.
One note about the rupee-dos is that it can only be run be a true DOS based OS (Win95 or Win98 not
NT). NT uses a Virtual DOS Machine (NTVDM) and will not work with the rupee-dos command.
WARNING
If you rupee a file or files to a unit and do not reboot the unit, and
then rupee another file or files to the unit only the last set of files will
be saved to the flash.
4.6.1
LINUX
1. Make sure you can ping the unit that you want to send files to.
2. Change to the directory that the configuration files are in. The rupee-unix file must
also reside in this directory.
3. To upload individual files:
./rupee-unix –p atmos –d 2 –r <IP Address> <file> <file>
Note: You might have to change the permissions on the rupee-unix
command using “chmod”
chmod +x ./rupee-unix
4.6.2
DOS
1. Make sure you can ping the unit that you want to send files to.
2. Change to the directory that the configuration files are in. The rupee-unix file must
also reside in this directory.
3. To upload individual files:
rupee-dos –p atmos –d 2 –r <IP Address> <file> <file>
4.6.3
Rupee Option Definitions
-p <passwd> Specifies the password to use to allow write access to the AP/SU.
-d 2 Display debug level 2. Allows you to see what is being sent to the
unit.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 17 of 129
-r Reboot unit when done programming. Make sure all of your
configuration files are correct if you use this option. When the unit
reboots, changes are final.
4.7
RTFD (Return To Factory Default)
The new Return To Factory Default (RTFD) feature allows IP connectiviey to be established
with units that have unknown or invalid configurations. Using this feature, the AB-Access unit wil
adopt a known IP configuration enabling Command Line Interface access via telnet through the
physical Ethernet interface.
Following a restart or power up, the AB-Access/AB-Extender units will listen for 1 second
for a proprietary coded UDP packet on their Ethernet interface; adopting the appropriate IP
configurations as indicated below.
If the unit receives the UDP packet, it will retain the active configuration for 30 minutes,
after which the normal start-up procedures will continue with the IP and interface configuration taken
from the unit’s Flash files. If during the 30 minute period, a subsequent coded UDP packet is
received, the timeout will be restarted.
NOTE
On Windows 2K and XP you may need to disable the auto media sense. Some NICs will be
capable of disabling this feature from their configuration parameters. If this option is not
available on your NIC you will have to add a registry entry. Axxcelera has created a reg edit
that can be installed by simply double clicking on the media-sense.reg file. Or you can enter the
following register key via regedit.
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters]
"DisableDHCPMediaSense"=dword:00000001
4.7.1
RTFD IP Configurations
Ethernet Interface Access: IP Address 192.168.3.254
Netmask 255.255.255.0
Default Route 192.168.3.1
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 18 of 129
4.7.2
Recover
To supply the coded UDP packet the “recover” utility is provided with the system software in two
forms.
recover-dos.exe - For use with a DOS prompt under Microsoft Windows.
Recover-unix - For use with Linux installations utilizing glibc 2.1.3.
4.7.3
Procedure to restore the default configuration
1. Connect a PC (Windows or Linux) to the wallbox of the unit, ensuring that there is
appropriate connectivity at the physical and IP levels.
2. Start the recovery utility. A sequence of dots will be displayed to indicate
successful network transmissions.
[root@temp SU_TEMPLATE]# ./recover-unix ethernet
SU/AP recovery client
……………………………..
3. Restart the AB-Access unit.
4. When the recover utility terminates, the AB-Access unit has been successfully
configured and can be contacted over the physical interface via a telnet session.
5. It is best to do a full system upgrade after a unit has been recovered to a state that
IP connectivity is regained. This will insure the unit will function properly once
redeployed.
4.7.4
Disabling the RTFD Feature
RTFD can be disabled by writing a file to flash with the name “no_rtfd”. The file must be a
text file; i.e. only containing ASCII characters. A suggested first line for the file is “disable RTFD” –
though the actual content of the file will not be referenced: only the presence or absence of the file is
significant.
4.8
Web Page
The web page can be used look at channels that are available for use, and determine the
quality of the current channel.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 19 of 129
4.8.1

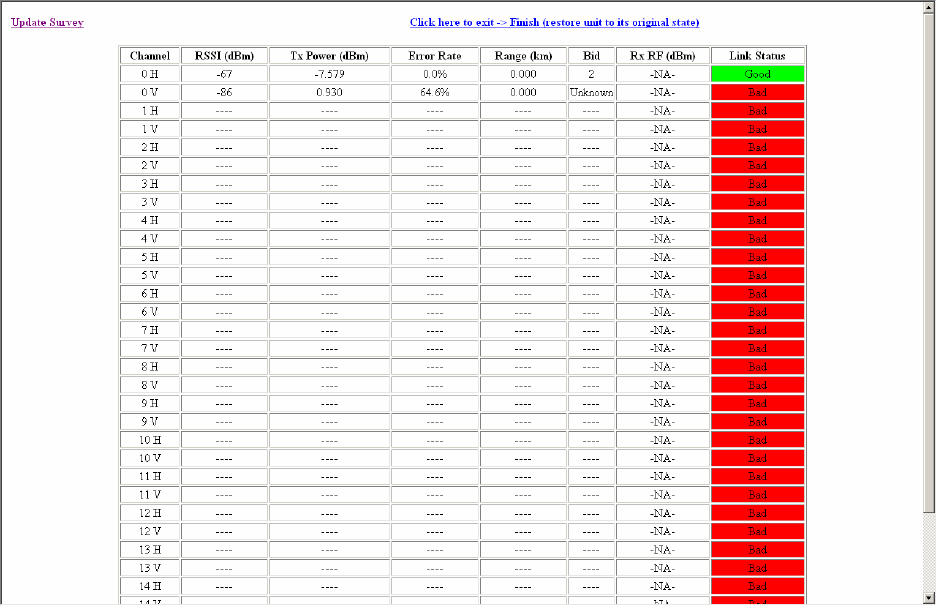

Radio Survey

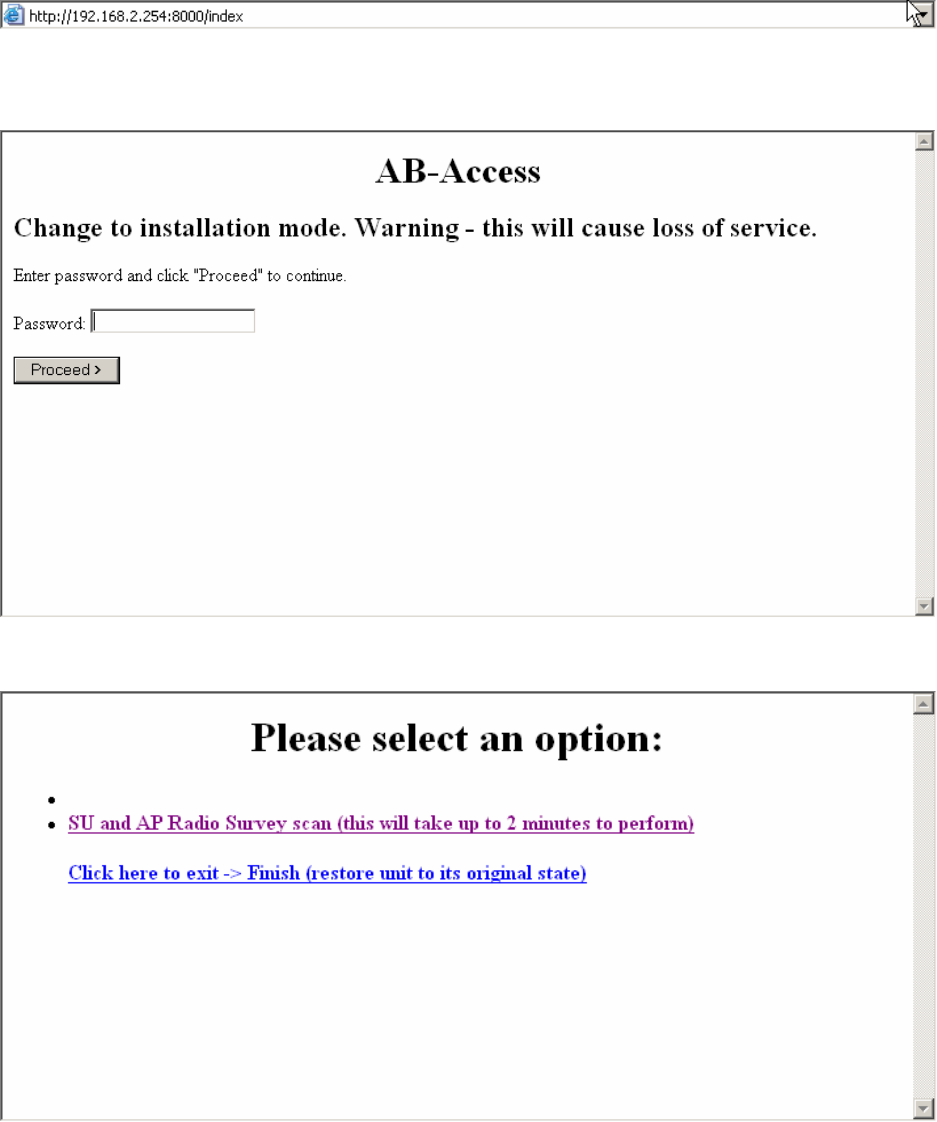

1. To open web page type <http://ipaddress:8000/index > in the URL of your web
browser.
2. Enter the password of the unit. This is the same password that is used for telnet
access.
3. Click on SU and AP Radio Survey scan.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 20 of 129
4. The survey page is displayed. It will take up to 2 minutes to appear so be patient.
5. Once you are finished click on Click here to exit.
4.9
RF-Energy Scanning
This feature is only applicable to FPGA APs and SUs.
The "survey scan" CLI command and 'radio survey' web page now provide additional data on
RF energy in each channel. Continuous or bursty energy can be detected, regardless of the source
(i.e. it does not have to be Axxcelera equipment), providing it is present during the scan. However,
the RF-energy-scan process interrupts normal service for the entire duration of the scan. Survey
results are saved in a temporary file called "ap_scan" or "su_scan", as appropriate. The file contains
results of the last scan to be performed, and is overwritten by a new scan. The file is normally lost
when the unit reboots, but the file is saved if a "config save" is performed, or if the unit is upgraded.
Therefore, it is now possible to use the "survey scan" command remotely, i.e. executing on an SU via
the RF link.
This feature can be used at the time of unit installation, or when trying to investigate and
mitigate an interference problem. It can also be used before performing a sector channel change to
look for potential interference problems.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 21 of 129
When performed on an AP the sector itself is quiet, so any RF energy detected must be
coming from other sources. However, when a scan is done on an SU the AP and other SUs may still
be transmitting. This may confuse the results. The RF energy from other units in the SU's sector
will be detected on-channel, but will also appear to a lesser extent in adjacent channels (e.g. 23dBm
lower than in the main channel). This should be borne in mind, and if necessary the scan should be
performed with the AP transmitter disabled, which will silence that sector (e.g. using "hmm modem
rf disable/enable").
4.10
Static Channel Scanning
This is a static-mode feature to simplify channel-changing. The feature is implemented on
SUs, and all SUs must be running 5.3.x software before this new method of channel-changing is
used, otherwise SUs will be lost when the AP is manually forced to change channel. Note that the
AP must also be running 5.3.x, so that the BID can be set to a non-zero value.
This feature is controlled by the BID and channel mask parameters. If the BID is set to zero
then the static-mode channel-scanning function is disabled. If the BID is set to non-zero then the
channel-scanning function is enabled on the SU. On booting up the SU channel and antenna are
determined by the system.conf file. A scan is initiated if the received Frame Descriptor Header
(FDHDR) error rate is greater than 90% for a rolling 3 minute period. Therefore the SU will not scan
until at least 3 minutes after booting-up, nor for 3 minutes after losing its AP. This delay allows a
reboot of the AP (even an FPGA AP with the old v2.7 Boot ROM) without causing the associated
SUs to scan.
The SU will only scan the channels defined by the channel mask, and will only detect APs
with the same BID. When the scan is complete the SU will lock to the channel/antenna that gave the
best AP signal (same BID). The SU will choose error-free channels in preference to errored ones,
and will then select the best signal level. The new channel and antenna are then automatically saved
to the system.conf file, so on rebooting the SU will start-up with the new channel and antenna
settings. Note that the current values of all parameters are saved to the system.conf file, not just the
channel/antenna parameters. If the SU does not detect any suitable signal it will revert to the
channel/antenna it was on before the scan. A further scan will occur after 3 minutes if an AP is not
detected.
The channel mask can be changed with the "hmm system mask" command, and the "hmm
radio channels" command can be used to confirm which channels will be scanned.
Until now the BID parameter in the system.conf file has been ignored by the software and a
value of zero has been used. The 5.3.x software uses the BID value defined in the system.conf file.
The BID can also now be viewed and changed with the new "hmm system bid" command. SUs can
only see APs with the same BID, so all units in a sector must have the same BID. If a unit receives a
signal from another unit which has a different BID value then only the errors from that signal appear
in the MAC stats. Valid data with the wrong BID is discarded by the receiving MAC, and does not
appear in the MAC stats.
To change the channel of a static sector using this new feature, all units must be running 5.3.x
software, must have the same non-zero BID, and each SU must only be able to see one AP with that
BID (on all channels defined by their channel mask). The channel mask on each SU should be set
appropriately, e.g. scanning all channels that are likely to be used. To change the channel of the
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 22 of 129
sector, simply change the channel of the AP and wait for the SUs to scan and lock on again (i.e. after
3 minutes plus the duration of a scan). If some SUs fail to regain contact with the AP due to an issue
on the new RF channel then simply change the AP back to the original channel and the SUs will
regain contact after a short period (i.e. after 3 minutes plus the duration of a scan).
4.11
PTP Power Control
This feature makes point-to-point links more robust, by increasing the signal power received
at the AP. The AP then has a higher tolerance to noise and interference. When enabled on both
units, both the AP and SU transmit at full power, and both the AP and SU adjust their receiver gain
according to the signal power received. This means that the AP receiver has a similar RSSI to the
SU, rather than a level of -74dBm as with standard power control. For example, if the backhaul SU
has an RSSI of -65dBm then the backhaul AP will also have an RSSI of approximately -65dBm,
9dBm higher than with the normal power control scheme.
A unit's power control mode (i.e. standard or PTP) is determined by the new "ptp" parameter
in the system.conf file (see section 3.1 for details). This parameter can be viewed and changed with
the new CLI command "hmm system ptp enable/disable" or via the system.conf file.
Both ends of a point-to-point link must be operating in the same power control mode for the
link to work. Point-to-multipoint sectors cannot use the new PTP power control mode. If enabled on
a point-to-multipoint sector it will sever communication between the AP and the majority of SUs.
When an AP is operating in the new PTP power control mode the "hmm modem rssi"
command becomes meaningful at the AP, and the "hmm modem txpower" command shows extra
information.
The new PTP power control mode should be used with care, ensuring that the boosted
upstream signal will not affect other units, i.e. with units co-located with the point-to-point AP or
SU.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 23 of 129
5 RF Design and Planning
5.1
Overview
The AB-Access system is a communications system using wireless technology in the U-NII,
ISM and ESTI frequency bands. Therefore understanding Radio Frequency (RF) system design is
necessary to ensure gook link quality and, thus, good system performance. This section discusses the
basics of RF Design and Planning from the perspective of deploying the AB-Access System.
5.2
The U-NII, ISM and ETSI Channel Plan
In 1997 the FCC amended its Part 15 rules to make 300 MHz of spectrum available for high-
speed wireless digital communications with unlicensed operation. This band, called the Unlicensed
National Information Infrastructure or U-NII band, provides the spectrum at 5.15 to 5.25 GHz for
indoor use, and 5.25 to 5.35 and 5.725 to 5.825 GHz for outdoor use. The peak output power
permitted is limited to 23 dBm EIRP in the lower (indoor) band, 30 dBm in the mid-band, and 36
dBm in the upper band.
The 5.8 GHz ISM (Industrial Scientific and Medical) band ranges from 5.725-5.850 GHz.
Which is an unlicensed frequency limited to 36 dBm for PTMP equipment. The limit for PTP is
higher than PTMP.
The 5.8 GHz ETSI (European Telecommunications Standard Institute) variant consists of two
bands (5.725–5.795 GHz and 5.815–5.850 GHz). These are unlicensed, limited to 2 Watts EIRP (3
dBW) and 100mW/MHz PSD.
NOTE: AB-Access uses both the U-NII and ISM band for its upper band channels.
NOTE: AB-Access uses a different channel scheme for ESTI bands.
NOTE: BPSK modulation is only approved by the FCC for the upper band channels.
5.3
Air Interface
The SU talks to the AP over a proprietary airlink protocol on a single 15 MHz channel using
QPSK or BPSK modulation and a technique called Time Division Duplex (TDD). Both upstream and
downstream traffic time-share this channel.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 24 of 129
5.4
Wireless MAC
When data is sent over the wireless link it must first be put into a structure that each end unit
will understand. The hardware that does this is called the MAC (Medium Access Controller).

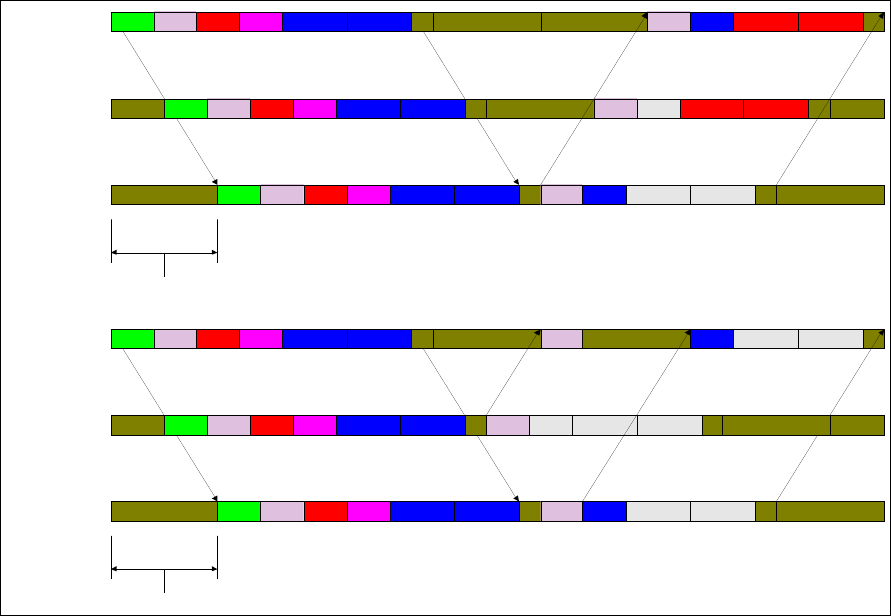

RGFDHDR DACK DCELLATT STT RR UACK UCELL/
UCELLR
5.4.1
Downstream burst
5.4.1.1 Access Point Turnaround Time (ATT)
AB-Access system is TDD (Time Division Duplexing), meaning that the AP and SUs
transmit and receive on the same frequency. It is therefore necessary to have a small delay between
the transmit and receive processes, because it is using the same hardware to perform both functions.
5.4.1.2 Frame Descriptor Header (FDHDR)
Downstream bursts begin with a Frame Descriptor Header (FDHDR) this portion of the
MAC frame is seen by all SUs in that sector. The FDHDR contains a map of all traffic upstream and
downstream, to occur within the MAC frame. This is why you assign a unit a MID, when an SU sees
an FDHDR it looks for its MID in the FDHDR to see if it is going to receive any cells. If it does not
see its MID it will ignore the rest of the frame.
5.4.1.3 Reservation Grant (RG)
The next field in the downstream burst is the Reservation Grant Response (RGR). An RGR is
a response to a Reservation Grant Request (Upstream Burst). The RGR acknowledges a request and
tells the SU that it can transmit on the upstream burst.
A
SU
SU
SU
AC
FRAC Cell Cell
down-stream up-stream
R-
-
-
Cell Cell
-
idlidl
Variable length MAC
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 25 of 129
5.4.1.4 Downstream Acknowledgement (DACK)
The Downstream Acknowledgement (DACK) is an acknowledgement sent from the AP,
which contains bit maps corresponding to the success or failure of individual cells sent to an SU in
the previous frame. If any cells were missed or dropped they will be resent in the next frame.
5.4.1.5 Downstream Data Cells (DCELL)
The Data Cells are the actual ATM cells that contain data. The maximum ATM cells per
frame are 32. The maximum ATM cells that can be sent to an individual SU is 6 per frame.
5.4.1.6 Subscriber Turnaround Time (STT)
AB-Access system is TDD (Time Division Duplexing), meaning that the AP and SUs
transmit and receive on the same frequency. It is therefore necessary to have a small delay between
transmit and receive processes, because it is using the same hardware to perform both functions.
There is also a set delay for each individual SU. This delay in turnaround is to compensate for
propagation delay.
5.4.1.7 Reservation Request (RR)
The Reservation Grant Request (RR) is a request sent by the SU to the AP when it has data to
send. The RGR is a contention based request, meaning it performs like an Ethernet network were
there is no guarantee that it will be received by the AP on the first try. This would happen when
another SU wants to transmit at the same time and would cause a collision. If a collision occurs the
SU will try again until it is acknowledged with a Reservation Grant Response.
5.4.1.8 Upstream Acknowledgement (UACK)
The Upstream Acknowledgement (UACK) contains bit maps corresponding to the success or
failure of individual cells from an AP. If any cells were missed or dropped they will be resent in the
next frame.
5.4.1.9 Upstream Cell (UCELL/UCELLR)
The UCELL’s are the actual ATM cells that contain data. The maximum ATM cells per
frame are 32. The maximum ATM cells that can be sent to an AP by an individual SU is 6 per frame.
The UCELLR is a data cell that also has a Reservation Grant Request if the SU has more than 6 data
cells to send. The reason for this is so that the SU doesn’t have to contend for another Reservation
Grant in the contention slot.
5.5
Delay Compensation
During the upstream portion of the MAC several SUs transmit in sequence. Since SUs are
separated from the AP by anywhere from 0m to 16km, there is a wide range of propagation times for
the full path for the AP to the SUs and back. In order for the SUs transmissions to arrive at the AP
properly aligned, some active compensation of propagation delay is performed. An SU must delay
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 26 of 129
compensate before it can transmit data, if it was allowed to transmit without delay compensating it
would confuse the AP because it would be receiving cells out of order.
As you can see in this diagram the dark green portion of the MAC frame represent time
delays.
FD RG ACK ACK Cell Cell -AckRR Cell Cell -
FD RG ACK ACK Cell Cel l -Cell Cel l
FD RG ACK ACK Cell Cell -AckRR
AP
timing
WT
1
timing
WT
2
timing
max propagation
delay
AP
timing
WT
1
timing
WT
2
timing
max propagation
delay
Cell
ACKRR
Cell -
-
FD RG ACK ACK Cell Cell -AckRR -
FD RG ACK ACK Cell Cel l -
FD RG ACK ACK Cell Cell -AckRR Cell
RR
Cell -
-CellACK Cell
Cell Cell
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 27 of 129

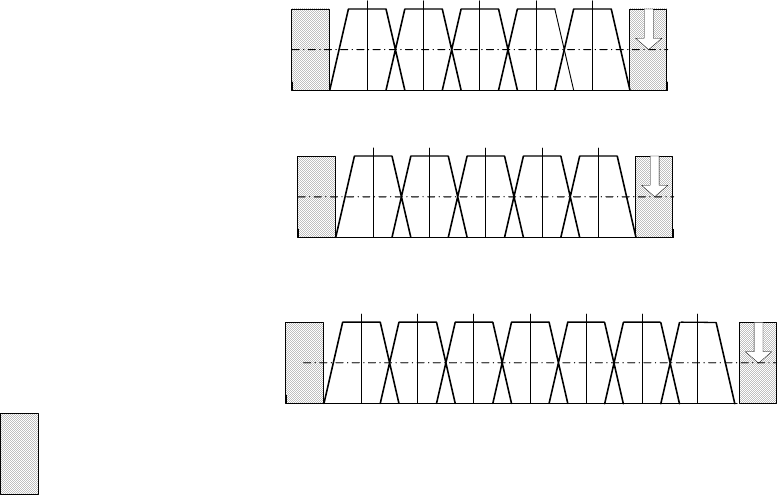

5.6
RF Channels spacing and output power
0 5.735 29
1 5.750 29
2 5.765 29
3 5.780 29
4 5.825 29
5 5.840 28
ETSI Out
p
ut Power for AB-Access
5.7
TDD (Time Division Duplex)
The AB-Access system uses TDD (Time Division Duplex) to transfer data across the
wireless link as opposed to FDD (Frequency Division Duplex). The AB-Access implementation of
the TDD architecture allows the TDD frame to dynamically vary in size according to the offered
load: short frames when fewer users are sharing the channel, longer frames when there are many
simultaneous users. The TDD guard time is also adaptive, as it is set to round trip propagation delay
to the farthest SU. TDD has a number of advantages over a FDD system. These include:
Channel Center Freq EIRP
# (GHz) (dBm)
-----------------------------------------------
0* 5.17 19
1* 5.185 19
2* 5.2 19
3* 5.215 19
4* 5.230 19
-----------------------------------------------
55.2726
65.28526
75.326
85.31526
95.3326
-----------------------------------------------
10 5.745 32
11 5.76 32
12 5.775 32
13 5.79 32
14 5.805 32
15 5.820 32
16 5.835 32
-18.5dB
-18.5dB
Low Band * Indoor Only
Middle Band
UNII & ISM Frequency Spacing
for AB-Access 5-6GHz
Band Edge
Guard
5.7605.745 5.775 5.790 5.805
5.8505.725
5.820 5.835
-18.5dB
High Band
5.35
5.25
5.2855.27 5.3 5.315 5.33
5.1855.17 5.2 5.215 5.230
5.25
5.15
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 28 of 129
• Spectral Efficiency – TDD can be deployed using less spectrum than a comparable FDD
system. A single TDD channel can be deployed per sector instead of two channels needed
for FDD. Likewise, a multi-cell deployment can be installed using a total of three RF
channels (both polarizations), whereas FDD needs four to six channels.
• Complexity – Since each transceiver is wither transmitting or receiving, but never both at
once, a single RF front end can be shared reducing the radio complexity.
• Power Control – In cellular systems, where channels are reused many times throughout
the system in order to increase capacity, the highest efficiency is realized when the power
in each direction can be minimized. This reduces the amount of energy that is ‘leaked’
into surrounding areas, which appears as interference. In FDD systems, it is quite difficult
to accurately control the channel’s power since a feedback path is required. No such path
is needed in a TDD system since the same channel is used in both directions. The SU
needs to only measure the received power from the AP in order to know how much to
attenuate its upstream transmission.
• Channel Efficiency – Because each frame carries upstream and downstream traffic in
proportion to the offered load in each direction, adaptive TDD systems are highly
efficient in its use of bandwidth. FDD systems have to make an estimate of the traffic
mixture and allocate channel bandwidth accordingly. As shown in the chart below, any
variation from this estimate (in this case 15:1 downlink) will result in wasted bandwidth.
This variation is inevitable due to the diurnal variation of business usage during the
daytime hours, residential usage in the afternoon and evening, a varying mixture of user
types according to the geographic location, and an ever-changing set of user applications.
5.8
AP and SU Specifications

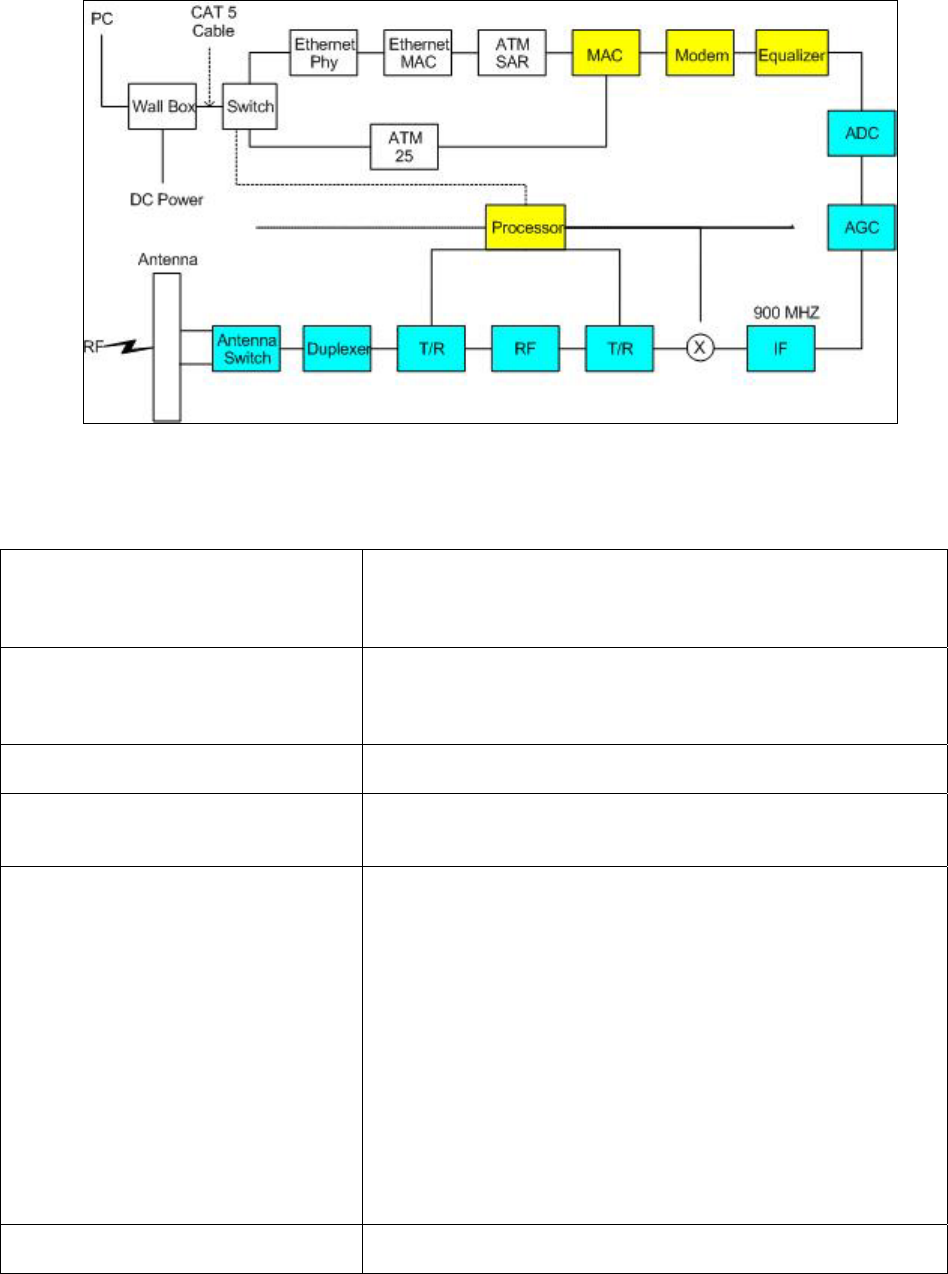

5.8.1
AP/SU/Extender Functional Block Diagram
The Access Point and Subscriber Unit functional block diagram is shown below. The analog
radio portion is highlighted in blue, while the digital section containing the modem is in
yellow.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 29 of 129
5.8.2
Radio Specifications
This table represents the radio specifications for AP, SU, and Extender units.
Frequency of operation U-NII/ISM: 5.150GHz to 5.350GHz & 5.725 GHz to 5.850 GHz
ETSI: 5.725 GHz to 5.795 & 5.815GHz to 5.850 GHz
RF bandwidth U-NII/ISM: 325 MHz
ETSI: 105 MHz
Channelization 15 MHz
FCC 26 dB Bandwidth 17.5 MHz (assumes QPSK with Raised Cosine Filtering, α=0.35)
typical
Output Power into antenna U-NII & ISM
Lower-band 1 dBm (include 3.5 dB backoff, max)
Mid-band 8 dBm (includes 3.5 dB backoff, max)
Upper-band 14 dBm (5.6km units) (includes 3.5 dB backoff, max)
Upper –band 16 dBm (8.0km units)(includes 3.5 backoff, max)
ETSI
Channel 0-5 11 dBm
Channel 6 10 dBm
Spurious emissions -17 dBm/MHz within 10 MHz of upper band (max)
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 30 of 129
-27 dBm/MHz beyond 10 MHz of upper band (max)
Blocking rejection 60 dB fc ± 50 MHz to ± 100 MHz (min)
70 dB fc + 100 MHz to 8 GHz (min)
70 dB fc 100 MHz to 4 GHz (min)
80 dB DC to 4 GHz and 7 to 12 GHz (min)
U-NII & ISM band blocking level -41 dBm
Adjacent channel rejection -25 dB (min)
Receiver noise figure -7 dB (max)
Sensitivity -81.6 dBm for 10^-4 demodulated BER
AGC range 55 dB
AGC accuracy ±1 dB
AGC response time <200 ns
Transmit / receive switching time <5 µs
Receive / transmit switching time <2 µs
Channel switching time <100 µs
Horizontal / Vertical antenna switching time <5 µs
5.8.3

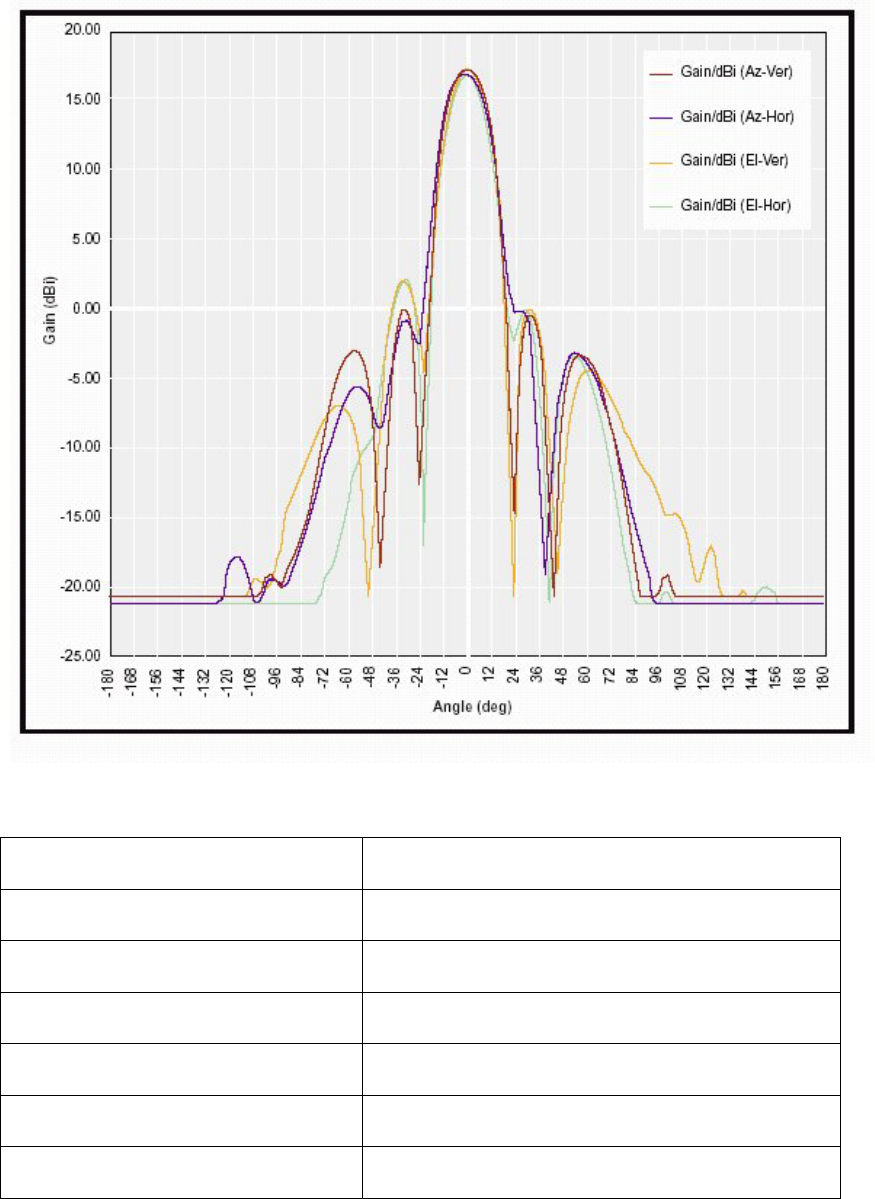

Subscriber Unit Antenna
Peak gain 18 dBi
3 dB beamwidth 20º azimuth x 20º elevation
Front-to-back ratio 30 dB (min)
Sidelobe suppression 15 dB (min)
Input impedance 50 ohms
Polarization Linear – vertical or horizontal switchable
VSWR 2:1 (max)
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 31 of 129

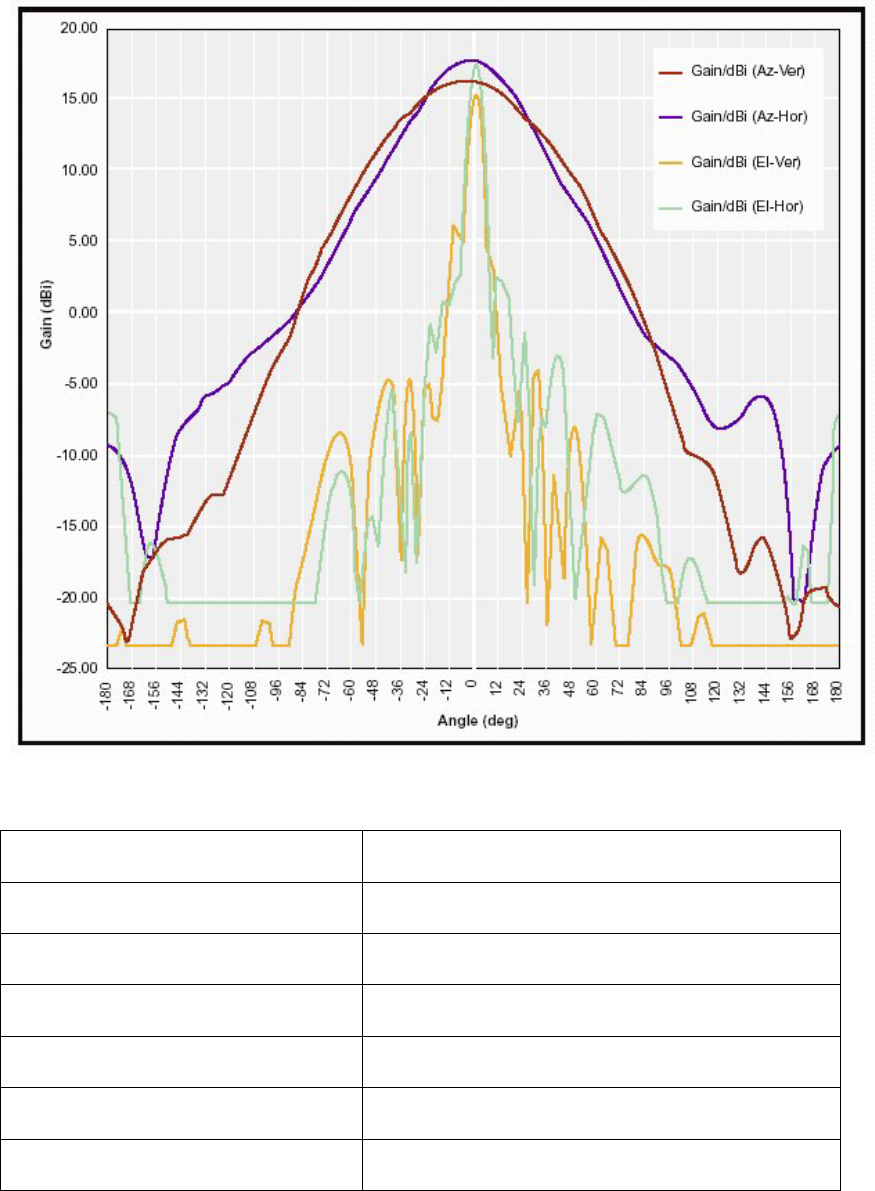

5.8.4
Access Point Antenna
Peak gain 18 dBi
3 dB beamwidth 60º azimuth x 7º elevation
Front-to-back ratio 25 dB (min)
Sidelobe suppression 15 dB (min)
Input impedance 50 ¾ ohms
Polarization Linear – vertical or horizontal switchable
VSWR 2:1 (max)
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 32 of 129
5.8.5
Extender Antenna
Peak gain 23 dBi
3 dB beamwidth 10º azimuth x 10º elevation
Front-to-back ratio 25 dB (min)
Sidelobe suppression 15 dB (min)
Input impedance 50 ¾ ohms
Polarization Linear – vertical or horizontal switchable
VSWR 2:1 (max)
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 33 of 129
5.9
Topology Types
To properly deploy the AB-Access System, one must understand the geographical
physical topology. While the real world possibilities are endless, the following three
distinctive geographic topologies will be covered:
• Macrocells
• Microcells
• Picocells
A Macrocell design should be used when you are trying to provide ubiquitous coverage
over a large area. Each cell has many Subscribers. The fundamental limit in deploying
in this manner is usually coverage zone (cell radius) due to U-NII, ISM & ETSI EIRP
limits, as well as building and terrain obstructions.
A Microcell is normally used when you are trying to provide high-density coverage to a
smaller geographic area. Each cell sector has many subscribers per sector. The
fundamental limit in deploying in this manner is co-channel interference due to LOS
interference paths.
A Picocell design normally covers an extremely small geographic area such as a
neighbourhood or a Multiple Dwelling Unit (MDU) complex. There are normally many
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 34 of 129
sectors and few subscribers per sector. The fundamental limit in deploying in this
manner is Line of Sight (LOS) coverage.
While the above are generalizations, they can be used effectively as a starting point for
developing an RF plan for deployment. However, based upon the specifications of the
AB-Access equipment, it is necessary to have some pre-defined RF coloring schemes.
To better understand the benefits of different coloring schemes, a basic concept of
interference types should be understood.
5.10
Interference Types
There are four distinct types of interference that can occur in a cellular reuse pattern. Each
unique in its geometry and imposes unique frequency reuse constraints.
EFFECT INTERFERENCE TYPE
Would affect only the one SU. Could
affect other units if they are in the
same area.
Type 1 – Downlink
Downlink to Subscriber Unit Interfered with by another Access
Point transmission.
Would affect only the one SU. Could
affect other units if they are in the
same area.
Type 2 – Downlink
Downlink to Subscriber Unit Interfered with by a Subscriber
Unit Uplink in another cell.
Would affect all units in the sector.
This would be a constant source of
interference.
Type 3 – Uplink
Uplink to Access Point Interfered with by another Access Point
transmission.
Becomes critical if facets using same frequency face each
other.
Would affect all units in the sector.
Could be an intermittent problem
based on the amount of data that
interfering SU is transmitting.
Type 4 – Uplink
Uplink to Access Point Interfered with by a Subscriber Unit
uplink from another cell.
Hardest to eliminate and will reduce the performance of the
whole system.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 35 of 129
5.10.1
Type 1 Interference
Downlink to Subscriber Unit
interfered with by another Access
Point Downlink. All Access Points
power control for full service at the
sector edge (in cusp). The worst case
scenario is when the SU (Cell 1) has
the interfering AP at Boresight (Cell 2)
and is towards the edge of its sector,
i.e. min CNR from its AP.
5.10.2
Type 2 Interference
Downlink to Subscriber Unit
interfered with by a Subscriber Unit
Uplink in another cell. Worst case
scenario is interfering SU at range
(max Tx power), and victim SU at
range (lowest CNR) and SUs facing
each other, e.g. Cells 1 and 3. The
interference is reduced if SUs using
the same frequencies do not face
each other, e.g., Cells 1 and 2.
Cell 1
Cell 2
Interfering AP
Interfer
ence
h
Cell 1
Cell 2
Weak
Interference
path
Cell 3
Strong
Interference
path
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 36 of 129

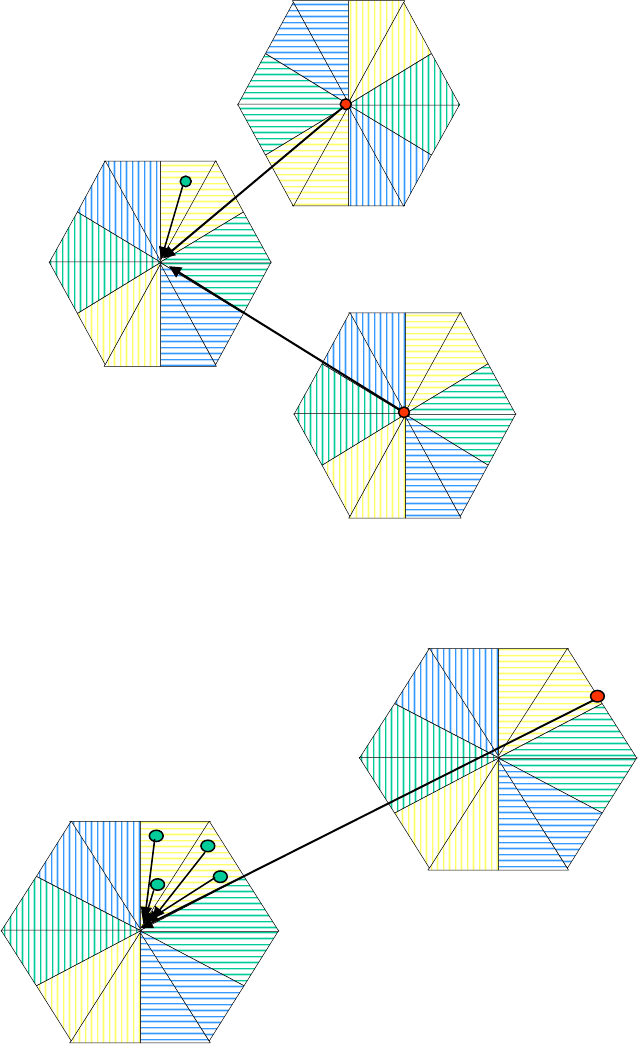

5.10.3
Type 3 Interference
Uplink to Access Point
interfered with by another
Access Point Downlink. This is
only an issue if sectors using
the same frequency face each
other in the reuse pattern, e.g.,
Cell 1 and Cell 3. Otherwise it
is a benign interference type,
e.g., Cell 1 and Cell 2.
5.10.4
Type 4 Interference
Uplink to Access Point
interfered with by a Subscriber
Unit Uplink in another cell.
This is the worst case of
intercell interference, as one
SU, e.g., in Cell 2, interferes
with all the users on the same
frequency and polarization in
Cell 1 (whenever the SU in
Cell 2 is transmitting). As the
system has power control for
SUs, the worst case Type 4
interference will be caused by
SUs deployed at range and at
the edge of their sector, i.e., in
the Access Point Antenna
Cusp.
Cell
1
Cell
2
Interfering AP
Interference
path
Cell
3
Interferin
g AP
Cell 1
Cell 2
Interfering CT
Interference
path
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 37 of 129
5.11
Recommended Channel Plans
The following sections will describe some pre-defined coloring schemes that will work in the
U-NII & ISM band with the AB-Access equipment.

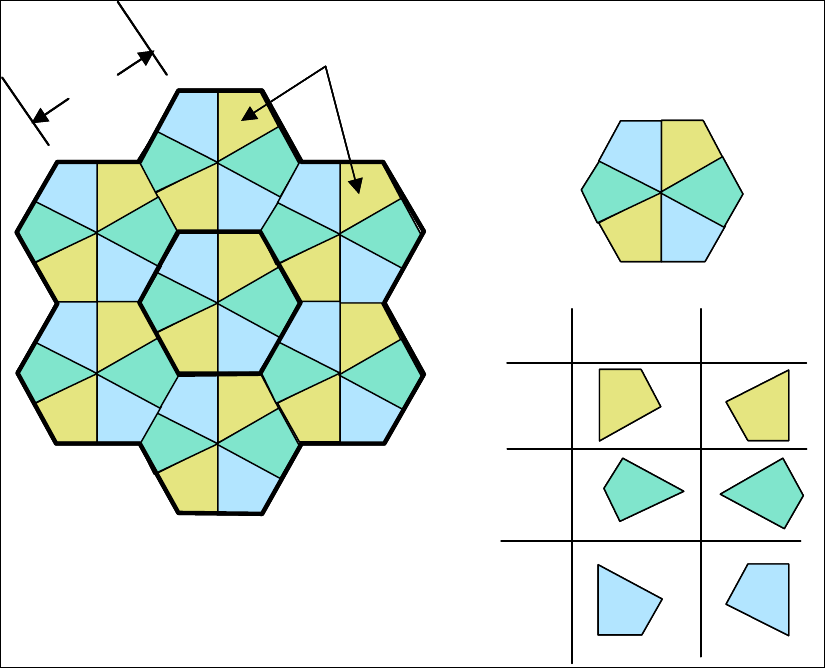

5.11.1
Six-Sector, Three-Frequency Plan
This plan is good for Macrocells on relatively flat terrain:
• Use 1 channel guardband/separation between sectors (U-NII & ISM only)
• Use opposite polarization in opposite directions
• Use 4 meter back-to-back separation (or equivalent isolation)
• Use >1 meter separation between sectors
• Use same frequencies and sector allocations in each cell.
61
3
2
4
5
3 Frequency Reuse
d
f1
f2
f3
HP VP
Two closest interfering sectors
61
3
2
4
5
3 Frequency Reuse
d
f1
f2
f3
HP VP
Two closest interfering sectors
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 38 of 129

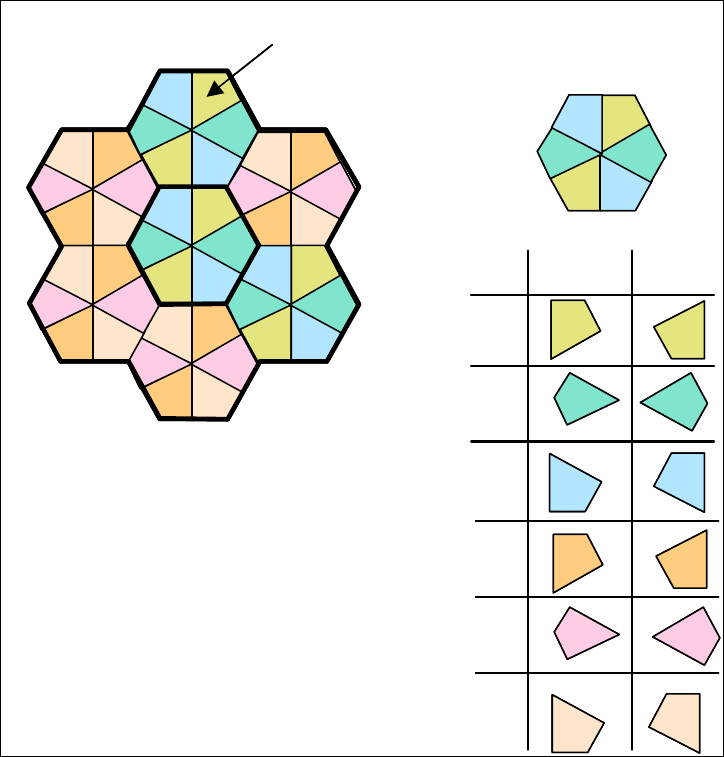

5.11.2
Six-Sector, Six-Frequency Plan
This plan is good for Microcells or Macrocells on uneven terrain:
• Use 1 channel guardband/separation between sectors (U-NII & ISM only)
• Use opposite polarization in opposite directions
• Use 4 meter separation (or equivalent isolation)
• Use >1 meter separation between sectors
• Use a different set of three frequencies on alternating cells.
Single closest
interfering sector
61
3
2
4
5
6 Frequency Reuse
f1
f2
f3
HP VP
f4
f5
f6
Sector
Numbering
Single closest
interfering sector
61
3
2
4
5
6 Frequency Reuse
f1
f2
f3
HP VP
f4
f5
f6
Sector
Numbering
5.12
Antenna Spacing
In most Base Station deployments, multiple APs are placed on a single building or tower. To
minimize AP to AP interference, it is necessary to mount the antennas with proper spacing. Based on
the frequency plan identified, the following minimum spacing shown in the table below should be
maintained.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 39 of 129
+14 dBm 60 deg 120 deg 180 deg
Polarization Same Opp Same Opp Same Opp
Same Channel NR NR NR NR NR >8M
Adjacent Channel 6’ 6’ 6’ 6’ 6’ 6’
2nd Adjacent 12” 12” 12” 12” 12” 12”
+16 dBm 60 deg 120 deg 180 deg
Polarization Same Opp Same Opp Same Opp
Same Channel NR NR NR NR NR >8M
Adjacent Channel 6’ 6’ 6’ 6’ 4M 4M
2nd Adjacent 12” 12” 12” 12” 3’ 12”
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 40 of 129
6 Static Configurations
Before one creates a static system you must first know what everything in the configuration
files mean. The files listed below are all the configuration files that can be configured on the system.
6.1
resolve
The resolve file stores the IP configuration information such as IP address, netmask, and the
routing table.
6.1.1
device
device add device interface drivers mtu mtusize ipaddress
device {atm0 | atm1 | eth0} This name is used to define a virtual
device.
interface {atm | ether} Used to define the physical medium of the device
It is important to know that the wireless interface is always
ATM and the terrestrial interface can be either ATM or Ethernet.
drivers {//bun | //edd | //bridge}
//bun = ATM interface
//edd = Ethernet interface
//bridge = Ethernet interface via bridge (all interactive modes
and 1483 bridging mode)
mtusize maximum transmission unit (max: 1500)
ipaddress {a.b.c.d | dhcp} IP address that will be associated with the
device.
Example
The following example shows an ATM device for the terrestrial interface.
device add atm0 atm //bun mtu 1500 192.168.2.50
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 41 of 129
6.1.2
nat
nat add device
device {atm0 |atm1 | eth0} Corresponds to the device in the device
line that you want NAT enabled on. NAT should be enabled on the
WAN interface.
Example
The following example shows NAT enabled on the atm1 device.
nat add atm1
6.1.3
subnet
subnet add device . networkID subnetmask
device {atm0.home | atm1.home | eth0.home | bridge.home} Is used to
define what device the subnet is being defined for.
networkID {a.b.c.d} The neworkID, which is defined in a decimal format.
subnetmask {ff:ff:ff:ff} The subnet mask in hexadecimal.
Example
The following example shows a subnet defined for the device that was defined in x.
NOTE: There is a period before the networkID, this is part of the
syntax and needs to be included.
subnet add atm0.home . 192.168.2.32 ff:ff:ff:e0
6.1.4
rip accept
rip accept interface version
interface {device | all} This will correspond to the device defined on the
device line.
version {1 | 2 | 1 2 | none} Defines which version of RIP you want to
accept.
Example
The following example shows the Ethernet interface accepting RIP version 1 & 2.
rip accept eth0 1 2
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 42 of 129
6.1.5
rip send
rip send interface version
interface {device | all} This will correspond to the device defined in
device line.
version {1 | 2 | 1 2 | none} Defines which version of RIP you want to
accept.
Example
The following example shows the wireless ATM interface sending RIP version 2.
rip send atm1 2
6.1.6
rip relay
rip relay version remoteip device timeout
version {1 | 2 | 1 2} Version of RIP to send.
remoteip {a.b.c.d} Remote IP address to send RIP to.
device {device} Device that RIP is to be sent from. This will usually be
atm1 or atm0.
timeout {seconds} The number of seconds until connection will timeout.
This parameter is optional, if not set the rip relay will not timeout.
Example
The following example shows rip version 2 being sent over the wireless interface.
rip relay 2 192.168.10.3 atm1
6.1.7
route add
route add name network gateway netmask cost
name Unique name used to identify the route.
network {a.b.c.d} Network ID of remote network.
gateway {a.b.c.d} Target IP address for path to remote network.
netmask {ff:ff:ff:ff} Subnet mask of remote network.
cost {#} Hop count to destination network, also referred to as metric.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 43 of 129
Cost is optional, and will be set to 1 if nothing is set. If this is not set
correctly and you are running RIP it could overwrite the static route.
Example
The following example shows a default route. A # sign can be used to put comments after the
route. In the example it is used to state that it is a manual route.
route add default 0.0.0.0 192.168.2.1 00:00:00:00 1 # MAN
6.1.8
ipatm lifetime
ipatm lifetime seconds
seconds {?-?} The number of seconds an ATM cells can traverse a
network before it will timeout, like the TTL of an Ethernet frame.
Example
The following example shows the lifetime set to 60 seconds, which is the default.
ipatm lifetime 60
6.1.9
relay
relay interface
interface {all} There are more options for this, but for the purpose of
keeping this simple just use “all”. Refer to the CLI document for more
options.
Example
The following example shows relay command being used to relay between all devices.
relay all
6.1.10
ipatm pvc add
ipatm pvc add interface port vpi/vci pcr pcr-rx/pcr-tx remoteip ipaddress
interface {atm1 | atm0} This defines which device you want to bind the
ipatm pvc to.
port {atm25m | atm25i}
atm25m = wireless port
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 44 of 129
atm25i = terrestrial port
vpi {0-7} Currently only VPI 0 is supported on the wireless
interface. The terrestrial interface can use any in the range.
vci {32-65535} Virtual Circuit Identifier
pcr-rx,
pcr-tx
{0-70000} Peak Cell Rate, used to define the maximum cells
arrival/transmission rat at/from the wireless interface (ATM cells per
second).
rx = data received from the wireless interface to be sent over the
terrestrial interface.
tx = data received from the terrestrial interface to be sent over
the wireless interface.
ipaddress {a.b.c.d} The remote IP address of the other device.
Example
The following example is an ipatm pvc for the wireless interface bound to the device atm1. It
is using VPI 0 & VCI 768 with a peak cell rate of 60000 and a destination IP address of
192.168.10.3.
ipatm pvc atm1 atm25i 0/768 pcr 70000/70000 remoteip 192.168.10.3
Old syntax
Note: The following old syntaxes are no longer valid.
ipatm pvc atm1 atm25i 0/768 pcr 60000 remoteip 192.168.10.3
ipatm pvc atm1 768/192.168.10.3/60000 atm25i
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 45 of 129
6.2
system.conf
6.2.1
channel
channel number
Number {0-14} This defines the RF channel.
0-4* = lower power (indoor only)
5*-9 = mid power (outdoor)
10-16 = high power (outdoor)
* Channels 0 – 5 for ESTI variant
Note: The channel plans can vary in different countries.
Example
The following example shows a unit transmitting on channel 14, which is a high power
channel.
channel 14
6.2.2
antenna
antenna polarization
polarization {vertical | horizontal} Defines the antenna.
Example
The following example shows the antenna set to vertical polarization.
antenna vertical
6.2.3
mode
mode operation
operation {static | interactive} Defines the mode of operation.
static = puts radio in stand alone mode
Interactive = puts radio in mode that needs EMS to operate
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 46 of 129
Example
The following example shows a unit operating in a static mode, which means the unit is in a
stand alone mode.
mode static
6.2.4
mid
mid number
number {0-254} Mobile ID is a unique identifier per radio in a sector.
MID 0 is always used for the AP, and can’t be used for an SU.
MID 255 is reserved and used as the broadcast MID. Also no MIDs can
be duplicated in a sector.
Example
The following example shows a AP’s mid.
mid 0
6.2.5
bid
bid number
number {0-255} The BID (Basestation Identifier) is used identify static
scanning SUs with the correct AP. Meaning that the SU and AP must
have the same non zero BID in order for the SU to lock onto the APs
channel. A BID of 0 disables static channel scanning.
Example
The following example shows bid of 2.
bid 2
6.2.6
interface
interface type
type {atm0 | eth0} Defines the interface type for the terrestrial
interface.
Example
The following example shows a unit that has an Ethernet interface defined. It is important to
know that this is the only setting that makes a unit ATM or Ethernet on the physical layer.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 47 of 129
interface eth0
6.2.7
duplex
duplex type
type {half | full} Sets the Ethernet interface to half or full duplex.
Example
The following example shows a unit’s interface set to full duplex.
duplex full
NOTE: If set to full duplex unit must be connected to a switch or router and not
a hub. The unit will not auto-negotiate in full duplex, so you must set switch to 10Mb
Full Duplex.
6.2.8
backoff
backoff dB
dB {0-20} Reduces the transmit power and is measured in dB.
Backoff should only be used indoors or in rare situations that call for
less power to be transmitted from the antenna. Backoff should also be
set the same on all units in the sector.
Example
The following example shows a unit that is not backed off. This is how most of units in the
field will be configured.
backoff 0
6.2.9
provider
provider text
text Text field that can hold up to 24 characters.
Example
The following example shows the Provider as “abw”.
provider abw
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 48 of 129
6.2.10
key
key code
code Text field that can hold up to 14 characters. This function is not
currently enabled.
Example
The following example shows an authentication key that is default. Units currently ignore
this field.
key Axxcelera
6.2.11
mask
mask mask#
mask# {5 digit hex #} This is only used in an interactive system or
static channel scanning by using a non-zero BID. It prevents the radio
from scanning specific RF channels.
RF Channel Bit Map Table for Creating Mask#
Channel 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Binary Position Value 1 8 4 2 1 8 4 2 1 8 4 2 1 8 4 2 1
Decimal Value 1 15 15 15 15
Hexadecimal Value 1 f f f f
Decimal to Hexadecimal Conversion Table
Decimal 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Hex 0 1 2 3 4 5 6 7 8 9 a b c d e f
Example
The following example shows a unit that is masked to not scan channels 0-9 (Binary:
1:1111:1100:0000:0000 = Decimal: 1:15:12:0:0)
mask 1fc00
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 49 of 129
6.2.12
leds
leds mode
mode {active | debug} Defines the interpretation for the LEDs on the
wallbox.
Active = Upon boot the yellow light will go solid indicating the
unit has power. The green light is then a data traffic light and flashes
when data is transmitted on the terrestrial interface.
Debug = Upon boot the yellow light defines the terrestrial
interface, once for Ethernet, twice for ATM. The green light becomes
an RF link status light flashing once if the modems have not
synchronized and 5 times if they have.
Example
The follow example puts the unit’s wallbox into active mode.
leds active
6.2.13
max_mid
max_mid #
# {1-254} This is only set in the AP and sets the number of
interactive SUs that are allowed to register with the AP.
Example
The following example specifies 32 as the maximum MID supported by the AP and
effectively limits the number of SUs to 32.
max_mid 32
6.2.14
tx_watchdog
tx_watchdog #
# {1-1920} The number of seconds before a unit is rebooted once
a condition is detected. This condition is based on the “utopia_traffic”
watchdog. The default is 1 second in the 5.3.x and later software. It is
recommended that you change this to 1 second if you are using 5.3.x or
newer software.
Example
The following example sets the watchdog time to 5 minutes.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 50 of 129
tx_watchdog 1
6.2.15
ptp
ptp mode
mode {enable | disable} Enables or disables the point-to-point power
control. When enabled it will disable the power control algorithm that
controls the uplink txpower from an SU. With this enabled the SU will
tx at maximum power, which should help the uplink PER on PTP
links.
Example
The following example sets the ptp to enable.
ptp enable
6.2.16
dfs
dfs mode
mode {enable | disable} Enables or disables the dynamic frequency
allocation. Dynamic Frequency Allocation allows the AP to change to
a clean channel if interference is detected on its current channel. This
feature is only available on FPGA units.
Example
The following example sets the dfs to enable.
dfs enable
6.2.17
dfs_threshold
dfs_threshold dBm
dBm {-30 - -85} Sets the received signal level threshold of an
interferer which will cause the AP to change channels.
Example
The following example sets the dfs_threshold to -40 dBm.
dfs_threshold -40
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 51 of 129
6.3
initswitchcli
6.3.1
tp
tp name service pcr
Name {name | default} Can be assigned a name or the default.
Service {UBR | CBR | ABR | VBR} UBR is currently the only service
that is supported.
Pcr {0-70000} Peak Cell Rate, used to define the maximum cells
arrival/transmission rat at/from the wireless interface (ATM cells per
second).
Example
TP (traffic parameter) sets the type of service that is desired and peak cell rate. The following
example show the TP default set to Unspecified Bit Rate with a Peak Cell Rate of 2667.
tp default UBR 2667
NOTE: When setting PCR for a bi-directional PVC the following applies.
atm25i – atm25m = terrestrial – wireless : which is the same as the tx in the ipatm pvc settings.
atm25m – atm25i = wireless – terrestrial : which is the same as the rx in the ipatm pvc settings.
6.3.2
sp
sp name buffer stats
name {name | default} Can be assigned a name or the default.
buffer {cells} Number of cells that can be buffered.
stats {stats} Is optional, but needs to be used for the stats command
to work.
Example
SP (switch parameter) sets the size of the buffer in the switchcli and whether or not stats are
recorded. The following shows the buffer set to 256 cells and stats recording enabled. This should be
the default for all configs using the switchcli.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 52 of 129
sp default 256 stats
N
6.3.3
add
add iport ivpi ivci oport ovpi ovci tp sp type epd
iport {atm25i | atm25m} In port of uni-directional PVC.
atm25i = terrestrial
atm25m = wireless
ivpi {0-7} Currently only VPI 0 is supported on the wireless
interface. The terrestrial interface can use any in the range.
ivci {32-65535} In port VCI.
oport {atm25i | atm25m} Out port of the uni-directional PVC.
ovpi {0-7} Currently only VPI 0 is supported on the wireless
interface. The terrestrial interface can use any in the range.
ovci {32-65535} Out port VCI.
tp {name} This is the name of the traffic parameter (previously set)
that applies to this PVC mapping.
sp {name} This is the name of the switch parameter (previously
set) that applies to this PVC mapping.
type {perm | soft | none} For all static configurations “perm” should
be used.
epd {epd] Early Packet Discard will discard arriving cells when
buffering is below 32 cells.
Example
The following example shows a uni-directional PVC mapped from the terrestrial to wireless
port.
add atm25i 0 100 atm25m 0 256 default default perm epd
6.4
initmr1483
Use this file only on APs. The corresponding file for an SU is initr1483.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 53 of 129
6.4.1
floodmode
floodmode mode
mode {0 | 1}
0 = Flooding of unlearned unicast packets is disabled.
1 = Flooding of unlearned unicast packets is enabled.
Example
The following example configures the mr1483 device to forward all unlearned unicast
packets.
floodmode 1
6.4.2
up
up mid vci port pcr-rx pcr-tx
mid {1-254} MID of the SU that the data will be sent to.
vci {MID*256} The MID of the SU multiplied by 256.
port {atm25m} Only the wireless port can be used for this device.
pcr-rx {0-70000} Peak Cell Rate, used to define the maximum cells
passed per second.
pcr-tx {0-70000} Peak Cell Rate, used to define the maximum cells
passed per second.
Example
The following example sets up a mr1483 PVC to an SU with MID 3.
up 3 768 atm25m 70000 70000
6.5
initr1483
Use this file only on SUs. The corresponding file for an AP is initmr1483.
6.5.1
pvc
pvc vpi/vci port pcr-rx pcr-tx
vpi {0} Only VPI 0 is supported.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 54 of 129
vci {MID*256} The MID of the SU multiplied by 256.
port {atm25m} Only the wireless port can be used for this device.
pcr-rx {0-70000} Peak Cell Rate, used to define the maximum cells
arrival rate from the wireless interface (ATM cells per second).
pcr-tx {0-70000} Peak Cell Rate, used to define the maximum cells
transmission rate at the wireless interface (ATM cells per second).
Example
The following example sets up a r1483 PVC to an AP from an SU with MID 3.
pvc 0/768 atm25m 70000 70000
6.6
initbridge
6.6.1
spanning
spanning mode
mode {disable | enable} Currently spanning tree is not supported so
you must choose the disable option.
Example
The following example shows spanning tree disabled. Spanning tree is not supported at this
time.
spanning disable
6.6.2
device add
device add device
device {edd | mr1483 | r1483}
edd = Ethernet interface
mr1483 = multi-port 1483 bridge (AP only)
r1483 = single-port 1483 bridge (SU, Backhaul Master,
Backhaul Slave)
Example
The follow example adds the Ethernet interface to the bridge.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 55 of 129
device add edd
6.7
dhcpd.conf
The dhcpd.conf file follows the same syntax as a Linux or UNIX dhcpd.conf file.
6.7.1
subnet
subnet networkid netmask subnet
networkid {a.b.c.d} The network ID for the leased addresses.
subnet {a.b.c.d} The subnet for the leased addresses.
Example
The following example sets the subnet for the 10.10.10.0 network with a class C netmask.
subnet 10.10.10.0 netmask 255.255.255.0
6.7.2
range
range startip stopip
startip {a.b.c.d} First IP address in the range that will be leased out to
clients.
stopip {a.b.c.d} Last IP address in the range that will be leased out to
clients.
Example
The following example shows the range of IP that the DHCP server can lease out to clients.
range 10.10.10.10 10.10.10.20
6.7.3
option routers
option routers gateway
gateway {a.b.c.d} Gateway IP for the computers leasing addresses.
Example
The following example sets the default route (gateway) address for all clients that lease an
address from the server.
option routers 10.10.10.1
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 56 of 129
6.7.4
max-lease-time
max-lease-time seconds
seconds {0-86400} Time in seconds that a client can hold a leased
address from the DHCP server. A setting of 0 seconds will make the
lease never timeout.
Example
The following example sets the lease time to 24 hours (=24x60x60).
max-lease-time 86400
6.7.5
option domain-name
option domain-name dnsname
dnsname {name} Name of the DNS Server.
Example
The following example sets the DNS suffixes that the clients will use.
option domain-name www.dns.com
6.7.6
option domain-name-servers
option domain-name-servers dnsip
dnsip {a.b.c.d} IP address of the DNS Server.
Example
The following example sets the DNS server that all the clients will use.
option domain-name-servers 192.168.1.254
6.8
snmpinit
6.8.1
access write
access write password
password {password} Sets the password for the unit.
Example
The following example sets the password to “atmos”.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 57 of 129
access write atmos
NOTE: AB-Access only supports write access and does not support read
access.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 58 of 129
7 CLIP_T
The CLIP_T configuration is when both the AP and SU are setup as routers. This means that
when data arrives on any interface it is analyzed at layer 3 and based on the destination IP address is
forwarded out the proper interface.
7.1
Static CLIP_T Eth AP
All assumptions for troubleshooting Static CLIP_T Eth AP will be based on the following
diagram.

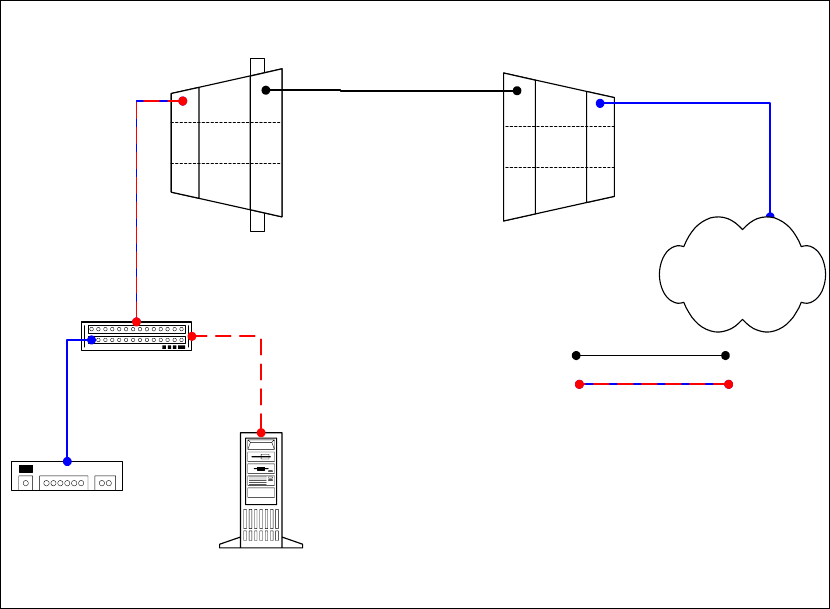

RL
BL
SL
E
RL
BL
SL
E
Ethernet Switch
PC
Router
192.168.2.33 /27
192.168.2.34 /27
192.168.100.3 192.168.3.65 /29
MID 0 MID 3
192.168.2.50 /27 PVC 768
LAN
SU Data/Management PVC
AP/SU Management/Data Path
192.168.100.1
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 59 of 129
7.1.1
AP Configuration Files
7.1.1.1 AP resolve
device add eth0 ether //edd mtu 1500 192.168.2.50
device add atm1 atm //bun mtu 1500 192.168.100.1
subnet add eth0.home . 192.168.2.32 ff:ff:ff:e0
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.2.33 00:00:00:00 1 # MAN
route add su1 192.168.3.64 192.168.100.3 ff:ff:ff:f8 1 # MAN
relay all
ipatm pvc lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
7.1.1.2 AP system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface eth0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 60 of 129
7.1.2
SU Configuration Files
7.1.2.1 SU resolve
device add eth0 ether //edd mtu 1500 192.168.3.65
device add atm1 atm //bun mtu 1500 192.168.100.3
subnet add eth0.home . 192.168.3.64 ff:ff:ff:f8
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
7.1.2.2 SU system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface eth0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
7.1.3
Troubleshooting
7.1.3.1 Can’t ping the radio from the terrestrial interface
1.
Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight-through cable. To connect the radio to a network
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 61 of 129
device (hub, switch, router) use an Ethernet cross-over cable (1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and that the cable is terminated correctly at
the radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
7.1.3.2 Can’t ping across the wireless link
There are numerous reason why you couldn’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check that SU has the proper MID.
192.168.3.65 hmm> system mid
MID 3
2. Check the “ipatm pvc” is correct in relation to the MID and remoteip
AP
192.168.2.50 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
SU
192.168.3.65 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
3. Check the default route in the SU.
192.168.3.65 ip> route
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN via atm1
4. Check that there is a route in the AP that points to the SU’s terrestrial network.
192.168.2.50 ip> route
route add su1 192.168.3.64 192.168.100.3 ff:ff:ff:f8 1 # MAN via atm1
route add default 0.0.0.0 192.168.2.33 00:00:00:00 1 # MAN via eth0
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 62 of 129
7.2
Static CLIP_T ATM AP
All assumptions for troubleshooting Static CLIP_T ATM AP will be based on the following
diagram.
RL
BL
SL
A
RL
BL
SL
E
ATM Switch
PC
Router
192.168.2.33 /27
192.168.2.34 /27
192.168.100.3 192.168.3.65 /29
MID 0 MID 3
192.168.2.50 /27 PVC 768
LAN
SU Data/Management PVC
AP/SU Management/Data Path
192.168.100.1
PVC 50 PVC 51
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 63 of 129
7.2.1
AP Configuration Files
7.2.1.1 AP resolve
device add atm0 atm //bun mtu 1500 192.168.2.50
device add atm1 atm //bun mtu 1500 192.168.100.1
subnet add atm0.home . 192.168.2.32 ff:ff:ff:e0
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.2.33 00:00:00:00 1 # MAN
route add su1 192.168.3.64 192.168.100.3 ff:ff:ff:f8 1 # MAN
relay all
ipatm pvc lifetime 60
ipatm pvc atm0 atm25i 0/50 pcr 70000/70000 remoteip 192.168.2.33
ipatm pvc atm0 atm25i 0/51 pcr 70000/70000 remoteip 192.168.2.34
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
7.2.1.2 AP system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface atm0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 64 of 129
7.2.2
SU Configuration Files
7.2.2.1 SU resolve
device add eth0 ether //edd mtu 1500 192.168.3.65
device add atm1 atm //bun mtu 1500 192.168.100.3
subnet add eth0.home . 192.168.3.64 ff:ff:ff:f8
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
7.2.2.2 SU system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface eth0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
7.2.3
Troubleshooting
7.2.3.1 Can’t ping the radio from the terrestrial interface
AP
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 65 of 129
1. Check all physical connections. It is a straight cable from the CS to the Switch, and a
rollover twist from the wall box to the switch (1-7,2-8).
2. Check to see if your atmarp entries are in the ARP table on the CS. ( ./atmarp if you
are already in the /usr/local/sbin directory)
• Add an atmarp entry
root@cs1 11:11:14 (4) [~] # atmarp -s 192.168.2.50 0.0.34
• View an atmarp table
root@cs1 11:12:52 (5) [~] # atmarp -a
----- Itf 0 (192.168.2.1, netmask 255.255.255.0) -----
Default QOS: ubr,aal5:max_sdu=9188
IP 192.168.2.50, state VALID, addr <none>, flags 0x4<PERM> 0.0.34
----- Unknown incoming connections -----
----- Incoming unidirectional connections -----
----- End of dump -----
• Delete an atmarp entry
root@cs1 11:13:42 (6) [~] # atmarp -d 192.168.2.50
3. Check route on CS, by typing route at the Command line.
• Add a route
root@cs1 11:17:19 (8) [~] # route add -net 192.168.100.0 netmask 255.255.255.0 gw 192.168.2.50
• View the routing table
root@cs1 11:18:51 (9) [~] # route
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
10.9.144.1 * 255.255.255.255 UH 0 0 0 eth0
192.168.100.0 192.168.2.50 255.255.255.0 UG 0 0 0 atm0
192.168.2.0 * 255.255.255.0 U 0 0 0 atm0
10.9.144.0 * 255.255.255.0 U 0 0 0 eth0
127.0.0.0 * 255.0.0.0 U 0 0 0 lo
• Delete a route
root@cs1 11:20:26 (10) [~] # route del -net 192.168.100.0 netmask 255.255.255.0
4. Check the Switch for the correct PVC’s.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 66 of 129
• Log into the ATM switch and check that the PVCs are mapped correctly. The following
commands are for an FVC switch.
• Add a PVC
ADMIN Access_NGI>set pvc add 101 0 34 be 102 0 34 be
Adding PVC i=101/0/34 o=102/0/34 to switch fabrice
Updating FLASH memory. Please wait ... Done.
• Show the PVCs mapped in the switch
ADMIN Access_NGI>show pvc list id 0
------------------------------------------------------------
PVC ID IPort IVPI IVCI BW OPort OVPI OVCI BW
------------------------------------------------------------
1 101 0 34 0 102 0 34 0
• Delete a PVC
ADMIN Access_NGI>set pvc del 1
SU
1. Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight cable. If you connect the radio to a network device
(hub, switch, router) you will use a Ethernet cross-over cable(1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and the cable is terminated correctly at the
radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
7.2.3.2 Can’t ping across the wireless link
There are numerous reasons why you couldn’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check that SU has the proper MID.
192.168.3.10 hmm> system mid
MID 3
2. Check the ipatm pvc is correct in relation to the MID and remoteip
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 67 of 129
AP
192.168.2.50 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
SU
192.168.3.65 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
3. Check the default route in the SU.
192.168.3.65 ip> route
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN via atm1
4. Check that there is a route in the AP that points to the SU’s terrestrial network.
192.168.2.50 ip> route
route add su1 192.168.3.64 192.168.100.3 ff:ff:ff:f8 1 # MAN via atm1
route add default 0.0.0.0 192.168.2.34 00:00:00:00 1 # MAN via atm0
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 68 of 129
7.3
Hybrid CLIP_T Eth AP
192.168.100.3
PVC 768
RL
BL
SL
E
RL
BL
SL
E
Eth Switch
Control Server
Router
RL
BL
SL
E
192.168.2.34 /27
192.168.100.4
192.168.100.1
192.168.3.65 /29
192.168.3.9 /29
MID 0
MID 3
MID 4
192.168.2.50 /27
PVC
1024
LAN
LAN
PVC 769
PVC 1025
192.168.2.33 /27
VPN PVC
SU Data Path
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 69 of 129
7.3.1
AP Configuration Files
7.3.1.1 AP resolve
device add eth0 ether //edd mtu 1500 192.168.2.50
device add atm1 atm //bun mtu 1500 192.168.100.1
subnet add eth0.home . 192.168.2.32 ff:ff:ff:e0
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.2.33 00:00:00:00 1 # MAN
route add su1 192.168.3.64 192.168.100.3 ff:ff:ff:f8 1 # MAN
route add su2 192.168.3.8 192.168.100.4 ff:ff:ff:f8 1 # MAN
relay all
ipatm pvc lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
ipatm pvc atm1 atm25m 0/1024 pcr 70000/70000 remoteip 192.168.100.4
7.3.1.2 AP system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface eth0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
7.3.1.3 AP Switchcli
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 70 of 129
tp default UBR 2667
sp default 256 stats
add atm25m 0 769 atm25m 0 1025 default default perm epd
add atm25m 0 1025 atm25m 0 769 default default perm epd
7.3.2
SU1 Configuration Files
7.3.2.1 SU1 resolve
device add eth0 ether //edd mtu 1500 192.168.3.65
device add atm1 atm //bun mtu 1500 192.168.100.3
subnet add eth0.home . 192.168.3.64 ff:ff:ff:f8
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN
route add su2 192.168.3.8 192.168.100.4 ff:ff:ff:f8 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
ipatm pvc atm1 atm25m 0/769 pcr 70000/70000 remoteip 192.168.100.4
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 71 of 129
7.3.2.2 SU1 system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface eth0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
7.3.3
SU2 Configuration Files
7.3.3.1 SU2 resolve
device add eth0 ether //edd mtu 1500 192.168.3.9
device add atm1 atm //bun mtu 1500 192.168.100.4
subnet add eth0.home . 192.168.3.8 ff:ff:ff:f8
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN
route add su1 192.168.3.64 192.168.100.3 ff:ff:ff:f8 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm1 atm25m 0/1024 pcr 70000/70000 remoteip 192.168.100.1
ipatm pvc atm1 atm25m 0/1025 pcr 70000/70000 remoteip 192.168.100.3
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 72 of 129
7.3.3.2 SU2 system.conf
channel 0
antenna horizontal
mode static
mid 4
bid 0
interface eth0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
7.3.4
Troubleshooting
7.3.4.1 Can’t ping the radio from the terrestrial interface
1.
Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight-through cable. To connect the radio to a network
device (hub, switch, router) use an Ethernet cross-over cable (1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and that the cable is terminated correctly at
the radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
7.3.4.2 Can’t ping across the wireless link
There are numerous reason why you couldn’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check that SU has the proper MID.
192.168.3.65 hmm> system mid
MID 3
2. Check the “ipatm pvc” is correct in relation to the MID and remoteip
AP
192.168.2.50 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
SU
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 73 of 129
192.168.3.65 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
3. Check the default route in the SU.
192.168.3.65 ip> route
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN via atm1
4. Check that there is a route in the AP that points to the SU’s terrestrial network.
192.168.2.50 ip> route
route add su1 192.168.3.64 192.168.100.3 ff:ff:ff:f8 1 # MAN via atm1
route add default 0.0.0.0 192.168.2.33 00:00:00:00 1 # MAN via eth0
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 74 of 129
8 CLIP_S
The CLIP_S configuration is when the AP acts as an ATM switch and the SU acts as a
router. This means that the AP will pass ATM cells at layer 2, and the SU will act as a router
analyzing all data at layer 3 and based upon destination IP address forward the data out the proper
interface.
In static mode you can configure the management traffic in either routed or a switched
configuration. Each section describes the pros and cons of each configuration so you can decide
which is best for your network.
8.1
Static CLIP_S (routed management)
All assumptions for troubleshooting CLIP_S (routed management) are based on the following
diagram.

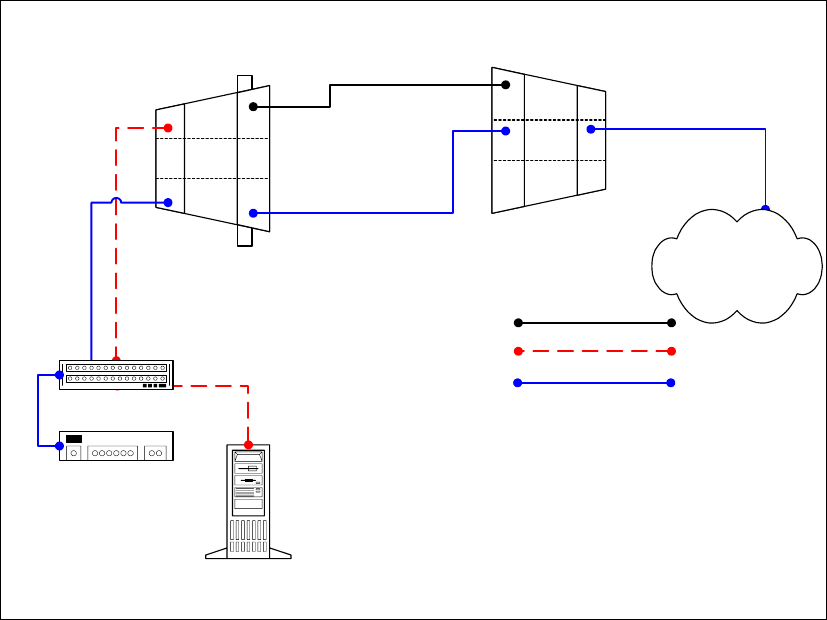

192.168.100.3
PVC 768
RL
BL
SL
A
RL
BL
SL
E
ATM Switch
PC
Router
192.168.5.1
192.168.2.34 /27
192.168.100.1
192.168.3.65 /29
MID 0 MID 3
192.168.2.50 /27
LAN
PVC
34
PVC 769
PVC
200
192.168.5.5
AP Management PVC
SU Management PVC
SU Data PVC
8.1.1
Routed Management PRO/CON
CLIP_S can be configured with switched management or routed management. Read
PRO/CON of both to help you decide which you would like use.
PRO
• Only one ATMARP entry will need to be added to the termination router.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 75 of 129
• Can be easier to troubleshoot and isolate a problem in the network.
CON
• Need to add a route and ipatm pvc for every SU that is added to the AP.
• May need to add a route to multiple routers for each SU depending upon network
design.
8.1.2
AP Configuration Files
8.1.2.1 AP resolve
device add atm0 atm //bun mtu 1500 192.168.2.50
device add atm1 atm //bun mtu 1500 192.168.100.1
subnet add atm0.home . 192.168.2.32 ff:ff:ff:e0
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.2.34 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm0 atm25i 0/34 pcr 70000/70000 remoteip 192.168.2.34
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 76 of 129
8.1.2.2 AP system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface atm0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
8.1.2.3 AP initswitchcli
tp default UBR 2667
sp default 256 stats
add atm25m 0 769 atm25i 0 200 default default perm epd
add atm25i 0 200 atm25m 0 769 default default perm epd
8.1.3
SU Configuration Files
8.1.3.1 SU resolve
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 77 of 129
device add eth0 ether //edd mtu 1500 192.168.3.65
device add atm1 atm //bun mtu 1500 192.168.100.3
device add atm2 atm //bun mtu 1500 192.168.5.5
subnet add eth0.home . 192.168.3.64 ff:ff:ff:f8
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
subnet add atm2.home . 192.168.5.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.5.1 00:00:00:00 1 # MAN
route add mgmt 192.168.2.32 192.168.100.1 ff:ff:ff:e0 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
ipatm pvc atm2 atm25m 0/769 pcr 70000/70000 remoteip 192.168.5.1
8.1.3.2 SU system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface eth0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 78 of 129
8.1.4
Troubleshooting
8.1.4.1 Can’t ping the radio from the terrestrial interface
AP
1. Check all physical connections. It is a straight cable from the CS to the Switch, and a
rollover twist from the wall box to the switch (1-7,2-8).
2. Check to see if your atmarp entries are in the ARP table on the CS. ( ./atmarp if you
are already in the /usr/local/sbin directory)
• Add an atmarp entry
root@cs1 11:11:14 (4) [~] # atmarp -s 192.168.2.50 0.0.34
• View an atmarp table
root@cs1 11:12:52 (5) [~] # atmarp -a
----- Itf 0 (192.168.2.1, netmask 255.255.255.0) -----
Default QOS: ubr,aal5:max_sdu=9188
IP 192.168.2.50, state VALID, addr <none>, flags 0x4<PERM> 0.0.34
----- Unknown incoming connections -----
----- Incoming unidirectional connections -----
----- End of dump -----
• Delete an atmarp entry
root@cs1 11:13:42 (6) [~] # atmarp -d 192.168.2.50
3. Check route on CS, by typing route at the Command line.
• Add a route
root@cs1 11:17:19 (8) [~] # route add -net 192.168.100.0 netmask 255.255.255.0 gw 192.168.2.50
• View the routing table
root@cs1 11:18:51 (9) [~] # route
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
10.9.144.1 * 255.255.255.255 UH 0 0 0 eth0
192.168.100.0 192.168.2.50 255.255.255.0 UG 0 0 0 atm0
192.168.2.0 * 255.255.255.0 U 0 0 0 atm0
10.9.144.0 * 255.255.255.0 U 0 0 0 eth0
127.0.0.0 * 255.0.0.0 U 0 0 0 lo
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 79 of 129
• Delete a route
root@cs1 11:20:26 (10) [~] # route del -net 192.168.100.0 netmask 255.255.255.0
4. Check the Switch for the correct PVC’s.
• Log into the ATM switch and check that the PVCs are mapped correctly. The following
commands are for an FVC switch.
• Add a PVC
ADMIN Access_NGI>set pvc add 101 0 34 be 102 0 34 be
Adding PVC i=101/0/34 o=102/0/34 to switch fabrice
Updating FLASH memory. Please wait ... Done.
• Show the PVCs mapped in the switch
ADMIN Access_NGI>show pvc list id 0
------------------------------------------------------------
PVC ID IPort IVPI IVCI BW OPort OVPI OVCI BW
------------------------------------------------------------
1 101 0 34 0 102 0 34 0
• Delete a PVC
ADMIN Access_NGI>set pvc del 1
SU
1. Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight cable. If you connect the radio to a network device
(hub, switch, router) you will use a Ethernet cross-over cable(1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and the cable is terminated correctly at the
radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
8.1.4.2 Can’t ping across the wireless link
There are numerous reason why you couldn’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 80 of 129
1. Check that SU has the proper MID.
192.168.3.10 hmm> system mid
MID 3
2. Check the ipatm pvc is correct in relation to the MID and remoteip
AP
192.168.2.50 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
SU
192.168.3.65 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
3. Check the default route in the SU.
192.168.3.65 ip> route
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN via atm1
4. Check that there is a route in the AP that points to the SU’s terrestrial network.
192.168.2.50 ip> route
route add su1 192.168.3.64 192.168.100.3 ff:ff:ff:f8 1 # MAN via atm1
route add default 0.0.0.0 192.168.2.34 00:00:00:00 1 # MAN via atm0
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 81 of 129
8.2
Static CLIP_S (switched management)
All assumptions for troubleshooting CLIP_S are based on the following diagram.
192.168.100.3
PVC 768
RL
BL
SL
A
RL
BL
SL
E
ATM Switch
PC
Router
192.168.5.1
192.168.100.254 /24
192.168.100.1
192.168.3.65 /29
MID 0 MID 3
LAN
PVC
101
PVC 769
PVC
200
192.168.5.5
AP Management PVC
SU Management PVC
SU Data PVC
PVC
103
PVC
103
PVC
101
8.2.1
Switched Management PRO/CON
CLIP_S can be configured with switched management or routed management. Read
PRO/CON of both to help you decide which you would like use.
PRO
• No extra mgmt routes will have to be added to the termination router.
• Multiple routes will not have to be added to network routers with the addition of each
SU.
CON
• Will need to add an atmarp entry for each SU in the termination router.
• Will need to add a management PVC in the switchcli of the AP for each SU.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 82 of 129
8.2.2
AP Configuration Files
8.2.2.1 AP resolve
device add atm0 atm //bun mtu 1500 192.168.100.1
subnet add atm0.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.100.254 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm0 atm25i 0/101 pcr 70000/70000 remoteip 192.168.100.254
8.2.2.2 AP system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface atm0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 83 of 129
8.2.2.3 AP initswitchcli
tp default UBR 2667
sp default 256 stats
add atm25m 0 768 atm25i 0 103 default default perm epd
add atm25i 0 103 atm25m 0 768 default default perm epd
add atm25m 0 769 atm25i 0 200 default default perm epd
add atm25i 0 200 atm25m 0 769 default default perm epd
8.2.3
SU Configuration Files
8.2.3.1 SU resolve
device add eth0 ether //edd mtu 1500 192.168.3.65
device add atm1 atm //bun mtu 1500 192.168.100.3
device add atm2 atm //bun mtu 1500 192.168.5.5
subnet add eth0.home . 192.168.3.64 ff:ff:ff:f8
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
subnet add atm2.home . 192.168.5.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.5.1 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.254
ipatm pvc atm2 atm25m 0/769 pcr 70000/70000 remoteip 192.168.5.1
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 84 of 129
8.2.3.2 SU system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface eth0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
8.2.4
Troubleshooting
8.2.4.1 Can’t ping the radio from the terrestrial interface
AP
1. Check all physical connections. It is a straight cable from the CS to the Switch, and a
rollover twist from the wall box to the switch (1-7,2-8).
2. Check to see if your atmarp entries are in the ARP table on the CS. ( ./atmarp if you
are already in the /usr/local/sbin directory)
• Add an atmarp entry
root@cs1 11:11:14 (4) [~] # atmarp -s 192.168.100.1 0.0.101
• View an atmarp table
root@cs1 11:12:52 (5) [~] # atmarp -a
----- Itf 0 (192.168.100.254, netmask 255.255.255.0) -----
Default QOS: ubr,aal5:max_sdu=9188
IP 192.168.100.1, state VALID, addr <none>, flags 0x4<PERM> 0.0.101
----- Unknown incoming connections -----
----- Incoming unidirectional connections -----
----- End of dump -----
• Delete an atmarp entry
root@cs1 11:13:42 (6) [~] # atmarp -d 192.168.100.1
3. Check the Switch for the correct PVC’s.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 85 of 129
• Log into the ATM switch and check that the PVCs are mapped correctly. The following
commands are for an FVC switch.
• Add a PVC
ADMIN Access_NGI>set pvc add 101 0 101 be 102 0 101 be
Adding PVC i=101/0/34 o=102/0/34 to switch fabrice
Updating FLASH memory. Please wait ... Done.
• Show the PVCs mapped in the switch
ADMIN Access_NGI>show pvc list id 0
------------------------------------------------------------
PVC ID IPort IVPI IVCI BW OPort OVPI OVCI BW
------------------------------------------------------------
1 101 0 101 0 102 0 101 0
• Delete a PVC
ADMIN Access_NGI>set pvc del 1
SU
1. Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight cable. If you connect the radio to a network device
(hub, switch, router) you will use a Ethernet cross-over cable(1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and the cable is terminated correctly at the
radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
8.2.4.2 Can’t ping across the wireless link
There are numerous reason why you couldn’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check that SU has the proper MID.
192.168.3.10 hmm> system mid
MID 3
2. Check the that the pvc information is correct in relation to the MID and remoteip
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 86 of 129
AP
192.168.100.254 switchcli> list all all perm
Displaying permanent entries for all ports.
port vp vc port vp vc
atm25i 0 103 ==> atm25m 0 768
atm25m 0 768 ==> atm25i 0 103
atm25i 0 200 ==> atm25m 0 769
atm25m 0 769 ==> atm25i 0 200
SU
192.168.3.65 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
3. Check the default route in the SU.
192.168.3.65 ip> route
route add default 0.0.0.0 192.168.100.254 00:00:00:00 1 # MAN via atm1
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 87 of 129
9 Hybrid CLIP_S

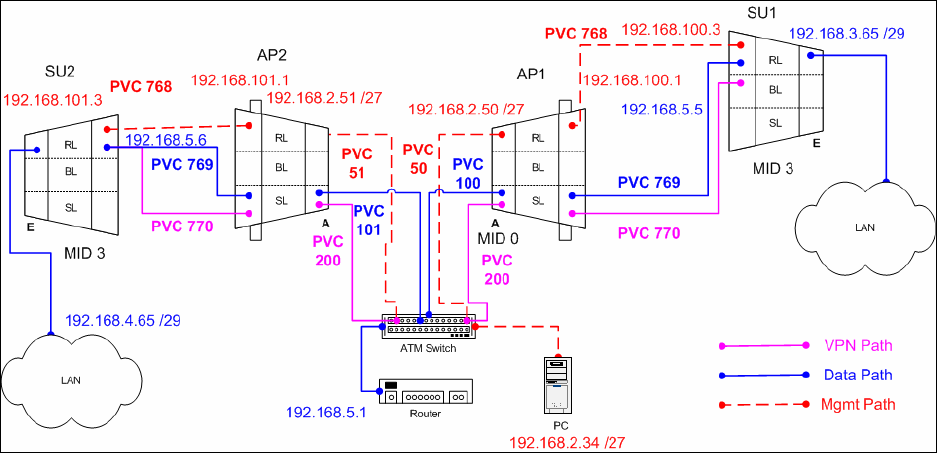

The Hybrid CLIP_S configuration is a configuration that can be added onto an existing
CLIP_S static configuration. What this configuration allows you to do is create a VPN type tunnel
between two SUs across a network. This allows for two data paths: one to another private network,
and another to the internet. This can be done with either a switched or routed management system.
9.1.1
AP1 Configuration Files
9.1.1.1 AP1 resolve
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 88 of 129
device add atm0 atm //bun mtu 1500 192.168.2.50
device add atm1 atm //bun mtu 1500 192.168.100.1
subnet add atm0.home . 192.168.2.32 ff:ff:ff:e0
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.2.34 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm0 atm25i 0/50 pcr 70000/70000 remoteip 192.168.2.34
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
9.1.1.2 AP1 system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface atm0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 89 of 129
9.1.1.3 AP1 initswitchcli
tp default UBR 2667
sp default 256 stats
add atm25m 0 769 atm25i 0 100 default default perm epd
add atm25i 0 100 atm25m 0 769 default default perm epd
add atm25m 0 770 atm25i 0 200 default default perm epd
add atm25i 0 200 atm25m 0 770 default default perm epd
9.1.2
SU1 Configuration Files
9.1.2.1 SU1 resolve
device add eth0 ether //edd mtu 1500 192.168.3.65
device add atm1 atm //bun mtu 1500 192.168.100.3
device add atm2 atm //bun mtu 1500 192.168.5.5
subnet add eth0.home . 192.168.3.64 ff:ff:ff:f8
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
subnet add atm2.home . 192.168.5.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.5.1 00:00:00:00 1 # MAN
route add su2 192.168.4.64 192.168.5.6 ff:ff:ff:f8 1 # MAN
route add mgmt 192.168.2.32 192.168.100.1 ff:ff:ff:e0 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
ipatm pvc atm2 atm25m 0/769 pcr 70000/70000 remoteip 192.168.5.1
ipatm pvc atm2 atm25m 0/770 pcr 70000/70000 remoteip 192.168.5.6
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 90 of 129
9.1.2.2 SU1 system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface eth0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
9.1.3
AP2 Configuration Files
9.1.3.1 AP2 resolve
device add atm0 atm //bun mtu 1500 192.168.2.51
device add atm1 atm //bun mtu 1500 192.168.101.1
subnet add atm0.home . 192.168.2.32 ff:ff:ff:e0
subnet add atm1.home . 192.168.101.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.2.34 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm0 atm25i 0/51 pcr 70000/70000 remoteip 192.168.2.34
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.101.3
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 91 of 129
9.1.3.2 AP2 system.conf
channel 2
antenna horizontal
mode static
mid 0
bid 0
interface atm0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
9.1.3.3 AP2 initswitchcli
tp default UBR 2667
sp default 256 stats
add atm25m 0 769 atm25i 0 101 default default perm epd
add atm25i 0 101 atm25m 0 769 default default perm epd
add atm25m 0 770 atm25i 0 200 default default perm epd
add atm25i 0 200 atm25m 0 770 default default perm epd
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 92 of 129
9.1.4
SU2 Configuration Files
9.1.4.1 SU2 resolve
device add eth0 ether //edd mtu 1500 192.168.4.65
device add atm1 atm //bun mtu 1500 192.168.101.3
device add atm2 atm //bun mtu 1500 192.168.5.6
subnet add eth0.home . 192.168.4.64 ff:ff:ff:f8
subnet add atm1.home . 192.168.101.0 ff:ff:ff:00
subnet add atm2.home . 192.168.5.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.5.1 00:00:00:00 1 # MAN
route add su1 192.168.3.64 192.168.5.5 ff:ff:ff:f8 1 # MAN
route add mgmt 192.168.2.32 192.168.101.1 ff:ff:ff:e0 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.101.1
ipatm pvc atm2 atm25m 0/769 pcr 70000/70000 remoteip 192.168.5.1
ipatm pvc atm2 atm25m 0/770 pcr 70000/70000 remoteip 192.168.5.5
9.1.4.2 SU2 system.conf
channel 2
antenna horizontal
mode static
mid 3
bid 0
interface eth0
duplex half
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 93 of 129
9.1.5
Troubleshooting
9.1.5.1 Can’t ping the radio from the terrestrial interface
AP
1. Check all physical connections. It is a straight cable from the CS to the Switch, and a
rollover twist from the wall box to the switch (1-7,2-8).
2. Check to see if your atmarp entries are in the ARP table on the CS. ( ./atmarp if you
are already in the /usr/local/sbin directory)
• Add an atmarp entry
root@cs1 11:11:14 (4) [~] # atmarp -s 192.168.2.50 0.0.34
• View an atmarp table
root@cs1 11:12:52 (5) [~] # atmarp -a
----- Itf 0 (192.168.2.1, netmask 255.255.255.0) -----
Default QOS: ubr,aal5:max_sdu=9188
IP 192.168.2.50, state VALID, addr <none>, flags 0x4<PERM> 0.0.34
----- Unknown incoming connections -----
----- Incoming unidirectional connections -----
----- End of dump -----
• Delete an atmarp entry
root@cs1 11:13:42 (6) [~] # atmarp -d 192.168.2.50
3. Check route on CS, by typing route at the Command line.
• Add a route
root@cs1 11:17:19 (8) [~] # route add -net 192.168.100.0 netmask 255.255.255.0 gw 192.168.2.50
• View the routing table
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 94 of 129
root@cs1 11:18:51 (9) [~] # route
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
10.9.144.1 * 255.255.255.255 UH 0 0 0 eth0
192.168.100.0 192.168.2.50 255.255.255.0 UG 0 0 0 atm0
192.168.2.0 * 255.255.255.0 U 0 0 0 atm0
10.9.144.0 * 255.255.255.0 U 0 0 0 eth0
127.0.0.0 * 255.0.0.0 U 0 0 0 lo
• Delete a route
root@cs1 11:20:26 (10) [~] # route del -net 192.168.100.0 netmask 255.255.255.0
4. Check the Switch for the correct PVC’s.
• Log into the ATM switch and check that the PVCs are mapped correctly. The following
commands are for an FVC switch.
• Add a PVC
ADMIN Access_NGI>set pvc add 101 0 34 be 102 0 34 be
Adding PVC i=101/0/34 o=102/0/34 to switch fabrice
Updating FLASH memory. Please wait ... Done.
• Show the PVCs mapped in the switch
ADMIN Access_NGI>show pvc list id 0
------------------------------------------------------------
PVC ID IPort IVPI IVCI BW OPort OVPI OVCI BW
------------------------------------------------------------
1 101 0 34 0 102 0 34 0
• Delete a PVC
ADMIN Access_NGI>set pvc del 1
SU
1. Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight cable. If you connect the radio to a network device
(hub, switch, router) you will use a Ethernet cross-over cable(1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and the cable is terminated correctly at the
radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 95 of 129
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
9.1.5.2 Can’t ping across the wireless link
There are numerous reason why you couldn’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check that SU has the proper MID.
192.168.3.10 hmm> system mid
MID 3
2. Check the ipatm pvc is correct in relation to the MID and remoteip
AP
192.168.2.50 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
SU
192.168.3.65 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
3. Check the default route in the SU.
192.168.3.65 ip> route
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN via atm1
4. Check that there is a route in the AP that points to the SU’s terrestrial network.
192.168.2.50 ip> route
route add su1 192.168.3.64 192.168.100.3 ff:ff:ff:f8 1 # MAN via atm1
route add default 0.0.0.0 192.168.2.34 00:00:00:00 1 # MAN via atm0
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 96 of 129
10 1483_T
The 1483_T configuration is where both the AP and the SU act as a layer 2 bridge. It is
important to understand that in this configuration data can only go from SU-AP & AP-SU within the
sector. Data will not be able to from SU-SU within the same sector. This can only be done by
connecting a router to the AP and redirecting that traffic back to the AP.
10.1
Static 1483_T

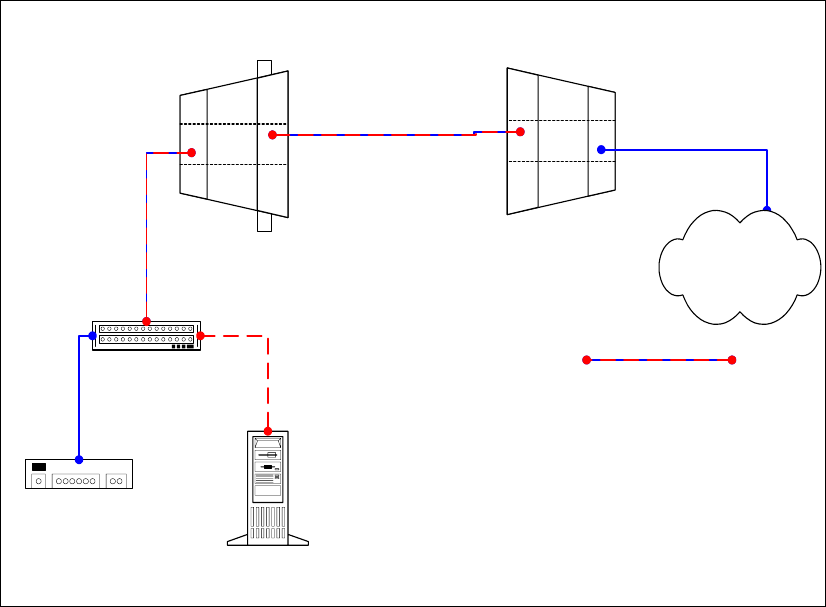

All assumptions for troubleshooting 1483_T will be based on the following diagram.
RL
BL
SL
E
RL
BL
SL
E
Ethernet HUB
PC
Router
192.168.3.1
192.168.3.34
192.168.3.10
192.168.3.9
MID 0 MID 3
LAN
PVC 768
AP/SU Management/Data Path
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 97 of 129
10.1.1
AP Configuration Files
10.1.1.1 AP resolve
device add bridge ether //bridge mtu 1500 192.168.3.9
subnet add bridge.home . 192.168.3.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.3.1 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
10.1.1.2 AP initbridge
spanning disable
device add edd
device add mr1483
10.1.1.3 AP initmr1483
floodmode 1
up 3 768 atm25m 70000 70000
10.1.1.4 AP system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface eth0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 98 of 129
10.1.2
SU Configuration Files
10.1.2.1 SU resolve
device add bridge ether //bridge mtu 1500 192.168.3.10
subnet add bridge.home . 192.168.3.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.3.1 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
10.1.2.2 SU initbridge
spanning disable
device add edd
device add r1483
10.1.2.3 SU system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface eth0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
10.1.2.4 SU initr1483
pvc 0/768 atm25m 70000 70000
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 99 of 129
10.1.3
Troubleshooting
10.1.3.1 Can’t ping the radio from the terrestrial interface.
1. Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight cable. If you connect the radio to a network device
(hub, switch, router) you will use a Ethernet cross-over cable(1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and the cable is terminated correctly at the
radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
10.1.3.2 Can’t ping the radio across the wireless link.
There can be numerous reasons why you can’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check the 1483 processes in the radios. Make sure they are active and have the
correct PVC mapped.
AP (mr1483 command)
192.168.3.9 > mr1483 status 3
Device 3 is active
Active PVC: 768 Active port: atm25m
Pending PVC: 768 Pending port: atm25m
Active devices:
3
1 active in total
SU (r1483 command)
192.168.3.10 > r1483 pvc
Active PVC: 0/768
Active port: atm25m
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 100 of 129
11 1483_S
In this configuration the AP acts as at ATM switch passing all cells at layer 2. The SU acts as
a 1483 Bridge.
11.1
Static 1483_S (routed management)

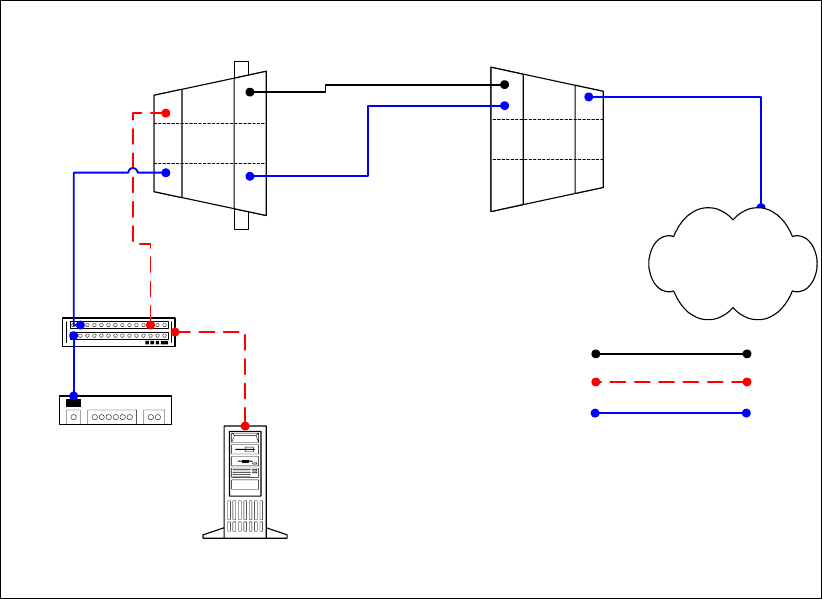

All assumptions for troubleshooting 1483_S are based on the following diagram.
192.168.100.3
PVC 768
RL
BL
SL
A
RL
BL
SL
E
PC
192.168.3.1
192.168.2.34 /27
192.168.100.1
MID 0 MID 3
192.168.2.50 /27
LAN
PVC
34
PVC 769
PVC
300
192.168.3.10
AP Management PVC
SU Management PVC
SU Data PVC
ATM Switch
Router
11.1.1
Routed Management PRO/CON
1483_S can be configured with switched management or routed management. Read
PRO/CON of both to help you decide which you would like use.
PRO
• Only one ATMARP entry will need to be added to the termination router.
• Can be easier to troubleshoot and isolate a problem in the network.
CON
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 101 of 129
• Need to add a route and ipatm pvc for every SU that is added to the AP.
• May need to add a route to multiple routers for each SU depending upon network
design.
11.1.2
AP Configuration Files
11.1.2.1 AP resolve
device add atm0 atm //bun mtu 1500 192.168.2.50
device add atm1 atm //bun mtu 1500 192.168.100.1
subnet add atm0.home . 192.168.2.32 ff:ff:ff:e0
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
route add default 0.0.0.0 192.168.2.34 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm0 atm25i 0/34 pcr 70000/70000 remoteip 192.168.2.34
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
11.1.2.2 AP system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface atm0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 102 of 129
11.1.2.3 AP initswitchcli
tp default UBR 70000
sp default 256 stats
add atm25m 0 769 atm25i 0 300 default default perm epd
add atm25i 0 300 atm25m 0 769 default default perm epd
11.1.3
SU Configuration Files
11.1.3.1 SU resolve
device add bridge ether //bridge mtu 1500 192.168.3.10
device add atm1 atm //bun mtu 1500 192.168.100.3
subnet add bridge.home . 192.168.3.0 ff:ff:ff:00
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.3.1 00:00:00:00 1 # MAN
route add mgmt 192.168.2.32 192.168.100.1 ff:ff:ff:e0 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
11.1.3.2 SU initbridge
spanning disable
device add edd
device add r1483
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 103 of 129
11.1.3.3 SU system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface eth0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
11.1.3.4 SU initr1483
pvc 0/769 atm25m 70000 70000
11.1.4
Troubleshooting
11.1.4.1 Can’t ping the radio from the terrestrial interface
AP
1. Check all physical connections. It is a straight cable from the CS to the Switch, and a
rollover twist from the wallbox to the switch (1-7,2-8).
2. Check to see if your atmarp entries are in the ARP table on the CS ( ./atmarp if you
are already in the /usr/local/sbin directory).
• Add an atmarp entry
root@cs1 11:11:14 (4) [~] # atmarp -s 192.168.2.50 0.0.340
• View an atmarp table
root@cs1 11:12:52 (5) [~] # atmarp -a
----- Itf 0 (192.168.2.1, netmask 255.255.255.0) -----
Default QOS: ubr,aal5:max_sdu=9188
IP 192.168.2.50, state VALID, addr <none>, flags 0x4<PERM>
0.0.34
----- Unknown incoming connections -----
----- Incoming unidirectional connections -----
----- End of dump -----
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 104 of 129
• Delete an atmarp entry
root@cs1 11:13:42 (6) [~] # atmarp -d 192.168.2.50
3. Check route on CS, by typing route at the Command line.
• Add a route
root@cs1 11:17:19 (8) [~] # route add -net 192.168.100.0 netmask 255.255.255.0 gw 192.168.2.50
• View the routing table
root@cs1 11:18:51 (9) [~] # route
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
10.9.144.1 * 255.255.255.255 UH 0 0 0 eth0
192.168.100.0 192.168.2.50 255.255.255.0 UG 0 0 0 atm0
192.168.2.0 * 255.255.255.0 U 0 0 0 atm0
10.9.144.0 * 255.255.255.0 U 0 0 0 eth0
127.0.0.0 * 255.0.0.0 U 0 0 0 lo
• Delete a route
root@cs1 11:20:26 (10) [~] # route del -net 192.168.100.0 netmask 255.255.255.0
4. Check the Switch for the correct PVC’s.
• Log into the ATM switch and check that the PVCs are mapped correctly. The following
commands are for an FVC switch.
• Add a PVC
ADMIN Access_NGI>set pvc add 101 0 34 be 102 0 34 be
Adding PVC i=101/0/34 o=102/0/34 to switch fabrice
Updating FLASH memory. Please wait ... Done.
• Show the PVCs mapped in the switch
ADMIN Access_NGI> show pvc list id 0
------------------------------------------------------------
PVC ID IPort IVPI IVCI BW OPort OVPI OVCI BW
------------------------------------------------------------
1 101 0 34 0 102 0 34 0
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 105 of 129
• Delete a PVC
ADMIN Access_NGI> set pvc del 1
SU
1. Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight cable. If you connect the radio to a network device
(hub, switch, router) you will use a Ethernet cross-over cable(1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and the cable is terminated correctly at the
radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
11.1.4.2 Can’t ping the radio across the wireless link.
There can be numerous reasons why you can’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check that SU has the proper MID.
192.168.3.10 hmm> system mid
MID 3
2. Check the ipatm pvc is correct in relation to the MID and remoteip
AP
192.168.2.50 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
SU
192.168.3.65 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
3. Check the default route in the SU.
192.168.3.65 ip> route
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN via atm1
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 106 of 129
11.2
Static 1483_S (switched management)

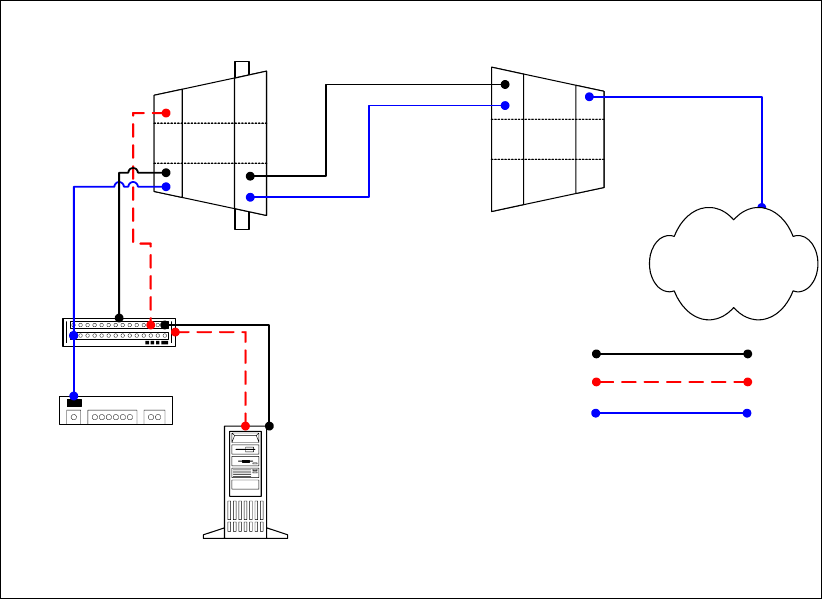

All assumptions for troubleshooting 1483_S are based on the following diagram.
192.168.100.3
PVC 768
RL
BL
SL
A
RL
BL
SL
E
ATM Switch
PC
Router
192.168.3.1
192.168.100.254 /24
192.168.100.1
192.168.3.10
MID 0 MID 3
LAN
PVC
101
PVC 769
PVC
200
AP Management PVC
SU Management PVC
SU Data PVC
PVC
103
PVC
103
PVC
101
11.2.1
Switched Management PRO/CON
CLIP_S can be configured with switched management or routed management. Read
PRO/CON of both to help you decide which you would like use.
PRO
• No extra mgmt routes will have to be added to the termination router.
• Multiple routes will not have to be added to network routers with the addition of each
SU.
CON
• Will need to add an atmarp entry for each SU in the termination router.
• Will need to add a management PVC in the switchcli of the AP for each SU.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 107 of 129
11.2.2
AP Configuration Files
11.2.2.1 AP resolve
device add atm0 atm //bun mtu 1500 192.168.100.1
subnet add atm0.home . 192.168.100.0 ff:ff:ff:00
route add default 0.0.0.0 192.168.100.254 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm0 atm25i 0/101 pcr 70000/70000 remoteip 192.168.100.254
11.2.2.2 AP system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface atm0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
11.2.2.3 AP initswitchcli
tp default UBR 70000
sp default 256 stats
add atm25m 0 768 atm25i 0 103 default default perm epd
add atm25i 0 103 atm25m 0 768 default default perm epd
add atm25m 0 769 atm25i 0 200 default default perm epd
add atm25i 0 200 atm25m 0 769 default default perm epd
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 108 of 129
11.2.3
SU Configuration Files
11.2.3.1 SU resolve
device add bridge ether //bridge mtu 1500 192.168.3.10
device add atm1 atm //bun mtu 1500 192.168.100.3
subnet add bridge.home . 192.168.3.0 ff:ff:ff:00
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.3.1 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.254
11.2.3.2 SU initbridge
spanning disable
device add edd
device add r1483
11.2.3.3 SU system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface eth0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
11.2.3.4 SU initr1483
pvc 0/769 atm25m 70000 70000
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 109 of 129
11.2.4
Troubleshooting
11.2.4.1 Can’t ping the radio from the terrestrial interface
AP
1. Check all physical connections. It is a straight cable from the CS to the Switch, and a
rollover twist from the wall box to the switch (1-7,2-8).
2. Check to see if your atmarp entries are in the ARP table on the CS. ( ./atmarp if you
are already in the /usr/local/sbin directory)
• Add an atmarp entry
root@cs1 11:11:14 (4) [~] # atmarp -s 192.168.100.1 0.0.101
• View an atmarp table
root@cs1 11:12:52 (5) [~] # atmarp -a
----- Itf 0 (192.168.100.254, netmask 255.255.255.0) -----
Default QOS: ubr,aal5:max_sdu=9188
IP 192.168.100.1, state VALID, addr <none>, flags 0x4<PERM> 0.0.101
----- Unknown incoming connections -----
----- Incoming unidirectional connections -----
----- End of dump -----
• Delete an atmarp entry
root@cs1 11:13:42 (6) [~] # atmarp -d 192.168.100.1
3. Check the Switch for the correct PVC’s.
• Log into the ATM switch and check that the PVCs are mapped correctly. The following
commands are for an FVC switch.
• Add a PVC
ADMIN Access_NGI>set pvc add 101 0 101 be 102 0 101 be
Adding PVC i=101/0/34 o=102/0/34 to switch fabrice
Updating FLASH memory. Please wait ... Done.
• Show the PVCs mapped in the switch
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 110 of 129
ADMIN Access_NGI>show pvc list id 0
------------------------------------------------------------
PVC ID IPort IVPI IVCI BW OPort OVPI OVCI BW
------------------------------------------------------------
1 101 0 101 0 102 0 101 0
• Delete a PVC
ADMIN Access_NGI>set pvc del 1
SU
1. Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight cable. If you connect the radio to a network device
(hub, switch, router) you will use a Ethernet cross-over cable(1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and the cable is terminated correctly at the
radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
11.2.4.2 Can’t ping across the wireless link
There are numerous reason why you couldn’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check that SU has the proper MID.
192.168.3.10 hmm> system mid
MID 3
2. Check the that the pvc information is correct in relation to the MID and remoteip
AP
192.168.100.254 switchcli> list all all perm
Displaying permanent entries for all ports.
port vp vc port vp vc
atm25i 0 103 ==> atm25m 0 768
atm25m 0 768 ==> atm25i 0 103
atm25i 0 200 ==> atm25m 0 769
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 111 of 129
atm25m 0 769 ==> atm25i 0 200
SU
192.168.3.65 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
3. Check the default route in the SU.
192.168.3.65 ip> route
route add default 0.0.0.0 192.168.100.254 00:00:00:00 1 # MAN via atm1
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 112 of 129
12 Native ATM
In this configuration the AP and the SU act as an ATM switch. Both AP and SU will pass any
ATM cells without looking at upper level protocols.
12.1
Static Native ATM
All assumptions for troubleshooting Native ATM are based on the following diagram.
RL
BL
SL
A
RL
BL
SL
A
ATM Switch
PC
192.168.2.34
192.168.100.3
192.168.100.1
192.168.9.99
MID 0 MID 3
192.168.2.50 PVC 768
PVC
250
ATM Switch
PVC
769
PVC 770
PVC
200
PVC 300
PVC 200 PVC
99
PV C
300
AP Management PVC
SU Management PVC
SU Data PVC
ATM Network
ATM Network
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 113 of 129
12.1.1
AP Configuration Files
12.1.1.1 AP resolve
device add atm0 atm //bun mtu 1500 192.168.2.50
device add atm1 atm //bun mtu 1500 192.168.100.1
subnet add atm0.home . 192.168.2.0 ff:ff:ff:00
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.2.34 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm0 atm25i 0/250 pcr 70000/70000 remoteip 192.168.2.34
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
12.1.1.2 AP system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface atm0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 114 of 129
12.1.1.3 AP initswitchcli
tp default UBR 70000
sp default 256 stats
add atm25m 0 769 atm25i 0 200 default default perm epd
add atm25i 0 200 atm25m 0 769 default default perm epd
add atm25i 0 300 atm25m 0 770 default default perm epd
add atm25m 0 770 atm25i 0 300 default default perm epd
12.1.2
SU Configuration Files
12.1.2.1 SU resolve
device add atm0 atm //bun mtu 1500 192.168.9.99
device add atm1 atm //bun mtu 1500 192.168.100.3
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
subnet add atm0.home . 192.168.9.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm0 atm25i 0/99 pcr 70000/70000 remoteip 192.168.9.1
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 115 of 129
12.1.2.2 SU system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface atm0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
12.1.2.3 SU initswitchcli
tp default UBR 70000
sp default 256 stats
add atm25m 0 769 atm25i 0 200 default default perm epd
add atm25i 0 200 atm25m 0 769 default default perm epd
add atm25i 0 300 atm25m 0 770 default default perm epd
add atm25m 0 770 atm25i 0 300 default default perm epd
12.1.3
Troubleshooting
12.1.3.1 Can’t ping the radio from the terrestrial interface
AP
1. Check all physical connections. It is a straight cable from the CS to the Switch, and a
rollover twist from the wallbox to the switch (1-7,2-8).
2. Check to see if your atmarp entries are in the ARP table on the CS. ( ./atmarp if you
are already in the /usr/local/sbin directory)
• Add an atmarp entry
root@cs1 11:11:14 (4) [~] # atmarp -s 192.168.2.50 0.0.250
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 116 of 129
• View an atmarp table
root@cs1 11:12:52 (5) [~] # atmarp -a
----- Itf 0 (192.168.2.1, netmask 255.255.255.0) -----
Default QOS: ubr,aal5:max_sdu=9188
IP 192.168.2.50, state VALID, addr <none>, flags 0x4<PERM>
0.0.250
----- Unknown incoming connections -----
----- Incoming unidirectional connections -----
----- End of dump -----
• Delete an atmarp entry
root@cs1 11:13:42 (6) [~] # atmarp -d 192.168.2.50
3. Check route on CS, by typing route at the Command line.
• Add a route
root@cs1 11:17:19 (8) [~] # route add -net 192.168.100.0 netmask 255.255.255.0 gw 192.168.2.50
• View the routing table
root@cs1 11:18:51 (9) [~] # route
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
10.9.144.1 * 255.255.255.255 UH 0 0 0 eth0
192.168.100.0 192.168.2.50 255.255.255.0 UG 0 0 0 atm0
192.168.2.0 * 255.255.255.0 U 0 0 0 atm0
192.168.2.0 * 255.255.255.0 U 0 0 0 atm0
10.9.144.0 * 255.255.255.0 U 0 0 0 eth0
127.0.0.0 * 255.0.0.0 U 0 0 0 lo
• Delete a route
root@cs1 11:20:26 (10) [~] # route del -net 192.168.100.0 netmask 255.255.255.0
4. Check the Switch for the correct PVC’s.
• Log into the ATM switch and check that the PVCs are mapped correctly. The following
commands are for an FVC switch.
• Add a PVC
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 117 of 129
ADMIN Access_NGI>set pvc add 101 0 250 be 102 0 250 be
Adding PVC i=101/0/250 o=102/0/250 to switch fabrice
Updating FLASH memory. Please wait ... Done.
• Show the PVCs mapped in the switch
ADMIN Access_NGI> show pvc list id 0
------------------------------------------------------------
PVC ID IPort IVPI IVCI BW OPort OVPI OVCI BW
------------------------------------------------------------
1 101 0 250 0 102 0 250 0
• Delete a PVC
ADMIN Access_NGI> set pvc del 1
SU
1. Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight cable. If you connect the radio to a network device
(hub, switch, router) you will use a Ethernet cross-over cable(1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and the cable is terminated correctly at the
radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
12.1.3.2 Can’t ping the radio across the wireless link.
There can be numerous reasons why you can’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check that SU has the proper MID.
192.168.3.10 hmm> system mid
MID 3
2. Check the ipatm pvc is correct in relation to the MID and remoteip
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 118 of 129
AP
192.168.2.50 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
SU
192.168.3.65 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
3. Check the default route in the SU.
192.168.3.65 ip> route
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN via atm1
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 119 of 129
13 Extender
The Extender (PTP) units operate in the same manner as the AB-Access (PMP) units.
The Ethernet Extender configuration and operation are almost identical to the 1483_T
configuration except they use a single port bridge which is more efficient.
The ATM Extender configuration and operation is identical to the Native_ATM configuration,
where as the AP and the SU act as an ATM switch. Both AP and SU will pass any ATM cells without
looking at upper level protocols.
BHM = Backhaul Master
BHS = Backhaul Slave
13.1
Ethernet Extender
All assumptions for troubleshooting the Ethernet Extender are based on the following diagram.
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 120 of 129
13.1.1
BHM Configuration Files
13.1.1.1 BHM resolve
device add bridge ether //bridge mtu 1500 192.168.3.9
subnet add bridge.home . 192.168.3.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.3.1 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
13.1.1.2 BHM initbridge
spanning disable
device add edd
device add r1483
13.1.1.3 BHM initr1483
pvc 0/768 atm25m 70000 70000
13.1.1.4 BHM system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface eth0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
max_mid 254
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 121 of 129
13.1.2
BHS Configuration Files
13.1.2.1 BHS resolve
device add bridge ether //bridge mtu 1500 192.168.3.10
subnet add bridge.home . 192.168.3.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.3.1 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
13.1.2.2 BHS initbridge
spanning disable
device add edd
device add r1483
13.1.2.3 BHS system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface eth0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
13.1.2.4 BHS initr1483
pvc 0/768 atm25m 70000 70000
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 122 of 129
13.1.3
Troubleshooting
13.1.3.1 Can’t ping the radio from the terrestrial interface.
1. Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight cable. If you connect the radio to a network device
(hub, switch, router) you will use a Ethernet cross-over cable(1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and the cable is terminated correctly at the
radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
13.1.3.2 Can’t ping the radio across the wireless link.
There can be numerous reasons why you can’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check the 1483 processes in the radios. Make sure they are active and have the
correct PVC mapped.
BHM (r1483 command)
192.168.3.9 > r1483 pvc
Active PVC: 3/768
Active port: atm25m
BHS (r1483 command)
192.168.3.10 > r1483 pvc
Active PVC: 0/768
Active port: atm25m
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 123 of 129
13.2
ATM Extender

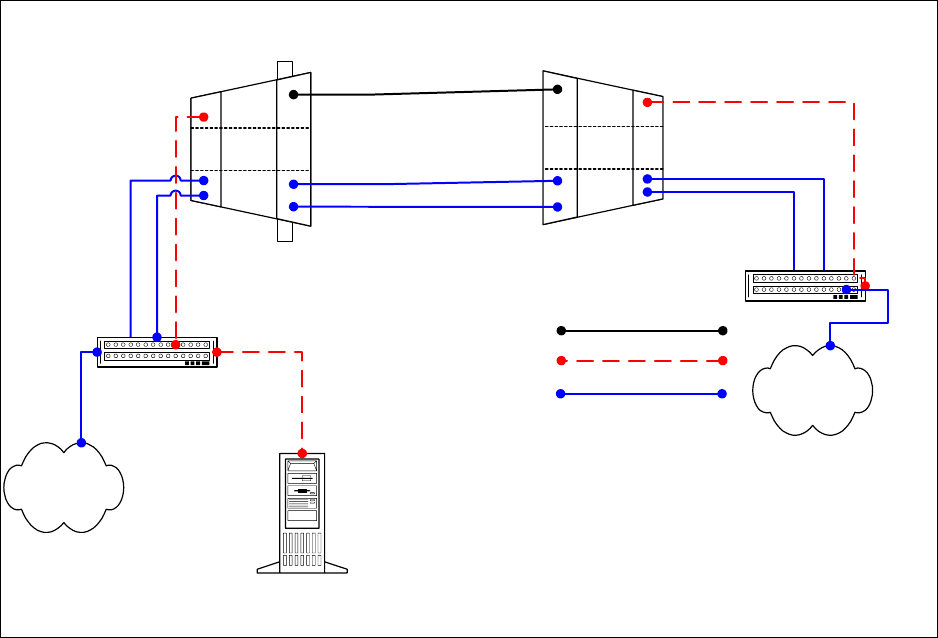

All assumptions for troubleshooting the ATM Extender are based on the following diagram.
RL
BL
SL
A
RL
BL
SL
A
ATM Switch
Mgmt Server
192.168.2.34
192.168.100.3
192.168.100.1
192.168.9.99
MID 0 MID 3
192.168.2.50 PVC 768
PVC
250
ATM Switch
PVC
769
PVC 770
PVC
200
PVC 300
PVC 200 PVC
99
PV C
300
AP Management PVC
SU Management PVC
SU Data PVC
ATM Network
ATM Network
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 124 of 129
13.2.1
BHM Configuration Files
13.2.1.1 BHM resolve
device add atm0 atm //bun mtu 1500 192.168.2.50
device add atm1 atm //bun mtu 1500 192.168.100.1
subnet add atm0.home . 192.168.2.0 ff:ff:ff:00
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.2.34 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm0 atm25i 0/250 pcr 70000/70000 remoteip 192.168.2.34
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
13.2.1.2 BHM system.conf
channel 0
antenna horizontal
mode static
mid 0
bid 0
interface atm0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds active
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 125 of 129
13.2.1.3 BHM initswitchcli
tp default UBR 70000
sp default 256 stats
add atm25m 0 769 atm25i 0 200 default default perm epd
add atm25i 0 200 atm25m 0 769 default default perm epd
add atm25i 0 300 atm25m 0 770 default default perm epd
add atm25m 0 770 atm25i 0 300 default default perm epd
13.2.2
BHS Configuration Files
13.2.2.1 BHS resolve
device add atm0 atm //bun mtu 1500 192.168.9.99
device add atm1 atm //bun mtu 1500 192.168.100.3
subnet add atm1.home . 192.168.100.0 ff:ff:ff:00
subnet add atm0.home . 192.168.9.0 ff:ff:ff:00
rip send all none
rip accept all none
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN
relay all
ipatm lifetime 60
ipatm pvc atm0 atm25i 0/99 pcr 70000/70000 remoteip 192.168.9.1
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 126 of 129
13.2.2.2 BHS system.conf
channel 0
antenna horizontal
mode static
mid 3
bid 0
interface atm0
backoff 0
provider abw
key Axxcelera
mask 1ffff
leds debug
13.2.2.3 BHS initswitchcli
tp default UBR 70000
sp default 256 stats
add atm25m 0 769 atm25i 0 200 default default perm epd
add atm25i 0 200 atm25m 0 769 default default perm epd
add atm25i 0 300 atm25m 0 770 default default perm epd
add atm25m 0 770 atm25i 0 300 default default perm epd
13.2.3
Troubleshooting
13.2.3.1 Can’t ping the radio from the terrestrial interface
AP
1. Check all physical connections. It is a straight cable from the CS to the Switch, and a
rollover twist from the wallbox to the switch (1-7,2-8).
2. Check to see if your atmarp entries are in the ARP table on the CS. ( ./atmarp if you
are already in the /usr/local/sbin directory)
• Add an atmarp entry
root@cs1 11:11:14 (4) [~] # atmarp -s 192.168.2.50 0.0.250
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 127 of 129
• View an atmarp table
root@cs1 11:12:52 (5) [~] # atmarp -a
----- Itf 0 (192.168.2.1, netmask 255.255.255.0) -----
Default QOS: ubr,aal5:max_sdu=9188
IP 192.168.2.50, state VALID, addr <none>, flags 0x4<PERM>
0.0.250
----- Unknown incoming connections -----
----- Incoming unidirectional connections -----
----- End of dump -----
• Delete an atmarp entry
root@cs1 11:13:42 (6) [~] # atmarp -d 192.168.2.50
3. Check route on CS, by typing route at the Command line.
• Add a route
root@cs1 11:17:19 (8) [~] # route add -net 192.168.100.0 netmask 255.255.255.0 gw 192.168.2.50
• View the routing table
root@cs1 11:18:51 (9) [~] # route
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
10.9.144.1 * 255.255.255.255 UH 0 0 0 eth0
192.168.100.0 192.168.2.50 255.255.255.0 UG 0 0 0 atm0
192.168.2.0 * 255.255.255.0 U 0 0 0 atm0
192.168.2.0 * 255.255.255.0 U 0 0 0 atm0
10.9.144.0 * 255.255.255.0 U 0 0 0 eth0
127.0.0.0 * 255.0.0.0 U 0 0 0 lo
• Delete a route
root@cs1 11:20:26 (10) [~] # route del -net 192.168.100.0 netmask 255.255.255.0
4. Check the Switch for the correct PVC’s.
• Log into the ATM switch and check that the PVCs are mapped correctly. The following
commands are for an FVC switch.
• Add a PVC
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 128 of 129
ADMIN Access_NGI>set pvc add 101 0 250 be 102 0 250 be
Adding PVC i=101/0/250 o=102/0/250 to switch fabrice
Updating FLASH memory. Please wait ... Done.
• Show the PVCs mapped in the switch
ADMIN Access_NGI> show pvc list id 0
------------------------------------------------------------
PVC ID IPort IVPI IVCI BW OPort OVPI OVCI BW
------------------------------------------------------------
1 101 0 250 0 102 0 250 0
• Delete a PVC
ADMIN Access_NGI> set pvc del 1
SU
1. Check all physical connections. The radio is a network device, which means if you
connect it to a PC (NIC) you will use a straight cable. If you connect the radio to a network device
(hub, switch, router) you will use a Ethernet cross-over cable(1-3, 2-6). It is also important to check
that the cable is punched down correctly in the wall box and the cable is terminated correctly at the
radio. The termination at the radio uses 568B (wo,o,wg,bl,wbl,g,wbr,br).
2. Make sure the computer you are pinging from is on the same network as the AP. If
you are on a different network than the radio make sure you have the proper routes in the radio and
the computer you are trying to ping from.
13.2.3.2 Can’t ping the radio across the wireless link.
There can be numerous reasons why you can’t ping across the wireless link. After following
these troubleshooting steps and you still can’t ping across the wireless link refer to the RF
troubleshooting document.
1. Check that SU has the proper MID.
192.168.3.10 hmm> system mid
MID 3
2. Check the ipatm pvc is correct in relation to the MID and remoteip
AB-Access Config & User Guide 5.5 Axxcelera Broadband Wireless
July 27, 2004 Company Confidential Page 129 of 129
AP
192.168.2.50 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.3
SU
192.168.3.65 ip> ipatm pvc
ipatm pvc atm1 atm25m 0/768 pcr 70000/70000 remoteip 192.168.100.1
3. Check the default route in the SU.
192.168.3.65 ip> route
route add default 0.0.0.0 192.168.100.1 00:00:00:00 1 # MAN via atm1
