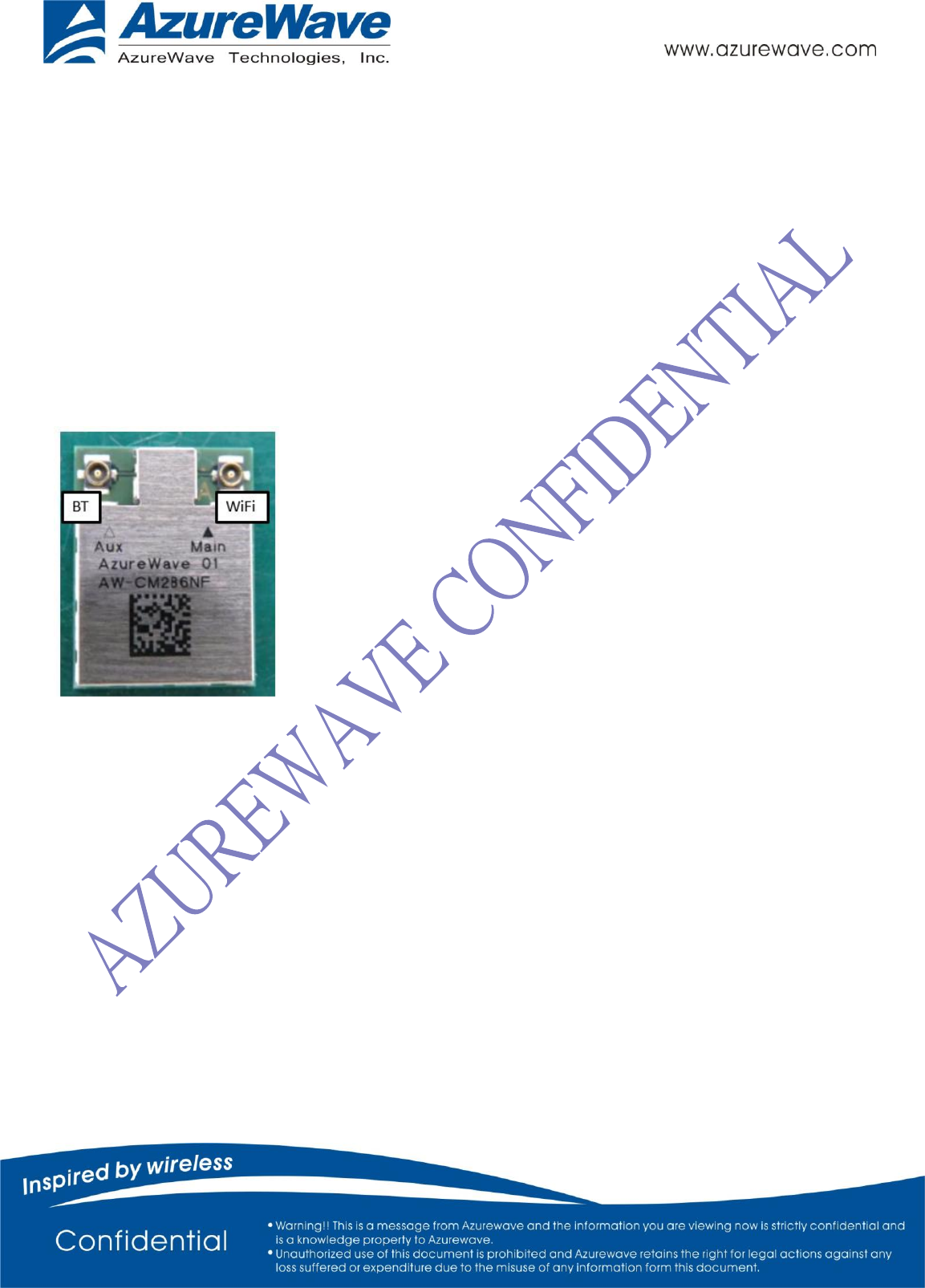

AzureWave Technologies CM286NF IEEE 802.11 1X1 ac/a/b/g/n Wireless LAN +Bluetooth NGFF Module User Manual
AzureWave Technologies, Inc. IEEE 802.11 1X1 ac/a/b/g/n Wireless LAN +Bluetooth NGFF Module Users Manual
Users Manual
- 1 -
AW-CM286NF
IEEE 802.11 1X1 ac/a/b/g/n Wireless LAN +
Bluetooth
NGFF Module
Datasheet
Version 0.8
(For Cert.)
- 2 -
1. General Description
1-1. Product Overview and Functional Description
AzureWave Technologies, Inc. introduces the IEEE 802.11ac/a/b/g/n 1X1 WLAN & Bluetooth NGFF
module --- AW-CM286NF. The module is targeted to mobile devices including Notebook, TV, Tablet
and Gaming Device which need small package module, low power consumption, multiple interfaces
and OS support. By using AW-CM286NF, the customers can easily enable the Wi-Fi, and BT embedded
applications with the benefits of high design flexibility, short development cycle, and quick time-to-
market.
Compliance with the IEEE 802.11ac/a/b/g/n standard, the AW-CM286NF uses Direct Sequence Spread
Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), DBPSK, DQPSK, CCK and
QAM baseband modulation technologies. A high level of integration and full implementation of the power
management functions specified in the IEEE 802.11 standard minimize the system power requirements
by using AW-CM286NF. In addition to the support of WPA/WPA2 and WEP 64-bit and 128-bit
encryption, the AW-CM286NF also supports the IEEE 802.11i security standard through the
implementation of Advanced Encryption Standard (AES)/Counter Mode CBC-MAC Protocol (CCMP),
Wired Equivalent Privacy (WEP) with Temporal Key Integrity Protocol (TKIP), Advanced Encryption
Standard (AES)/Cipher-Based Message Authentication Code (CMAC), and WLAN Authentication and
Privacy Infrastructure (WAPI) security mechanisms.
For the video, voice and multimedia applications the AW-CM286NF support 802.11e Quality of Service
(QoS). The device also supports 802.11h Dynamic Frequency Selection (DFS) for detecting radar
pulses when operating in the 5GHz range.
For Bluetooth operation, AW-CM286NF is Bluetooth 4.2 (supports Low Energy).
AW-CM286NF supports SDIO for WLAN and BT to the host processor.
AW-CM286NF module adopts Marvell’s latest highly-integrated dual-band WLAN & Bluetooth SoC---
88W8887. All the other components are implemented by all means to reach the mechanical specification
required.
- 3 -
1-2. Key feature:
Small footprint: 16mm(L) x 12mm(W) x 1.95mm(H)Max
IEEE 802.11ac compliant, 1x1 spatial stream with data rates up to MCS9 (433 Mbps)
Bluetooth 4.2 (supports Low Energy (LE))
SDIO 3.0 device interface may be used as host interface for WLAN/Bluetooth
PCM/Inter-IC Sound(I2S) for Bluetooth
Audio Codec interface support
Multiple power saving modes for low power consumption
Lead-free design
- 4 -
1-3. Specifications Table
Model Name
AW-CM286NF
Product Description
Wireless LAN + Bluetooth Combo Module
WLAN Standard
IEEE 802.11ac/a/b/g/n, Wi-Fi compliant
Bluetooth Standard
Bluetooth 4.2 complaint with Bluetooth 2.1+Enhanced Data Rate (EDR)
Host Interface
SDIO 3.0 device interface (SPI, 1-bit SDIO, 4-bit SDIO transfer
modes at full clock range up to 208 MHz)
Major Chipset
Marvell 88W8887
Dimension
12mm x 16mm x 1.95mm(Max)
Weight
TBD
Package
LGA
Operating Conditions
Voltage
3.3V+- 10%
Temperature
Operating: -20 ~ 85oC ; Storage: -40 ~ 85oC
Electrical Specifications
Frequency Range
2.4 GHz ISM radio band / 5 GHz Unlicensed National Information
Infrastructure (U-NII) band
Number of Channels
802.11a: USA, Taiwan – 12/4
Most European Countries –19
Japan – 4
802.11b: USA, Canada and Taiwan – 11
Most European Countries – 13
France – 4
802.11g: USA, Canada and Taiwan – 11
Most European Countries – 13
Japan – 13
802.11n(HT20): Channel 1~13(2412~2472)
802.11n(HT40): Channel 1~7(2422~2472)
Modulation
DSSS,OFDM,DBPSK,DQPSK,CCK, 16-QAM, 64-QAM 256-QAM for WLAN
GFSK (1Mbps), Π/4 DQPSK (2Mbps) and 8DPSK (3Mbps) for Bluetooth
Output Power
WLAN G band:
11b:16dBm +/- 2dBm(11M)
11g:14dBm +/- 2dBm (54M)
11n HT20:13dBm +/- 2dBm(MCS7)
11n HT40:12dBm +/- 2dBm(MCS7)
WLAN A band:
11a:13dBm +/- 2dBm(54M)
11n HT20:12dBm +/- 2dBm(MCS7)
11n HT40:11dBm +/- 2dBm(MCS7)
11ac VHT_20:11dBm +/- 2dBm(MCS8)
11ac VHT_40:10dBm +/- 2dBm(MCS9)
11ac VHT_80: 7dBm +/- 2dBm(MCS9)
Bluetooth:
Class 2 :2dBm +/- 2dBm
- 5 -
Receive Sensitivity
WLAN:
WLAN G band :
11b:-87dBm (11M)
11g:-73dBm (54M)
11n:HT20 -70dBm (MCS7)
HT40 -68dBm (MCS7)
WLAN A band:
11a: -68dBm (54M)
11n HT20:-66dBm (MCS7)
11n HT40:-64dBm(MCS7)
11ac VHT_20: -61dBm(MCS8)
11ac VHT_40: -58dBm(MCS9)
11ac VHT_80: -52dBm(MCS9)
Bluetooth:
BDR:-88dBm(DH1)
EDR:-91dBm(2DH5)
BLE:-94.5dBm
Data Rates
WLAN
802.11b: 1, 2, 5.5, 11Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: up to 150Mbps
802.11ac:up to 86.7Mbps (20MHz channel)
802.11ac:up to 200Mbps (40MHz channel)
802.11ac:up to 433Mbps (80MHz channel)
Bluetooth
Bluetooth 2.1+EDR data rates of 1,2, and 3Mbps
ESD Rating
HBM: >2KV per MIL-STD-883H Method 3015.8
CDM:>500V per JEDEC EIA/JESD22-C101E
Operating Range
Open Space: ~300m ; Indoor: ~100m for WLAN
Minimum 10 m indoor for Bluetooth
The transmission speed may vary according to the environment)
Security
WAPI
WEP 64-bit and 128-bit encryption with H/W TKIP processing
WPA/WPA2 (Wi-Fi Protected Access)
AES-CCMP hardware implementation as part of 802.11i security
standard
Operating System Compatibility
Linux (Android, Meego), More information please contact Azurewave
FAE.
*WiFi /BT power & sensitivity measure @ module out
- 6 -
2. Electrical Characteristic
2-1.Absolute Maximum Ratings
Symbol
Parameter
Condition
Min
Typ
Max
Units
VDD_3V3
3.3V input
--
--
3.3
4.0
V
VIO
Host I/O power supply
--
--
3.3
4.0
V
2.5
3.0
1.8
2.2
VIO_SD
SDIO power supply
--
--
3.3
4.0
V
1.8
2.2
2-2.Recommanded Operating Conditions
Symbol
Parameter
Condition
Min
Typ
Max
Units
VBAT_IN
LDO VBAT input
--
2.7
3.3
3.63
V
VIO
1.8V/2.5V/3.3V digital I/O
power supply
--
2.97
3.3
3.63
V
2.25
2.5
2.75
1.62
1.8
1.98
VIO_SD
1.8V/3.3V digital I/O SDIO
power supply
--
2.97
3.3
3.63
V
1.62
1.8
1.98
- 7 -
2-3.Clock Specifications
2-3-1 External Sleep Clock Timing
External Sleep Clock is necessary for two reasons:
1. Auto frequency Detection.
This is where the internal logic will bin the Ref clock source to figure out what is the reference clock
frequency is. This is done so no strapping is needed for telling 8887 what the ref clock input is.
2. Allow low current modes for BT to enter sleep modes such as sniff modes.
The AW-CM286NF external sleep clock pin is powered from the 1.8V voltage supply.
Symbol
Parameter
Min
Typ
Max
Units
CLK
Clock Frequency Range
32 or 32.768 -50ppm
32 or 32.768
32 or 32.768 +50ppm
KHz
THIGH
Clock high time
40
--
--
ns
TLOW
Clock low time
40
--
--
ns
TRISE
Clock rise time
--
--
5
ns
TFALL
Clock fall time
--
--
5
ns
2-4. Reset Configuration
The AW-CM286NF is reset to its default operating state under the following conditions:
Power-on reset (POR)
Software/Firmware reset
External pin reset (RESETn)
2-4-1. Internal Reset
The AW-CM286NF device is reset, and the internal CPU begins the boot sequence when any of the following
internal reset events occur:
Device receives power and VDDL supplies rise (triggers internal POR circuit)
External pin (PDn) assertion will generate POR
2-4-2.
External
Reset
The AW-CM286NF is reset when PDn pin is asserted low and the internal CPU begins the boot sequence when
the PDn pin transitions from low to high.
- 8 -

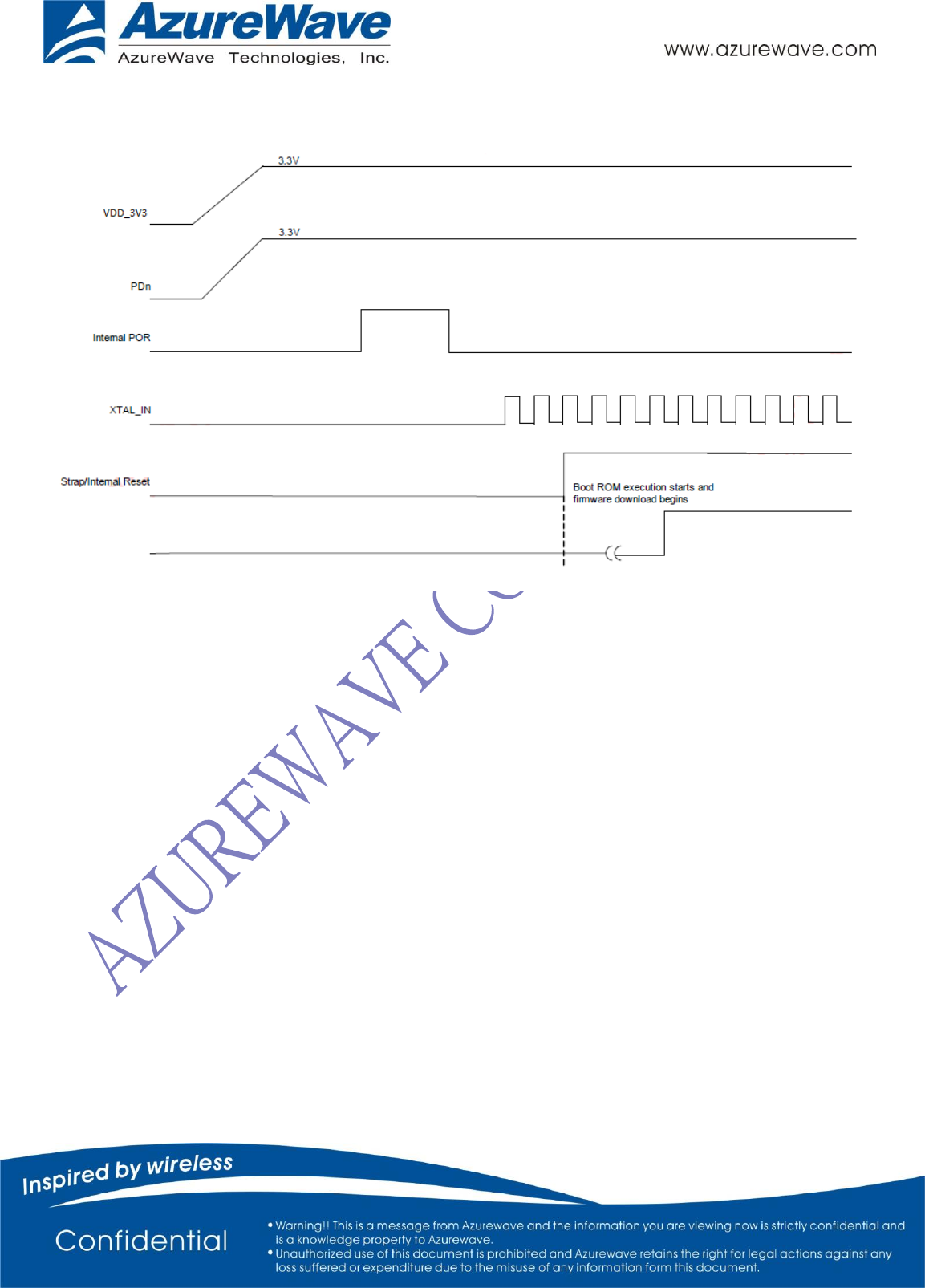

2-5. Power up Timing Sequence
- 9 -
3. Host Interfaces
3-1. SDIO Interface
The AW-CM286NF supports a SDIO device interface that conforms to the industry standard SDIO Full-Speed card
specification and allows a host controller using the SDIO bus protocol to access the Wireless module device.
The AW-CM286NF acts as the device on the SDIO bus. The host unit can access registers of the SDIO interface
directly and can access shared memory in the device through the use of BARs and a DMA engine.
The SDIO device interface main features include:
Supports SDIO 3.0 Standard
On-chip memory used for CIS
Supports SPI, 1-bit SDIO, and 4-bit SDIO transfer modes
Special interrupt register for information exchange
Allows card to interrupt host
3-1-1. SDIO Interface Signal Description
Pin Name
Signal
Name
Type
Description
SD_CLK
CLK
I/O
SDIO 1-bit mode: Clock
SDIO SPI mode: Clock
SD_CMD
CMD
I/O
SDIO 1-bit mode: Command line
SDIO SPI mode: Data input
SD_DAT[3]
DAT3
I/O
SDIO 4-bit mode: Data line bit [3]
SDIO 1-bit mode: Not used
SDIO SPI mode: Chip select (active low)
SD_DAT[2]
DAT2
I/O
SDIO 4-bit mode: Data line bit [2] or Read Wait (optional)
SDIO 1-bit mode: Read Wait (optional)
SDIO SPII mode: Reserved
SD_DAT[1]
DAT1
I/O
SDIO 4-bit mode: Data line bit [1]
SDIO 1-bit mode: Interrupt
SDIO SPI mode: Interrupt
SD_DAT[0]
DAT0
I/O
SDIO 4-bit mode: Data line bit [0]
SDIO 1-bit mode: Data line
SDIO SPI mode: Data output
- 10 -
3-1-2. Default Speed, High Speed Modes (3.3V)
SDIO Protocol Timing Diagram – Default Speed Mode (3.3V)
SDIO Protocol Timing Diagram – HighSpeed Mode (3.3V)
Table shows SDIO Timing Data—Default Speed, High Speed Modes (3.3V)
NOTE: Over full range of values specified in the Recommended Operating Conditions unless otherwise specified.
- 11 -
3-2. PCM Interface

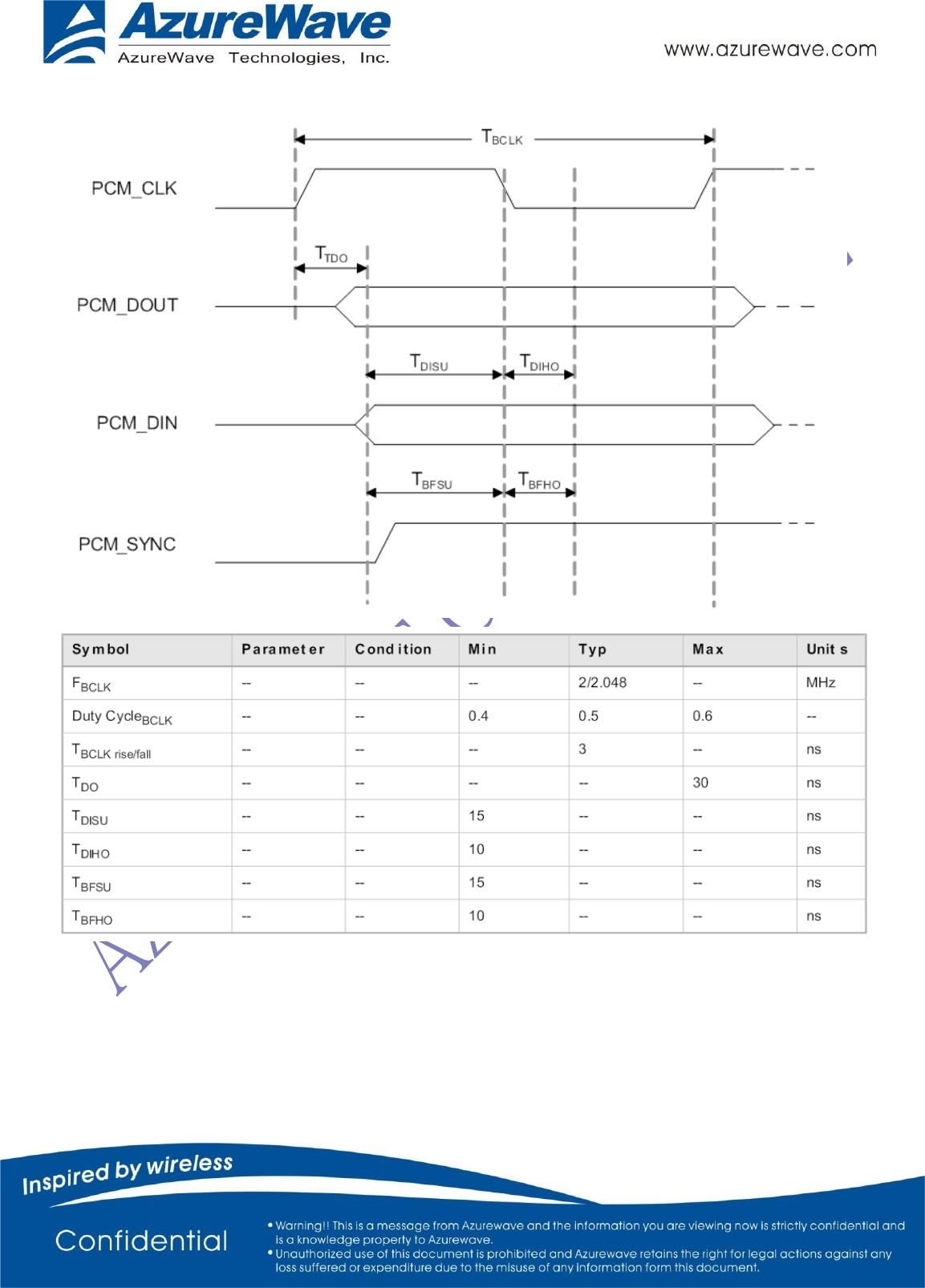

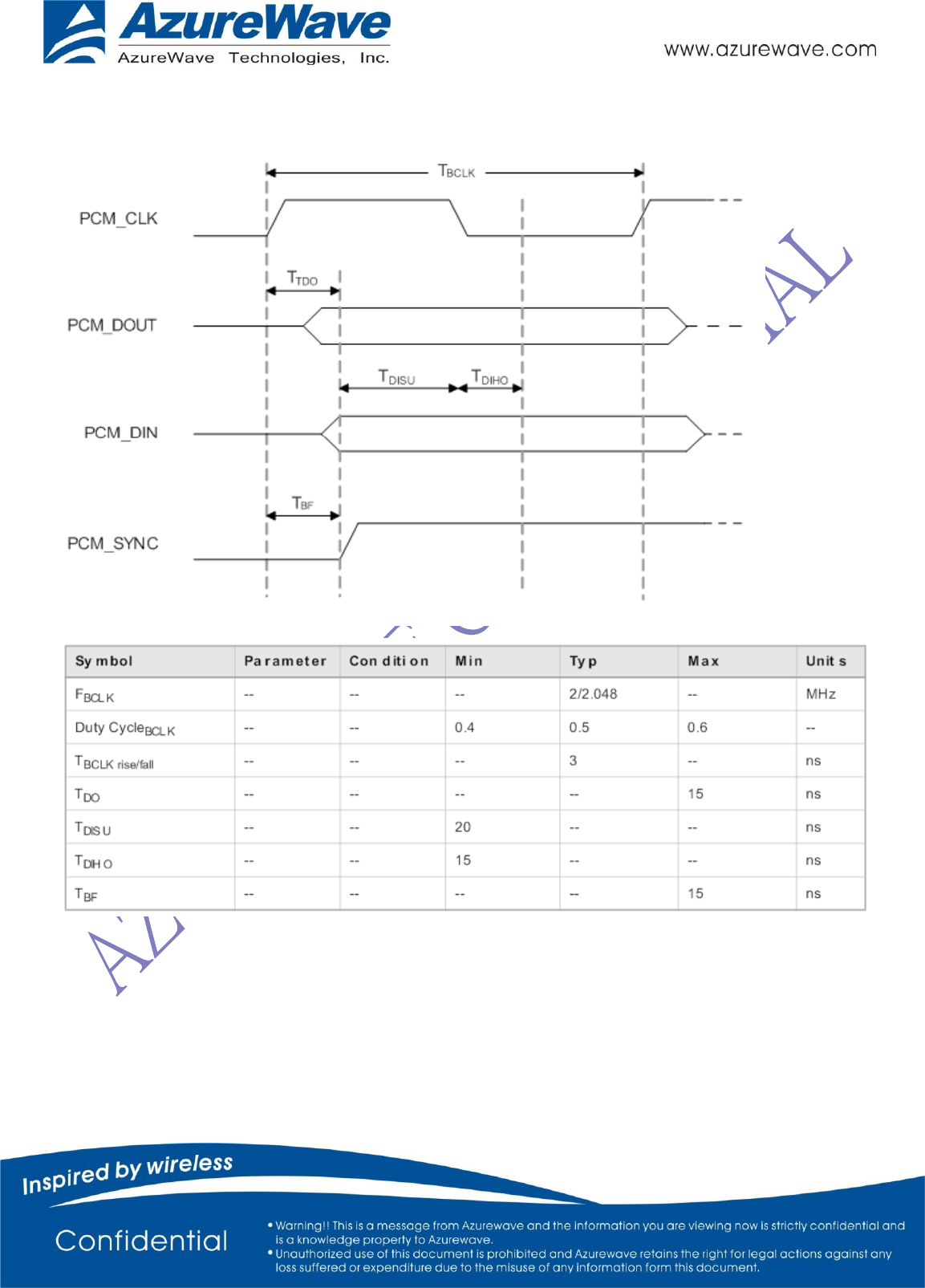

3-2-1. PCM Timing Specification – Master Mode
- 12 -
3-2-2. PCM Timing Specification – Slave Mode
- 13 -
4. Pin Definition
Pin No
Definition
Basic Description
Type
1
GPIO[15]/TMS
JTAG controller select
2
GPIO[14]/TCK
JTAG test clock
3
GPIO[16]/TDI
JTAG test data(input)
I
4
VDD_3V3
3.3V Analog RF Power Supply
I
5
VDD_3V3
3.3V system power supply input
I
6
GND
System Ground Pin
7
GPIO[17]/TDO
JTAG test data(output)
O
8
NC
No connect
--
9
NC
No connect
--
10
NC
No connect
--
11
GPIO[1]
GPIO[1]
I
12
NC
No connect
--
13
NC
No connect
--
14
NC
No connect
--
15
NC
No connect
--
16
NC
No connect
--
17
GND
System Ground Pin
18
NC
No connect
--
19
NC
No connect
--
20
GND
System Ground Pin
21
NC
No connect
--
22
NC
No connect
--
23
GND
System Ground Pin
24
NC
No connect
--
25
NC
No connect
--
26
GND
System Ground Pin
27
SLP_CLK
Sleep Clock Input
Used for WLAN and Bluetooth low-
power modes. External sleep clock of 32.768 KHz must be used for auto
reference clock calibration and for WLAN/Bluetooth low power operation.
I
- 14 -
Pin No
Definition
Basic Description
Type
28
GPIO[13]
GPIO[13]
29
NC
No connect
--
30
NC
No connect
--
31
GPIO[12]
GPIO[12]
--
32
GND
System Ground Pin
33
NC
No connect
--
34
NC
No connect
--
35
GND
System Ground Pin
36
NC
No connect
--
37
NC
No connect
--
38
GND
System Ground Pin
39
NC
No connect
--
40
NC
No connect
--
41
GND
System Ground Pin
42
GPIO[0]/CLK_REQ
GPIO[0] (input/output)
O
43
NC
No connect
--
44
VIO_SD
1.8V/3.3V Digital I/O SDIO Power Supply
I
45
PDn
Full Power Down (input) (active low)
I
46
NC
No connect
--
47
SD_DAT[3]
SDIO Data line Bit[3]
I/O
48
SD_DAT[2]
SDIO Data line Bit[2]
I/O
49
SD_DAT[1]
SDIO Data line Bit[1]
I/O
50
SD_DAT[0]
SDIO Data line Bit[0]
I/O
51
SD_CMD
SDIO Command/response (input/output)
I/O
52
SD_CLK
SDIO Clock input
I
53
NC
No Connect
54
GPIO[10]
GPIO[10] (input/output)
I/O
55
GPIO[8]
GPIO[8] (input/output)
I/O
56
GPIO[9]
GPIO[9] (input/output)
I/O
57
GPIO[11]
GPIO[11] (input/output)
I/O
58
GPIO[7]/PCM_SYNC
GPIO[7] (input/output)
I/O
- 15 -
Pin No
Definition
Basic Description
Type
59
GPIO[4]/PCM_IN
GPIO[4] (input/output)
I
60
GPIO[5]/PCM_OUT
GPIO[5] (input/output)
O
61
GPIO[6]/PCM_CLK
GPIO[6] (input/output)
I/O
62
GND
System Ground Pin
63
NC
No connect
--
64
GPIO[2]/WLAN_LED
LED_OUT_WLAN (output)
O
65
GPIO[3]/BT_LED
LED_OUT_BT (output)
O
66
NC
No connect
--
67
NC
No connect
--
68
GND
System Ground Pin
69
NC
No connect
--
70
NC
No connect
--
71
GND
System Ground Pin
72
NC
No connect
--
73
VIO
Digital I/O Power Supply
I
74
GND
System Ground Pin
75
GND
System Ground Pin
76
GND
System Ground Pin
77
GND
System Ground Pin
78
GND
System Ground Pin
79
GND
System Ground Pin
80
GND
System Ground Pin
81
GND
System Ground Pin
82
GND
System Ground Pin
83
GND
System Ground Pin
84
GND
System Ground Pin
85
GND
System Ground Pin
86
GND
System Ground Pin
87
GND
System Ground Pin
88
GND
System Ground Pin
89
GND
System Ground Pin
- 16 -
Pin No
Definition
Basic Description
Type
90
GND
System Ground Pin
91
GND
System Ground Pin
92
GND
System Ground Pin
93
GND
System Ground Pin
94
GND
System Ground Pin
95
GND
System Ground Pin
96
GND
System Ground Pin
G1
GND
System Ground Pin
G2
GND
System Ground Pin
G3
GND
System Ground Pin
G4
GND
System Ground Pin
G5
GND
System Ground Pin
G6
GND
System Ground Pin
G7
GND
System Ground Pin
G8
GND
System Ground Pin
G9
GND
System Ground Pin
G10
GND
System Ground Pin
G11
GND
System Ground Pin
G12
GND
System Ground Pin
G13
GND
System Ground Pin
G14
GND
System Ground Pin
G15
GND
System Ground Pin
G16
GND
System Ground Pin
G17
GND
System Ground Pin
G18
GND
System Ground Pin
G19
GND
System Ground Pin
G20
GND
System Ground Pin
G21
GND
System Ground Pin
G22
GND
System Ground Pin
- 17 -
5. Mechanical Information

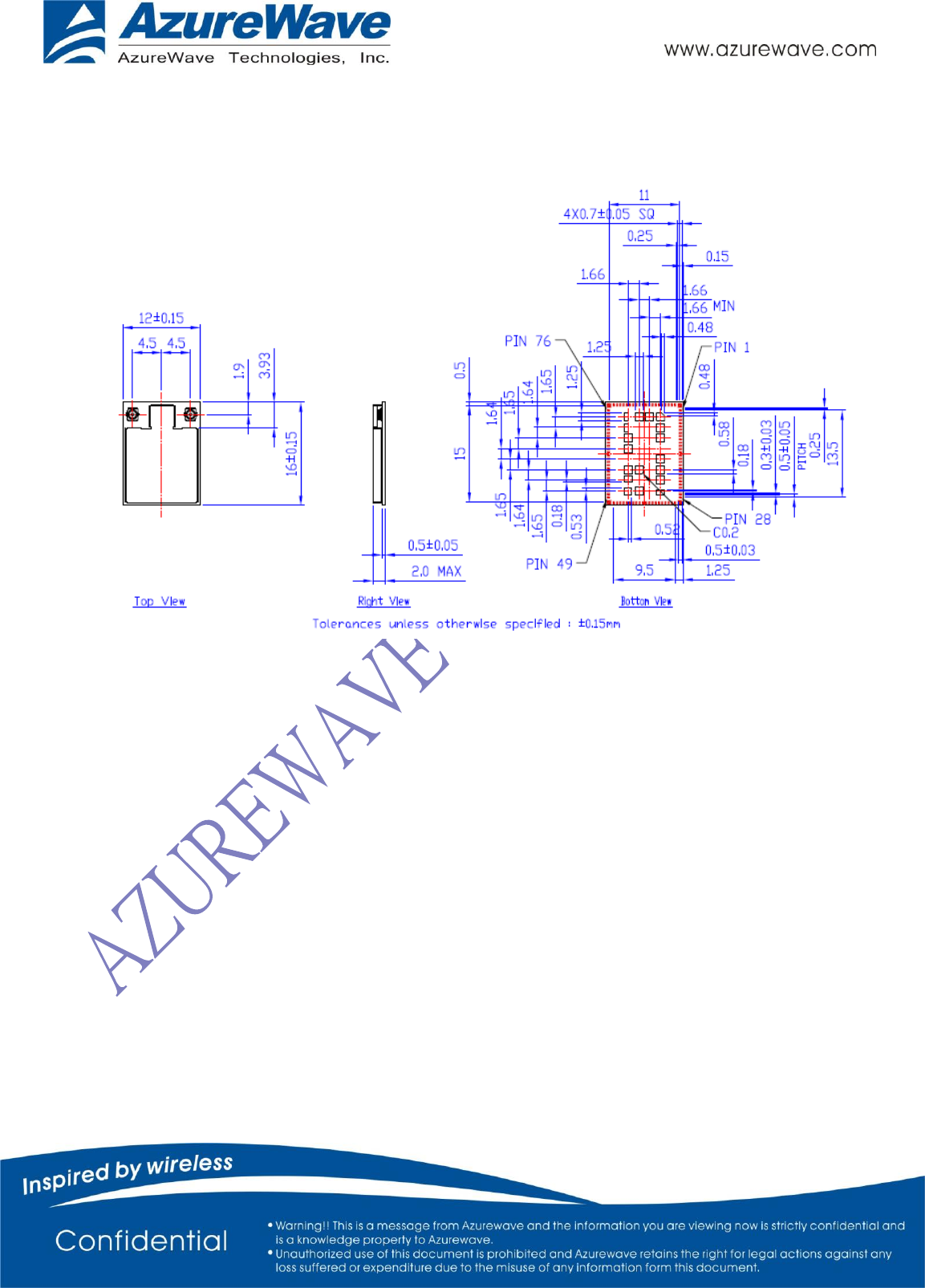

5-1. Package Outline Drawing
- 18 -

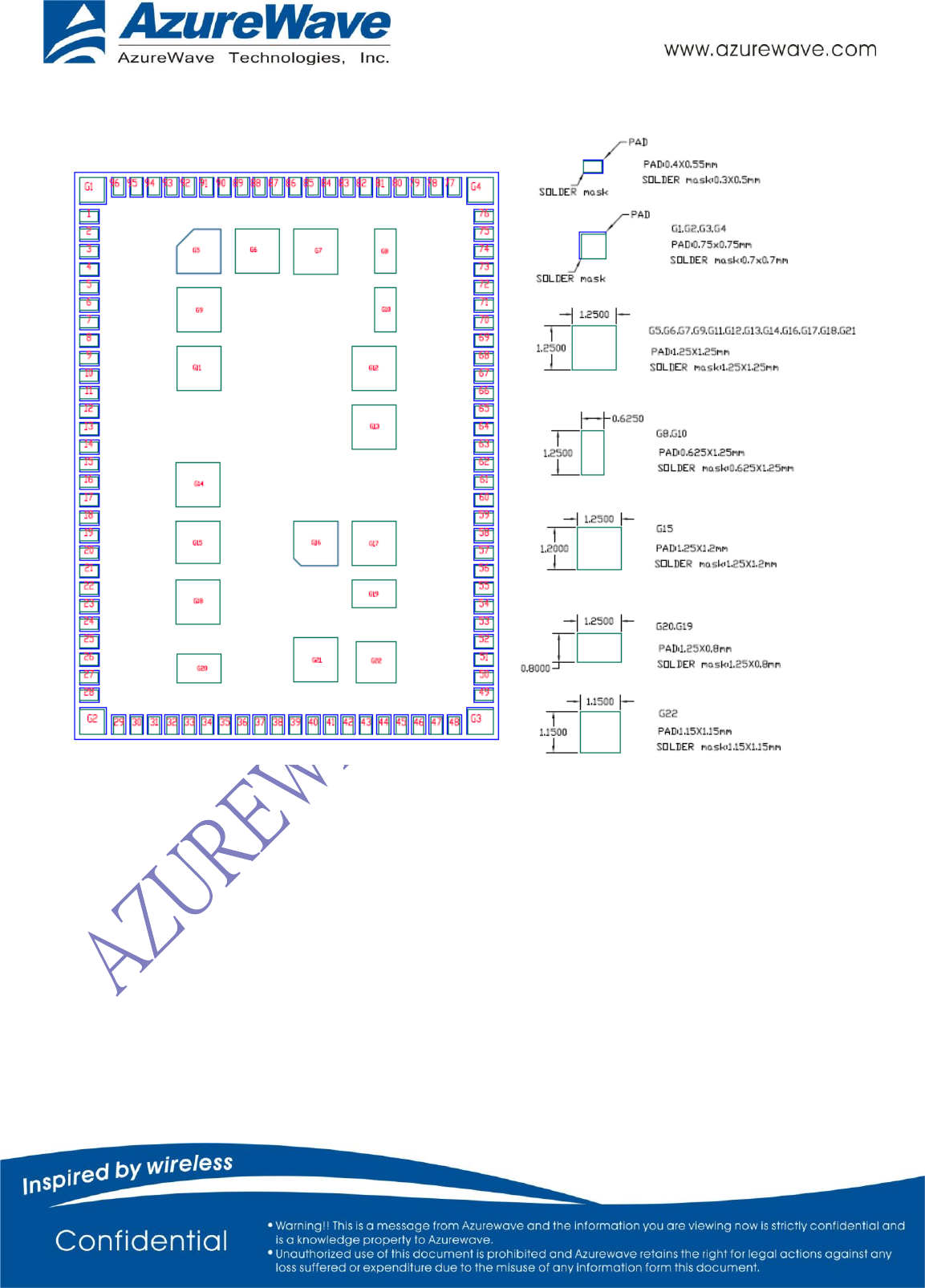

5-2. Module PCB Layout Footprint
- 19 -

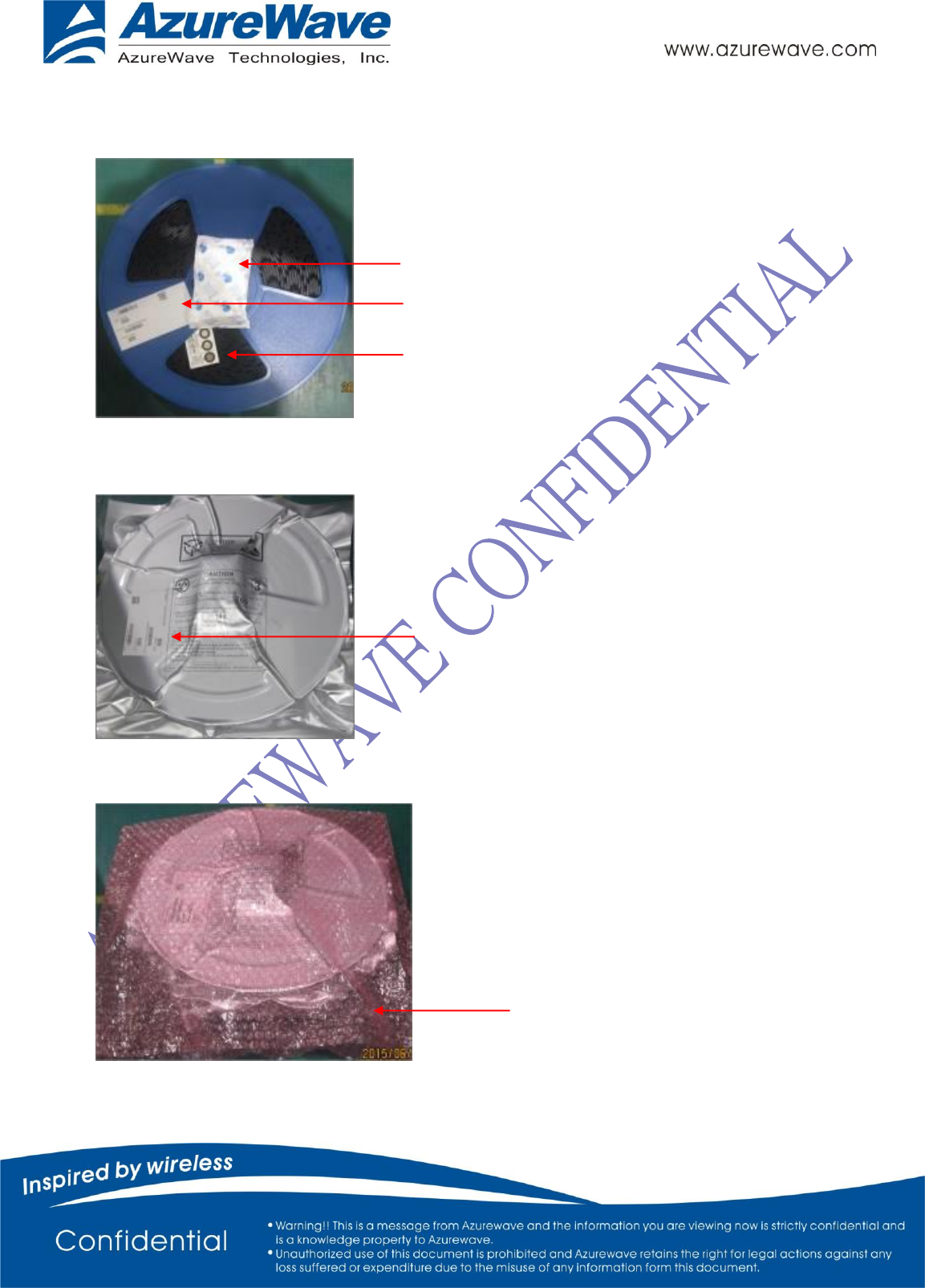

6. Shipping Information
6-1
6-2
6-3
1 UNIT DESICCANT
HUMIDITY INDICATOR CARD
AFFIX PACKING LABEL
AFFIX PACKING LABEL
PINK BUBBLE WRAP
- 20 -

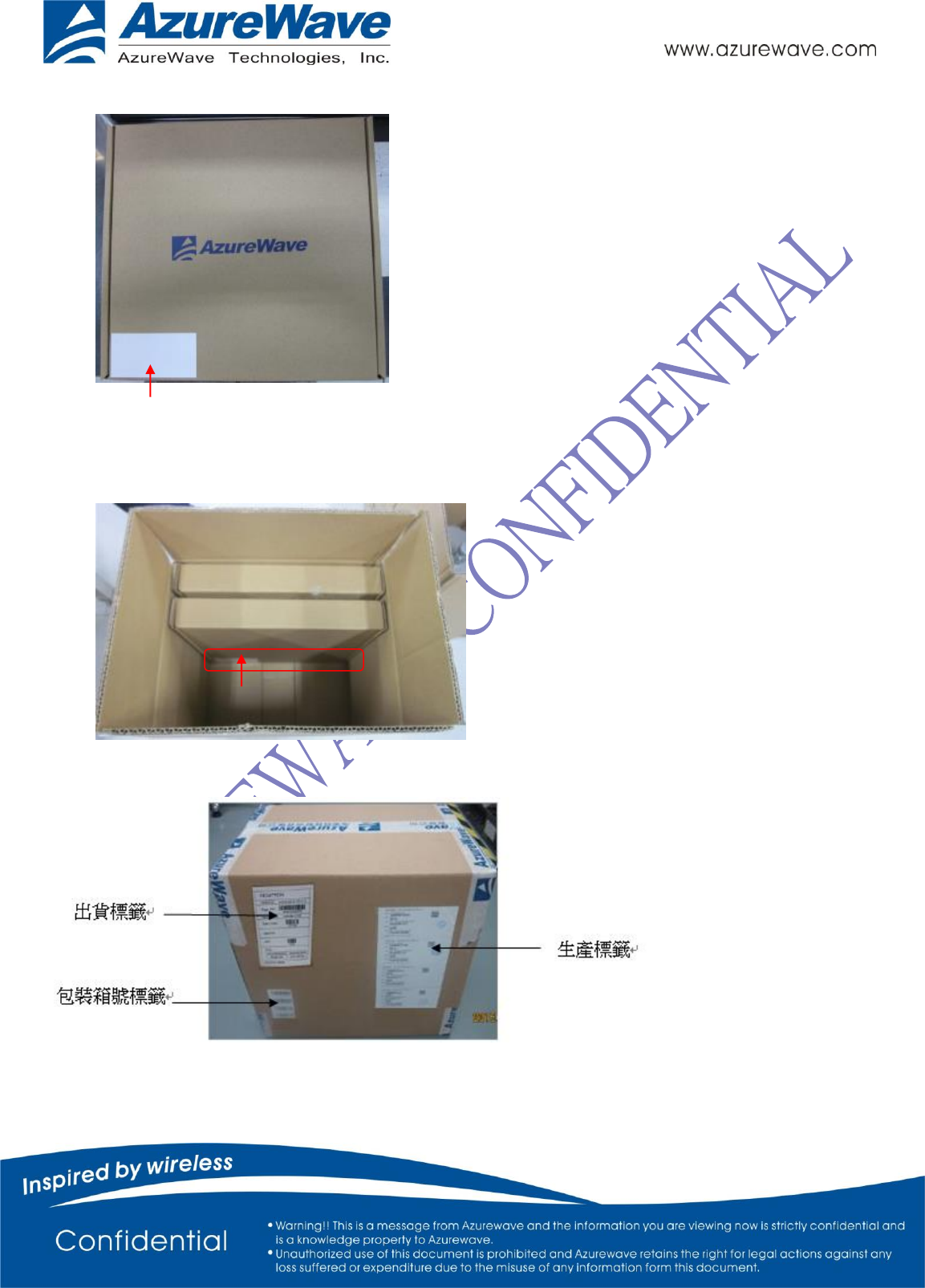

6-4
6-5
1 Carton= 5 Boxes
6-6
Note: 1 tape reel = 1 box = 1,500pcs
1 carton = 5 boxes = 5 * 1,500pcs=7,500pcs
AFFIX PACKING LABEL
TRANSPARENT SEALING TAPE
AFFIX PACKING LABEL
生产标签
- 21 -
FCC Statement:
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the
compliance to all the rules that apply to the product into which this certified RF module is
integrated.
Additional testing and certification may be necessary when multiple modules are used.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20 cm
separation with the antenna while this end product is installed and operated. The end user has
to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled
environment can be satisfied.
The end user has to also be informed that any changes or modifications not expressly approved
by the manufacturer could void the user's authority to operate this equipment.
If the labelling area is small than the palm of the hand, then additional FCC part 15.19
statement is required to be available in the users manual: This device complies with Part 15 of
FCC rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
TLZ-CM286NF ".
- 22 -
If the labelling area is larger than the palm of the hand, then the following FCC part 15.19
statement has to also be available on the label: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Ant.
Brand Holder
Brand Holder P/N
Antenna Type
Connector
1
Smart Approach Co.,Ltd.
SE-ECX10-001
PIFA Antenna
I-PEX
2
Smart Approach Co.,Ltd.
SE-ECX10-002
PIFA Antenna
I-PEX
3
Smart Approach Co.,Ltd.
SE-ECX10-003
PIFA Antenna
I-PEX
4
Smart Approach Co.,Ltd.
SE-ECX10-004
PIFA Antenna
I-PEX
5
Smart Approach Co.,Ltd.
SE-ECX10-005
PIFA Antenna
I-PEX
6
Smart Approach Co.,Ltd.
SE-ECX10-006
PIFA Antenna
I-PEX
Ant.
True Gain = antenna gain + cable loss (dBi)
2.4G
5G B1
5G B2
5G B3
5G B4
1
-0.94
1.42
1.42
0.58
2.16
2
-1.67
-0.29
-0.33
1.37
1.37
3
1.04
0.92
0.92
2.59
2.59
4
0.31
0.93
0.28
-1.11
-1.37
5
1.01
0.07
0.07
0.34
-0.68
6
0.64
0.38
-0.52
-0.49
-0.68
Note1: There are 6 antennas in the antenna table list.
- 23 -
IC Statement:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
For product available in the USA/Canada market, only channel
1~11 can be operated. Selection of other channels is not
possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités.
Sélection d'autres canaux n'est pas possible.
This radio transmitter (IC: 6100A-CM286NF) has been approved by Industry Canada to operate
with the antenna types listed below with the maximum permissible gain indicated. Antenna
types not included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
Le présent émetteur radio (IC: 6100A-CM286NF) a été approuvé par Industrie Canada pour fonctionner avec
les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal d'antenne. Les types d'antenne non
inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l'exploitation de l'émetteur.
Ant.
Brand Holder
Brand Holder P/N
Antenna Type
Connector
1
Smart Approach Co.,Ltd.
SE-ECX10-001
PIFA Antenna
I-PEX
2
Smart Approach Co.,Ltd.
SE-ECX10-002
PIFA Antenna
I-PEX
3
Smart Approach Co.,Ltd.
SE-ECX10-003
PIFA Antenna
I-PEX
4
Smart Approach Co.,Ltd.
SE-ECX10-004
PIFA Antenna
I-PEX
5
Smart Approach Co.,Ltd.
SE-ECX10-005
PIFA Antenna
I-PEX
6
Smart Approach Co.,Ltd.
SE-ECX10-006
PIFA Antenna
I-PEX
Ant.
True Gain = antenna gain + cable loss (dBi)
2.4G
5G B1
5G B2
5G B3
5G B4
1
-0.94
1.42
1.42
0.58
2.16
2
-1.67
-0.29
-0.33
1.37
1.37
3
1.04
0.92
0.92
2.59
2.59
4
0.31
0.93
0.28
-1.11
-1.37
5
1.01
0.07
0.07
0.34
-0.68
6
0.64
0.38
-0.52
-0.49
-0.68
Note1: There are 6 antennas in the antenna table list.
- 24 -
Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350 MHz, 5470-
5600 MHz and 5650-5725 MHz.
Sélection dynamique de fréquences (DFS) pour les dispositifs fonctionnant dans les bandes 5250-5350 MHz, 5470-
5600 MHz et 5650-5725 MHz.
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles
utilisant les mêmes canaux.
The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725
MHz shall be such that the equipment still complies with the e.i.r.p. limit.
le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5250-5350 MHz et
5470-5725 MHz doit se conformer à la limite de p.i.r.e.
The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such
that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-
to-point operation as appropriate.
le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5850 MHz)
doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas.
For indoor use only.
Pour une utilisation en intérieur uniquement.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the
compliance to all the rules that apply to the product into which this certified RF module is
integrated.
Additional testing and certification may be necessary when multiple modules are used.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20 cm
separation with the antenna while this end product is installed and operated. The end user has
- 25 -
to be informed that the IC radio-frequency exposure guidelines for an uncontrolled environment
can be satisfied.
The end user has to also be informed that any changes or modifications not expressly approved
by the manufacturer could void the user's authority to operate this equipment. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains IC: 6100A-
CM286NF ".
The Host Model Number (HMN) must be indicated at any location on the exterior of the end
product or product packaging or product literature which shall be available with the end product
or online.
FCC Statement:
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20 cm between the radiator &
your body.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to
all the rules that apply to the product into which this certified RF module is integrated.
Additional testing and certification may be necessary when multiple modules are used.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20 cm
separation with the antenna while this end product is installed and operated. The end user has to be
informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied.
The end user has to also be informed that any changes or modifications not expressly approved by
the manufacturer could void the user's authority to operate this equipment.
If the labelling area is small than the palm of the hand, then additional FCC part 15.19 statement is
required to be available in the users manual: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference
and (2) this device must accept any interference received, including interference that may cause
undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
TLZ-CM286NF ".
If the labelling area is larger than the palm of the hand, then the following FCC part 15.19 statement
has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference and (2) this
device must accept any interference received, including interference that may cause undesired
operation.
Ant. Brand Holder Brand Holder P/N Antenna Type Connector
1 Smart Approach Co.,Ltd. SE-ECX10-001 PIFA Antenna I-PEX
2 Smart Approach Co.,Ltd. SE-ECX10-002 PIFA Antenna I-PEX
3 Smart Approach Co.,Ltd. SE-ECX10-003 PIFA Antenna I-PEX
4 Smart Approach Co.,Ltd. SE-ECX10-004 PIFA Antenna I-PEX
5 Smart Approach Co.,Ltd. SE-ECX10-005 PIFA Antenna I-PEX
6 Smart Approach Co.,Ltd. SE-ECX10-006 PIFA Antenna I-PEX
True Gain = antenna gain + cable loss (dBi)
Ant. 2.4G 5G B1 5G B2 5G B3 5G B4
1 -0.94 1.42 1.42 0.58 2.16
2 -1.67 -0.29 -0.33 1.37 1.37
3 1.04 0.92 0.92 2.59 2.59
4 0.31 0.93 0.28
-1.11 -1.37
5 1.01 0.07 0.07
0.34 -0.68
6 0.64 0.38 -0.52
-0.49 -0.68
Note1: There are 6 antennas in the antenna table list.
IC Statement:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection
d'autres canaux n'est pas possible.
This radio transmitter (IC: 6100A-CM286NF) has been approved by Industry Canada to operate with
the antenna types listed below with the maximum permissible gain indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Le présent émetteur radio (IC: 6100A-CM286NF) a été approuvé par Industrie Canada pour fonctionner avec les
types d'antenne énumérés ci-dessous et ayant un gain admissible maximal d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur.
Ant. Brand Holder Brand Holder P/N Antenna Type Connector
1 Smart Approach Co.,Ltd. SE-ECX10-001 PIFA Antenna I-PEX
2 Smart Approach Co.,Ltd. SE-ECX10-002 PIFA Antenna I-PEX
3 Smart Approach Co.,Ltd. SE-ECX10-003 PIFA Antenna I-PEX
4 Smart Approach Co.,Ltd. SE-ECX10-004 PIFA Antenna I-PEX
5 Smart Approach Co.,Ltd. SE-ECX10-005 PIFA Antenna I-PEX
6 Smart Approach Co.,Ltd. SE-ECX10-006 PIFA Antenna I-PEX
True Gain = antenna gain + cable loss (dBi)
Ant. 2.4G 5G B1 5G B2 5G B3 5G B4
1 -0.94 1.42 1.42 0.58 2.16
2 -1.67 -0.29 -0.33 1.37 1.37
3 1.04 0.92 0.92 2.59 2.59
4 0.31 0.93 0.28
-1.11 -1.37
5 1.01 0.07 0.07
0.34 -0.68
6 0.64 0.38 -0.52
-0.49 -0.68
Note1: There are 6 antennas in the antenna table list.
Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350 MHz, 5470-5600
MHz and 5650-5725 MHz.
Sélection dynamique de fréquences (DFS) pour les dispositifs fonctionnant dans les bandes 5250-5350 MHz, 5470-5600
MHz et 5650-5725 MHz.
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant
les mêmes canaux.
The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz
shall be such that the equipment still complies with the e.i.r.p. limit.
le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5250-5350 MHz et
5470-5725 MHz doit se conformer à la limite de p.i.r.e.
The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point
operation as appropriate.
le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5850 MHz)
doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas.
For indoor use only.
Pour une utilisation en intérieur uniquement.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm between
the radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre
corps.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to
all the rules that apply to the product into which this certified RF module is integrated.
Additional testing and certification may be necessary when multiple modules are used.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20 cm
separation with the antenna while this end product is installed and operated. The end user has to be
informed that the IC radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied.
The end user has to also be informed that any changes or modifications not expressly approved by
the manufacturer could void the user's authority to operate this equipment. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and (2) this device must
accept any interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains IC:
6100A-CM286NF ".
The Host Model Number (HMN) must be indicated at any location on the exterior of the end product or
product packaging or product literature which shall be available with the end product or online.
