Manual

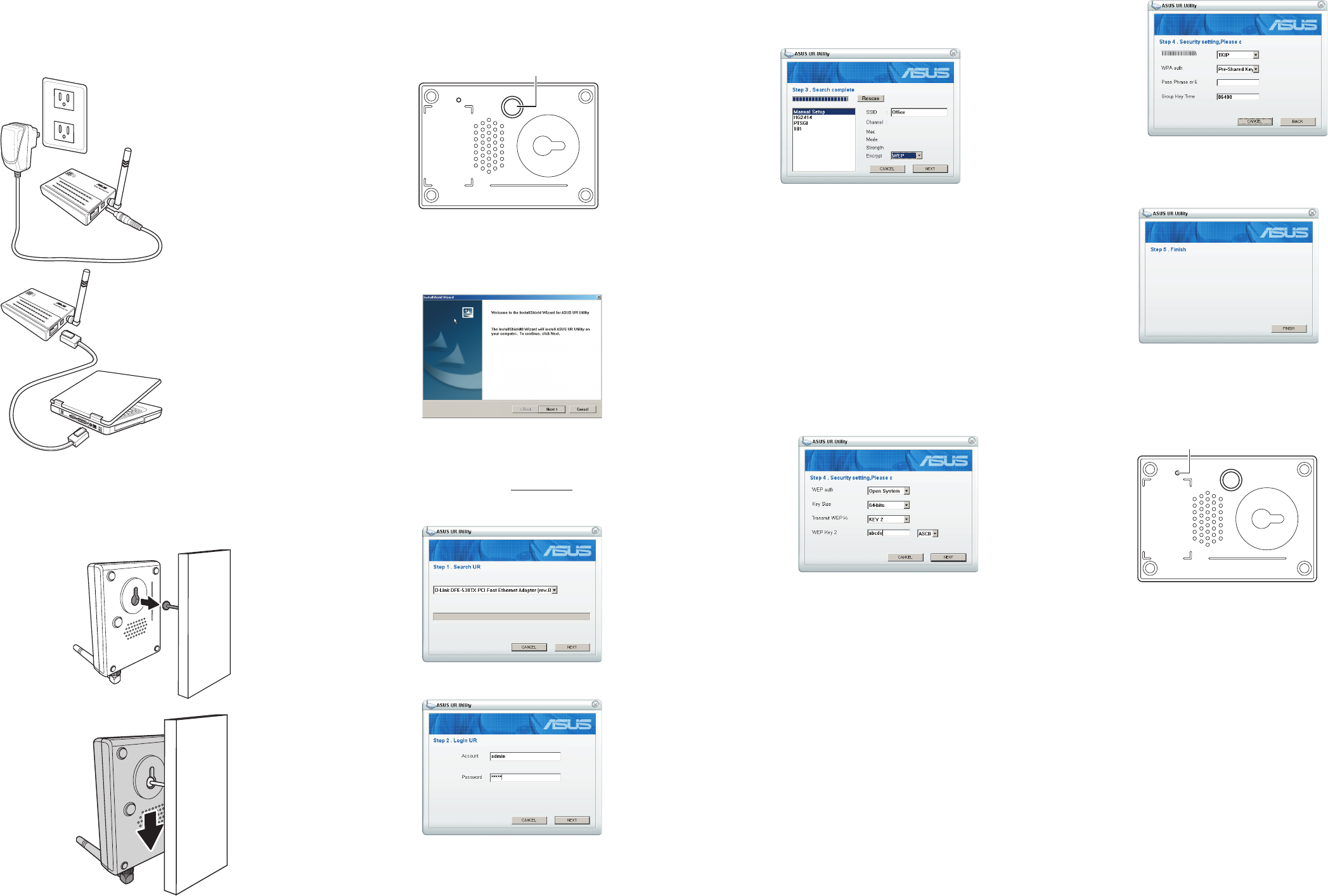

Hardware Installation
1. Connect the antenna with the Range Maximizer 515.
2. Plug the power connector into the AC-in port on the unit,
and plug the other end into a power outlet.
3. Connect the Range Maximizer 515 with your PC or note-
book via a LAN cable.
Configuration
1. Insert the Utility CD into the CD-ROM of your PC, which
should run automatically. Follow the on-screen to com-
plete the installation.
If not, click the Start button and choose Run. Type E:\
setup.exe into the entry field to run the utility CD. (“E:\” is
the CD-ROM drive label.)
2. Activate the UR Utility from Start Menu, and then the PC
will search for the Universal Repeater (UR) device. Click
NEXT to continue the configuration.
3. Enter your account name and password. Click NEXT to
continue the installation.
4. The setup wizard will search for available wireless net-
works. When found, they will appear as a list. Click on
the appropriate network, and then click NEXT and go to
STEP 8 to continue.
Auto-Link
After the hardware connection is ready, use the Auto-Link
button on the bottom of the unit for quick wireless network
setup.
Press the Auto-Link button, the Range Maximizer 515 will
automatically detect the wireless network and configure all
settings. The whole process takes about 10 seconds.
AUTO LINKRESET
Auto-Link Button
Power Connection
LAN Connection
Reset Default
Press the reset button on the bottom of the Range Maxmizer
for 4 seconds to reset all settings to their factory default set-
ting.
AUTO LINKRESET
Reset Button
If no wireless network is found, either click Rescan to
search for available wireless networks, or click CANCEL
to exit setup wizard.
5. If you wish to create a new wireless network, click Manu-
al Setup at the left column.
6. Enter a specific name (SSID) for this new wireless net-
work.
7. Select a encryption type from the drag-down menu for
your wireless network.
7-1. WEP Encryption Setup
a. WEP auth: This is to set the WEP authorization
level. Select from Open System, Shared Key, or
Both.
b. Key size: This is the level of WEP encryption. Se-
lect from h64-bit or 128-bit.
c. Transmit WEP Key: There are 4 groups of the
transmit WEP keys. Select from Key 1 to Key 4.
d. WEP Key #: “#” represents the number of the
Transmit WEP key. There are two types of WEP
key, one is ASCII, and the other is HEX. The set-
tings of each WEP key type are different.
i. ASCII:
For 64-bit encryption, use 5 letters (“A” through
“Z”). For example, ‘abcde’, or ‘zyxwv’.
For 128-bit encryption, use 13 letters (“A” through
“Z”). For example, ‘abcdefghijklm’, or ‘zyx-
wvutsrqpon’.
ii. HEX:
For 64-bit encryption, use 10 hexadecimal char-
acters.
For 128-bit encryption, use 26 hexadecimal
characters.
• Hexadecimal characters are the combination
of letters “A” through “F”, and the numbers “0”
through “9”.
Note: All devices in the wireless network must use the
same WEP key.
Placement
Beside placing the UR flately on an object, you can also use
the buckle on the back of the UR and a fixed nail to straight
the UR up on the wall.
7-2. WPA Encryption Setup
In the WPA encription seup screen, enter the pass-
phrase or pre-shared key in the Passphrase field.
This key must be between 8~63 characters in length.
After configuration is finished, click NEXT to continue.
8. Wait for few seconds.
9. Setup is complete. Click FINISH to exit this setup wizard
Range Maximizer - 515
Sepcifications
Standard IEEE 802.11g/IEEE802.11b
Port Ethernet
Buttons Auto link, Reset
LEDs (1) Link: Ethernet (Orange)
(2) Activity: Wireless (Blue)
(3) Power: Power (Green)
Transmit Power 802.11g: Typ. 14±1 1dBm@Normal Temp Range
802.11b: Typ. 17±1 1dBm@Normal Temp Range
Security
Features
WEP (64/128-bit keys,)
WPA-PSK
Dimensions 86(L) x 61(W) x 19.2(T) mm
Power Input: 100~240V AC 0.15A
Output: 5V DC 1A
Operating Temp 0oC to 40oC (32oF to 104oF)
Storage Temp -20oC to 70oC (-4oF to 158oF)
Operating Humidity 10% to 90% RH
Storage Humidity 5% to 95% RH
Wireless Channels By country
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
