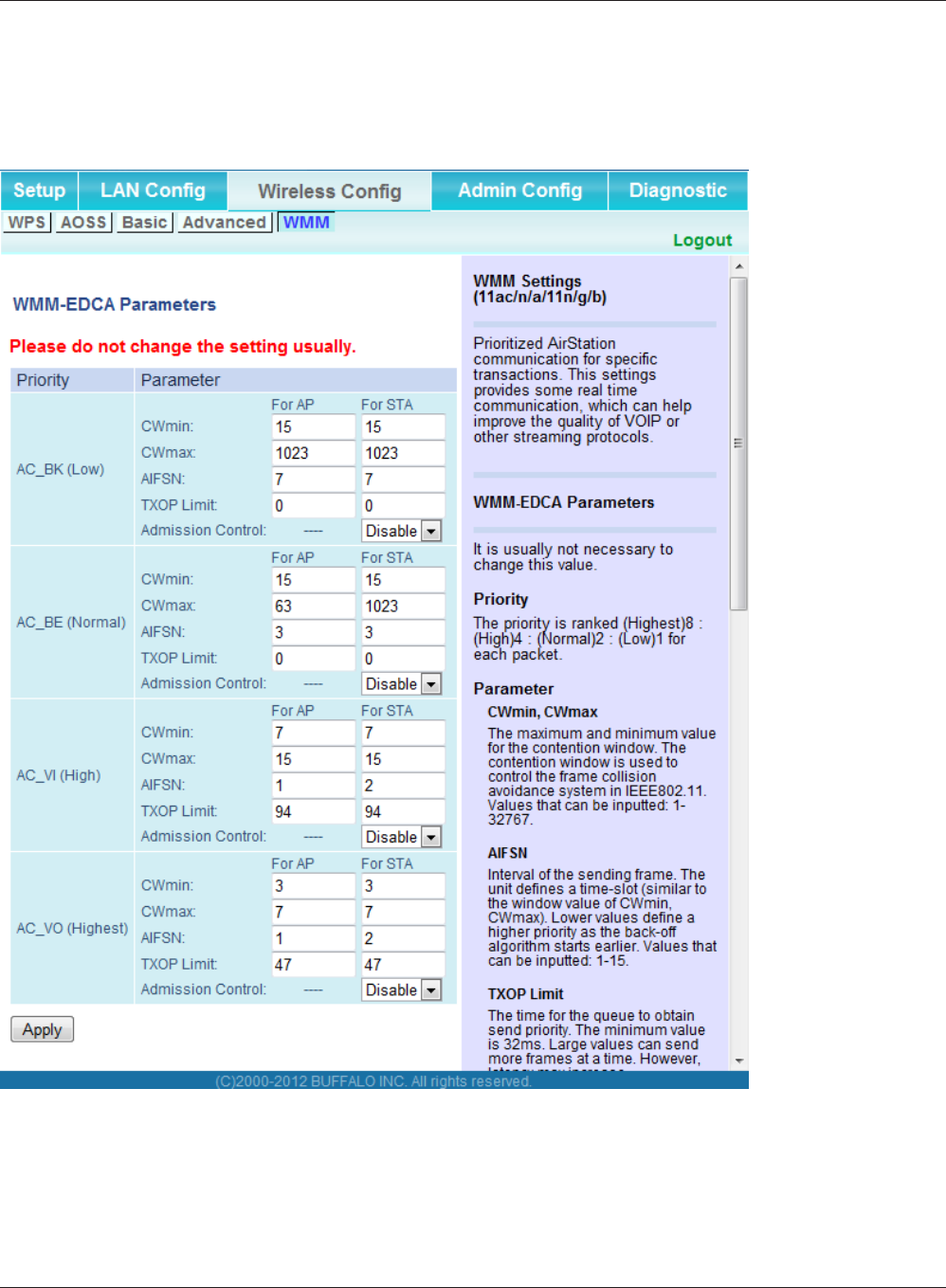

WMM .............................................................................................. 28
Admin Cong ........................................................................... 30
Name ............................................................................................. 30
Password ....................................................................................... 31
Time/Date ...................................................................................... 32
NTP ................................................................................................ 33
Access ........................................................................................... 34
Log ................................................................................................. 35
Save/Restore ................................................................................. 36
Initialize/Restart ............................................................................. 37
Update ........................................................................................... 38
Diagnostic ............................................................................... 39
System Info .................................................................................... 39
Logs ............................................................................................... 40
Packet Info ..................................................................................... 41
Client Monitor ................................................................................. 42
Ping ................................................................................................ 43
Chapter 4 - TroubleShooting ...........................................44
When connection to a wireless router is not possible ............. 44
You forgot the SSID, encryption key, or password for the
wireless network. ..................................................................... 44
Restoring the Default Conguration ........................................ 44
TCP/IP Settings (Windows 7) .................................................. 45
TCP/IP Settings (Windows Vista) ............................................ 46
TCP/IP Settings (Windows XP) ............................................... 47
TCP/IP Settings (Mac OS X) ................................................... 48
Other Tips ................................................................................ 49
- 3 -
Appendix .....................................................................50
Specications .......................................................................... 50
Default Conguration Settings ................................................ 53
Ethernet Converter Manager ................................................... 56
Ethernet Converter Manager Overview ......................................... 56
Opening and Closing Ethernet Converter Manager ....................... 56
Select LAN Adapter screen ............................................................ 57
Select Ethernet Converter .............................................................. 58
Main Screen ................................................................................... 59
Modify IP Address Screen .............................................................. 61
Connection Settings ....................................................................... 62
Regulatory Compliance Information ........................................ 63
Environmental Information ...................................................... 69
GPL Information ...................................................................... 69
- 4 -
Chapter 1 - Product Overview
Package Contents
The following items are included in your AirStation package. If any of the items are missing, please
contact your vender.
• WLI-H4-D1300 ..............................................................................................................................1
• AC adapter .....................................................................................................................................1
• Stands ..............................................................................................................................................2
• Screws for wall-mounting ........................................................................................................ 2
• LAN cable ....................................................................................................................................... 1
• AirNavigator CD ...........................................................................................................................1
• Quick Setup Guide ...................................................................................................................... 1
• Warranty Statement ...................................................................................................................1
1
2
4
3
Chapter 1 Product Overview
- 5 -
Hardware Overview
Front Panel LEDs
1AOSS / WPS button To initiate AOSS/WPS, hold down this button until the Wireless LED
ashes (about 1 second). Then, push the AOSS or WPS button on your
wireless access point to complete the connection. Both devices must be
powered on for this to work.
2Wireless LED (Blue or Amber)
On: Wireless LAN is enabled.
Blinking: Wireless LAN is transmitting.
2 blinks: AirStation is waiting for an AOSS or WPS security key.
Continuously
blinking:
AOSS/WPS error; failed to exchange security keys.
O: Wireless LAN is disabled.
Note:
Wireless LED is blue : Security settings have been made for the wireless LAN.
Wireless LED is amber : Security settings have not been made for the wireless LAN.
- 6 -
Chapter 1 Product Overview
35 GHz Fixed mode LED (Blue)
On: Operating in 5 GHz band xed mode.
O: 5 GHz band xed mode is o.
4Bualo LED (White or Red)
On (White): Power is on.
O: Power is o.
On (Red)*1: Booting.
2 blinks (Red)*2: Flash ROM error.
3 blinks (Red)*2: Wired Ethernet LAN error.
4 blinks (Red)*2: Wireless LAN error.
9 blinks (Red)*2: System error.
Continuously
blinking*1:
Updating rmware, saving settings, or initializing settings.
*1 Never unplug the AC adapter while the Bualo LED is blinking continuously.
*2 Turn o AirStation rst, wait for a few seconds, then turn it back on.
5
67
8
9
Chapter 1 Product Overview
- 7 -
Back Panel
55 GHz Fixed Mode
button
This button is used to enable or disable 5 GHz xed mode. The operation
mode is switched by pressing the button until the 5 GHz xed mode LED
turns on or o (about 1 second).
6LAN Port Connect your computer, hub, or other Ethernet devices to these ports.
This switching hub supports 10 Mbps,100 Mbps, and 1000 Mbps
connections.
7LAN LED (Green)
On: An Ethernet device is connected.
Blinking: An Ethernet device is communicating.
8Power button This button turns the power on and o.
9DC Connector Connect the included AC adapter here.
10
11
- 8 -
Chapter 1 Product Overview
Bottom
10 Reset button To reset all settings, hold down this button until the Bualo LED turns red
(about 3 seconds). The power must be on for this to work.
Right Side
11 Mounting holes Mounting holes are provided for mounting the AirStation to a
wall. Use the supplied screws in the holes to mount to a wall.
Stand
Stand
Stand
Chapter 1 Product Overview
- 9 -
Vertical Placement
Attach the stand as shown in the gure below.
Horizontal Placement
The same stand also allows horizontal placement. Install the stand as shown in the gure below.
Mounting holes
85 mm (3.35 in.)
Screws
50 mm (1.97 in.)
- 10 -
Chapter 1 Product Overview
Wall-Mounting
Install with the supplied screws in the mounting holes of the AirStation as shown in the gure
below.
AirStation
1) connect
2) connect
LAN cable computer
AirStation
1) Connect the power supply
power outlet
2) connect
1) connect
LAN cable
TV
- 11 -
Chapter 2 - Installation
Initial Setup (one-touch connection)
To congure your AirStation, follow the procedure below.
1
2Use a LAN cable to connect the LAN port on the AirStation to your computer, television, or
other client device.
Turn on the AirStation, then wait one minute.
Note : If the power does not turn on even when the AC
adapter is connected, press the Power button on
the rear of the AirStation.
- 12 -
Chapter 2 Installation
Launch your web browser. If you can connect to the Internet, then setup is completed.
Note : If you cannot connect to the Internet, there may be a problem with the settings of your wireless router.
Refer to the manual for your wireless router for help conguring it.
7
6After about one minute, check that the Wireless LED on the AirStation’s front panel is lit.
Note : If the Wireless LED continues ashing, connection with the wireless router has failed. Perform the
procedure again from Step 4.
3
4
Once your computer has booted, the AirStation’s LEDs should be lit as described below:
Wireless On or blinking.
5 GHz On or o.
Bualo White light on.
LAN Green light on or blinking.
For LED locations, refer to chapter 1.
5
Press the WPS (or AOSS) button of the wireless router that you are currently using.
Note : This example explains how to make a one-touch connection between the AirStation and your wireless
router. To make the setting from the conguration interface of the AirStation, see Chapter 3.
Press the AOSS/WPS button on the AirStation until the wireless LED button on the front panel
starts ashing (about 1 second).
Chapter 2 Installation
- 13 -
Manual Setup
1Refer to Chapter 3 to open the conguration interface for the AirStation.
2Click [Connect to AirStation (access point)].
3Click [Search].
4Choose your wireless router and click [Select].
5Enter the encryption type and encryption key. Click [Setup].
Note : If you cannot connect to the wireless router, double-check your encryption type and key. These settings
must be the same for both the wireless router and the wireless bridge.
- 14 -
Chapter 3 - Conguration
The web-based conguration tool lets you change the AirStation’s settings. Don’t change these
settings unless you know what you’re doing.
Installing the Ethernet Converter Manager
(Windows)

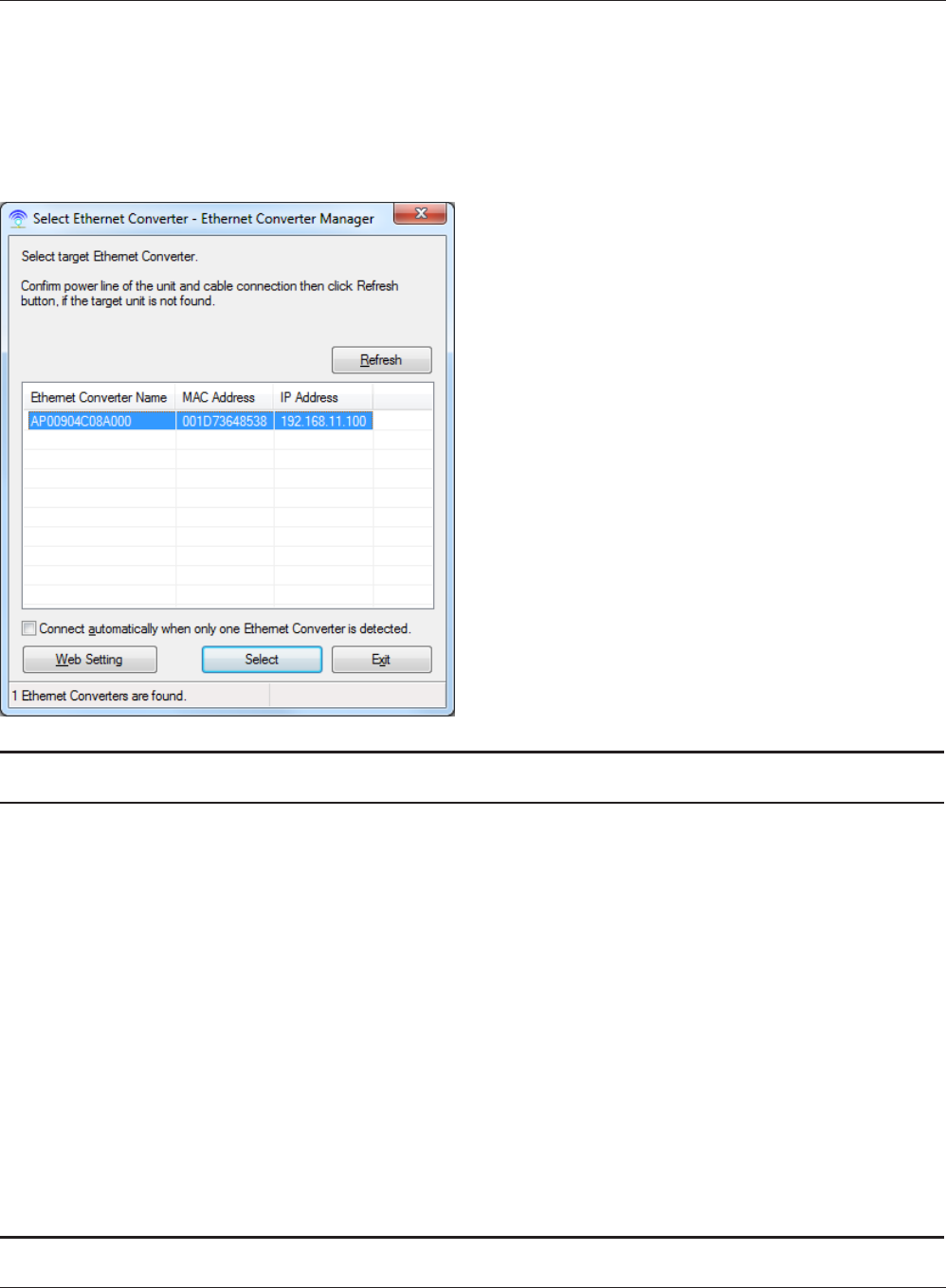

The Ethernet Converter Manager is required to display the AirStation conguration interface for a
Windows computer. Use the procedure below to perform the installation.
1
2
3
Load the AirNavigator CD into your computer.
Step through the wizard to install the Ethernet Converter Manager software.

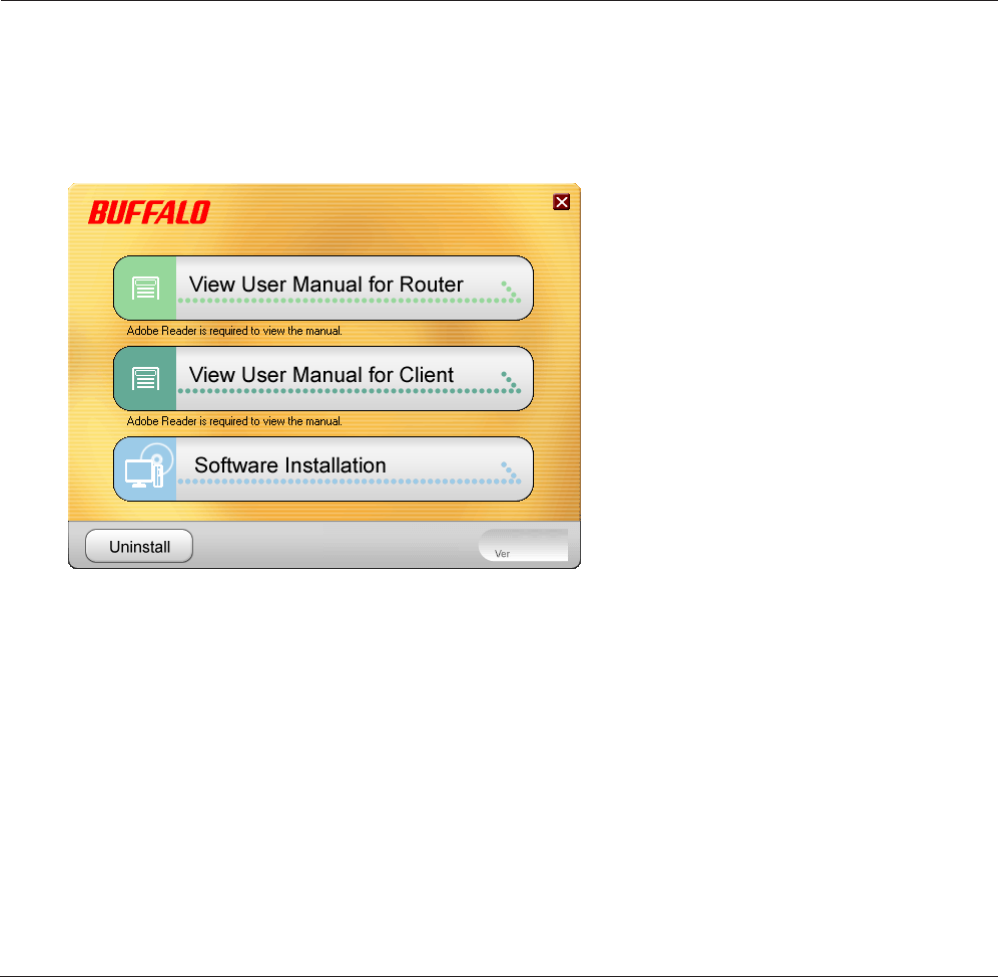

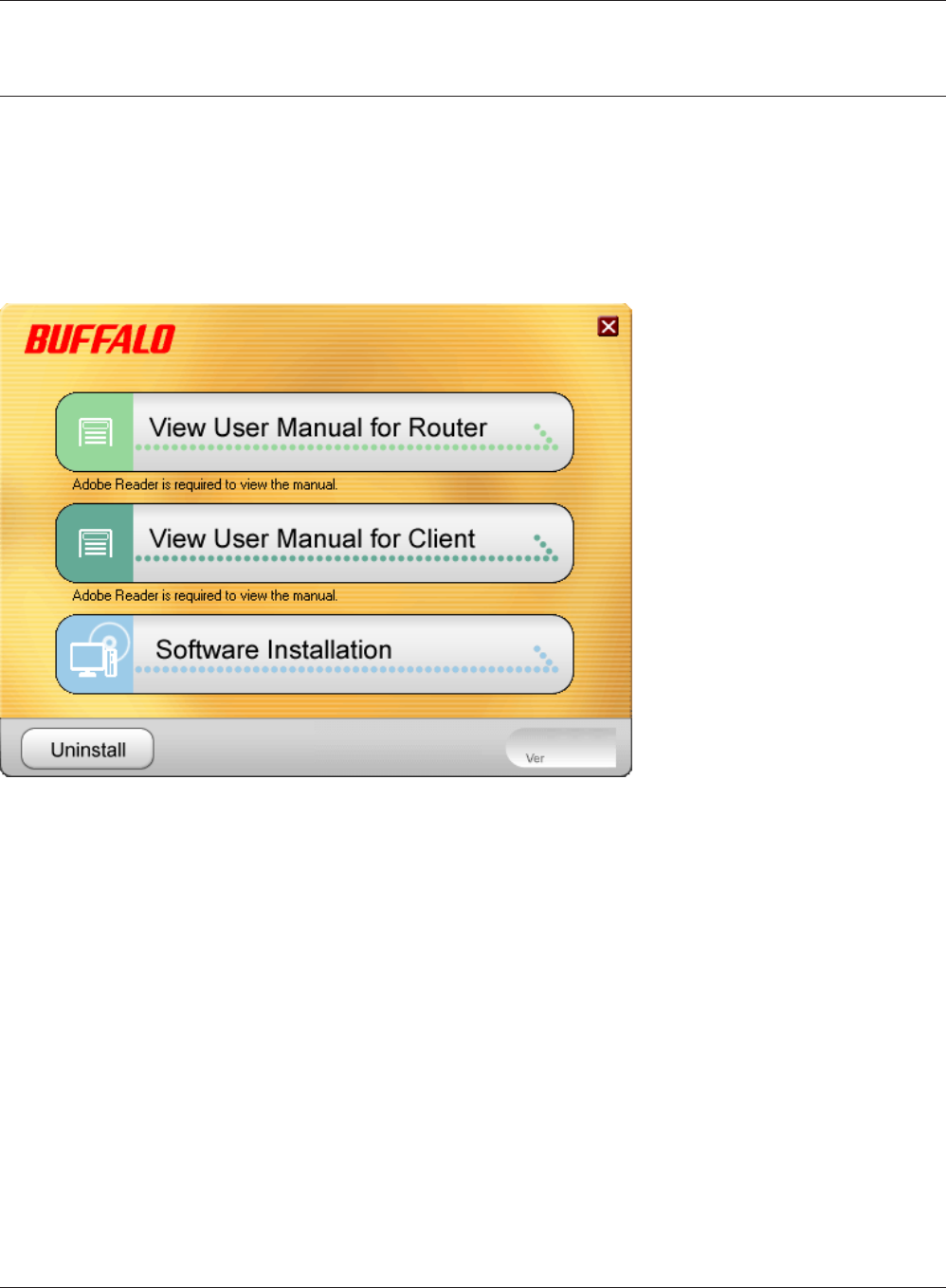

Click [Software installation].
Chapter 3 Conguration
- 15 -
2

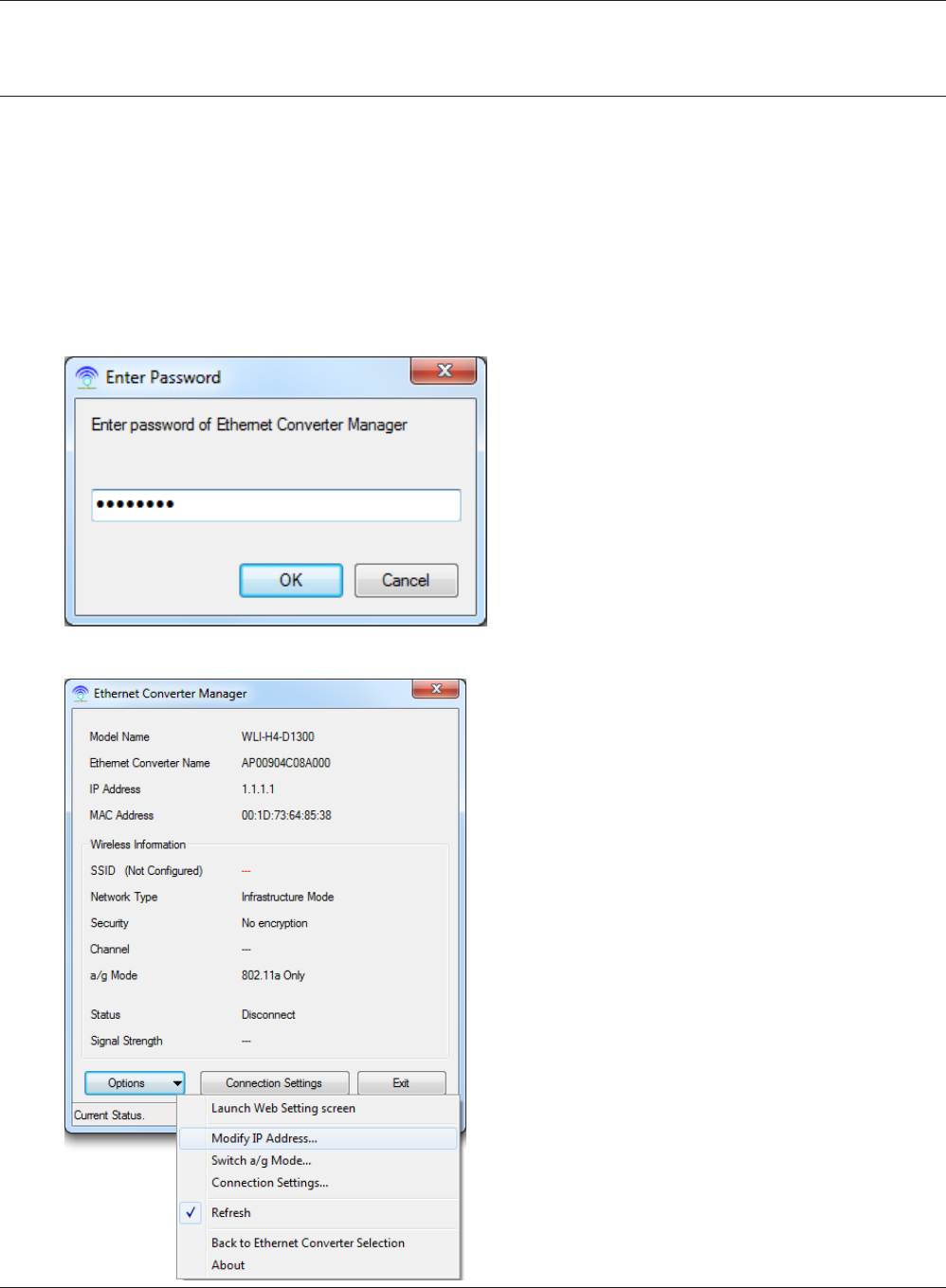

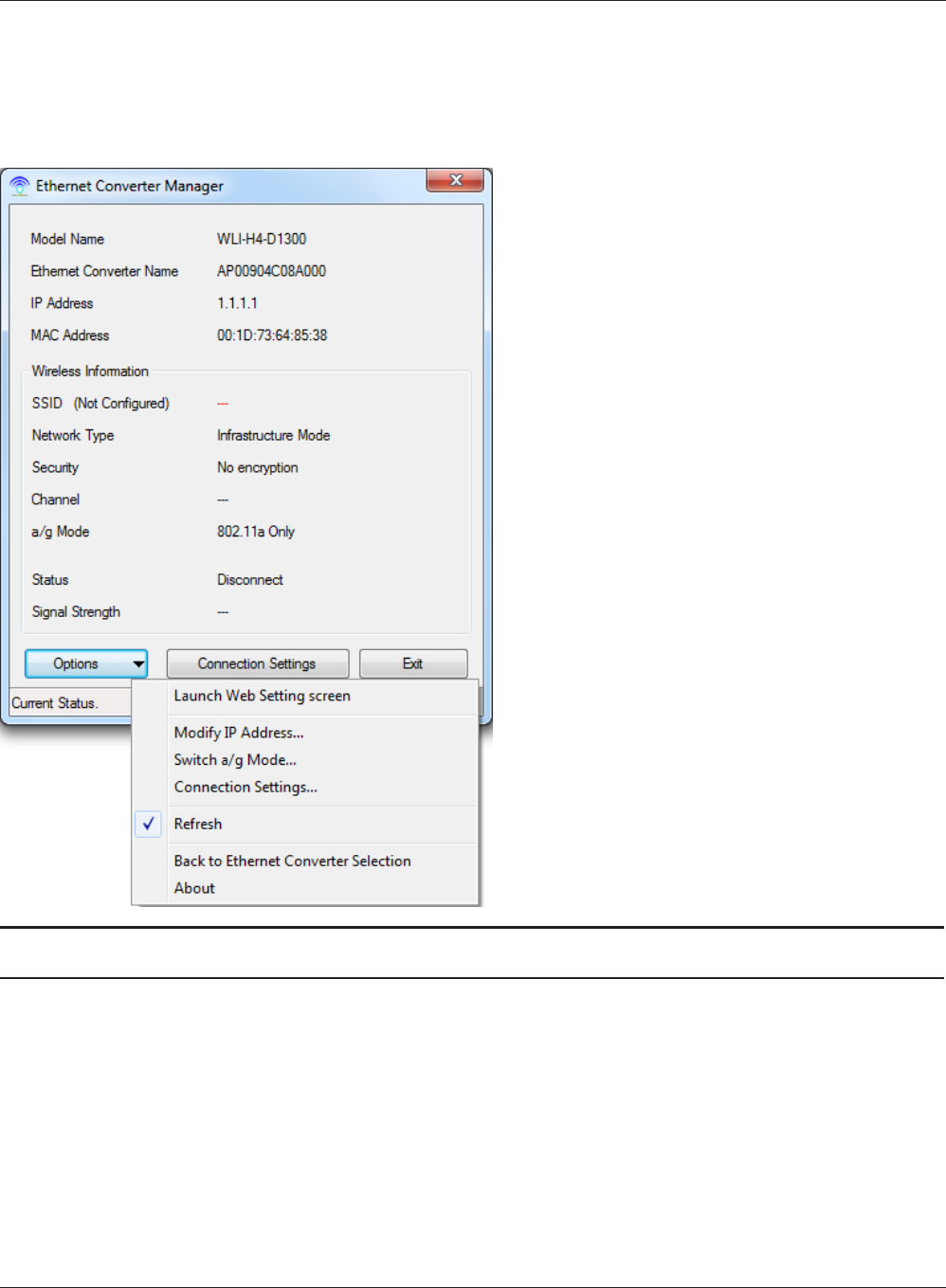

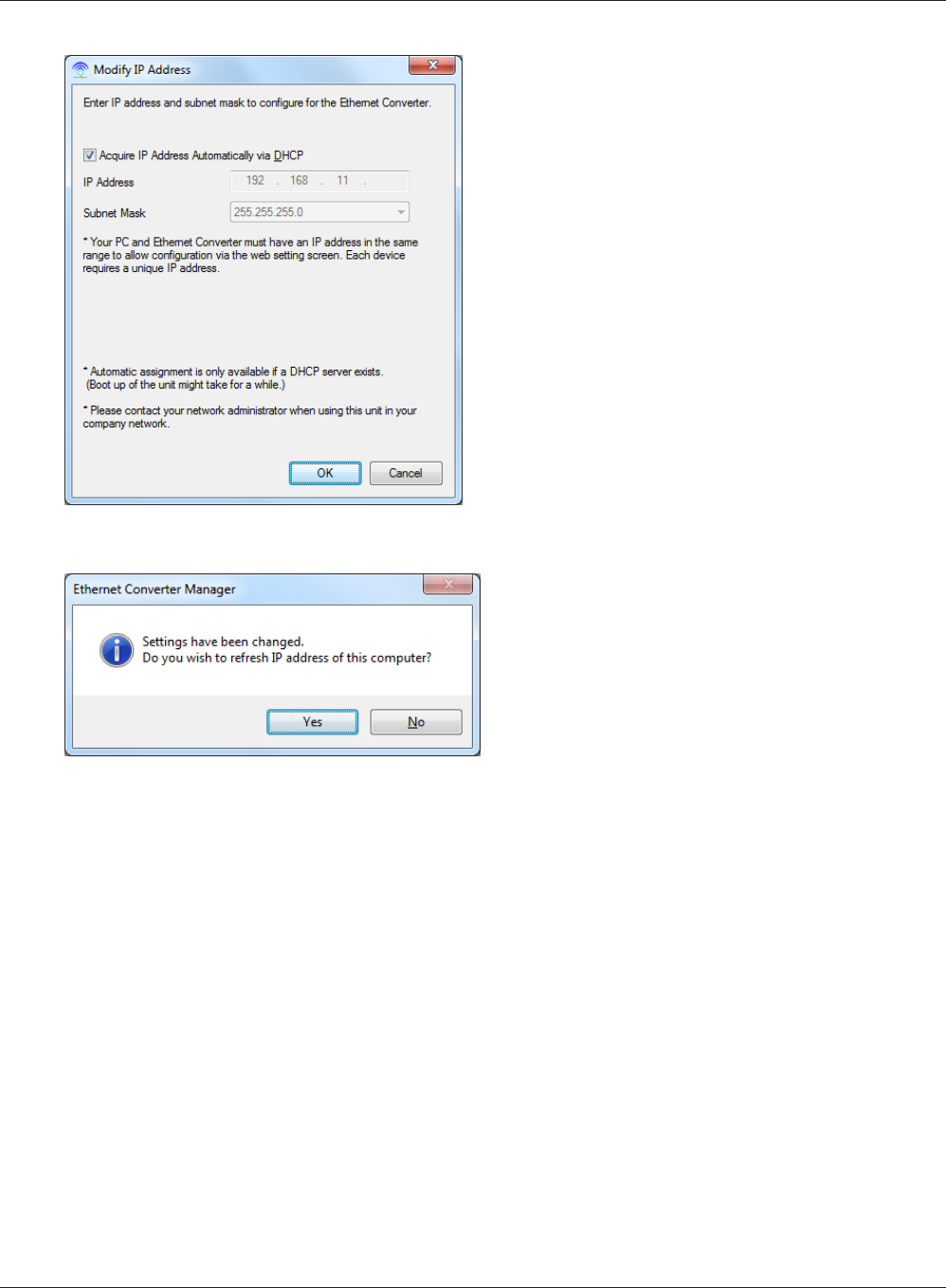

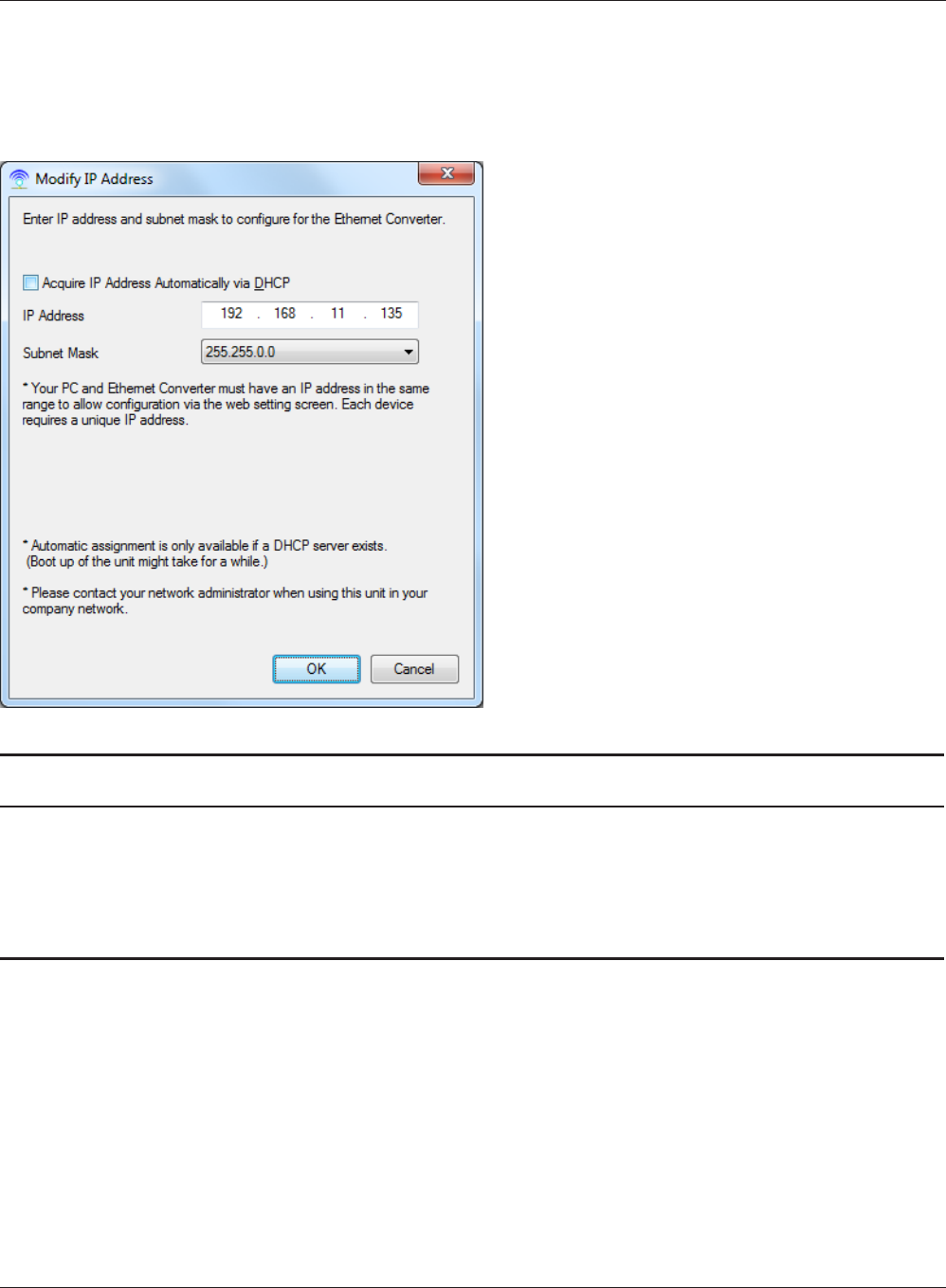

3Click [Options] > [Modify IP Address...].

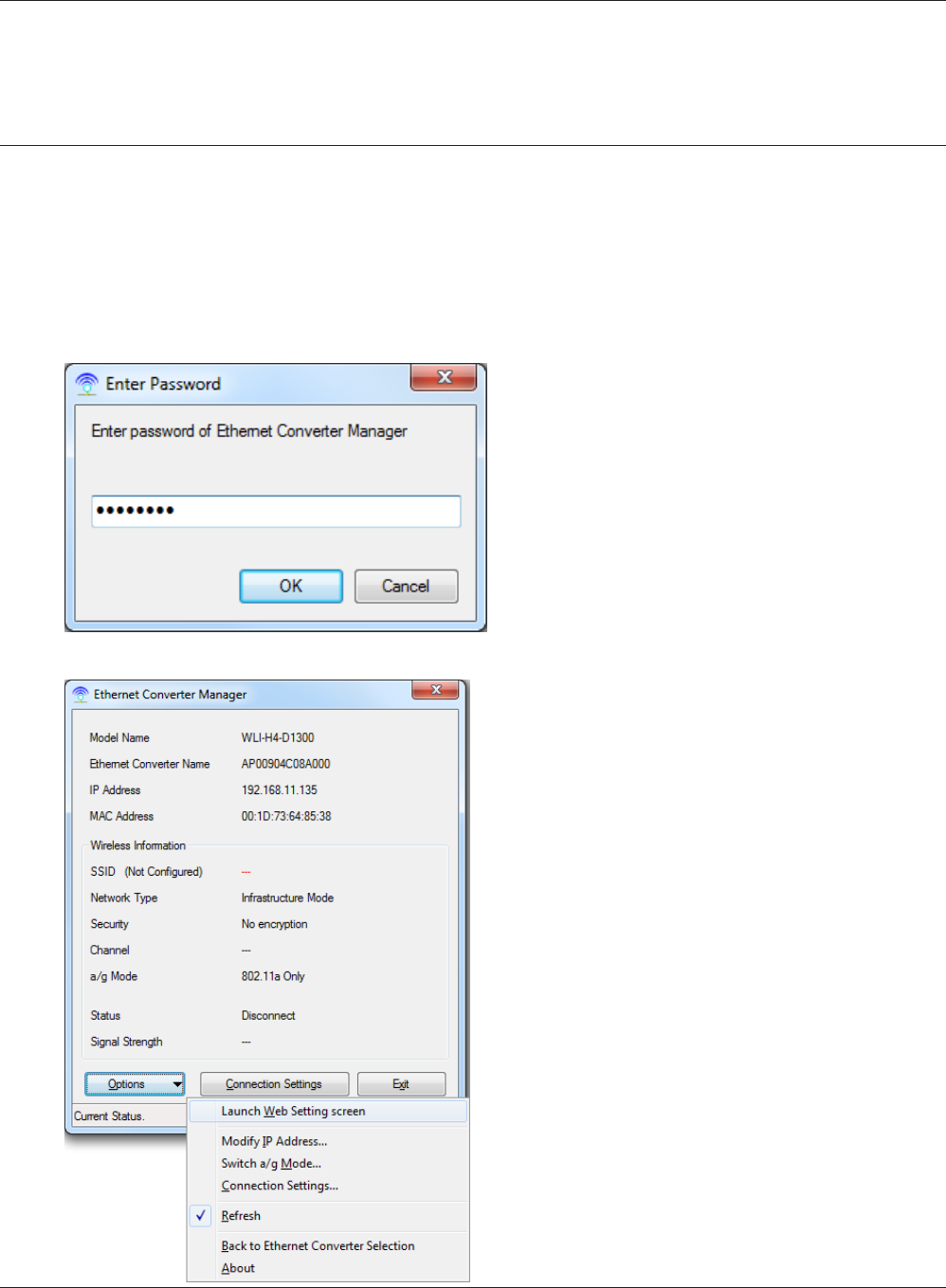

When this screen appears, enter the
password, then click [OK].
Notes: · By default, the password is “password”.
· If you forget your password, hold down
the reset button (page 8) to initialize all
settings. The password will then revert to
“password”. Note that all other settings
will also revert to their default values.
Setting the AirStation IP Address (Windows)

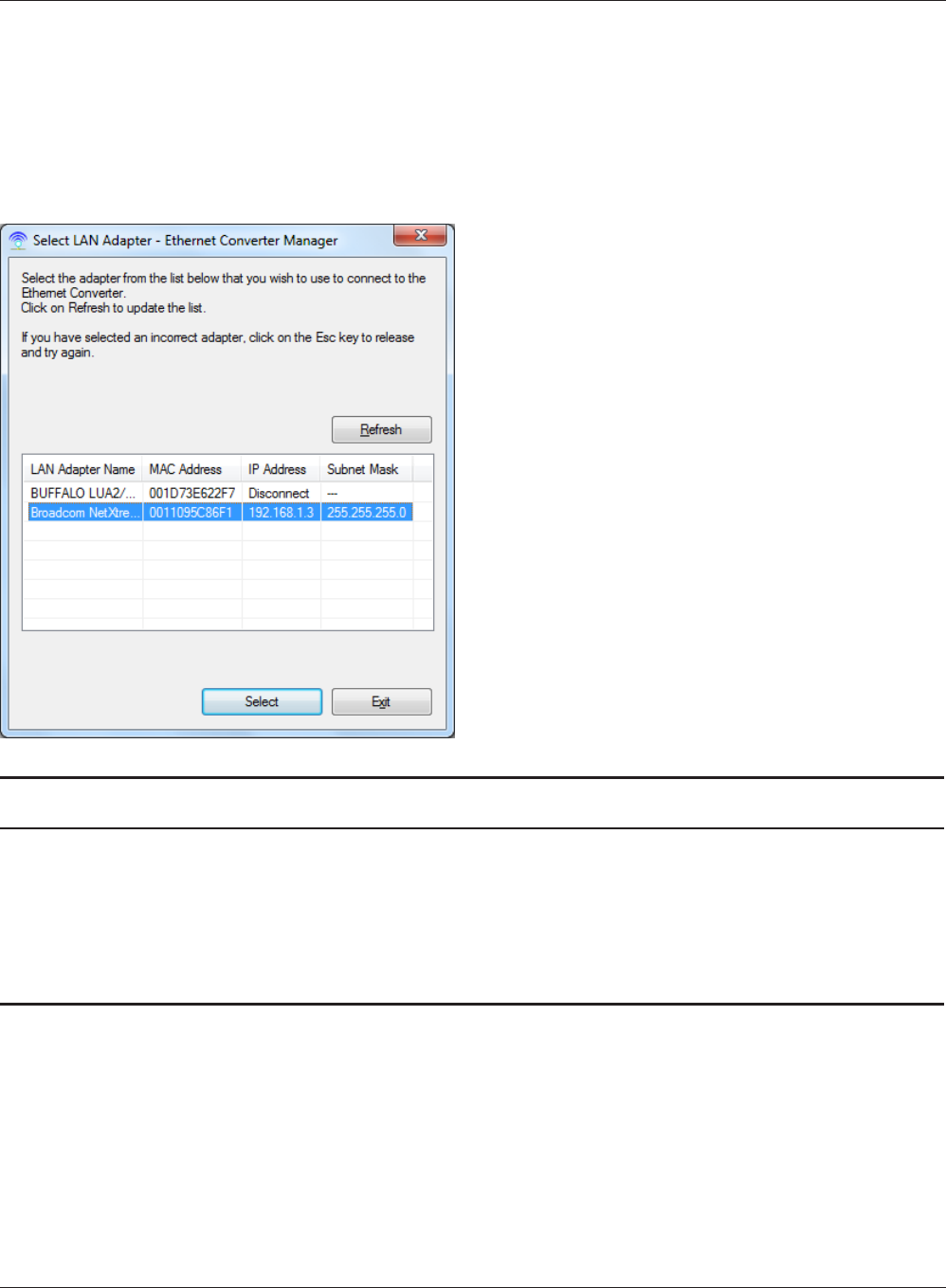

The Ethernet Converter Manager can be used to change the IP address of the AirStation. If using a
Windows computer, follow the procedure below to set the AirStation’s IP address.
Click [Start] > [All programs] > [BUFFALO] > [AirStation Utility] > [Ethernet Converter
Manager].
1
- 16 -
Chapter 3 Conguration
4
5
Select “Acquire IP Address Automatically via
DHCP”, then click [OK].
Click [Yes].
Chapter 3 Conguration
- 17 -
3Click [Options] > [Launch Web Setting
screen].
Accessing the Web-based Conguration Interface
(Windows)
To manually set the AirStation advanced settings from a Windows computer, use the procedure
below to log into the AirStation Conguration interface.
2When this screen appears, enter the
password, then click [OK].
Notes: · By default, the password is “password”.
· If you forget your password, hold down
the reset button (page 8) to initialize all
settings. The password will then revert to
“password”. Note that all other settings
will also revert to their default values.
Click [Start] > [All programs] > [BUFFALO] > [AirStation Utility] > [Ethernet Converter
Manager].
1
- 18 -
Chapter 3 Conguration

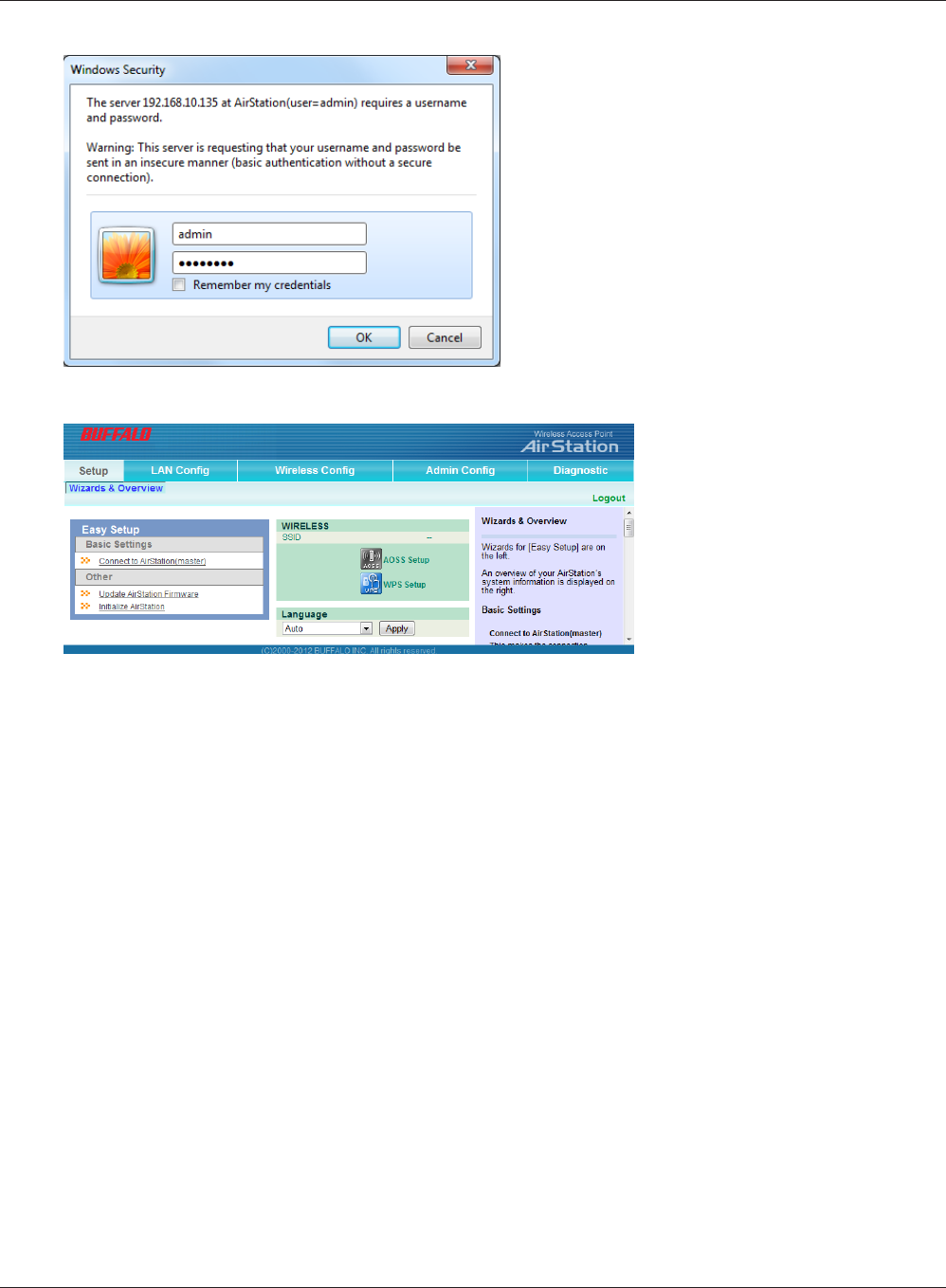

4Enter "admin" for the username and
"password" for the password, then click
[OK].
Note: If the password was changed, enter the
new password instead of the default.
5This is the conguration
interface, where most wireless
media bridge settings can be
congured.
Chapter 3 Conguration
- 19 -
Accessing the Web-based Conguration Interface
(Mac OS X)
To access the conguration interface of the AirStation from a Mac, the IP address of the AirStation
is required. If you do not know the IP address, use the procedure below to access the conguration
interface.
Note: If you do not know the IP address of the AirStation, reset the AirStation. All settings will be changed to their
default values.
1
2
Click [Apple menu] > [System Preferences…].
Click [Network].
3Click [Ethernet].
4
5
7
Select [Manually] in the Congure IPv4 eld.
Note: Make a note of the current IP address.
Set the IP address of the Mac to be on the same subnet as the AirStation.
The rst three numbers in the IP address should be the same and the fourth dierent. For
example, if the IP address of the AirStation is 1.1.1.1, you could set the IP address of the Mac
to 1.1.1.2. Click [Apply].
When the settings for the AirStation are complete, return the IP address of the Mac to its
original setting that was noted in step 4.
6Launch your web browser, enter the IP address of the AirStation in the address eld, and
press the Enter key.
When a screen appears for entering the name and password, enter "admin" in the username
eld and "password" in the password eld, then click [OK].
- 20 -
Chapter 3 Conguration
Conguration Interface Menus
The following settings may be changed from the conguration interface. Please refer to the pages
listed at right for explanations of each item.
Main screen Descriptions Page
LAN Cong
LAN Congure the AirStation’s IP address. Page 22
Wireless Cong
WPS WPS Status and Settings. Page 23
AOSS AOSS Status and Settings. Page 24
Basic Congure basic wireless settings. Page 25
Advanced Congure advanced wireless settings. Page 27
WMM Set priorities for Wireless Multimedia Extensions (Wi-Fi Multimedia). Page 28
Admin Cong

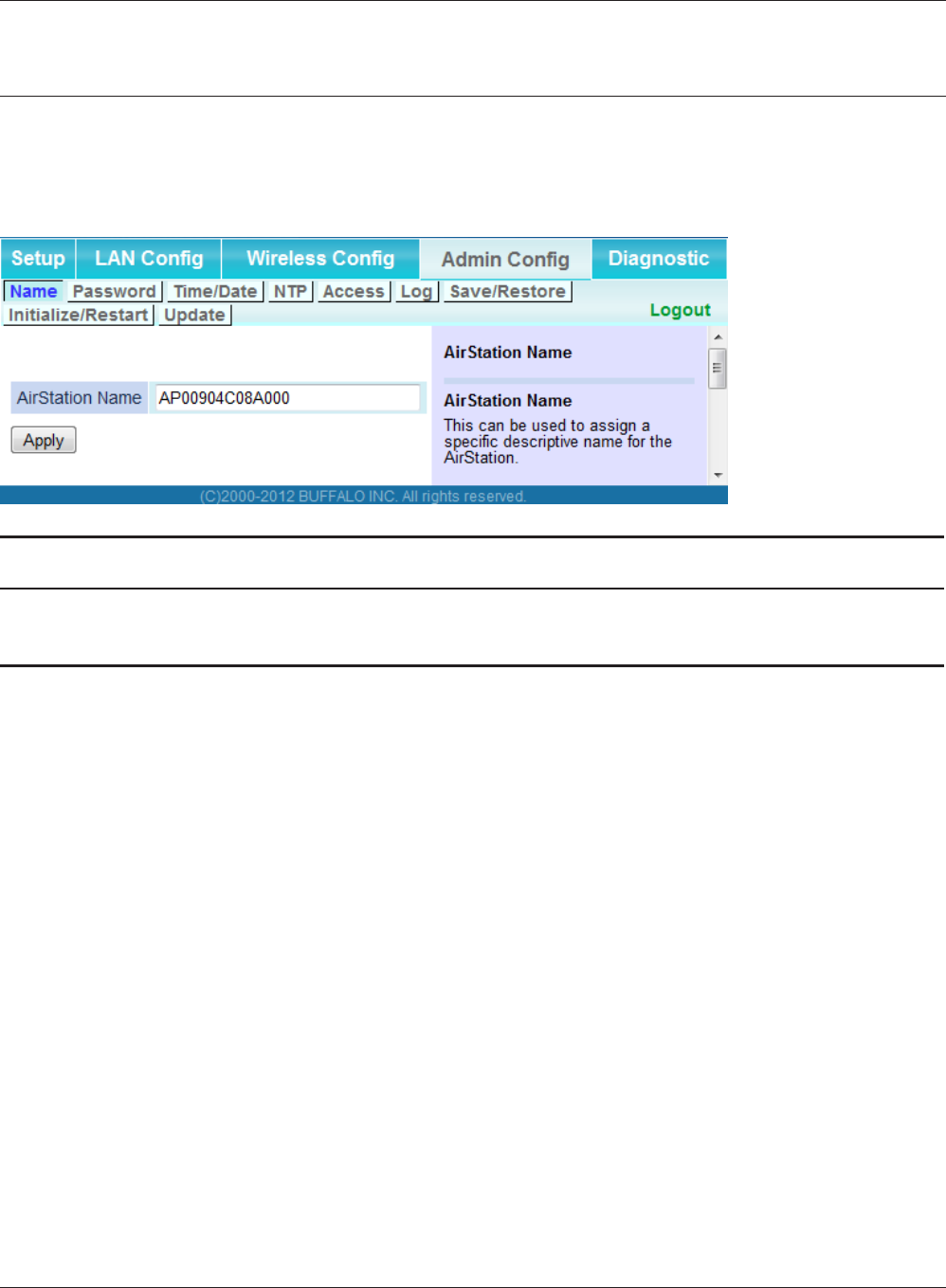

Name Congure the AirStation’s name. Page 30

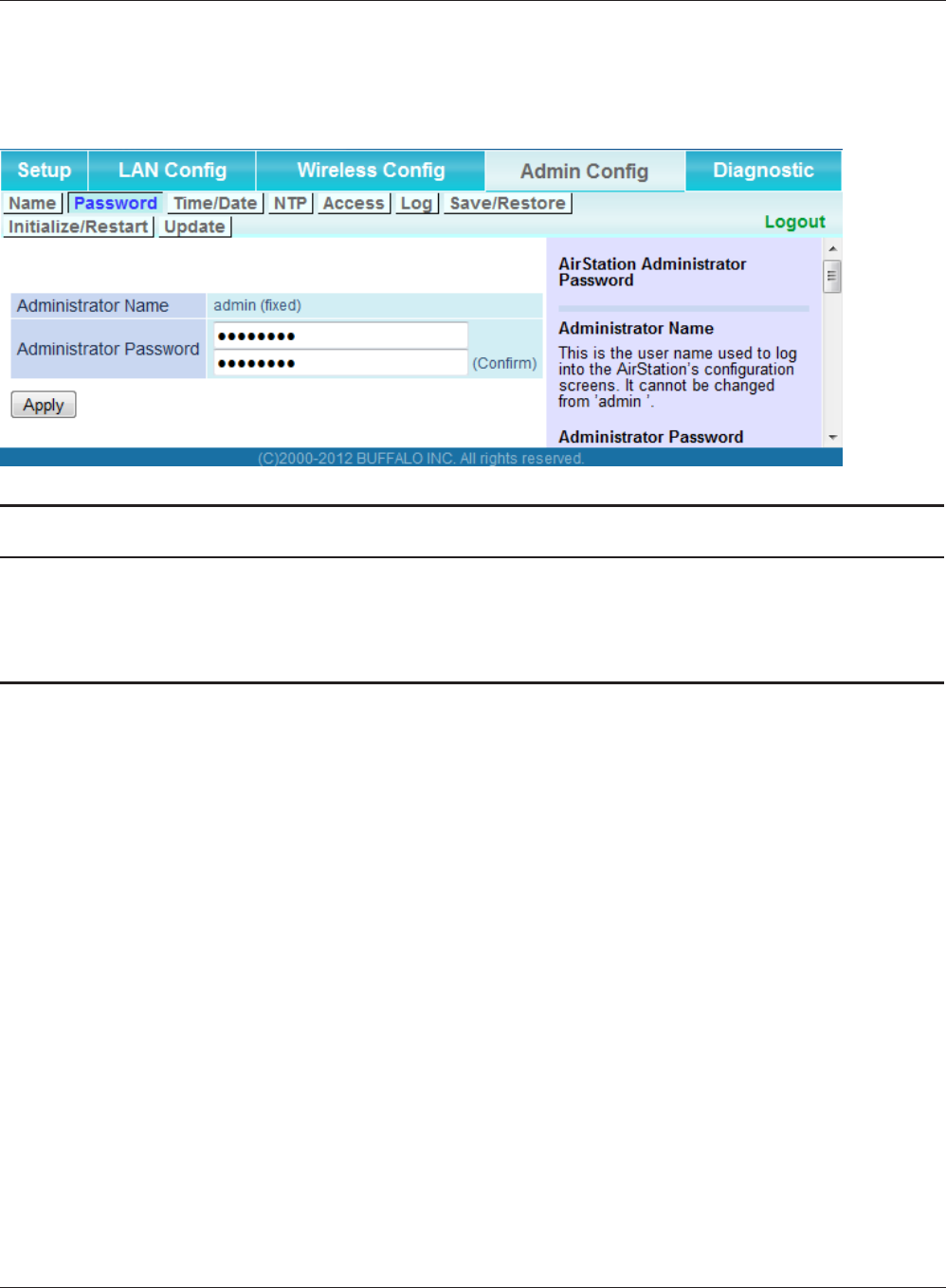

Password Congure the AirStation’s login password for access to the
conguration interface.
Page 31
Time / Date Congure the AirStation’s internal clock. Page 32

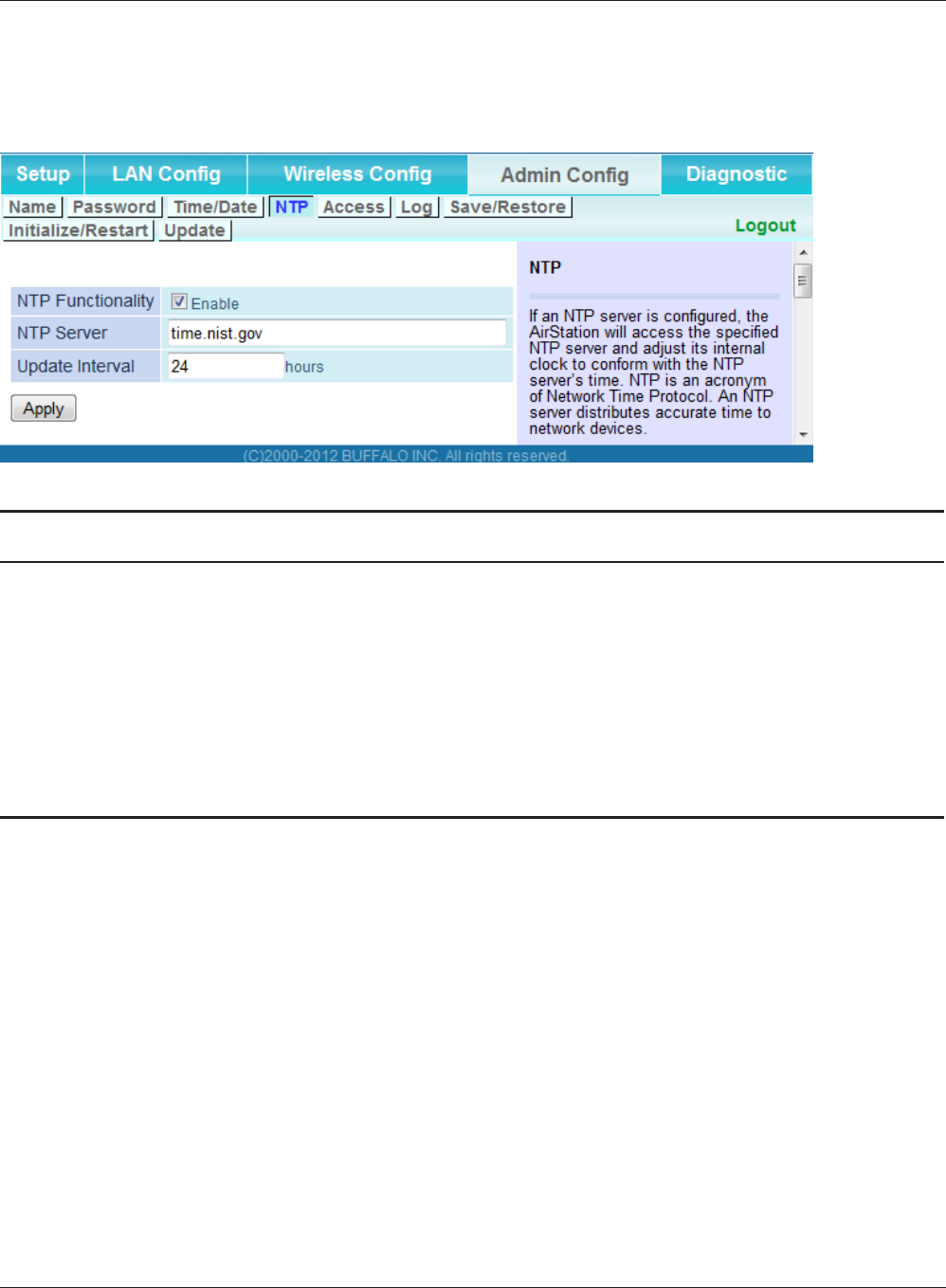

NTP Congure the AirStation to synchronize with an NTP server to
automatically set the AirStation’s internal clock.
Page 33

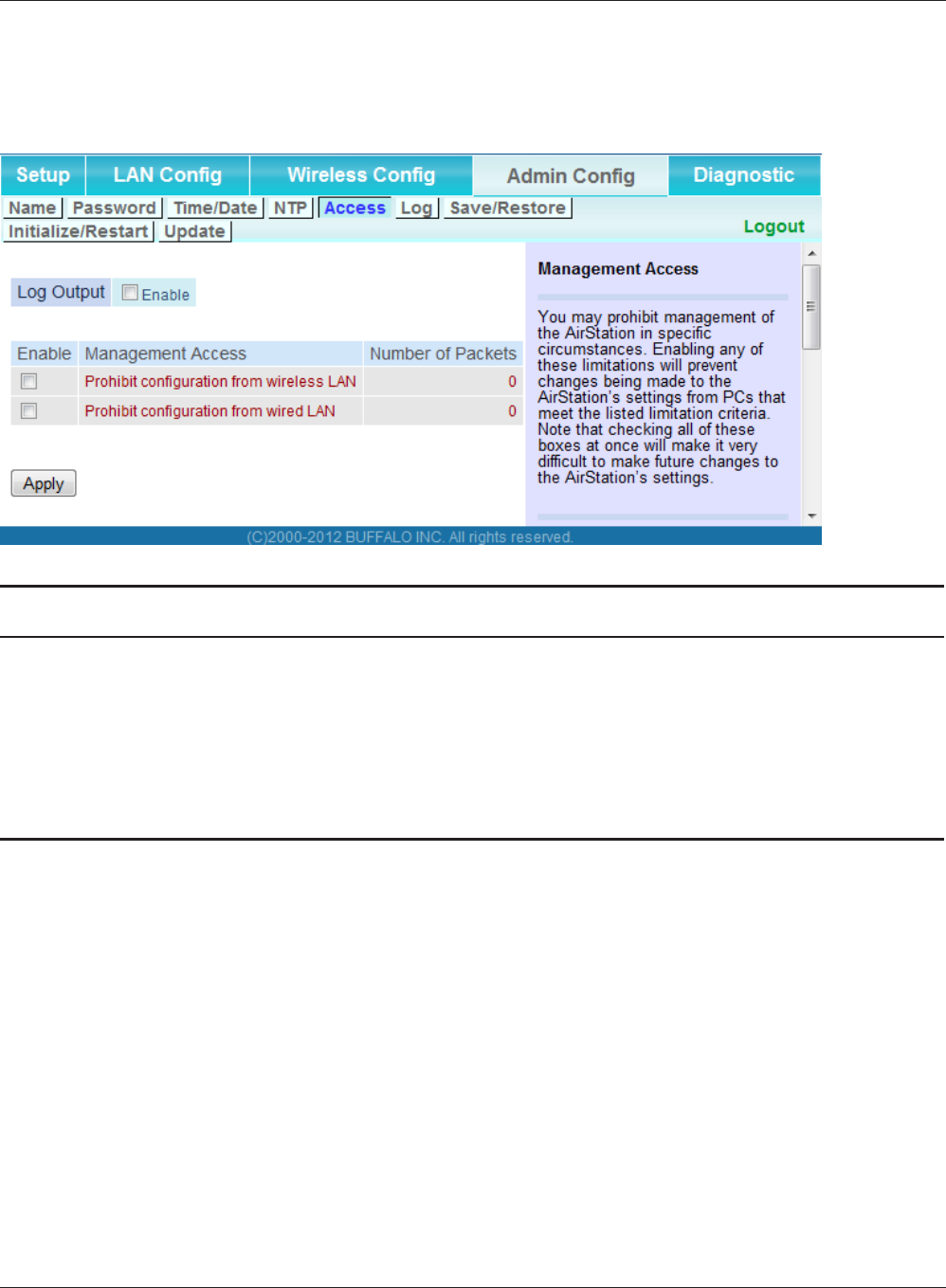

Access Congure access restrictions to the AirStation’s conguration screens. Page 34
Log Congure a syslog server to manage the AirStation’s logs. Page 35
Save / Restore Save or restore the AirStation’s conguration from a conguration le. Page 36

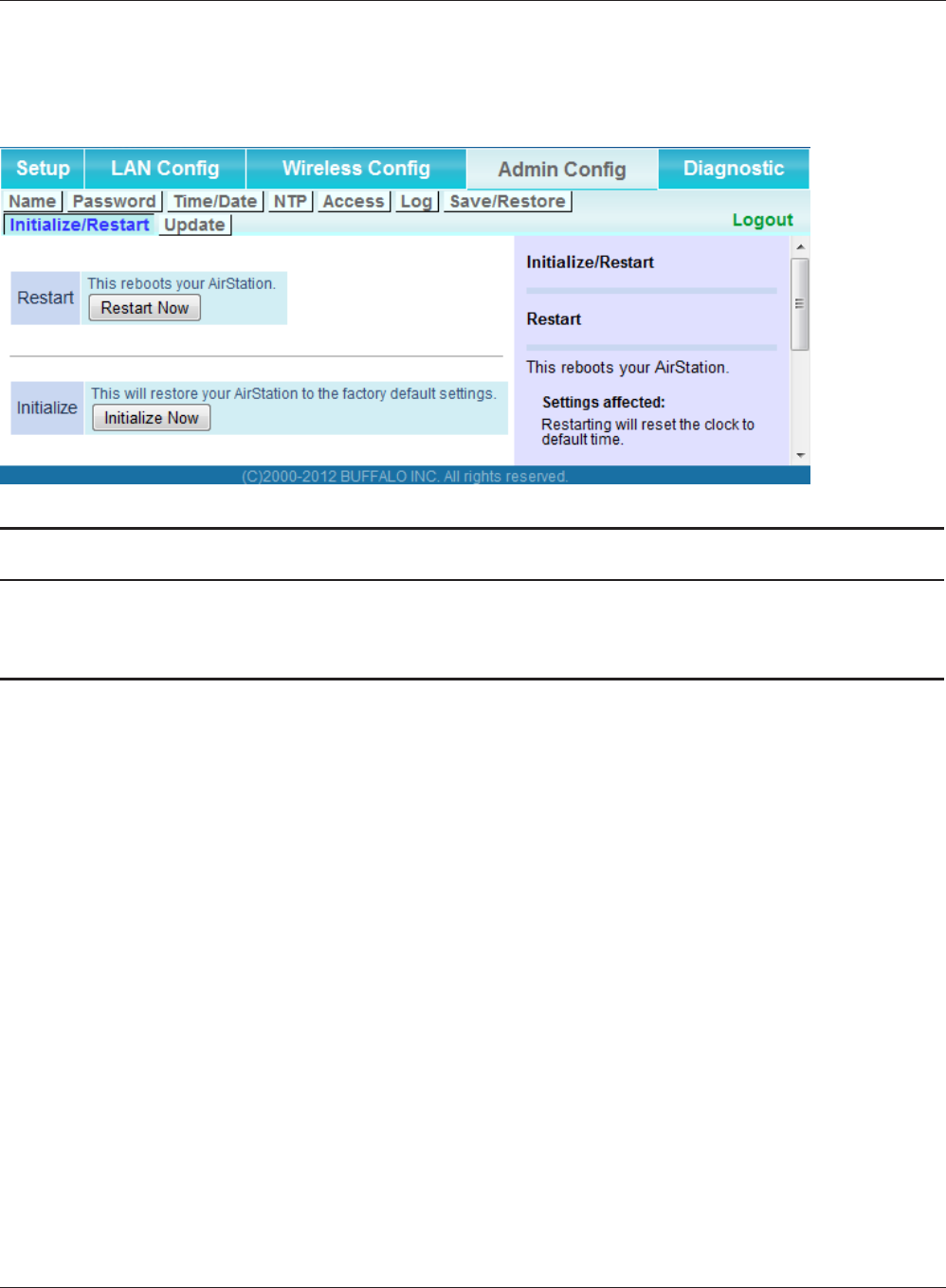

Initialize / Restart Initialize the AirStation or reboot it. Page 37

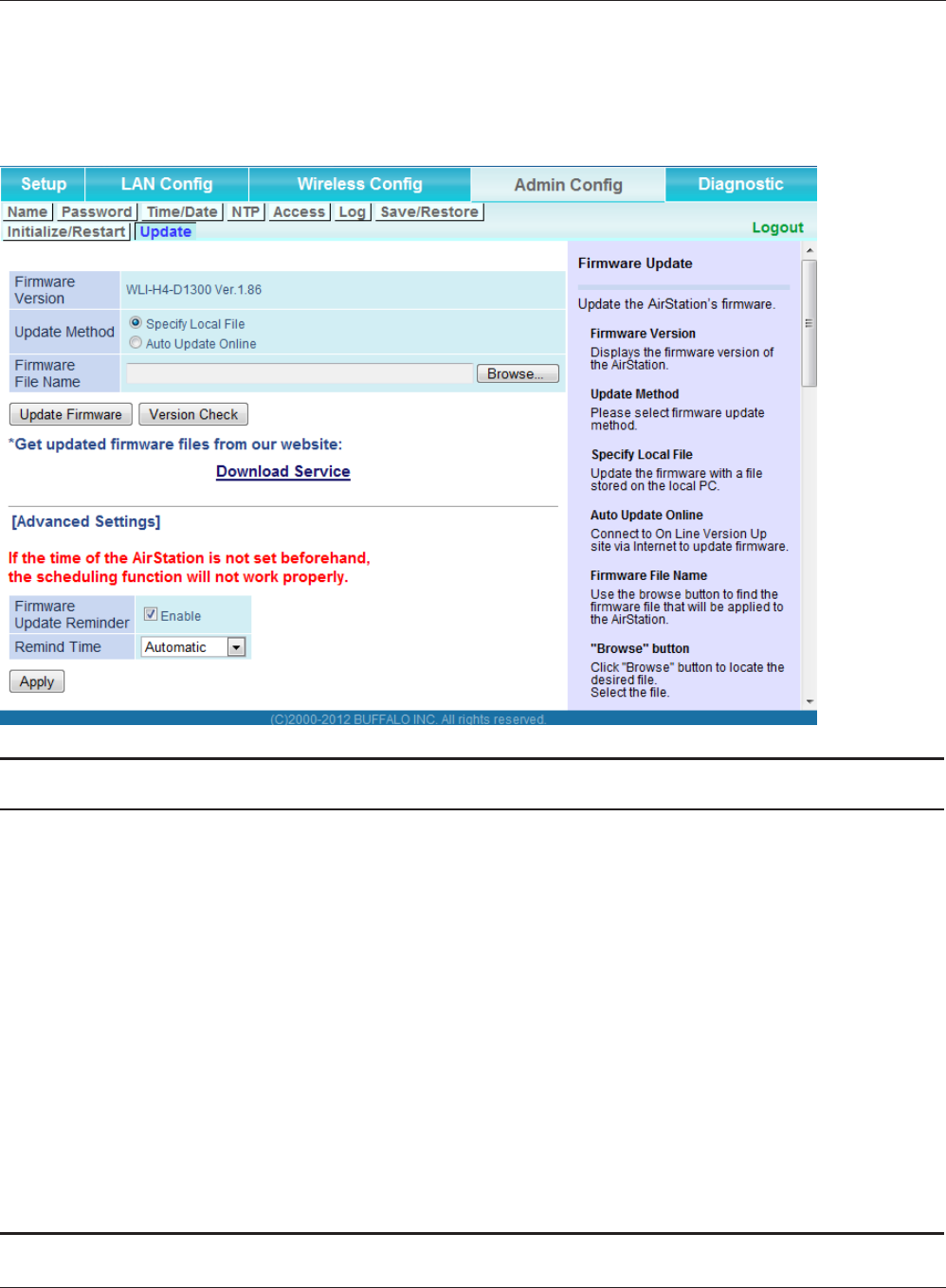

Update Update the AirStation’s rmware. Page 38
Diagnostic
System Info View current system information for the AirStation. Page 39

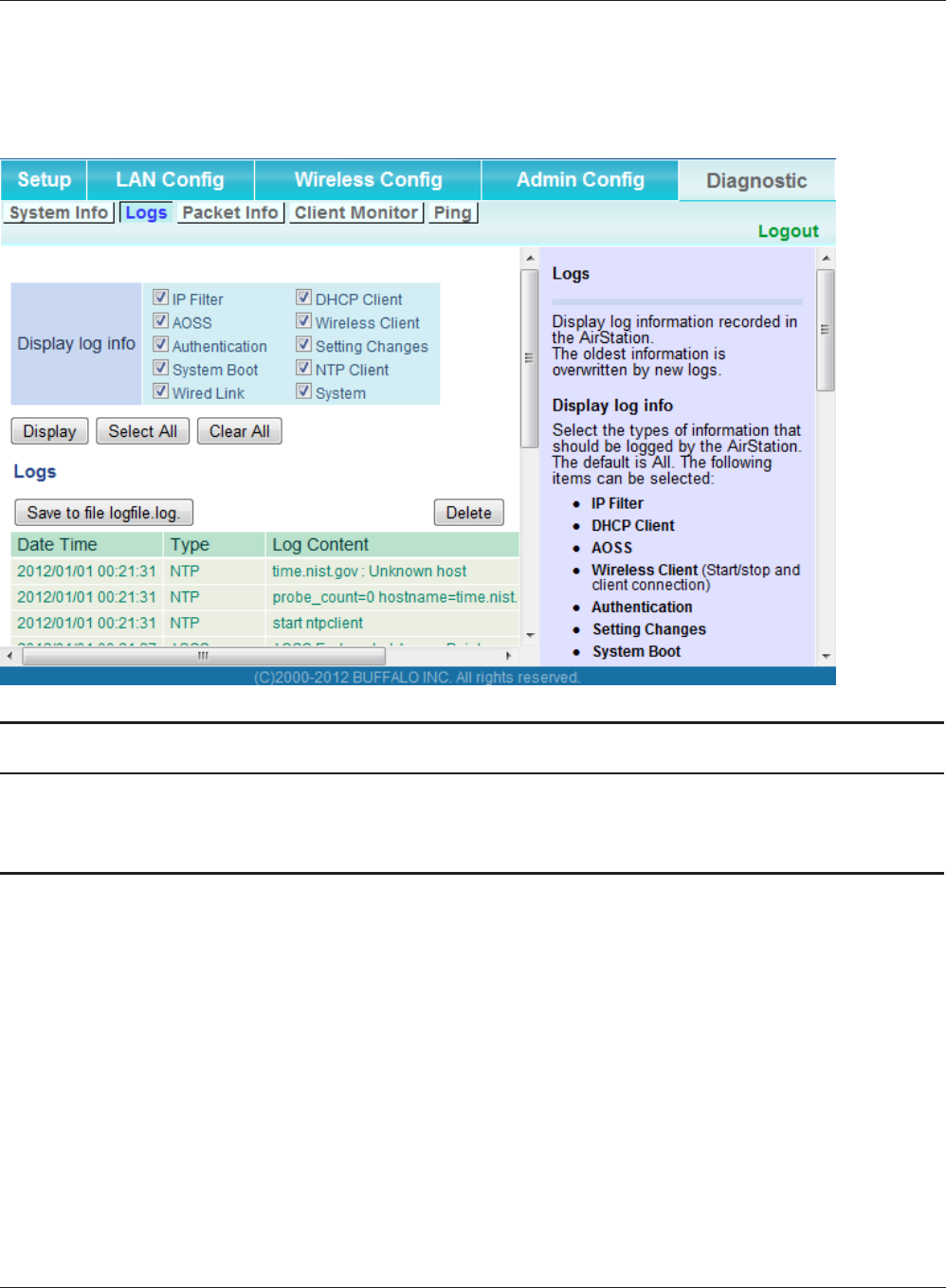

Logs Check the AirStation’s logs. Page 40

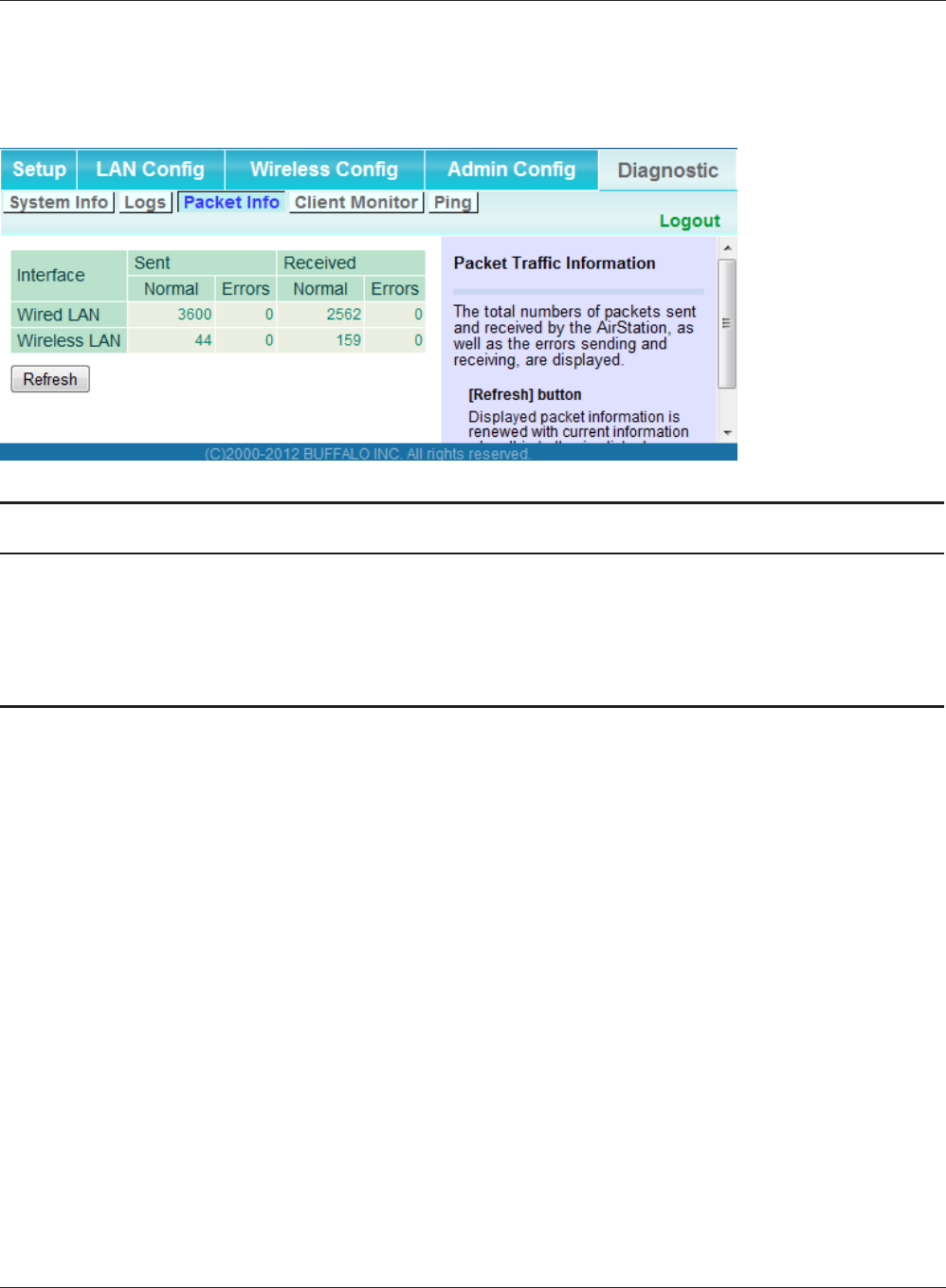

Packet Info View all packets transferred by the AirStation. Page 41
Client Monitor View all devices currently connected to the AirStation. Page 42

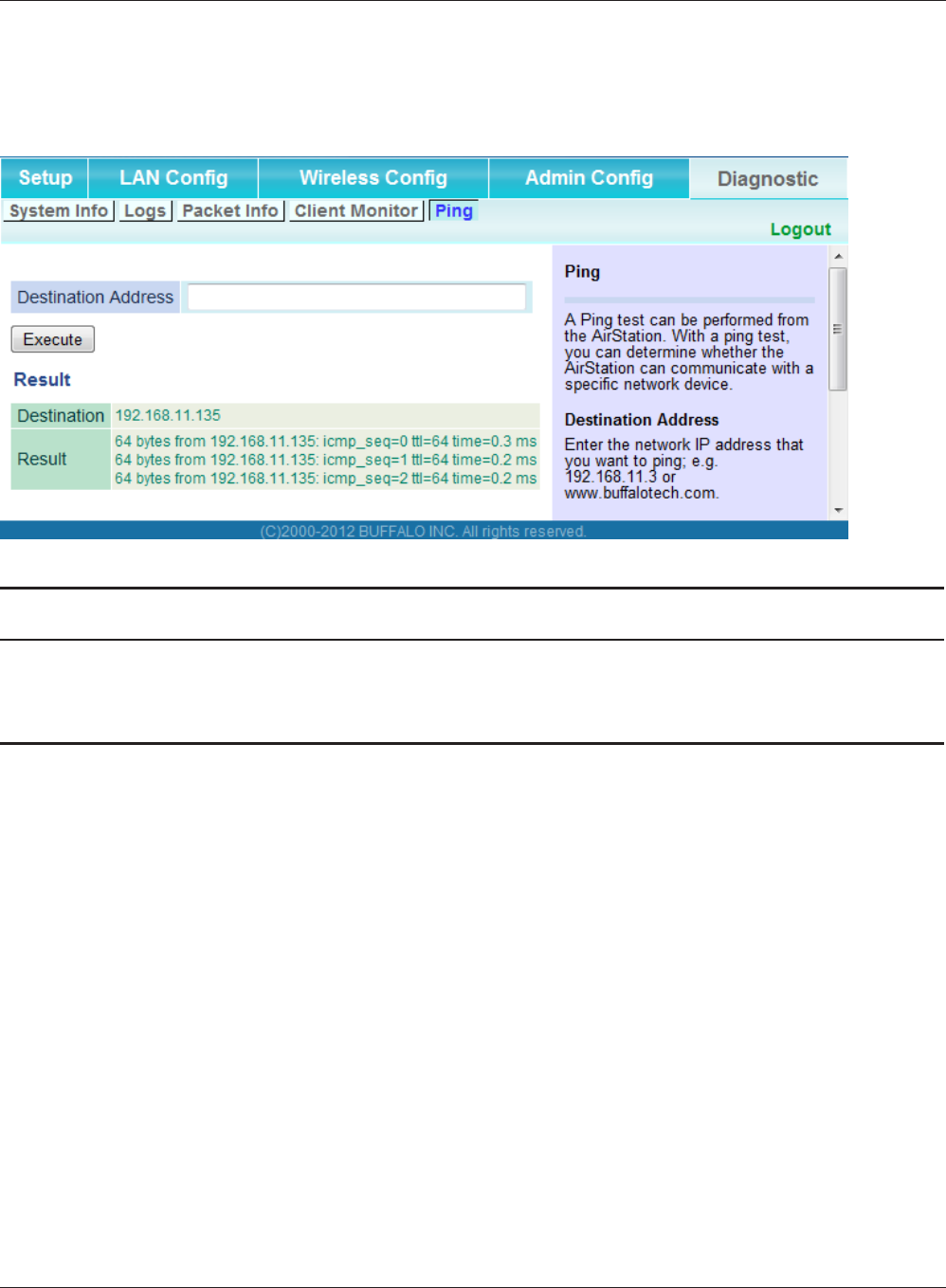

Ping Test the AirStation’s connection to other devices on the network. Page 43
Logout
Click this to log out of the AirStation’s conguration interface.
Chapter 3 Conguration
- 21 -
Parameter Meaning
LAN Cong Displays the conguration screen for the LAN ports.
Wireless Cong Click this button to display the conguration screen for wireless
settings.
Admin Cong Click this button to display the conguration screen for
administration settings.
Diagnostic Click this button to display the status of the AirStation.
Easy Setup Enables you to easily congure the AirStation’s network settings
automatically.
WIRELESS Displays the current wireless settings.
AOSS Setup Click this button to display the AOSS conguration screen.
WPS Setup Click this button to display the WPS conguration screen.
Language Enables you to select the language you use.
Logout Log out of the conguration interface. If the AirStation does not
communicate for 5 minutes, it will log out automatically.
Setup
Setup is the home page of the conguration interface. You can verify settings and the status of the
AirStation here.
- 22 -
Chapter 3 Conguration

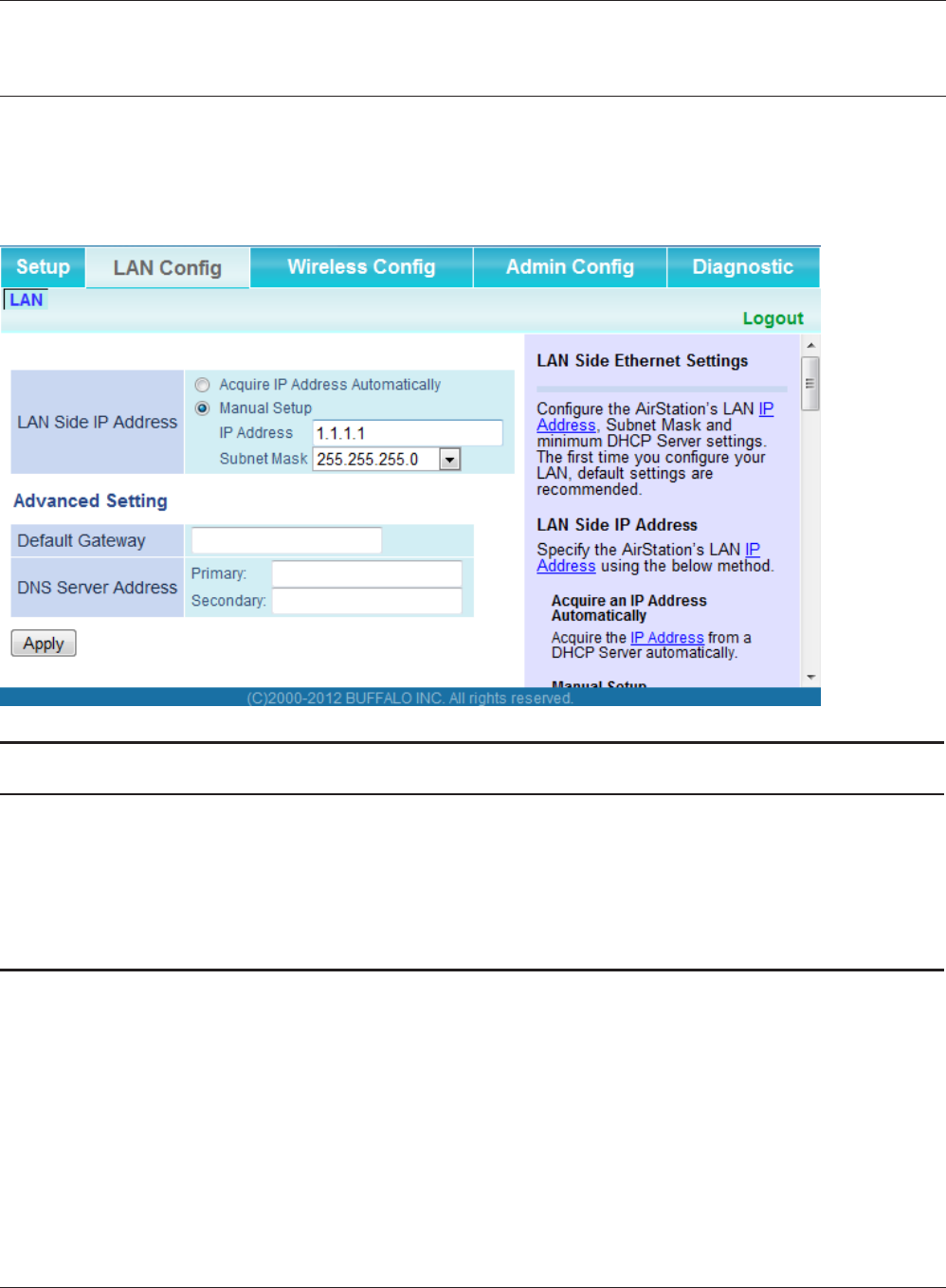

LAN Cong
LAN
Congure LAN-side settings.
Parameter Meaning
LAN Side IP Address By default, the LAN side IP address is 1.1.1.1 with subnet mask
255.255.255.0. You may change it here.
Default Gateway Set the default gateway IP address.
DNS Server Address Set the DNS server IP address.
Chapter 3 Conguration
- 23 -
Wireless Cong
WPS
WPS Status and Settings.
Parameter Meaning
Initiates WPS automatic wireless conguration. Click this, then press
or click the WPS button on your WPS-compatible wireless router.
WPS Enable to use WPS automatic conguration.
PIN cord method This uses the WPS PIN code system to obtain wireless security
information from the wireless access point.
Push button method This uses the WPS Push Button method to obtain wireless security
information from the wireless access point.
List of wireless connections (WPS) Displays the wireless security information of the wireless
connection where the WPS function was used to set security.
- 24 -
Chapter 3 Conguration
AOSS
AOSS Status and Settings.
Parameter Meaning
Initiates AOSS automatic wireless conguration. Click this, then
press or click the AOSS button on your AOSS-compatible wireless
router.
Click this button to disconnect AOSS connections.
Encryption Type Displays the Security Level setting for AOSS.
AOSS Button on the AirStation Unit Uncheck to disable the physical AOSS button on the AirStation.
AOSS Client Information Displays AOSS clients connected to the AirStation and information
of the devices which are wirelessly communicated.
Chapter 3 Conguration
- 25 -
Basic
Congure basic wireless settings from here.
Parameter Meaning
SSID The SSID may contain 1 - 32 alphanumeric characters.
Wireless authentication Species the authentication method used when connecting to a
wireless router.
Encryption for wireless You may use any of the following types of encryption:
Not encrypted
Data is transmitted without encryption. With this setting, anyone
within range can connect to your wireless network and might
be able to access data on the network. Not recommended for
anyone with private data that needs to be kept secure. [Not
encrypted] can be selected only when [Do not authenticate] is
selected for wireless authentication.
WEP
WEP is a common encryption method supported by most
devices. WEP can only be selected when wireless authentication
is set to [Do not authenticate]. Note that WEP’s encryption is
weak, and networks protected with WEP are not much more
secure than those with no encryption at all. Not recommended
for anyone with private data that needs to be kept secure.
TKIP
TKIP is an encryption method which is more secure than WEP, but
slower. Use an pre-shared key to communicate with a wireless
device.
TKIP can be selected only when WPA-PSK or WPA2-PSK is selected
for wireless authentication.
- 26 -
Chapter 3 Conguration
Parameter Meaning
AES
AES is more secure than WEP, and faster. Use a pre-shared key to
communicate with a wireless device.
AES can be selected only when WPA-PSK or WPA2-PSK is selected
for wireless authentication.
WPA-PSK (Pre-Shared Key) A pre-shared key or passphrase is the password for your wireless
connections. There are two dierent formats for a pre-shared
key. Use 8 to 63 alphanumeric characters (case-sensitive) for an ASCII
passphrase, or use 64 alphanumeric characters (0 to 9 and a to f, not case-
sensitive) for a hexadecimal passphrase.
WEP encryption key setting A WEP encryption key (passphrase) may have any of four dierent
formats. An ASCII passphrase may use either 5 or 13 alphanumeric
characters (case-sensitive). A hexadecimal passphrase may use either 10
or 26 alphanumeric characters (0 to 9 and a to f, not case-sensitive).
11A/11G selection This species the band used when connecting with the wireless
access router.
Automatic (11a priority)
First, a connection is tried at 802.11a, and if a connection cannot
be made, a connection is tried at 802.11g.
Automatic (11bg priority)
First, a connection is tried at 802.11g, and if a connection cannot
be made, a connection is tried at 802.11a.
11a only
Only 802.11a connections are allowed. Even if an 802.11a
connection cannot be made, 802.11g is not used.
11bg only
Only 802.11g connections are allowed. Even if an 802.11g
connection cannot be made, 802.11a is not used.
Chapter 3 Conguration
- 27 -
Advanced
Congure advanced wireless settings.
Parameter Meaning
MAC Address for wireless
communication
Select which MAC address is used for wireless communication.
802.11n protection Enable to use 802.11n protection. 802.11n protection gives priority
to 802.11n devices in mixed mode (11b/g or 11a) networks.
Output Power This sets the output of the wireless signal. Because the wireless
transmission output and signal distance range are nearly
proportional, when the wireless transmission output is reduced,
the signal distance range also becomes shorter.
Request of multicast translation Specic multicast data (such as video broadcast data) can be
transferred at high speeds to an access point that supports the
multicast control.
- 28 -
Chapter 3 Conguration
WMM
Set priorities for specic communications.
Chapter 3 Conguration
- 29 -
Parameter Meaning
WMM-EDCA Parameters You don't usually need to change these settings. Using the default
settings is recommended.
Priority
The following priorities may be applied to individual
transmission packets: (Highest) 8, (High) 4, (Normal) 2, and
(Low) 1. From the queue, these packets are processed in order of
priority.
CWmin, CWmax
The maximum and minimum value of the contention window.
The contention window is used in the frame collision avoidance
structure performed in IEEE802.11, and generally, the smaller the
value in the window, the higher the probability that the queue
obtains the right to send.
AIFSN
The interval to send frames. The unit of the AIFSN is a slot, just as
the window dened by CWmin and CWmax is. The smaller the
interval of sending frames, the faster the algorithm can restart.
As a result, the priority of the queue is higher.
TXOP Limit
The period of time that the queue can use after obtaining the
right to send. The unit is 32 ms. The longer this time, the more
frames can be sent per right to send. However, the queue may
interfere with other packet transmissions. If TXOP Limit is set to 0
(zero), only one frame can be sent per right to send.
Admission Control
Restricts new frames from interfering with a previous queue. New
packets are prioritized lower until a queue of them is collected. As
the new queue accumulates more packets, its priority increases.
- 30 -
Chapter 3 Conguration
Admin Cong
Name
Congure basic AirStation settings.
Parameter Meaning
AirStation Name Enter a name for the AirStation. Names may include up to 64
alphanumeric characters and hyphens (-).
Chapter 3 Conguration
- 31 -
Password
Congure the password to log in to the AirStation’s conguration interface.
Parameter Meaning
Administrator Name The name of the Administrator account is “admin”.
Administrator Password The Administrator password may contain up to 8 alphanumeric
characters and underscores (_).
- 32 -
Chapter 3 Conguration
Time/Date
Congure the AirStation’s internal clock.
Parameter Meaning
Local Date You may manually set the date of the AirStation’s internal clock.
Local Time You may manually set the time of the AirStation’s internal clock.
Time Zone Specify the time zone (oset of Greenwich Mean Time) of the
AirStation's internal clock.
DST (Daylight Saving Time) You may congure the AirStation to automatically use DST
(Daylight Saving Time). If selected, the AirStation will automatically
adjust the time at the beginning and end of DST.
Chapter 3 Conguration
- 33 -
NTP
Congure an NTP server to automatically synchronize the AirStation’s internal clock.
Parameter Meaning
NTP Functionality Enable to use an NTP server. The default is Enabled.
NTP Server Enter the name of the NTP server as a hostname, hostname with
domain name, or IP address. Up to 255 alphanumeric characters,
hyphens (-), and underscores (_) may be used. The default is “time.
nist.gov”.
Update Interval How often will the AirStation check the NTP server for the correct
time? Intervals of 1 - 24 hours may be set. The default is 24 hours.
- 34 -
Chapter 3 Conguration
Access
Restrict access to the AirStation’s conguration interface.
Parameter Meaning
Log Output Enabling outputs a log of changes to access settings.
Prohibit conguration from wireless
LAN
If enabled, prevents access to conguration interface from
wirelessly connected devices (only wired devices may congure).
Prohibit conguration from wired
LAN
If enabled, prevents access to conguration interface from wired
devices (only wirelessly connected devices may congure).
Chapter 3 Conguration
- 35 -
Log
Transfer the AirStation’s logs to a syslog server.
Parameter Meaning
Log Transfer Enable to send logs to a syslog server.
Syslog Server Identify the syslog server by hostname, hostname with domain
name, or IP address. You may enter up to 255 alphanumeric
characters, hyphens (-), and underscores (_).
Logs Choose which logs will be transferred to the syslog server.
- 36 -
Chapter 3 Conguration
Save/Restore
Save AirStation settings as a le and restore from them later.
Parameter Meaning
Save current settings Clicking [Save] will save the current conguration of the AirStation
to a le. If the [Encrypt the conguration le with a password]
option is checked, then the conguration le will be password
protected with the current administrator password.
Restore Conguration from Backup
File
Restore the conguration of the AirStation from a saved
conguration le by clicking the [Browse...], navigating to the
conguration le, and then clicking [Restore]. If the conguration
le was password protected, then put a check next to [Enter
password], enter the password, and click [Open].
Chapter 3 Conguration
- 37 -
Initialize/Restart
Initialize or restart the AirStation.
Parameter Meaning
Restart Click [Restart Now] to restart the AirStation.
Initialize Click [Initialize Now] to initialize and restart the AirStation.
- 38 -
Chapter 3 Conguration
Update
Update the AirStation’s rmware.
Parameter Meaning
Firmware Version Displays the current rmware version of the AirStation.
Update Method Specify Local File
Updates from a rmware le stored on your computer.
Automatic Update Online
Automatically updates to the latest rmware available.
Firmware File Name Click [Browse...] to navigate to the rmware le on your computer
if [Specify Local File] was selected. You don’t need to specify the
rmware location if you’re using [Automatic Update]. Click [Update
Firmware] to update the rmware.
Firmware update Reminder Specify Enable/Disable Firmware Update Reminder.
Remind Time Specify the time when the system detects new rmware.
Chapter 3 Conguration
- 39 -
Diagnostic
System Info
View system information for the AirStation.
Parameter Meaning
Model Displays the product name of the AirStation and the rmware
version.
AirStation Name Displays the name of the AirStation.
LAN Displays information about the LAN port.
Wireless Displays the wireless status.
- 40 -
Chapter 3 Conguration
Logs
The AirStation’s logs are recorded here.
Parameter Meaning
Display log info Choose the types of logs to display.
Logs Displays the log information recorded in the AirStation.
Chapter 3 Conguration
- 41 -
Packet Info
View packet transfer information.
Parameter Meaning
Sent Displays the number of packets sent to the wired LAN and the
wireless LAN.
Received Displays the number of packets received from the wired LAN and
the wireless LAN.
- 42 -
Chapter 3 Conguration
Client Monitor
This screen shows devices that are connected to the AirStation.
Parameter Meaning
Client Monitor Displays information (MAC address, communication method,
wireless authentication and 802.11n) for devices that are
connected to the AirStation.
Chapter 3 Conguration
- 43 -
Ping
A ping test checks whether the AirStation can communicate with a specic network device.
Parameter Meaning
Destination Address Enter the IP address or hostname of the device that you are testing
communication with, then click [Execute]. The result will be
displayed below.
With the AirStation powered on, hold down this button
for 3 seconds to return it to factory default settings.
- 44 -
Chapter 4 - TroubleShooting
When connection to a wireless router is not possible
• Turn the power for the wireless router o and then on again.
• If the “5 GHz xed mode” is enabled, turn it o.
• Refer to Chapter 2 to connect this unit to a wireless router.
• Move this unit closer to the wireless router.
• Make sure that your client devices are congured to “obtain an IP address automatically from
DHCP”.
• Verify that your web browser is not set to use proxies.
• Restart your wireless router and AirStation.
You forgot the SSID, encryption key, or password
for the wireless network.
• Ask your network administrator about your SSID and encryption settings. These settings must
match the SSID and encryption settings of the wireless router.
• If your wireless router supports AOSS or WPS, try using them to connect to the wireless router.
Instructions for connecting with AOSS or WPS are in page 12.
Restoring the Default Conguration
Chapter 4 TroubleShooting
- 45 -
TCP/IP Settings (Windows 7)
To congure TCP/IP in Windows 7, follow the procedure below.
1Click [Start] > [Control Panel] > [Network and Internet].
2Click [Network and Sharing Center].
3Click [Change Adapter Settings] on the left side menu.
4Right-click on [Local Area Connection], then click [Properties].
5If the User Account Control screen opens, click [Yes] or [Continue].
6Select [Internet Protocol Version 4 (TCP/IPv4)] then click [Properties].
7To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each setting. Examples:
If your AirStation’s IP address is 1.1.1.1,
IP address 1.1.1.2
Subnet mask 255.255.255.0
Default gateway blank
Preferred DNS server blank
Alternate DNS server blank
8Click [OK].
- 46 -
Chapter 4 TroubleShooting
TCP/IP Settings (Windows Vista)
To congure TCP/IP in Windows Vista, follow the procedure below.
1Click [Start] > [Settings] > [Control Panel].
2Click [Network and Sharing Center].
3Click [Manage network connections] on the left side menu.
4Right-click on [Local Area Connection], then click [Properties].
5If the User Account Control screen opens, click [Yes] or [Continue].
6Select [Internet Protocol Version 4 (TCP/IPv4)], then click [Properties].
7To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each settings. Example:
If your AirStation’s IP address is 1.1.1.1,
IP address 1.1.1.2
Subnet mask 255.255.255.0
Default gateway blank
Preferred DNS server blank
Alternate DNS server blank
8Click [Close].
Chapter 4 TroubleShooting
- 47 -
TCP/IP Settings (Windows XP)
To congure TCP/IP in Windows XP, follow the procedure below.
1Click [Start] > [Settings] > [Control Panel].
2Double-click [Network].
3Right-click on [Local Area Connection], then click [Properties].
4Select [Internet Protocol (TCP/IP)], then click [Properties].
5To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each setting. Examples:
If your AirStation’s IP address is 1.1.1.1,
IP address 1.1.1.2
Subnet mask 255.255.255.0
Default gateway blank
Preferred DNS server blank
Alternate DNS server blank
6Click [Close].
- 48 -
Chapter 4 TroubleShooting
TCP/IP Settings (Mac OS X)
To congure TCP/IP in Mac OS X, follow the procedure below.
1Click [Apple menu] > [System Preferences…].
2Click [Network].
3Click [Ethernet].
4To have DHCP set your IP address settings automatically, select [Using DHCP] in the Congure
IPv4 eld.
To set your IP address settings manually, select [Manually] in the Congure IPv4 eld and
enter values for each setting. Examples:
If your AirStation’s IP address is 1.1.1.1,
IP Address 1.1.1.2
Subnet Mask 255.255.255.0
Router blank
DNS Server blank
Search Domains blank
5Click [Apply].
Chapter 4 TroubleShooting
- 49 -
Other Tips
Issue:
I reset my AirStation to factory settings and forgot how to log in to the conguration interface.
Answer:
Open your browser, enter 1.1.1.1 as the browser address, and hit Enter. You will be prompted to log
in. Enter “admin” for the username and “password” for the password. Click [OK] to log in. The option
to reset your password will be available on the rst page.
Issue:
What can I do if my wireless connection drops randomly or seems slow?
Answer:
There are many environmental factors that may cause this. First, ensure the issue is not range
related by moving the wireless router and the client device closer together. If the connection drops
continue, then range is probably not the issue.
Other 2.4 GHz devices such as microwaves, other wireless networks, and 2.4 GHz wireless phones
may impact performance. Try a dierent wireless channel for your wireless router. Log in to the
wireless router with your browser. Click on the Wireless Cong tab and then the Basic tab. Wireless
channels from 1 - 11 may be selected. Try the Auto-Channel option if available. Otherwise, manually
select an alternate channel and click [Apply].
Issue:
Where can I download the latest drivers, rmware, and instructions for my Bualo wireless products?
Answer:
The latest drivers and rmware are available online at
www.bualotech.com
- 50 -
Specications
Wired LAN Interface
Standard Compliance IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Transmission Rate 10 / 100 / 1000 Mbps
Transmission Encoding 1000 BASE-T 4DPAM5, 100 BASE-TX 4B5B/MLT-3, 10 BASE-T Manchester Cording
Access Method CSMA/CD
Speed and Flow Control 10 / 100 / 1000 Mbps, Auto Sensing, Auto MDIX
Number of LAN Port 4
LAN Port Connector RJ-45
Wireless LAN Interface
Standard Compliance IEEE802.11ac (Draft 2.0) /n/a/g/b
Transmission Method Direct Sequence Spread Spectrum (DSSS), OFDM, MIMO
Transmission Rate
802.11ac (Draft)
802.11ac (Draft):
20 MHz BW (Long GI)
260, 234, 195, 175.5, 156, 117, 78, 58.5, 39, 19.5 Mbps (3 stream)
156, 130, 117, 104, 78, 52, 39, 26, 13 Mbps (2 stream)
78, 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps (1 stream)
20 MHz BW (Short GI)
288.9, 260, 216.7, 195, 173.3, 130, 86.7, 65, 43.3, 21.7 Mbps (3 stream)
173.3, 144.4, 130, 115.6, 86.7, 57.8, 43.3, 28.9, 14.4 Mbps (2 stream)
86.7, 72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 Mbps (1 stream)
40 MHz BW (Long GI)
540, 486, 405, 364.5, 324, 243, 162, 121.5, 81, 40.5 Mbps (3 stream)
360, 324, 270, 243, 216, 162, 108, 81, 54, 27 Mbps (2 stream)
180, 162, 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps (1 stream)
40 MHz BW (Short GI)
600, 540, 450, 405, 360, 270, 180, 135, 90, 45 Mbps (3 stream)
400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps (2 stream)
200, 180, 150, 135, 120, 90, 60, 45, 30, 15 Mbps (1 stream)
80 MHz BW (Long GI)
1170, 1053, 877.5, 702, 526.5, 351, 263.3, 175.5, 87.8 Mbps (3 stream)
780, 702, 585, 526.5, 468, 351, 234, 175.5, 117, 58.5 Mbps (2 stream)
390, 351, 292.5, 263.3, 234, 175.5, 117, 87.8, 58.5, 29.3 Mbps (1 stream)
80 MHz BW (Short GI)
1300, 1170, 975, 780, 585, 390, 292.5, 195, 97.5 Mbps (3 stream)
866.7, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps (2 stream)
433.3, 390, 325, 292.5, 260, 195, 130, 97.5, 65, 32.5 Mbps (1 stream)
Appendix
Appendix
- 51 -
Transmission Rate
802.11n/a/b/g
802.11n:
20 MHz BW (Long GI)
195, 175.5, 156, 117, 78, 58.5, 39, 19.5 Mbps (3 stream)
130, 117, 104, 78, 52, 39, 26, 13 Mbps (2 stream)
65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps (1 stream)
20 MHz BW (Short GI)
216.7, 195, 173.3, 130, 86.7, 65, 43.3, 21.7 Mbps (3 stream)
144.4, 130, 115.6, 86.7, 57.8, 43.3, 28.9, 14.4 Mbps (2 stream)
72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 Mbps (1 stream)
40 MHz BW (Long GI)
405, 364.5, 324, 243, 162, 121.5, 81, 40.5 Mbps (3 stream)
270, 243, 216, 162, 108, 81, 54, 27 Mbps (2 stream)
135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps (1 stream)
40 MHz BW (Short GI)
450, 405, 360, 270, 180, 135, 90, 45 Mbps (3 stream)
300, 270, 240, 180, 120, 90, 60, 30 Mbps (2 stream)
150, 135, 120, 90, 60, 45, 30, 15 Mbps (1 stream)
802.11a/g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11b:
11, 5.5, 2, 1 Mbps
Frequency Range Available frequencies depend on the country of purchase. See the next page
for details.
Access Mode Infrastructure Mode
Security AOSS, WPS, WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES), 128/64bit WEP
Other
Power Supply External AC 100 - 240 V Universal, 50/60 Hz
Power Consumption About 9.8 W (Max)
Dimensions 212.2 x 183.2 x 34 mm (8.4 x 7.2 x 1.3 in.)
Weight 500 g (17.6 oz.)
Operating Environment 0 - 40° C (32 - 104° F) , 20 - 80 % (non-condensing)
- 52 -
Appendix
802.11a Frequency Range
USA
Canada
5180-5240 MHz (Channels 36, 40, 44, 48)
802.11g Frequency Range
USA
Canada
2412-2462 MHz (Channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11)
Appendix
- 53 -
Default Conguration Settings
Feature Parameter Default Setting
LAN LAN Side IP Address Manual Setup
1.1.1.1 (255.255.255.0)
Default Gateway none
DNS Server Address none
WPS WPS Enabled
List of wireless connections (WPS) none
AOSS Encryption Type none
AOSS Button on the AirStation
Unit
Enabled
Basic SSID none
Wireless Authentication Do not authenticate
Encryption for wireless Not encrypted
11A/11G selection 11a only
Advanced MAC Address for wireless
communication
Unit Address
802.11n protection Disabled
Output Power 100%
Request of multicast translation Enabled
- 54 -
Appendix
Feature Parameter Default Setting
WMM WMM-EDCA Parameters
(Priority AC_BK (Low) )
For AP For STA
CWmin 15 15
CWmax 1023 1023
AIFSN 7 7
TXOP Limit 0 0
Admission Control ----- Disabled
WMM-EDCA Parameters
(Priority AC_BE (Normal) )
For AP For STA
CWmin 15 15
CWmax 63 1023
AIFSN 3 3
TXOP Limit 0 0
Admission Control ----- Disabled
WMM-EDCA Parameters
(Priority AC_VI (High) )
For AP For STA
CWmin 7 7
CWmax 15 15
AIFSN 1 2
TXOP Limit 94 94
Admission Control ----- Disabled
WMM-EDCA Parameters
(Priority AC_VO (Highest) )
For AP For STA
CWmin 3 3
CWmax 7 7
AIFSN 1 2
TXOP Limit 47 47
Admission Control ----- Disabled
Name AirStation Name AP + AirStation's MAC Address
Password Administrator Name admin (xed)
Administrator Password password
Time/Date Local Date 2012 Year 1 Month 1 Day
Local Time 0 Hour 0 Minute 0 Seconds
Time Zone (GMT-06:00) Central Standard Time: CST
DST (Daylight Saving Time) USA (From Second Sunday in Mar to rst Sunday in
Nov)
NTP NTP Functionality Enabled
NTP Server time.nist.gov
Update Interval 24 hours
Appendix
- 55 -
Feature Parameter Default Setting
Access Log Output Disabled
Limitation Item Prohibit conguration from wireless LAN Disabled
Prohibit conguration from wired LAN Disabled
Log Log Transfer Disabled
Syslog Server none
Logs IP Filter, DHCP Client, AOSS, Wireless,
Authentication, Setting Changes, System Boot, NTP
Client, Wired Link, and System
Update Update Method Specify Local File
Firmware Update Reminder Enabled
Remind Time Automatic
- 56 -
Appendix
Ethernet Converter Manager
Ethernet Converter Manager Overview
Ethernet Converter Manager is a tool to manage your AirStation. It lets you change the AirStation’s
IP address. To install the this software, insert the Air Navigator CD into your computer. On the setup
screen, click [Software installation].
Opening and Closing Ethernet Converter Manager
To start Ethernet Converter Manager, click [Start] > [All programs] > [BUFFALO] > [AirStation Utility]
> [Ethernet Converter Manager]. To close the Ethernet Converter Manager, click [X] at the top right
of the screen, or click [Exit].
Appendix
- 57 -
Select LAN Adapter screen
Select which LAN adapter will be used to set up the AirStation. This screen is displayed if your
computer has more than one NIC or other LAN devices. Choose a LAN adapter that is connected to
the same network as the AirStation.
Parameter Meaning
Refresh Click this button to update the list.
Select Highlight your LAN Adapter, then click this button to congure the
AirStation.
Exit Closes the Ethernet Converter Manager.
- 58 -
Appendix
Select Ethernet Converter
If you have multiple AirStations on the network, they’ll all be displayed here. Choose your AirStation
from the list and highlight it. Click [Select].
Parameter Meaning
Refresh Click this button to search and view the list of the AirStations that
can be congured with this software.
Connect automatically when only
one Ethernet Converter is detected
Check this option to skip this screen when there is only one
AirStation that can be congured.
Web Setting Click this button to display the AirStation’s Web conguration
interface.
Note: If your computer and the AirStation are on dierent network
subnets, then the IP address settings page will be displayed
instead.
Select Highlight your AirStation, then click this button to display the main
screen.
Exit Closes the Ethernet Converter Manager.
Appendix
- 59 -
Main Screen
Change your AirStation’s IP address or other settings from this window.
Parameter Meaning
Options > Launch Web Setting screen Displays the AirStation’s Web conguration interface.
Note: If your PC and the AirStation are on dierent network subnets, then
the IP address conguration screen is displayed instead.
Options > Modify IP Address... Displays the IP address conguration screen.
Options > Switch a/g Mode... This is not supported feature for this product.
Options > Connection Settings... Displays the connection settings for access points.
Options > Refresh Updates displayed information for your AirStation.
- 60 -
Appendix
Parameter Meaning
Options > Back to Ethernet Converter
Selection
Takes you back to the AirStation selection screen.
Options > About Displays the version number of your Ethernet Converter Manager.
Connection Settings Display the access point connection settings screen.
Exit Close Ethernet Converter Manager.
Appendix
- 61 -
Modify IP Address Screen
Modify the AirStation’s IP address.
Parameter Meaning
Acquire IP Address Automatically via
DHCP
Check this option to automatically obtain an IP address from a
DHCP server.
IP Address / Subnet Mask If DHCP is not enabled, you can enter an IP address and subnet
mask for the AirStation manually.
- 62 -
Appendix
Connection Settings
Congure your access point’s wireless connection settings.
Parameter Meaning
Scan Click this button to search for available access points.
SSID Select an access point to connect to. Double-click on an access
point’s SSID to select it.
Encryption method Select the type of encryption to use.
Encryption Key Enter the AP’s encryption key.
Appendix
- 63 -
Regulatory Compliance Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible. This device is going to be operated in 5.15~5.25GHz frequency range,
it is restricted in indoor environment only.
Important Note - FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna(s) must not be co-located or operation in conjunction with
any other antenna or transmitter. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specic channels and/or operational frequency bands are country
dependent and are rmware programmed at the factory to match the intended destination. The
rmware setting is not accessible by the end user.
- 64 -
Appendix
Industry Canada statement:
Industrie Canada déclaration:
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio
exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer
un fonctionnement indésirable.
Caution:
Prudence:
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful
interference to co-channel mobile satellite systems.
Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une
utilisation à l’intérieur an de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible.
The device could automatically discontinue transmission in case of absence of information to
transmit, or operational failure. Note that this is not intended to prohibit transmission of control or
signaling information or the use of repetitive codes where required by the technology.
Important Note - Radiation Exposure Statement:
Note Importante - Déclaration d’exposition aux radiations:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.
Cet équipement respecte les limites d’exposition aux rayonnements IC RSS-102 dénies pour un
environnement non contrôlé. Il doit être installé et utilisé en maintenant une distance minimum de
20 cm entre le radiateur et votre corps.
Appendix
- 65 -
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The
following test methods have been applied in order to prove presumption of conformity with the
essential requirements of the R&TTE Directive 1999/5/EC:
EN60950-1: 2006+A11:2009
Safety of Information Technology Equipment
EN 62311: 2008
Assessment of electronic and electrical equipment related to human exposure restrictions for
electromagnetic elds (0 Hz – 300 GHz)
EN 300 328 V1.7.1 (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems;
Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation
techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.8.1 (2008-04)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 V2.1.1 (2009-05)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 17: Specic conditions for 2,4 GHz wideband
transmission systems and 5 GHz high performance RLAN equipment.
EN 301 893 V1.5.1: 2008
Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering
essential requirements of article 3.2 of the R&TTE Directive
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU
member states and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to
obtain authorization to use the device for setting up outdoor radio links and/or for supplying public
access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the
RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For
detailed information the end-user should contact the national spectrum authority in France.
- 66 -
Appendix
Česky [Czech]
Bualo Technology Inc. tímto prohlašuje, že tento AirStation WLI-H4-D1300 je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk [Danish]
Undertegnede Bualo Technology Inc. erklærer herved, at følgende udstyr AirStation WLI-H4-D1300
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German]
Hiermit erklärt Bualo Technology Inc. dass sich das Gerät AirStation WLI-H4-D1300 in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen
Bestimmungen der Richtlinie 1999/5/EG bendet.
Eesti [Estonian]
Käesolevaga kinnitab Bualo Technology Inc. seadme AirStation WLI-H4-D1300 vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English
Hereby, Bualo Technology Inc. declares that this AirStation WLI-H4-D1300 is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español [Spanish]
Por medio de la presente Bualo Technology Inc. declara que el AirStation WLI-H4-D1300 cumple
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva
1999/5/CE.
Ελληνική [Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Bualo Technology Inc. ΔΗΛΩΝΕΙ ΟΤΙ AirStation WLI-H4-D1300
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ
ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français [French]
Par la présente Bualo Technology Inc. déclare que l’appareil AirStation WLI-H4-D1300 est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian]
Con la presente Bualo Technology Inc. dichiara che questo AirStation WLI-H4-D1300 è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]
Ar šo Bualo Technology Inc. deklarē, ka AirStation WLI-H4-D1300 atbilst Direktīvas 1999/5/EK
būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Appendix
- 67 -
Lietuvių [Lithuanian]
Šiuo Bualo Technology Inc. deklaruoja, kad šis AirStation WLI-H4-D1300 atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch]
Hierbij verklaart Bualo Technology Inc. dat het toestel AirStation WLI-H4-D1300 in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/
EG.
Malti [Maltese]
Hawnhekk, Bualo Technology Inc. jiddikjara li dan AirStation WLI-H4-D1300 jikkonforma mal-
ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian]
Alulírott, Bualo Technology Inc. hogy a WLI-H4-D1300 megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym Bualo Technology Inc. oświadcza, że WLI-H4-D1300 jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]
Bualo Technology Inc. declara que este WLI-H4-D1300 está conforme com os requisitos essenciais
e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian]
Bualo Technology Inc. izjavlja, da je ta WLI-H4-D1300 v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak]
Bualo Technology Inc. týmto vyhlasuje, že WLI-H4-D1300 spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]
Bualo Technology Inc. vakuuttaa täten että WLI-H4-D1300 tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish]
Härmed intygar Bualo Technology Inc. att denna WLI-H4-D1300 står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
- 68 -
Appendix
Taiwan:
SAR compliance has been established in typical laptop computer(s) with USB slot, and product
could be used in typical laptop computer with USB slot. Other application like handheld PC or
similar device has not been veried and may not comply with related RF exposure rules and such
use shall be prohibited.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity when
working with electrical equipment. All guidelines of this manual and of the computer manufacturer
must therefore be allowed at all times to ensure the safe use of the equipment.
根據 NCC 低功率電波輻射性電機管制辦法：
第十二條：
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加
大功率或變更原設計之特性及功能。
第十四條：
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低
功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
在5.25-5.35秭赫(GHz)頻帶內操作之無線資訊傳輸設備，限於室內使用。
기종별 사 용 자 안 내 문
B 급 기기
( 가정용 정보통신기기 )
이 기기는 가정용 (B 급 ) 전자파적합기기로서 주
로 가정에서 사용하는 것을 목적으로 하며 , 모든
지역에서 사용할 수 있습니다 .
Appendix
- 69 -
Environmental Information
• The equipment that you have purchased has required the extraction and use of natural resources
for its production.
• The equipment may contain hazardous substances that could impact health and the environment.
• In order to avoid the dissemination of those substances in our environment and to diminish the
pressure on the natural resources, we encourage you to use the appropriate take-back systems.
• The take-back systems will reuse or recycle most of the materials of your end life equipment in a
sound way.
• The crossed-out wheeled bin symbol invites you to use those systems.
• If you need more information on the collection, reuse and recycling systems, please contact your
local or regional waste administration.
GPL Information
The source code for Bualo products that use GPL code is available at http://opensource.bualo.jp/ .

Navigation menu
