user manual II
www.bufalotech.com
The following items are included in your AirStation package. If any of the items are missing, please
contact your vender.
• WZR-D1800H ................................................................................................................................ 1
• AirStation Setup Card ................................................................................................................ 1
• AC adapter ..................................................................................................................................... 1
• Stands .............................................................................................................................................. 2
• Screws for wall-mounting ........................................................................................................ 2
• LAN cable ....................................................................................................................................... 1
• AirNavigator CD ........................................................................................................................... 1
• Quick Setup Guide ...................................................................................................................... 1
• Warranty Statement ................................................................................................................... 1
1
2
3
5
4

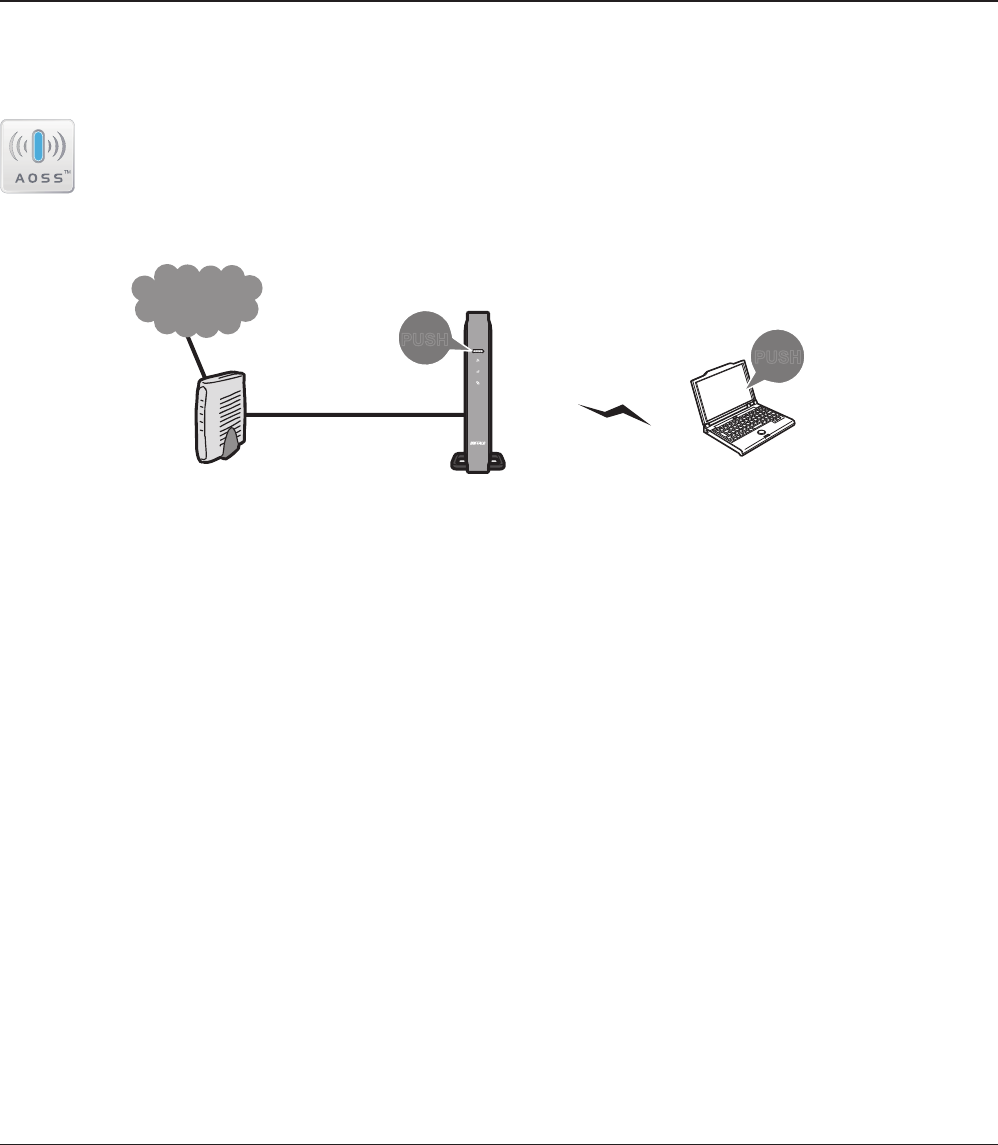

1AOSS button To initiate AOSS, hold down this button until the Wireless LED ashes
(about 1 second). Then, push or click the AOSS button on your wireless
client device to complete the connection. Both devices must be powered
on for this to work.
2Wireless LED (Blue or Amber)
On: Wireless LAN is enabled.
Randomly blinking: Wireless LAN is transmitting.
2 blinks: AirStation is waiting for an AOSS or WPS security key.
Continuously
blinking:
AOSS/WPS error; failed to exchange security keys.
O: Wireless LAN is disabled.
Note:
Wireless LED is blue : Security settings have been made for the wireless LAN.
Wireless LED is amber : Security settings have not been made for the wireless LAN.
3Internet access LED (Blue)
On: Internet access is available.
O: Internet access is not available.
4Router LED (Blue)
On: Router functionality is enabled.
O: Router functionality is disabled.
5Bualo LED (White or Red)
On (White): Power is on.
O: Power is o.
On (Red)*1: Booting.
2 blinks (Red)*2: Flash ROM error.
3 blinks (Red)*2: Wired Ethernet LAN error.
4 blinks (Red)*2: Wireless LAN error.
5 blinks (Red)*3: IP address setting error.
9 blinks (Red)*2: System error.
Continuously
blinking*1:
Updating rmware, saving settings, or initializing settings.
*1 Never unplug the AC adapter while the Bualo LED is blinking continuously.
*2 Turn o AirStation rst, wait for a few seconds, then turn it back on.
*3 Because the network addresses of both the Internet port (WAN port) and the LAN port are the
same, it is not possible to establish communication. Change the LAN side IP address of the
AirStation.
11 13
10 12
15
7
8
6
9
14
6Router button This button turns the router on and o. The operation mode is changed
by holding down the button.
7USB LED (Blue)
On: The USB drive is connected.
Blinking: The USB drive can be removed.
Note: When this LED is blinking, the connected USB drive cannot be used. Remove the connected USB
drive. If the LED continues to blink even after the USB drive is removed, restart the AirStation. Do
not remove the USB drive or turn o the AirStation while the USB LED is on.
8USB Eject button To dismount a USB hard drive, hold down this button until the USB LED
ashes (about 3 seconds). The USB drive can then be unplugged safely.
9USB Port Connect the USB drive.
17
16

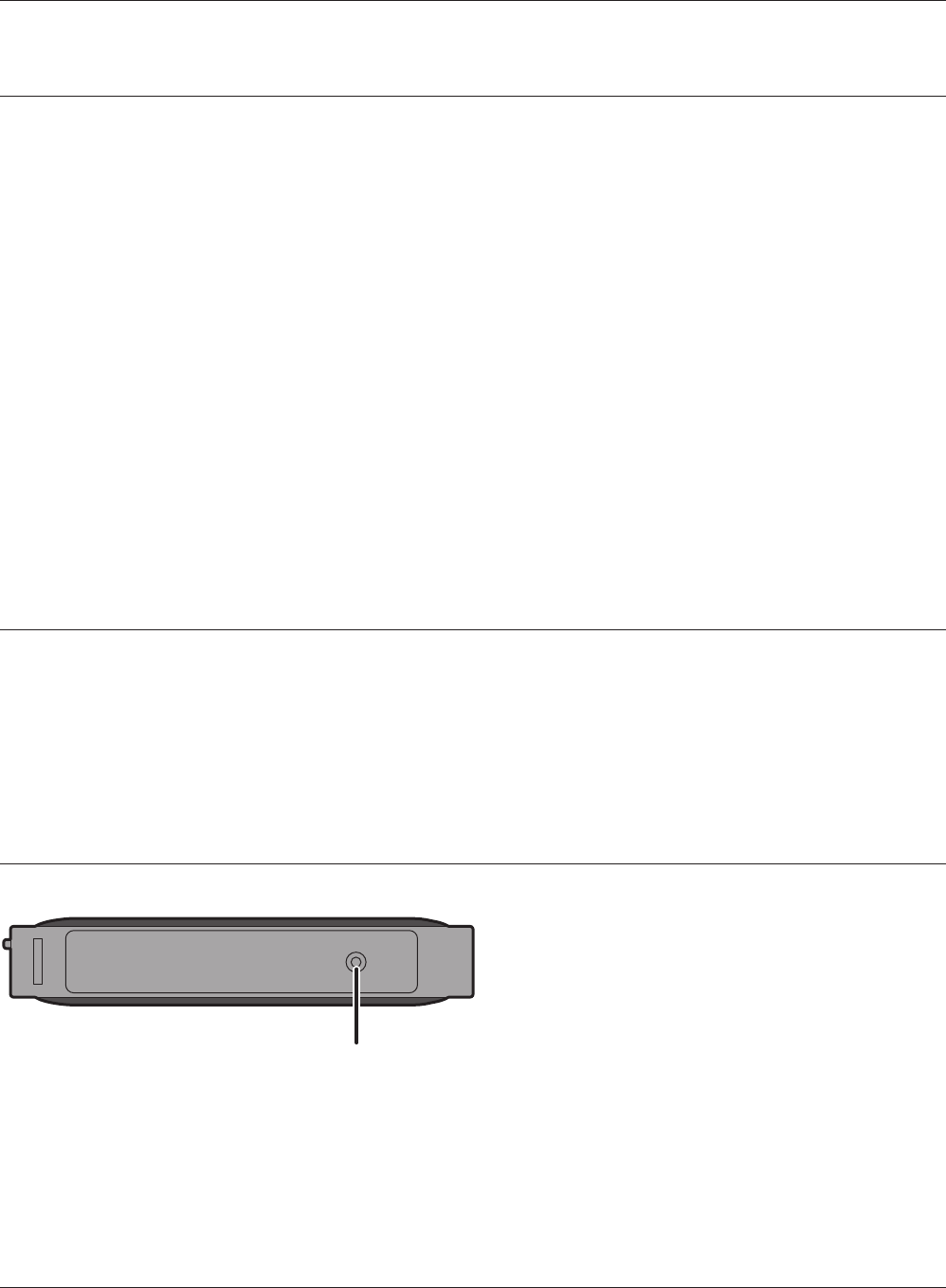

16 Reset button To reset all settings, hold down this button until the Bualo LED turns red
(about 3 seconds). The power must be on for this to work.
17 Setup card slot This is the slot where the AirStation setup card is stored. The initial
settings for the username, password, SSID, and encryption type are
provided on the card for logging into the conguration interface.
10 LAN Port Connect your computer, hub, or other Ethernet devices to these ports.
This switching hub supports 10 Mbps,100 Mbps, and 1000 Mbps
connections.
11 Internet Port 10 Mbps, 100 Mbps, and 1000 Mbps connections are supported.
Note: In bridge/AP mode (router o), the Internet port becomes a
regular LAN port, for a total of 5 usable LAN ports.
12 LAN LED (Green)
On: An Ethernet device is connected.
Blinking: An Ethernet device is communicating.
13 Internet LED (Green)
On: The Internet port is connected.
Blinking: The Internet port is transmitting data.
14 Power button This button turns the power on and o.
15 DC connector Connect the included AC adapter here.
18

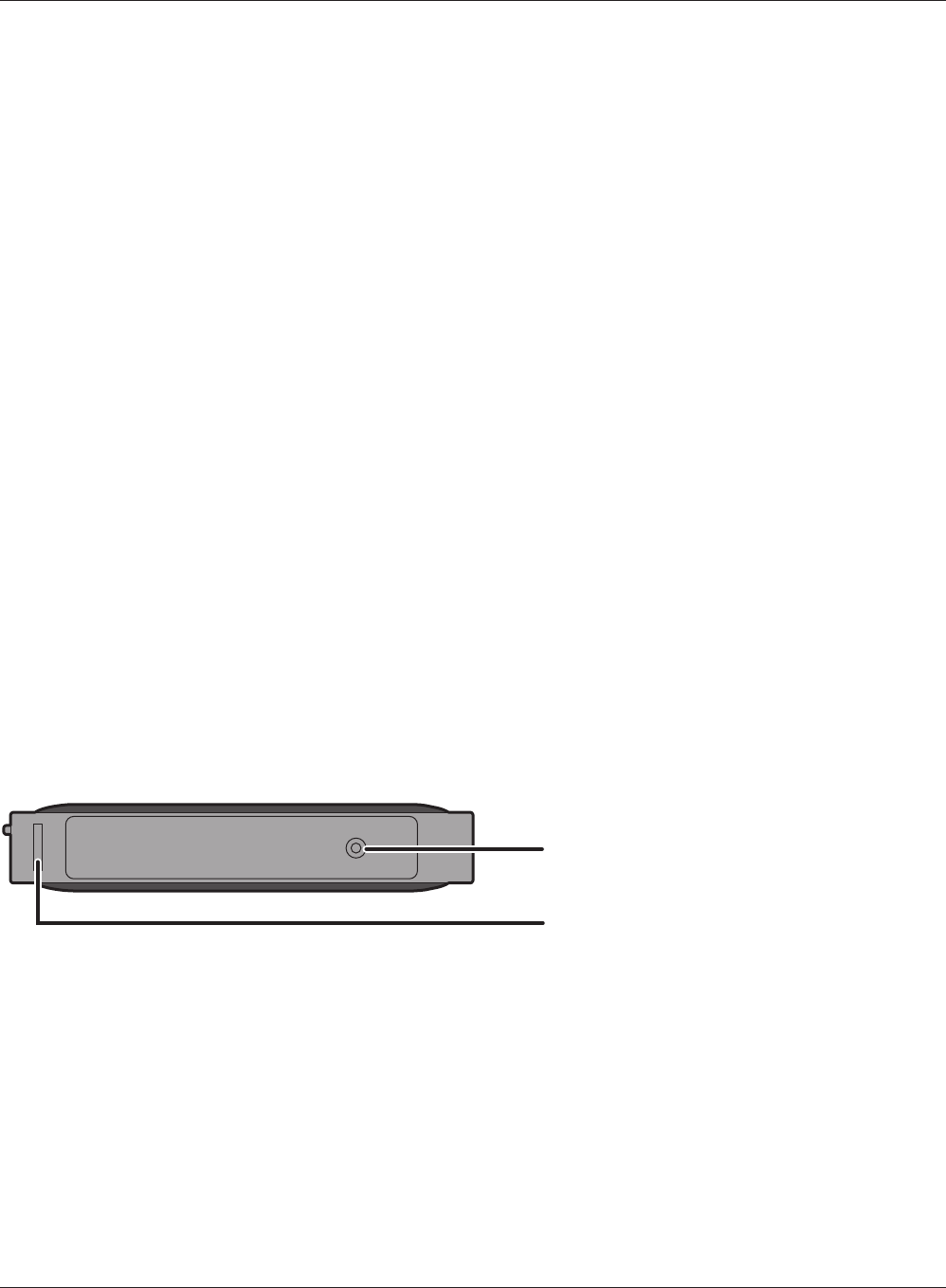

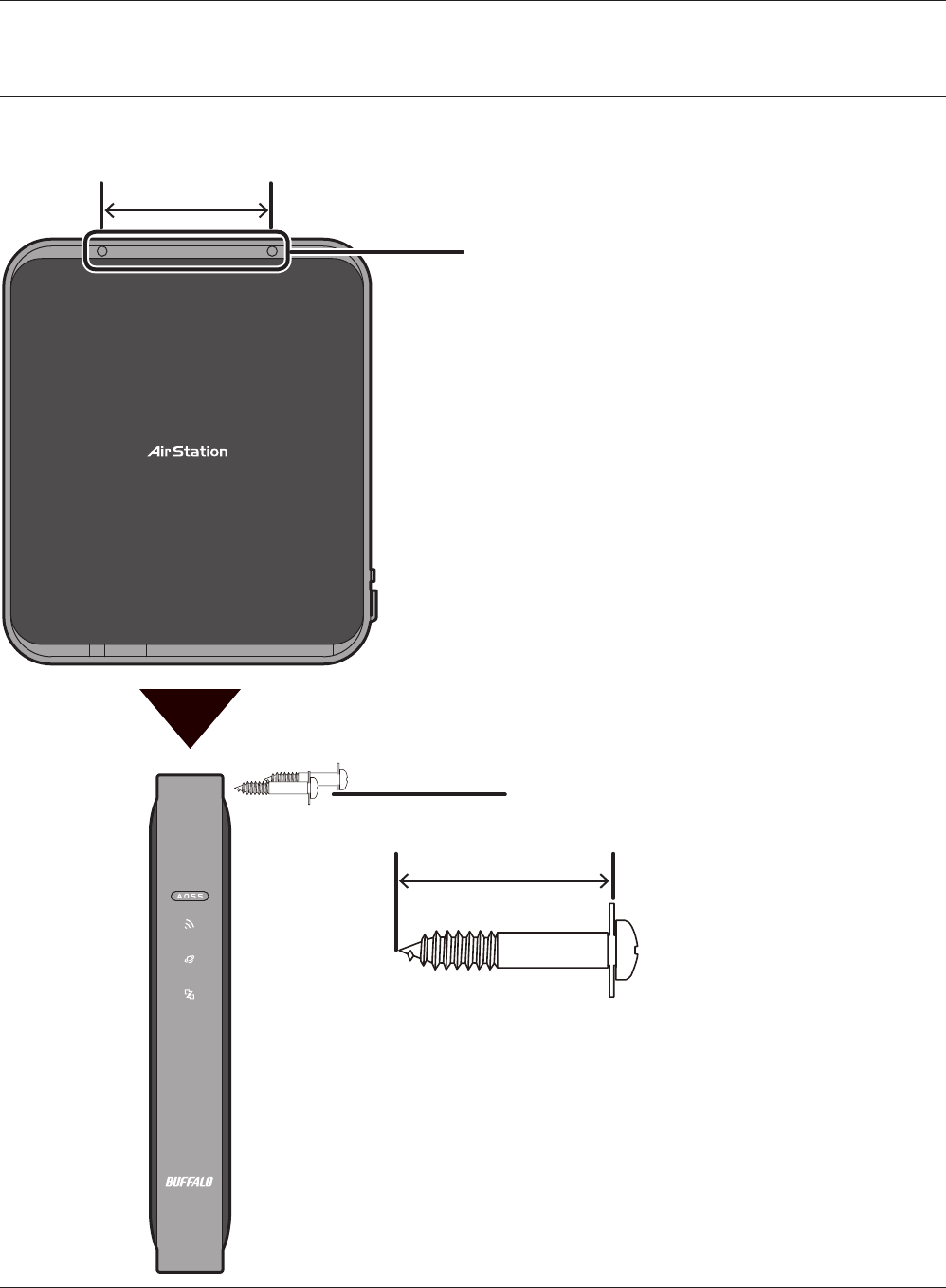

18 Mounting holes Mounting holes are provided for mounting the AirStation to a
wall. Use the supplied screws in the holes to mount to a wall.
Stand
Stand
Stand

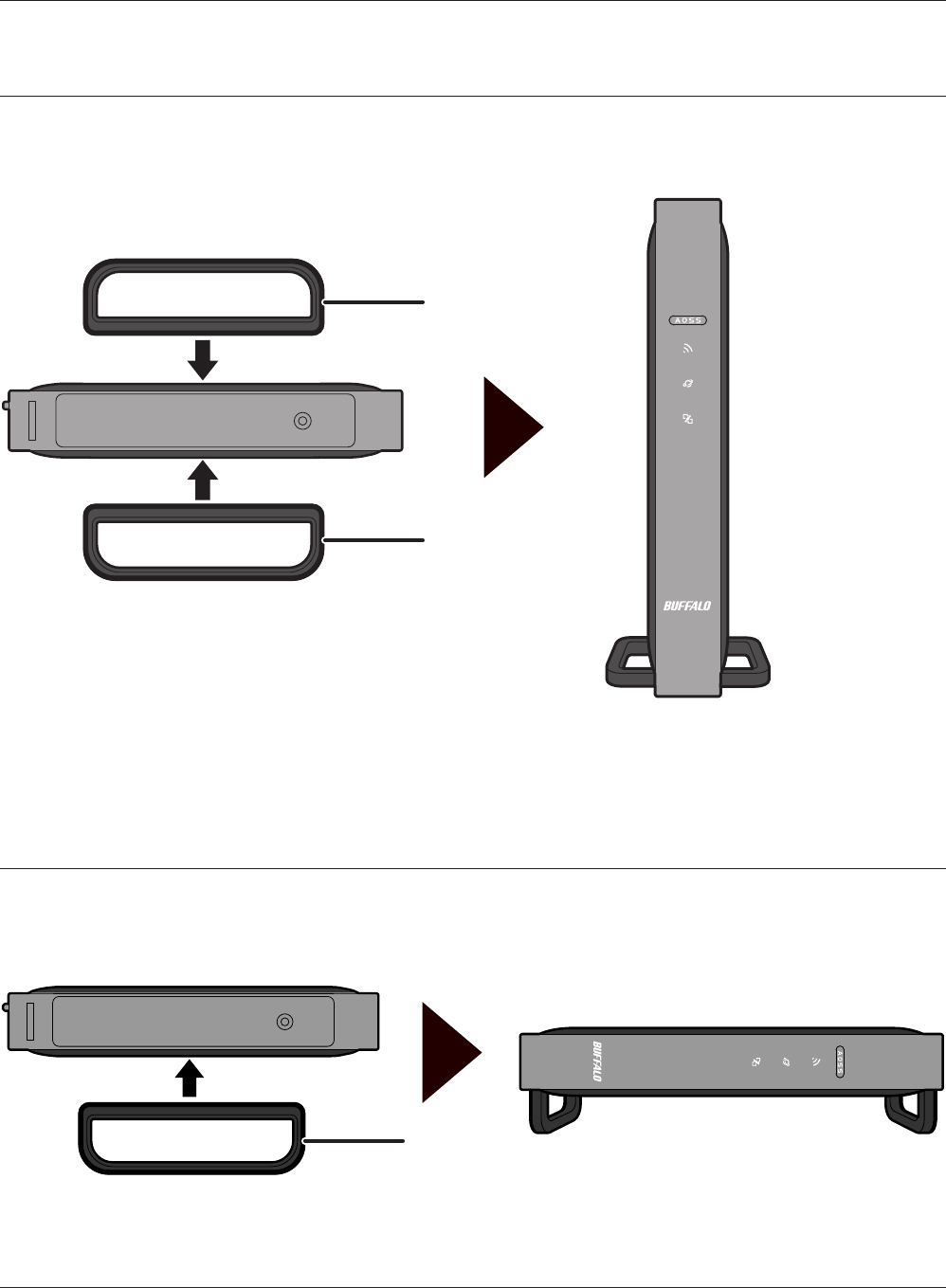

Attach the stand as shown in the gure below.
The same stand also allows horizontal placement. Install the stand as shown in the gure below.
Mounting holes
85 mm (3.35 in.)
Screws
50 mm (1.97 in.)
Install with the supplied screws in the mounting holes of the AirStation as shown in the gure
below.
disconnect
modem computer
modem
LAN cable
1) connect
2) connect
AirStation
Internet
port

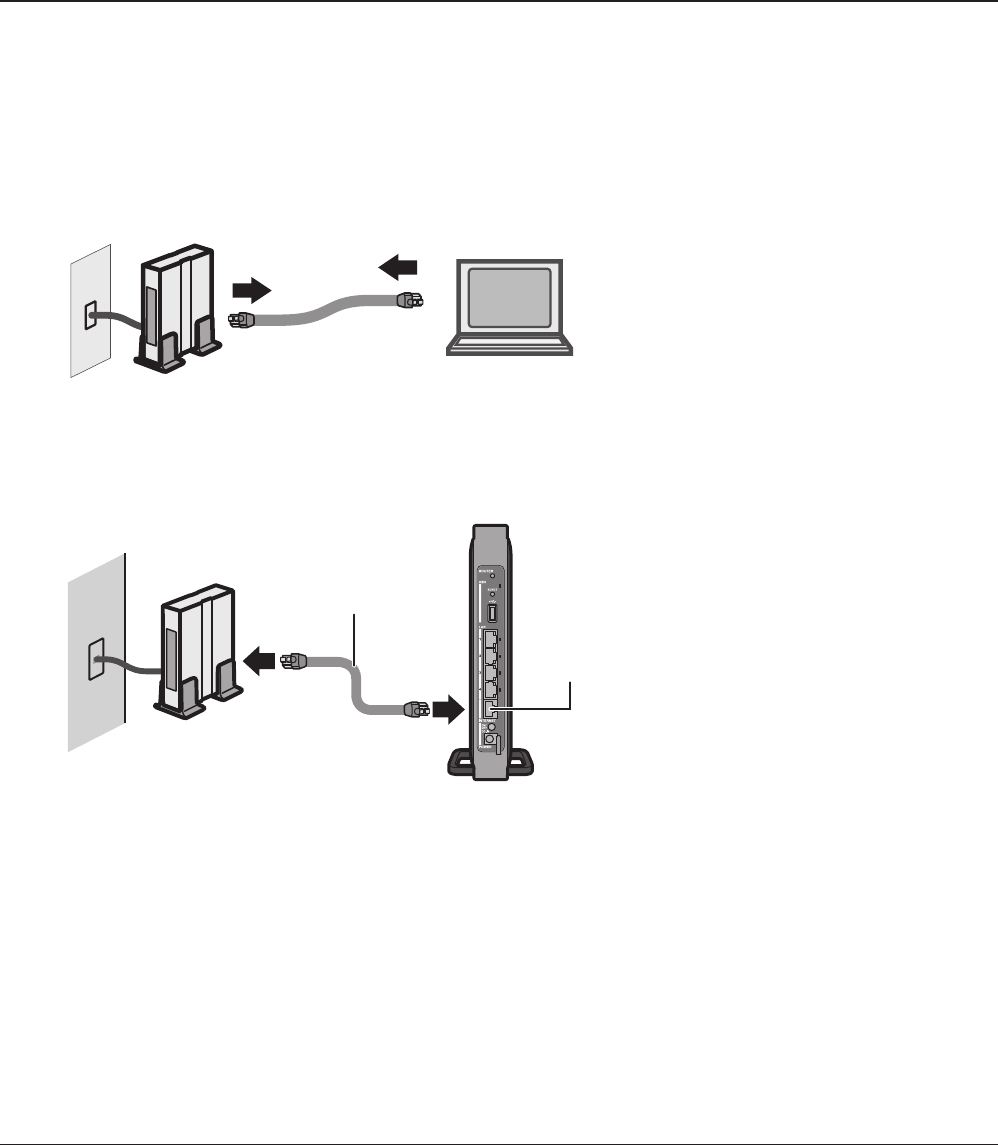

To congure your AirStation, follow the procedure below.
1Verify that you can connect to the internet without the AirStation, then turn o your modem
and computer.
2Unplug the LAN cable which connects
your computer and modem.
3Plug one end of the LAN cable into your modem and the other end to the AirStation’s
Internet (WAN) port. Turn on the modem.
AirStation
1) connect
2) connect
LAN cable
computer
AirStation
Connect the power supply
power outlet
4
Once your computer has booted, the AirStation’s LEDs should be lit as described below:
Wireless On or blinking.
Internet access On.
Router On.
Bualo White light on.
LAN Green light on or blinking.
Internet Green light on or blinking.
For LED locations, refer to chapter 1.
Note: If the router LED is not lit, hold down the router button for about 3 seconds to switch to
router mode.
5If using a wired LAN, connect the AirStation LAN port and computer using a LAN cable.
If using a wireless LAN, connect the computer to the wireless LAN by referring to Chapter 4.
6
Turn on the AirStation, then wait one minute.
Note : If the power does not turn on even when the AC
adapter is connected, press the Power button on
the rear of the AirStation.
Launch a web browser. If the home screen is displayed, setup is complete.
If username and password elds are displayed, enter “admin” for the username and
“password” for the password, then click [OK]. Step through the wizard to complete setup.
You’ve completed the initial setup of your AirStation. Refer to Chapter 3 for advanced
settings.
7
The web-based conguration tool lets you change advanced settings for the AirStation. Don’t
change these settings unless you know what you’re doing.
To congure the AirStation’s advanced settings manually, log in to the web-based conguration
interface as shown below.
1
2
3

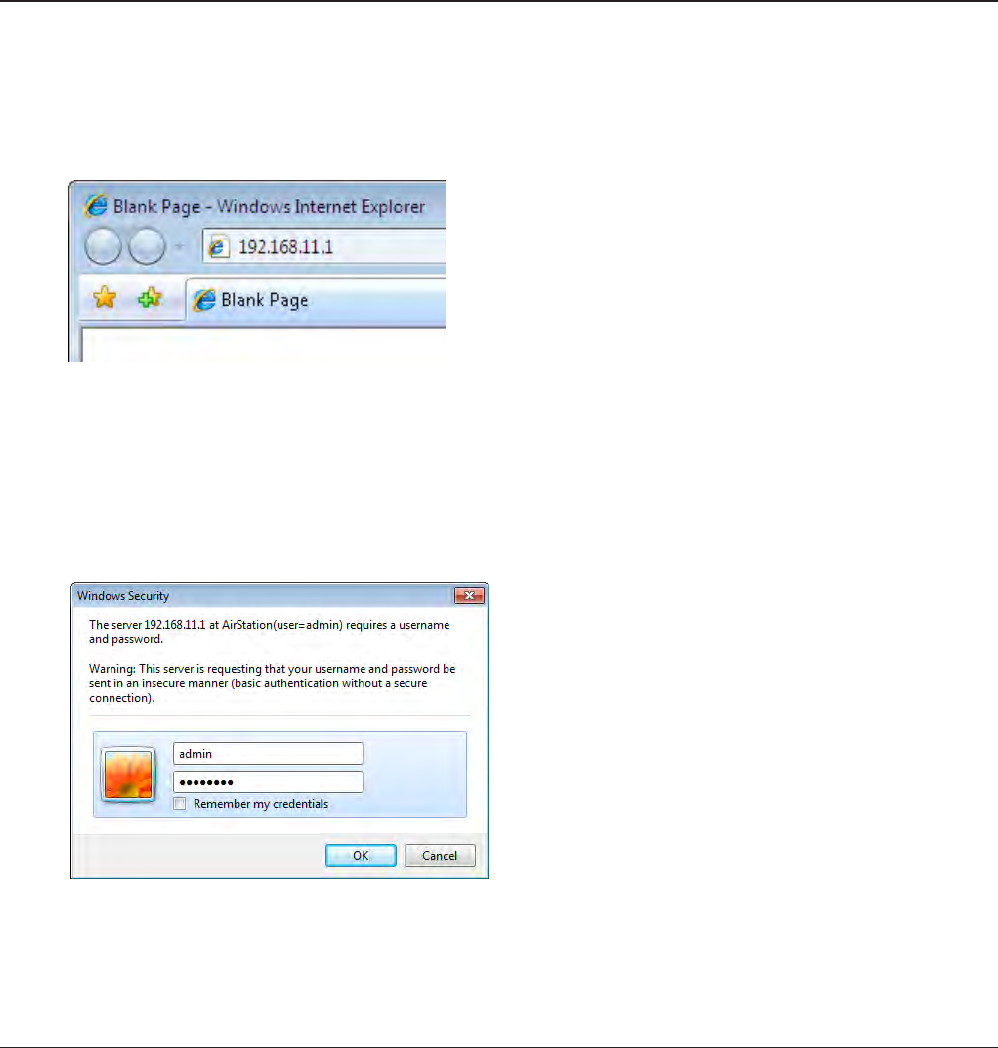

Launch a web browser.
Enter the AirStation’s LAN-side IP address in the
address eld and press the Enter key.
Note: The AirStation’s default LAN-side IP address depends on the mode.
In router mode: 192.168.11.1
In bridge mode: 192.168.11.100
If you changed the IP address of the AirStation, then use the new IP address.
Enter “admin” for the username and “password”
for the password and click [OK].
Note: If you forget your password, hold down the
Reset button (page 9) to initialize all settings.
Note that all other settings will also revert to
their default values.

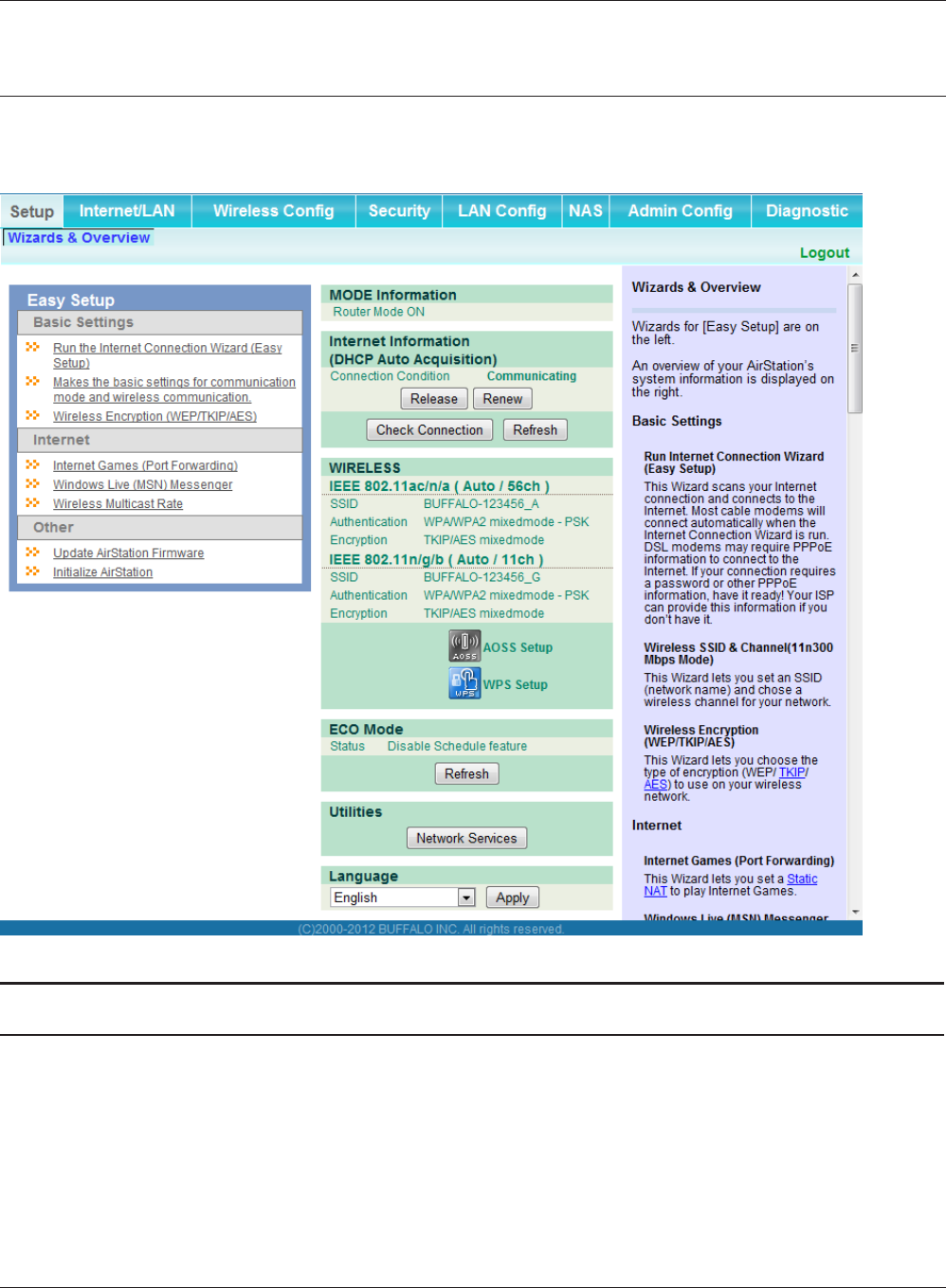

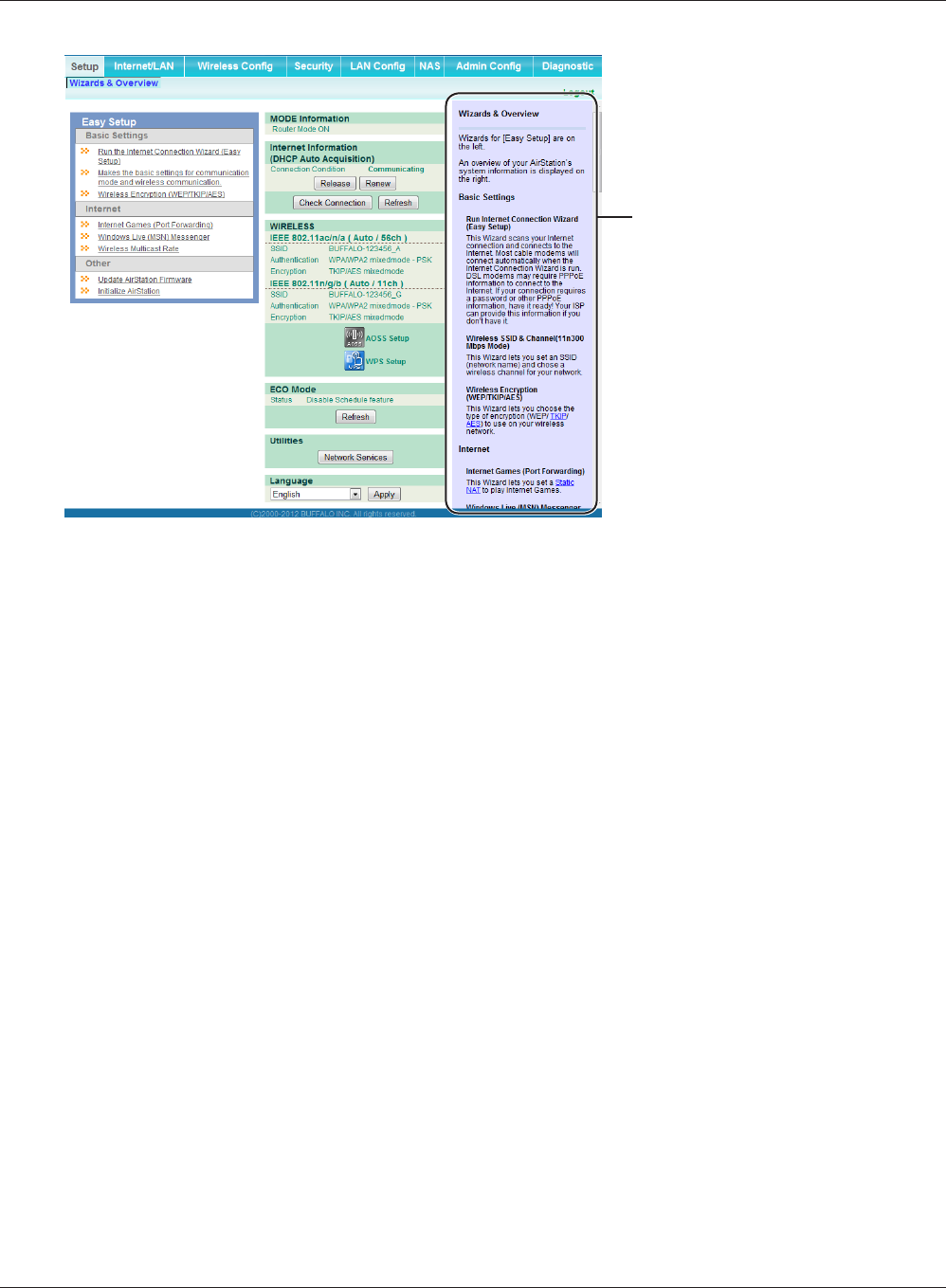

4This is the conguration
interface, where most
AirStation settings can be
congured.
Help is always displayed on
the right side of each screen.
Refer to the help screens for
more information on using the
conguration interface.
The menu structure for the AirStation in router mode is as follows. Please refer to the pages listed at
right for explanations of each item.
Main screen Descriptions Page
Internet/LAN

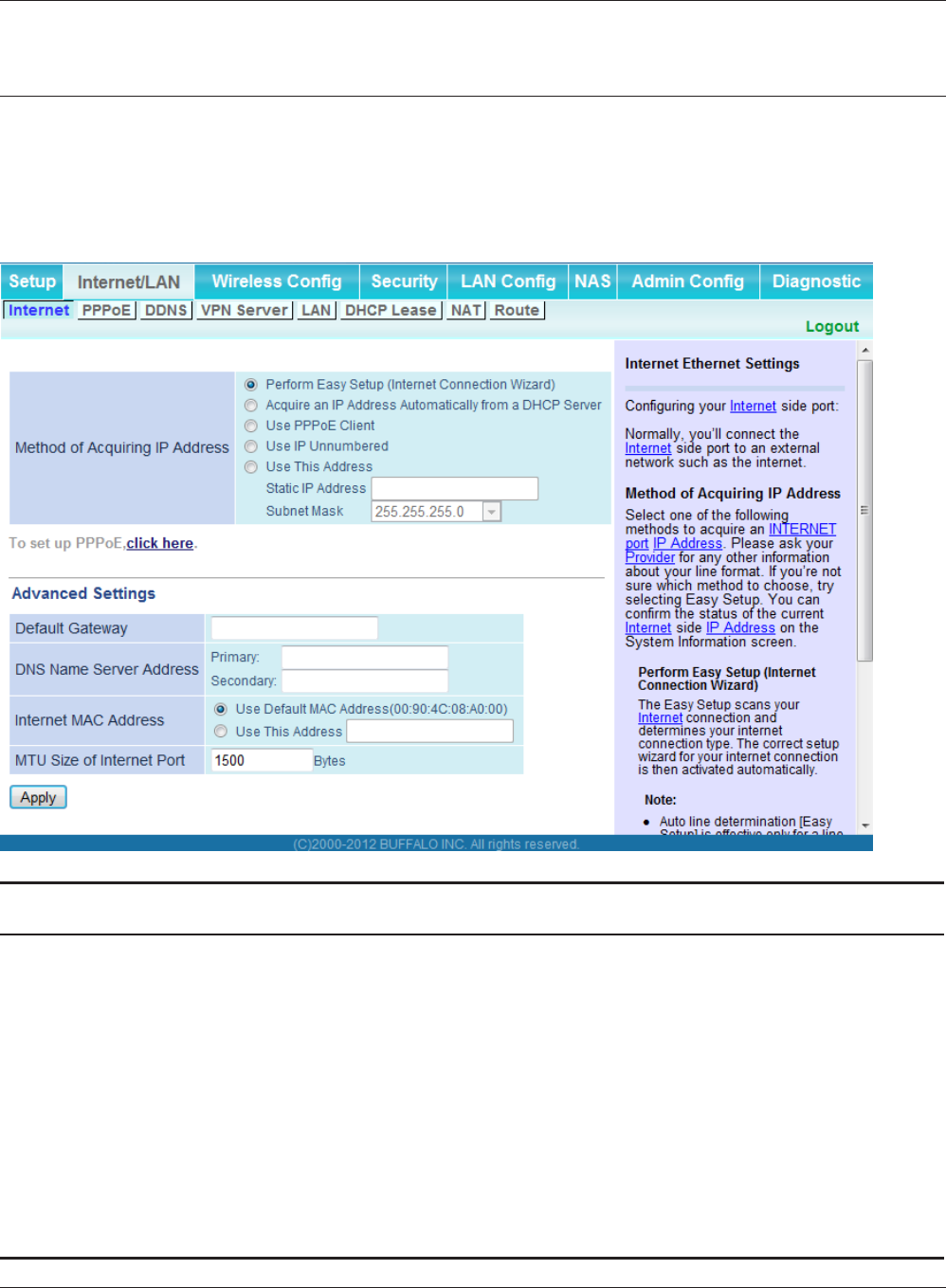

Internet Congure Internet side port and settings. Page 24

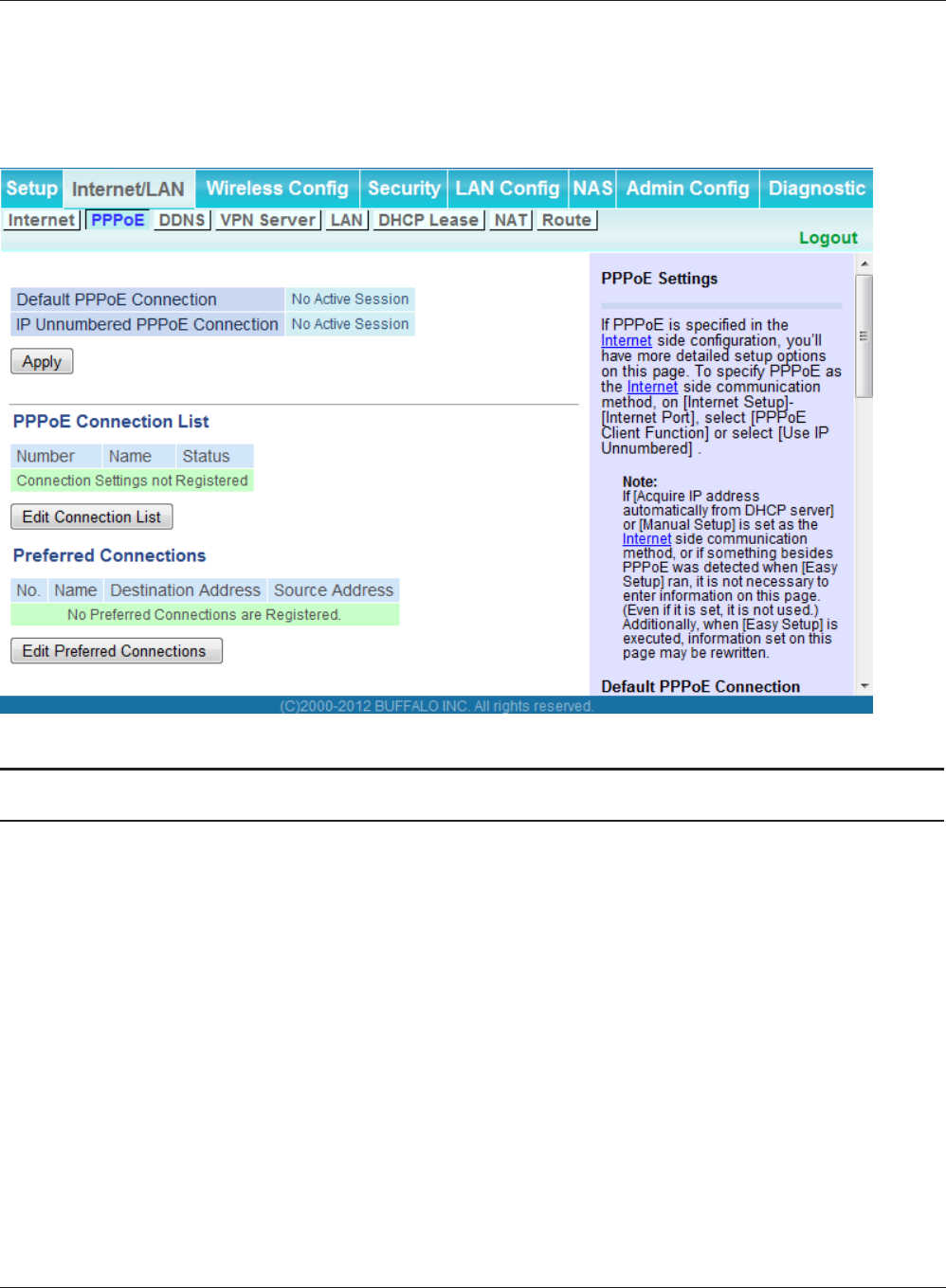

PPPoE PPPoE settings (DSL login). Page 25

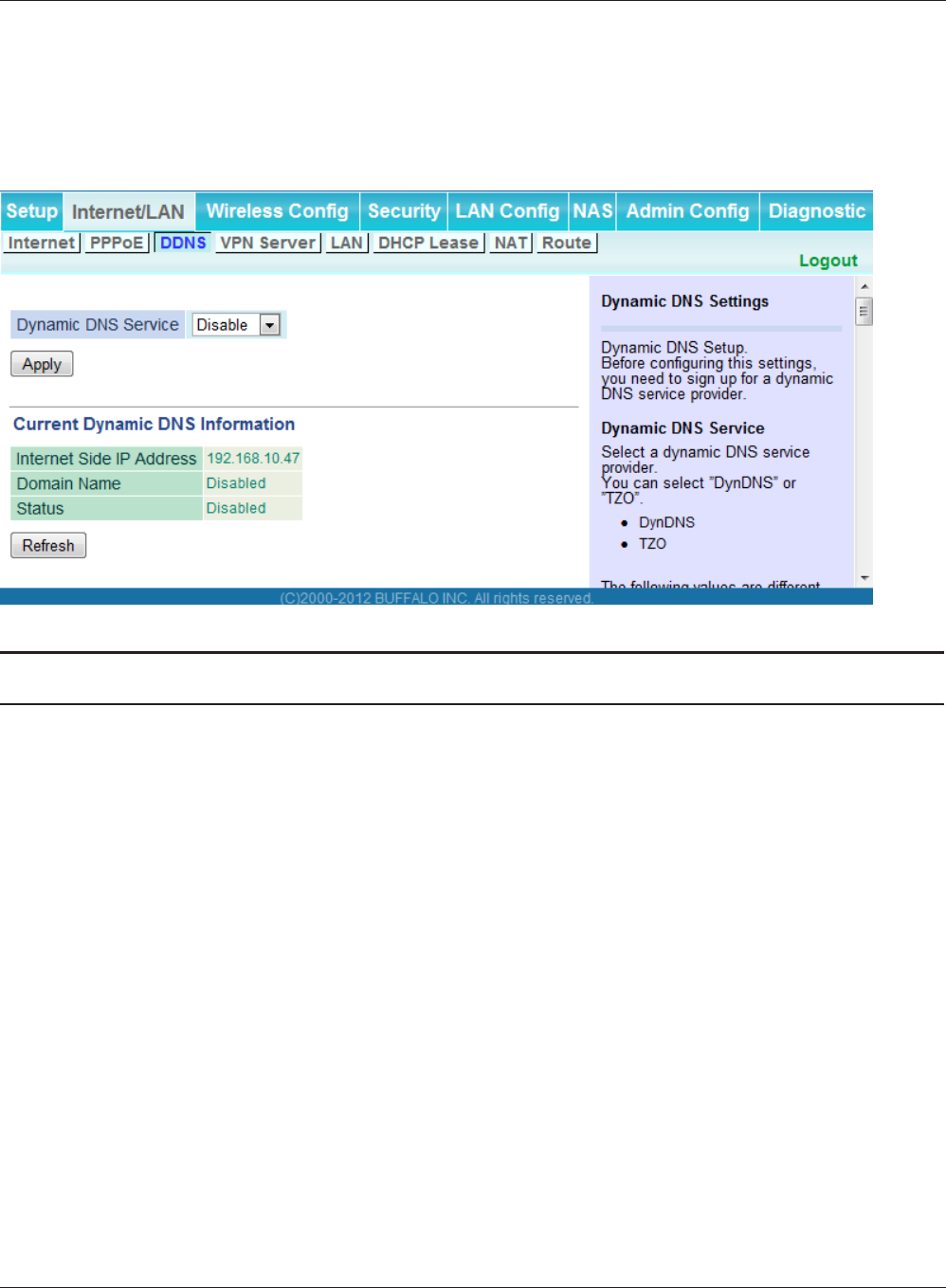

DDNS DNS settings. Page 28
VPN Server VPN server settings. Page 30

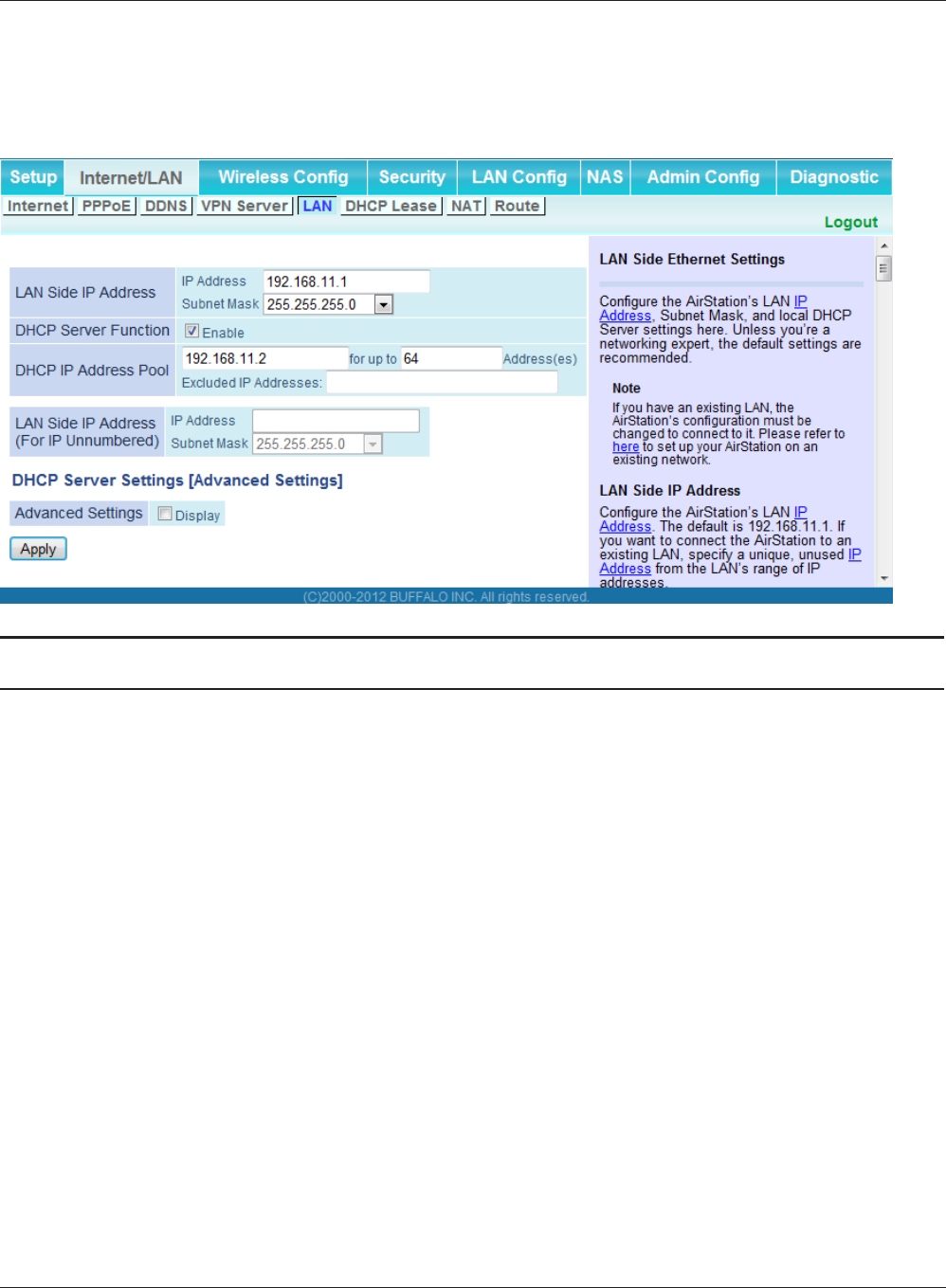

LAN LAN side port conguration. Page 32

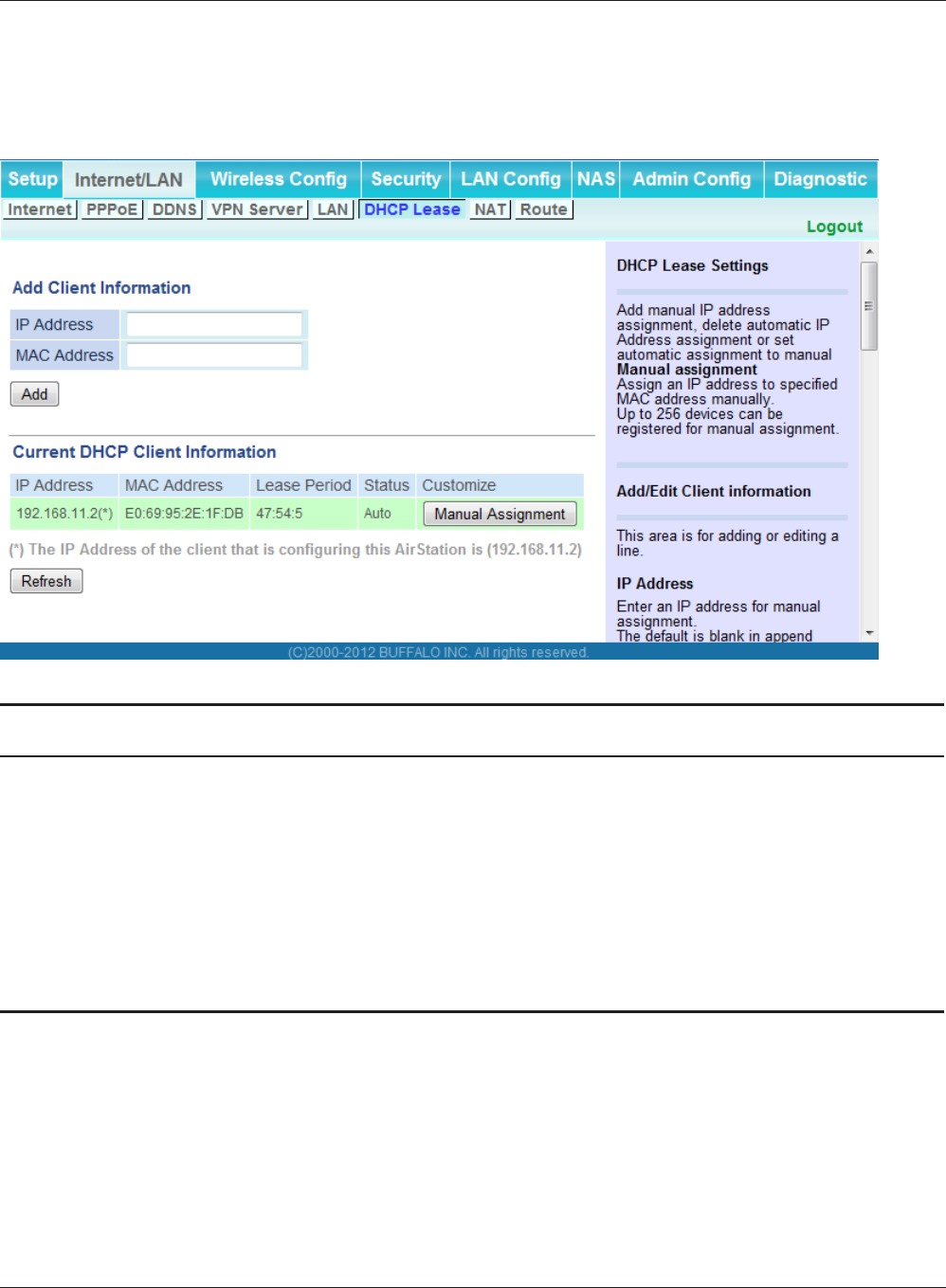

DHCP Lease DHCP lease settings. Page 34

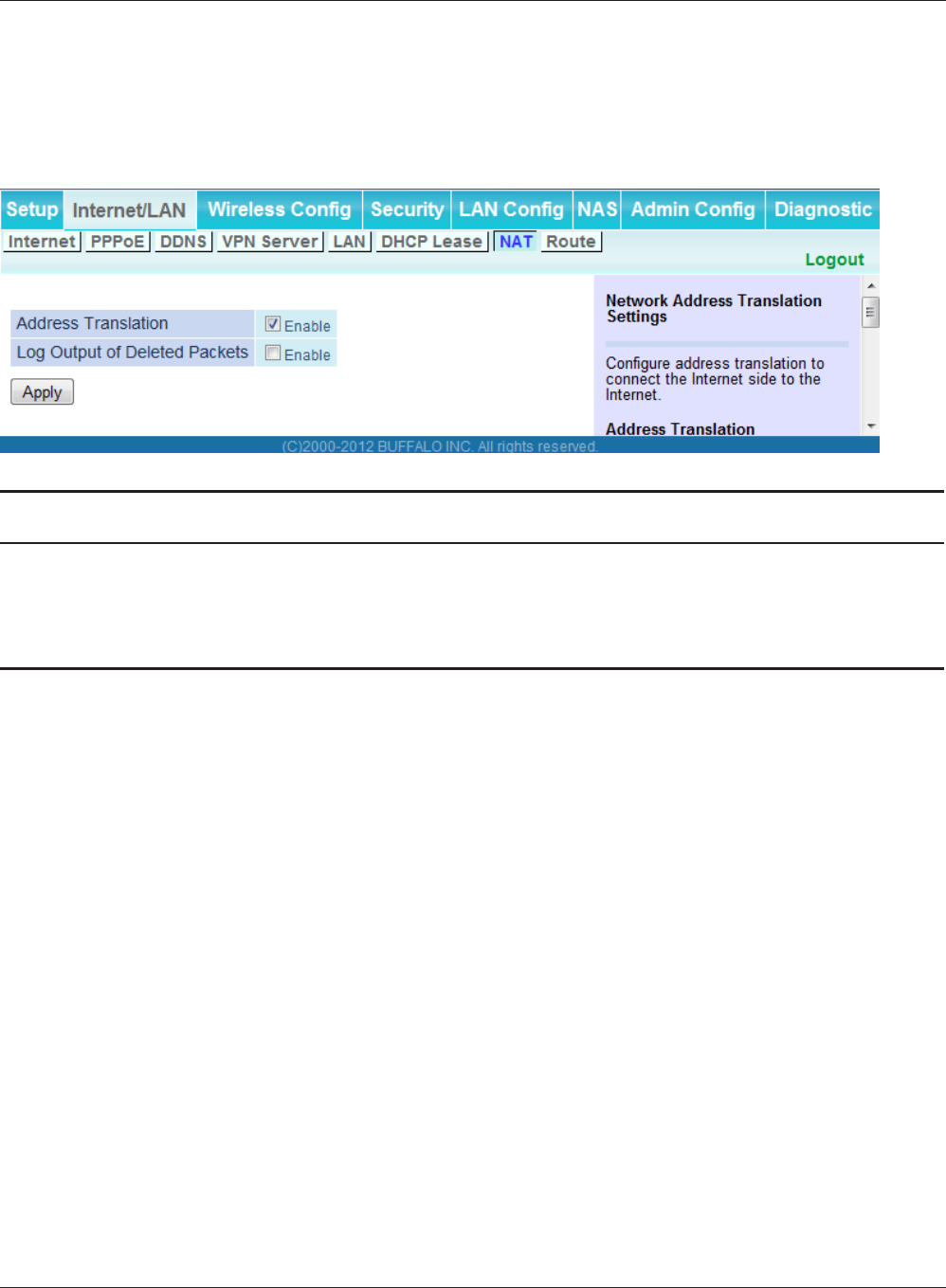

NAT Network address translation settings, used to connect LAN side devices
to the Internet.
Page 35

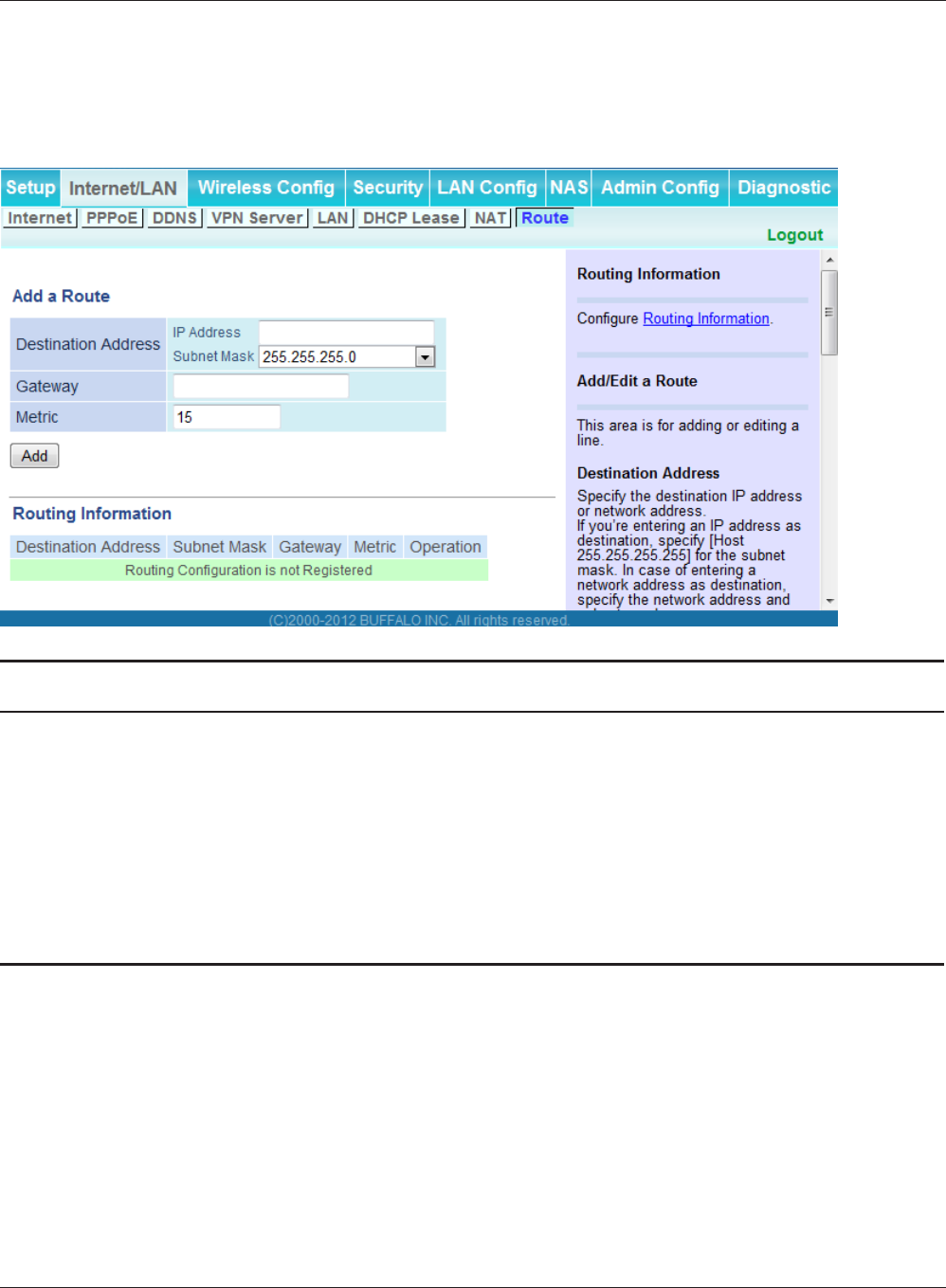

Route Congure the AirStation’s IP communication route. Page 36
Wireless Cong

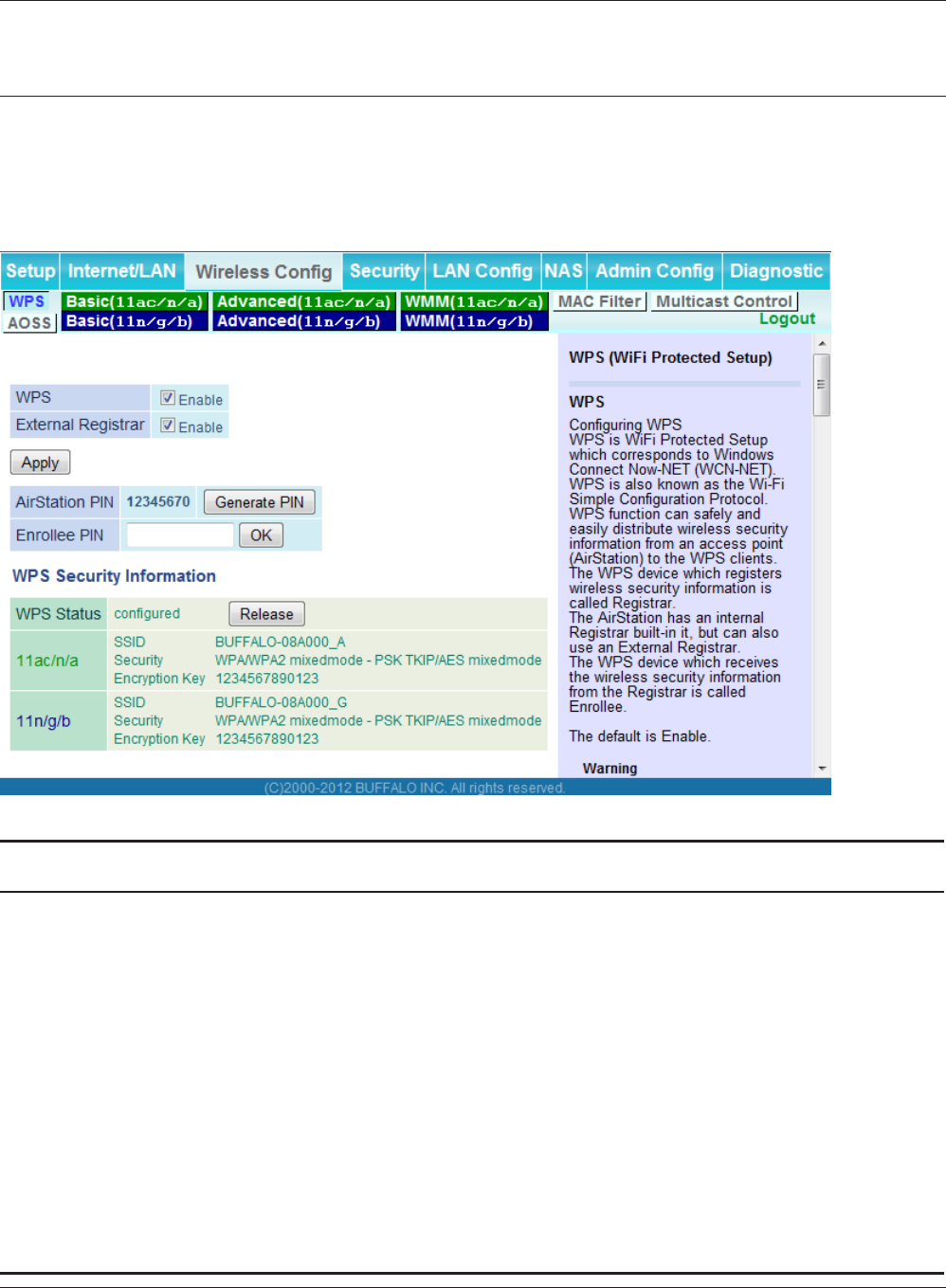

WPS WPS settings and status. Page 37

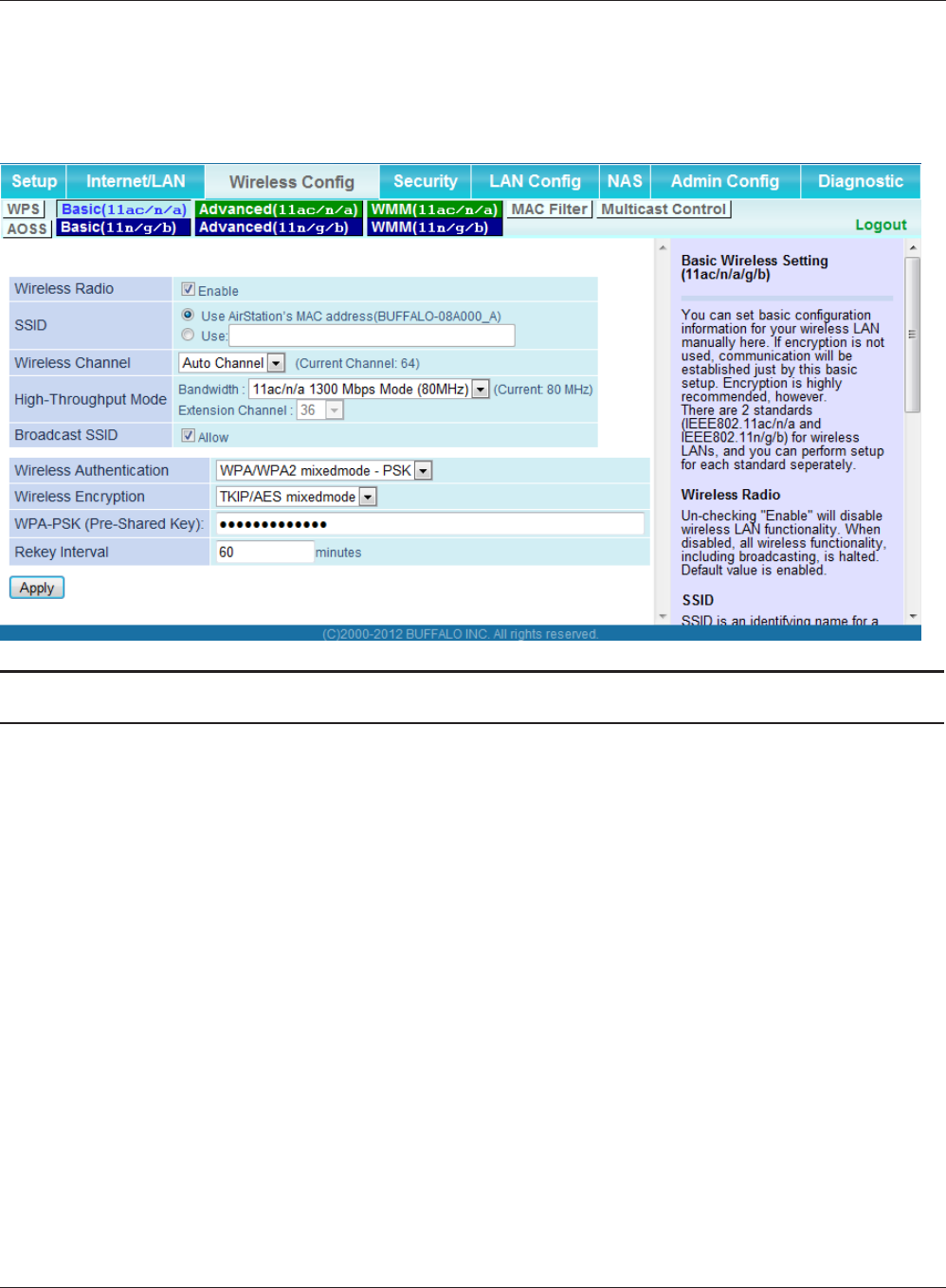

Basic Congure basic wireless settings. Page 38
Advanced Congure advanced wireless settings. Page 41

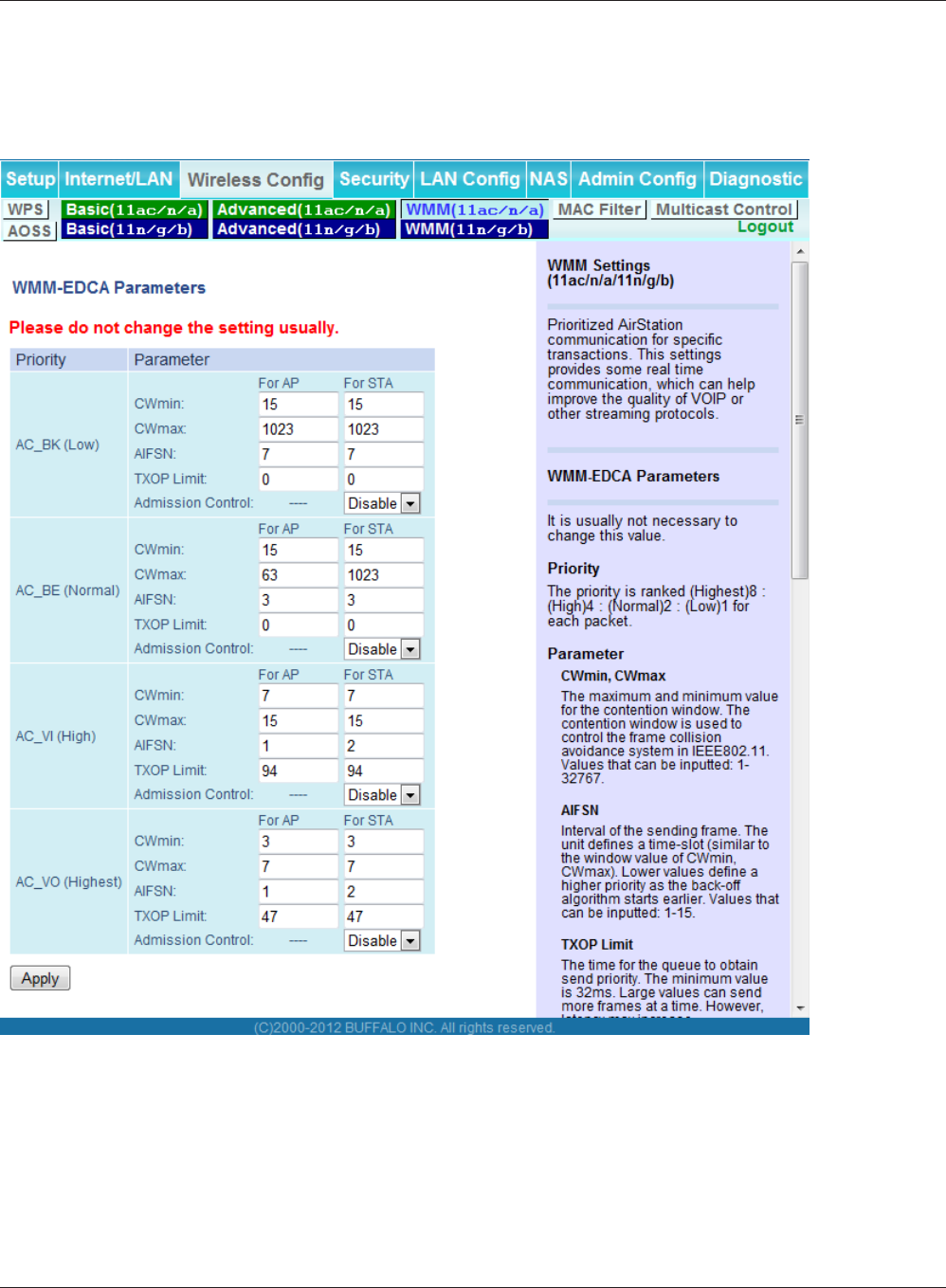

WMM Set priorities for Wireless Multimedia Extensions (Wi-Fi Multimedia). Page 42
MAC Filter Limit access to specic devices. Page 44

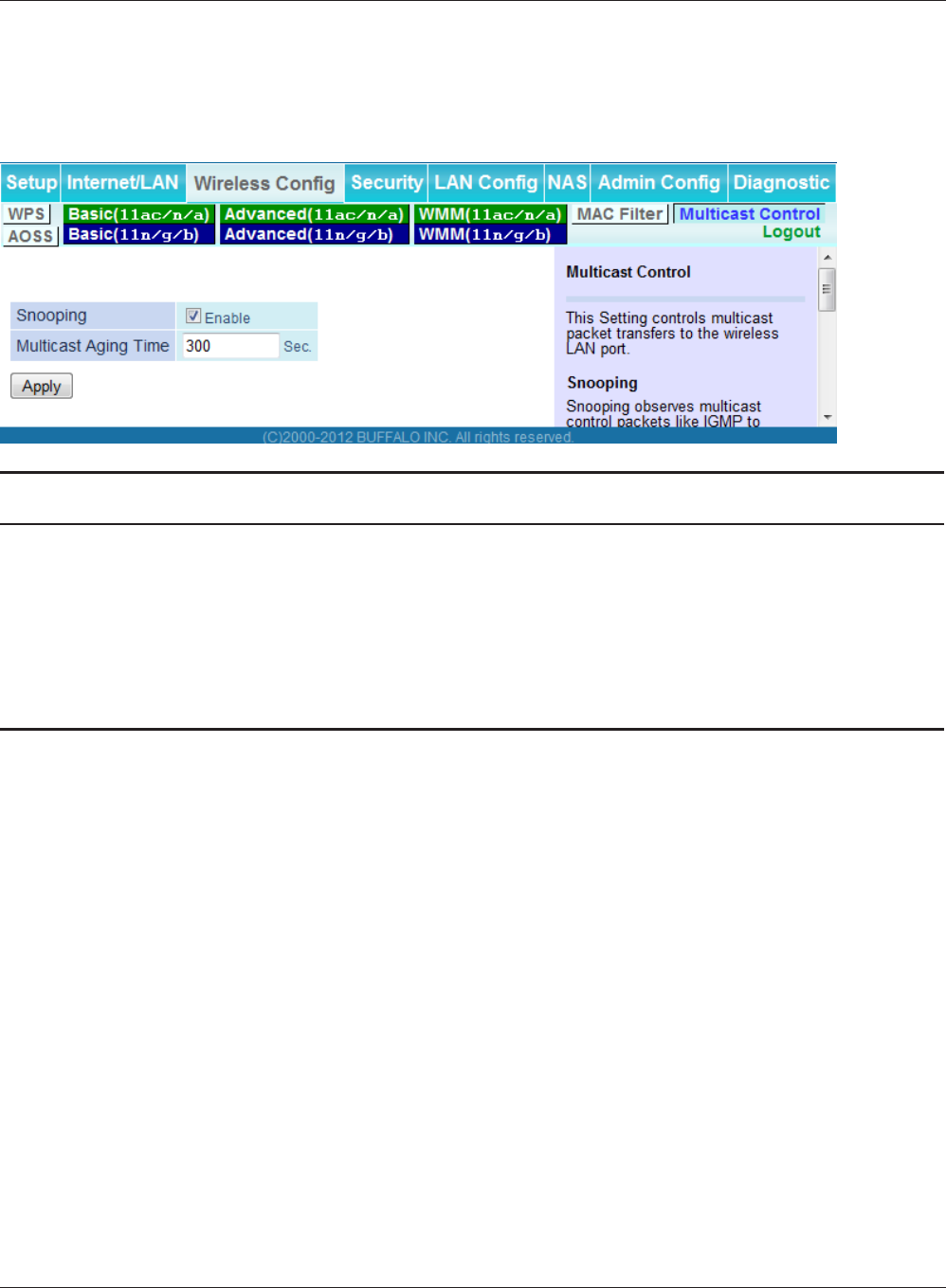

Multicast Control Congure limits on sending unnecessary multicast packets to the
wireless LAN port.
Page 45

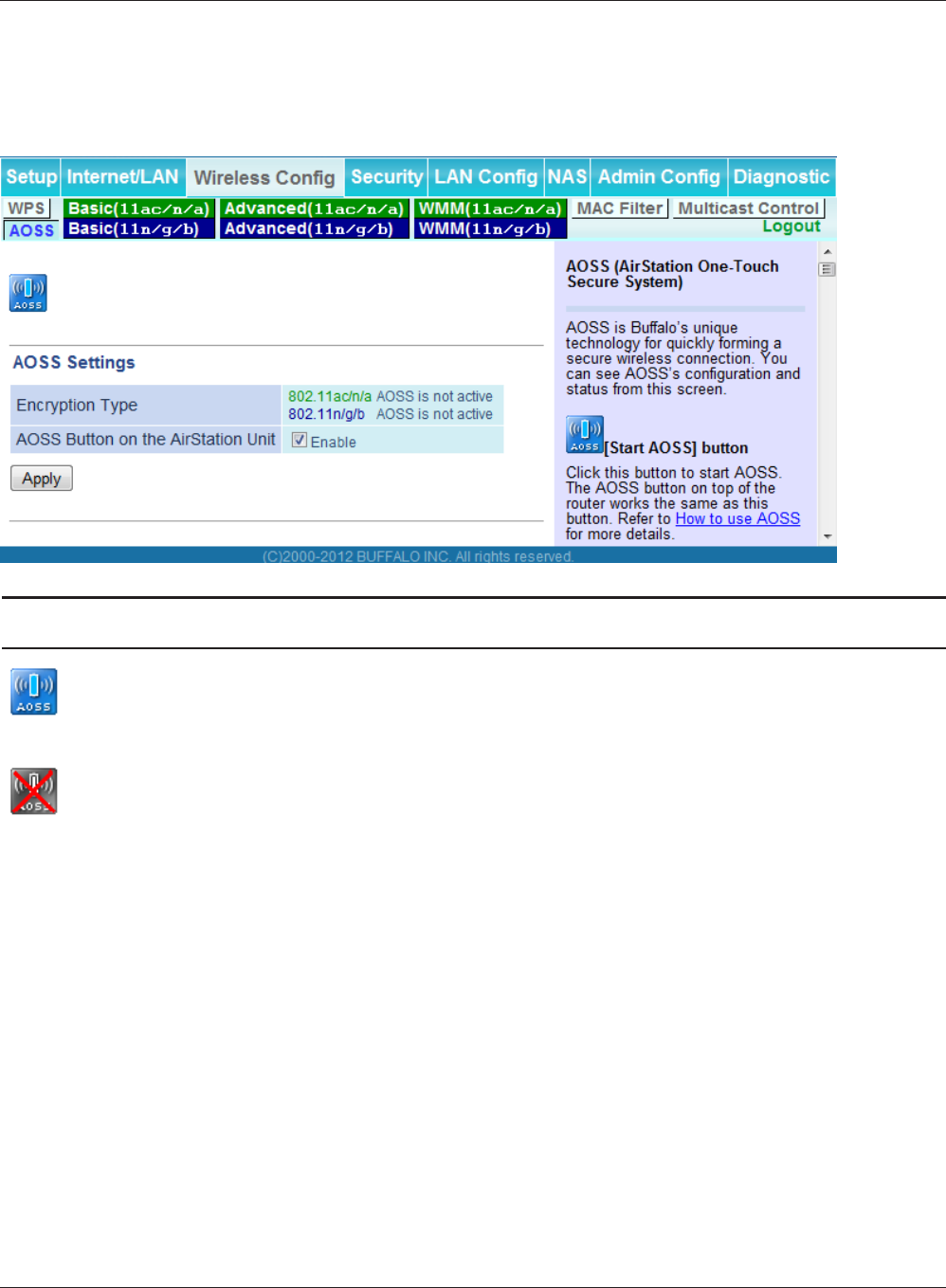

AOSS AOSS (AirStation One-touch Secure System) settings and status. Page 46
Security
Firewall Protect your computer from outside intruders. Page 47

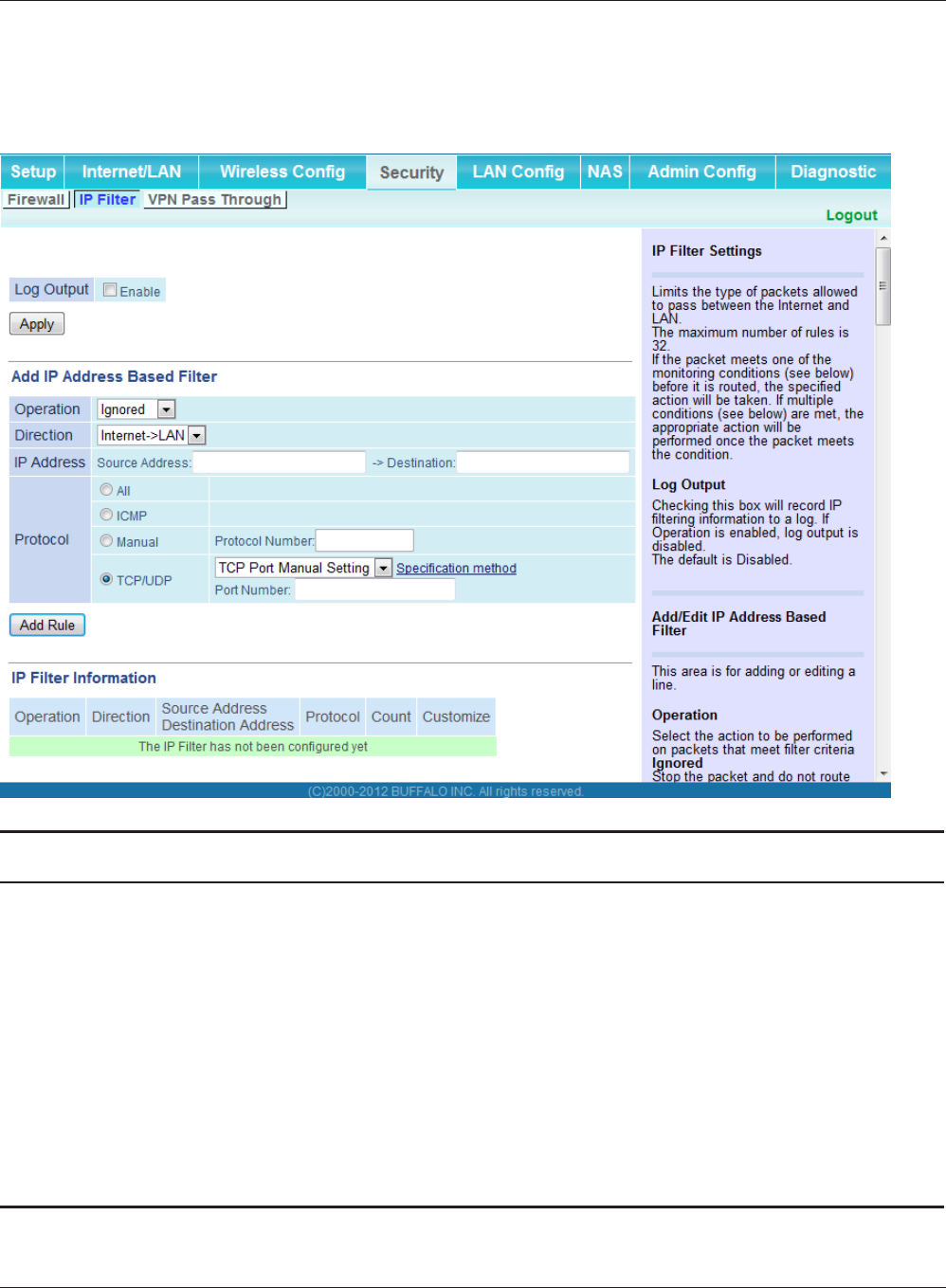

IP Filter IP lters for packets passing through the LAN side and the Internet side. Page 49

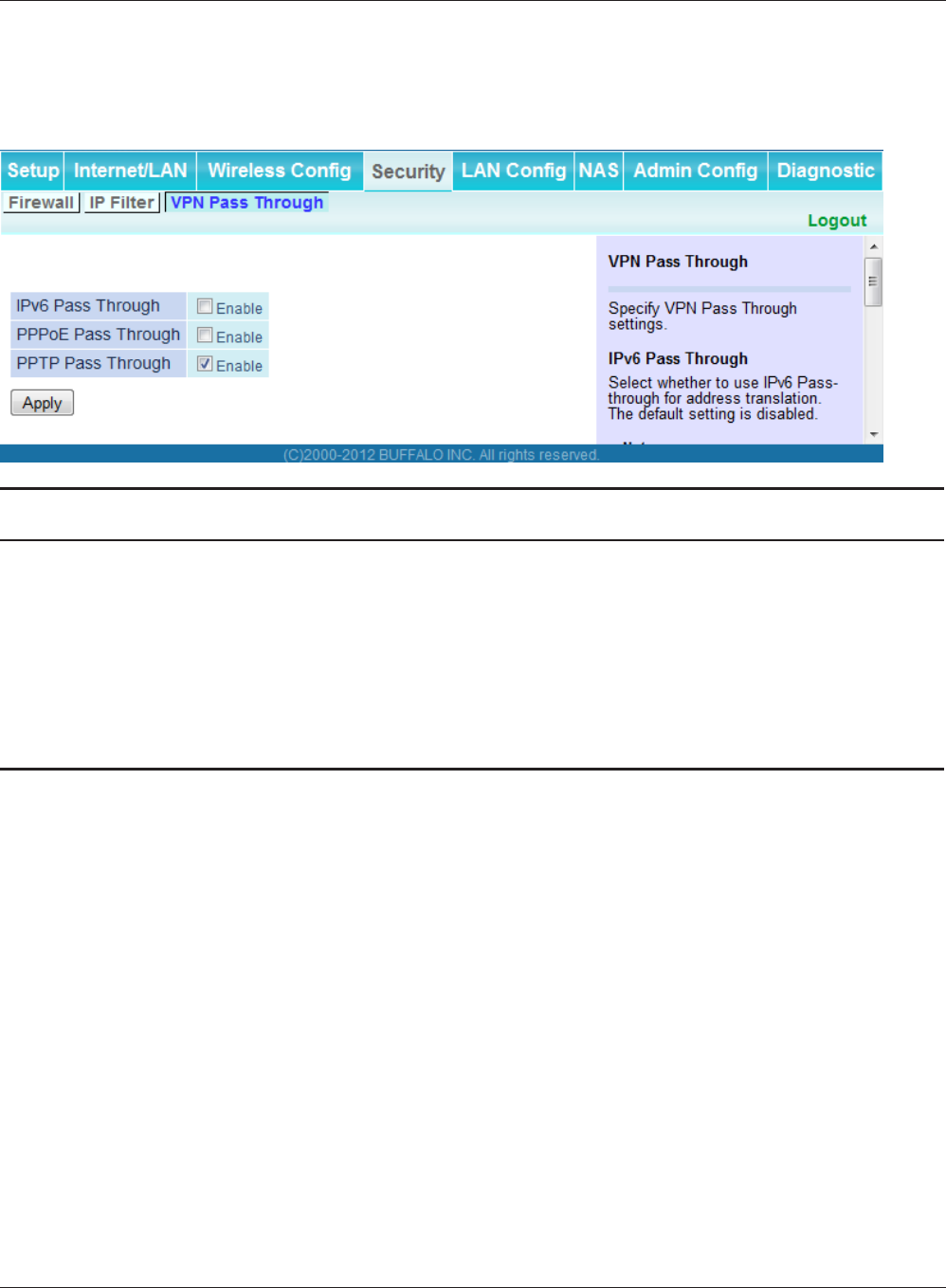

VPN
Passthrough
Congure IPv6 passthrough, PPPoE passthrough, and PPTP passthrough. Page 50
LAN Cong

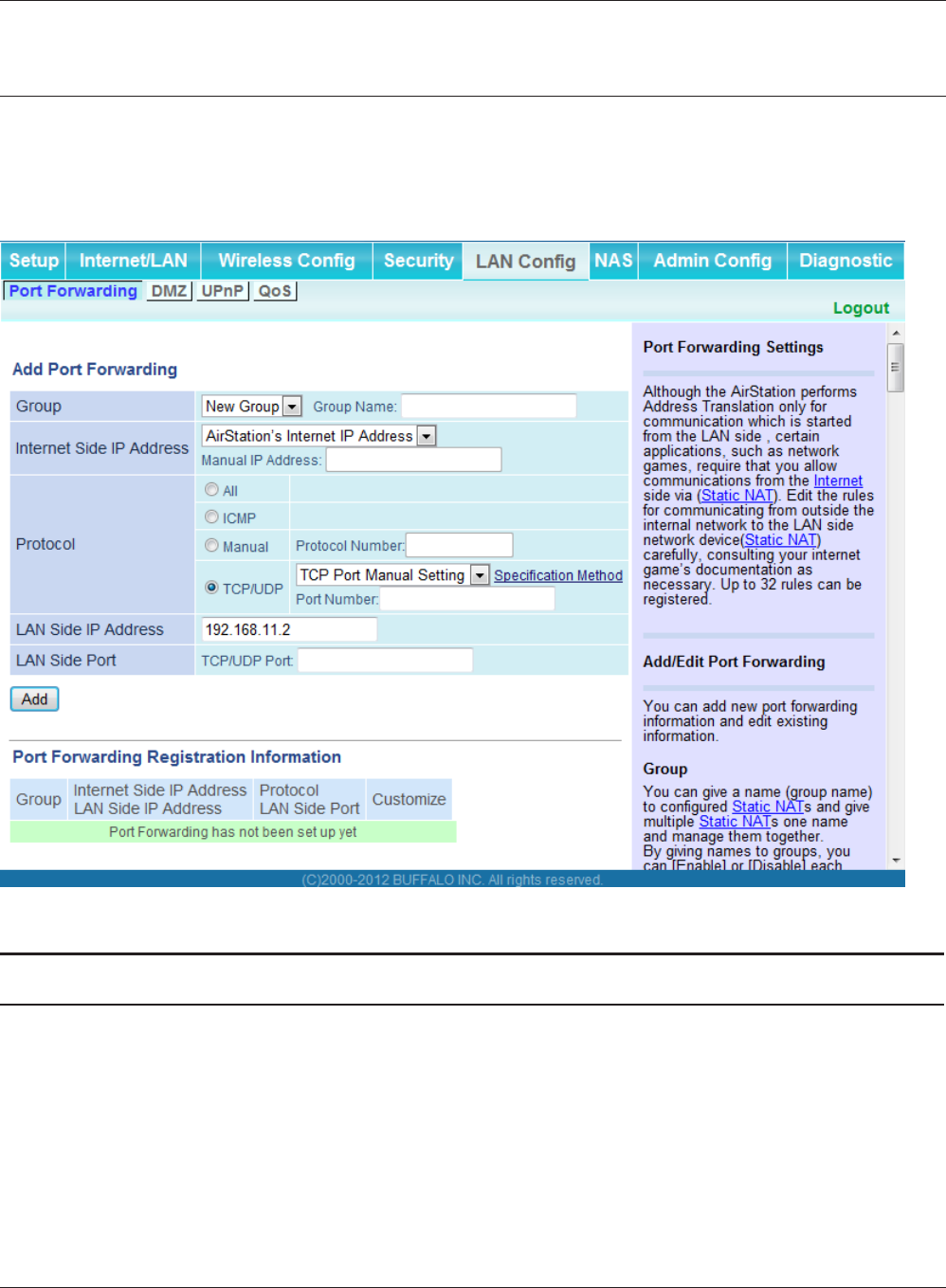

Port Forwarding Congure port translation and exceptions for games and other
programs.
Page 51
DMZ Congure a destination to transfer communication packets without a
LAN side destination.
Page 52

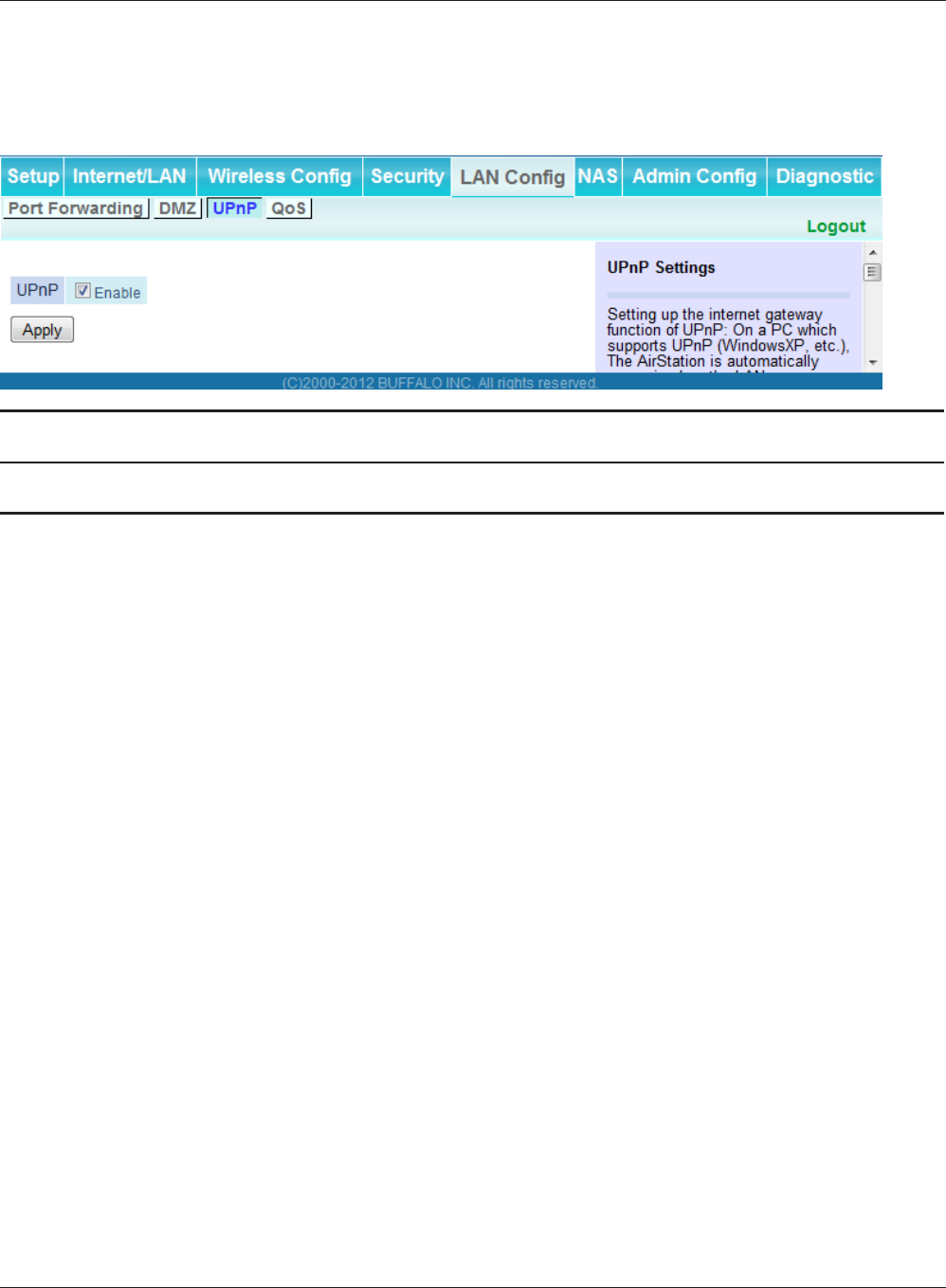

UPnP Congure UPnP (Universal Plug and Play). Page 53

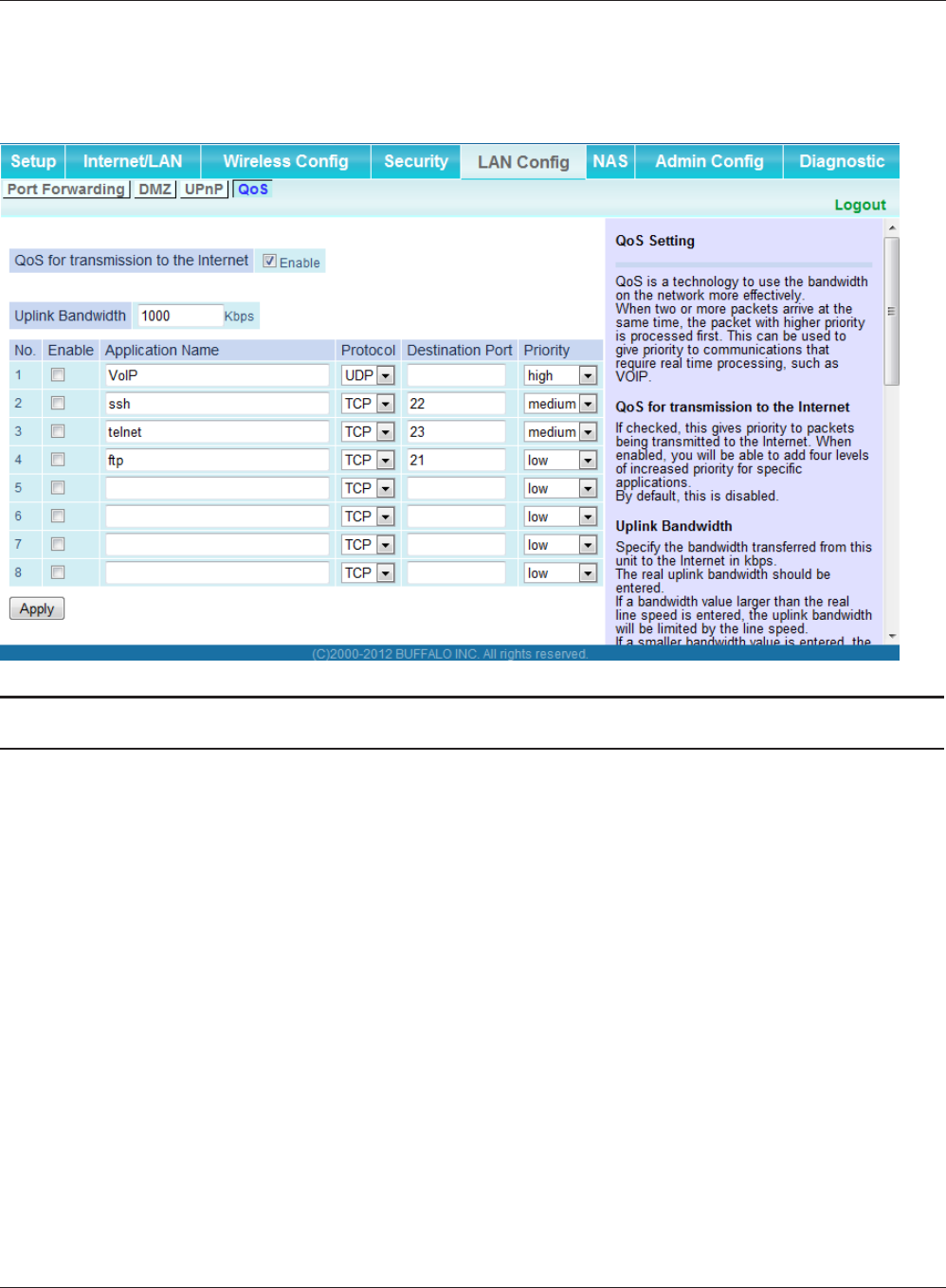

QoS Congure priority for packets that require a guaranteed data ow. Page 54
NAS
Disk Management View the status and congure of attached USB disks. Page 55

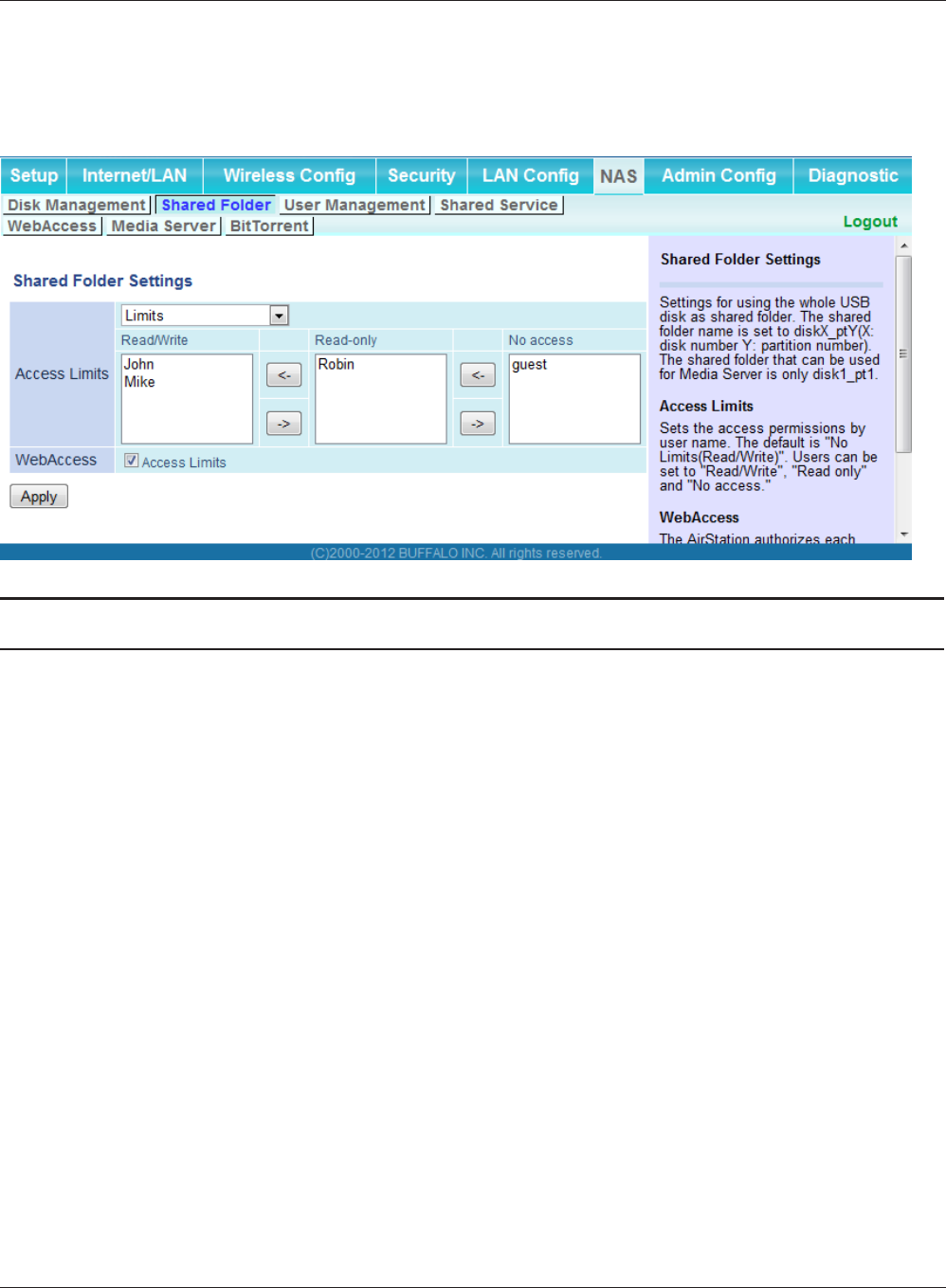

Shared Folder Set the USB disk to use as shared folders. Page 57

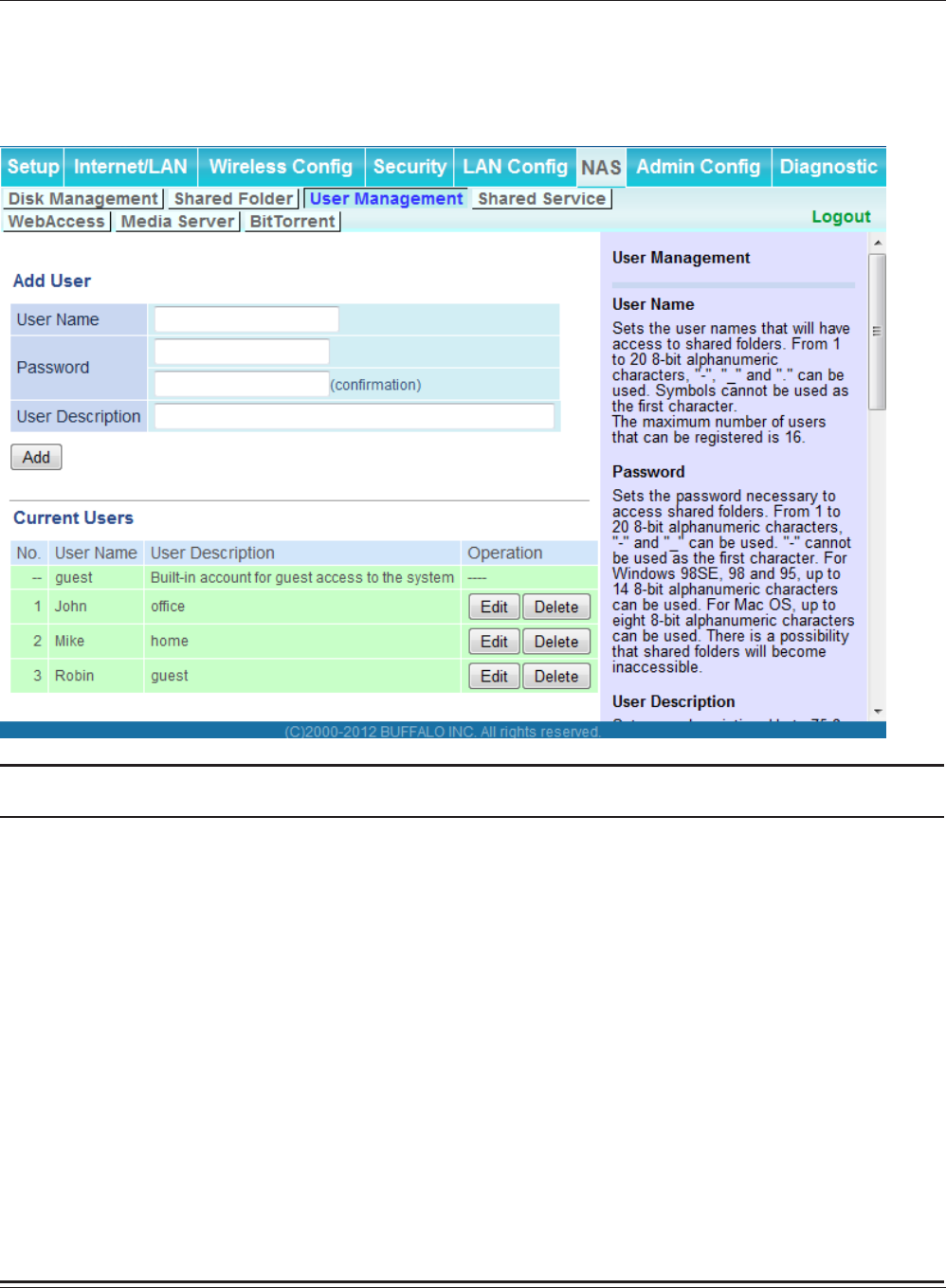

User Management Congure users to access shared folders. Page 59

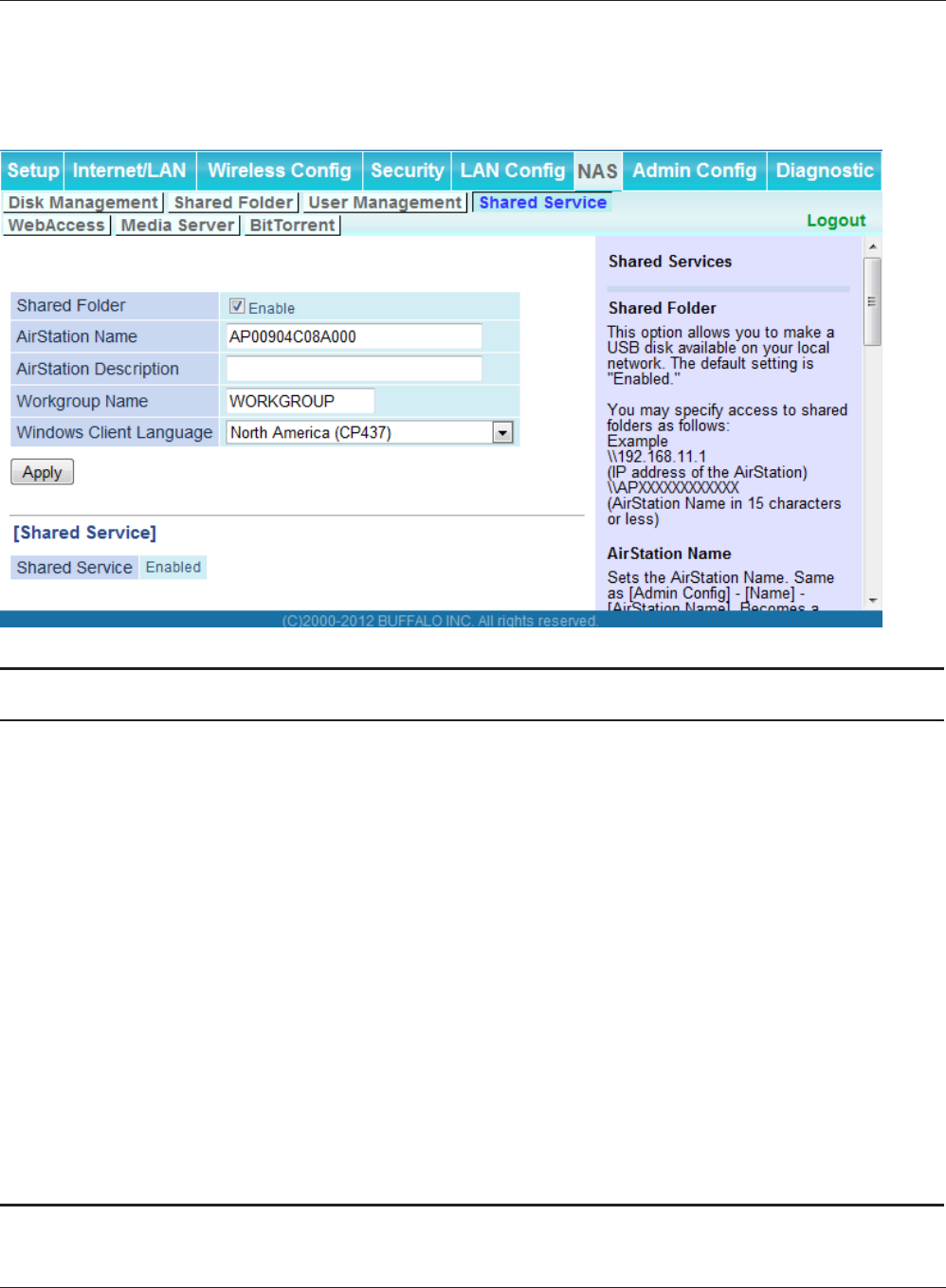

Shared Service Congure shared folder access. Page 60
Web Access Congure Web Access. Page 61

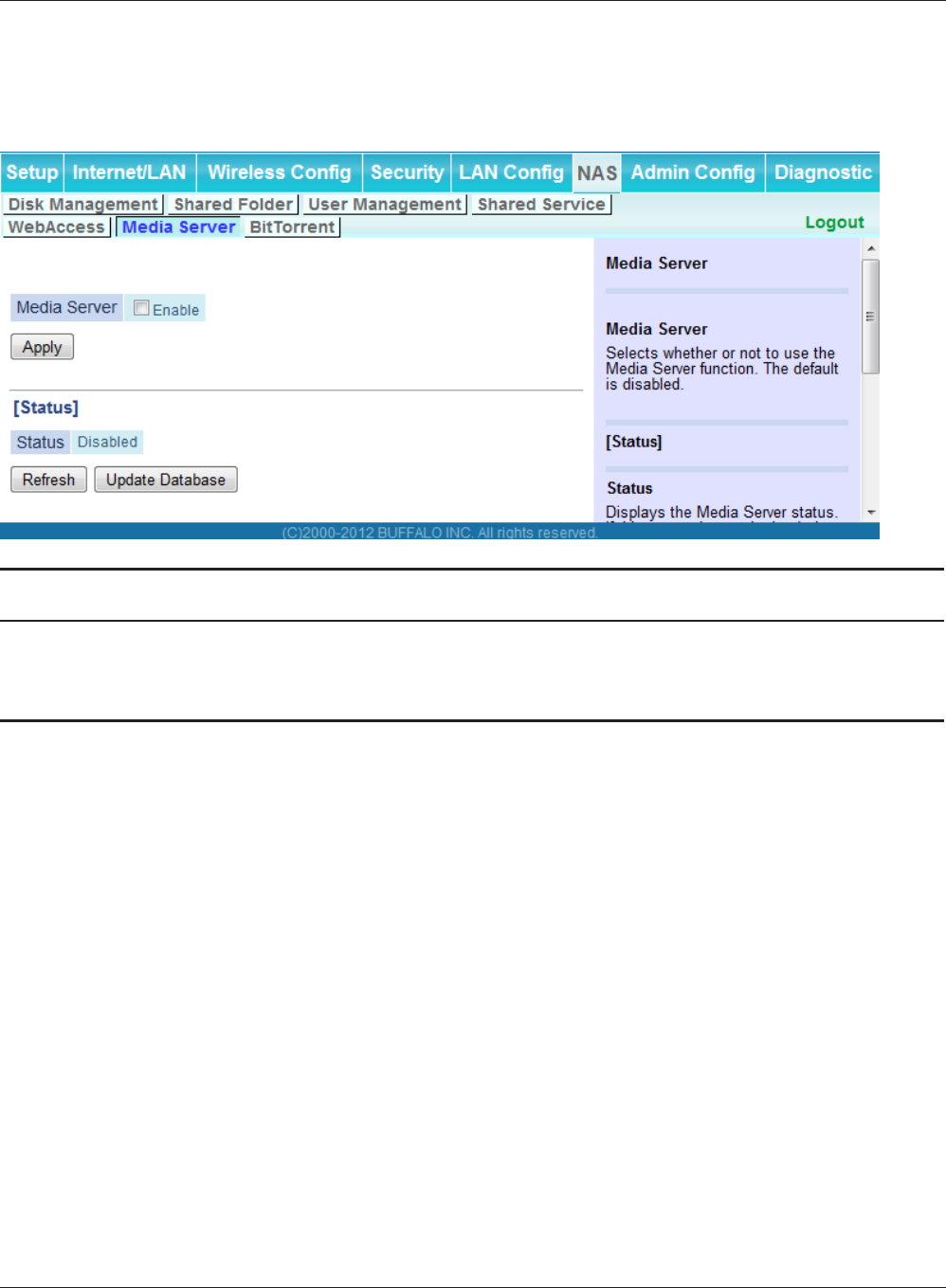

Media Server Congure a Media Server. Page 63

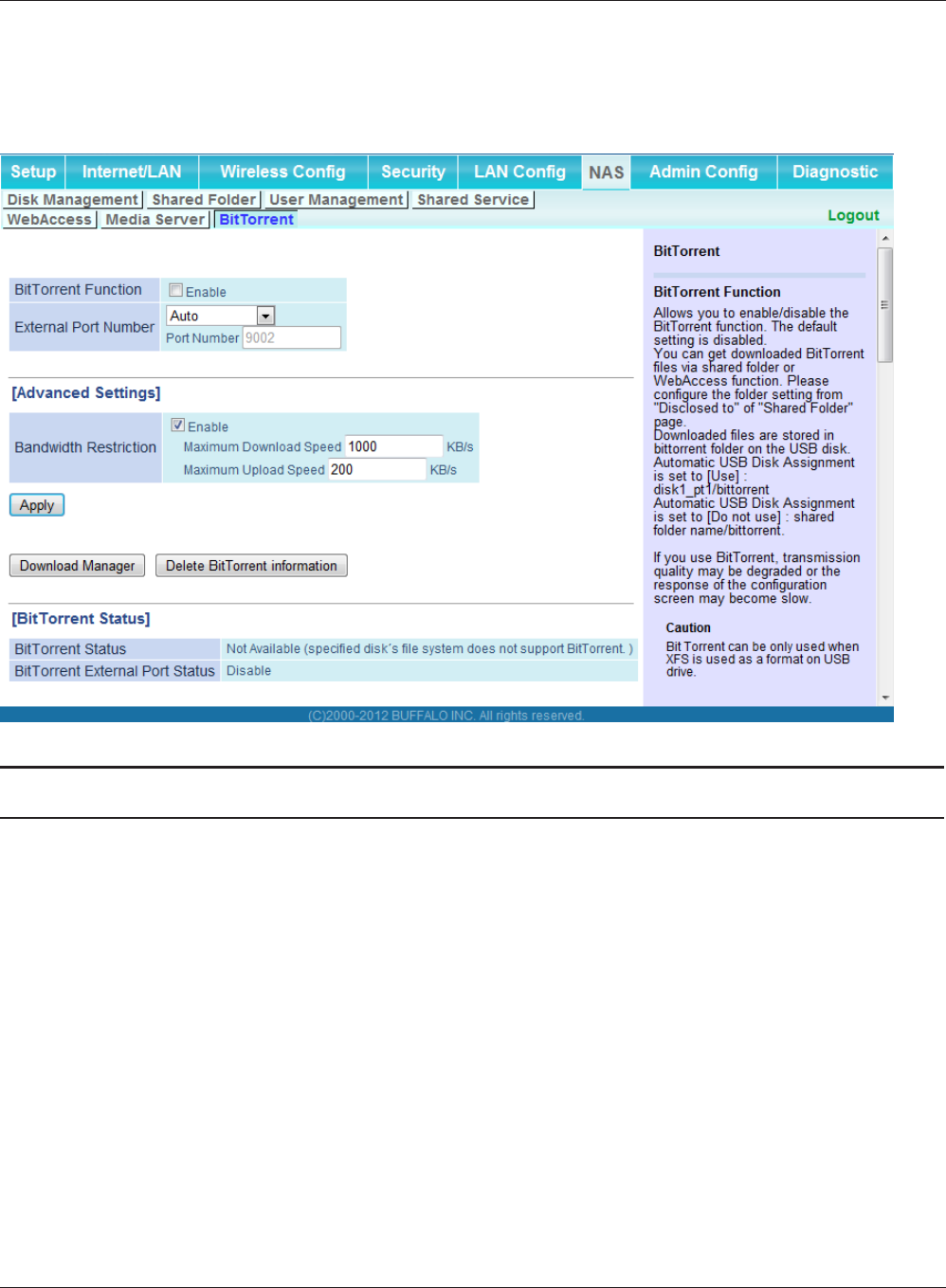

BitTorrent Congure a BitTorrent client. Page 64
Admin Cong

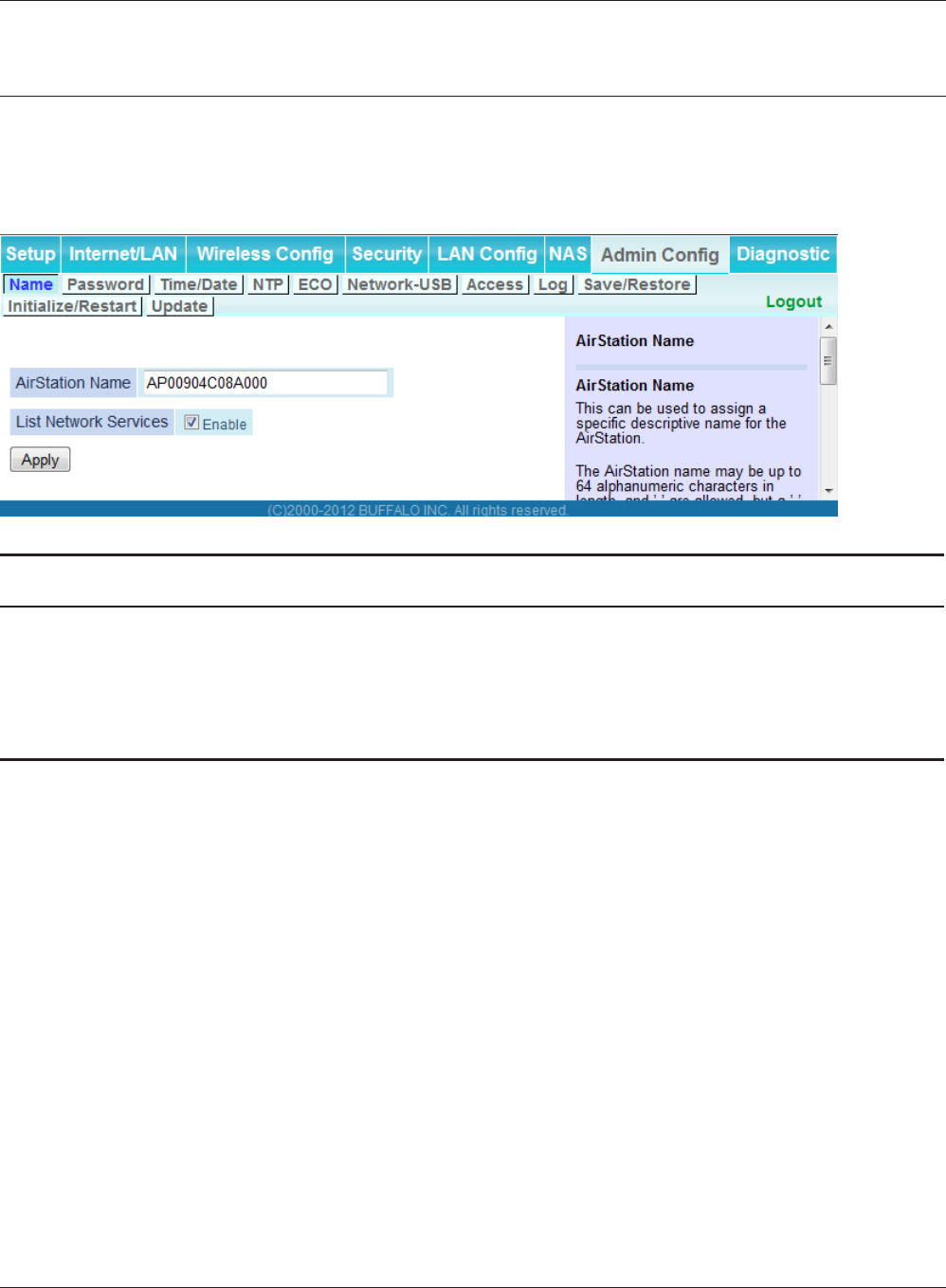

Name Congure the AirStation’s name. Page 66
Password Congure the AirStation’s login password for access to the conguration
interface.
Page 67

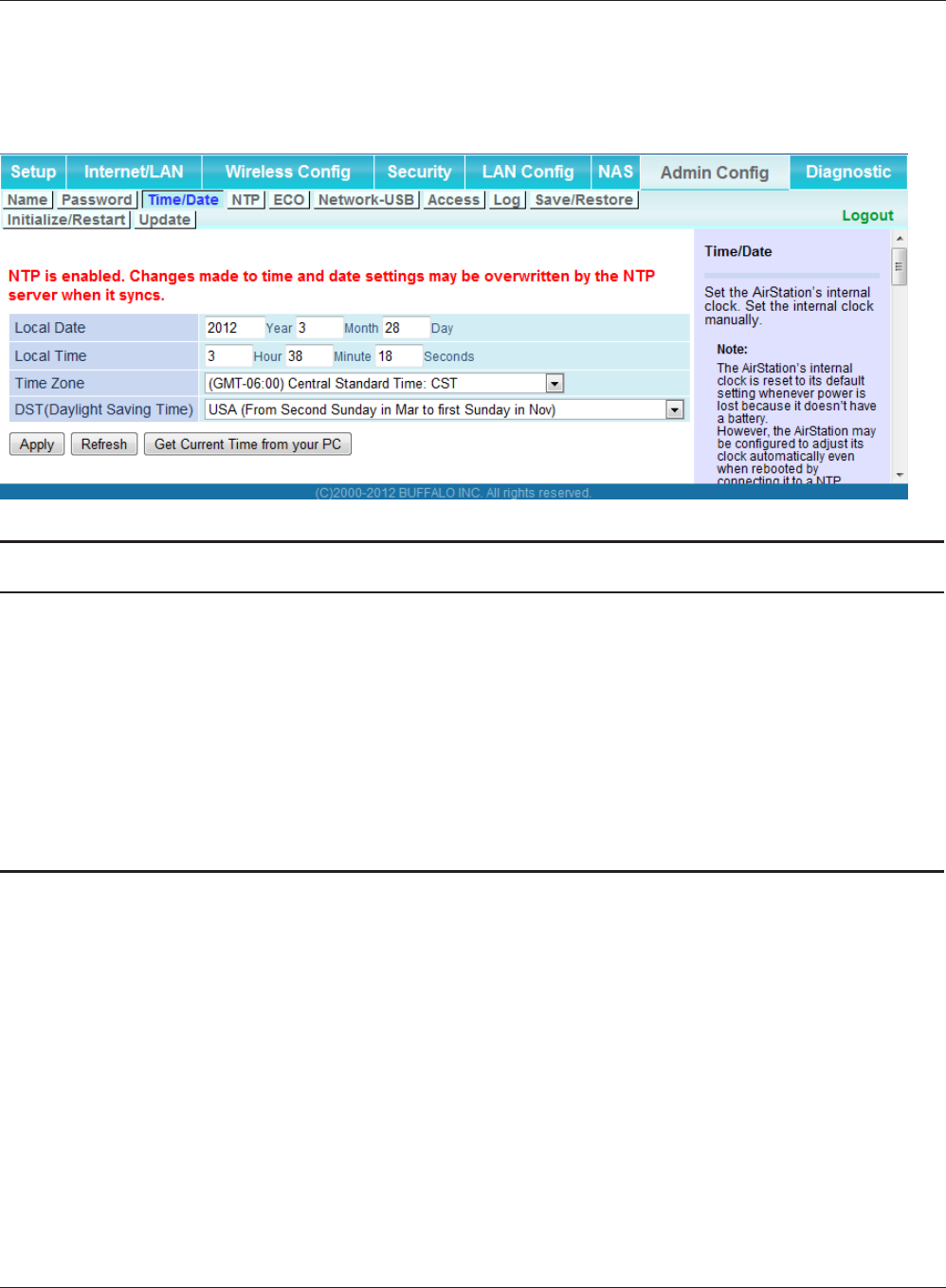

Time/Date Congure the AirStation’s internal clock. Page 68

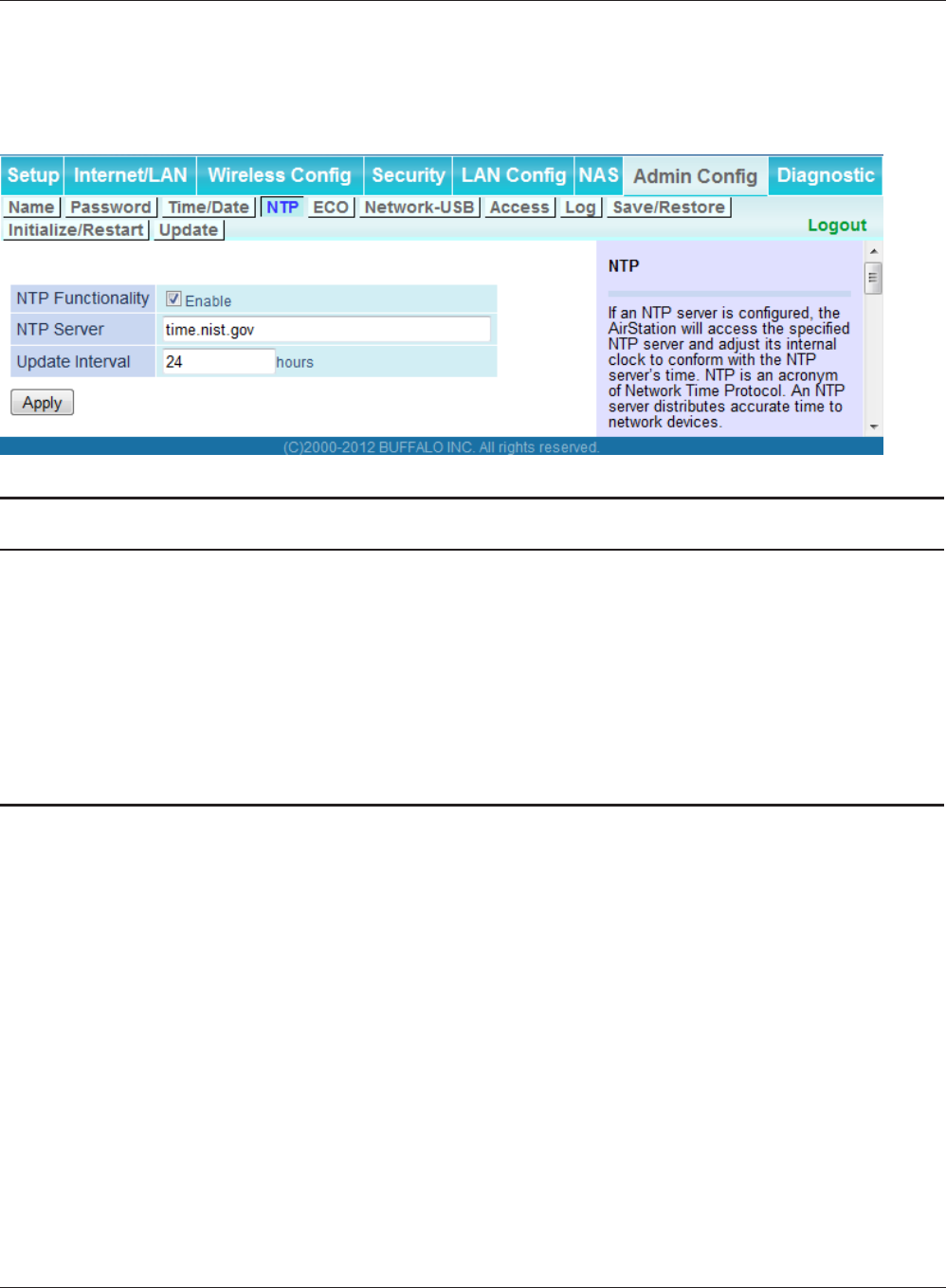

NTP Congure the AirStation to synchronize with an NTP server to
automatically set the AirStation’s internal clock.
Page 69

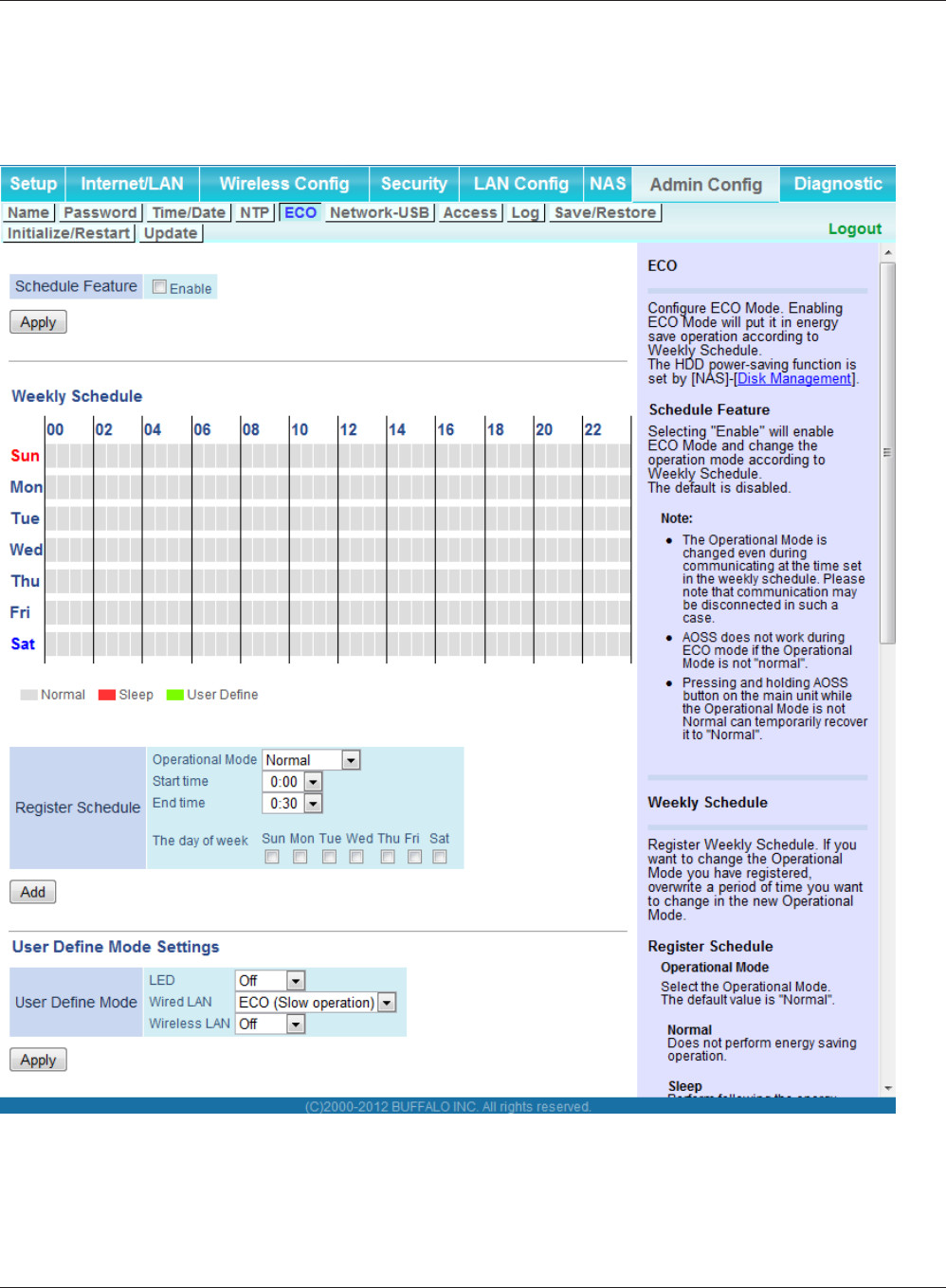

ECO Congure the AirStation’s ECO Mode. Page 70

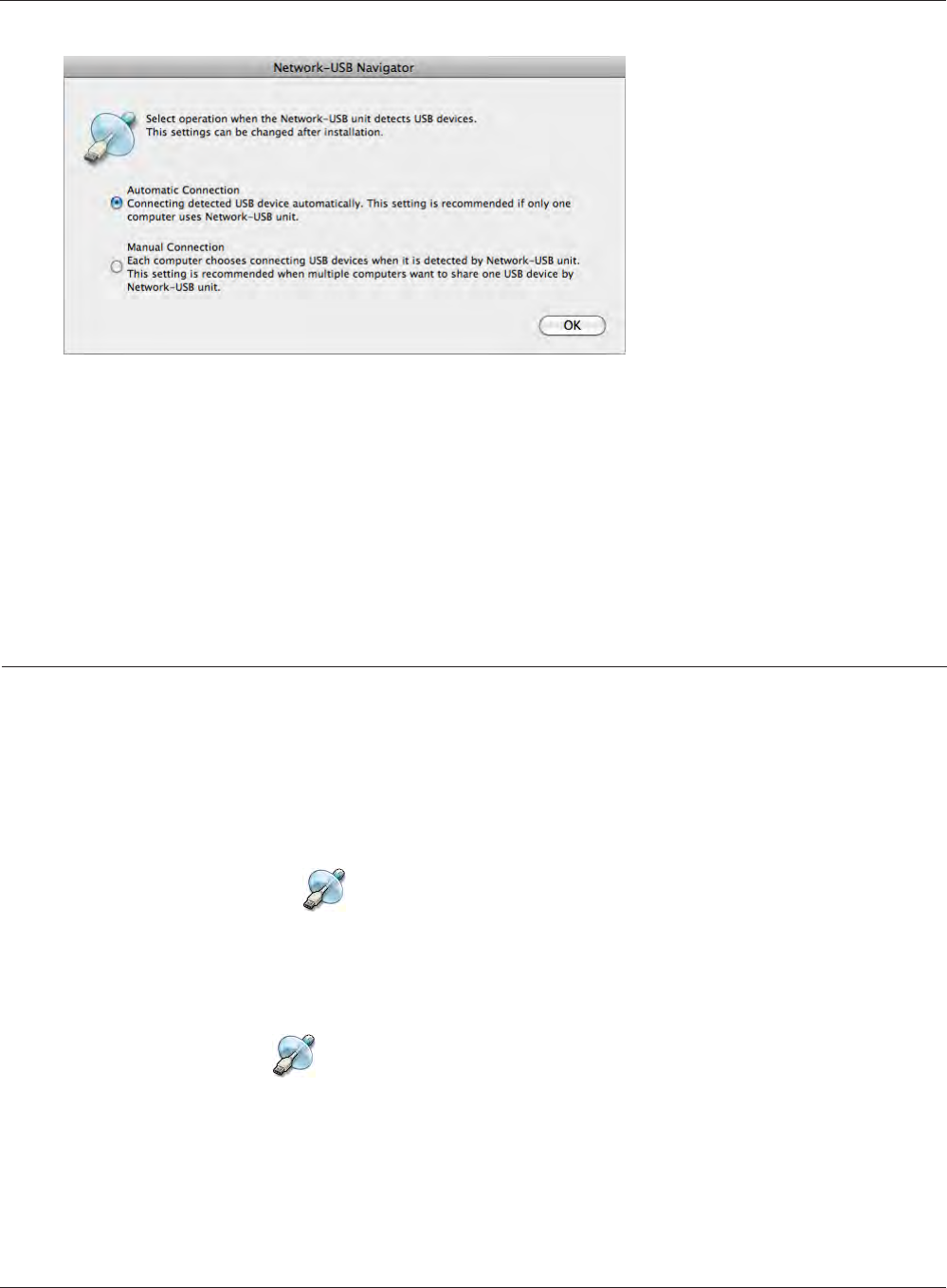

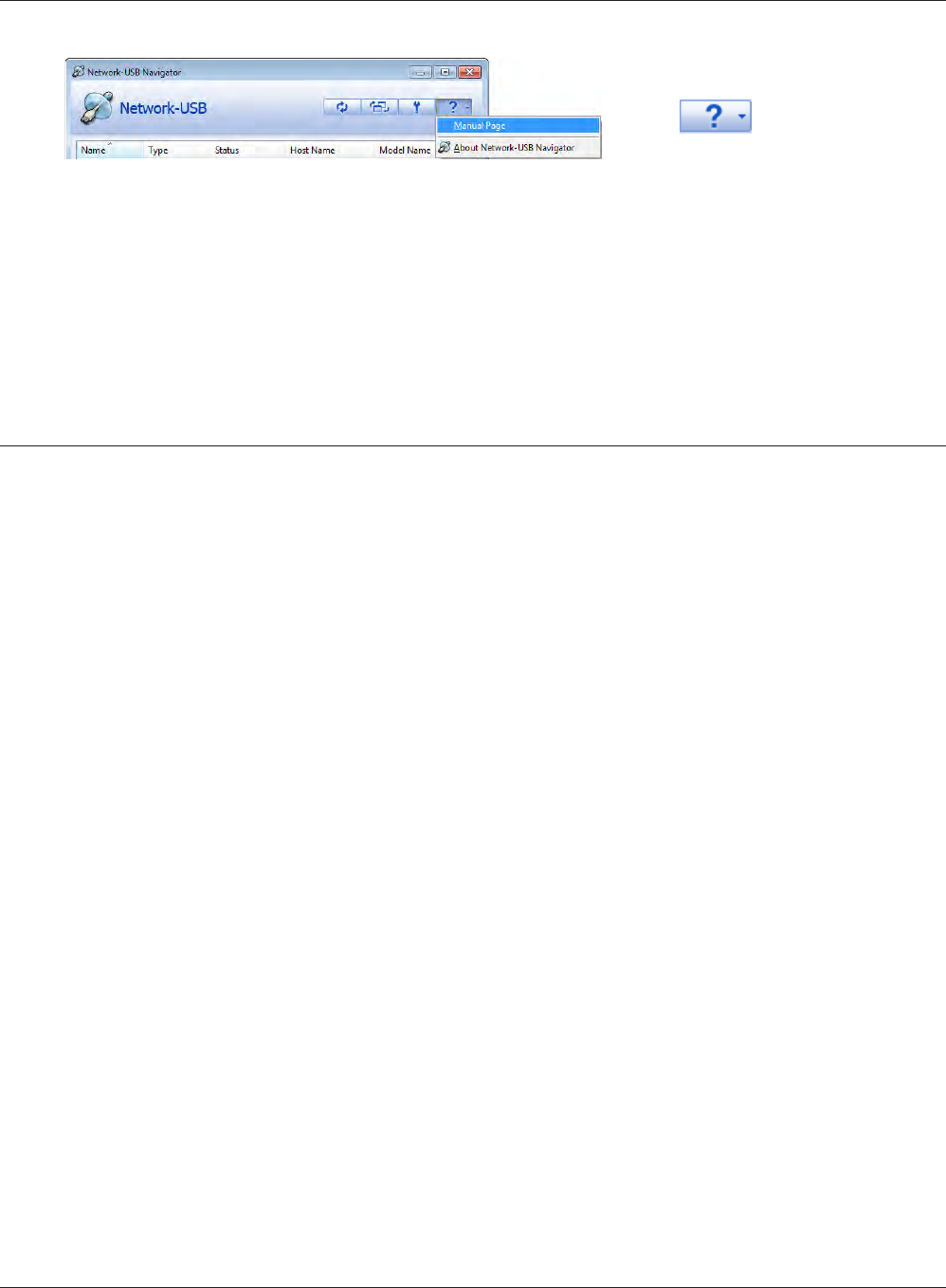

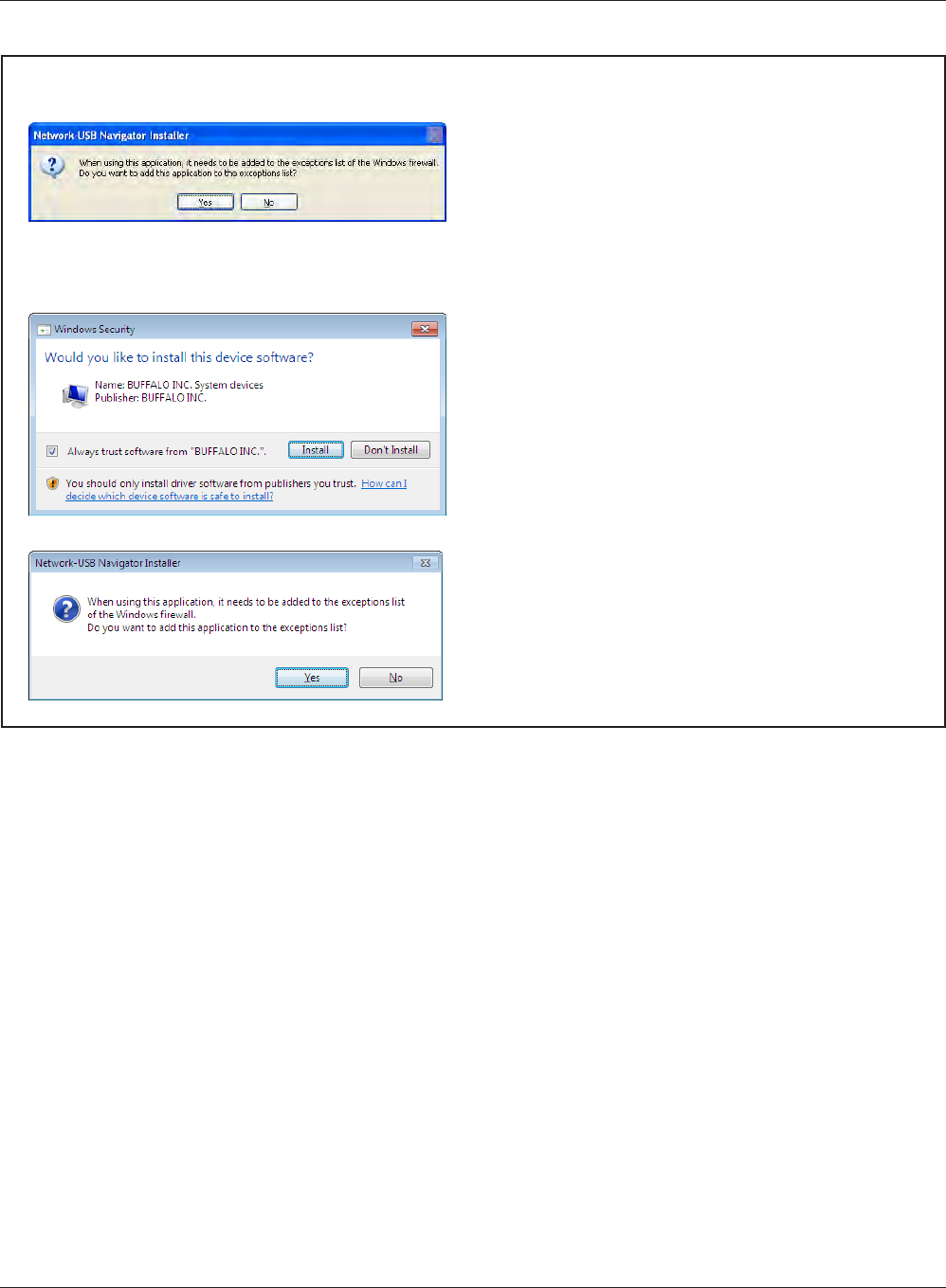

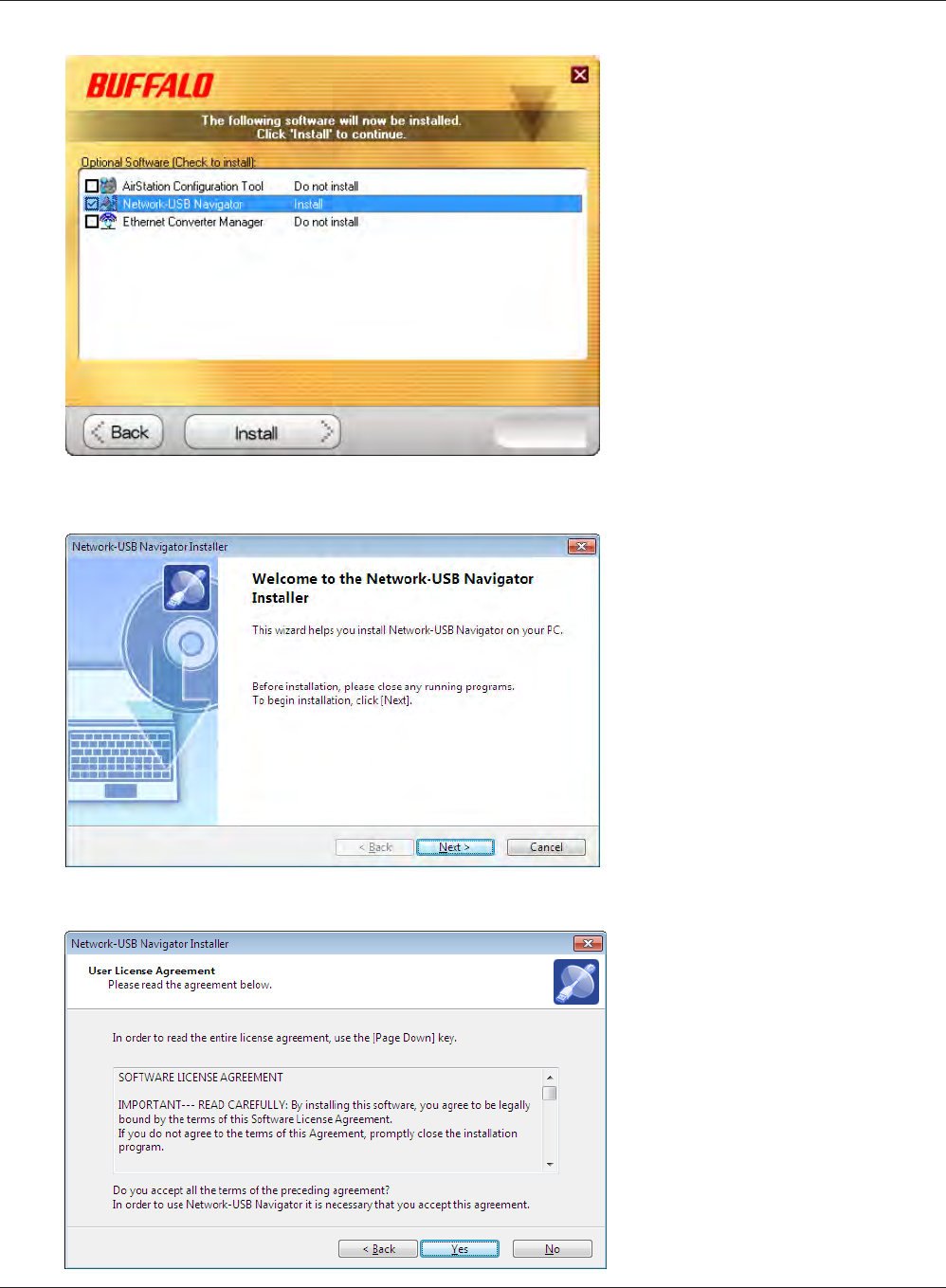

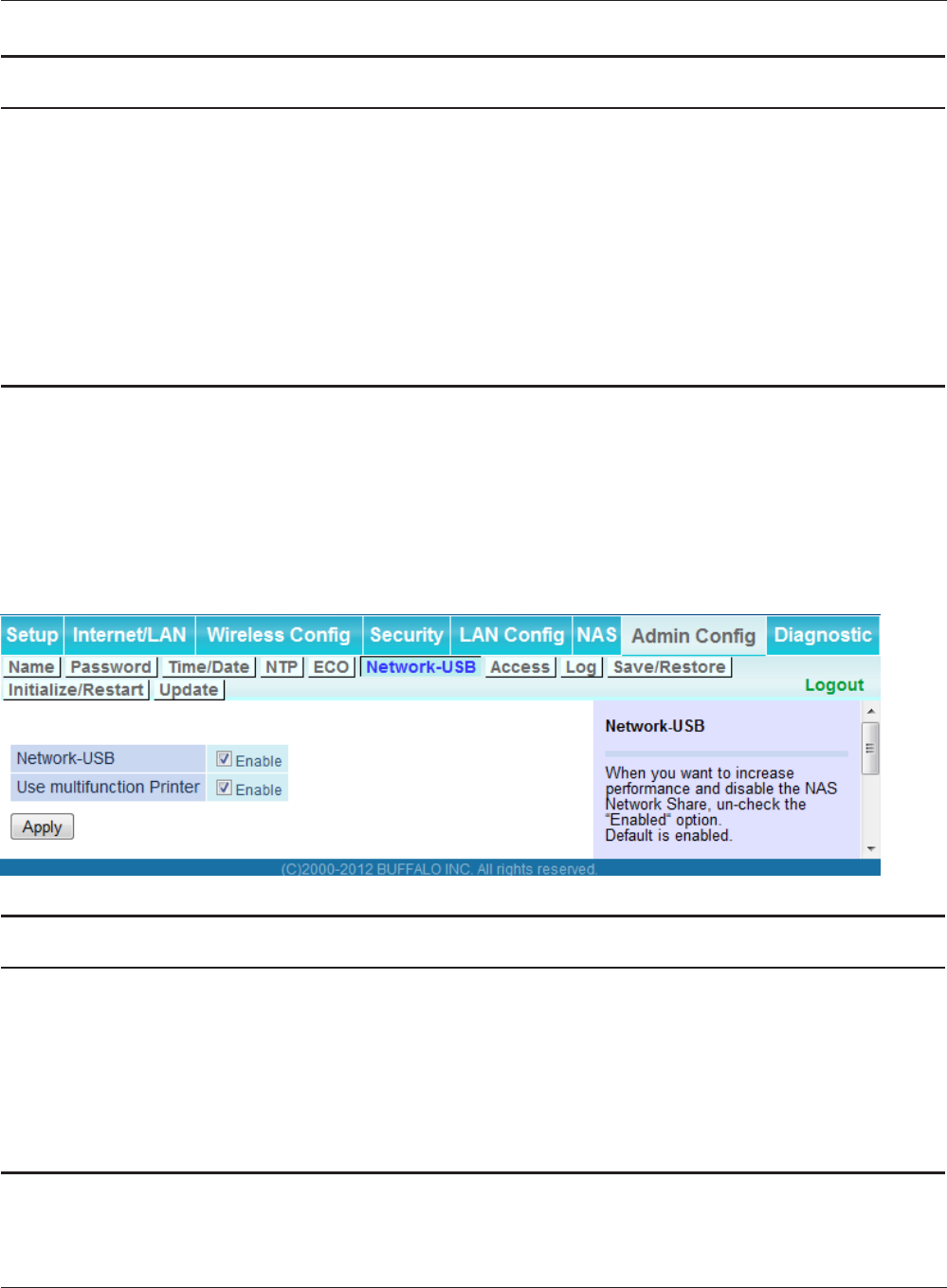

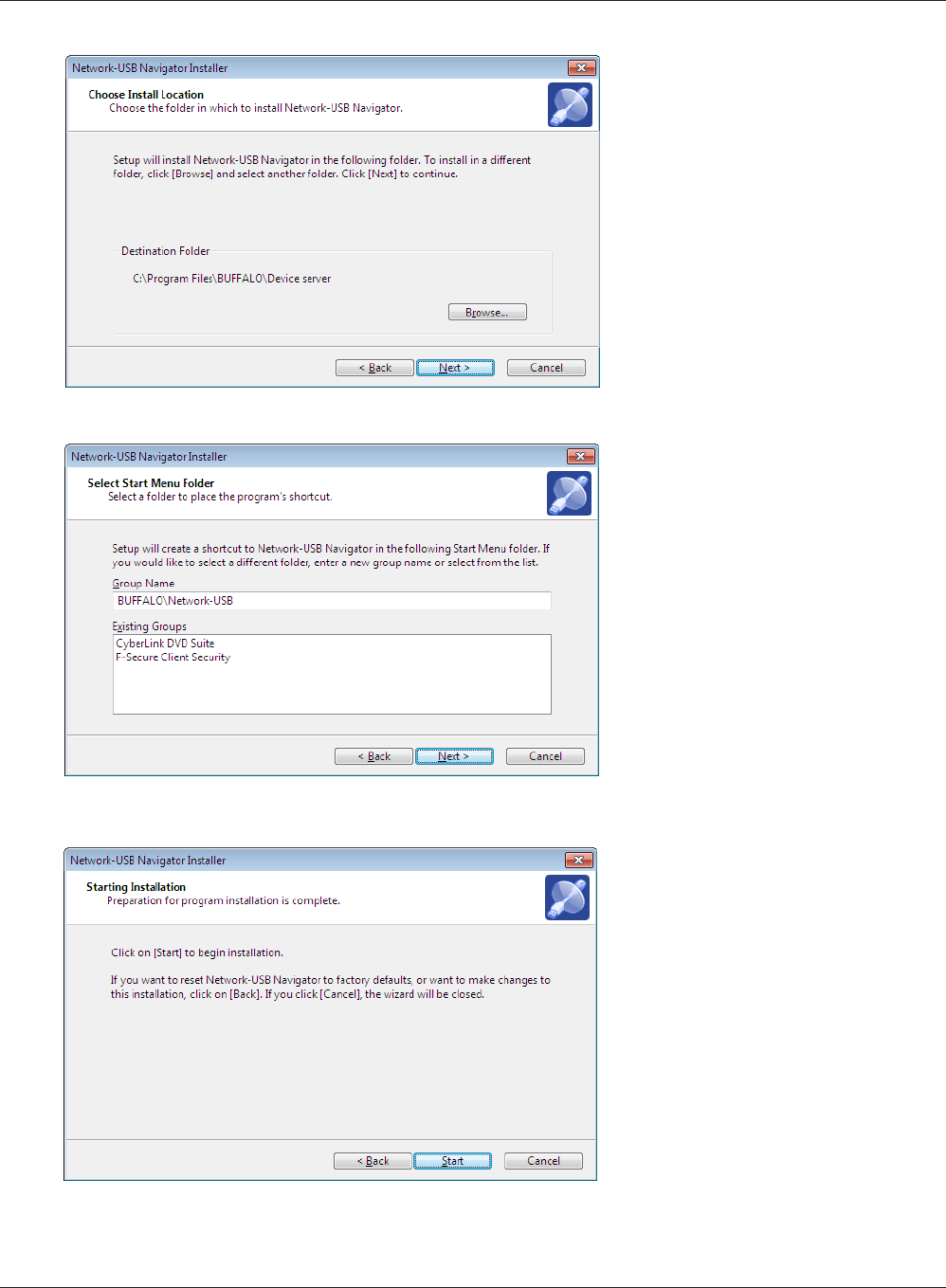

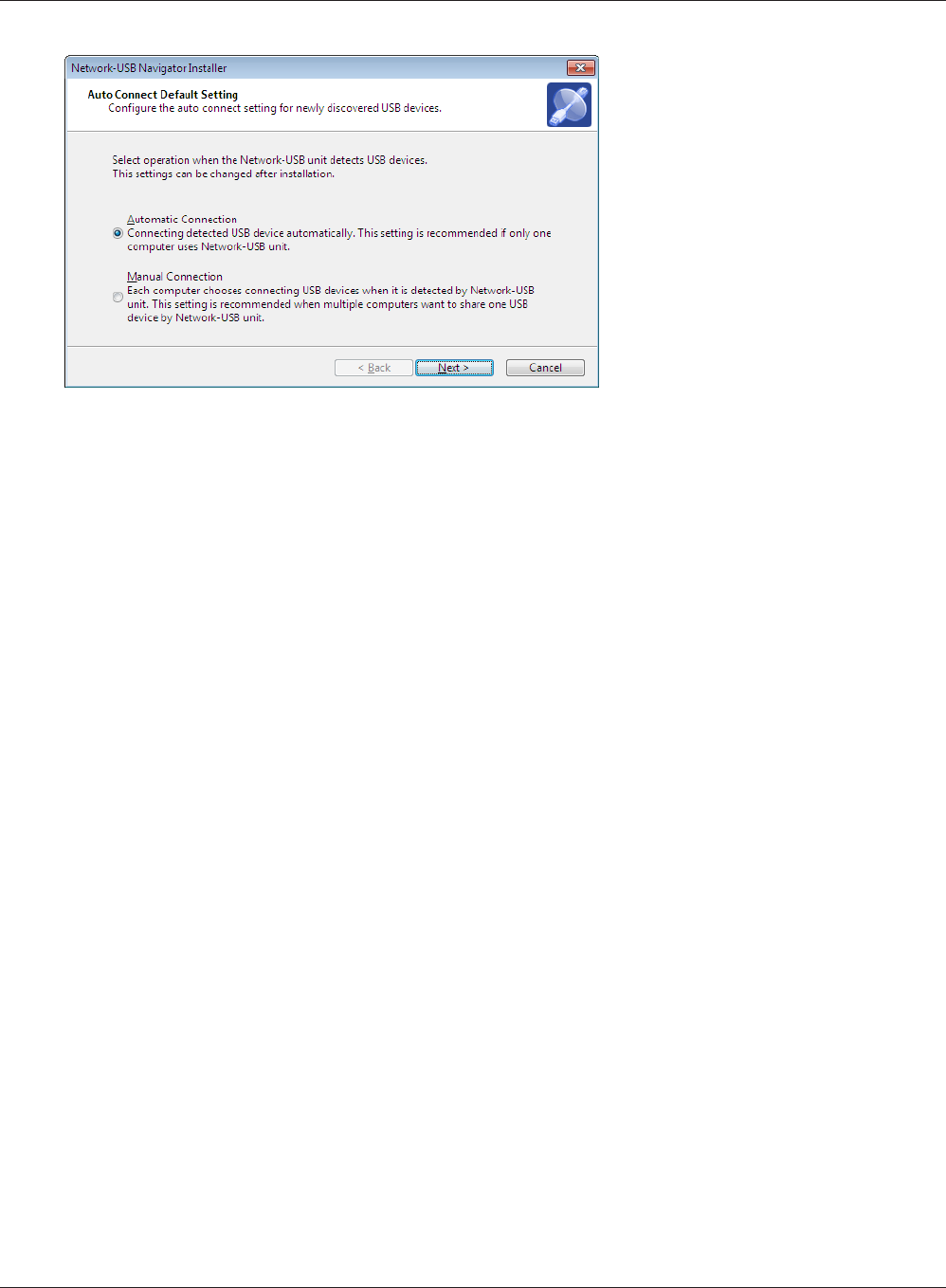

Network-USB Congure Network-USB from this screen. Page 71

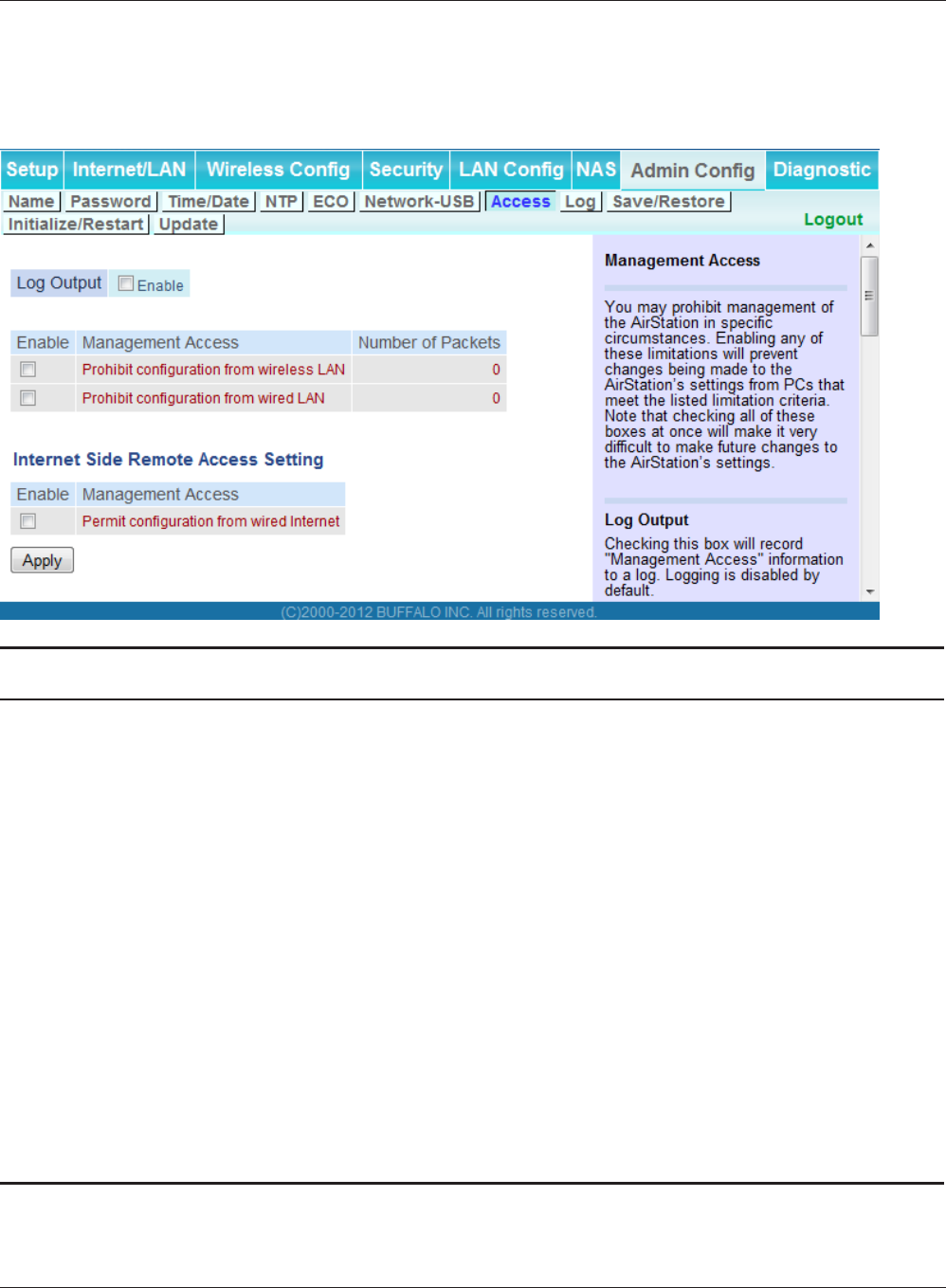

Access Congure access restrictions to the AirStation’s conguration interface. Page 72

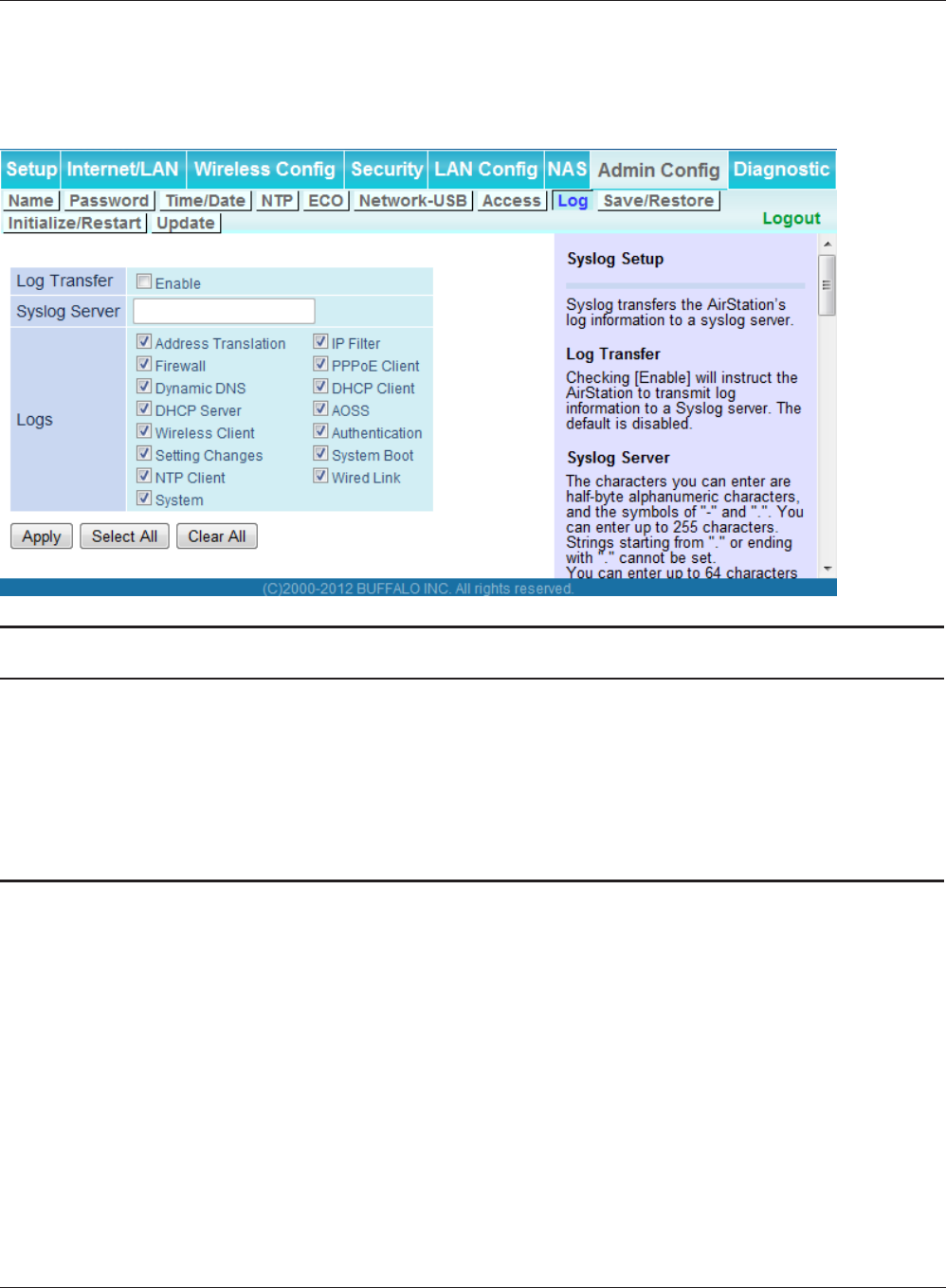

Log Congure a syslog server to manage the AirStation’s logs. Page 73

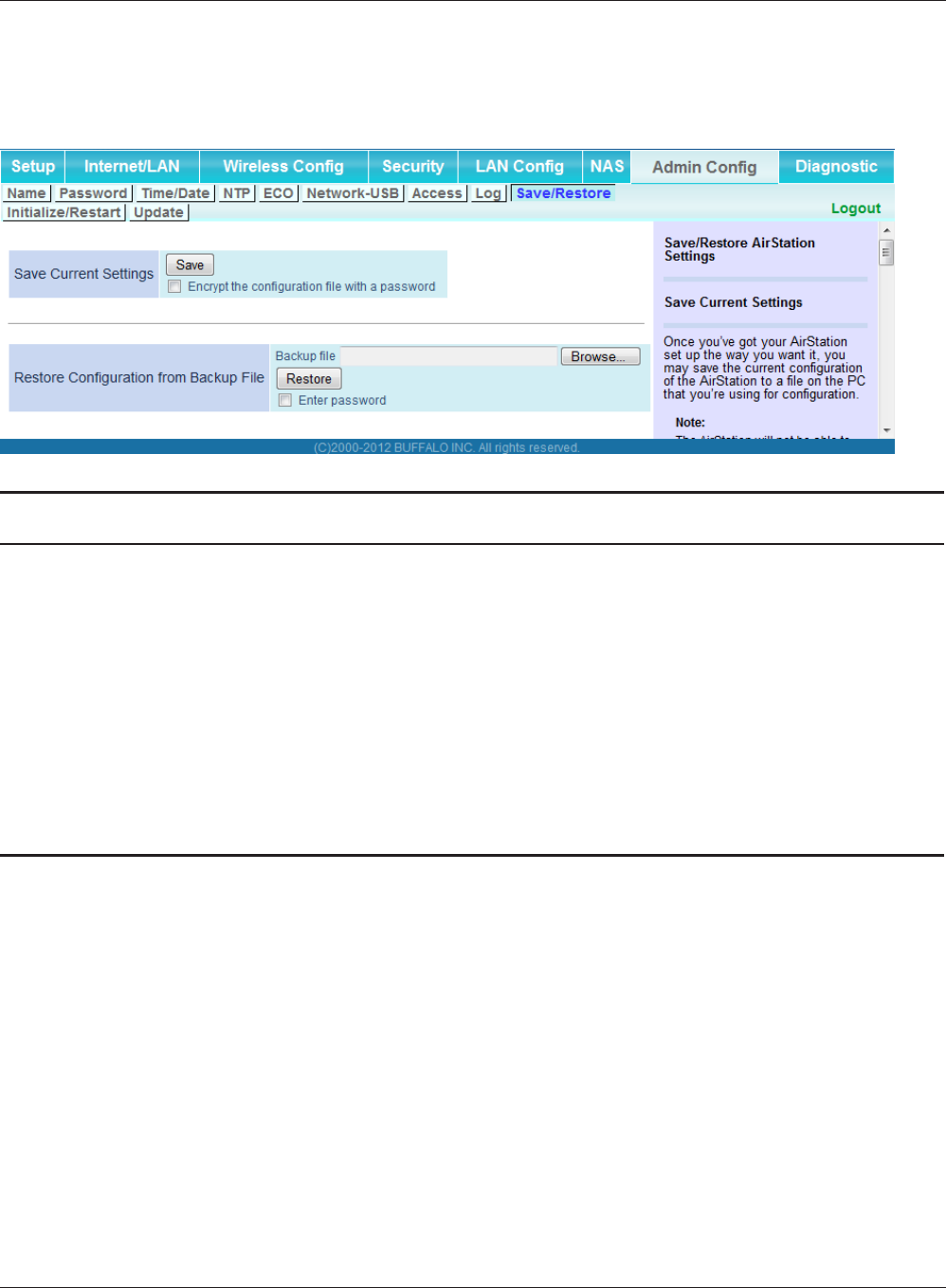

Save/Restore Save or restore the AirStation’s conguration from a conguration le. Page 74

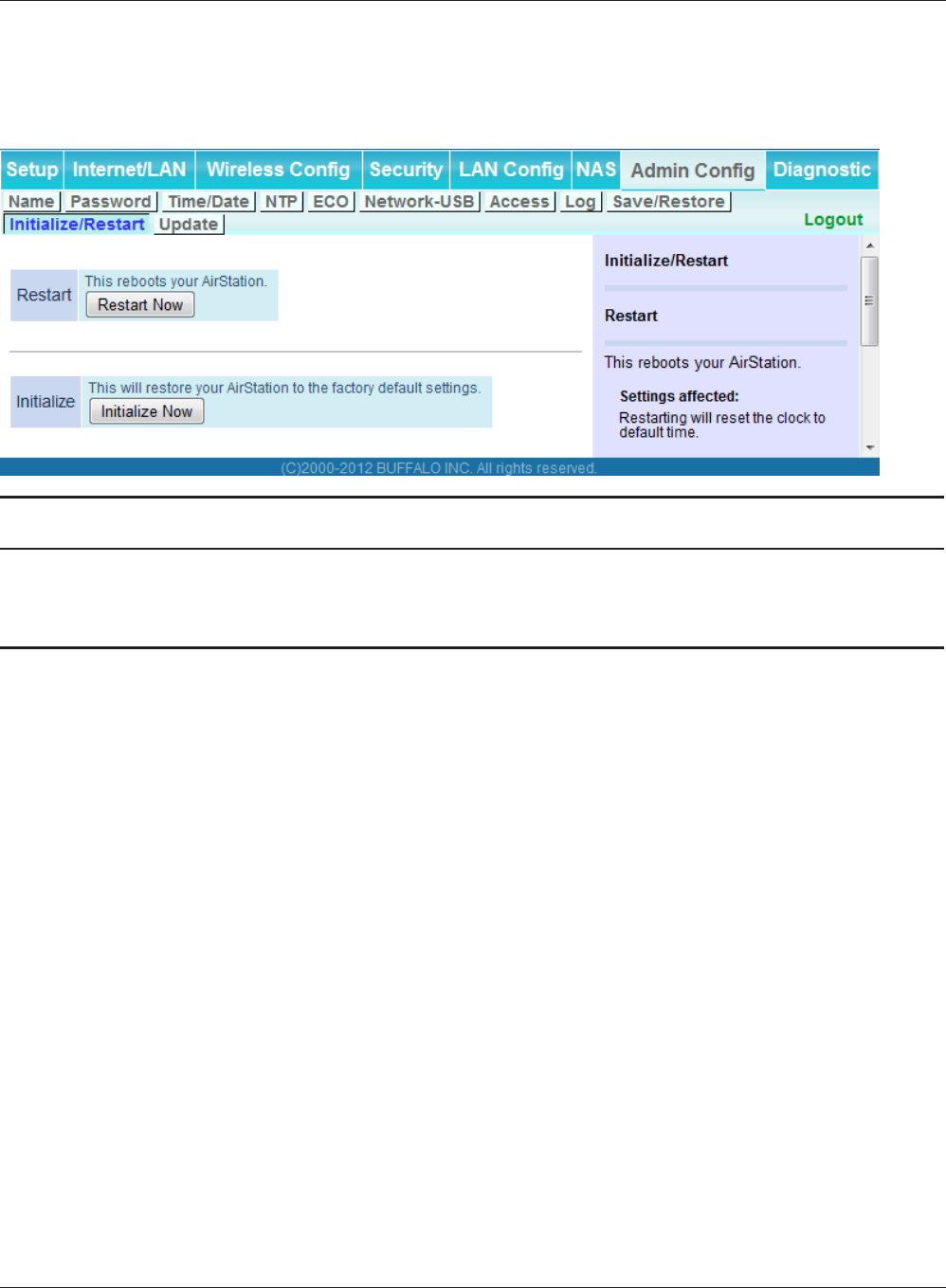

Initialize/Restart Initialize the AirStation or reboot it. Page 75

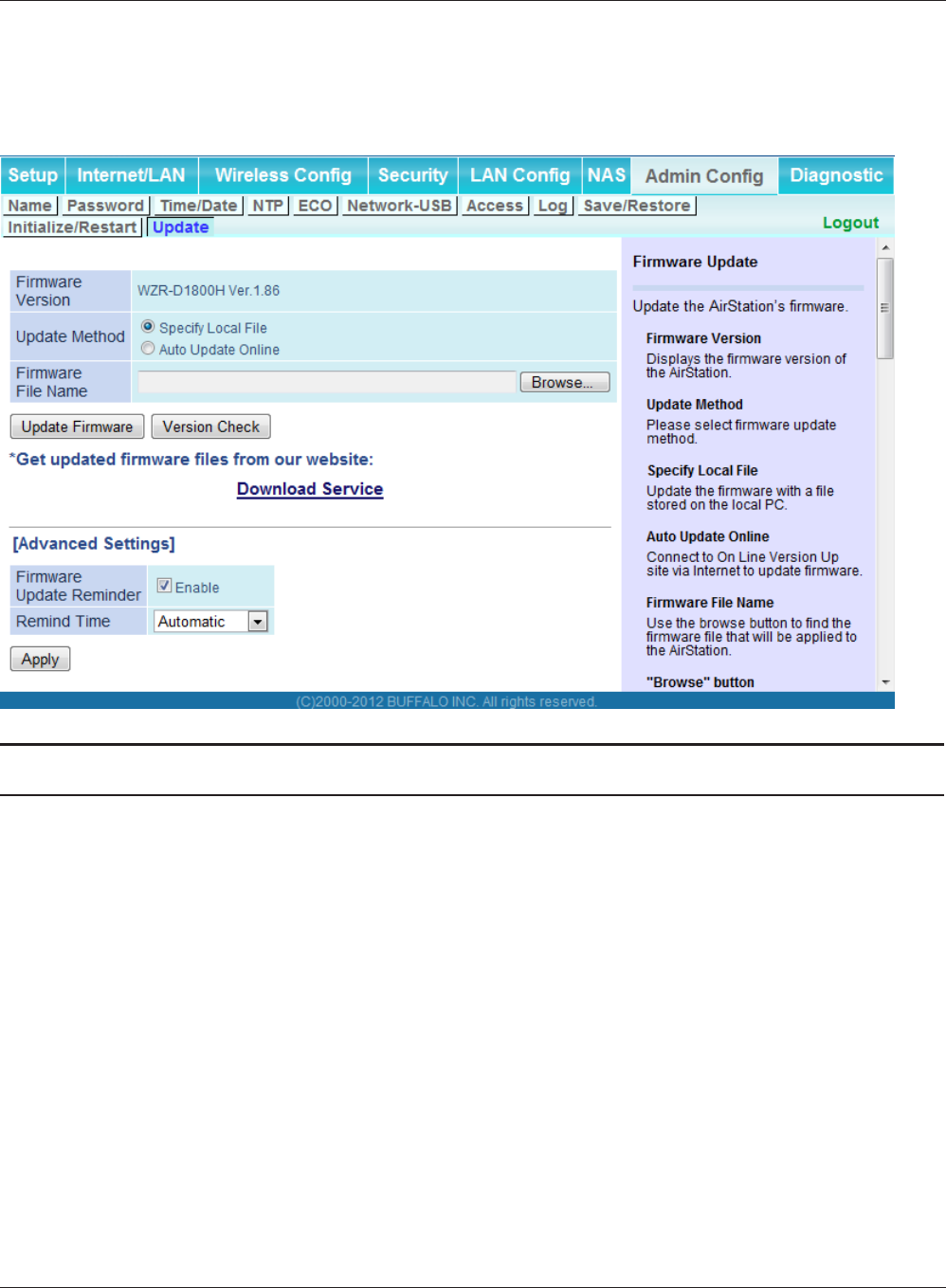

Update Update the AirStation’s rmware. Page 76
Diagnostic
System Info View current system information for the AirStation. Page 78

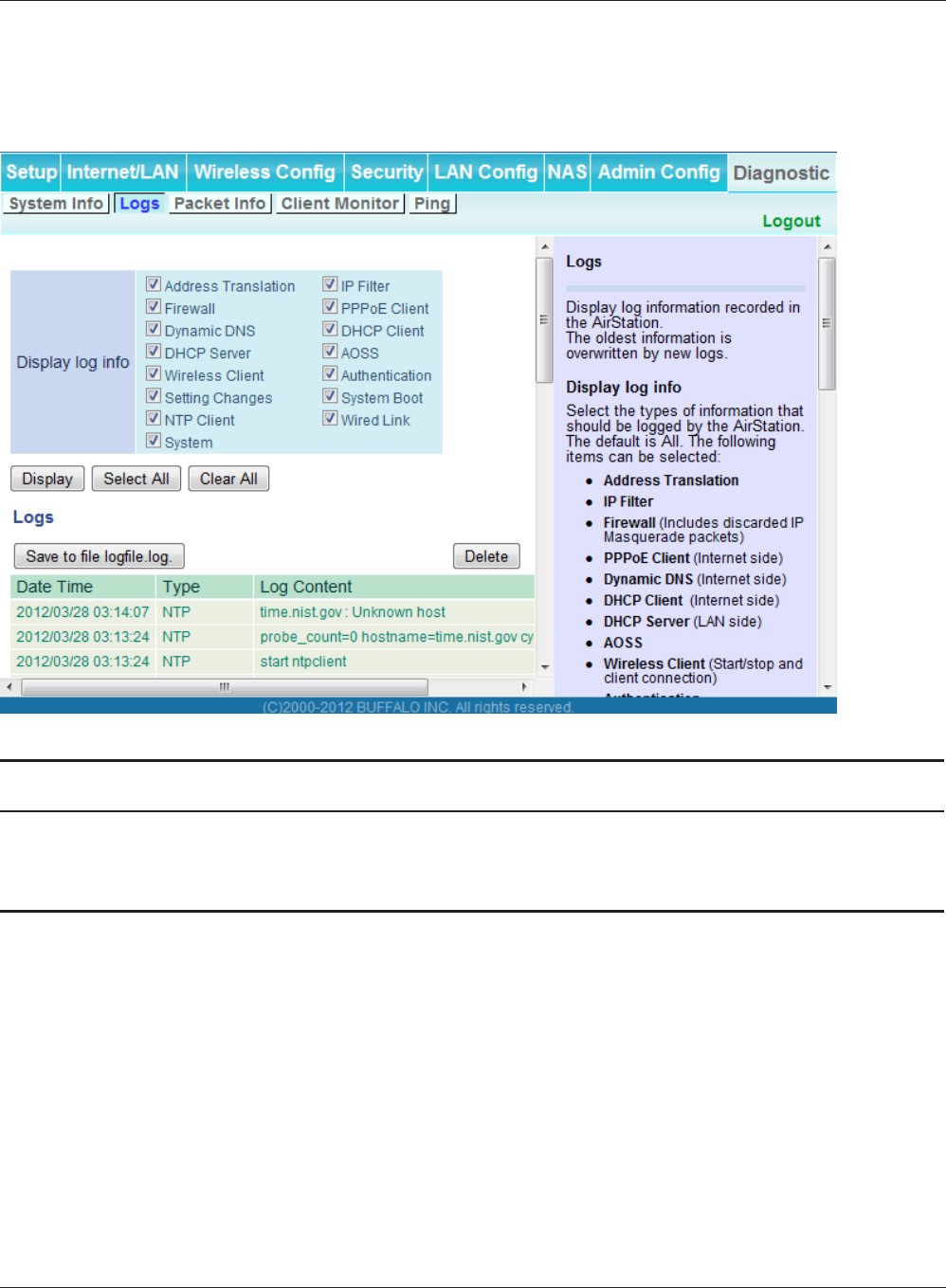

Logs Check the AirStation’s logs. Page 80

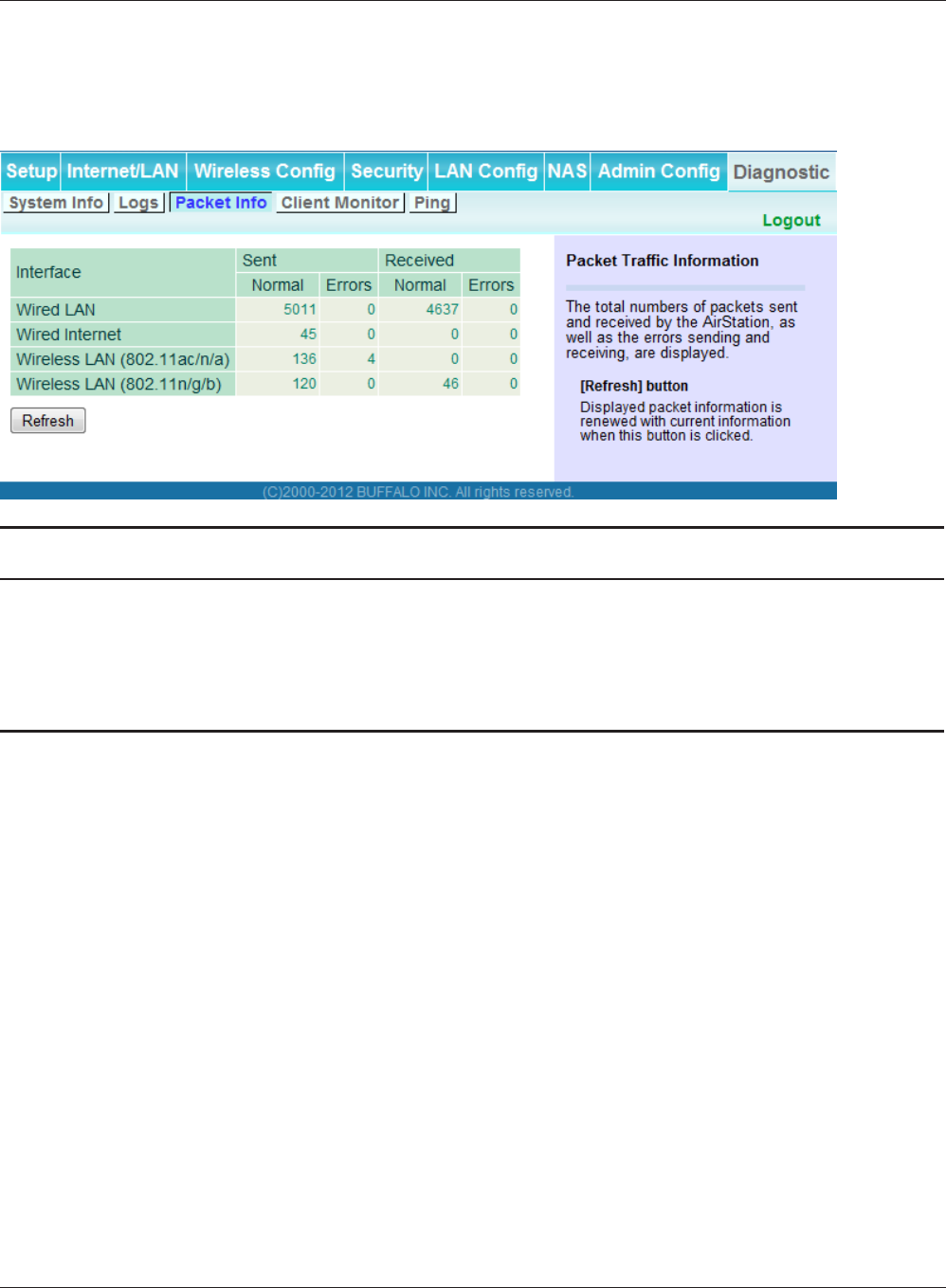

Packet Info View all packets transferred by the AirStation. Page 81

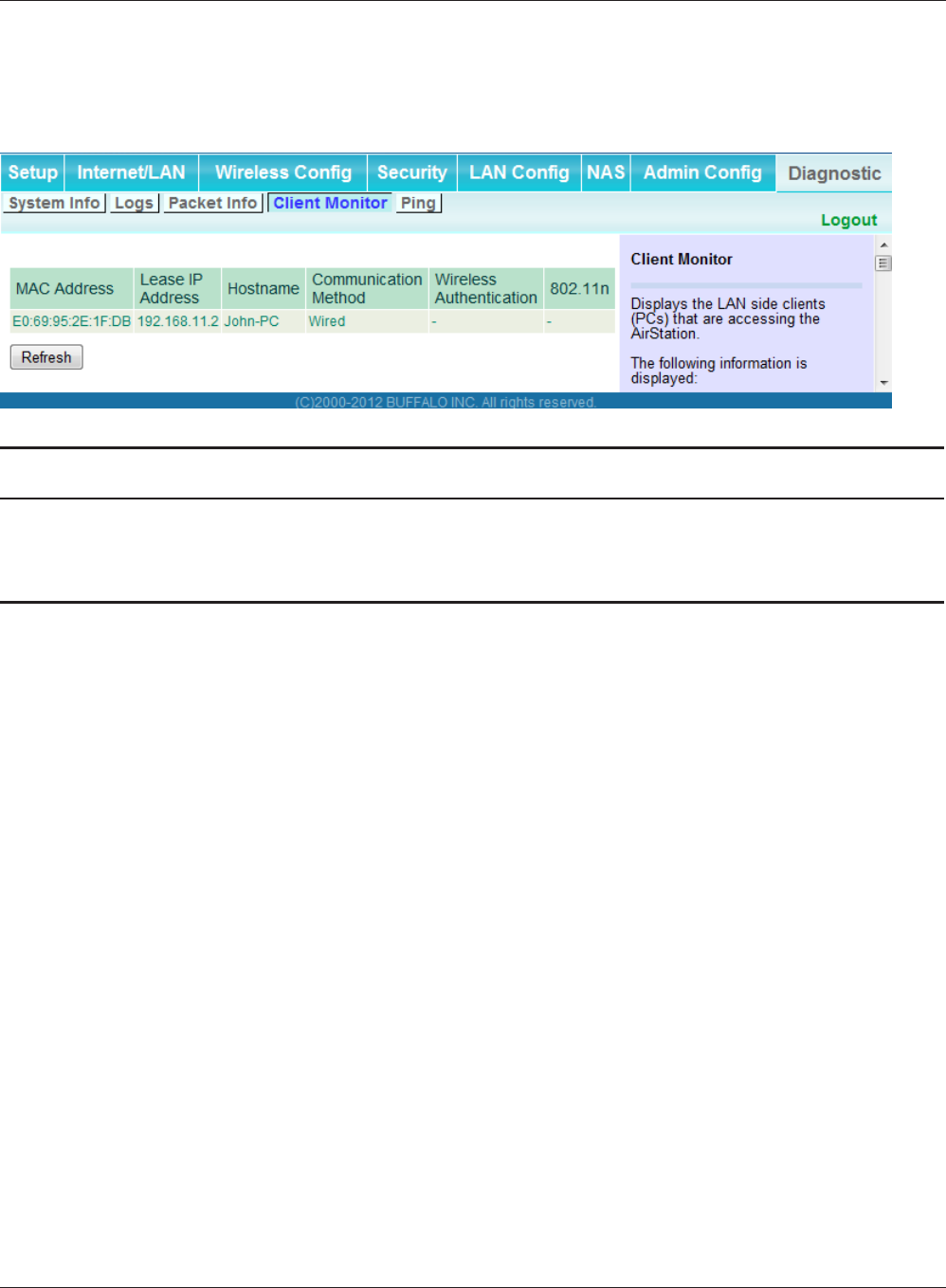

Client Monitor View all devices currently connected to the AirStation. Page 82

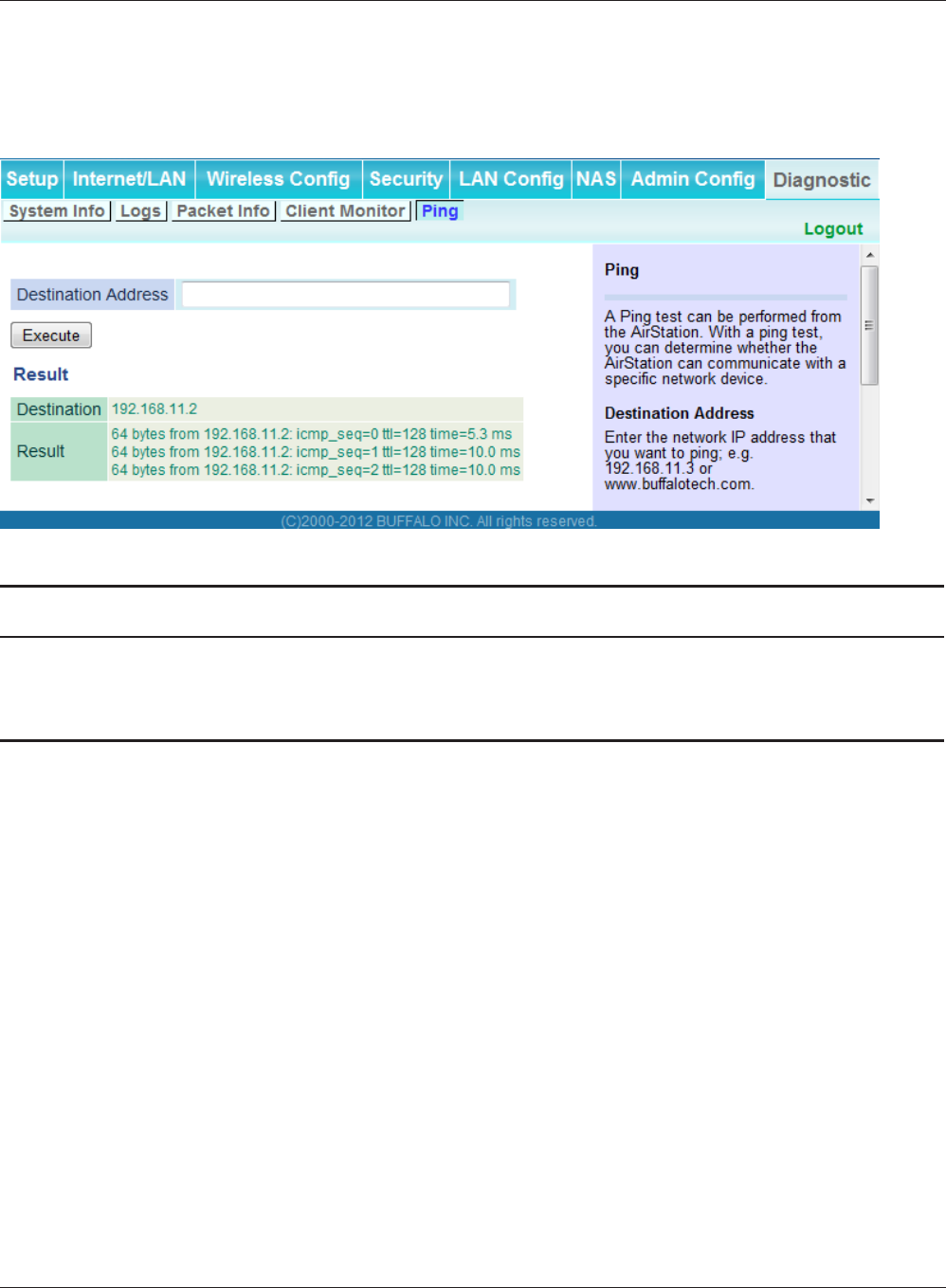

Ping Test the AirStation’s connection to other devices on the network. Page 83
Logout
Click this to log out of the AirStation’s conguration interface.
The menu structure in bridge mode is as follows. Please refer to the pages listed at right for
explanations of each item.
Main screen Descriptions Page
LAN Cong
LAN LAN side port conguration. Page 32
Route Congure the AirStation’s IP communication route. Page 36
Wireless Cong
WPS WPS settings and status. Page 37
Basic Congure basic wireless settings. Page 38
Advanced Congure advanced wireless settings. Page 41
WMM Set priorities for Wireless Multimedia Extensions (Wi-Fi Multimedia). Page 42
MAC Filter Limit access to specic devices. Page 44
Multicast Control Congure limits on sending unnecessary multicast packets to the
wireless LAN port.
Page 45
AOSS AOSS (AirStation One-touch Secure System) settings and status. Page 46
NAS
Disk Management View the status and congure of attached USB disks. Page 55
Shared Folder Set the USB disk to use as shared folders. Page 57
User Management Congure users to access shared folders. Page 59
Shared Service Congure shared folder access. Page 60
Web Access Congure Web Access. Page 61
Media Server Congure a Media Server. Page 63
BitTorrent Congure a BitTorrent client. Page 64
Admin Cong
Name Congure the AirStation’s name. Page 66
Password Congure the AirStation’s login password for access to the conguration
interface.
Page 67
Time/Date Congure the AirStation’s internal clock. Page 68
NTP Congure the AirStation to synchronize with an NTP server to
automatically set the AirStation’s internal clock.
Page 69
ECO Congure the AirStation’s ECO Mode. Page 70
Network-USB Congure Network-USB from this screen. Page 71
Access Congure access restrictions to the AirStation’s conguration interface. Page 72
Log Congure a syslog server to manage the AirStation’s logs. Page 73
Save/Restore Save or restore the AirStation’s conguration from a conguration le. Page 74
Initialize/Restart Initialize the AirStation or reboot it. Page 75
Update Update the AirStation’s rmware. Page 76
Diagnostic
System Info View current system information for the AirStation. Page 78
Logs Check the AirStation’s logs. Page 80
Packet Info View all packets transferred by the AirStation. Page 81
Client Monitor View all devices currently connected to the AirStation. Page 82
Ping Test the AirStation’s connection to other devices on the network. Page 83
Logout
Click this to log out of the AirStation’s conguration interface.
Setup is the home page of the conguration interface. You can verify settings and the status of the
AirStation here.
Parameter Meaning
Internet/LAN (LAN Cong) Displays the conguration screen for the Internet port and LAN
ports.
Wireless Cong Click this button to display the conguration screen for wireless
settings.
Security Click this button to display the conguration screen for security.
Parameter Meaning
LAN Cong Click this button to display the conguration screen to open ports
for games and applications.
NAS Click this button to display the conguration screen for NAS
settings.
Admin Cong Click this button to display the conguration screen for
administration settings.
Diagnostic Click this button to display the status of the AirStation.
Easy Setup Enables you to easily congure the AirStation’s network settings
automatically.
MODE Information This indicates the operation mode of the AirStation.
Internet Information Displays WAN-side system information for the AirStation.
Check Connection Click this button to check if the AirStation is connected to the
Internet properly.
Refresh Click this button to refresh the current screen.
WIRELESS Displays the current wireless settings.
AOSS Setup Click this button to display the AOSS conguration screen.
WPS Setup Click this button to display the WPS conguration screen.
ECO Mode This indicates the operating status of ECO Mode.
Network Service List Displays the list of the network devices for which information is
provided from the network on the LAN-side.
Media Server Displays the status of the media server.
Download List Displays the list of BitTorrent les downloading.
Language Enables you to select the language you use.
Logout Log out of the conguration interface. If the AirStation does not
communicate for 5 minutes, it will log out automatically.
Congure the WAN-side port (“Internet port”).
Parameter Meaning
Method of Acquiring IP Address Specify how the WAN-side IP address is obtained.
Default Gateway Congure an IP address for the default gateway.
DNS Name Server Address Specify an IP address for the DNS server.
Internet MAC Address Congure the Internet side MAC address.
Note: Conguring an improper MAC address may make the AirStation
unusable. Change this setting at your own risk.
MTU size of Internet Port Congure the MTU value of the Internet port. Values of 578 to 1500
bytes may be entered.
Congure PPPoE settings.
Parameter Meaning
Default PPPoE Connection If you have registered multiple connection destinations in the
PPPoE Connection List, connection destinations selected here
have priority. You need to congure the route to which PPPoE is
connected to if you don’t use the default settings.
IP Unnumbered PPPoE Connection Select the destination from the PPPoE Connection List which is
used when “Use IP Unnumbered” is chosen for the Method of
Acquiring IP Address (page 24).
PPPoE Connection List Edit PPPoE destination. You can register up to 5 sessions.
[Edit Connection List] Click this button to edit destination settings.
Parameter Meaning
PPPoE Connection No.*-Add This is displayed when [Edit Connection List] is clicked.
Name of Connection
Enter the name to identify the connected destination. You may
enter up to 32 alphanumerical characters and symbols.
Username
Enter the username specied by your ISP for PPPoE certication.
You may enter up to 32 alphanumerical characters and symbols.
Password
Enter the password specied by your ISP for PPPoE certication.
You may enter up to 32 alphanumerical characters and symbols.
Service Name
Fill in this eld only if your ISP species a Service Name. Leave
blank otherwise. You may enter up to 32 alphanumerical
characters and symbols.
Connection Type
Species the timing for the AirStation to connect to your
provider.
Automatic disconnection
Set time to disconnect after communication is stopped when
the connection method is set to [Connection on Demand] or
[Manual]. You can enter up to 1440 minutes.
Authorization
Congure an authorization method with a provider.
MTU Size
Congure the MTU size for PPPoE. Values of 578 to 1500 bytes
may be entered.
MRU Size
Congure MRU (Maximum Receive Unit) for PPPoE. Values of 578
to 1492 may be entered.
Parameter Meaning
PPPoE Connection No. *-Add Keep Alive
If Keep Alive is enabled, then the AirStation will issue an LCP
echo request once a minute in order to maintain the connection
with the PPPoE. If the server does not respond for more than
6 minutes, the line is recognized as disconnected and the
AirStation will terminate the connection. [Disabled] is the
recommended setting.
Preferred Connections Displays information you have set regarding to the connection
destination route.
[Edit Preferred Connections] Click to edit the connection destination route settings.
Preferred PPPoE Connection -Add Click [Edit Preferred Connections] to display.
Name
The destination to connect by PPPoE if [Destination address] and
[Source address] match. Select the destination registered to the
PPPoE Connection List.
Destination address
When communicating to this address, the AirStation will
communicate with [Name of Connection.]
Source address
When communicating from this address, the AirStation will
communicate with [Name of Connection.]
Congure Dynamic DNS settings. Many settings are only available when the appropriate Dynamic
DNS service is enabled.
Parameter Meaning
Dynamic DNS Service Select a provider (DynDNS or TZO) for Dynamic DNS.
Username Enter the Dynamic DNS username. You may enter up to 64
alphanumerical characters and symbols.
Password Enter the Dynamic DNS password. You may enter up to 64
alphanumerical characters and symbols.
Hostname Enter the Dynamic DNS hostname. You may enter up to 255
alphanumerical characters, hyphens, and periods.
Email Address Enter the email address which is registered to the Dynamic DNS
service. You may enter up to 64 alphanumerical characters and
symbols.
TZO Key Enter the TZO Key which is registered to the Dynamic DNS service.
You may enter up to 64 alphanumerical characters and symbols.
Domain Name Enter the domain name which is registered to the Dynamic DNS
service. You may enter up to 255 alphanumerical characters,
hyphens, and periods.
Parameter Meaning
IP Address Update Period Species the period to notify the dynamic DNS service provider of
the current IP address. For DynDNS, set it between 0 and 35 days.
For TZO, set it between 0 and 99 days. If 0 (zero) days is set, no
periodic update is performed.
Internet Side IP Address The WAN-side IP address of the AirStation’s Internet port. This
address is sent to the dynamic DNS service provider.
Domain Name The domain name assigned by the dynamic DNS Service provider.
The AirStation can be accessed from the Internet using this domain
name.
Status Display the status of dynamic DNS service.
Congure the VPN server.
Parameter Meaning
Auto Input Click to generate a random IP address.
LAN Side IP Address Set a LAN side IP address and subnet mask.
DHCP Server Function Enable or disable the DHCP server, which assigns IP addresses
automatically.
DHCP IP Address Pool Congure the range of IP addresses to be assigned by the DHCP
server and IP addresses to be excluded from that range. Values
from 0-253 may be entered.
PPTP Server Function Enable to use a PPTP server.
Authorization Type Select the authentication method for PPTP connection.
Server IP Address Select the server IP address.
Client IP Address Select the IP address range.
DNS Server IP Address Choose the IP address for the DHCP server.
WINS Server IP Address Choose the IP address for the WINS server.
[Edit PPTP User List] Click to edit user information.
Username Enter the username to connect to the PPTP server. You may enter
up to 16 alphanumerical characters and symbols.
Password Enter the password to connect to the PPTP server. You may enter
up to 16 alphanumerical characters and symbols.
Method of Acquiring IP Address Select the method to be used to assign the IP address is assigned to
the PPTP client.
PPTP User List Displays the PPTP connection user information.
Congure LAN-side and DHCP Server settings.
Parameter Meaning
LAN Side IP Address By default, the LAN side IP address is 192.168.11.1 with subnet
mask 255.255.255.0. You may change it here.
DHCP Server Function Enable or disable the DHCP server, which assigns LAN-side IP
addresses automatically.
DHCP IP Address Pool Congure the range of IP addresses to be assigned by the DHCP
server and IP addresses to be excluded from that range. Values
from 0-253 may be entered.
LAN Side IP Address
(For IP Unnumbered)
Set an IP unnumbered LAN side IP address.
Note: A PC with a normal LAN side IP address and a PC with an IP
Unnumbered IP address cannot communicate each other.
Advanced Settings Check [Display] to display DHCP server advanced settings options.
Lease Period Set the eective period of an IP address assigned by the DHCP
server. Up to 999 hours may be entered.
Default Gateway Set the default gateway IP address for the DHCP server to issue to
clients.
Parameter Meaning
DNS Servers
Router mode only
Set the DNS server IP address for the DHCP server to issue to
clients.
WINS Server
Router mode only
Set the WINS server IP address for the DHCP server to issue to
clients.
Domain Name
Router mode only
Set the domain name for the DHCP server to issue to clients. You
may enter up to 127 alphanumerical characters, hyphens, and
periods.
Default Gateway
Bridge mode only
Set the default gateway IP address.
DNS Server Address
Bridge mode only
Set the DNS server IP address.
Congure DHCP Exceptions.
Parameter Meaning
IP Address Enter an IP address to lease manually. The IP address should be
from the same subnet as the DHCP scope, but not be within the
range that DHCP is assigning to other devices.
MAC Address Enter the MAC address which identies the client.
Current DHCP Client Information Displays information for current leases. An IP address which is
leased automatically can be changed to manual leasing by clicking
[Manual Assignment].
Congure network address translation settings. This enables LAN-side devices to communicate with
the Internet.
Parameter Meaning
Address Translation Enable to use Network Address Translation.
Log Output of Deleted Packets Enable to log deleted packets (such as errors) during address
translation.
Congure the AirStation’s IP communication route.
Parameter Meaning
Destination Address Adds a destination IP address and subnet mask to a routing table.
Gateway Adds a gateway address to a routing table.
Metric The metric is the maximum number of router hops a packet may
take on the way to its destination address. Values between 1 and 15
may be entered. The default value is 15.
Routing Information Manual entries will appear here after being added.
WPS Status and Settings.
Parameter Meaning
WPS Enable to use WPS automatic conguration.
External Registrar Enable to accept congure requests from other WPS devices.
Note: Congure requests will not be accepted if AOSS is in use.
AirStation PIN Displays the PIN code of the AirStation. Clicking [Generate PIN]
will generate a new PIN code. This code can be entered into other
wireless devices that support WPS.
Enrollee PIN Enter the PIN code for the other wireless device and click [OK].
WPS status Displays “congured” if all available wireless bands are
congured. Displays “uncongured” if at least one wireless band is
uncongured.
Congure basic wireless settings from here.
Parameter Meaning
Wireless Radio Determines whether to allow wireless communication. If this is
unchecked, then no wireless connections will be allowed.
SSID The SSID may contain 1 - 32 alphanumeric characters.
Wireless Channel Sets a channel (a range of frequencies) for wireless connections.
With Auto Channel selected, the AirStation will automatically use
the best available channel.
High-Throughput Mode High-throughput mode uses triple the normal frequency range,
80 MHz instead of 20 MHz. In uncongested areas this can increase
performance. To use High-throughput mode, set the Bandwidth to
80 MHz and choose an Extension Channel.
Note: If Auto Channel is selected, then the Extension Channel is set
automatically.
Broadcast SSID If [Allow] is checked, then the AirStation will respond to SSID
searches from wireless devices by broadcasting its SSID. If [Allow] is
unchecked, then the AirStation ignores SSID searches from wireless
devices.
Parameter Meaning
Wireless authentication Species the authentication method used when connecting to a
wireless device.
Wireless encryption You may use any of the following types of encryption:
No encryption
Data is transmitted without encryption. With this setting, anyone
within range can connect to your wireless network and might
be able to access data on the network. Not recommended for
anyone with private data that needs to be kept secure. [No
encryption] can be selected only when [No authentication] is
selected for wireless authentication.
WEP
WEP is a common encryption method supported by most
devices. WEP can only be selected when wireless authentication
is set to [No authentication]. Note that WEP’s encryption is weak,
and networks protected with WEP are not much more secure
than those with no encryption at all. Not recommended for
anyone with private data that needs to be kept secure.
TKIP
TKIP is an encryption method which is more secure than WEP, but
slower. Use an pre-shared key to communicate with a wireless
device.
TKIP can be selected only when WPA-PSK or WPA2-PSK is selected
for wireless authentication.
AES
AES is more secure than TKIP, and faster. Use a pre-shared key to
communicate with a wireless device.
AES can be selected only when WPA-PSK or WPA2-PSK is selected
for wireless authentication.
TKIP/AES mixed mode
TKIP/AES mixed mode allows both TKIP and AES authentication
and communication. This is no more secure than TKIP alone, but
more convenient for some users. TKIP/AES mixed mode can be
selected only when WPA/WPA2 mixed mode - PSK is selected for
wireless authentication.
Parameter Meaning
WPA-PSK (Pre-Shared Key) A pre-shared key or passphrase is the password for your wireless
connections. There are two dierent formats for a pre-shared
key. Use 8 to 63 alphanumeric characters (case-sensitive) for an ASCII
passphrase, or use 64 alphanumeric characters (0 to 9 and a to f, not case-
sensitive) for a hexadecimal passphrase.
Rekey interval Set the update interval for the encryption key between 0 and 1440
(minutes).
Setup WEP encryption key A WEP encryption key (passphrase) may have any of four dierent
formats. An ASCII passphrase may use either 5 or 13 alphanumeric
characters (case-sensitive). A hexadecimal passphrase may use either 10
or 26 alphanumeric characters (0 to 9 and a to f, not case-sensitive).
Congure advanced wireless settings.
Parameter Meaning
BSS Basic Rate Set BSS (Basic Service Set) congures the transmission rate of control
communication frames for a wireless client. Setup choices may vary
with dierent wireless clients.
Multicast Rate Set the communication speed of multi-cast packets.
802.11n Protection Enable to use 802.11n protection. 802.11n protection gives priority
to 802.11n devices in mixed mode (11b/g or 11a) networks.
DTIM Period Set the beacon responding interval (1 -255) for which the AirStation
responds to a wireless device. This setting is eective only when
power management is enabled for the wireless device.
Privacy Separator If enabled, the Privacy Separator blocks communication between
wireless devices connected to the AirStation. Wireless devices will
be able to connect to the Internet but not with each other. Devices
that are connected to the AirStation with wired connections will
still be able to connect to wireless devices normally.
Output Power This sets the output of the wireless signal. Because the wireless
transmission output and signal distance range are nearly
proportional, when the wireless transmission output is reduced,
the signal distance range also becomes shorter.
Set priorities for specic communications.
Parameter Meaning
WMM-EDCA Parameters You don't usually need to change these settings. Using the default
settings is recommended.
Priority
The following priorities may be applied to individual
transmission packets: (Highest) 8, (High) 4, (Normal) 2, and
(Low) 1. From the queue, these packets are processed in order of
priority.
CWmin, CWmax
The maximum and minimum value of the contention window.
The contention window is used in the frame collision avoidance
structure performed in IEEE802.11, and generally, the smaller the
value in the window, the higher the probability that the queue
obtains the right to send.
AIFSN
The interval to send frames. The unit of the AIFSN is a slot, just as
the window dened by CWmin and CWmax is. The smaller the
interval of sending frames, the faster the algorithm can restart.
As a result, the priority of the queue is higher.
TXOP Limit
The period of time that the queue can use after obtaining the
right to send. The unit is 32 ms. The longer this time, the more
frames can be sent per right to send. However, the queue may
interfere with other packet transmissions. If TXOP Limit is set to 0
(zero), only one frame can be sent per right to send.
Admission Control
Restricts new frames from interfering with a previous queue. New
packets are prioritized lower until a queue of them is collected. As
the new queue accumulates more packets, its priority increases.
Restrict access to specic wireless devices.
Parameter Meaning
Enforce MAC Filtering Enable to restrict wireless connections to devices with registered
MAC addresses.
Registration List Displays the MAC addresses of registered devices which are
permitted to connect wirelessly.
Edit Registration List Adds a wireless device to the list of permitted devices.
MAC Addresses to be Registered Enter a MAC address of a wireless device to permit to connect to
the AirStation. Click [Register] to add that MAC address to the list.
List of all clients associated with this
AirStation
Display the list of all MAC addresses of wireless devices connected
to the AirStation.
Congure restrictions on unnecessary multicast packets sent to the wireless LAN port.
Parameter Meaning
Snooping If enabled, snooping supervises multicast administrative packets
such as IGMP and restricts unnecessary multicast transfers to wired
or wireless ports.
Multicast Aging Time Set the time to hold the data from multicast snooping in the range
of 1 to 3600 (seconds). Enter a value bigger than the IGMP/MLD
query interval.
AOSS Status and Settings.
Parameter Meaning
Initiates AOSS automatic wireless conguration. Click this, then
press or click the AOSS button on your AOSS-compatible wireless
client. Repeat for additional AOSS clients.
Click this button to disconnect AOSS connections.
Note: If AOSS connections are disconnected, the SSID and encryption keys
will be restored to their last settings from before AOSS was used.
Encryption type Display AOSS’s Security Level status.
AOSS Button on the AirStation Unit Uncheck to disable the physical AOSS button on the AirStation.
Current Encryption Information
(AOSS connection only)
Displays the encryption type, SSID, and encryption key congured
by AOSS.
[Random] Click to enter random values for SSID, encryption key, and other
settings.
[KEY base] Click to return the SSID, encryption key, and other wireless settings
to the values on the case sticker.
[Reset] Click to return the SSID, encryption key, and other wireless settings
to their previous values.
Congure the AirStation’s rewall.
Parameter Meaning
AOSS Client Information Displays AOSS clients connected to the AirStation and information
of the devices which are wirelessly communicated.
AOSS Ethernet Converter Information
Only displayed if there are AOSS
Connections
Displays information about Ethernet converters connected to the
AirStation via AOSS.
Parameter Meaning
Log Output Enable to output a log of rewall activity.
Basic Rules Enable to use any of the quick lters. Precongured quick lters
include:
Prohibit NBT and Microsoft-DS Routing
Enabling this blocks communication using these protocols from
the WAN side to the LAN side or from the LAN side to the Internet.
You can congure this with PPPoE if you select [Use PPPoE Client]
or [Use IP Unnumbered] in Method of Acquiring IP address (page
24), or if Easy Setup identied a PPPoE connection during setup.
Reject IDENT Requests
Enabling this option will answer IDENT requests from the Internet
side with corresponding rejection packets. Enable this option if
you experienced slow transfer speeds for network applications
such as mail, ftp or web browsing. If you have congured transfer
of IDENT requests to the LAN side computer in the address
translation settings (DMZ or TCP port 113), then that setting has
higher priority, and overrides this setting.
Block Ping from Internet
If this is enabled, the AirStation will not respond to pings from the
Internet side. You can congure this with PPPoE if you select [Use
PPPoE Client] or [Use IP Unnumbered] in Method of Acquiring IP
address (page 24), or if Easy Setup identied a PPPoE connection
during setup.
Edit IP lters.
Parameter Meaning
Log Output If enabled, IP lter activity is saved to a log.
Operation Specify how to process target packets.
Direction Specify the transmission direction of target packets.
IP Address Specify the sender's IP address and receiver's IP address of the
target packets.
Protocol Select a protocol for target transmission packet.
IP Filter Information Display the list of IP lters which have been registered.
Congure IPv6 passthrough, PPPoE passthrough, and PPTP passthrough.
Parameter Meaning
IPv6 Passthrough Enable to use IPv6 Passthrough for address translation.
PPPoE Passthrough Enable to use PPPoE bridging. PPPoE bridging lets you
automatically obtain an IP address from your provider for your LAN-
side computer using the PPPoE protocol because PPPoE packets
can pass between the Internet and LAN.
PPTP Passthrough Enable to use PPTP passthrough for address translation.
Congure port translation.
Parameter Meaning
Group Specify a group name for a new rule to belong to. Select [New
Group] and enter the new group name in the Group Name
eld to create a new group. A group name can include up to 16
alphanumeric characters.
Internet Side IP Address Enter the Internet side IP address (before translation) for the port
translation table entry.
Protocol Select the Internet side protocol (before translation) for the port
translation table entry.
Parameter Meaning
LAN Side IP Address Enter the LAN side IP address (after translation) for the port
translation table entry.
LAN Side Port Select the LAN side (after translation) port number (1 - 65535) for
the port translation table entry.
Port Forwarding Registration
Information
Shows current entries in the port translation table.
Congure a destination to transfer communication packets without a LAN side destination to.
Parameter Meaning
IP Address of DMZ Enter the IP address of the destination to which packets which are
not routed by a port translation table are forwarded.
Note: RIP protocol packets (UDP port number 520) will not be
forwarded.
Congure UPnP (Universal Plug and Play).
Parameter Meaning
UPnP Enable or disable Universal Plug and Play (UPnP) functionality.
Congure the priority of packets sent to the Internet.
Parameter Meaning
QoS for transmission to the Internet Determine whether or not to prioritize packets sent to the Internet.
Check this box to enable QoS.
Upload bandwidth Specify the upstream bandwidth in kbps from the AirStation to the
internet side. Set the actual value for the upstream bandwidth.
Enable Enable or disable this entry.
application name Enter an application name. Names may use up to 32
alphanumerical characters, double or single tick marks ("'),
quotation marks (“), and semicolons (;).
protocol Select either TCP or UDP.
destination Port Specify a destination port from 1 - 65535. If this eld is empty, a
random port is selected.
Parameter Meaning
priority Select high, medium or low. If packets do not qualify for classication
as a type on the list, then their priority is treated as a level between
medium and low.
View the status of and congure attached USB disks.
Parameter Meaning
Device Displays information for attached USB disks. Disks are removed
when [Remove] in the Device column is clicked.
Disk Assignment A disk number will be automatically assigned to the disk or you can
choose a number. Select a disk number, or select [Do not assign],
then click [Apply].
Partition Information Displays the partition information for the selected USB disk. Click
[Format] to format the disk. Note: formatting a disk will erase all
information on it.
Re-recognize USB devices Click this to re-scan for connected USB disks.
Automatic USB Disk Assignment Check [Enable] to automatically select an attached USB hard disk.
The entire drive will be used as the shared folder. To congure your
disk and share manually, uncheck [Enable].
FAT format le name character code Select the character code for lenames in FAT formatted partitions.
HDD power-saving function Click [Enable] to enable power saving mode.
HDD stop time Powers down the drive after this duration of time.
Congure a USB disk for use with shared folders.
Parameter Meaning
Shared Folder Name* Enter a name for the shared folder. Up to 18 alphanumeric
characters, spaces, hyphens (-), and underscores (_) may be used.
Shared Folder Description* Enter a description of the shared folder (optional). Up to 75
alphanumeric characters, spaces, hyphens (-), and underscores (_)
may be used.
Disk Partition Area* Displays the partition area, format type, and the capacity of the USB
disk.
Disclosed to* Check the functionality that you want to support. Win/Mac OS
(Samba NAS), Web Access, Media Server, and/or BitTorrent may be
checked. Only one folder may be chosen for either Media Server or
BitTorrent functionality.
Access Limits If access limits are enabled, use the arrows to move highlighted
users between the columns for [Read/Write], [Read-only], or [No
access] privileges.
Parameter Meaning
Web Access You may also select to enforce access limits on users accessing
through Web Access by checking the Access Limits checkbox.
Users will have the same access levels as assigned above. If Access
Limits is not checked, then all users accessing the shared folder via
Web Access will have [Read only] access..
Shared Folder Registration
Information*
Displays information about the shared folder.
* This is not displayed when Automatic USB Disk Assignment (page 56) is used:
The following shared folder settings are used when Disk Management is activated:
• All folders: Access limits in eect.
• Shared Folder/ Web Access: All folders are shared.
• Media Server/BitTorrent: The rst folder is shared.
This screen lets you add users to the access list with the ability to access shared folders.
Parameter Meaning
Username Enter the name of a user to be given access to the shared folder. Up
to 20 alphanumeric characters, space, hyphens (-), and underscores
(_) may be used for each user. Up to 16 users may be entered.
Password Enter the user’s password. Use of the same password that
they use to log into their computer is recommended. Up to 20
alphanumeric characters, spaces, hyphens (-), and underscores
(_) may be used. For Windows 98SE/98/95 users, up to 14
alphanumeric characters may be used. Mac OS users may use up
to 8 alphanumeric characters. If you enter a longer password than
your users can use, then they will not be able to access the share.
User Description Describe the user (optional). Up to 75 alphanumeric characters,
spaces, hyphens (-), and underscores (_) may be used.
Current Users Lists current users, including “guest”. Guest is a built-in account
that cannot be changed or deleted.
Assign AirStation and workgroup names to access shared folders.
Parameter Meaning
Shared Folder Enable to make a USB disk available on your local network.
AirStation name Rename your AirStation if desired. Up to 15 alphanumeric
characters, space, and hyphens (-), may be used. The AirStation
name is also used as the hostname that will be used with the
shared service. The shared service may not be available if you use
over 15 alphanumeric characters in your AirStation’s name.
AirStation Description Describe the AirStation (optional). Up to 48 alphanumeric
characters, space, hyphens (-), and underscores (_) may be used.
Workgroup name Enter your workgroup name. Up to 15 alphanumeric characters,
space, hyphens (-), underscores (_), and periods (.) may be used.
Windows Client Language Select the language to be used by the Windows client.
Shared Service Displays the status of the USB disk that is used with the shared
service.
The screen to congure Web Access.
Parameter Meaning
Web Access Check [Enable] to use Web Access.
Web Access Display Language Set the language to be used with Web Access.
HTTPS/SSL Encryption Check [Enable] to use SSL encryption for protected data transfer.
Web Access External Port Automatically sets the external port used for Web access. To select
the port manually, select [Manual].
Parameter Meaning
DNS Service Hostname Sets the DNS Service Hostname when the Web access function
is activated. Select [Use BualoNAS.com registration function]
to use the Web access function easily. You’ll have to congure
a [BualoNAS.com name] and [BualoNAS.com key] to use
BualoNAS.com. 3 - 0 alphanumeric characters, spaces, hyphens
(-), underscores (_) and period (.), may be used in the BualoNAS.
com name. 3 - 20 alphanumeric characters, spaces, hyphens (-),
underscores (_) and period (.), may be used in the BualoNAS.com
key.
Note: The registered name is deleted from the server if the AirStation is
disconnected from power, even for a moment.
Web Access Displays the status of web access.
External Port Status Displays the status of the external port.
BualoNAS.com Displays the status of BualoNAS.com.
Media Server settings.
Parameter Meaning
Media Server Enable to use the media server.
Status Displays the status of the media server.
Congure the BitTorrent client.
Parameter Meaning
BitTorrent Function Enable to use the BitTorrent client. If the BitTorrent client is
enabled, overall communication performance may decrease and
settings screens may respond slower. If that happens, reformat the
USB disk with XFS. That may help performance.
External Port Number Select an external port number.
Parameter Meaning
Bandwidth Restriction Set a bandwidth limit for BitTorrent.
[Download Manager] Displays the BitTorrent download manager screen. Add a torrent,
then click [Add] to download the le(s).
[Delete BitTorrent information] Deletes all les, including the torrent les and les which are
currently downloading. Downloaded les are not deleted.
BitTorrent Status Displays the status of the BitTorrent client.
BitTorrent External Port Status Display the external port status of the BitTorrent client.
You can download the latest Windows BitTorrent client from www.bittorrent.com.
Congure basic AirStation settings.
Parameter Meaning
AirStation Name Enter a name for the AirStation. Names may include up to 64
alphanumeric characters and hyphens (-).
List Network Services Enable or disable this to display the computers and devices on your
network with their supported services.
Congure the password to log in to the AirStation’s conguration screen.
Parameter Meaning
Administrator Name The name of the Administrator account is “admin”.
Administrator Password The Administrator password may contain up to 8 alphanumeric
characters and underscores (_).
Congure the AirStation’s internal clock.
Parameter Meaning
Local Date You may manually set the date of the AirStation’s internal clock.
Local Time You may manually set the time of the AirStation’s internal clock.
Time Zone Specify the time zone (oset of Greenwich Mean Time) of the
AirStation's internal clock.
DST (Daylight Saving Time) You may congure the AirStation to automatically use DST
(Daylight Saving Time). If selected, the AirStation will automatically
adjust the time at the beginning and end of DST.
Congure an NTP server to automatically synchronize the AirStation’s internal clock.
Parameter Meaning
NTP Functionality Enable to use an NTP server. The default is Enabled.
NTP Server Enter the name of the NTP server as a hostname, hostname with
domain name, or IP address. Up to 255 alphanumeric characters,
hyphens (-), and underscores (_) may be used. The default is “time.
nist.gov”.
Update Interval How often will the AirStation check the NTP server for the correct
time? Intervals of 1 - 24 hours may be set. The default is 24 hours.
Congure Eco mode from this screen.
Parameter Meaning
Schedule feature Enable to schedule Eco Mode. If Eco mode is enabled, AOSS will
function only when the AirStation is in Normal operating mode.
Weekly schedule Graphically displays the congured schedule.
Register schedule Congure operational mode for time periods in the weekly
schedule. If User Dened mode is chosen, congure it below.
User Dened Mode Individual power saving elements may be congured for User
Dened mode.
Congure Network-USB from this screen.
Parameter Meaning
Network-USB Network-USB allows sharing USB devices connected to the
AirStation from multiple computers on a wired or wireless LAN.
Disable to reduce the impact on the NAS and other functions,
improve performance, or for security reasons.
Use multifunction Printer This uses a multifunction printer supporting mass storage classes
as a printer. Disable if using as a NAS instead.
Restrict access to the AirStation’s conguration interface.
Parameter Meaning
Log Output Enabling outputs a log of changes to access settings.
Prohibit conguration from wireless
LAN
If enabled, prevents access to conguration interface from
wirelessly connected devices (only wired devices may congure).
Prohibit conguration from wired
LAN
If enabled, prevents access to conguration interface from wired
devices (only wirelessly connected devices may congure).
Permit conguration from wired
Internet
If enabled, allows access to conguration interface from network
devices on the WAN (Internet) side.
Permitted IP address Displayed only if Internet side conguration is enabled. Enter the
IP address of a device that is permitted to congure the AirStation
remotely from the WAN (Internet) side.
Permitted Port Displayed only if Internet side conguration is enabled. Set a port
number (1 - 65535) to congure the AirStation from the WAN
(Internet) side.
Transfer the AirStation’s logs to a syslog server.
Parameter Meaning
Log Transfer Enable to send logs to a syslog server.
Syslog Server Identify the syslog server by hostname, hostname with domain
name, or IP address. You may enter up to 255 alphanumeric
characters, hyphens (-), and underscores (_).
Logs Choose which logs will be transferred to the syslog server.
Save AirStation settings as a le and restore from them later.
Parameter Meaning
Save current settings Clicking [Save] will save the current conguration of the AirStation
to a le. If the [Encrypt the conguration le with a password]
option is checked, then the conguration le will be password
protected with the current administrator password.
Restore Conguration from Backup
File
Restore the conguration of the AirStation from a saved
conguration le by clicking the [Browse...] button, navigating
to the conguration le, and then clicking [Restore]. If the
conguration le was password protected, then put a check next
to [To restore from the le you need the password], enter the
password, and click [Open].
Initialize or restart the AirStation.
Parameter Meaning
Restart Click [Restart Now] to restart the AirStation.
Initialize Click [Initialize Now] to initialize and restart the AirStation.
Update the AirStation’s rmware.
Parameter Meaning
Firmware Version Displays the current rmware version of the AirStation.
Update Method Specify Local File
Updates from a rmware le stored on your computer.
Automatic Update Online
Automatically updates to the latest rmware available.
Firmware File Name Click [Browse...] to navigate to the rmware le on your computer
if [Specify Local File] was selected. You don’t need to specify the
rmware location if you’re using [Automatic Update]. Click [Update
Firmware] to update the rmware.
Parameter Meaning
Firmware Update Reminder This sets whether the Firmware Update Reminder function is used.
When enabled, if new rmware is found, notication is sent to the
Conguration Interface.
Remind time This sets the interval for checking whether a new rmware version
has been released.
View system information for the AirStation.
Parameter Meaning
Model Displays the product name of the AirStation and the rmware
version.
AirStation Name Displays the name of the AirStation.
Mode Switch Status Displays the status of the AirStation’s mode switch.
Operational Mode Displays the AirStation’s current operational mode.
Internet Displays information about the Internet port.
LAN Displays information about the LAN port.
Wireless Displays the wireless status.
NAS Displays information about the USB disk.
ECO Mode This indicates the operating status of ECO Mode.
The AirStation’s logs are recorded here.
Parameter Meaning
Display log info Choose the types of logs to display.
Logs Displays the log information recorded in the AirStation.
View packet transfer information.
Parameter Meaning
Sent Displays the number of packets sent to the WAN, the LAN, and the
wireless LAN.
Received Displays the number of packets received from the WAN, the LAN,
and the wireless LAN.
This screen shows devices that are connected to the AirStation.
Parameter Meaning
Client Monitor Displays information (MAC address, lease IP address, hostname,
communication method, wireless authentication and 802.11n) for
devices that are connected to the AirStation.
A ping test checks whether the AirStation can communicate with a specic network device.
Parameter Meaning
Destination Address Enter the IP address or hostname of the device that you are testing
communication with, then click [Execute]. The result will be
displayed below.
AOSS and WPS are systems that enable you to automatically congure wireless LAN settings. Just
pressing the buttons will connect wireless devices and complete security settings. Use them to
automatically connect wireless devices, computers, or game machines which support AOSS or WPS.
AOSS (AirStation One-Touch Secure System) is technology developed by Bualo
Technology. WPS was created by the Wi-Fi Alliance.
• Before using AOSS or WPS to connect the Bualo wireless client to the computer, download Client
Manager or AOSS Assistant from the Bualo website and install it.
• Bualo’s Client Manager software can be used with the wireless LAN devices built into your
computer. However, it is not guaranteed to work with all wireless LAN devices available.
1
2
Click [Start] > [All Programs] > [BUFFALO] > [AirStation Utility] > [Client Manager V].

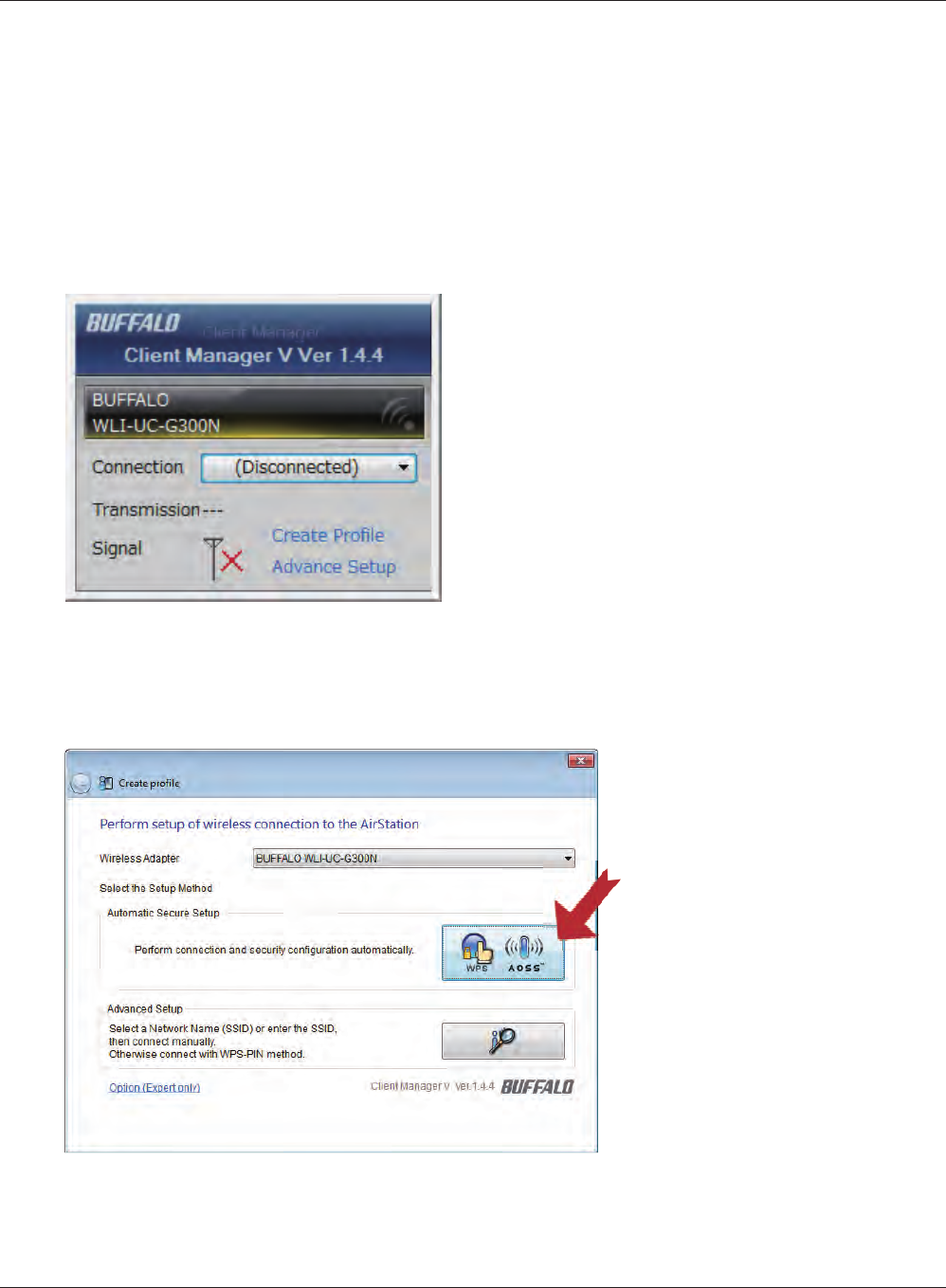

If you are using Windows 7 or Vista, use the Client Manager V to connect wirelessly with AOSS or
WPS.
Click [Create Pro le].
3If the User Account Control screen opens, click [Yes] or [Continue].

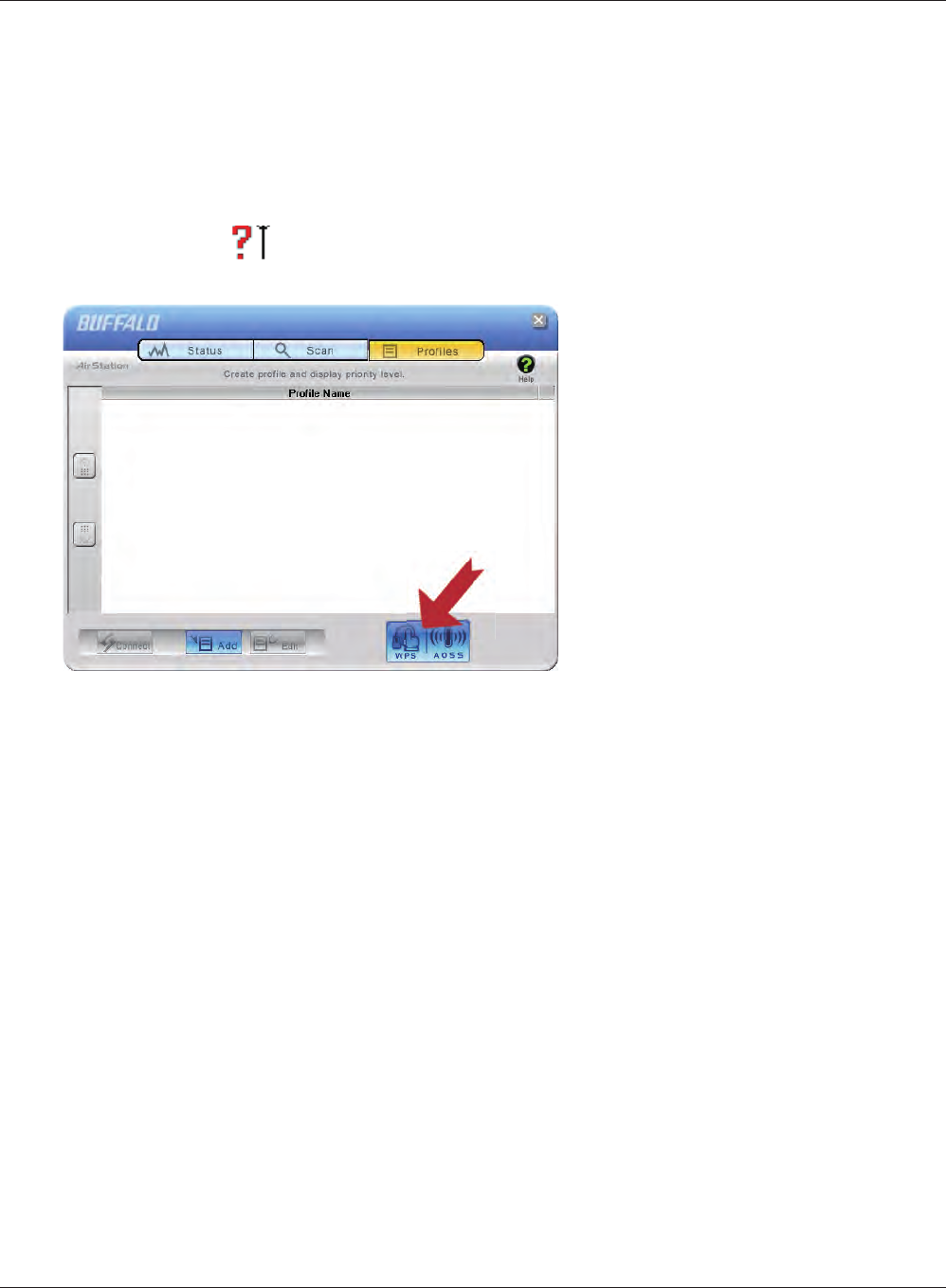

4Click the [WPS AOSS ] button.

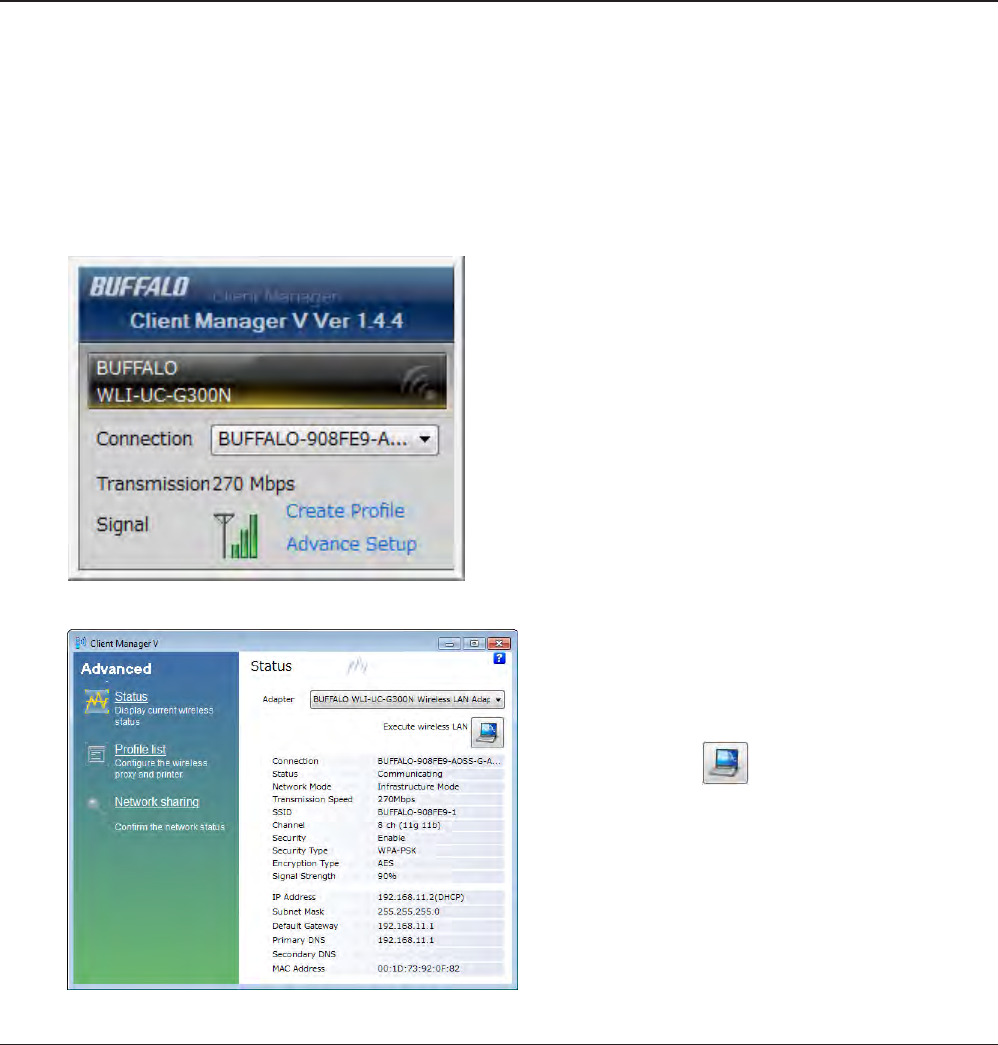

Follow any instructions displayed on the screen. When the Wireless LED on the front of the
AirStation stop ashing and glows steadily, the connection is complete.
2
If you are using Windows XP, use Client Manager 3 to connect wirelessly with AOSS or WPS.
1Right-click on the icon in the system tray and select [Pro le].
Click the [WPS AOSS] button.
It will take several seconds for your wireless connection to be con gured. When the Wireless LED on
the front of the AirStation stop ashing and glows steadily, the connection is complete.
If you are using Mac OS X 10.7 / 10.6 / 10.5 / 10.4, use the AOSS Assistant to connect wirelessly with
AOSS.
1Run the AOSS Assistant program that was downloaded from the Bualo web site.
2
3
4

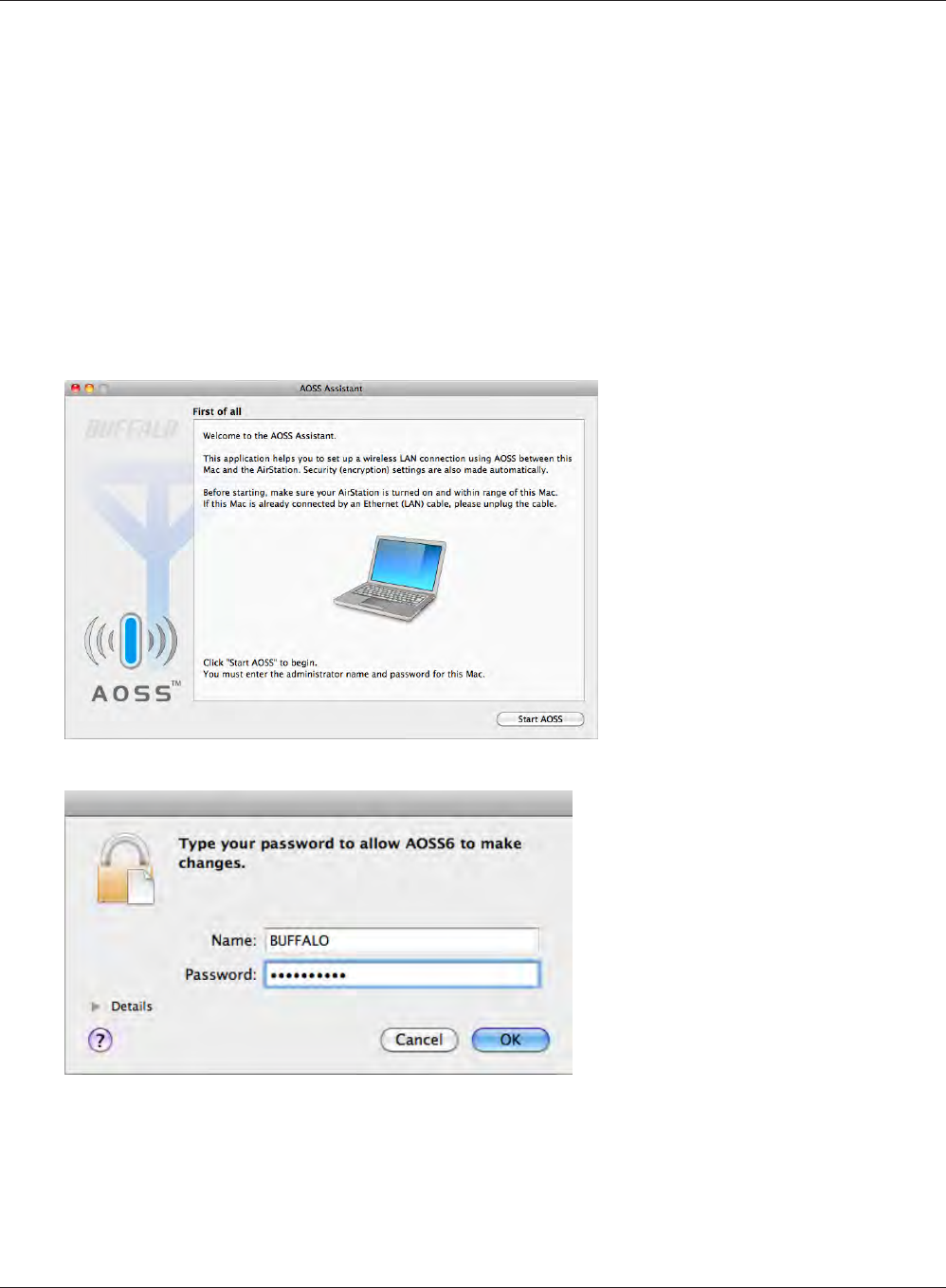

The software license screen is displayed. Click [Agree] to proceed.
Click [Start AOSS ].
Enter the Mac’s username and
password and click [OK].
It will take several seconds for your wireless connection to be congured. When the Wireless LED on
the front of the AirStation stop ashing and glows steadily, the connection is complete.
If you are using a game machine which supports AOSS or WPS, refer to that device’s manual to
initiate AOSS or WPS. When instructed, hold down the AOSS button on the AirStation for 1 second.
When the Wireless LED on the front of the AirStation stop ashing and glows steadily, the
connection is complete.
You can also connect to the AirStation without installing Client Manager V or Client Manager 3 by
using the utility built-in to operating system. The procedure varies depending on which version of
operating system you are using.
With Windows 7, use WLAN AutoCong to connect to the AirStation.

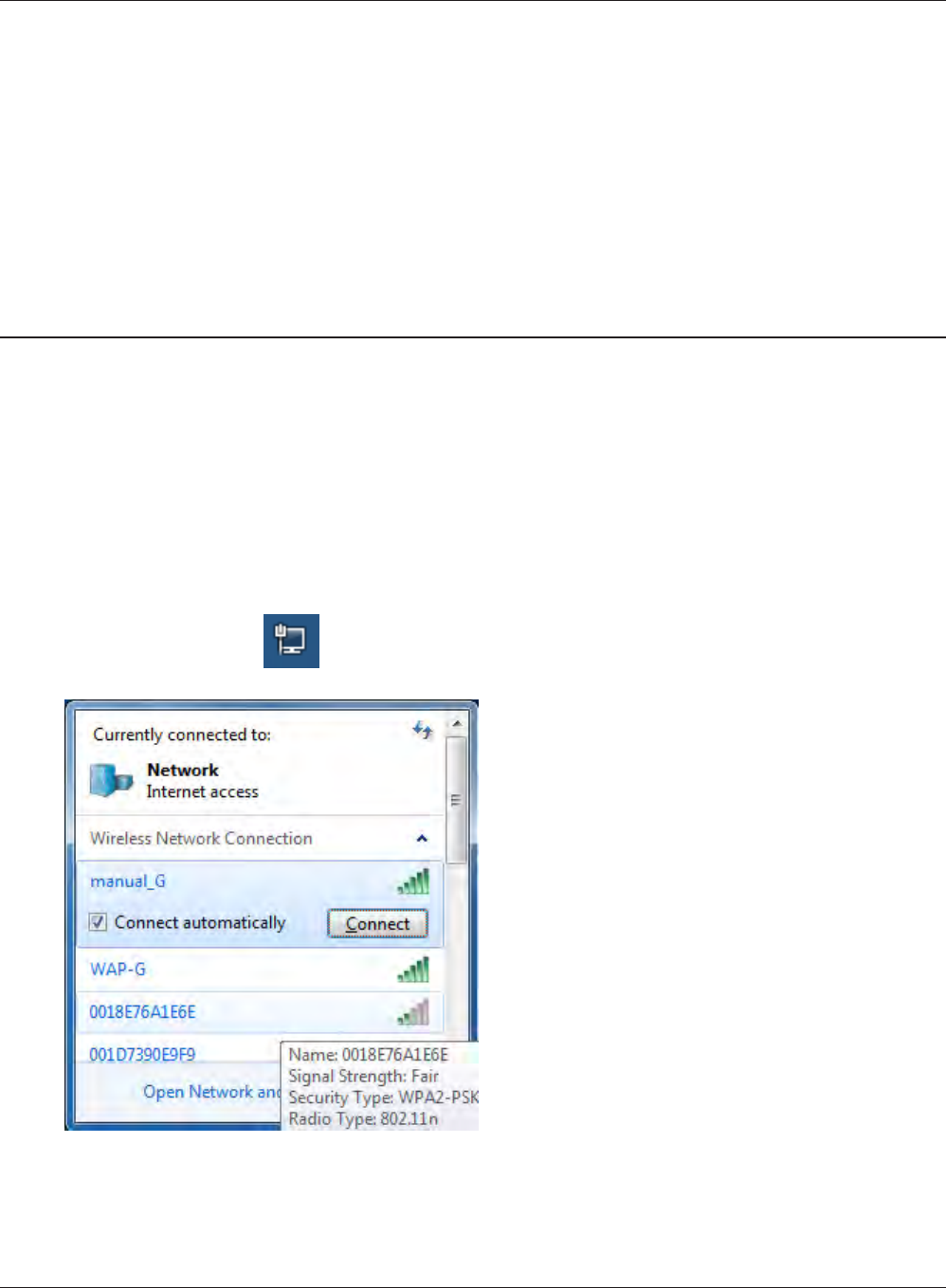

1Click on the network icon in the system tray.
2Select the target AirStation and click
[Connect]. If you will be connecting to this
device in the future, checking [Connect
automatically] is recommended.

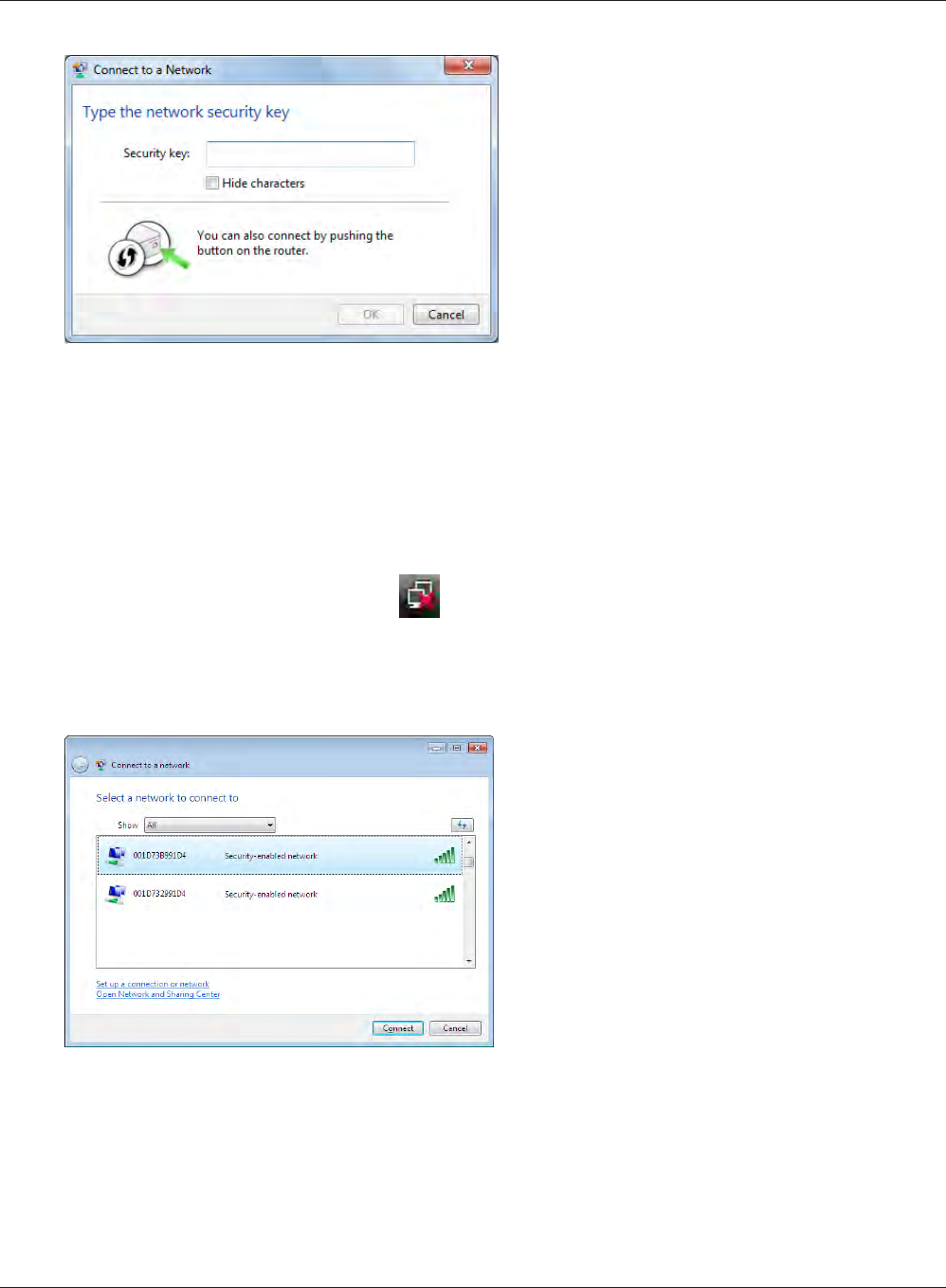

3Enter the encryption key and click [OK].
1Right-click on the wireless network icon in the system tray.
2Click [Connect to a network.
When this screen is displayed, select your
network and click [Connect.
3
With Vista, use WLAN AutoCong to connect to the AirStation.

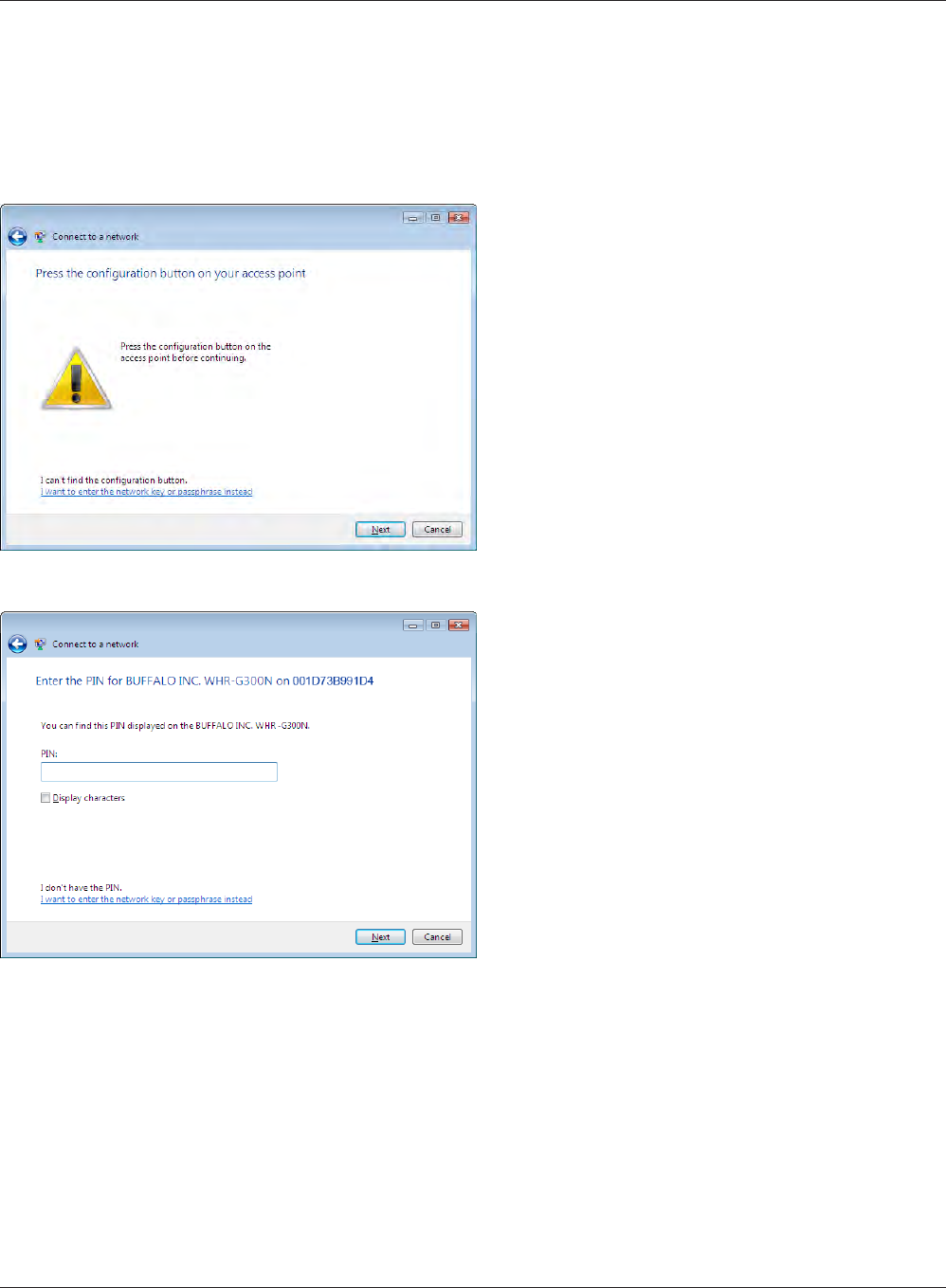

If the screen below is displayed, click [I want to enter the network key or passphrase instead].
Otherwise,go to step 4.

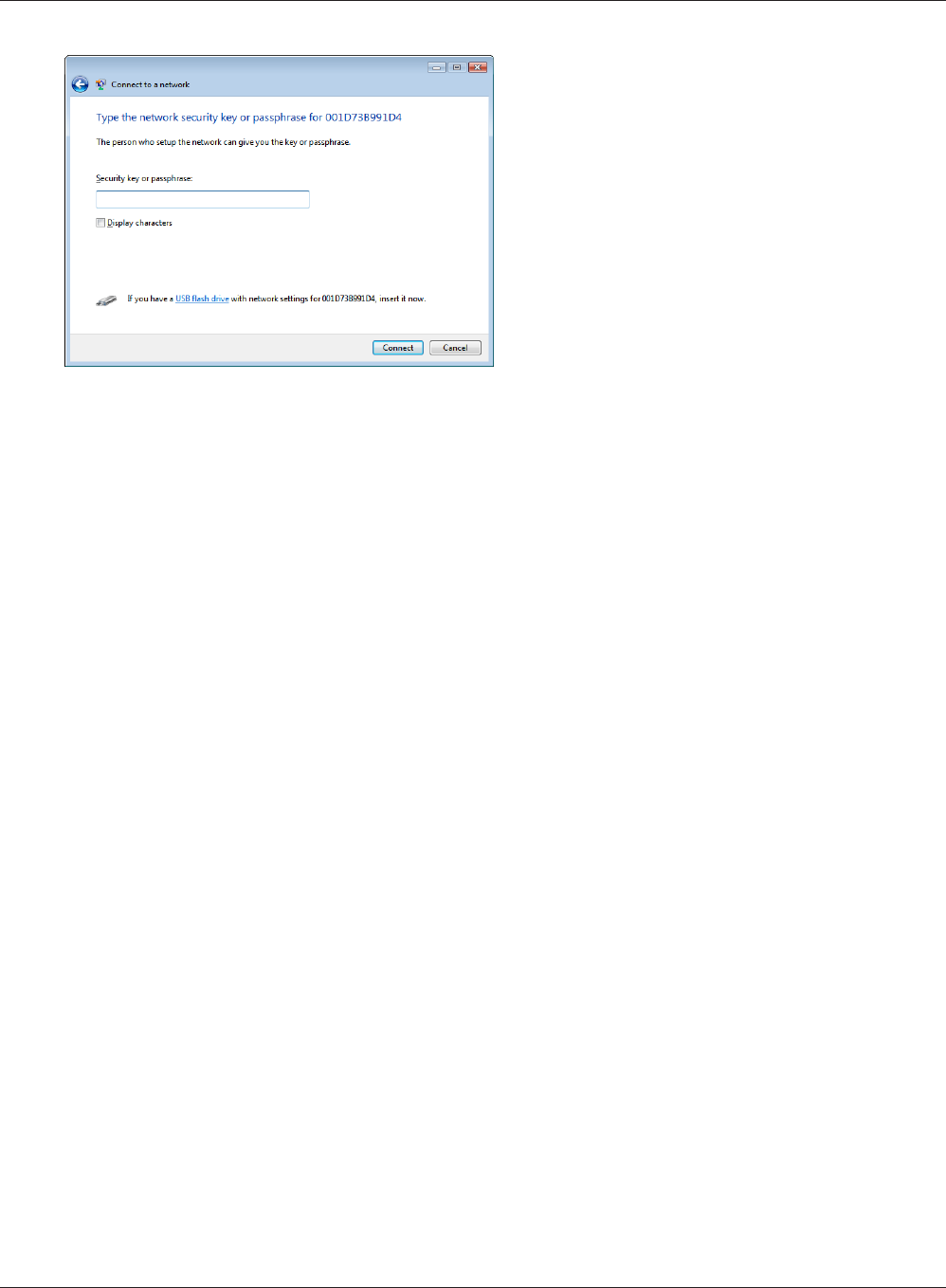

4Enter the encryption key and click [Connect].
Step through the wizard to nish conguration.
If the Set Network Location screen is displayed, select [Home], [Work], or [Public location] depending
on where you’re using the AirStation.
Windows XP includes Wireless Zero Cong, a built-in utility to connect to your AirStation.
Note: If Client Manager 3 is installed on your computer, Wireless Zero Cong is disabled. Uninstall Client
Manager 3 to use Wireless Zero Cong, or just use Client Manager 3 to connect to the AirStation.
1Right-click on the wireless network icon in the system tray.
2Click [View Available Wireless Networks].
3
4
It will take several seconds for conguration to complete.
Select the network to connect to and click
[Connect].
Enter the encryption key (twice) and click
[Connect].
Use Wi-Fi on a Mac to connect to the AirStation.
Note: In Mac OS X 10.6 and earlier, “Wi-Fi” appears as “AirPort”.
1
2
3
Refer to the setup card at the bottom of the
AirStation. Make a note of the SSID and Key
printed on the setup card.
Click the icon in the top
section of the screen and select
[Turn Wi-Fi On].
4
It will take several seconds for conguration to complete.
Find the SSID from step 1 on the list.
Click it to highlight it.
Enter the Key from step 1 into
the Password entry box, check
[Remember this network], and click
[OK].
• Make sure that your AirStation is plugged in!
• Check that the status LEDs of your AirStation are lit as below:
Internet access Blue light is on
Bualo White light is on
LAN Green light is on or blinking
Internet Green light is on or blinking
• Make sure that your computer is congured to “obtain an IP address automatically from DHCP”.
• Restart your AirStation.
• See chapter 3 for instructions to open the AirStation’s conguration interface.
• Enter the correct username and password to log in to the conguration interface. If you are using
AirStation with factory default settings, enter “admin” for the username and “password” for the
password.
• Verify that your web browser is not set to use proxies.
• Make sure that your computer is congured to “obtain an IP address automatically from DHCP”.
• Restart your AirStation.
With the AirStation powered on, hold down this button
for 3 seconds to return it to factory default settings.
• Congure your wireless client with the same SSID, encryption type, and encryption key as set on
the AirStation.
The factory defaults are:
SSID - BUFFALO-XXXXXX (the last 6 digits of the AirStation’s MAC address)
Encryption Type - WPA/WPA2 mixed mode - PSK, or none.
Encryption Key - Printed on the Setup card.
Note: For details, refer to the Setup card.
• Place your AirStation and wireless devices 2 - 10 feet apart.
• Restart your AirStation.
Hold down the reset button on the base of your AirStation for 3 seconds to initialize its settings. All
settings, including your password, SSID, and encryption key will be initialized to their defaults.
To congure TCP/IP in Windows 7, follow the procedure below.
1Click [Start] > [Control Panel] > [Network and Internet].
2Click [Network and Sharing Center].
3Click [Change Adapter Settings] on the left side menu.
4Right-click on [Local Area Connection], then click [Properties].
5If the User Account Control screen opens, click [Yes] or [Continue].
6Select [Internet Protocol Version 4 (TCP/IPv4)] then click [Properties].
7To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each setting. Examples:
If the router’s IP address is 192.168.11.1,
IP address 192.168.11.80
Subnet mask 255.255.255.0
Default gateway 192.168.11.1
Preferred DNS server 192.168.11.1
Alternate DNS server blank
8Click [OK].
To congure TCP/IP in Windows Vista, follow the procedure below.
1Click [Start] > [Settings] > [Control Panel].
2Click [Network and Sharing Center].
3Click [Manage network connections] on the left side menu.
4Right-click on [Local Area Connection], then click [Properties].
5If the User Account Control screen opens, click [Yes] or [Continue].
6Select [Internet Protocol Version 4 (TCP/IPv4)], then click [Properties].
7To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each settings. Example:
If the router’s IP address is 192.168.11.1,
IP address 192.168.11.80
Subnet mask 255.255.255.0
Default gateway 192.168.11.1
Preferred DNS server 192.168.11.1
Alternate DNS server blank
8Click [Close].
To congure TCP/IP in Windows XP, follow the procedure below.
1Click [Start] > [Settings] > [Control Panel].
2Double-click [Network].
3Right-click on [Local Area Connection], then click [Properties].
4Select [Internet Protocol (TCP/IP)], then click [Properties].
5To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each setting. Examples:
If the router’s IP address is 192.168.11.1,
IP address 192.168.11.80
Subnet mask 255.255.255.0
Default gateway 192.168.11.1
Preferred DNS server 192.168.11.1
Alternate DNS server blank
6Click [Close].
To congure TCP/IP in Mac OS X, follow the procedure below.
1Click [Apple menu] > [System Preferences…].
2Click [Network].
3Click [Ethernet].
4To have DHCP set your IP address settings automatically, select [Using DHCP] in the Congure
IPv4 eld.
To set your IP address settings manually, select [Manually] in the Congure IPv4 eld and
enter values for each setting. Examples:
If the router’s IP address is 192.168.11.1,
IP Address 192.168.11.80
Subnet Mask 255.255.255.0
Router 192.168.11.1
DNS Server 192.168.11.1
Search Domains blank
5Click [Apply].
I reset my wireless router to factory settings and forgot how to log in to the conguration interface.
Open your browser, enter 192.168.11.1 as the browser address, and hit Enter. You will be prompted
to log in. Enter “admin” for the username and “password” for the password. Click [OK] to log in. The
option to reset your password will be available on the rst page.
How do I forward ports on my wireless router for my gaming console?
Log in to the router. From the home page, go to the Internet Game/ Port Mapping section. Enter the
port that needs to be forwarded and the IP address of the gaming console.
How do I enable or modify security encryption settings on the wireless router?
Go to the Wireless Cong tab and then select the Security tab. Bualo recommends the use of WPA/
WPA2 mixed for wireless encryption. The passphrase/ key should be at least 8 characters in length.
How do I change my wireless router’s broadcasted network name (SSID)?
Log in to the wireless router with your browser. Navigate to Wireless Cong - Basic. Find the SSID
setting. Select [Use] and enter the new name for your network. Click [Apply]. Once the wireless
router has rebooted, you will need reconnect any wireless clients to the AirStation using the new
network name. The encryption key will still be the same.
What can I do if my wireless connection drops randomly or seems slow?
There are many environmental factors that may cause this. First, ensure the issue is not range
related by moving the wireless router and the client device closer together. If the connection drops
continue, then range is probably not the issue.
Other 2.4 GHz devices such as microwaves, other wireless networks, and 2.4 GHz wireless phones
may impact performance. Try a dierent wireless channel for your wireless router. Log in to the
wireless router with your browser. Click on the Wireless Cong tab and then the Basic tab. Wireless
channels from 1 - 11 may be selected. Try the Auto-Channel option if available. Otherwise, manually
select an alternate channel and click [Apply].
Though I am able to successfully make a connection with my wireless router, I am unable to access
the Internet with my web browser.
First, power o the cable or DSL modem, the wireless router, and your computer. Move the router's
mode switch to the on position. Verify that the modem is connected to the wireless router with an
Ethernet cable to the WAN port. Power on the modem and wait one minute. Power on the wireless
router and wait another minute. Power on the computer. Open a browser on the computer and
navigate to a familiar website to verify whether the Internet connection is functioning normally.
If after these steps, an Internet connection is still unavailable, power o the cable or DSL modem
and computer again and directly connect your computer to the cable or DSL modem with a cable
between the computer and the port on the modem. Power on the modem and wait one minute.
Power on the computer and again check for an Internet connection.
If an Internet connection IS NOT available with a direct connection to the computer, please call the
Internet Service Provider who installed the modem.
If an Internet connection IS available with a direct connection to the computer, please call our
customer support.
Where can I download the latest drivers, rmware, and instructions for my Bualo wireless products?
The latest drivers and rmware are available online at
www.bufalotech.com
Feature Parameter Default Setting
Internet
(Router mode only)
Method of Acquiring IP Address Perform Easy Setup (Internet Connection Wizard)
Default Gateway none
DNS Name Server Address none
Internet MAC Address Use Default MAC Address
MTU Size of Internet Port 1500 Bytes
PPPoE
(Router mode only)
Default PPPoE Connection No Active Session
IP Unnumbered PPPoE
Connection
No Active Session
PPPoE Connection List none
Preferred Connections none
DDNS
(Router mode only)
Dynamic DNS Service Disabled
Current Dynamic DNS
Information
none
VPN Server
(Router mode only)
LAN Side IP Address 192.168.11.1 (255.255.255.0)
DHCP Server Function Enabled
DHCP IP Address Pool 192.168.11.2 for up to 64 Address(es)
PPTP Server Function Disabled
Authorization Type MS-CHAPv2 (40/128-bit Encryption)
Server IP Address Auto
Client IP Address Auto
DNS Server IP Address LAN IP address of the AirStation
WINS Server IP Address none
MTU/MRU value 1396
PPTP User List none
Feature Parameter Default Setting
LAN LAN Side IP Address Router mode (Router On):
192.168.11.1 (255.255.255.0)
Bridge mode (Router O ):
192.168.11.100 (255.255.255.0)
DHCP Server Function
(Router mode only)
Enabled
DHCP IP Address Pool
(Router mode only)
192.168.11.2 for up to 64 Addresses
LAN Side IP Address
(For IP Unnumbered)
(Router mode only)
none
Lease Period
(Router mode only)
48 Hours
Default Gateway
(Router mode only)
AirStation's IP Address
DNS Servers
(Router mode only)
AirStation's IP Address
WINS Server
(Router mode only)
Do Not Specify
Domain Name
(Router mode only)
Assigned Domain Name
Default Gateway
(Bridge mode only)
none
DNS Server Address
(Bridge mode only)
none
DHCP Lease
(Router mode only)
Current DHCP Client Information none
NAT
(Router mode only)
Address Translation Enabled
Log Output of Deleted Packets Disabled
Route Routing Information none
Feature Parameter Default Setting
WPS WPS Enabled
External Registrar Enabled
AirStation PIN An 8-digit random value
(Printed on the label of the AirStation)
WPS Security Information WPS status: congured
SSID: BUFFALO-XXXXXX (the last 6 digits
of the AirStation’s MAC address)
Security: WPA/WPA2 mixedmode - PSK
TKIP/AES mixedmode or none
Encryption key: Either a 13-digit random value
or disabled. Printed on the label
of the AirStation. Encryption is
disabled by default settings on
AirStation for Asia Pacic.
Basic Wireless Radio Enabled
SSID Use AirStation's MAC address
Wireless Channel Auto Channel
High-throughput mode 11ac/n/a
Bandwidth: 11ac/n/a 1300 Mbps Mode (80 MHz)
Extension Channel: -
11n/g/b
Bandwidth: 11n/g/b Normal Mode (20 MHz)
Extension Channel: -
Broadcast SSID Allow
Wireless authentication WPA/WPA2 mixedmode - PSK, or no authentication
Wireless encryption TKIP/AES mixedmode, or no encryption
WPA-PSK (Pre-Shared Key) A 13-digit random value or disabled
(Printed on the setup card. Encryption is disabled in
default settings on AirStation for Asia Pacic.)
Rekey interval 60 minutes
Advanced BSS Basic Rate Set 11ac/n/a
6, 12, 24 Mbps
11n/g/b
1, 2, 5.5, 11 Mbps
Multicast Rate Auto
802.11n Protection Disabled
DTIM Period 1
Privacy Separator Disabled
Output Power 100%
Feature Parameter Default Setting
WMM WMM-EDCA Parameters
(Priority AC_BK (Low) )
For AP For STA
CWmin 15 15
CWmax 1023 1023
AIFSN 7 7
TXOP Limit 0 0
Admission Control ----- Disabled
WMM-EDCA Parameters
(Priority AC_BE (Normal) )
For AP For STA
CWmin 15 15
CWmax 63 1023
AIFSN 3 3
TXOP Limit 0 0
Admission Control ----- Disabled
WMM-EDCA Parameters
(Priority AC_VI (High) )
For AP For STA
CWmin 7 7
CWmax 15 15
AIFSN 1 2
TXOP Limit 94 94
Admission Control ----- Disabled
WMM-EDCA Parameters
(Priority AC_VO (Highest) )
For AP For STA
CWmin 3 3
CWmax 7 7
AIFSN 1 2
TXOP Limit 47 47
Admission Control ----- Disabled
MAC Filter Enforce MAC Filtering 11ac/n/a
Disabled
11n/g/b
Disabled
Registration List none
Multicast control Snooping Enabled
Multicast Aging Time 300 sec.
AOSS Encryption Type none
AOSS Button on the AirStation
Unit
Enabled
Feature Parameter Default Setting
Firewall
(Router mode only)
Log Output Disabled
Basic Rules Prohibit NBT and Microsoft-DS Routing Disabled
Reject IDENT Requests Enabled
Block Ping from Internet Enabled
IP Filter
(Router mode only)
Log Output Disabled
IP Filter Information none
VPN Pass
Through
(Router mode only)
IPv6 Pass Through Disabled
PPPoE Pass Through Disabled
PPTP Pass Through Enabled
Port Forwarding
(Router mode only)
Port Forwarding Registration
Information
none
DMZ
(Router mode only)
IP Address of DMZ none
UPnP
(Router mode only)
UPnP Enabled
QoS
(Router mode only)
QoS for transmission to the
Internet
Disabled
Disk
Management
Automatic USB Disk Assignment Enabled
FAT format le name character
code
North America (CP437)
HDD power-saving function Disabled
HDD stop time 10 Minutes
Shared Folder Access Limits No Limits (Read/Write)
Web Access Access Limits
User
Management
Current Users guest
Shared Service Shared Folder Enabled
AirStation Name AP + AirStation’s MAC Address
AirStation Description None
Workgroup Name WORKGROUP
Windows Client Language North America (CP437)
Shared Service None
Feature Parameter Default Setting
Web Access Web Access Disabled
Web Access Display Language English
HTTPS/SSL Encryption Disabled
Web Access External Port Auto (Port Number:9000)
DNS Service Host Name Use BualoNAS.com registration function
Web Access status None
Media Server Media Server Disabled
Status None
BitTorrent BitTorrent Function Disabled
External Port Number Auto (Port Number: 9002)
Bandwidth Restriction Enabled
Maximum Download Speed 1000 KB/s
Maximum Upload Speed 200 KB/s
BitTorrent Status none
Name AirStation Name AP + AirStation's MAC Address
List Network Services Enabled
Password Administrator Name admin (xed)
Administrator Password password
Time/Date Local Date 2012 Year 1 Month 1 Day
Local Time 0 Hour 0 Minute 0 Seconds
Time Zone (GMT - 06:00) Central Standard Time: CST
DST (Daylight Saving Time) USA (From Second Sunday in Mar to rst Sunday in
Nov)
NTP NTP Functionality Enabled
NTP Server time.nist.gov
Update Interval 24 hours
Feature Parameter Default Setting
ECO Schedule feature Disabled
Register schedule Operational Mode: Normal
Start time: 0:00
End time: 0:30
The day of week: none
User Dene Mode LED: O
Wired LAN: ECO (Slow operation)
Wireless LAN: O
Network-USB Network-USB Enabled
Use multifunction Printer Enabled
Access Log Output Disable
Limitation Item Prohibit conguration from wireless LAN Disabled
Prohibit conguration from wired LAN Disabled
Permit conguration from wired Internet Disabled
Log Log Transfer Disabled
Syslog Server none
Logs Router Mode:
Address Translation, IP Filter, Firewall, PPPoE
Client, Dynamic DNS, DHCP Client, DHCP Server,
AOSS, Wireless Client, Authentication, Setting
Changes, System Boot, NTP Client, Wired Link,
and System
Bridge Mode:
IP Filter, DHCP Client, AOSS, Wireless Client,
Authentication, Setting Changes, System Boot,
NTP Client, Wired Link, and System
Update Update Method Specify Local File
Firmware Update Reminder Enabled
Remind Time Automatic
Network-USB Navigator is compatible only with printers and multifunction printers (all-in-one
devices with a printer, scanner, and memory card reader). It cannot be used with any other type of
USB devices.

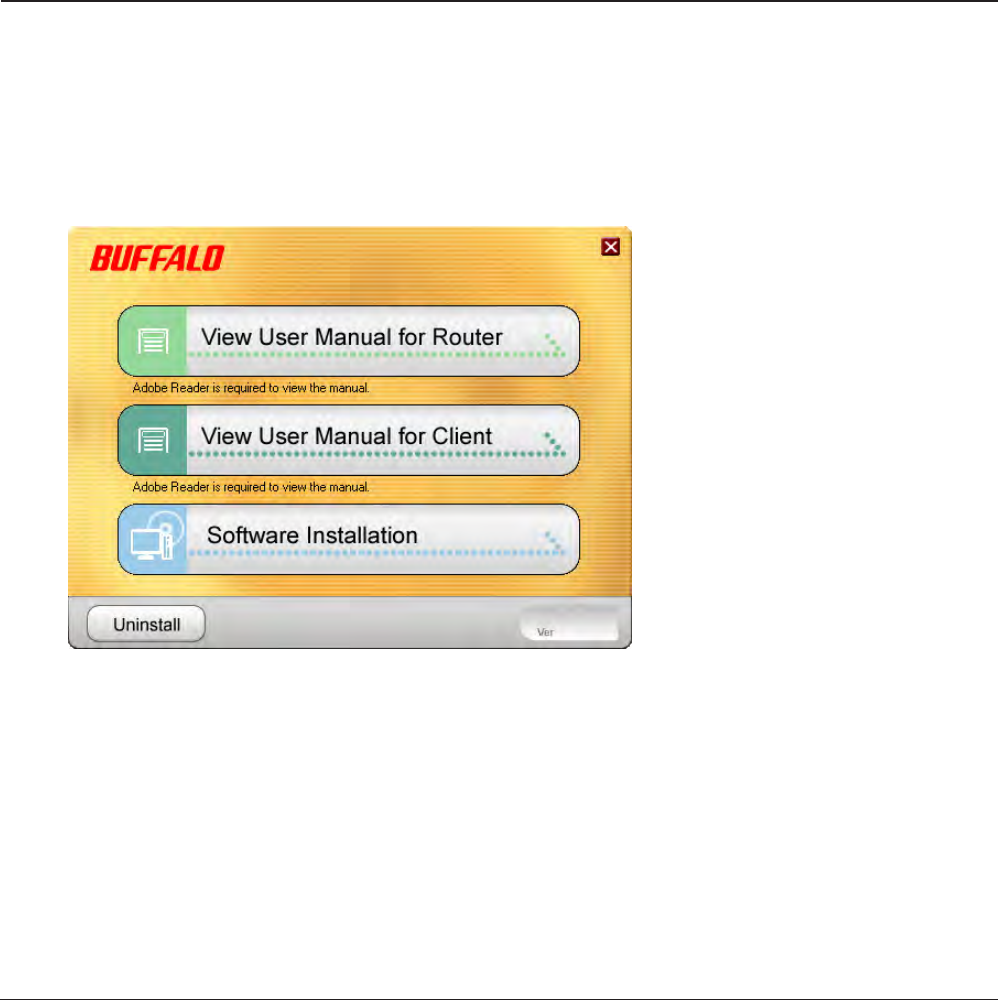

1Insert the AirNavigator CD into your computer.
The setup menu will launch automatically. If not, open the CD and click on “Launcher.exe” in
the “win” folder.
2
Click [Software installation].
4
Click [Next].
5
Click [Yes].
3
Check the box for “Network-USB
Navigator” and click [Install].
7
Click [Next].
6
Click [Next].
8
Click [Start].
・Installation on Windows XP (SP2 or later)
・Installation on Windows 7/Vista
Click [Yes] when this screen is shown.
Click [Install] when this screen is shown.
Click [Yes] when this screen is shown.
9
10 Click [Finish] when the “Network-USB Navigator Install is Complete” screen is shown.
Network-USB Navigator installation is complete.
1 You can select the behavior
of this product when a USB
device is detected. Select the
connection behavior suited to
your usage environment.
2 Click [Next].
1Insert the Air Navigator CD.
2From the menu bar, click [Go] > [Computer].
3Double-click the CD icon, and then double-click [Mac] > [DeviceServer] > [Cosetup].

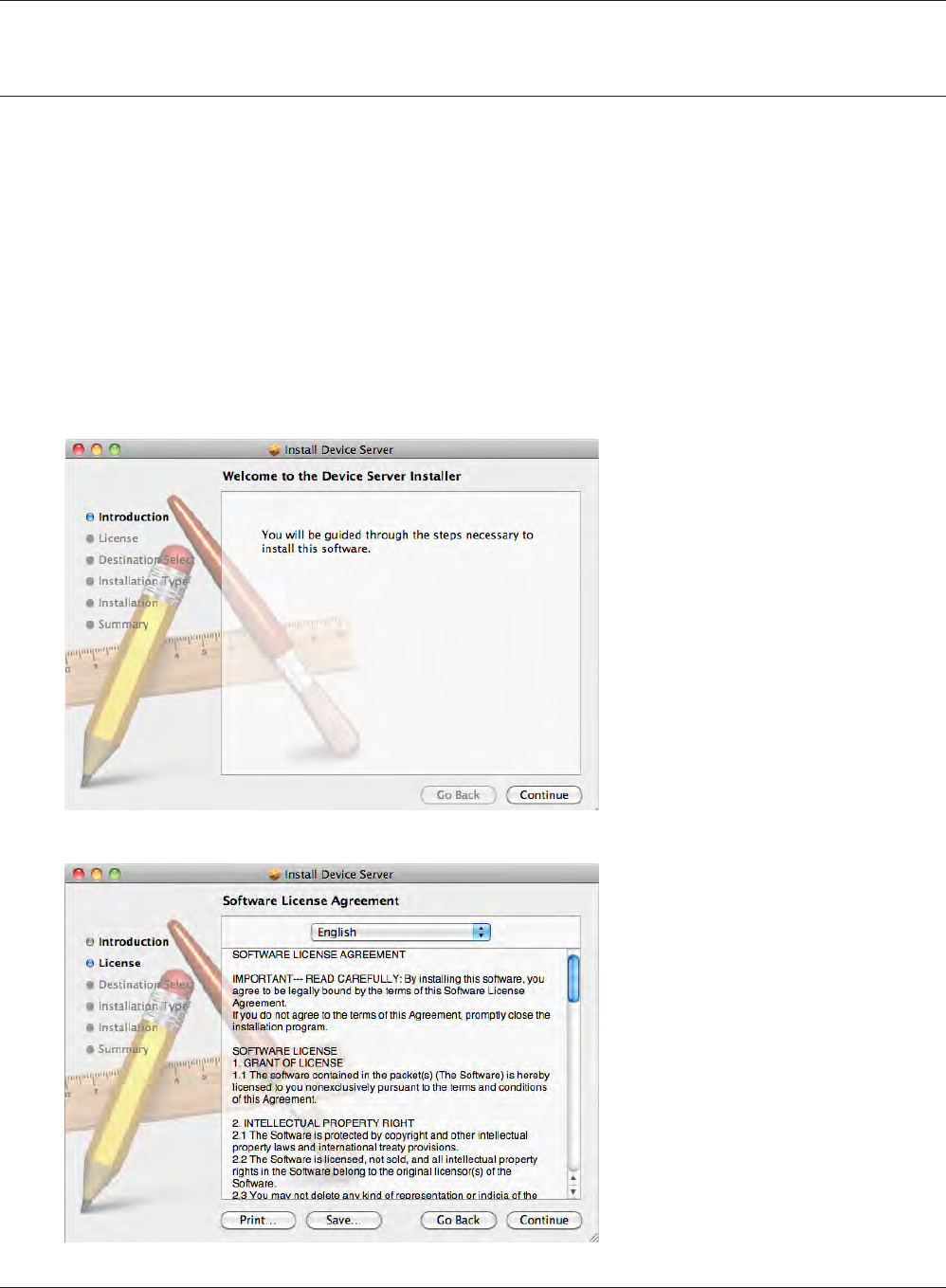

4
Click [Continue].
5Click [Continue].

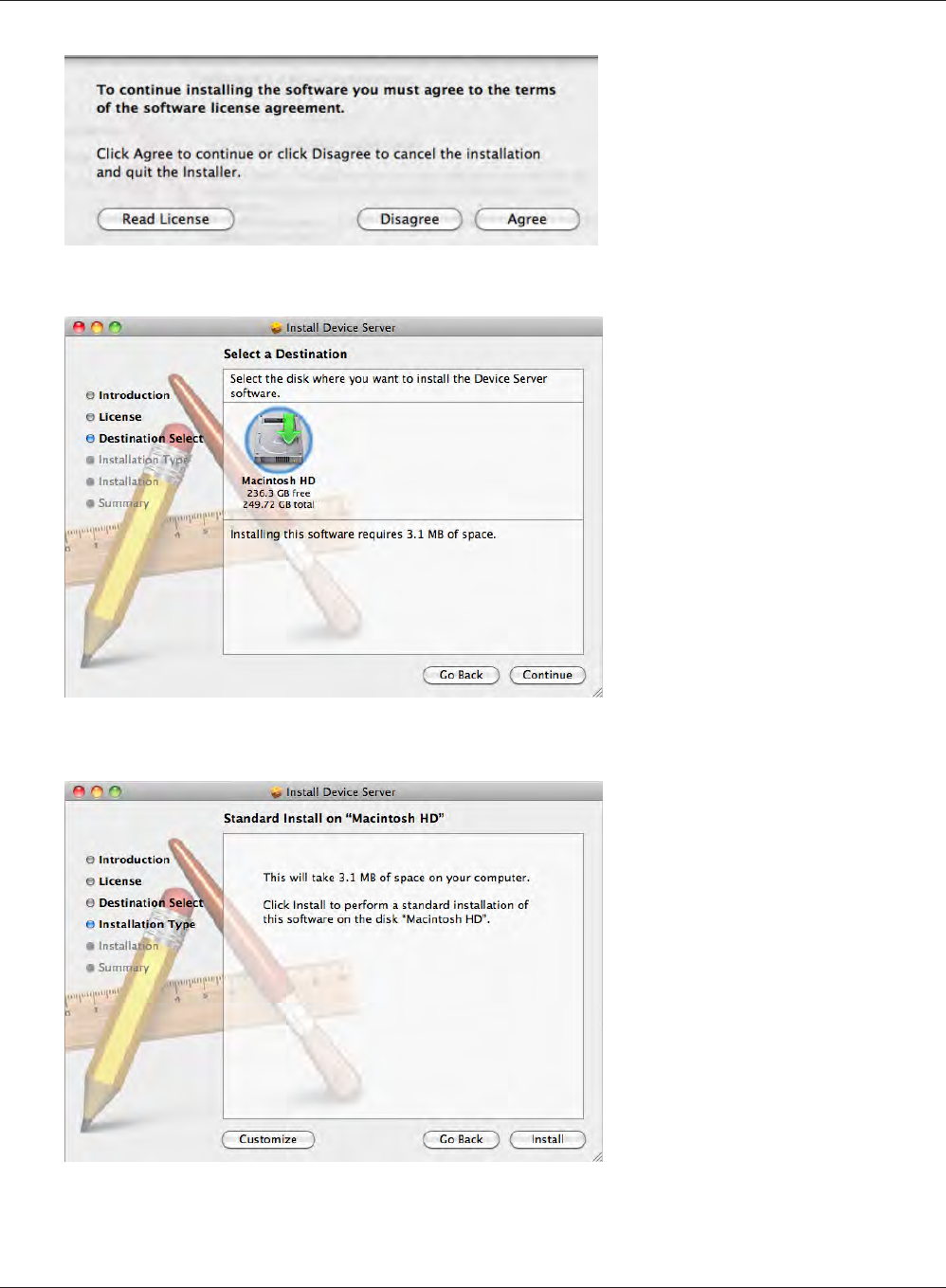

6
Click [Agree].
8
Click [Install].
7
Click [Continue].

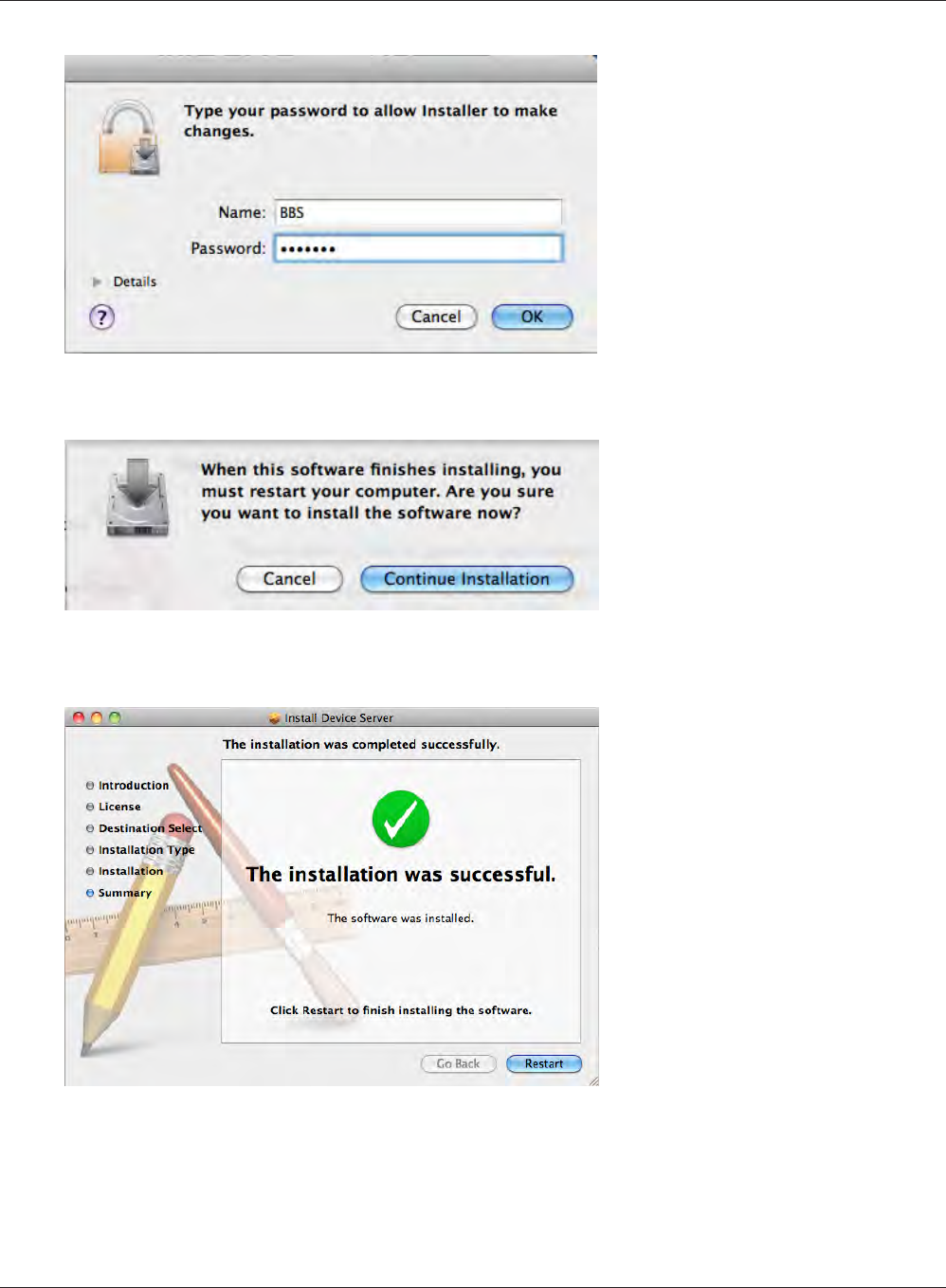

10
Click [Continue Installation].
11
Click [Restart].
9
Input your name and password.
Click [OK].
12
Network-USB Navigator installation is complete.
1 During the rst program
launch only, the screen at
left will appear before the
main program screen is
displayed. From here, you
can select the behavior of
this product when a USB
device is detected. Select
the connection behavior
suited to your usage
environment.
2 Click [OK].
1Launch Network-USB Navigator.
There are two ways to launch the program.
a) Click the task tray icon .
b) From the Start menu, click [(All) Programs]-[BUFFALO]-[Network-USB Navigator]-[Network-
USB Navigator].
Macintosh Users
a) Click the Dock icon .
b) Click [Macintosh HD]-[Applications]-[BUFFALO]-[Device Server]-[Network-USB Navigator].
To congure Network-USB, refer to the “Network-USB User Manual”.
2
Click , then click [Manual
Page].
3Network-USB User Manual will open.
For users of Windows 7, Vista, or Mac OS X (10.4 and later), software supplied with the AirStation can
be used to check the quality and strength of the wireless signal.
Note: If Client Manager V is not already installed, download it from the Bualo web site, and install.
Client Manager V does not support Windows XP.
3
When the Client Manager V status screen is
displayed, click .
1Click [Start] > [All Programs] > [BUFFALO] > [AirStation Utility] > [Client Manager V].
2

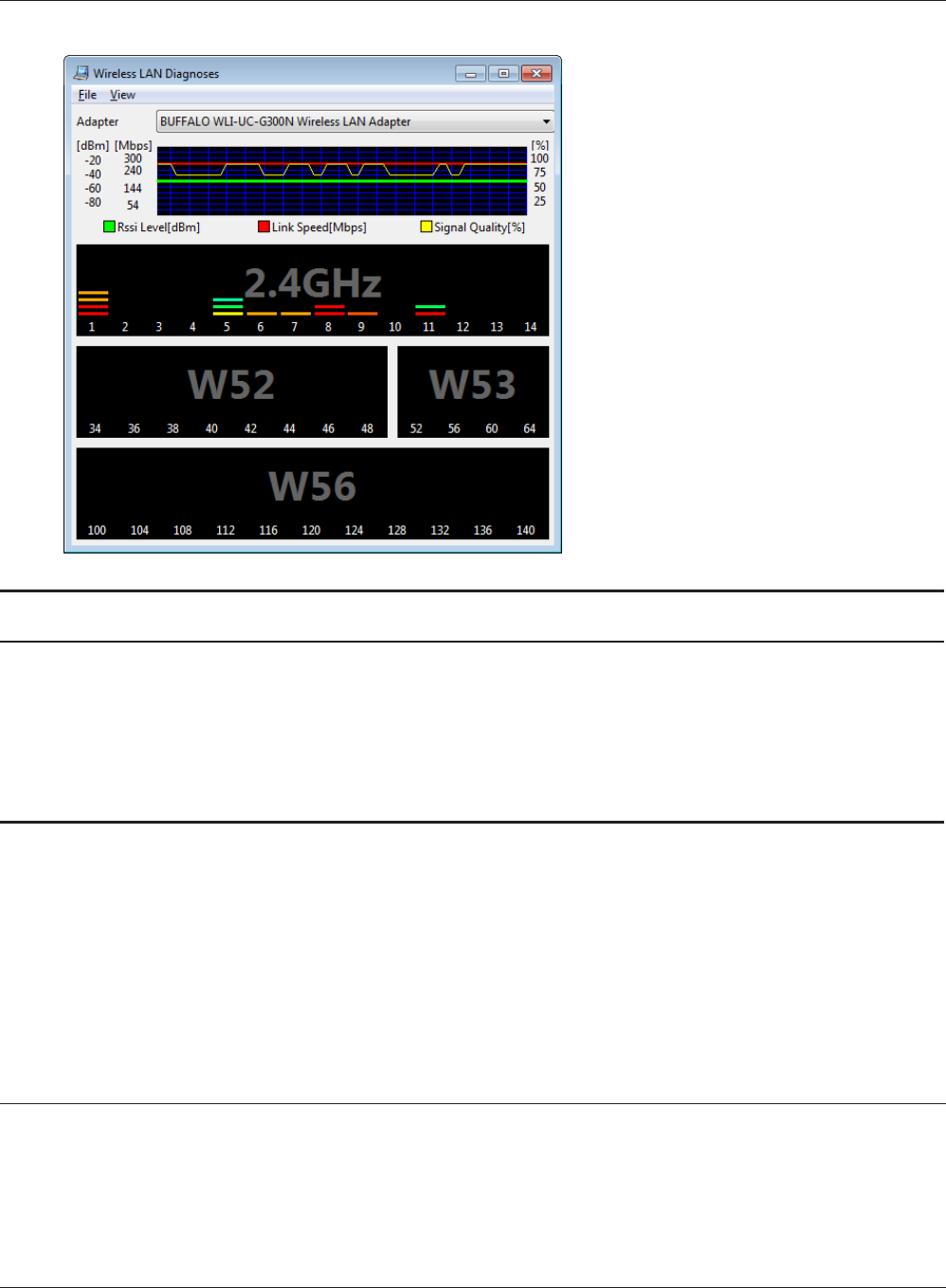

Click [Advanced Setup].
4
Parameter Meaning
Connection status Signal strength (dBm), link speed (Mbps), and signal quality (%) are
displayed in one-minute intervals on a real-time graph.
Usage status by channel The 11b/11g display shows usage in the 2.4 GHz band channels 1
to 11.
The 11a display shows usage in the W52, W53, and W56 channels.
Colors are used to indicate the signal strength of the access point. Colors closer to red indicate an
access point with a stronger signal strength, and colors closer to blue indicate an access point with a
weaker signal strength.
1Run the WLAN Monitor program that was downloaded from the Bualo web site.
2The software license screen is displayed when starting for the rst time only. Click [Agree] to
proceed.

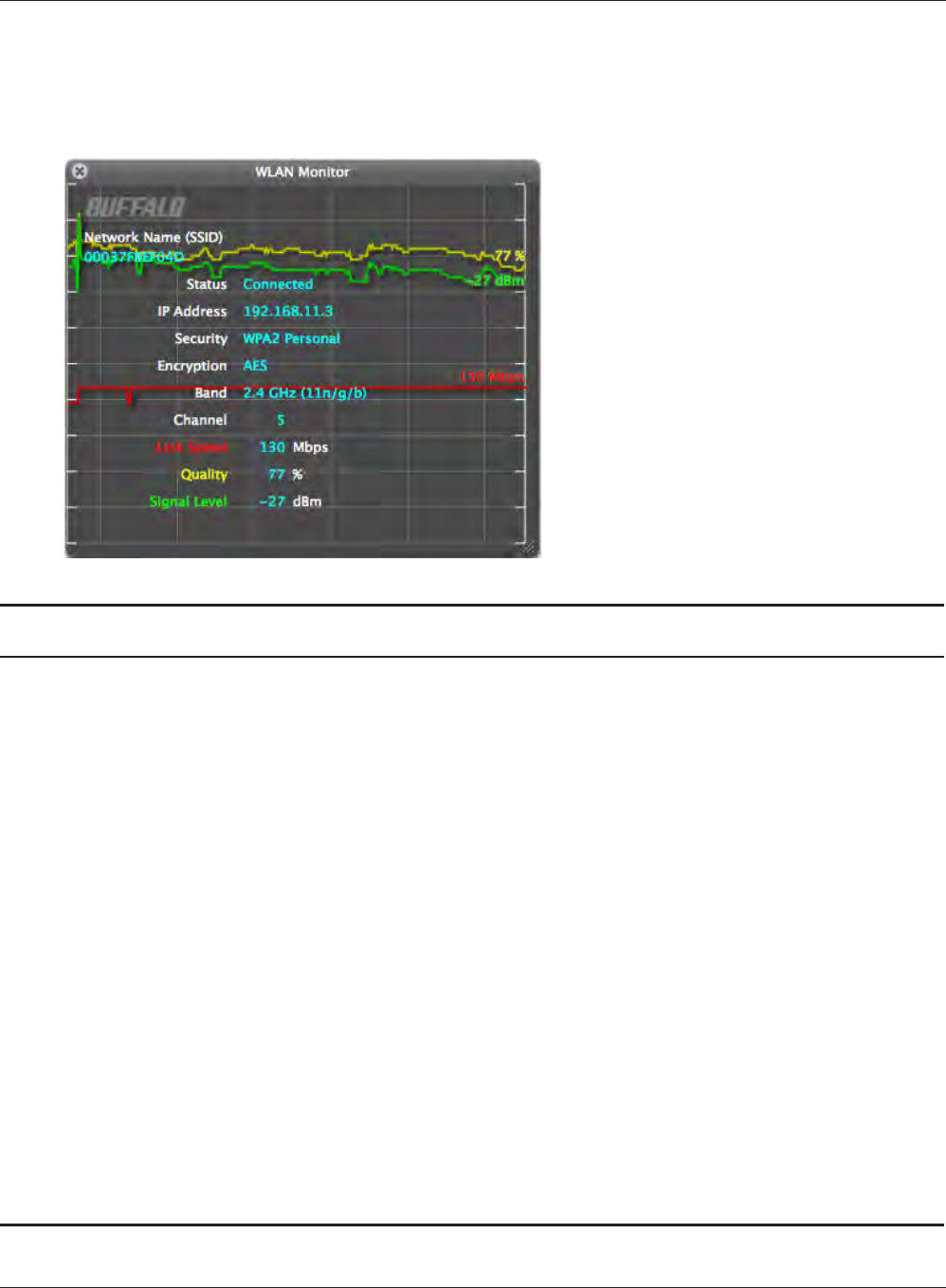

3
Parameter Meaning
Network name (SSID) This displays the SSID of the AirStation that is currently connected.
Status This indicates the current connection status.
IP Address This indicates the IP address of the current wireless network port
(Wi-Fi).
Security This indicates the authentication method for the current
connection target.
Encryption This displays the encryption type for the current connection target.
Band This displays the wireless band for the current connection target.
Channel This displays the wireless channel for the current connection target.
Link Speed (Mbps) This displays the current link speed.
Quality (%) This displays the current signal quality.
Signal Level (dBm) This indicates the strength of the current signal.
There are several restrictions on using the AirStation’s USB port:
• When using two-byte characters (such as Japanese), keep folder and le names within 80
characters. You may not be able to copy a folder or a le whose name length is more than 80
characters.
• You cannot set attributes (hidden or read-only) for folders or les on the AirStation.
• When using access restrictions, you can register up to 16 users for the AirStation.
• Please note that you are not allowed to use any of the following words as a user or group name:
adm, administrator, all, bin, daemon, disk, ftp, guest, halt, hdusers, kmen, lp, mail, man, news,
nobody, nogroup, none, operator, root, shadow, shutdown, sshd, sync, sys, ttyusers, utmp, uucp,
www.
• Please note that you are not allowed to use any of the following words as a shared folder name:
global, homes, printers, bittorrent, disk1_pt1, disk1_pt2, disk1_pt3, disk1_pt4, disk2_pt1, disk2_
pt2, disk2_pt3, disk2_pt4, disk3_pt1, disk3_pt2, disk3_pt3, disk3_pt4, disk4_pt1, disk4_pt2, disk4_
pt3, disk4_pt4.
• If shared folder names, work group names, or le names contain any of the following characters,
you may not access data or manipulate les on the AirStation properly. In such a case, use a
dierent character.
• If a le created on a Macintosh contains any of the following characters, it will not be displayed
correctly under Windows OS. Also, you cannot copy or properly display a le when connecting via
SMB from Mac OS X if it contains any of these characters:
? [ ] / \ = + < > ; : ” , | *
• Cancelling or aborting a le copy may leave the le incomplete, and you may no longer be able
to delete the incomplete le. This can also happen during a power outage or if the LAN cable is
suddenly disconnected. If it happens, restart the AirStation, delete the le, and try copying the le
again.
• Use the same username and password for the AirStation as the user’s Windows login. If they
are dierent, the user may not be able to access shared folders with access restrictions on the
AirStation.
• Date and time stamps stored on the USB hard drive may be updated by the OS accessing the
AirStation. File creation or access dates may not be maintained.
• If you view the size of a hard drives on the browser, it shows a bigger value than when you see it in
Windows’ drive properties. This is because the browser shows the size of the drive in gigabytes but
Windows shows it in gibibytes.
• If you have logged in using a “guest” account from Windows 7, Vista, XP or 2000, access restrictions
may not work properly. A (dierent) guest account already exists on the AirStation.
• If you access a shared folder from a Macintosh computer, additional Mac OS X information les
may be automatically generated. Do not delete these les from a Windows computer. Otherwise,
you may no longer be able to access folders from a Macintosh.
• Device types that can be connected to the AirStation’s USB connector are USB hard drives, USB
memory sticks, or USB card readers. Card readers with 5 or more slots are not supported. USB
devices such as a digital cameras, CD/DVD drives, USB hubs, mice, or keyboards are not supported.
•Encrypted USB hard drives are not supported.
• Only one single drive may be connected to the AirStation’s USB port at a time. Drives
manufactured by other companies besides Bualo Technology are not supported.
• If your hard drive has an auto power mode switch, move the switch to [manual] or [on]. Leaving
the switch set to [auto] may result in unpredictable behavior.
• Up to 4 partitions can be recognized on a USB hard drive.
• Available le systems for USB hard drives are FAT12, FAT16, FAT32, and XFS.
Wired LAN Interface
Standard Compliance IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Transmission Rate 10 / 100 / 1000 Mbps
Transmission Encoding 1000BASE-T 4DPAM5, 100BASE-TX 4B5B/MLT-3, 10BASE-T Manchester Cording
Access Method CSMA/CD
Speed and Flow Control 10 / 100 / 1000 Mbps, Auto Sensing, Auto MDIX
Number of LAN Ports 4
LAN Port Connector RJ-45
Wireless LAN Interface
Standard Compliance IEEE802.11ac (Draft 2.0) /n/a/g/b
Transmission Method Direct Sequence Spread Spectrum (DSSS), OFDM, MIMO
Frequency Range Available frequencies depend on the country of purchase. See the next page
for details.
Transmission Rate
802.11ac (Draft)
802.11ac (Draft):
20 MHz BW (Long GI)
260, 234, 195, 175.5, 156, 117, 78, 58.5, 39, 19.5 Mbps (3 stream)
156, 130, 117, 104, 78, 52, 39, 26, 13 Mbps (2 stream)
78, 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps (1 stream)
20 MHz BW (Short GI)
288.9, 260, 216.7, 195, 173.3, 130, 86.7, 65, 43.3, 21.7 Mbps (3 stream)
173.3, 144.4, 130, 115.6, 86.7, 57.8, 43.3, 28.9, 14.4 Mbps (2 stream)
86.7, 72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 Mbps (1 stream)
40 MHz BW (Long GI)
540, 486, 405, 364.5, 324, 243, 162, 121.5, 81, 40.5 Mbps (3 stream)
360, 324, 270, 243, 216, 162, 108, 81, 54, 27 Mbps (2 stream)
180, 162, 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps (1 stream)
40 MHz BW (Short GI)
600, 540, 450, 405, 360, 270, 180, 135, 90, 45 Mbps (3 stream)
400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps (2 stream)
200, 180, 150, 135, 120, 90, 60, 45, 30, 15 Mbps (1 stream)
80 MHz BW (Long GI)
1170, 1053, 877.5, 702, 526.5, 351, 263.3, 175.5, 87.8 Mbps (3 stream)
780, 702, 585, 526.5, 468, 351, 234, 175.5, 117, 58.5 Mbps (2 stream)
390, 351, 292.5, 263.3, 234, 175.5, 117, 87.8, 58.5, 29.3 Mbps (1 stream)
80 MHz BW (Short GI)
1300, 1170, 975, 780, 585, 390, 292.5, 195, 97.5 Mbps (3 stream)
866.7, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps (2 stream)
433.3, 390, 325, 292.5, 260, 195, 130, 97.5, 65, 32.5 Mbps (1 stream)
Transmission Rate
802.11n/a/b/g
802.11n:
20 MHz BW (Long GI)
195, 175.5, 156, 117, 78, 58.5, 39, 19.5 Mbps (3 stream)
130, 117, 104, 78, 52, 39, 26, 13 Mbps (2 stream)
65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps (1 stream)
20 MHz BW (Short GI)
216.7, 195, 173.3, 130, 86.7, 65, 43.3, 21.7 Mbps (3 stream)
144.4, 130, 115.6, 86.7, 57.8, 43.3, 28.9, 14.4 Mbps (2 stream)
72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 Mbps (1 stream)
40 MHz BW (Long GI)
405, 364.5, 324, 243, 162, 121.5, 81, 40.5 Mbps (3 stream)
270, 243, 216, 162, 108, 81, 54, 27 Mbps (2 stream)
135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps (1 stream)
40 MHz BW (Short GI)
450, 405, 360, 270, 180, 135, 90, 45 Mbps (3 stream)
300, 270, 240, 180, 120, 90, 60, 30 Mbps (2 stream)
150, 135, 120, 90, 60, 45, 30, 15 Mbps (1 stream)
802.11a/g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11b:
11, 5.5, 2, 1 Mbps
Access Mode Infrastructure Mode
Security AOSS, WPA2-PSK (TKIP/AES), WPA/WPA2 mixed PSK, WPA-PSK (TKIP/AES), 64-
bit or 128-bit WEP, Mac Address Filter
USB Interface
Interface USB 2.0
Connector Type Type A (plug)
Compliance 5.0 V 500 mA (max 1000 mA)
Other
Power Supply External AC 100-240 V Universal, 50/60 Hz
Power Consumption About 13.2 W (Max)
Dimensions 212.2 x 183.2 x 34 mm (8.4 x 7.2 x 1.3 in.)
Weight 510 g (18 oz.)
Operating Environment 0 - 40° C (32 - 104° F), 20 - 80% (non-condensing)
802.11a Frequency Range
USA
Canada
5180-5240 MHz (Channels 36, 40, 44, 48)
802.11g Frequency Range
USA
Canada
2412-2462 MHz (Channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible.This device is going to be operated in 5.15~5.25GHz frequency range,
it is restricted in indoor environment only.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specic channels and/or operational frequency bands are country
dependent and are rmware programmed at the factory to match the intended destination. The
rmware setting is not accessible by the end user.
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio
exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer
un fonctionnement indésirable.
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful
interference to co-channel mobile satellite systems.
Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une
utilisation à l’intérieur an de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
This device has been designed to operate with an antenna having a maximum gain of [4.33] dB.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required
antenna impedance is 50 ohms.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm
de distance entre la source de rayonnement et votre corps.
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de dB [4.33].
Une antenne à gain plus élevé est strictement interdite par les règlements d’Industrie Canada.
L’impédance d’antenne requise est de 50 ohms.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peutfonctionner
avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pourl’émetteur par
Industrie Canada. Dans le but de réduire les risques de brouillage radioélectriqueà l’intention des
autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que lapuissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire àl’établissement d’une
communication satisfaisante.
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The
following test methods have been applied in order to prove presumption of conformity with the
essential requirements of the R&TTE Directive 1999/5/EC:
EN60950-1: 2006 +A11: 2009
Safety of Information Technology Equipment
EN50385 : (2002-08)
Product standard to demonstrate the compliance of radio base stations and xed terminal stations
for wireless telecommunication systems with the basic restrictions or the reference levels related to
human exposure to radio frequency electromagnetic elds (110MHz - 40 GHz) - General public
EN 300 328 V1.7.1: (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems;
Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum
modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the
R&TTE Directive
EN 301 893 V1.5.1: (2008-12)
Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering
the essential requirements of article 3.2 of the R&TTE Directive
EN 301 489-1 V1.8.1: (2008-04)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 V2.1.1 (2009-05)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment; Part 17: Specic conditions for Broadband Data Transmission
Systems
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU
member states and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to
obtain authorization to use the device for setting up outdoor radio links and/or for supplying public
access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the
RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For
detailed information the end-user should contact the national spectrum authority in France.
Česky [Czech]
Bualo Technology Inc. tímto prohlašuje, že tento AirStation WZR-D1800H je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk [Danish]
Undertegnede Bualo Technology Inc. erklærer herved, at følgende udstyr AirStation WZR-D1800H
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German]
Hiermit erklärt Bualo Technology Inc. dass sich das Gerät AirStation WZR-D1800H in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen
Bestimmungen der Richtlinie 1999/5/EG bendet.
Eesti [Estonian]
Käesolevaga kinnitab Bualo Technology Inc. seadme AirStation WZR-D1800H vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English
Hereby, Bualo Technology Inc. declares that this AirStation WZR-D1800H is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español [Spanish]
Por medio de la presente Bualo Technology Inc. declara que el AirStation WZR-D1800H cumple
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva
1999/5/CE.
Ελληνική [Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Buffalo Technology Inc. ΗΛΝΕΙ ΟΤΙ AirStation WZR-D1800H ΣΥΜΜΟΡΦΝΕΤΑΙ
ΠΡΟΣ ΤΙΣ ΟΥΣΙΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΙΑΤΑΞΕΙΣ ΤΗΣ ΟΗΓΙΑΣ 1999/5/ΕΚ.
Français [French]
Par la présente Buffalo Technology Inc. déclare que l’appareil AirStation WZR-D1800H est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian]
Con la presente Buffalo Technology Inc. dichiara che questo AirStation WZR-D1800H è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]
Ar šo Buffalo Technology Inc. deklarē, ka AirStation WZR-D1800H atbilst Direktīvas 1999/5/EK
būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian]
Šiuo Buffalo Technology Inc. deklaruoja, kad šis AirStation WZR-D1800H atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch]
Hierbij verklaart Buffalo Technology Inc. dat het toestel AirStation WZR-D1800H in overeenstemming
is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese]
Hawnhekk, Buffalo Technology Inc. , jiddikjara li dan AirStation WZR-D1800H jikkonforma mal-
ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian]
Alulírott, Buffalo Technology Inc. nyilatkozom, hogy a AirStation WZR-D1800H megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym Buffalo Technology Inc. oświadcza, że AirStation WZR-D1800H jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]
Buffalo Technology Inc. declara que este AirStation WZR-D1800H está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian]
Buffalo Technology Inc. izjavlja, da je ta AirStation WZR-D1800H v skladu z bistvenimi zahtevami in
ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak]
Buffalo Technology Inc. týmto vyhlasuje, že AirStation WZR-D1800H spĺňa základné požiadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]
Buffalo Technology Inc. vakuuttaa täten että AirStation WZR-D1800H tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svensk [Swedish]
Härmed intygar Buffalo Technology Inc. att denna AirStation WZR-D1800H står I överensstämmelse
med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
SAR compliance has been established in typical laptop computer(s) with CardBus slot, and product
could be used in typical laptop computer with CardBus slot. Other application like handheld PC or
similar device has not been veried, may not comply with related RF exposure rules, and such use
shall be prohibited.
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity when
working with electrical equipment. All guidelines of this manual and of the computer manufacturer
must therefore be allowed at all times to ensure the safe use of the equipment.
根據 NCC 低功率電波輻射性電機管制辦法：
第十二條：
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加
大功率或變更原設計之特性及功能。
第十四條：
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低
功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음
기종별 사 용 자 안 내 문
B 급 기기
( 가정용 정보통신기기 )
이 기기는 가정용 (B 급 ) 전자파적합기기로서 주
로 가정에서 사용하는 것을 목적으로 하며 , 모든
지역에서 사용할 수 있습니다 .
• The equipment that you have purchased has required the extraction and use of natural resources
for its production.
• The equipment may contain hazardous substances that could impact health and the environment.
• In order to avoid the dissemination of those substances in our environment and to diminish the
pressure on the natural resources, we encourage you to use the appropriate take-back systems.
• The take-back systems will reuse or recycle most of the materials of your end life equipment in a
sound way.
• The crossed-out wheeled bin symbol invites you to use those systems.
• If you need more information on collection, reuse, and recycling systems, please contact your local
or regional waste administration.
The source code for Bualo products that use GPL code is available at http://opensource.bufalo.jp/ .
