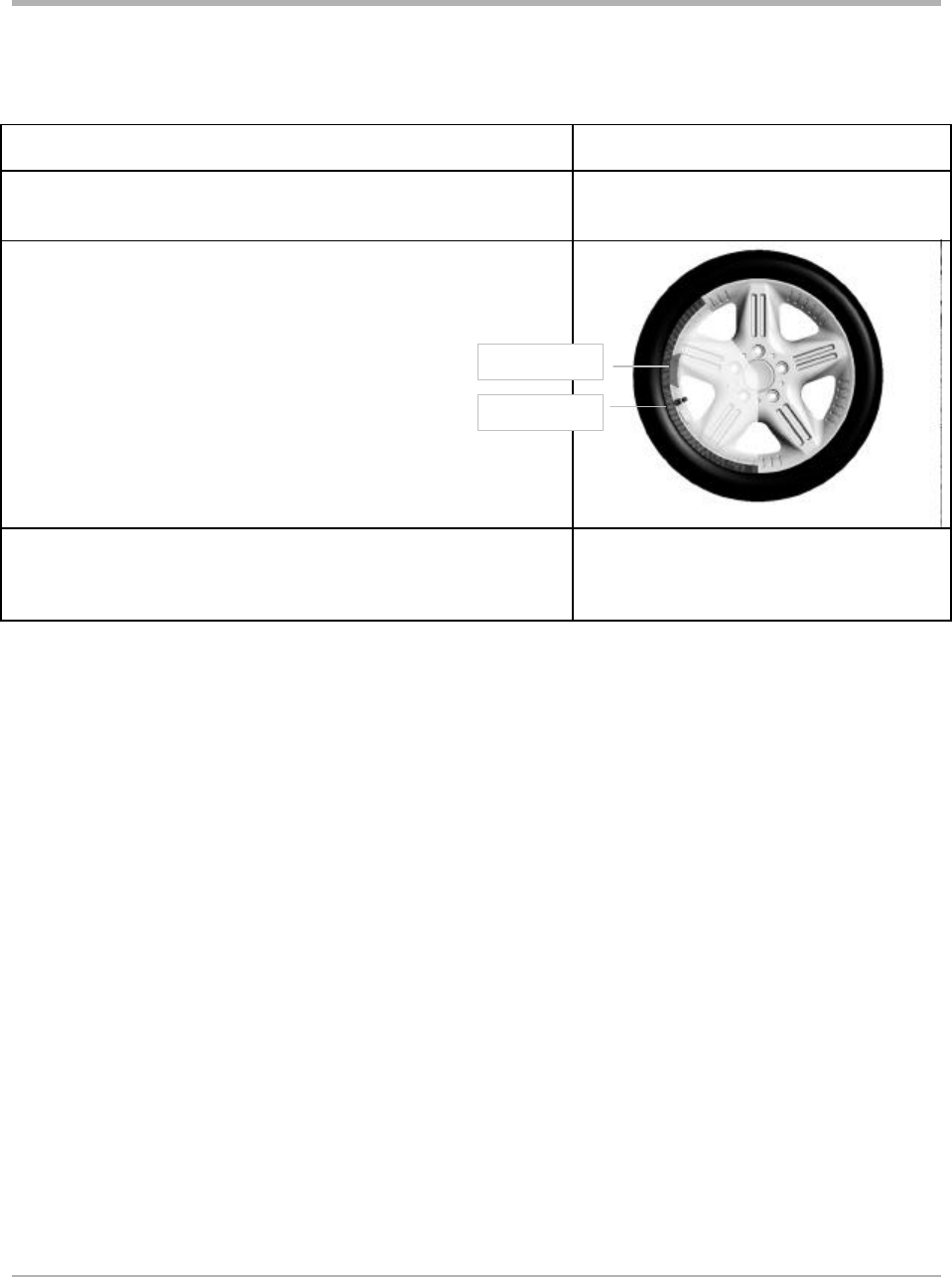

De-mounting the Tire with Transmitter Installed
Remove the tire/wheel assembly from vehicle and deflate
completely.
Loosen both beads with the bead loosener shoe opposite the valve
stem (away from the transmitter which is located near the valve
stem). Verify the transmitter location.
Orient the wheel to place the transmitter 3 in. to the left of the bead
guiding shoe so that the mounting bar will clear the transmitter.
When lifting the top bead the tire must be clear of the transmitter.
Remove the top bead.
Set the wheel once more with the transmitter 3 in. to the left of the
bead guiding shoe and remove the bottom bead. This will expose the
transmitter, which should be checked for correct positioning and a
properly snug fit.
Transmitter
Valve
