User Manual 3 of 3
SmarTire Systems Inc.
Tire Monitor System Owner’s Manual Draft
2/25/2003 Page 11
This manual is under review by SmarTire

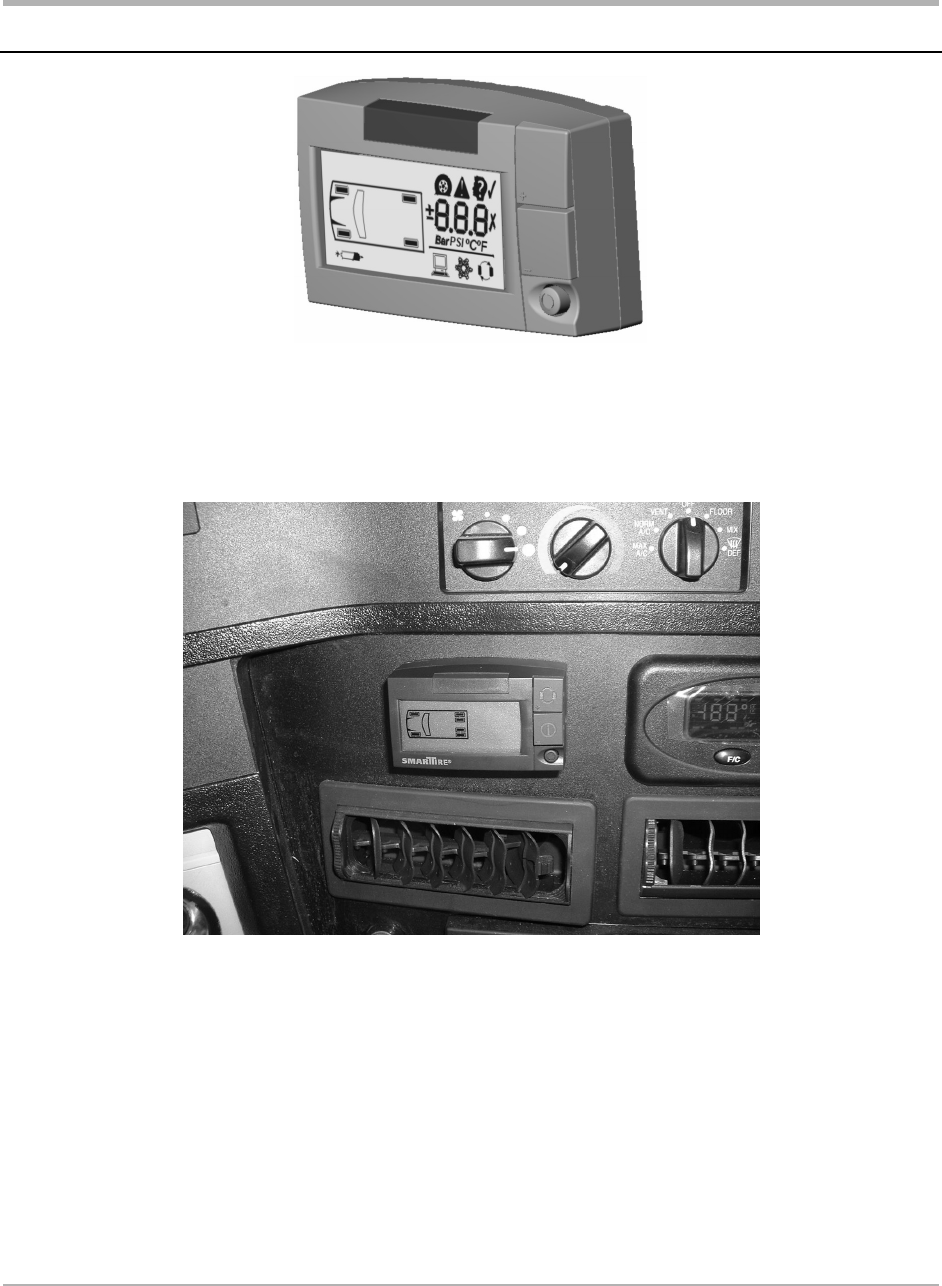

Full Function Display PN 200.0068
SmarTire Systems Inc.
Tire Monitor System Owner’s Manual Draft
2/25/2003 Page 12
This manual is under review by SmarTire
Service and Warranty
Component Part numbers
Bill of Material
101.1404 TMS TOW-BEHIND GENII
--------------------------------------------------------------------------------
1 200.0068 DISPLAY FFD D-2 - REMOTE
1 200.0087 RECEIVER GENII - SHIELDED
4 200.0100 TRANSMITTER - STRAP TS-2
1 260.0150 CONNECTOR PLUG-JACK-JACK AMPHENOL:21900
1 260.0157 CABLE RECEIVER-FFD FOR RV
1 260.0158 POWER CABLE FOR RV RECEIVER
4 264.0115 STRAP - STAINLESS STEEL CLAMP BREEZE:600 356 H 476 B
SmarTire Systems Inc.
Tire Monitor System Owner’s Manual Draft
2/25/2003 Page 13
This manual is under review by SmarTire
Troubleshooting
Problem Cause and actions
System Default Settings
Low Pressure Alert 22 PSI Change in factory only
Low Pressure Warning 15 PSI Change in factory only
Wheel color codes Right front Green
Left front Red
Right rear Blue
Left rear Yellow
Technical Specifications
Strap Mount Transmitter
Battery Life (Projected) 8.5 Years (normal vehicle use)
Operating temperature range -40° F to 257° F (-40° C to 125° C)
Storage temperature Range -40° F to 257° F (-40° C to 125° C)
Operating humidity 100%
Data transmitted Pressure, temperature, battery voltage
Data transmission rate Upon startup, then every 3 to 5 minutes (more frequently during a pressure loss incident)
Every 15 minutes if pressure is 18 PSI or lower when vehicle is parked.
Weight To be determined
Size 3-1/4” x 1-1/8” x 1”
Frequency 433.92 Mhz
Pressure Range 50 to 637.5 kPa (absolute) (7 – 93 PSI)
Pressure accuracy +/- 2 PSI
Temperature accuracy +/- 3 ºC
Start-stop mode Vehicle motion greater than 10kph
Method of mounting Strap around the drop center well of the wheel
Receiver
Power Consumption 125 ma. maximum during alert
Operating Temperature Range -40° F to 185° F (-40° C to 85°C)
Storage Temperature Range -40° F to 185° F (-40° C to 85° C)
Frequency 433.92 MHZ ± 75 kHz
Size 2.85” H x 3.08” D x .87” W
Weight 67 gm
Operating Humidity 100 % non condensing
SmarTire Service Policy – Handling Returned Materials
To return any materials, call SmarTire Service for a Returned Material Authorization number (RMA). Follow
instructions given by the service department for packaging and shipping the product in your area.
SmarTire Systems Inc.
Tire Monitor System Owner’s Manual Draft
2/25/2003 Page 14
This manual is under review by SmarTire
US Warranty
This Warranty covers substantial manufacturer’s defects in workmanship and materials. It does not cover any unit
that is damaged beyond normal usage, was not properly installed, was subjected to chemical contact, or other acts or
omissions not sanctioned by the Owner’s Manual.
All components are covered for one (1) years and 50,000 miles following the date of installation.
The SmarTire warranty will be honoured by any authorized SmarTire dealer. The owner is required to provide
dated proof of purchase. The authorized dealer will determine if there is a warrantable condition associated with
materials and/or manufacturing workmanship. If a warrantable condition exists, the component will be replaced free
of charge, shipping prepaid. The owner is responsible for any labor and installation charges.
A completed Warranty Claim Form must be sent, postage prepaid, with the defective unit to SmarTire USA Inc.,
3873C Airport Way, Bellingham, WA 98227-9754. Phone 330-497-0236
The Warranty does not include any further obligation whatsoever, including but not limited to actual installation of
the replacement unit on the customer’s vehicle.
All other Warranties, express or implied, are disclaimed. All collateral agreements, which purport to modify this
Limited Warranty are of no effect. The absolute limit of liability is the purchase price of the unit. SmarTire Systems
Inc. is not liable for any direct, consequential, indirect or punitive damages of any kind.
SOME STATES DO NOT ALLOW LIMITATIONS ON THE VALIDITY OR LENGTH OF IMPLIED
WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO
YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
SmarTire Systems Inc.
Tire Monitor System Owner’s Manual Draft
2/25/2003 Page 15
This manual is under review by SmarTire
Appendix
Glossary
Actual Pressure The value of tire air pressure measured by the Transmitter and transmitted to the
Receiver. This value is compared to the Required Pressure to active an alert or warning
if needed.
Cold Pressure The recommended inflation pressure of a tire at ambient temperature (64º F).
Low Pressure Alert The audible and visual alert activated when the tire’s Actual Pressure drops to the
programmed value.
Low Pressure
Warning The audible and visual alert activated when the tire’s Actual Pressure drops to the
programmed value. This value is lower than the Low Pressure Alert.
Receiver The electronic module that receives data from the transmitter and displays tire pressure
alerts.
Transmitter The wheel mounted electronic module that measures contained air pressure and
temperature and transmits this data to the receiver.
