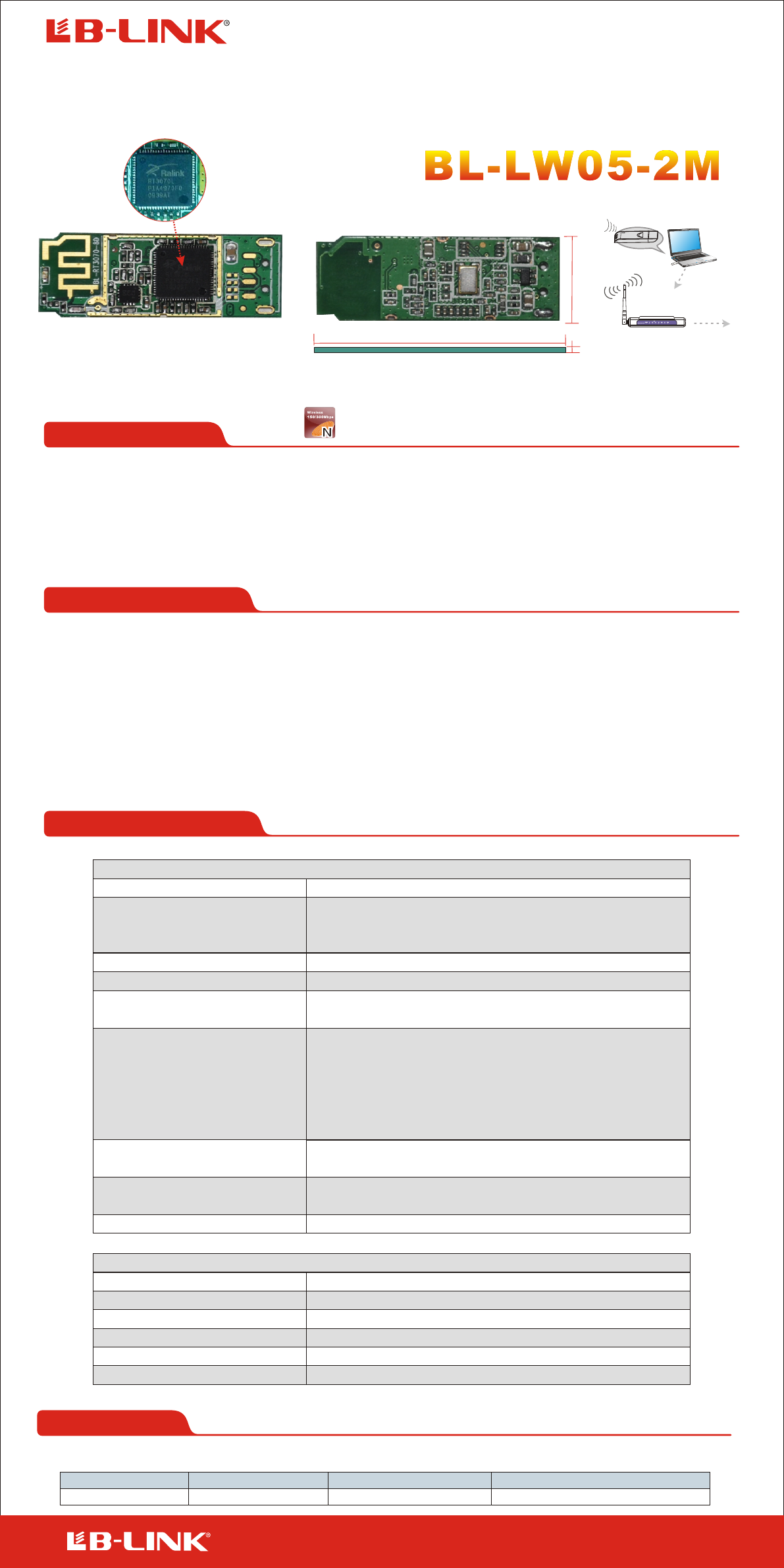

Bilian Electronic BL-LW05-2M 3070-8D mould User Manual BL LW05 2M

Shenzhen Bilian Electronic Limited 3070-8D mould BL LW05 2M

Contents

user manual

BL-LW05-2MBL-LW05-2MBL-LW05-2MBL-LW05-2M
Product Features
Product description
Product Specifications
Spotlight:
◎ Exceptional wireless speed up to 150Mbps
◎ Wireless security encryption easily at a push of QSS button
◎ Supports sony PSP for online game
Software Specification
Standards IEEE 802.11n,IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With
Automatic Fallback 11g: Up to 54Mbps
11n: Up to 150Mbps
11b: Up to 11Mbps
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power 15dBm(MAX EIRP)
Modulation Type OFDM/CCK/16-QAM/64-QAM
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Work Mode Ad-Hoc
Infrastructure
Wireless Security
Support Operating System Windows 2000/XP/Vista/Win7
64/128 bit WEP
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Package Size：
Net weight (g)
375g 420g
Gross weight (g) Cubic meter(mm)
Pcs/box Carton
Bulk
150 340*185*20mm
◎ 150Mbps wireless transmission rate
◎ Provides two methods of operation: Infrastructure and Ad-Hoc
◎ Quick Secure Setup, complies with WPS for worry free wireless security
◎ Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion,
Shared Key Authentication, IEEE 802.1X
◎ Supports Sony PSP for online game
◎ Supports Windows 2000/XP/Vista/Win7 OS
◎ Seamlessly compatible with 802.11b/g/n devices
Certifications CE, FCC
Operating Temperature 0 C~40 C (32℉~104℉)
Storage Temperature -40 C~70 C (-40℉~158℉)
Relative Humidity 10% ~ 90%, non condensation
Storage Humidity 5%~95% non-condensing
Dimensions 37.5*15mm
Hardware Specification
° °
° °
Complied with Windows 2000/XP/Vista/Win7
ADD: B-LINKELECTRONICFACTACTORY, GUANLAN TOWN, SHENZHEN, CHINA
TEL:0086-755-81599535 FAX:0086-755-28029002 Website:www.lefen.com
TO the Internet
Wireless Router
USB Wi reless LAN
Rt3070
Chipset
14.8 mm
39.4 mm
1.0 mm
USB 802.11N 150M WIRELESS Module
This product is designed to provide a high-speed and unrivaled wireless performance for your computer.
With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming,
video streaming and so on.
This product Lite N USB Adapter complies with IEEE 802.11g, and IEEE 802.11b standards. It can
perfectly interoperate with all the 802.11n/g/b devices. This product auto-sensing capability allows high
packet transfer rate of up to 150Mbps for maximum throughput.
Additionally, this product supports QSS function, which can help you create a wireless connection with
effortless security setup, to prevent outside intrusion and protect your personal information from being exposed.
Featuring high performance transmission rates, simple installation and adaptability, as well as strong
security, this product Lite N USB Adapter is a perfect solution for small office and home need.
Receiver Sensitivity
(without Standards antenna)
FCC ID: GGOBL-LW05-2M This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired
operation.
IC:10295A-BLLW052M The device complies with industry Canada license-exempt RSS
standard(s).Operation of this device is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement."
Company: Shenzhen Bilian Electronic Limited
Product: 3070-8D mould
Model: BL-LW05-2M(3070-8D)
country of origin: China
Note: Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Statement
The modular is comply with any applicable RF exposure requirements. RF exposure restriction: 20cm
If using a permanently affixed label, the modular transmitter must be labeled with its own FCC
identification number, and, if the FCC identification number is not visible when the module is
installed inside another device, then the outside of the device into which the module is installed
must also display a label referring the enclosed module. This exterior label can use wording such
as the following: “Contains Transmitter Module FCC ID: GGOBL-LW05-2M."
The Grantee may either provide such a label, an example of which must be included in the application
for the equipment authorization, or, must provide adequate instructions along with the module which
explains this requirement. In the latter case, a copy of these instructions must be included in the
application for equipment authorization.
The following exposure warning must be observed in the OEM design.
Additionally, the statement must be placed in the user’s manual of the end product.
