Billion Electric BIL-AWDL060 4G LTE Embedded Mini-Card Module User Manual
Billion Electric Co., Ltd. 4G LTE Embedded Mini-Card Module
User Manual
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 1 -
WW-DL060
4G LTE Embedded Mini-Card Module
Standard
Version 0.4
Document
release Date Modification Initials Approved
Version 0.1 2013/06/10 Initial version James Li Daniel Lee
Verison 0.2 2013/07/09 Spec update Daniel Daniel
Verison 0.3 2013/07/09 Add packing SOP Irene Lin Irene Lin
Version 0.4 2013/07/29 Update packing SOP Fiona Liang Fiona Liang
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 2 -
1. General Description
1-1. Product Overview and Functional Description
Billion Electric Co., Ltd. introduces the embedded mini-card for 4G LTE data communication –
WW-DL060. The demands of data communication everywhere becomes more due to the great
development of 4G LTE system. WW-DL060 adopts GCT GDM7240 solution. It provides up to 50 Mbps
Downlink, up to 25 Mbps Uplink and RX antenna diversity etc. WW-DL060 is fast, reliable and easy to
operate. Therefore, by WW-DL060 mobile user can experience the new features and surf the internet
everywhere.
FCC Caution <15.21 >
‧Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
‧This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna
or transmitter.
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
!
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 3 -
RF exposure statements:
Information to OEM integrator
The OEM integrator has to be aware not to provide information to the end user regarding how to install
or remove this RF module in the user manual of the end product.
The user manual which is provided by OEM integrators for end users must include the following
information in a prominent location.
1. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must
be installed to provide a separation distance of at least 20 cm from all persons and must not be
co located or operating in conjunction with any other antenna or transmitter, except in accordance with
FCC multi transmitter product procedures.
2. Only those antennas with same type and lesser gain filed under this FCC ID number can be used with
this device.
3. The regulatory label on the final system must include the statement: “Contains FCC ID: xxxx or
using electronic labeling method as documented in KDB 784748.
4. The final system integrator must ensure there is no instruction provided in the user manual or
customer documentation indicating how to install or remove the transmitter module except such
device has implemented two ways authentication between module and the host system.
This module can't be used on radio system and operation Individually. Using others antenna must be
re-testing and certification.
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 4 -
1-2. Antenna Description
Type: Dipole Antenna
A. Electrical Characteristics
Frequency 700 ~ 960 MHz
S.W.R. <= 3.5 @ 700 ~ 960 MHz
Antenna Gain 1.37 dBi
Polarization Linear
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Material of Radiator Cu
Material of Plastic TPE & ABS
Cable Type RG-178
Connecter Type SMA Male
Pull Test >= 5 Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 5 -
1-2. Key Features
Supporting Following Standards
LTE : Long Term Evaluation (3GPP E-UTRA Release 8)
E-UTRA: Evolved Universal Terrestrial Radio Access
Supporting Following Service
LTE packet data service
Supporting Following Features
FDD: Frequency Division Duplex
RX diversity
Uplink data rate up to 25 Mbps
Downlink data rate up to 50 Mbps
Mini PCI Express form factor, USB interface
*Maximum data rate is subject to 4G services provided by network operators
Operating Systems Supported
Microsoft Windows XP ,Microsoft Vista , Microsoft Windows 7
Android: 2.3, 3.0, 4.0
Linux:
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 6 -
1-3. Specifications Table
Model Name WW-DL060
Product Description 4G LTE embedded mini card module
Technical Standard z LTE (3GPP R8)
Host Interface USB (through mini-PCI Express interface)
Operating Conditions
Voltage 3.3V
Temperature Operating: -20~70
Storage: -40~85
Humidity 15% ~ 95%
Dimension 51mm X 30mm
Form Factor Mini PCI Express Card
Electrical Specifications
Operating Frequency
FDD 700 MHz (Band 12):
z UP-Link:699~716 MHz
z DL-Link: 729~746 MHz
Maximum Output Power z LTE 700 MHz: 23dBm (Class 3)
Antenna Dual IPEX antenna port
Receive Sensitivity z LTE 700 MHz: compliant with 3GPP TS 36.521-1
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 7 -
2. Electrical Characteristics
2-1. Recommended Operating Conditions
Power Parameter Tolerance Units
3.3V Module power supply +-9% V
2-2. Power supply and Current Requirement:
The WW-DL060 complies with PCI express Mini CEM specifications v1.2.
PCI express Mini CEM specifications define as the below Table:
Power Tolerance Max. Current Idle Current
3.3V +-9% 700 mA TBD mA
Note. The idle current is generally less than 100mA, depending on the FW version.
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 8 -
3. Pin Definition
3-1. Pin Assignment
Pin No Definition Basic Description Type
1 NC No connect
2 3.3V 3.3V DC supply Input
3 NC No connect
4 GND Ground
5 NC No connect
6 NC No connect
7 NC No connect
8 UIM_PWR Power source for external UIM/SIM Output
9 GND Ground
10 UIM_DATA External UIM/SIM data signal Input/output
11 NC No connect
12 UIM_CLK External UIM/SIM clock signal Output
13 NC No connect
14 UIM_RESET External UIM/SIM reset signal Output
15 GND Ground
16 NC No connect
17 NC No connect
18 GND Ground
19 NC No connect
20 NC No connect
21 GND Ground
22 *NC No connect Note 1
23 NC No connect
24 3.3Vaux 3.3V_FMC DC supply
25 NC No connect
26 GND Ground
27 GND Ground
28 NC No connect
29 GND Ground
30 NC No connect
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 9 -
Pin No Definition Basic Description Type
31 NC No connect
32 NC No connect
33 NC No connect
34 GND Ground
35 GND Ground
36 USB_D- USB signal D- Input/Output
37 GND Ground
38 USB_D+ USB signal D+ Input/Output
39 3.3Vaux 3.3V_FMC DC supply Input
40 GND Ground
41 3.3Vaux 3.3V_FMC DC supply Input
42 LED_WWAN_1 Active Low LED signal for indicating the state of the module
open drain structure
If no use this pin, connect to GND Output
43 GND Ground
44 NC No connect
45 NC No connect
46 NC No connect
47 NC No connect
48 NC No connect
49 NC No connect
50 GND Ground
51 NC No connect
52 3.3V 3.3V DC power supply Input
Note:
Please don’t series NC pin to ground or bias voltage.
Note1:
Please keep pin 22 NC
If want to preset module
Recommend to add a switch to turn off and turn on 3.3V DC power
8F., No.192, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.).
TEL: + 886-2-2914-5665 FAX: + 886-2-2918-6731, +886-2-2918-2895
www.billion.com
- 10 -

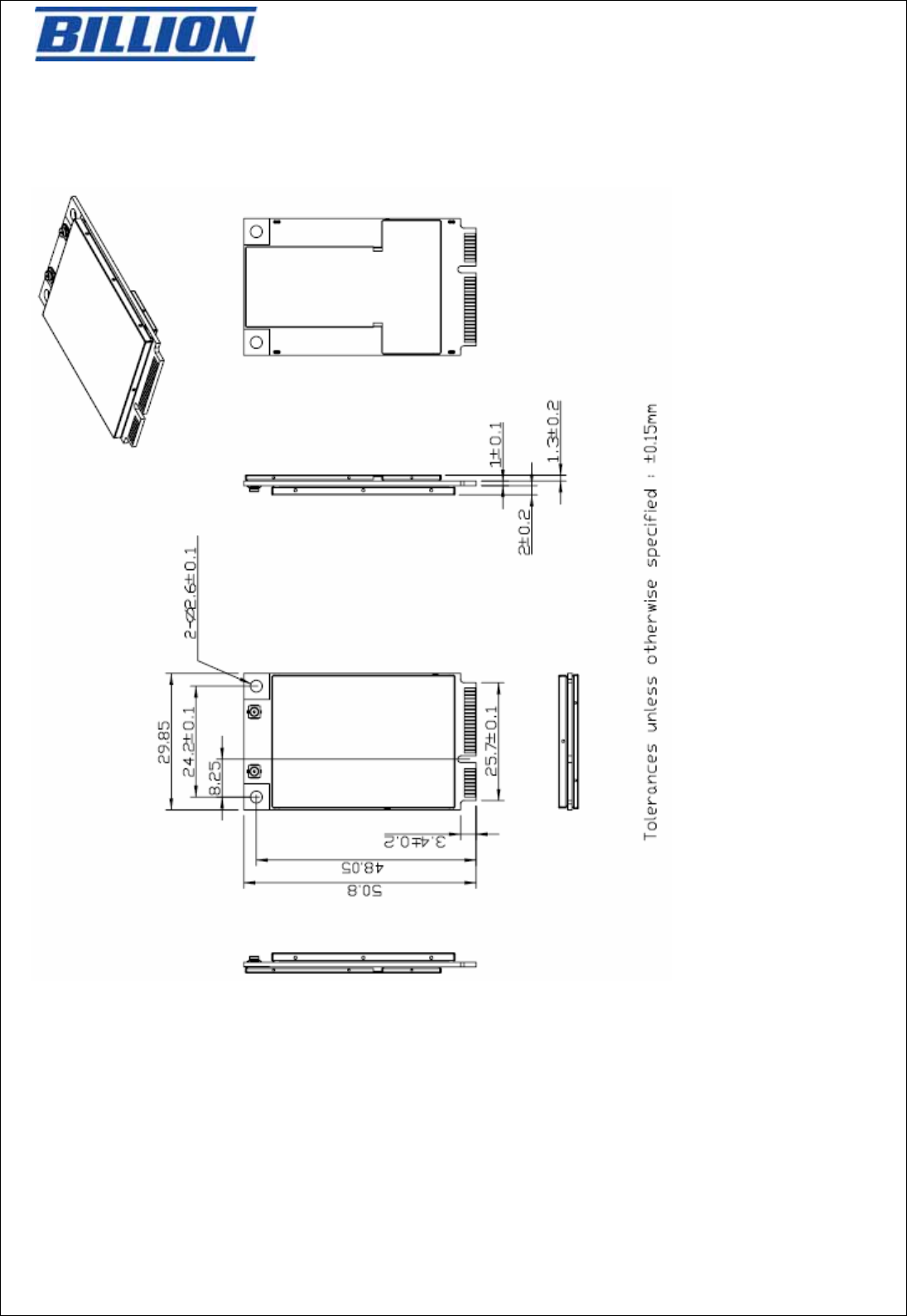

4. Mechanical drawing
