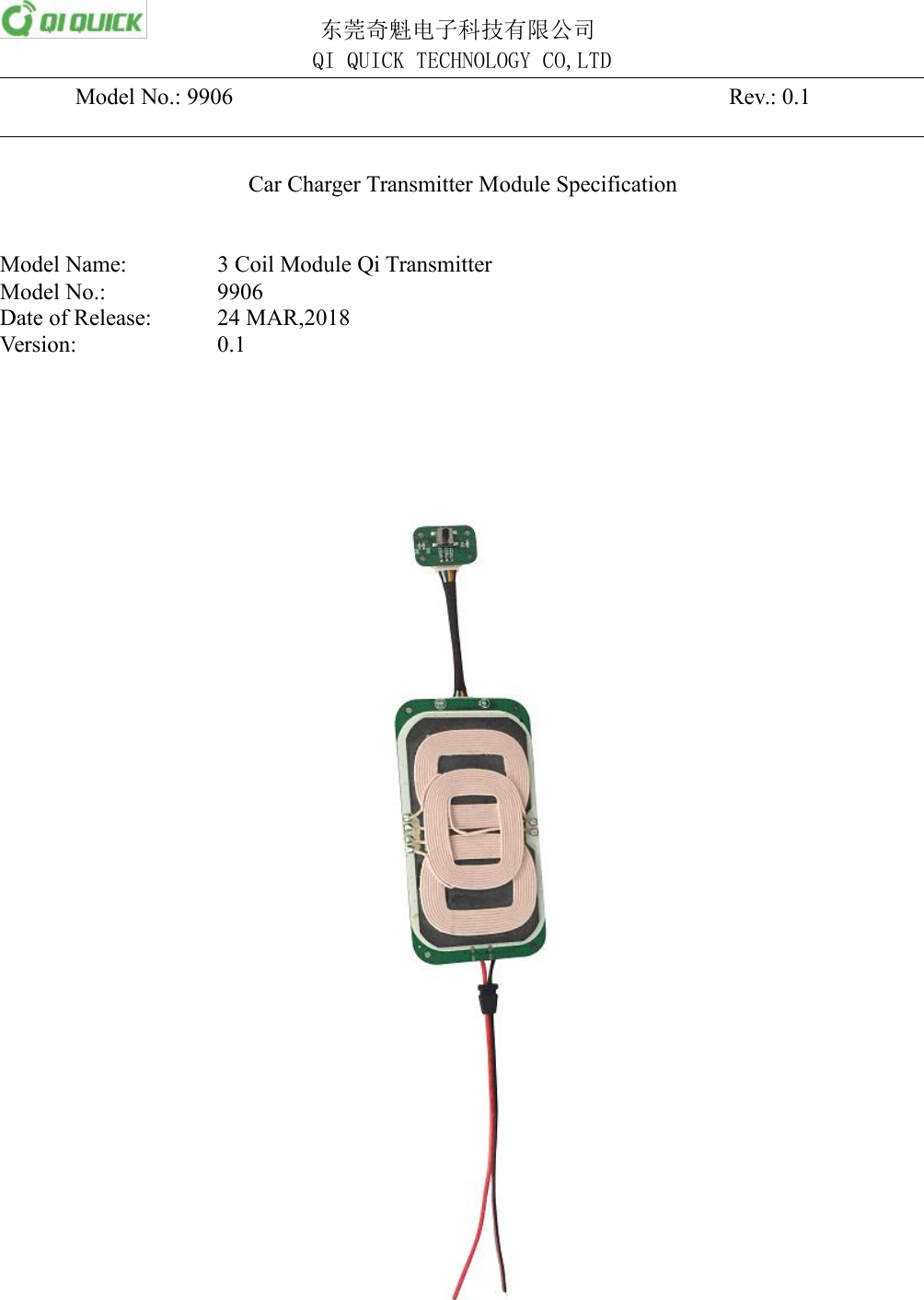

东莞奇魁电子科技有限公司QI QUICK TECHNOLOGY CO,LTDModel No.: 9906 Rev.: 0.1Car Charger Transmitter Module SpecificationModel Name: 3 Coil Module Qi TransmitterModel No.: 9906Date of Release: 24 MAR,2018Version: 0.1

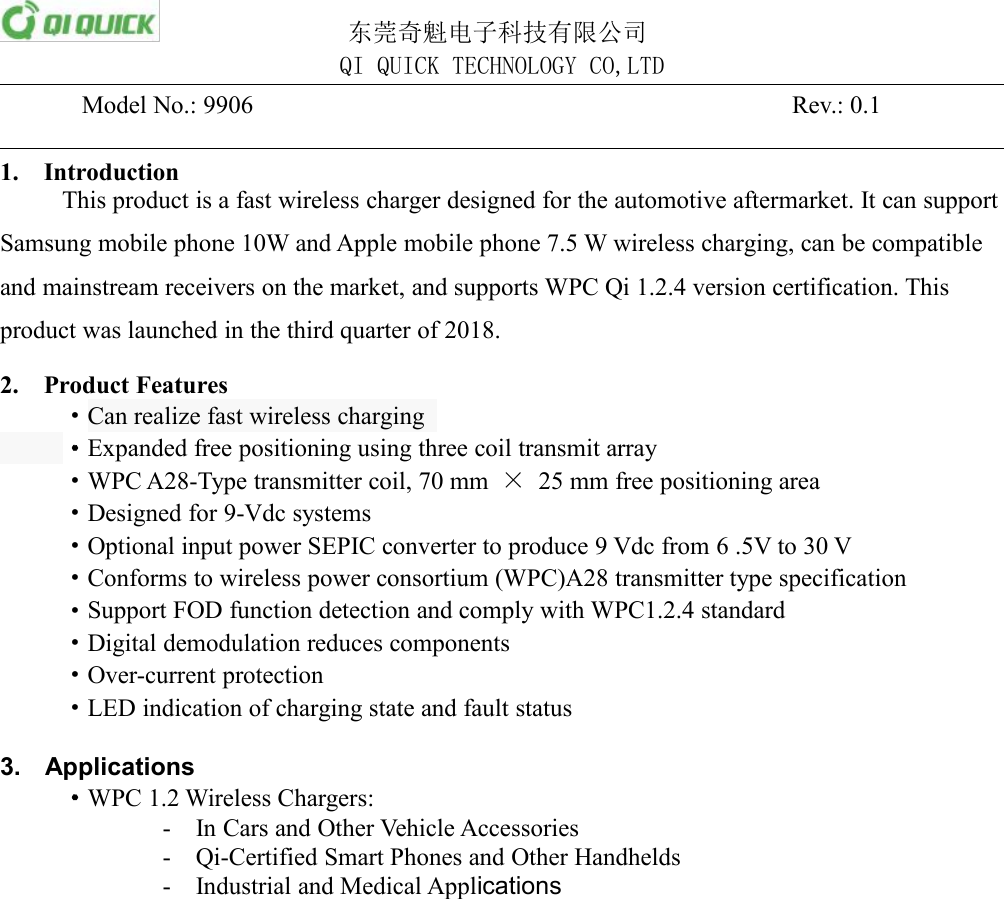

东莞奇魁电子科技有限公司QI QUICK TECHNOLOGY CO,LTDModel No.: 9906Rev.: 0.11. IntroductionThis product is a fast wireless charger designed for the automotive aftermarket. It can supportSamsung mobile phone 10W and Apple mobile phone 7.5 W wireless charging, can be compatibleand mainstream receivers on the market, and supports WPC Qi 1.2.4 version certification. Thisproduct was launched in the third quarter of 2018.2. Product Features·Can realize fast wireless charging·Expanded free positioning using three coil transmit array·WPC A28-Type transmitter coil, 70 mm ×25 mm free positioning area·Designed for 9-Vdc systems·Optional input power SEPIC converter to produce 9 Vdc from 6 .5V to 30 V·Conforms to wireless power consortium (WPC)A28 transmitter type specification·Support FOD function detection and comply with WPC1.2.4 standard·Digital demodulation reduces components·Over-current protection·LED indication of charging state and fault status3. Applications·WPC 1.2 Wireless Chargers:- In Cars and Other Vehicle Accessories- Qi-Certified Smart Phones and Other Handhelds- Industrial and Medical Applications
东莞奇魁电子科技有限公司QI QUICK TECHNOLOGY CO,LTDModel No.: 9906Rev.: 0.14. Electrical SpecificationParametersTest ConditionMinTpyMaxUnitInput Characteristics-Transmitter 9906V-inInput Voltage81230VI-inInput Current(Max. Load test with 5W/10WQi quick Rx)0.250.581AInput on-Load CurrentVin=12V,Receiver I=0A2050mAInput stand-by currentVin=12v18.75mAOutput Characteristics –5W Receiver Qi QuickV-outOutput LoadVin=Nom, I=Nom4.7555.25VOutput rippleVin=12V,Receiver I=1A200mVPPI-outI out=Min to MaxI out=Min to Max01AOutput over currentI out=Min to Max11.1ASystem EfficiencyV in=12V, P out Rx= 2.5W7072%System Frequency110205KhzOutput Characteristics –10W Receiver Qi QuickV-outOutput LoadVin=Nom, I=Nom8.5599.45VOutput rippleVin=12V,Receiver I=1.1A200mVPPI-outI out=Min to MaxI out=Min to Max01.1AOutput over currentI out=Min to Max1.3ASystem EfficiencyV in=12V, P out Rx= 10W78%System Frequency110205KhzOperating Temperature: 0 to +40°CStorage Temperature: -20 to +70°C

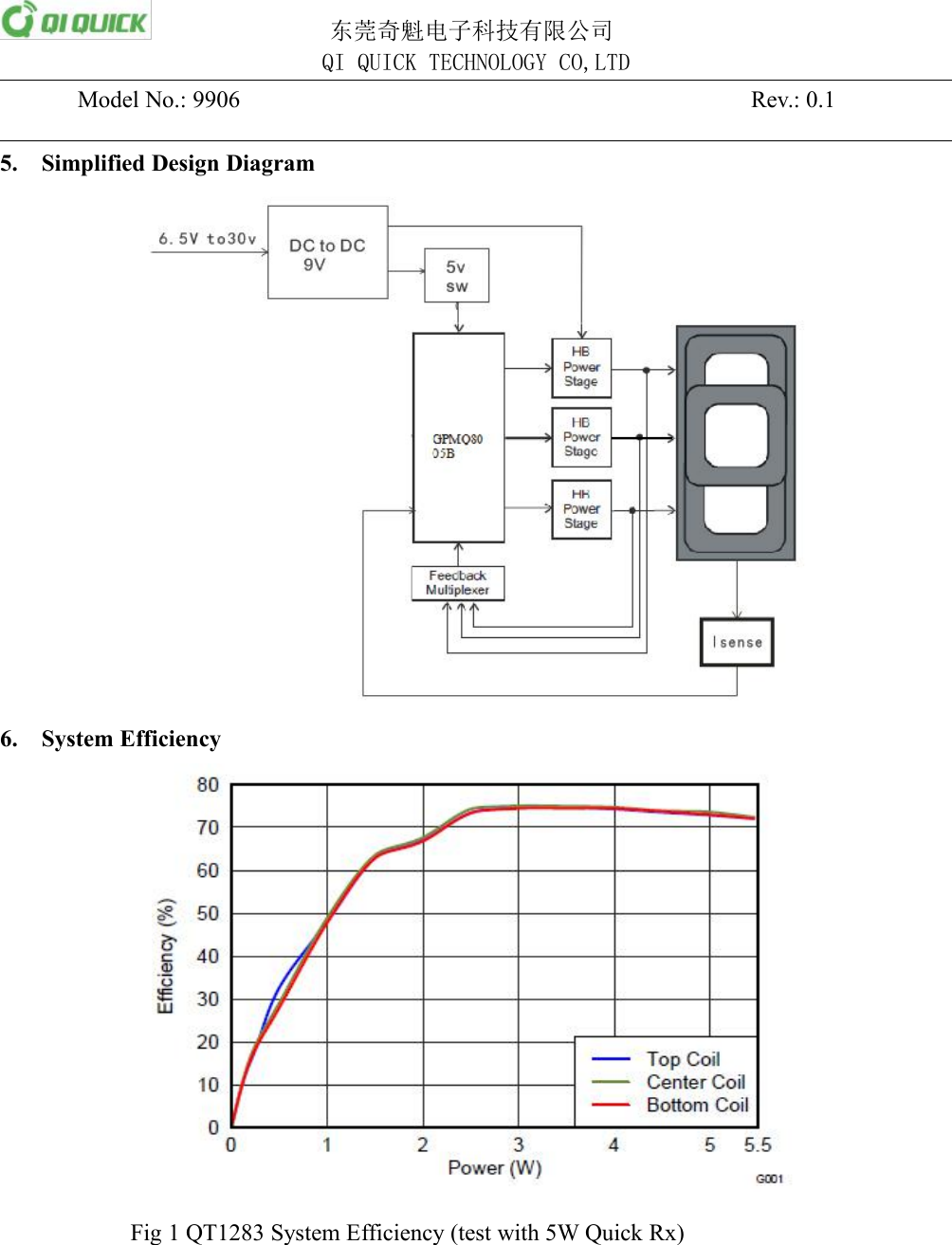

东莞奇魁电子科技有限公司QI QUICK TECHNOLOGY CO,LTDModel No.: 9906Rev.: 0.15. Simplified Design Diagram6. System EfficiencyFig 1 QT1283 System Efficiency (test with 5W Quick Rx)
东莞奇魁电子科技有限公司QI QUICK TECHNOLOGY CO,LTDModel No.: 9906Rev.: 0.17. Functional Operation:7.1LEDStatus indication: (TBC Updated)Notes 1:There should only be two modes. The unit should default to mode 1 when powered on. Toswitch between mode 1 and 2 the user should press the button. If the user continues pressing thebutton it will cycle between mode 1 and mode 2.模式 / Mode待机 / Standby充电 /Charging充满 / ChargingFull错误 / ErrorMode 1.While thePCBA is instandby theLED lightwill be on.The LEDcolor andfunction willbe accordingto thisdiagram.红色 /RedOnOffOffBlink Slow绿色 /GreenOffOffOnOff蓝色 /BlueOffOnOffOffMode 2.While thePCBA is instandby theLED lightwill be off.The LEDwill turn onwhen thephone beginscharging(coloraccording tothis diagram)红色 /RedOffOffOffBlink Slow绿色 /GreenOffOffOnOff蓝色 /BlueOffOnOffOffSW1MODE1MODE2POWER(ON/OFF)短按 1秒短按 1秒长按 2秒

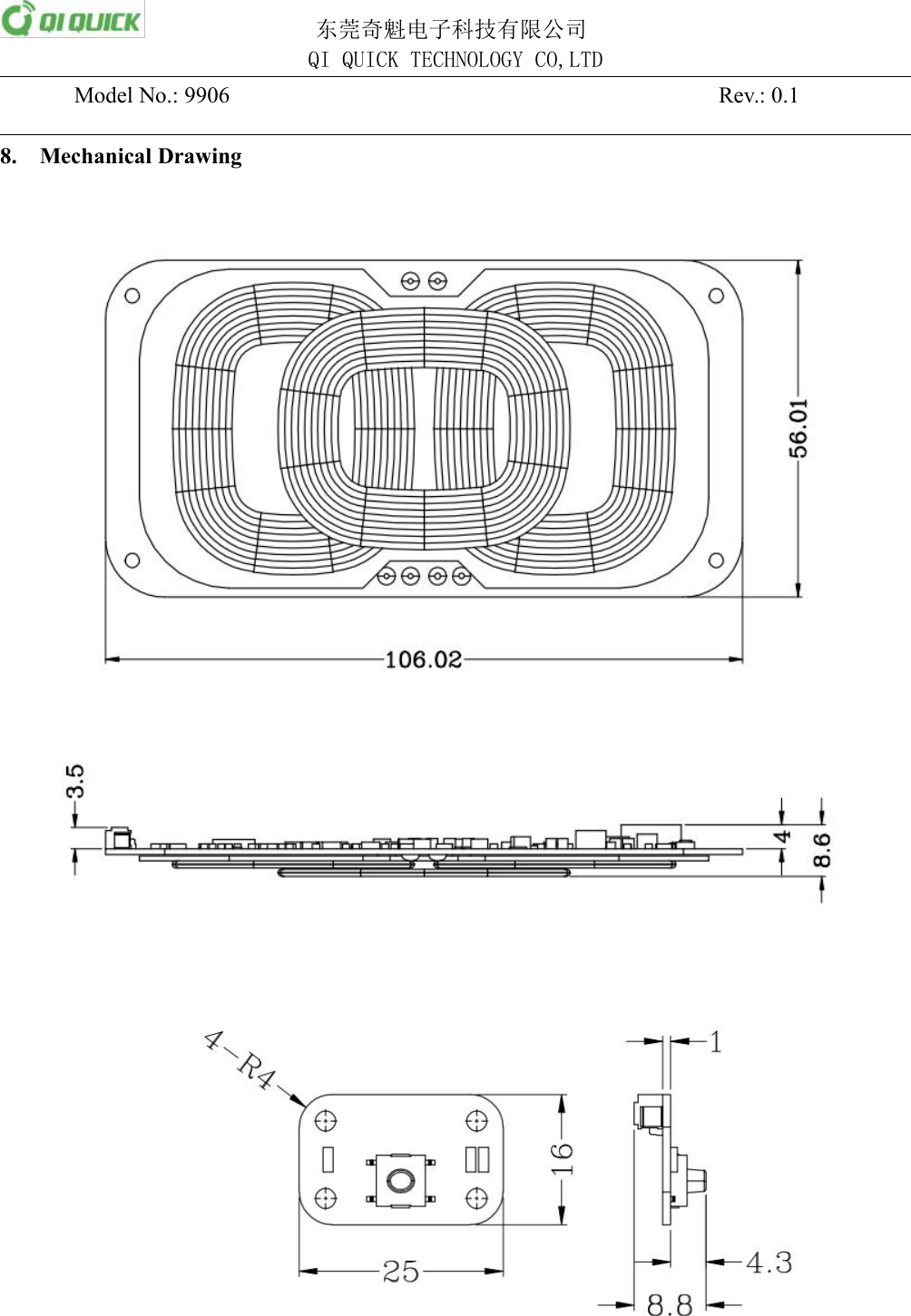

东莞奇魁电子科技有限公司QI QUICK TECHNOLOGY CO,LTDModel No.: 9906Rev.: 0.18. Mechanical Drawing

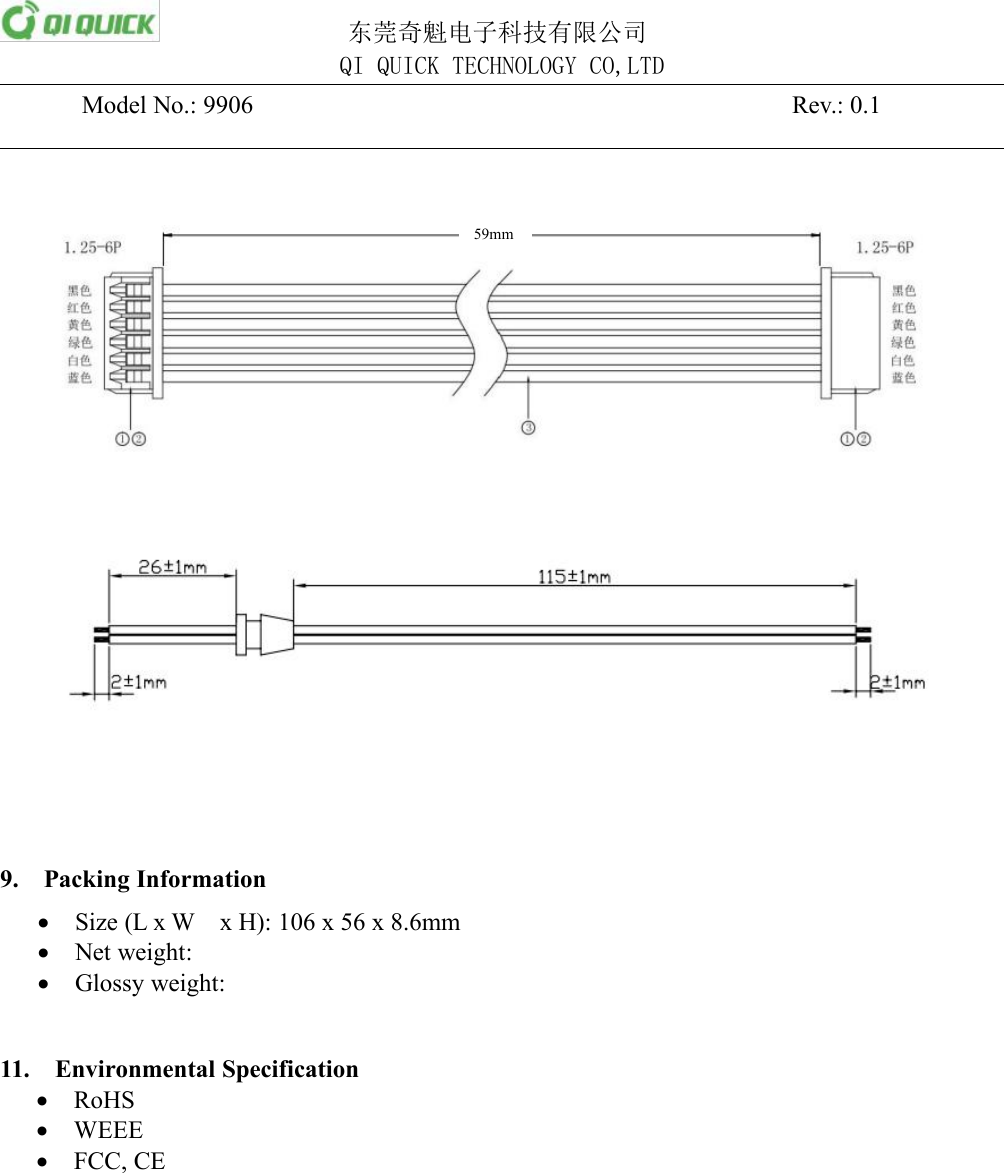

东莞奇魁电子科技有限公司QI QUICK TECHNOLOGY CO,LTDModel No.: 9906Rev.: 0.19. Packing InformationSize (L x W x H): 106 x 56 x 8.6mmNet weight:Glossy weight:11. Environmental SpecificationRoHSWEEEFCC, CE59mm

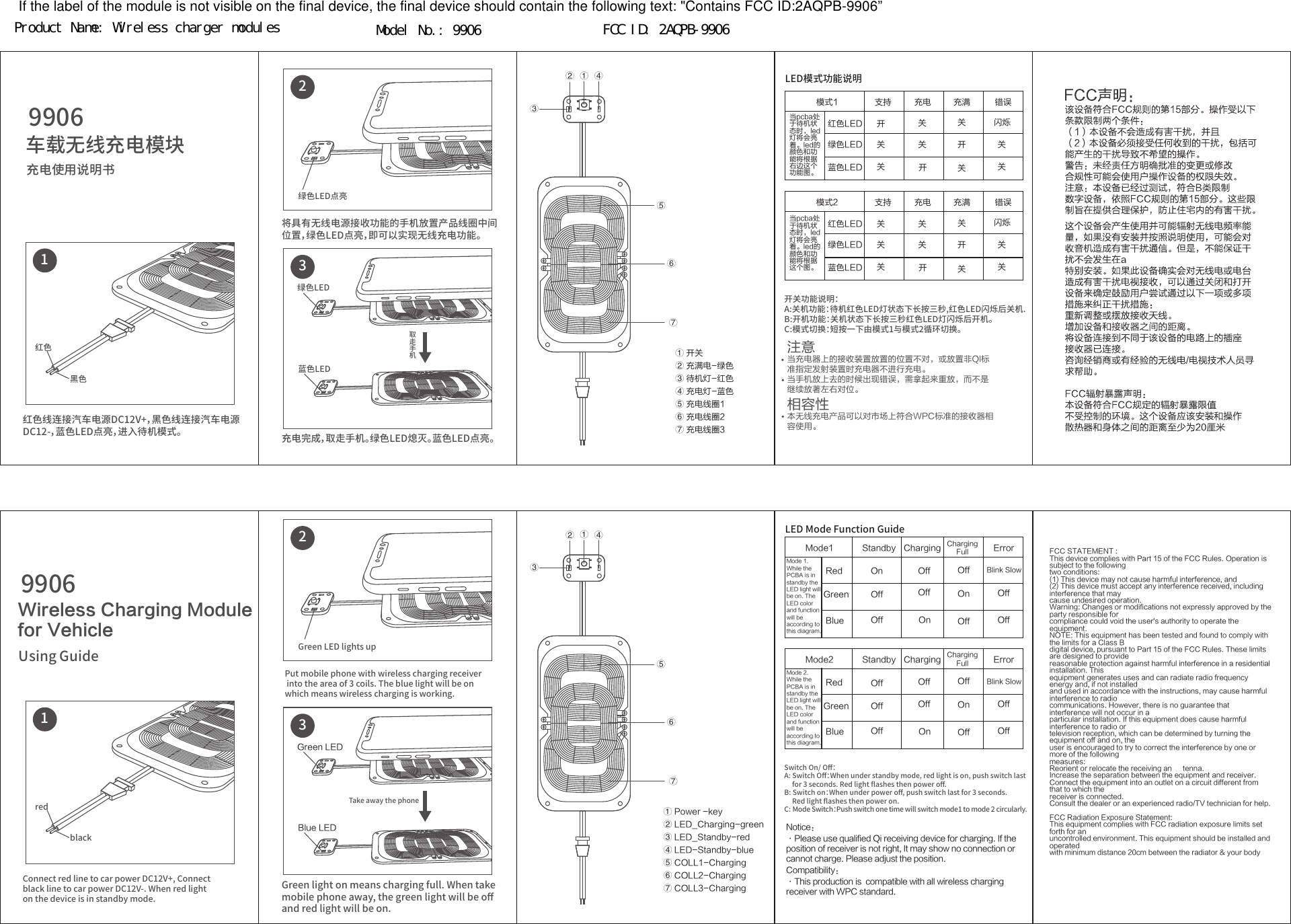

If the label of the module is not visible on the final device, the final device should contain the following text: "Contains FCC ID:2AQPB-9906”车载无线充电模块99061红色黑色红色线连接汽车电源DC12V+，黑色线连接汽车电源DC12-，蓝色LED点亮，进入待机模式。2将具有无线电源接收功能的手机放置产品线圈中间位置，绿色LED点亮，即可以实现无线充电功能。绿色LED点亮3充电完成，取走手机。绿色LED熄灭。蓝色LED点亮。绿色LED蓝色LED充电使用说明书Wireless Charging Modulefor Vehicle99061redblackConnect red line to car power DC12V+, Connect black line to car power DC12V-. When red light on the device is in standby mode.2Put mobile phone with wireless charging receiver into the area of 3 coils. The blue light will be on which means wireless charging is working. Green LED lights up3Green light on means charging full. When take mobile phone away, the green light will be off and red light will be on. Green LEDBlue LEDTake away the phoneUsing Guide注意当充电器上的接收装置放置的位置不对，或放置非Ql标准指定发射装置时充电器不进行充电。当手机放上去的时候出现错误，需拿起来重放，而不是继续放著左右对位。相容性本无线充电产品可以对市场上符合WPC标准的接收器相容使用。①① 开关②② 充满电-绿色③③ 待机灯-红色④④ 充电灯-蓝色⑤⑤ 充电线圈1⑥⑥ 充电线圈2⑦⑦ 充电线圈3开关功能说明：A:关机功能：待机红色LED灯状态下长按三秒,红色LED闪烁后关机.B:开机功能：关机状态下长按三秒红色LED灯闪烁后开机。C:模式切换：短按一下由模式1与模式2循环切换。LED模式功能说明模式1 支持 充电 充满 错误红色LED 开开开关关关关关关关关绿色LED蓝色LED闪烁①① Power -key②② LED_Charging-green③③ LED_Standby-red④④ LED-Standby-blue⑤⑤ COLL1-Charging⑥⑥ COLL2-Charging⑦⑦ COLL3-ChargingSwitch On/ Off：A: Switch Off：When under standby mode, red light is on, push switch last for 3 seconds. Red light flashes then power off.B: Switch on：When under power off, push switch last for 3 seconds. Red light flashes then power on.C: Mode Switch：Push switch one time will switch mode1 to mode 2 circularly.LED Mode Function GuideMode1 Standby Charging Charging Full ErrorRed OnOnOnOffOffOffOffOffOff OffOffGreenBlueBlink SlowNotice：·Please use qualified Qi receiving device for charging. If the position of receiver is not right, It may show no connection or cannot charge. Please adjust the position.Compatibility：·This production is compatible with all wireless charging receiver with WPC standard.当pcba处于待机状态时，led灯将会亮着。led的颜色和功能将根据右边这个功能图。 模式2 支持 充电 充满 错误红色LED开开关关关关关关关关关绿色LED蓝色LED闪烁当pcba处于待机状态时，led灯将会亮着。led的颜色和功能将根据这个图。Mode 1. While the PCBA is in standby the LED light will be on. The LED color and function will be according to this diagram.Mode2 Standby Charging Charging Full ErrorRedOnOnOffOffOffOffOffOffOff OffOffGreenBlueBlink SlowMode 2. While the PCBA is in standby the LED light will be on. The LED color and function will be according to this diagram.FCC STATEMENT :This device complies with Part 15 of the FCC Rules. Operation is subject to the followingtwo conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that maycause undesired operation.Warning: Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures:Reorient or relocate the receiving an 　 tenna.Increase the separation between the equipment and receiver. 　Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help. 　FCC Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits set forth for anuncontrolled environment. This equipment should be installed and operatedwith minimum distance 20cm between the radiator & your bodyＰｒｏｄｕｃｔ　Ｎａｍｅ：　Ｗｉｒｅｌｅｓｓ　ｃｈａｒｇｅｒ　ｍｏｄｕｌｅｓ Ｍｏｄｅｌ　Ｎｏ．：　９９０６ ＦＣＣ　ＩＤ：　２ＡＱＰＢ－９９０６
